VT-8505 - Decorative lamp V-TAC - Free user manual and instructions

Product Type	Illuminated LED Mirror Light
Model	VT-8505
Brand	V-TAC
Dimensions (H x W x D)	500 x 390 x 35 mm
Weight	Approx. 5.5 kg (estimated)
Power Consumption	17W
Luminous Flux	600 lumens
Beam Angle	120°
Color Rendering Index (CRI)	>80
Input Voltage	AC 200–240V, 50/60Hz
IP Rating	IP44
Demister Pad	Included (330×160mm)
Body Material	Iron
Light Source	Non-replaceable LED (replace whole unit at end of life)
Warranty	2 years from date of purchase
Installation	Hardwired, requires certified electrician
Control	Normal wall switch (no touch sensor for this model)
Suitable Zones	Zone 2 and Outside Zones only (per bathroom lighting zones)
Usage	Indoor use only; rated for 10-12 hours daily operation
Cleaning	Wipe with soft cloth; do not use harsh chemicals
WEEE Number	80133970

Frequently Asked Questions - VT-8505 V-TAC

Can the LED light source be replaced?

No, the light source is non-replaceable. When it reaches the end of its lifespan, the entire luminaire must be replaced.

What is the IP rating and where can I install this mirror light?

The IP rating is IP44, making it suitable for Bathroom Zone 2 and Outside Zones only. It must NOT be installed inside a bath or shower (Zone 0) or within 225cm above the bath (Zone 1).

Does the mirror light have a demister pad?

Yes, the VT-8505 includes a built-in demister pad (330×160mm) that prevents fogging, keeping the mirror clear.

What are the dimensions of the VT-8505?

The mirror light measures H500 x W390 x D35 mm.

How do I clean and maintain the mirror light?

Always disconnect power before cleaning. Use a soft cloth to wipe the surface. Avoid harsh chemical solvents that may damage the finish.

What is the warranty period?

V-TAC offers a 2-year warranty from the date of purchase against manufacturing defects. Damage from incorrect installation or abnormal wear is not covered.

Can I use this mirror light for 24 hours a day?

The product is designed for 10-12 hours daily operation. Using it 24 hours a day will void the warranty.

Does the VT-8505 have a touch sensor?

No, the VT-8505 does not have a touch sensor. It operates with a normal wall switch. Touch and CCT changing functions are only for models VT-8701 and VT-8602.

What tools are needed for installation?

You will need a Philips head screwdriver, a drill, and the provided Rawl plugs and screws. Installation should be done by a certified electrician with the power turned off.

Is this product suitable for outdoor use?

No, the mirror light is for indoor use only. It is designed for bathrooms but not for outdoor or wet environments beyond IP44 rating.

USER MANUAL VT-8505 V-TAC

WEEE Number: 80133970

INSTALLATION INSTRUCTION MIRROR LIGHTS

Two modern wall mirrors: one with a vertical light beam on the left, and another with a circular light beam on the right (no text or symbols visible)

2 YEARS WARRANTY*

TECHNICAL DATA:
Anti-fog

MODEL	WATTS	LUMENS	BEAM ANGLE	CRI	VOLTAGE/FREQUENCY	UNIT SIZE	IP RATING	DEMISTER PAD	BODY TYPE
VT-8505	17W	600LM	120°	>80	AC:200–240V, 50/60Hz	H500xW390xD35mm	IP44	330×160mm	Iron
VT-8700	30W	750LM	120°	>80	AC:200–240V, 50/60Hz	H700xW500xD35mm	IP44	450×250mm	Iron
VT-8701	25W	750LM	120°	>80	AC:200–240V, 50/60Hz	H700xW500xD35mm	IP44	450×250mm	Iron
VT-8800	38W	700LM	120°	>80	AC:200–240V, 50/60Hz	H800xW600xD35mm	IP44	560×330mm	Iron
VT-8601	25W	750LM	120°	>80	AC:200–240V, 50/60Hz	øD:600xD35mm	IP44	Dia360mm	Iron
VT-8602	25W	750LM	120°	>83	AC:220–240V, 50Hz	øD:600xD35mm	IP44	Dia360mm	Iron

WARNING!

1. Please make sure to turn off the power before starting the installation.
2. Proper grounding should be ensured throughout the installation.
3. The light source of this luminaire is not replaceable, when the light source reaches its end of life the whole luminaire should be replaced.
4. Installation should only be done by a certified electrician.

This marking indicates that this product should not be disposed of with other household wastes.

Caution, risk of electric shock.

INTRODUCTION & WARRANTY

Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions carefully before starting the installation and keep this manual handy for future reference. If you have any another query, please contact our dealer or local vendor from whom you have purchased the product. They are trained and ready to serve you at the best. The warranty is valid for 2 years from the date of purchase. The warranty does not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no warranty against damage to any surface due to incorrect removal and installation of the product. The products are suitable for 10-12 Hours Daily operation. Usage of product for 24 Hours a day would void the warranty. This product is warranted for manufacturing defects only.

Multi-Language Manual QR CODE

Please scan the QR code to access the manual in multiple languages.

IMPORTANT SAFETY INFORMATION

• Please read these instruction carefully before attempting to install this product. It is advisable to keep these instructions in a safe place for future reference.
• We recommend that you consult a qualified electrician. All electrical installation must be carried out in accordance with the current IEE wiring regulations (BS7671) and the latest relevant building regulations.
• This product must not be modified, if any modifications are made, it may invalidate the warranty and may render the product unsafe.
• This product is for indoor use only.

COMPONENTS TOOLS REQUIRED

Illustration of four different mechanical components: a door, a test tube, a screw, and a document (no text or symbols present)

Illustration of four different types of screwdrivers and a drill press tool (no text or symbols present)

SAFETY INSTRUCTIONS

1. Installation should only be done by a certified electrician.
2. Before commencing installation or maintenance, isolate the main electrical supply for appropriate circuit at the fuse board.
3. This product is only suitable for connecting to a 240V 50Hz supply.
4. The mirror light should be mounted onto a secure surface.
5. When installing, please take care to avoid water pipes, joints, and electrical cables.
6. This product has a rating of IP44.
7. Do not exceed or stretch cables.

PRODUCT OVERVIEW

• This illuminated LED mirror is a sleek addition to any bathroom, providing beautiful lighting.
• The mirror light features stylish soft-edge corners, as well as an illuminated front face, which is perfect for everyday tasks.
• The mirror light is built-in with demister pad which guarantees that the mirror light will always stay perfectly clear.

TYPES OF BATHROOM LIGHTING ZONES:

0 - Inside the bath or shower. Must be SELV (12V Max) due to water submersion. Minimum rating of IP67.
1 - 225cm above the bath or shower. Minimum rating of IP44.
2 - The area stretching to 60cm outside the bath or shower, and 60cm from the water outlet of the sink. An IP Rating of at least IP44 is required.
Outside Zones - Anywhere outside zones 0, 1 and 2, where water jets are not used for cleaning purposes, the general rules of BS7671 apply.

NOTE: V-TAC Mirror Lights are IP44 rated and suitable for installation in zone 2 and the outside zones ONLY.

INSTALLATION INSTRUCTIONS

Pure diagram of a rectangular frame with four circular holes and directional arrows, no text or symbols present.

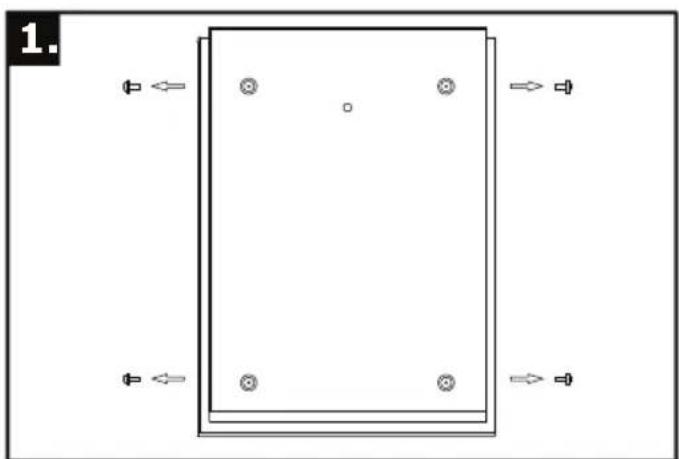

Step 1: Lay the mirror face down and remove the screws with a Philips head screw driver.

Note: Be careful to lay the mirror on a padded surface, that will not cause any scratches or abrasions.

Step 2: Carefully separate the back box from the glass mirror and pierce the rubber grommet.

Note: The rubber grommet will isolate and trap any steam to ensure the mirror remains protected.

ITEM NO	A(mm)	B(mm)
VT-8505	200 300
VT-8700VT-8701	300 500
VT-8800	400 600
VT-8601VT-8602	268 268

Note: Be careful before drilling to avoid any wiring or water pipes.

Step 3: Carefully mark your desired position for the mirror using the dimensions shown above. Then proceed to drill the holes for the Rawl plugs and screws.

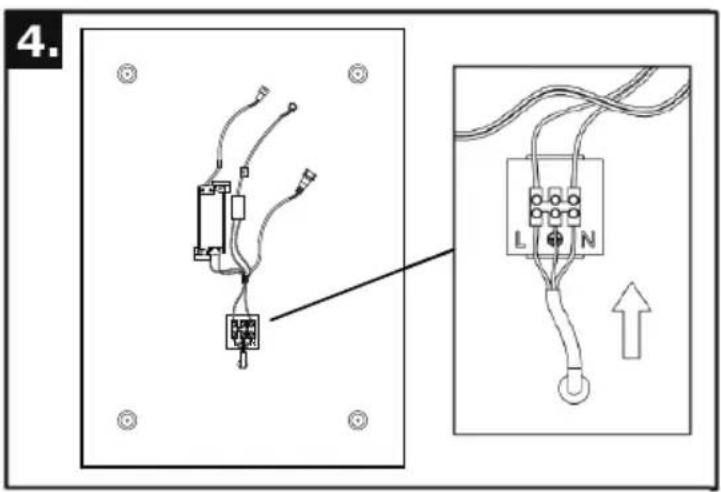

Step 4: Thread a 3-core mains cable through the rubber grommet in the back box and connect it to the junction box.

Note: Please refer to the wiring diagram as shown below.

WIRING DIAGRAM

Live Supply can be Red or Brown. Earth Supply is Green and Yellow. Neutral Supply can be Blue or Black.

Technical line drawing of a mechanical assembly with a bracket and mounting base (no text or symbols)

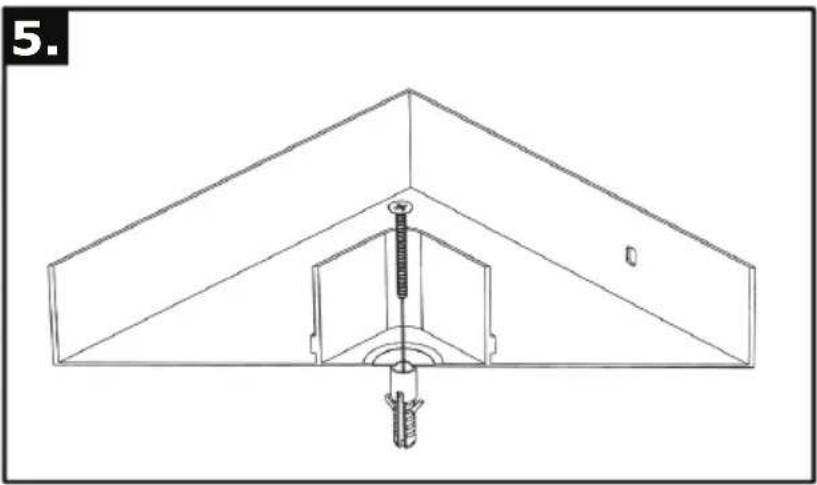

Step 5: Insert the Rawl plugs into the pre-drilled holes and then secure the back box to the wall using the four screws provided.

Step 6: Connect the male and felmale connectors for the demister pad and LED, proceed to slot the glass panel over the back box. Finally, re-insert the screw to fasten the two parts together.

TOUCH SWITCH AND CCT CHANGING OPERATIONS: (Applicable only for Model No.VT-8701 & VT-8602)

Touch Sensor

1. On/Off - Touch to turn the light ON/OFF
2. Colour Temperature - Press and hold the bottom to change the colour temperature between cool white and warm white.

Note: The touch switch and CCT changing operation is only designed for VT-8701 and VT-8602. The other models [VT-8505, VT-8700, VT-8800, VT-8601] work with a normal switch.

MAINTENANCE & CAREFULLY

1. Ensure that the power is disconnected prior to cleaning.
2. To keep the finish of this product, wipe out with soft cloth periodically.
3. Do not use harsh chemical solvents, this may dis-colour or damage the finish.
4. Do not over-tighten screw on the terminal block
