KOGAN SMARTERHOME™ SMART TOUCH LIGHT SWITCH

(1, 2 & 3 GANG)

Read and follow the installation instructions provided in the user guide before installation and operation. Retain this user guide for future reference.

Electrical Safety:

• This product must be installed by a licensed electrician or qualified trade professional.
• Before installing or handling the smart light switch, ensure that the power supply to the switch is turned off.
• Do not touch the electrical terminals of the switch with bare hands or conductive objects.
• Ensure that the electrical wiring is properly grounded and meets local electrical codes and regulations.
• Avoid exposing the smart light switch to water or other liquids to prevent electrical shock or damage.

Installation and Use:

• Ensure that the smart light switch is securely mounted to the wall or junction box to prevent it from falling or becoming loose.
• Avoid using the smart light switch in environments with extreme temperatures, high humidity, or excessive dust.
• Keep the smart light switch away from direct sunlight or heat sources that may damage the device.
• Use a soft, dry cloth to clean the surface of the smart light switch. Avoid using abrasive or corrosive cleaning agents that may damage the device.
• Do not disassemble the smart light switch or attempt to repair it yourself. Contact help.Kogan.com for support.

OVERVIEW

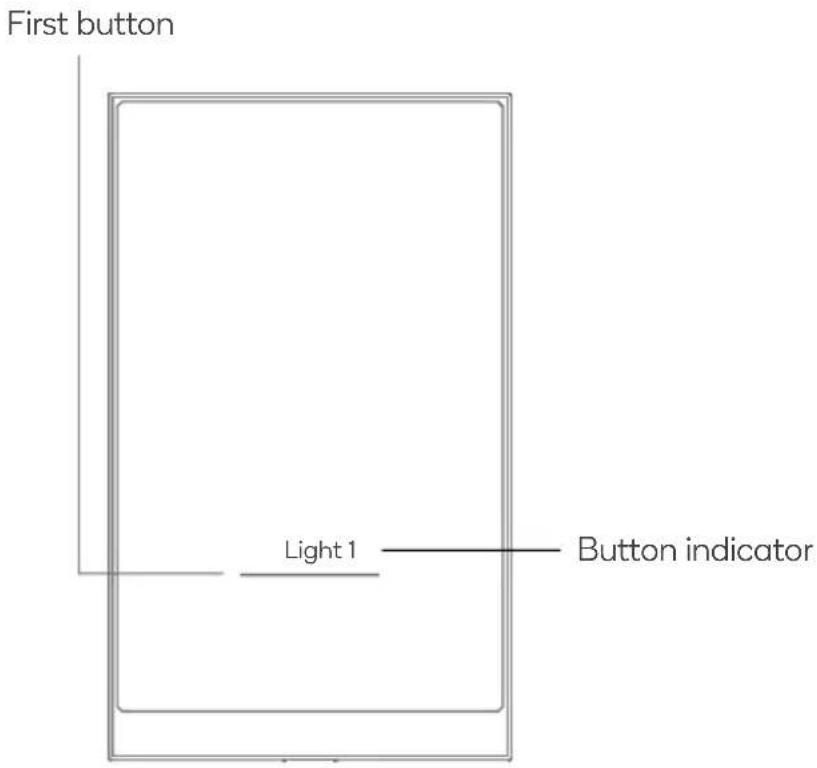

1 gang light switch

First button Light 1 —— Button indicator

Light switch	Operation	Methods	Indicator status
	ON/OFF	Short press any button	The indicator light turns on and off according to the load status.
	Network pairing mode	Long press (5 sec.) the first button	The first button indicator will flash quickly.The indicator will turn off to indicate successfully connected to network.

2 gang light switch

First button Light 1 Light 2

3 gang light switch

First button Light 1 Light 2 Light 3

INSTALLATION

• This product must be installed by a licensed electrician or qualified trade professional.

- Before installation, ensure that the power supply to the switch is turned off.

- The installation location of the light switch must have a neutral wire. Where multiple neutral wires are present, ensure that it is the same neutral wire as the light intended to be controlled.

- When installing, the junction box should not be greater than: 71x45x26mm.

- Confirm all the wiring is correct before turning on the main power to avoid hazards.

Wiring Diagram

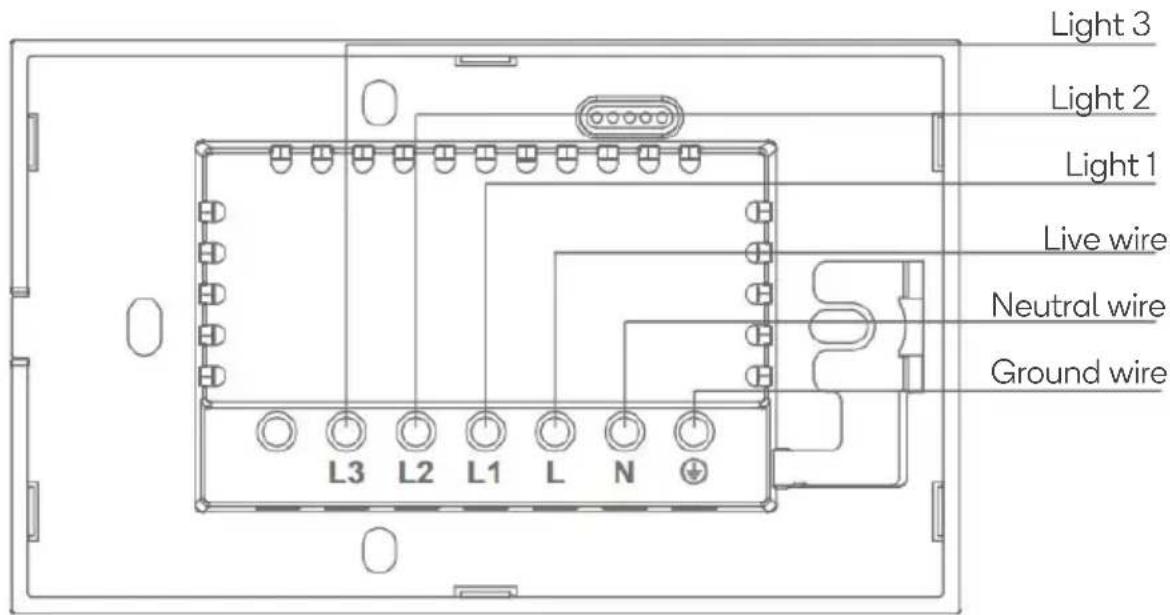

Follow the wiring diagram below to connect the wiring to the light switch. Note: The diagram is for a 3 gang switch, 1 & 2 gang models will have the respective number of lights to wire.

Light 3 Light 2 Light 1 Live wire Neutral wire Ground wire L3 L2 L1 L N

Notes:

• This product must be protected by a 10A circuit breaker.
• The switched circuits cannot be used in SELV/PELV circuits.

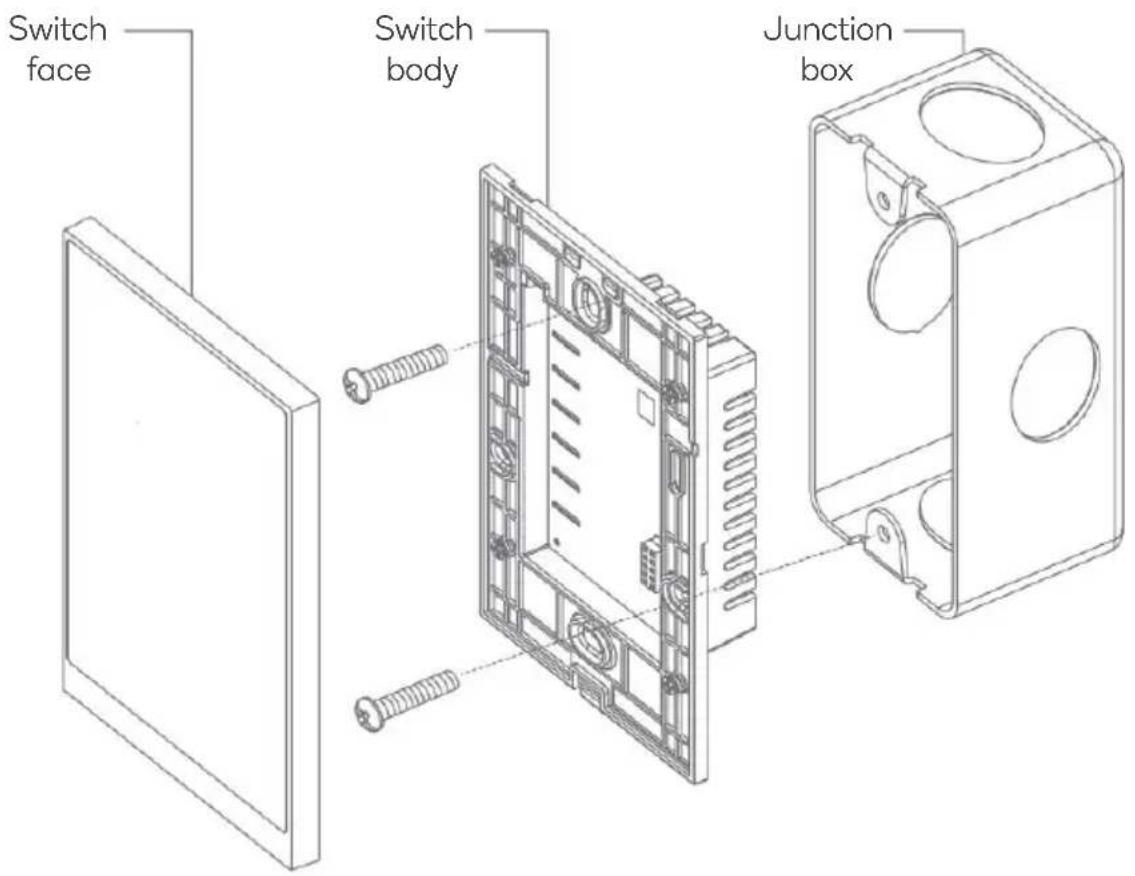

Installing the Switch

1. Separate the switch face from the switch body using a flat screwdriver.
2. Attach the switch body to the wall junction box using the supplied screws.
3. Attach the wall switch face to the switch body.
4. Ensure the wiring has been connected correctly before turning the power back on.

Switch face Switch body Junction box

CONNECT TO SMARTERHOME™ APP

Install App

Download the "Kogan SmarterHome" app from the Play Store (Android) or App Store (iOS).

QR code image containing encoded data, no visible human-readable text

App Store (iOS)

To register:

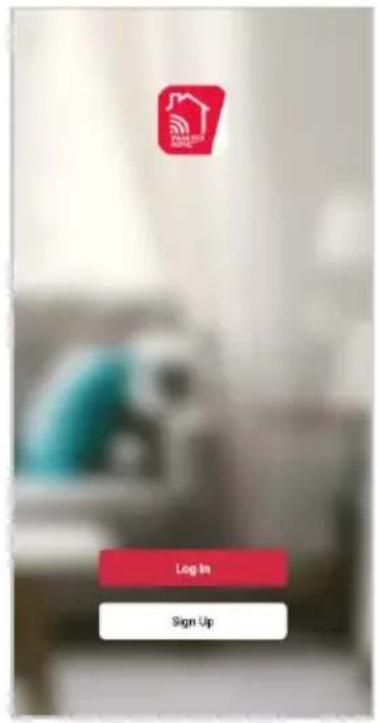

1. If you already have a SmarterHome account, select 'Log In'. To register a new account, select 'Sign Up'.
2. The system will automatically recognise your country. If needed, you can manually select your country from the drop-down box. Enter your email address and tap 'Get Verification Code' to continue.
3. A 6-digit code will be sent to the submitted email address. Enter this code before the one-minute timer expires.
4. Continue to the next page and complete your SmarterHome profile.

Log In Sign Up

Register Australia Email Address

Enter Verification Code I A verification code has been sent to your email Didn't get a code?

Set device in pairing mode

When the device is first turned on, it may automatically enter pairing mode (the indicator on the first button is flashing rapidly).

If not automatically in pairing mode when powered on, you can manually set the device in pairing mode by pressing and holding the first button for 5 seconds until the button indicator begins flashing rapidly.

Add device through network

1. Once registered, tap "Add Device" on the app's home page, or the "+" in the upper right corner, to add a new device through the network.
2. Select the product type from the list of options in the app (Electrical > Smart Touch Light Switch Gang).
3. Enter your Wi-Fi details. It is important that your SmarterHome™ device and the app are connected to the same Wi-Fi network during setup.

Home * 14°C Add Device Create Scene 41.7% 100kPa 5.0m/s Outdoor Temperature Outdoor Air Pop Outdoor Wire Ro. All Devices Living Room Master Bedroom S ... No devices Add device

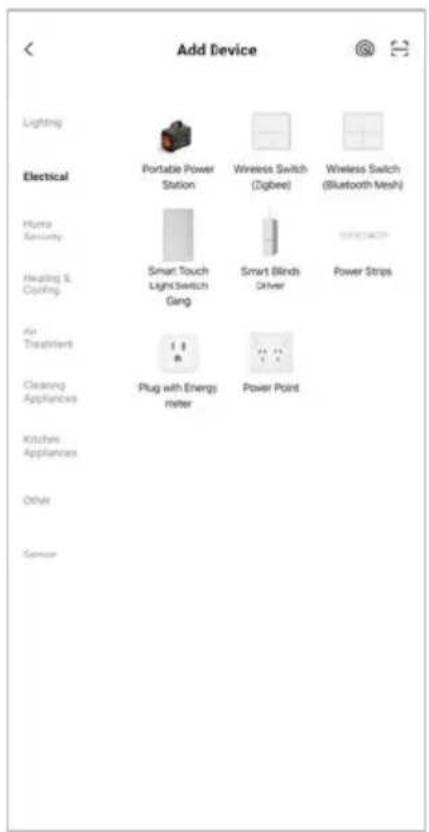

Add Device Lighting Electrical Portable Power Station Wireless Switch (Zigbee) Wireless Switch (Bluetooth Mesh) Humi Security Smart Touch Light/Switch Geng Smart Blinds Driver Power Strips Heating & Cooling Air Treatment Cleaning Appliances Plug with Energy meter Power Point Kitches Appliances Other Sensor

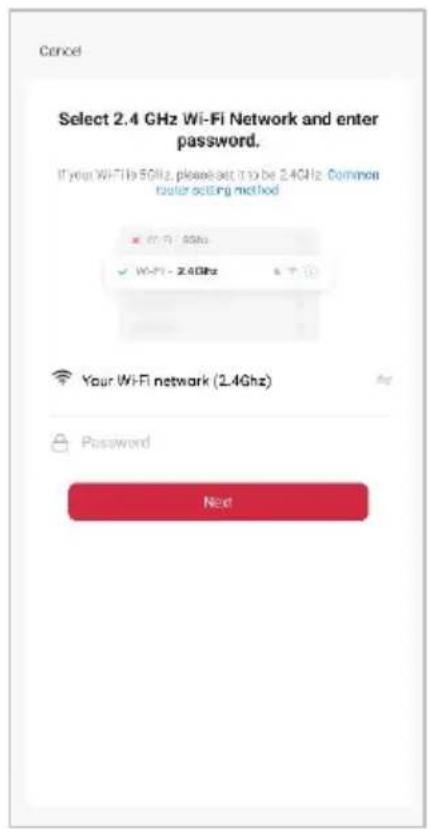

Cancel Select 2.4 GHz Wi-Fi Network and enter password. If your WiFi is 5GHz, please set it to be 2.4GHz common router setting method ✓ Wi-Fi - 5GHz ✓ Wi-Fi - 2.4GHz Your WiFi network (2.4GHz) Password Next

Notes:

• The device and the app have to use the same Wi-Fi network.
• The device is only compatible with 2.4Ghz networks.
- Depending on the product, Steps 3 and 4 may be in opposite order.

1. Ensure that the device is in pairing mode, with the indicator on the first button flashing rapidly, select "Confirm indicator rapidly blink" and tap "Next".

2. The device will commence the pairing process and connect to the app. Ensure your Wi-Fi router, mobile phone, and the SmarterHome™ device are kept close until connection is complete.

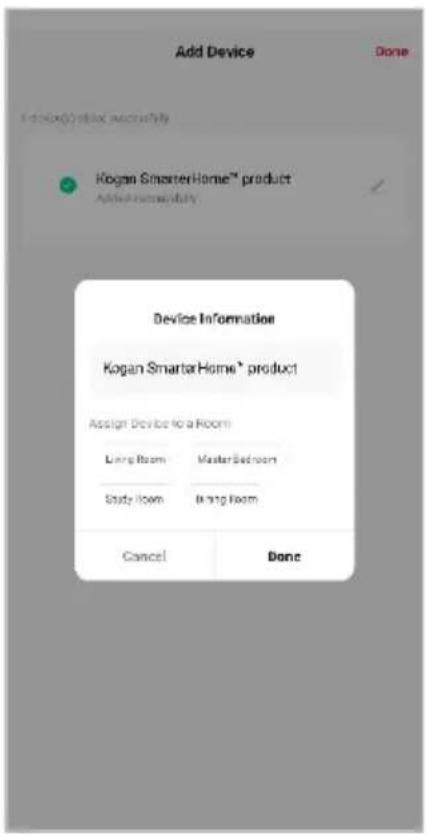

3. After successfully being added, you will have the option to rename the device and assign it to a location. It will now be listed on the app's home page. Tap the device listing to enter its control page.

Reset the device Power on the device and confirm that indicator light rapidly blinks Confirm indicator rapidly blink Next Resetting Devices

Cancel Adding device... Ensure that the Vi-Fi signal is good. 01:55 Scan devices Eng. Amgen CMA Add to the device

Add Device Done Device Information Kogan Smartar Home™ product Add HomeDaily Assign Device to a Room Living Room Master Bedroom Study Room Bright Room Cancel Done

Note:

Once connected, you can select Create Scene from the "+" in the upper right corner (or from the Scene tab) to group connected SmarterHome™ products and automate their functions.

SPECIFICATIONS

Dimension	116 x 70 x 35mm
In-wall Size	71x45x26mm (LxWxH)
Output	Incandescent lamp 300W/gang.maxFluorescent lamp 150W/gang.max
Input	AC 100V-240V 50/60Hz
Wireless Protocol	Wi-Fi & Bluetooth
Transmit Power	19dBm
Receiving Sensitivity	-100dBm
Communication Distance	>300m (Open area)
Control Method	Manual control, App control

Need more information?

We hope that this user guide has given you the assistance needed for a simple set-up.

For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com
