KAHRCDACKHA - Clothes Dryer Kogan - Free user manual and instructions

Product Type	Heated Clothes Drying Rack with Timer
Brand	Kogan
Model	KAHRCDACKHA
Dimensions (H x W x D)	1480 mm × 530 mm × 900 mm
Weight	2.8 kg
Rated Power	260 W
Voltage	AC 220-240 V
Frequency	50 Hz
Timer Settings	1 hour or 24 hours
Temperature Settings	45°C or 70°C
Max Load per Rack	5 kg
Material	Metal frame with plastic components
Usage Location	Indoor only
Safety Features	Operates only in upright position; no user-serviceable parts; do not cover
Assembly Required	Minimal assembly required
Care Instructions	Unplug and allow to cool before cleaning; wipe with damp cloth

Frequently Asked Questions - KAHRCDACKHA Kogan

How do I turn on the Kogan Heated Clothes Drying Rack?

Plug the power cord into an electrical outlet, then press the power button. To set the timer, press the power button again to toggle between 1 hour and 24 hours. To turn off, press and hold the power button until the unit shuts down.

What temperature settings are available?

Press the temperature button (labeled with a bulb icon) to toggle between 45°C and 70°C.

Can I leave the drying rack unattended?

Extreme caution is necessary when this product is used by or near children, and whenever the heater is left operating and unattended. It is recommended to unplug the unit when not in use.

Can I use this drying rack outdoors?

No, this product is designed for indoor use only. Do not use it outdoors or in areas where gasoline, paints, or flammable liquids are present.

What is the maximum weight I can put on each rack?

Do not place anything heavier than 5 kg on each rack to avoid damage or instability.

How do I clean the drying rack?

Always unplug the unit and allow it to cool completely. Wipe the surfaces with a damp cloth. Do not immerse in water or use abrasive cleaners.

Can I dry items that are not washed in water?

This appliance is intended only for drying textiles washed in water. Do not use it for other materials or items containing flammable substances.

Does the drying rack have an automatic shut-off?

The built-in timer can be set to 1 hour or 24 hours. After the selected time elapses, the unit will automatically shut off. However, it does not have an automatic shut-off for overheating.

Can I use an extension cord with this drying rack?

It is not recommended to use an extension cord. If you must, ensure the cord is rated for at least 260 W and avoid running it under carpets or in high-traffic areas to prevent tripping.

How should I store the drying rack when not in use?

Allow the unit to cool completely, then store it in a cool, dry location. Do not store until it has cooled down to avoid fire hazards.

USER MANUAL KAHRCDACKHA Kogan

3D rendering of a folding table with metal frames and adjustable arms (no text or symbols)

HEATED CLOTHES DRYING RACK WITH TIMER

KAHRCDACKHA

SAFETY & WARNINGS

• Read all instructions before using this product. Retain this user guide for future reference.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• Extreme caution is necessary when this product is used by or near children and whenever the heater is left operating and unattended. Always unplug this product when not in use.
• Do not operate any product with a damaged cord or plug or after the product malfunctions, has been dropped or damaged in any manner. Cease use immediately and contact help.Kogan.com for support.
• Do not use outdoors.
• Do not locate this product where it may fall into a bathtub or other water containers.
• Do not run the power cord under carpeting. Do not cover the cord with throw rugs or runners. Arrange the cord away from high traffic area and where it will not be tripped over.
• Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock, fire or damage the heater.
• Do not use it in areas were gasoline, paints or flammable liquids are present.
• Use this product only as described in this user guide. Any other use may cause fire, electric shock or injury to persons.
• This heater only operates in upright position.
• Store the heater in cool dry location when not in use.
• Do not store until the heater until it has cooled down.
• This product does not contain any user serviceable parts. Any repairs should only be performed by licences trade professionals.
• The heater must not be located directly below an electrical outlet.
• This appliance is intended only for drying textiles washed in water.
• Do not place any objects over the whole surface of this product.
• Do not place anything heavier than 5kg on each of the racks.

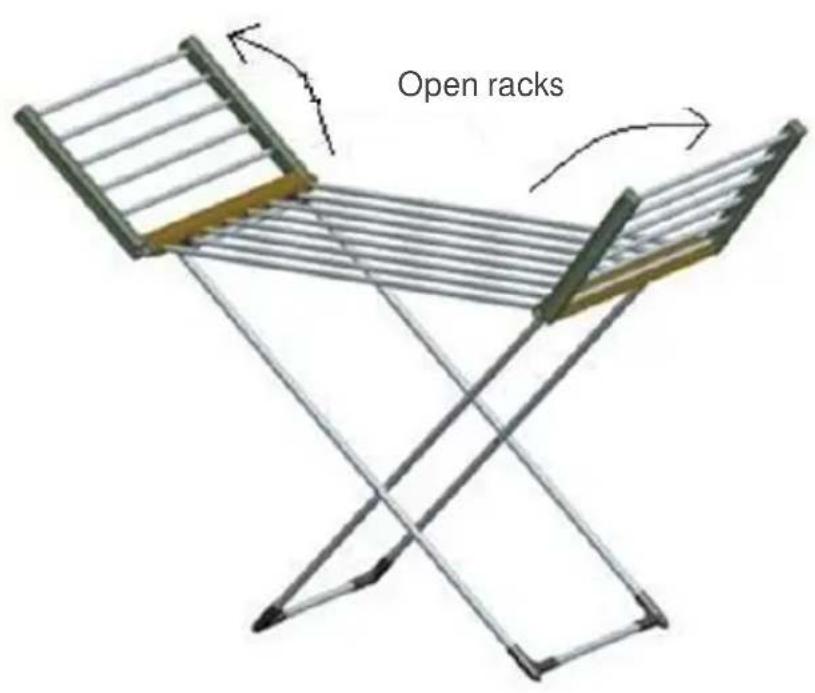

ASSEMBLY

OPERATION

Turning On/ Off

1. Plug the power cord into an electrical outlet.
2. To turn the product on press the power button.
3. Press the power "⏻" button again to toggle between 1 hour and 24 hour timers.
4. To turn the product off, press and hold the power button.
5. When the product is no longer in use, disconnect the power cord from the electrical outlet.

Temperature Control

Press the temperature “💡” button, the temperature will toggle between 45^ C and 70^ C.

SPECIFICATIONS

Voltage

AC220-240V

Frequency

50Hz

Rated power

260W

Dimensions

1480mm × 530mm × 900mm

Unit weight

2.8kgs

NOTES

Need more information?

We hope that this user guide has given you the assistance needed for a simple set-up.

For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com

kogan.com
