USER MANUAL RTL 8751SU-19 CANDY

Please read this manual carefully before operating your washing machine and retain it for future reference.

CANDY RTL 8751SU-19 - 1

CANDY RTL 8751SU-19 - 2

■ Product overview 1
■ Safety precautions 2

| Description of symbols 2

Safety warning 2

■ Installation & adjustment 5

Install the bottom plate 5
Balance washing machine 5
Usage of the drain hose 6
Inlet pipe connection 7

■ Before washing 8

Check the following before washing 8

■ Operation 9

| Loading your laundry 9
Usage of the detergent 9
Explanation of buttons 10
Button Operation and Descriptions 13

■ Cleaning or Maintenance 14
■ Trouble-shooting 15
■ Packing list 16
■ Specification 17

Product overview

CANDY RTL 8751SU-19 - Product overview - 1

CANDY RTL 8751SU-19 - Product overview - 2

Please understand the shapes of the washing machine and accessories may be different from the sketch figures in this manual due to product improvement.

Safety precautions

Description of symbols

Warning sign	Contents marked with this symbol are related to the safe use of the product and the personal safety of the user.Please operate in accordance to the contents of this manual,to avoid harm to the user or damage to the machine itself.
Forbidden sign	Contents marked with this symbol indicate operations or actions that should not be undertaken by the user.Performing of such actions may result an injury to the user or damage to machine itself,and void warranty.

Safety warning

Please check power socket condition to ensure it has been earthed correctly prior to installation to ensure your safety.

CANDY RTL 8751SU-19 - Safety warning - 1

Warning

A separate, earthed power socket is required for the power supply.Hold the plug-not the electric cable-when unplugging the washing machine.Do not insert or remove the power plug with wet hands.The power plug should be accessible after the machine installation.	Ensure the plug is removed and the taps turned off in the following cases.Power failure, cleaning, moving,installation and when not in use.The new hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused.The rated washing capacity,spinning capacity,The max. and min.inlet water pressure refer to specification page.
This appliance is intended to be used in household and similar applications such as:— staff kitchen areas in shops,office and other working environments;— farm houses;— by clients in hotels,motels and other residential type environments;— bed and breakfast type environments;— areas for communal use in blocks of flats or in launderettes.	If the supply cord is damaged, it must be replaced by the manufacturer its service agent or similarly qualified persons in order to avoid a hazard.CAUTION:If this appliance is supplied from a cord extension set or electrical portable outlet device ,the cord extension set or electrical portable outlet device must be positioned so that it is not subject to splashing or ingress of moisture.

Safety precautions

CANDY RTL 8751SU-19 - Safety precautions - 1

Forbidden

Do not install this appliance in a damp or wet environment. Do not leave wet laundry on the control panel or spray water directly onto this appliance, as this may cause the washer to malfunction or cause an electrical fault.		Do not connect to hot water higher above 50°C. The maximum inlet water pressure refer to specification page.
Do not block the ventilation holes with carpet.Ensure carpet does not obstruct the opening under the base of the cabinet.	FrontBackBottom plateSoft object	Do not wash water-proof clothing as this may affect load balance during spin cycle(s).
If you are using an extension cord or a portable electrical outlet device (not recommended), ensure that it is positioned so that it does not come into contact with water or moisture.

Do not attempt to move washing or place hands inside washing machine while in operation.Please ensure children are supervised around machine to avoid harm.		Do not take apart, repair or alter the machine by yourself.
Do not leave hot or heavy stuff on lid or control panel as this may cause damage to the washer or make the washer unsafe to operate.		Do not wash laundry with chemicals or other volatile materials(such petrol,solvents or thinr as this cause damage to the machine.
This appliance is not intended for use by persons (including children) with reduced physical,sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction by a person responsible for their safety.Children should be supervised to ensure that they do not play with the appliance.		Keep washer away from heat sources such as heater, stoves or direct sunlight.

Safety precautions

Safety warning

The washing machine whose lid can be opened during water extraction, that it takes 15s or more for complete stop of water-extracting chamber tub.The new hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused.
Please remove item such as coins, button, sand and other solid materials from clothing before washing.	Check that water faucets are open after connection to machine, prior to operation and that pipes are connected correctly.Please use low suds/High Efficiency washing powder.

■If power cord or other parts of this machine become damaged or faulty, please contact a technician to have it repaired. Do not attempt repairs by yourself as this may cause personal harm or void warranty.

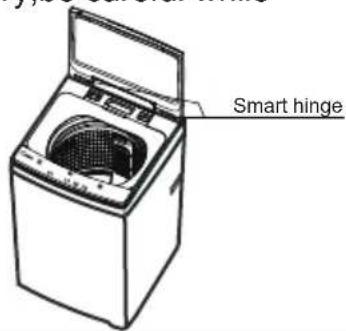

■Smart hinge prevents sudden closing of the door. Door is heavy, be careful while closing of the door.

Do not let your hands or any other material be caught below door. It might cause injury or damage.

Door closing time is dependent on ambient temperature.

The higher the ambient temperature, the shorter the door closing time and vice versa. Smart Closing Door performs best when lid is closed from full open condit

CANDY RTL 8751SU-19 - Safety warning - 2

■The washing machine whose lid can be opened during water extraction, that it takes 15s or more to stop of water-extracting chamber tub. The new hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused.

CANDY RTL 8751SU-19 - Safety warning - 3

Installation & Adjustment

Please install and adjust the machine according to the directions contained in this manual. It is very important to follow these directions for the safe operation of the machine and to ensure your machine operates correctly.

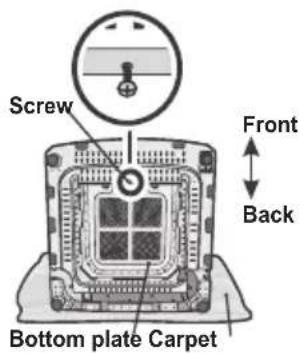

Install the bottom plate

The purpose of the bottom plate is to suppress noise from the washing machine during operation.

Steps:

Lay the washer on its back, on a nonabrasive surface.
Place the plate onto the bottom of the machine.
Use a screwdriver to tighten the screw (in accessory bag) securing the panel to bottom of the washer.
Once the screw is tight and the panel is secure, return the washer to its standing position.

CANDY RTL 8751SU-19 - Install the bottom plate - 1


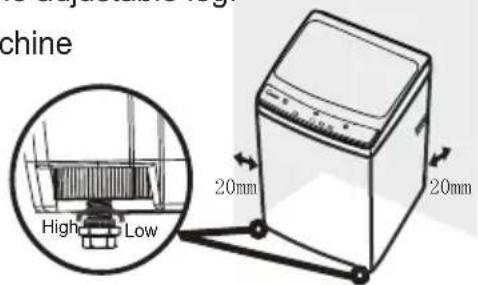

Balance washing machine

Do not install this machine on an incline greater than 2^ . Installing machine on an angle or on rough ground will result in unstable running or stoppage of the machine. Please adjust it by the following method:

Confirm it is level ;
Lift up the side of the leg slightly and twist the adjustable leg.

Note: The distance between the washing machine and wall:at least 20 mm.

CANDY RTL 8751SU-19 - Balance washing machine - 1

CANDY RTL 8751SU-19 - Balance washing machine - 2

Installation & Adjustment

Usage of the drain hose

The drainage shall be smooth with the drain hose.

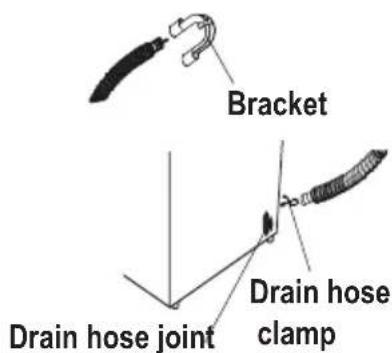

First connect the drain hose to the connection point on the lower right side of the cabinet, and fasten with drain hose clamp (provided).
Connect drain hose guide on to the outside of drain hose. To guide the drain hose over the tub or standpipe, the bracket MUST be fitted to the drain hose.
The height of the standpipe or tub should be between 0.8 - 1.2 m.
To avoid syphoning, the drain hose should not extend more than 20 mm from the end of the guide.

Ensure drain hose is held in place to avoid leaks or spills.

CANDY RTL 8751SU-19 - The drainage shall be smooth with the drain hose. - 1

CANDY RTL 8751SU-19 - The drainage shall be smooth with the drain hose. - 2

CANDY RTL 8751SU-19 - The drainage shall be smooth with the drain hose. - 3

Installation & Adjustment

Inlet pipe connection

■ The new hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused.

Connect the water inlet hose to the water tap. You may have to use pliers to tighten the coupling. Do not over tighten as this may cause damage to the valve or hose fittings.

CANDY RTL 8751SU-19 - Inlet pipe connection - 1


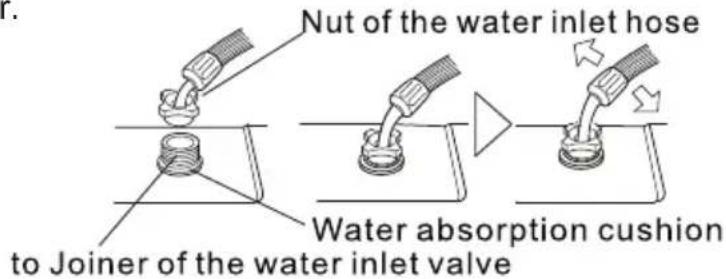

Connect the other ends to their respective cold and hot water inlet valves located on the top of the washer. Nut of the water inlet h

CANDY RTL 8751SU-19 - Inlet pipe connection - 2

Fasten each hose on the washing machine and ensure a tight connection.

■ Check the inlet hose connections

Swing the hose gently to confirm that the hose is securely fastened.
After installation, open the tap to check for leaks.
3.Do not bend the hose unduly.
Periodically check the hose connections are firm at both ends. This is to ensure the connections remain watertight over time.

CANDY RTL 8751SU-19 - ■ Check the inlet hose connections - 1

■Remove the water inlet hoses

Turn off the water taps.
Loosen each connection at water taps and washer.
Carefully remove each hose separately, as they may contain residual water.

Before washing

CANDY RTL 8751SU-19 - Before washing - 1

Preparation before washing

Ensure the water inlet hoses are correctly installed and faucets are turned on.
Insert the power plug into the electric socket.
Ensure the drain hose is mounted at the correct height.
Select a suitable location for the washer on a hard, even surface, away from direct sunlight or heat sources,

e.g. Radiators/heaters, cooking, appliances etc.

Any floor unevenness may result in unstable working or abnormal noise. Please ensure the machine is level.

CANDY RTL 8751SU-19 - Preparation before washing - 1

Check the following before washing

Clear the pockets and take out loose items such as coins, sand, hairpins, etc.

CANDY RTL 8751SU-19 - Check the following before washing - 1

Tie any long straps or strings, fasten buttons and close zippers.

CANDY RTL 8751SU-19 - Check the following before washing - 2

The weight of the laundry shall not exceed the rated capacity of your machine, loosen the laundry before placing it evenly in the tub.

CANDY RTL 8751SU-19 - Check the following before washing - 3

When the machine is running, buttons may cause noise.

To reduce the noise, turn clothes inside out or place them in a laundry bag.

CANDY RTL 8751SU-19 - Check the following before washing - 4

a. Check if the laundry has any special washing instructions.
b. Divide the laundry into colour fast and non-colour fast items.
c. Separate items that do not absorb water easily and wash by hand.
d. For heavily soiled items, please first remove loose dirt, then apply detergent directly (as per instructions on pack) to the stain before washing.
e. For those items that may attract lint or are furry or fluffy, please turn inside out before washing.
f. Do not put laundry soiled with chemicals or solvents into the washing machine.

Operation

Loading your laundry

CANDY RTL 8751SU-19 - Loading your laundry - 1

■ The rated washing capacity refers to the largest dry weight of a load that can be washed.
■ The thickness, size and type of clothes will influence the actual capacity.
- Do not select more than water level "4" for clothes less than 1.0kg, to avoid splashing of water.
It is recommended that low suds/high efficiency washing powder should be used.

Usage of the detergent

CANDY RTL 8751SU-19 - Usage of the detergent - 1

Liquid detergent dispenser

Powder detergent dispenser

Softener dispenser

How to use liquid detergent

Before washing put the liquid detergent into the liquid detergent box directly as indicated the above figure. The usage and dose of the liquid detergent as per the specifications of liquid detergent.

How to use softener

The usage and dose of the softener as per the specification of softener.
Before washing put the softener into the detergent box directly. The softener will be put into the washer when the last rinsing.
■ After the softener is put in, please don't place for a long time otherwise softener may solidify and cause flowing not smooth.
When water pressure is too low, it is possible that softener cannot be washed away effectively, and softener would be agglomerated after a period of time. Please clean the softener box in time. It is recommended to pour the softener into the basket directly after water is filled at the last rinse.

Note:

The machine can not store the liquid detergent and the softener. You need to add again during the next laundry.

You have to put the liquid detergent and softener according to the amount of one washing needed, in case of spill.

How to use washing powder

It is suggested to dissolve detergent before adding to the tub, see as below: It is suggested
1. Prepare warm water (<35°C) in a container.
2.Add washing powder, stirring to dissolve it completely.
■ Adding washing powder Cotton Wash
It is recommended that washing powder/liquid is dissolved with water and then directly emptied into the washing machine:

Add some water (select the "1" water level)
Add washing powder/liquid. Run for about 30 seconds to fully dissolve the detergent. Then push the "Start/Pause" button to pause the wash cycle.
Load laundry. Select suitable water level. Push the "Start/Pause" button again to recommence washing cycle.

If you select "Quick" program, it is recommended to use liquid detergent instead of washing powder to ensure the most effective wash results.

■ Old or poor quality washing powder may causing caking in tub or detergent dispenser.

■ Clean the detergent box periodically to ensure washing power is evenly distributed and remove any detergent built up.

When water pressure is too low, it is possible that washing powder or washing liquid cannot be washed away effectively, and washing powder or washing liquid would be agglomerated after a period of time. Please clean the detergent box in time. It is recommended to pour the washing powder or liquid into the basket directly.

Close the lid

If you open the lid during all cycles the machine will stop and an audible alarm will sound.

Operation

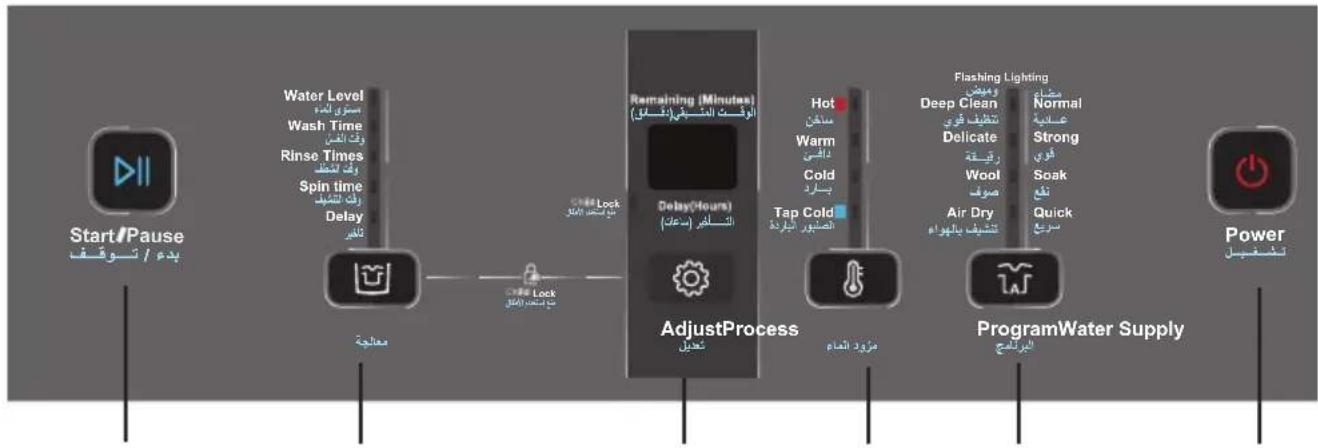

Explanation of buttons

CANDY RTL 8751SU-19 - Explanation of buttons - 1
بِد سَجْتَدَ (الْمَعَلِيَّ)
Remaining (Minutes)
(الوقتُّةٍ (مُشْيُفِ) (مُشْيُفِ)
Delay(Hours)
(السَأْرِ) (سَجَانِ)
الْمَعَلِيَةِ)
Hot
منَقَنْ
Warm
دَاقِيْ
Cold
بَارَاد
Tap Cold
الصَبُورٍ (بَارَة)
الْمَعَلِيَةِ
Professional
وَمِض
Deep Clean
تَنْقِفٍ فُرِي
Delicate
بِيْيَّة
Wool
صُرْف
Air Dry
شَيْفِه بَاهُوا وَلَّلَّ
Normal
عَلِيَّة
Strong
فُرِي
Soak
نَجْ
Quick
سرَّرِعِ
ProgramWater Supply
المرَّنَّجُ
Power
شَيْفِيل
الْمَعَلِيَةِ
الْمَعَلِيَةِ
الْمَعَلِيَةِ
الْمَعَلِيَةِ
الْمَعَلِيَةِ
الْمَعَلِيَةِ
الْمَعَلِيَةِ
الْمَعَلِيَةِ
الْمَعَلٍ
الْمَعَلٍ
الْمَعَلٍ
الْمَعَلٍ
الْمَعَلٍ
الْمَعَلٍ
الْمَعَلٍ
الْمَعَلٍ
الْمَعَلٍ
الْمَعَلٍ
الْمَعَلف
الْمَعَلف
الْمَعَلف
الْمَعَلف
الْمَعَلف
الْمَعَلف
الْمَعَلف
الْمَعَلف
الْمَعَلف
الْمَعَلف
الْمَعَلم
الْمُعَلم
الْمُعَلم
الْمُعَلم
الْمُعَلم
الْمُعَلم
الْمُعَلم
الْمُعَلم
الْمُع·لٍ
الْمُع·لٍ
الْمُع·لٍ
الْمُع·لٍ
الْمُع·لٍ
الْمُع·لٍ
الْمُع·لٍ
الْمُع·لٍ
الْمُع·لٍ
الْمُع·لٍ
الْمُع·لف
الْمُع·لف
الْمُع·لف
الْمُع·لف
الْمُع·لف
الْمُع·لف
الْمُع·لف
الْمُع·لف
الْمُع·لف
الْمُع·لف
الْمُع·لم
الْمُع·لم
الْمُع·لم
الْمُع·لم
الْمُع·لم
الْمُع·لم
الْمُع·لم
الْمُع·لم
الْمُع·لم
الْمُع·لم
الْمُع·لن
الْمُع·لن
الْمُع·لن
الْمُع·لن
الْمُع·لن
الْمُع·لن
الْمُع·لن
الْمُع·لن
الْمُع·لن
الْمُع·لن
الْمُع·له
الْمُع·له
الْمُع·له
الْمُع·له
الْمُع·له
الْمُع·له
الْمُع·له
الْمُع·له
الْمُع·له
الْمُع·له
الْمُع·لو
الْمُع·لو
الْمُع·لو
الْمُع·لو
الْمُع·لو
الْمُع·لو
الْمُع·لو
الْمُع·لو
الْمُع·لو
الْمُع·لو
الْمُع·لى
الْمُع·لى
الْمُع·لى
الْمُع·لى
الْمُع·لى
الْمُع·لى
الْمُع·لى
الْمُع·لى
الْمُع·لى
الْمُع·لى
الْمُع·لٲi

ABCDEF

Indicator display

Off
On: Indicates the program is about to run and indicates the selected cycle and options
:●:Flashing:Indicates the program is running and indicates the selected cycle and options

CANDY RTL 8751SU-19 - Indicator display - 1

Digital tube

■ During working, it displays the remaining time (minute). In case of trouble, it displays the abnormal symbol (see to page 15)
■ It displays remaining time during detecting.

Page 15
CANDY RTL 8751SU-19 - Digital tube - 1

Child Lock function

The function is intended for children's safety and preventing children from accidental changes to washing programs.
- Press "Power" button, set the desired washing program, after setting, press "Start/Pause", Hold "Process" button and "Adjust" button more than 3 seconds, and the child lock will activate, all of the button are locked and will not function.
■ Release the child lock function: press "Process" button and "Adjust" button at the same time and hold for more than 3 seconds. After three beep sound, the child lock function is released.

Note: If you open the lid when the child lock activates, digital tube displays "E2", beeps and stops running; if the safety can be sure and you need to go on with running, you need close the lid, press "Process" button and "Adjust" button at the same time and hold for more than 3 seconds to release the child lock function, then continue running, or the washing machine will drain after 10 seconds.

Operation

CANDY RTL 8751SU-19 - Operation - 1

A"Power" button

■Press the "Power" button to switch on the power.
■ Under power-on mode, press it to switch off the power.
■ If the "Start/Pause" button is not pushed, the machine will switch off the power automatically in 10 minutes.

CANDY RTL 8751SU-19 - A"Power" button - 1

F"Start/Pause" button

■ After the power is switched on, press it to start the machine.
■ During working, press it to pause.
■ During pause, press this button to restart and go on working.

CANDY RTL 8751SU-19 - F"Start/Pause" button - 1

B"Program" button

Program	Application
Normal	Recommended for mixed fabrics and general clothing items.
Strong	Use this cycle for heavily soiled durable garments .
Wool	Machine washable woolen items.
Delicate	Use this cycle to wash lightly soiled garments and delicate clothes that need gentle washing.
Deep clean	Washing the relatively big thick or very dirty laundries.
Quick	Express wash suitable for a small amount of slightly soiled clothes .
Soak	This cycle is suitable for soiled items which require soak
Air Dry	Dries the laundries to avoid the growth of mildew.Note: “Air Dry” program running time is 60 minutes. The purpose is to dry the laundries ,at the same time can dry the outer tub and the inner tub, which can avoid growing mildew on the outer tub and the inner tub.The max drying capacity of the laundries is 1.5kg.

CANDY RTL 8751SU-19 - F"Start/Pause" button - 2

E"Process" button

■ To select water level, wash time, rinse times, spin time and Delay. When the process is selected, push "Process" button and then adjust the parameters.

CANDY RTL 8751SU-19 - E"Process" button - 1

C"Water Supply" button

■ Use this button to select the Hot, Warm, Tap Cold or Cold temperature.

CANDY RTL 8751SU-19 - C"Water Supply" button - 1

D"Adjust" button

■ To adjust the water level, wash time, rinse times, spin time and delay time When the corresponding process light flashing, you can adjust the parameter by pressing the "Adjust" button.
■ Water Level: it can be chosen between 1 to 10, the different cycles have different default water level.
■ Wash Time: it can be chosen between 0 to 15 mins, the different cycles have different default wash time. When you do not want to use the wash process, you can press the "Adjust" button to adjust the wash time to 0.
■ Rinse Times: it can be chosen between 0 to 3 times, the different cycles have different default rinse times. When you do not want to use the rinse process, you can press the "Adjust" button to adjust the rinse times to 0.
■ Spin time: it can be chosen between 4 mins to 9 mins, the different cycles have different default spin time. When you do not want to use the spin process, you can press the "Adjust" button to adjust the spin time to 0.
■ Delay: it can be chosen between 1 hours to 48 hours, the default delay time is 0.

Note:

■ The energy test program of “RTL 861SU-19” and “RTL 8751SU-19” was performed using the “Normal” cycle setting of:
Water Temp: Tap Cold; Water level: 10; Wash Time: 12; Rinse: 1 Rinse; Spin: 9 mins
■ If the default setting is same to the energy test, you have to choose the process again, or it will run fuzzy procedures.
■ If you choose energy test program, it is suggested to put the washing powder into the bottom of the inner tub.
