SAFETY INFORMATION

For your safety and correct operation of the appliance, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it. Users must fully know the operation and safety features of the appliance.

Recommendations and suggestions

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 500mm for Electric hob & 700mm for Gas hob.
• If the instructions for installation for the gas hob specify a greater distance, this must be respected.
• Check that the mains voltage (220-240V) corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For appliances, check that the domestic power supply guarantees adequate earthing.
• Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0.04 mbar to prevent fumes being drawn back into the room by the cooker hood.
• If the supply cord is damaged, it must be replaced from the manufacturer or its service agent.
• Connect the plug to a socket complying with current regulations, located in an accessible place.
• With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.

WARNING:

Before installing the Hood, remove the protective films (white and transparent).

Use only screws and small parts in support of the hood.

WARNING:

Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

Connect the hood to the power net by using a bipolar switch having a contact gap of at least 3 mm. Do not flambè under the range hood; risk of fire.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Children should be supervised to ensure that they do not play with the appliance.

WARNING:

Accessible parts may become hot when used with cooking appliances.

Clean and/or replace the Filters after the specified time period (Fire hazard).

WARNING:

Disconnect power before servicing. Any ground circuit disconnected during service must be reconnected before further use. Please do not use an extension to operate machine.

Use

• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
• The e xtra ctor h ood h as be en designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

Care and cleaning

• Activated charcoal filter these filters are not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently with heavy usage.
• Grease filters the filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.
• Clean the hood using a damp cloth and a neutral liquid detergent.

PRODUCT DESCRIPTION

1 2 3 4 5

1 Lower Chimney
2 Hood body
3 Lighting
4 Grease filters
5 Control Pannel

A B C D E 2 3

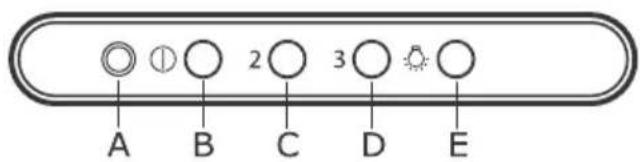

BUTTON	FUNCTION
A = Pilot Light	ON if the motor is working.
B = Speed	Turns the Motor ON at Speed one. Turns the Motor OFF.
C = Speed	Set the Motor at Speed two.
D = Speed	Set the Motor at speed three.
E = Light	Turns the Lighting System ON and OFF.

CARE AND CLEANING

Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.

Clean the hood using a damp cloth and a neutral liquid detergent.

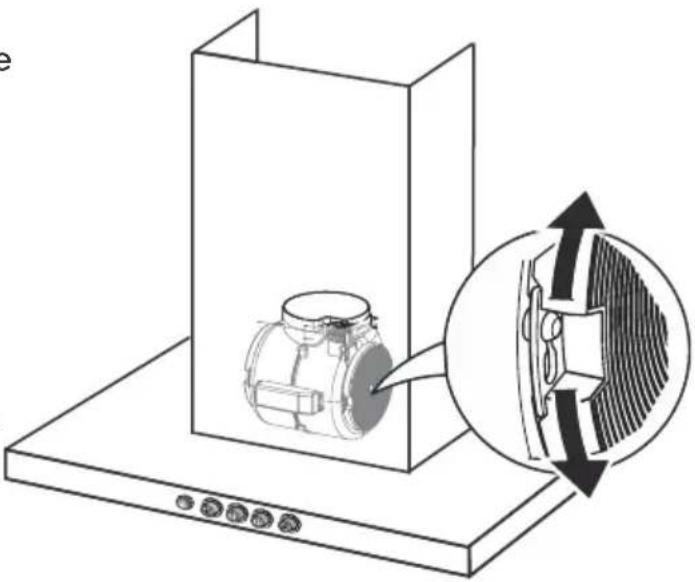

Charcoal Filter

(Optional for Re circulation Mode)

These filters are not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently with heavy usage.

Technical illustration of a mechanical device inside a transparent enclosure, with an inset showing internal gear meshing (no text or symbols)

Grease Filters

Clean or replace the filters continuously according to below time intervals, to maintain good performance of the hood and to prevent a potential fire hazard, caused by excessive grease build-up.

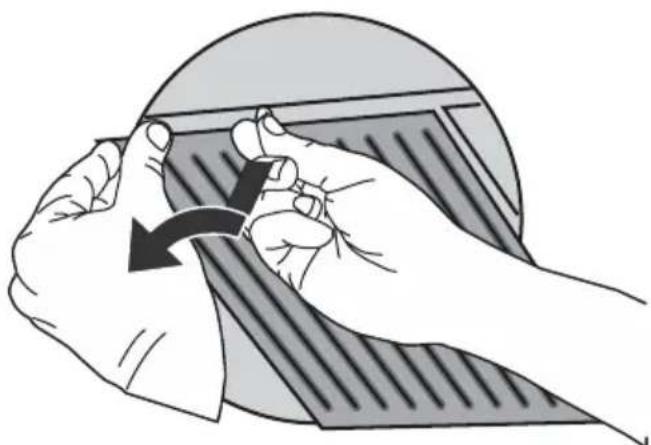

The grease filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.

Before removing the filter, put your hand below it for support.

Illustration of hands performing a manual task on a curved object, no text or symbols present

Hold, Pull and Turn

Replacing the lamps

Call Service guy.

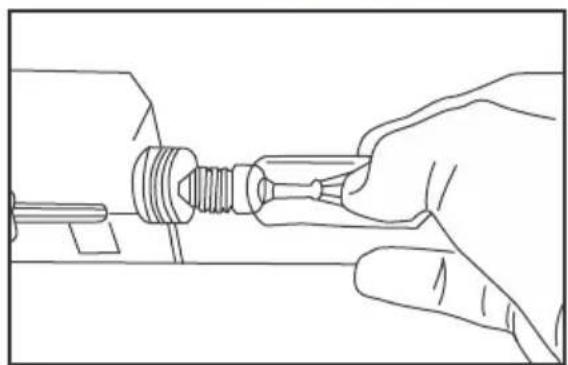

Changing of lamps by opening LD panel. Unscrew the bulbs, by using the gloves, and replace them with new ones having the same characteristics 2W (Connection type: E14).

Technical line drawing of an air conditioner unit with cooling fins and ventilation slots (no text or symbols)

Illustration of two types of gloves, one plain and one with visible texture (no text or symbols)

Line drawing of a hand using a screwdriver to adjust a threaded component (no text or symbols)

Lamp	Power (W)	Socket	Voltage (V)	Dimension (mm)	ILCOS Code
					HSGSB/C/UB-28-220/240-E14104 x 3

WHAT TO DO IF...

If there is a fault, first try to find a solution to the problem yourself. If you cannot find a solution to the problem yourself, contact an authorized service center.

If you operated the appliance wrongly, or the installation was not carried out according to the Assembly instructions, the visit from the After Sales Service technician may not take place free of charge, even during the warranty period.

	POSSIBLE CAUSE SOLUTION PROBLEM
Appliance not stable.	The appliance is not correctly installed.	Respect the Installation instruction enclosed to the appliance.
Appliance is not in horizontal position.	The appliance is not correctly installed.	Respect the Installation instruction enclosed to the appliance.
Performance in terms of oil capture aren't satisfying.	Oil and grease on metal filters.	Respect the cleaning frequency of filters as described in the user manual.
Appliance doesn't work.	The appliance is not correctly connected.	Verify that the main cable is connected to the motor group or the plug is connected to the socket.
The lamp is not working.	The lamp is not correctly fixed.	Call Customer Care
The lamp is not working.	The lamp is faulty.	Call Customer Care

NOTE: If above problem is not solved by given solution then call customer care.

TECHNICAL DATA

		Unit	Value
Product Type			Wall mounted hood
Dimension	Width	mm	600
	Depth	mm	490
	Height	mm	650
Airflow max* - Exhaust		m3/h	650
Noise max* - Exhaust		dBA	64
Airflow max* - Recirculating		m3/h	390
Noise max* - Recirculating		dBA	72
Total Power		W	254
Lamps info			Filament LED
			2x2W
			E14
Installation minimum height - gas hob		mm	700
Installation minimum height - elec hob		mm	500
Net Weight		Kg	12

* Maximum speed (boost excluded).

ENVIRONMENT CONCERNS

Maintenance

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Packaging materials

Packaging materials The materials with the symbol 📊 are recyclable. Dispose the packaging in suitable collection containers to recycle it.

IKEA WARRANTY

How long is the IKEA warranty valid?

This warranty is valid for five (5) years from the original date of purchase of your appliance at IKEA. Proof of purchase is required. If service work is carried out under warranty, this will not extend the warranty period for the appliance.

Who will execute the service?

IKEA Service Provider will provide the service through its own service operations or authorized service partner network.

What does this warranty cover?

The warranty covers faults of the appliance, which have been caused by faulty construction or material faults from the date of purchase from IKEA. This warranty applies to domestic use only. The exceptions are

specified under the headline “What is not covered under this warranty?” Within the warranty period, the costs to remedy the fault e.g. repairs, parts, labour and travel will be covered, provided that the appliance is accessible for repair without special expenditure. Replaced parts or appliance become the property of IKEA.

What will IKEA do to correct the problem?

IKEA will examine the product and decide, at its sole discretion, if it is covered under this warranty. If considered covered, IKEA will then, at its sole discretion, either repair the defective product or if the product is found to be not repairable in its sole discretion (a) IKEA will replace it with the same or a comparable product or (b) refund it as per the prevailing depreciation rules of IKEA.

What is not covered under this warranty?

Normal wear and tear.

Deliberate or negligent damage, damage caused by failure to observe operating instructions, incorrect installation or by connection to the wrong voltage, fluctuating voltage, improper electrical circuit, blown fuse, damage caused by chemical or electrochemical reaction, rust, corrosion or water damage including but not limited to damage caused by excessive lime in the water supply, damage caused by abnormal environmental conditions, damage caused by rodents/insects, water, lightening, pest infestation or other acts of god.

Consumable parts including batteries and lamps.

Non-functional and decorative parts which do not affect normal use of the appliance, including any scratches and possible colour differences.

Accidental damage caused by foreign objects or substances and cleaning or unblocking of filters, drainage systems or soap drawers.

Damage to the following parts: ceramic glass, plastic parts accessories, crockery and cutlery baskets, feed and drainage pipes, seals, lamps and lamp covers, screens, knobs, casings and parts of casings. Unless such damages can be proved to have been caused by production faults.

Repairs or any alteration not carried out by our appointed service providers and/or an authorized service contractual partner or where non-original parts have been used.

The use of the appliance in a non-domestic environment i.e. professional use or any

alteration, abuse or misuse of the appliance.

- the Serial number or barcode label of the appliance is tampered with, defaced, missing or altered

- Transportation damages. If a customer transports the product to his home or another address, IKEA is not liable for any damage that may occur during transport. However, if IKEA delivers the product to the customer's delivery address, then damage to the product that occurs during this delivery will be covered by IKEA.

In cases the above conditions are observed at the time of visit by the Authorized Service Center service partner then the Purchaser shall be liable to bear the repair charges incurred during the process and price of other parts /consumables/spares not covered in Warranty and/or repair charges for the parts covered under warranty if the same is damaged by the Customer or otherwise gets damaged due to non adherence to User manual or warranty terms.

How country law applies

The IKEA warranty gives you specific legal rights, which cover or exceed all the local legal demands. However these conditions do not limit in any way consumer rights described in the local legislation.

The courts at Delhi have exclusive jurisdiction for settling the claims or disputes or matters arising out of present Warranty.

Area of validity

This IKEA warranty applies only to products purchased in India. This Warranty shall be restricted to and valid in India.

An obligation to carry out services in the

framework of the warranty exists only if the appliance complies with:

— The technical specifications of the country in which the warranty claim is made; — The Assembly Instructions and User Manual Safety Information.
