Product Type	Flat Panel Interface Bracket
Brand	Chief
Model	FHB5033
Maximum Weight Capacity	200 lbs (90.7 kg)
Safety Factor	5 times the combined weight of all equipment
Material	Steel
Finish	Powder Coated Black
Included Hardware	4 x M6x16mm Phillips pan head screws, 4 x M8x16mm button head cap screws
VESA Compatibility	Universal, adapts to most VESA patterns up to 600x400 mm
Application	Use with compatible Chief wall mount systems
Installation	Requires wall mount interface brackets (included with wall mount)
Wall Type	Wood stud, concrete, steel (with appropriate anchors)
Leveling	Yes, adjustable after installation
Indoor Use Only	Yes
Warranty	Limited Lifetime
Weight (bracket only)	Approx. 5 lbs (2.3 kg)

Frequently Asked Questions - FHB5033 Chief

What is the weight capacity of the Chief FHB5033?

The maximum weight capacity is 200 lbs (90.7 kg). The mounting structure must support five times this weight.

What tools are required for installation?

You will need a Phillips screwdriver, a socket wrench or hex key (for M8 screws), a level, and a stud finder if mounting to wood studs.

Does the FHB5033 come with mounting hardware?

Yes, it includes four M6x16mm Phillips pan head screws and four M8x16mm button head cap screws. Additional hardware for wall attachment is provided with your Chief wall mount.

Can this bracket be used with any Chief wall mount?

The FHB5033 is designed to interface with Chief wall mount systems that use interface brackets. It attaches to the wall mount's interface brackets using the provided M8 screws.

What VESA patterns does the FHB5033 support?

It supports a wide range of VESA patterns, typically from 200x200 mm up to 600x400 mm. The bracket has multiple slots to accommodate various hole patterns.

Is this bracket suitable for outdoor use?

No, the FHB5033 is intended for indoor use only. Using it outdoors may cause corrosion and failure.

How do I attach the bracket to my display?

Align the bracket with the VESA holes on the back of the display and secure it using the four M6x16mm screws provided. Tighten firmly but do not overtighten.

What safety precautions should I take?

Ensure the wall structure can support five times the combined weight of the display and bracket. Follow all installation instructions and never exceed the weight capacity.

Can I install this on drywall without studs?

No, the bracket must be attached to structural supports such as wood studs or concrete. Drywall alone is not strong enough to support the weight.

How do I level the display after mounting?

The FHB5033 itself does not have leveling adjustment, but many Chief wall mounts include leveling features. After installation, use a bubble level on the display and adjust the wall mount as needed.

USER MANUAL FHB5033 Chief

INSTALLATION INSTRUCTIONS

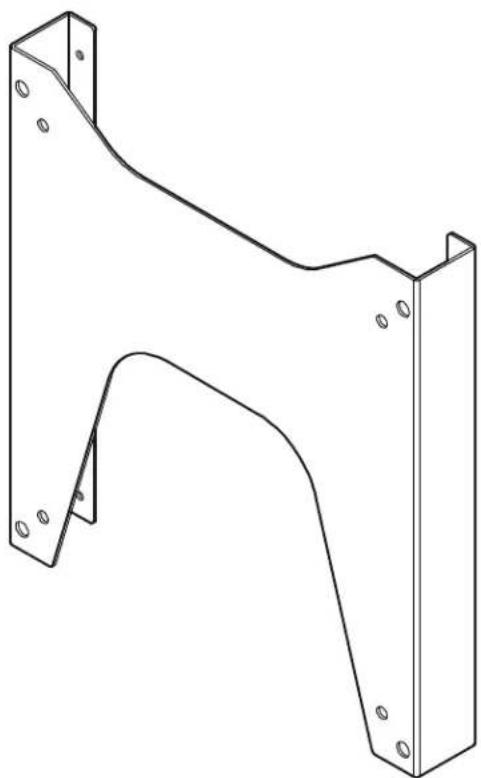

Technical line drawing of a metal bracket with mounting holes and a curved support (no text or symbols)

Flat Panel Bracket

DISCLAIMER

Milestone AV Technologies and its affiliated corporations and subsidiaries (collectively "Milestone"), intend to make this manual accurate and complete. However, Milestone makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. Milestone makes no representation of warranty, expressed or implied, regarding the information contained herein. Milestone assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.

Chief® is a registered trademark of Milestone AV Technologies. All rights reserved.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions.

CAUTION: A CAUTION alerts you to the possibility of damage or destruction of equipment if you do not follow the corresponding instructions.

WARNING: Failure to read, thoroughly understand, and follow all instructions can result in serious personal injury, damage to equipment, or voiding of factory warranty! It is the installer's responsibility to make sure all components are properly assembled and installed using the instructions provided.

WARNING: Failure to provide adequate structural strength for this component can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the structure to which this component is attached can support five times the combined weight of all equipment. Reinforce the structure as required before installing the component.

WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the combined weight of all components attached to the FHB bracket does not exceed 200 lbs (90.7 kg).

WARNING: Use this mounting system only for its intended use as described in these instructions. Do not use attachments not recommended by the manufacturer.

WARNING: Never operate this mounting system if it is damaged. Return the mounting system to a service center for examination and repair.

WARNING: Do not use this product outdoors.

--SAVE THESE INSTRUCTIONS--

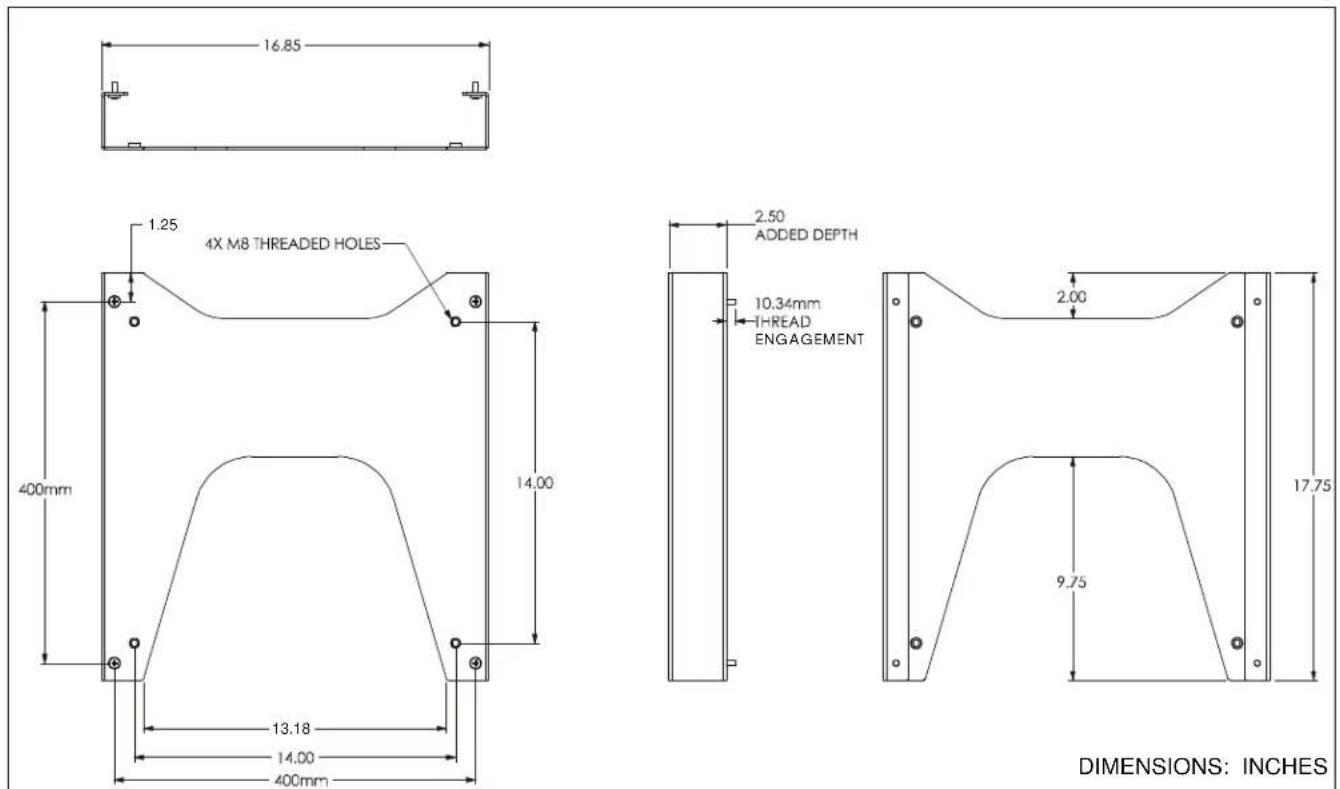

DIMENSIONS

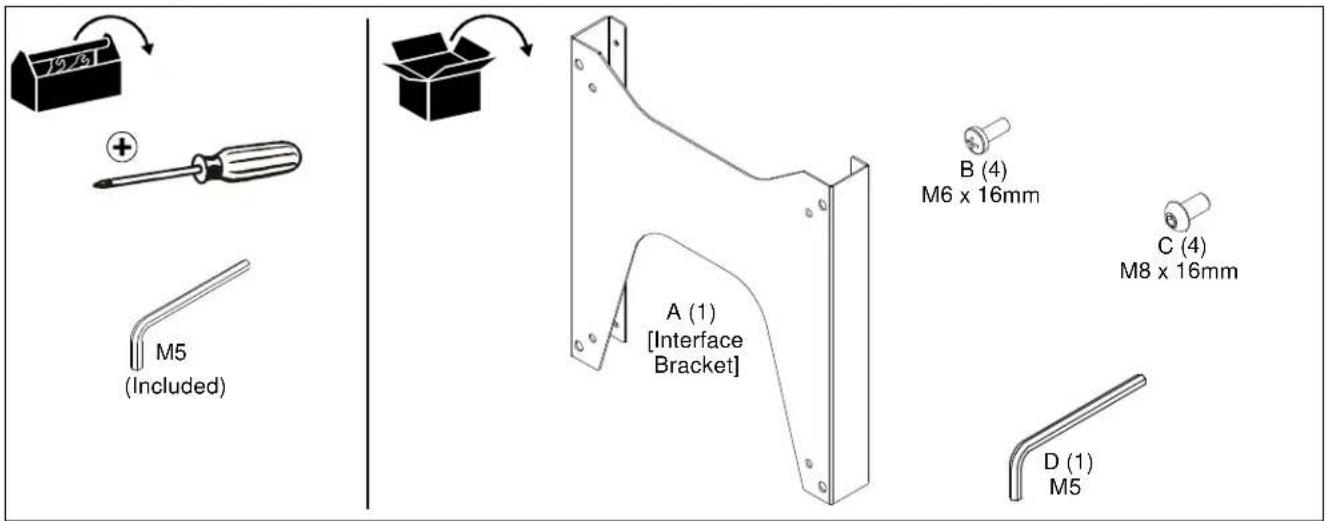

TOOLS REQUIRED FOR INSTALLATION

INSTALLATION

1. Install wall mount to wall following mount instructions up until the interface brackets are to be attached to the display.

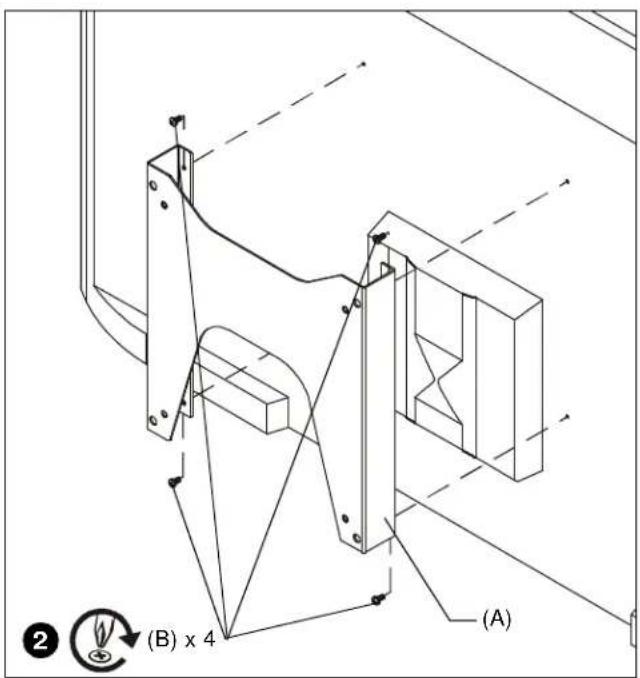

2. Attach FHB bracket (A) to display using four Phillips pan head M6 x 16mm screws (B). (See Figure 1)

Figure 1

1. Use four M8 x 16mm button head cap screws (C) to secure two wall mount interface brackets to FHB bracket (A). (See Figure 2)

Figure 2

1. Complete the installation following the wall mount installation instructions.
