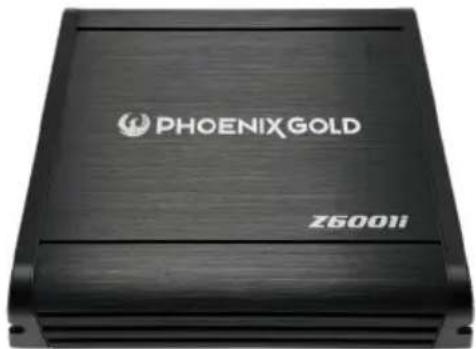

PHOENIX GOLD Z60011

PHOENIX GOLD Z15021

Black Phoenix Gold industrial device with visible branding and model number Z30041 (no additional text or symbols)

COMPACT, CLASS A/B & MONO Z-SERIES AMPLIFIERS

Model: Z1502i / Z3001i / Z3004i / Z6001i

SPECIFICATIONS

• OEM Connection Ready - compatible with aftermarket & original source units
• Remote Bass Ready - control the bass level with included ZRBC (Z3001i & Z6001i)
  • High Level Auto-Turn On - powers on the amp when audio signal is supplied
• Integrated Cooling Fan - regulates temperature for sustained performance
  • High & Low Level Inputs - versatile connectivity to suit any vehicle
• Heavy Duty Connector Block - enables maximum current supply
  • 4-Way Protected Circuit - protection against thermal damage,
  reversed power, speaker polarity and low voltage

All specifications subject to change without notice.

Z1502i / Z3001i / Z3004i / Z6001i - Z-Series Amplifiers

Specifications: Z1502i Z3001i Z3004i Z6001i

Class Class A/B Class A/B Class A/B Class D
Channels 2141
Frequency Response 10Hz -	25kHz 20Hz - 250Hz 10Hz - 25kHz 20Hz - 400Hz
RMS Power Rating (1Ω): N/A	N/A N/A	1 x 600W
RMS Power Rating (2Ω):	2 x 100W	1 x 300W	4 x 80W	1 x 400W
RMS Power Rating (4Ω):	2 x 65W1 x 200W Bridged	1 x 205W 4 x 60W	1 x 250W
Signal to Noise Ratio (SNR)(Full Power)	-87dB	-87dB	-87dB	-84dB
Total Harmonic Distortion(THD)	<1% <1% <1%	<1%
Low Pass Filter (LPF)	50Hz - 400Hz (6dB/Oct)	50 - 250Hz (12dB/Oct)	50Hz - 400Hz (6dB/Oct)	50Hz - 250Hz (24dB/Oct)
High Pass Filter (HPF)	50Hz - 400Hz (6dB/Oct)	N/A	50Hz - 400Hz (6dB/Oct)	N/A
Subsonic	N/A	10Hz - 55Hz (12dB/Oct)	N/A	10Hz - 55Hz (24dB/Oct)
Bass Boost @ 45Hz	0 - +18dB	0 - +18dB	N/A	0 - +18dB
Crosstalk	-56dB	N/A	-51dB	N/A
Input Sensitivity	0.25V - 9.5V	0.25V - 9.5V	0.25V - 9.5V	0.25V - 9.5V
Fuses	1 x 25A	1 x 40A	2 x 25A	2 x 30A
Remote	No	Yes (Included)	No	Yes (Included)
High-level Input Via RCA	Yes	Yes	Yes	Yes
Auto Turn-on	Yes	Yes	Yes	Yes
Phase Control	N/A	0° - 180°	N/A	0° - 180°
Operating Voltage	9V - 16V	9V - 16V	9V - 16V	9V - 16V
Idle Current	0.67A	0.4A	0.57A	0.62A
Current Draw (Max)	27A	35A	46A	57A
Total Efficiency (4Ω)	63%	71%	65%	89%
Power Terminal	20mm2	20mm2	20mm2	20mm2
Speaker Terminal	4mm2	4mm2	4mm2	4mm2
Dimensions (LxWxH)	184 x 160 x 48mm	254 x 160 x 48mm	254 x 160 x 48mm	184 x 160 x 48mm
Weight	1.16 kg	1.66 kg	1.76 kg	1.30 kg

Disclaimer

Ensure your safety and the well-being of those around you by following these essential guidelines:

• Keep all product materials and packaging away from children, pets, or anyone at risk of suffocation.
• Exposure to noise levels above 85 dB can cause permanent hearing damage.
• Extreme sound frequencies reduce perception abilities that are essential in road traffic conditions; do not let loud volumes distract from being mindful behind the wheel.
  • Phoenix Gold takes no responsibility for any physical harm or damage caused by improper use of their products.
• Ensure that all metals and raw materials are disposed of in accordance with local regulations and environmental

Warranty

Phoenix Gold products come with a limited warranty and are covered by our regional distribution partners and their terms and conditions. You can find out more information by contacting your local retailer or distributor.

Installation Warnings

1. Ensure the +12V lead is disconnected from the battery before you connect any new equipment
2. Ensure that the amplifier mounting location and holes will not interfere with the petrol tank, brake lines or electrical wiring.
3. Ensure the amplifier is securely fastened to the vehicle to prevent the amplifier from moving and causing damage in the event of an accident.
4. Ensure all wiring is protected from sharp objects and pinching or crushing, which could damage the audio system.
5. Ensure the mounting location has sufficient air flow around the amplifier. If the amplifier is mounted in an enclosed space, a 3" fan with ducting should be used to assist with cooling.
6. Ensure the minimum recommended gauge wire/cable or larger for all amplifier connections.
7. Appropriate mounting is essential for the prolonged life expectancy of any amplifier. Select a location that protects from moisture. Keep in mind that an amplifier should never be mounted upside down. Upside-down mounting will compromise heat dissipation through the heat sink and could engage the thermal protection circuit.

Note:

Z1501i, Z3001i and Z3004i are Class A/B amplifiers. These amplifiers can run very hot whilst providing high sound quality.

Z1502i / Z3001i / Z3004i / Z6001i - Z-Series Amplifiers

Connection

Ensure the audio system is turned off before making any connections to the amplifier, speakers or source unit. Failure to do so could result in permanent damage to the audio system.

Ensure the correct gauge cable is used for all connections; consult the cable calculator diagram below for the correct gauge cable for your installation.

	CABLE LENGTH
	0-1 Metre / 0-4 Feet		1-2 Metre / 4-7 Feet		2-3 Metre / 7-10 Feet		3-4 Metre / 10-13 Feet		4-5 Metre / 13-16 Feet		5-6 Metre / 16-19 Feet		6-7 Metre / 19-22 Feet		7-9 Metre / 22-28 Feet
TOTAL AMPS	MM2	AWG	MM2	AWG	MM2	AWG	MM2	AWG	MM2	AWG	MM2	AWG	MM2	AWG	MM2	AWG
0-20A	4	12	4	12	4	12	4	12	6	10	6	10	6	10	10	8
20-35A	4	12	6	10	6	10	6	10	6	10	10	8	10	8	20	4
35-50A	6	10	6	10	6	10	10	8	10	8	10	8	20	4	20	4
50-65A	10	8	10	8	10	8	10	8	20	4	20	4	20	4	20	4
65-85A	10	8	10	8	10	8	20	4	20	4	20	4	20	4	35	2
85-105A	10	8	10	8	20	4	20	4	20	4	20	4	20	4	35	2
105-125A	20	4	20	4	20	4	20	4	20	4	20	4	35	2	35	2
125-150A	20	4	20	4	20	4	20	4	35	2	35	2	35	2	50	0
150-200A	20	4	20	4	20	4	35	2	35	2	50	0	50	0	50	0
200-250A	35	2	35	2	35	2	50	0	50	0	50	0	50	0	70	2/0
250-300A	50	0	50	0	50	0	50	0	50	0	50	0	70	2/0	70	2/0

If aluminium wire is used, it is recommended to increase the size of the gauges to compensate. The calculation of cable gauge size considers the resistance of terminal connections.

AMPLIFIER CONNECTION

+12V REM GND ① 2 3 ⚠ FUSE INSIDE

1. +12V Power

Ensure ALL other cable connections are completed before connecting this cable to the battery. PHOENIX GOLD amplifiers should be connected directly to the 12V battery terminal using the appropriate gauge cable. Start at the vehicles battery and run the cable through to the amplifier. PHOENIX GOLD recommends the use of rubber grommets when passing any cable through metal panels to avoid sharp corners or panels that could cut through the insulation of the cable. An inline fuse or circuit breaker MUST be used within 30cm (12") of your battery; this will prevent the potential risk of a fire caused by a short in your power cable (see spec table for recommended inline fuse/circuit breaker ratings). Connect the other end of your power cable to the battery, but remember to leave the fuse out or circuit breaker off until all other cable connections are made.

2. Remote Turn-On

This connection turns the amplifier on and should be connected to the 'Remote Turn on' wire from the Head Unit. If one is not available a switched +12V source must be used, such as a power antenna wire or ACC +12V.

If you are using high level (speaker) inputs and a remote turn on wire is not available, then instead the 'Auto Turn-On' switch must be set to ON.

3. Ground

Connect the Ground/Earth cable for your amplifier first. Ensure that the location is a good source of ground (preferably the chassis/floor pan). Investigate the area you wish to use to ensure it is free of wiring, vacuum lines, brake and fuel lines. Use either a wire brush or sandpaper to expose bare metal, this will provide a high current contact for your ground connection. Use the same gauge cable for the ground cable as you did for the power cable. Secure the ground cable to the ground point with a bolt, star washer and nut. Apply some neutral cure silicon to the bolt and bare metal to prevent possible water leaks and rust. Connect the other end of your ground cable to the amplifier.

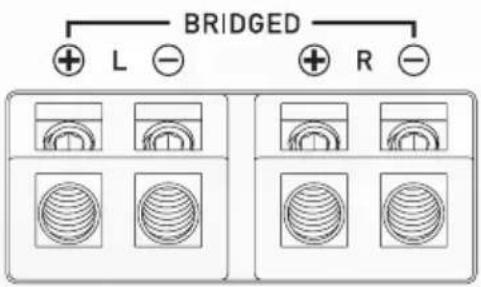

BRIDGED L R

Diagram of four circular components with concentric rings, each marked with a plus sign and minus sign (no text or symbols present)

4. Speaker Output Connection (Z1502i - Z3004i)

Ensure the correct polarity is observed when connecting speakers/subwoofers.

2 Ohm minimum speaker impedance for stereo operation (per channel).

4 Ohm minimum speaker impedance for bridged operation.

(Z3001i - Z6001i)

Speaker output for minimum 2 Ohm load for Z3001i and 1 Ohm for Z6001i.

Learn more about speaker loads by visiting; www.phoenixgold.com

Z1502i / Z3001i / Z3004i / Z6001i - Z-Series Amplifiers

Z3004i Example of 3 Channel configuration 2 x Front/Rear Speakers -12V REM BND FUSE INSIDE BRIDGED (4Ohm Subwoofer) Bridged Rear Channels

Z1502i / Z3001i / Z3004i / Z6001i - Z-Series Amplifiers

Z1502i

14 PWM FHT BOOST FREQ. LSE FULL HFE GAIN INPUT PREDUTS 11 7 9 6 R 5

Z3001i

14 REMOTE PREF PRT BOOST SUBSONIC LPF PHASE GAIN INPUT PREDUTS 0dB 15dB 30Hz 55Hz 50Hz 250Hz 12 11 10 8 13 6 R 5

Z3004i

FREQ. FRONT X-OVER GAIN FRONT INPUT REAR PREDUTS GAIN REAR X-OVER FREQ. 50Hz 400Hz LPF FULL HPY MIN MAX L MIN MAX 50Hz 420Hz 7 9 6 R 6 9 7 5

Z6001i

REMOTE 14 PHASE PRT BOOST SUBSONIC LPF PHASE GAIN INPUT PREOUTS 0dB 18bit 10Hz 59bit 50Hz 252Hz F 100 MIN MAX 12 11 0 8 13 6 R 5

5. RCA Inputs Front-Rear-Subwoofer

Choose the correct length RCA cables to connect the RCA outputs of the source/head unit, to the input connectors of the amplifier. The RCA inputs also accept 'high level input', when using a high level signal, the amplifier will autostart without the need of a remote signal.

Run the RCA cables on the opposite side of the vehicle. to the power cable and vehicle wiring loom. Avoid the electric fan motor and wiring. Ensure you follow the correct balance. (L LEFT = White or Black. R Right = Red)

6. Gain/Level Control (Sub/Front/Rear)

This control is used to match the input level of the amplifier to the output level of your head unit. We recommend the method below, as failure to follow these steps may damage the audio system.

1. Turn the amplifier Gain to zero
2. Turn the volume of the head unit to 34 and the bass and treble to zero
3. Adjust the amplifier Gain/Level control until the desired maximum volume is achieved without distortion.
4. Make fine adjustments to tune your install.

7. High Pass Crossover Filter

Set the crossover switch to HP and turn this control to 65Hz or above when using speaker's smaller than 6 x 9". When a subwoofer is used in the system, this feature is designed to filter out all low bass frequencies that only subwoofers should produce. See specification table for adjustable frequency range

8. Low Pass Crossover Filter (Z3001i & Z6001i)

Ensure the crossover frequency is set at 100Hz or below. This feature must be used with a subwoofer to filter out all mid to high frequencies that only full range speakers should produce. See specification table for adjustable frequency range

9. Crossover Switch

Full - This setting is for large speakers (e.g. 6 X 9") or speakers when a sub woofer is not included in the system. The amplified audio signal is not filtered so the full range audio signal is sent to the speakers.

Low - This setting is used when using a subwoofer and will only allow frequencies below the low pass filter setting to pass through.

High - Used to run mid-range speakers when a separate subwoofer is connected. This setting will only allow frequencies above the set high pass filter setting to pass through.

10. Subsonic Filter (Z3001i & Z6001i)

This is a variable control that filters out all subsonic bass frequencies below the set point. These are frequencies that are not audible. These frequencies can damage subwoofers. See specification table for adjustable frequency range.

Z1502i / Z3001i / Z3004i / Z6001i - Z-Series Amplifiers

11. Bass Boost

This control adjusts the bass boost at 45Hz, from 0 to +18dB. Start from 0 and slowly increase to the desired level. Use this control with extreme care as failure to do so may result in damage to the subwoofers.

12. Remote Bass Controller Port

This connection should be used with the optional remote control (ZRBC - included in box) to adjust the bass level from any location within the vehicle.

13. Phase Switch

This control adjusts the phase shift 180 degrees for the subwoofer. This means that the subwoofer will move inwards instead of outwards on a sinus wave.

14. Power / Protect LED

1. When illuminated Blue, indicates normal operation. Amplifier is powered on with no faults detected.

2. When illuminated Red, indicates the amplifier is in protection mode / fault state. See troubleshooting section on the next page.

AMPLIFIER TROUBLESHOOTING

PROBLEM POSSIBLE REASON SOLUTION
Amplifier not switching ON LED = OFF (not 'Red or Blue')	No 12V to power wire Check fuses and connections to battery
	No power to remote wire	Check remote turn on connections to head unit
	Blown Fuse Replace fuse with correct type and amperage
	No ground connection Check ground cable is correctly connected to the amplifier and vehicle / body chassis
Amplifier not working, status LED = RED	Amplifier too hot Move amplifier to vented area. Turn head unit down
	Speaker wires shorted Check that there are no speaker wires shorted to another wire or to the vehicle chassis
No Sound LED = Blue	RCA Signal Check RCA connection to head unit
	Gain control not set up Ensure you have set up the amplifier gain level control
	Head unit Check head unit volume
	Amplifier Check all power, remote on and ground connections
	Speakers Check speakers are correctly connected Check speakers for shorts

Z1502i / Z3001i / Z3004i / Z6001i - Z-Series Amplifiers

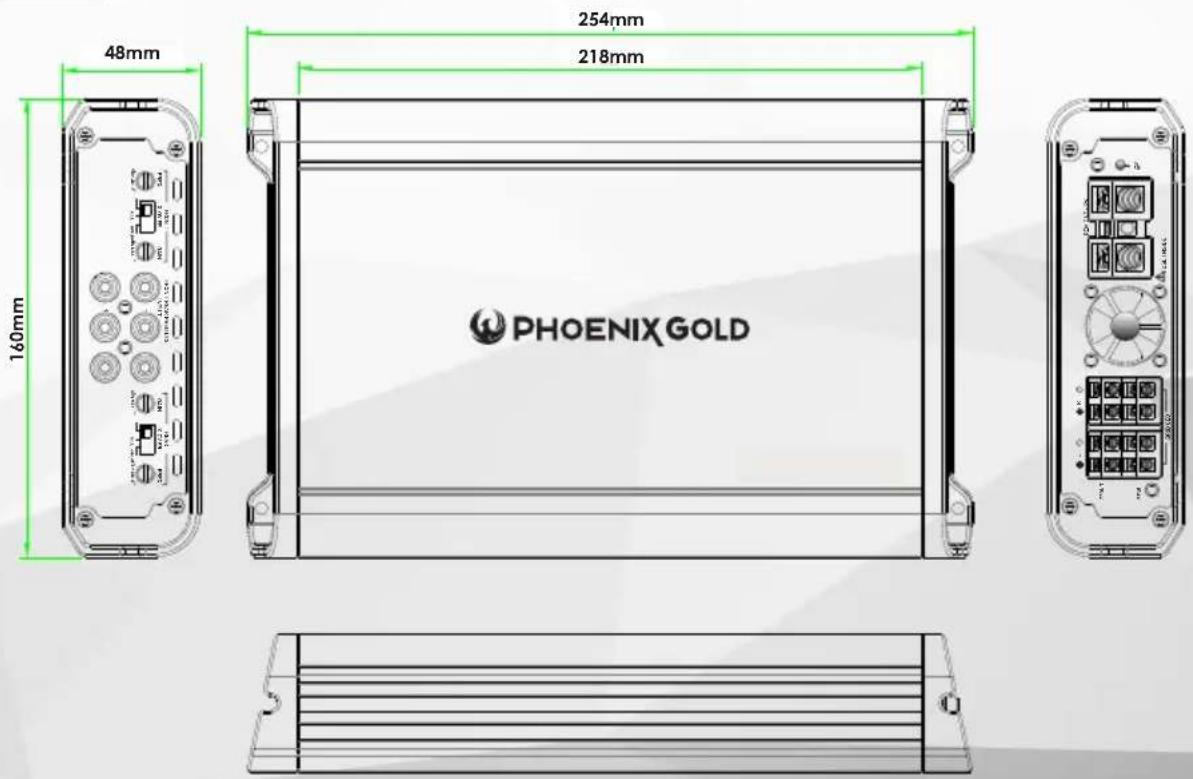

Z1502i
48mm

Z3004i

Z1502i / Z3001i / Z3004i / Z6001i - Z-Series Amplifiers

Z3001i

Z6001i
