USER MANUAL O4BDD2 Speco Technologies

User Manual 4MP Digital Deterrent®IP Camera

Important Safeguards and Warnings

1. Electrical safety

All installation and operation here should conform to local electrical safety codes.

Use a certified/listed 12VDC Class2 or adequate PoE switch.

Improper handling and/or installation could run the risk of fire or electrical shock.

2. Environment

Do not expose the unit to heavy stress, violent vibration or long-term exposure to water and humidity during transportation, storage, and/or installation.

Do not install near sources of heat.

Only install the product in environments inside the specification operating temperature and humidity range.

Do not install the camera near power lines, radar equipment or other electromagnetic radiation.

Do not block any ventilation openings if any.

Use all the weatherproofing hardware requirement to minimize weather intrusion.

3. Operation and Daily Maintenance

Please shut down the device and then unplug the power cable before you begin any maintenance work.

Do not touch the CMOS sensor optic component. You can use a blower to clean the dust on the lens surface.

Always use the dry soft cloth to clean the device. If there is too much dust, use a cloth dampened with a small quantity of neutral detergent. Finally use the dry cloth to clean the device.

Please use a professional optical cleaning method to clean the enclosure. Improper enclosure cleaning (such as using cloth) may result in poor IR functionality and/or IR reflection.

The grounding holes of the product are recommended to be grounded to further enhance the reliability of the camera.

Dome cover is an optical device, please do not touch or wipe cover surface directly during installation and use, please refer to the following methods if dirt is found.

Stained with dirt:

Use oil-free soft brush or hair dryer to remove it gently.

Stained with grease or fingerprint.

Use oil-free cotton cloth or paper soaked with alcohol or detergent to wipe from the lens center outward. Change the cloth and wipe several times if it is not clean enough.

Warning

This camera should be installed by qualified personnel only.

All the examination and repair work should be done by qualified personnel.

Any unauthorized changes or modifications could void the warranty.

This device may potentially trigger seizures for people with photosensitive epilepsy.

This device may emit loud audible alarms, check your local laws before enabling audio.

Statement

This guide is for reference only.

Product, manuals, and specifications may be modified without prior notice. Speco Technologies reserves the right to modify these without notice and without incurring any obligation.

Speco Technologies is not liable for any loss caused by improper operation.

Regulatory Information

FCC conditions:

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

● This device may not cause harmful interference.

● This device must accept any interference received, including interference that may cause undesired operation.

FCC compliance:

This equipment has been tested and found to comply with the limits for a digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

● Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Note:

Before installation, check the package and make sure that all components are included.

Contact your rep or Speco customer service department immediately if something is broken or missing in the package.

Accessory name	Amount
Network Camera Unit	1
Junction box	1
Quick Start Guide	1
Installation Accessories Bag	1
CD	1

Table of Contents

1 Introduction....2
2 Web Access and Login ....3
3 Live View....5
4 Camera Configuration 7

4.1 System Configuration....7

4.1.1 System Information 7
4.1.2 Date and Time....7
4.1.3 Local Recording....8
4.1.4 Storage....8

4.2 Video Configuration....10

4.2.1 Image Configuration....10
4.2.2 Video / Audio Configuration....12
4.2.3 OSD Configuration....14
4.2.4 Video Mask....14
4.2.5 ROI Configuration 15
4.2.6 Zoom/Focus....16

4.3 Alarm Setup....16

4.3.1 Motion Detection 16

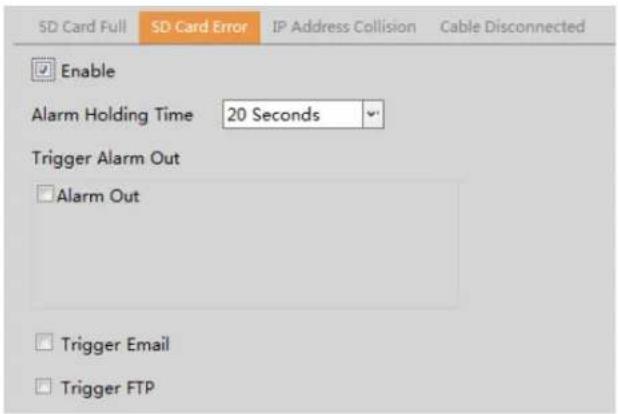

4.3.2 Exception Alarm....17
4.3.3 Alarm In (Sensor Input)....19

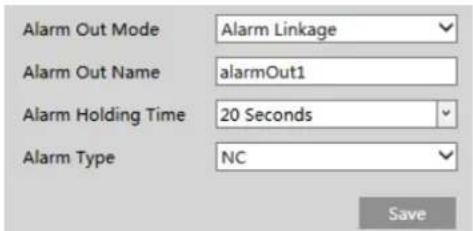

4.3.4 Alarm Out 19
4.3.5 Alarm Server 20
4.3.6 Audio Alarm....21
4.3.7 Light Alarm....22

4.4 Analytics Configuration....22

4.4.1 Abandoned/Missing Object Detection 22
4.4.2 Video Exception....24
4.4.3 Line Crossing....25
4.4.4 Region Intrusion....27
4.4.5 Face Detection 28
4.4.6 Region Entrance....31
4.4.7 Region Exiting 32

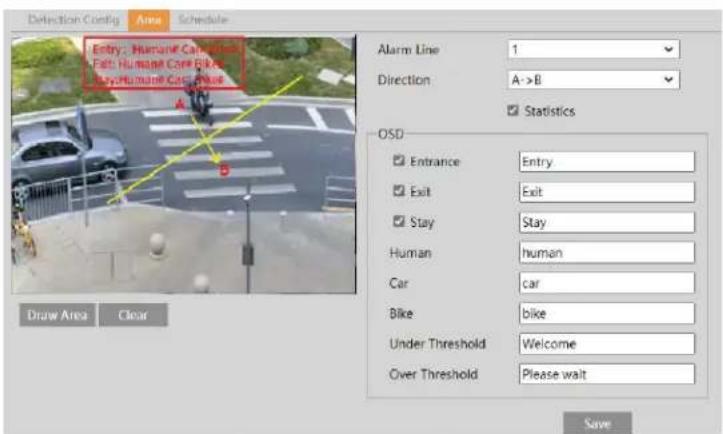

4.4.8 Target Counting by Line 33
4.4.9 Target Counting by Area 35

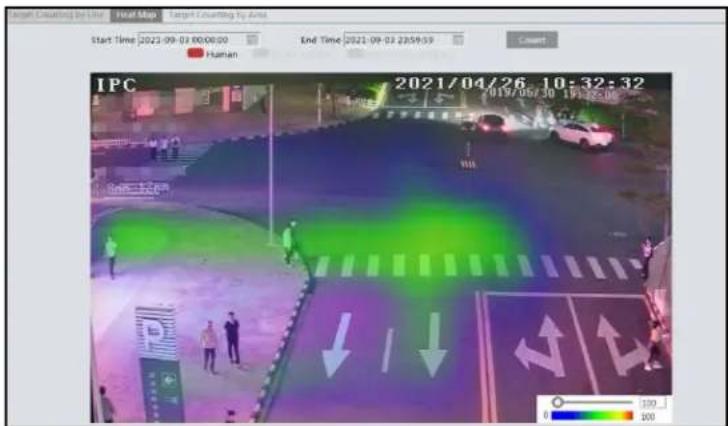

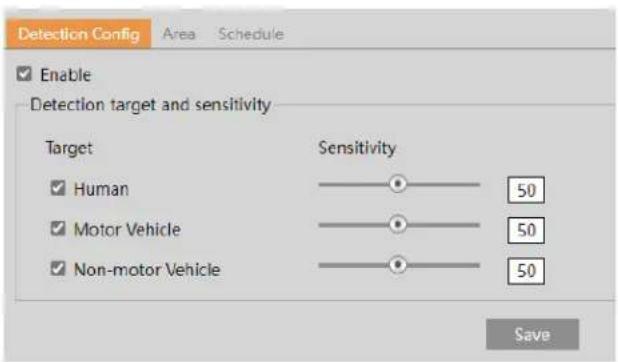

4.4.10 Heat Map 36
4.4.11 Video Metadata 37

4.5 Network Configuration 39

4.5.1 TCP/IP 39
4.5.2 Port 40
4.5.3 Server Configuration....41
4.5.4 Onvif....41
4.5.5 DDNS....42
4.5.6 SNMP 42
4.5.7 802.1x 43
4.5.8 RTSP 44
4.5.9 RTMP....44
4.5.10 UPNP 45
4.5.11 Email 45
4.5.12 FTP 45

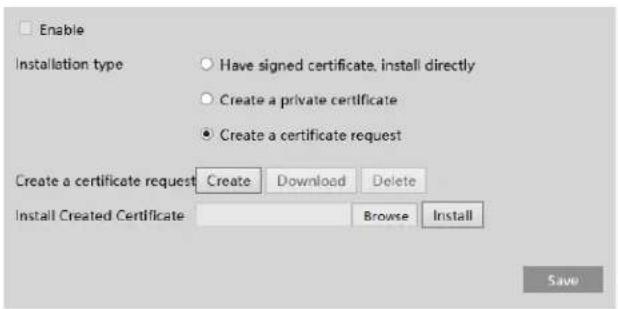

4.5.13 HTTPS....46
4.5.14 HTTP POST 47
4.5.15 QoS....47

4.6 Security Configuration 48

4.6.1 User Admin 48
4.6.2 Online User 49
4.6.3 Block and Allow Lists....50
4.6.4 Security Management....50

4.7 Maintenance Configuration....51

4.7.1 Backup and Restore 51
4.7.2 Reboot 51
4.7.3 Upgrade 51
4.7.4 Operation Log 52

5 Search....53

5.4 Image Search 53
5.5 Video Search....55

5.5.1 Local Video Search....55
5.5.2 SD Card Video Search....56

Appendix 59

Appendix 1 Troubleshooting ....59

1 Introduction

Welcome

Thank you for purchasing this network camera!

Please read this manual carefully before operating the unit and retain it for further reference.

Should you require any technical assistance, please contact Speco Technologies Technical Support at 1-800-645-5516.

Main Features

● Built-in PoE (Power over Ethernet)
● Integrated IR LEDs for clear vision in low light
● IP67 rated for outdoor installations
● Remote viewing support via web browser, mobile APP, and CMS/VMS

Applications


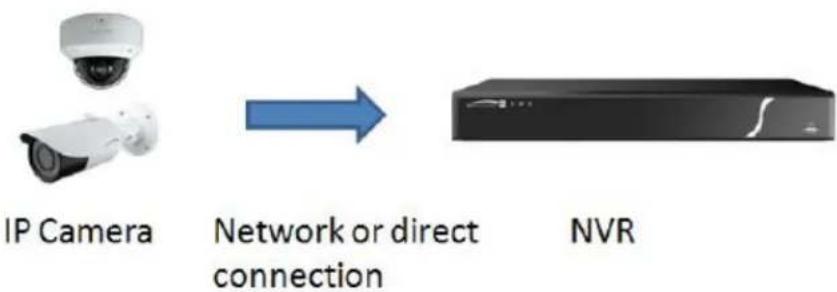

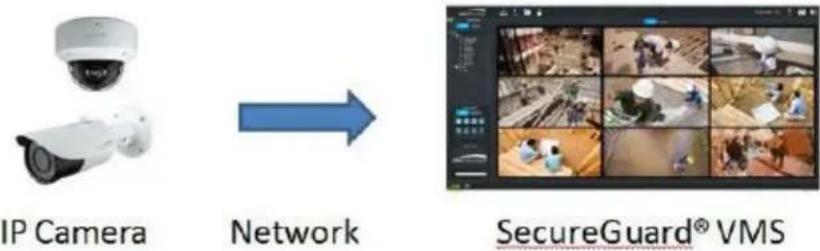


2 Web Access and Login

The IP camera settings can be accessed via a web browser through the LAN.

Available web browser: IE (plug-in required)/ Firefox/Edge/Safari/Google Chrome

It is recommended to use the latest version of these web browsers.

The menu display and operation of the camera may be slightly different by using the browser with plug-in or without plug-in. Installing plug-in will display more functions of the camera.

Connect IP-Cam via LAN or WAN. Here only take IE browser for example. The details are as follows:

● Access through IP Scanner

Network connection:

①Make sure the PC and IP-Cam are connected on the same local network. The camera is set to DHCP by default and will be assigned an IP address by the DHCP server. Make sure that the local network has a DHCP server. Routers typically have a DHCP server built in.

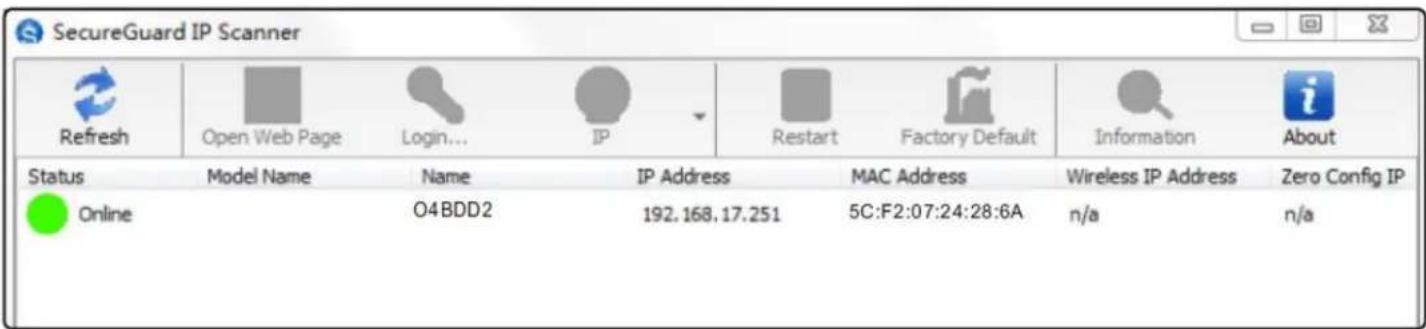

② Install IP Scanner from the CD and run it after installation. IP Scanner is the tool for discovering the IP cameras on the local network.

SecureGuard IP Scanner Refresh Open Web Page Login... IP Restart Factory Default Information About Status Model Name Name IP Address MAC Address Wireless IP Address Zero Config IP Online 04BDD2 192.168,17.251 5C:F2:07:24:28:6A n/a n/a

③ In the device list, the IP address, model number, and MAC address of each device will be listed. Select the applicable device and double click to open up the web viewer. You can also manually enter the IP address in the address bar of the web browser. Read the privacy statement and then check and click "Already Read" to enter the login interface.

speco technologies Username: admin Password: ***** Login Cancel

The login interface is shown above. Default username is admin and the password is 1234. After logging in, follow directions to install

applicable plug-ins for viewing video if prompted.

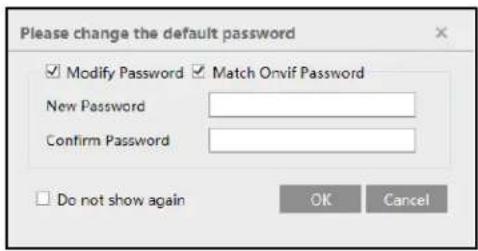

Please change the default password Modify Password Match Onvif Password New Password Confirm Password Do not show again OK Cancel

If this is the first time for you to log in, the password prompt may only change the admin password. By default, the ONVIF password will match the admin password that you set. Should you wish to change the ONVIF password to a different password than your admin password, go to the ONVIF section to change the password. (Config→Network→Ports/Connections→Onvif)

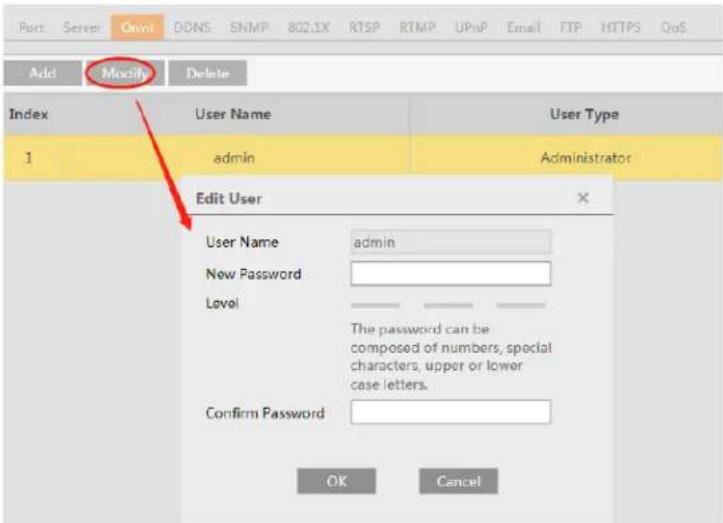

Add Modify Delete Index User Name User Type 1 admin Administrator Edit User User Name admin New Password Level The password can be composed of numbers, special characters, upper or lower case letters. Confirm Password OK Cancel

3 Live View

The window below will be shown after logging in.

Config Main stream Sub stream Third stream Balanced speco technologies admin | Logout 2023/06/09 20:00:51 IPO2

The following table describes the icons on the live view interface

Icon		Description	Icon	Description
	[DBWT]	Original size of resolution		SD card recording indicator
	[AZTW]	Fit (correct scale)		Abnormal color indicator
	[SW6X]	Auto (fill the window)		Abnormal clarity indicator
		Full screen (show video only)		Scene change indicator
		Start/stop live view		Alarm output indicator
		Enable/disable alarm output		Light alarm indicator
		Enable/disable light alarm		Audio alarm indicator
		Enable or disable audio alarm		Line crossing indicator
	[DVTZ]	Start/stop two-way audio		Region Intrusion indicator
		Enable/disable audio		Sensor alarm indicator
		Snapshot		Motion alarm indicator
		Start/stop local recording		Object detection indicator (object abandoned/missing)
	[2KAZ][WYKS]	Zoom in		Heat map indicator
		Zoom out		Face detection indicator
		Zoom/Focus control (for motorized models)		Line crossing target counting indicator

Icon	Description	Icon	Description
[YSXW]	Rule information display		Region Intrusion target counting indicator
	Face detection		Video metadata

*Plug-in free live view: PTZ control, two-way audio and local recording are not supported.

● All indicator icons above will flash in live view interface only when the corresponding events are enabled.
- After clicking the audio alarm icon, the sound warning will be triggered according to the set warning times (you can set the warning times by clicking Config→Alarm→Audio Alarm). Click this icon again. After the current warning voice is completely sounded, it will stop.
● After clicking the light alarm icon, the red-blue light will flash alternatively according to the set flashing time (you can set the flashing time by clicking Config→Alarm→Light Alarm). Click this icon again to stop flashing.
- In full screen mode, to exit, double click on the mouse or press the ESC key on the keyboard.

Click the zoom/focus control button to show the control panel. The descriptions of the control panel are as follows:

Icon		Description	Icon		Description
		Zoom -			Zoom +
	[27C6]	Focus -			Focus +
		One key focus (used when image is out of focus after manual adjustment)

4 Camera Configuration

Press the "Setup" button to go to the configuration interface.

Note: Wherever applicable, click the "Save" button to save the settings.

4.1 System Configuration

4.1.1 System Information

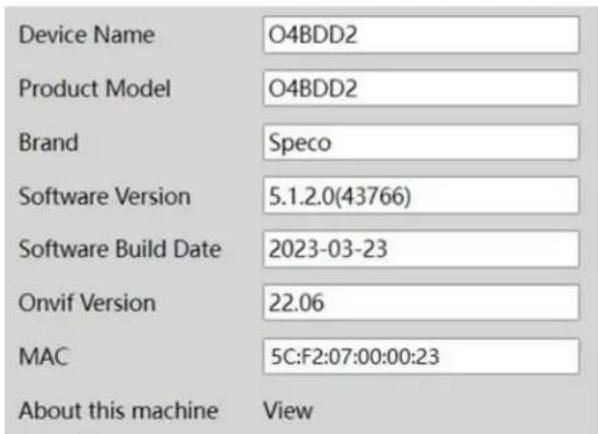

In the "System Information" interface, the system information of the device is listed.

Device Name O4BDD2 Product Model O4BDD2 Brand Speco Software Version 5.1.2.0(43766) Software Build Date 2023-03-23 Onvif Version 22.06 MAC 5C:F2:07:00:00:23 About this machine View

4.1.2 Date and Time

To set the time and date, go to System→Date and Time. Please refer to the following interface.

Zone Date and Time Zone GMT (Dublin, Lisbon, London, Reykjavik) DST Auto DST Manual DST Start Time January First Sunday 00 Hour End Time February First Monday 00 Hour Time Offset 120 Minutes Save

Select the applicable time zone and enable / disable DST as needed. Click the "Date and Time" tab to set the time, date and time format.

Zone Date and Time Time Mode: Synchronize with NTP server NTP server: time.windows.com Update period: 1440 Minutes Synchronize with computer time Date 2023-03-22 Time 15:17:57 Set manually 2023-03-22 15:17:41 Time Format 24-Hour Save

4.1.3 Local Recording

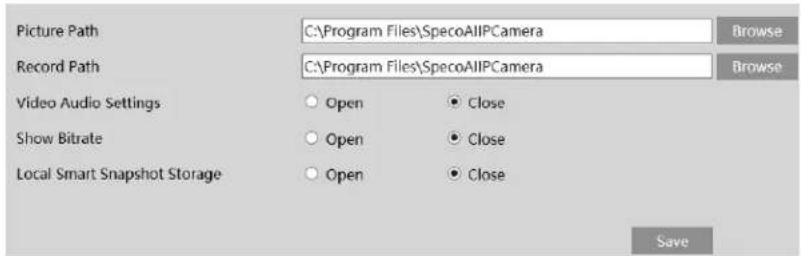

Go to System→Local Recording to set up the storage path of captured pictures and recorded videos on the local PC. There is also an option to enable or disable the bitrate display in the recorded files.

Picture Path C:\Program Files\SpecoAllPCamera Browse Record Path C:\Program Files\SpecoAllPCamera Browse Video Audio Settings Open Close Show Bitrate Open Close Local Smart Snapshot Storage Open Close Save

Additionally, the snapshots triggered by smart events (like line crossing detection, intrusion detection, etc.) can be selected to save to the local PC.

4.1.4 Storage

Go toSystem→Storage to go to the interface as shown below.

Management Record Snapshot Total picture capacity 6090 MB Picture remaining space 834 MB Total recording capacity 54720 MB Record remaining space 128 MB State Normal Snapshot Quota 10 % Video Quota 90 % Changes in the quota ratio need to be formatted before they become effective. Eject Format

- SD Card Management

When the card is used for the first time, click the "Format" button to format the SD card. All data on the card will be cleared by clicking this button.

Click the "Eject" button to stop writing data to the SD card. Then the SD card can be ejected safely.

Snapshot Quota: Set the capacity proportion of captured pictures on the SD card.

Video Quota: Set the capacity proportion of record files on the SD card.

- Schedule Recording Settings

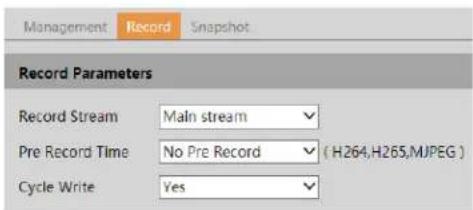

1. Go toStorage→Record to go to the interface as shown below.

Management Record Snapshot Record Parameters Record Stream Main stream Pre Record Time No Pre Record (H264,H265,MJPEG) Cycle Write Yes

1. Set record stream, pre-record time and cycle writing.

Pre Record Time: Set the time to record before the actual recording begins.

1. Set schedule recording. Check "Enable Schedule Record" and set the schedule.

Weekly schedule

Set the alarm time from Monday to Sunday for a single week. Each day is divided in one-hour increments. Green means scheduled. Blank means unscheduled.

"Add": Add the schedule for a special day. Drag the mouse to set the time on the timeline.

"Erase": Delete the schedule. Drag the mouse to erase the time on the timeline.

Manual Input: Click it for a specific day to enter specific start and end times. This adds more granularities (minutes).

Day schedule

Set the alarm time for alarm a special day, such as a holiday.

Note: Holiday schedule takes priority over weekly schedule.

- Snapshot Settings

Go to System→Storage→Snapshot to go to the interface as shown below.

Management Record Snapshot Snapshot Parameters Image Format JPEG Resolution 704x480 Image Quality Low Event Trigger Snapshot Interval 1 Second Snapshot Quantity 5

Set the format, resolution and quality of the image saved on the SD card and the snapshot interval and quantity and the timing snapshot here.

Snapshot Quantity: The number you set here is the maximum quantity of snapshots. The actual quantity of snapshots may be less than this number. Supposing the occurrence time of an alarm event is less than the time of capturing pictures, the actual quantity of snapshots is less than the set quantity of snapshots.

Timing Snapshot: Enable timing snapshot first and then set the snapshot interval and schedule. The setup steps of schedule are the same as the schedule recording (See Schedule Recording).

4.2 Video Configuration

Video Configuration includes Display Settings, Video/Audio Setup, OSD, Privacy Mask and Region of Interest.

4.2.1 Image Configuration

In the Display Settings interface as shown below, various settings can be adjusted, such as brightness, contrast, hue, and saturation and so on. The common mode and day and night mode can be set up separately. The image effect can be quickly viewed by switching the configuration file.

Camera Parameters Profile Management IF Camera 10/22/2/23 10:48:18 Config File Common Brightness 50 Contrast 50 Hue 50 Saturation 50 Sharpness 128 Noise Reduction 128 Defog 128 BLC Off Antiflicker Off White Balance Auto Shutter Mode Auto Max. 1/30 Gain Mode Auto Gain Limit 50 Default Revoke Video Adjustment Lens Distortion 80 Correction Frequency 60HZ Illumination Mode Smart Supplement Light Corridor Pattern 0 Image Mirror Open Close Image Flip Open Close

Brightness: Set the brightness level of the camera's image.

Contrast: Set the color difference between the brightest and darkest parts.

Hue: Set the total color degree of the image.

Saturation: Set the degree of color purity. The purer the color, the brighter the image is.

Sharpness: Set the resolution level of the image plane and the sharpness level of the image edge.

Noise Reduction: Decrease the noise and make the image more thorough. Increasing the value will make the noise reduction effect better but it will reduce the image resolution.

Defog: Activating this function and setting an appropriate value as needed in foggy, dusty, smoggy, or rainy environment to get clear images.

Auto Iris: If your camera is auto Iris, please enable it.

Backlight Compensation (BLC):

• Off: disables the backlight compensation function. It is the default mode.
• WDR: WDR can adjust the camera to provide a better image when there are both very bright and very dark areas simultaneously in the field of the view by lowering the brightness of the bright area and increasing the brightness of the dark area. Recording will be stopped for a few seconds while the mode is changing from non-WDR to WDR mode.
• HLC: lowers the brightness of the entire image by suppressing the brightness of the image's bright area and reducing the size of the halo area.
• BLC: If enabled, the auto exposure will activate according to the scene so that the object of the image in the darkest area will be seen clearly.

Antiflicker:

- Off: disables the anti-flicker function. This is used mostly in outdoor installations.

- 50Hz: reduces flicker in 50Hz lighting conditions.

- 60Hz: reduces flicker in 60Hz lighting conditions.

White Balance: Adjust the color temperature according to the environment automatically.

Shutter Mode: Choose "Auto" or "Manual". If manual is chosen, the digital shutter speed can be adjusted.

Gain Mode: Choose "Auto" or "Manual". If "Auto" is selected, the gain value will be automatically adjusted according to the actual situation. If "Manual" is selected, the gain value shall be set manually. The higher the value is, the brighter the image is.

Lens Distortion Correction: When the image appears distortion to some extent, please enable this function and adjust the level according to the actual scene to correct the distortion.

Frequency: 50Hz and 60Hz can be optional.

Corridor Pattern: Corridor viewing modes can be used for situations such as long hallways. 0, 90, 180 and 270 are available. The default value is 0. The video resolution should be 1080P or below if this function is used.

Image Mirror: Turn the current video image horizontally.

Image Flip: Turn the current video image vertically.

Illumination Mode: choose "White light", "Infrared light" or "Smart supplement light" as needed.

Smart supplement light: If selected, in low ambient light, the system will automatically turn on the IR light or white light. Once there are people or vehicles appearing in the detection area, it will automatically switch to white light. When no people or vehicles are detected, it will switch to IR light.

If "White Light" is selected, "Overexposure control" and "white light mode" can be configured.

Overexposure Control: Choose "OFF", "Low", "Mid" or "High". This function can automatically adjust the exposure parameter according to the actual effect of the image, effectively avoiding detail missing caused by image overexposure, so that the image will be more vivid. Please set it as needed.

White Light Mode: Choose "Off", "Auto" or "Manual". Please select it as needed.

If "Infrared light" is selected, "Smart IR" and "Day/Night Mode" can be configured.

Smart IR: Choose "ON" or "OFF". This function can effectively avoid image overexposure so as to make the image more realistic. The higher the level is, the more overexposure compensation will be given.

Day/Night Mode: Choose "Auto", "Day", "Night" or "Timing".

Schedule Settings of Image Parameters:

Click the "Profile Management" tab as shown below.

Camera Parameters Profile Management Schedule Full Time Config File Common Save

Set full time schedule for common, auto mode and specified time schedule for day and night. Choose "Timing" in the drop-down box of schedule as shown below.

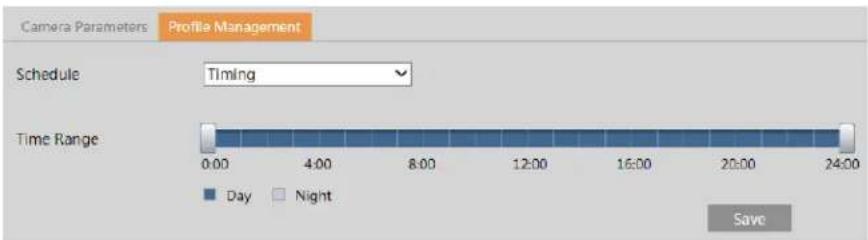

Camera Parameters Profile Management Schedule Timing Time Range Day Night Save

Drag “☐” icons to set the time of day and night. Blue means daytime and blank means night time. If the current mode of camera parameters is set to “Timing”, the image configuration mode will automatically switch between day and night according to the schedule.

4.2.2 Video / Audio Configuration

Go to Image→Video / Audio interfaceas shown below. In this interface, set the resolution, frame rate, bitrate type, video quality and so on subject to the actual network condition.

Video Audio Index Stream Resolution Frame Bitrate Type Bitrate(Kbps) Video I Frame Video Profile 1 Main strea... 2592x1520 30 CBR 4096 Medium 120 H264 High Profile 2 Sub stream 704x480 30 CBR 768 Medium 120 H264 High Profile 3 Third strea... 352x240 30 CBR 512 Medium 120 H264 High Profile Send Snapshot Sub stream Size: (704x480) Video encode slice split Watermark (Only support H264, H265) Watermark content: Save

Three video streams can be adjustable.

Resolution: The size of image.

Frame rate: The higher the frame rate, the video is smoother.

Bitrate type: CBR and VBR are optional. Bitrate is related to image quality. CBR means that no matter how much change is seen in the video scene, the compression bitrate will be kept constant. VBR means that the compression bitrate will be adjusted according to scene changes. For example, for scenes that do not have much movement, the bitrate will be kept at a lower value. This can help optimize the network bandwidth usage.

Bitrate: it can be adjusted when the mode is set to CBR. The higher the bitrate, the better the image quality will be.

Video Quality: It can be adjusted when the mode is set to VBR. The higher the image quality, the more bitrate will be required.

I Frame interval: It determines how many frames are allowed between a “group of pictures”. When a new scene begins in a video, until that scene ends, the entire group of frames (or pictures) can be considered as a group of pictures. If there is not much movement in the scene, setting the value higher than the frame rate is fine, potentially resulting in less bandwidth usage. However, if the value is set too high, and there is a high frequency of movement in the video, there is a risk of frame skipping.

Video Compression: MJPEG, H264+, H264, H265or H265+can be optional. MJPEG is not available for main stream. If H.265/H.265+ is chosen, make sure the client system is able to decode H.265/H.265+. Compared to H.265, H.265+ saves more storage space with the same maximum bitrate in most scenes. Compared to H.264, H.265 reduces the transmission bitrate under the same resolution, frame rate and image quality.

Profile: For H.264. Baseline, main and high profiles are selectable.

Send Snapshot: Set the snapshot stream.

Video encode slice split: If this function is enabled, smooth image can be gotten even though using the low-performance PC.

Watermark: When playing back the local recorded video in the search interface, the watermark can be displayed. To enable it, check the watermark box and enter the watermark text.

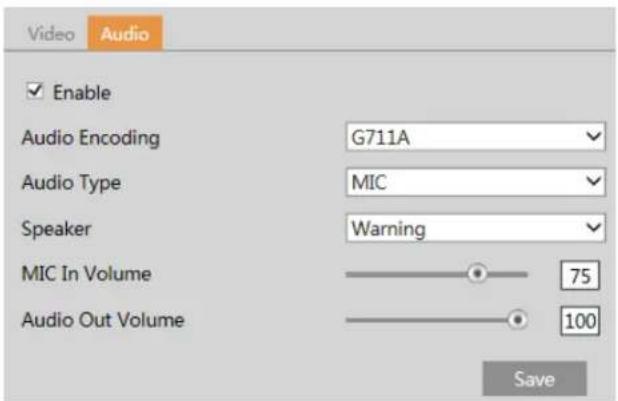

Click the "Audio" tab to go to the interface as shown below.

Video Audio Enable Audio Encoding G711A Audio Type MIC Speaker Warning MIC In Volume 75 Audio Out Volume 100 Save

Audio Encoding: G711A and G711U are selectable.

Audio Type: LIN. LIN/MIC can be selected if the model supports built-in microphone.

Speaker: Talkback, warning or auto can be optional. If "Talkback" is selected, the built-in speaker will be used to output sound for two-way talk. If "Warning" is selected, the built-in speaker will be used to output the pre-defined audio alarm. If "Auto" is selected, the system will output sound for two-way talk or warning voice as needed. When the camera is uttering warning voice and two-way audio is being enabled simultaneously, two-way audio will be output first.

Please set LIN/MIC IN Volume and audio out volume as needed.

4.2.3 OSD Configuration

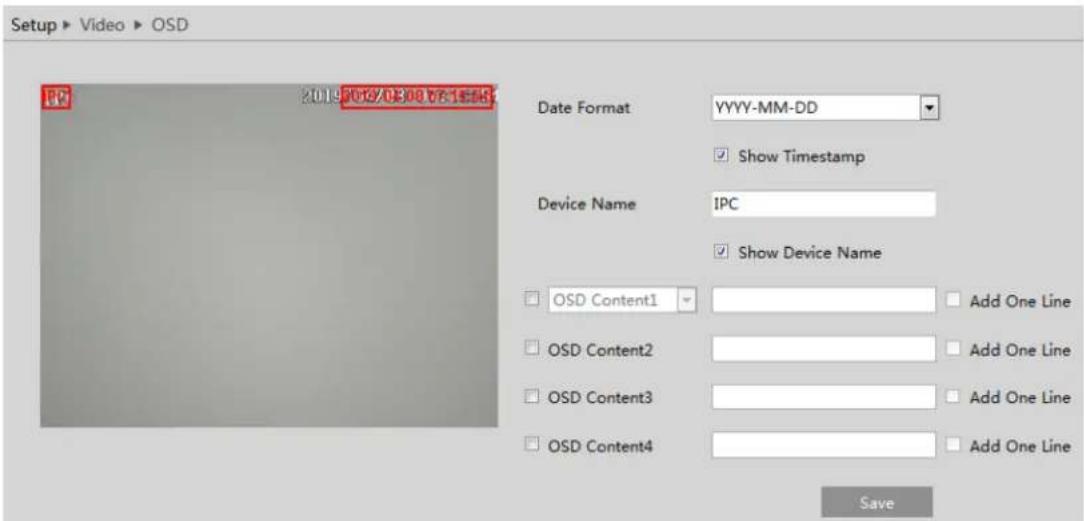

Go to Video→OSD interface as shown below.

Setup ▶ Video ▶ OSD 2019 06/03 08/08/15:43 Date Format YYYY-MM-DD ✓ Show Timestamp Device Name IPC ✓ Show Device Name □ OSD Content1 Add One Line □ OSD Content2 Add One Line □ OSD Content3 Add One Line □ OSD Content4 Add One Line Save

Set time stamp, device name, OSD content and picture overlap here. After enabling the corresponding display and entering the content, drag them to change their position. Then click the "Save" button to save the settings.

Picture Overlap Settings:

Check "OSD Content1", choose "Picture Overlay" and click "Browse" to select the overlap picture. Then click "Upload" to upload the overlap picture. The pixel of the image shall not exceed 200*200, or it cannot be uploaded.

4.2.4 Video Mask

Go to Image→Video Mask interface as shown below. A maximum of 4 zones can be set up.

Interior hallway with glossy white flooring and large windows, no visible text or symbols

To set up video mask:

1. Enable video mask.
2. Click the "Draw Area" button and then drag the mouse to draw the video mask area.
3. Click the "Save" button to save the settings.

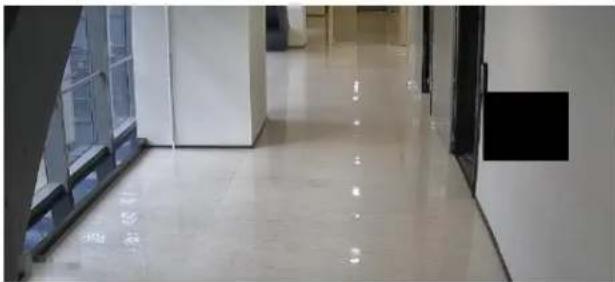

4. Return to the live to verify that the area have been drawn as shown as blocked out in the image.

Interior hallway with white marble flooring and large windows on both sides (no visible text or symbols)

To clear the video mask:

Click the "Clear" button to delete the current video mask area.

4.2.5 ROI Configuration

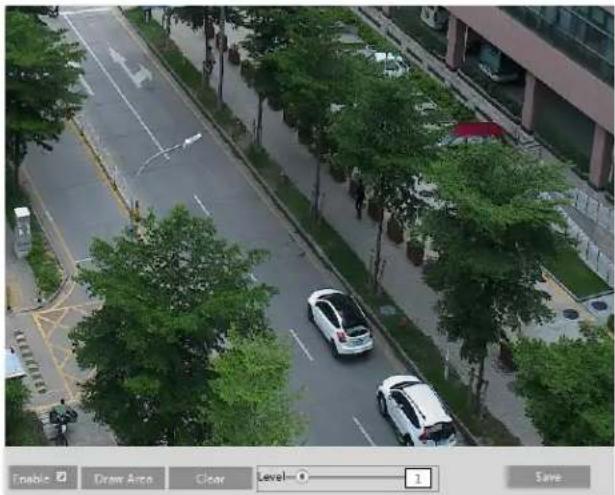

Go to Image→ROI Config interface as shown below. An area in the image can be set as a region of interest. This area will have a higher bitrate than the rest of the image, resulting in better image quality for the identified area.

Aerial view of a city street with parked cars and trees, no visible text or symbols.

1. Check "Enable" and then click the "Draw Area" button.
2. Drag the mouse to set the ROI area.
3. Set the level.
4. Click the "Save" button to save the settings.

Aerial view of two cars parked on a tree-lined road, surrounded by greenery (no visible text or symbols)

4.2.6 Zoom/Focus

This function is only available for the model with motorized zoom lens. Within this section, zoom and focus can be controlled. If the image is out of focus after a manual adjustment, one key focus can be used to set the focus automatically.

Day and night switching Focus One Key Focus Zoom - Zoom + Focus - Focus +

4.3 Alarm Setup

4.3.1 Motion Detection

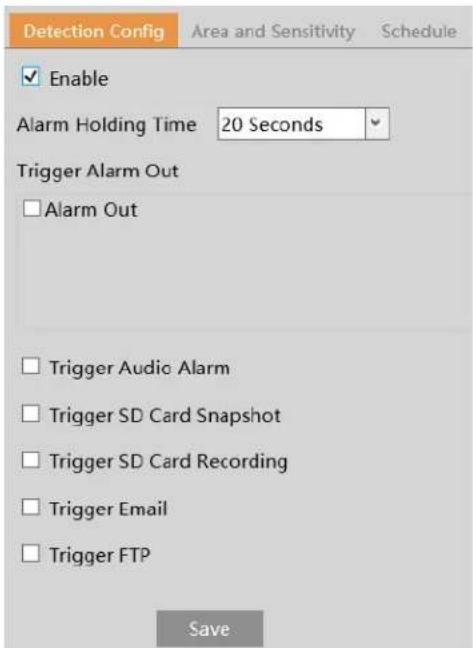

Go to Alarm→Motion Detection to set motion detection alarm.

Detection Config Area and Sensitivity Schedule Enable Alarm Holding Time 20 Seconds Trigger Alarm Out Alarm Out Trigger Audic Alarm Trigger SD Card Snapshot Trigger SD Card Recording Trigger Email Trigger FTP Save

1. Check "Enable" check box to activate motion-based alarms. If unchecked, the camera will not send out any signals to trigger motion-based recording to the NVR or CMS, even if there is motion in the video.

Alarm Out: If selected, this would trigger an external relay output that is connected to the camera on detecting a motion-based alarm.

Trigger Audio Alarm: If selected, the warning voice will be uttered on detecting a motion based alarm. (Please set the warning voice first. See Audio Alarm for details).

Trigger SD Card Snapshot: If selected, the system will capture images on motion detection and save the images on an SD card.

Trigger SD Card Recording: If selected, video will be recorded on an SD card on motion detection.

Trigger Email: If "Trigger Email" and "Attach Picture" are checked (email address must be set first in the Email configuration

interface), the captured pictures and triggered event will be sent into those addresses.

Trigger FTP: If "Trigger FTP" and "Attach Picture" are checked, the captured pictures will be sent into FTP server address. Please refer to FTP configuration chapter for more details.

Note: There is no light alarm setting for motion as the light will cast continuous motion to the scene.

1. Set motion detection area and sensitivity. Click the "Area and Sensitivity" tab to go to the interface as shown below.

Alarm Config Area and Sensitivity Schedule Sensitivity Low High 4 Draw Area Add Erase Select All Clear All Insert Save

Move the "Sensitivity" scroll bar to set the sensitivity. Higher sensitivity value means that motion will be triggered more easily. Select "Add" and click "Draw". Drag the mouse to draw the motion detection area; Select "Erase" and drag the mouse to clear motion detection area.

After that, click the "Save" to save the settings. "Clear All" can be used to clear out the entire motion zone.

1. Set the schedule for motion detection. The schedule setup steps of the motion detection are the same as the schedule recording setup (See Schedule Recording).

4.3.2 Exception Alarm

SD Card Full

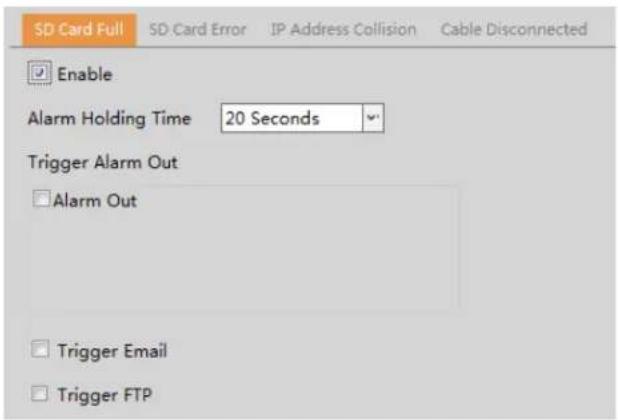

1. Go to Alarm→Exception Alarm→SD Card Full.

SD Card Full SD Card Error IP Address Collision Cable Disconnected Enable Alarm Holding Time 20 Seconds Trigger Alarm Out Alarm Out Trigger Email Trigger FTP

1. Click "Enable" and set the alarm holding time.
2. Set alarm trigger options. The setup steps are the same as motion detection. Please refer to motion detection chapter for details.

- SD Card Error

When there are some errors in writing SD card, the corresponding alarms will be triggered.

1. Go to Alarm→Exception Alarm→SD Card Error as shown below.

SD Card Full SD Card Error IP Address Collision Cable Disconnected Enable Alarm Holding Time 20 Seconds Trigger Alarm Out Alarm Out Trigger Email Trigger FTP

1. Click "Enable" and set the alarm holding time.
2. Set alarm trigger options. Trigger alarm out, Email and FTP. The setup steps are the same as motion detection. Please refer to motion detection section for details.

IP Address Conflict

This function is only available for the models with Alarm Out interface.

1. Go to Alarm→Exception Alarm→IP Address Collision as shown below.

SD Card Full SD Card Error IP Address Collision Cable Disconnected Enable Alarm Holding Time 20 Seconds Trigger Alarm Out Alarm Out

1. Click "Enable" and set the alarm holding time.
2. Trigger alarm out. When the IP address of the camera conflicts with the IP address of other devices, the system will trigger the alarm out.

- Cable Disconnection

This function is only available for the models with Alarm Out interface.

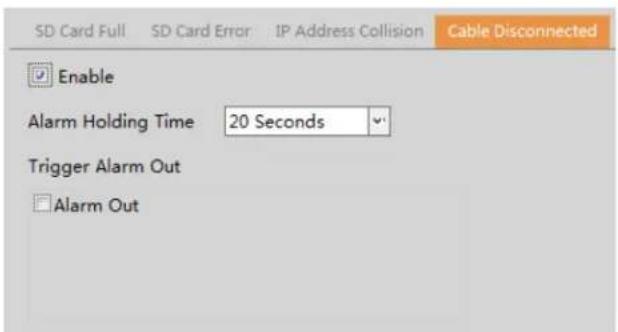

1. Go to Alarm→Exception Alarm→Cable Disconnected as shown below.

SD Card Full SD Card Error IP Address Collision Cable Disconnected Enable Alarm Holding Time 20 Seconds Trigger Alarm Out Alarm Out

1. Click "Enable" and set the alarm holding time.
2. Trigger alarm out. When the camera is disconnected, the system will trigger the alarm out.

4.3.3 Alarm In (Sensor Input)

This function is only available for some models. To set sensor alarm (alarm in):

Go to Alarm→Alarm In interface as shown below.

Detection Config Schedule Enable Alarm Type NO Alarm Holding Time 10 Seconds Sensor Name Trigger Alarm Out Alarm Out Trigger Audio Alarm Trigger Light Alarm Trigger SD Card Snapshot Trigger SD Card Recording Trigger Email Trigger FTP Save

1. Click "Enable" and set the alarm type, alarm holding time and sensor name.

2. Set alarm trigger options.

Alarm Out: If selected, this would trigger an external relay output that is connected to the camera when the sensor alarm is triggered (This function is only available for the models with Alarm Out interface).

Trigger Audio Alarm: If selected, the warning voice will be uttered when the sensor alarm is triggered. (Please set the warning voice first. See Audio Alarm for details).

Trigger Light Alarm: If selected, the light of the camera will flash when the sensor alarm is triggered. (Please set the light flashing time and frequency first. See Light Alarm for details).

Trigger SD Card Snapshot: If selected, the system will capture images when the sensor alarm is triggered and save the images on an SD card.

Trigger SD Card Recording: If selected, video will be recorded on an SD card when the sensor alarm is triggered.

Trigger Email: If "Trigger Email" and "Attach Picture" are checked (email address must be set first in the Email configuration interface), the captured pictures and triggered event will be sent into those addresses.

Trigger FTP: If "Trigger FTP" and "Attach Picture" are checked, the captured pictures will be sent into FTP server address. Please refer to FTP configuration chapter for more details.

1. Click "Save" button to save the settings.

2. Set the schedule of the sensor alarm. The setup steps of the schedule are the same as the schedule recording setup. (See Schedule Recording).

4.3.4 Alarm Out

This function is only available for some models. Go to Alarm→Alarm Out.

Alarm Out Mode Alarm Linkage Alarm Out Name alarmOut1 Alarm Holding Time 20 Seconds Alarm Type NC Save

Alarm Out Mode: Alarm linkage, manual operation, day/night switch linkage and schedule are optional.

Alarm Linkage: Having selected this mode, select alarm out name, alarm holding time at the "Alarm Holding Time" pull down list box and alarm type.

Manual Operation: Having selected this mode, select alarm type and click "Open" to trigger the alarm out immediately; click "Close" to stop alarm.

Alarm Out Mode Manual Operation Alarm Type NC Manual Operation Open Close Save

Day/Night Switch Linkage: Having selected this mode, select the alarm type and choose to open or close alarm out when the camera switches to day mode or night mode.

Alarm Out Mode Day/night switch linkage Alarm Type NC Day Close Night Close Save

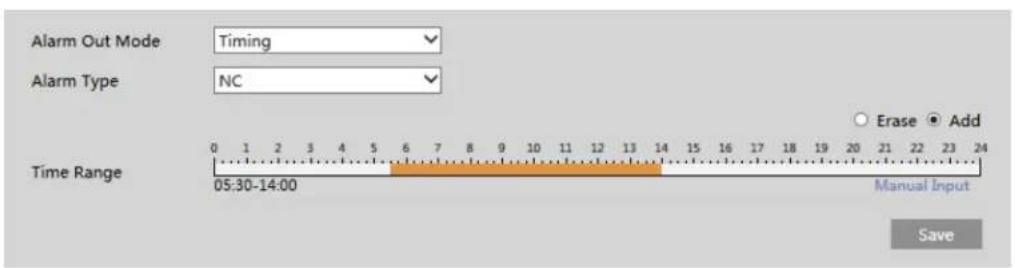

Timing: Select the alarm type. Then click "Add" and drag the mouse on the timeline to set the schedule of alarm out; click "Erase" and drag the mouse on the timeline to erase the set time schedule. After this schedule is saved, the alarm out will be triggered in the specified time.

Alarm Out Mode Timing Alarm Type NC Time Range 05:30-14:00 Erase Add Manual Input Save

4.3.5 Alarm Server

Go to Alarm→Alarm Server interface as shown below.

Set the server address, port, heartbeat, and heartbeat interval. When an alarm occurs, the camera will transfer the alarm event to the alarm server. If an alarm server is not needed, there is no need to configure this section.

Server Address Port 8010 Heartbeat Disable Heartbeat interval 30 Second OK

4.3.6 Audio Alarm

1. Go to Alarm→Audio Alarm interface as shown below.

Sound configuration Schedule Enable Voice Configuration Warning voice English Voice This is a restricted area for Warning Times 5 times followAlarm Volume 100 Audio List This is a restricted area for Listen Save

1. Enable audio alarm. If disabled, the warning sound will not be uttered by clicking in the live view interface.
2. Select the warning voice. If you want to customize the voice, you can choose "Customize". Click "Browse" to choose the audio file you want to upload and then enter the audio name. Finally, click "Upload" to upload the audio file. Note that the format of the audio file must meet the requirement (see Tips), or it will not be uploaded. After you upload the audio file, you can select the audio name from the audio list and click "Listen" to listen to it. Click "Delete" to delete the audio.

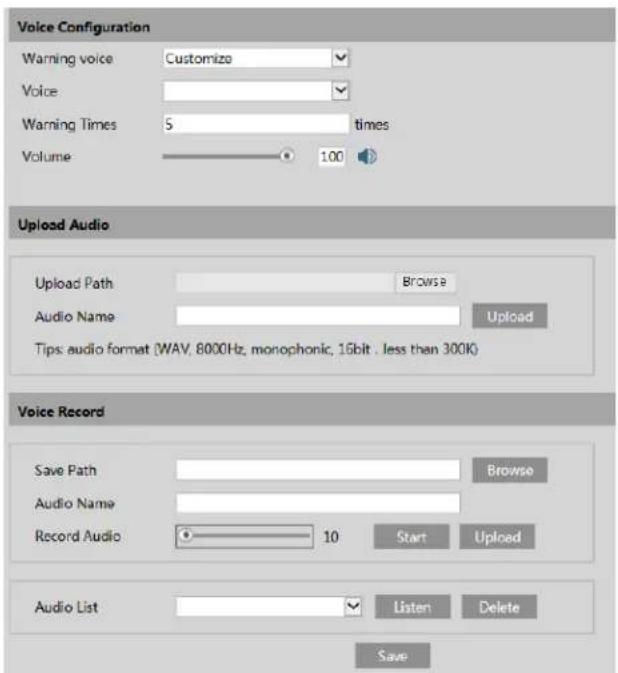

Voice Configuration Warning voice Customize Voice Warning Times 5 times Volume 100 Upload Audio Upload Path Browse Audio Name Upload Tips audio format (WAV, 8000Hz, monophonic, 16bit . less than 300K) Voice Record Save Path Browse Audio Name Record Audio 10 Start Upload Audio List Listen Delete Save

You can also record your own voice in the above interface and then upload.

• Insert the microphone into your PC.
• Click "Browse" to choose the save path of the audio you want to record.
• Set the record audio volume and then click "Start" to start recording your voice.

• Click "Upload" to upload your customized voice.

• Select the voice and then set the warning times and volume as needed.

Warning times: it ranges from 1 to 50.

1. Click "OK" to save the settings.

4.3.7 Light Alarm

Go to Alarm→Light Alarm interface as shown below.

Set the flashing time and frequency of the light.

Light Configuration Schedule Enable Flashing Time 20 Second Follow the alarm source Flashing Frequency Mid OK

Flashing time: the flashing time ranges from 1 second to 60 seconds.

Follow the alarm source: if enabled, the light will continue flashing until the detected target leaves the detection area or stops triggering alarm.

Flashing Frequency: three options- low, middle and high

4.4 Analytics Configuration

This series of IP cameras supports certain smart functions, such as line crossing detection, region intrusion detection, etc. These events can be triggered as alarm events.

For more accuracy, here are some recommendations for installation.

• Cameras should be installed on stable surfaces, as vibrations can affect the accuracy of detection.
• Avoid pointing the camera at the reflective surfaces (like shiny floors, mirrors, glass, lake surfaces and so on).
• Avoid places that are narrow or have too much shadowing.
• Avoid scenario where the object's color is similar to the background color.
• At any time of day or night, please make sure the image of the camera is clear and with adequate and even light, avoiding overexposure or too much darkness on both sides.

4.4.1 Abandoned/Missing Object Detection

Alarms will be triggered when the objects are removed from or left at the pre-defined area.

To set object removal detection:

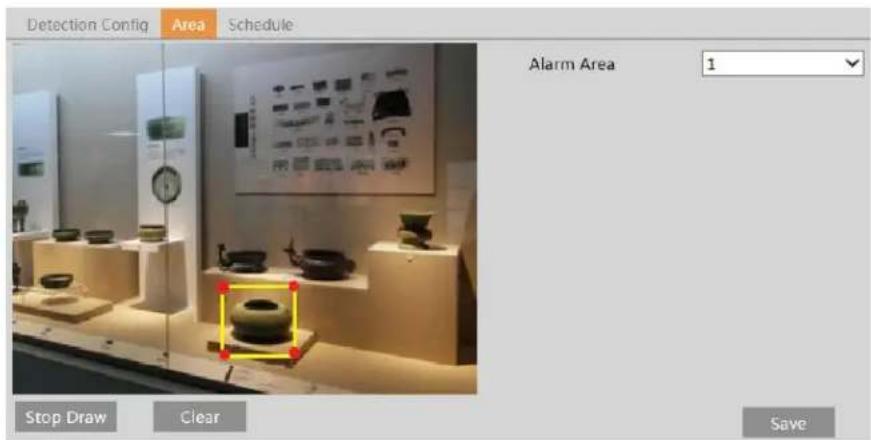

Go to Config→Event→Object Abandoned/Missing interface as shown below.

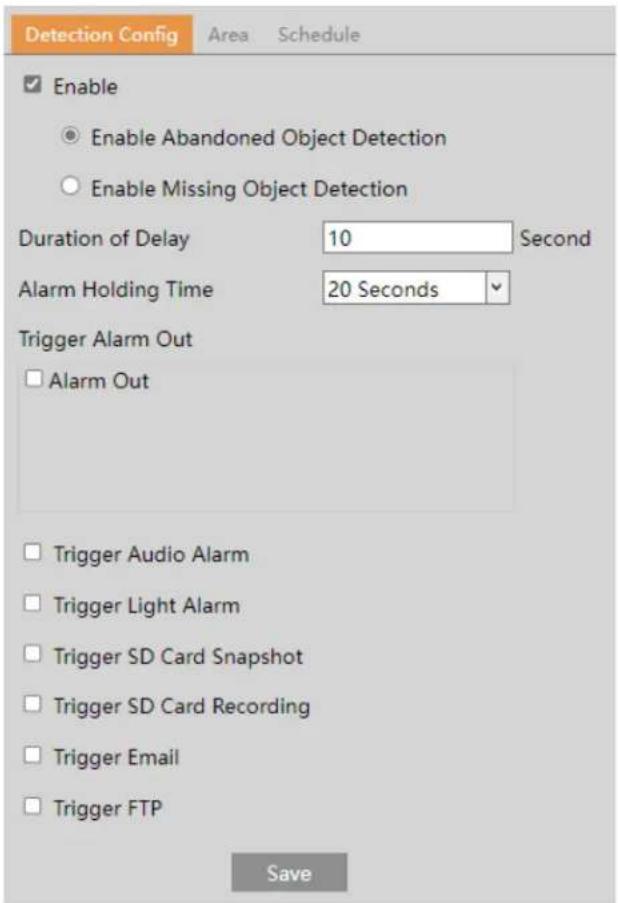

Detection Config Area Schedule Enable Enable Abandoned Object Detection Enable Missing Object Detection Duration of Delay 10 Second Alarm Holding Time 20 Seconds Trigger Alarm Out Alarm Out Trigger Audio Alarm Trigger Light Alarm Trigger SD Card Snapshot Trigger SD Card Recording Trigger Email Trigger FTP Save

1. Enable abandoned/missing object detection and then select the detection type.

Enable Abandoned Object Detection: Alarms will be triggered if there are items left in the pre-defined area.

Enable Missing Object Detection: Alarms will be triggered if there are items missing in the pre-defined area.

1. Set the alarm holding time and alarm trigger options. The setup steps are the same as sensor alarm. Please refer to Alarm IN section for details.

2. Click "Save" button to save the settings.

3. Set an alarm area for abandoned/ missing object detection. Click the "Area" tab to go to the interface as shown below.

Detection Config Area Schedule Alarm Area 1 Stop Draw Clear Save

Set the alarm area number and then enter the desired alarm area name. Only one alarm area can be added. Click the "Draw Area" button and then click around the area where you want to set as the alarm area in the image (the alarm area should be a closed area).

Click the "Stop Draw" button to stop drawing. Click the "Clear" button to delete the alarm area. Click the "Save" button to save the settings.

1. Set the schedule of the object removal detection. The setup steps of schedule are the same as the schedule recording (See Schedule Recording).

※ The configuration requirements of camera and surrounding areas

1. The range of the detection object should occupy from 1/50 to 1/3 of the entire image.
2. The detection time of objects in the camera shall be from 3 to 5 seconds.
3. The defined area cannot be covered frequently and continuously (like people and traffic flow).
4. It is necessary for missing object detection that the drawn frame must be very close to the margin of the object in enhancing the sensitivity and accuracy of the detection.
5. Abandoned/missing object detection cannot determine the objects' ownership. For instance, there is an unattended package in the station. Abandoned object detection can detect the package itself but it cannot determine to whom it belongs to.
6. Try not to enable abandoned/missing object detection when light changes greatly in the scene.
7. Try not to enable abandoned/missing object if there are complex and dynamic environments in the scene.
8. Adequate light and clear scenery are very important to abandoned/missing object detection.

4.4.2 Video Exception

This function can detect changes in the surveillance environment affected by the external factors.

Go to Event→Video Exception interface as shown below.

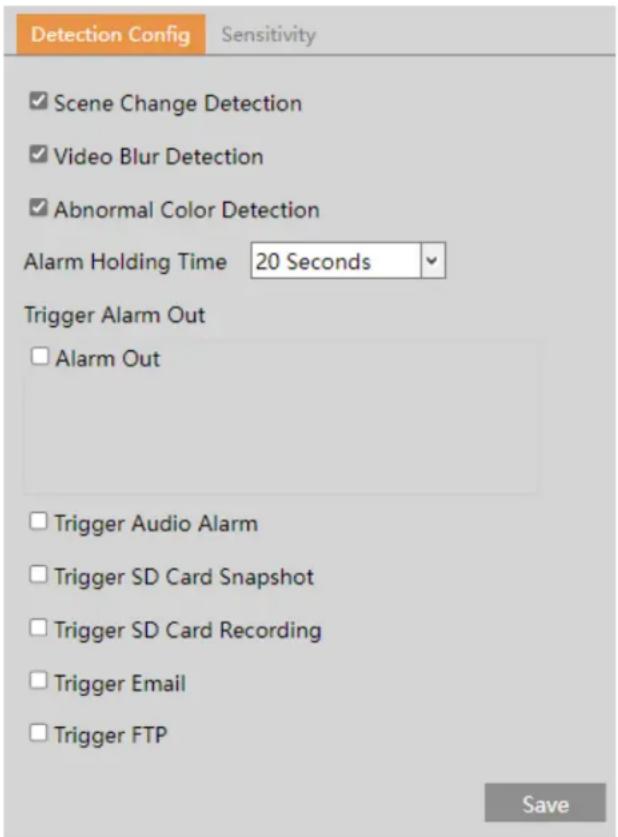

Detection Config Sensitivity ✓ Scene Change Detection ✓ Video Blur Detection ✓ Abnormal Color Detection Alarm Holding Time 20 Seconds Trigger Alarm Out □ Alarm Out □ Trigger Audio Alarm □ Trigger SD Card Snapshot □ Trigger SD Card Recording □ Trigger Email □ Trigger FTP Save

1. Enable the applicable detection that is desired.

Scene Change Detection: Alarms will be triggered if the scene of the video has changed.

Video Blur Detection: Alarms will be triggered if the video becomes blurry.

Abnormal Color Detection: Alarms will be triggered if the image is abnormal caused by color deviation.

1. Set the alarm holding time and alarm trigger options. The setup steps are the same as motion detection. Please refer to motion detection chapter for details.

2. Click "Save" button to save the settings.

3. Set the sensitivity of the exception detection. Click "Sensitivity" tab to go to the interface as shown below.

Detection Config Sensitivity Sensitivity 1 Save

Drag the slider to set the sensitivity value or directly enter the sensitivity value in the textbox. Click "Save" button to save the settings.

The sensitivity value of Scene Change Detection: The higher the value is, the more sensitive the system responds to the amplitude of the scene change.

The sensitivity value of Video Blur Detection: The higher the value is, the more sensitive the system responds to the blurriness of the image.

The sensitivity value of Abnormal Color Detection: The higher the value is, the more sensitive the system responds to the color shift of the image.

※The requirements of camera and surrounding area

1. Auto-focusing function should not be enabled for exception detection.
2. Try not to enable exception detection when light changes greatly in the scene.

4.4.3 Line Crossing

Line Crossing: Alarms will be triggered if the target crosses the defined alarm lines.

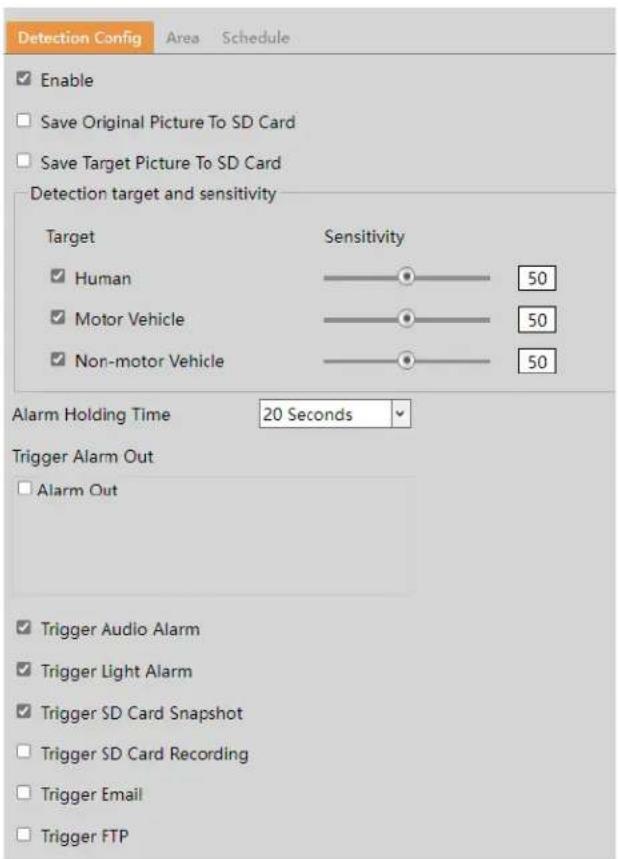

Go to Event→Line Crossing interface as shown below.

Detection Config Area Schedule Enable Save Original Picture To SD Card Save Target Picture To SD Card Detection target and sensitivity Target Sensitivity ✓ Human 50 ✓ Motor Vehicle 50 ✓ Non-motor Vehicle 50 Alarm Holding Time 20 Seconds Trigger Alarm Out ✓ Alarm Out ✓ Trigger Audio Alarm ✓ Trigger Light Alarm ✓ Trigger SD Card Snapshot ✓ Trigger SD Card Recording ✓ Trigger Email ✓ Trigger FTP

1. Enable line crossing alarm and select the snapshot type and the detection target.

Save Original Picture To SD Card: If it is enabled, the detected original pictures will be captured and saved to the SD card when there are targets detected.

Save Target Picture To SD Card: If it is enabled, the detected target cutout pictures will be captured and saved to the SD card when there are targets detected.

Note: To save images to a local PC, please enable the local smart snapshot storage first (System→Local Recording). To save images to an SD card, please install an SD card first.

Detection Target:

Human: Select it and then alarms will be triggered if someone crosses the pre-defined alarm line.

Motor Vehicle: Select it and then alarms will be triggered if a vehicle with four or more wheels (eg. a car, bus or truck) crosses the pre-defined alarm line.

Non-motor Vehicle: Select it and then alarms will be triggered if a vehicle with two wheels (eg. a motorcycle or bicycle) crosses the pre-defined alarm line.

All of the three types of objects can be selected simultaneously. Please select the detection objects as needed. If no object/target is selected, alarms will not be triggered even if line crossing detection is enabled.

1. Set the alarm holding time.

2. Set alarm trigger options. The setup steps are the same as sensor alarm. Please refer to Alarm IN section for details.

3. Click "Save" button to save the settings.

4. Set the area and sensitivity of the line crossing alarm. Click the "Area and Sensitivity" tab to go to the interface as shown below.

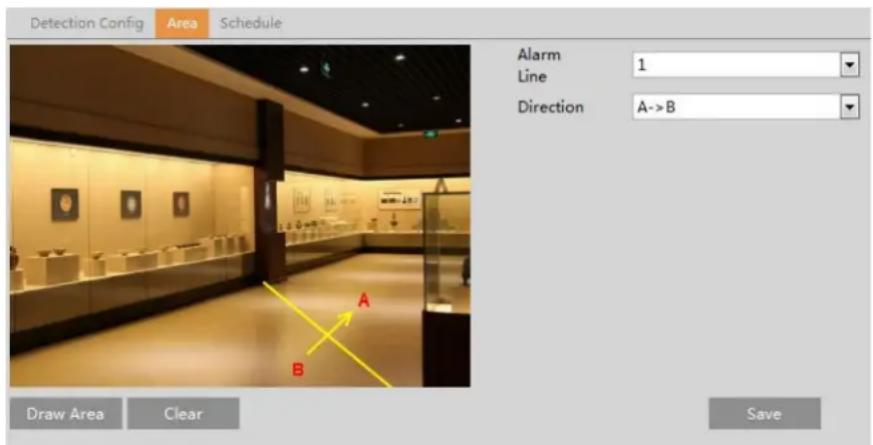

Detection Config Area Schedule Alarm 1 Line Direction A->B Draw Area Clear Save

Set the alarm line number and direction. Up to 4 lines can be added. Multiple lines cannot be added simultaneously.

Direction: A<->B, A->B and A<-B optional. This indicates the direction of the intruder who crosses over the alarm line that would trigger the alarm.

A<->B: The alarm will be triggered when the intruder crosses over the alarm line from B to A or from A to B.

A->B: The alarm will be triggered when the intruder crosses over the alarm line from A to B.

A<-B: The alarm will be triggered when the intruder crosses over the alarm line from B to A.

Click the "Draw Area" button and then drag the mouse to draw a line in the image. Click the "Stop Draw" button to stop drawing. Click the "Clear" button to delete the lines. Click the "Save" button to save the settings.

1. Set the schedule of the line crossing alarm. The setup steps of the schedule are the same as the schedule recording setup (See Schedule Recording).

※Configuration of camera and surrounding area

1. Auto-focusing function should not be enabled for line crossing detection.
2. Avoid the scenes with many trees or the scenes with various light changes (like many flashing headlights). The ambient brightness of the scenes shouldn't be too low.
3. Cameras should be mounted at a height of 10ft or above.
4. Keep the mounting angle of the camera at about 45^ .
5. The detected objects should not be less than 1% of the entire image and the largest sizes of the detected objects should not be more than 1/8 of the entire image.

6. Make sure cameras can view objects for at least 2 seconds in the detected area for accurate detection.

7. Adequate light and clear scenery are crucial for line crossing detection.

4.4.4 Region Intrusion

Region Intrusion: Alarms will be triggered if the target intrudes into the defined areas.

Go to Event→Region Intrusion interface as shown below.

Detection Config Area Schedule Enable Save Original Picture To SD Card Save Target Picture To SD Card Detection target and sensitivity Target Sensitivity Human 50 Motor Vehicle 50 Non-motor Vehicle 50 Alarm Holding Time 20 Seconds Trigger Alarm Out Alarm Out Trigger Audio Alarm Trigger Light Alarm Trigger SD Card Snapshot Trigger SD Card Recording Trigger Email Trigger FTP

1. Enable intrusion alarm and select the snapshot type and the detection target.
2. Set the alarm holding time.
3. Set alarm trigger options. The setup steps are the same as sensor alarm. Please refer to Alarm IN section for details.
4. Click the "Save" button to save the settings.
5. Set alarm areas for the intrusion detection. Click the "Area" tab to go to the interface as shown below.

Detection Config Area Schedule Alarm Area 1 Draw Area Clear Save

Set the alarm area number on the right side. Up to 4 alarm areas can be added.

Click the "Draw Area" button and then click around the area where you want to set as the alarm area in the image on the left side

(the alarm area should be a closed area). Click the "Stop Draw" button to stop drawing. Click the "Clear" button to delete the alarm area. Click the "Save" button to save the settings.

1. Set the schedule of the intrusion detection. The setup steps of the schedule are the same as schedule recording setup (See Schedule Recording).

※Configuration requirements of camera and surrounding area

1. Auto-focusing function should not be enabled for intrusion detection.
2. Avoid the scenes with many trees or the scenes with various light changes (like many flashing headlights). The ambient brightness of the scenes shouldn't be too low.
3. Cameras should be mounted at a height of 10ft or above.
4. Keep the mounting angle of the camera at about 45^ .
5. The detected objects should not be less than 1% of the entire image and the largest sizes of the detected objects should not be more than 1/8 of the entire image.
6. Make sure cameras can view objects for at least 2 seconds in the detected area for accurate detection.
7. Adequate light and clear scenery are crucial to line crossing detection.

4.4.5 Face Detection

Face detection function is to detect the face appearing in the surveillance scene. Alarms will be triggered when a face is detected. The setting steps are as follows:

1. Go to Event→Face Detection as shown below.

Detection Config Area Advanced Schedule State Working Enable Save Source Information To SD Card Save Face Information To SD Card Trigger alarm condition All Alarm Holding Time 20 Seconds Trigger Alarm Out Alarm Out Trigger Audio Alarm Trigger Light Alarm Trigger SD Card Snapshot Trigger SD Card Recording Trigger Email Trigger FTP Save

1. Enable the face detection function.

Save Source Information: if checked, the whole picture will be saved to an SD card when detecting a face.

Save Face Information: if checked, the captured face picture will be saved to an SD card when detecting a face.

Note: To save images to a local PC, please enable the local smart snapshot storage first (System→Local Recording). To save images to an SD card, please install an SD card first.

1. Set alarm holding time and alarm trigger options. The setup steps are the same as sensor alarm. Please refer to Alarm IN section for details.
2. Set alarm detection area.

Detection Config Area Schedule Advanced 04/28/2018 IF Camera02 Draw Area Clear Min 3 % Max 50 % Save

Use this to draw the approximate size of the face that you want the camera to capture. This is useful when there are multiple faces in the background or foreground that are not needed to be captured. To enable, Click "Draw Area" and drag the border lines of the rectangle to modify its size. Move the rectangle to change its position. Click "Stop Draw" to stop drawing the area. Click "Clear" to clear the area. Then set the detectable face size by defining the maximum value and the minimum value (The default size range of a single face image occupies from 3% to 50% of the entire image).

1. Set the schedule of the face detection. The setup steps of the schedule are the same as schedule recording setup (See Schedule Recording).

2. Advanced configuration. Choose the snapshot interval and number as needed to avoid capturing multiple similar pictures in a very short period of time.

Detection Config Area Advanced Schedule Deduplication Period Snapshot Interval 30 Seconds Snapshot Number 3 ✓ Save

Snapshot Interval: If 5 seconds is selected, the camera will capture the same target once every 5 seconds during its continuous tracking period.

Snapshot Number: If the snapshot number is enabled and set (eg. 3), the camera will capture the same target once every 5 seconds and it will capture this target 3 times at most during its continuous tracking period. If the snapshot number is disabled, the camera will capture the same target once every 5 seconds until the target disappears in the detected area.

※ Configuration requirements of camera and surrounding area

1. Cameras must be installed in the area with stable and adequate light sources.
2. The installation height ranges from 1.9m (6.2ft) to 2.5m(8.2ft), adjustable according to the focal-length of different lenses and object distances.

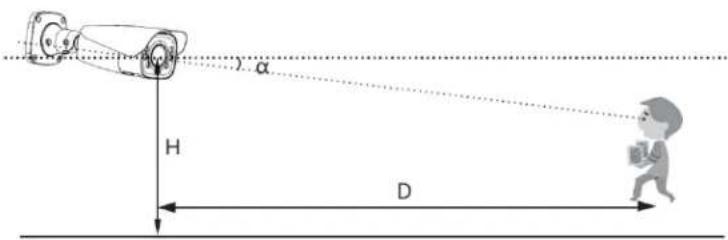

3. The depression angle (a) of the camera shall be less than or equal to 15^ .

H D α

1. The object distance depends on the focal-length of the lens mounted in the camera.
2. In order to guarantee the captured face recognition rate, the requirement for face capture are: left or right face turn angle is less than about 30^ ; pitching angle is less than 20^ .
3. Face illumination must be uniform, if the brightness is low or there is a large area of shadow, need to do the light filling.
4. When the capture scenario is backlight, the camera's BLC/HLC/WDR need to be turned on, or fill the light.
5. The face recognition do not support black & white mode for now.

4.4.6 Region Entrance

Region Entrance: Alarms will be triggered if the target enters the pre-defined areas.

Go to Config→Event→Region Entrance interface as shown below.

Detection Config Area Schedule Enable Save Original Picture To SD Card Save Target Picture To SD Card Detection target and sensitivity Target Sensitivity Human 50 Motor Vehicle 50 Non-motor Vehicle 50 Alarm Holding Time 20 Seconds Trigger Alarm Out Alarm Out Trigger Audio Alarm Trigger Light Alarm Trigger SD Card Snapshot Trigger SD Card Recording Trigger Email Trigger FTP Save

1. Enable region entrance detection and select the snapshot type and the detection target.
2. Set the alarm holding time.
3. Set alarm trigger options. The setup steps are the same as sensor alarm. Please refer to Alarm IN section for details.
4. Click the "Save" button to save the settings.
5. Set the alarm area of the region entrance detection. Click the "Area" tab to go to the interface as shown below.

Detection Config Area Schedule 4-02 2019/08/24 17:24:12 Alarm Area 1 Stop Draw Clear Save

Set the alarm area number on the right side. Up to 4 alarm areas can be added.

Click the "Draw Area" button and then click around the area where you want to set as the alarm area in the image on the left side (the alarm area should be a closed area). Click the "Stop Draw" button to stop drawing. Click the "Clear" button to delete the alarm area. Click the "Save" button to save the settings.

1. Set the schedule of the region entrance detection. The setup steps of the schedule are the same as schedule recording setup (See Schedule Recording).

* The configuration requirements of camera and surrounding area are the same as intrusion detection.

4.4.7 Region Exiting

Region Exiting: Alarms will be triggered if the target exits from the pre-defined areas.

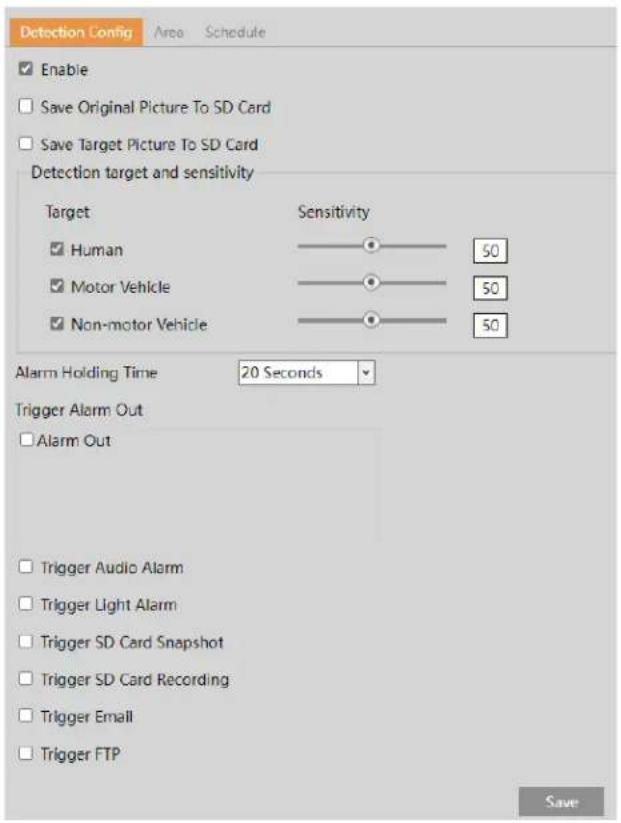

Go to Config→Event→Region Exiting interface as shown below.

Detection Config Area Schedule Enable Save Original Picture To SD Card Save Target Picture To SD Card Detection target and sensitivity Target Sensitivity Human 50 Motor Vehicle 50 Non-motor Vehicle 50 Alarm Holding Time 20 Seconds Trigger Alarm Out Alarm Out Trigger Audio Alarm Trigger Light Alarm Trigger SD Card Snapshot Trigger SD Card Recording Trigger Email Trigger FTP Save

1. Enable region exiting detection and select the snapshot type and the detection target.
2. Set the alarm holding time.
3. Set alarm trigger options. The setup steps are the same as sensor alarm. Please refer to Alarm IN section for details.
4. Click the "Save" button to save the settings.
5. Set the alarm area of the region exiting detection. Click the "Area" tab to go to the interface as shown below.

Detection Config Area Schedule 4:02 2019/08/24 17:24:12 Alarm Area 1 Stop Draw Clear Save

Set the alarm area number on the right side. Up to 4 alarm areas can be added.

Click the "Draw Area" button and then click around the area where you want to set as the alarm area in the image on the left side (the alarm area should be a closed area). Click the "Stop Draw" button to stop drawing. Click the "Clear" button to delete the alarm area. Click the "Save" button to save the settings.

1. Set the schedule of the region exiting detection. The setup steps of the schedule are the same as schedule recording setup (See Schedule Recording).

* The configuration requirements of camera and surrounding area are the same as intrusion detection

4.4.8 Target Counting by Line

This function is used to detect, track and count the number of people or vehicles crossing the set alarm line.

1. Go to Config→Event→Target Counting by Line as shown below.

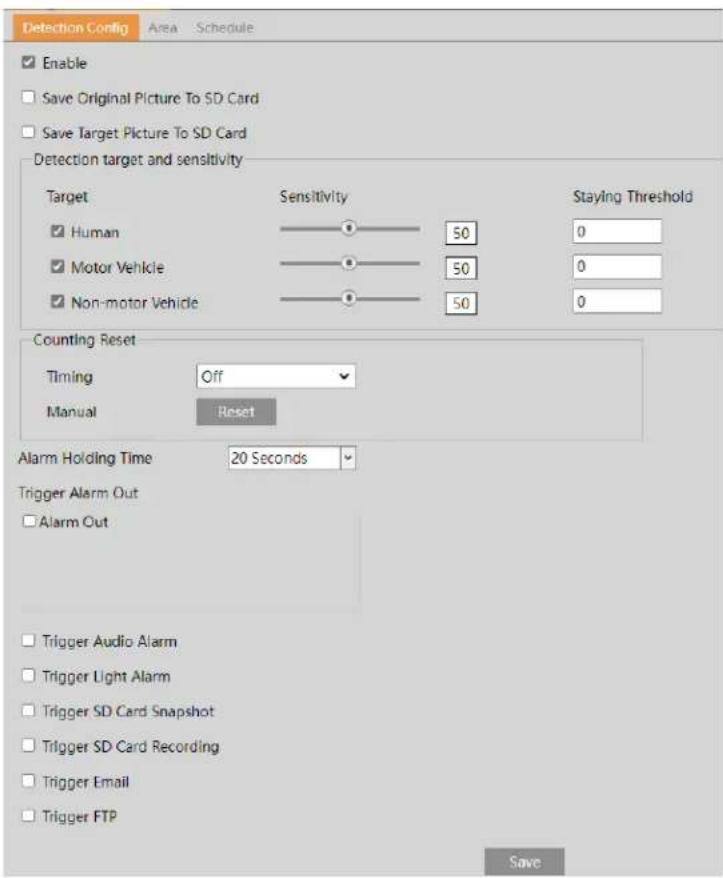

Detection Config Area Schedule Enable Save Original Picture To SD Card Save Target Picture To SD Card Detection target and sensitivity Target Sensitivity Staying Threshold Human 50 0 Motor Vehicle 50 0 Non-motor Vehicle 50 0 Counting Reset Timing Off Manual Reset Alarm Holding Time 20 Seconds Trigger Alarm Out Alarm Out Trigger Audio Alarm Trigger Light Alarm Trigger SD Card Snapshot Trigger SD Card Recording Trigger Email Trigger FTP Save

1. Enable target counting and select the snapshot type and the detection target.

Detection Target: Select the target to calculate. Human, motor vehicle and motorcycle/bicycle can be selected.

Staying Threshold: When the targets (human/vehicle) staying in the specified area exceed the threshold, alarms will be triggered.

Counting Reset: The current number of the target counting can be reset. You can choose to reset the counting daily, weekly or monthly. Click "Reset" to manually reset the current number of crossing line people/car/bike counting.

1. Set alarm trigger options. The setup steps are the same as sensor alarm. Please refer to Alarm IN section for details.

2. Set the area of the target counting. Click the "Area" tab to go to the interface as shown below.

Detection Config Area Schedule Entry: Hurainl Car Exit: Humane Care Bike OverHumane Care Bike Alarm Line 1 Direction A->B Statistics OSD Entrance Entry Exit Stay Stay Human human Car car Bike bike Under Threshold Welcome Over Threshold Please wait Draw Area Clear Save

Set the alarm line number and direction. Only one alarm line can be added.

Direction: A->B and A<-B can be optional. The direction of the arrow is entrance.

Statistics: If enabled, you can see the statistical information in the live view interface. If disabled, the statistical information will not be displayed in the live view interface.

The statistical OSD information can be customized as needed.

Click the "Draw Area" button and then drag the mouse to draw a line in the image. Check "Statistics" and then move the red box to change the position of the statistical information displayed on the screen. Click the "Stop Draw" button to stop drawing. Click the "Clear" button to delete the lines.

1. Set the schedule of the target counting. The setup steps of the schedule are the same as schedule recording setup (See Schedule Recording).

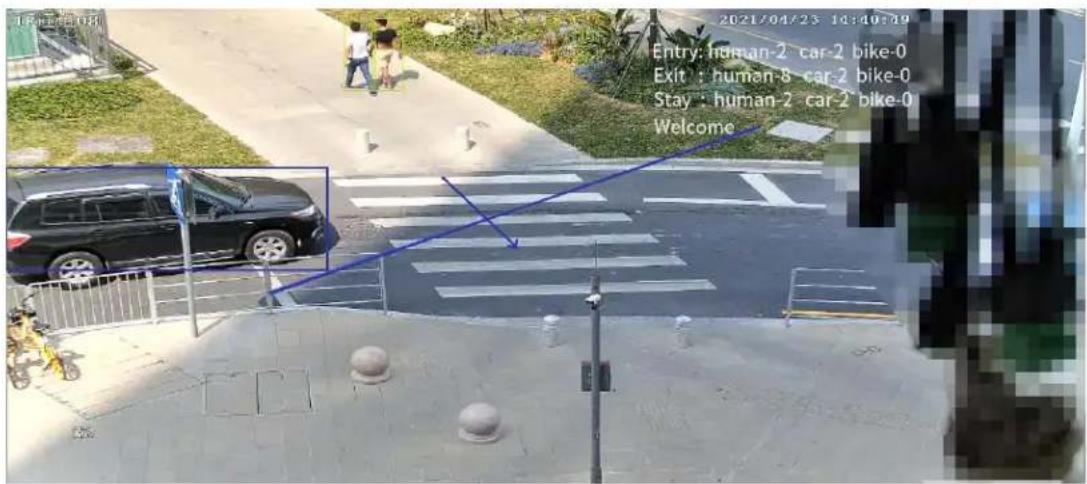

2. View the statistical information in the live view interface.

Entry: human-2 car-2 bike-0 Exit: human-8 car-2 bike-0 Stay: human-2 car-2 bike-0 Welcome

1. View the statistical information of target counting by line. Click Statistics→Target Counting by Line to enter the following interface.

Super Counting by Line Report Type: Daily Report Count Type: Enter Count Time 2023 Year 5 Month 11 Day: Count Table Statistics Index Count Time Human Motor Vehicle Non-motor Vehicle 1 2 2023-05-11 00:00:00 - 2023-05-11 00:59:59 0 0 0 2 2023-05-11 01:00:00 - 2023-05-11 01:59:59 0 0 0

Please select report type, count type and start time as needed. Then click "Count" to search the statistic result. Click "Statistics" to view the statistic result intuitively.

4.4.9 Target Counting by Area

This function is used to detect, track and count the number of people or vehicles intruding into a pre-defined area.

1. Go to Config→Event→Target Counting by Area.
2. Enable target counting by area, select the snapshot type, the detection target, counting reset and alarm linkages. The setup steps are the same as the target counting by line.
3. Set alarm trigger options. The setup steps are the same as sensor alarm. Please refer to Alarm IN section for details.
4. Set the statistic area. Click the "Area" tab to go to the interface as shown below.

Detection Config Area Schedule IPC 2021/04/25 00:37 AM Alarm Area 1 Statistics OSD Entrance Entry Exit Exit Stay Stay Human human Car car Bike bike Under Threshold Welcome Over Threshold Please wait Draw Area Clear Save

Select the alarm area number on the right side. Only one alarm area can be added.

Click the "Draw Area" button and then click around the area where you want to set as the alarm area in the image on the left side (the alarm area should be a closed area). Click the "Stop Draw" button to stop drawing. Click the "Clear" button to delete the alarm area. Click the "Save" button to save the settings.

1. Set the schedule of the target counting by area. The setup steps of the schedule are the same as schedule recording setup (See Schedule Recording).

2. View the statistical information in the live view interface.

Entrance: human-43 car-108 bike-4 Exit : human-31 car-74 bike-4 Stay : human-1 car-3 bike-0

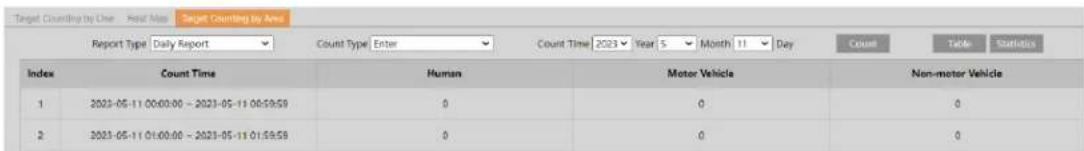

1. View the statistical information of target counting by area. Click Statistics→Target Counting by Area to enter the following interface.

Target Counting by Over Report Type Daily Report Count Type Enter Count Time 2023 Year 5 Month 11 Day Count Table Statistics Index Count Time Human Motor Vehicle Non-motor Vehicle 1 2023-05-11 00:00:00 ~ 2023-05-11 00:59:59 0 0 0 2 2023-05-11 01:00:00 ~ 2023-05-11 01:59:59 0 0 0

Please select report type, count type and start time as needed. Then click "Count" to search the statistic result. Click "Statistics" to view the statistic result intuitively.

4.4.10 Heat Map

Heat Map is to display the flow distribution of people/vehicles in pre-defined areas by different colors.

1. Enable Heat Map, set snapshot type and detection target type as needed.

Detection Config Area Schedule Enable Detection target and sensitivity Target Sensitivity ✓ Human 50 ✓ Motor Vehicle 50 ✓ Non-motor Vehicle 50 Save

1. Set heat map display area. Up to 4 areas can be set.

Detection Config Area Schedule IPEntrance: human-234 car-367 bike-15 Exit: human-137 car-297 bike-30 Stay: human-0 car-2 bike-0 Stop Draw Clear Save Alarm Area 1

Click the "Draw Area" button and then click around the area where you want to set as the alarm area in the image on the left side (the alarm area should be a closed area). Click the "Stop Draw" button to stop drawing. Click the "Clear" button to delete the alarm area. Click the "Save" button to save the settings.

1. Set the schedule of heat map. The setup steps of the schedule are the same as schedule recording setup (See Schedule Recording).

2. View the heat map data (click Statistics→Heat Map). Set the start time and the end time. Click "Count" to view the heat map as shown below. The default heat map is people flow data display. Click "Motor Vehicle" or "Non-motor Vehicle" to view the corresponding data.

Target Counting By Entity Head Map: Target Counting By Area Start Time 2021-09-03 00:00:00 End Time 2021-09-03 22:59:59 Correct Human IPC 2021/04/26 10:32:32 2019/06/30 19:32:06 0 100 0 100

4.4.11 Video Metadata

Video Metadata: Human, motor vehicle and non-motor vehicle in the video can be classified, counted and captured and the relevant features can be extracted and displayed on the live interface.

Go to Config→Event→Video Metadata interface. The setting steps are as follows:

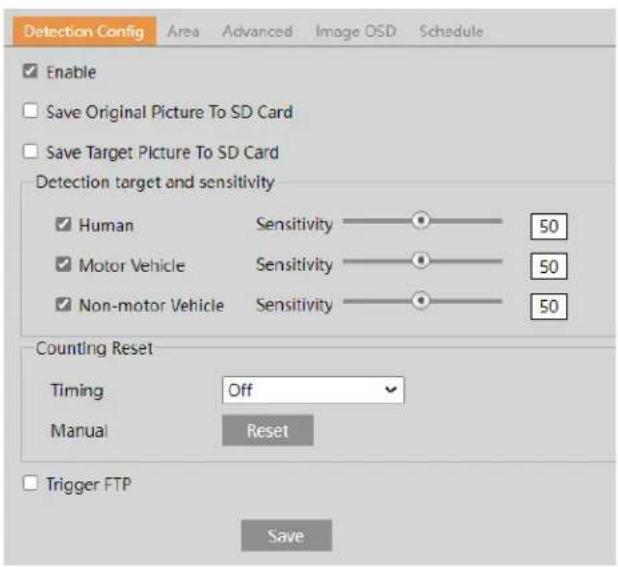

Detection Config Area Advanced Image OSD Schedule Enable Save Original Picture To SD Card Save Target Picture To SD Card Detection target and sensitivity Human Sensitivity 50 Motor Vehicle Sensitivity 50 Non-motor Vehicle Sensitivity 50 Counting Reset Timing Off Manual Reset Trigger FTP Save

1. Enable video metadata and select the snapshot type and the detection target.

Save Original Picture to SD Card: If it is enabled, the detected original pictures will be captured and saved to the SD card when the targets enter the pre-defined areas.

Save Target Picture to SD Card: If it is enabled, the detected target cutout pictures will be captured and saved to the SD card when the targets enter the pre-defined areas.

Detection target: Human, motor vehicle and non-motor vehicle. All of the three types of objects can be selected simultaneously.

Counting Reset: The current number of the target counting can be reset. You can choose to reset the counting daily, weekly or monthly. Click "Reset" to manually reset the current number of crossing line people/car/bike counting.

1. Check "Trigger FTP" as needed

2. Set the detection area and blocked area.

Detection Area: 4 detection areas can be set. Targets that enter in the pre-defined detection area will be counted and captured. Blocked Area: 4 blocked areas can be set. Targets that enter in the pre-defined blocked area will not be counted and captured.

Detection Config Area Advanced Image OSD Schedule IPC 2024/1/27/09 17:34:46 car o bike-0 Detection Area 1 ✓ Blocked Area 1 ✓ ✓ Statistics OSD Human human Car car Bike bike Draw Area Clear Save

You need to set the detection area and blocked area separately.

To set detection area:

Check the checkbox of detection area and select the number and to set the detection area.

Click the "Draw Area" button and then click around the area where you want to set as the alarm area in the image on the left side (the alarm area should be a closed area). Click the "Stop Draw" button to stop drawing. Click the "Clear" button to delete the alarm area. Click the "Save" button to save the settings.

To set blocked area:

Check the checkbox of blocked area and select the number and to set the blocked area. The setting steps are the same as detection

area settings.

Statistics: If enabled, you can see the statistical information of human, motor vehicle and non-motor vehicle in the live view interface.

The statistical OSD information can be customized as needed.

1. Advanced settings. Click the "Advanced" tab to enter the advanced setting interface. Select the recognition mode as needed. Interval mode and instant mode can be selectable.

Interval mode: the system will push the captured picture to the live interface according to the set interval time.

Instant mode: the system will push the captured picture immediately once a target is detected.

1. Select the attribute information of the target. Click "Image OSD" and then select the relevant attribute information. When the target is detected, the information you select will be displayed in the attribute display area. See Video Metadata View for details.

2. Set the schedule of video metadata function. The setup steps of the schedule are the same as schedule recording setup (See Schedule Recording).

After all settings above are configured, return to the live interface to view the captured pictures and features.

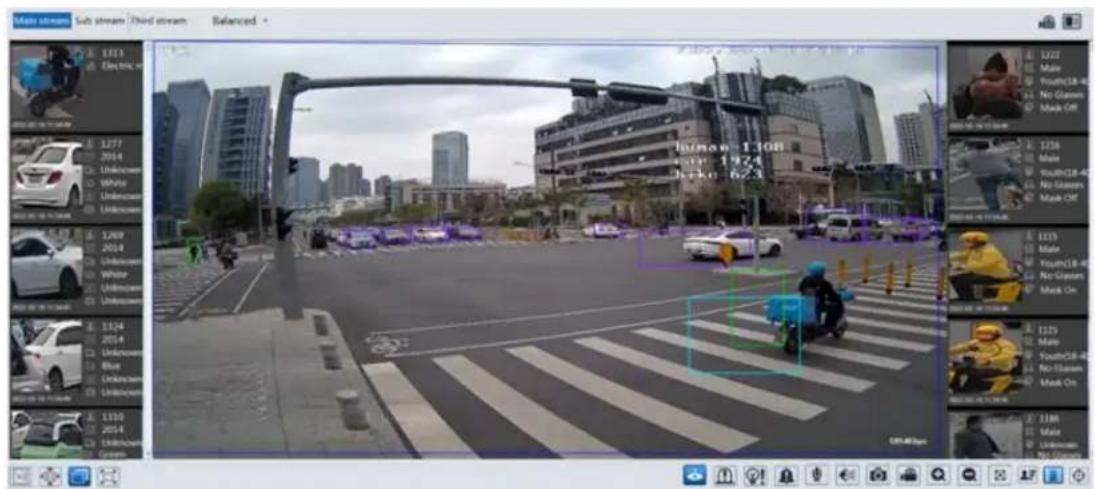

Video Metadata View

In the live interface, click to view the following smart snapshots.

Main stream Sub stream Third stream Balanced 1272 Make YouthC18-40 No Glaser Make Off 1277 2014 Unknown White Unknown Unknown 1.299 2014 Unknown White Unknown Unknown 1.324 2014 Unknown Blue Unknown Unknown 1.310 2014 Unknown Green Ja/mao 1:10B 01:10 - 1:24 01:40 - 6:23 1135 Make YouthC18-40 No Glaser Make Off 1135 Make YouthC18-40 No Glaser Make On 1135 Make YouthC18-40 No Glaser Make On 1186 5 factor Unknown No Glaser

Human body information will be shown on the right panel.

Motor vehicle and non-motor vehicle information will be shown on the left panel.

Click the captured picture to view the detailed information, including original picture, target picture and detailed attributes.

A maximum of 1,000 captured pictures can be shown on the live interface. If exceeded, the previous captured pictures will be overwritten.

4.5 Network Configuration

4.5.1 TCP/IP

Go to Network→TCP/IP interface as shown below. There are two ways for network connection.

IPv4 IPv6 PPPoE Config IP Change Notification Obtain an IP address automatically Use the following IP address IP Address 192.168.226.201 Test Subnet Mask 255.255.255.0 Gateway 192.168.226.1 Preferred DNS Server 192.168.226.1 Alternate DNS Server 8.8.8.8 Save

Use IP address (take IPv4 for example)-obtain a local IP address automatically through DHCP. A typical router has a DHCP server built in, and therefore is able to assign an IP address to the camera.

Use PPPoE-Click the "PPPoE Config" tab to go to the interface as shown below. Enable PPPoE and then enter the user name and password from your ISP.

IPv4 IPv6 PPPoE Config IP Change Notification Enable User Name xxxxx Password ••••••• Save

Either method of network connection can be used. If PPPoE is used to connect internet, the camera will get a dynamic WAN IP address. This IP address will change frequently. To be notified, the IP change notification function can be used. Click "IP Change Notification Config" to go to the interface as shown below.

IPv4 IPv6 PPPoE Config IP Change Notification Trigger Email Trigger FTP Save

Trigger Email: when the IP address of the device is changed, the new IP address will be sent to the email address that has been set up.

Trigger FTP: when the IP address of the device is changed, the new IP address will be sent to FTP server that has been set up.

4.5.2 Port

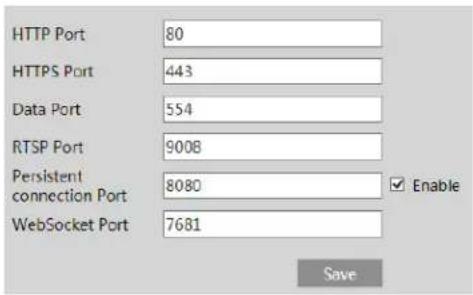

Go to Network→Ports/Connection interface as shown below. HTTP port, Data port and RTSP port can be set.

HTTP Port 80 HTTPS Port 443 Data Port 554 RTSP Port 9008 Persistent connection Port 8080 Enable ✓ WebSocket Port 7681 Save

HTTP Port: The default HTTP port is 80. It can be changed to any port which is not occupied.

HTTPS Port: The default HTTPS port is 443. It can be changed to any port which is not occupied.

Data Port: The default data port is 9008. Please change it as necessary.

RTSP Port: The default port is 554. Please change it as necessary.

Persistent Connection Port: The port is used for a persistent connection of the third-party platform to push smart data, like face pictures.

WebSocket Port: Communication protocol port for plug-in free preview.

4.5.3 Server Configuration

This function is mainly used for connecting network video management system.

Enable Server Port 2009 Server Address Device ID 1 Save

1. Check "Enable".

2. Check the IP address and port of the transfer media server in the VMS. Then enable the auto report in the VMS when adding a new device. Next, enter the remaining information of the device in the VMS. After that, the system will automatically allot a device ID. Please check it in the VMS.

3. Enter the above-mentioned server address, server port and device ID in the corresponding boxes. Click the "Save" button to save the settings.

4.5.4 Onvif

The camera can be searched and connected to the third-party platform via ONVIF/RTSP protocol.

Add Modify Delete Index User Name User Type 1 admin Administrator Add User User Name: Password: Level The password can be composed of numbers, special characters, upper or lower case letters. Confirm Password: User Type OK Cancel

Note: when adding the device to the third-party platform with ONVIF/RTSP protocol, please enter the username and password created in the above interface.

4.5.5 DDNS

If the camera is set up with a DHCP connection, DDNS should be set for accessing the camera from the internet. 1. Go to Network→Ports/Connections→DDNS.

Enable Server Type specoddns.net Domain state disconnect Save

1. Enable, save and use DDNS to log in.

Enable Server Type specoddns.net Domain speco008954.specoddns.net State connect(210.21.229.138) Save

4.5.6 SNMP

To get camera status, parameters and alarm information and remotely manage the camera, the SNMP function can be used. Before using SNMP, please install an SNMP management tool and set the parameters of the SNMP, such as SNMP port, trap address.

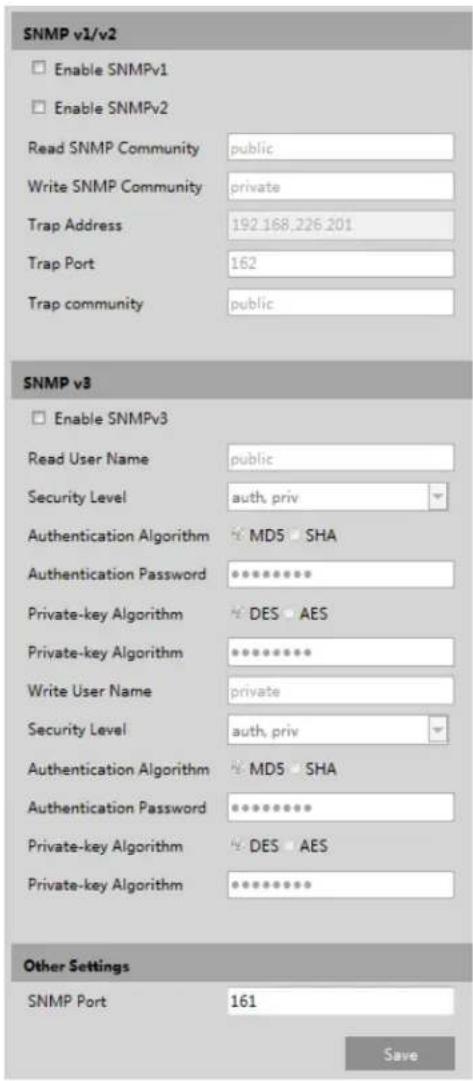

1. Go to Network→Ports/Connections→SNMP.

SNMP v1/v2 Enable SNMPv1 Enable SNMPv2 Read SNMP Community public Write SNMP Community private Trap Address 192.168.226.201 Trap Port 162 Trap community public SNMP v3 Enable SNMPv3 Read User Name public Security Level auth. priv Authentication Algorithm MD5 SHA Authentication Password ********** Private-key Algorithm DES AES Private-key Algorithm ********** Write User Name private Security Level auth. priv Authentication Algorithm MD5 SHA Authentication Password ********** Private-key Algorithm DES AES Private-key Algorithm ********** Other Settings SNMP Port 161 Save

1. Check the corresponding version checkbox (Enable SNMPv1, Enable SNMPv2, Enable SNMPv3) according to the version of the SNMP software that will be used.
2. Set the values for "Read SNMP Community", "Write SNMP Community", "Trap Address", "Trap Port" and so on. Please make sure the settings are the same as that of the SNMP software.

4.5.7 802.1x

If it is enabled, the camera's data can be protected. When the camera is connected to the network protected by the IEE802.1x, user authentication is needed.

Enable Protocol Type EAP_MD5 EAPOL Version 1 User Name Password ••••••• Confirm Password ••••••• Save

To use this function, the camera shall be connected to a switch supporting 802.1x protocol. The switch can be reckoned as an

authentication system to identify the device in a local network. If the camera connected to the network interface of the switch has passed the authentication of the switch, it can be accessed via the local network.

Protocol type and EAPOL version: Please use the default settings.

User name and password: The user name and password must be the same with the user name and password applied for and registered in the authentication server.

4.5.8 RTSP

Go to Network→Ports/Connections→RTSP.

Enable Port 9008 Address rtsp://IP or domain name:port/profile1 rtsp://IP or domain name:port/profile2 rtsp://IP or domain name:port/profile3 Multicast address Main stream 239.0.0.0 50554 □ Automatic start Sub stream 239.0.0.1 51554 □ Automatic start Third stream 239.0.0.2 52554 □ Automatic start Audio 239.0.0.3 53554 □ Automatic start □ Allow anonymous login (No username or password required) Save

Select "Enable" to enable the RTSP function.

Port: Access port of the streaming media. The default number is 554.

RTSP Address: The RTSP address (unicast) format that can be used to play the stream in a media player.

Multicast Address

Main stream: The address format is

"rtsp://IP address: rtsp port/profile1?transportmode=mcast".

Sub stream: The address format is

"rtsp://IP address: rtsp port/profile2?transportmode=mcast".

Third stream: The address format is

"rtsp://IP address: rtsp port/profile3?transportmode=mcast".

Audio: Having entered the main/sub stream in a media player (like VLC), the video and audio will play automatically. If "Allow anonymous login..." is checked, there is no need to enter the username and password to view the video. If "auto start" is enabled, the multicast received data should be added into a VLC player to play the video.

4.5.9 RTMP

You can access the third-party (like YouTube) to realize video live view through RTMP protocol. Go to Config→Network→Ports/Connections→RTMP.

Port Server Onvif DDNS SNMP 802.1X RTSP RTMP UPnP Email Enable (Only supports H264) Stream Type: Main stream Sub stream Third stream Reconnect After Timeout 30 Second Server Address example : rtmp://127.0.0.1:1935/live/liv Connection Status Not Connected Refresh Save

Check "Enable", select stream type, set the reconnection time after timeout and server address as needed.

Server address: Enter the server address allocated by the third party server.

After that, click "Save" to save the settings. Then click "Refresh" to view the connection status.

4.5.10 UPNP

If this function is enabled, the camera can be quickly accessed through the LAN.

Go to Network→Ports/Connections→UPnP. Enable UPNP and then enter UPnP name.

Enable UPnP Name Save

4.5.11 Email

If you need to trigger Email when an alarm happens or IP address is changed, please set the Email here first.

Go to Network→Ports/Connections→Email.

Sender Sender Address User Name Anonymous Login Password Server Address Secure Connection Unnecessary SMTP Port 25 Default Send Interval(S) 60 (10-3600) Clear Test Recipient Recipient Address Add Delete Save

Sender Address: sender's e-mail address.

User name and password: sender's user name and password (you don't have to enter the username and password if "Anonymous Login" is enabled).

Server Address: The SMTP IP address or host name.

Select the secure connection type at the "Secure Connection" pull-down list according to what's required.

SMTP Port: The SMTP port.

Send Interval(S): The time interval of sending email. For example, if it is set to 60 seconds and multiple motion detection alarms are triggered within 60 seconds, they will be considered as only one alarm event and only one email will be sent. If one motion alarm event is triggered and then another motion detection alarm event is triggered after 60 seconds, two emails will be sent. When different alarms are triggered at the same time, multiple emails will be sent separately.

Click the "Test" button to test the connection of the account.

Recipient Address: receiver's e-mail address.

4.5.12 FTP

After an FTP server is set up, captured pictures from events will be uploaded to the FTP server.

Go to Network→Ports/Connections→FTP.

Server Name Server Address Port User Name Password Add FTP Server Name Server Address Upload Path Example:/Dir/folder Port 21 Anonymous OK Cancel Add Modify Delete New Save

Server Name: The name of the FTP server.

Server Address: The IP address or domain name of the FTP.

Upload Path: The directory where files will be uploaded to.

Port: The port of the FTP server.

Use Name and Password: The username and password that are used to login to the FTP server.

4.5.13 HTTPS

HTTPS provides authentication of the web site and protects user privacy.

Go to Network→Ports/Connections→HTTPS as shown below.

Enable Disable HTTP (Checking this option may cause no video image in Google and Firefox) Certificate installed C=CN, ST=GD, L=SZ, O=embeddedsoftewar Delete Issued to: C=CN, ST=GD, L=SZ, O=embeddedsoftware, OU=IPC, H=localhost, E=com.cn, Issuer: C=CN, ST=GD, L=SZ, O=embeddedsoftware, OU=IPC, H=localhost, E=com.cn, Validity date: 2017-07-26 01:02:07 - 2022-07-26 01:02:07 Save

There is a certificate installed by default as shown above. Enable this function and save it. Then the camera can be accessed by entering https://IP: https port via the web browser (eg. https://192.168.226.201:443).

A private certificate can be created if users don't want to use the default one. Click "Delete" to cancel the default certificate. Then the following interface will be displayed.

Enable Installation type Have signed certificate, install directly Create a private certificate Create a certificate request Install certificate Browse Install Save

* If there is a signed certificate, click "Browse" to select it and then click "Install" to install it.

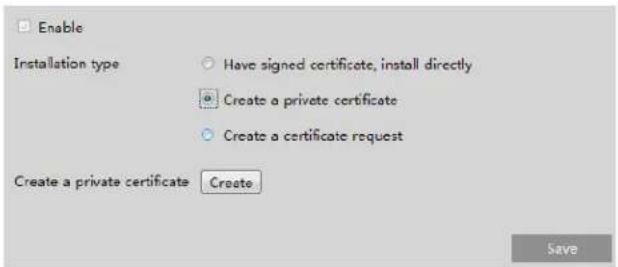

* Click "Create a private certificate" to enter the following creation interface.

Enable Installation type Have signed certificate, install directly Create a private certificate Create a certificate request Create a private certificate Create Save

Click the "Create" button to create a private certificate. Enter the country (only two letters available), domain (camera's IP address/domain), validity date, password, province/state, region and so on. Then click "OK" to save the settings.

* Click "Create a certificate request" to enter the following interface.

Enable Installation type Have signed certificate, install directly Create a private certificate Create a certificate request Create a certificate request Create Download Delete Install Created Certificate Browse Install Save

Click "Create" to create the certificate request. Then download the certificate request and submit it to the trusted certificate authority for signature. After receiving the signed certificate, import the certificate to the device.

4.5.14 HTTP POST

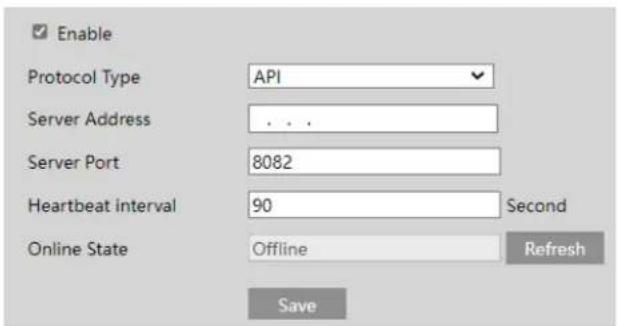

Go to Config→Network→Ports/Connections→HTTP POST interface.

Check "Enable", select protocol type and then set the server address (IP address/domain name), server port and heartbeat interval.

Enable Protocol Type API Server Address ... Server Port 8082 Heartbeat interval 90 Second Online State Offline Refresh Save

Server address: the IP address/domain name of the third-party platform.

Server port: the server port of the third-party platform.

After the above parameters are set, click "Save" to save the settings. Then the camera will automatically connect the third-party platform. The online state can be viewed in the above interface. After the camera is successfully connected, it will send the alarm information (HTTP format) to the third-party platform once the smart alarm is triggered. The alarm information includes target tracing coordinates, target features, the captured original/target image (like the captured face picture, motor vehicle picture) and so on.

4.5.15 QoS

QoS (Quality of Service) function is used to provide different quality of services for different network applications. With the deficient bandwidth, the router or switch will sort the data streams and transfer them according to their priority to solve the network delay and network congestion by using this function.

Go to Network→Ports/Connections→QoS.

Video/Audio DSCP 0 Alarm DSCP 0 Manager DSCP 0 Save

Video/Audio DSCP: The range is from 0 to 63.

Alarm DSCP: The range is from 0 to 63.

Manager DSCP: The range is from 0 to 63.

Generally speaking, the larger the number is, the higher the priority is.

4.6 Security Configuration

4.6.1 User Admin

Go to Security→User Admin interface as shown below.

Config Home ▶ Security ▶ User Add Modify Delete Index User Name User Type 1 admin Administrator

Add user:

1. Click "Add" to pop up the following textbox.

Add User User Name Password Level The password can be composed of numbers, special characters, upper or lower case letters. Confirm Password User Type Select All Remote storage settings Remote image settings Remote PTZ control Remote alarm server configuration Remote intelligent event configuration Remote network advanced configuration Remote security management OK Cancel

1. Enter user name in "User Name" textbox.
2. Enter letters or numbers in "Password" and "Confirm Password" textbox. Please set the password according to the requirement of the password security level (Go to Setup→Security→Security Management→Password Security interface to set the security level).
3. Choose the user type and select the permission.
4. Click the "OK" button and then the newly added user will be displayed in the user list.

Modify user:

1. Select a user to modify password and MAC address if necessary in the user configuration list box.
2. The "Edit user" dialog box pops up by clicking the "Modify" button.

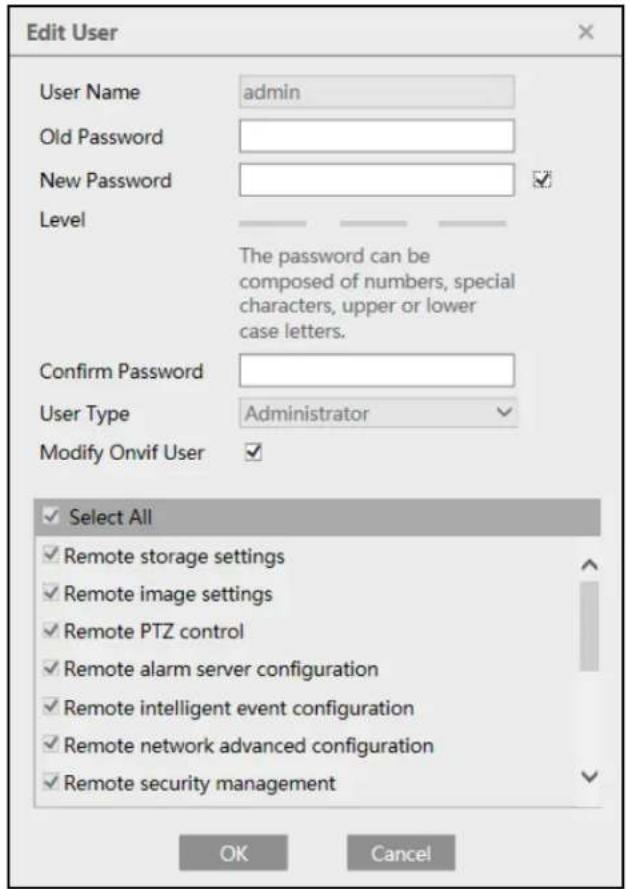

Edit User User Name admin Old Password New Password Level The password can be composed of numbers, special characters, upper or lower case letters. Confirm Password User Type Administrator Modify Onvif User ✓ Select All ✓ Remote storage settings ✓ Remote image settings ✓ Remote PTZ control ✓ Remote alarm server configuration ✓ Remote intelligent event configuration ✓ Remote network advanced configuration ✓ Remote security management OK Cancel

1. Enter the old password of the user in the "Old Password" text box.
2. Enter the new password in the "New password" and "Confirm Password" text box.
3. Modify the permission as necessary.
4. Click the "OK" button to save the settings.

Note: To change the access level of a user, the user must be deleted and added again with the new access level.

Delete user:

1. Select the user to be deleted in the user configuration list box.
2. Click the "Delete" button to delete the user.

Note: The default administrator account cannot be deleted.

4.6.2 Online User

Go to Security→Online User to view the user who is viewing the live video.

Index	Client Address	Port	User Name	User Type
1	192.168.17.232	55760	admin	Administrator	Kick Out

An administrator user can kick out all the other users (including other administrators).

4.6.3 Block and Allow Lists

Go to Security→Block and Allow Lists as shown below.

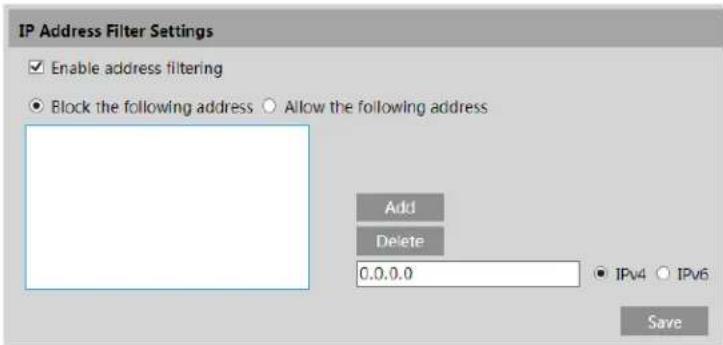

IP Address Filter Settings Enable address filtering Block the following address Allow the following address Add Delete 0.0.0.0 IPv4 IPv6 Save

The setup steps are as follows:

Check the "Enable address filtering" check box.

Select "Block/Allow the following address", IPv4/IPv6 and then enter IPAddress in the address box and click the "Add" button.

4.6.4 Security Management

Go to Security→Security Management as shown below.

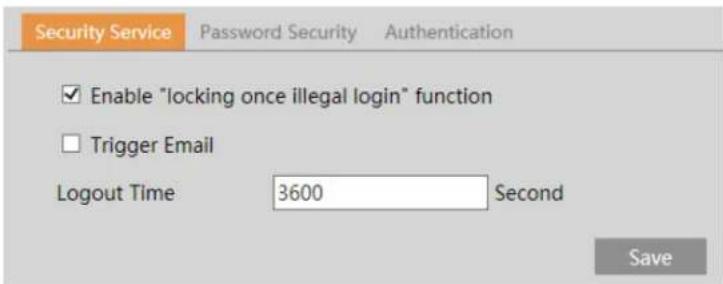

Security Service Password Security Authentication Enable "locking once illegal login" function Trigger Email Logout Time 3600 Second Save

In order to prevent against malicious password unlocking, "locking once illegal login" function can be enabled here. If this function is enabled, login failure after trying five times will make the login interface locked. The camera can be logged in again after a half hour or after the camera reboots.

Trigger Email: if enabled, e-mail will be sent when logging in/out or illegal login lock occurs.

Logout time: Set the logout time as needed. For example: 3600s, you will be automatically logged out after 3600s and then you need to enter the username and password again to log in.

- Password Security

Security Service Password Security Authentication Password Level weak Expiration Time Never Save

Please set the password level and expiration time as needed.

Password Level: Weak, Medium or Strong.

Weak level: Numbers, special characters, upper or lower case letters can be used. You can choose one of them or any combination of them when setting the password.

Medium Level: 8\~16 characters, including at least two of the following categories: numbers, special characters, upper case letters,

lower case letters.

Strong Level: 8\~16 characters. Numbers, special characters, upper case letters and lower case letters must be included.

For your account security, it is recommended to set a strong password and change your password regularly.

HTTP Authentication: Basic or Token is selectable.

4.7 Maintenance Configuration

4.7.1 Backup and Restore

Go to Maintenance→Backup & Restore.

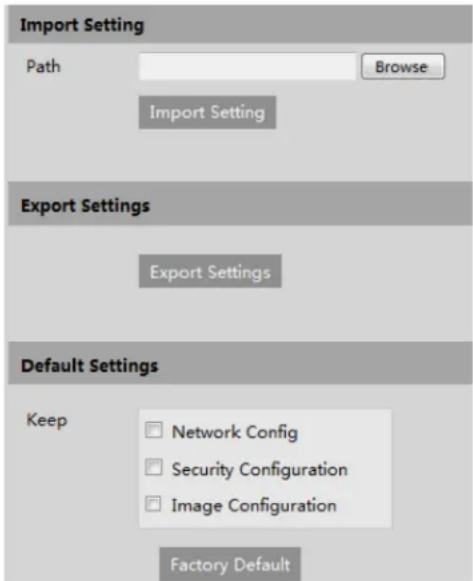

Import Setting Path Browse Import Setting Export Settings Export Settings Default Settings Keep Network Config Security Configuration Image Configuration Factory Default

- Import & Export Settings

Configuration settings of the camera can be exported from a camera into another camera.

1. Click "Browse" to select the save path for import or export information on the PC.

2. Click the "Import Setting" or "Export Setting" button.

Note: The login password needs to be entered after clicking the "Import Setting" button.

- Default Settings

Click the "Load Default" button and then verify the password to restore all system settings to the default factory settings except those you want to keep.

4.7.2 Reboot

Go to Maintenance→Reboot.

Click the "Reboot" button and then enter the password to reboot the device.

Timed Reboot Setting:

If necessary, the camera can be set up to reboot on a time interval. Enable "Time Settings", set the date and time, click the "Save" button and then enter the password to save the settings.

4.7.3 Upgrade

Go to Maintenance→Upgrade. In this interface, the camera firmware can be updated.

Setup ▶ Maintenance ▶ Upgrade Local upgrade Path Browse Upgrade

1. Click the "Browse" button to select the save path of the upgrade file
2. Click the "Upgrade" button to start upgrading the firmware.
3. Enter the correct password and then the device will restart automatically

Caution! Do not close the browser or disconnect the camera from the network during the upgrade.

4.7.4 Operation Log

To query and export log:

1. Go to Maintenance→Operation Log.

Setup > Maintenance > Log Main Type All log Sub Type All log Start Time 2019-04-08 00:00:00 End Time 2019-04-08 23:59:59 Search Export Index Time Main Type Sub Type User Name Login IP 1 2019-04-08 08:43:43 Alarm Motion start 2 2019-04-08 08:43:24 Alarm Vfd Alarm 3 2019-04-08 08:43:14 Alarm Motion stop 4 2019-04-08 08:41:20 Alarm Motion start 5 2019-04-08 08:40:26 Alarm Motion stop 6 2019-04-08 08:40:06 Alarm Motion start 7 2019-04-08 08:37:18 Alarm Motion stop 8 2019-04-08 08:34:43 Alarm Motion start

1. Select the main type, sub type, start and end time.
2. Click "Search" to view the operation log.
3. Click "Export" to export the operation log.

5 Search

5.4 Image Search

In the Setup interface, click Searchto go to the interface as shown below. Images that are saved on the PC or SD card can be found here.

Live Setup speco technologies Record Local 2020 7 Sun Mon Tue Wed Thu Fri Sat 28 29 30 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 1 2 3 4 5 6 7 8 Today 00:00:00 - 23:59:59 Balanced - 24H 12H 2H 1H

- Local Image Search

1. Choose "Picture"—"Local".
2. Set time: Select date and choose the start and end time.
3. Click to search the images.
4. Double click a filename in the list to view the captured photos as shown above.

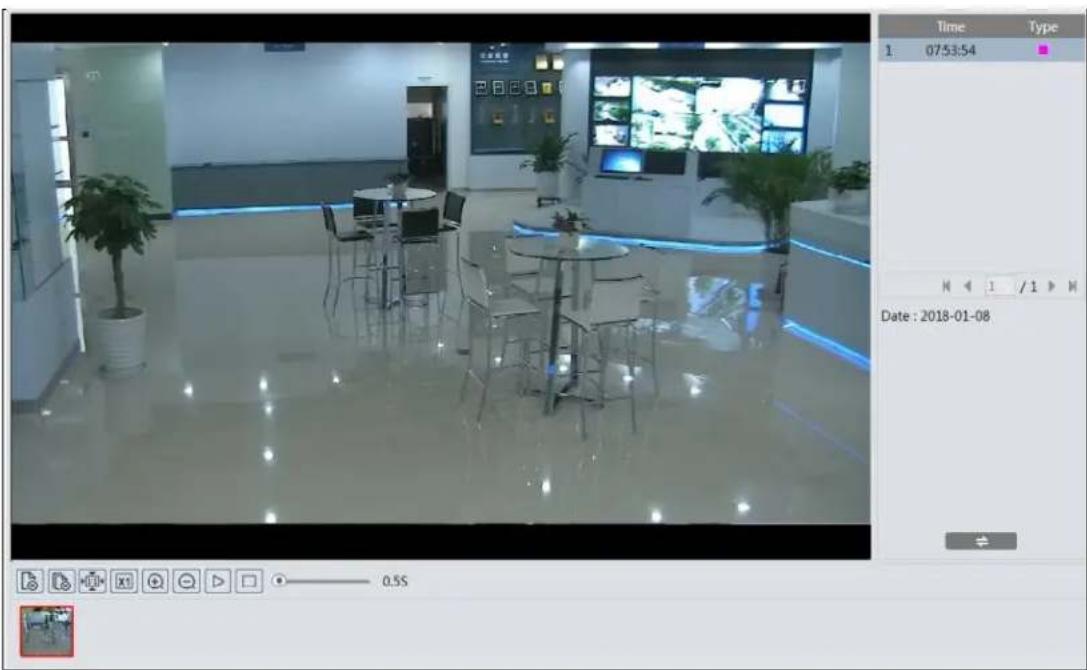

Time Type 1 07:53:54 Date : 2018-01-08 0.5S

Click to return to the previous interface.

- SD Card Image Search

1. Choose "Picture"—"SD Card".

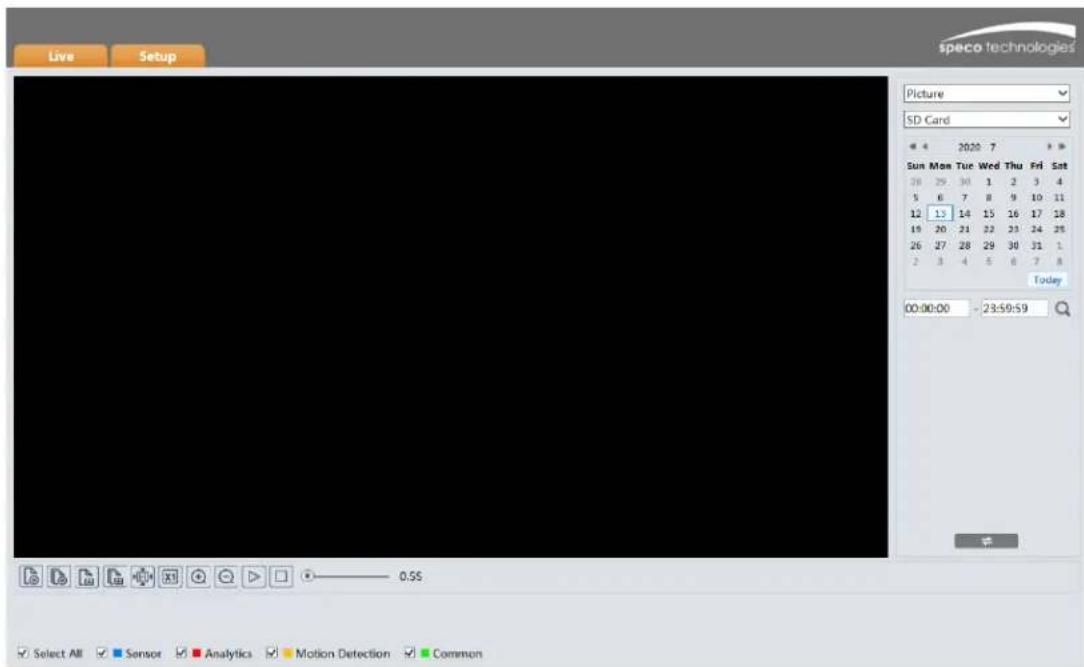

Live Setup speco technologies Picture SD Card Sun Mon Tue Wed Thu Fri Sat 20 29 30 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 1 2 3 4 5 6 7 8 Today 00:00:00 - 23:59:59 0.55 Select All Sensor Analytics Motion Detection Common

1. Set time: Select date and choose the start and end time.
2. Choose the alarm events at the bottom of the interface.
3. Click to search the images.
4. Double click a file name in the list to view the captured photos.
   Click to return to the previous interface.

The descriptions of the buttons are shown as follows.

Icon	Description	Icon	Description
[C748]	Close: Select an image and click this button to close the image.	[2X77]	Close all: Click this button to close all images.
	Save: Click this button to select the path for saving the image on the PC.		Save all: Click this button to select the path for saving all pictures on the PC.
	Fit size: Click to fit the image on the screen.		Actual size: Click this button to display the actual size of the image.
	Zoom in: Click this button to digitally zoom in.		Zoom out: Click this button to digitally zoom out.
[8AWO]	Slide show play: Click this button to start the slide show mode.		Stop: Click this button to stop the slide show.
	Play speed: Play speed of the slide show.

5.5 Video Search

5.5.1 Local Video Search

Click Search to go to the interface as shown below. Videos were recorded locally to the PC can be played in this interface.

Record Local Sun Mon Tue Wed Thu Fri Sat 31 1 2 3 4 5 6 7 ■ 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 1 7 3 4 5 6 7 8 9 10 Today 00:00:00 - 23:59:59 Balanced 24H 12H 2H 1H

1. Choose "Record"—"Local".
2. Set search time: Select the date and choose the start and end time.
3. Click to search the images.
4. Double click on a file name in the list to start playback.

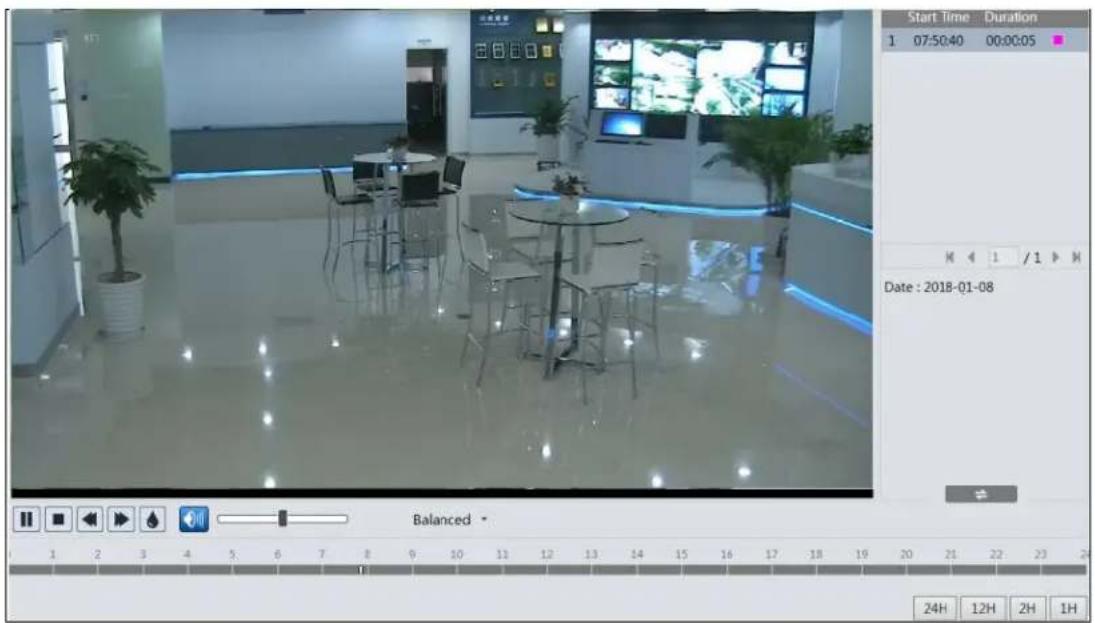

Start Time Duration 1 07:50:40 00:00:05 Date : 2018-01-08 Balanced

Icon	Description	Icon	Description
	Play button. After pausing the video, click this button to continue playing.		Pause button
[D4C0]	Stop button		Speed down
[57K0]	Speed up		Watermark display
	Enable / disable audio; drag the slider to adjust the volume after enabling audio.

5.5.2 SD Card Video Search

ClickSearchtogo to the interface as shown below. Videos that were recorded on the SD card can be played in this interface.

1. Choose "Record"—"SD Card".
2. Set search time: Select the date and choose the start and end time.
3. Click to search the images.

Live Setup speco technologies Record SD Card 2020 7 Sun Mon Tue Wed Thu Fri Sat 20 29 30 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 .20 21 22 23 24 25 26 27 28 29 30 31 1 2 3 4 5 6 7 8 Today 00:00:00 - 23:59:59 Balanced - 00:00:00 - 00:00:00 Select All Sensor Analytics Motion Detection Common 24H 12H 2H 1H

1. Select the alarm events at the bottom of the interface.
2. Select mix stream (video and audio stream) or video stream as needed.
3. Double click on a file name in the list to start playback.

Mix Stream Start Time Duration 1 07:31:31 00:12:47 2 05:30:19 02:00:32 3 05:27:17 00:02:49 4 05:21:35 00:05:19 5 05:18:25 00:02:58 6 05:14:53 00:03:21 7 05:08:17 00:06:09 8 04:53:15 00:14:48 9 04:50:24 00:02:41 10 04:49:26 00:00:49 Date : 2018-01-08 Balanced Select All Sensor Analytics Motion Detection Common 24H 12H 2H 1H

The time table can be shown in 24H/12H/2H/1H format by clicking the corresponding buttons.

Video clip and downloading

1. Search the video files according to the above mentioned steps.
2. Select the start time by clicking on the time table.
3. Click to set the start time and then this button turns blue ( ).
4. Select the end time by clicking on the time table. Then click 📋 to set the end time.
5. Click to download the video file in the PC.

Index Process Record Start Time End Time Path Operate 1 100% Cut 2018-01-16 01:1... 2018-01-16 01:1... Favorites Open Set up D:\Favorites Clear List Close

Click "Set up" to set the storage directory of the video files.

Click "Open" to play the video.

Click "Clear List" to clear the downloading list.

Click "Close" to close the downloading window.

Appendix

Appendix 1 Troubleshooting

IP Scanner does not show any device.

Make sure that the PC that's running IP Scanner is on the same local network as the devices.

Internet Explorer cannot download ActiveX control.

IE browser may be set up to block ActiveX. Follow the steps below.

1. Open IE browser and then click Tools→Internet Options.

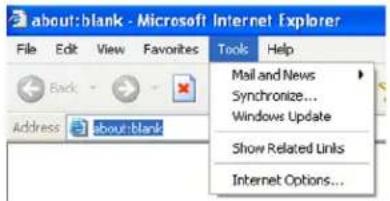

about:blank - Microsoft Internet Explorer File Edit View Favorites Tools Help Back Address About:blank Mail and News Synchronize... Windows Update Show Related Links Internet Options...

1. Select Security → Custom Level.
2. Enable all the options under "ActiveX controls and plug-ins".
3. Click OK to finish setup.

Internet Options General Security Privacy Context Connections Programs Advanced Select a Web content zone to specify its security settings Internet Local Interest Trusted sites Restricted sites Internet The zone contains all Web sites you bevel placed in other zones Security level for this zone Custom Custom settings - To change the settings, click Custom Level - To use the recommended settings, click Default Level. Custom Level... Default Level OK Cancel POSTY Security Settings Settings: Enable Download signed Activex controls Disable Enable Prompt Download unsigned Activex controls Disable Enable Prompt Initiate and script Activex controls not marked as safe Disable Enable Prompt Reset custom settings Reset to: Medium Reset OK Cancel

No sound can be heard.

1. Audio input device is not connected. Please connect and try again.
2. Audio function is not enabled at the corresponding channel. Please enable this function.

Federal Communications Commission (FCC) Statements

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

FCC Responsible Party:

Speco Technologies

200 New Highway

Amityville, NY11701

www.specotech.com
