Product Type	H.323 Multipoint Control Unit (MCU) for video conferencing
Model	PCS-VCSH24
Brand	Sony
Standards	H.323, H.261, H.263, H.263+, H.264, H.264 High Profile, H.239, H.235 (encryption)
Maximum Participants per Meeting	24
Video Resolutions	QCIF (176×144), CIF (352×288), 4CIF (704×576), W432P (768×432), HD 720p (1280×720), HD 1080p (1920×1080)
Audio Codecs	G.711 μ-law, G.711 A-law, G.722, MPEG4-AAC-LC
Network Interface	Ethernet (1000BASE-T)
Power Supply	AC 100-240 V, 50/60 Hz
Management	Web-based (VC ONLINE) via HTTP on port 8080
Multiple Video Screen (CPN)	Up to 16 video streams mixed (Continuous Presence)
Cascade Connection	Up to 24 units (1 master, 23 slaves)
Encryption	H.235 (NONE, ENCRYPTION, CONNECTIVITY modes)
Presentation (H.239)	Supports simultaneous video and data (e.g., RGB)
Gatekeeper	Integrated H.323 gatekeeper
Bandwidth Control	Static or dynamic (per endpoint or meeting)
Firmware Update	Via web interface (Sony PCS-XG/XL/XA series)
Database Backup	Supported
Dimensions (Approx.)	430 × 300 × 44 mm (1U rackmount)
Weight (Approx.)	5 kg

Frequently Asked Questions - PCS-VCSH24 SONY

How do I access the management interface of the PCS-VCSH24?

Open a web browser and go to http://[IP address of the MCU]:8080/. Log in with administrator credentials (default: 'Administrator').

What is the maximum number of participants in a meeting?

A single meeting can include up to 24 participants. The system supports up to 100 simultaneous meetings.

How can I connect an endpoint to a meeting?

From the Monitor menu, select 'Endpoint' or 'Meeting'. You can call an endpoint by its H.323 Alias, E.164 number, or IP address. Use the 'Call to Meeting' button.

How do I schedule a meeting for a future time?

Administrators can set a meeting to 'SCHEDULED' mode in the Detail tab of the Meeting configuration. Specify start/end time and repeat pattern (daily, weekly, monthly). General users can use the Reservation System.

What video resolutions are supported?

The system supports QCIF, CIF, 4CIF, W432P, HD 720p, and HD 1080p. Resolution depends on the codec and CPN settings.

Can I encrypt my meetings?

Yes, the PCS-VCSH24 supports H.235 encryption. In the meeting settings, you can choose 'ENCRYPTION' (only encrypted endpoints connect) or 'CONNECTIVITY' (mixed encrypted and unencrypted).

How do I update the firmware?

Firmware update is performed via the VC ONLINE interface under the 'Server' menu. The system supports update for Sony PCS-XG/XL/XA series endpoints. Follow the 'Firmware Update Procedure' in the manual.

What is the purpose of the integrated gatekeeper?

The gatekeeper manages H.323 aliases and IP addresses for all registered endpoints and meetings. It simplifies calling by allowing users to dial by alias instead of IP address.

How can I moderate a meeting (Chairman control)?

Create a meeting with 'Moderated' type. Assign a Chairman in the Presenter tab. The Chairman can use the Control Panel to grant/revoke speaking rights, change meeting modes (Open Forum, Side Meeting, Presenting, Lecture), and control video channels.

How do I enable multiple video screens (Continuous Presence)?

In the meeting settings, set CPN to 'ON' and choose a CPN Layout Number (e.g., 4, 16). The system will mix up to 16 video streams dynamically based on participant count. You can also fix a user's video to the primary window.

USER MANUAL PCS-VCSH24 SONY

Operating Instructions

Before operating the unit, please read this manual thoroughly and retain it for future reference.

IPELA

PCS-VCSH24

Notation used in this Manual

Menu, Icon, Button and Tab Operations	Denote by enclosing with [ ]E.g. Click [Cancel] button.
Directory and Menu Selection	[Main Menu Name] → [Sub Menu Name]E.g. Select [Program] → [Internet Explorer]
Reference Denote reference source by enclosing with “ ”E.g. Refer to “About this Document”

Screen Captures

Screen captures are shown throughout this manual as typical examples of the program operation. As such, the screens shown in this manual may differ from the actual screens displayed on your terminal.

Trademarks

• HD VISUAL COMMUNICATION SERVER is a product of the Sony Corporation.
• “IPELA” and are trademarks of Sony Corporation.
• HD VISUAL COMMUNICATION SERVER uses the Visual Nexus developed by Oki Electric Industry Co., Ltd.
• Visual Nexus and the Visual Nexus logo are the registered trademarks of Oki Electric Industry Co., Ltd.
• Microsoft, NetMeeting, Windows and PowerPoint are trademarks or registered trademarks of Microsoft Corporation in the United States and other countries.
• Intel, Pentium, Xeon and Celeron are trademarks or registered trademarks of Intel Corporation in the United States and other countries.
• SONY is a trademark of Sony Corporation.
• Linux is a trademark of Linus Torvalds.
• Other company names or product names noted in this manual are the trademarks or registered trademarks of their respective owners.

Table of Contents

Chapter 1: HD VISUAL COMMUNICATION SERVER Overview

System Overview 6

Meetings ...... 7

H.323 Alias and Gatekeeper 8

Chapter 2: HD VISUAL COMMUNICATION SERVER Setup

VC ONLINE Login 9

HD VISUAL COMMUNICATION SERVER Processes 10

Chapter 3: Basic Configuration

Creating a User 11

Create User Information .... 11

Edit User Information 14

Delete User Information 15

Create a User Template 15

Search Filter in User List 16

Configuring User Groups 17

Configure a New Group 17

Edit Group Information 18

Delete Group Information 19

Search Filter in Group List 19

Configuring a Meeting 20

Configure Meeting Information 20

Edit Meeting Information 26

Search Filter in Meeting List 26

Chapter 4: Using Meetings (Basic)

Monitor Function 27

Monitor Endpoint Information 27

Monitor Meeting Information 29

Monitor Call Information 32

Calling to a Meeting 33

Calling an Endpoint to a Meeting via the [Monitor (Endpoint)] Screen ...... 33

Calling an Endpoint to a Meeting via the [Monitor (Meeting)] Screen ...... 34

Disconnecting an Endpoint from a Meeting 36

Disconnect an Endpoint from a Meeting List .... 36

Chapter 5: Using Meetings (Application)

Scheduling Meetings ...... 37

Suppressing Video Refresh Requests from Endpoints 39

Using the Share Phone Book 40

Using Templates 41

Configuring Audio Details 42

Changing Transmission Resolutions for Endpoints with Insufficient Throughput .... 43

Using the Encryption Function 44

Using Cascade Connections 45

Configuring Video Details 46

Restricting Meeting Users 48

Conducting Moderated Meetings 49

Moderate a Meeting 49

Conducting Multiple Video Screen Meetings 53

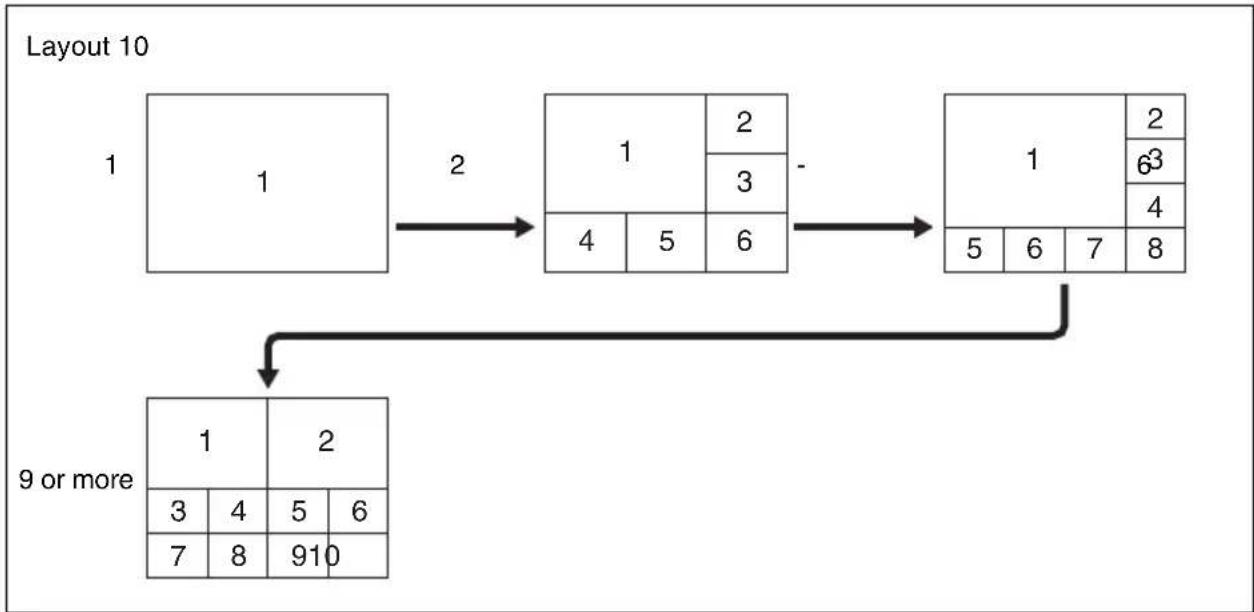

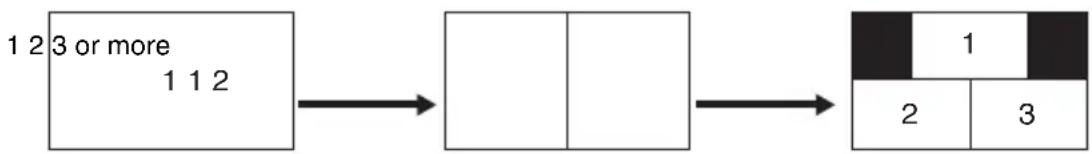

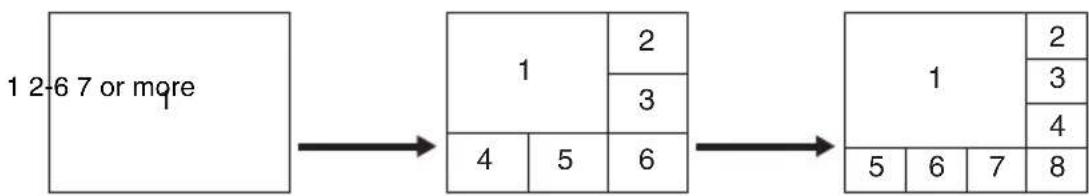

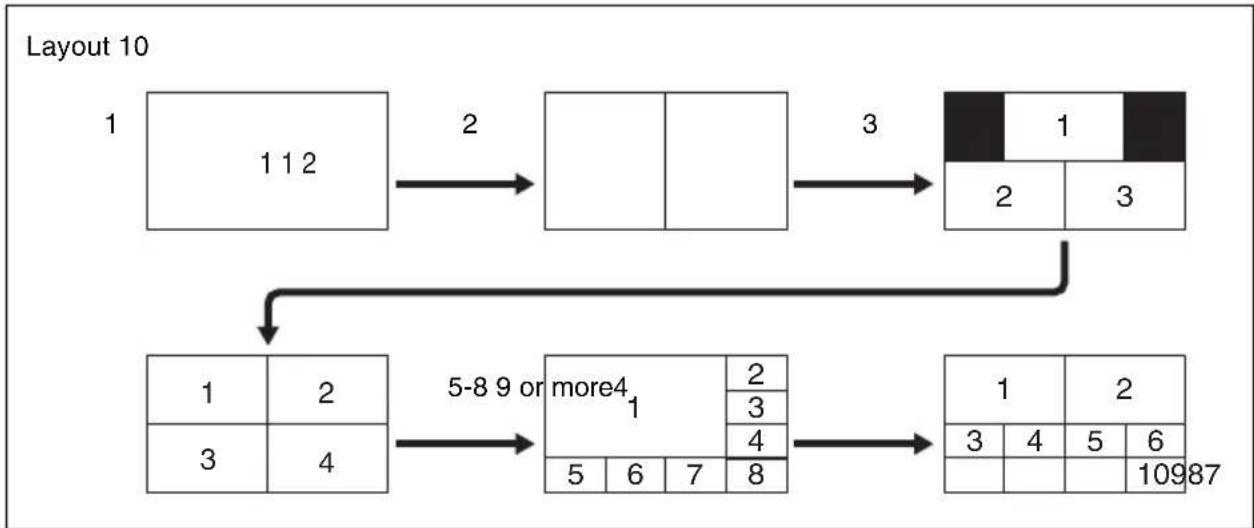

Multiple Video Screen Layout 54

Upstream Resolution from Endpoints 57

Chapter 6: Using the Reservation System

About the Reservation System 58

Configuring the Reservation System 59

Creating a Reservation Template 60

Reserving a Meeting 61

Verify Personal Reservation Schedules 63

Edit Reservation Settings 64

Delete Reservations 64

Deleting a Completed Meeting 65

Chapter 7: Server Monitoring

Confirming HD VISUAL COMMUNICATION SERVER Status 66

Chapter 8: Gatekeeper

Restricting Registrations 68

Restrict Registrations 68

Edit Registration Restrictions 69

Delete Restriction Information 70

Chapter 9: Additional Configuration

ARQ (Automatic Repeat ReQuest) Function 71

Configuring Personal Information 72

Sending an E-mail to other Users 73

Reporting 74

Sony PCS-XG/XL/XA Series Firmware Update Function 76

Setup 76

Firmware Update Procedure 76

Status Display 77

Database Backup 78

Appendix

List of Terms 79

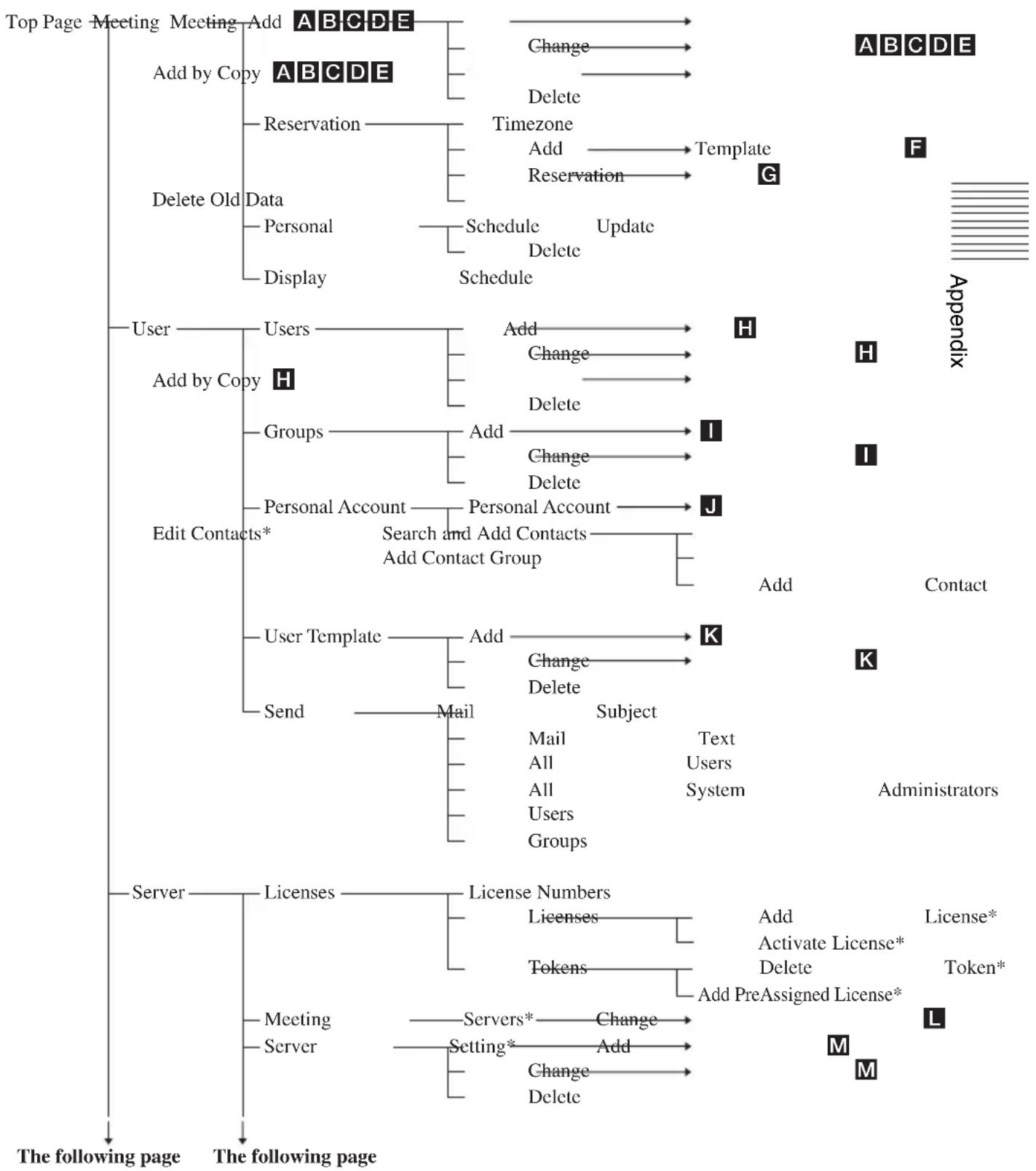

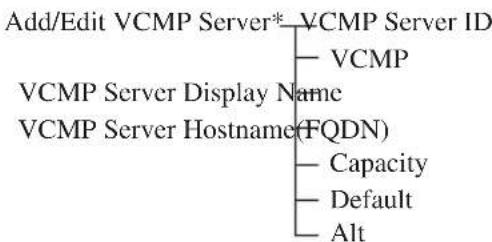

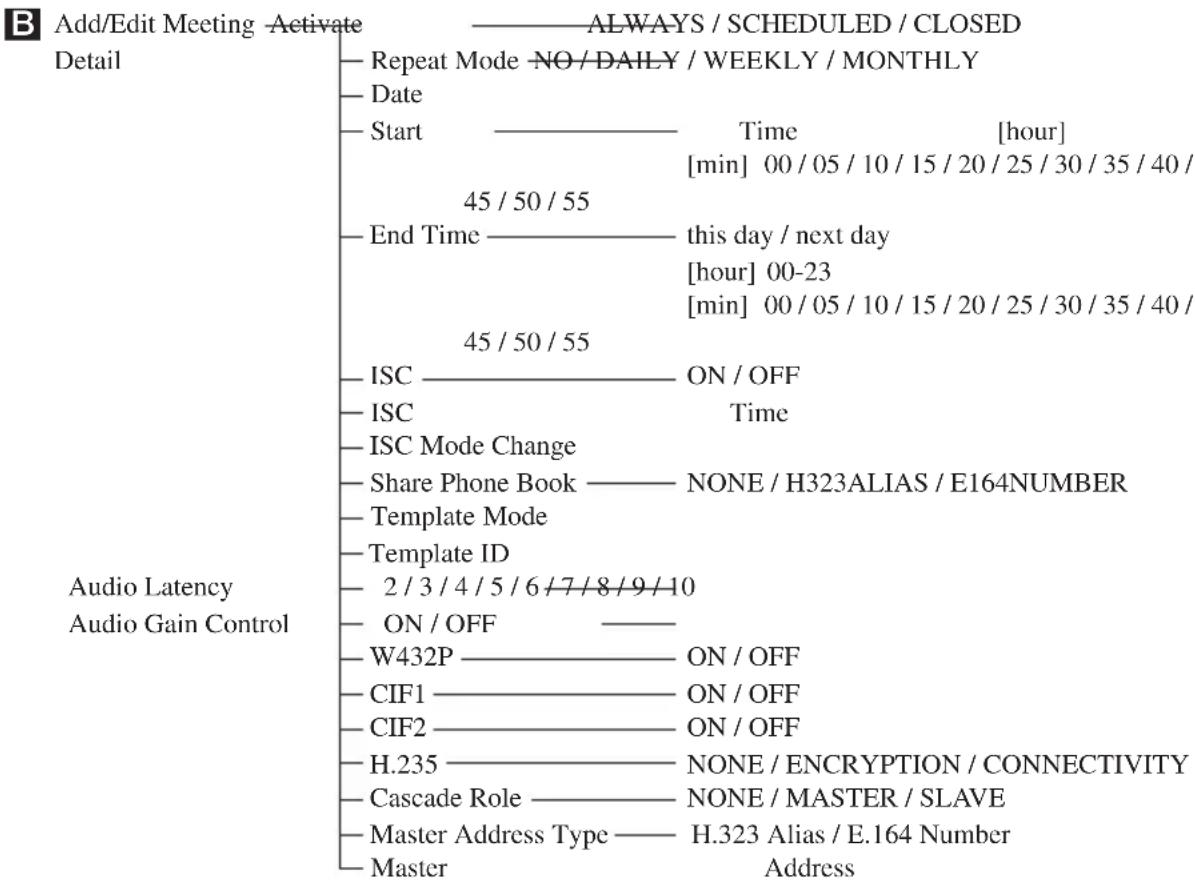

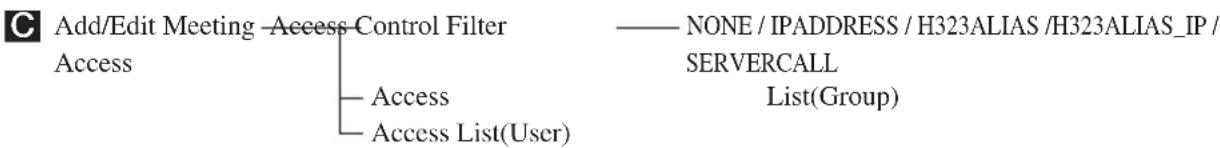

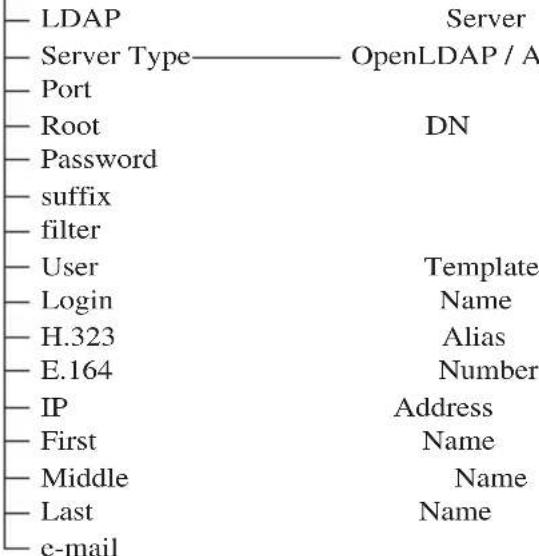

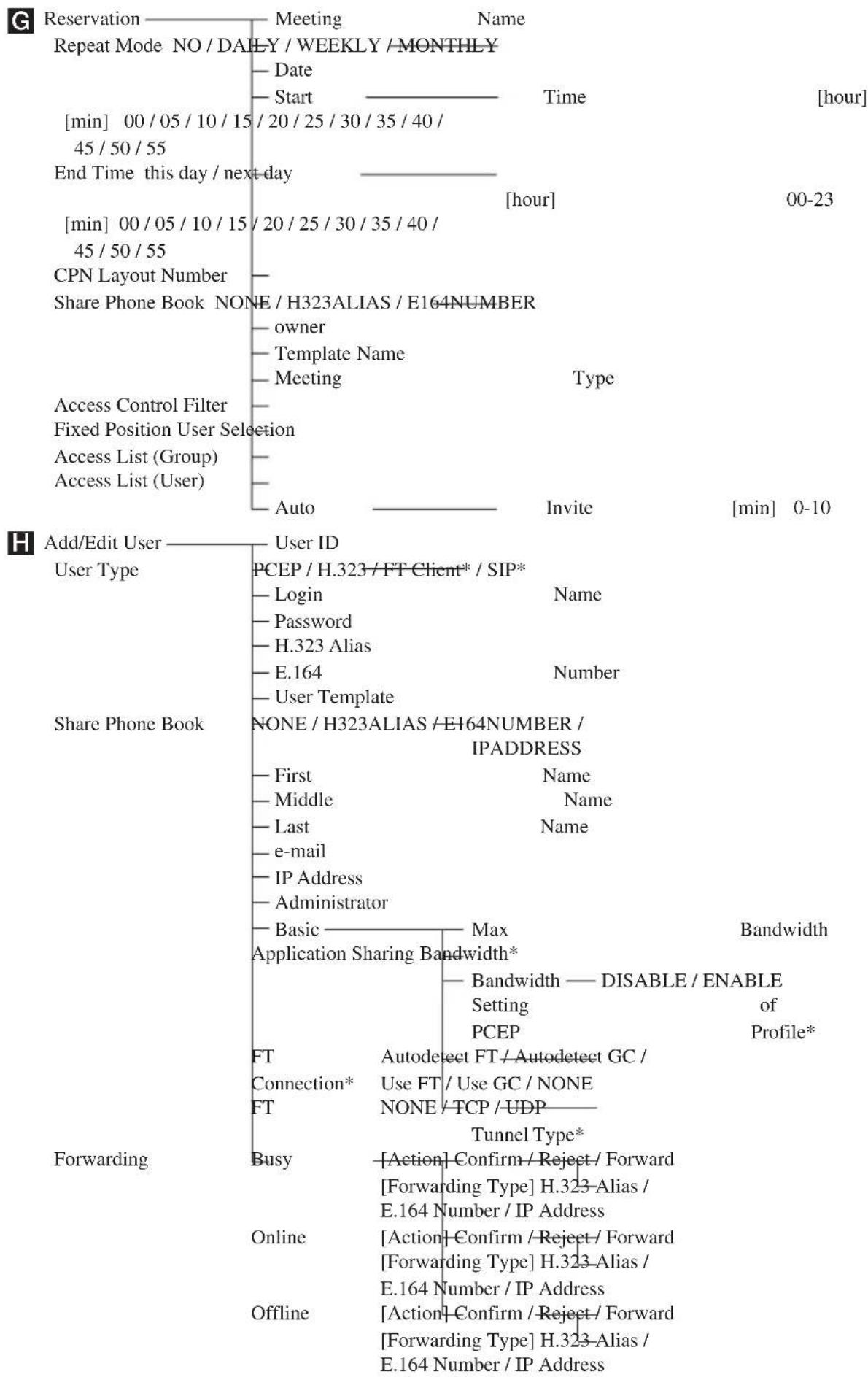

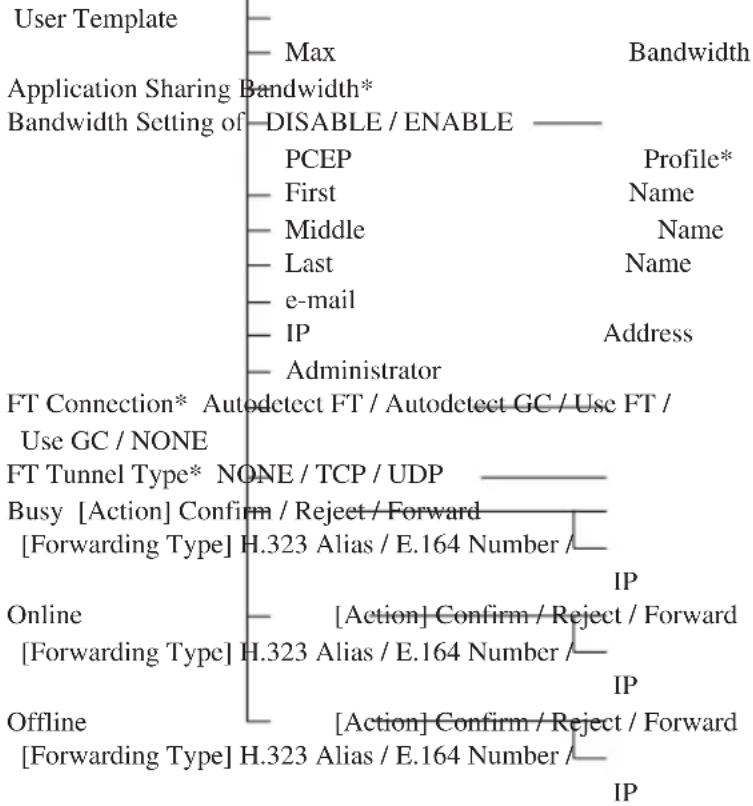

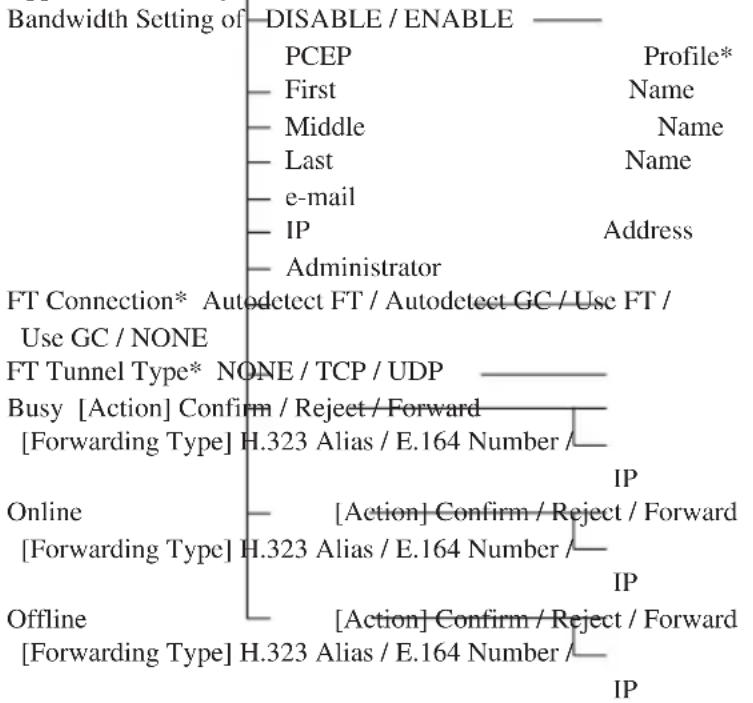

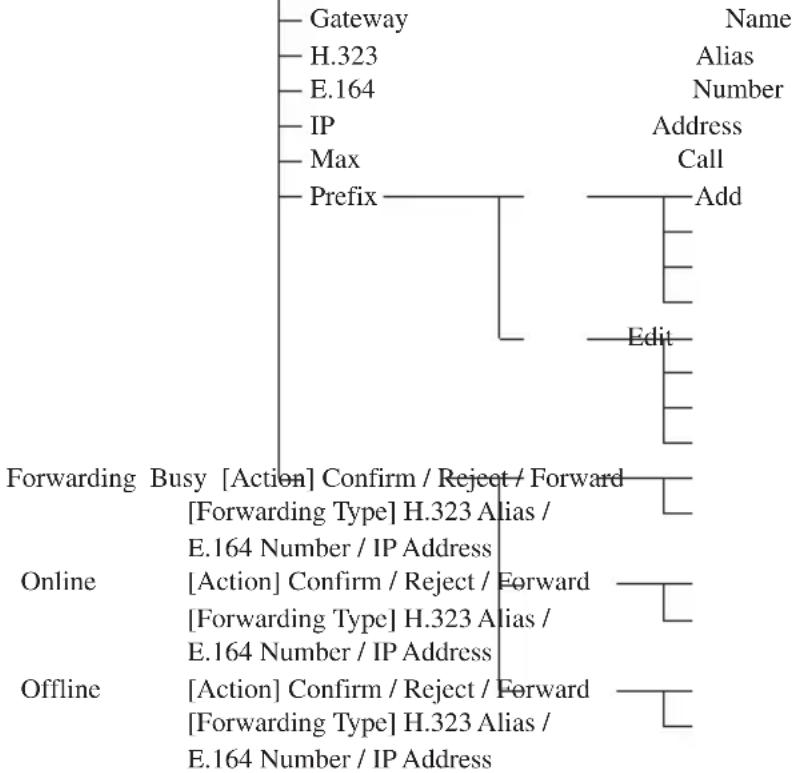

Menu Components 83

Chapter 1: HD VISUAL COMMUNICATION SERVER Overview

System Overview

HD VISUAL COMMUNICATION SERVER

The HD VISUAL COMMUNICATION SERVER is a multipoint connection unit (MCU) that is in complete compliance with the H.323 protocol. It is compatible with multipoint voice synthesis, voice-activated video switching, etc., and provides central management of functions used for creating, scheduling and editing meetings. An H.323 gatekeeper is also embedded in the Meeting Server.

Meetings

A “Meeting” that takes place within the HD VISUAL COMMUNICATION SERVER system is a virtual space or location for conducting communications. This is the equivalent of a conference room in traditional video conferencing systems.

Meeting types can either be “Normal” or “Presentation”. Users can select which type of meeting they wish, according to their requirements.

Type Explanation

Normal The standard HD VISUAL COMMUNICATION SERVER meeting type.No User serves as the meeting administrator. All meeting participants have the same privileges.

Presentation

The general term for meetings with controlled audio communications.Access VC ONLINE via a web browser, and permit speaking by using the [Control Panel].There are two types of participants in this meeting type, each having different privileges. The meeting [Chairman] operates the meeting on behalf of the “General Users.”The meeting Chairman can change the meeting mode by granting General Users permission to speak.Open Forum: Participants can hear the Chairman and those the Chairman has granted permission to speak.Side Meeting: Only the Chairman and those the Chairman has granted permission to speak can hear each other. Conversations cannot be heard by participants who have not been granted permission to speak.Presenting: Only the Chairman can be heard by all participants.Lecture: Under default conditions, only the Chairman can be heard by all participants. In such cases, the video of the Chairman and those specified by the Chairman appear on the General Users’ screens, while video of each General User appears on the Chairman’s screen in a multiple video screen layout.If the Chairman grants a General User permission to speak, the Chairman and this General User will be heard by all participants. In such cases, the screens of each of the General Users will switch to a multiple video screen layout displaying the Chairman and the user the Chairman has granted permission to speak.

Note

You can not change modes while a meeting conducted in [Lecture] mode is in progress.

Online communication provided by HD VISUAL COMMUNICATION SERVER enables meetings to be held among several individuals or person-to-person (one-on-one).

Meetings involving several members must first be registered by the system administrator.

Person-to-person meetings can be undertaken using direct communications via an H.323 Alias or E.164 Number.

H.323 Alias and Gatekeeper

An H.323 Alias is a unique name assigned for each H.323 terminal, User or Meeting. The User name of a H.323 terminal registered with the gatekeeper is assigned as the User's H.323 Alias.

This system is used because having a set of easily-identifiable numbers or characters to designate other Users is a much simpler method than using IP Addresses. Assigning an H.323 Alias to a Meeting configured on the HD VISUAL COMMUNICATION SERVER allows each terminal to directly enter Meetings using an H.323 Alias.

The gatekeeper embedded in the HD VISUAL COMMUNICATION SERVER holds H.323 Alias and IP Address information for all registered Endpoints and Meetings. This makes it easy to enter Meetings and call other Users with an H.323 Alias.

The H.323 Alias can be assigned during the following configuration tasks:

- User H.323 Alias: When providing / changing User information settings

- Meeting H.323 Alias: When providing / changing Meeting information settings

VC ONLINE Login

To use HD VISUAL COMMUNICATION SERVER, it is necessary to create a Meeting and User Account. These operations are carried out by logging into VC ONLINE via a Web browser.

When using VC ONLINE, login via the Administrator restricted account accessed from the following URL.

URL: http://[HD VISUAL COMMUNICATION SERVER address]:8080/

Login Account: Administrator

Logging in to VC ONLINE with a general User Account will allow individual Users to access the scheduling system or make changes to their own information.

Also, it is possible to get help even without logging in, such as by referring to the downloadable manual or help document.

For more information about creating a User Account, refer to “Creating a User” (p. 11).

For more information about configuring a Meeting, refer to “Configuring a Meeting” (p. 20).

For more information about using the Reservation system, refer to “Chapter 6: Using the Reservation System” (p. 58).

For more information about configuring personal information, refer to “Configuring Personal Information” (p. 72).

HD VISUAL COMMUNICATION SERVER Processes

Processes used in HD VISUAL COMMUNICATION SERVER Version 5.0 will now be explained.

For more information about process confirmation, refer to “How to Display Processes” (p. 66).

Process Description

cnode_mcu MCU and VCMP control process (CPN)

beam.smp Erlang programming language environment (CPN)

vnncs Network Check Server

vnproxy H.239 Presentation (Data Transmission)

vnutil Utility (Periodical Log cleaning)

vnlmsvr License Server

vnbms Buddy Manager (Presence)

vnpms Presence Manager (Presence)

vngk Gatekeeper

vnmcu MCU

vnvnc H.239 Presentation (Control)

vnapi API Server (interface between programs)

Chapter 3: Basic Configuration

This section describes configuration needed to use HD VISUAL COMMUNICATION SERVER, such as creating a User and Meeting.

Creating a User

Methods to add, edit and delete User information will now be explained. A User Account is required to access the HD VISUAL COMMUNICATION SERVER.

Only the User “Administrator” is created as default during installation.

Create User Information

1 Login to VC ONLINE (http://[HD VISUAL COMMUNICATION SERVER address]:8080/) with administrator privileges (Administrator).

2 Click on [Users] in the [User] Menu. The [Users] screen will be displayed.

3 Click the [Add] button. The [Add User] screen will be displayed.

Hint

At this stage, a new User can be added by clicking the [Add by Copy] button after selecting a previously added user from the list, and then by entering the selected User's settings underneath.

4 Select a user type in [User Type], and enter a [Login Name]. If necessary, set other items.

For more information about setup items, refer to “[Add User] Screen” (p.12).

5 When entry is complete, click the [Add] button. The confirmation dialog box will be displayed.

6 Click [OK]. A User will be added based on the provided information.

Note

The registration data may not be displayed in the VC ONLINE [Users] list immediately after starting the HD VISUAL COMMUNICATION SERVER due to timing constraints. In such instances, access it after an interval of time.

[Add User] Screen

Setting Category Description
User ID Number to identify Users accessing HD VISUAL COMMUNICATION SERVER.The System will automatically assign User ID numbers, which cannot be edited.
User Type Type of User account:PCEP: Login account used to access VC ONLINEH.323: Dedicated H.323 terminal (set top box, etc.)FT Client: This software does not support this function.SIP: This software does not support this function.
Login Name Required field.Enter Name used to login to HD VISUAL COMMUNICATION SERVER.Use alphanumeric characters. Non-alphanumeric characters, spaces or <> '' ! \& symbols cannot be used.
Password Enter Password used to login.If no password is entered, the password will be set to “PASSWORD”.Use alphanumeric characters. Non-alphanumeric characters, spaces or <> '' ! \& symbols cannot be used.
H.323 Alias Required field if [PCEP] or [H.323] is selected for [User Type].Enter the User name of the endpoint you wish to use, which has been registered with the gatekeeper.Use alphanumeric characters. Non-alphanumeric characters, spaces or <> '' ! \& symbols cannot be used.
E.164 Number Enter the User number of the endpoint you wish to use, which has been has registered with the gatekeeper.
User Template Designate the required User template in order to view registered User templates.For more information about User templates, refer to “Create a User Template” (p. 15).
Share Phone Book	Select whether to display in the Share Phone Book the user information that is registered on the server.NONE: Do not display the information in the Share Phone Book.H323ALIAS: Display the information in the Share Phone Book using H.323 aliases for the user contact information.E164NUMBER: Display the information in the Share Phone Book using E.164 numbers for the user contact information.IPADDRESS: Display the information in the Share Phone Book using IP addresses for the user contact information.

Setting Category Description

Last Name Enter name (Last Name) used to login. This is displayed as [End Point Name].Alphanumeric / non-alphanumeric (e.g. Japanese) characters and symbols can be used. Do not use spaces or <> '' ! \& symbols. In addition, do not use slashes (/) if you intend to display the user in the Share Phone Book.
Middle Name Enter name (Middle Name) used to login. This is displayed as [End Point Name].Alphanumeric / non-alphanumeric (e.g. Japanese) characters and symbols can be used. Do not use spaces or <> '' ! \& symbols.Note[End Point Name] will not be displayed if two-byte characters are used for “Last Name” and “First Name”
First Name Enter name (First Name) used to login. This is displayed as [End Point Name].Alphanumeric / non-alphanumeric (e.g. Japanese) characters and symbols can be used. Do not use spaces or <> '' ! \& symbols. In addition, do not use slashes (/) if you intend to display the user in the Share Phone Book.
e-mail Enter the User’s e-mail address.This is used to receive Meeting notification e-mails.
IP Address	Enter this when registering the user without registering it with the terminal gatekeeper. You can leave this blank under normal circumstances.
Administrator Select the checkbox to grant a User HD VISUAL COMMUNICATION SERVER administrator privileges.NoteAt least one User has to have administrator privileges.

[Basic] Tab

Setting Category Description
Max Bandwidth The maximum bandwidth (bit rate) the User can use for calls. In P2P connections, the maximum bandwidth setting is compared to that of the other participant, and the lower value is used for the connection. This setting is also used to determine the transmission resolution during CPN meetings.For more information about determining the transmission resolution, refer to “Changing Transmission Resolutions for Endpoints with Insufficient Throughput” (p. 43).
Application Sharing Bandwidth	This software does not support this function.
Bandwidth Setting of PCEP Profile	This software does not support this function.
FT Connection This software does not support this function.
FT Tunnel Type This software does not support this function.

[Forwarding] Tab

Setting Category Description
Set Select the checkbox to enable the [Action], [Forwarding Type], and [Forwarding Destination] settings. This can be configured for each [Condition].
Condition Indicates the status; [Busy], [Online] (User can be called), or [Offline] (User cannot be called). The [Action], [Forwarding Type], and [Forwarding Destination] settings can be configured for each status.
Action Select the [Confirm], [Reject] or [Forward] Action when answering calls.
Forwarding Type Select the forwarding destination type when selecting [Forward] as an [Action]H.323 Alias: When selecting an H.323 Alias as a forwarding destination.E.164 Number: When selecting an E.164 Number as a forwarding destination.IP Address: When selecting an IP Address as a forwarding destination.
Forwarding Destination	When selecting [Forward] as an [Action], enter a forwarding destination that complies with a type specified in the [Forwarding Type].

Edit User Information

1 Login to VC ONLINE (http://[HD VISUAL COMMUNICATION SERVER address]:8080/) using an account with administrator privileges.
2 Click on [Users] from the [User] menu. The [Users] screen will be displayed.
3 Select the User you wish to edit from the [Users] list. The [Change] button will be displayed.
4 Click the [Change] button. The [Edit User] screen will be displayed.
5 Make the desired changes. For more information about setup items, refer to “[Add User] Screen” (p. 12).
6 Click the [Change] button from the [Edit User] screen. The confirmation dialog box will be displayed.
7 Click [OK]. The edited information will be saved.

Delete User Information

1 Login to VC ONLINE (http://[HD VISUAL COMMUNICATION SERVER address]:8080/) using an account with administrator privileges.
2 Click on [Users] from the [User] menu. The [Users] screen will be displayed.
3 Click the checkbox of the User you wish to delete from the [Users] list. The checked [Delete] button will be displayed.
4 Click the [Delete] button. The designated User will be deleted.

Create a User Template

The User Template is a template of User Account information.

1 Click on [User Template] from the [User] menu. The [User Template] screen will be displayed.
2 Click the [Add] button. The [Add User Template] screen will be displayed.

3 Enter the template name and set other fields as necessary. For more information about setup items, refer to “[Add User Template] Screen” (p. 15).

4 Click the [Add] button. The specified User Template information will be registered.

[Add User Template] Screen

Setting Category Description
Template ID ID number for User Template.The System will automatically assign Template ID numbers.They cannot be entered or edited.
Template Name Required field.Enter Template name.Alphanumeric characters will be used. Non-alphanumeric characters, spaces or symbols cannot be used.
Max Bandwidth The maximum bandwidth (bit rate) the User can use for calls.
Application Sharing Bandwidth	This software does not support this function.
Bandwidth Setting of PCEP Profile	This software does not support this function.
FT Connection This software does not support this function.
FT Tunnel Type This software does not support this function.

Search Filter in User List

A search filter can be applied in the [Users] screen to locate Users from the [Users] list.

By entering the information you wish to filter in the text box, filter search results will be displayed.

By default, the search filter will search through the following User account fields for occurrences of the search string: [Login Name], [Last Name], [Middle Name], [First Name], [e-mail], [H.323 Alias] and [E.164 Number]. To disable a field as a condition for the search filter, clear the checkbox of the respective field.

Configuring User Groups

Methods to add, edit and delete Group information will now be explained.

By adding Group information, multiple users can be combined to form a Group, and it is possible to make groups belong to another group.

Users and Groups can also belong to more than one User Group

The use of User Groups is convenient when configuring access control and the reservation system.

New Groups can be created and configured with the required Users as and when necessary.

“Default” Groups registered when the system is first used include all registered User accounts.

Configure a New Group

1 Login to VC ONLINE (http://[HD VISUAL COMMUNICATION SERVER address]:8080/) using an account with administrator privileges.

2 Click on [Groups] from the [User] menu. The [Groups] screen will be displayed.

3 Click the [Add] button. The [Add Group] screen will be displayed.

4 Enter the [Group Name] and set other fields as necessary. For more information about setup items, refer to “[Add Group] Screen” (p. 18).

5 Click the [Add] button. The confirmation dialog box will be displayed.

6 Click [OK]. The new Group information specified will be registered.

[Add Group] Screen

Setting Category Description
Group ID ID number used to identify HD VISUAL COMMUNICATIONSERVER Groups.The System automatically assigns Group ID numbers, which cannot be edited.
Group Name Required field.Enter the Group name.Alphanumeric / non-alphanumeric characters and symbols can be used.
Subordinate User Add Subordinate Users to a GroupFrom the displayed User list, select the checkbox next to the User name you wish to add.
Subordinate Group	Add Subordinate Groups to a GroupFrom the displayed Group list, select the checkbox next to the Group name you wish to add.With this function, it is possible to configure and manage Groups using a hierarchical structure.NoteIt is not possible to add Groups located in a superior position to your own Group.

Edit Group Information

1 Login to VC ONLINE (http://[HD VISUAL COMMUNICATION SERVER address]:8080/) using an account with administrator privileges.
2 Click [Groups] from the [User] menu. The [Groups] screen will be displayed.
3 Select the Group you wish to edit from the [Groups] list. The [Change] button will be displayed.
4 Click the [Change] button. The [Edit Group] screen will be displayed.
5 Make the necessary changes. For more information about setup items, refer to “[Add Group] Screen” (p. 18).
6 Click on [Change] from the [Edit Group] screen. The confirmation dialog box will be displayed.
7 Click [OK]. The edited information will be saved.

Delete Group Information

1 Login to VC ONLINE (http://[HD VISUAL COMMUNICATION SERVER address]:8080/) using an account with administrator privileges.
2 Click [Groups] from the [User] menu. The [Groups] screen will be displayed.
3 From the [Groups] list, select the checkbox next to the Group you wish to delete. The checked [Delete] button will be displayed.
4 Click the [Delete] button. The denoted Group will be deleted.

Search Filter in Group List

A search filter can be executed in the [Groups] screen to locate Groups from the [Groups] list.

By entering the information you wish to filter in the text box, filter search results will be displayed.

Configuring a Meeting

Methods to add, edit and delete Meeting information will now be explained. Meetings can be seen as a virtual conference room. Meeting settings are diverse so they can be set according to your meeting agenda.

Note

Because it takes time to add a Meeting or to change a setting, there will be a delay of approximately 15 seconds before a sound connection can be made after adding or re-setting a Meeting or following the conclusion of a Meeting.

Configure Meeting Information

1 Login to VC ONLINE (http://[HD VISUAL COMMUNICATION SERVER address]:8080/) using an account with administrator privileges.

2 Click on [Meeting] from the [Meeting] menu. The [Meeting] screen is displayed.

3 Click the [Add] button. The [Add Meeting] screen is displayed.

Hint

At this stage, a new Meeting can be added by clicking the [Add by Copy] button after selecting a previously added Meeting from the list, and then by inserting the selected Meeting's settings underneath.

For more information about setup items, refer to “[Add Meeting] Screen” (p. 21).

4 Enter the [Meeting Name] from the [Basic] tab. Set other Meeting items as required. If items apart from [Meeting Name] are not entered or edited, then default settings will be used.

5 Click the [Add] button. The confirmation dialog box will be displayed.

6 Click the [OK] button. The specified meeting information will be added.

Note

By default, the maximum number of usable Meetings, such as normal Meetings or scheduled Meetings that can be held on the HD VISUAL COMMUNICATION SERVER is 100.

[Add Meeting] Screen

For information about the [Detail], [Access], [Presenter] and [VCMP] tabs, refer to “Chapter 5: Using Meetings (Application)” (p. 37).

[Basic] Tab

Setting Category Description

Meeting ID ID number used to identify HD VISUAL COMMUNICATIONSERVER Meetings.The system will automatically assign Meeting ID numbers. This cannot be entered or edited.

Meeting Name Required field.Enter the Meeting name.Alphanumeric / non-alphanumeric (e.g. Japanese) characters and symbols will be used. Spaces and <> '' ! \ & symbols cannot be used.The User will select the Meeting Name. A unique, easy-to-understand name should be selected for the Meeting.

H.323 Alias Enter the H.323 Alias assigned to a Meeting.Alphanumeric characters will be used. Non-alphanumeric characters, spaces and <> '' ! \ & cannot be used. An H.323 alias cannot contain only numerical character numbers; it must also include alpha characters. If nothing is entered, it will be automatically assigned when registering.

E.164 Number Enter the E.164 number assigned to a Meeting.

Max Members Required field.Enter the maximum number of Meeting members.NoteThe maximum number of participants is 24. Although setting a value higher than 24 here will not result in an error, the number of members that can participate during an actual Meeting will be limited to 24.

Meeting Type Selects the Meeting Type.Normal: There is no meeting chairman, so all participants have the same right to speak. Suitable mostly for small meetings with only a few participants.Loopback: Used for maintenance.NoteWhen [Loopback] is selected, [CPN] will be set to [OFF].Moderated: Selected when the Meeting chairman controls the audio of other participants.NoteWhen using the Moderated Meeting type, it is necessary to configure the Meeting participants and Chairman. Select the participants from [Access List(Group)] or [Access List(User)] under the [Access] tab. When Users selected from the [Access] tab are displayed in the [Presenter] tab list, select 1 person to be the Chairman.

Setting Category Description

Meeting Mode Selects the initial mode for the Moderated Type Meeting.

These modes are only valid when the selected [Meeting Type] is [Moderated].

Open Forum: Participants can hear the Chairman and those the Chairman has granted permission to speak.

Side Meeting: Only the Chairman and those the Chairman has granted permission to speak can hear each other. Conversations cannot be heard by participants who have not been granted permission to speak.

Presenting: Only the Chairman can be heard by all participants.

Lecture: Under default conditions, only the Chairman can be heard by all participants. In such cases, only the Chairman's video appears on the General Users' screens, while video of each General User appears on the Chairman's screen in a multiple video screen layout.

If the Chairman grants a General User permission to speak, the Chairman and this General User will be heard by all participants. In such cases, the screens of each of the General Users will switch to a multiple video screen layout displaying the Chairman and the user the Chairman has granted permission to speak.

Notes

- You can not change modes while a meeting conducted in [Lecture] mode is in progress.

- When [CP4] is selected for an SD resolution (QCIF, CIF, 4CIF) in [Lecture] mode, the Chairman's display will be split into a 4-screen layout, but the General Users' displays will not. Instead, the CP layout of General Users will change according to the number of participants that have been granted permission to speak.

Operator Mode Configure this mode for meetings in which the Chairman simply controls the speakers and display modes, without actively participating.

These modes are only valid when the selected [Meeting Type] is [Moderated].

Disable: Disables use of the Operator Mode.

MIC OFF: Permission to speak is not granted to any participants at the start of the meeting.

MIC ON: Grants all participants permission to speak at the start of the meeting.

Note

[Operator Mode] can only be used when the selected [Meeting Mode] is [Open Forum].

Bandwidth Selects the method for controlling the Meeting bandwidth.

STATIC: Each endpoint that enters the conference is limited to the bandwidth configured in the [Max Bandwidth (ep)] parameter.

DYNAMIC: The Meeting server will dynamically allocate the bandwidth equally among the Meeting participants. The bandwidth set for [Max Bandwidth (ep)] is the maximum endpoint bandwidth. Once the Meeting Bandwidth has reached the value set in [Max Bandwidth (conf)], the Meeting server will automatically adjust the bandwidth allocated to each endpoint.

Setting Category Description

Max Bandwidth (conf)	Required field. Enter the required maximum Meeting Bandwidth.When the [Bandwidth Control] is [STATIC], calls that exceed the below calculation formula for the “Total Meeting Bandwidth” are not connected in principal.When the [Bandwidth Control] is [DYNAMIC], configured bandwidth is shared equally between participants. In such a case, the number of people configured in [Max Members] will exceed the number of Meeting participants.Transmission/Reception Bandwidth of a Terminal = Maximum Bandwidth (ep) × 2Total Meeting Bandwidth = (Transmission/Reception Bandwidth of a Terminal) × Maximum Number of Participants
Maximum Bandwidth (ep)	Required field. Enter the maximum bandwidth used when Endpoints participating in the meeting transmit audio and video bandwidth.Meetings held via the HD VISUAL COMMUNICATION SERVER are used to select Endpoint transmission bandwidth. Endpoints cannot send data that exceeds this value.
Audio Codec Selects audio codec.G.711 μ-law: 3.4 kHz sampling frequency, 64 kbps bit rateG.711 A-law: 3.4 kHz sampling frequency, 64 kbps bit rateG.722: 7 kHz sampling frequency, 64 kbps bit rateMPEG4-AAC-LC : 14 kHz sampling frequency, 32/64 kbps bit rate
Video If [Disable] is selected, an audio-only meeting will be created, and the video setting then becomes invalid.For normal Meetings set Video to [Enable], and for audio-only Meetings, set Video to [Disable].
CPN If [ON] is selected, [CPN Layout Number] selection is enabled, allowing you to conduct meetings in multiple video screen layouts.If [OFF] is selected, [CPN Layout Number] selection is disabled, allowing you to conduct meetings in only one-screen layouts.NoteThe options that are available for the [Video Codec] and [Resolution] settings differ depending on whether [ON] or [OFF] is selected here.
Video Codec Video Codec is selected from [H.261], [H.263], [H.263+], [H.264] or [H.264 High Profile].Note[H.261] and [H.263+] cannot be selected if the [CPN] setting is set to [OFF].
Setting Category Description
Resolution Selects video resolution. It refers to the size of the downstream terminal when using multiple video screens. Options to set Resolution differ depending on the [CPN] and [Video Codec] configurations.QCIF: Size - (176 × 144)CIF: Size - (352 × 288)4CIF: Size - (704 × 576)W432P: Size - (768 × 432)HD 720p: Size - (1280 × 720)HD 1080p: Size - (1920 × 1080)For more information about restrictions to the [Resolution] setting according to [CPN] and [Video Codec] configurations, refer to “Restrictions According to [CPN] and [Video Codec] Configurations” (p. 46).Note“Upstream” refers to transmissions from an Endpoint to a Meeting, whereas “Downstream” refers to transmissions from a Meeting to an Endpoint.
Video Switch Mode	Selects the method for video switching during a Meeting.Audio:A method called “Voice Activation” that enables video switching in response to audio.Time:Video switches at a set time interval, defined by the Video Switch Time parameter.Chairman:The Chairman controls the video for all Endpoints in the Meeting. This mode is only available in a Moderated Type Meeting.
Video Switch Time	Only available when [Time] is selected as the [Video Switch Mode]. Enter the video screen switch time.
CPN Layout Number	This setting can only be configured when the [CPN] setting is set to [ON].Selects the maximum number of screens that can be displayed in a layout during meetings.The values that can be selected differ according to video quality.SD Quality (CIF or 4CIF): Select from 1, 3, 4, 6, 8, 10, 13, or 16.HD Quality (W432P or HD 720p): Select from 1, 2, 3, 4, 8, 10, 13, or 16.HD Quality (HD 1080p): Select from 4 or 16.The video layout of a CPN Meeting changes dynamically depending on the number of connected Endpoints.For more information about layout transitions according to the number of connected Endpoints, refer to “Multiple Video Screen Layout” (p. 54).
H.239 The H.239 Presentation function can be used to send computer images such as RGB images simultaneously with audio and video from terminals on the HD VISUAL COMMUNICATION SERVER.
H.239 Bandwidth Enter the bandwidth to use for H.239.Under default conditions, this is set to half the value specified in [Max Bandwidth (ep)].

Setting Category Description

H.239 Codec Select from [H.263+] or [H.264] for the codec to use for H.239.
	NoteSelect [H.263+] when conducting meetings that include SD quality Endpoints. If you select [H.264], H.239 is not sent to the SD quality Endpoints.
H.239 Resolution Only available when [H.264] is selected for [H.239 Codec].Select from [XGA], [720p], or [1080p].This will be fixed at [XGA] when [H.263+] is selected for [H.239 Codec].
Application Sharing	This software does not support this function.
Application Sharing Bandwidth	This software does not support this function.

Hints

• When connecting Meetings using H.239 with a specified [Max Bandwidth (ep)], bandwidths specified as [H.239 Bandwidth] will be used with [H.239] and the remaining audio bandwidth will be subtracted and used as video bandwidth. However, if the video bandwidth is lower than 128 Kb/s, that 128 Kb/s will be saved for video bandwidth and the remaining bandwidth will be allocated to H.239.
• Apart from the [Max Bandwidth] category which is used to set video and audio bandwidth, [H.239 Bandwidth] can be used to configure bandwidth used for H.239 Presentations. H.239 Presentation bandwidth restriction is applied to the transmission of application images.

- The bandwidth used for connections between the sending Endpoint and the meeting server will be determined by comparing the H.239 rate setting of the terminal and the [H.239 Bandwidth] of the Meeting, and selecting the one with the lower value for transmission.

- The Meeting's [H.239 Bandwidth] will be used when transmitting from the server to the receiving endpoint.

Note

If [H.239] is set to [ON], there may be problems displaying video on H.323 terminals that do not support H.239. In such a case, set the Meeting's [H.239] to [OFF].

About Bandwidth

[Maximum Bandwidth (ep)] refers to the maximum bandwidth each endpoint can send to the Meeting server per channel.

[Max Bandwidth] defines total audio and video stream bandwidth that can be used for a meeting.

When [Bandwidth Control] is set to [STATIC], a Meeting cannot be connected if participants' total bandwidth exceeds [Max Bandwidth] even if the maximum number of members has not been exceeded.

When [Bandwidth Control] is set to [DYNAMIC], the [Max Bandwidth] is allocated equally among the Meeting members. However, the number of people participating in a Meeting cannot exceed the specified [Max Members].

Edit Meeting Information

1 Login to VC ONLINE (http://[HD VISUAL COMMUNICATION SERVER address]:8080/) using an account with administrator privileges.
2 Click on [Meeting] from the [Meeting] menu. The [Meeting] screen will be displayed.
3 Select the Meeting you wish to edit from the [Meetings] list. The [Change] button will be displayed.
4 Click the [Change] button. The [Edit Meeting] screen will be displayed.
5 Make the required changes. For more information about setup items, refer to “[Add Meeting] Screen” (p. 21).
6 Click the [Change] button on the [Edit Meeting] screen. The confirmation dialog box will be displayed.
7 Click [OK]. The edited information will be saved.

Search Filter in Meeting List

A search filter can be executed in the [Meeting] screen to locate Meetings from the [Meetings] list.

By entering the information you wish to filter in the text box, filter search results will be displayed.

By default, the Search filter will search through the [Meeting Name], [H.323 Alias] and [E.164] fields. To disable a field as a condition for the search filter, clear the checkbox of the respective field.

Chapter 4: Using Meetings (Basic)

Methods to start and disconnect Meetings and to view call information managed by gatekeeper-registered Endpoints as well as by Meetings and the Gatekeeper will now be explained.

Monitor Function

This function can display a list of call information managed by gatekeeper-registered Endpoints and by Meetings and the Gatekeeper. The displayed information is updated every 60 seconds.

For more information about the [Control Panel] screen, refer to “[Control Panel] Screen” (p. 49).

Monitor Endpoint Information

1 Login to VC ONLINE (http://[HD VISUAL COMMUNICATION SERVER address]:8080/) using an account with administrator privileges.
2 Click on [Endpoint] from the [Monitor] menu. The [Monitor (Endpoint)] screen will be displayed. A list of Endpoints registered with the Gatekeeper is displayed in the [Monitor (Endpoint)] screen.

[Monitor (Endpoint)] Screen

Category Description

End Point Name Displays the name identifying each Endpoint.The [End Point Name] displays the [First Name], [Middle Name] and [Last Name] that were set when originally registering as a User. If [First Name], [Middle Name] and [Last Name] have not been set, the [H.323 Alias] will be displayed.

End Point ID Displays a unique ID that the Gatekeeper applies to each Endpoint.

H.323 Alias Displays H.323 Alias of each Endpoint registered with the Gatekeeper.

E.164 Number Displays E.164 Number of each Endpoint registered with the Gatekeeper.If left blank, that Endpoint's E.164 number will not be registered with the Gatekeeper.

IP Address Displays the Endpoint IP address.

Terminal Type Displays terminal type.MCU: HD VISUAL COMMUNICATION SERVERH323: H.323 terminal

End Point Vendor Displays the vendor information of each Endpoint.

Connection Status Displays current connection status of each Endpoint.Registered: Possible call status registered with Gatekeeper.Active Call Conference: Connected to Meeting.Active Call P2P: Both Endpoints are connected via P2P.

Regist Time Displays duration of time each Endpoint has been registered with the Gatekeeper.

How to Confirm Detailed Endpoint Information

Select the required Endpoint in the [Monitor (Endpoint)] screen, and click the [Detail] button. The [Registered End Point] screen is displayed enabling the selected Endpoint's information to be viewed.

Monitor Meeting Information

1 Login to VC ONLINE (http://[HD VISUAL COMMUNICATION SERVER address]:8080/) using an account with administrator privileges.

2 Click on [Meeting] from the [Monitor] menu. The [Monitor (Meeting)] screen will be displayed. A list of Meetings registered with the Gatekeeper will be displayed in the [Monitor (Meeting)] screen.

[Monitor (Meeting)] Screen

Category Description

Meeting Name Displays the name identifying each Meeting.

Connected User Displays the number of Endpoints currently connected to each Meeting.

H.323 Alias Displays H.323 Alias of each Meeting.

E.164 Number Displays E.164 Number of each Meeting.If left blank, that Meeting's E.164 number will not be registered with the Gatekeeper.

Lock Status Displays lock status of each meeting.

Media Processor This software does not support this function.

It is not possible to connect to a locked meeting.

How to Change the Lock Status of a Meeting Select a Meeting to change its lock status. A [Lock] and [Free] button are displayed below a list of Meetings so click the appropriate button. If the Meeting selected has a locked status, it will be unlocked. If the Meeting does not have a locked status, it will become locked.

How to Confirm Meeting Members

Select a Meeting to confirm its members. If Users are connected to that Meeting, a [Member List] button is displayed below a list of Meetings so click the appropriate button. The [Meeting Member List] screen is displayed, enabling information relating to Users connected to the selected Meeting to be viewed. The [Meeting Member List] screen allows you to check detailed connection information for each member.

[Meeting Member List] Screen

Category Description
User ID Displays the User ID of the connected endpoint.If the endpoint is not a registered user, this will be blank.
Name Displays the name of the endpoint.
H.323 Alias Displays the H.323 alias of the connected endpoint.
E.164 Number Displays the E.164 number of the connected endpoint.
IP Address Displays the IP address of the connected endpoint.
Codec (Receiving Video)	Displays the receiving video codec of the connected endpoint.
Resolution (Receiving Video)	Displays the receiving video resolution of the connected endpoint.
Frame Rate (Receiving Video)	Displays the receiving video frame rate of the connected endpoint.
Bit Rate (Receiving Video)	Displays the receiving video bit rate of the connected endpoint.
Packet Loss (Receiving Video)	Displays the receiving video packet loss of the connected endpoint.
Loss Rate (Receiving Video)	Displays the packet loss rate of the connected endpoint's receiving video.The loss rate appears in yellow if the loss rate is 0.2% or higher and in red if the loss rate is 2.0% or higher.
Codec (Sending Video)	Displays the sending video codec of the connected endpoint.
Resolution (Sending Video)	Displays the sending video resolution of the connected endpoint.
Frame Rate (Sending Video)	Displays the sending video frame rate of the connected endpoint.
Bit Rate (Sending Video)	Displays the sending video bit rate of the connected endpoint.
Codec (Receiving Audio)	Displays the receiving audio codec of the connected endpoint.
Bit Rate (Receiving Audio)	Displays the receiving audio bit rate of the connected endpoint.
Packet Loss (Receiving Audio)	Displays the receiving audio packet loss of the connected endpoint.
Loss Rate (Receiving Audio)	Displays the packet loss rate of the connected endpoint's receiving audio.The loss rate appears in yellow if the loss rate is 0.2% or higher and in red if the loss rate is 2.0% or higher.
Codec (Sending Audio)	Displays the sending audio codec of the connected endpoint.
Bit Rate (Sending Audio)	Displays the sending audio bit rate of the connected endpoint.

Category Description

Codec (Receiving H.239)	Displays the receiving H.239 codec of the connected endpoint.
Resolution (Receiving H.239)	Displays the receiving H.239 resolution of the connected endpoint.
Frame Rate (Receiving H.239)	Displays the receiving H.239 frame rate of the connected endpoint.
Bit Rate (Receiving H.239)	Displays the receiving H.239 bit rate of the connected endpoint.
Packet Loss (Receiving H.239)	Displays the receiving H.239 packet loss of the connected endpoint.
Loss Rate (Receiving H.239)	Displays the packet loss rate of the connected endpoint's receiving H.239.The loss rate appears in yellow if the loss rate is 0.2% or higher and in red if the loss rate is 2.0% or higher.
Codec (Sending H.239)	Displays the sending H.239 codec of the connected endpoint.
Resolution (Sending H.239)	Displays the sending H.239 resolution of the connected endpoint.
Frame Rate (Sending H.239)	Displays the sending H.239 frame rate of the connected endpoint.
Bit Rate (Sending H.239)	Displays the sending H.239 bit rate of the connected endpoint.
Right of Speaking (Receiving)	Displays the audio receiving status of the connected endpoint.
Right of Speaking (Sending)	Displays the audio sending status of the connected endpoint.
H.235 Displays the H.235 status of the connected endpoint.
H.235 Check Code	Displays the H.235 check code of the connected terminal. (Only when H.235 is enabled.)

Monitor Call Information

1 Login to VC ONLINE (http://[HD VISUAL COMMUNICATION SERVER address]:8080/) using an account with administrator privileges.
2 Click on [Call] from the [Monitor] menu. The [Call] screen will be displayed.

Hint

When multiple Endpoints are connected to the server, data showing only the number of connected Endpoints will be listed and displayed. For example, in the event that 2 Endpoints are connected to the server, 4 pieces of data, i.e. Endpoint A + Server and Endpoint B + Server will be displayed.

[Call] Screen

Category Description
End Point Name Displays the name identifying each Endpoint.
End Point ID Displays a unique ID that the Gatekeeper applies to each Endpoint.
H.323 Alias Displays H.323 Alias of each Endpoint registered with the Gatekeeper.
E.164 Number Displays E.164 Number of each Endpoint registered with the Gatekeeper.If left blank, that Endpoint's E.164 number will not be registered.
End Point Vendor Displays the vendor information of each Endpoint.
Call ID Information identifying calls is displayed.
Dest End Point Name	Displays H.323 Alias of the destination Endpoint.
Dest Displays the Alias of the Destination.
Connection Status Displays whether the Call is:Active Call Conference : Connected to Meeting, or Active Call P2P : Connected Peer to Peer
Regist Time Displays duration of time since the call has been registered with the gatekeeper.

How to Confirm Detailed Call Information

Select the required Call in the [Monitor (Call)] screen, and click the [Detail] button. The [Call Information] screen is displayed enabling the selected Call's information to be viewed.

Calling to a Meeting

Methods to call an Endpoint to a Meeting will now be explained.

Calling an Endpoint to a Meeting is executed from the [Monitor (Endpoint)] screen or the [Monitor (Meeting)] screen. Including an Endpoint in a Meeting requires that Endpoint's [Connection Status] to be “Gatekeeper Registered”.

Calling an Endpoint to a Meeting via the [Monitor (Endpoint)] Screen

Methods to call an Endpoint to a Meeting from the [Monitor (Endpoint)] screen will now be explained.

1 Login to VC ONLINE (http://[HD VISUAL COMMUNICATION SERVER address]:8080/) using an account with administrator privileges.
2 Click on [Endpoint] from the [Monitor] menu. The [Monitor (Endpoint)] screen will be displayed.
3 Select the Endpoint you wish to call. Select the checkbox of the Endpoint you wish to call from the Endpoint list. The menu and button to select a Meeting is displayed under the Endpoint list.
4 Select the applicable Meeting using one of the following methods.

Select a Meeting with a Meeting ID

①Select [Input Meeting ID] from the pull-down menu below the Endpoint list.
②Enter the Meeting ID of the applicable Meeting in the text box.
③Click the [Call to Meeting] button. “Updating was completed” message is displayed.

Select a Meeting with an H.323 Alias

①Select [Input H.323 Alias] from the pull-down menu below the Endpoint list.
②Enter the H.323 Alias of the applicable Meeting in the text box.
③Click the [Call to Meeting] button. “Updating was completed” message is displayed.

Select a Meeting with an E.164 Number

①Select [Input E.164 Number] from the pull-down menu below the Endpoint list.

②Enter the E.164 Number of the applicable Meeting in the text box.
③Click the [Call to Meeting] button. "Updating was completed" message is displayed.

Select a Meeting from the List

①Click the [Select Meeting] button. The [Select Meeting] screen will be displayed.
②Select the applicable Meeting from the Meeting List. The [Call to Meeting] button is displayed in the lower part of the [Select Meeting] screen.
③Click the [Call to Meeting] button. “Updating was completed” message is displayed.

5 Click [OK].

The Selected Endpoint is then called.

Note

If two or more Endpoints are selected, there will be a delay before all Endpoints are called to the Meeting.

Calling an Endpoint to a Meeting via the [Monitor (Meeting)] Screen

Methods to call an Endpoint to a Meeting from the [Monitor (Meeting)] screen will now be explained.

1 Login to VC ONLINE (http://[HD VISUAL COMMUNICATION SERVER address]:8080/) using an account with administrator privileges.
2 Click on [Meeting] from the [Monitor] menu. The [Monitor (Meeting)] screen will be displayed.
3 Select the applicable Meeting from the Meeting list. The field and button to select an Endpoint are displayed under the Meeting list.
4 Select the applicable Endpoint using one of the following methods.

Select an Endpoint with a User ID

①Select [Input User ID] from the pull-down menu below the Meeting list.
②Enter the User ID of the applicable Endpoint in the text box.
③Click the [Call to Meeting] button. “Updating was completed” message is displayed.

Select an Endpoint with a H.323 Alias

①Select [Input H.323 Alias] from the pull-down menu below the Meeting list.
②Enter the H.323 Alias of the applicable Endpoint in the text box.
③Click the [Call to Meeting] button.
“Updating was completed” message is displayed.

Select an Endpoint with a E.164 Number

①Select [Input E.164 Number] from the pull-down menu below the Meeting list.
②Enter the E.164 Number of the applicable Endpoint in the text box.
③Click the [Call to Meeting] button.
“Updating was completed” message is displayed.

Select an Endpoint with an IP Address

①Select [Input IP Address] from the pull-down menu below the Meeting list.
②Enter the IP Address of the applicable Endpoint in the text box.
③Click the [Call to Meeting] button.
"Updating was completed" message is displayed.

Select an Endpoint from the List

①Click the [Select EP] button.
The [Select End Point] screen will be displayed.
②Select the applicable Endpoint from the Endpoint List
The [Call to Meeting] button is displayed in the lower part of the [Select End Point] screen.
③Click the [Call to Meeting] button.
“Updating was completed” message is displayed.

5 Click [OK].

The Selected Endpoint is then called.

Note

If two or more Endpoints are selected, there will be a delay before all Endpoints are called to the Meeting.

Disconnecting an Endpoint from a Meeting

Methods to disconnect an Endpoint from a Meeting will now be explained.

Disconnect an Endpoint from a Meeting List

How to Disconnect an Endpoint from a Meeting

1 Click [Meeting] from the [Monitor] menu. The [Monitor (Meeting)] screen will be displayed.
2 From the Meeting list, select the Endpoint you wish to disconnect. The [Member List] button is displayed under the Meeting list.
3 Click the [Member List] button. The [Meeting Member List] screen will be displayed.
4 From the Endpoint list, check the Endpoint you wish to disconnect. The [Hangup] button will be displayed.
5 Click the [Hangup] button. The selected Endpoint will be disconnected.

How to Disconnect All Endpoints from a Meeting

1 Click on [Meeting] from the [Monitor] menu. The [Monitor (Meeting)] screen will be displayed.
2 From the Meeting List, select the Meeting you wish to disconnect. The [Withdraw All] button will be displayed under the Meeting List.
3 Click the [Withdraw All] button. All Endpoints connected to the selected Meeting will be disconnected.

Chapter 5: Using Meetings (Application)

Meetings that meet your needs can be created by adding a variety of functions. A number of useful Meeting functions will now be explained.

For more details about configuring and editing Meetings, refer to “Configuring a Meeting” (p. 20).

Scheduling Meetings

When creating a Meeting, the default mode setting for Meeting availability is: ALWAYS. This can be changed by editing the Meeting Mode and designating a Meeting time so that changes are effective for the selected time only. By default, a maximum of 100 Meetings can be held simultaneously.

Hint

Scheduled Meetings can only be created by Users with administrator privileges. General Users must use the “Reservation System” to create a meeting.

For more information about reservation systems, refer to “Chapter 6: Using the Reservation System” (p. 58).

Scheduled Meeting configuration is accessible from the [Detail] tab of the [Add Meeting] screen or the [Edit Meeting] screen. Select [SCHEDULED] from the [Activate] menu and execute the necessary settings.

[Detail] Tab - Scheduled Meetings

Setting Category Description

Activate Selects the availability of the Meeting.

• ALWAYS: Meeting is started when the HD VISUAL COMMUNICATION SERVER is started and is always available for use.
• CLOSED: The Meeting is not active. Change to this mode when access to the Meeting needs to be prohibited for a period but without actually deleting the Meeting.
• SCHEDULED: The Meeting has a scheduled Start and End time.

Setting Category Description

Repeat Mode Selects whether to repeat a Scheduled Meeting.

• NO: Meeting is not repeated.
• DAILY: Meeting is held at the same time every day.
- WEEKLY: Meeting is repeated on the same day and time every week.
- MONTHLY: Meeting is repeated on the same date and time every month.

Date Selects the date the Meeting is scheduled to start.

This date can either be selected from the Calendar or entered in the yyyy-mm-dd format:

• yyyy: Western calendar
• mm: Month
• dd: Date

Start Time Configures the start time for the Meeting.

End Time Configures the end time and day for the Meeting. If any days coincide between the start and end time, change “this day” to “next day”.

Suppressing Video Refresh Requests from Endpoints

Depending on the Endpoint, video refresh requests may be made to the server when packet loss occurs, for example. As the server transmits intra-frames in response to each video refresh request, the quality of the video transmitted from the server may decrease when several refresh requests are made, for example, during meetings with a large number of Endpoints.

When you use the ISC (Intraframe Suppression Control) function, intra-frames are transmitted only during specified time intervals, instead of in response to each video refresh request. This allows you to give the appearance of improved video quality.

You can configure the ISC function in the [Detail] tabs of the [Add Meeting] and [Edit Meeting] screens.

[Detail] Tab - Intraframe Suppression Control (ISC)

Setting Category Description
ISC Select whether to use the ISC function.ON: Use the ISC function.OFF: Do not use the ISC function.
ISC Time Enter in seconds the time interval at which intra-frames are transmitted.
ISC Mode Change	Enter the number of connections for which the ISC function will be enabled.

Using the Share Phone Book

Select whether to display in the Share Phone Book the Meeting information that is registered on the server.

You can configure these settings in the [Detail] tabs of the [Add Meeting] and [Edit Meeting] screens.

[Detail] Tab - Share Phone Book

Setting Category Description

Share Phone Book

Select whether to display in the Share Phone Book the Meeting information that is registered on the server.NONE: Do not display the information in the Share Phone Book.H323ALIAS: Display the information in the Share Phone Book using H.323 aliases for the Meeting contact information.E164NUMBER: Display the information in the Share Phone Book using E.164 numbers for the Meeting contact information.NoteInformation on a Meeting is displayed in the Share Phone Book only when the Meeting is available to be conducted.

Using Templates

A Meeting Template is used as a model for configuring a Meeting. It contains the basic Meeting configuration so that each time a new Meeting is created, the same information does not have to be entered.

Template configuration is accessed from the [Detail] tab of the [Add Meeting] screen or the [Edit Meeting] screen.

[Detail] Tab - Templates

Setting Category Description

Template Mode By checking the checkbox, the currently configured meeting can be used to create a template.

Template ID When referring to a previously made template, select the Template you wish to use.

Notes

• The Template itself cannot be used as a Meeting.
• If you change a Template, all Meetings based on that Template will reflect the changes. If you want to change a single Meeting based on a Template, make the necessary changes to the applicable Meeting's information.

Configuring Audio Details

You can configure latency and gain settings for audio.

You can configure these settings in the [Detail] tabs of the [Add Meeting] and [Edit Meeting] screens.

[Detail] Tab - Audio

Setting Category Description
Audio Latency Required field. Meetings on the HD VISUAL COMMUNICATION SERVER buffer audio frames allow for stable audio synthesis. Value can be set at between 2 and 10.
Audio Gain Control	To avoid extreme audio volume changes, select whether to adjust the audio volume automatically.

Changing Transmission Resolutions for Endpoints with Insufficient Throughput

If the actual throughput between Endpoints is less than the [Max Bandwidth (ep)] value configured for the Meeting, the transmission resolution to such Endpoints is automatically decreased.

The resolution used during transmission is automatically determined as follows based on the [Max Bandwidth (ep)] setting in the [Basic] tabs of the [Add Meeting] and [Edit Meeting] screens and the [Speed Matching] settings in the [Detail] tabs.

• When the possible throughput between the Endpoint is equal to or greater than the [Max Bandwidth (ep)] value for the Meeting: HD 720p resolution
• When the possible throughput between the Endpoint is less than the [Max Bandwidth (ep)] value for the Meeting, but equal to or greater than the [W432P] value: W432P resolution
• When the possible throughput between the Endpoint is less than the [W432P] value for the Meeting, but equal to or greater than the [CIF1] value: CIF1 resolution
• When the possible throughput between the Endpoint is less than the [CIF1] value for the Meeting, but equal to or greater than the [CIF2] value: CIF2 resolution

You can configure these various values in the [Detail] tabs of the [Add Meeting] and [Edit Meeting] screens.

[Detail] Tab - Speed Matching

Setting Category Description

W432P Select [ON] to enable W432P transmission.If you select [ON], enter the video bit rate required for W432P transmission.

CIF1 Select [ON] to enable CIF1 transmission.If you select [ON], enter the video bit rate required for CIF1 transmission.

CIF2 Select [ON] to enable CIF2 transmission.If you select [ON], enter the video bit rate required for CIF2 transmission.

Using the Encryption Function

Configure settings for conducting meetings with H.235 encryption.

These settings are enabled when the H.235 license is installed on the HD VISUAL COMMUNICATION SERVER.

Note

This function may not operate depending on your country or region.

You can configure these settings in the [Detail] tabs of the [Add Meeting] and [Edit Meeting] screens.

[Detail] Tab - H.235

Setting Category Description

NONE Select this to conduct meetings without H.235 encryption.

ENCRYPTION Select this to conduct encrypted meetings with terminals that support H.235 encryption only.If a terminal does not support H.235 encryption, it cannot connect to the meeting.

CONNECTIVITY Select this to conduct encrypted meetings with terminals that support H.235 encryption and terminals that do not.Terminals that support H.235 encryption will connect with encryption, while terminals that do not support H.235 encryption will connect without it.

Using Cascade Connections

Up to 23 PCS-VCSH24 units can be connected under a single PCS-VCSH24 unit using a cascade connection.

The meeting of the master MCU (top-level MCU) will be fixed at [Lecture] mode, while the meeting of the slave MCUs (lower-level MCUs) will be fixed at VA mode.

You can configure these settings in the [Detail] tabs of the [Add Meeting] and [Edit Meeting] screens.

Note

This function is only available for connections between PCS-VCSH24 units. The maximum resolution during a cascade connection is 720p with a maximum bit rate of 2 Mbps per terminal.

[Detail] Tab - Cascade

Setting Category Description
Cascade Role Specify the operating mode of the unit during a cascade connection. NONE: Do not use cascade connection (default). MASTER: Use cascade connection as a master MCU. Only one unit can be specified as a master MCU in a cascade connection. SLAVE: Use cascade connection as a slave MCU. Up to 23 slave MCUs can be connected to a master MCU.
Master Address Type	When operating as a slave MCU, select the addressing method used to specify the master MCU. H.323 Alias: Specify the master MCU using the H.323 alias. E.164 Number: Specify the master MCU using the E.164 number.
Master Address When operating as a slave MCU, specify the address of the master MCU using the method specified in [Master Address Type].

Configuring Video Details

You can configure detailed video settings with the [Video] settings in the [Basic] tabs of the [Add Meeting] and [Edit Meeting] screens.

For more information about [Basic] tab settings, refer to “[Add Meeting] Screen” (p. 21).

Restrictions According to [CPN] and [Video Codec] Configurations

The [Resolution] options that are available differ depending on the [CPN] and [Video Codec] settings configured in the [Basic] tab.

CPN Video Codec Resolution
ON H.263 CIF
		4CIF
	H.264 CIF
		W432P
		HD 720p
		HD 1080p
	H.264 High Profile CIF
		W432P
		HD 720p
OFF H.261 QCIF
		CIF
	H.263 QCIF
		CIF
		4CIF
	H.263+ QCIF
		CIF
		4CIF
	H.264 QCIF
		CIF
		4CIF
		HD 720p
		HD 1080p
OFF H.264 High Profile QCIF
		CIF
		4CIF
		HD 720p
		HD 1080p

Restricting Meeting Users

You can restrict Meeting Users or create a Meeting for specific Users only. Changes are made from the [Access] tab of the [Add Meeting] screen or the [Edit Meeting] screen.

[Access] Tab

Setting Category Description
Access Control Filter	Select [Access Control Filter] when restricting access. The default setting is [H323ALIAS].NONE: No access control is applied so anybody can enter the Meeting.IPADDRESS: Access to the Meeting is restricted by IP Address.H323ALIAS: Access to the Meeting is restricted by H.323 AliasH323ALIAS_IP: Access to the Meeting is restricted by both IP Address and H.323 Alias.SERVERCALL: Participants cannot directly enter a Meeting; they have to be called into the Meeting by the Meeting Server.
Access List (Group)	This function selects Groups to whom access will be granted.Select the checkbox for the Group to be granted access from the Access List.Deselect the checkbox to cancel the selection.
Access List (User)	This function selects Users to whom access will be granted.Select the checkbox for the User to be granted access from the Access List.Deselect the checkbox to cancel the selection.

Conducting Moderated Meetings

With Moderated Meetings, it is possible for the Chairman to permit and prohibit speaking privileges by using [Control Panel].

To moderate a Meeting, the existence of a Chairman is necessary. When creating a meeting, select 1 User with Chairman privileges.

Selecting a User with Chairman privileges is executed from the [Presenter] tab of the [Add Meeting] screen or the [Edit Meeting] screen.

[Presenter] Tab

Setting Category Description

Chairman Select a Chairman when [Meeting Type] is set to [Moderated].

The User list selected from the Access list under the [Access] tab is displayed, enabling the Chairman to be selected.

Moderate a Meeting

You can moderate meetings using the Control Panel. The operations that can be controlled vary depending on user privileges.

Chairman privileges: You can call or disconnect participants in meetings for which you hold Chairman privileges. You can also change the mode and control speaking privileges for moderated meetings.

Administrator privileges: You can perform the same controls as the Chairman in all meetings.

General User: You can call or disconnect participants in any open meeting you are allowed to join.

To use the Control Panel, log into VC ONLINE and select [Control Panel] from the [Monitor] menu.

[Control Panel] Screen

Category Description

Meeting Information	Displays a list of the Meetings over which the currently logged in User has Chairman privileges. Meetings able to be controlled include manual switch mode Normal and Moderated Meetings.
Auto Update The refresh interval for the Control Panel can be set with “No update” or 10 to 60 seconds as an option.The screen can also be refreshed by clicking [Update Now] to refresh the screen immediately.

Members A list of Users participating in the selected Meeting.

Category Description

Control Displays the Control menu. Select one of the items from the drop-down menu.Change ModeChange LCCall by InputChange V S

Change Mode Displayed after selecting [Change Mode] from the [Control] menu during Moderated type meetings. Moderated type Meeting Modes can be selected from [Open Forum], [Side Meeting] or [Presenting]. After selecting, click on [Change Meeting Mode] and the Meeting Mode will be changed.

Change LC Displayed after selecting [Change LC] from the [Control] menu during Moderated type meetings.The user you wish to display in the video channel can be chosen from the list. Following selection, click the [Change LC] button and the selected information will be enabled.In addition, for CP Mode Meetings, the screen layout can be changed using [CPN Layout Number].For more information about CPN Layout Number, please refer to “[VCMP] Tab” (p. 53).

Call A list of users able to access the Meeting but not currently connected is displayed when [Call] is selected from the [Control] menu.Select a user from the list, and by clicking the [Call] button, the selected User will be called into the meeting. When [Select All] is checked, all the Users in the list will be selected.

Call By Input This is displayed by clicking on [Call] from the [Control] menu.Select and call the Users you want to invite to the Meeting.You can invite Users to the meeting by selecting either [Input User ID], [Input H.323 Alias], or [Input E.164 Number].Once the User information has been entered, click the [Call] button to call them into the Meeting.

Change VS Displayed after selecting [Change VS] from the [Control] menu.Select from [Audio], [Time], or [Chairman]. If you select [Time], you can also specify the switching interval.The video switching method changes when you click the [Change VS] button.

Calling a User to a Meeting

Methods to call Users from the Control Panel will now be explained.

How to Select the User you wish to Call

1 Select [Call] from the [Control] menu.
2 Select the User you wish to call from the [Add User to Meeting] list. The selected User will be highlighted in a reverse colour scheme. If you want to call all Users to a Meeting, check the [Select All] box.

3 Click the [Call] button.

The selected User will be called to the Meeting.

When the call is completed, the called User will move from the [Add User to Meeting] list to the [Members] list.

How to Call by Inputting User Information

1 Select [Call by Input] from the [Control] menu.
2 Select either [Input User ID], [Input H.323 Alias] or [Input E.164 Number] from the pull-down menu.
3 Enter in the text box the user information type chosen from the pull-down menu.
4 Click the [Call] button.
The selected user will be called to the Meeting.
When the call is completed, the called User will move from the [Add User to Meeting] list to the [Members] list.

Controlling the Meeting Mode

Methods to change the mode for a moderated Meeting will now be explained. Changing the mode only applies to Moderated Type Meetings.

1 Select [Change Mode] from the [Control] menu.
2 Select the required mode from the list.
3 Click the [Change Mode] button.
The mode will then be changed.

Controlling Speaking Privileges

Methods to control the speaking privileges of Meeting participants will now be explained.

How to Permit Speaking

1 Select the User to whom you want to grant speaking privileges from the [Members] list.
Multiple Members may be selected. By clicking on [Select All], all Users displayed in the [Members] list will be selected.

2 Click the [Permit Speaking] button.

The selected Member's audio will now be transmitted to the other participants.

When granted permission to speak, the Member's mic. status will change from grey to yellow.

How to Prohibit Speaking

1 Select the user you wish to prohibit speaking from the [Members] list. Multiple Members may be selected. By clicking on [Select All], all users displayed in the [Members] list will be selected.

2 Click the [Prohibit Speaking] button. The selected Member's audio is no longer transmitted to other Members. When prohibited from speaking, the Member's mic. status will change from yellow to grey.

Controlling the Video Channels

Methods to control video channels will now be explained. Video channel control only applies during Moderated type meetings.

1 Select [Change LC] from the [Control] menu.
2 Select the users you want to display for each channel from the pull-down menu.
3 Click the [Change LC] button. The selected information will be reflected, and the Endpoint's video channel will be switched.

Hanging up a User

1 Select the user you want to hang up from the [Members] list. The selected user will be highlighted in a reverse colour scheme. Click [Select All] to hangup all participants in the Meeting.

2 Click the [Hangup] button. The selected User will be disconnected from the Meeting.

Updating Control Panel Information

Click the [Update Now] button to update the information displayed in the [Control Panel] and reflect the current status.

How to Update Information Automatically

Select the update time interval from the [Auto Update] pull-down menu when you want to update information automatically. The Control Panel information is then updated automatically at selected time intervals.

Conducting Multiple Video Screen Meetings

You can conduct meetings in multiple video screen layouts by configuring the [CPN] and [CPN Layout Number] settings in the [Basic] tabs of the [Add Meeting] and [Edit Meeting] screens.

You can also configure detailed settings for conducting multiple video screen meetings in the [VCMP] tab.

For more information about [Basic] tab settings, refer to “[Add Meeting] Screen” (p. 21).

[VCMP] Tab

Setting Category Description
VCMP Server This software does not support this function.
Fixed Position User	Selects a User from the displayed list whose video is to be permanently fixed as the No.1 video window in the CPN Meeting.However, when layout 16 is selected, the video screens are always displayed in a 16-screen layout regardless of the number of connected Endpoints.For more information about multiple video screens, refer to “Multiple Video Screen Layout” (p. 54).

Note

Due to the time it takes to configure a CPN Meeting, there will be a delay of approximately 15 seconds before a CPN Meeting can be entered when adding / editing a Meeting, after disconnecting an Endpoint or when rebooting the Server.

Hints

• When the [Video Switch Mode] of a CPN meeting is set to [Audio], the person speaking is displayed in the No.1 video window. When a user is selected with the [Fixed position user] setting to be displayed in the No.1 video window, speakers other than the selected user will be displayed in the No.2 video window. An orange frame appears around the speaker. However, the speaker's position doesn't change when the equally divided layout (CP2, CP4, CP12, CP16) is used and the number of participants is less than the layout number displayed. In such cases, the speaker is indicated only by the orange frame.
• For CPN Meetings, there is a terminal name display function that shows participants' names in the video window. In the event Member(s)' name is written only in alphanumeric characters, it is displayed in [First Name], [Last Name] order. If the name includes 2-byte characters, it is displayed in [Last Name], [First Name] order. Middle names are not displayed.

For more information about multiple video screens, refer to “Multiple Video Screen Layout” (p. 54).

Multiple Video Screen Layout

This section explains the CPN multiple video screen layout.

The number on the left of the figure shows the number of connected Endpoints.

Layouts without a number on the left are a fixed display and are not affected by Endpoint numbers.

Normal Standard Quality (CIF or 4CIF)

Layout 1

Layout 3

Layout 4

1	2
3	4

Layout 6

Layout 8

1	2	3	4
5	6	7	8
910	11	12
13	14	15	16

HD Quality (W432P or HD 720p)

Layout 1

Layout 2

Layout 3

Layout 4

Layout 8

1	2	3	4
5	6	7	8
9	10	11	12
13	14	15	16

Upstream Resolution from Endpoints

Upstream resolution from endpoints is automatically determined so that the image covers the largest pane in the specified multiple screen layout, without having to expand the image.

Chapter 6: Using the Reservation System

About the Reservation System

This function, which enables general Users to make Meeting reservations, is included with the HD VISUAL COMMUNICATION SERVER.

It is necessary for the administrator to configure the reservation system and prepare a reservation template in advance.

Based on the reservation template, general Users designate the conference room name, participants and usage time, and then make the meeting reservation. In addition, Users making the reservation can notify participants about the meeting reservation.

The Meeting attributes designated by the Template, such as the maximum number of participants, bandwidth usage, video codec, etc., cannot be changed by general Users.

Configuring the Reservation System

Methods to configure the Reservation System will now be explained. In order for general Users to use the Meeting Reservation function, it is necessary first for administrators to configure the Reservation System, such as designating the mail server to be used for providing email notifications.

1 Login to VC ONLINE (http://[HD VISUAL COMMUNICATION SERVER address]:8080/) using an account with administrator privileges.
2 Click on [Network Config] from the [Server] menu. The [Network Config] screen will be displayed.
3 Enter information into the configuration fields, and click the [Update] button.

[Network Config] Screen

Setting Category Description
SMTP Server Enter the IP Address of the SMTP server for sending email notifications.A SMTP Server is not included with the HD VISUAL COMMUNICATION SERVER and should be arranged separately.
SMTP Port Specify a SMTP server port for sending email notifications.
Reservation Email Address	Enter a default e-mail address.To be used if no e-mail address is configured in the User Account of the User reserving the Meeting.
Subject Enter a subject line for e-mail notifications.This will be displayed as the default subject line in the enter field when reserving a meeting. General users can change the e-mail subject line when reserving a Meeting.
Reservation Interval Select the required interval to specify the duration of a reserved Meeting. The interval can be selected from: 1, 5, 10, 15, 20, 30 or 60 minutes.
Login ID Designate authentication ID if required by your SMTP server.If left blank, this function will operate “Without Authentication”.
Password Designate a password for the authentication ID set above.
MD5 Realm Designate MD5 Realm when your SMTP server is configured by the authentication type “DIGEST-MD5”.Designate the MD5 Realm configured with your SMTP server.

Creating a Reservation Template

Methods to create templates for Meeting Reservations will now be explained.

1 Login to VC ONLINE (http://[HD VISUAL COMMUNICATION SERVER address]:8080/) using an account with administrator privileges.
2 Click on [Reservation] from the [Meeting] menu. The [Reservation] screen will be displayed.
3 Click the [Add Template] button. The [Reservation Template] screen will be displayed.
4 As with a Normal Meeting, configure settings for “Basic Information”, “Audio”, “Video”, etc.

Hints

• By checking [Mail As Schedule], an iCalendar-format file will be attached to an e-mail when sending a Meeting reservation confirmation e-mail.
• The [Access Control Filter] can be set, but there is no option to enter the Users allowed to enter the Meeting.

For information about settings, please refer to “[Add Meeting] Screen” (p.21).

5 Click the [Save] button. The entered template information will be saved.

Reserving a Meeting

Methods for general Users to reserve a Meeting will now be explained.

1 Login to VC ONLINE "http://[HD VISUAL COMMUNICATION SERVER address]:8080/" with a general user account.

2 Click on the [Reservation] menu. The [Reservation] screen will be displayed.

3 Select the desired template, and click the grey icon inside the date box for the date you wish to reserve the Meeting. The Reservation input screen will be displayed.

4 Set the [Meeting Name], [Start Time] and [End Time], and select the required User or Group from the Access List. Set other items as necessary.

For information about Meeting Reservation settings, please refer to “[Reservation] Screen” (p. 62).

5 Click the [Add] button. When the Meeting Reservation is complete, the e-mail confirmation configuration screen will be displayed.

Notes

• Set Reservation System in advance to enable e-mail confirmation.
• If a user or group that you specified is already scheduled to participate in another meeting that coincides with the specified reservation time, a warning message appears. However, you can click the [OK] button in the warning message and still reserve the meeting.

6 Confirm the details of the [Subject] and [Mail Text] fields. Check [Mail As Schedule] if you want to attach an iCalendar-format file to an e-mail.

7 To send an e-mail, select the recipients from the User list, and click the [Send Mail] button. If you do not wish to send a notification e-mail, click the [Don't Send Mail] button. By clicking on the [Send Mail] button, a mail will be sent to the required recipients.

Notes

• The e-mail address used is the address configured in the recipient's User Information. This e-mail address must be configured in User Information prior to configuring the Meeting in order to send mail to the selected users.
• The reserved Meeting will not appear on the [Monitor (Meeting)] Meeting list until the scheduled start time.

[Reservation] Screen

Setting Category Description
Meeting Name Enter the Meeting Name. It is not possible to duplicate Meeting Names. If a duplicated Meeting Name is designated, the file name is automatically updated with a number attached to the end of the name, such as “(1)”.
Repeat Mode Select whether to repeat a Scheduled Meeting. NO: Meeting is not repeatedDAILY: Meeting is held at the same time every day.WEEKLY: Meeting is repeated on the same day and time every week.MONTHLY: Meeting is repeated on the same date and time every month.
Date Displays the date the Meeting is scheduled to start.
Start Time Sets Meeting Start Times on a daily basis.Minute intervals can be set from 1 min to 60 mins with [Reservation Interval] under [Network Config].
End Time Sets Meeting End Times on a daily basis.Minute intervals can be set from 1 min to 60 mins with [Reservation Interval] under [Network Config].If any days coincide between the start and end time, change “this day” to “next day”.
CPN Layout Number	Selects the video layout of a CPN meeting. Configuration options differ depending on the [Video Codec] and [Video Mode] settings. In addition, it is only possible to change to layouts with fewer video screens than the set Reservation Template.
Share Phone Book Select whether to display in the Share Phone Book the Meeting information that is registered on the server.NONE: Do not display the information in the Share Phone Book.H323ALIAS: Display the information in the Share Phone Book using H.323 aliases for the Meeting contact information.E164NUMBER: Display the information in the Share Phone Book using E.164 numbers for the Meeting contact information.NoteInformation on a Meeting is displayed in the Share Phone Book only when the Meeting is available to be conducted.
Owner The name of the logged-in User is displayed. This cannot be edited.
Template Name The name of the reservation template being used is displayed.This cannot be edited.
Meeting Type Displays the name of the Meeting Type configured with the reservation template being used. This cannot be edited.
Access Control Filter	Displays the Access Control Filter configured with the reservation template being used. This cannot be edited.

Setting Category Description

Fixed Position User Selection	By clicking this button, the user list will be displayed. When holding CPN mode video conferences, the User to be displayed in the largest of the multiple video screens can be selected from the list.
Access List(Group)	Displays a list of Groups. Select from the list, the Group you wish to include in the Meeting.
Access List(User)	Displays a list of Users. Select from the list, the User you wish to include in the Meeting.Users can be narrowed down by entering the information (part of the User Name, H.323 Alias, etc.) of the User you wish to locate in the [Search Filter] field.
Auto Invite By checking the checkbox, users can be automatically invited to a Meeting.It is possible to invite participants minutes before a Meeting begins. The actual invitation is made 40 seconds after the designated time. For example, if the “before time” parameter is set to 5 minutes, Auto Invite will start calling in the participants 4 minutes and 20 seconds prior to the commencement of the meeting.In the event that the invited terminal is not turned on or the participant does not respond, Auto Invite will retry up to 5 times with the interval between tries increasing by 30 seconds after each try.First Retry: 30 seconds after original invitationSecond Retry: 60 seconds after the first retry (90 seconds after original invitation)Third Retry: 90 seconds after the second retry (180 seconds after original invitation)Fourth Retry: 120 seconds after the third retry (300 seconds after original invitation)Fifth Retry: 150 seconds after the fourth retry (450 seconds after original invitation)

Verify Personal Reservation Schedules

Users can display a list of meetings that they reserved themselves and reserved meetings that they intend to attend.

1 Login to VC ONLINE "http://[HD VISUAL COMMUNICATION SERVER address]:8080/" with a general user account.
2 Click [Personal Schedule] from the [Meeting] menu. The [Personal Schedule] screen appears. Meetings that the user is scheduled to attend are displayed in yellow. Checkboxes appear to the left of meetings that the user reserved themselves.

Edit Reservation Settings

You can edit reservation settings in the [Personal Schedule] screen.

Note

Users can only edit the settings of meetings they reserved themselves.

1 Login to VC ONLINE "http://[HD VISUAL COMMUNICATION SERVER address]:8080/" with a general user account.
2 Click [Personal Schedule] from the [Meeting] menu. The [Personal Schedule] screen appears.
3 Select the checkbox of the meeting for which you want to edit settings, and click the [Update] button at the bottom left of the screen. The [Reservation] screen appears.
4 Edit the settings for the meeting, and click the [Update] button. The reservation settings for the meeting are updated.
For more information about reservation settings for meetings, refer to “[Reservation] Screen” (p. 62).

Delete Reservations

You can cancel reservations for meetings in the [Personal Schedule] screen.

Note

Users can only cancel meetings they reserved themselves.

1 Login to VC ONLINE "http://[HD VISUAL COMMUNICATION SERVER address]:8080/" with a general user account.
2 Click [Personal Schedule] from the [Meeting] menu. The [Personal Schedule] screen appears.
3 Clear the checkbox of the meeting you want to cancel, and click the [Delete] button at the bottom left of the screen.
4 Click [OK] when the confirmation screen appears.

Deleting a Completed Meeting

Methods to delete a completed Meeting will now be explained.

Reserved Meeting information is not deleted automatically so delete as necessary.

1 Login to VC ONLINE (http://[HD VISUAL COMMUNICATION SERVER address]:8080/) using an account with administrator privileges.
2 Click on [Reservation] from the [Meeting] menu. The [Reservation] screen will be displayed. A [Delete Old Data] button will appear next to any Meetings that were completed at least two days before.
3 Click the [Delete Old Data] button. The completed Meeting information will be deleted.

Confirming HD VISUAL COMMUNICATION SERVER Status

The status of the HD VISUAL COMMUNICATION SERVER can be confirmed by either displaying processes or referencing log files.

How to Display Processes

1 Right-click on the Server Desktop and click on [Open Terminal] from the menu.
2 When the Terminal Software opens, execute the following command.

<h1 id="usrlocalvnbinvnstatus">/usr/local/vn/bin/vnstatus</h1>

Under normal conditions, you will see the following results displayed:

cnode_mcu (pid 3870) is running...
beam (pid 3785 3766) is running...
vnncs (pid 3797) is running...
vnproxy (pid 3822 3810) is running...
vnutil (pid 3823) is running...
vnlmsvr (pid 3842) is running...
vnbms (pid 3863) is running...
vnpms (pid 3885) is running...
vngk (pid 3901) is running...
vnmcu (pid 3917) is running...
vnvnc (pid 3932) is running...
vnapi (pid 3945) is running...

How to Reference the Log File of Meeting Server

1 Right-click on the Server Desktop and click on [Open Terminal] from the menu.
2 The Terminal Software will open so execute the following command.

cp -r /var/log/ /[Log File Save Destination]/

Command Example:

cp -r /var/log/ /media/disc

The HD VISUAL COMMUNICATION SERVER component and system log are located in /var/log/vn. Save to external media as and when necessary.

Chapter 8: Gatekeeper

Restricting Registrations

Configuration conditions for restricting registrations will now be explained. By default, all Endpoints are permitted to register with the Gatekeeper, however, certain Endpoints can be restricted from registering with the Gatekeeper either by IP Address or E.164 number.

Restrict Registrations

1 Click on [Restriction] from the [Gatekeeper] menu. The [Restriction] screen will be displayed.
2 Click the [Add] button from either [Restriction(IP)] or [Restriction(E164)] panel. The [Add Restriction] screen will be displayed.
3 Select whether to permit the Gatekeeper registration or not.
4 Click the [Add] button on the [Add Restriction] panel. This setting is registered.

[Add Restriction] Screen

Setting Category Description

Restriction ID The Restriction ID automatically allotted by the system is displayed. This cannot be edited.

Restriction Type Displayed by [Restriction(IP)] or [Restriction(E164)].This is decided by clicking the [Add] button of either [Restriction(IP)] or [Restriction(E164)]. Editing is not possible.

Priority Enter registered restriction information in order of priorityusing alphanumeric characters. Restrictions with a lower value will be prioritized.

Permission Select whether to permit the targeted terminal's registration with the Gatekeeper.

IP Address This is a required field. Only displayed if the [Restriction Type] is [Restriction(IP)]. Enter the IP Address of the terminal in question.

Netmask This is a required field. Only displayed when the [Restriction Type] has been configured as [Restriction(IP)]. Enter the terminal's [IP Address], if restricting by IP Address.

Condition Only displayed when the [Restriction Type] has been configured as [Restriction(E164)]. Select the conditions determining whether the terminal is to be permitted or not.LESS: Indicates a [Length] shorter than the entered E.164 character string length.EQUAL: Indicates a [Length] equal to the entered E.164 character string length.GREATER: Indicates a [Length] longer than the entered E.164 character string length.

Prefix This is a required field. Only displayed when the [Restriction Type] has been configured as [Restriction(E164)]. Enter a prefix to be shared from the E.164 Number of the terminal in question.

Length Enter the length of the E.164 character string.

Edit Registration Restrictions

1 Click on [Restriction] from the [Gatekeeper] menu.
The [Restriction] screen will be displayed.

2 Select the restriction information you want to edit from [Restriction (IP)] or [Restriction (E164)], and click the [Change] button.

The [Edit Restriction] screen will be displayed.

3 Select whether to permit the Gatekeeper registration or not.

For more information about setup procedures, refer to “[Add Restriction] Screen” (p. 69).

4 Click the [Add] button on the [Edit Restriction] panel.

The edited information will override previous information and be saved.

Delete Restriction Information

1 Click on [Restriction] from the [Gatekeeper] menu. The [Restriction] screen will be displayed.

2 Select the restriction information you want to delete from [Restriction (IP)] or [Restriction (E164)], and click the [Delete] button. The selected registration information will be deleted.

ARQ (Automatic Repeat ReQuest) Function

When video or H.239 packet loss occurs during transmissions, this function automatically requests the transmitter to resend the packet. Audio packets are not supported with this function.

This is a simplified version of the Real-Time ARQ function used on the PCS series.

Configuration is not necessary to enable this function, and resend requests are performed automatically.

Depending on the operating environment, this function may not be as effective as when it is used between PCS-series units.

Configuring Personal Information

Methods to configure Users' personal information will now be explained. Login to VC ONLINE, and click on [Personal] from the [User] menu. The [Personal] screen will be displayed, allowing changes to be made to the personal information of the logged in User.

[Personal] Screen

Setting Category Description
Password Password the user originally registered.
Last Name User's last name that is displayed in the [Member List] on the communications screen.
Middle Name User's middle name that is displayed in the [Member List] on the communications screen.
First Name User's first name that is displayed in the [Member List] on the communications screen.
e-mail User's e-mail address.
IP Address Enter if the terminal that will be used by the user has been assigned a fixed IP address.
FT Connection	This software does not support this function.
FT Tunnel Type	This software does not support this function.
Set Select the checkbox to enable the [Action], [Forwarding Type], and [Forwarding Destination] settings. This can be configured for each [Condition].
Condition Indicates the status; [Busy], [Online] (User can be called), or [Offline] (User cannot be called). The [Action], [Forwarding Type], and [Forwarding Destination] settings can be configured for each status.
Action Select the [Confirm], [Reject] or [Forward] Action when answering calls.
Forwarding Type Select forwarding destination type when selecting [Forward] as an [Action]H.323 Alias: When selecting a H.323 Alias as a forwarding destinationE.164 Number: When selecting an E.164 Number as a forwarding destination.IP Address: When selecting an IP Address as a forwarding destination.
Forwarding Destination	When selecting [Forward] as an [Action], enter a forwarding destination that complies with a type specified in the [Forwarding Type].

Sending an E-mail to other Users

Methods to send e-mail to other users will now be explained.

Notes

• It is necessary to configure the reservation system prior to sending an e-mail.
• The e-mail address used is the address configured in the recipient's User Information.

1 Login to VC ONLINE (http://[HD VISUAL COMMUNICATION SERVER address]:8080/) using an account with administrator privileges.
2 Click on [Send Mail] from the [User] menu. The [Send Mail] screen will be displayed.
3 Enter [Subject] and [Mail Text], and select the e-mail recipient from [Groups] or [Users]. Users can be narrowed down by entering the information (part of the User Name, H.323 Alias, etc.) of the User you wish to locate in the [Search Filter] field. When sending an e-mail to all registered users, check the [All Users] checkbox. In the event of sending an e-mail to all registered users with administrator privileges, check the [All System Administrators] checkbox.
4 Click the [Send Mail] button. The e-mail will be sent to all selected mail recipients.

Reporting

Reporting offers a function for reporting operational results. Reporting is used in conjunction with the HD VISUAL COMMUNICATION SERVER.

How to Access the Reporting Function

1 Login to VC ONLINE (http://[HD VISUAL COMMUNICATION SERVER address]:8080/) using an account with administrator privileges.

2 Click [Report] at the top right of the page.

To execute a search, click the [Search] button.

Displayed Search Information

Click [Search], and the following results are displayed.

• Call Statistics: Display of statistical information
• Call Records: Button for CSV file acquisition
• Displays list of search results

Call Statistics

Displays statistical information of search results.

Category Description

Total number of calls Total number of listed calls

Total duration (hour:min:sec) Total connection time

Average duration (hour:min:sec) Average connection time

Max duration (hour:min:sec) Maximum connection time

#Unique callers Number of calls out

#Unique call destinations Number of calls in

Call Records

Download CSV Full: Gets file of all log items.

Download CSV part: Gets file of part of the log items.

Search Results

Displays a record of information regarding previously completed call connections (call information).

Category Description
# Serial number of search result
Start time Time that the call was connected
End time Time that the call was disconnected
Call compilation code	Status codeCC: Call Completed normallyCAD: Abnormal call disconnectedUCN: Unconnected due to network failureUCI: Unconnected due to invalid address
Call destination H.323 Alias of receiving caller (connection destination)
Caller H.323 Alias of originator caller (source)
Caller's IP address	IP Address of originator caller
Call duration (ms)	Connection timeCalculated at units of ms (milliseconds)

Call information is recorded when a call ends.

Information for search is updated every two minutes so wait for about two minutes to conduct a fresh search.

Sony PCS-XG/XL/XA Series Firmware Update Function

The Sony PCS-XG/XL/XA Series has a firmware update function. Methods to setup and use this function will now be explained.

Setup

1 Right-click on the Server Desktop and click on [Open Terminal] from the menu.

2 The Terminal Software will then open so execute the following command.

<h1 id="cd-usrlocalvn">cd /usr/local/vn</h1>
<h1 id="mkdir-sony">mkdir sony</h1>

A directory entitled “sony” will be created under the HD VISUAL COMMUNICATION SERVER’s /usr/local/vn directory.

3 Copy the Sony PCS-XG/XL/XA Series firmware to the sony directory.

Firmware Update Procedure

Notes

• When updating PCS-XG/XL/XA Series firmware, execute [Update Firmware] after checking whether the terminal power is set to ON and is not currently being used.
• Do not turn the power OFF when updating PCS-XG/XL/XA Series firmware under any circumstances.

1 Login to VC ONLINE (http://[HD VISUAL COMMUNICATION SERVER address]:8080/) using an account with administrator privileges.

2 Click on [Endpoint] from the [Monitor] menu. The [Monitor (Endpoint)] screen will be displayed.

3 Click [Update Firmware] at the bottom left of the screen.

4 Select the checkbox of the Sony PCS-XG/XL/XA Series terminal you want to update.

Note

You can only update one terminal at a time.

5 Select the firmware to be updated from the [Select Firmware Update File] pull-down menu, and click the [Update Firmware] button. The confirmation screen will be displayed.
6 Confirm the details of the confirmation screen, and execute [Update Firmware].

Status Display

When the Sony PCS-XG/XL/XA Series firmware update is executed, firmware update and update completion status are displayed.

Status Column Description
Blank Initial firmware update execution screen
Updating The firmware update is being executed.
Upload was completed normally	Confirms completion of update. However, it is displayed when the firmware file has been forwarded.
Status Error! Communicating	An error displayed when update is executed while Sony PCS-XG/XL/XA Series is busy.
java.net.Connect Exception: Connection refused	Error when connection could not be completed. It is displayed for errors arising from executions routed through SECURE TRANSPORT.

Database Backup

The HD VISUAL COMMUNICATION SERVER stores registered meeting information and user information in a database.

This database file and other system settings files are automatically backed up by the HD VISUAL COMMUNICATION SERVER once per day.

Backup files for up to five days are stored in the “/var/sony” directory under the file name, “clothodb5.0-1.yyyyymmddHHMM.tar.gz” (the date and time of the backup file appears in yyyymmddHHMM).

If you register additional meetings and users or change setting configurations, be sure to manually save the backup files to a computer or other location.

Note

If you do not save the backup files manually, you may not be able to restore settings should the system return to factory default settings after a hardware failure, for example.

List of Terms

Terms used in this Document and the HD VISUAL COMMUNICATION SERVER document will now be explained.

HD VISUAL COMMUNICATION SERVER

HD VISUAL COMMUNICATION ONLINE

A portal site provided by the HD VISUAL COMMUNICATION SERVER. A website that enables easy login to the HD VISUAL COMMUNICATION SERVER and its online help function can be displayed from this site.

HD VISUAL COMMUNICATION SERVER

This is a server that enables video conferences between remote locations. Its components include Gatekeeper, H.323MCU and Web Service.

User

Chairman

Moderated meetings may be assigned a Chairman to control the meeting. The Chairman controls audio and video selection as well as data functions during a Moderated Meeting. The Chairman is also able to manage requests to speak from the participants.

General User

Users who receive audio and visual content during Moderated Meetings. They can seek permission from the Chairman to speak during a Moderated Meeting.

System Administrator

A User that can perform HD VISUAL COMMUNICATION SERVER system administration. An Administrator account is created by default when the HD VISUAL COMMUNICATION SERVER system is installed. Users can register to have administrator privileges as and when necessary.

User

A User refers to all HD VISUAL COMMUNICATION SERVER users.

Meetings

Meetings

Meetings provide a virtual space to conduct audio, video and data communication. They can be likened to virtual conference system “Conference Rooms”.

Meetings can be created, edited and deleted by System Administrators.

As well as being a style of communication, Meetings can be categorized by the 2 methods by which they control audio and video distribution.

• Normal
• Presentation

Moderated Meetings

A meeting with an assigned Chairman. The Chairman controls video and audio distribution

Presenting

This mode is a Moderated Meeting during which the Chairman can give a one-way presentation to other participants. In this mode, General Users may request permission to speak, however, they cannot speak until permission has been granted by the Chairman.

Open Forum

Status of a Moderated Meeting in which a General User has been granted permission to address all Meeting participants by the Chairman. Under this status, the General User for whom permission to speak has been granted can speak to all Meeting participants in a fashion similar to the Meeting Chairman.

The Chairman can continue the Meeting in this status, or switch to any other desired mode.

General Users may request permission to speak, however, they will not be able to speak until permission has been granted by the Chairman.

Side Meeting

Status of a Moderated Meeting in which a General User has been granted permission to speak to the Chairman. It reverts to this Mode as soon as the permission is granted. Under this status, only the general User and the Chairman may converse with each other. The audio for other general Users will be disabled. The Chairman can continue the Meeting in this status, or switch to any other desired mode.

General Users may request permission to speak; however, they will not be able to speak until permission has been granted by the Chairman.

Lecture

This mode is a Moderated Meeting in which the Chairman and the General Users receive images in different screen layouts.

This mode has two states: one in which only the Chairman can be heard, and one in which the Chairman and a General User that the Chairman grants permission to speak can be heard.

General Users can request permission to speak, but cannot be heard until permission is granted.

In the state where only the Chairman can be heard, each General User appears on the Chairman's screen, while only the Chairman appears on the General User screens.

In a state where a General User has been granted permission to speak, each General User appears on the Chairman's screen with priority on the speaker, while only the Chairman and the speaker appear on the General User screens.

Presentation Meeting

Audio and video are controlled by Users.

This type of meeting includes Moderated Meetings.

Normal Meeting

All Meeting participants have the same right to speak in a Meeting. HD VISUAL COMMUNICATION SERVER controls all audio and video broadcasts according to the attributes configured for the Meeting.

CPN

A multiple video screen function (Continuous Presence) that allows video streams from meeting participants to be mixed and transmitted to all participants. A maximum of 16 video streams can be mixed at once.

Standards

E.164

An ITU-T (International Telecommunication Union) E series recommendation, representing a numbering plan for international electronic communications. An E.164 number uniquely identifies a public network termination point and typically consists of three fields, CC (country code), NDC (national destination code), and SN (subscriber number), up to 15 digits in total. This can be thought of as a Service number.

H.323

An ITU-T “umbrella” of standards for Packet-based multimedia communications systems. This standard defines the different multimedia entities that make up a multimedia system - Endpoints, Gateways, Multipoint Conferencing Units (MCUs), and Gatekeepers -- and their interaction over an IP-based network.

H.323 Alias

An identifier (name) for a terminal, User or Meeting using H.323 protocol. When conducting video conferencing using H.323 protocol, values identifying terminals, users or Meetings are assigned. However, these values are extremely difficult for humans to remember so a separate name (alias) represented by a character string is also assigned. This can be thought of as a Service number.

ITU-T (International Telecommunication Union Telecommunication Standardization Sector)

A sub-organization of the International Telecommunication Union (ITU), serving as the standardization sector for electronic communications. It is the development body for international standards related to telecommunications.

H.239

H.239 is an ITU-T recommendation from the H.32x Multimedia Communications' macrofamily of standards for multimedia communications over various networks. It enables data, such as computer or video presentation materials to be transmitted together with a video conference session.

Other

Smtp Server

Server used to send e-mail.

Menu Components

This software is composed of the following menus.

* These Menus, Setting Categories and Selection Options are not supported by this software.

    B --> J["Change"]
    B --> K["Delete"]
    D --> L["Reservation"]
    D --> M["Data"]
    D --> N["Personal"]
    D --> O["Display"]
    D --> P["Schedule"]
    D --> Q["Update"]
    D --> R["Schedule"]

    L --> S["Timezone"]
    S --> T["Add"]
    S --> U["Reservation"]

    T --> V["Template G"]

    E --> W["Add"]
    E --> X["Change"]
    E --> Y["Delete"]

    F --> Z["Users"]
    F --> AA["Groups"]
    F --> AB["Personal Account"]
    F --> AC["User Template"]
    F --> AD["Send"]

    W --> AE["H"]
    W --> AF["I"]
    W --> AG["J"]
    W --> AH["K"]

    X --> AI["Search and Add Contacts"]
    X --> AJ["Add Contact Group"]

    Y --> AK["Change"]
    Y --> AL["Delete"]

    Z --> AM["Add"]
    Z --> AN["Contact"]

    AB --> AO["Add"]
    AB --> AP["Search and Add Contacts"]
    AB --> AQ["Add Contact Group"]

    AC --> AR["Add"]
    AC --> AS["Text Users System"]

    AD --> AT["Change"]
    AD --> AU["Delete"]

    AE --> AV["License* License* Token* L"]

    AF --> AW["License* Add Activate License* Delete Add PreAssigned License* M M"]

    AG --> AX["License* Change"]
    AG --> AY["Add"]

    AH --> AZ["License* Text Users System"]

    AI --> BA["License* Add Activate License* Delete Add PreAssigned License* M M"]

    AJ --> BB["License* Add Activate License* Delete Add PreAssigned License* M M"]

    AK --> BC["License* Add Activate License* Delete Add PreAssigned License* M M"]

    AL --> BD["License* Add Activate License* Delete Add PreAssigned License* M M"]

    AM --> BE["License* Add Activate License* Delete Add PreAssigned License* M M"]

    AC --> BF["License Numbers"]
    BF --> BG["Licenses"]
    BF --> BH["Tokens"]
    BF --> BI["Servers* Change"]
    BF --> BJ["Setting* Add"]

    style A fill:#f9f,stroke:#333
    style B fill:#ccf,stroke:#333
    style C fill:#cfc,stroke:#333
    style D fill:#fcc,stroke:#333
    style E fill:#ffc,stroke:#333
    style F fill:#fcc,stroke:#333
    style AG fill:#fff,stroke:#333

    Q["GateKeeper"] --> R["Neighbor GK*"]
    R --> S["Add"]
    S --> T["T"]
    R --> U["Gateway*"]
    U --> V["Add"]
    V --> W["U"]
    R --> X["Restriction"]
    X --> Y["Restriction(IP)"]
    Y --> Z["V"]
    X --> AA["Name Resolution*"]
    AA --> AB["Add"]
    AB --> AC["X"]
    R --> AD["Download Documents"]
    AD --> AE["Software License Agreements Manual"]

    AF["Appendix"] --> AG["T"]
    AF --> AH["U"]
    AF --> AI["V"]
    AF --> AJ["W"]
    AF --> AK["X"]

    style A fill:#f9f,stroke:#333
    style Q fill:#f9f,stroke:#333
    style AF fill:#f9f,stroke:#333
[min] 00/05/10/15/20/25/30/35/40/45/50/55]
    E --> F["End Time this day / next day<br>[hour"] 00-23
[min] 00/05/10/15/20/25/30/35/40/45/50/55]
    F --> G["ISC ON/OFF"]
    G --> H["ISC Time"]
    H --> I["ISC Mode Change"]
    I --> J["Share Phone Book NONE/H323ALIAS/E164NUMBER"]
    J --> K["Template Mode"]
    K --> L["Template ID"]
    L --> M["2/3/4/5/6/7/8/9/10"]
    M --> N["ON/OFF"]
    N --> O["W432P ON/OFF"]
    O --> P["CIF1 ON/OFF"]
    P --> Q["CIF2 ON/OFF"]
    Q --> R["H.235 NONE/ENCRYPTION/CONNECTIVITY"]
    R --> S["Cascade Role NONE/MASTER/SLAVE"]
    S --> T["Master Address Type H.323 Alias/E.164 Number"]
    T --> U["Master Address"]

D Add/Edit Meeting Chairman Presenter

E Add/Edit Meeting VCMP Server*
VCMP Fixed Position User

F Reservation Template Meeting ID

	Meeting	Name
	Max	Members
Meeting Type Normal / Loopback / Moderated
			Meeting	Open FoModeSide Meeting / Presenting / Lecture
Operator Mode NONE / MIC OFF / MIC ON
Bandwidth Control STATIC / DYNAMIC
			Max	Bandwidth(conf)
			Max	Bandwidth(ep)
ISC ON / OFF
			ISC	Time
ISC Mode Change
Access Control Filter NONE / IPADDRESS / H323ALIAS / H323ALIAS_IP / SERVERCALL
Share Phone Book	NONE / H323ALIAS / E164NUMBER
H.235	NONE / ENCRYPTION / CONNECTIVITY
	Mail	As Schedule
Auto Invite	[min] 0-10
Audio Codec	G.711 u-law / G.711 A-law / G.722 / MPEG4-AAC-LC
Audio Latency	2/3/4/5/6/7/8/9/10
Audio Gain Control	ON / OFF
Video	Enable / Disable
CPN	ON / OFF
	Video	H.261 CHD263 / H.263+ / H.264 / H.264 High Profile
	Resolution	QCIF / CIF / 4CIF / W432P / HD 720p / HD 1080p
Video Switch Mode	Audio / Time / Chairman
CPN Layout Number 1	2/3/4/6/8/10/13/16
	VCMP	Server* localhost
W432P	ON / OFF
CIF1	ON / OFF
CIF2	ON / OFF
H.239	ON / OFF
	Bandwidth
H.239 Codec	H.263+ / H.264
Application Sharing* ON / OFF
			Bandwidth*

I Add/Edit Group Group ID

J Personal —— User

Login Name

User Template
    T["Busy [Action"] Confirm / Reject / Forward
[Forwarding Type] H.323 Alias / E.164 Number] --> U["IP"]
    V["Online<br>[Forwarding Type"] H.323 Alias / E.164 Number] --> W["[Action"] Confirm / Reject / Forward]
    X["Offline<br>[Forwarding Type"] H.323 Alias / E.164 Number] --> Y["[Action"] Confirm / Reject / Forward]
    Z["IP"] --> AA["IP"]

Bandwidth Setting of

[Non-Text]

FT Tunnel Type*

[Forwarding Type]

K Add/Edit User Template™ Template ID

Edit Server*—— Server ID

Add/Edit Server Setting* Key

Port

Type

Add LDAP Config* -LPAP ID

Address

T Add/Edit Neighbor GK* Neighbor Gate Keeper ID

U Add/Edit Gateway* Gateway ID
[Forwarding Type] H.323 Alias / E.164 Number / IP Address]
    R["Offline"] --> S["Action"] Confirm / Reject / Forward
[Forwarding Type] H.323 Alias / E.164 Number / IP Address]

V Add/Edit Restriction(IP) — Restriction ID

W Add/Edit Restriction —— Restriction ID

X Add/Edit Name Resolution*—Name Resolution ID

Prefix Rewrite Priority Length Prefix Rewrite Priority Length
