USER MANUAL GDP14 IOGEAR

2-Port 8K DisplayPort 1.4 Switch

GDP14SW2

PART NO. Q1662

Package Contents

1

1 x DisplayPort Switch

1 x USB-A to DC Power Cable

1 x Quick Start Guide

1x Warranty Card

System Requirements

• 2 x DispalyPort output source device (Bluray, Satellite box, PC etc.)
• 1 x DisplayPort input display device (HDTV, projector with DisplayPort port, etc.)

Overview

The GDP14SW2 is a manual switch for connecting 2 sources to a single monitor allowing to switch contents between the 2 sources. Complies with DP 1.4 specification.

Supports:

8K @60Hz

8K @30Hz

4K @120Hz, 60Hz

1440 @165Hz, 144Hz, 120Hz, 60Hz.

1080P @165Hz, 144Hz, 120Hz, 60Hz.

Supported OS: Mac OS X, Windows.

Supports HDR.

Color sub-sampling: 4:4:4, 4:2:2, 4:2:0

Top View

View @FOXGEAR 2-Port 8K DisplayPort 1.4 Switch SELECT A B C DP 1 In DP 2 In

Back View

2-PROV.1000000001.1.SM60 DP-Out D E

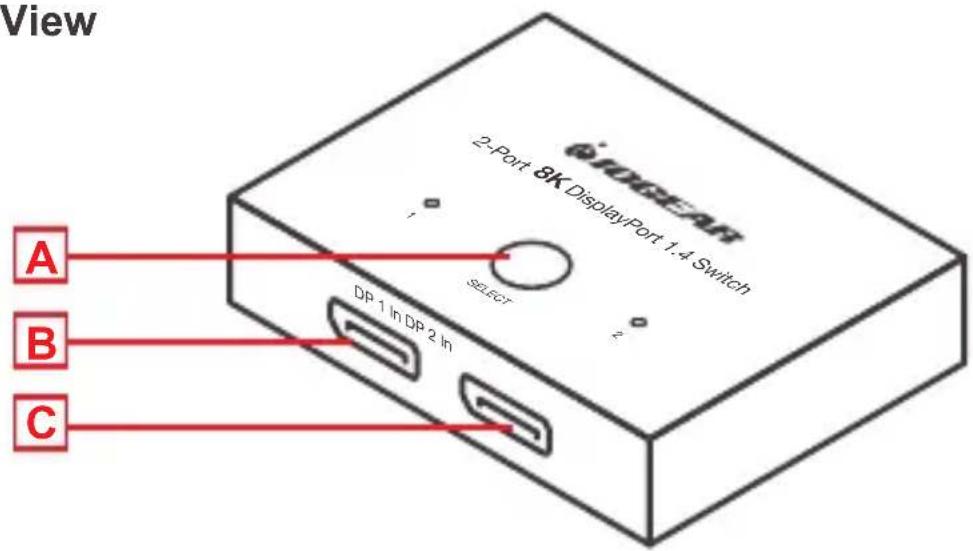

A. Port selection switch
B. DP1 Input port
C. DP2 Input port
D.Power port

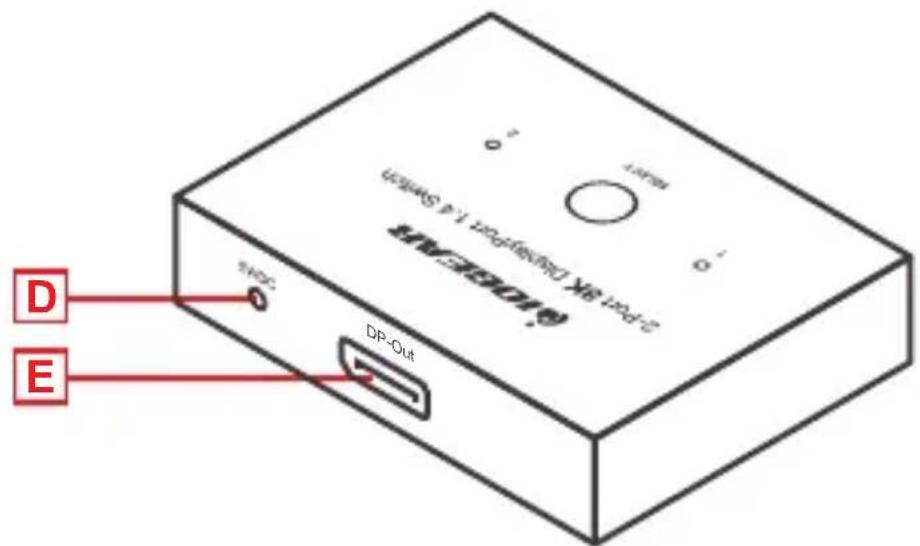

E. DP Output port

Hardware Installation

3

1. Turn off all devices before connecting to the switch.
2. Connect DP output port of the source devices to DP1 and DP2 ports.

3. Connect the display DP input port to the switch DP output port.

4. Connect the supplied USB-A to a PC USB-A port or a power adapter with USB-A port (not supplied) and the other end of the cable to the switch.

5. Turn on your source and display devices.

6. Press the "Select" button to select the source you want to display on your monitor/TV/projector.

Warranty

Warranty Information

This product carries a 3 Year Limited Warranty. For the terms and conditions of this warranty, please go to https://www.iogear.com/support/warranty

Register online at https://www.iogear.com/register
