CONGRATULATIONS

Dear customer,

Thank you for purchasing an Electrolux cooktop. You've chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you'll get great results every time.

Welcome to Electrolux.

The symbols you will see in this booklet have these meanings:

WARNING

This symbol indicates information concerning your personal safety.

CAUTION

This symbol indicates information on how to avoid damaging the cooker or cabinet.

IMPORTANT

This symbol indicates tips and information about use of the cooker.

ENVIRONMENT

This symbol indicates tips and information about economical and ecological use of the cooker.

NOTE: Model codes shown in this manual are the generic code. Your product will also include a two letter suffix which denotes colour and series level.

CONDITIONS OF USE

This appliance is intended to be used in household and similar applications such as:

• Staff kitchen areas in shops, offices and other working environments
• Farmhouses
• By clients in hotels, motels and other residential type environments
  • Bed and breakfast type environments
  • Catering and similar non-retail applications

Record model and serial number here:

Model number: ____

Serial number: ____

CONTENTS

Important Instructions ____ 3

Part names ____ 4

Before first use ____ 9

Using your cooktop ____ 10

Burners 10

Cleaning and care 11

Troubleshooting 14

Installation instructions 15

Technical data 20

Installation procedure 22

Gas connection 29

LP conversion 31

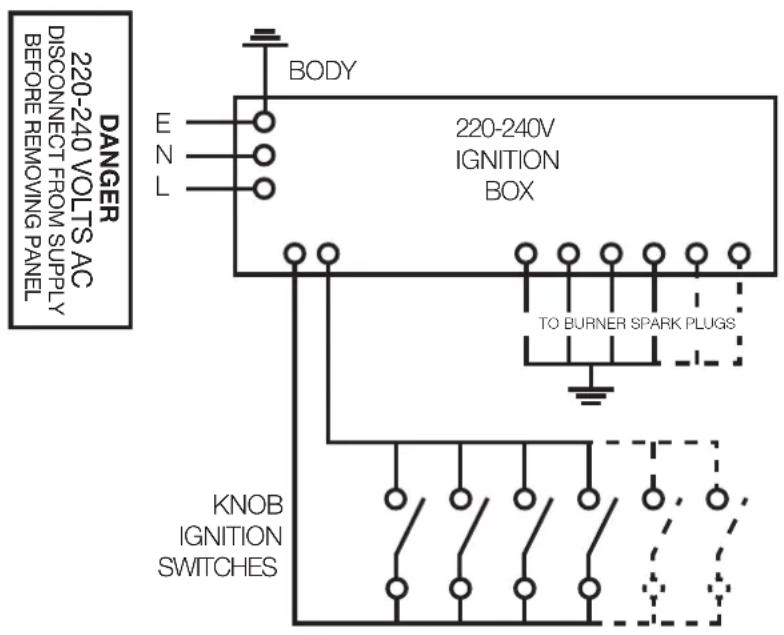

Electrical connection 28

Testing appliance operation 29

Warranty 35

Important Information that may impact your Manufacturer's Warranty

Adherence to the directions for use in this manual is extremely important for health and safety. Failure to strictly adhere to the requirements in this manual may result in personal injury, property damage and affect your ability to make a claim under the Electrolux manufacturer's warranty provided with your product. Products must be used, installed and operated in accordance with this manual. You may not be able to claim on the Electrolux manufacturer's warranty in the event that your product fault is due to failure to adhere to this manual.

IMPORTANT INSTRUCTIONS

BEFORE USING YOUR APPLIANCE

Before you use the appliance, we recommend that you read through the relevant sections of this manual, which provides the description of your appliance and its functions.

To avoid the risks that are always present when you use an appliance, it is important that the appliance is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards.

We recommend that you keep this instruction booklet for future reference and pass it on to any future owners.

This appliance complies with the requirements of Australian Standard AS/NZS 5263.

IMPORTANT

Check for any damage or marks. If you find the appliance is damaged or marked, you must report it within 7 days if you wish to claim for damage/ marks under the manufacturer's warranty. This does not affect your statutory rights.

Information on disposal for users

ENVIRONMENT

• Most of the packaging materials are recyclable. Please dispose of these materials through your local recycling depot or by placing them in appropriate collection containers.
• If you wish to discard this product, please contact your local authorities and ask for the correct method of disposal.

Read the following carefully to avoid damage or injury.

WARNING

• Do not allow pots to boil dry, as damage to both pan and cooktop may result.
• Do not operate the cooktop for an extended period of time without a pot or pan on the burner.
• Do not allow large cookware to overhang the cooktop onto adjacent benchtop. This will cause scorching to the benchtop surface.
• Do not allow cooking pots or pans to intrude into the area which is close to the controls.
• Ensure burner bodies and trivets are properly located (see Figure 1 & 2).
• This cooktop should not be used with any lid or covering on top of the cooktop. Combustible materials must not be stored within 650mm above the cooktop.

CAUTION

Read the following carefully to avoid an electric shock or fire.

It is important to use your cooktop safely. Check these safety points before using your cooktop.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure they do not play with this appliance.
• During use, this appliance becomes hot. Care should be taken to avoid touching hot surfaces. To avoid burns, young children should be kept away.
• DO NOT USE THIS APPLIANCE AS A SPACE HEATER.
• Keep vents clear of obstructions.
• In order to avoid a fire, this appliance must be kept clean.
  • DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILE IT IS IN OPERATION
• DO NOT USE OR STORE FLAMMABLE MATERIALS IN THE APPLIANCE STORAGE DRAWER OR NEAR THIS APPLIANCE
• Do not remove the trivet and enclose the burner with a wok stand as this will concentrate and deflect heat onto the burner.
• Do not use large pots or heavy weights which can bend the trivet or deflect flame onto the burner.
• Do not place anything, e.g. asbestos mat between pan and trivet as serious damage to the cooktop may occur.
• For maximum stability, ensure pots and pans are centrally located on the trivets.
• Handles should be turned away from the front of the bench to avoid accidents.
  • DO NOT MODIFY THIS APPLIANCE.
• Only models fitted with flame safeguard can be used in marine craft, caravans or mobile homes.

PART NAMES

Description of the burner

Figure 1a 1 2 3 4 5

1 Burner
2 Skirt
3 Flamesafeguard sensor

4 Injector

5 Ignition spark plug

Figure 1b

Technical line drawing of a circular mechanical component with concentric rings and a central shaft (no text or symbols)

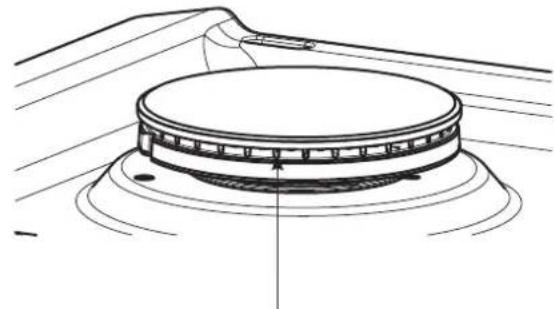

Burner flame ports

Figure 2a

1 2 3 4 5 6

EHG635BE

1 Burners – this unit has a small, large and dual wok burner
2 Ceramic Glass hob – the glass hob is resistant to heat, cold and rapid temperature changes, but is vulnerable to impact. A pepper mill falling on the hob could crack it. Never stand or put heavy loads on the hob, or use as a storage space

3 Controlknob

4 Enamelled burner skirts

5 Removable cast iron trivet (left)

6 Removable cast iron trivet (right)

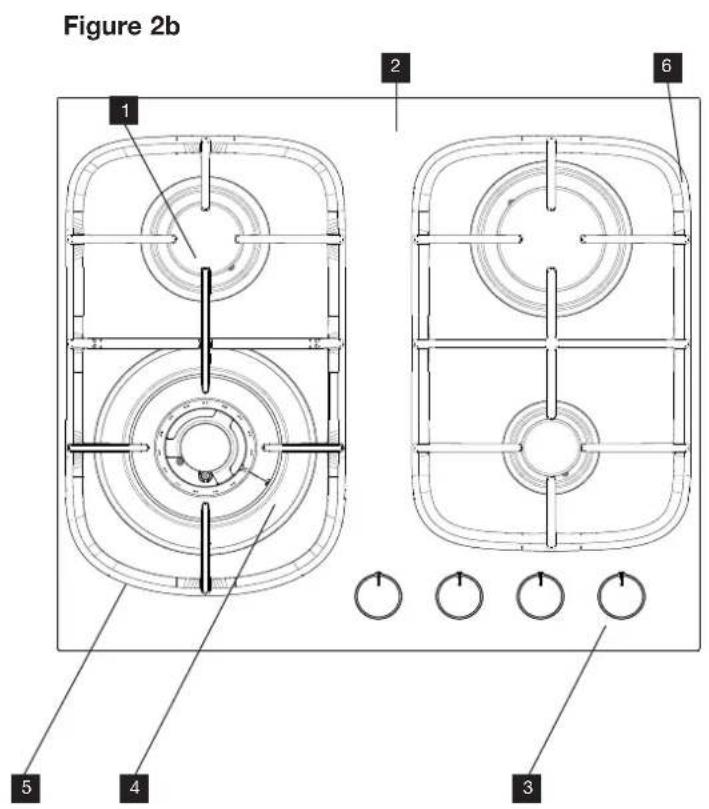

Figure 2b 1 2 6 5 4 3

EHG645BE

1 Burners – this unit has a small, medium, large and dual wok burner
2 Ceramic Glass hob – the glass hob is resistant to heat, cold and rapid temperature changes, but is vulnerable to impact. A pepper mill falling on the hob could crack it. Never stand or put heavy loads on the hob, or use as a storage space
3 Control knob
4 Enamelled burner skirts
5 Removable cast iron trivet (left)
6 Removable cast iron trivet (right)

Figure 2c

1 2 5 4

EHG645SE

1 Burners – this unit has a small, medium, large and dual wok burner
2 Removable cast iron trivet (right)
3 Control knob
4 Stainless Steel hob
5 Removable cast iron trivet (left)

PART NAMES (CONTINUED)

Figure 2d

2 6 15 3

Figure 2e

Technical diagram of a multi-panel electrical cabinet or enclosure with labeled components and circular elements

EHG755SE

1 Burners – this unit has a small, medium (2 per), large and dual wok burner
2 Stainless Steel hob
3 Controlknob
4 Removable cast iron trivet (left)
5 Removable cast iron trivet (mid)
6 Removable cast iron trivet (right)

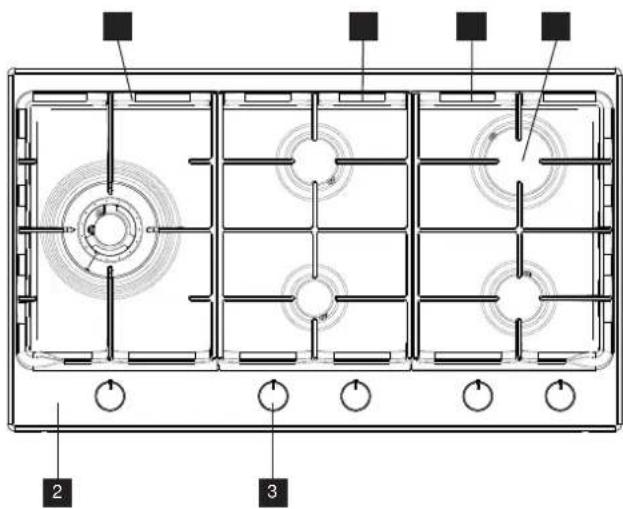

EHG955SE

1 Burners – this unit has a small, medium (2 per), large and dual wok burner
2 Stainless Steel hob
3 Control knob
4 Removable cast iron trivet (left)
5 Removable cast iron trivet (mid)
6 Removable cast iron trivet (right)

Figure 2f

54 6 3

Figure 2g

Technical diagram of a grid-based mechanical or electrical component with numbered annotations pointing to specific features.

EHG955BE

1 Burners – this unit has a small, medium (2 per), large and dual wok burner
2 Ceramic Glass hob – the glass hob is resistant to heat, cold and rapid temperature changes, but is vulnerable to impact. A pepper mill falling on the hob could crack it. Never stand or put heavy loads on the hob, or use as a storage space
3 Control knob
4 Enamelled burner skirts
5 Removable cast iron trivet (left)
6 Removable cast iron trivet (mid and right)

EHG953BE

1 Burners – this unit has a small, medium (2 per), large and dual wok burner
2 Ceramic Glass hob – the glass hob is resistant to heat, cold and rapid temperature changes, but is vulnerable to impact. A pepper mill falling on the hob could crack it. Never stand or put heavy loads on the hob, or use as a storage space
3 Control knob
4 Enamelled burner skirts
5 Removable cast iron trivet (mid)
6 Removable cast iron trivet (left and right)

PART NAMES (CONTINUED)

Figure 2h Figure 2i

5 4 2 1 3 6

EHG631BEA

1 Burners – this unit has a small, medium and a wok burner
2 Ceramic Glass hob – the glass hob is resistant to heat, cold and rapid temperature changes, but is vulnerable to impact. A pepper mill falling on the hob could crack it. Never stand or put heavy loads on the hob, or use as a storage space
3 Controlknob
4 Enamelled burner skirts
5 Removable cast iron trivet (left)
6 Removable cast iron trivet (right)

1 2 5 4

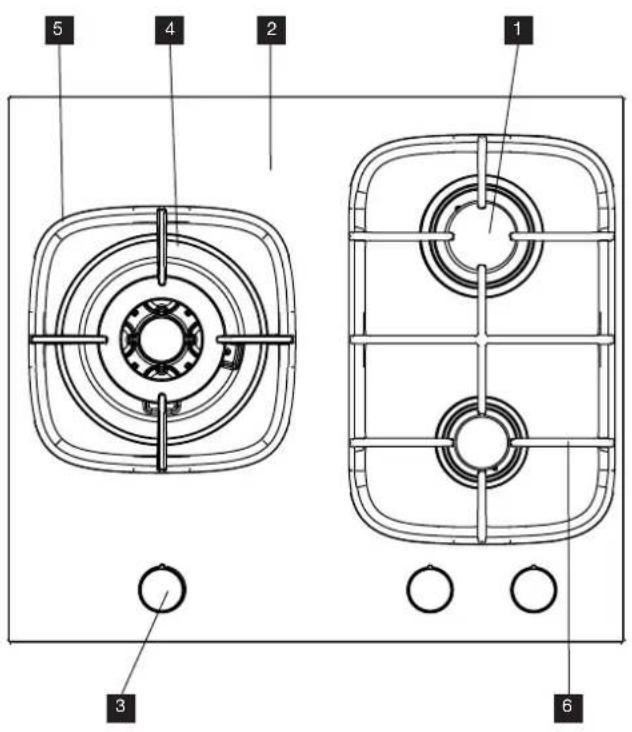

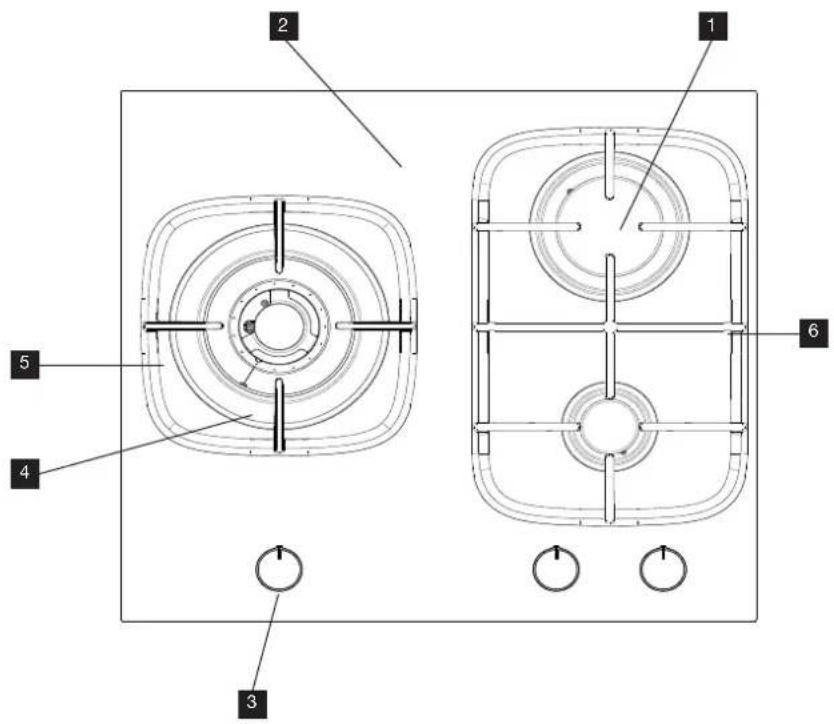

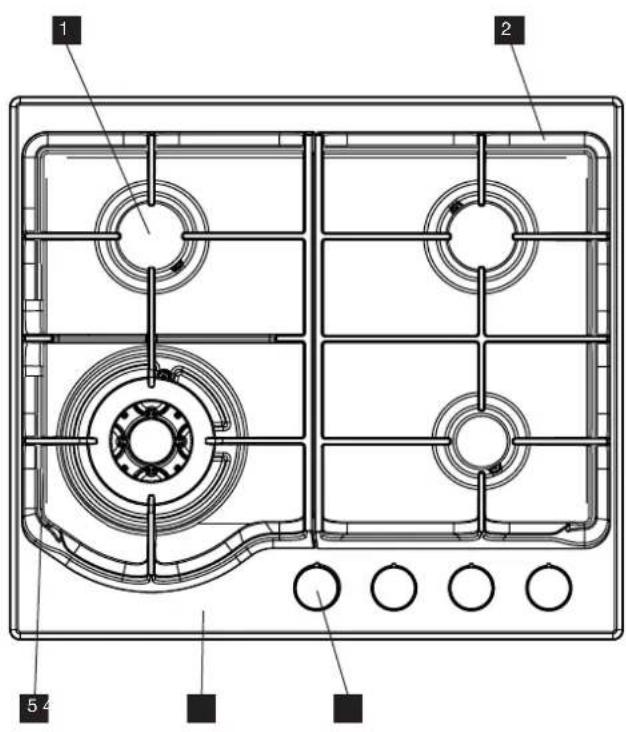

EHG641SEA

1 Burners – this unit has a small, medium (2 per) and wok burner
2 Removable cast iron trivet (right)
3 Control knob
4 Stainless Steel hob
5 Removable cast iron trivet (left)

BEFORE FIRST USE

INSTALLATION

• An authorised person must install this appliance and MUST provide a Certificate of Compliance.
  This certificate should be retained along with purchase information.
• Before using the appliance, ensure that all packing materials are removed from the appliance.
• In order to avoid any potential hazard, the installation instructions in this booklet, and any labels on the appliance must be followed.
• Ensure that all specified vents, openings and air spaces are not blocked.
• Where the appliance is built into a benchtop, the benchtop material must be capable of withstanding 85°C.
• Ensure that the duplicate rating label (in the instruction pack) is attached to a readily accessible adjacent surface, so that the cooktop can be easily identified in the case of a service call.

SERVICING

• Servicing MUST only be carried out by authorised personnel.
• To maintain safe operation, it is recommended that the product be inspected every five years by an authorised service person.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

CLEANING

• Always ensure the appliance is turned off before cleaning.
• This appliance contains aluminium fittings. Do not use caustic based cleaners.
• Do not use steam cleaners as this may cause moisture build up on electrical components.
• Always clean the appliance immediately after any food spillage.
• Do not place any components in a dishwasher.
• Refer to page 11 for care and cleaning instructions for stainless/ ceramic hob panel.

CAUTION

- Do not place burners or trivets in a dishwasher.

CONTROLS

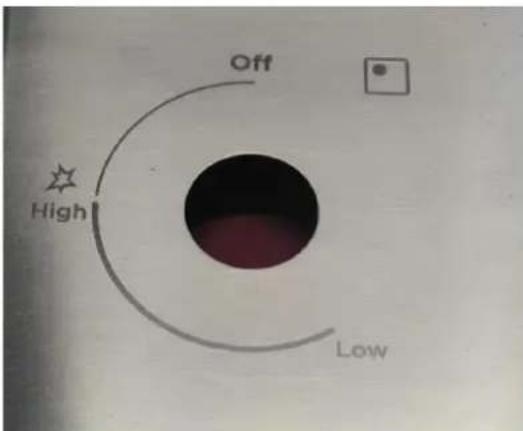

Each burner is controlled by a control knob. The markings on the control panel indicate which burner the knob controls, and the setting for that burner (see Figure 3).

LIGHTING BURNERS

Electronic ignition: These cooktops are fitted with mains powered ignition. When the appliance has been connected and the power is on, depressing any knob will release sparks to all burners.

BURNERSUSING YOUR COOK

Figure 3
Standard burner

Simple line drawing of a circular mechanical or electrical component with no text or symbols

Dual wok burner

Both rings of wok burner operate in this range of knob rotation Only the inner ring of the wok burner operates in this range of

Note that the dotted line section of the graphics is the transition between operating zones. It is recommended not to leave the knob in this position

NOTE! Gas controls turn anticlockwise from 'OFF' and have limited movement.

CAUTION

• Keep hands clear of burners when lighting.
• If burner does not light within 5 seconds, turn knob to 'OFF' position, allow gas to disperse, then try lighting again.
• Burners MUST be operated between 'HIGH' and 'LOW' settings only. It is recommended not to operate the dual wok burner in the area with dotted graphics.

To light a burner, the knob must be turned to the ☆ or ☆ HIGH' position, then pushed down as far as possible for approximately 5 seconds. If the flame goes out when the knob is released simply depress the knob again, this time holding it down with slightly more force for the same length of time.

The height of the flame can be varied by turning the control knob toward the ⚠'LOW' position.

Note! When the wok burner is turned to low only the small inner ring stays lit. This is a normal function of the dual wok burner to provide a very low power flame option.

In the absence of electrical power, carry out the ignition directly to the burner with a hand held ignition source.

Choice of burner

For your convenience there is a choice of burners:

• A small burner for special low heat and slow cooking.
• A medium burner for normal cooking and simmering (one on the four burner models and two on the five burner models).
• A large burner for fast heating and large pots and pans.
• A wok burner for very fast heating using a wok or large pot or pan. This wok burner is also a "dual" burner and therefore results in a small low powered flame when the burner is turned down. This is achieved by only supplying gas to the inner ring of the wok burner.

To conserve gas place the pan centrally over the burner and adjust the flame so that it does not extend past the edge of the pan (Figure 4). Do not boil food too rapidly. A vigorous boil will not cook food any faster, and will waste energy.

Pots and pans

All common pots and pans; aluminium, stainless steel, cast iron, ceramic, etc., may be used on your new gas cooktop. Ensure that the pots or pans are steady and have flat bases to avoid dangerous spill-over of hot liquids and wasted energy.

CAUTION

Never use asbestos mats, wire mats or grids, or aluminium foil as it can lead to overheating, cracked enamel or broken glass. The warranty will be void if these items are used and cause a failure. Woks should only be used on the wok burner and wok support trivet.

Figure 4

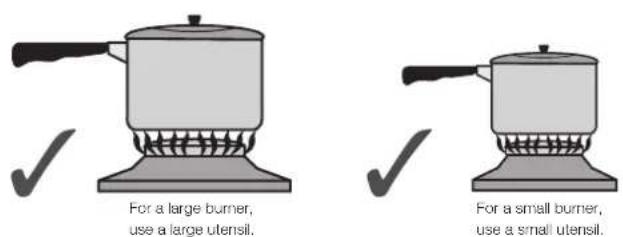

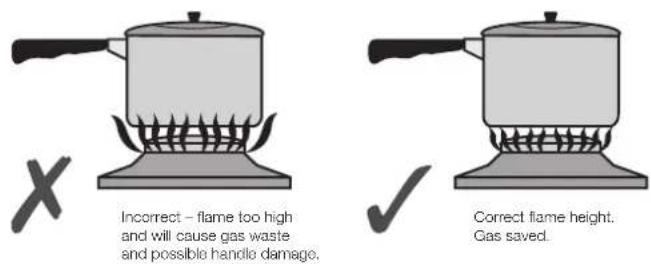

Incorrect – flame too high and will cause gas waste and possible handle damage. Correct flame height. Gas saved.

For a large burner, use a large utensil. For a small burner, use a small utensil.

CLEANING AND CARE

CAUTION

Ensure the appliance is off and cool before cleaning.

Enamel (on burner skirts and trivets)

Persistent stains may require rubbing with a nylon scourer or creamed powder cleansers. Household enamel cleaners are available, follow the manufacturer's instructions in their use. Harsh abrasive cleaners, powder cleaners, steel wool or wax polishes should not be used.

Stainless steel (Models with Stainless Steel hob)

Simply wipe with a soft cloth using warm water and a mild detergent and rinse with clean water. Where stainless steel has become extremely dirty or discoloured, use a stainless steel cleaner – but be sure to follow the brushing lines.

CAUTION

If the ceramic glass surface is cracked, switch off the appliance immediately to avoid the possibility of electric shock.

Trivets and burners

These can all be lifted off and removed for separate cleaning.

NOTE! When refitting the burners, ensure that they are correctly seated.

Ensure burners are thoroughly dried after cleaning or spillage. When cleaning the burners, ensure that all the flame ports are free of any blockage (refer to Figure 1b on page 4). If necessary, use a toothpick or brush to clear ports. The outer surface of the burner caps have a polished finish and extra care needs to be taken to avoid scratching this surface during cleaning. In instances of heavy soiling, it may be necessary to apply a non-abrasive cleaning compound and rub with a cloth until the soiling is removed and then finish with a soft, dry cloth.

NOTE! DO NOT place trivets or burners in the dishwasher.

Ignition spark plug and flame safeguard sensor

GENTLY clean the ignition spark plug and flame safeguard sensor with a damp cloth to avoid lighting difficulties. Ensure that they are dry before use.

Injector

Ensure the injector remains free of any foreign material. When cleaning the burner spill bowl, first put tape over the injector hole before wipe out the spill bowl to avoid to block the injector hole, then remove the tape after cleaning.

If necessary, use a thin piece of wire to clear the orifice.

Do's Don'ts
Use pots with a flat base.	Do not slide pots across the glass as this can results in scratches to the surface
Clean when cold unless sugar spills which should be removed with a ceramic scraper.	Do not clean when hot as it is dangerous and cleaning products can burn and stain.
Clean after every use with a sponge and soapy water then dry.	Do not leave food residues or water on the ceramic as the contamination can damage the ceramic and screening printed graphics
Use a non-scratch scourer (usually blue in colour) if required.	Do not use steel wool or scourer pads that are not specified as non-scratch (usually green in colour). Heavy duty scourers are too abrasive

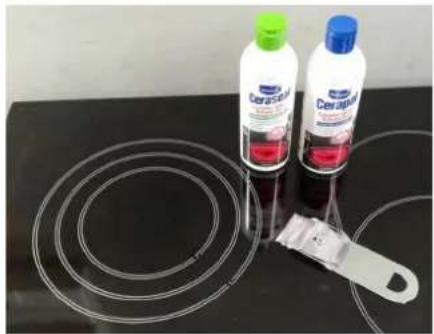

Difficult stains should be removed with a ceramic scraper and cleaning cream specific for ceramic glass cooktops. Cerapol	Do not use general abrasive cleaners as these can cause micro-scratches, dulling the glass surface and increasing the likelihood of contamination embedding into the glass
At least once per week use ceramic sealer cream. Ceraseal	Do not use the ceramic top as a cutting board or work bench as this will cause scratches.

Ceramic Cooktop Cleaning

CUSTOMER ADVICE

Sometimes SURFACE stains appear to be a "bubble" mark under the ceramic glass. These can be cleaned off with a razor blade scraper and ceramic cleaner.

Keeping the ceramic cooktop clean and protected will keep it in good condition and help avoid breakage.

Close-up of a metallic mechanical tool or bracket component (no visible text or symbols)

Ceramic Scraper 0383001001

Cerapol Cleaner ACC019

Halmer Ceraseal Ceramic glass & Induction with topography -1 250mL

Ceraseal Protector ACC018

Available at the following web shops. https://shop.electrolux.com.au

If the deposit is minimal, simply wipe off with a dry cloth.

If the deposit is more stubborn, clean off with a moist soapy sponge then rinse off.

If the deposit still does not clean off easily, use a non-abrasive nylon scratch pad and special purpose ceramic glass cleaning agent such as Cerapol cleaner (ACC019 - Available from our web shop).

If the deposits are still burnt on and above methods did not work, use a specially designed ceramic glass scraper (0383001001 - Available from our web shop).

After having successful cleaned the cooktop, apply a ceramic glass conditioner Ceraseal protector (ACC018 - Available from our web shop). The conditioner will leave a protective coating that will help prevent future stains from becoming baked on. Marks which appear to be bubbles under the ceramic will also clean off. Use Ceraseal (ACC018) to help protect the ceramic and allow for easier cleaning. Polish on with a dry clean cloth.

Close-up of a blue and white bottle with a red cap, placed on a dark surface with a transparent circular overlay (no visible text or symbols)

Close-up of a hand holding a small transparent plastic object with a circular emblem, against a blurred background (no text or symbols visible)

Close-up of a hand holding a small white electronic component with wires, no visible text or symbols

Marks which appear to be bubbles under the ceramic will also clean off.

Close-up of a metallic surface with a red rectangular highlight highlighting a small particle (no text or symbols visible)

Close-up of a metallic surface with a red rectangular highlight, showing no visible text or symbols.

Close-up of curved white lines on a dark background, resembling a lens or optical path (no text or symbols visible)

Close-up of curved white lines on a light background, no text or symbols visible

Use Ceraseal (ACC018) to help protect the ceramic and allow for easier cleaning. Polish on with a dry clean cloth.

Close-up of a bottle with green cap and red lid on a glass stand, with small white objects nearby (no visible text or symbols)

Three glass bottles with red liquid on a stovetop, connected by coiled wire and a metal clip (no text or symbols visible)

CLEANING AND CARE

Stainless Steel Cooktop Cleaning

NOTE: Ensure any oil is cleaned off the hob before use, otherwise it may cause the hob to turn a yellowish colour. All grades of stainless steel may stain, discolour or attain an adhering layer of grime in normal operation. To achieve maximum surface appearance, stainless steel must be kept clean.

Do's Don'ts
Clean in the direction of stainless steel brushing lines.	Do not clean against the stainless steel brushing lines as this will cause scratching.
Wash with warm soapy water. Do not use caustic cleaners.
For stains use a specific stainless-steel cleaner ACC031.	Do not use abrasive cleaners, scourers or steel wool as this will cause scratching.
Always clean the stainless steel after food spillage.	Some foods may discolour the stainless steel.
Use the correct sized pot as described in the owner manual.	Do not oversized pots as they can reflect heat onto the stainless steel causing discolouration.

NOTE: Do not use stainless steel cleaners on oven doors or control panels with finger print proof coating. Refer to owner manual for specific models.

Steel Kleen ACC032

Steel Power ACC031

Available at the following web shops or distributors. https://shop.electrolux.com.au/

Remove deposits with a soft cloth and warm soapy water then wipe with a dry soft cloth. If there are signs of yellowing or stubborn stains, use a suitable stainless steel cleaner Steel Kleen (ACC032 - Available from our web shop), apply with a soft cloth and clean in the direction of the stainless steel grain only.

After the cooktop is clean, apply stainless steel protectant Steel Power (ACC031 - Available from our web shop) which will leave a protective coating to help prevent future stains from occurring.

Before After

Off High Low

Off High Low

TROUBLE SHOOTING

If you have a problem with the cooktop, check the table below. You may be able to solve the problem and this will save you from paying for a service call. You will have to pay for a service call even in the warranty period if the problem is one listed below.

FAULT POSSIBLE CAUSES REMEDY
Burner will not light even though the sparker is working.	Knob not held down long enough in ‘High’ or ‘Max’ position for flame safeguard to engageGas supply valve turned offTurn on gas supply to applianceWrong knob turnedEnsure the knob you are turning corresponds to the burner you want to lightPort blockage in ignition areaEnsure that ports in ignition area are clean and dryIgnition spark plugs wet or dirtyDry or clean ignition spark plugs	Repeat lighting procedure and hold knob down for 5 seconds in ‘High’ or ‘Max’ position (refer page 10)
No spark is obtained when control knob is activated	Electricity supply is disconnected or switched offIgnition spark plugs wet or dirtyDry or clean ignition spark plugs	Switch on electricity or check fuses
Flames uneven or tending to lift	Flame ports blocked or wetClean or dry flame portsBurner incorrectly fittedEnsure this component is fitted correctly
Flames not staying on when knob released	Knob not held down long enough in ‘High’ or ‘Max’ position for flame safeguard to engageKnob not set between ‘High’ and ‘Low’Knob MUST be set between these positionsDirt or spillage on flame safeguard sensorClean flame safeguard sensor tip	Repeat lighting procedure and hold knob down for 5 seconds in ‘High’ position (refer page 10)
Low heat, slow cooking	Incorrect cooking pot or pan being used	Refer to Figure 4(page10)
Benchtop or knobs overheating	Incorrect cooking pot or pan usedPot or pan not located on burner properly	Check Figure 4 for correct pot or pan to be usedEnsure pot or pan is centrally located on burner
Cooktop stainless steel discoloured	Pot or pan being used is too large	Ensure pot sizes used are as per user manual requirements. Clean with STEEL POWER (available through spare parts)
Outer ring of wok burner goes out when set to low	This is not a failure. This is a function of the dual wok burner to give a very low power flame option	Burner is functioning as intended
Elements giving off smoke or odours when first used	Protective oils being removed in first cooking	Do not worry, this is normal
Red rings, limescale or water rings, shiny metallic or other discoloration, scratches/shadows, bubbles or other miscellaneous marks or stains on ceramic glass cooktop surface	Cooktop surface has not been cleaned correctly. Cleaning of the cooktop surface is not coveredunder warranty. If a service call is places to clean the cooktop you will be charged for the visit.	Use a ceramic glass cleaner such as Cerapol

If the above points have been checked and there is still a problem with the cooktop, please call the Service Centre.

INSTALLATION INSTRUCTIONS

This appliance must be installed by an authorised person and in compliance with:

1. AS/NZS 5601.1 Gas Installations Part 1: General Installations, and AS/NZS 5601.2 Gas Installations Part 2: LP Gas installations in caravans and boats for non-propulsive purposes, or the relevant installation code for gas appliances in your country.
2. The local gas fitting regulations, municipal building codes, electrical wiring regulations and any other relevant statutory regulations.
3. The particular instructions as given below.
4. A certificate of compliance MUST be given to the customer after the application is successfully installed.

CAUTION

Cooktops are supplied set up for natural gas (NG). To use on LPG, the injectors must be changed using the conversion kit supplied. Refer LP conversion on page 30-31.

Figure 5a - EHG645SE & EHG645BE & EHG635BE

gas supply connection location 146 min* 148 min* 560 490

INSTALLATION INSTRUCTIONS (CONTINUED)

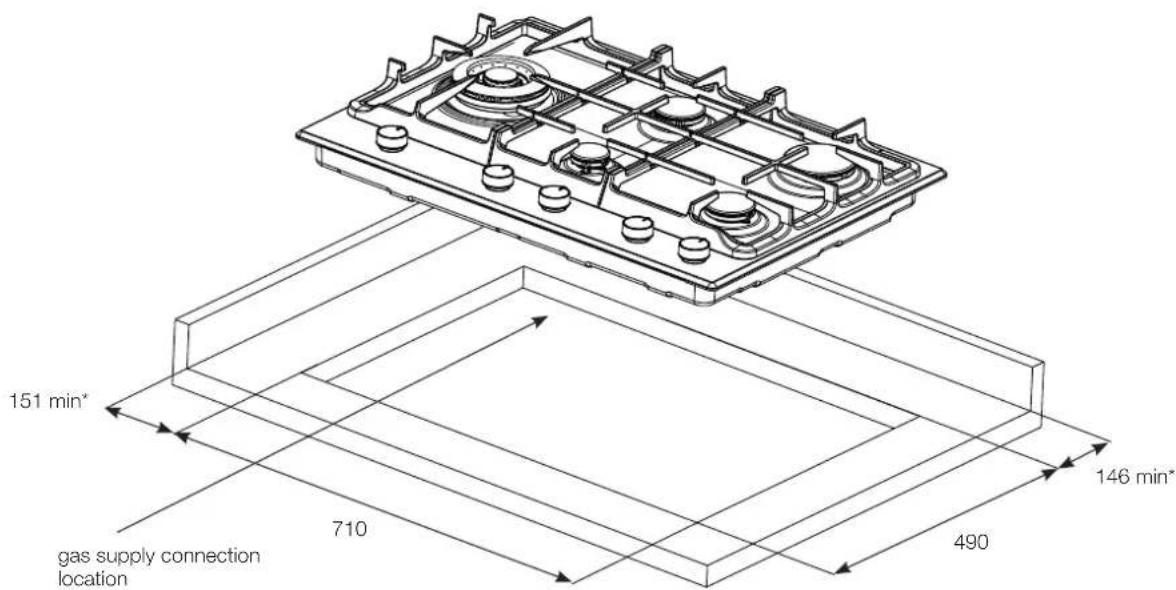

Figure 5b - EHG755SE

151 min* 710 490 146 min* gas supply connection location

Figure 5c - EHG955SE & EHG955BE

136 min* 860 490 146 min*

gas supply connection location
* to combustible surface (dimension is not relevant if the adjacent surface is non-combustible).

Figure 5d - EHG953BE

gas supply connection location 161 min* 830 470 126*

gas supply connection location 135 min* 560 490 131min*

* to combustible surface (dimension is not relevant if the adjacent surface is non-combustible).

INSTALLATION INSTRUCTIONS (CONTINUED)

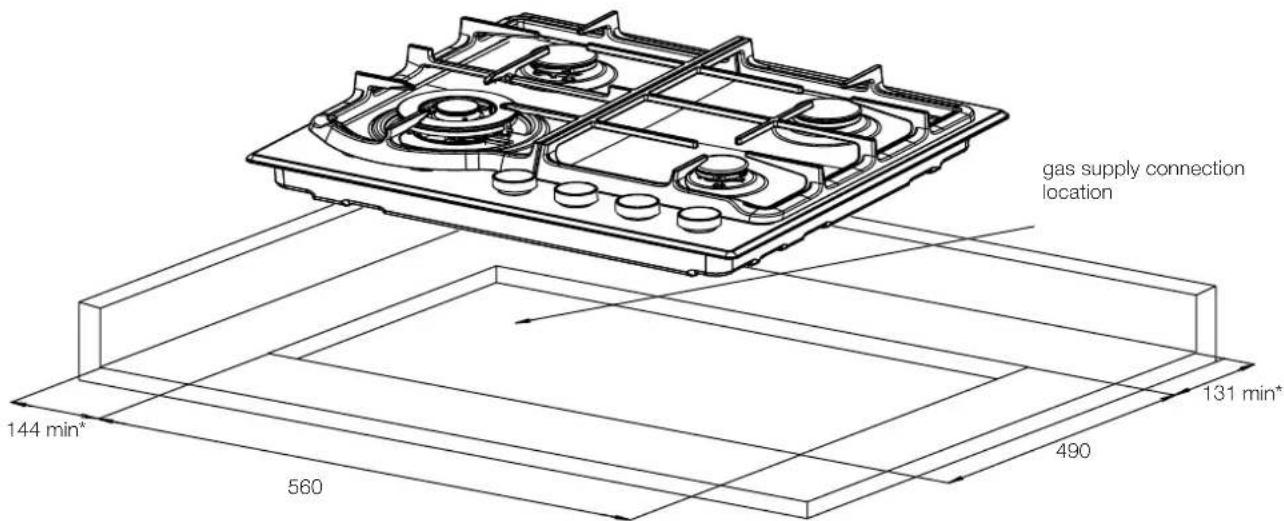

Figure 5f - EHG641SEA

gas supply connection location 144 min* 560 490 131 min*

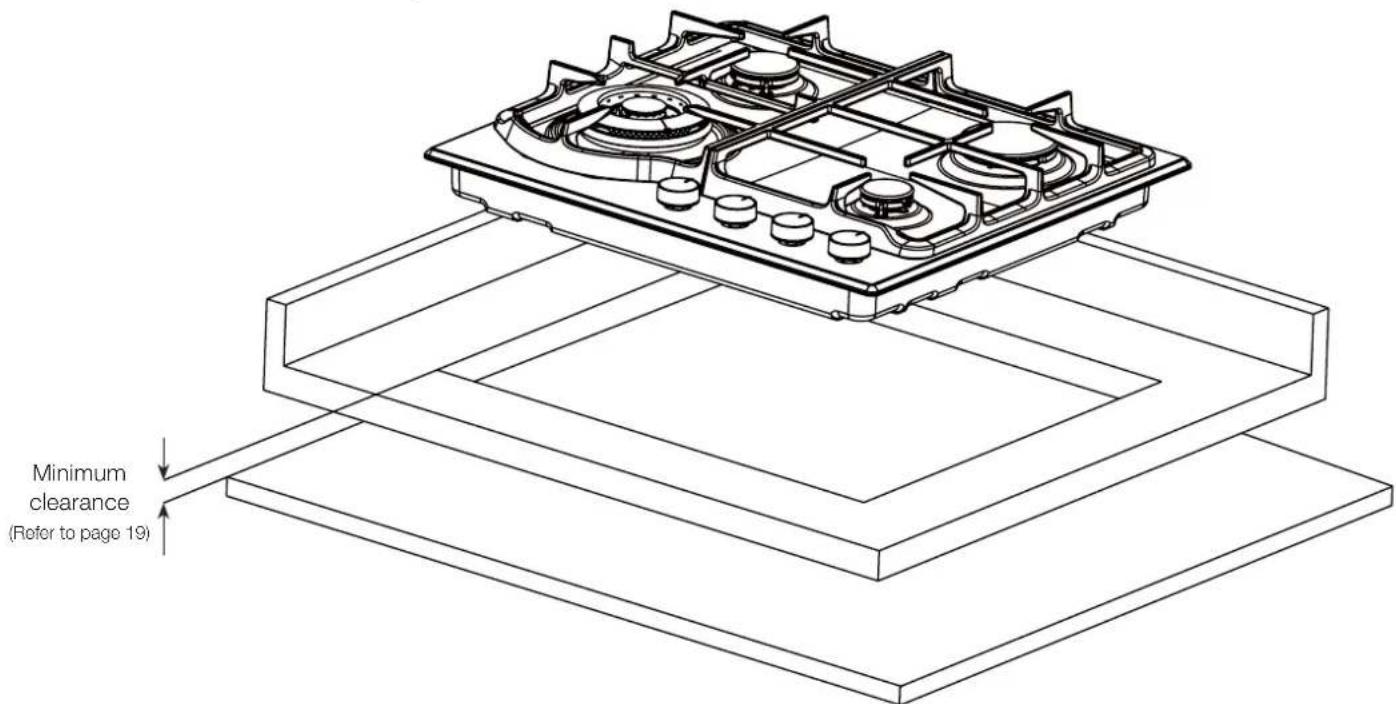

Clearance from bench to cupboard

Minimum clearance (Refer to page 19)

* to combustible surface (dimension is not relevant if the adjacent surface is non-combustible).

Model	Non-Combustible surface (mm)(Minimum clearance)	Combustible surface (mm)(Minimum clearance)
EHG635BE 55 75
EHG645BE 55 75
EHG645SE 55 75
EHG755SE 55 75
EHG955SE 55 75
EHG955BE 55 75
EHG953BE 55 75
EHG631BEA 55 75
EHG641SE A 55 75

TECHNICAL DATA

We reserve the right to alter these specifications.

This appliance conforms to AS 5263.

Table 2

features	EHG635BE	EHG645BE	EHG645SE	EHG755SE
Cooking zones	3	4	4	5
Wok	Yes, dual	Yes, dual	Yes, dual	Yes, dual
Ignition	230-240V	230-240V	230-240V	230-240V
Trivet	Cast	Cast	Cast	Cast
Hob material	Ceramic glass	Ceramic glass	Stainless steel	Stainless steel
Features	Ignition through knob	Ignition through knob	Ignition through knob	Ignition through knob
Flame safeguard	Yes	Yes	Yes	Yes
Colours	Black	Black	Stainless steel	Stainless steel
Gas types	NG, (LP conversion kit supplied)	NG, (LP conversion kit supplied)	NG, (LP conversion kit supplied)	NG, (LP conversion kit supplied)
cooktop dimensions (mm)
Width	595	595	595	745
Depth	530	530	530	530
Height(from top of pan support to bench)	66	60	60	60
Height(from bench to bottom)	55	55	55	55
cut out dimensions (mm)
Width	560	560	560	710
Depth	490	490	490	490
energy rating (NG) - MJ/h
Small burner	5.1	5.1	5.1	5.1
Medium burner	NA	9	9	2X9
Large burner	12.1	12.1	12.1	12.1
Wok burner	24	17	17	24
Total MJ/h	41.2	43.2	43.2	59.2

features	EHG955SE	EHG955BE	EHG953BE	EHG641SEA	EHG631BEA
Cooking zones	5	5	5	4	3
Wok	Yes, dual	Yes, dual	Yes, dual	Yes	Yes
Ignition	230-240V	230-240V	230-240V	230-240V	230-240V
Trivet	Cast	Cast	Cast	Cast	Cast
Hob material	Stainless steel	Ceramic glass	Ceramic glass	Stainless steel	Ceramic glass
Features	Ignition through knob	Ignition through knob	Ignition through knob	Ignition through knob	Ignition through knob
Flame safeguard	Yes	Yes	Yes	Yes	Yes
Colours	Stainless steel	Black	Black	Stainless steel	Black
Gas types	NG, (LP conversion kit supplied)	NG, (LP conversion kit supplied)	NG, (LP conversion kit supplied)	NG, (LP conversion kit supplied)	NG, (LP conversion kit supplied)
cooktop dimensions (mm)
Width	895	900	861	595	595
Depth	530	530	520	530	530
Height(from top of pan support to bench)	60	66	55	60	66
Height(from bench to bottom)	55	55	55	54	54
cut out dimensions (mm)
Width	860	860	830	560	560
Depth	490	490	470	490	490
energy rating (NG) - MJ/h
Small burner	5.1	5.1	5.1	5.1	5.1
Medium burner	2X9	2X9	2X9	2X9	9
Large burner	12.1	12.1	12.1	NA	NA
Wok burner	24	24	17	14.4	14.4
Total MJ/h	59.2	59.2	52.2	37.5	28.5

INSTALLATION PROCEDURE

1. The bench cutout should be made as per cutout dimensions in Table 2 and Figure 5.
2. Adjacent walls, cupboards and protection for combustible materials: Ensure that the appliance is installed in accordance with AS/NZS 5601.1, or AS/NZS 5601.2 with regard to clearances to combustible surfaces and materials, and clearances to rangehoods and exhaust fans.

To ensure clearances of 200mm from burners to vertical combustible surfaces observe the minimum distance requirements shown in Figure 5.

Clearances to combustible surfaces may be reduced if combustible surfaces are protected in accordance with AS/NZS 5601.1, or AS/NZS 5601.2.

1. For Ceramic Glass models a FOAM SEAL has been provided and is to be applied along the perimeter of the hob.

2. For Stainless Steel models MASTIC TAPE has been provided and is to be placed around the bench cutout as specified in Figure 8. Take care to ensure that the seals meet without overlapping.

3. On stainless Steel models remove any excess seal visible after installaiton.

4. Fit the pull down clamps supplied to ensure that the cooktop cannot move after installation.

5. The overhead clearance between the supporting surface for the cooking vessels (top of the trivets) of this gas cooking appliance and a range hood or exhaust fan (overhead clearance) shall be not less than 650 mm for a range hood, and not less than 750 mm for an exhaust fan.

6. A Rangehood or exhaust fan shall be installed in accordance with the range hood or exhaust fan manufacturer's relevant instructions.

7. Where the range hood or exhaust fan manufacturer's relevant instructions specify a greater clearance, then this greater clearance shall apply.

8. Any other downward facing combustible surface less than 650 mm above the supporting surface for the cooking vessels shall be protected for the full width and depth of the hob in accordance with AS/NZS 5601.

9. Clearance to any overhead surface shall be not less than 450 mm.

Note 1: Removable accessories such as a wok trivet that sits upon a hob trivet are not taken into account in determination of the supporting surface for the cooking vessels.

Note 2: Minor elevations in trivets such as a wok trivet formed into a trivet are not taken into account in determination of the supporting surface for the cooking vessels.

Note 3: The height of the top of the pan supports (top of the trivets) with respect to the bench top (built in) or supporting surface (elevated) or the floor (freestanding) are detailed separately in these instructions.

WARNING!

Failure to fix the cooktop to the bench could result in loosening of the gas connection through movement of the cooktop and a gas leak may result.

Four clamps and screws are supplied with 3/4-burner models and six clamps and screws are supplied with 5-burner models. Fit the clamps as shown in Figure 7.

When benchtops are less than 33mm in thickness, it may be necessary to fit a spacer between the benchtop and each clamp to ensure clamps can be tightened sufficiently.

Figure 6a – EHG645SE & EHG645BE & EHG635BE

115 combustible surface 131 113

Figure 6b - EHG755SE

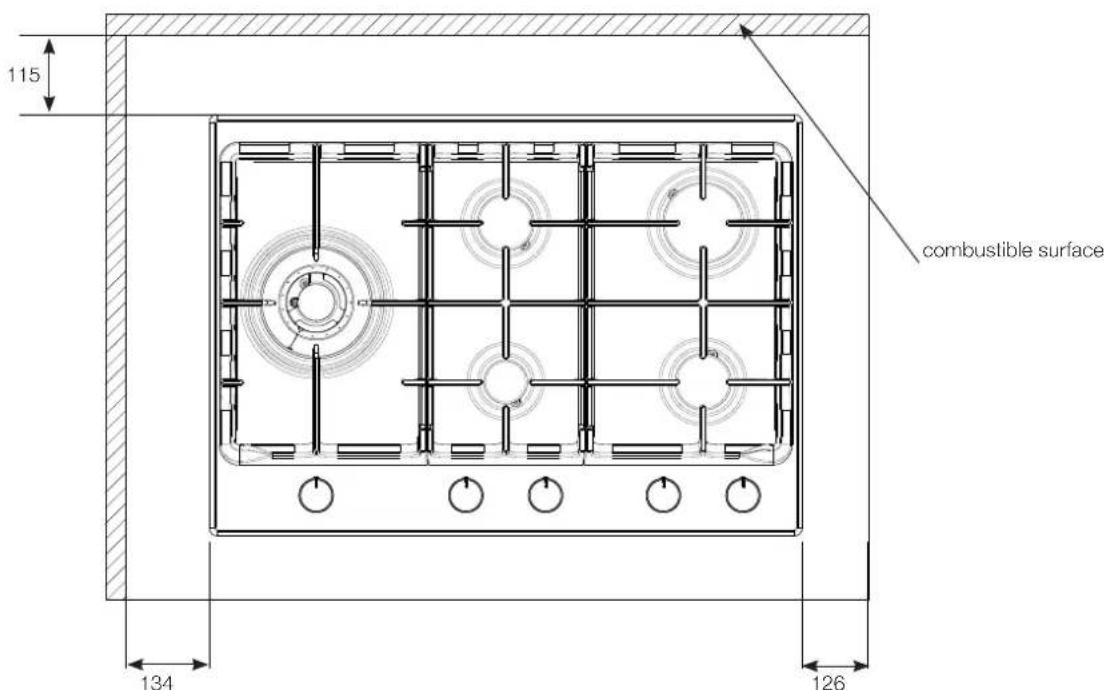

115 combustible surface 134 126

NOTE: Distances shown to adjacent walls/surfaces are for the distance to a combustible surface. If the surface is not combustible the measurement can be smaller than that shown.

INSTALLATION PROCEDURE (CONTINUED)

Figure 6c - EHG955SE & EHG955BE

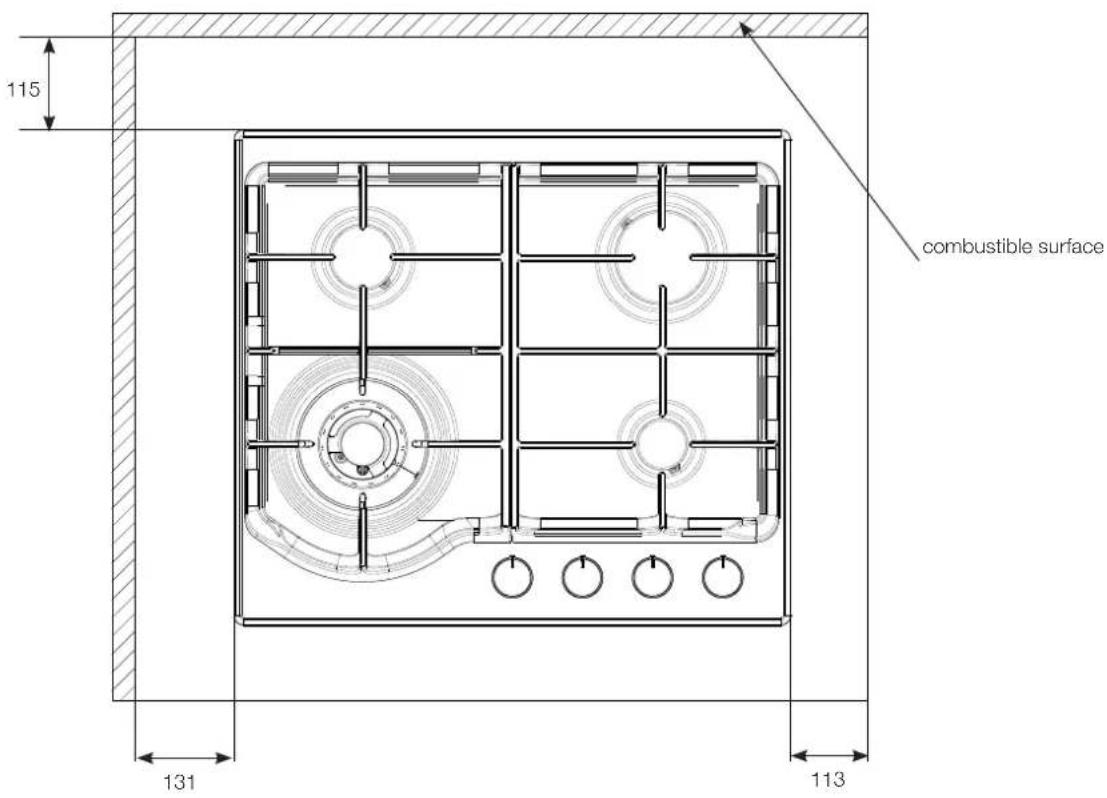

combustible surface 115 120 101

Figure 6d - EHG953BE

EHG953BE combustible surface 101 145 no minimum distance

NOTE: Distances shown to adjacent walls/surfaces are for the distance to a combustible surface. If the surface is not combustible the measurement can be smaller than that shown.

Figure 6e - EHG631BEA

100 combustible surface 115 100

Figure 6f - EHG641SEA

100 combustible surface 126 100

NOTE: Distances shown to adjacent walls/surfaces are for the distance to a combustible surface. If the surface is not combustible the measurement can be smaller than that shown.

INSTALLATION PROCEDURE (CONTINUED)

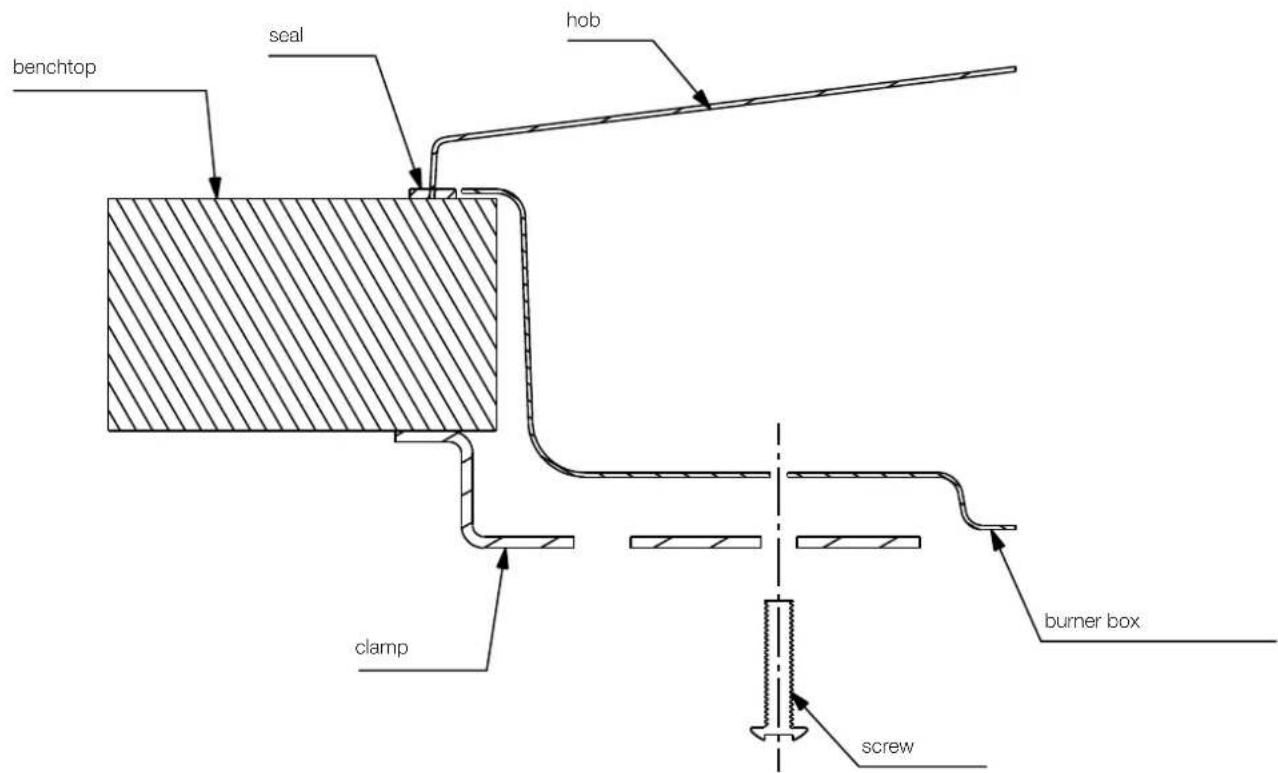

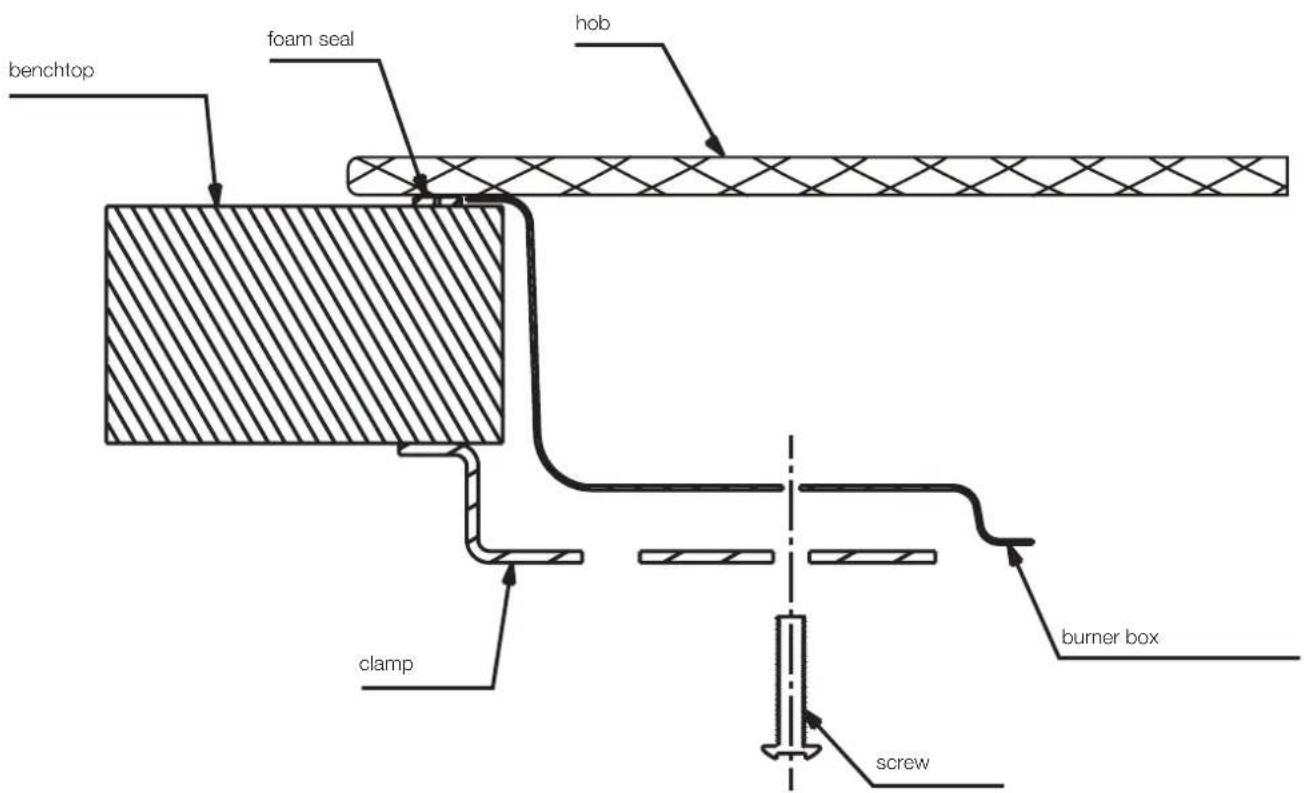

Figure 7 - Clamp fitment

benchtop scal hob clamp burner box screw

Stainless Steel

benchtop foam seal hob clamp burner box screw

Ceramic glass

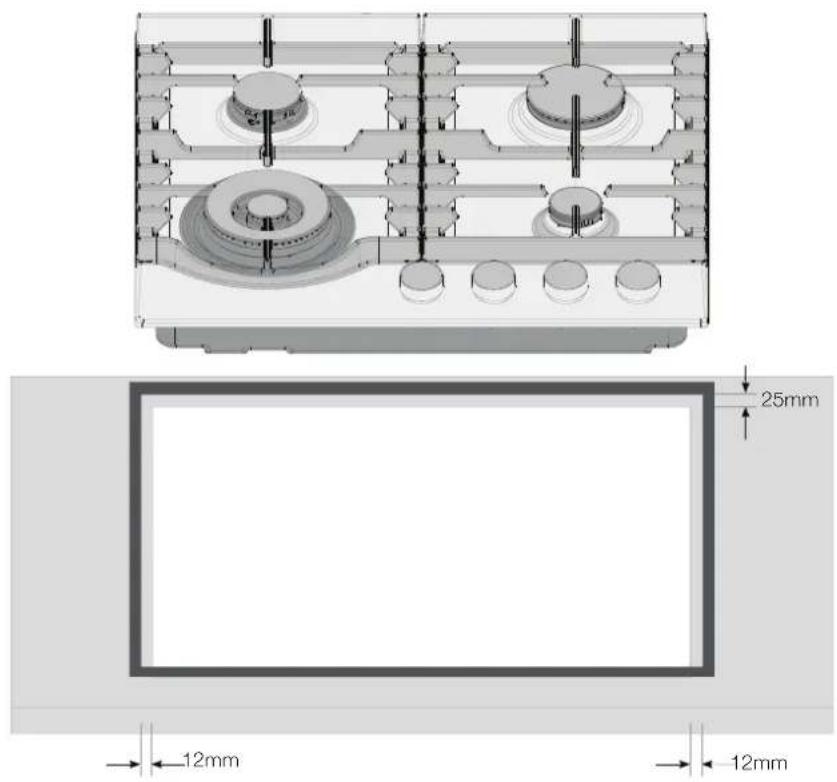

Figure 7a - Mastic seal position for model EHG645SE& EHG641SEA

25mm 12mm 12mm

INSTALLATION PROCEDURE (CONTINUED)

Figure 7b - Mastic seal position for model EHG755SE

Technical diagram of a mechanical housing or enclosure with multiple circular components and a 25mm dimension label (no text or symbols beyond the measurement)

Figure 7c - Mastic seal position for model EHG955SE

Technical diagram of a mechanical assembly with multiple circular components and a 25mm dimension label (no text or symbols beyond measurement)

GAS CONNECTION

OPERATION ON N.G./S.N.G

This appliance is supplied for use with Natural Gas. However, it can be converted for use with LPG. Refer to LP conversion on page 31.

Supply pipe sizing

The total hourly gas consumption for the appliance is shown on the data label. The required supply pressure (i.e. at inlet to appliance regulator) for each gas type is shown on the data label, and given in Table 3 (page 30). Use this information in conjunction with the length of run, number of elbows, tees and bends, the available service pressure and the supply requirements of other installed appliances to determine a suitable pipe size. For assistance in this matter refer to the appropriate section of AS/NZS 5601.1 or AS/NZS 5601.2.

An AGA certified class B or D flexible connection may be used to connect the cooktop in accordance with AS/NZS 5601.1, in particular section 5.9 and clause 6.10.1.8, or AS/NZS 5601.2, in particular section 2.11. Where a hose assembly is used and the cooktop is in the installed position, the hose assembly shall be suitable for connection to a fixed consumer piping outlet located at a point 800 – 850mm above the floor and in the region outside the width of the appliance to a distance of 250mm. The point of connection to consumer piping must be accessible with appliance installed.

ELBOW POSITIONING

It is possible to reposition the elbow if required by loosening the locking nut and elbow by using two spanners. Re-tighten the entire assembly after the elbow has been repositioned. When fitting elbow to appliance, ensure that the sealing washer is fitted.

Note to Installer: Assembly of elbow to manifold at rear of unit requires two spanners to secure locking nut and ensure leak free connection. For this reason the elbow is best secured onto cooktop manifold before installing unit into benchtop.

Regulator

An appliance regulator is provided. The regulator must be positioned so that the pressure test nipple is accessible when the appliance is installed.

Connect the gas supply to the 12 " B.S.P. internal thread inlet of the regulator. Refer to 'bench cutout' (Figure 5) for connection point position.

Regulators are supplied pre-adjusted and configured by the component maker for use with Natural Gas.

The appliance installer is not required to make an adjustment to obtain the correct outlet pressure setting.

An arrow on the base of the regulator indicates the direction of gas flow when the inlet and outlet of the regulator is orientated correctly. When the regulator has been fitted check for leaks from the connections with soapy water.

GAS CONNECTION (CONTINUED)

Assembly of the regulator

The assembly of the regulator to the cooktop manifold is achieved via the elbow union and sealing washer supplied, refer to figure 8.

The 12 " parallel thread connects to the manifold, and the sealing washer is placed between the manifold end and the flat face on the elbow.

The 12 " tapered thread connects to the outlet of the regulator, and is sealed on the thread using approved thread sealing tape or approved thread sealing compound.

The inlet of the regulator is a 12 " parallel thread and is connected to consumer piping or hose assembly.

Regulators are supplied pre-adjusted and configured by the component maker for use with Natural Gas.

The appliance installer is not required to make an adjustment to obtain the correct outlet pressure setting.

An arrow on the base of the regulator indicates the direction of gas flow when the inlet and outlet of the regulator is orientated correctly. When the regulator has been fitted check for leaks from the connections with soapy water.

Figure 8

manifold endform sealing washer ½" parallel thread female nut flat face ½" tapered thread seal using approved sealing tape or approved thread sealing compound outlet regulator inlet

CHECKING THE GAS SUPPLY

1. Check the manometer zero point is correct.
2. Connect the manometer to the cooktop pressure point. This is located on the regulator.
3. Turn on the gas supply and electricity and try to ignite the gas.

NOTE! It will take additional time to light the gas for the first time as air needs to be purged from the pipes.

1. With the appliance operating check the outlet pressure

2. when all burners of the appliance are operating at maximum,

3. when the smallest burner of the appliance is operating at minimum.

Under these conditions the outlet pressure should not vary from the nominal outlet pressure of 1.00kPa by more than ±0.20kPa.

If the regulator appears to not be performing satisfactorily, then check the following points:

1. If the outlet pressure is consistently too low then the inlet pressure may be too low and adjustment of an upstream regulator may be needed, or an upstream regulator or valve with insufficient flow capacity may be present in the gas supply line. If this is suspected then it may be necessary to repeat the checks whilst measuring both the inlet and outlet pressure to determine if the inlet pressure is in the range 1.13 – 5kPa.
2. Check that the regulator has been fitted to the gas supply line in the correct orientation, the arrow on the base of the body indicates the direction of gas flow.

Once these checks have been completed, if the regulator still fails to perform in a satisfactory manner it should be replaced.

Table 3

burner type	natural gas (nominal test point pressure: 1.00kPa)		LPG (nominal test point pressure: 2.60kPa)
	injector size (mm)	gas consumption (MJ/h)	injector size (mm)	gas consumption (MJ/h)
Small burner	1.00	5.1	0.55	4.0
Medium burner	1.35	9.0	0.70	6.5
Large burner	1.60	12.1	0.90	9.5
Dual Wok 17MJ (EHG953BE)	0.96 + 3 x 0.96	17.0	0.52 + 3 x 0.58	17.0
Dual Wok 17MJ	0.96 + 3 x 0.97	17.0	0.46 + 3 x 0.63	17.0
Dual Wok 24MJ	0.92 + 3 x 1.30	24.0	0.46 + 3 x 0.63	17.0
Wok 14.4MJ	1.75	14.4	1.0	13

LPG CONVERSION

This appliance is supplied set up for Natural Gas usage. A conversion kit is included with the product for Universal LPG usage. The conversion kit contains the appropriate injectors and 1 LPG sticker.

Please follow the procedure below if a conversion to suit UNIVERSAL LPG is required:

1. Remove the hotplate trivets, burner caps and burner crowns to access the hotplate injectors. Replace the factory fitted injectors with the appropriate injectors, as supplied. Refer to injector orifice table for injector sizes. The injector size is stamped on the side of the injector.

2. Unscrew the top hat nut from the regulator. The top hat nut and control pressure spring assembly will disengage as an assembly.

3. Unscrew the threaded pin from top hat.

4. Upturn threaded pin, so spring is free and screw pin back into the top hat until firm.

5. Refit the top hat nut assembly to the regulator ensuring that it is fully screwed down. The regulator is now set for connection to LPG.

6. Turn on the gas supply and at each new connection check for leaks using soapy water. Each hotplate valve should be turned on, one at a time, and the injector hole blanked off for several seconds.

7. The operation of the regulator can be confirmed by connecting a manometer to the pressure test point located on the side of the regulator body adjacent to the outlet.

With the appliance operating check the outlet pressure when all burners of the appliance are operating at maximum, when the smallest burner of the appliance is operating at minimum.

Under these conditions the outlet pressure should not vary from the nominal outlet pressure of 2.60kPa by more than ±0.52kPa.

1. If the regulator appears to not be performing satisfactorily then check the following points:

If the outlet pressure is consistently too low then the inlet pressure may be too low and adjustment of an upstream regulator may be needed, or an upstream regulator or valve with insufficient flow capacity may be present in the gas supply line.

If this is suspected then it may be necessary to repeat the checks whilst measuring both the inlet and outlet pressure to determine if the inlet pressure is in the range 2.75 – 7.00kPa.

Check that the insert has been fitted correctly.

Check that the turret screw is fully screwed down.

Check that the regulator has been fitted to the gas

supply line in the correct orientation, the arrow on the base of the body indicates the direction of gas flow.

Once these checks have been completed, if the regulator still fails to perform in a satisfactory manner it should be replaced.

1. One by one, turn the knobs to minimum and screw in the bypass screw (accessible when the knob is removed) until a small stable flame results. Turn the knob to maximum and then back to minimum to ensure that the correct minimum flame is maintained.

2. Attach the LPG sticker to the cooker, near the gas supply inlet. Cover the Natural Gas label that is factory fitted.

top hat nut assembly fully screwed down

B turn top hat nut anti-clockwise and remove

configuration for natural gas

Mechanical assembly diagram showing a spring-loaded component and its cross-section view (no text or labels)

bypass screw control knob shaft

ELECTRICAL CONNECTION (220-240 VOLTS)

The appliance is supplied with a standard 7.5 Amp service cord terminated by a 3-pin plug for connection to a standard household socket. The electrical supply is required to power the electronic ignition system.

NOTE! It will be necessary for servicing purposes to disconnect the electrical power supply. The power point should therefore be accessible after the appliance is installed, as specified in the local wiring regulations.

Diagram 1 is a schematic of the wiring in the appliance.

WEIGHT of the unit is printed on the appliance packaging label.

Diagram 1

DANGER 220-240 VOLTS AC DISCONNECT FROM SUPPLY BEFORE REMOING PANEL BODY E N L 220-240V IGNITION BOX TO BURNER SPARK PLUGS KNOB IGNITION SWITCHES

After installation, test the appliance and ensure that it operates correctly before handing it over to the customer. The following procedure is recommended:

1. Turn on the gas and electricity supply and attempt ignition on all burners, both separately and in combination. (For correct procedure refer to page 10 Lighting Burners). Note that additional time needs to be allowed for the initial lighting as air has to be purged from the pipes.
2. Observe the flame appearance on each burner (Figure 9). If it is much larger or much smaller than expected, the injector size and supply pressure require checking. Where a flame is unsatisfactory, refer to the Troubleshooting Guide (page 14) to correct the fault. If the Troubleshooting Guide does not solve the problem, call the Service Centre.
3. When all the foregoing is satisfactory, check the turndown (minimum or low) setting on each burner, as this may need adjustment. Valves have a bypass controlling screw, which may be accessed by removing the knob. This screw will be located on a particular area of the valve (refer Figure 10). Normally, this will have been correctly set at the factory for use on Natural Gas (NG) and should not require adjustment.

i IMPORTANT

If the appliance has been converted to LPG, then the bypass screw will HAVE to be screwed in until a small, stable flame results.

Please ensure the supply pressure has been checked PRIOR to any adjustment.

1. If the appliance cannot be adjusted to perform safely inform the customer of the problem and affix an appropriate warning notice to the appliance. If the fault appears to be dangerous the appliance should be disconnected. If a minor fault exists, the customer may wish to use the appliance while awaiting service.
   If a fault cannot be fixed, please call the Service Centre.
2. The customer should be advised that, in the event of a fault, the local service organisation or the retailer from whom the appliance was purchased should be contacted.
3. When satisfied that the unit is operating correctly, turn off and instruct the customer on correct operation as outlined in this booklet. Ask the customer to operate the controls to ensure that the correct procedure is understood.

! CAUTION

Servicing must only be carried out by an authorised service person.

Injector sizes required for various gas types are shown in Table 3 (page 30). The appliance test point pressure for each gas type is also shown.

For model identification after installation, an additional data plate sticker has been provided. This sticker is to be stuck onto adjacent cabinetry.

Figure 9

flame size adjusted to maximum

flame size adjusted to minimum

Figure 10

Three circular diagrams showing mechanical components with arrows pointing to them (no text or symbols)

bypass screw

NOTES

This document sets out the terms and conditions of the product warranties for Westinghouse Appliances. It is an important document. Please keep it with your proof of purchase documents in a safe place for future reference should there be a manufacturing defect in your Appliance. This warranty is in addition to other rights you may have under the Australian Consumer Law.

1. In this warranty:

(a) ‘ACL’ or ‘Australian Consumer Law’ means Schedule 2 to the Competition and Consumer Act 2010;
(b) 'Appliance' means any Electrolux product purchased by you and accompanied by this document;
(c) 'ASC' means Electrolux's authorised serviced centres;
(d) 'Westinghouse' is the brand controlled by Electrolux Home Products Pty Ltd of 163 O'Riordan Street, Mascot NSW 2020, ABN 51 004 762 341 in respect of Appliances purchased in Australia and Electrolux (NZ) Limited (collectively "Electrolux") of 3-5 Nial Burgess Road, Mount Wellington, in respect of Appliances purchased in New Zealand;
(e) 'Warranty Period' means the period specified in clause of this 3 warranty;
(f) 'you' means the purchaser of the Appliance not having purchased the Appliance for re-sale, and 'your' has a corresponding meaning.

1. Application: This warranty only applies to new Appliances, purchased and used in Australia or New Zealand and is in addition to (and does not exclude, restrict, or modify in any way) other rights and remedies under a law to which the Appliances or services relate, including any non-excludable statutory guarantees in Australia and New Zealand.
2. Warranty Period: Subject to these terms and conditions, this warranty continues in Australia for a period of 24 months and in New Zealand for a period of 24 months, following the date of original purchase of the Appliance.
3. Repair or replace warranty: During the Warranty Period, Electrolux or its ASC will, at no extra charge if your Appliance is readily accessible for service, without special equipment and subject to these terms and conditions, repair or replace any parts which it considers to be defective. Electrolux may, in its absolute discretion, choose whether the remedy offered for valid warranty claim is repair or replacement. Electrolux or its ASC may use refurbished parts to repair your Appliance. You agree that any replaced Appliances or parts become the property of Electrolux.
4. Travel and transportation costs: Subject to clause 7, Electrolux will bear the reasonable cost of transportation, travel and delivery of the Appliance to and from Electrolux or its ASC. Travel and transportation will be arranged by Electrolux as part of any valid warranty claim.
5. Proof of purchase is required before you can make a claim under this warranty.
6. Exclusions: You may not make a claim under this warranty unless the defect claimed is due to faulty or defective parts or workmanship. This warranty does not cover:

(a) light globes, batteries, filters or similar perishable parts;

(b) parts and Appliances not supplied by Electrolux;

(c) cosmetic damage which does not affect the operation of the Appliance;

(d) damage to the Appliance caused by:
(i) negligence or accident;
(ii) misuse or abuse, including failure to properly maintain or service;
(iii) improper, negligent or faulty servicing or repair works done by anyone other than an Electrolux authorised repairer or ASC;
(iv) normal wear and tear;
(v) power surges, electrical storm damage or incorrect power supply;
(vi) incomplete or improper installation;
(vii) incorrect, improper or inappropriate operation;
(viii) insect or vermin infestation;
(ix) failure to comply with any additional instructions supplied with the Appliance;

In addition, Electrolux is not liable under this warranty if:

(a) the Appliance has been, or Electrolux reasonably believes that the Appliance has been, used for purposes other than those for which the Appliance was intended, including where the Appliance has been used for any non-domestic purpose;
(b) the Appliance is modified without authority from Electrolux in writing;
(c) the Appliance's serial number or warranty seal has been removed or defaced

1. How to claim under this warranty: To enquire about claiming under this warranty, please follow these steps:

(a) carefully check the operating instructions, user manual and the terms of this warranty;
(b) have the model and serial number of the Appliance available;
(c) have the proof of purchase (e.g. an invoice) available;
(d) telephone the numbers shown below.

1. Australia: For Appliances and services provided by Electrolux in Australia: Electrolux goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the Appliance repaired or replaced if the Appliance fails to be of acceptable quality and the failure does not amount to a major failure. 'Acceptable quality' and 'major failure' have the same meaning as referred to in the ACL.

2. New Zealand: For Appliances and services provided by Electrolux in New Zealand, the Appliances come with a guarantee by Electrolux pursuant to the provisions of the Consumer Guarantees Act, the Sale of Goods Act and the Fair Trading Act. Where the Appliance was purchased in New Zealand for commercial purposes the Consumer Guarantee Act does not apply.

3. Confidentiality: You accept that if you make a warranty claim, Electrolux and its agents including ASC may exchange information in relation to you to enable Electrolux to meet its obligations under this warranty.

Important Notice
Before calling for service, please ensure that the steps listed in clause 8 above have been followed.

AUSTRALIA	FOR SERVICEor to find the address of your nearest authorised service centre in AustraliaPLEASE CALL 13 13 49For the cost of a local call	FOR SPARE PARTSor to find the address of your nearest spare parts centre in AustraliaPLEASE CALL 13 13 50For the cost of a local call
NEW ZEALAND	FOR SERVICEor to find the address of your nearest authorised service centre in New ZealandPLEASE CALL 0800 10 66 10	FOR SPARE PARTSor to find the address of your nearest spare parts centre in New ZealandPLEASE CALL 0800 10 66 20

Electrolux Home Products Australia

telephone: [phone]

fax: [phone]

email: [e-mail]

web: electrolux.com.au

Electrolux Home Products New Zealand

telephone: [phone]

fax: [phone]

email: [e-mail]

web: electrolux.co.nz

shop.electrolux.com.au

Five circular icons representing shopping, retail, security, washing machine, and delivery (no text or symbols)

To add a touch of professional inspiration to your home, visit electrolux.com.au or electrolux.co.nz

electrolux.com.au

electrolux.com.au

or electrolux.co.nz

electrolux.co.nz

P/No. ANC 305387226 Rev A

© 2023 Electrolux Home Products Pty Ltd.

ABN 51 004 762 341

E_MAN_GASCT_Mar23
