USER MANUAL AT32UC3B064 Microchip

8-bit Microcontrollers

AVR32

32-bit Microcontrollers and Application Processors

Three black Intel 806 chips with visible branding, displayed against a blue background (no text or symbols on the chip surfaces)

QUICK REFERENCE GUIDE

February 2009

Everywhere You Are®

Abstract blue and white gradient background with soft gradients (no text or symbols)

AVR Introduction

Atmel ^® offers both 8-bit and 32-bit AVR ^® s.

AVR microcontrollers and application processors deliver unmatched flexibility. AVR combines the most code-efficient architecture for C and assembly programming with the ability to tune system parameters throughout the entire life cycle of your key products. Not only do you get to market faster, but once there, you can easily and cost-effectively refine and improve your product offering.

The AVR XMEGA gives you 16-bit performance and leading low-power features at 8-bit price.

It's simple: AVR works across the entire range of applications you're working on... or want to work on.

Introduction

AVR & AVR32

QUICK REFERENCE GUIDE

AVR Key Benefits

High performance
picoPower™ technology
High code density
High integration and scalability
Complete tool offering
Atmel's AVR is addressing the 8-bit and 16-bit market

AVR32 Key Benefits

High CPU performance
Low power consumption
High data throughput
Low system cost
High reliability
Easy to use

Environment Friendly Packages

For AVR and AVR32 microcontrollers and application processors, all the lead free packages are RoHS compliant, lead free, halide free and fully green.

All parts are offered in fully green packaging only.

Green globe with leaf-shaped leaves above it, symbolizing environmental protection (no text or symbols)

Abstract gradient background with soft blue and white tones, no text or symbols present

Two black integrated circuit chips with white markings, placed on a blue gradient background (no text or symbols visible)

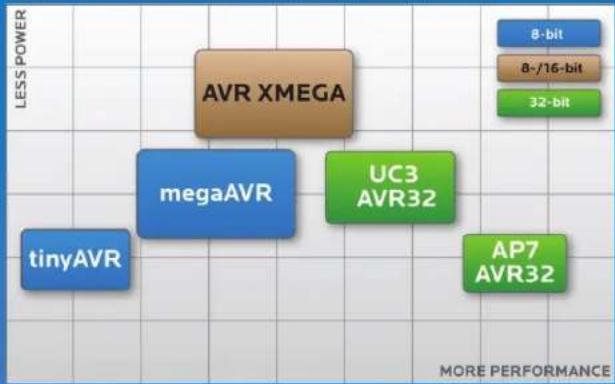

Product Range

Atmel microcontrollers - success through innovation

Atmel offers both 8-bit and 32-bit AVR's, and since day one the AVR philosophy has always been clear:

Highest performance with no power penalty.

tinyAVR

1-16 KBytes Flash, 8-32 pin packages

megaAVR

4-256 KBytes Flash, 28-100 pin packages

AVR XMEGA

16-384 KBytes Flash, 44-100 pin packages

AVR32 UC3

16-512 KBytes Flash, 48-144 pin packages

AVR32 AP7

Up to 32 KBytes On-chip SRAM,

196-256 pin packages

AVR & AVR32

QUICK REFERENCE GUIDE

Product Range

Product Families

tinyAVR®
General purpose microcontrollers with up to 16K Bytes Flash program memory, 512 Bytes SRAM and EEPROM.
megaAVR®
High performance microcontrollers with Hardware Multiplier. Up to 256 KBytes Flash, 4K Bytes EEPROM and 8K Bytes SRAM.
XMEGA™
The new XMEGA 8/16-bit AVR microcontrollers have new and advanced peripherals with increased performance, DMA and Event system, and extends the AVR family in low power/high performance markets.
AVR32 UC3
High performance, low power 32-bit AVR32 flash microcontrollers. Up to 512 KBytes Flash, 128 KBytes SRAM.
AVR32 AP7
High performance, low power 32-bit AVR32 application processors. Up to 32 KBytes SRAM.
Application Oriented

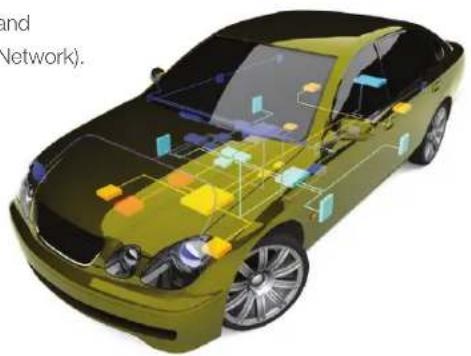

AVR-based devices covering specified areas such as such as automotive, LCD drivers, CAN networking, USB connectivity, motor control, lighting applications, battery management single-chip, IEEE 802.15.4/ZigBee™ and Remote Access Control.

Low Power

To meet the tough requirements of modern microcontrollers Atmel has combined years of low power research and developed picoPower technology. picoPower enables AVR microcontrollers to reduce power consumption in both sleep and active mode, and achieve the industry's lowest power consumption with 500 nA @ 1.8V with RTC running and 100 nA in power-down sleep mo

True 1.8 Volt operation
Low leakage process
Sleeping Brown-out detector
Ultra low power 32 kHz crystal oscillator
Power Reduction Register
Flash sampling

Web resources: www.atmel.com/products/avr/picopower/

AVR Advanced Driver LOW-HANGE PROCESS EFFECTIVE 32x14 RTC SLEEPING 80D IRE-15V OPERATION

Packaging Range

TFBGA-324
15×15 mm

CTBGA-256
17×17 mm

CTBGA-196
12×12 mm

OBGA-100
9x9 mm

VFBGA-49
5x5 mm

LGA-32
3.5×6.5 mm

Close-up of a dark gray surface with a white logo resembling 'Almel' (no additional text or symbols)

QFP-208
28x28 mm

LQFP-144
20x20 mm

TQFP-100
14×14 mm

TQFP-64
14×14 mm

TQFP-64
10x10 mm

TQFP-44
10x10 mm

LQFP-48
7×7 mm

TQFP-32
7×7 mm

Close-up of an integrated circuit chip with pin headers and a triangular connector (no visible text or symbols)

PDIP-40
13.72×52.32 mm

PDIP 28
7.3x34.69 mm

PDIP 20
6.6×25.74 mm

PDIP-14
6.6×19.17 mm

PDIP-8
6.35×9.3 mm

TSSOP-44
4.5×11.1 mm

Abstract gradient background with soft blue and white tones, no text or symbols present

tinyAVR

Don't let the name fool you... tinyAVR delivers huge capability. Optimized for a wide range of applications that require a small but powerful MCU solution, tinyAVR requires no external glue logic, and is available with integrated A/D converter and EEPROM memory.

By delivering Flash flexibility at Mask ROM prices, tinyAVR significantly cuts your time to market, while boosting your bottom line. And there's nothing tiny about that.

AVR & AVR32

QUICK REFERENCE GUIDE

tinyAVR

tinyAVR

tinyAVR Key Benefits

Optimized for simple applications requiring a small microcontroller.
Great performance for cost effective devices.
Fully featured with 10-bit ADCs and high speed PWMs onboard.
Self-Programming Flash memory for maximum flexibility.
debugWIRE On-Chip Debug and In-System Programming.

Product	Status (f)	Flash (KB)	EEPROM (Bytes)	RAM (Bytes)	picoPower	I/O pins	UART/USART	SPI/TWI by USI	TWI	8-bit Timers	16-bit Timers	PWM (Channel)	10+4 AD (seconds)	Analog Gain Step	Debug/WIRE/OCD	Vcc Range (V)	Clock Speed (MHz)	Package	Po-free, Green (a)	Temp. Range
ATtiny13A	P	1	64	64	Y	6			1		2	4		Y	1.8 - 5.5	20	PDIP8, SOIC8, QFN20, QFN10	Y	-40°C to +85°C
ATtiny2313	P	2	128	128		18	1	1		1	1	4			Y	1.8 - 5.5	10	PDIP20, SOIC20, QFN20	Y	-40°C to +85°C
	P	2	128	128		18	1	1		1	1	4			Y	2.7 - 5.5	20	PDIP20, SOIC20, QFN20	Y	-40°C to +85°C
ATtiny24	P	2	128	128		12		1		1	1	4	8	Y	Y	1.8 - 5.5	10	PDIP14, SOIC14, QFN20	Y	-40°C to +85°C
	P	2	128	128		12		1		1	1	4	8	Y	Y	2.7 - 5.5	20	PDIP14, SOIC14, QFN20	Y	-40°C to +85°C
ATtiny25	P	2	128	128		6	1	2		(c)		4 (c)	4	Y	Y	1.8 - 5.5	10	PDIP8, SOIC8, QFN20	Y	-40°C to +85°C
	P	2	128	128		1		2		(c)		4 (c)	4	Y	Y	2.7 - 5.5	20	PDIP8, SOIC8, QFN20	Y	-40°C to +85°C
ATtiny26	P	2		128		16		1		2		2	11	Y		2.7 - 5.5	8	PDIP20, SOIC20, QFN32	Y	-40°C to +85°C
	P	2	128	128		16		1		2		2	11	Y		4.5 - 5.5	16	PDIP20, SOIC20, QFN32	Y	-40°C to +85°C
ATtiny261	P	2	128	128	16	1				(c)	1	5 (c)	11	Y	Y	1.8 - 5.5	10	PDIP20, SOIC20, QFN32	Y	-40°C to +85°C
	P	2	128	128		16	1			(c)	1	5 (c)	11	Y	Y	2.7 - 5.5	20	PDIP20, SOIC20, QFN32	Y	-40°C to +85°C
ATtiny28L	P	2			(b)		11			1						1.8 - 5.5	1.2	PDIP28, QFN32, TQFP32	Y	-40°C to +85°C
	P	2			(c)		11			1						2.7 - 5.5	4	PDIP28, QFN32, TQFP32	Y	-40°C to +85°C
ATtiny44A	P	4	256	256	Y	12		1		1	1	4	8	Y	Y	1.8 - 5.5	10	PDIP14, SOIC14, QFN20 , VQFN20	Y	-40°C to +85°C
ATtiny45	P	4	256	256		6		1		2 (c)		4 (c)	4	Y	Y	1.8 - 5.5	10	PDIP8, SOIC8, QFN20	Y	-40°C to +85°C
	P	4	256	256		6		1		2 (c)		4 (c)	4	Y	Y	2.7 - 5.5	20	PDIP8, SOIC8, QFN20	Y	-40°C to +85°C
ATtiny461	P	4		256	256		16		1		1 (c)	1	5 (e)	11	Y	1.8 - 5.5	10	PDIP20, SOIC20, QFN32	Y	-40°C to +85°C
	P	4	256	256		16	1			(c)	1	5 (e)	11	Y	Y	2.7 - 5.5	20	PDIP20, SOIC20, QFN32	Y	-40°C to +85°C
ATtiny48	P	4	64	256 Y	28		(c)		1	1	1	2	8		Y	1.8 - 5.5	12	PDIP28, QFN32/28, TQFP32	Y	-40°C to +85°C
ATtiny84	P	8	512	512		12		1		1	1	4	8	Y	Y	1.8 - 5.5	10	PDIP14, QFN20	Y	-40°C to +85°C
	P	8	512	512		12		1		1	1	4	8	Y	Y	2.7 - 5.5	20	PDIP14, QFN20	Y	-40°C to +85°C
ATtiny85	P	8	512	512		6		1		2 (c)		4 (c)	4	Y	Y	1.8 - 5.5	10	PDIP8, SOIC8, QFN20	Y	-40°C to +85°C
	P	8	512	512		6		1		2 (c)		4 (c)	4	Y	Y	2.7 - 5.5	20	PDIP8, SOIC8, QFN20	Y	-40°C to +85°C
Product	Status (f)	Flash (KB)	EEPROM (Bytes)	RAM (Bytes)	DicoPower	I/O pins	UART/USART	SP/TWI by LSI	TWI	3-bit Timers	16-bit Timers	PAM (Channel)	10-bit A/D (Channel)	Analog Gain Stage	Debug/WIRE/OCD	Vcc Range (V)	Clock Speed (MHz)	Package	Phi-free, Green (s)	Temp. Range
ATtiny861	P 8		512	512 16	1 1				(4)	1	5 (4)	11	Y	Y	1.8 - 5.5	10	PDIP20, SOIC20, QFN/32	Y	-40°C to +85°C
	P	8	512	512		16	1		1 (4)	1	5 (4)	11	Y	Y	2.7 - 5.5	20	PDIP20, SOIC20, QFN32	Y	-40°C to +85°C
ATtiny88	P	8	64	512	Y	28 (g)		1	1	1	2	8		Y	1.8 - 5.5	12	PDIP28, QFN32/28, TQFP32	Y	-40°C to +85°C

at Po-free packaging complies to the European Directive for Restriction of Hazardous Substances (RoHS directive). Also I halide free and fully Green.
c) The AVB core has 32 internal registers that can be used as RAM storage.
c) One high speed 8-bit timer/counter.
d) Two High Frequency, 250kHz. PWM Outputs.
a) Three High Frequency PWM Outputs for BLDC motor control.
1. P: Product in Full Production, 1: Device under Introduction
g) 28 Programmable I/O Lines in 32-load TQFP and 32-pad QFN/MLF package, 24 Programmable I/O Lines in 28-pin PDIP and 28-pad QFN/MLF package

megaAVR

When your designs call for a bit of extra muscle, you need megaAVR. Developed for applications that need to store a large amount of program code, megaAVR offers substantial program and data memories, and performance approaching 1 MIPS per MHz. Better yet, megaAVR delivers the power of self-programmability for fast, secure, cost-effective remote upgrades.

AVR & AVR32

QUICK REFERENCE GUIDE

megaAVR

megaAVR Key Benefits

Self-Programming Flash memory with boot block.
High accuracy 10-bit A/D converters with up to x200 analog gain stage.
USART, SPI and TWI ^(1) compliant serial interfaces.
IEEE 1149.1 compliant JTAG interface on megaAVRs with 44 pins or more.
On-Chip Debug through JTAG or debugWIRE interface.

Product	Status (in)		Flash (KB)		EEPROM (Bytes)		RAM (Bytes)		picoPower		I/O pins		UART/USART		SPI/TVM I/D USI		SPI		TVM (2C compliant)		8-bit Timers		16-bit Timers		PWM (Channel)		IO-bit A/D (Channel)		Analog Gain Stage		Dalog/WIRE/OCD		JTAGOOD		Vcc Range (V)		Clock Speed (MHz)		Package		PI-free, Green, AI Temp. Range
ATmega48PA	P	4	256	512	Y	23	1		1+USART		Y	2	1		6	8		Y		1.8-5.5V	20	TQFP32, QFN32, PDIP28																Y	-40°C to +85°C
ATmega88PA	P	8	512	1K	Y	23	1		1+USART		Y	2	1		6	8		Y		1.8-5.5V	20	TQFP32, QFN32, PDIP28																Y	-40°C to +85°C
ATmega8515	P	8	512	512		35	1		1			1	1		3					2.7-5.5V	8	TQFP44, PLCC44, QFN44, PDIP40																Y	-40°C to +85°C
	P	8	512	512		35	1		1			1	1		3					4.5-5.5V	16	TQFP44, PLCC44, QFN44, PDIP40																Y	-40°C to +85°C
ATmega8535	P	8	512	512		32	1		1		Y	2	1		4	8	Y			2.7-5.5V	8	TQFP44, PLCC44, QFN44, PDIP40																Y	-40°C to +85°C
	P	8	512	512		32	1		1		Y	2	1		4	8	Y			4.5-5.5V	16	TQFP44, PLCC44, QFN44, PDIP40																Y	-40°C to +85°C
ATmega16A	P	16	512	1K		32	1		1		Y	2	1		4	8	Y		Y	2.7-5.5V	16	TQFP44, QFN44, PDIP40																Y	-40°C to +85°C
ATmega162	P	16	512	1K		35	2		1			2	2		6				Y	1.8-5.5V	8	TQFP44, QFN44, PDIP40																Y	-40°C to +85°C
	P	16	512	1K		35	2		1			2	2		6				Y	2.7-5.5V	16	TQFP44, QFN44, PDIP40																Y	-40°C to +85°C
ATmega164P	P	16	512	1K	Y	32	2		1+USART		Y	2	1		6	8	Y		Y	1.8-5.5V	10	TQFP44, QFN44, PDIP40																Y	-40°C to +85°C
	P	16	512	1K	Y	32	2		1+USART		Y	2	1		6	8	Y		Y	2.7-5.5V	20	TQFP44, QFN44, PDIP40																Y	-40°C to +85°C
ATmega165P	P	16	512	1K	Y	54	1	1	1+USART		USI	2	1		4	8			Y	1.8-5.5V	8	TQFP64, QFN64																Y	-40°C to +85°C
	P	16	512	1K	Y	54	1	1	1+USART		USI	2	1		4	8			Y	2.7-5.5V	16	TQFP64, QFN64																Y	-40°C to +85°C
ATmega168	P	16	512	1K		23	1		1+USART		Y	2	1		6	8 c)		Y		1.8-5.5V	10	TQFP32, QFN32, PDIP28																Y	-40°C to +85°C
	P	16	512	1K		23	1		1+USART		Y	2	1		6	8 c)		Y		2.7-5.5V	20	TQFP32, QFN32, PDIP28																Y	-40°C to +85°C
ATmega168P	P	16	512	1K	Y	23	1		1+USART		Y	2	1		6	8		Y		1.8-5.5V	10	TQFP32, QFN32, PDIP28																Y	-40°C to +85°C
	P	16	512	1K	Y	23	1		1+USART		Y	2	1		6	8		Y		2.7-5.5V	20	TQFP32, QFN32, PDIP28																Y	-40°C to +85°C

Product	Status (m)	Flash (K2)	EEPROM (Bytes)	RAM (Bytes)	PicoPower	I/O pins	UART/USART	SPI/TWI by USI	SPI	TWI (I/O compliant)	8-bit Timers	16-bit Timers	PWM (Channel)	10-bit A/D (Channel)	Analog Gain Stage	DelouyWIRE/OOD	JTAGOOD	Voc Range (V)	Clock Speed (MHz)	Package	Phi-free, Green, (a)
ATmega32A	P	32	1K	2K		32	1		1	Y	2	1	4	8	Y		Y	2.7-5.5V	16	TQFP44, QFN44, PDIP40	Y -40°C to +85°C
ATmega324PA	P	32	1K	2K	Y	32	2		1+USART	Y	2	1	8	8	Y		Y	1.8-5.5V	20	TQFP44, QFN44, PDIP40	Y -40°C to +85°C
ATmega325	P	32	1K	2K		54	1	1	1+USI	USI	2	1	4	8			Y	1.8-5.5V	8	TQFP64, QFN64	Y -40°C to +85°C
	P	32	1K	2K		54	1	1	1+USI	USI	2	1	4	8			Y	2.7-5.5V	16	TQFP64, QFN64	Y -40°C to +85°C
ATmega325P	I	32	1K	2K	Y	54	1	1	1+USI	USI	2	1	4	8			Y	1.8-5.5V	10	TQFP64, QFN64	Y -40°C to +85°C
	I	32	1K	2K	Y	54	1	1	1+USI	USI	2	1	4	8			Y	2.7-5.5V	20	TQFP64, QFN64	Y -40°C to +85°C
ATmega3250	I	32	1K	2K		69	1	1	1+USI	USI	2	1	4	8			Y	1.8-5.5V	8	TQFP100	Y -40°C to +85°C
	I	32	1K	2K		69	1	1	1+USI	USI	2	1	4	8			Y	2.7-5.5V	16	TQFP100	Y -40°C to +85°C
ATmega3250P	I	32	1K	2K	Y	69	1	1	1+USI	USI	2	1	4	8			Y	1.8-5.5V	10	TQFP100	Y -40°C to +85°C
	I	32	1K	2K	Y	69	1	1	1+USI	USI	2	1	4	8			Y	2.7-5.5V	20	TQFP100	Y -40°C to +85°C
ATmega328P	I	32	1K	2K	Y	23	1		1+USART	Y	2	1	6	8		Y		1.8-5.5V	10	TQFP32, QFN32, PDIP28	Y -40°C to +85°C
	I	32	1K	2K	Y	23	1		1+USART	Y	2	1	6	8		Y		2.7-5.5V	20	TQFP32, QFN32, PDIP28	Y -40°C to +85°C
ATmega64	P	64	2K	4K		54	2		1	Y	2	2	6+2	8	Y		Y	2.7-5.5V	8	TQFP64, QFN64	Y -40°C to -85°C
	P	64	2K	4K		54	2		1	Y	2	2	6+2	8	Y		Y	4.5-5.5V	16	TQFP64, QFN64	Y -40°C to -85°C
ATmega640	P	64	4K	8K		86	4		1+USART	Y	2	4	12+4	16	Y		Y	1.8-5.5V	8	TQFP100, CBGA100	Y -40°C to +85°C
	P	64	4K	8K		86	4		1+USART	Y	2	4	12+4	16	Y		Y	2.7-5.5V	16	TQFP100, CBGA100	Y -40°C to +85°C
ATmega644	P	64	2K	4K		32	1		1+USART	Y	2	1	6	8	Y		Y	1.8-5.5V	10	TQFP44, QFN44, PDIP40	Y -40°C to +85°C
	P	64	2K	4K		32	1		1+USART	Y	2	1	6	8	Y		Y	2.7-5.5V	20	TQFP44, QFN44, PDIP40	Y -40°C to +85°C
ATmega644P	P	64	2K	4K	Y	32	2		1+USART	Y	2	1	6	8	Y		Y	1.8-5.5V	10	TQFP44, QFN44, PDIP40	Y -40°C to +85°C
	P	64	2K	4K	Y	32	2		1+USART	Y	2	1	6	8	Y		Y	2.7-5.5V	20	TQFP44, QFN44, PDIP40	Y -40°C to +85°C
ATmega645	P	64	2K	4K		54	1	1	1+USI	USI	2	1	4	8			Y	1.8-5.5V	8	TQFP64, QFN64	Y -40°C to +85°C
	P	64	2K	4K		54	1	1	1+USI	USI	2	1	4	8			Y	2.7-5.5V	16	TQFP64, QFN64	Y -40°C to +85°C
Product	Status (s)	Flash (KB)	EEPROM (Bytes)	RAM (Bytes)	picoPower	I/O pins	UART/USART	SPI/TWI by USI	TMI (IO-compliant)		8-bit Timers	16-bit Timers	PWM (Channel)	10-bit A/D (Channel)	Analog Gain Stage	DebugWIRE/OCD	JTAG/OOD	Vcc Range (V)	Clock Speed (MHz)	Package	Phi-free, Green (in)Temp. Range
ATmega6450	I	64	2K	4K		69	1	1	1+USI	USI	2	1	4	#			Y 1.8-5.5V 8	TQFP100 Y -40°C to +85°C
	I	64	2K	4K		69	1	1	1+USI	USI	2	1	4	8			Y 2.7-5.5V	16	TQFP100	Y	-40°C to +85°C
ATmega1284P	I	128	4K	16K	Y	32	2		1+USART	Y	1	2	6	8	Y		Y 1.8-5.5V	20	TQFP44, QFN44, PDIP40	Y	-40°C to +85°C
ATmega128	P	128	4K	4K		53	2		1	Y	2	2	6+2	8	Y		Y 2.7-5.5V	8	TQFP64, QFN64	Y	-40°C to +85°C
	P	128	4K	4K		53	2		1	Y	2	2	6+2	8	Y		Y 4.5-5.5V	16	TQFP64, QFN64	Y	-40°C to +85°C
ATmega1280	P	128	4K	8K		86	4		1+USART	Y	2	4	12+4	16	Y		Y 1.8-5.5V	8	TQFP100, CBGA100	Y	-40°C to +85°C
	P	128	4K	8K		86	4		1+USART	Y	2	4	12+4	16	Y		Y 2.7-5.5V	16	TQFP100, CBGA100	Y	-40°C to +85°C
ATmega1281	P	128	4K	8K		64	2		1+USART	Y	2	4	6+4	8	Y		Y 1.8-5.5V	8	TQFP64, QFN64	Y	-40°C to +85°C
	P	128	4K	8K		64	2		1+USART	Y	2	4	6+4	8	Y		Y 2.7-5.5V	16	TQFP64, QFN64	Y	-40°C to +85°C
ATmega2560	P	256	4K	8K		86	4		1+USART	Y	2	4	12+4	16	Y		Y 1.8-5.5V	8	TQFP100, CBGA100	Y	-40°C to +85°C
	P	256	4K	8K		86	4		1+USART	Y	2	4	12+4	16	Y		Y 4.5-5.5V	16	TQFP100, CBGA100	Y	-40°C to +85°C
ATmega2561	P	256	4K	8K		54	2		1+USART	Y	2	4	6+4	8	Y		Y 1.8-5.5V	8	TQFP64, QFN64	Y	-40°C to +85°C
	P	256	4K	8K		54	2		1+USART	Y	2	4	6-4	8	Y		Y 4.5-5.5V	16	TQFP64, QFN64	Y	-40°C to +85°C

a) Pb-free packaging complies to the European Directive for Restriction of Hazardous Subalances (RoHS directive). Also Halide free and fully Groon.
By P: Product in Full Production, T. Device under Introduction.
c) Only 6 ADC in PDIP packages.

Abstract gradient background with soft blue and white tones, no text or symbols present

AVR XMEGA

AVR XMEGA extends the AVR product family to reach new markets and improve existing applications. With a DMA Controller, an Innovative Event System, Multi-level Interrupt Controller, Crypto engine, and high speed ADC and DAC, AVR XMEGA pushes the boundaries for high performance 8/16-bit MCUs while still remaining highly compatible with tinyAVR and megaAVR

AVR XMEGA is the MCU for the next generation of 8- and 16-bit applications!

AVR & AVR32

QUICK REFERENCE GUIDE

XMEGA

XMEGA

AVR XMEGA Key Benefits

picoPower technology for ultra low power consumption
True 1.6 volt operation and CPU speed up to 32 MHz
Event System and DMA Controller
High speed, high resolution 12-bit ADC and DAC
Crypto engine, Timers/Counters and fast communication interfaces
Accurate and flexible Clock System with dynamic clock switching

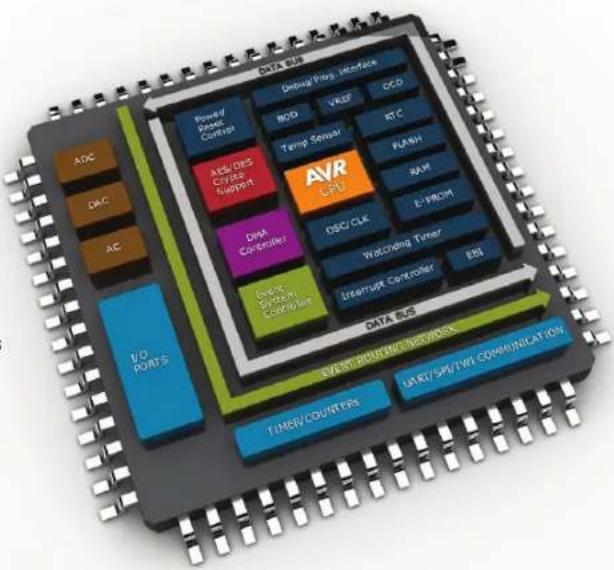

DATA BUS Output Plug Interface Power/ phase Control RCD VREF CCD Temp Sensor RTC AES/DES Cryase Support AVR CPU Disk Controller OSC/CLK FLASH RAM E/PROM Dink Controller Osc System Controller Watching Timer Interrupt Controller ESI I/O PORTS DATA BUS SYSTEM/OUTPUT/NECESS TIME/COUNTERS UART/SAT/TWI COMMUNICATION

Product (a)	Status (b)	Flash (KB)	Boot code (bytes)		EEPROM (Bytes)		SPIOM Power		DMA (Channels)		I/O	16-bit Timers		PWM channel		RTC 16-bit		SPI	TW (I2C)	USAFT	12-bit A/D (Channel)		12-bit DAC (Channel)		Analog Comb.	Interrupts	Interrupts Ext.	JTAG	PUI	Vcc IV Range	Clock Speed (MHz)	Package	Temp. Range
			Boot code (Bytes)		EEPROM (Bytes)		SPIOM Power		DMA (Channels)
			Boot code (Bytes)		SPIOM Power		DMA (Channels)		Event (Channels)
ATxmega64A1	P	64	4	2	4	Y	4	8	78	8	24	Y		4	4	8	2x8	2x2	4	122	78	Y	Y	1.6 - 3.6	32	TQFP100, BGA100				-40°C to +85°C
ATxmega128A1	P	128	8	2	8	Y	4	8	78	8	24	Y		4	4	8	2x8	2x2	4	122	78	Y	Y	1.6 - 3.6	32	TQFP100, BGA100				-40°C to +85°C
ATxmega192A1	F	192	8	4	16	Y	4	8	78	8	24	Y		4	4	8	2x8	2x2	4	122	78	Y	Y	1.6 - 3.6	32	TQFP100, BGA100				-40°C to +85°C
ATxmega256A1	F	256	8	4	16	Y	4	8	78	8	24	Y		4	4	8	2x8	2x2	4	122	78	Y	Y	1.6 - 3.6	32	TQFP100, BGA100				-40°C to +85°C
ATxmega384A1	F	384	8	4	32	Y	4	8	78	8	24	Y		4	4	8	2x8	2x2	4	122	78	Y	Y	1.6 - 3.6	32	TQFP100, BGA100				-40°C to +85°C
ATxmega64A3	I	64	4	2	4	Y	4	8	50	7	22	Y		3	2	7	2x8	1x2	4	102	50	Y	Y	1.6 - 3.6	32	TQFP64, QFN64				-40°C to +85°C
ATxmega128A3	I	128	8	2	8	Y	4	8	50	7	22	Y		3	2	7	2x8	1x2	4	102	50	Y	Y	1.6 - 3.6	32	TQFP64, QFN64				-40°C to +85°C
ATxmega192A3	I	192	8	4	16	Y	4	8	50	7	22	Y		3	2	7	2x8	1x2	4	102	50	Y	Y	1.6 - 3.6	32	TQFP64, QFN64				-40°C to +85°C
ATxmega256A3B	I	256	8	4	16	Y	4	8	49	7	22		Y	2	2	6	2x8	1x2	4	102	49	Y	Y	1.6 - 3.6	32	TQFP64, QFN64				-40°C to +85°C
ATxmega256A3	I	256	8	4	16	Y	4	8	50	7	22	Y		3	2	7	2x8	1x2	4	102	50	Y	Y	1.6 - 3.6	32	TQFP64, QFN64				-40°C to +85°C
ATxmega16A4	I	16	4	1	2	Y	4	8	34	5	16	Y		2	2	5	1x12	1x2	2	77	34		Y	1.6 - 3.6	32	TQFP44, QFN44, VFBGA49				-40°C to +85°C
ATxmega32A4	I	32	4	1	4	Y	4	8	34	5	16	Y		2	2	5	1x12	1x2	2	77	34		Y	1.6 - 3.6	32	TQFP44, QFN44, VFBGA49				-40°C to +85°C
ATxmega64A4	F	64	4	2	4	Y	4	8	34	5	16	Y		2	2	5	1x12	1x2	2	77	34		Y	1.6 - 3.6	32	TQFP44, QFN44				-40°C to +85°C
ATxmega128A4	F	128	4	2	8	Y	4	8	34	5	16	Y		2	2	5	1x12	1x2	2	77	34		Y	1.6 - 3.6	32	TQFP44, QFN44				-40°C to +85°C
ATxmega64D3	I	64	4	2	4	Y		4	50	5	18	Y		2	1	3	1x16		2	67	50		Y	1.6 - 3.6	32	TQFP64, QFN4				-40°C to +85°C
ATxmega128D3	I	128	8	2	8	Y		4	50	5	18	Y		2	1	3	1x16		2	67	50		Y	1.6 - 3.6	32	TQFP64, QFN84				-40°C to +85°C
ATxmega192D3	I	192	8	2	16	Y		4	50	5	18	Y		2	1	3	1x16		2	67	50		Y	1.6 - 3.6	32	TQFP64, QFN84				-40°C to +85°C
ATxmega256D3	I	256	8	4	16	Y		4	50	5	18	Y		2	1	3	1x16		2	67	50		Y	1.6 - 3.6	32	TQFP64, QFN84				-40°C to +85°C
ATxmega16D4	I	16	4	1	2	Y		4	34	4	14	Y		2	1	2	1x12		2	55	34		Y	1.6 - 3.6	32	TQFP44, QFN44, VFBGA49				-40°C to +85°C
ATxmega32D4	I	32	4	1	4	Y		4	34	4	14	Y		2	1	2	1x12		2	55	34		Y	1.6 - 3.6	32	TQFP44, QFN44, VFBGA49				-40°C to +85°C

ai Plo-free packaging compiles to the European Directive for Restriction of Hazardous Substances (RoHS directive). Also Halide free and fully Green. All products have 32 MHz, 2 MHz and 32 kHz calibrated oscillators and
Event System channels
b) P: Production. F: Future product, I: Device under Introduction. c) Include Battery backup function

Abstract gradient background with soft blue and white tones, no text or symbols present

AVR32 UC3

The Atmel AVR32 UC3 product family is built on the new AVR32 UC architecture optimized for highly integrated embedded applications requiring microcontrollers with on-chip Flash program memory. UC3 microcontrollers achieve high computation throughput, real-time behavior and low power consumption.

AVR & AVR32

QUICK REFERENCE GUIDE

AVR32 UC3

AVR32 UC3

AVR32 UC3 Key Benefits

High CPU performance
Low power consumption
High data throughput
Low system cost
High reliability
Easy to use

    subgraph Inputs
        I["Internet Controller"] --> J["Watchdog Timer"]
        J --> K["Power Manager"]
        L["1.8V Regulator"] --> M["BRR/RC OTC"]
        N["IQR"] --> O["80D"]
        P["OSCI"] --> Q["15kHz RC OTC"]
        R["PLD"] --> S["PLL"]
        T["RFID"] --> U["IQC"]
        V["Analog Devices"] --> W["Flash 2544B"]
        X["SRAM2 64KB"] --> Y["MHC Suzand SOIO"]
        Z["Ebl NATRO SBRAM SRAM IEC"] --> AA["Hi-Speed USB OTG"]
    end

    subgraph Outputs
        AB["Peripheral Bridge"] --> AC["Peripheral Chip Controller"]
        AD["Peripheral Bus"] --> AE["Peripheral Interface"]
        AF["Peripherals"] --> AG["USB/DCs"]
        AH["USB/DCs"] --> AI["TWI x2"]
        AJ["GPIO x1"] --> AK["SCC x1"]
        AL["GRID x13"] --> AM["Timer 6 ch"]
        AN["PWM 6 ch"] --> AO["ADC 8 ch 10bit"]
        AP["Audio DAC"] --> AQ["Audio DAC"]
    end

Products	Status(D)	Flash (KBytes)	SRAM (Bytes)	SD/MMC	Ethernet MAC	USB High Speed	USB Full Speed	USART	PWM (Channels)	I/O	System Bus Layer	PDC (Channels)	To-bit Timers	RTC	SPI	SSG (2C audio)	TMI(2C)	Crystal Oscillator	MFLU	10-bit A/D Channel	12-bit 540C (Chamten)	CyDIO (AES)	Vcc (V) max	Clock Speed (MPa)	Package(s)	Temp Range
AT32UC3A0128	P	128	32K		1		Y	Y	4	13	109	6	7	3	Y	2	1	Y	2	Y	8		3.3V	66	LQFP144	-40°C to +85°C
AT32UC3A0256	P	256	64K		1		Y	Y	4	13	109	6	7	3	Y	2	1	Y	2	Y	8		3.3V	66	LQFP144	-40°C to +85°C
AT32UC3A0512	P	512	64K		1		Y	Y	4	13	109	6	7	3	Y	2	1	Y	2	Y	8		3.3V	66	LQFP144	-40°C to +85°C
AT32UC3A1128	P	128	32K		1		Y	Y	4	13	69	6	7	3	Y	2	1	Y	2	Y	8		3.3V	66	TQFP100	-40°C to +85°C
AT32UC3A1256	P	256	64K		1		Y	Y	4	13	69	6	7	3	Y	2	1	Y	2	Y	8		3.3V	66	TQFP100	-40°C to +85°C
AT32UC3A1512	P	512	64K		1		Y	Y	4	13	69	6	7	3	Y	2	1	Y	2	Y	8		3.3V	66	TQFP100	-40°C to +85°C
AT32UC3A364	I	64	128K	Y		Y	Y	Y	4	13	110	6	6	3	Y	2	1	Y	2	Y	8		3.3V	66	LQFP144, TBGA144	-40°C to +85°C
AT32UC3A3128	I	128	128K	Y		Y	Y	Y	4	13	110	6	6	3	Y	2	1	Y	2	Y	8		3.3V	66	LQFP144, TBGA144	-40°C to +85°C
AT32UC3A3256	I	256	128K	Y		Y	Y	Y	4	13	110	6	6	3	Y	2	1	Y	2	Y	8		3.3V	66	LQFP144, TBGA144	-40°C to +85°C
AT32UC3A364S	I	64	128K	Y		Y	Y	Y	4	13	110	6	6	3	Y	2	1	Y	2	Y	8		Y	3.3V	66	LQFP144, TBGA144
AT32UC3A3128S	I	128	128K	Y		Y	Y	Y	4	13	110	6	6	3	Y	2	1	Y	2	Y	8		Y	3.3V	66	LQFP144, TBGA144
AT32UC3A3256S	I	256	128K	Y		Y	Y	Y	4	13	110	6	6	3	Y	2	1	Y	2	Y	8		Y	3.3V	66	LQFP144, TBGA144
AT32UC3B064	P	64	16K				Y	Y	3	13	44	5	7	3	Y	1	1	Y	2	Y	8		3.3V	60	TQFP64, QFN64	-40°C to +85°C
AT32UC3B0128	P	128	32K				Y	Y	3	13	44	5	7	3	Y	1	1	Y	2	Y	8		3.3V	60	TQFP64, QFN64	-40°C to +85°C
AT32UC3B0256	P	256	32K				Y	Y	3	13	44	5	7	3	Y	1	1	Y	2	Y	8		3.3V	60	TQFP64, QFN64	-40°C to +85°C
AT32UC3B0512	P	512	96K				Y	Y	3	13	44	5	7	3	Y	1	1	Y	2	Y	8		3.3V	60	TQFP64, QFN64	-40°C to +85°C
AT32UC3B164	P	64	16K				Y		2	13	28	5	7	3	Y	1		Y	1	Y	6		3.3V	60	TQFP48, QFN48	-40°C to +85°C
AT32UC3B1128	P	128	32K				Y		2	13	28	5	7	3	Y	1		Y	1	Y	6		3.3V	60	TQFP48, QFN48	-40°C to +85°C
AT32UC3B1256	P	256	32K				Y		2	13	28	5	7	3	Y	1		Y	1	Y	6		3.3V	60	TQFP48, QFN48	-40°C to +85°C
AT32UC3B1512	P	512	96K				Y		2	13	28	5	7	3	Y	1		Y	1	Y	6		3.3V	60	TQFP48, QFN48	-40°C to +85°C
AT32UC3L016	I	16	8K						4	36	36	5	12	6	Y	1		Y	3	Y		6	3.6V	50	TQFP48, QFN48	-40°C to +85°C
AT32UC3L032	I	32	16K						4	36	36	5	12	6	Y	1		Y	3	Y		6	3.6V	50	TQFP48, QFN48	-40°C to +85°C
AT32UC3L064	I	64	16K						4	36	36	5	12	6	Y	Y	1x12	Y	3	Y		6	3.6V	50	TQFP48, QFN48	-40°C to +85°C

a) Pb-free packaging compiles to the European Directive for Restriction of Hazardous Substances (RoHS directive). Also Halide free and fully Clean b) P: Product in Full Production, I: Device under Introduction, F: Future device.

Abstract gradient background with soft blue and white tones, no text or symbols present

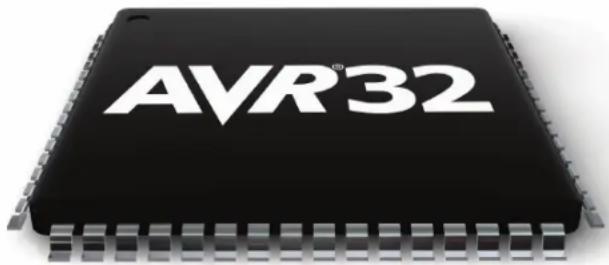

AVR32 AP7

The Atmel AVR32 AP7 product family is built on the high performance AVR32 AP architecture optimized for embedded Linux applications. All AP7 devices are designed to deliver the highest possible CPU performance at the lowest possible power consumption, and a rich set of high-speed peripherals in combination with the innovative DMA controllers and multi-layer data busses offer the highest possible data throughput rates.

AVR & AVR32

QUICK REFERENCE GUIDE

AVR32 AP7

AVR32 AP7

AVR32 AP7 Key Benefits

High CPU performance
Low power consumption
SIMD / DSP instructions
Instruction & data caches
Memory management unit
Built for embedded Linux

AVR®32

Product(s)

Status(b)

SRAM (Bytes)

SFRAM

NAND Flash

DSP inst.

Vactor mult.

Ethernet MAC

USB High Speed

LCD

USART

PWM (Channels)

I/Q

PDC (Channels)

16-bit Timers

RTC

SPI

16-bit Audio DAC

Audio

ISI

PSPI Interface

SSC (I2S Audio)

TWI (I2C)

Crystal oscillator

PLL

MMLI JTAG

Nexus

10-bit I:SADC (Channels 1)

Vcc (V) Perp

Package(s)

AT32AP7000

P

32K

Y

Y

Y

Y

Y

2

Y

2048x2048 24-bit

4 4

160 15

6 Y 2

Survo

AC97, 3x125

CMOS

Y 3 Y 2 Y Y

Class 3

1.8-3.3V CTBGA56

AT32AP7001

P

32K

Y

Y

Y

Y

Y

Y

4

4

80

16

6

Y

2

Stereo

AC97, 3x125

CMOS

Y 3 Y 2 Y Y

Class 3

1.8-3.3V Q-PX8

AT32AP7002

P

32K Y Y Y Y Y

2048x2048 18-bit

4 4

65

15 6 Y 2

Stereo

AC97, 3x125

CMOS

Y 3 Y 2 Y Y

Class 3

1.8-3.3V CTBGA195

a) Pb-free packaging complies to the European Directive for Restriction of Hazardous Substances (RoHS directive). Also Halde free and fully Green.
b) P: Product in Full Production, I: Device under Introduction, F: Future device.
c) industrial temperature range, -40 °C to +85°C

Abstract gradient background with soft blue and white tones, no text or symbols present

Application Oriented

The range of standard AVRs is complemented by an increasing number of derivatives specified to deliver precise characteristics and capabilities. Available devices cover domains such as automotive, LCD drivers, CAN networking, USB connectivity, motor control, lighting applications, battery management single-chip, IEEE 802.15.4, ZigBee and Remote Access Control.

AVR & AVR32

QUICK REFERENCE GUIDE

Application

Oriented

Application Oriented

AVR for LCD Control

Designed for maximum flexibility and the highest possible integration, the LCD AVR family of high performance, low-power microcontrollers includes everything you need for human interface. The feature set includes keyboard interrupts, visual LCD driver with contrast control and interrupts for input switches.

Product	Status (b)	Flash (K)	EEPROM (Bytes)	RAM (Bytes)	PicoPower	I/O pins	LCD Segments	UART/USART	SPI/TW by USI	8-bit Timers	16-bit Timers	PWM (Chenw)	10-bit AND Chenw	JTAG/OD	Vcc Range (V)	Clock Speed (MHz)Package	Po-free, Green (a)	Temp. Range
ATmega169P	P	16	512	1K	Y	54	4x25	1	1	1+USI	2	1	4	8	Y	1.8 - 5.5	8	TQFP64, QFN64
	P	16	512	1K		54	4x25	1	1	1+USI	2	1	4	8	Y	2.7 - 5.5	16	TQFP64, QFN64
ATmega329P	P	32	1K	2K	Y	54	4x25	1	1	1+USI	2	1	4	8	Y	1.8 - 5.5	10	TQFP64, QFN64
	P	32	1K	2K		54	4x25	1	1	1+USI	2	1	4	8	Y	2.7 - 5.5	20	TQFP64, QFN64
ATmega329	P	32	1K	2K		54	4x25	1	1	1+USI	2	1	4	8	Y	1.8 - 5.5	8	TQFP64, QFN64
	P	32	1K	2K		54	4x25	1	1	1+USI	2	1	4	8	Y	2.7 - 5.5	16	TQFP64, QFN64
ATmega3290P	I	32	1K	2K	Y	69	4x40	1	1	1+USI	2	1	4	8	Y	1.8 - 5.5	10	TQFP100
	I	32	1K	2K		69	4x40	1	1	1+USI	2	1	4	8	Y	2.7 - 5.5	20	TQFP100
ATmega3290	P	32	1K	2K		69	4x40	1	1	1+USI	2	1	4	8	Y	1.8 - 5.5	8	TQFP100
	P	32	1K	2K		69	4x40	1	1	1+USI	2	1	4	8	Y	2.7 - 5.5	16	TQFP100
ATmega649	P	64	2K	4K		54	4x25	1	1	1+USI	2	1	4	8	Y	1.8 - 5.5	8	TQFP64, QFN64
	P	64	2K	4K		54	4x25	1	1	1+USI	2	1	4	8	Y	2.7 - 5.5	16	TQFP64, QFN64
ATmega6490	I	64	2K	4K		69	4x40	1	1	1+USI	2	1	4	8	Y	1.8 - 5.5	8	TQFP100
	I	64	2K	4K		69	4x40	1	1	1+USI	2	1	4	8	Y	2.7 - 5.5	16	TQFP100

a) Pb-free packaging to the European Directive for Restriction of Hazardous Substances (RoHS directive). Also Halide free and fully Green. b) P: Product in Full Production, I: Device under Introduction.

AVR for USB Connectivity

The USB microcontrollers are designed to address the varied requirements of embedded applications needing USB connectivity. Devices have either a USB interface for applications needing to communicate with USB host or comply with the USB On-The-Go (OTG) standard for use as Dual Role Devices (DRD) in applications operating as either host or function on the USB.

Atmel offers a number of applications notes with implementation examples, and a set of development tools. An extensive software library is offered to support the most-relevant USB classes for the embedded market: Mass Storage Device (MSD), Human Interface Device (HID), Device Firmware Upgrade (DFU), Communication Device Class (CDC), Audio Class, etc.

Web resources: www.atmel.com/products/avr/usb/

Product	Status (b)		Flash (KB)		EEPROM (Bytes)		I/O pins		UART/USART		TM I/O corrufant		USB 2.0 Host/OTG		USB Full Speed		USB Low Speed		USB D+RAM ef/tesil		8-bit Timers		10-bit HS Timers		15-bit PMM (channel)		10-bit AVD (channel)		Analog Gain Stage		DebugWIRE/OCD		JFACOCD		Vcc Range (V)		Clock Speed (MHz)		PoTres, Greer (g)
	P	8	512	512	22	1	1				Y		176	4+1	1				1	5										2.7 - 5.5	16	QFN32	Y	-40°C to +85°C
AT90USB162	P	16	512	512	22	1	1				Y		176	4+1	1				1	5										2.7 - 5.5	16	TQFP32, QFN32	Y	-40°C to +85°C
ATmega8U2	I	8	256	128	22	1	1				Y		176	4+1	1				1	2+3		Y	Y							2.7 - 5.5	16	TQFP32, QFN32	Y	-40°C to +85°C
AT mega16U2	I	16	512	512	22	1	1				Y		176	4+1	1				1	2+3		Y	Y							2.7 - 5.5	16	TQFP32, QFN32	Y	-40°C to +85°C
AT mega32U2	I	32	1K	1K	22	1	1				Y		176	4+1	1				1	2+3		Y	Y							2.7 - 5.5	16	TQFP32, QFN32	Y	-40°C to +85°C
ATmega16U4	I	16	1K	1.25K	26	1	1	1			Y	Y	835	6+1	1	1	2	5+3+1	12	Y				Y	2.7 - 5.5	16	QFN44
ATmega32U4	I	32	1K	2.5K	26	1	1	1			Y	Y	835	6+1	1	1	2	6+3+1	12	Y				Y	2.7 - 5.5	16	TQFP44, QFN44
ATmega32U6	I	32	1K	2.5K	26	1	1	1			Y	Y	835	6+1	2			2	6+2	8	Y			Y	2.7 - 5.5	16	TQFP64, QFN64
AT90USB646	P	64	2K	4K	48	1	1	1			Y	Y	832	6+1	2			2	6+2	8	Y			Y	2.7 - 5.5	16	QFN64
AT90USB647	P	64	2K	4K	48	1	1	1	Y	Y	Y	832	6+1	2			2	6+2	8	Y				Y	2.7 - 5.5	16	TQFP64, QFN64
AT90USB1286	P	128	4K	8K	48	1	1	1			Y	Y	832	6+1	2			2	6+2	8	Y			Y	2.7 - 5.5	16	QFN64
AT90USB1287	P	128	4K	8K	48	1	1	1	Y	Y	Y	832	6+1	2			2	6+2	8	Y				Y	2.7 - 5.5	16	TQFP64, QFN64

a) Pb-free packaging complies to the European Directive for Restriction of Hazardous Substances (RoHS directive). Also Halide free and fully Green. b) F: Future product, I: Device under Introduction, P: Product in Full Production.

AVR for CAN Networking

AVRs with extended CAN (Controller Area Network) capabilities are perfectly suited for industrial applications. They feature a large amount of Flash memory to operate higher level protocol stack (CANopen, DeviceNet™ or J1939) and offer up to 16 MIPS throughput. Designers can take benefits of the highly flexible In-Application Programming capability via CAN, UART or SPI interface, as well as the V2.0A/V2.0B CAN controller with 15 independent message objects programmable on-the-fly.

Product	Status to		Flash (KB)		EEPROM (Bytes)		FAM (Bytes)		I/O pins		CAN Mess. Obj.		UART/USART		TMI (2C compliant)		SP1	8-bit Timers	16-bit Timers	PWM (Chenley)	10-bit A/D (Chenley)	debugWire/QCD	JTAG/QCD	Vcc Range (V)	Clock Speed (MHz)	Package	Po-free, Green /at
ATmega32M1	I	32	2K	2K	27	6	1				1	1	1	6+4	11	Y			2.7 - 5.5	16	TQFP32, QFN32	Y	-40°C to +85°C
AT90CAN32	P	32	1K	2K	53	15	2	1	1	2	2	6+2	8			Y	2.7 - 5.5	16	TQFP64, QFN64	Y	-40°C to +85°C
AT90CAN64	P	64	2K	4K	53	15	2	1	1	2	2	6-2	8			Y	2.7 - 5.5	16	TQFP64, QFN64	Y	-40°C to +85°C
AT90CAN128	P	128	4K	4K	53	15	2	1	1	2	2	6+2	8			Y	2.7 - 5.5	16	TQFP64, QFN64	Y	-40°C to +85°C

a) Pb-free packaging alternative, complies to the European Directive for Restriction of Hazardous Substances (Rol IS directive). Also I laide free and fully Green, b) b) P: Product in Full Production. I: Device under Introduction.

AVR for Motor Control

Microcontrollers are more and more used for motor control instead of Application Specific Standard Products (ASSP). Incorporating the necessary functions, they provide more flexibility and offer a better cost solution in most of the cases. Ranging from 8- to 100-pin devices, AVR Flash microcontrollers are well suited for applications such as PC fans up to highly advanced motor control applications.

From ATtiny13A to AT90PWM3B, designer can find a cost-effective solution for a variety of motor type and application complexity. Atmel is providing support to developers using AVR for motor control designs, with a number of applications notes with implementation examples, and a set of development tools.

This covers:

• Sensor-based or sensorless 2-phase BLDC Motors
  – Sensor-based or sensorless 3-phase BLDC Motors
• AC motors

Web resources: www.atmel.com/products/avr/mc/

Close-up of a black square stepper motor with a metallic shaft and mounting holes (no visible text or symbols)

AVR for Automotive

AVR 8-bit architecture has reached a high level of acceptance in many market segments for its performance, high code density and efficient development tool set. It is perfectly suited for many automotive applications. The range of devices made available to automotive already covers a variety of needs and will expand rapidly in the future. AVR devices incorporate all the basic peripherals as well as powerful analog functions.

Typical applications cover Brushless DC Motor Control, sensors and actuators control and in-vehicle networking with CAN (Controller Area Network) and LIN (Local Interconnect Network).

In addition to usual manufacturing and development plant qualifications (ISO-TS-16949 and QS-9000) automotive products are being qualified according to the AEC Q100 (Automotive Electronic Council) requirements, and a PPAP (Production Part Approval Process) document is made available for each product.

Web resources: www.atmel.com/automcu/

3D cutaway illustration of a green sedan showing internal components and wiring (no text or symbols)

Product	Status (d)	Flash (KB)	EEPROM (Bytes)	PAM (Bytes)	IO Chris	CAN Miss. Obj	TUN (fg)	UART	USART	USI	SPI	8-bit Timers	12-bit Timers	PWM (Channel)	10-bit A/D (Internet)	Analog Gain Stage	DebugWIRE/OCD	JTAG/OCD	2.7-5.5V @ 16 MHz	1.8-3.6V @ 8 MHz	Package		PC-free, Green (in)
ATtiny24	P	2	128	128	12				1	1+USI	1		1	4	8	Y	Y		SOIC14, QFN20		Y	Z
ATtiny25	P	2	128	128	6				1	1+USI	2			4(d)	4 Y	Y		Y SOIC8, QFN20		YZ
ATtiny261	I	2	128	128	16				1	1+USI	1		1	5	11	Y	Y		SOIC8, QFN20		Y	Z, T2
ATtiny44	P	4	256	256	12				1	1+USI	1		1	4	8	Y	Y		SOIC20, QFN32, TSSOP20		Y	D
ATtiny45	P	4	258	258	6				1	1+USI	2			4(d)	4 Y	Y		Y SOIC8, QFN20		YZ, T2
ATtiny461	I	4	256	256	16				1	1+USI	1		1	5	11	Y	Y		SOIC20, QFN32, TSSOP20		Y	Z, D
ATtiny84	P	8	512	512	12				1	1+USI	1		1	4	8	Y	Y		QFN20		Y	Z
ATtiny85	P	8	512	512	6				1	1+USI	2			4(d)	4 Y	Y		Y SOIC8, QFN20		YZ
ATtiny87	I	8	512	512	16		H		1	1+USI	1		1	4	11	Y	Y		SOIC20, QFN32, TSSOP20		Y	Z, D
ATtiny861	I	8	512	512	16				1	1+USI	1		1	5	11	Y	Y		SOIC20, QFN32, TSSOP20		Y	Z
ATtiny167	I	16	512	512	16		H		1	1+USI	1		1	4	11	Y	Y		SOIC20, QFN32, TSSOP20		Y	Z, D
ATtiny327	I	32	1024	2048	16		H		1	1+USI	1		1	4	11	Y	Y		SOIC20, QFN32, TSSOP20		Y	Z, D
ATmega48	P	4	256	512	23		S	1			1+USART	2		1	6	8		Y		TQFP32, QFN32		Y	T, T1, Z
ATmega88	P	8	512	1K	23		S	1			1+USART	2		1	6	8		Y		TQFP32, QFN32		Y	T, T1, Z, T2
ATmega164P	P	16	512	1K	32		S	2			1+USART	2		1	6	8		Y		TQFP44, QFN44		Y	Z
ATmega168	P	16	512	1K	23		S	1			1+USART	2		1	6	8		Y		TQFP32, QFN32		Y	T, T1, Z, D
ATmega169P	P	16	512	1K	54		S	1		1	1+USI	2		1	4	8			Y		TQFP64, QFN64		Y	T
ATmega16M1	I	16	1K	2K	27	6	H		1		1	1	1	6+4(d)	11	Y	Y		Y		TQFP32, QFN32		Y	Z, D
ATmega324P	P	32	1K	2K	32		S	2			1+USART	2		1	6	8		Y		TQFP44, QFN44		Y	Z
ATmega328P	I	32	1K	2K	23		S	1			1+USART	2		1	6	8		Y		TQFP32, QFN32		Y	Z
ATmega32M1	I	32	2K	2K	27	6	H		1		1	1	1	6+4(d)	11	Y	Y		Y		TQFP32, QFN32		Y	Z, D
ATmega32C1	I	32	2K	2K	27	6	H		1		1	1		1	4	11	Y		Y		TQFP32, QFN32		Y	Z, D
ATmega64M1	I	64	1K	4K	27	6	H		1		1	1	1	6+4(d)	11	Y	Y		Y		TQFP32, QFN32		Y	Z, D
ATmega64C1	I	64	1K	4K	27	6	H		1		1	1		1	4	11	Y		Y		TQFP32, QFN32		Y	Z, D
ATmega644P	P	64	2K	4K	32		S	2			1+USART	2		1	6	8		Y		TQFP44, QFN44		Y	Z
AT90CAN32	P	32	1K	2K	53	15	S	2		1	1	2		2	6+2	8		Y		TQFP64, QFN64		Y	T, T1, Z
AT90CAN64	P	64	2K	4K	53	15	S	2		1	1	2		2	6+2	8		Y		TQFP64, QFN64		Y	T, T1, Z
AT90CAN128	P	128	4K	4K	53	15	S	2		1	1	2		2	6+2	8		Y		TQFP64, QFN64		Y	T, T1, Z

a) Po-free packaging complies to the European directive for Restriction of Ha
zardous Substances (iCHS) directive. Also Halde tree and fully Green.
b: P: Product in Full Production, I: Device under Introduction
ci T: -10°C; +85°C = T1: -40°C; +105°C = Z: -40°C; +125°C
D or 12: -40°C: -150°C.
c) One high speed 8-bit timer/counter.
ei Two High Frequency, 250kHz, PWM Outputs.
f) Only 6 ADC in PD packages.
g; S: software. H: hardware.

AVR for Lighting

AT90PWM devices have been specially developed to handle ballasts for High Intensity Discharge (HID) and dimmable fluorescent lamps.

They feature enhanced 12-bit PWM to realize the Power Factor Correction and control the ballast. With an embedded EEPROM allowing to save configuration parameters and necessary analog functions, the microcontrollers help to reduce ballast component count and system cost. The Digital Addressable Lighting Interface (DALI) protocol is also supported, allowing highly flexible user control.

Two electronic devices: a light bulb and a projector, shown against a white background (no text or symbols visible)

Product	Status (al)		Flash (KB)		EEPROM (Bytes)		RAM (Bytes)		I/O pins		UART/USART		DALI	SPI	8-bit Timers		12-bit Timers		16-bit Timers		PWM (channel)		10-bit A/D (channel)		10-bit D/A		Debug/WIRE/OCD		Vcc Range (V)		Clock Speed (MHz)		Package	Pct-free, Green (bit)Temp. Range
AT90PWM1	P	8	512	512	19	1	1	1	2	1	7	8	Y 2.7 -	5.5	16	SO24	Y	-40°C to +105°C
AT90PWM2B	P	8	512	512	19	1	Y	1	1	2	1	7	8	Y 2.7 -	5.5	16	SO24	Y	-40°C to +105°C
AT90PWM3B	P		8		512		512		27		1		Y	1		1		3		1		10		11	Y	Y		2.7 - 5.5		16	SO32, QFN32	Y	-40°C to +105°C
AT90PWM81	I		8		512		256		16/20					1						1		4		11	Y	Y		2.7 - 5.5		18	SO20, QFN32	Y	-40°C to +105°C
AT90PWM216	P		16		512		1024		19		1		Y	1		1		2		1		7		8			Y		2.7 - 5.5		16	SO24	Y	-40°C to +105°C
AT90PWM316	P		16		512		1024		27		1		Y	1		1		3		1		10		11	Y	Y		2.7 - 5.5		16	QFN32, SO32	Y	-40°C to +105°C

a) Po-free packaging complies to the European Directive for Restriction of Hazardous Substances (RoHS directive). Also Halide free and fully Green. b) P: Future product. I: Device under Introduction. P: Product in Full Production.

AVR for Battery Management

The single-chip AVR battery management products cover the 1 to 4 Li-ion cells market. They feature dedicated analog-to-digital converters tailored for battery fuel gauging and voltage monitoring. Other MCU features include independent battery protection circuitry, voltage regulators, integrated cell balancing FETs, and special high voltage I/O controlling charge and discharge.

Black electronic device labeled LI-HON, showing ports and connectors (no readable text beyond branding)

Product	Status (a)		Li-ion cells	Flash (KB)	EEPROM (Bytes)	SPRAM (Bytes)	I/O pins	FET Drive (Channels)		Vps typ (V)	Battery Protection	12-bit A/D (Channel)	Voltage Measurement Accuracy (mV/kg)	Coulomb Counter	JTAGOOD	Vcc Range (V)	Clock Speed (MHz)	Package	Pb-free, Green tb)	Temp. Range
ATmega8HVA	F	1-2	8	256	512	6	N	4.5	Y	5	12.5	18-bit	Y	1.8 - 9.0	4	LGA36, TSOP28	Y	-10°C to +85°C
ATmega16HVA	I	1-2	16	256	512	6	N	4.5	Y	5	12.5	18-bit	Y	1.8 - 9.0	4	LGA36, TSOP28	Y	-10°C to +85°C
ATmega406	P	2-4	40	512	2048	18	P	1		10	12.5	18-bit	Y	4.0 - 25	1	LQFP48	Y	-40°C to +85°C
ATmega4HVD	I	1	4	256	512	5	N	4.5	Y	2 (10-bit)	50		Y	2.0 - 5.5	4	DFN18	Y	-40°C to +85°C
ATmega8HVD	I	1	8	256	512	5	N	4.5	Y	2 (10-bit)	50		Y	2.0 - 5.5	4	DFN18	Y	-40°C to +85°C
ATmega16HVB	I	2-4	16	512	1024	18	N	12	Y	10	12.5	18-bit	Y	4.0 - 25	6	TSSOP44	Y	-40°C to +85°C
ATmega32HVB	I	2-4	32	1024	2048	18	N	12	Y	10	12.5	18-bit	Y	4.0 - 25	8	TSSOP44	Y	-40°C to +85°C

a) P: Future product, b) Device under Introduction, P: Product in Full Production. b) Pb-free packaging complos to the European Directive for Restriction of Hazardous Substances (RoHS directive). Also Haldo free and fully Green.

MCU Wireless Solutions for IEEE 802.15.4 and ZigBee Applications

Atmel's wireless MCUs provide a complete single source for IEEE 802.15.4 and ZigBee wireless applications with its own RF trancever chips, AVR microcontrollers and specific kits & tools. The radio chips feature the best link budget in the industry today and are available for the 2.4 GHz and 700/800/900 MHz ISM bands.

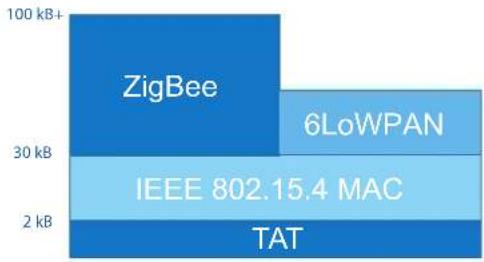

A rich selection of FREE software for complete system solutions supporting the Atmel chipsets is available:

• Low level drivers/ Transceiver Access Toolbox
• IEEE 802.15.4 MAC
• Wireless IPv6/ 6LoWPAN
• ZigBee and ZigBee PRO stack

Web resources: www.atmel.com/wireless

Product

Status (a)

MCU

RIF Device

Flash (KB)

EEPROM (Bytes)

RAM (Bytes)

ISM Rand

Bitrate

Sensitivity (dBm)

Output Power (dBm)

Vcc Range (V)

Clock Speed (MHz)

MCU Package

AT86RF230

P

AT86RF230

2,4 GHz

250 kbps

-101

-17 to +3

1.8-3.6V

QFN32

ATmega64RZA

P

ATmega644

AT86RF230

64

2K

4K

2,4 GHz

250 kbps

-101

-17 to +3

1.8-3.6V

10

TQFP44, QFN44, PDIP40

ATmega64RZ AP

P

ATmega644P

AT86RF230

64

2K

4K

2,4 GHz

250 kbps

-101

-17 to +3

1.8-3.6V

10

TQFP44, QFN44

ATmega128 4RZ AP

I

ATmega1284P

AT86RF230

128

4K

16K

2,4 GHz

250 kbps

-101

-17 to +3

1.8-3.6V

20

TQFP44, QFN44

ATmega128R Z A

P

ATmega1281

AT86RF230

128

4K

8K

2,4 GHz

250 kbps

-101

-17 to +3

1.8-3.6V

8

TQFP64, QFN64

ATmega128R ZB

P

ATmega1280

AT86RF230

128

4K

8K

2,4 GHz

250 kbps

-101

-17 to +3

1.8-3.6V

8

TQFP100, CBGA100

ATmega256RZA

P

ATmega2561

AT86RF230

256

4K

8K

2,4 GHz

250 kbps

-101

-17 to +3

1.8-3.6V

8

TQFP64, QFN64

ATmega256RZB

P

ATmega2560

AT86RF230

256

4K

8K

2,4 GHz

250 kbps

-101

-17 to +3

1.8-3.6V

8

TQFP100, CBGA100

a) I: Device under Introduction. P: Product in Full Production. All products available in Pb-free packaging alternative, compiling to the European Directive for Restriction of Hazardous Substances (RoHS directive); Also Halide free and fully Green.

Product

Status (e)

MCU

RF Device

Flash (KB)

EEPROM (Bytes)

HAM (Bytes)

ISM Band

Bitrate (bps)

Sensitivity (dBm)

Output Power (dbm)

Vcc Range (V)

Clock Speed (MHz)

MCU Package

AT86RF231

AT86RF231

2,4 GHz

2 Mbps

-101

-17 to +3

1.8-3.6V

QFN32

ATmega644PR231

|

ATmega644P

AT86RF231

64

2K

4K

2,4 GHz

2 Mbps

-101

-17 to +3

1.8-3.6V

10

TQFP44, QFN44

ATmega1280R231

|

ATmega1280

AT86RF231

128

4K

8K

2,4 GHz

2 Mbps

-101

-17 to +3

1.8-3.6V

8

TQFP100, CBGA100

ATmega1281R231

|

ATmega1281

AT86RF231

128

4K

8K

2,4 GHz

2 Mbps

-101

-17 to +3

1.8-3.6V

8

TCFP64, QFN64

ATmega1284PR231

|

ATmega1284P

AT86RF231

128

4K

16K

2,4 GHz

2 Mbps

-101

-17 to +3

1.8-3.6V

20

TQFP44, QFN44

ATmega2560R231

|

ATmega2560

AT86RF231

256

4K

8K

2,4 GHz

2 Mbps

-101

-17 to +3

1.8-3.6V

8

TQFP100, CBGA100

ATmega2561R231

|

ATmega2561

AT86RF231

256

4K

8K

2,4 GHz

2 Mbps

-101

-17 to +3

1.8-3.6V

8

TCFP64, QFN64

AT86RF212

AT86RF212

700/800/900 MHz

1 Mbps

-110

-10 to +10

1.8-3.6V

QFN32

ATmega644PR212

|

ATmega644P

AT86RF212

64

2K

4K

700/800/900 MHz

1 Mbps

-110

-10 to +10

1.8-3.6V

10

TQFP44, QFN44

ATmega1280R212

|

ATmega1280

AT86RF212

128

4K

8K

700/800/900 MHz

1 Mbps

-110

-10 to +10

1.8-3.6V

8

TQFP100, CBGA100

ATmega1281R212

|

ATmega1281

AT86RF212

128

4K

8K

700/800/900 MHz

1 Mbps

-110

-10 to +10

1.8-3.6V

8

TQFP64, QFN64

ATmega1284PR212

|

ATmega1284P

AT86RF212

128

4K

16K

700/800/900 MHz

1 Mbps

-110

-10 to +10

1.8-3.6V

20

TQFP44, QFN44

ATmega2560R212

|

ATmega2560

AT86RF212

256

4K

8K

700/800/900 MHz

1 Mbps

-110

-10 to +10

1.8-3.6V

8

TQFP100, CBGA100

ATmega2561R212

|

ATmega2561

AT86RF212

256

4K

8K

700/800/900 MHz

1 Mbps

-110

-10 to +10

1.8-3.6V

8

TQFP64, QFN64

a) I: Device under Introduction, P: Product in Full Production. AI products available in Pb-free packaging alternative, comping to the European Directive for Restriction of Hazardous Substances (RoHS directive). Also Halide free and fully Green;

AVR for Remote Access Control

Remote Access Control (also referred to as Remote Keyless Entry and Remote Wireless Entry) is remote control of applications like doors, alarms, blinds etc. The communication is usually done via radio and the transmission uses IDs and encryption to provide authentication and prevent unauthorized users from accessing the system.

Atmel provides a complete secure solution using AVR microcontrollers, Smart RF radios, application notes and development tools.

Web resources: www.atmel.com/products/avr/rac/

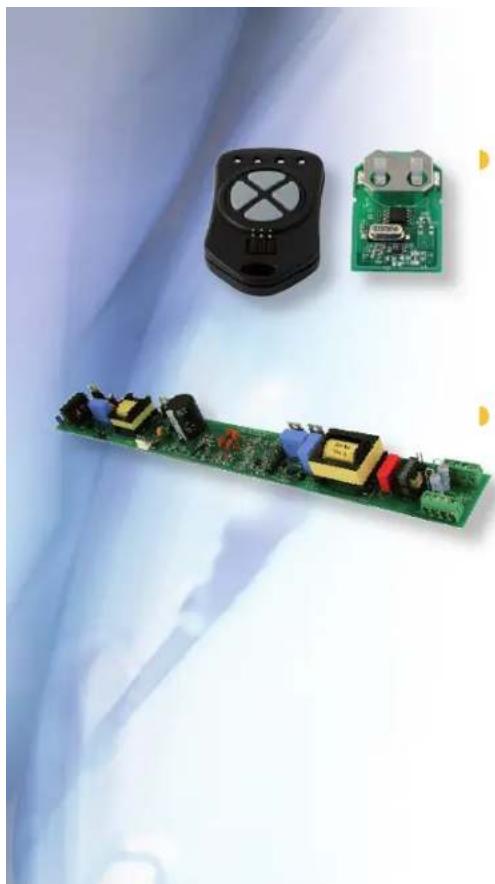

Two electronic components: a black remote control device with four switches and a green circuit board (no visible text or symbols)

Burst Bulator Amplifier Cells Power Differential

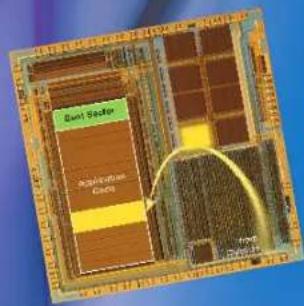

AVR MCUs Are Designed to Program Themselves at Your Command

By eliminating the expensive and time-consuming steps inherent in Mask ROM-based microcontrollers, AVR slashes months from your development and production schedule. You get to market first. Then, you get back to thinking up your next great idea.

AVR & AVR32

QUICK REFERENCE GUIDE

Flash

Programming

Flash Programming

Self-Programming Flash – Key Benefits

Reprogram without external components
Flash sector size optimized for programming speed
Separate protection of Boot block sector
Application allowed to run while Self-Programming

True 1.6 - 5.5V operation
Easy-to-Use
Reduced programming time
Hardware controlled programming

Flexible Programming Implementation

Self-Program using any physical link!

– Program through any interface (e.g. SPI, TWI)
– 100% secure encrypted remote updates

ion AVR®

Parallel

– One of the fastest ways to download
- Compatible with major programmers

In-System Programming

– Native 2-wire PDI or 3-wire SPI interface
– Quick updates in the field
- Easy-to-use

JTAG

• IEEE 1149.1 compliant interface
• Can program Flash, EEPROM, Fuses and Lock Bits
• On-Chip Debugging
  – Boundary-scan PCB test

The programming channels can be disabled to avoid any further download!

Close-up of a green printed circuit board with gold contacts and a black rubber clip (no visible text or symbols)

Complete Tool Chain

Atmel offers a high quality, easy-to-use toolchain for the whole range of AVR and AVR32 families. The completely free AVR Studio and AVR32 Studio front-end assembler and simulator integrate seamlessly with the starter kits, programmers, debuggers, evaluation kits, and reference designs. All created to deliver more functionality... for less.

AVR & AVR32

QUICK REFERENCE GUIDE

Development

Tools

Development Tools

Integrated Development Environment for AVR and AVR32

Screenshot of a software interface displaying a code editor with a ladybug graphic overlaying the main content area.

AVR Studio

• Front end for all AVR tools
• C and assembly source level debugging
• Includes Atmel macro assembler
• Supports third party compilers
• Free GCC-AVR C-compiler included
• Freely available from http://www.atmel.com

Screenshot of a software interface displaying a form with text fields, buttons, and a circular logo featuring the number 68.

AVR32 Studio

• Front end for all AVR32 tools
- Source code editor with syntax highlighting
- Debugging and Disassembler views
- Target Control
• AVR32 GNU toolchain including GCC
- Support for writing and debugging Linux applications
• Freely available from http://www.atmel.com

Compilers

Starter kits Programmers Debuggers Evaluation kits &

Reference designs

IAR Systems®

CodeVision

ImageCraft ^TM

GCC AVR

Rowley

STK500
- expansion cards
STK600
- expansion cards
STK1000
- expansion cards

Low Cost Development Tool

AVR DRAGON

For less than \$50, the AVR Dragon (ATAVRDRAGON) sets a new standard for low cost development tools.

AVR Dragon supports all programming modes for the AVR device family.

Programming Interfaces:

• In-System Programming
  – High Voltage Serial Programming
• Parallel Programming
• JTAG Programming.

It also includes complete emulation support for devices with 32 KB or less Flash memory.

Emulation Interfaces

• JTAG
• debugWIRE

The AVR Dragon is USB powered and is capable of sourcing an external target.

A prototype area allows simple programming and debugging.

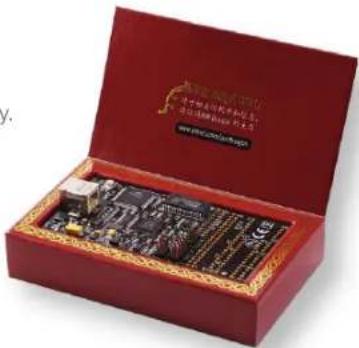

Red open box containing a circuit board with electronic components, no visible text or symbols on the main subject.

Starter Kits

Atmel offers a modular platform based on the STK500, providing designers an easy way to start with any AVR device and engage development activity.

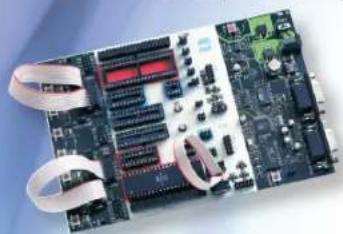

Top-down view of a computer motherboard with visible circuit boards, RAM slots, and connectors (no text or symbols)

STK500

STK500 handles most tinyAVR and megaAVR microcontrollers.

• In-system and parallel programming support
• Software programmable clock sources
• LEDs and switches
• Sockets for 8- to 40-pin AVRs
• Expansion connectors for custom boards or expansion modules
• Expansion modules available from Atmel for AVRs with more than 40 pins

STK501 (For 64-pin devices)

STK503 (For 100-pin devices)

STK505 (For 14-pin devices)

STK525 (For USB devices)

STK502 (For 64-pin devices with LCD display)

STK504 (For 100-pin devices with LCD display)

STK520 (For 24-pin and 32-pin AT90PWM devices with DALI interface)

STK524 (For 32-pin automotive devices with motor control LIN and CAN)

STK600

The STK600 is a complete starter kit and development system for the 8-bit AVR and 32-bit AVR32 Flash microcontrollers.

• AVR Studio 4 and AVR32 Studio compatible
• Flexible routing and socket card system for all supported devices
  – Parallel and Serial High-Voltage Programming of AVR devices
• JTAG and Serial In-System Programming (ISP) of AVR devices
• 8 general purpose LEDs and switches
• On-board 2 Mbit Data flash for non-volatile data storage
• USB, RS232, CAN, and LIN headers and connectors
• USB or external power

Close-up of various green circuit boards with visible internal components, no text or symbols present.

For a complete list of socket and routing cards, visit http://www.atmel.com/stk600

Abstract blue and white gradient background with soft gradients (no text or symbols)

STK1000

STK1000 provides a complete AT32AP7000 development environment. A pre-installed Linux ensures that the user can boot and start program development directly after power up.

• AVR32 Studio compatible
• Two Ethernet Ports
  – High Quality QVGA LCD
• Loadspeaker
• Connetors for USART, PS/2, VGA and USB
• SD Card Reader
• Expansion Header for Prototyping

Close-up of a green printed circuit board with electronic components and connectors (no visible text or symbols)

STK1005

STK1005 is a CPU carrier and expansion module for the STK1000, containing the AT32AP7200 device, extra RAM and NAND Flash.

STK1006

STK1006 is a CPU carrier and expansion module for the STK1000, containing the AT32AP7000 device, extra RAM and NAND Flash.

Evaluation Kits and Reference designs

For more dedicated development needs, Atmel also offers specific tools.

AVR Butterfly AVR 169Pv AVR

LCD Control

AVR Butterfly (ATAVRBFLY) is an evaluation tool demonstrating the capabilities of the ATmega169.

The tool is shipped with preloaded firmware supporting temperature sensing, light measurement, voltage readings, music playback and nametag display.

It can also be re-programmed and used as a hardware platform for code development.

Close-up of a green printed circuit board (PCB) with visible traces and components, no readable text or symbols.

USB Connectivity

The AT90USBKey is a low-cost demonstration board based on the AT90USB1287 microcontroller. It allows the quick evaluation of AVR microcontrollers and the AT90USB family.

Five green printed circuit boards with various electronic components, displayed against a blue gradient background (no visible text or labels)

Motor Control

• The ATAVRMC100 kit includes an evaluation board, a 3-phase BLDC motor and a demonstration software. It allows users to quickly evaluate the capability of the AT90PWM3 to control high speed brushless DC motor applications.
• The ATAVRMC200 is an evaluation kit dedicated to asynchronous AC motor control, using various sensors for regulation. The kit includes an evaluation board and a demonstration firmware. Supporting 110-230V motors, the kit also allows evaluation of BLDC motors using the AT90PWM3 AVR microcontroller.
• The ATAVRMC320, ATAVRMC321 and ATAVRMC323 are complete hardware systems for demonstrating motor control. These kits include the ATAVRMC300 power stage board, BLDC motor, and a processor board, ATAVRMC310 (with ATmega32M1, CAN and LIN interfaces), ATAVRMC301 (with low cost ATtinyx61) and ATAVRMC303 (with the high performance XMEGA) respectively.

CAN Networking

The ATDVK90CAN1 development kit is dedicated to the AT90CAN AVR microcontrollers. This stand alone board has numerous serial interfaces (dual RS232, CAN, LIN, SPI & TWI) and resources (keyboard, LEDs, voltage reading, light and temperature sensors and speaker) and comes with demonstration software.

USB device with circuit board and connector, connected to a light blue background with wireless signal waves (no text or symbols visible)

RAVEN: AVR Wireless 2.4 GHz solution

The RZ Raven kit enables development, debugging and demonstration of IEEE 802.15.4, 6LoWPAN, and ZigBee wireless networks. Raven is using Atmel's AT86RF230 2.4 GHz high performance RF tranceiver and AVR picoPower and USB microcontrollers. The ATAVRRZRAVEN kit comes with two Ravens and one RZ USB Stick.

Atmel MCU Wireless Solution offers flexibility through the AVR family of 8-bit RISC microcontrollers, AVR32 32-bit microcontrollers, and the Smart ARM (SAM) devices. AVR MCUs have flash memory densities ranging from 1 KB to 512 KB, and a suite of free and certified software is available for you, ranging from low level drivers (Transceiver Access Toolbox) to IEEE 802.15.4 MAC, 6LoWPAN, and ZigBee PRO stacks. Choosing Atmel and partners gives you a head start with ready to use wireless solutions and the shortest time to market!

RAVEN AVR 0000 AVR® Raven IMEL®

Green printed circuit board with various electronic components (no visible text or symbols)

Battery Management Development Platform

Atmel's battery management reference designs show how to get the most out of the AVR battery management devices. The firmware provides all needed safety measures for a Lithium-ion battery design. This includes over- and undervoltage protection and protection against excessive charge and discharge currents. The reference designs also features:

■ High accuracy voltage and current measurements

■ AES based authentication

Gas gauging

■ SHA2 based authentication

■ Temperature checks

■ Command set based on SMBus™ specification

Reference design Device #cells
ATAVRSB201 ATmega8HVA - ATmega16HVA 1-2
ATAVRSB202 ATmega16HVB - ATmega32HVB 2-4
ATAVRSB204 ATmega4HVD - ATmega8HVD 1

ATAVRSB206

ATmega406

2-4

Technical diagram of a device layout with labeled components and control panel

The ATAVRSB200 evaluation kit includes Lithium-ion batteries, a

programmable charger and load, and a USB communication gateway. The SB200 connects to AVR Studio® by starting the AVR battery management services plug-in. Through this interface all battery parameters can be observed and modified, and the ATAVRSB200 functions are also controlled through this interface.

Electronic components including a black plastic device, green circuit board, and electronic modules (no visible text or symbols)

Remote Access Control

The ATAKSTK512 is an Remote Access Control kit for unidirectional communication.

The kit contains a functional standalone UHF radio system consisting of a transmitter (ATtiny45 + T575x) and receiver (ATA5743), and Interface Board.

The STK512 starter kit is available in 2 different versions covering 315 MHz or 434 MHz.

Lighting

The ATAVRFBKIT is a Dimmable Fluorescent Ballast kit which demonstrate the ability of the AT90PWM2 to control all the main functions of a DALI Fluorescent Ballast. C code is provided to speed-up development time.

Four electronic circuit boards with visible components, one labeled 'AVR32', against a blue gradient background (no readable text or symbols on the boards themselves)

EVK1100

The EVK1100 is an evaluation kit and development system for the AVR32 AT32UC3A microcontrollers. It is equipped with a rich set of peripherals, memory, and makes it easy to try the full potential of the AVR32 devices.

EVK1101

The EVK1101 is an evaluation kit and development system for the AVR32 AT32UC3B microcontroller. It is equipped with a rich set of peripherals, memory, and makes it easy to try the full potential of the AVR32 devices.

EVK1104

The EVK1104 is an evaluation kit for the AVR32 AT32UC3A3 which combines Atmel's state of art AVR32 microcontroller with an unrivalled selection of communication interface like USB device including On The-Go functionality, SDcard, NAND flash with ECC and stereo 16-bit DAC.

EVK1105

The EVK1105 is an evaluation kit for the AVR32 AT32UC3A0512 which demonstrates Atmel's state-of-the-art AVR32 microcontroller in Hi-Fi audio decoding and streaming applications. The kit contains reference hardware and software for generic MP3 player docking stations.

Abstract blue and white gradient background with soft gradients (no text or symbols)

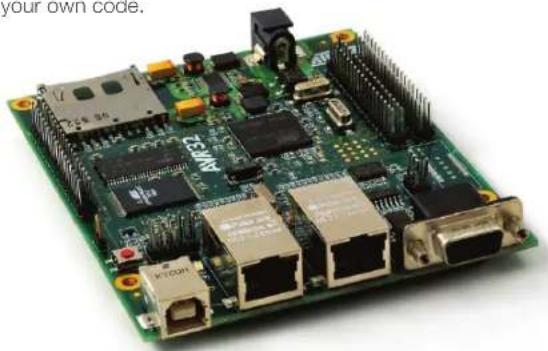

NGW100 Network Gateway

The NGW100 uses the AT32AP7000 which combines Atmel's state of the art AVR32 AP7000 Application Processor with an unrivalled selection of communication interfaces. The NGW100 is also an ideal development board for the AT32AP7000. All resources are available, and it supports communication on any of the device's communication interfaces. The board is preloaded with Linux and shipped with I/O interface drivers that can be called from your own code.

Close-up of a green printed circuit board with various electronic components and connectors (no readable text or symbols)

In-System Programmers

AVRISP mkII

– Supports In-System Programming on all 8-bit AVRs
- Interfaces with AVR Studio
- Improved level converters
– Supports all AVR target voltages
- Target interface protection
- Fast programming
- USB 1.1 interface to PC
- Powers directly from USB, does not draw current from target

Transparent plastic electronic device with red wires and a small black connector (no visible text or symbols)

JTAGICE mkII

• This powerful AVR debug tool can also be used for In-System Programming.
  – Supports programming via JTAG and ISP.

Debugging Solutions

Close-up of a blue electronic device with a white cable and green connector (no visible text or symbols)

JTAGICE mkII

– Real-Time emulation in actual silicon

• Debug the real device at the target level
• Communicates directly to the device through

4-pin JTAG interface

One-wire debugWIRE interface

- Supports

Program breakpoints

Data breakpoints

Full I/O view and watches

Full execution control

AVR ONE!

The AVR ONE! is a powerful development tool for on-chip debugging and programming of AVR devices.

Supported debug interfaces are JTAG (IEEE 1149.1), debugWire, PDI and the Nexus (IEEE-ISTO 5001(TM)-2003) auxiliary interface

for high-speed trace.

Supported programming interfaces are ISP, JTAG and PDI.

White rectangular device with a blue internal component, possibly a printer or scanner, connected to a blue connector (no visible text or symbols)

Abstract gradient background with soft blue and white tones, no text or symbols present

Support & Contact

Atmel provides extensive support to 8-bit AVR and 32-bit AVR32 MCUs/DSPs through its sales offices and network of representatives and distributors.

Atmel's dedicated technical staff as well as certified AVR consultants are available to help and support customer projects.

Atmel.com web site and other web resources from AVR community provide a huge amount of product literature, application notes, tools information and other technical advises. FAQs and community forums also offer a dynamic knowledge resource for AVR and AVR32.

AVR & AVR32

QUICK REFERENCE GUIDE

Contact

Contact

http://www.atmel.com/avr http://www.atmel.com/avr32

Selection Guides, Data Sheets and Errata Sheets

Application Notes and Reference Library

Atmel and Third Party Tools

Software, User Guides

Consultants, Distributors and Atmel Representatives

http://support.atmel.no

Official Atmel MCU technical support center with FAQ and email notification service

http://www.avrtv.com

Official AVR podcasts

http://www.avrfreaks.net

AVR Experts Discussion Forum

Selection Guides for Tools and Products,

Third Party Tools Information, FAQs

Abstract blue and white gradient background with soft gradients (no text or symbols)

Headquarters

Atmel Corporation

2325 Orchard Parkway

San Jose, CA 95131

USA

Tel.: [phone] - 0311

Fax: [phone] - 2600

International

Atmel Asia

Unit 1-5 & 16, 19/F

BEA Tower, Millennium City 5

418 Kwun Tong Road

Kwun Tong, Kowloon

Hong Kong

Tel.: [phone] - 6100

Fax: [phone] - 1369

Atmel Europe

Le Krebs

© 2009 Atmel Corporation. All rights reserved. Atmel ^6 , logo and combinations thereof, «Everywhere You Are ^3 , AVR ^6 , AVR Studio ^9 , megaAVR ^5 , tinyAVR ^8 , STK ^8 , and others are registered trademarks, picoPower ^™ , XMEGA ^™ and others are trademarks of Atmel Corporation or its subsidiaries. Other terms and product names may be the trademarks of others.

Rev. 4064I-AVR-02/09/5M

Disclaimer: The information in this document is provided in connection with Atmel products. No license, express or implied, by estoppel or otherwise, to any Intellectual property right is granted by this document or in connection with the sale of Atmel products. EXCEPT AS SET FORTH IN ATMEL'S TERMS AND CONDITIONS OF SALES LOCATED ON ATMEL'S WEB SITE, ATMEL ASSUMES NO LIABILITY WHATSOEVER AND DISCLAIMS ANY EXPRESS, IMPLIED OR STATUTORY WARRANTY RELATING TO ITS PRODUCTS INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY. FITNESS FOR A PARTICULAR PURPOSE, OR NON-INFRINGEMENT. IN NO EVENT SHALL ATMEL BE LIABLE FOR ANY DIRECT, INDIRECT, CONSEQUENTIAL, PUNITIVE, SPECIAL OR INCIDENTAL DAMAGES (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS AND PROFITS, BUSINESS INTERRUPTION, OR LOSS OF INFORMATION) ARISING OUT OF THE USE OR INABILITY TO USE THIS DOCUMENT, EVEN IF ATMEL HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Atmel makes no representations or warranties with respect to the accuracy or completeness of the contents of this document and reserves the right to make changes to specifications and products descriptions at any time without notice. Atmel does not make any commitment to update the information contained herein. Unless specifically provided otherwise, Atmel products are not suitable for, and shall not be used in, automotive applications. Atmel's products are not intended, authorized, or warranted for use as components in applications intended to support or sustain life.

Everywhere You Are®
