USER MANUAL ITBSW222 iLive

Black audio streaming device with a rectangular speaker and a rectangular block (no text or symbols visible)

32" Sound bar with Wireless Subwoofer

User's Guide for Model ITBSW222 v2849-01

For the most up-to-date version of this User's Guide, go to: www.iLiveElectronics.com

Safety Instructions & Warnings

WARNING: To reduce the risk of electric shock, do not remove cover (or back). No user-serviceable parts inside. Refer servicing to qualified service personnel.

the excitation point within an equilateral triangle is intended to alarm the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons

This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts.

WARNING: DO NOT INGEST BATTERY, CHEMICAL BURN HAZARD.

WARNING: This product can expose you to chemicals including lead, which is known to the State of California at cause cancer and birth defects or other reproductive harm. For more information go in www.P65Warnings, as guy. This product meets and complies with required Federal product guidelines.

Important Safety Instructions

• Read these Instructions.
• Keep these Instructions.
• Head all Warnings.
• Follow all instructions.
  • Do not use this apparatus near water.
• Clean only with a dry cloth
• Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
• Do not defeat the safety purpose of the polarized or grounding - type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prang. The wide blade or the third prang are provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
• Only use attachments/accessories specified by the manufacturer
  (1) manufacturer.
• Outpling this apparatus during lightning storms of when, unused for long periods of time.
• Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been applied or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
• Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used use caution when moving the cart/apparatus combination to avoid injury from up-over.

FCC Warnings

Warning: Changes or modifications to this unit nor expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. It is expected to be made by radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

FCC Radiation Exposure Statement

This equipment complied with FCC radiation exposure

in this set forth on an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

Additional Warnings and Precautions

- CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLEGE TO WIDE SLOT, FULLY INSERT.

• Mains plug is used as disconnect device and it should remain readily operable during intended use. In order to disconnect the apparatus from the mains completely, the mains plug should be disconnected from the mains socket outlet completely.
• WARNING: Shock hazard - Do Not Open.
• Caution and marking information is located at the rear or bottom of the apparatus.
• WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain, moisture, dripping, or splashing.
• Objects filled with liquids, such as vases, shall not be placed on the apparatus.
• CAUTION: Use of controls or adjustments or performance of procedures other than those specified may result in hazardous radiation exposure.
• WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the requirement.
• WARNING: Do not place this unit directly onto furniture surfaces with any type of snft, purnus, or sensitive finish. As with any rubber compound made with oils, the feet could cause marks or staining where the feet reside. We recommend using a protective barrier such as a cloth or a piece of glass between the unit and the surface to reduce the risk of damage and/or staining.
• WARNING: Use of this unit, near fluorescent lighting may cause interference regarding use of the remote. If the unit is displaying erratic behavior more away from any fluorescent lighting, as it may be the cause.

• CAUTION: Danger of explosion if battery is incorrectly replaced. Prevent only with the same or equivalent type
Replaced. Rereplace fifty with the same or equivalent type.
sunshine, fire or the like.
- Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children.
- If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
- Do not mix aid and new batteries.
• Completely replace all old batteries with new ones.
- Do not mix alkaline, standard (carbon-zinc), or rechargeable (ni-cad, ni-mh, etc) batteries.
- Batteries should be recycled or disposed of as per state and local guidelines.

Setup

Features & Specifications - 5

Power-5

Remote Battery - 5

Includes -5

Orientation

Rear View - 6

Front View - 6

Source Mode Indicator LED - 6

Speaker Controls - 6

Connecting the Wireless Subwoofer - 7

Remote

Functions & Controls - 8

Connecting Devices

Initial Bluetooth Connection and Playing Audio -9

Troubleshooting 9

Line In - 9

Stereo RCA Inputs (Aux In) - 10

Optical Input - 11

Company Information

Contact Information 12

International Support - 12

Warranty 12

SetupTable of Contents

Features & Specifications

• Supports Bluetooth 5.0, range: 60 ft.

• 2.1 channel stereo sound

• Digital volume control

• Full-function remote

• Aux In (3.5mm audio input)

Includes

• Remote control with CN2025 battery

- AC/DC power adapter x 2

• Optical cable

- Wall mount kit

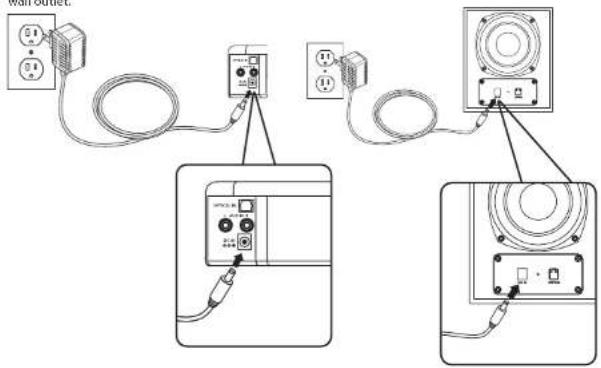

Power

Plug the power adapter for the soundbar into the DC Input on the back of the soundbar and a standard wall outlet.

Wall outlet.

Remote Battery

Requires 1 CR2025 battery (pre-installed).

CR2025 OPEN PUSH CR2025 OPEN PUSH

Orientation

Rear View

Speaker Inputs: Aux In | Optical In | DC Power Input

Front View

Function/Source Indicators: Power | Bluetooth | Aux In | Line In | Optical | RCA | Remote Receiver

Source Mode Indicator LED

STATUS INDICATOR LIGHT
Power Off Red Light
Bluetooth Standby/Pairing Slow Flashing	Blue Light
Bluetooth Connected Solid Blue Light
Optical Mode Orange Light
Line In Mode Green Light
Aux In Mode White Light

Speaker Controls

Power/Source

Press to power the unit ON

Press and hold to power the unit OFF.

Press to switch audio sources.

Volume

Press to adjust volume.

Pair

Press to manually begin Bluetooth pairing (BLUETOOTH

MODE). Press twice quickly to connect/disconnect to

subwoofer.

Line In

3.5mm audio input.

SOURCE VOL+ VOL- PAR LINE IN

Connecting the Wireless Subwoofer

1. Power ON the subwoofer while the sound bar is ON. The subwoofer will now automatically begin connecting to the sound bar.
2. Press the Pair button on the sound bar twice quickly to connect/disconnect sound bar to subwoofer.
3. When the subwoofer has connected to the sound bar the Connect LED indicator will turn solid red. When audio is played through any source, the speaker will automatically use the connected subwoofer.
4. If the connection has failed or is lost, the indicator will begin flashing. Power OFF the subwoofer and power it ON again to try reconnecting.

DC IN OPTION Connect LED Indicator Power

Connect LED Indicator

Flashing red when powered ON.

Solid red when connected with sound bar.

Flashing red when sub falls to connect to

sound bar.

Power

Press to power ON.

Press and hold to power OFF.

Remote

Functions & Controls

Power Press to turn the unit on or off. Press to switch to Bluetooth Mode. Line In Press to switch to Line in mode. Optical Press to switch to Optical Aux Press to switch to Aux in mode. Skip In Bluetooth mode, press to skip forward or back one track. Play/Pause In Bluetooth Mode, press to play or pause audio tracks. Press and hold to pair to a Bluetooth device. SOURCE MUTE LINE IN OPTICAL AUX MUSIC MOVIE DIALOG + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - / + - / + - / + - / + - / + - / + - / + - / + - / + - / + - / + - / + - / + - / + - / + - / + - / + - / + - / + - / + - / + - / + - / + - / + - / + - / + - / + - / + - / + - / + - / + - / + - / + - / + Mute Press to mute the volume. The indicator on the sound bar will flash. Press and hold to reset treble and bass to default level. Music Press to switch to the EQ optimized for music. Press and hold Music for 5 seconds to turn voice prompts ON/OFF. Movie Press to switch to the EQ optimized for movies. Dialog Press to switch to the EQ optimized for dialogue. Treble Press to adjust the treble up or down. Bass Press to adjust the bass up or down. Volume +1/- Press to adjust the volume.

Connecting Devices

Initial Bluetooth Connection and Playing Audio

1. When first powered ON the unit defaults to Bluetooth mode. A voice will say, "Bluetooth," and the LED indicator will quickly flash blue. When pairing, remain within 3 feet of the Bluetooth device.
2. Using the controls on your Bluetooth device, select ITBSW222 in the Bluetooth Settings Menu to pair. If need be, refer to the user's manual for your specific device for more information.
3. When successfully paired, a voice will announce, "Bluetooth is connected," and the LED indicator will turn solid blue. Audio from the connected Bluetooth device will now be heard through the speaker.
4. Use the controls on the connected Bluetooth device to select and play audio. Use the speaker controls or the connected Bluetooth device to play, pause, and adjust the volume level.
5. After initial pairing, anytime the speaker powers ON It will automatically connect to the last Bluetooth device used. Note: If your device should become unpaired or you find it is unable to connect, press and hold the Play button (on remote), or Pair button (sound bar) to enter to Pairing Mode. A voice will announce, "Bluetooth is connecting," and you can connect to the speaker manually.

Note: This sound bar has a last-function-used memory; it will resume using the last mode before it was turned OFF after it is turned ON again.

Troubleshooting

If the sound bar should become unpaired or will not connect normally, follow these steps in your device's Bluetooth Settings Menu.

• Delete the sound bar ("Forget This Device").
• Turn Bluetooth OFF, then ON again, and repeat the Initial Bluetooth Connection steps.

Line In

Requires a 3.5mm audio cable (not included).

1. Connect the 3.5mm to RCA cable to the 3.5mm Line in on the sound bar and the other end into your TV or other device.
2. Power ON the sound bar and press Source on the sound bar or Line In on the remote to select Line In Mode. A voice will announce the source mode and the indicator will turn green.
3. Use the controls on the connected device to select and play audio. Be sure the volume on your connected device is audible when you begin playing.

oV1 cm6 + V2 - + 0.5V 3.5V + 0.5V 3.5V

Stereo RCA Inputs (Aux In)

Requires RCA stereo audio cable (not included). When connecting RCA stereo audio plugs (Red/White), match them to their corresponding color coded ports.

1. Connect an RCA stereo audio cable to the Aux In ports on the sound bar and the RCA audio outputs on a television or other audio source.
2. Power ON the sound bar and press Source on the sound bar or Aux In on the remote to select Aux In Mode. A voice will announce the source mode and the indicator will turn white for Aux In.
3. Audio played through the television or other source should now be heard through the speakers.

OPTICAL 1-5000 8000

Optical Input

Requires an audio source with an Optical Audio Output and a Digital Optical Audio Cable (included).

1. Using a Digital Optical Audio Cable, connect the Optical Input on the sound bar to the Optical Output on your audio source (TV, amplifier, etc.).
2. Power ON the sound bar and press Optical on the remote or Source on the sound bar to select Optical Mode. A voice will announce the source mode and the Indicator will turn orange.
3. On the connected audio source (TV, amplifier, etc.), be sure the audio settings are set to PCM or Optical Audio.
4. Audio played through the connected audio source (TV, amplifier, etc.) should now be heard through the speaker.

Important tips for optical audio:

• Use the correct optical audio cable and make sure that it is firmly seated in both source and sound bar sockets.
• Optical audio output is activated from the audio source (a red light should be visible from the optical socket). It may be labeled SPDIF in the settings menu of the source.
  • The optical output source should be set to output PCM and not Dolby Digital.

OPTICAL IN L AUX DC IN Please remove the protective plastic cap over the end of the optical cable before attempting to connect it.

Contact Information

Website: www.iLiveElectronics.com

Email Support: [e-mail]

Email Parts: [e-mail]

Phone Support: 1-888-999-4215

Warranty

For Warranty Information and the most up-to-date version of this User's Guide, go to:

www.iLiveElectronics.com

International Support

To download this User's Guide in English, Spanish, and French, or to get answers to frequently asked questions, visit the support section at: www.iLiveElectronics.com
