The Crestron ^® 1-Feed, 4-Dimmer Electronic Low Voltage Terminal Block and Module (CLTI-1DELV4 and CLXI-1DELV4, respectively), are considered a single entity and must be used together. They ship separately to permit termination of the field wiring to the CLTI-1DELV4 prior to installation of the CLXI-1DELV4, as described in this guide. They can be mounted in any Crestron Automation Enclosure (CAEN or CAENIB-Series Enclosures). The terminal block is designed to terminate the circuit feed (LINE and NEUTRAL) and distribute the controlled circuit (LOAD) to the fixture(s). The module connects to the terminal block and performs dimming control of four electronic low-voltage or incandescent loads. The maximum load is 10 amps for any controlled circuit, limited to 13 amps total per module. The unit requires 230VAC 50 Hz, 1 phase input voltage. An oversize heat sink dissipates heat efficiently. There are LEDs on the module to indicate communication to a Cresnet ^® network, input power to the module, and output power to the load.

NOTE: When connecting to an Arc Fault Breaker, the load should not exceed 1000 watts.

Installation

Terminal block and module must be mounted into a Crestron Automation Enclosure by a licensed electrician, in accordance with all national and local codes.

CAUTION: This equipment is for indoor use only and needs to be air-cooled. Mount in a well-ventilated area. The ambient temperature must be 0°C to 40°C (32°F to 104°F). The relative humidity must be 0% to 90% (non-condensing).

Terminal blocks are installed along the left side of single-wide enclosures and along the outside edges (left and right sides) of double-wide enclosures. Modules are installed along the right side of single-wide enclosures and side-by-side in the center of double-wide enclosures. When installing modules and terminal blocks in a double-wide enclosure, be sure to invert units on the right side so that they can be properly wired. Refer to the illustrations shown in the next column when considering the location of terminal blocks and modules within an enclosure.

NOTE: Modules and terminal blocks must be installed into the lowest available spaces and continue toward the top of the enclosure.

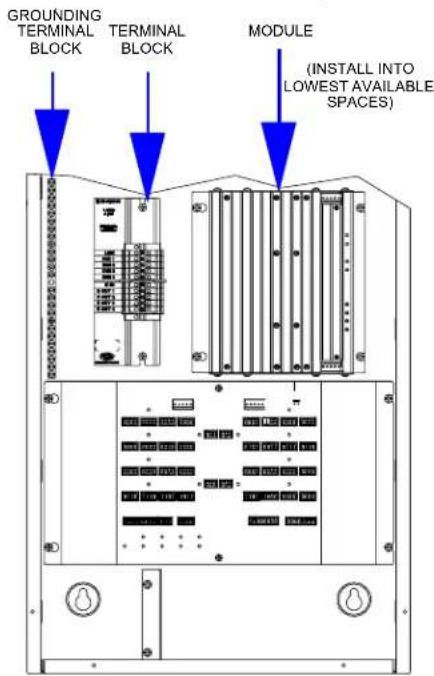

Terminal Block & Module Locations (Single-wide Enclosure)

GROUNDING TERMINAL BLOCK TERMINAL BLOCK MODULE (INSTALL INTO LOWEST AVAILABLE SPACES)

Terminal Block & Module Locations (Double-wide Enclosure)

TERMINAL BLOCK (LEFT) MODULE (INSTALL INTO LOWEST AVAILABLE SPACES) TERMINAL BLOCK (RIGHT)

Terminal Block Installation and Field Wiring

NOTE: To install a CLTIBN Circuit Breaker Terminal Block, refer to the latest version of the CLTIBN Installation Guide (Doc. 6561) which can be downloaded from the Crestron website (www.crestron.com/manuals).

NOTE: Both left-side and right-side adhesive wiring labels are provided. The left-side labels are used in both single and double-wide enclosures. The right-side labels are only used in double-wide enclosures.

1. Remove the backing from the left or right adhesive wiring label.
2. Apply the adhesive label by aligning the holes in the label with the appropriate holes on the Crestron Automation Enclosure where the terminal block is to be mounted. For information on mounting locations, refer to the latest version of the CAEN Installation Guide (Doc. 5940) or the CAENIB Installation Guide (Doc. 6562). The wiring label lies beneath the terminal block as shown in the two wiring diagrams on this page.
3. Use the two supplied self-tapping pan Phillips screws (8B x ¼ (6 mm) length) to secure the terminal block to the Crestron Automation Enclosure.

CAUTION: Bypass jumpers are provided to allow testing and to protect the module during installation. When properly secured by five screws, the bypass jumper on the brown and red section of the terminal block shorts the LINE in to DIM out so that the circuit is energized. Do not remove this bypass jumper until all feed and load wiring has been completed, the circuit has been tested for electrical faults, and the module has been installed. Refer to "Module Installation" on next page.

Furthermore, the jumper on the blue section of the terminal block ties the neutral in to the neutral outs. This jumper should never be removed.

NOTE: Use copper conductors only – rated 75°C.

1. With the circuit breakers turned off, connect the circuit feed (LINE and NEUTRAL) and controlled circuit (LOAD) wires to the terminal block per the markings provided on the wiring label (as shown in the diagrams on this page). Terminal blocks accept one 0.2 - 4 mm ^2 wire. Wires should be stripped to 12 mm. Tighten terminal blocks to 1 Nm.

2. Grounding terminal blocks are available in the cabinet for termination of ground wires. Tighten 2.5-6 mm ^2 wires to 4 Nm, 10 mm ^2 wires to 4.5 Nm, or 16 mm ^2 wires to 5.1 Nm.

3. Test the circuit for electrical faults by turning on the circuit breakers, checking that the breakers do not trip, and that power is delivered to the proper loads.

NOTE: If installing in a CAENIB, complete the installation with a CAENIB-BP Blank Plate. Refer to the latest version of the CAENIB-BP Installation Guide (Doc. 6563) for details.

Wiring Diagram of the Terminal Block to the Feed and Load(s) (Single-wide and Left Side Double-wide Enclosures)

OLX-10EUV4 1 FEED 4 DIM BYPASS JUMPER LINE (TROM 18 AMP OR SMALLER CIRCUIT BREAKER) NEUTRAL GND TO LOAD(S) GROUNDING TERMINAL BLOCK AREA FOR MODULE LOCATION LABEL LEFT SIDE WIRING LABEL TERMINAL BLOCK

Wiring Diagram of the Terminal Block to the Feed and Load(s) (Right Side Double-wide Enclosures)

CUJ-1DELV4 1 FEDD 4 DM BYPASS JUMPER GND' NEUTRAL' DIM 4 DIM 3 DIM 2 DIM 1 LINE TO LOAD(S) GROUNDING TERMINAL BLOCK ARLATOR MODULAR LOCATION LABEL TERMINAL BLOCK RIGHT SIDE WIRING LABEL

Module Installation

CAUTION: Module contains electrostatic sensitive devices (ESDs); unit must be handled from metal chassis – do not touch PC board or components.

NOTE: Modules are to be installed after enclosure has been completely wired. Refer to the terminal block installation procedure on page 2 for details.

1. Use the four supplied self-tapping pan Phillips screws (8B x ¼-inch (6 mm) length) to secure the module to the enclosure.
2. As shown in the wiring diagrams (next column), connect the wires from the module to the terminal block. Each wire exits the module directly in line with, and is the same color as, the terminal to which it should be connected. Wires are pre-stripped to 12 mm. Tighten to 1 Nm.
3. If the module is being installed above another module within the enclosure, attach the supplied module interconnect cable between the two modules. The illustration below depicts the area within a double-wide enclosure where the corners of four modules meet.

NOTE: One wire on the module interconnect cable may be a different color from the rest. The color has no bearing on its orientation during installation.

Use Module Interconnect Cable to Wire Module to Module

MODULE INTERCONNECT CABLE ATTACHED CONNECTION NOT MADE

1. Turn on the circuit breaker and verify that the green PWR LED on the module lights, the breaker does not trip, and power is delivered to the loads.
2. Turn off the circuit breaker and remove the five-position bypass jumper from the brown and red section of the terminal block. The jumper on the blue section of the terminal block remains installed. Refer to the figures in the next column for a close-up of the jumpers.

NOTE: Before the five-position bypass jumper, shown in the illustration, is removed, the Crestron

Professional Automation Computer (PAC2), which provides control to the system, should be properly connected and contain a valid program to provide control of the module.

Wiring Diagram of the Terminal Block to the Module (Single-wide and Left Side Double-wide Enclosures)

BROWN RED BLUE ENLARGEMENT DETAIL: BYPASS JUMPER ON BROWN AND RED SECTION OF TERMINAL BLOCK HAS BEEN REMOVED AFTER LOOSENING ALL SCREWS. JUMPER ON BLUE SECTION REMAINS INSTALLED. BYPASS JUMPER REMOVED JUMPER INSTALLED

Wiring Diagram of the Terminal Block to the Module (Right Side Double-wide Enclosures)

ENLARGEMENT DETAIL: JUMPER ON BROWN AND RED SECTION OF TERMINAL BLOCK HAS BEEN REMOVED AFTER LOOSENING ALL SCREWS. JUMPER ON BLUE SECTION REMAINS INSTALLED. JUMPER INSTALLED BYPASS JUMPER REMOVED

1. Turn on the circuit breaker.

Testing

If the program is not running yet, loads can be tested by using Local Mode. Use Local Mode to verify that each load is connected to the proper output on the modules.

1. Press the SETUP button momentarily (less than three seconds) to enter Local Mode. The SETUP LED and output LED 1 illuminate and power is applied to the loads connected to the DIM1 output.
2. Press the SETUP button again to turn off output 1 and turn on output 2.
3. Press the SETUP button again for each output.
4. After turning on the last output, press the SETUP button again to turn on all outputs.
5. Press the SETUP button once more to turn off all outputs and LEDs and exit Local Mode.
