Product Type	Inductor Module Kit
Brand	Crestron
Model	CLX-4IND
Number of Inductors	4
Maximum Load per Inductor	16 A
Application	Reduce hum from incandescent lamps in dimmer circuits
Mounting	Crestron Automation Enclosure (CAEN Series)
Installation	By licensed electrician, indoor use only
Ambient Temperature Range	32°F to 104°F (0°C to 40°C)
Relative Humidity	10% to 90% (non-condensing)
Wire Type	Copper conductors only, rated 75°C
Wire Gauge	14-10 AWG
Wire Strip Length	1/2 inch (12.7 mm)
Terminal Torque	9 in-lbs (1.02 Nm)
Terminal Block	Included separately from module
Module Installation Screws	Four self-tapping screws (8B x 1/4 inch)
Wiring Configuration	Series between dimmer output and load
Inductor Polarity	No polarity
Bypass Jumpers	Remove after module installation
Warranty	3 years limited
Manufacturer	Crestron Electronics, Inc.

Frequently Asked Questions - CLX-4IND Crestron

What is the purpose of the CLX-4IND inductor module?

The CLX-4IND is a 4-inductor module kit used to reduce hum from incandescent lamps connected to dimmer modules in a Crestron lighting system.

How do I install the CLX-4IND terminal block and module?

Installation must be performed by a licensed electrician. Mount the terminal block on the left side of a single-wide enclosure or on the outside edges of a double-wide enclosure. Secure with self-tapping screws. Then connect field wiring to the terminal block before installing the module.

What is the maximum load per inductor?

Each inductor in the CLX-4IND can handle a maximum load of 16 amps.

Can I use aluminum wires for this module?

No, only copper conductors rated for 75°C are permitted.

What wire gauge and strip length are required?

The terminal block accepts 14-10 AWG wires. Strip wires to 1/2 inch (12.7 mm) and tighten terminals to 9 in-lbs.

Do the inductors have polarity?

No, the inductors have no polarity. You can connect either wire to input or output.

What should I do after wiring and before powering on?

After connecting all wires, turn off the circuit breaker and remove the bypass jumpers on the terminal block to activate the inductors.

Can this module be used outdoors?

No, this equipment is for indoor use only. The ambient temperature must be between 32°F and 104°F (0°C to 40°C) with humidity 10% to 90% non-condensing.

What is the warranty period for the CLX-4IND?

Crestron offers a limited 3-year warranty from the date of purchase against manufacturing defects.

Where can I get technical support?

Contact Crestron's customer service at 1-888-CRESTRON (1-888-273-7876) or visit their website for local office listings.

USER MANUAL CLX-4IND Crestron

The CLT/CLX-2IND is a 2-inductor terminal block and module kit while the CLT/CLX-4IND is a 4-inductor terminal block and module kit. Inductor modules are typically used to reduce hum from incandescent lamps that are connected to dimmer modules in a Crestron lighting system. These kits can be mounted in any Crestron Automation Enclosure (CAEN-Series Enclosures). The terminal block is for connecting wires into and out of the inductor module. The inductor is wired in series between the output of the dimmer module and the load. The maximum load for any inductor in the module is 16 amps.

Each of these Terminal Block and Module kits is considered single entities and must be used together. The terminal blocks (CLT-2IND and/or CLT-4IND) are shipped separately from their respective modules (CLX-2IND and CLX-4IND) to permit termination of the field wiring to the terminal block prior to installation of the module, as described in this guide.

Installation

The terminal block and module must be mounted into a Crestron Automation Enclosure by a licensed electrician, in accordance with all national and local codes.

CAUTION: This equipment is for indoor use only. Mount in a well-ventilated area. The ambient temperature must be 32°F to 104°F (0°C to 40°C). The relative humidity must be 10% to 90% (non-condensing).

Terminal blocks are installed along the left side of single-wide enclosures and along the outside edges (left and right sides) of double-wide enclosures. Modules are installed along the right side of single-wide enclosures and side-by-side in the center of double-wide enclosures. When installing modules and terminal blocks in a double-wide enclosure, be sure to invert units on the right side so that they can be properly wired. Refer to the illustrations shown in the next column when considering the location of terminal blocks and modules within an enclosure.

NOTE: Inductor modules and terminal blocks should be installed above the dimmer modules, towards the top of the CAEN enclosure.

Terminal Block & Module Locations in Single-wide Enclosure (CLT/CLX-4IND shown)

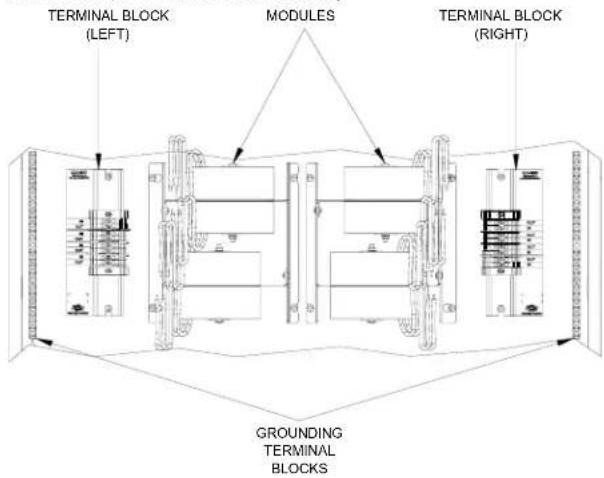

Terminal Block & Module Locations in Double-wide Enclosure (CLT/CLX-4IND shown)

Installation and Field Wiring

1. Use the two supplied self-tapping pan Phillips screws (8B x ¼" length) to secure the terminal block and the appropriate (left or right) wiring label to the Crestron Automation Enclosure. The wiring label lies beneath the terminal block as shown on this and the following page.

NOTE: Both left and right wiring labels are provided. The left-side labels are common for both single and double-wide enclosures. The right-side labels are only used in double-wide enclosures since the modules and terminal blocks along the right side must be inverted when mounting.

NOTE: Use copper conductors only – rated 75°C

1. With the circuit breaker turned off, connect the dimmer module output (IN) and the load (OUT) wires to the IND terminal block per the markings provided on the wiring label (as shown in the following diagrams). Terminal blocks accept one 14 - 10 AWG wire. Wires should be stripped to 12 inch. Tighten terminal blocks to 9 in-lbs.

2. Test the circuit for electrical faults by turning on the circuit breaker and checking that the breaker does not trip and that the proper lighting loads are energized.

Wiring CLX-2IND Terminal Block to the Feed and Load(s) for Single-Wide Enclosure and Left Side of Double-Wide Enclosure

Wiring CLX-2IND Terminal Block to the Feed and Load(s) for Right Side of Double-Wide Enclosure

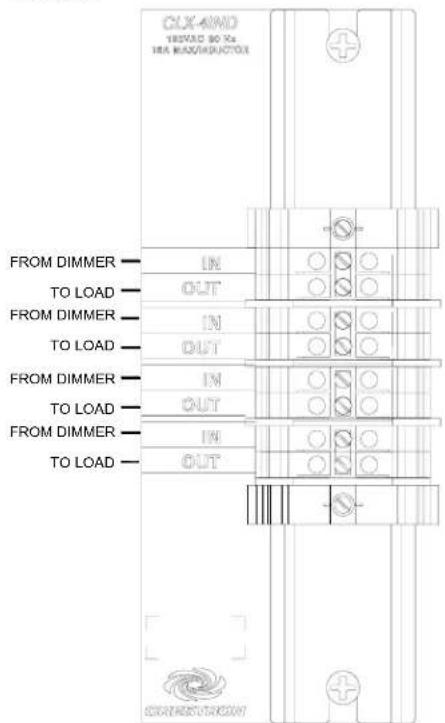

Wiring CLX-4IND Terminal Block to the Feed and Load(s) for Single-Wide Enclosure and Left Side of Double-Wide Enclosure

Wiring CLX-4IND Terminal Block to the Feed and Load(s) for Right Side of Double-Wide Enclosure

Module Installation

NOTE: Modules are to be installed after enclosure has been completely wired. Refer to the terminal block installation procedure on page 2 for details.

1. Use the four supplied self-tapping screws (8B x 14 length) to secure the module to the enclosure.
2. As shown in the following wiring diagrams, connect the wires from the module to the terminal block. Wires are pre-stripped to 12 inch. Tighten to 9 in-lbs.

NOTE: Each inductor should be wired with one wire connected to an input and the other wire connected to the corresponding output. The inductors have no polarity.

1. Turn off the circuit breaker and remove the bypass jumpers on the terminal block. Refer to following diagrams for a close-up of the jumpers.

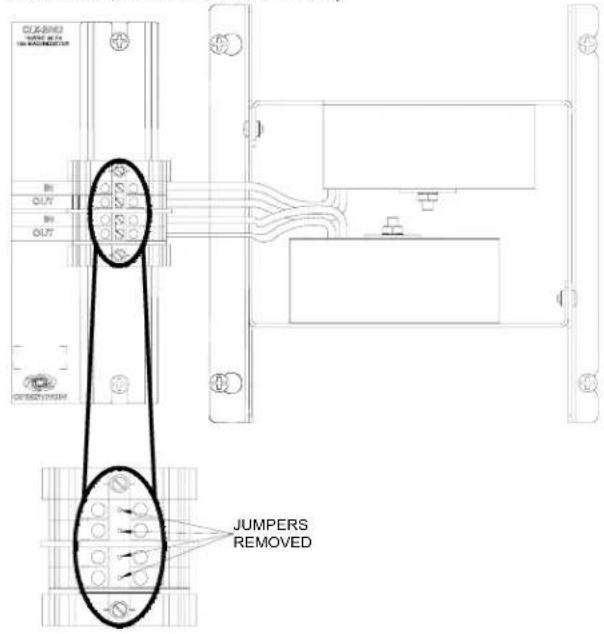

Wiring Diagram of the Terminal Block to the Inductor Module in a Single-wide Enclosure or the Left Side of a Double-wide Enclosure (CLT/CLX-2IND shown)

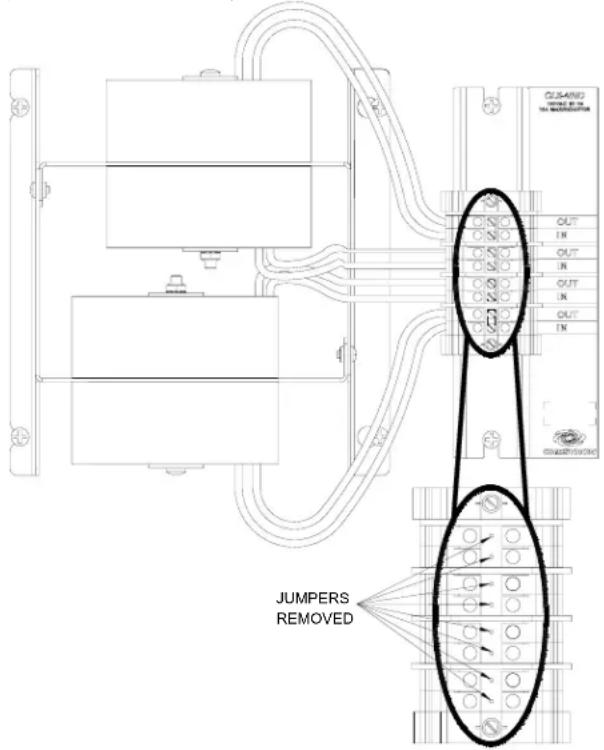

Wiring Diagram of the Terminal Block to the Inductor Module, in the Right Side of a Double-wide Enclosure (CLT/CLX-4IND shown)
