User's Manual

Industrial 10G Managed Media Converter

IXT-900 Series

IXT-900-1X1T

IXT-900-2X

IXT-900-2X1T

IXT-900-2X1PD

Man in white shirt using laptop in server rack (no visible text or symbols)

Trademarks

Copyright © PLANET Technology Corp. 2024.

Contents are subject to revision without prior notice.

PLANET is a registered trademark of PLANET Technology Corp. All other trademarks belong to their respective owners.

Disclaimer

PLANET Technology does not warrant that the hardware will work properly in all environments and applications, and makes no warranty and representation, either implied or expressed, with respect to the quality, performance, merchantability, or fitness for a particular purpose. PLANET has made every effort to ensure that this User's Manual is accurate; PLANET disclaims liability for any inaccuracies or omissions that may have occurred.

Information in this User's Manual is subject to change without notice and does not represent a commitment on the part of PLANET. PLANET assumes no responsibility for any inaccuracies that may be contained in this User's Manual. PLANET makes no commitment to update or keep current the information in this User's Manual, and reserves the right to make improvements to this User's Manual and/or to the products described in this User's Manual, at any time without notice.

If you find information in this manual that is incorrect, misleading, or incomplete, we would appreciate your comments and suggestions.

FCC Warning

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the Instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

CE Mark Warning

This equipment is compliant with Class A of CISPR 32. In a residential environment this equipment may cause radio interference.

Energy Saving Note of the Device

This power required device does not support Standby mode operation. For energy saving, please remove the power cable to disconnect the device from the power circuit. In view of saving the energy and reducing the unnecessary power consumption, it is strongly suggested to remove the power connection for the device if this device is not intended to be active.

WEEE Warning

To avoid the potential effects on the environment and human health as a result of the presence of hazardous substances in electrical and electronic equipment, end users of electrical and electronic equipment should understand the meaning of the crossed-out wheeled bin symbol. Do not dispose of WEEE as unsorted municipal waste and have to collect such WEEE separately.

Revision

User's Manual of PLANET IXT-900 Series

Models: IXT-900-1X1T, IXT-900-2X, IXT-900-2X1T, IXT-900-2X1PD

Revision: 1.0 (Jan. 2024)

Part No: EM-IXT-900 series_v1.0

Table of Contents

1. INTRODUCTION....7

1.1 Packet Contents ....7
1.2 Product Description....8
1.3 How to Use This Manual .... 14
1.4 Product Features .... 15
1.5 Product Specifications....17

2. INSTALLATION .... 21

2.1 Hardware Description ....21

2.1.1 Physical Dimensions....21
2.1.2 Front Panel....22
2.1.3 LED Indications....23
2.1.4 Switch Upper Panel 24
2.1.5 Wiring the Fault Alarm Contact 25

2.2 Installing the Industrial Media Converter....26

2.2.1 Installation Steps....26
2.2.2 Wall Mount Plate Mounting....26

2.3 Cabling....27

2.3.1 Installing the SFP Transceiver....28
2.3.2 Removing the SFP/SFP+ Transceiver .... 32

3. MEDIA CONVERTER MANAGEMENT .... 33

3.1 Requirements....33
3.2 Management Access Overview....34
3.3 Administration SSH Command Line....35
3.4 Configuring IP Address....36
3.5 Web Management 36
3.6 SNMP-based Network Management .... 37
3.7 PLANET Smart Discovery Utility....38

4. WEB CONFIGURATION....40

4.1 Main Web Page 42

4.1.1 Save Button....44
4.1.2 Configuration Manager .... 44

4.1.2.1 Saving Configuration....45

4.2 System 46

4.2.1 Management....47
4.2.1.1 System Information....47
4.2.1.2 IP Configurations .... 48

4.2.1.3 IPv6 Configuration ....50
4.2.1.4 User Configuration....52

4.2.2 Time Settings....53

4.2.2.1 System Time....53
4.2.2.2 SNTP Server Settings ....56

4.2.3 Log Management ....57

4.2.3.1 Logging Service 57
4.2.3.2 Local Logging....58
4.2.3.3 Remote Syslog....59
4.2.3.4 Logging Message....61

4.2.4 SNMP Management ....63

4.2.4.1 SNMP Overview....63
4.2.4.2 SNMP Setting....64
4.2.4.3 SNMP Community....65
4.2.4.4 SNMP View....66
4.2.4.5 SNMP Access Group....67
4.2.4.6 SNMP User....68
4.2.4.7 SNMPv1, 2 Notification Recipients....70
4.2.4.8 SNMPv3 Notification Recipients....71
4.2.4.9 SNMP Engine ID 73
4.2.4.10 SNMP Remote Engine ID 74

4.2.5 RMON....75

4.2.5.1 RMON Statistics ....75
4.2.5.2 RMON Event ....77
4.2.5.3 RMON Event Log....78
4.2.5.4 RMON Alarm....79
4.2.5.5 RMON History....82
4.2.5.6 RMON History Log 83

4.2.6 Remote Management....84

4.2.6.1 Planet NMS Controller 84
4.2.6.2 Planet CloudViewer App....85

4.3 Switching....87

4.3.1 Port Management....88

4.3.1.1 Port Configuration 88
4.3.1.2 Port Counters 90
4.3.1.3 Link Fault Passthrough 95
4.3.1.4 Jumbo Frame....97
4.3.1.5 Protected Ports 98
4.3.1.6 EEE....100
4.3.1.7 SFP Module Information....101
4.3.1.7.1 SFP Module Status .... 101

4.3.1.7.2 SFP Module Detail Status .... 103

4.3.2 VLAN....104

4.3.2.1 VLAN Overview .... 104

4.3.2.2 IEEE 802.1Q VLAN ....105

4.3.2.3 Management VLAN 109

4.3.2.4 Create VLAN 110

4.3.2.5 Interface Settings....111

4.3.2.6 Port to VLAN....115

4.3.2.7 Port VLAN Membership 116

4.3.3 LLDP 117

4.3.3.1 Link Layer Discovery Protocol....117

4.3.3.2 LLDP Global Setting....118

4.3.3.3 LLDP Port Setting 120

4.3.3.4 LLDP Local Device....123

4.3.3.5 LLDP Remove Device 124

4.3.3.6 LLDP Statistics....125

4.3.4 MAC Address Table 127

4.3.4.1 Static MAC Setting....127

4.3.4.2 MAC Filtering....129

4.3.4.3 Dynamic Address Setting....130

4.3.4.4 Dynamic Learned ....131

4.4 Quality of Service ....133

4.4.1 Understanding QoS....133

4.4.2 General 134

4.4.2.1 QoS Properties 134

4.4.2.2 QoS Port Settings 135

4.4.2.3 Queue Settings....136

4.4.2.4 CoS Mapping ....137

4.4.2.5 DSCP Mapping ....139

4.7 Maintenance....164

4.7.1 Switch Maintenance .... 164

4.7.1.1 Save Configuration 164
4.7.1.2 Factory Default....165
4.7.1.3 Reboot....165
4.7.1.4 Backup Manager ....166
4.7.1.5 Upgrade Manager....167
4.7.1.6 Dual Image....168

4.7.2 Diagnostics 169

4.7.2.1 Ping Test 169
4.7.2.2 IPv6 Ping Test....171

1. SWITCHING OPERATION....172

5.1 Address Table 172
5.2 Learning....172
5.3 Forwarding & Filtering 172
5.4 Store-and-Forward 172
5.5 Auto-Negotiation....173

1. TROUBLESHOOTING....174

1. INTRODUCTION

The descriptions of PLANET Industrial 10G Managed Media Converters are as follows:

IXT-9000-1X1T	Industrial 1-Port 10GBASE-X SFP+ + 1-Port 10GBASE-T Managed Media Converter
IXT-900-2X	Industrial 2-Port 10GBASE-X SFP+ Managed Media Converter
IXT-900-2X1T	Industrial 2-Port 10GBASE-X SFP+ + 1-Port 10GBASE-T Managed Media Converter
IXT-900-2X1PD	Industrial 2-Port 10GBASE-X SFP+ + 1-Port 10GBASE-T PoE PD Managed Media Converter

"Industrial 10G Managed Media Converter" is used as an alternative name for the above models in this user's manual.

1.1 Packet Contents

Open the box of the Industrial 10G Managed Media Converter and carefully unpack it. The box should contain the following items:

Contents\Model Number	IXT-900-1X1T	IXT-900-2X	IXT-900-2X1T	IXT-900-2X1PD
Industrial Media Converter	■	■	■	■
Quick Start Guide Sheet	■	■	■	■
DIN-rail Kit	■	■	■	■
Wall-mount Kit	■	■	■	■
SFP Dust Cap	1	2	2	2
RJ45 Dust Cap	1	-	1	1

If any of these are missing or damaged, please contact your dealer immediately; if possible, retain the carton including the original packing material, and use them again to repack the product in case there is a need to return it to us for repair.

1.2 Product Description

Environmentally-robust, Ultra-fast Connections and Secure Management

PLANET's Industrial IXT-900 high-performance media converter series is environmentally-robust now that it comes with an extended operating temperature ranging from -40 to 75°Celsius designed for challenging environments. This series features standalone secure management, setting a new standard for enterprise and telecom remote management and monitoring. The IXT-900 Industrial Series allows for seamless remote management through an intuitive web interface, command line interface (CLI), and SNMP protocol, facilitating effortless monitoring and configuration from any location.

Our cutting-edge industrial media converters retain the original's powerful features, boasting 10GBASE-T copper port and 10G SFP+ port. This industrial series comes with the 10G unparalleled transmission speed given its fiber and copper ports. Compact yet powerful, the IXT-900 Series stands as the optimal choice for businesses seeking to enhance network speed and functionality, now designed to thrive in a wide temperature range for increased adaptability.

Secure Remote Management is No Longer a Problem with PLANET Media Converter Dual 10G Fiber LFP 75°C -40°C Web Management PLANET CloudViewerPro Supported 10G/MGBASE-X SFP+ Module 10G/5G/2.5G/1G/100 RJ45 IXT-900-2X1PD IXT-900-2X1T Max. 80km Max. 80km Max. 80km

10GBASE-T and 10GBASE-X SFP Dual Media Interfaces for Diversified Bandwidth Applications

The IXT-900 series can reach speeds of up to 10Gbps over copper or fiber-optic cabling, greatly improving the performance of large data transmissions. Its built-in 10GBASE-T copper interfaces feature 5-speed auto-negotiation (10G/5G/2.5G/1G/100) and can transmit data over the existing Cat6/Cat6A UTP cabling, eliminating the need for expensive upgrades. With its Plug and Play design, installation is easy and hassle-free, so you can enjoy the speed you need without any extra effort.

Two Fiber Optic Ports Double the Distance of Deployment

Conventional media converters typically support only a single pair of different media conversions, such as converting one fiber to one copper connection. They can extend a 100m copper connection to a maximum of 120km fiber optic connection. In contrast, the IXT-900-2X/IXT-900-2X1T/IXT-900-2X1PD has two fiber optic ports and one copper port, enabling the two fiber optic cables to connect to devices up to 240km apart so as to significantly extend the deployment distance.

Link Fault Pass-through

Link Fault Pass-through is a networking feature. It facilitates the detection and propagation of link faults or errors from one network device to another. It helps maintain network reliability and minimizes downtime by allowing devices to dynamically respond to link faults. Link Fault Pass-through improves fault detection and enables faster troubleshooting and resolution processes.

How it works:

• When a link fault occurs, the device experiencing the fault generates a notification.
  • This notification is then forwarded to other connected devices using Link Fault Pass-through.
• Upon receiving the link fault information, the connected devices become aware of the fault.
• This awareness enables them to take appropriate actions, such as rerouting traffic or disabling the affected port.

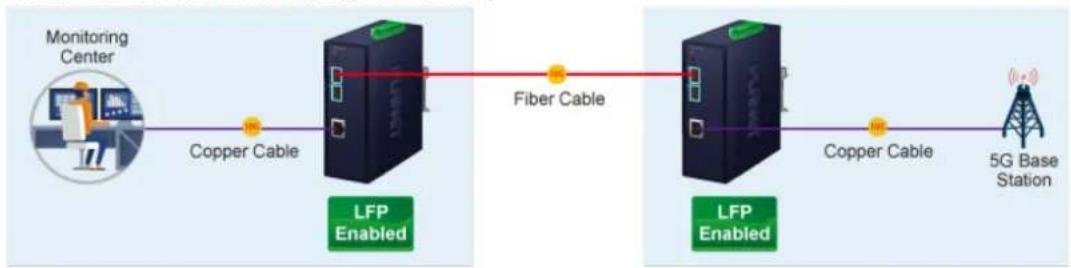

Remote Link Normal (Copper to Fiber Pair)

Remote Link Broken

Copper and Fiber are configured based on LFP group

Remote Link Normal (Fiber to Fiber Pair)

Remote Link Broken
Copper and Fiber are configured based on LFP group


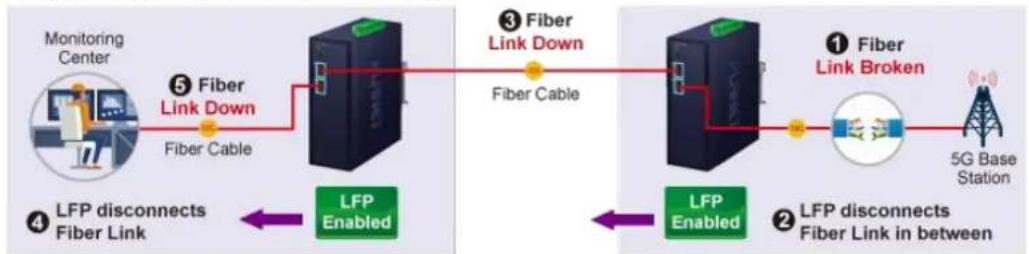

    E --> F["② LFP disconnects Fiber Link in between"]
    F --> G["LFP Enabled"]
    G --> H["④ LFP disconnects Fiber Link"]

10GBASE-SR/LR Fiber Optic

Network with Cybersecurity Helps Minimize Risks

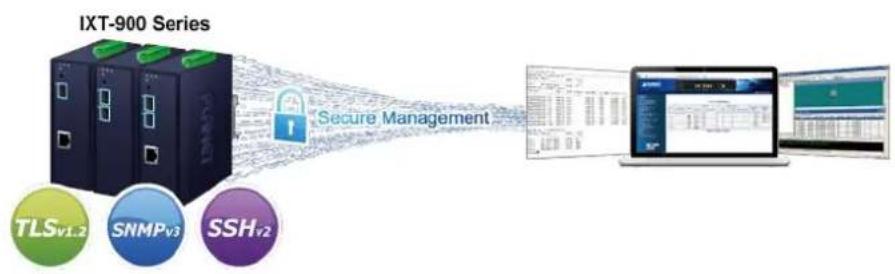

The IXT-900 series is equipped with enhanced cybersecurity features to fend off cyber threats and attacks. It supports SSHv2, TLSv1.2, and SNMPv3 protocols to provide strong protection against advanced threats. Thus, transmitting data to a customer's critical equipment in a business network is very secure. The IXT-900 series protects network management and enhances the security of mission-critical networks without incurring any additional deployment cost or effort.

Redundant Ring, Fast Recovery for Critical Network Applications

The IXT-900 series supports software-based redundant ring technology and features strong, rapid self-recovery capability to prevent interruption and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, ensuring rapid self-recovery in ring networks. With this advanced feature, the data link recovery time can be as fast as 500ms.
    AF
    AG
    AH
    AI
    AJ
    AK
    AL
    AM
    AN
    AO
    AP
    AQ
    AR
    AS
    AT
    AU
    AV
    AW
    AX
    AY
    AZ
    BA
    BB
    BC
    BD
    BE
    BF
    BG
    BH
    BI
    BJ
    BK
    BL
    BM
    BN
    BO
    BP
    BP
    BP
    BP
    BP
    BP
    BP
    BP
    BP
    BP
    BP
    BP
    BP
    BP
    BP
    BP
    BP
    BP
    BP
    BP
    BP
    BP
    BP
    BP
    BP
    BP
    BP
    BP
    BP
    BP
    BP
    BP
    BP
    BP

    style Office_C fill:#f9f,stroke:#333,stroke-width:2px
    style Office_A fill:#ccf,stroke:#333,stroke-width:2px

IPv6/IPv4 Dual Stack Management

Supporting both IPv6 and IPv4 protocols, the IXT-900 series helps the SMBs to step in the IPv6 era with the lowest investment as their network facilities need not be replaced or overhauled if the IPv6 FTTx edge network is set up.

SNMP for Comprehensive Network Monitoring and Centralized Control

SNMP (Simple Network Management Protocol) provides network monitoring and management capabilities by gathering real-time information about network devices. By proactively identifying and addressing network issues, reliability and performance are improved. SNMP also facilitates centralized control of network devices, allowing for monitoring and configuration of multiple devices from a single location, reducing manual effort and enhancing operational efficiency.

Layer 2 Features

The device has a 16K-entry MAC address table that automatically removes inactive addresses. Its backbone supports speeds of up to 40Gbps, and it can handle Jumbo Frames up to 9K in size. The device is equipped with Storm Control to manage Broadcast/Multicast/Unknown-Unicast traffic, and features an IPv6 MAC/VLAN/Multicast Address Table and Loop Protection.

Efficient Traffic Control

The IXT-900 media converter series boasts advanced QoS features and robust traffic management capabilities, optimizing the delivery of business-class data, voice, and video solutions. Its features include broadcast/multicast/unicast storm control, per-port bandwidth control, and 802.1p CoS/DSCP/IP Precedence QoS priority and remarking. These capabilities guarantee optimal performance for VoIP and video stream transmission, maximizing the utilization of limited network resources for enterprises

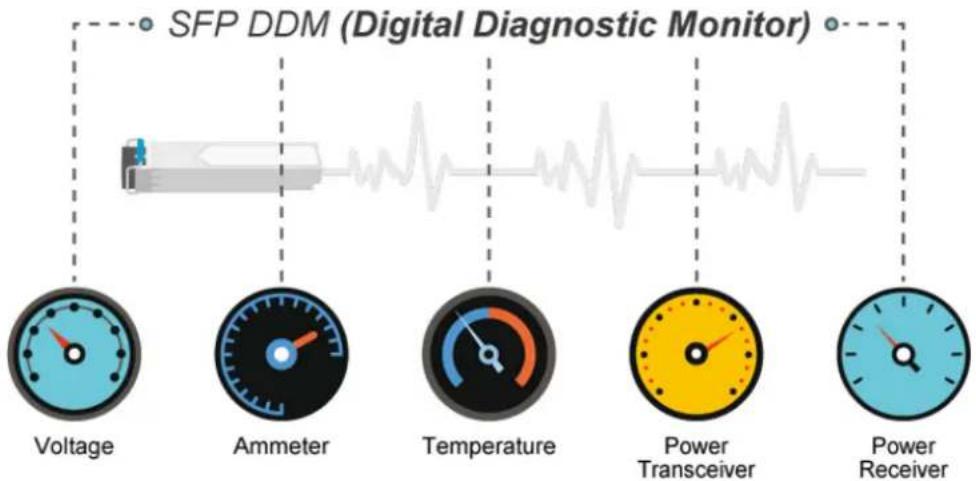

Intelligent SFP Diagnosis Mechanism

The IXT-900 series supports the SFP-DDM (digital diagnostic monitor) function, which greatly helps network administrators easily monitor real-time parameters of the SFP transceivers. These parameters include optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

Remote Management Solution

PLANET's Universal Network Management System (UNI-NMS) and CloudViewer Pro app provide robust support for IT staff in effectively managing and monitoring all network devices, including the IXT-900 series, from remote locations. Tailored for deployment in both enterprises and industries where the IXT-900 series is utilized remotely, these systems enable the identification of bugs or faulty conditions without the need for on-site visits. Whether using UNI-NMS or the CloudViewerPro app, businesses of all types can now be swiftly and efficiently managed through a unified platform, streamlining operational oversight.

NMS Controller CloudViewerPro App Management Devices XDS-4320-8X0TR XDS-4320-12X4TR IGS-10020MT GS-4210-24T2S GS-4210-8P2S

1.3 How to Use This Manual

This User's Manual is structured as follows:

Section 2, INSTALLATION

The section explains the functions of the 10G Industrial Media Converter and how to physically install the Industrial

Media Converter.

Section 3, MEDIA CONVERTER MANAGEMENT

The section contains the information about the software function of the Industrial Media Converter.

Section 4, WEB CONFIGURATION

The section explains how to manage the 10G Industrial Media Converter by Web interface.

Section 5, MEDIA CONVERTER OPERATION

The chapter explains how to do the media converter operation of the Industrial Media Converter.

Section 6, TROUBLESHOOTING

The chapter explains how to do troubleshooting of the Industrial Media Converter.

Appendix A

The section contains cable information of the Industrial Media Converter.

Appendix B

The section contains glossary information of the Industrial Media Converter.

1.4 Product Features

Physical Port

■ 10G/5G/2.5G/1G/100BASE-T RJ45 interface with auto MDI/MDI-X function
■ 10G/2.5G/1G/100BASE-X SFP+ interface

Model	IXT-900-1X1T	IXT-900-2X	IXT-900-2X1T	IXT-900-2X1PD
10G/2.5G/1G/100 SFP+ Ports	1	-	1	1
10G/5G/2.5G/1G/100 RJ45 Ports	1	2	2	2
Power over Ethernet	-	-	-	802.3at PoE+ PD

Layer 2 Features

■ Storm Control support
- Broadcast / Multicast / Unknown Unicast

■ Supports VLAN

• IEEE 802.1Q tagged VLAN
• Supports provider bridging (VLAN Q-in-Q, IEEE 802.1ad)
• Up to 256 VLAN groups, out of 4096 VLAN IDs

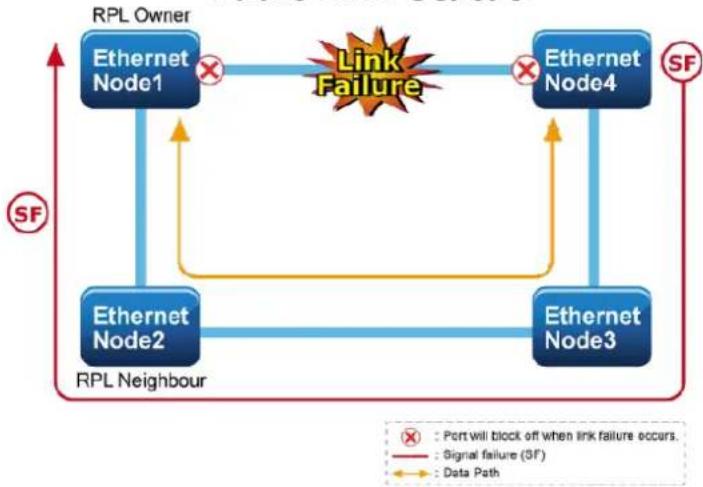

■ Supports ITU-T G.8032 ERPS ring with recovery time less than 500ms (software-based)

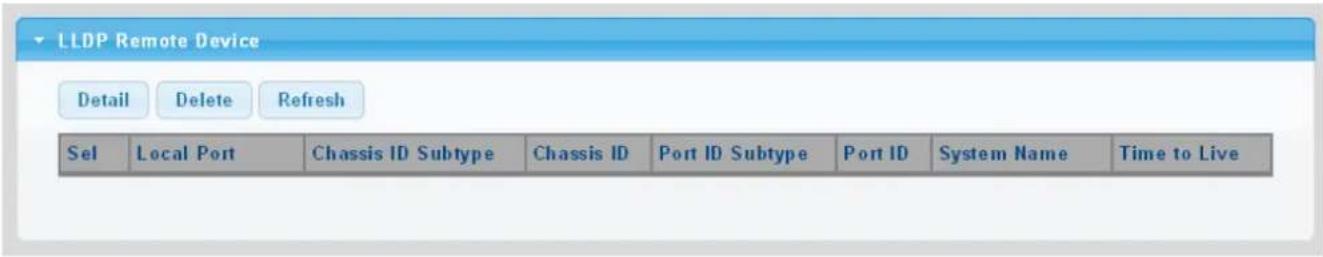

■ Link Layer Discovery Protocol (LLDP)

■ 16K MAC address table with auto-aging

■ Jumbo Frame support up to 9K in size

Quality of Service

■ Ingress Shaper and Egress Rate Limit per port bandwidth control
■ 8 priority queues on all converter ports
■ Strict priority and Weighted Round Robin (WRR) CoS policies
■ Traffic classification

• IEEE 802.1p CoS
• IP TOS / DSCP / IP Precedence
• IP TCP/UDP port number
• Typical network application

Management

■ IPv4 and IPv6 dual stack management
■ Supports Link Fault Pass-through
■ Management Interfaces

• Web HTTP/HTTPS management
• Telnet Command Line Interface
• SNMP v1, v2c, v3 monitoring
• SSHv2, TLSv1.2

■ System Maintenance

• Firmware upload/download via HTTP
• Reset button for system reboot or reset to factory default
• Dual images

■ Simple Network Time Protocol (SNTP)
■ User privilege levels control
■ SNMP Management

• SNMP trap for interface link up and link down notification

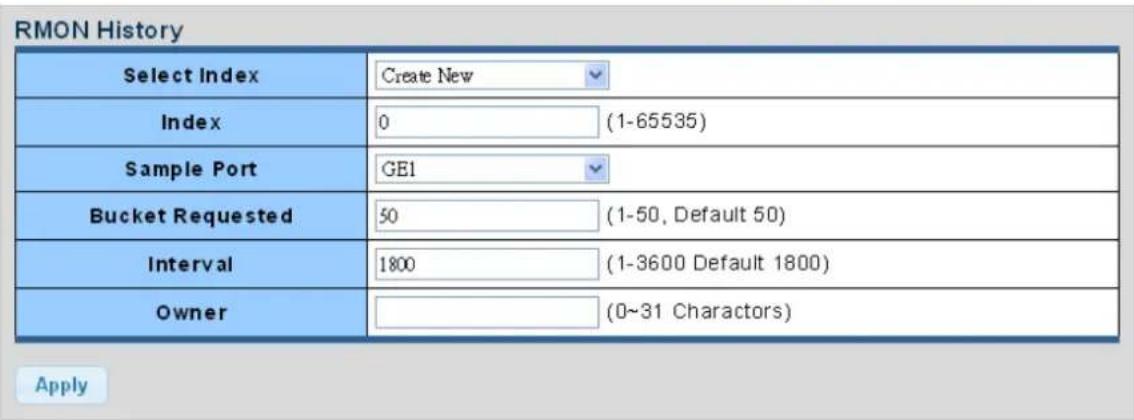

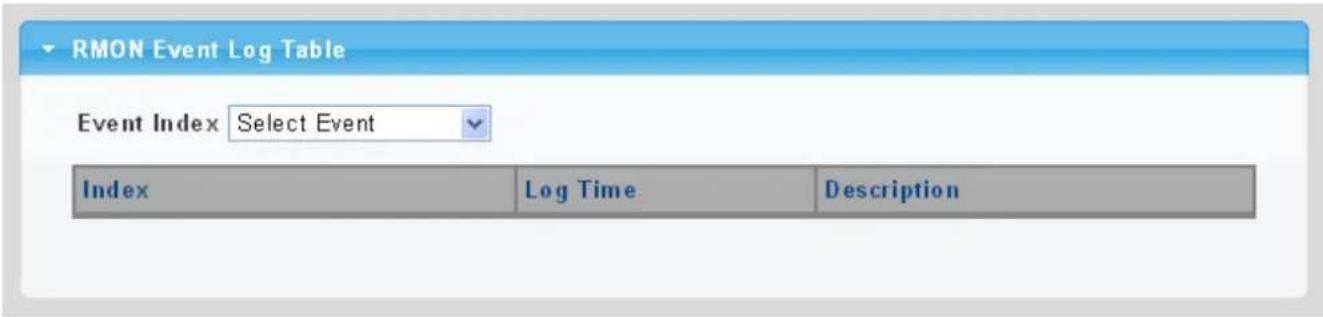

• Four RMON groups (history, statistics, alarms and events)

■ Network Diagnostic

- SFP-DDM (Digital Diagnostic Monitor)

■ Syslog remote alarm
■ Local system Log
■ ICMPv6 / ICMPv4 remote ping

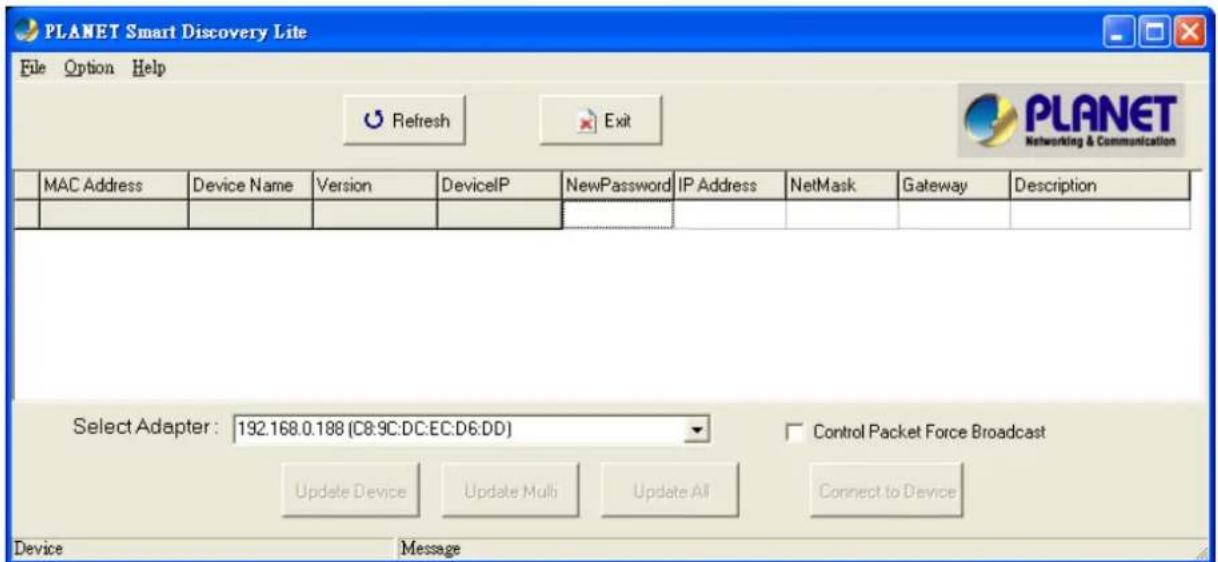

■ PLANET Smart Discovery Utility for deploy management
■ PLANET Remote Management

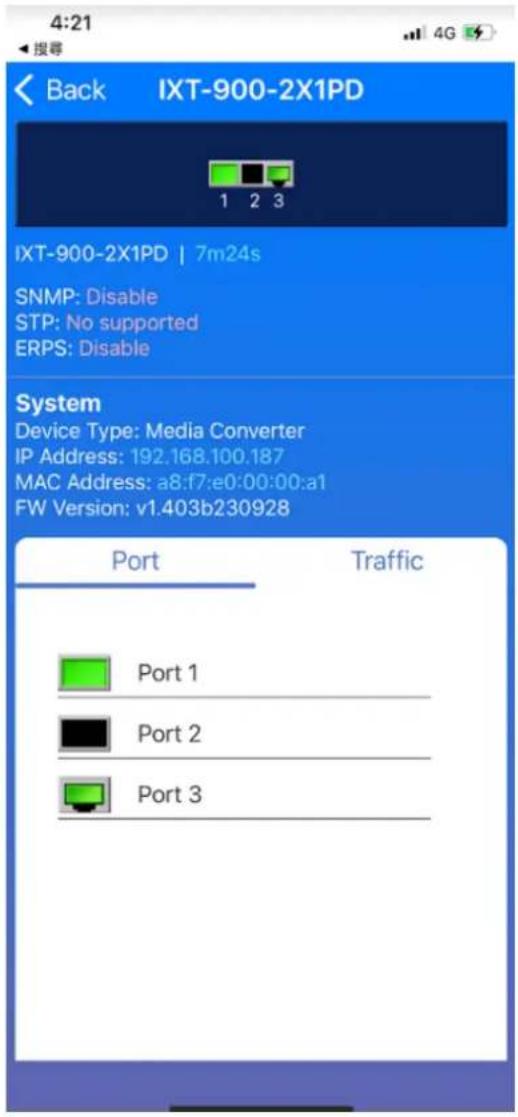

- PLANET NMS Controller and CloudViewerPro app for deployment management

Security

■ IP address access management to prevent unauthorized intruder
■ Static MAC setting and MAC Filtering
■ Protected ports (IXT-900-2X1T and IXT-900-2X1PD only)

Case and Installation

■ Dual 9\~48VDC external power supply, 24VAC or PoE input (only for IXT-900-2X1PD)
■ -40 to 75°C operating temperature
■ Supports 4KVDC Contact / 8KVDC Air Ethernet ESD protection

Wall-mount and DIN-rail installation

1.5 Product Specifications

Model	IXT-900-1X1T	IXT-900-2X	IXT-900-2X1T	IXT-900-2X1PD
Hardware Specifications
Copper Interface	1x10G/5G/2.5G/1G/100BASE-T RJ45 interface with auto MDI/MDI-X function	-	1x10G/5G/2.5G/1G/100BASE-T RJ45 interface with auto MDI/MDI-X function
PoE PD	-	-		1
Fiber Interface	1x10G/2.5G/1G/100BASE-X SFP+ interface	2x10G/2.5G/1G/100BASE-X SFP+ interface
Reset Button	< 5 sec.: System reboot> 5 sec.: Factory default

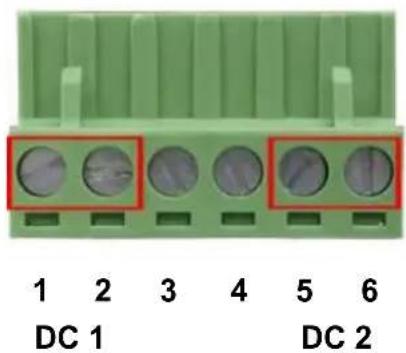

Connector	Removable 6-pin terminal block for power inputPin 1/2 for Power 1, Pin 3/4 for Alarm, Pin 5/6 for Power 2
Alarm	One relay output for power failure. Alarm relay current carry ability: 1A @ 24VDC
Enclosure	IP40 metal case
ESD Protection	4KVDC Contact / 8KVDC Air
Installation	Wall-mount kit and DIN-rail kit installation
Dimensions (W x D x H)	50 x 87 x 135mm
Weight	578g	576g	607g	604g
Power Requirement	Dual 9~48V DC, 24V AC or PoE input (Only for IXT-900-2X1PD)
Power Consumption (No loading)	3.7W/12.6BTU	3.2W/10.9BTU	3.7W/12.6BTU	3.9W/13.3BTU
Power Consumption (Full loading)	10.7W/36.5BTU	5.6W/19.1BTU	10.3W/35.1BTU	9.5W/32.4BTU
LED Indicator	System:PWR, (Green)Per 10GBASE-T RJ45 Port:100/1G LINK/ACT (Green)2.5G/5G LINK/ACT (Green)10G LINK/ACT (Amber)Per 10GBASE-X SFP+ Port:100/1G LINK/ACT (Green)2.5G LINK/ACT (Green)10G LINK/ACT (Amber)
Transmission Specifications
Processing Scheme	Store and Forward
Switching Fabric	40Gbps	40Gbps	60Gbps	60Gbps
Throughput (packet per second)	29.76Mpps@64bytes
Address Table	16K entries, automatic source address learning and aging
Flow Control	Back pressure for half duplexIEEE 802.3x pause frame for full duplex
Jumbo Frame	9K
Shared Buffer	12Mbits
Layer 2 Function
Port Configuration	Port disable/enableAuto-negotiation 100Mbps, 1/2.5/5/10Gbps full and half duplex mode selectionFlow control disable/enable
Port Status	Display each port's link status, speed, Auto-negotiation status, duplex mode and flow control status
VLAN	IEEE 802.1Q tag-based VLANIEEE 802.1ad Q-in-Q tunnelingUp to 256 VLAN groups, out of 4096 VLAN IDs
Bandwidth Control	Per port bandwidth controlIngress: 16~10,000,000KbpsEgress: 16~10,000,000Kbps
QoS	Traffic classification based, strict priority and WRR8-level priority for switchingTraffic classification:- Cos/802.1p- DSCP- IP Precedence
Ring	Supports ERPS, and complies with ITU-T G.8032Recovery time < 500ms
Security Function
Access Security	Remote management protocols support: SSH, Telnet, HTTP and HTTPSProtected ports (IXT-900-2X1T and IXT-900-2X1PD only)
System Management
Basic Management Interfaces	Telnet, Web browser, SNMP v1, v2c
Secure Management Interfaces	SSHv2, TLS v1.2, SNMP v3
System Management	Firmware upgrade by HTTP protocol through Ethernet networkConfiguration upload/download through HTTP
	LLDP protocolSNTPPLANET Smart Discovery UtilityPLANET NMS ControllerPLANET CloudViewerPro mobile app
Event Management	Remote syslogLocal system logSNMP trap
SNMP MIBs	RFC 1213 MIB-IIRFC 2863 IF-MIBRFC 1493 Bridge MIBRFC 1643 Ethernet MIBRFC 2863 Interface MIBRFC 2665 Ether-Like MIBRFC 2737 Entity MIBRFC 2819 RMON MIB (Groups 1, 2, 3 and 9)RFC 3411 SNMP-Frameworks-MIBLLDPMAU-MIB
Standards Conformance
Regulatory Compliance	FCC Part 15 Class A, CE
Stability Testing	IEC60068-2-32 (free fall)IEC60068-2-27 (shock)IEC60068-2-6 (vibration)
Standards Compliance	IEEE 802.3u, 100BASE-TX/FXIEEE 802.3ab, 1000BASE-TIEEE 802.3bz, 2.5G/5GBASE-TIEEE 802.3an, 10GBASE-TIEEE 802.3z, 1000BASE-SX/LXIEEE 802.3ae 10GBASE-SR/LRIEEE 802.3x full-duplex flow controlIEEE 802.1p Class of ServiceIEEE 802.1Q VLAN taggingIEEE 802.1ad Q-in-Q VLAN stackingIEEE 802.1ab LLDPRFC 768 UDPRFC 2474 DSCPRFC 791 IP
	RFC 792 ICMPRFC 2068 HTTPITU-T G.8032 ERPS Ring
Environment
Operating	Temperature: -40 ~ 75°CRelative Humidity: 5 ~ 95% (non-condensing)
Storage	Temperature: -40 ~ 85°CRelative Humidity: 5 ~ 95% (non-condensing)

2. INSTALLATION

2.1 Hardware Description

The Industrial 10G Media Converter supports multiple running speeds, including 100Mbps, 1Gbps, 2.5Gbps, and 10Gbps, and can automatically distinguish the speed of the incoming connection.

This section provides an overview of the hardware features of the Industrial 10G Media Converter. To facilitate management and control of the device, it is important to familiarize yourself with its display indicators and ports. The front panel illustrations provided in this chapter show the unit's LED indicators. Before connecting any network device to the Industrial 10G Media Converter, be sure to read this chapter carefully.

2.1.1 Physical Dimensions

Top View Side View Front View Side View Rear View Mounting Kit DIN-Rail Kit Mounting Kit Bottom View Unit: mm

2.1.2 Front Panel

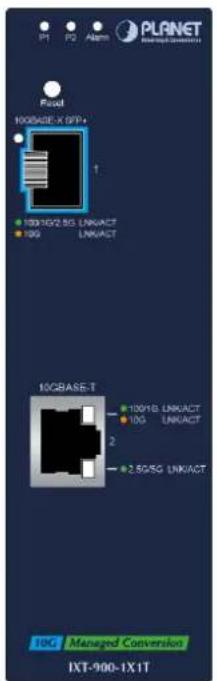

PI P2 Alarm PLANET I0G BASE-X DPT+ 1 100/100/2 SD LINKACT 10G LINKACT 10GBASE-T 100/100 LINKACT 10G LINKACT 2 2.5GSG LINKACT 10G Managed Conversion IXT-900-1X1T

IXT-900-1X1T

P1 P2 Alarm PLANET Reset 100BASE X 3DPP+ 1 2 100/192.5G LINKACT 10G LINKACT 10G Managed Conversion EXT-900-2X

IXT-900-2X

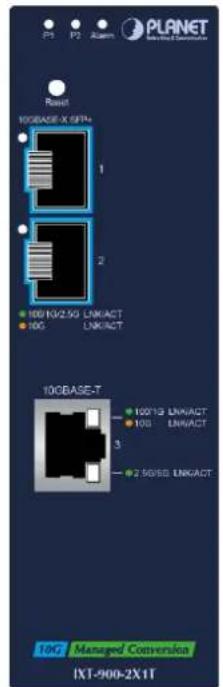

P1 P2 Alarm PLANET Rout 100BASE-X 6FP+ 1 2 100/1G LINKACT 10G LINKACT 100BASE-T 100/1G LINKACT 10G LINKACT 3 2.5G/SS LINKACT 10G Managed Converter IXT-900-2X1T

IXT-900-2X1T

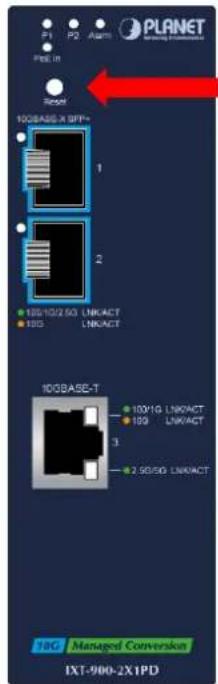

P1 P2 Alarm PLANET Pos. in Reset 10GBASE-X GFP+ 1 2 10G/102.5G LINKACT 10G LINKACT 10GBASE-T 100*1G LINKACT 109 LINKACT 3 2.5G/5G LINKACT 10G Managed Conversion IXT-900-2X1PD

IXT-900-2X1PD

10G TP Interface

100/1000/2500/5000/10000BASE-T Copper, RJ45 Twisted-pair: Up to 100 meters.

■ SFP+ Slot

100/1000/2500/10000BASE-X mini-GBIC slot, SFP+ (Small-form Factor Pluggable) transceiver module: From 550 meters to 2km (multi-mode fiber) and to 10/20/30/40/50/70/120 kilometers (single-mode fiber). Note: the max. distance tor operating at 10G is 80km.

Reset Button

On the left side of the front panel, the reset button is designed for rebooting the 10G Media Converter without turning off and on the power. The following is the summary table of reset button functions:

Reset Button Pressed and Released	Function
< 5 sec: System Reboot	Reboot the 10G Media Converter.
> 5 sec: Factory Default	Reset the 10G Media Converter to Factory Default configuration. The 10G Media Converter will then reboot and load the default settings as shown below:Default Username: adminDefault Password: adminDefault IP address: 192.168.0.100Subnet mask: 255.255.255.0Default Gateway: 192.168.0.254

2.1.3 LED Indications

LED Definition:

■ System and Power

LED	Color	Function
PWR 1	Green	Lit	Power ON
		Off	Power OFF
PWR 2	Green	Lit	Power ON
		Off	Power OFF
Alarm	Red	Lit	Indicating power failure or port problem.
		Off	No failure

■ Per 10GBASE-T RJ45 Interface

10GBASE-T 100/1G LNK/ACT 10G LNK/ACT 2 2.5G/5G LNK/ACT

LED	Color	Function
1G/100	Green	Lit:	To indicate the link through TP port is successfully established at 1Gbps or 100Mbps.
		Blink	To indicate that the media converter is actively sending or receiving data over that port.
10G	Amber	Lit:	To indicate the link through TP port is successfully established at 10Gbps.
		Blink	To indicate that the media converter is actively sending or receiving data over that port.
2.5G/5G	Green	Lit:	To indicate that the port is operating at 5Gbps or 2.5Gbps.
		Blink	To indicate that the media converter is actively sending or receiving data over that port.

■ Per 10GBASE-X SFP+ Interface

10GBASE-X SFP+ 1 100/1G/2.5G LNK/ACT 10G LNK/ACT

LED	Color	Function
100/1G/2.5GLNK/ACT	Green	Lit:	To indicate the port is running in 100/1G/2.5Gbps speed and successfully established.
		Blink	To indicate that the Media converter is actively sending or receiving data over that port.
10GLNK/ACT	Amber	Lit:	To indicate the port is running in 10Gbps speed and successfully established.
		Blink	To indicate that the media converter is actively sending or receiving data over that port.

2.1.4 Switch Upper Panel

The Upper Panel of the Industrial Media Converter comes with a DC inlet power socket and one terminal block connector with 6 contacts.

1. Insert positive/negative DC power wires into contacts 1 and 2 for DC Power 1, or 5 and 6 for DC Power 2.

Max. Fault Alarm Loading: 24V, 1A DC Input: 9-48V---, 1.5A max. 1 2 3 4 5 6 V1+ V1- PWR1 Alarm PWR2

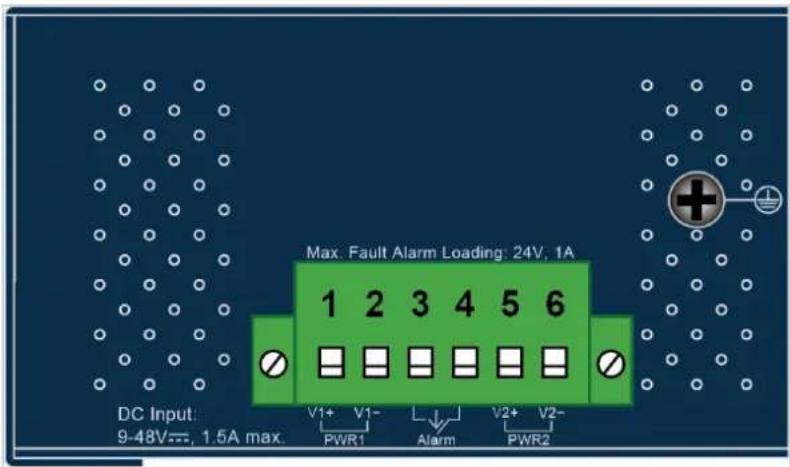

Figure 2-1: IXT-900 Series Upper Panel

Tighten the wire-clamp screws for preventing the wires from loosening.

1 2 3 4 5 6 DC 1 DC 2

Figure 2-2 6-Pin Terminal Block Power Wiring Input

Model Name	Positive (+) Pin	Negative (-) Pin	Input Voltage
IXT-900-1X1T	Pin 1/5	Pin 2/6	DC 9~48V, AC 24V
IXT-900-2X	Pin 1/5	Pin 2/6	DC 9~48V, AC 24V
IXT-900-2X1T	Pin 1/5	Pin 2/6	DC 9~48V, AC 24V
IXT-900-2X1PD	Pin 1/5	Pin 2/6	DC 9~48V, AC 24V

1. The wire gauge for the terminal block should be in the range of 12 \~ 24 AWG@25°C.

2. When performing any of the procedures like inserting the wires or tightening the wire-clamp screws, make sure the power is OFF to prevent from getting an electric shock.

2.1.5 Wiring the Fault Alarm Contact

The fault alarm contacts are in the middle (3 & 4) of the terminal block connector as the picture shows below. Inserting the wires, the Industrial Media Converter will detect the fault status of the power failure, or port link failure (available for managed model). The following illustration shows an application example for wiring the fault alarm contacts

Fault Alarm Contacts Fault The Fault Alarm Contacts are energized (CLOSE) for normal operation and will OPEN when failure occurs Insert the wires into the fault alarm contacts

1. The wire gauge for the terminal block should be in the range of 12 \~ 24 AWG.
2. When performing any of the procedures like inserting the wires or tightening the wire-clamp screws, make sure the power is OFF to prevent from getting an electric shock.

2.2 Installing the Industrial Media Converter

This section describes how to install your Industrial 10G Media Converter and make connections to the Industrial Media

Converter. Please read the following topics and perform the procedures in the order being presented. To install your Industrial

10G Media Converter on a desktop or shelf, simply complete the following steps.

In this paragraph, we will describe how to install the Industrial 10G Media Converter and the installation points attended to it.

2.2.1 Installation Steps

1. Unpack the Industrial 10G Media Converter
2. If users want to wall-mount the Industrial 10G Media Converter, please refer to the Wall Mount Plate Mounting section for wall-mount plate installation.
3. Hangs the Industrial 10G Media Converter on the wall.
4. Power on the Industrial 10G Media Converter. Please refer to the Wiring the Power Inputs section to get the information about how to wire the power. The power LED on the Industrial 10G Media Converter will light up. Please refer to the LED Indicators section for indication of LED lights.
5. Prepare the twisted-pair, straight-through Category 5 cable for Ethernet connection.
6. Insert one side of RJ45 cable (category 5) into the 10G Media Converter's Ethernet port (RJ45 port) while the other side to the network device's Ethernet port (RJ45 port), e.g., Media converter PC or Server. The UTP port (RJ45) LED on the Industrial 10G Media Converter will light up when the cable is connected with the network device. Please refer to the LED Indicators section for LED light indication.

Make sure that the connected network devices support MDI/MDI-X. If it does not support, use the crossover Category 5 cable.

1. When all connections are set and all LED lights show normal, the installation is completed.

2.2.2 Wall Mount Plate Mounting

To install the Industrial 10G Media Converter on the wall, please follow the instructions below.

Step 1: Place the wall-mount plate on the rear panel of the Industrial 10G Media Converter.

Step 2: Use the screwdriver to screw the wall mount plate on the Industrial 10G Media Converter.

Step 3: Use the hook holes at the corners of the wall mount plate to hang the Industrial 10G Media Converter on the wall.

Step 4: To remove the wall mount plate, reverse the steps above.

2.3 Cabling

■ 100/1000/2500/5000/10000BASE-T

The RJ-45 copper port comes with auto-negotiation capability. They automatically support 100BASE-T, 1000BASE-T, 2.5GBASE-T, 5GBASE-T and 10GBASE-T networks. Users only need to plug a working network device into the copper port, and then turn on the Industrial 10G Media Converter. The port will automatically run at 100Mbps, 1000Mbps, 2500Mbps, 5000Mbps or 10Gbps after negotiating with the connected device.

■ 100/1000/2500/10000BASE-X

The Industrial 10G Media Converter has 1 or 2 SFP+ interfaces that support 100/1000/2500/10000Mbps dual speed mode.

■ Cabling

The 100/1000/2500/5000/10000BASE-T port uses an RJ45 socket -- similar to phone jacks -- for connection of unshielded twisted-pair cable (UTP). The IEEE 802.3ab Gigabit Ethernet standard mandates the use of 5/5e/6 UTP for 1000BASE-T (refer to the table below). Maximum distance is 100 meters (328 feet). The 100/1000/2500/10000BASE-X SFP+ slot uses an LC connector with optional SFP module. Please see table below and know more about the cable specifications.

Port Type	Cable Type	Connector
100BASE-TX	Cat5 UTP, 2-pair	RJ45
1000BASE-T	Cat5/5e/6 UTP, 2-pair	RJ45
10GbASE-T	Cat6A or Cat7	RJ45
100BASE-FX	50/125μm or 62.5/125μm multi-mode 9/125μm single-mode	LC (multi/single mode)
1000BASE-SX/LX	50/125μm or 62.5/125μm multi-mode 9/125μm single-mode	LC (multi/single mode)
2500BASE-X	50/125μm or 62.5/125μm multi-mode 9/125μm single-mode	LC (multi/single mode)
10GBASE-SR/LR	50/125μm or 62.5/125μm multi-mode 9/125μm single-mode	LC (multi/single mode)

Any Ethernet devices like hubs and PCs can connect to the Industrial 10G Media Converter by using straight-through wires. The 100/1000/2500/5000/10000BASE-T ports are auto-MDI/MDI-X and can be used on straight-through or crossover cable.

2.3.1 Installing the SFP Transceiver

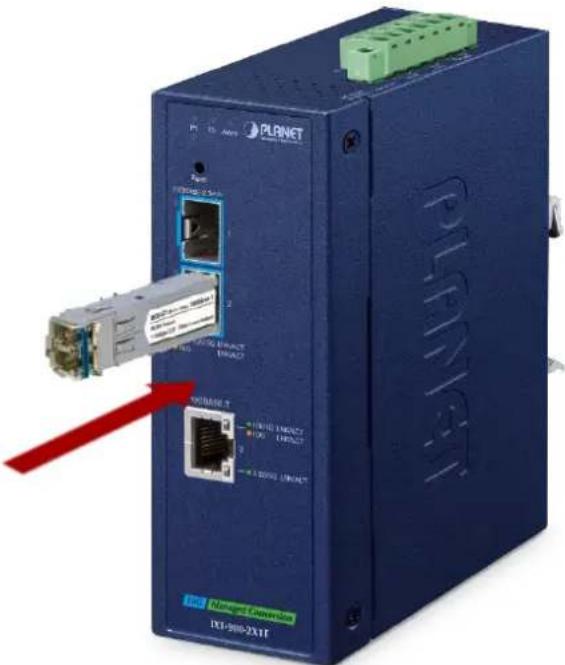

The sections describe how to insert an SFP/SFP+ transceiver into an SFP/SFP+ slot. The SFP/SFP+ transceivers are hot-pluggable and hot-swappable. You can plug in and out the transceiver to/from any SFP/SFP+ port without having to power down the Industrial 10G Managed Media Converter as follows.

PLANNET PLANNET PLANNET PLANNET PLANNET PLANNET PLANNET PLANNET PLANNET PLANNET PLANNET PLANNET PLANNET PLANNET PLANNET PLANNET PLANNET PLANNET PLANNET PLANNET PLANNET PLANNET PLANNET PLANNET PLANNET PLANNET

■ Approved PLANET SFP/SFP+ Transceivers

PLANET Industrial 10G Managed Media Converter supports both single mode and multi-mode SFP transceivers. The following list of approved PLANET SFP/SFP+ transceivers is correct at the time of publication:

10 Gigabit Ethernet Transceiver (10GBASE-X SFP+)

Model	Speed (Mbps)	Connector Interface	Fiber Mode	Distance	Wavelength (TX)	Wavelength (RX)	Operating Temp.
MTB-RJ	10G	RJ-45	Copper	30m	N/A		0 ~ 60°C
MTB-SR	10G	LC	Multi Mode	300m	850nm		0 ~ 60°C
MTB-SR2	10G	LC	Single Mode	2km	1310nm		0 ~ 60°C
MTB-LR	10G	LC	Single Mode	10km	1310nm		0 ~ 60°C
MTB-LR20	10G	LC	Single Mode	20km	1310nm		0 ~ 60°C
MTB-LR40	10G	LC	Single Mode	40km	1310nm		0 ~ 60°C
MTB-LR60	10G	LC	Single Mode	60km	1310nm		0 ~ 60°C
MTB-LR80	10G	LC	Single Mode	80km	1310nm		0 ~ 60°C
MTB-LA10	10G	LC	Single Mode	10km	1270nm	1330nm	0 ~ 60°C
MTB-LB10	10G	LC	Single Mode	10km	1330nm	1270nm	0 ~ 60°C
MTB-LB20	10G	LC	Single Mode	20km	1330nm	1270nm	0 ~ 60°C
MTB-LA20	10G	LC	Single Mode	20km	1270nm	1330nm	0 ~ 60°C
MTB-LB40	10G	LC	Single Mode	40km	1330nm	1270nm	0 ~ 60°C
MTB-LA40	10G	LC	Single Mode	40km	1270nm	1330nm	0 ~ 60°C
MTB-LA60	10G	LC	Single Mode	60km	1270nm	1330nm	0 ~ 60°C
MTB-LB60	10G	LC	Single Mode	60km	1330nm	1270nm	0 ~ 60°C
MTB-TSR	10G	LC	Multi Mode	300m	850nm		-40 ~ 85°C
MTB-TSR2	10G	LC	Single Mode	2km	1310nm		-40 ~ 85°C
MTB-TLR	10G	LC	Single Mode	10km	1310nm		-40 ~ 85°C
MTB-TLR20	10G	LC	Single Mode	20km	1310nm		-40 ~ 85°C
MTB-TLR40	10G	LC	Single Mode	40km	1310nm		-40 ~ 85°C
MTB-TLR60	10G	LC	Single Mode	60km	1310nm		-40 ~ 85°C
MTB-TLA20	10G	LC	Single Mode	20km	1270nm	1330nm	-40 ~ 85°C
MTB-TLB20	10G	LC	Single Mode	20km	1330nm	1270nm	-40~85°C
MTB-TLB40	10G	LC	Single Mode	40km	1330nm	1270nm	-40 ~ 85°C
MTB-TLA40	10G	LC	Single Mode	40km	1270nm	1330nm	-40 ~ 85°C
MTB-TLA60	10G	LC	Single Mode	60km	1270nm	1330nm	-40 ~ 85°C
MTB-TLB60	10G	LC	Single Mode	60km	1330nm	1270nm	-40 ~ 85°C

2.5 Gigabit Ethernet Transceiver (2500BASE-X SFP)

Model	Speed (Mbps)	Connector Interface	Fiber Mode	Distance	Wavelength (TX)	Wavelength (RX)	Operating Temp.
MGB-2GTSR	2500	LC	Multi-mode	300m	850nm		-40 ~ 85°C
MGB-2GTLR2	2500	LC	Single mode	2km	1310nm		-40 ~ 85°C
MGB-2GTLA20	2500	LC	Single mode	20km	1310nm	1550nm	-40 ~ 85°C
MGB-2GTLB20	2500	LC	Single mode	20km	1550nm	1310nm	-40 ~ 85°C
MGB-2GTLR20	2500	LC	Single mode	20km	1310nm		-40 ~ 85°C
MGB-2GSR	2500	LC	Multi-mode	300m	850nm		0~70°C
MGB-2GLA20	2500	LC	Single mode	20km	1310nm	1550nm	0~70°C
MGB-2GLB20	2500	LC	Single mode	20km	1550nm	1310nm	0~70°C
MGB-2GLR20	2500	LC	Single mode	20km	1310nm		0~70°C
MGB-2GLR2	2500	LC	Single mode	2km	1310nm		0~70°C

Gigabit Ethernet Transceiver (1000BASE-X SFP)

Model	Speed (Mbps)	Connector Interface	Fiber Mode	Distance	Wavelength	Wavelength (RX)	Operating Temp.
MGB-GT	1000	LC	-	100m	-	-	0 ~ 70°C
MGB-SX	1000	LC	Multi-mode	550m	850nm		0 ~ 70°C
MGB-SX2	1000	LC	Multi-mode	2km	1310nm		0 ~ 70°C
MGB-LX	1000	LC	Single-mode	20km	1310nm		0 ~ 70°C
MGB-L40	1000	LC	Single-mode	40km	1310nm		0 ~ 70°C
MGB-L80	1000	LC	Single-mode	80km	1310nm		0 ~ 70°C
MGB-L120	1000	LC	Single-mode	120km	1310nm		0 ~ 70°C
MGB-TSX	1000	LC	Multi-mode	550m	850nm		-40 ~ 85°C
MGB-TSX2	1000	LC	Multi-mode	2km	850nm		-40 ~ 85°C
MGB-TLX	1000	LC	Single-mode	20km	1310nm		-40 ~ 85°C
MGB-TL40	1000	LC	Single-mode	40km	1310nm		-40 ~ 85°C
MGB-TL80	1000	LC	Single-mode	80km	1310nm		-40 ~ 85°C
MGB-TGT	1000	LC	-	100m	-	-	-40 ~ 85°C

Gigabit Ethernet Transceiver (1000BASE-BX, Single Fiber Bi-directional SFP)

Model	Speed (Mbps)	Connector Interface	Fiber Mode	Distance	Wavelength (TX)	Wavelength (RX)	Operating Temp.
MGB-LA10	1000	LC	Single-mode	10km	1310nm	1550nm	0 ~ 70°C
MGB-LB10	1000	LC	Single-mode	10km	1550nm	1310nm	0 ~ 70°C
MGB-LA20	1000	LC	Single-mode	20km	1310nm	1550nm	0 ~ 70°C
MGB-LB20	1000	LC	Single-mode	20km	1550nm	1310nm	0 ~ 70°C
MGB-LA40	1000	LC	Single-mode	40km	1310nm	1550nm	0 ~ 70°C
MGB-LB40	1000	LC	Single-mode	40km	1550nm	1310nm	0 ~ 70°C
MGB-LA80	1000	LC	Single-mode	80km	1490nm	1550nm	0 ~ 70°C
MGB-LB80	1000	LC	Single-mode	80km	1550nm	1310nm	0 ~ 70°C
MGB-TLA10	1000	LC	Single-mode	10km	1310nm	1550nm	-40 ~ 85°C
MGB-TLB10	1000	LC	Single-mode	10km	1550nm	1310nm	-40 ~ 85°C
MGB-TLA20	1000	LC	Single-mode	20km	1310nm	1550nm	-40 ~ 85°C
MGB-TLB20	1000	LC	Single-mode	20km	1550nm	1310nm	-40 ~ 85°C
MGB-TLA40	1000	LC	Single-mode	40km	1310nm	1550nm	-40 ~ 85°C
MGB-TLB40	1000	LC	Single-mode	40km	1550nm	1310nm	-40 ~ 85°C
MGB-TLA80	1000	LC	Single-mode	80km	1490nm	1550nm	-40 ~ 85°C
MGB-TLB80	1000	LC	Single-mode	80km	1550nm	1310nm	-40 ~ 85°C
MGB-TSA	1000	LC	Single-mode	2km	1310nm	1550nm	-40 ~ 85°C
MGB-TSB	1000	LC	Single-mode	2km	1550nm	1310nm	-40 ~ 85°C
MGB-TLA120	1000	LC	Single-mode	120km	1490nm	1550nm	-40 ~ 85°C
MGB-TLB120	1000	LC	Single-mode	120km	1550nm	1310nm	-40 ~ 85°C

1. It is recommended to use PLANET SFP on the Industrial 10G Managed Media Converter. If you insert an SFP/SFP+ transceiver that is not supported, the Industrial 10G Managed Media Converter will not recognize it.

2. Before we connect the Industrial 10G Managed Media Converter to the other network device, we have to make sure both sides of the SFP transceivers are with the same media type, for example: 10GBASE-SX to 10GBASE-SX, 1000BASE-LX to 1000BASE-LX.

3. Check whether the fiber-optic cable type matches with the SFP transceiver requirement.

To connect to 10GBASE-SR SFP+ transceiver, please use the multi-mode fiber cable with one side being the male duplex LC connector type.
To connect to 10GBASE-LR SFP+ transceiver, please use the single-mode fiber cable with one side being the male duplex LC connector type.

- Connect the fiber cable

1. Insert the duplex LC connector into the SFP/SFP+ transceiver.
2. Connect the other end of the cable to a device with SFP/SFP+ transceiver installed.
3. Check the LNK/ACT LED of the SFP/SFP+ slot on the front of the Industrial 10G Managed Media Converter. Ensure that the SFP/SFP+ transceiver is operating correctly.
4. Check the Link mode of the SFP/SFP+ port if the link fails. To function with some fiber-NICs or Media Converters, user has to set the port Link mode to "10G FDX", "1000M FDX" or "100M FDX".

2.3.2 Removing the SFP/SFP+ Transceiver

1. Make sure there is no network activity by consulting or checking with the network administrator. Or through the management interface of the media converter/converter (if available) to disable the port in advance.
2. Remove the fiber optic cable gently.
3. Turn the lever of the SFP transceiver to a horizontal position.
4. Pull out the module gently through the lever.

Never pull out the module without pulling the lever or the push bolts on the module. Directly pulling out the module with force could damage the module and SFP module slot of the device.

3. MEDIA CONVERTER MANAGEMENT

This chapter explains the methods that you can use to configure management access to the Industrial 10G Managed Media Converter. It describes the types of management applications and the communication and management protocols that deliver data between your management device (workstation or personal computer) and the system. It also contains information about port connection options.

This chapter covers the following topics:

• Requirements
  ■ Management Access Overview
  ■ Administration SSH Command Line
  ■ Web Management Access
  ■ SNMP Access
  ■ Standards, Protocols, and Related Reading

3.1 Requirements

■ Workstations running Windows 7/8/10/11, macOS 10.14 or later, Linux, UNIX or other platforms are compatible with TCP/IP protocols.
■ Workstation is installed with Ethernet NIC (Network Interface Card)
■ Serial Port connection (Terminal)
- The PC above with COM Port (DB9/RS-232) or USB-to-RS-232 converter
■ Ethernet Port connection
- Network cables -- Use standard network (UTP) cables with RJ45 connectors.
■ The Workstation above is installed with the up-to-date WEB browser

It is recommended to use the latest version of a modern web browser, such as Google Chrome, Mozilla Firefox, Microsoft Edge, or Apple Safari, to access the Industrial 10G Managed Media Converter.

3.2 Management Access Overview

The Industrial 10G Managed Media Converter gives you the flexibility to access and manage it using any or all of the following methods:

■ An administration SSH command line
■ Web browser interface
■ An external SNMP-based network management application

The administration SSH command line and Web browser interface support are embedded in the Industrial 10G Managed Media Converter software and are available for immediate use. Each of these management methods has their own advantages. Table 3-1 compares the three management methods.

Method	Advantages	Disadvantages
SSHCommandLine	Secure and encrypted communicationIP remote accessExecute a wide range of commands and control all aspects of the device.Uses minimal bandwidth and system resources.	Requires familiarity with command-line syntax and navigation.No graphical interface to visualize settings and status.Steeper learning curve for those unfamiliar with command-line interfaces.
Web Browser	Ideal for configuring the media converter remotelyCompatible with all popular browsersCan be accessed from any locationMost visually appealing	Security can be compromised (hackers need only know the IP address and subnet mask)May encounter lag times on poor connections
SNMP Agent	Communicates with media converter functions at the MIB levelBased on open standards	Requires SNMP manager softwareLeast visually appealing of all three methodsSome settings require calculationsSecurity can be compromised (hackers need only know the community name)

Table 3-1: Comparison of Management Methods

3.3 Administration SSH Command Line

The Industrial 10G Managed Media Converter also supports SSHv2 for secure remote management. The media converter asks for user name and password for remote login when using telnet; please use "admin" for both username and password.

Default IP address: 192.168.0.100

Username: admin

Password: admin

Tera Term: New connection TCP/IP Host: 192.168.0.100 ✓ History Service: ○ Telnet TCP port#: 22 ● SSH SSH version: SSH2 ○ Other IP version: AUTO Serial Port: COM7: PL2303HXA PHASED OUT SIN OK Cancel Help

Figure 3-1: XT-915A SSH Login Screen

The user can now enter commands to manage the Industrial 10G Managed Media Converter. For a detailed description of the commands, please refer to the following chapters.

1. For security reason, please change and memorize the new password after this first setup.
2. Only accept command in lowercase letter under the console interface.

3.4 Configuring IP Address

The Industrial 10G Managed Media Converter is shipped with default IP address shown below:

IP Address: 192.168.0.100

Subnet Mask: 255.255.255.0

To check the current IP address or modify a new IP address for the Media converter, please use the procedure as follows:

■ Display of the Current IP Address

1. At the “#” prompt, enter “show ip”.
2. The screen displays the current IP address shown in Figure 6-2.

IXT-900-2X1PD# configure
IXT-900-2X1PD(config)# ip address 192.168.0.101
IXT-900-2X1PD(config)# exit
IXT-900-2X1PD# show ip
IP Address: 192.168.0.101
Subnet Netmask: 255.255.255.0
Default Gateway: 192.168.0.254
IXT-900-2X1PD#

Figure 3-2: IP Information Screen

3.5 Web Management

The Industrial 10G Managed Media Converter offers management features that allow users to manage the Industrial 10G Managed Media Converter from anywhere on the network through a standard browser such as Microsoft Internet Explorer. After you set up your IP address for the Industrial 10G Managed Media Converter, you can access the Industrial 10G Managed Media Converter's Web interface applications directly in your Web browser by entering the IP address of the Industrial 10G Managed Media Converter.

PC/Workstation with Chrom, Edge or Firefox browser RJ45/UTP Cable PLANET Managed Media Converter

Figure 3-3: Web Management Connection

You can then use your Web browser to list and manage the Industrial 10G Managed Media Converter configuration parameters from one central location, just as if you were directly connected to the Industrial 10G Managed Media Converter's console port. Web Management requires either the latest version of a modern web browser, such as Google Chrome, Mozilla Firefox, Microsoft Edge, or Apple Safari,

The following web screen uses XT-925A as a representative.

PLANET Networking & Communication Alarm P2 R.O. P1 Ring 1 2 3 IXT-900-2X1PD System Switching QoS Security Ring Maintenance Management Time Settings Log Management SNMP Management RMON Remote Management Welcome to PLANET IXT-900-2X1PD 2-Port 10G SFP+ + 1-Port 10GBASE-T PoE PD Industrial Managed Media Converter PLANET Technology Corporation 11F., No.96, Minquan Rd., Xindian Dist., New Taipei City 231, Taiwan, R.O.C Tel: [phone] Fax: [phone] Email: [e-mail] Copyright©2024 PLANET Technology Corporation. All rights reserved.

Figure 3-4: Web Main Screen of Industrial 10G Managed Media Converter

3.6 SNMP-based Network Management

You can use an external SNMP-based application to configure and manage the Industrial 10G Managed Media Converter, such as SNMP Network Manager, MIB browser or What's Up Gold. This management method requires the SNMP agent on the media converter and the SNMP Network Management Station to use the same community string. This management method, in fact, uses two community strings: the get community string and the set community string. If the SNMP Network management Station only knows the set community string, it can read and write to the MIBs. However, if it only knows the get community string, it can only read MIBs. The default gets and sets community strings for the Industrial 10G Managed Media Converter are public.

Figure 3-5: SNMP Management

3.7 PLANET Smart Discovery Utility

For easily listing the Industrial 10G Managed Media Converter in your Ethernet environment, Planet Smart Discovery Utility is an ideal solution. The following installation instructions are to guide you to running Planet Smart Discovery Utility.

1. Download PLANET Smart Discovery Utility from PLANET Official Website.
2. Deposit Planet Smart Discovery Utility in administrator PC.
3. Run this utility as the following screen appears.

PLANET Smart Discovery Lite File Option Help Refresh Exit PLANET Networking & Communication MAC Address Device Name Version DeviceIP NewPassword IP Address NetMask Gateway Description Select Adapter: 192.168.0.188 (C8:9C:DC:EC:D6:DD) Control Packet Force Broadcast Update Device Update Multi Update All Connect to Device Device Message

Figure 3-6: Planet Smart Discovery Utility Screen

If there are two LAN cards or above in the same administrator PC, choose a different LAN card by using the "Select Adapter" tool.

1. Press the "Refresh" button for the currently connected devices in the discovery list as the screen shows below:

PLANET Smart Discovery Lite File Option Help Refresh Exit MANEAT Address Device Name Version DeviceIP NewPassword IP Address NetMask Gateway Description A8-F7-E0-93-11-01 IXT-900-2X1T v1.403b230928 192.168.100.18 192.168.100.1 255.255.255.0 255.255.255.0 IE Managed 10Gbps C A8-F7-E0-4C-25-4F WGR-500-4PV v1.3411b19102 192.168.100.23 192.168.100.2 255.255.255.0 192.168.100.1 Industrial Gigabit PoE A8-F7-E0-46-24-09 WDAP-C7200E AP-ETSI-V3.0 192.168.100.15 192.168.100.1 255.255.255.0 192.168.100.1 1IF Demo Room_C72 A8-F7-E0-96-F3-AA IGS-4215-8UP2 v1.305b230426 192.168.100.19 192.168.100.1 255.255.255.0 192.168.100.1 IE L2/L4 Managed Pc A8-F7-E0-00-22-01 WDAP-C3000A v1.2305b23082 192.168.100.18 192.168.100.1 255.255.255.0 192.168.100.1 Indoor 3000AX Wirele A8-F7-E0-00-11-01 WDAP-C3000A v1.2305b23082 192.168.100.22 192.168.100.2 255.255.255.0 192.168.100.1 Indoor 3000AX Wirele Select Adapter: 192.168.100.44 (00:05:1B:33:44:EB) Control Packet Force Broadcast Update Device Update Multi Update All Connect to Device Device: VR-300 (A8-F7-E0-5B-92-2C) Get Device Information done

Figure 3-7: Planet Smart Discovery Utility Screen

1. This utility shows all the necessary information from the devices, such as MAC Address, Device Name, firmware version and Device IP Subnet address. It can also assign new password, IP subnet address and description for the devices.
2. After setup is completed, press the "Update Device", "Update Multi" or "Update All" button to take effect. The definitions of the 3 buttons above are shown below:

■ Update Device: use current setting on one single device.
■ Update Multi: use current setting on choose multi-devices.
■ Update All: use current setting on whole devices in the list.

The same functions mentioned above also can be found in "Option" tools bar.

1. To click the "Control Packet Force Broadcast" function, it allows you to assign a new setting value to the Web Smart Media converter under a different IP subnet address.
2. Press the "Connect to Device" button and the input username/password in web login screen and the web main screen appears in Figure 3-4.
3. Press the "Exit" button to shut down Planet Smart Discovery Utility.

This section introduces the configuration and functions of the Web-based management.

About Web-based Management

The Managed Media Converter offers management features that allow users to manage the Managed Media Converter from anywhere on the network through a standard browser such as Microsoft Internet Explorer.

The Web-based Management supports Microsoft Edge, Google Chrome and Firefox. It is based on Java Applets with an aim to reduce network bandwidth consumption, enhance access speed and present an easy viewing screen.

The Managed Media Converter can be configured through an Ethernet connection, making sure the manager PC must be set to the same IP subnet address as the Managed Media Converter.

For example, the default IP address of the Managed Media Converter is 192.168.0.100, then the manager PC should be set to 192.168.0.x (where x is a number between 1 and 254, except 100), and the default subnet mask is 255.255.255.0.

If you have changed the default IP address of the Managed Media Converter to 192.168.1.1 with subnet mask 255.255.255.0 via console, then the manager PC should be set to 192.168.1.x (where x is a number between 2 and 254) to do the relative

PC/Workstation with Chrom, Edge or Firefox browser RJ45/UTP Cable PLANET Managed Media Converter

configuration on manager PC.

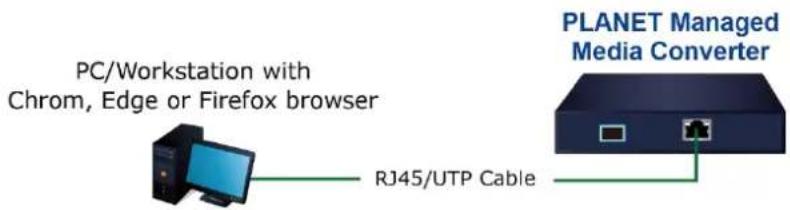

Figure 4-1-1 Web Management

■ Logging on the media converter

1. Use Microsoft Edge or Google Chrome Web browser. Enter the factory-default IP address to access the Web interface. The factory-default IP address is as follows:

http://192.168.0.100

1. When the following login screen appears, please enter the default username "admin" with password "admin" (or the username/password you have changed via console) to login the main screen of Managed Media Converter. The login screen in Figure 4-1-2 appears.

PLANET Networking & Communication Username: Password: LOGIN

Figure 4-1-2 Login screen

Default User Name: admin

Default Password: admin

After entering the username and password, the main screen appears as Figure 4-1-3.

PLANET Networking & Communication Alarm P2 R.O. P1 Ring 1 2 3 IXT-900-2X1PD System Switching QoS Security Ring Maintenance Management Time Settings Log Management SNMP Management RMON Remote Management Welcome to PLANET IXT-900-2X1PD 2-Port 10G SFP+ + 1-Port 10GBASE-T PoE PD Industrial Managed Media Converter PLANET Technology Corporation 11F., No.96, Minquan Rd., Xindian Dist., New Taipei City 231, Taiwan, R.O.C Tel: [phone] Fax: [phone] Email: [e-mail] Copyright©2024 PLANET Technology Corporation. All rights reserved.

Figure 4-1-3 Default Main Page

Now, you can use the Web management interface to continue the management or manage the Managed Media Converter via Web interface. The Media Converter Menu on the left of the web page lets you access all the commands and statistics the Managed Media Converter provides.

It is recommended to use Microsoft Edge or Google Chrome to access Managed Media Converter.
The changed IP address takes effect immediately after clicking on the Save button. You need to use the new IP address to access the Web interface afterwards.

For security reason, please change and memorize the new password after the first setup.
Only accept command in lowercase letter under command line interface.

4.1 Main Web Page

The Managed Media Converter provides a Web-based browser interface for configuring and managing it. This interface allows you to access the Managed Media Converter using the Web browser of your choice. This chapter describes how to use the Managed Media Converter's Web browser interface to configure and manage it.

Main Functions Menu SFP Port Link Status Copper Port Link Status Main Screen IXT-900-2X1PD Welcome to PLANET IXT-900-2X1PD 2-Port 10G SFP+ + 1-Port 10GBASE-T PoE PD Industrial Managed Media Converter PLANET Technology Corporation 11F., No.96, Minquan Rd., Xindian Dist., New Taipei City 231, Taiwan, R.O.C Tel: [phone] Fax: [phone] Email: [e-mail] Copyright©2024 PLANET Technology Corporation. All rights reserved.

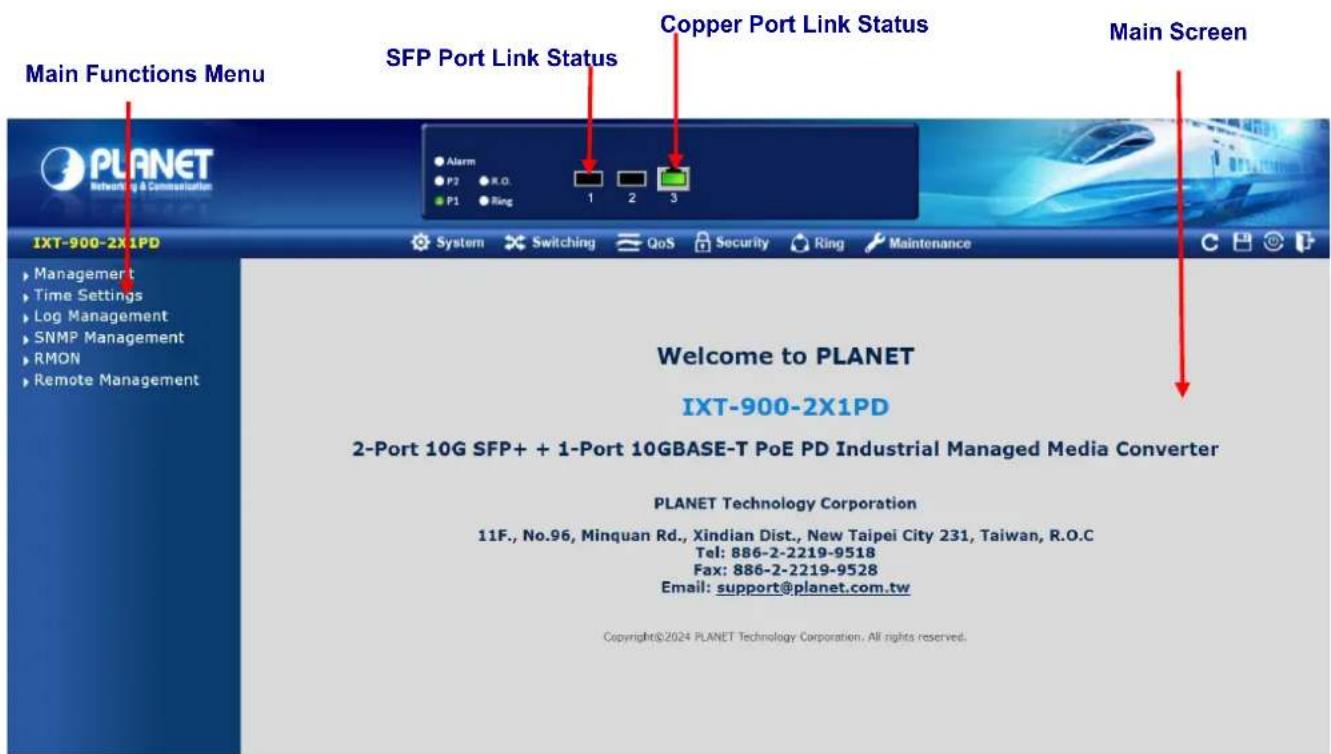

Figure 4-1-4 Main Page

Panel Display

The Web agent displays an image of the Managed Media Converter's ports. The Mode can be set to display different information for the ports, including Link up or Link down. Clicking on the image of a port opens the Port Statistics page.

The port states are illustrated as follows:

State

RJ45 Ports

SFP Ports

Disabled

Down

Link

Main Menu

By using the onboard Web agent, you can define system parameters, manage and control the Managed Media Converter, and all its ports, or monitor network conditions. Via the Web-Management, the administrator can set up the Managed Media Converter by selecting the functions those listed in the Main Function. The screen in Figure 4-1-5 appears.

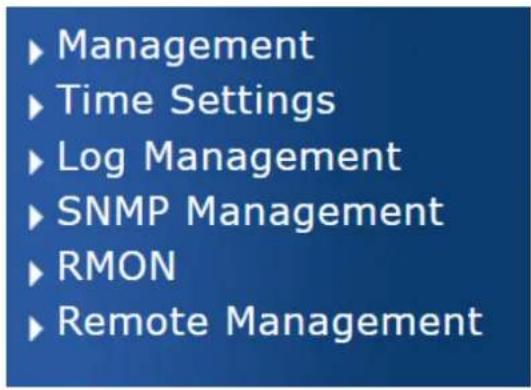

▶ Management ▶ Time Settings ▶ Log Management ▶ SNMP Management ▶ RMON ▶ Remote Management

Figure 4-1-5 Managed Media Converter Main Functions Menu

Buttons

Click to save changes or reset to default.

Click to log out the Managed Media Converter.

Click to reboot the Managed Media Converter.

Click to refresh the page.

4.1.1 Save Button

This save button allows you to save the running/startup/backup configuration or reset media converter in default parameter. The screen in Figure 4-1-6 appears.

Figure 4-1-6 Save Button Screenshot

The page includes the following fields:

Object	Description
• Save Configuration to FLASH	Click to save the configuration. For more detailed information, please refer to chapter 4.1.2

4.1.2 Configuration Manager

The system file folder contains configuration settings. The screen in Figure 4-1-7 appears.

Save Configuration
Source File	Running configuration Startup configuration Backup configuration
Destination File	Startup configuration Backup configuration

Figure 4-1-7 Save Button Screenshot

The page includes the following fields:

Object	Description
• Running Configuration	Refers to the running configuration sequence use in the media converter.In media converter, the running configuration file stores in the RAM. In the current version, the running configuration sequence running-config can be saved from the RAM to FLASH by saving “Source File = Running Configuration” to “Destination File = Startup Configuration”, so that the running configuration sequence becomes the startup configuration file, which is called configuration save.To prevent illicit file upload and easier configuration, media converter mandates the name of running configuration file to be running-config.
• Startup Configuration	Refers to the configuration sequence used in media converter startup began startup configuration file stores in nonvolatile storage, corresponding to the so-calledconfiguration save. If the device supports multi-config file, name the configuration file to be .cfg file, the default is startup.cfg.If the device does not support multi-config file, mandates the name of startup configuration file to be startup-config.
• Backup Configuration	The backup configuration is empty in FLASH; please save the backup configuration first by “Maintenance > Backup Manager”.

Buttons

Apply

: Click to save configuration.

4.1.2.1 Saving Configuration

In the Managed Media Converter, the running configuration file stores in the RAM. In the current version, the running configuration sequence of running-config can be saved from the RAM to FLASH by "Save Configurations to FLASH" function, so that the running configuration sequence becomes the startup configuration file, which is called configuration save.

To save all applied changes and set the current configuration as a startup configuration. The startup-configuration file will be loaded automatically across a system reboot.

1. Click "Save Configuration" on the main menu on the left.

Switch Maintenance Save Configuration Factory Default Reboot Backup Manager Upgrade Manager Dual Image Diagnostic

1. Select "Running Configuration" as the Source File and "Startup Configuration" as the Destination File.

Save Configuration

Source File	Running configurationStartup configurationBackup configuration
Destination File	Startup configurationBackup configuration

Apply

1. Press the "Apply" button to save running configuration to startup configuration.

4.2 System

Use the System menu items to display and configure basic administrative details of the Managed Media Converter. Under the system, the following topics are provided to configure and view the system information. This section has the following items:

4.2.1 Management
System Information	The system information is provided here.
IP Configuration	Configure the managed media converter's IP information on this page.
IPv6 Configuration	Configure the managed media converter's IPv6 information on this page.
User Configuration	Configure new user name and password on this page.
4.2.2 Time Settings
System Time	Configure system time settings on this page.
SNTP Settings	Configure SNTP settings on this page.
4.2.3 Log Management
Logging Service	Configure logging service settings on this page.
Local Logging	Configure local logging settings on this page.
Remote Syslog	Configure remote syslog settings on this page.
Logging Message	Configure logging message settings on this page.
4.2.4 SNMP Management
SNMP Setting	Configure System Time settings on this page.
SNMP Community	Configure SNTP settings on this page.
SNMP View	Configure System Time settings on this page.
SNMP Access Group	Configure SNTP settings on this page.
SNMP User	Configure System Time settings on this page.
SNMPv1, 2 Notification Recipients	Configure SNTP settings on this page.
SNMPv3 Notification Recipients	Configure System Time settings on this page.
SNMP Engine ID	Configure SNTP settings on this page.
SNMP Remote Engine ID	Configure System Time settings on this page.
4.2.5 RMON
RMON Statistics	Configure RMON statistics settings on this page.
RMON Event	Configure RMON event settings on this page.
RMON Event Log	Configure RMON event log settings on this page.
RMON Alarm	Configure RMON alarm settings on this page.
RMON History	Configure RMON history settings on this page.
RMON History Log	Configure RMON history log settings on this page.
4.2.6 Remote Management
Remote NMS Configuration	Configure Remote NMS Configuration settings on this page.

4.2.1 Management

4.2.1.1 System Information

The System Info page provides information for the current device information. System Info page helps the administrator to identify the hardware MAC address, software version and system uptime. The screens are shown in Figure 4-2-1 and Figure 4-2-2.

Information Name	Information Value
System Name	Edit IXT-900-2X1PD
System Location	Edit Default Location
System Contact	Edit Default Contact
MAC Address	A8:F7:E0:00:00:A1
SerialNo	AH105100300004
IP Address	192.168.0.100
Subnet Mask	255.255.255.0
Gateway	192.168.0.254
Loader Version	2021.04.(4.0.3.55179)
Loader Date	Dec 06 2023 - 09:44:00 +0800
Firmware Version	v1.403b231215
Firmware Date	Dec 15 2023 - 18:10:30
System Object ID	1.3.6.1.4.1.10456.2.648
System Up Time	0 days, 0 hours, 4 mins, 32 secs
PCB/HW Version	V1
Power Status	PWR1:ONPWR2:OFF

Figure 4-2-1 System Information Screenshot

The page includes the following fields:

Object	Description
System Name	Display the current system name
System Location	Display the current system location
System Contact	Display the current system contact
MAC Address	The MAC address of this Managed Media Converter.
Serial No.	Each media converter has its own serial number.
IP Address	The IP address of this Managed Media Converter.
Subnet Mask	The subnet mask of this Managed Media Converter.
Gateway	The gateway of this Managed Media Converter.
Loader Version	The loader version of this Managed Media Converter.
Loader Date	The loader date of this Managed Media Converter.
Firmware Version	The firmware version of this Managed Media Converter.
Firmware Date	The firmware date of this Managed Media Converter.
System Object ID	The system object ID of the Managed Media Converter.
System Up Time	The period of time the device has been operational.
PCN/HW Version	The hardware version of this Managed Media Converter.

Buttons

Edit

: Click to edit parameter.

4.2.1.2 IP Configurations

The IP Configuration includes the IP Address, Subnet Mask and Gateway. The configuration column is used to view or change the IP configuration. Fill out the IP Address, Subnet Mask and Gateway for the device. The screens are shown in Figure 4-2-2 and Figure 4-2-3.

IP Address Setting

Mode	Static DHCP
IP Address	192.168.0.101
Subnet Mask	255.255.255.0
Gateway	192.168.0.254
DNS Server 1	168.95.1.1
DNS Server 2	168.95.192.1

Apply

Figure 4-2-2 IP Address Setting Screenshot
he page includes the following fields:

Object	Description
• Mode	Indicates the IP address mode operation. Possible modes are:Static: Enable NTP mode operation.When enabling NTP mode operation, the agent forwards and transfersNTP messages between the clients and the server when they are not onthe same subnet domain.DHCP: Enable DHCP client mode operation.Enable the DHCP client by checking this box. If DHCP fails and theconfigured IP address is zero, DHCP will retry. If DHCP fails and theconfigured IP address is non-zero, DHCP will stop and the configured IPsettings will be used. The DHCP client will announce the configuredSystem Name as hostname to provide DNS lookup.
• IP Address	Provide the IP address of this media converter in dotted decimal notation.
• Subnet Mask	Provide the subnet mask of this media converter in dotted decimal notation.
• Gateway	Provide the IP address of the router in dotted decimal notation.
• DNS Server 1/2	Provide the IP address of the DNS Server in dotted decimal notation.

Buttons

Apply

: Click to apply changes.

IP Information

Information Name	Information Value
DHCP State	Disable
Static IP Address	192.168.0.101
Static Subnet Mask	255.255.255.0
Static Gateway	192.168.0.254
Static DNS Server 1	168.95.1.1
Static DNS Server 2	168.95.192.1

Figure 4-2-3 IP Information Screenshot

The page includes the following fields:

Object	Description
DHCP State	Display the current DHCP state.
IP Address	Display the current IP address.
Subnet Mask	Display the current subnet mask.
Gateway	Display the current gateway.
DNS Server 1/2	Display the current DNS server.

4.2.1.3 IPv6 Configuration

The IPv6 Configuration includes Auto Configuration, IPv6 Address and Gateway. The configured column is used to view or change the IPv6 configuration. Fill out the Auto Configuration, IPv6 Address and Gateway for the device. The screens are shown in Figure 4-2-4 and Figure 4-2-5.

IPv6 Address Setting

Auto Configuration	○ Disable ○ Enable
IPv6 Address	/ 0
Gateway	:
DHCPv6 Client	○ Disable ○ Enable

Apply

Figure 4-2-4 IPv6 Address Setting Screenshot
The page includes the following fields:

Object	Description
• Auto Configuration	Enable IPv6 auto-configuration by checking this box.If it fails, the configured IPv6 address is zero. The router may delay responding to a router solicitation for a few seconds; the total time needed to complete auto-configuration can be significantly longer.
• IPv6 Address	Provide the IPv6 address of this media converter.IPv6 address is in 128-bit records represented as eight fields of up to four hexadecimal digits with a colon separating each field (:). For example,'fe80::215:c5ff:fe03:4dc7'.The symbol '::' is a special syntax that can be used as a shorthand way of representing multiple 16-bit groups of contiguous zeros; but it can only appear once. It also uses the following legally IPv4 address. For example, ':192.1.2.34'.Provide the IPv6 Prefix of this media converter. The allowed range is from 1 through 128.
• Gateway	Provide the IPv6 gateway address of this media converter.IPv6 address is in 128-bit records represented as eight fields of up to four hexadecimal digits with a colon separating each field (:). For example,'fe80::215:c5ff:fe03:4dc7'.
• DHCPv6 Client	To enable this Managed Media Converter to accept a configuration from a Dynamic Host Configuration Protocol version 6 (DHCPv6) server. By default, the Managed Media Converter does not perform DHCPv6 client actions.DHCPv6 clients request the delegation of long-lived prefixes that they can push to individual local hosts.

Buttons

Apply

: Click to apply changes.

Information Name	Information Value
Auto Configuration	Enabled
IPv6 In Use Address	fe80::2e0:4 cff:fe00:0 / 64
IPv6 In Use Router	::
IPv6 Static Address	fe80::2e0:4 cff:fe00:0 / 0
IPv6 Static Router	::
DHCPv6 Client	Disabled

Figure 4-2-5 IPv6 Information Screenshot

The page includes the following fields:

Object	Description
• Auto Configuration	Display the current auto configuration state
• IPv6 In Use Address	Display the current IPv6 in-use address
• IPv6 In Use Router	Display the current in-use gateway
• IPv6 Static Address	Display the current IPv6 static address
• IPv6 Static Router	Display the current IPv6 static gateway
• DHCPv6 Client	Display the current DHCPv6 client status

4.2.1.4 User Configuration

This page provides an overview of the current users and privilege type. Currently the only way to login as another user on the Web server is to close and reopen the browser. After the setup is completed, please press "Apply" button to take effect. Please login Web interface with a new user name and password; the screens are shown in Figure 4-2-6 and Figure 4-2-7.

User Name	Password Type	Password	Retype Password	Privilege Type
	Clear Text			Admin

Figure 4-2-6 Local User Information Screenshot

The page includes the following fields:

Object	Description
•Username	The name identifying the user.Maximum length: 32 characters;Maximum number of users: 8
•Password Type	The password type for the user.
•Password	Enter the user's new password here.(Range: 0-32 characters plain text, case sensitive)
•Retype Password	Please enter the user's new password here again to confirm.
•Privilege Type	The privilege type for the user.Options:AdminUserOther

Buttons

Apply

: Click to apply changes.

User Name	Password Type	Privilege Type	Privilege Value	Modify
admin	Encrypted	Admin	15

Figure 4-2-7 Local User Screenshot

333The page includes the following fields:

Object	Description
•Username	Display the current username
•Password Type	Display the current password type
•Privilege Type	Display the current privilege type
•Modify	Click to modify the local user entryDelete: Delete the current user

4.2.2 Time Settings

4.2.2.1 System Time

Configure System time on this page. You can specify SNTP Servers and set GMT Time zone. The SNTP Configuration screens are shown in Figure 4-2-8 and Figure 4-2-9.

System Time Setting

Enable SNTP	Disable Enable
Manual Time	Year 2000 Month Jan Day 1 Hours 0 Minutes 0 Seconds 0
Time Zone	None
Daylight Saving Time	Disable
Daylight Saving Time Offset	0 (1 - 1440) Minutes
Recurring From	Day Sun Week 1 Month Jan Hours 0 Minutes 0
Recurring To	Day Sun Week 1 Month Jan Hours 0 Minutes 0
Non-recurring From	Year 2000 Month Jan Date 1 Hours 0 Minutes 0
Non-recurring To	Year 2000 Month Jan Date 1 Hours 0 Minutes 0

Apply

Figure 4-2-8 System Time Setting Screenshot

The page includes the following fields:

Object	Description
Enable SNTP	Enabled: Enable SNTP mode operation.When enabling SNTP mode operation, the agent forwards and transfersSNTP messages between the clients and the server when they are not on the same subnet domain.Disabled: Disable SNTP mode operation.
Manual Time	To set time manually.Year - Select the starting Year.Month - Select the starting month.Day - Select the starting day.Hours - Select the starting hour.Minutes - Select the starting minute.Seconds - Select the starting seconds.
• Time Zone	Allows to select the time zone according to the current location of media converter.
• Daylight Saving Time	This is used to set the clock forward or backward according to the configurations set below for a defined Daylight Saving Time duration. Select 'Disable' to disable the Daylight Saving Time configuration. Select 'Recurring' and configure the Daylight Saving Time duration to repeat the configuration every year. Select 'Non-Recurring' and configure the Daylight Saving Time duration for single time configuration. (Default: Disabled).
• Daylight Saving Time Offset	Enter the number of minutes to add during Daylight Saving Time. (Range: 1 to 1440 )
• Recurring From	• Week - Select the starting week number.• Day - Select the starting day.• Month - Select the starting month.• Hours - Select the starting hour.• Minutes - Select the starting minute.
• Recurring To	• Week - Select the starting week number.• Day - Select the starting day.• Month - Select the starting month.• Hours - Select the starting hour.• Minutes - Select the starting minute.
• 3Non-recurring From	• Week - Select the starting week number.• Day - Select the starting day.• Month - Select the starting month.• Hours - Select the starting hour.• Minutes - Select the starting minute.
• 3Non-recurring To	• Week - Select the starting week number.• Day - Select the starting day.• Month - Select the starting month.• Hours - Select the starting hour.• Minutes - Select the starting minute.

Buttons

Apply

: Click to apply changes.

System Time Informations

Information Name	Information Value
Current Date/Time	09:13:10 DFL(UTC+8) Jan 01 2000
SNTP	Disabled
Time zone	UTC+8
Daylight Saving Time	Disabled
Daylight Saving Time Offset
From
To

Figure 4-2-9 Time Information Screenshot

The page includes the following fields:

Object	Description
• Current Data/Time	Display the current data/time
• SNTP	Display the current SNTP state
• Time Zone	Display the current time zone
• Daylight Saving Time	Display the current daylight saving time state
• Daylight Saving Time Offset	Display the current daylight saving time offset state
• From	Display the current daylight saving time from
• To	Display the current daylight saving time to

4.2.2.2 SNTP Server Settings

SNTP is an acronym for Simple Network Time Protocol, a network protocol for synchronizing the clocks of computer systems. The SNTP Server Configuration screens are shown in Figure 4-2-10 and Figure 4-2-11.

SNTP Server Settings

SNTP Server Address		( XXX.X or Hostname)
Server Port	123	( 1 - 65535 | Default : 123 )

Apply

Figure 4-2-10 SNTP Setup Screenshot

The page includes the following fields:

Object	Description
• SNTP Server Address	Type the IP address or domain name of the SNTP server
• Server Port	Type the port number of the SNTP

Buttons

Apply

: Click to apply changes.

Information Name	Information Value
SNTP Server Address	time.nist.gov
SNTP Server Port	123

Figure 4-2-11 SNTP Server Information Screenshot

The page includes the following fields:

Object	Description
• SNTP Server Address	Display the current SNTP server address
• Server Port	Display the current SNTP server port

4.2.3 Log Management

The Managed Media Converter log management is provided here. The local logs allow you to configure and limit system messages that are logged to flash or RAM memory. The default is for event levels 0 to 3 to be logged to flash and levels 0 to 6 to be logged to RAM. The following table lists the event levels of the Managed Media Converter:

Level	Severity Name	Description
7	Debug	Debugging messages
6	Informational	Informational messages only
5	Notice	Normal but significant condition, such as cold start
4	Warning	Warning conditions (e.g., return false, unexpected return)
3	Error	Error conditions (e.g., invalid input, default used)
2	Critical	Critical conditions (e.g., memory allocation, or free memory error - resource exhausted)
1	Alert	Immediate action needed
0	Emergency	System unusable

4.2.3.1 Logging Service

The media converter system local log information is provided here. The local Log screens in Figure 4-2-12 and Figure 4-2-13 appear.

Logging Settings Logging Service Enabled Disabled Apply

Figure 4-2-12 Logging Settings Screenshot

The page includes the following fields:

Object	Description
• Logging Service	Enabled: Enable logging service operation.
	Disabled: Disable logging service operation.

Buttons

Apply

: Click to apply changes.

Information Name	Information Value
Logging Service	enabled

Figure 4-2-13 Logging Information Screenshot

The page includes the following fields:

Object	Description
• Logging Service	Display the current logging service status

4.2.3.2 Local Logging

The media converter system local log information is provided here. The local Log screens in Figure 4-2-14 and Figure 4-2-15 appear.

Local Logging Setting Target Severity Select Targets emerg Apply

Figure 4-2-14 Local Log Target Setting Screenshot

The page includes the following fields:

Object	Description
• Target	The target of the local log entry. The following target types are supported:Buffered: Target the buffer of the local log.File: Target the file of the local log.
• Severity	The severity of the local log entry. The following severity types are supported:emerg: Emergency level of the system unstable for local log.alert: Alert level of the immediate action needed for local log.crit: Critical level of the critical conditions for local log.error: Error level of the error conditions for local log.warning: Warning level of the warning conditions for local log.notice: Notice level of the normal but significant conditions for local log.info: Informational level of the informational messages for local log.debug: Debug level of the debugging messages for local log.

Buttons

Apply

: Click to apply changes.

Status	Target	Severity	Action
enabled	buffered	emerg, alert, crit, error, warning, notice	Delete

Figure 4-2-15 Local Log Setting Status Screenshot

The page includes the following fields:

Object	Description
• Status	Display the current local log state
• Target	Display the current local log target
• Severity	Display the current local log severity
Action	Delete : Delete the current status

4.2.3.3 Remote Syslog

Configure remote syslog on this page. The Remote Syslog page allows you to configure the logging of messages that are sent to syslog servers or other management stations. You can also limit the event messages sent to only those messages below a specified level.

The Remote Syslog screens in Figure 4-2-16 and Figure 4-2-17 appear.

Remote Logging Setting Server Address Server Port Severity Facility 514 (1-65535) emerg local0 Apply

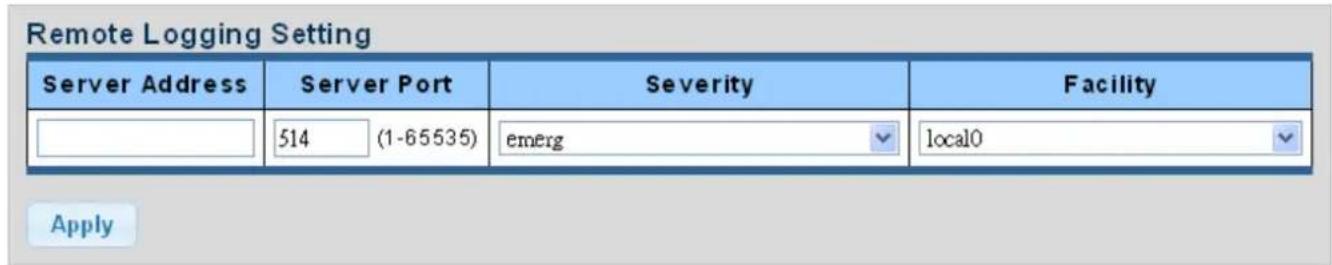

Figure 4-2-16 Remote Log Target Screenshot

The page includes the following fields:

Object	Description
• Server Address	Provide the remote syslog IP address of this media converter.
• Server Port	Provide the port number of remote syslog server.Default Port no.: 514
• Severity	The severity of the local log entry. The following severity types are supported:■ emerg: Emergency level of the system unstable for local log.■ alert: Alert level of the immediate action needed for local log.■ crit: Critical level of the critical conditions for local log.■ error: Error level of the error conditions for local log.■ warning: Warning level of the warning conditions for local log.■ notice: Notice level of the normal but significant conditions for local log.■ info: Informational level of the informational messages for local log.■ debug: Debug level of the debugging messages for local log.
• Facility	Local0~7: local user 0~7

Buttons

Apply

: Click to apply changes.

Remote Logging Setting Status Status Server Info Severity Facility Action

Figure 4-2-17 Remote Log Setting Status Screenshot

The page includes the following fields:

Object	Description
• Status	Display the current remote syslog state
• Server Info	Display the current remote syslog server information
• Severity	Display the current remote syslog severity
• Facility	Display the current remote syslog facility
• Action	Delete: Delete the remote server entry

4.2.3.4 Logging Message

The media converter log view is provided here. The Log View screens in Figure 4-2-18, Figure 4-2-19 and Figure 4-2-20 appear.

Logging Filter Select Target Severity Category buffered Select Levels Select Categories View

Figure 4-2-18 Log Information Select Screenshot

The page includes the following fields:

Object	Description
• Target	The target of the log view entry. The following target types are supported:Buffered: Target the buffered of the log view.File: Target the file of the log view.
• Severity	The severity of the log view entry. The following severity types are supported:emerg: Emergency level of the system unstable for log view.alert: Alert level of the immediate action needed for log view.crit: Critical level of the critical conditions for log view.error: Error level of the error conditions for log view.warning: Warning level of the warning conditions for log view.notice: Notice level of the normal but significant conditions for log view.info: Informational level of the informational messages for log view.debug: Debug level of the debugging messages for log view.
• Category	The category of the log view includes:AAA, ACL, CABLE_DIAG, DAI, DHCP_SNOOPING, Dot1X, GVRP,IGMP_SNOOPING, IPSG, L2, LLDP, Mirror, MLD_SNOOPING, Platform, PM,Port, PORT_SECURITY, QoS, Rate, SNMP and STP

Buttons

View

: Click to view log.

- Logging Information

Information Name	Information Value
Target	buffered
Severity	emerg, alert, crit, error, warning, notice
Category	AAA, ACL, CABLE_DIAG, DAI, DHCP_SNOOPING, Dot1X, GVRP, IGMP_SNOOPING, IPSG, L2, LLDP, Mirror, MLD_SNOOPING, Platform, PM, Port, PORT_SECURITY, QoS, Rate, SNMP, STP, Security-suite, System, Trunk, VLAN
Total Entries	1

Figure 4-2-19 Logging Information Screenshot

The page includes the following fields:

Object	Description
• Target	Display the current log target
• Severity	Display the current log severity
• Category	Display the current log category
• Total Entries	Display the current log entries

Logging Messages

Clear buffered messages

Refresh

1

No.	Timestamp	Category	Severity	Message
1	Jan 01 2000 08:00:19	Port	notice	Port gi1 link up

Figure 4-2-20 Logging Messages Screenshot

The page includes the following fields:

Object	Description
• No.	This is the number for logs
• Timestamp	Display the time of log
• Category	Display the category type
• Severity	Display the severity type
• Message	Display the log message

Buttons

Clear

: Click to clear the log.

Refresh

: Click to refresh the log.

4.2.4 SNMP Management

4.2.4.1 SNMP Overview

The Simple Network Management Protocol (SNMP) is an application layer protocol that facilitates the exchange of management information between network devices. It is part of the Transmission Control Protocol/Internet Protocol (TCP/IP) protocol suite. SNMP enables network administrators to manage network performance, find and solve network problems, and plan for network growth.

An SNMP-managed network consists of three key components: Network management stations (NMS's), SNMP agents, Management information base (MIB) and network-management protocol:

Network management stations (NMS's): Sometimes called consoles, these devices execute management applications that monitor and control network elements. Physically, NMS's are usually engineering workstation-caliber computers with fast CPUs, megapixel color displays, substantial memory, and abundant disk space. At least one NMS must be present in each managed environment.
Agents: Agents are software modules that reside in network elements. They collect and store management information such as the number of error packets received by a network element.
Management information base (MIB): A MIB is a collection of managed objects residing in a virtual information store. Collections of related managed objects are defined in specific MIB modules.
Network-management protocol: A management protocol is used to convey management information between agents and NMS's. SNMP is the Internet community's de facto standard management protocol.

SNMP Operations

SNMP itself is a simple request/response protocol. NMS's can send multiple requests without receiving a response.

Get -- Allows the NMS to retrieve an object instance from the agent.
Set -- Allows the NMS to set values for object instances within an agent.
- Trap -- Used by the agent to asynchronously inform the NMS of some event. The SNMPv2 trap message is designed to replace the SNMPv1 trap message.

SNMP community

An SNMP community is the group that devices and management stations running SNMP belong to. It helps define where information is sent. The community name is used to identify the group. An SNMP device or agent may belong to more than one SNMP community. It will not respond to requests from management stations that do not belong to one of its communities. SNMP default communities are:

Write = private

Read = public

4.2.4.2 SNMP Setting

Configure SNMP setting on this page. The SNMP System global setting screens in Figure 4-2-21 and Figure 4-2-22 appear.

SNMP Global Setting State Disabled Enabled Apply

Figure 4-2-21 SNMP Global Setting Screenshot

The page includes the following fields:

Object	Description
• Status	Indicates the SNMP mode operation. Possible modes are:Enabled: Enable SNMP mode operation levelDisabled: Disable SNMP mode operation.

Buttons

Apply

: Click to apply changes.

Information Name	Information Value
SNMP	Disable

Figure 4-2-22 SNMP Information Screenshot

The page includes the following fields:

Object	Description
• SNMP	Display the current SNMP status

4.2.4.3 SNMP Community

Configure SNMP Community on this page. The SNMP Community screens in Figure 4-2-23 and Figure 4-2-24 appear.

Community Setting Community Name Community Mode Group Name View Name Access Right Basic =all ro Add

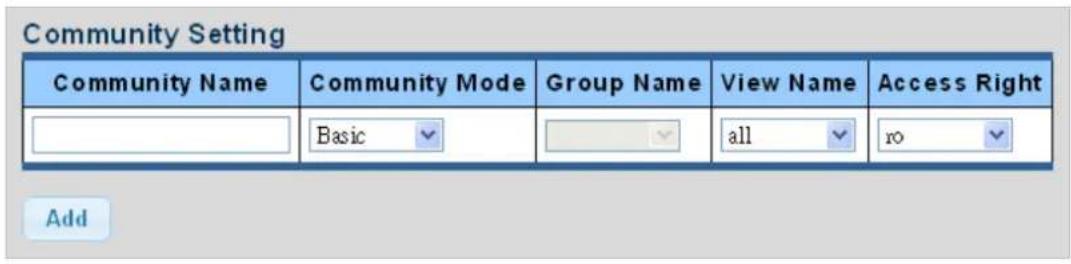

Figure 4-2-23 Community Setting Screenshot

The page includes the following fields:

Object	Description
Community Name	Indicates the community read/write access string to permit access to SNMP agent.The allowed string length is 0 to 16.
Community Mode	Indicates the SNMP community supported mode. Possible versions are:■ Basic: Set SNMP community mode supported version 1 and 2c.■ Advanced: Set SNMP community mode supported version 3.
Group Name	A string identifying the group name that this entry should belong to.The allowed string length is 1 to 16.
View Name	A string identifying the view name that this entry should belong to.The allowed string length is 1 to 16.
Access Right	Indicates the SNMP community type operation. Possible types are:RO=Read-Only: Set access string type in read-only mode.RW=Read-Write: Set access string type in read-write mode.

Buttons

Apply

: Click to apply changes.

Community Name	Group Name	View Name	Access Right	Action
public		all	rw	Delete

Figure 4-2-24 Community Status Screenshot

The page includes the following fields:

Object	Description
Community Name	Display the current community type
Group Name	Display the current SNMP access group's name
View Name	Display the current view name
Access Right	Display the current access type
Delete	Delete: Delete the community entry

4.2.4.4 SNMP View

Configure SNMPv3 view table on this page. The entry index keys are View Name and OID Subtree. The SNMPv3 View Table

Setting screens in Figure 4-2-25 and Figure 4-2-26 appear.

View Table Setting View Name Subtree OID Subtree OID Mask View Type all included excluded Add

Figure 4-2-25 SNMPv3 View Table Setting Screenshot

The page includes the following fields:

Object	Description
• View Name	A string identifying the view name that this entry should belong to.The allowed string length is 1 to 16.
• Subtree OID	The OID defining the root of the subtree to add to the named view.The allowed string content is digital number or asterisk (*).
• Subtree OID Mask	The bitmask identifies which positions in the specified object identifier are to be regarded as "wildcards" for the purpose of pattern-matching.
• View Type	Indicates the view type that this entry should belong to. Possible view type are:included: An optional flag to indicate that this view subtree should be included.excluded: An optional flag to indicate that this view subtree should be excluded.General, if a view entry's view type is 'excluded', it should exist another view entry in which view type is 'included' and its OID subtree oversteps the 'excluded' view entry.

Buttons

Add

: Click to add a new view entry.

View Name	Subtroo OID	OID Mask	View Type	Action
all	1	all	included

Figure 4-2-26 SNMP View Table Status Screenshot

The page includes the following fields:

Object	Description
• View Name	Display the current SNMP view name
• Subtree OID	Display the current SNMP subtree OID
• OID Mask	Display the current SNMP OID mask
• View Type	Display the current SNMP view type
• Action	Delete: Delete the view table entry.

4.2.4.5 SNMP Access Group

Configure SNMPv3 access group on this page. The entry index keys are Group Name, Security Model and Security Level. The SNMPv3 Access Group Setting screens in Figure 4-2-27 and Figure 4-2-28 appear.

Access Group Setting Group Name Security Model Security Level Read View Name.Write View NameNotify View Name v1 ncanth all None None Add

Figure 4-2-27 SNMPv3 Access Group Setting Screenshot

The page includes the following fields:

Object	Description
• Group Name	A string identifying the group name that this entry should belong to.The allowed string length is 1 to 16.
• Security Model	Indicates the security model that this entry should belong to.Possible security models are:■ v1: Reserved for SNMPv1.■ v2c: Reserved for SNMPv2c.■ V3: Reserved for SNMPv3 or User-based Security Model (USM)
• Security Level	Indicates the security model that this entry should belong to.Possible security models are:■ Noauth: None authentication and none privacy security levels are assigned to the group.■ auth: Authentication and none privacy.■ priv: Authentication and privacy.Note: The Security Level applies to SNNPv3 only.
• Read View Name	Read view name is the name of the view in which you can only view the contents of the agent.The allowed string length is 1 to 16.
• Write View Name	Write view name is the name of the view in which you enter data and configure the contents of the agent.The allowed string length is 1 to 16.
• Notify View Name	Notify view name is the name of the view in which you specify a notify, inform, or trap.

Buttons

Add

Delete

: Click to add a new access entry.

: Check to delete the entry.

Access Group Status Group Name Security Model Security Level Read View Name Write View Name Notify View Name Action

Figure 4-2-28 SNMP View Table Status Screenshot

The page includes the following fields:

Object	Description
• Group Name	Display the current SNMP access group name
• Security Model	Display the current security model
• Security Level	Display the current security level
• Read View Name	Display the current read view name
• Write View Name	Display the current write view name
• Notify View Name	Display the current notify view name
• Action	Delete: Delete the access group entry.

4.2.4.6 SNMP User

Configure SNMPv3 users table on this page. Each SNMPv3 user is defined by a unique name. Users must be configured with a specific security level and assigned to a group. The SNMPv3 group restricts users to a specific read, write, and notify view. The entry index key is User Name. The SNMPv3 User Setting screens in Figure 4-2-29 and Figure 4-2-30 appear.

User Setting User Name Group Privilege Mode Authentication Protocol Authentication Password Encryption Protocol Encryption Key ncouta Next (8 ~ 16 chars) None (8 ~ 16 chars) Add

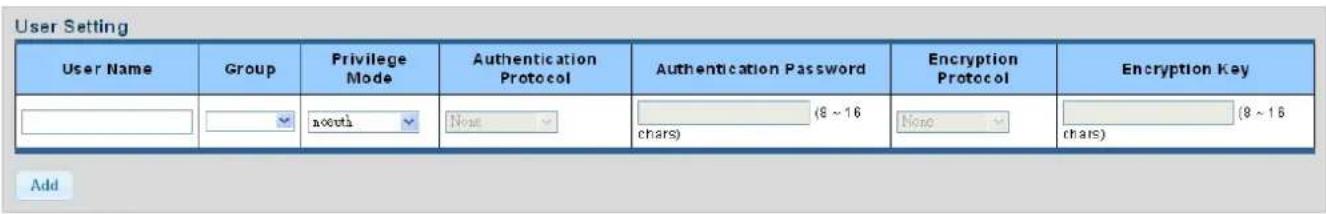

Figure 4-2-29 SNMPv3 Users Configuration Screenshot

The page includes the following fields:

Object	Description
User Name	A string identifying the user name that this entry should belong to.The allowed string length is 1 to 16.
Group	The SNMP Access Group. A string identifying the group name that this entry should belong to.
Privilege Mode	Indicates the security model that this entry should belong to. Possible security models are:NoAuth: None authentication and none privacy.Auth: Authentication and none privacy.Priv: Authentication and privacy.The value of security level cannot be modified if entry already exists. That means you must first ensure that the value is set correctly.
• Authentication Protocol	Indicates the authentication protocol that this entry should belong to. Possible authentication protocols are:■ None: None authentication protocol.■ MD5: An optional flag to indicate that this user using MD5 authentication protocol.■ SHA: An optional flag to indicate that this user using SHA authentication protocol.The value of security level cannot be modified if entry already exists. That means you must first ensure that the value is set correctly.
• Authentication Password	A string identifying the authentication pass phrase. For both MD5 and SHA authentication protocols, the allowed string length is 8 to 16.
• Encryption Protocol	Indicates the privacy protocol that this entry should belong to. Possible privacy protocol are:■ None: None privacy protocol.■ DES: An optional flag to indicate that this user using DES authentication protocol.
• Encryption Key	A string identifying the privacy pass phrase.The allowed string length is 8 to 16.

Buttons

Add

: Click to add a new user entry.

User Status User Name Group Privilege Mode-Augentication Protocol Encryption Protocol Access Right Action

Figure 4-2-30 SNMPv3 Users Status Screenshot

The page includes the following fields:

Object	Description
User Name	Display the current user name
Group	Display the current group
Privilege Mode	Display the current privilege mode
Authentication Protocol	Display the current authentication protocol
Encryption Protocol	Display the current encryption protocol
Access Right	Display the current access right
Action	Delete: Delete the user entry

4.2.4.7 SNMPv1, 2 Notification Recipients

Configure SNMPv1 and 2 notification recipients on this page. The SNMPv1, 2 Notification Recipients screens in Figure 4-2-31 and Figure 4-2-32 appear.

SNMPv1,2 Host Setting

Server Address	SNMP Version	Notify Type	Community Name	UDP Port	TimeOut	Retries
	v1	Traps	public	162 (1-65535)	15 (1-300)	3 (1-255)

Figure 4-2-31 SNMPv1, 2 Notification Recipients Screenshot

The page includes the following fields:

Object	Description
• Server Address	Indicates the SNMP trap destination address. It allows a valid IP address in dotted decimal notation ('x.y.z.w'). It can also represent a legally valid IPv4 address. For example, ':192.1.2.34'.
• SNMP Version	Indicates the SNMP trap supported version. Possible versions are: ■ SNMP v1: Set SNMP trap supported version 1. ■ SNMP v2c: Set SNMP trap supported version 2c.
• Notify Type	Set the notify type in traps or informs.
• Community Name	Indicates the community access string when send SNMP trap packet.
• UDP Port	Indicates the SNMP trap destination port. SNMP Agent will send SNMP message via this port, the port range is 1~65535.
• Time Out	Indicates the SNMP trap inform timeout. The allowed range is from 1 to 300.
• Retries	Indicates the SNMP trap inform retry times. The allowed range is from 1 to 255.

Buttons

Add

: Click to add a new SNMPv1, 2 host entry.

SNMPV1.2 Host Status Server Address SNMP Version Notify Type Community Name UDP Port TimeOut Retry Action

Figure 4-2-32 SNMPv1, 2 Host Status Screenshot

The page includes the following fields:

Object	Description
• Server Address	Display the current server address
• SNMP Version	Display the current SNMP version
• Notify Type	Display the current notify type
• Community Name	Display the current community name
• UDP Port	Display the current UDP port
• Time Out	Display the current time out
• Retries	Display the current retry times
• Action	: Delete the SNMPv1, 2 host entry.

4.2.4.8 SNMPv3 Notification Recipients

Configure SNMPv3 notification recipients on this page. The SNMPv1, 2 Notification Recipients screens in Figure 4-2-33 and Figure 4-2-34 appear.

SNMPv3 Host Setting

Server Address	Notify Type	User Name	UDP Port		TimeOut		Retries
	Traps		162	(1-65535)	15	(1-300)	3 (1-255)
Add

Figure 4-2-33 SNMPv3 Notification Recipients Screenshot

The page includes the following fields:

Object	Description
• Server Address	Indicates the SNMP trap destination address. It allows a valid IP address in dotted decimal notation ('x.y.z.w'). It can also represent a legally valid IPv4 address. For example, ‘::192.1.2.34’.
• Notify Type	Set the notify type in traps or informs.
• User Name	Indicates the user string when send SNMP trap packet.
• UDP Port	Indicates the SNMP trap destination port. SNMP Agent will send SNMP message via this port, the port range is 1~65535.
• Time Out	Indicates the SNMP trap inform timeout. The allowed range is from 1 to 300.
• Retries	Indicates the SNMP trap inform retry times. The allowed range is from 1 to 255.

Buttons

Add

: Click to add a new SNMPv3 host entry.

SNMPv3 Host Status Server Address Notify Type User Name UDP Port Time Out Retry Action

Figure 4-2-34 SNMPv3 Host Status Screenshot

The page includes the following fields:

Object	Description
• Server Address	Display the current server address
• Notify Type	Display the current notify type
• User Name	Display the current user name
• UDP Port	Display the current UDP port
• Time Out	Display the current time out
• Retries	Display the current retry times
• Action	Delete: Delete the SNMPv3 host entry

4.2.4.9 SNMP Engine ID

Configure SNMPv3 Engine ID on this page. The entry index key is Engine ID. The remote engine ID is used to compute the security digest for authenticating and encrypting packets sent to a user on the remote host. The SNMPv3 Engine ID Setting screens in Figure 4-2-35 and Figure 4-2-36 appear.

Engine ID Settings

Use Default	Enabled Disabled
Engine ID	80006a92030000304f1122 (10-64)

Figure 4-2-35 SNMPv3 Engine ID Setting Screenshot

The page includes the following fields:

Object	Description
• Engine ID	An octet string identifying the engine ID that this entry should belong to. The string must contain an even number between 10 and 64 hexadecimal digits, but all-zeros and all-'F's are not allowed.

Buttons

Apply

: Click to apply changes.

Engine ID Status Information Name Information Value Use Default Enabled Engine ID 80006a92030000304f1122

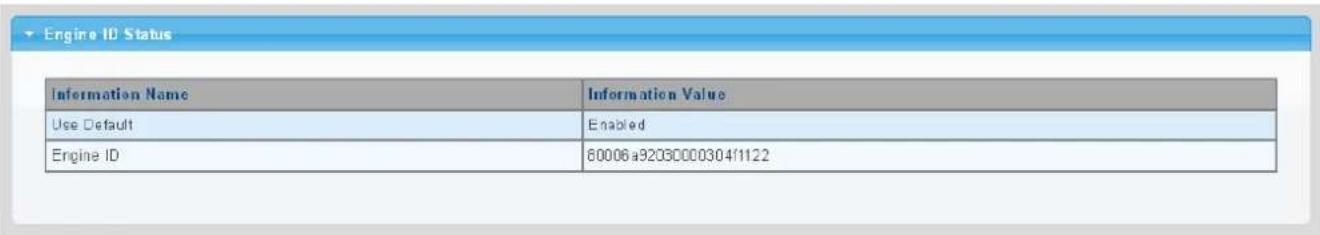

Figure 4-2-36 SNMPv3 Engine ID Status Screenshot

The page includes the following fields:

Object	Description
• User Default	Display the current status
• Engine ID	Display the current engine ID

4.2.4.10 SNMP Remote Engine ID

Configure SNMPv3 remote Engine ID on this page. The SNMPv3 Remote Engine ID Setting screens in Figure 4-2-37 and Figure 4-2-38 appear.

Remote EngineID Setting Remote IP Address Engine ID Add

Figure 4-2-37 SNMPv3 Remote Engine ID Setting Screenshot

The page includes the following fields:

Object	Description
• Remote IP Address	Indicates the SNMP remote engine ID address. It allows a valid IP address in dotted decimal notation ('x.y.z.w').
• Engine ID	An octet string identifying the engine ID that this entry should belong to.

Buttons

Apply

: Click to apply changes.

Remote Engine ID Status Remote IP Address Remote Engine ID Action

Figure 4-2-38 SNMPv3 Remote Engine ID Status Screenshot

The page includes the following fields:

Object	Description
• Remote IP Address	Display the current remote IP address
• Engine ID	Display the current engine ID
• Action	Delete: Delete the remote IP address entry

4.2.5 RMON

RMON is the most important expansion of the standard SNMP. RMON is a set of MIB definitions, used to define standard network monitor functions and interfaces, enabling the communication between SNMP management terminals and remote monitors. RMON provides a highly efficient method to monitor actions inside the subnets.

MID of RMON consists of 10 groups. The media converter supports the most frequently used group 1, 2, 3 and 9:

■ Statistics: Maintain basic usage and error statistics for each subnet monitored by the Agent.
■ History: Record periodical statistic samples available from Statistics.
- Alarm: Allow management console users to set any count or integer for sample intervals and alert thresholds for RMON Agent records.
■ Event: A list of all events generated by RMON Agent.

Alarm depends on the implementation of Event. Statistics and History display some current or history subnet statistics. Alarm and Event provide a method to monitor any integer data change in the network, and provide some alerts upon abnormal events (sending Trap or record in logs).

4.2.5.1 RMON Statistics

This page provides a Detail of a specific RMON statistics entry; RMON Statistics screen in Figure 4-2-39 appears.

RMON Counters	Value
Drop Events	0
Octets	5192377
Packets	36210
Broadcast Packets	508
Multicast Packets	156
CRC / Alignment Errors	0
Undersize Packets	0
Oversize Packets	0
Fragments	0
Jabbers	0
Collisions	0
64 Bytes Frame	23107
65-127 Byte Frames	5685
128-255 Byte Frames	227
256-511 Byte Frames	7161
512-1023 Byte Frames	30
1024-1518 Byte Frames	0

Figure 4-2-39: RMON Statistics Detail Screenshot

The page includes the following fields:

Object	Description
• Port	Select port from this drop-down list
• Drop Events	The total number of events in which packets were dropped by the probe due to lack of resources
• Octets	The total number of octets of data (including those in bad packets) received on the network
• Packets	The total number of packets (including bad packets, broadcast packets, and multicast packets) received
• Broadcast Packets	The total number of good packets received that were directed to the broadcast address
• Multicast Packets	The total number of good packets received that were directed to a multicast address
• CRC/Alignment Errors	The total number of packets received that had a length (excluding framing bits, but including FCS octets) of between 64 and 1518 octets
• Undersize Packets	The total number of packets received that were less than 64 octets
• Oversize Packets	The total number of packets received that were longer than 1518 octets
• Fragments	The number of frames which size is less than 64 octets received with invalid CRC
• Jabbers	The number of frames which size is larger than 64 octets received with invalid CRC
• Collisions	The best estimate of the total number of collisions on this Ethernet segment.
• 64 Bytes Frame	The total number of packets (including bad packets) received that were 64 octets in length
• 65~127 Byte Frames	The total number of packets (including bad packets) received that were between 65 to 127 octets in length
• 128~255 Byte Frames	The total number of packets (including bad packets) received that were between 128 to 255 octets in length
• 256~511 Byte Frames	The total number of packets (including bad packets) received that were between 256 to 511 octets in length
• 512~1023 Byte Frames	The total number of packets (including bad packets) received that were between 512 to 1023 octets in length
• 1024~1518 Byte Frames	The total number of packets (including bad packets) received that were between 1024 to 1518 octets in length

Buttons

Clear

: Click to clear the RMON statistics

4.2.5.2 RMON Event

Configure RMON Event table on this page. The RMON Event screens in Figure 4-2-40 and Figure 4-2-41 appear.

RMON Event Select Index Create New Index 0 (1-65535) Type None Community Owner (0~31 Characters) Description (0~127 Characters) Apply

Figure 4-2-40: RMON Event Configuration Screenshot

The page includes the following fields:

Object	Description
• Select Index	Select index from this drop-down list to create new index or modify index
• Index	Indicates the index of the entry. The range is from 1 to 65535
• Type	Indicates the notification of the event, the possible types are:■ none: The total number of octets received on the interface, including framing characters.■ log: The number of uni-cast packets delivered to a higher-layer protocol.■ SNMP-Trap: The number of broad-cast and multi-cast packets delivered to a higher-layer protocol.■ Log and Trap: The number of inbound packets that are discarded even the packets are normal.
• Community	Specify the community when trap is sent, the string length is from 0 to 127, default is "public".
• Owner	Indicates the owner of this event, the string length is from 0 to 127, default is a null string
• Description	Indicates description of this event, the string length is from 0 to 127, default is a null string

Buttons

Apply

: Click to apply changes.

Index

Event Type

Community

Description

Last Sent Time

Owner

Action

Figure 4-2-41: RMON Event Status Screenshot

The page includes the following fields:

Object	Description
Index	Display the current event index
Event Type	Display the current event type
Community	Display the current community for SNMP trap
Description	Display the current event description
Last Sent Time	Display the current last sent time
Owner	Display the current event owner
Action	Click to delete RMON event entry

4.2.5.3 RMON Event Log

This page provides an overview of RMON Event Log. The RMON Event Log Table screen in Figure 4-2-42 appears.

RMON Event Log Table Event Index Select Event Index Log Time Description

Figure 4-2-42: RMON Event Log Table Screenshot

The page includes the following fields:

Object	Description
• Select Index	Select index from this drop-down list
• Index	Indicates the index of the log entry
• Log Time	Indicates Event log time
• Description	Indicates the Event description

4.2.5.4 RMON Alarm

Configure RMON Alarm table on this page. The RMON Alarm screens in Figure 4-2-43 and Figure 4-2-44 appear.

RMON Alarm

Select Index	Create New
Index	0 (1-65535)
Sample Port	GE1
Sample Variable	DropEvents
Sample Interval	0 (1-2147483647)
Sample Type	○ absolute ○ delta
Rising Threshold	0 (0-2147483647)
Falling Threshold	0 (0-2147483647)
Rising Event	0: None (Unassigned)
Falling Event	0: None (Unassigned)
Owner	(0~31 Characters)

Apply

Figure 4-2-43: RMON Alarm Table Screenshot

The page includes the following fields:

Object	Description
Select Index	Select index from this drop-down list to create the new index or modify the index
Index	Indicates the index of the alarm entry
Sample Port	Select port from this drop-down list
Sample Variable	Indicates the particular variable to be sampled, the possible variables are:■ DropEvents: The total number of events in which packets were dropped due to lack of resources.■ Octets: The number of received and transmitted (good and bad) bytes. Includes FCS, but excludes framing bits.■ Pkts: The total number of frames (bad, broadcast and multicast) received and transmitted.■ BroadcastPkts: The total number of good frames received that were directed to the broadcast address. Note that this does not include multicast packets.■ MulticastPkts: The total number of good frames received that were directedto this multicast address.■ CRCAlignErrors: The number of CRC/alignment errors (FCS or alignment errors).■ UnderSizePkts: The total number of frames received that were less than 64 octets long(excluding framing bits, but including FCS octets) and were otherwise well formed.■ OverSizePkts: The total number of frames received that were longer than 1518 octets(excluding framing bits, but including FCS octets) and were otherwise well formed.■ Fragments: The total number of frames received that were less than 64 octets in length (excluding framing bits, but including FCS octets) and had either an FCS or alignment error.■ Jabbers: The total number of frames received that were longer than 1518 octets (excluding framing bits, but including FCS octets), and had either an FCS or alignment error.■ Collisions: The best estimate of the total number of collisions on this Ethernet segment.■ Pkts64Octets: The total number of frames (including bad packets) received and transmitted that were 64 octets in length (excluding framing bits but including FCS octets).■ Pkts64to172Octets: The total number of frames (including bad packets) received and transmitted where the number of octets falls within the specified range (excluding framing bits but including FCS octets).■ Pkts158to255Octets: The total number of frames (including bad packets) received and transmitted where the number of octets falls within the specified range (excluding framing bits but including FCS octets).■ Pkts256to511Octets: The total number of frames (including bad packets) received and transmitted where the number of octets falls within the specified range (excluding framing bits but including FCS octets).■ Pkts512to1023Octets: The total number of frames (including bad packets) received and transmitted where the number of octets falls within the specified range (excluding framing bits but including FCS octets).■ Pkts1024to1518Octets: The total number of frames (including bad packets) received and transmitted where the number of octets falls within the specified range (excluding framing bits but including FCS octets).
• Sample Interval	Sample interval (1-2147483647)
• Sample Type	The method of sampling the selected variable and calculating the value to be compared against the thresholds, possible sample types are:■ Absolute: Get the sample directly (default).■ Delta: Calculate the difference between samples.
• Rising Threshold	Rising threshold value (0–2147483647)
• Falling Threshold	Falling threshold value (0–2147483647)
• Rising Event	Event to fire when the rising threshold is crossed
• Falling Event	Event to fire when the falling threshold is crossed
• Owner	Specify an owner for the alarm

Buttons

Apply

: Click to apply changes.

Rmon Alarm Index Sample Port Sample Variable Sample Interval Sample Type Rising Threshold Falling Threshold Rising Event Falling Event Owner Action

Figure 4-2-44: RMON Alarm Status Screenshot

The page includes the following fields:

Object	Description
• Index	Indicates the index of Alarm control entry
• Sample Port	Display the current sample port
• Sample Variable	Display the current sample variable
• Sample Interval	Display the current interval
• Sample Type	Display the current sample type
• Rising Threshold	Display the current rising threshold
• Falling Threshold	Display the current falling threshold
• Rising Event	Display the current rising event
• Falling Event	Display the current falling event
• Owner	Display the current owner
• Action	Click to delete RMON alarm entry

4.2.5.5 RMON History

Configure RMON History table on this page. The RMON History screens in Figure 4-2-45 and Figure 4-2-46 appear.

RMON History Select Index Create New Index 0 (1-65535) Sample Port GEI Bucket Requested 50 (1-50, Default 50) Interval 1800 (1-3600 Default 1800) Owner (0~31 Characters) Apply

Figure 4-2-45: RMON History Table Screenshot

The page includes the following fields:

Object	Description
Select Index	Select index from this drop-down list to create the new index or modify the index
Index	Indicates the index of the history entry
Sample Port	Select port from this drop-down list
Bucket Requested	Indicates the maximum data entries associated this History control entry stored in RMON. The range is from 1 to 50, default value is 50
Interval	Indicates the interval in seconds for sampling the history statistics data. The range is from 1 to 3600, default value is 1800 seconds.
Owner	Specify an owner for the history

Buttons

Apply

: Click to apply changes.

Rmon History Index Data Source Bucket Requested Interval Owner Action

Figure 4-2-46: RMON History Status Screenshot

The page includes the following fields:

Object	Description
• Index	Display the current index
• Data Source	Display the current data source
• Bucket Requested	Display the current bucket requested
• Interval	Display the current interval
• Owner	Display the current owner
• Action	Click to delete RMON history entry.

4.2.5.6 RMON History Log

This page provides a detail of RMON history entries; screen in Figure 4-2-47 appears.

RMON History Table History Index Select History No data available!

Figure 4-2-47: RMON History Status Screenshot

The page includes the following fields:

Object	Description
• History Index	Select history index from this drop-down list

Buttons

Apply

: Click to apply changes.

4.2.6 Remote Management

4.2.6.1 Planet NMS Controller

The media converter supports remote management with PLANET NMS controller (sold separately). With enabling this function, it can be monitored by PLANET NMS controller remotely. This page displays remote NMS configuration shown in Figure 4-2-48.

Remote NMS Configuration

Remote NMS Enable PLANET NMS Controller - LAN PLANET NMS Controller - LAN NMS Controller IP address 0.0.0.0 Authorization Status Unauthorized Apply Reset Unbind

Figure 4-2-48: Remote NMS Configuration page Screenshot

The page includes the following fields:

Object	Description
• Remote NMS Enable	Enable the remote NMS controller management.
• NMS Controller IP address	The IP address of remote NMS controller.
• Authorization status	Displays the authorization status status for NMS controller, which can be one of the following:■ Unauthorized : The media converter is unauthorized for NMS controller.■ Successful : The media converter is authorized for NMS controller■ Failed : The authorization of NMS controller is failed.■ Disabled : The function of remote NMS management is disabled.

4.2.6.2 Planet CloudViewer App

PLANET CloudViewer is an intelligent app for monitoring your cloud network. By making data and services available from anywhere with an internet connection, cloud networks offer unprecedented convenience. With PLANET CloudViewer, you can monitor your network status in real-time from your mobile phone or tablet, no matter where you are. You can easily check device information, port status, and PoE status from the cloud, which reduces management costs.

Four Steps to Manage Devices in the Cloud with Ease

The PLANET CloudViewer App enhances user experience by simplifying the cloud connection setup process. It does not require a lot of time to set up, and even non-technical users can do it within minutes.

Step 1: Download: download App from google play or apple store.

Step 2: Register: Create a PLANET CloudViewer account.

Step 3: Bind: Bind network devices to an account.

Step 4: Get: Open App and enjoy the services

Remote NMS Configuration

Remote NMS Configuration

Remote NMS Enable	PLANET CloudViewer Server - Internet ▼
Subscriber email	[e-mail]
Password	......
Status	not Enable

Apply

unbind

Figure 4-2-49: PLANET CloudViewer App Binding Configuration

After downloading the CloudViewer app on the mobile phone and complete registration, go back to the media converter's web UI and select PLANET CloudViewer Server - Internet in the Remote NMS Configuration page. Enter your account information and apply the setting to bind the media converter to the CloudViewer server. Once the Status shows "success", the media converter is ready to be monitored on your mobile phone.

4:21 < 拨尋 Back IXT-900-2X1PD 1 2 3 IXT-900-2X1PD | 7m24s SNMP: Disable STP: No supported ERPS: Disable System Device Type: Media Converter IP Address: 192.168.100.187 MAC Address: a8:f7:e0:00:00:a1 FW Version: v1.403b230928 Port Traffic Port 1 Port 2 Port 3

Figure 4-2-50: The screenshot of IXT-900-2X1PD being monitored on a mobile phone

4.3 Switching

Use the Port Menu to display or configure the Managed Media Converter's ports. This section has the following items:

4.3.1 Port Management
■ Port Configuration	Configures port configuration settings.
■ Port Counters	Lists Ethernet and RMON port statistics.
■ Link Fault Passthrough	Link fault detection and propagation
■ Jumbo Frame	Sets the jumbo frame on the media converter.
■ Protected Port	Configures protected ports settings.
■ EEE	Configures EEE settings.
■ SFP Module Status	Displays SFP module information.
■ SFP Module Detail Status	Displays SFP module information.
4.3.2 VLAN
■ Management VLAN	Configures the management VLAN.
■ Create VLAN	Creates the VLAN group.
■ Interface Settings	Configures mode and PVID on the VLAN port.
■ Port to VLAN	Configures the VLAN membership.
■ Port VLAN Membership	Display the VLAN membership.
4.3.3 LLDP
■ LLDP Global Setting	Configure LLDP global settings on this page.
■ LLDP Port Setting	Configure LLDP port settings on this page.
■ LLDP Local Device	Configure LLDP local device settings on this page.
■ LLDP Remote Device	Configure LLDP remote device settings on this page.
■ LLDP Statistics	Provide LLDP statistics on this page.
4.3.4 MAC Address Table
■ Dynamic Learned	Provide dynamic learned information of whole Ethernet interfaces on this page.
■ Dynamic Address Setting	Provide aging time setting on this page.
■ Static MAC Setting	Provide static MAC address setting on this page.
■ MAC Filtering	Provide MAC address filtering setting on this page.

4.3.1 Port Management

4.3.1.1 Port Configuration

This page displays current port configurations and status. Ports can also be configured here. The table has one row for each port on the selected media converter in a number of columns, which are:

The Port Configuration screens in Figure 4-3-1 and Figure 4-3-2 appear.

Port settings

Port Select	Enabled	Speed	Duplex	Flow Control
Select Ports	EnabledDisabled	Auto	Auto	EnabledDisabled
Fiber Ports	EnabledDisabled	Auto-1000M	Full	EnabledDisabled

Apply

Figure 4-3-1 Port Settings Screenshot

The page includes the following fields:

Object	Description
• Port Select	Select port number from this drop-down list.
• Enabled	Indicates the port state operation. Possible state are:Enabled - Start up the port manually.Disabled – Shut down the port manually.
• Speed	Select any available link speed for the given port. Draw the menu bar to select the mode.Auto- Setup Auto negotiation.Auto-10M - Setup 10M Auto negotiation.Auto-100M - Setup 100M Auto negotiation.Auto-1000M - Setup 1000M Auto negotiation.Auto-10/100M - Setup 10/100M Auto negotiation.10M - Setup 10M Force mode.100M - Setup 100M Force mode.1000M - Setup 1000M Force mode.
• Duplex	Select any available link duplex for the given port. Draw the menu bar to select the mode.Auto- Setup Auto negotiation.Full - Force sets Full-Duplex mode.Half - Force sets Half-Duplex mode.
• Flow Control	When Auto Speed is selected for a port, this section indicates the flow control capability that is advertised to the link partner. When a fixed-speed setting is selected, that is what is used. Current Rx column indicates whether pause frames on the port are obeyed. Current Tx column indicates whether pause frames on the port are transmitted. The Rx and Tx settings are determined by the result of the last Auto-Negotiation. Check the configured column to use flow control. This setting is related to the setting for Configured Link Speed.

Buttons

Apply

: Click to apply changes.

Port	Description	Enable State	Link Status	Speed	Duplex	FlowCtrl Config	FlowCtrl Status
XG1	Edit	Enable	DOWN	Auto	Full	Disable	Disable
XG2	Edit	Enable	DOWN	Auto	Full	Disable	Disable
XG3	Edit	Enable	UP	A-1000M	A-Full	Disable	Disable

Figure 4-3-2 Port Status Screenshot

The page includes the following fields:

Object	Description
• Port	This is the logical port number for this row
• Description	Click to indicate the port name
• Enable State	Display the current port state
• Link Status	Display the current link status
• Speed	Display the current speed status of the port
• Duplex	Display the current duplex status of the port
• Flow Control Configuration	Display the current flow control configuration of the port
• Flow Control Status	Display the current flow control status of the port

4.3.1.2 Port Counters

This page provides an overview of traffic and trunk statistics for all ports. The Port Statistics screens in Figure 4-3-3, Figure 4-3-4, Figure 4-3-5 and Figure 4-3-6 appear.

Port MIB Counters Settings Port Mode XG1 All ○ Interface ○ Etherlike ○ RMON

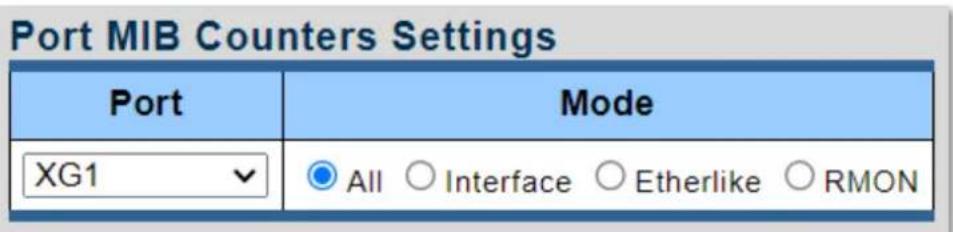

Figure 4-3-3 Port MIB Counters Screenshot

The page includes the following fields:

Object	Description
• Port	Select port number from this drop-down list.
• Mode	Select port counters mode.Option:AllInterfaceEther-linkRMON

Interface Counters	Counters Value
Received Octets	0
Received Unicast Packets	0
Received Unknown Unicast Packets	0
Received Discards Packets	0
Transmit Octets	0
Transmit Unicast Packets	0
Transmit Unknown Unicast Packets	0
Transmit Discards Packets	0
Received Multicast Packets	0
Received Broadcast Packets	0
Transmit Multicast Packets	0
Transmit Broadcast Packets	0
Object	Description
Received Octets	The total number of octets received on the interface, including framing characters.
Received Unicast Packets	The number of subnetwork-unicast packets delivered to a higher-layer protocol.
Received Unknown Unicast Packets	The number of packets received via the interface which is discarded because of an unknown or unsupported protocol.
Received Discards Packets	The number of inbound packets which were chosen to be discarded even though no errors had been detected to prevent their being deliverable to a higher-layer protocol. One possible reason for discarding such a packet could be to free up buffer space.
Transmit Octets	The total number of octets transmitted out of the interface, including framing characters.
Transmit Unicast Packets	The total number of packets that higher-level protocols requested is transmitted to a subnetwork-unicast address, including those that were discarded or not sent.
Transmit Unknown Unicast Packets	The total number of packets that higher-level protocols requested is transmitted to a subnetwork-unicast address, including those that were discarded or not sent.
Transmit Discards Packets	The number of inbound packets which is chosen to be discarded even though no errors have been detected to prevent from being delivered to a higher-layer protocol. One possible reason for discarding such a packet could be to free up buffer space.
Received Multicast Packets	The number of packets, delivered by this sub-layer to a higher (sub-) layer, is addressed to a multicast address at this sub-layer.
Received Broadcast Packets	The number of packets, delivered by this sub-layer to a higher (sub-) layer, addressed to a broadcast address at this sub-layer.
Transmit Multicast Packets	The total number of packets that higher-level protocols requested is transmitted and is addressed to a multicast address at this sub-layer, including those that were discarded or not sent.
Transmit Broadcast Packets	The total number of packets that higher-level protocols requested is transmitted, and addressed to a broadcast address at this sub-layer, including those that were discarded or not sent.
Ethernet-link Counters	Counters Value
Alignment Errors	0
FCS Errors	0
Single Collision Frames	0
Multiple Collision Frames	0
Deferred Transmissions	0
Late Collision	0
Excessive Collision	0
Frame Too Longs	0
Symbol Errors	0
Control In Unknow Opcodes	0
In Pause Frames	0
Out Pause Frames	0

Figure 4-3-4 Interface Counters Screenshot

Figure 4-3-5 Ethernet link Counters Screenshot

Object	Description
• Alignment Errors	The number of alignment errors (missynchronized data packets).
• FCS Errors	A count of frames received on a particular interface that are an integral number of octets in length but do not pass the FCS check. This count does not include frames received with frame-too-long or frame-too-short error.
• Single Collision Frames	The number of successfully transmitted frames for which transmission is inhibited by exactly one collision.
• Multiple Collision Frames	A count of successfully transmitted frames for which transmission is inhibited by more than one collision.
• Deferred Transmissions	A count of frames for which the first transmission attempt on a particular interface is delayed because the medium was busy.
• Late Collision	The number of times that a collision is detected later than 512 bit-times into the transmission of a packet.
• Excessive Collision	A count of frames for which transmission on a particular interface fails due to excessive collisions. This counter does not increase when the interface is operating in full-duplex mode.
• Frame Too Long	A count of frames received on a particular interface that exceeds the maximum permitted frame size.
• Symbol Errors	The number of received and transmitted symbol errors
• Control In Unknown Opcodes	The number of received control unknown opcodes
• In Pause Frames	The number of received pause frames
• Out Pause Frames	The number of transmitted pause frames
RMON Counters	Counters Value
Drop Events	0
Octets	0
Packets	0
Broadcast Packets	0
Multicast Packets	0
CRC / Alignment Errors	0
Undersize Packets	0
Oversize Packets	0
Fragments	0
Jabbers	0
Collisions	0
64 Bytes Frame	0
65-127 Byte Frames	0
128-255 Byte Frames	0
256-511 Byte Frames	0
512-1023 Byte Frames	0
1024-1518 Byte Frames	0

Figure 4-3-6: RMON Counters Screenshot

Object	Description
• Drop Events	The total number of events in which packets were dropped due to lack of resources.
• Octets	The total number of octets received and transmitted on the interface, including framing characters.
• Packets	The total number of packets received and transmitted on the interface.
• Broadcast Packets	The total number of good frames received that were directed to the broadcast address. Note that this does not include multicast packets.
• Multicast Packets	The total number of good frames received that were directed to this multicast address.
• CRC / Alignment Errors	The number of CRC/alignment errors (FCS or alignment errors).
• Undersize Packets	The total number of frames received that were less than 64 octets long(excluding framing bits, but including FCS octets) and were otherwise well formed.
• Oversize Packets	The total number of frames received that were longer than 1518 octets(excluding framing bits, but including FCS octets) and were otherwise well formed.
• Fragments	The total number of frames received that were less than 64 octets in length (excluding framing bits, but including FCS octets) and had either an FCS or alignment error.
Jabbers	The total number of frames received that were longer than 1518 octets (excluding framing bits, but including FCS octets), and had either an FCS or alignment error.
Collisions	The best estimate of the total number of collisions on this Ethernet segment.
64 Bytes Frames	The total number of frames (including bad packets) received and transmitted that were 64 octets in length (excluding framing bits but including FCS octets).
65-127 Byte Frames128-255 Byte Frames256-511 Byte Frames512-1023 Byte Frames1024-1518 ByteFrames	The total number of frames (including bad packets) received and transmitted where the number of octets falls within the specified range (excluding framing bits but including FCS octets).

4.3.1.3 Link Fault Passthrough

Link Fault Pass-through

Link Fault Pass-through is a networking feature. It facilitates the detection and propagation of link faults or errors from one network device to another. It helps maintain network reliability and minimizes downtime by allowing devices to dynamically respond to link faults. Link Fault Pass-through improves fault detection and enables faster troubleshooting and resolution processes.

How it works:

• When a link fault occurs, the device experiencing the fault generates a notification.
• This notification is then forwarded to other connected devices using Link Fault Pass-through.
• Upon receiving the link fault information, the connected devices become aware of the fault.
  • This awareness enables them to take appropriate actions, such as rerouting traffic or disabling the affected port.

The LFP group can be made up of Copper-to-Fiber or Fiber-to-Fiber connections. These two types of groupings are shown in Figure 4-3-7 and 4-3-8 respectively.
Copper and Fiber are configured based on LFP group"
        H["Monitoring Center"] --> I["Copper Cable"]
        I --> J["LFP Enabled"]
        J --> K["Fiber Cable"]
        K --> L["LFP Enabled"]
        L --> M["Fiber Cable"]
        M --> N["5G Base Station"]
    end

    subgraph "Remote Link Disconnections
Copper Link"
        O["Monitoring Center"] --> P["Copper Cable"]
        P --> Q["LFP Disconnects Copper Link"]
        Q --> R["LFP Enabled"]
        R --> S["Fiber Cable"]
        S --> T["LFP Enabled"]
        T --> U["LFP Enabled"]
        U --> V["Fiber Cable"]
        V --> W["10GBASE-T UTP"]
        V --> X["10GBASE-SR/LR Fiber Optic"]
        Y["2 LFP disconnects Fiber Link"] --> Z["②"]
        AA["3 Fiber Link Down"] --> AB["③"]
    end

Figure 4-3-7: Copper-to-Fiber LFP Group

Remote Link Normal (Fiber to Fiber Pair)

Remote Link Broken

Copper and Fiber are configured based on LFP group

Figure 4-3-8: Fiber-to-Fiber LFP Group

Go to the Link Fault Passthrough page to select members for the LFP group and enable LFP mode. The LFP information will then be displayed as shown in Figure 4-3-9.

Link Fault Passthrough Setting

LFP Group 1 Mode		Disable Enable
LFP Group 2 Mode		Disable Enable

Figure 4-3-9: Link Fault Passthrough Setting and Information

4.3.1.4 Jumbo Frame

This page provides to select the maximum frame size allowed for the port. The Jumbo Frame screen in Figure 4-3-10 and Figure 4-3-11 appear.

Jumbo Frame Setting Jumbo Frame (Bytes) 1522 (64-9216) Apply

Figure 4-3-10 Jumbo Frame Setting Screenshot

The page includes the following fields:

Object	Description
• Jumbo Frame (Bytes)	Enter the maximum frame size allowed for the port, including FCS. The allowed range is from 64 bytes to 9216 bytes.

Buttons

Apply

: Click to apply changes.

Information Name	Information Value
Jumbo Frame (Bytes)	1522

Figure 4-3-11 Jumbo Frame Information Screenshot

The page includes the following fields:

Object	Description
• Jumbo	Display the current maximum frame size

4.3.1.5 Protected Ports

Overview

When a port is configured to be a member of protected group (also called Private VLAN), communication between protected ports within that group can be prevented. Two application examples are provided in this section:

• Customers connected to an ISP can be members of the protected group, but they are not allowed to communicate with each other within that VLAN.
• Servers in a farm of web servers in a Demilitarized Zone (DMZ) are allowed to communicate with the outside world and with database servers on the inside segment, but are not allowed to communicate with each other

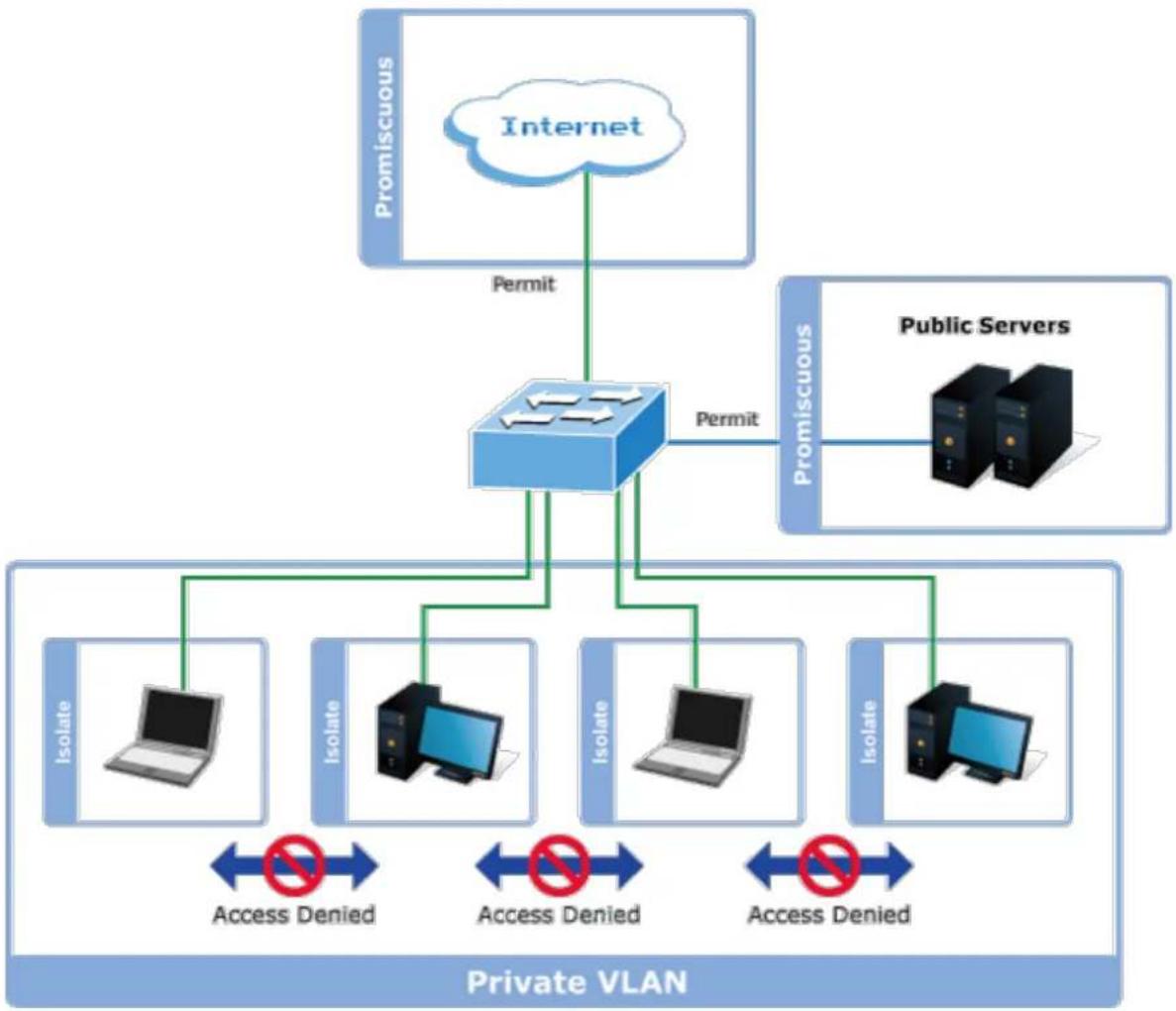

        D1["Isolate"]
        E1["Isolate"]
        F1["Isolate"]
        G1["Isolate"]
        D2["Access Denied"]
        E2["Access Denied"]
        F2["Access Denied"]
    end

For protected port group to be applied, the Managed Media Converter must first be configured for standard VLAN operation.

Ports in a protected port group fall into one of these two groups:

■ Promiscuous (Unprotected) ports

— Ports from which traffic can be forwarded to all ports in the private VLAN
— Ports which can receive traffic from all ports in the private VLAN

■ Isolated (Protected) ports

— Ports from which traffic can only be forwarded to promiscuous ports in the private VLAN
— Ports which can receive traffic from only promiscuous ports in the private VLAN

The configuration of promiscuous and isolated ports applies to all private VLANs. When traffic comes in on a promiscuous port in a private VLAN, the VLAN mask from the VLAN table is applied. When traffic comes in on an isolated port, the private VLAN mask is applied in addition to the VLAN mask from the VLAN table. This reduces the ports to which forwarding can be done to just the promiscuous ports within the private VLAN.

The port settings relate to the currently unit, as reflected by the page header. The Port Isolation Configuration screens in Figure 4-3-12 and Figure 4-3-13 appear.

Protected Ports Settings Port List Port Type Select Protected Port ● Unprotected ○ Protected Apply

Figure 4-3-12 Protected Ports Settings Screenshot

The page includes the following fields:

Object	Description
• Port List	Select port number from this drop-down list.
• Port Type	Displays protected port types.-Protected:A single stand-alone VLAN that contains one promiscuous port and one or more isolated (or host) ports. This VLAN conveys traffic between the isolated ports and a lone promiscuous port.-Unprotected:A promiscuous port can communicate with all the interfaces within a private VLAN. This is the default setting.

Buttons

Apply

: Click to apply changes.

Protected Type	Port List
Protected Ports
Unprotected Ports	all

Figure 4-3-13 Port Isolation Status Screenshot

The page includes the following fields:

Object	Description
• Protected Ports	Display the current protected ports
• Unprotected Ports	Display the current unprotected ports

4.3.1.6 EEE

What is EEE

EEE is a power saving option that reduces the power usage when there is low or no traffic utilization. EEE works by powering down circuits when there is no traffic. When a port gets data to be transmitted all circuits are powered up. The time it takes to power up the circuits is named wakeup time. The default wakeup time is 17 us for 1Gbit links and 30 us for other link speeds. EEE devices must agree upon the value of the wakeup time in order to make sure that both the receiving and transmitting device has all circuits powered up when traffic is transmitted. The devices can exchange wakeup time information using the LLDP protocol. EEE works for ports in auto-negotiation mode, where the port is negotiated to either 1G or 100 Mbit full duplex mode. For ports that are not EEE-capable the corresponding EEE checkboxes are grayed out and thus impossible to enable EEE for. The EEE port settings relate to the currently unit, as reflected by the page header.

When a port is powered down for saving power, outgoing traffic is stored in a buffer until the port is powered up again. Because there are some overhead in turning the port down and up, more power can be saved if the traffic can be buffered up until a large burst of traffic can be transmitted. Buffering traffic will give some latency in the traffic.

The EEE Port Settings screen in Figure 4-3-14 and Figure 4-3-15 appears.

EEE Port Settings Port Enable Select Ports ○ Enabled ● Disabled Apply

Figure 4-3-14 EEE Port Settings Screenshot

The page includes the following fields:

Object	Description
• Port	Select port number from this drop-down list
• Enable	Enable or disable the EEE function

Buttons

Apply

: Click to apply changes.

Port	EEE State
XG1	Disable
XG2	Disable
XG3	Disable

Figure 4-3-15 EEE Enable Status Screenshot

The page includes the following fields:

Object	Description
• Port	The port number of the logical port
• EEE State	Display the current EEE state

4.3.1.7 SFP Module Information

Managed Media Converter has supported the SFP module with digital diagnostics monitoring (DDM) function, this feature is also known as digital optical monitoring (DOM). You can check the physical or operational status of an SFP module via the SFP Module Information page. This page shows the operational status, such as the transceiver type, speed, wavelength, optical output power, optical input power, temperature, laser bias current and transceiver supply voltage in real time. You can also use the hyperlink of port no. to check the statistics on a specific interface.

The SFP Module Status screens in Figure 4-3-16 and Figure 4-3-17 appear.

Figure 4-3-16 Port Selected Screenshot

The page includes the following fields:

Object

- Port

Description

Select port number from this drop-down list

GE11 Fiber Port Status

Fiber Status	Status Value
OE-Present	Insert
LOS	Loss
Transceiver Type	SFP/SFP+
Hot Plug	Support
Connect Type	LC
Fiber Type	Single Mode
Eth Compliance	1000BASE-LX
TX Distance	0(m)
Wave Length	1310(nm)
Baud Rate	1000M
Vendor OUI	0-90-65
Vendor Name	SANOANOCNOC OC
Vendor PN	SJ13J1311312312-
Vendor Rev
Vendor SN	SJ13J1311312312-
Data Code	13-08-12
Temperature	64.718(°C)
Voltage	3.35(V)
Current	30.70(A)
Output power	0.27(mW)
Input power	0.00(mW)

Figure 4-3-17 Fiber Port Status Screenshot

The page includes the following fields:

Object	Description
• OE-Present	Display the current SFP OE-present
• LOS	Display the current SFP LOS

4.3.1.7.2 SFP Module Detail Status

The SFP Module Detail Status screen in Figure 4-3-18 appears.

Status Table

Port	Temperature	Voltage	Current	Output Power	Input Power	Transmitter Fault	Loss of Signal
XG1	18.69	3.30	0.50	0.59	0.00	FALSE	FALSE
XG2	15.64	3.27	0.47	0.52	0.00	FALSE	FALSE

Figure 4-3-18 SFP Module Detail Status Screenshot

▼ Port VLAN Status

Port	Interface VLAN Mode	PVID	Accept Frame Type	Ingress Filtering	Uplink	TPID
XG1	Trunk	1	ALL	Enable	Disable	0x8100
XG2	Trunk	1	ALL	Enable	Disable	0x8100
XG3	Trunk	1	ALL	Enable	Disable	0x8100

The page includes the following fields:

Object	Description
• Port	The logical port for the settings contained in the same row
• Temperature	Display the current SFP temperature
• Voltage	Display the current SFP voltage
• Current	Display the current SFP current
• Output Power	Display the current SFP output power
• Input Power	Display the current SFP input power
• Transmit Fault	Display the current SFP transmits fault
• Loss of Signal	Display the current SFP loss of signal.
• Rate Ready	Display the current SFP rate ready.

4.3.2 VLAN

4.3.2.1 VLAN Overview

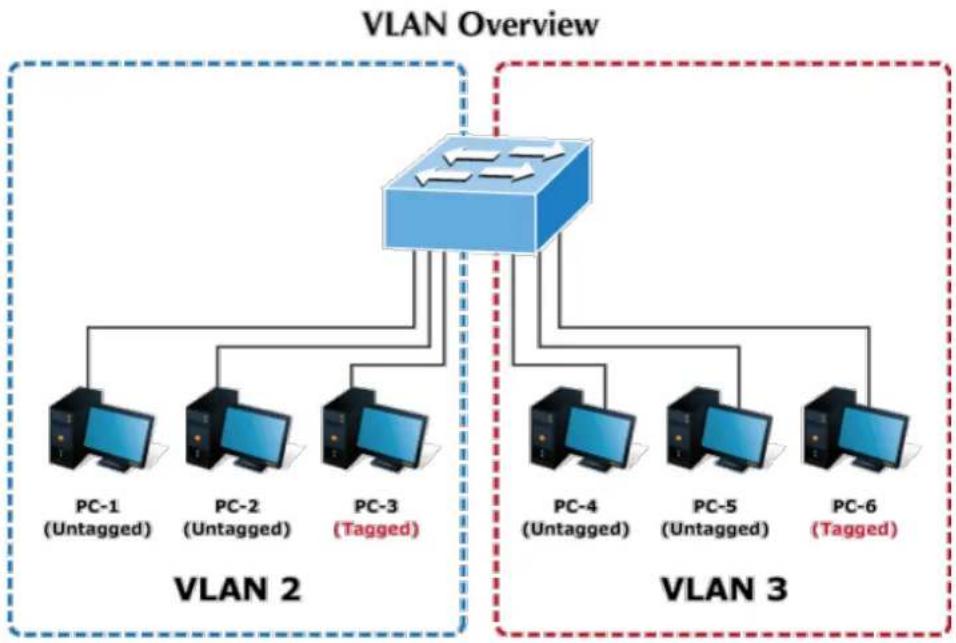

A Virtual Local Area Network (VLAN) is a network topology configured according to a logical scheme rather than the physical layout. VLAN can be used to combine any collection of LAN segments into an autonomous user group that appears as a single LAN. VLAN also logically segment the network into different broadcast domains so that packets are forwarded only between ports within the VLAN. Typically, a VLAN corresponds to a particular subnet, although not necessarily.

VLAN can enhance performance by conserving bandwidth and improve security by limiting traffic to specific domains.

A VLAN is a collection of end nodes grouped by logic instead of physical location. End nodes that frequently communicate with each other are assigned to the same VLAN, regardless of where they are physically on the network. Logically, a VLAN can be equated to a broadcast domain, because broadcast packets are forwarded to only members of the VLAN on which the broadcast was initiated.

1. No matter what basis is used to uniquely identify end nodes and assign these nodes VLAN membership, packets cannot cross VLAN without a network device performing a routing function between the VLAN.
2. The Managed Media Converter supports IEEE 802.1Q VLAN. The port untagging function can be used to remove the 802.1 tag from packet headers to maintain compatibility with devices that are tag-unaware.

The Managed Media Converter's default is to assign all ports to a single 802.1Q VLAN named DEFAULT_VLAN. As new VLAN is created, the member ports assigned to the new VLAN will be removed from the DEFAULT_VLAN port member list. The DEFAULT_VLAN has a VID = 1.

This section has the following items:

■ Management VLAN	Configures the management VLAN
■ Create VLAN	Creates the VLAN group
■ Interface Settings	Configures mode and PVID on the VLAN port
■ Port to VLAN	Configures the VLAN membership
■ Port VLAN Membership	Display the VLAN membership

4.3.2.2 IEEE 802.1Q VLAN

In large networks, routers are used to isolate broadcast traffic for each subnet into separate domains. This Managed Media Converter provides a similar service at Layer 2 by using VLANs to organize any group of network nodes into separate broadcast domains. VLANs confine broadcast traffic to the originating group and can eliminate broadcast storms in large networks. This also provides a more secure and cleaner network environment.

An IEEE 802.1Q VLAN is a group of ports that can be located anywhere in the network but communicate as though they belong to the same physical segment.

VLANs help to simplify network management by allowing you to move devices to a new VLAN without having to change any physical connections. VLANs can be easily organized to reflect departmental groups (such as Marketing or R&D), usage groups (such as e-mail), or multicast groups (used for multimedia applications such as videoconferencing).

VLANs provide greater network efficiency by reducing broadcast traffic and allow you to make network changes without having to update IP addresses or IP subnets. VLANs inherently provide a high level of network security since traffic must pass through a configured Layer 3 link to reach a different VLAN.

This Managed Media Converter supports the following VLAN features:

■ Up to 255 VLANs based on the IEEE 802.1Q standard.
■ Port overlapping, allowing a port to participate in multiple VLANs.
■ End stations can belong to multiple VLANs.
■ Passing traffic between VLAN-aware and VLAN-unaware devices

IEEE 802.1Q Standard

VLAN allow a network to be segmented in order to reduce the size of broadcast domains. All packets entering a VLAN will only be forwarded to the stations (over IEEE 802.1Q enabled switches) that are members of that VLAN, and this includes broadcast, multicast and unicast packets from unknown sources.

VLAN can also provide a level of security to your network. IEEE 802.1Q VLAN will only deliver packets between stations that are members of the VLAN. Any port can be configured as either tagging or untagging.:

■ The untagging feature of IEEE 802.1Q VLAN allows VLAN to work with legacy switches that don't recognize VLAN tags in packet headers.
■ The tagging feature allows VLAN to span multiple 802.1Q-compliant switches through a single physical connection and allows Spanning Tree to be enabled on all ports and work normally.

Some relevant terms:

• Tagging - The act of putting 802.1Q VLAN information into the header of a packet.
• Untagging - The act of stripping 802.1Q VLAN information out of the packet header.

802.1Q VLAN Tags

The figure below shows the 802.1Q VLAN tag. There are four additional octets inserted after the source MAC address. Their presence is indicated by a value of 0x8100 in the Ether Type field. When a packet's Ether Type field is equal to 0x8100, the packet carries the IEEE 802.1Q/802.1p tag. The tag is contained in the following two octets and consists of 3 bits of user priority, 1 bit of Canonical Format Identifier (CFI - used for encapsulating Token Ring packets so they can be carried across Ethernet backbones), and 12 bits of VLAN ID (VID). The 3 bits of user priority are used by 802.1p. The VID is the VLAN identifier and is used by the 802.1Q standard. Because the VID is 12 bits long, 4094 unique VLAN can be identified.

The tag is inserted into the packet header making the entire packet longer by 4 octets. All of the information originally contained in the packet is retained.

802.1Q Tag

The Ether Type and VLAN ID are inserted after the MAC source address, but before the original Ether Type/Length or Logical Link Control. Because the packet is now a bit longer than it was originally, the Cyclic Redundancy Check (CRC) must be recalculated.

Adding an IEEE802.1Q Tag

Port VLAN ID

Packets that are tagged (are carrying the 802.1Q VID information) can be transmitted from one 802.1Q compliant network device to another with the VLAN information intact. This allows 802.1Q VLAN to span network devices (and indeed, the entire network – if all network devices are 802.1Q compliant).

Every physical port on a switch has a PVID. 802.1Q ports are also assigned a PVID, for use within the switch. If no VLAN are defined on the switch, all ports are then assigned to a default VLAN with a PVID equal to 1. Untagged packets are assigned the PVID of the port on which they were received. Forwarding decisions are based upon this PVID, in so far as VLAN are concerned. Tagged packets are forwarded according to the VID contained within the tag. Tagged packets are also assigned a PVID, but the PVID is not used to make packet forwarding decisions, the VID is.

Tag-aware switches must keep a table to relate PVID within the switch to VID on the network. The switch will compare the VID of a packet to be transmitted to the VID of the port that is to transmit the packet. If the two VID are different the switch will drop the packet. Because of the existence of the PVID for untagged packets and the VID for tagged packets, tag-aware and tag-unaware network devices can coexist on the same network.

A switch port can have only one PVID, but can have as many VID as the switch has memory in its VLAN table to store them.

Because some devices on a network may be tag-unaware, a decision must be made at each port on a tag-aware device before packets are transmitted – should the packet to be transmitted have a tag or not? If the transmitting port is connected to a tag-unaware device, the packet should be untagged. If the transmitting port is connected to a tag-aware device, the packet should be tagged.

Default VLANs

The Switch initially configures one VLAN, VID = 1, called "default." The factory default setting assigns all ports on the Switch to the "default". As new VLAN are configured in Port-based mode, their respective member ports are removed from the "default."

- Assigning Ports to VLANs

Before enabling VLANs for the switch, you must first assign each port to the VLAN group(s) in which it will participate. By default all ports are assigned to VLAN 1 as untagged ports. Add a port as a tagged port if you want it to carry traffic for one or more VLANs, and any intermediate network devices or the host at the other end of the connection supports VLANs. Then assign ports on the other VLAN-aware network devices along the path that will carry this traffic to the same VLAN(s), either manually or dynamically using GVRP. However, if you want a port on this switch to participate in one or more VLANs, but none of the intermediate network devices nor the host at the other end of the connection supports VLANs, then you should add this port to the VLAN as an untagged port.

VLAN-tagged frames can pass through VLAN-aware or VLAN-unaware network interconnection devices, but the VLAN tags should be stripped off before passing it on to any end-node host that does not support VLAN tagging.

VLAN Classification

When the switch receives a frame, it classifies the frame in one of two ways. If the frame is untagged, the switch assigns the frame to an associated VLAN (based on the default VLAN ID of the receiving port). But if the frame is tagged, the switch uses the tagged VLAN ID to identify the port broadcast domain of the frame.

Port Overlapping

Port overlapping can be used to allow access to commonly shared network resources among different VLAN groups, such as file servers or printers. Note that if you implement VLANs which do not overlap, but still need to communicate, you can connect them by enabled routing on this switch.

■ Untagged VLANs

Untagged (or static) VLANs are typically used to reduce broadcast traffic and to increase security. A group of network users assigned to a VLAN form a broadcast domain that is separate from other VLANs configured on the switch. Packets are forwarded only between ports that are designated for the same VLAN. Untagged VLANs can be used to manually isolate user groups or subnets.

4.3.2.3 Management VLAN

Configure Management VLAN on this page. The screens in Figure 4-3-19 and Figure 4-3-20 appear.

Management VLAN Setting Management VLAN default(1) Apply

Figure 4-3-19 Management VLAN Setting Screenshot

The page includes the following fields:

Object	Description
• Management VLAN	Provide the managed VLAN ID

Buttons

Apply

: Click to apply changes.

Config Name	Config Value
Management VLAN	1

Figure 4-3-20 Management VLAN State Screenshot

The page includes the following fields:

Object	Description
• Management VLAN	Display the current management VLAN.

4.3.2.4 Create VLAN

Create/delete VLAN on this page. The screens in Figure 4-3-21 and Figure 4-3-22 appear.

VLAN Setting VLAN LIST VLAN Action VLAN Name Prefix Add Delete Apply

Figure 4-3-21 VLAN Setting Screenshot

The page includes the following fields:

Object	Description
• VLAN List	Indicates the ID of this particular VLAN.
• VLAN Action	This column allows users to add or delete VLAN s.
• VLAN Name Prefix	Indicates the name of this particular VLAN.

Buttons

Apply

: Click to apply changes.

VLAN ID	VLAN Name	VLAN Type	Modify
1	default	Default	Edit

Figure 4-3-22 VLAN Table Screenshot

The page includes the following fields:

Object	Description
• VLAN ID	Display the current VLAN ID entry
• VLAN Name	Display the current VLAN ID name
• VLAN Type	Display the current VLAN ID type
• Modify	Click fy VLAN configuration

4.3.2.5 Interface Settings

This page is used for configuring the Managed Media Converter port VLAN. The VLAN per Port Configuration page contains fields for managing ports that are part of a VLAN. The port default VLAN ID (PVID) is configured on the VLAN Port Configuration page. All untagged packets arriving to the device are tagged by the ports PVID.

Understand nomenclature of the Switch

IEEE 802.1Q Tagged and Untagged

Every port on an 802.1Q compliant switch can be configured as tagged or untagged.

- Tagged:

Ports with tagging enabled will put the VID number, priority and other VLAN information into the header of all packets that flow into those ports. If a packet has previously been tagged, the port will not alter the packet, thus keeping the VLAN information intact. The VLAN information in the tag can then be used by other 802.1Q compliant devices on the network to make packet-forwarding decisions.

■ Untagged:

Ports with untagging enabled will strip the 802.1Q tag from all packets that flow into those ports. If the packet doesn't have an 802.1Q VLAN tag, the port will not alter the packet. Thus, all packets received by and forwarded by an untagging port will have no 802.1Q VLAN information. (Remember that the PVID is only used internally within the Switch). Untagging is used to send packets from an 802.1Q-compliant network device to a non-compliant network device.

Frame IncomeFrame Leave	Income Frame is tagged	Income Frame is untagged
Leave port is tagged	Frame remains tagged	Tag is inserted
Leave port is untagged	Tag is removed	Frame remain untagged

Table 4-5-1: Ingress / Egress Port with VLAN VID Tag / Untag Table

IEEE 802.1Q Tunneling (Q-in-Q)

IEEE 802.1Q Tunneling (QinQ) is designed for service providers carrying traffic for multiple customers across their networks.

QinQ tunneling is used to maintain customer-specific VLAN and Layer 2 protocol configurations even when different customers use the same internal VLAN IDs. This is accomplished by inserting Service Provider VLAN (SPVLAN) tags into the customer's frames when they enter the service provider's network, and then stripping the tags when the frames leave the network.

A service provider's customers may have specific requirements for their internal VLAN IDs and number of VLANs supported. VLAN ranges required by different customers in the same service-provider network might easily overlap, and traffic passing through the infrastructure might be mixed. Assigning a unique range of VLAN IDs to each customer would restrict customer configurations, require intensive processing of VLAN mapping tables, and could easily exceed the maximum VLAN limit of 4096.
    subgraph_Customer_A_s_LAN_Headquarters["Customer A's LAN Headquarters"]
        A1["VLAN 1-20"] -->|Q-in-Q VLAN Tunnel| E["MAN Service Provider Domain"]
        A2["VLAN 1-30"] -->|Q-in-Q VLAN Tunnel| E
        A3["VLAN 1-20"] -->|Q-in-Q VLAN Tunnel| F["Backbone Core Switch"]
        A4["VLAN 1-30"] -->|Q-in-Q VLAN Tunnel| F
        E --> G["MAN Edge Switch"]
        F --> H["MAN Edge Switch"]
    end

    subgraph_Customer_B_s_LAN_Headquarters["Customer B's LAN Headquarters"]
        I1["VLAN 1-20"] --> J["MAN Edge Switch"]
        I2["VLAN 1-30"] --> J
        I3["VLAN 1-20"] --> K["MAN Edge Switch"]
        I4["VLAN 1-30"] --> K
        I5["VLAN 1-20"] --> L["MAN Edge Switch"]
        I6["VLAN 1-30"] --> L
        I7["VLAN 1-20"] --> M["MAN Edge Switch"]
        I8["VLAN 1-30"] --> M
        I9["VLAN 1-20"] --> N["MAN Edge Switch"]
        I10["VLAN 1-30"] --> N
    end

    style Customer_A_s_LAN_Headquarters fill:#f9f,stroke:#333
    style Customer_B_s_LAN_Headquarters fill:#bbf,stroke:#333
    style Customer_B_s_LAN_Headquarters fill:#dfd,stroke:#333
    style Customer_B_s_LAN_Headquarters fill:#dfd,stroke:#333
    style Customer_B_s_LAN_Headquarters fill:#dfd,stroke:#333
    style Customer_B_s_LAN_Headquarters fill:#dfd,stroke:#333
    style Customer_B_s_LAN_Headquarters fill:#dfd,stroke:#333
    style Customer_B_s_LAN_Headquarters fill:#ffd,stroke:#333
    style Customer_B_s_LAN_Headquarters fill:#ffd,stroke:#333
    style Customer_B_s_LAN_Headquarters fill:#ffd,stroke:#333
    style Customer_B_s_LAN_Headquarters fill:#ffd,stroke:#333
    style Customer_B_s_LAN_Headquarters fill:#ffd,stroke:#333
    style Customer_B_s_LAN_Headquarters fill:#dfd,stroke:#333
    style Customer_B_s_LAN_Headquarters fill:#dfd,stroke:#333
    style Customer_B_s_LAN_Headquarters fill:#dfd,stroke:#333
    style Customer_B_s_LAN_Headquarters fill:#dfd,stroke:#333
    style Customer_B_s_LAN_Headquarters fill:#fff,stroke:#333

The Managed Media Converter supports multiple VLAN tags and can therefore be used in MAN applications as a provider bridge, aggregating traffic from numerous independent customer LANs into the MAN (Metro Access Network) space. One of the purposes of the provider bridge is to recognize and use VLAN tags so that the VLANs in the MAN space can be used independent of the customers' VLANs. This is accomplished by adding a VLAN tag with a MAN-related VID for frames entering the MAN. When leaving the MAN, the tag is stripped and the original VLAN tag with the customer-related VID is again available.

This provides a tunneling mechanism to connect remote costumer VLANs through a common MAN space without interfering with the VLAN tags. All tags use EtherType 0x8100 or 0x88A8, where 0x8100 is used for customer tags and 0x88A8 are used for service provider tags.

In cases where a given service VLAN only has two member ports on the switch, the learning can be disabled for the particular VLAN and can therefore rely on flooding as the forwarding mechanism between the two ports. This way, the MAC table requirements is reduced.

Edit Interface Setting

The Edit Interface Setting/Status screens in Figure 4-3-23 and Figure 4-3-24 appear.

Edit Interface Setting Port Select Interface VLAN Mode PVID Accepted Type Ingress Filtering Uplink TPID Select Ports Hybrid Access Trunk Tunnel 1 (1 - 4094) All Tag Only Unlag Only Enabled Disabled Enabled Disabled 0x8100 Apply

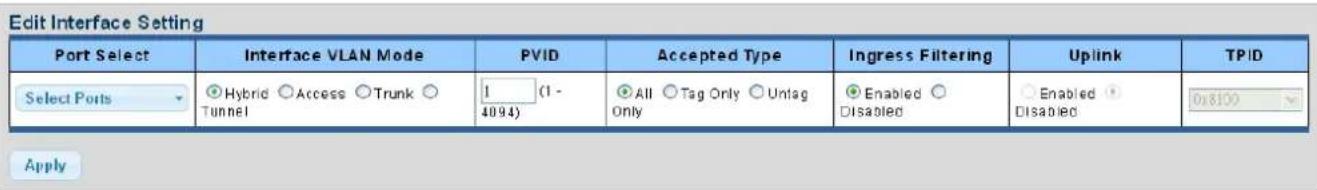

Figure 4-3-23 Edit Interface Setting Screenshot

The page includes the following fields:

Object	Description
• Port Select	Select port number from this drop-down list to set VLAN port setting.
• Interface VLAN Mode	Set the port in access, trunk, hybrid and tunnel mode.■ Trunk means the port allows traffic of multiple VLANs.■ Access indicates the port belongs to one VLAN only.■ Hybrid means the port allows the traffic of multi-VLANs to pass in tag or untag mode.■ Tunnel configures IEEE 802.1Q tunneling for a downlink port to another device within the customer network.
• PVID	Allows you to assign PVID to selected port.The PVID will be inserted into all untagged frames entering the ingress port. The PVID must be the same as the VLAN ID that the port belongs to VLAN group, or the untagged traffic will be dropped.The range for the PVID is 1-4094.
• Accepted Type	Determines whether the port accepts all frames or only tagged frames. This parameter affects VLAN ingress processing. If the port only accepts tagged frames, untagged frames received on the port are discarded.Options:■ All■ Tag Only■ Untag OnlyBy default, the field is set to All.
• Ingress Filtering	If ingress filtering is enabled (checkbox is checked), frames classified to a VLAN that the port is not a member of get discarded.If ingress filtering is disabled, frames classified to a VLAN that the port is not a member of are accepted and forwarded to the switch engine.However, the port will never transmit frames classified to VLANs that it is not a member of.
• Uplink	Enable/disable uplink function in trunk port.
• TPID	Configure the type (TPID) of the protocol of switch trunk port.

Button

Apply

: Click to apply changes.

▼ Port VLAN Status

Port	Interface VLAN Mode	PVID	Accept Frame Type	Ingress Filtering	Uplink	TPID
XG1	Trunk	1	ALL	Enable	Disable	0x8100
XG2	Trunk	1	ALL	Enable	Disable	0x8100
XG3	Trunk	1	ALL	Enable	Disable	0x8100

Figure 4-3-24 Edit Interface Setting Screenshot

The page includes the following fields:

Object	Description
• Port	The switch port number of the logical port
• Interface VLAN Mode	Display the current interface VLAN mode
• PVID	Display the current PVID
• Accepted Frame Type	Display the current access frame type
• Ingress Filtering	Display the current ingress filtering
• Uplink	Display the current uplink mode
• TPID	Display the current TPID

4.3.2.6 Port to VLAN

Use the VLAN Static Table to configure port members for the selected VLAN index. This page allows you to add and delete port members of each VLAN. The screen in Figure 4-3-25 appears.

Port to VLAN Settings VLAN ID : 1 Port Interface VLAN Mode Membership PVID XG1 Trunk ○ Forbidden ○ Excluded ○ Tagged ● Untagged XG2 Trunk ○ Forbidden ○ Excluded ○ Tagged ● Untagged XG3 Trunk ○ Forbidden ○ Excluded ○ Tagged ● Untagged Apply

Figure 4-3-25 Port to VLAN Setting Screenshot

The page includes the following fields:

Object	Description
• VLAN ID	Select VLAN ID from this drop-down list to assign VLAN membership.
• Port	The switch port number of the logical port.
• Interface VLAN Mode	Display the current interface VLAN mode.
• Membership	Select VLAN membership for each interface by marking the appropriate radio button for a port or trunk:
	Forbidden:	Interface is forbidden from automatically joining the VLAN via GVRP.
	Excluded:	Interface is not a member of the VLAN. Packets associated with this VLAN will not be transmitted by the interface.
	Tagged:	Interface is a member of the VLAN. All packets transmitted by the port will be tagged, that is, carry a tag and therefore carry VLAN or CoS information.
	Untagged:	Interface is a member of the VLAN. All packets transmitted by the port will be untagged, that is, not carry a tag and therefore not carry VLAN or CoS information. Note that an interface must be assigned to at least one group as an untagged port.
• PVID	Display the current PVID

Buttons

Apply

: Click to apply changes.

4.3.2.7 Port VLAN Membership

This page provides an overview of membership status for VLAN users. The VLAN Membership Status screen in Figure 4-3-26 appears.

▼ Port VLAN Membership Table

Port	Mode	Administrative VLANs	Operational VLANs	Modify
XG1	Trunk	1UP	1UP	Edit
XG2	Trunk	1UP	1UP	Edit
XG3	Trunk	1UP	1UP	Edit

Figure 4-3-26 Port VLAN Membership Table Screenshot

The page includes the following fields:

Object	Description
• Port	The switch port number of the logical port
• Mode	Display the current VLAN mode
• Administrative VLANs	Display the current administrative VLANs
• Operational VLANs	Display the current operational VLANs
• Modify	Click to modify VLAN membership

4.3.3 LLDP

4.3.3.1 Link Layer Discovery Protocol

Link Layer Discovery Protocol (LLDP) is used to discover basic information about neighboring devices on the local broadcast domain. LLDP is a Layer 2 protocol that uses periodic broadcasts to advertise information about the sending device. Advertised information is represented in Type Length Value (TLV) format according to the IEEE 802.1ab standard, and can include details such as device identification, capabilities and configuration settings. LLDP also defines how to store and maintain information gathered about the neighboring network nodes it discovers.

Link Layer Discovery Protocol - Media Endpoint Discovery (LLDP-MED) is an extension of LLDP intended for managing endpoint devices such as Voice over IP phones and network switches. The LLDP-MED TLVs advertise information such as network policy, power, inventory, and device location details. LLDP and LLDP-MED information can be used by SNMP applications to simplify troubleshooting, enhance network management, and maintain an accurate network topology.

4.3.3.2 LLDP Global Setting

This page allows the user to inspect and configure the current LLDP port settings. The LLDP Global Setting and Config screens in Figure 4-3-27 and Figure 4-3-28 appear.

Global Settings

Enabled	● Enabled ○ Disabled
LLDP PDU Disable Action	○ Filtering ○ Bridging ● Flooding
Transmission Interval	30 (5-32768)
Holdtime Multiplier	4 (2-10)
Reinitialization Delay	2 (1-10)
Transmit Delay	2 (1-8192)
LLDP-MED Fast Start Repeat Count	3 (1-10)

Apply

Figure 4-3-27 Global Setting Screenshot

The page includes the following fields:

Object	Description
Enable	Globally enable or disable LLDP function
LLDP PDU Disable Action	Set LLDP PDU disable action: include “Filtering”, “Bridging” and “Flooding”.■ Filtering: discrad all LLDP PDU.■ Bridging: transmit LLDP PDU in the same VLAN.■ Flooding: transmit LLDP PDU for all port.
Transmission Interval	The switch is periodically transmitting LLDP frames to its neighbors for having the network discovery information up-to-date. The interval between each LLDP frame is determined by the Transmission Interval value. Valid values are restricted to 5 - 32768 seconds.Default: 30 secondsThis attribute must comply with the following rule:(Transmission Interval * Hold Time Multiplier) ≤65536, and Transmission Interval >= (4 * Delay Interval)
Holdtime Multiplier	Each LLDP frame contains information about how long the information in the LLDP frame shall be considered valid. The LLDP information valid period is set to Holdtime multiplied by Transmission Interval seconds. Valid values are restricted to 2 - 10 times.TTL in seconds is based on the following rule:(Transmission Interval * Holdtime Multiplier) ≤ 65536.Therefore, the default TTL is 4*30 = 120 seconds.
• Reinitialization Delay	When a port is disabled, LLDP is disabled or the switch is rebooted a LLDP shutdown frame is transmitted to the neighboring units, signaling that the LLDP information isn't valid anymore.Tx Reinit controls the amount of seconds between the shutdown frame and a new LLDP initialization. Valid values are restricted to 1 - 10 seconds.
• Transmit Delay	If some configuration is changed (e.g. the IP address) a new LLDP frame is transmitted, but the time between the LLDP frames will always be at least the value of Transmit Delay seconds. Transmit Delay cannot be larger than 1/4 of the Transmission Interval value. Valid values are restricted to 1 - 8192 seconds.This attribute must comply with the rule:(4 * Delay Interval) ≤Transmission Interval
• LLDP-MED Fast Start Repeat Count	Configures the amount of LLDP MED Fast Start LLDPDUs to transmit during the activation process of the LLDP-MED Fast Start mechanism.Range: 1-10 packets;Default: 3 packetsThe MED Fast Start Count parameter is part of the timer which ensures that the LLDP-MED Fast Start mechanism is active for the port. LLDP-MED Fast Start is critical to the timely startup of LLDP, and therefore integral to the rapid availability of Emergency Call Service.

Buttons

Apply

: Click to apply changes.

LLDP Global Config

Config Name	Config Value
LLDP Enabled	Enabled
LLDP PDU Disable Action	Flooding
Transmission Interval	30 Secs
Holdtme Multiplier	4
Reinitialization Delay	2 Secs
Transmit Delay	2 Secs
LLDP-MED Fast Start Repeat Count	3 PDUs

Figure 4-3-28 LLDP Global Config Screenshot

The page includes the following fields:

Object	Description
LLDP Enable	Display the current LLDP status
LLDP PDU Disable Action	Display the current LLDP PDU disable action
Transmission Interval	Display the current transmission interval
Holdtime Multiplier	Display the current holdtime multiplier
Reinitialization Delay	Display the current reinitialization delay
Transmit Delay	Display the current transmit delay
LLDP-MED Fast Start Repeat Count	Display the current LLDP-MED Fast Start Repeat Count

4.3.3.3 LLDP Port Setting

Use the LLDP Port Setting to specify the message attributes for individual interfaces, including whether messages are transmitted, received, or both transmitted and received. The LLDP Port Configuration and Status screens in Figure 4-3-29 and

Figure 4-3-30 appear.

LLDP Port Configuration Port Select State Select Ports Disable Apply Optional TLVs Selection Port Select Optional TLV Select Select Ports Select Optional TLVs Apply

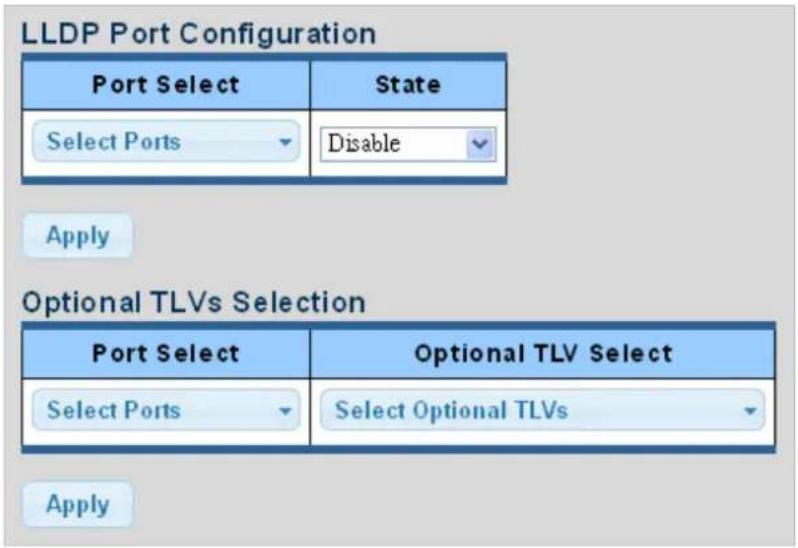

Figure 4-3-29 LLDP Port Configuration and Optional TLVs Selection Screenshot

The page includes the following fields:

Object	Description
• Port Select	Select port from this drop-down list
• State	Enables LLDP messages transmit and receive modes for LLDP Protocol Data Units. Options: ■ Tx only■ Rx only■ TxRx■ Disabled
• Port Select	Select port from this drop-down list
• Optional TLV Select	Configures the information included in the TLV field of advertised messages.■ System Name: When checked the "System Name" is included in LLDP information transmitted.■ Port Description: When checked the "Port Description" is included in LLDP information transmitted.■ System Description: When checked the "System Description" is included in LLDP information transmitted.■ System Capability: When checked the "System Capability" is included in LLDP information transmitted.■ 802.3 MAC-PHY: When checked the "802.3 MAC-PHY" is included in LLDP information transmitted.■ 802.3 Link Aggregation: When checked the "802.3 Link Aggregation" is included in LLDP information transmitted.■ 802.3 Maximum Frame Size: When checked the "802.3 Maximum Frame Size" is included in LLDP information transmitted.■ Management Address: When checked the "Management Address" is included in LLDP information transmitted.■ 802.1 PVID: When checked the "802.1 PVID" is included in LLDP information transmitted.

Buttons

Apply

Click to apply changes

LLDP Port Status

Port	State	Selected Optional TLVs
XG1	TX&RX	802.1 PVID
XG2	TX&RX	802.1 PVID
XG3	TX&RX	802.1 PVID

Figure 4-3-30 LLDP Port Status Screenshot

The page includes the following fields:

Object	Description
• Port	The switch port number of the logical port
• State	Display the current LLDP status
• Selected Optional TLVs	Display the currently selected optional TLVs

The VLAN Name TLV VLAN Selection and LLDP Port VLAN TLV Status screens in Figure 4-3-31 and Figure 4-3-32 appear.

VLAN Name TLV VLAN Selection Port Select VLAN Select Select Ports Select VLANs Apply

Figure 4-3-31 VLAN Name TLV Selection Screenshot

The page includes the following fields:

Object	Description
• Port Select	Select port from this drop-down list.
• VLAN Select	Select VLAN from this drop-down list.

Buttons

Apply

Click to apply changes.

Port	Selected VLAN
XG1
XG2
XG3

Figure 4-3-32 LLDP Port VLAN TLV Status Screenshot

The page includes the following fields:

Object	Description
• Port	The switch port number of the logical port
• Selected VLAN	Display the currently selected VLAN

4.3.3.4 LLDP Local Device

Use the LLDP Local Device Information screen to display information about the switch, such as its MAC address, chassis ID, management IP address, and port information. The Local Device Summary and Port Status screens in Figure 4-3-33 and

Figure 4-3-34 appear.

Chassis ID Subtype	MAC Address
Chassis ID	00:30:4F:AF:FF:81
System Name	GSD-1002M
System Description	V1
Capabilities Supported	Bridge
Capabilities Enabled	Bridge
Port ID Subtype	Interface name

Figure 4-3-33 Local Device Summary Screenshot

The page includes the following fields:

Object	Description
• Chassis ID Subtype	Display the current chassis ID subtype
• Chassis ID	Display the current chassis ID
• System Name	Display the current system name
• System Description	Display the current system description
• Capabilities Supported	Display the current capabilities supported
• Capabilities Enabled	Display the current capabilities enabled
• Port ID Subtype	Display the current port ID subtype

	Port	LLDP Status	LLDP Med Status
	XG1	TX & RX	Enable
	XG2	TX & RX	Enable
	XG3	TX & RX	Enable

Figure 4-3-34 Port Status Screenshot

The page includes the following fields:

Object	Description
• Interface	The switch port number of the logical port.
• LLDP Status	Display the current LLDP status
• LLDP MED Status	Display the current LLDP MED Status

4.3.3.5 LLDP Remove Device

This page provides a status overview for all LLDP remove devices. The displayed table contains a row for each port on which an LLDP neighbor is detected. The LLDP Remove Device screen in Figure 4-3-35 appears.

LLDP Remote Device Detail Delete Refresh Sel Local Port Chassis ID Subtype Chassis ID Port ID Subtype Port ID System Name Time to Live

Figure 4-3-35 LLDP Remote Device Screenshot

The page includes the following fields:

Object	Description
• Local Port	Display the current local port
• Chassis ID Subtype	Display the current chassis ID subtype
• Chassis ID	The Chassis ID is the identification of the neighbor's LLDP frames
• Port ID Subtype	Display the current port ID subtype
• Port ID	The Remote Port ID is the identification of the neighbor port
• System Name	System Name is the name advertised by the neighbor unit
• Time to Live	Display the current time to live

Buttons

Delete

: Click to delete LLDP remove device entry.

Refresh

: Click to refresh LLDP remove device.

4.3.3.6 LLDP Statistics

Use the LLDP Device Statistics screen to general statistics for LLDP-capable devices attached to the switch, and for LLDP protocol messages transmitted or received on all local interfaces. The LLDP Global and Port Statistics screens in Figure 4-3-36 and Figure 4-3-37 appear.

LLDP Global Statistics Clear Refresh Insertions 0 Deletions 0 Drops 0 Age Outs 0

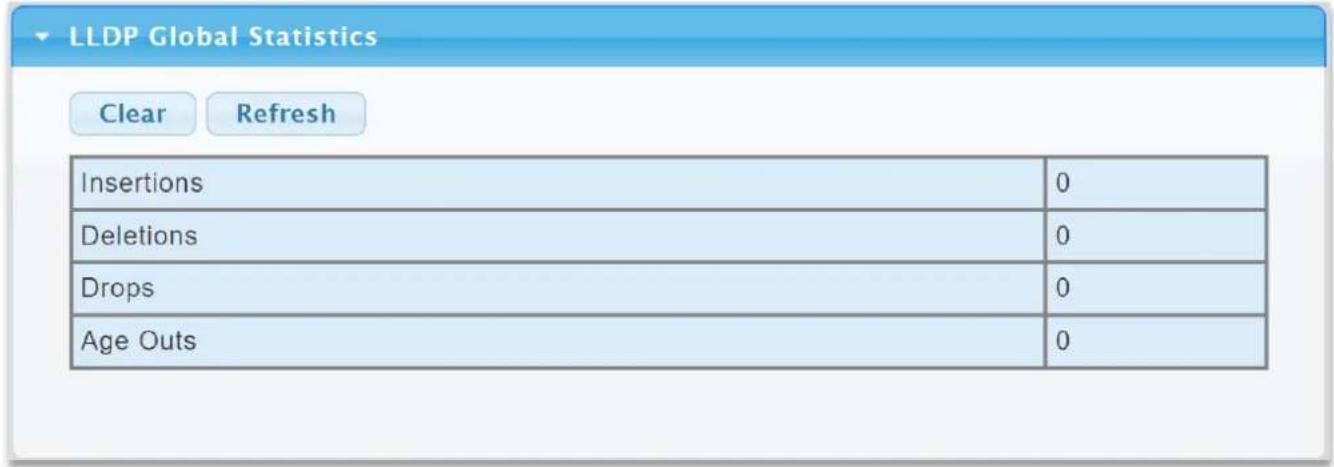

Figure 4-3-36 LLDP Global Statistics Screenshot

The page includes the following fields:

Object	Description
• Insertions	Shows the number of new entries added since switch reboot.\
• Deletions	Shows the number of new entries deleted since switch reboot.\
• Drops	Shows the number of LLDP frames dropped due to that the entry table was full.\
• Age Outs	Shows the number of entries deleted due to Time-To-Live expiring.\

Buttons

Clear

: Click to clear the statistics

Refresh

: Click to refresh the statistics

LLDP Global Statistics Clear Refresh Insertions 0 Deletions 0 Drops 0 Age Outs 0

Figure 4-3-37 LLDP Port Statistics Screenshot

The page includes the following fields:

Object	Description
• Port	The port on which LLDP frames are received or transmitted
• TX Frame – Total	The number of LLDP frames transmitted on the port
• RX Frame – Total	The number of LLDP frames received on the port
• RX Frame – Discarded	If an LLDP frame is received on a port, and the switch's internal table has run full, the LLDP frame is counted and discarded. This situation is known as "Too Many Neighbors" in the LLDP standard. LLDP frames require a new entry in the table when the Chassis ID or Remote Port ID is not already contained within the table. Entries are removed from the table when a given port links down, an LLDP shutdown frame is received, or when the entry ages out.
• RX Frame – Error	The number of received LLDP frames containing some kind of error.
• RX TLVs – Discarded	Each LLDP frame can contain multiple pieces of information, known as TLVs (TLV is short for "Type Length Value"). If a TLV is malformed, it is counted and discarded.
• RX TLVs – Unrecognized	The number of well-formed TLVs, but with an unknown type value
• RX Ageout - Total	The number of organizationally TLVs received

4.3.4 MAC Address Table

Switching of frames is based upon the DMAC address contained in the frame. The Managed Media Converter builds up a table that maps MAC addresses to switch ports for knowing which ports the frames should go to (based upon the DMAC address in the frame). This table contains both static and dynamic entries. The static entries are configured by the network administrator if the administrator wants to do a fixed mapping between the DMAC address and switch ports.

The frames also contain a MAC address (SMAC address), which shows the MAC address of the equipment sending the frame. The SMAC address is used by the switch to automatically update the MAC table with these dynamic MAC addresses. Dynamic entries are removed from the MAC table if no frame with the corresponding SMAC address has been seen after a configurable age time.

4.3.4.1 Static MAC Setting

The static entries in the MAC table are shown in this table. The MAC table is sorted first by VLAN ID and then by MAC address. The Static MAC Setting screens in Figure 4-3-38 and Figure 4-3-39 appear.

Static MAC Setting MAC Address VLAN Port 00:00:00:00:00:00 default GE1 Add

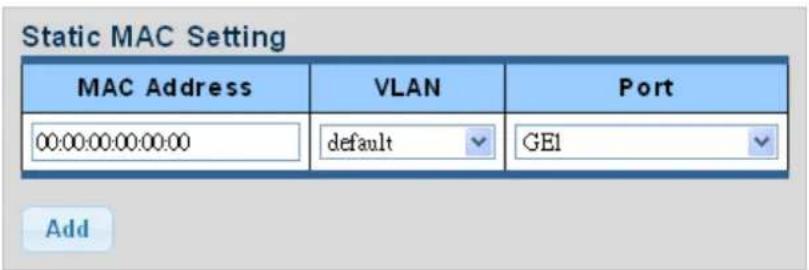

Figure 4-3-38 Statics MAC Setting Screenshot

The page includes the following fields:

Object	Description
• MAC Address	Physical address associated with this interface
• VLAN	Select VLAN from this drop-down list
• Port	Select port from this drop-down list

Buttons

Add

: Click to add new static MAC address.

No.	MAC Address	VLAN	Port	Delete
1	00:30 4F:AF:FF:81	default(1)	CPU

Figure 4-3-39 Statics MAC Status Screenshot

The page includes the following fields:

Object	Description
No.	This is the number for entries
MAC Address	The MAC address for the entry
VLAN	The VLAN ID for the entry
Port	Display the current port
Delete	Click to delete static MAC status entry

4.3.4.2 MAC Filtering

By filtering MAC address, the switch can easily filter the per-configured MAC address and reduce the un-safety. The Static MAC Setting screens in Figure 4-3-40 and Figure 4-3-41 appear.

MAC Filtering Setting MAC Address VLAN (1~4094) 00:00:00:00:00:00 1 Add

Figure 4-3-40 MAC Filtering Setting Screenshot

The page includes the following fields:

Object	Description
• MAC Address	Physical address associated with this interface
• VLAN (1~4096)	Indicates the ID of this particular VLAN

Buttons

Add

: Click to add new MAC filtering setting.

No.

MAC Address

VLAN

Action

Figure 4-3-41 Statics MAC Status Screenshot

The page includes the following fields:

Object	Description
No.	This is the number for entries
MAC Address	The MAC address for the entry
VLAN	The VLAN ID for the entry
Delete	Click to delete static MAC status entry.

4.3.4.3 Dynamic Address Setting

By default, dynamic entries are removed from the MAC table after 300 seconds. The Dynamic Address Setting/Status screens in Figure 4-3-42 and Figure 4-3-43 appear.

Dynamic Address Setting Aging Time 300 (Range: 10 - 630) Apply

Figure 4-3-42 Dynamic Addresses Setting Screenshot

The page includes the following fields:

Object	Description
• Aging Time	The time after which a learned entry is discardedRange: 10-630 seconds;Default: 300 seconds

Buttons

Apply

: Click to apply changes.

Information Name	Information Value
Aging time	300

Figure 4-3-43 Dynamic Addresses Status Screenshot

The page includes the following fields:

Object	Description
• Aging Time	Display the current aging time

4.3.4.4 Dynamic Learned

Dynamic MAC Table

Dynamic Learned MAC Table is shown on this page. The MAC Table is sorted first by VLAN ID and then by MAC address. The Dynamic Learned screens in Figure 4-3-44 and Figure 4-3-45 appear.

Port GE1 VLAN default MAC Address 00:00:00:00:00:00 View Clear

Figure 4-3-44 Dynamic Learned Screenshot

The page includes the following fields:

Object	Description
• Port	Select port from this drop-down list
• VLAN	Select VLAN from this drop-down list
• MAC Address	Physical address associated with this interface

Buttons

View

: Refreshes the displayed table starting from the "Start from MAC address" and "VLAN" input fields

Clear

: Flushes all dynamic entries

MAC Address	VLAN	Type	Port
40:61:86:04:18:69	default(1)	Dynamic	GE1	Add to Static MAC table
Total Entries:1

Figure 4-3-45 MAC Address Information Screenshot

Object	Description
• MAC Address	The MAC address of the entry
• VLAN	The VLAN ID of the entry
• Type	Indicates whether the entry is a static or dynamic entry
• Port	The ports that are members of the entry

Buttons

Add to Static MAC table

: Click to add dynamic MAC address to static MAC address.

4.4 Quality of Service

4.4.1 Understanding QoS

Quality of Service (QoS) is an advanced traffic prioritization feature that allows you to establish control over network traffic. QoS enables you to assign various grades of network service to different types of traffic, such as multi-media, video, protocol-specific, time critical, and file-backup traffic.

QoS reduces bandwidth limitations, delay, loss, and jitter. It also provides increased reliability for delivery of your data and allows you to prioritize certain applications across your network. You can define exactly how you want the switch to treat selected applications and types of traffic.

You can use QoS on your system to:

• Control a wide variety of network traffic by:
- Classifying traffic based on packet attributes.
- Assigning priorities to traffic (for example, to set higher priorities to time-critical or business-critical applications).
- Applying security policy through traffic filtering.
- Provide predictable throughput for multimedia applications such as video conferencing or voice over IP by minimizing delay and jitter.
- Improve performance for specific types of traffic and preserve performance as the amount of traffic grows.
- Reduce the need to constantly add bandwidth to the network.
- Manage network congestion.

To implement QoS on your network, you need to carry out the following actions:

1. Define a service level to determine the priority that will be applied to traffic.
2. Apply a classifier to determine how the incoming traffic will be classified and thus treated by the Switch.
3. Create a QoS profile which associates a service level and a classifier.
4. Apply a QoS profile to a port(s).

The QoS page of the Managed Media Converter contains three types of QoS mode - the 802.1p mode, DSCP mode or Port-base mode can be selected. Both the three mode rely on predefined fields within the packet to determine the output queue.

■ 802.1p Tag Priority Mode – The output queue assignment is determined by the IEEE 802.1p VLAN priority tag.
■ IP DSCP Mode - The output queue assignment is determined by the TOS or DSCP field in the IP packets.
■ Port-Base Priority Mode – Any packet received from the specify high priority port will treated as a high priority packet.

The Managed Media Converter supports eight priority level queue, the queue service rate is based on the WRR(Weight Round Robin) and WFQ (Weighted Fair Queuing) algorithm. The WRR ratio of high-priority and low-priority can be set to "4:1 and 8:1.

4.4.2 General

4.4.2.1 QoS Properties

The QoS Global Setting and Information screen in Figure 4-4-1 & Figure 4-4-2 appear.

QoS Global Setting QoS Mode Disable Basic Apply

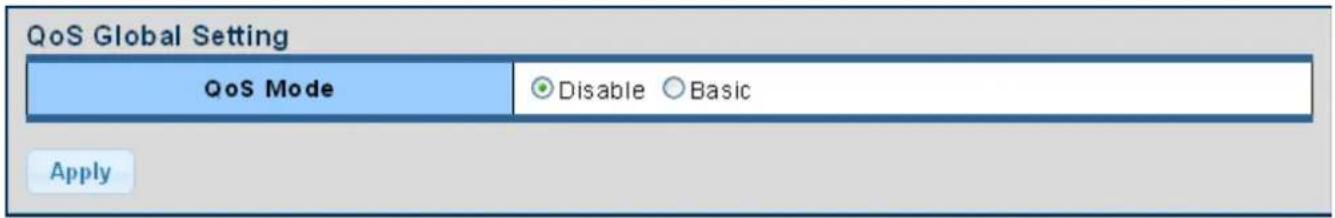

Figure 4-4-1 QoS Global Setting Page Screenshot

The page includes the following fields:

Object	Description
• QoS Mode	Enable or disable QoS mode

Buttons

Apply

: Click to apply changes.

QoS Information

Information Name	Information Value
QoS Mode	disable

Figure 4-4-2 QoS Information Page Screenshot

The page includes the following fields:

Object	Description
• QoS Mode	Display the current QoS mode.

4.4.2.2 QoS Port Settings

The QoS Port Settings and Status screen in Figure 4-4-3 & Figure 4-4-4 appear.

Port Port Settings Port CoS Value Remark CoS Remark DSCP Remark IP Precedence Select Ports 0 Disable Enable Disable Enable Disable Enable Apply

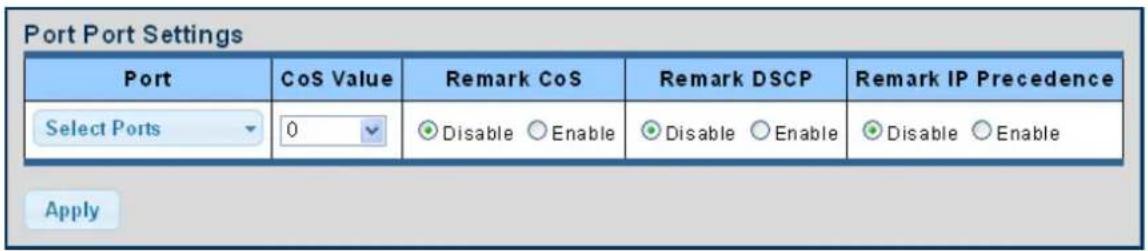

Figure 4-4-3 QoS Port Setting Page Screenshot

The page includes the following fields:

Object	Description
• Port Select	Select port number for this drop down list.
• CoS Value	Select CoS value for this drop down list.
• Remark CoS	Disable or enable remark CoS.
• Remark DSCP	Disable or enable remark DSCP.
• Remark IP Precedence	Disable or enable remark IP Precedence.

Buttons

Apply

: Click to apply changes.

QoS Port Status

Port	CoS Value	Remark CoS	Remark DSCP	Remark IP Precedence
XG1	0	Disable	Disable	Disable
XG2	0	Disable	Disable	Disable
XG3	0	Disable	Disable	Disable

Figure 4-4-4 QoS Port Status Page Screenshot

The page includes the following fields:

Object	Description
• Port	The switch port number of the logical port
• CoS Value	Display the current CoS value
• Remark CoS	Display the current remark CoS
• Remark DSCP	Display the current remark DSCP
• Remark IP Precedence	Display the current remark IP precedence

4.4.2.3 Queue Settings

The Queue Table and Information screens in Figure 4-4-5 & Figure 4-4-6 appear.

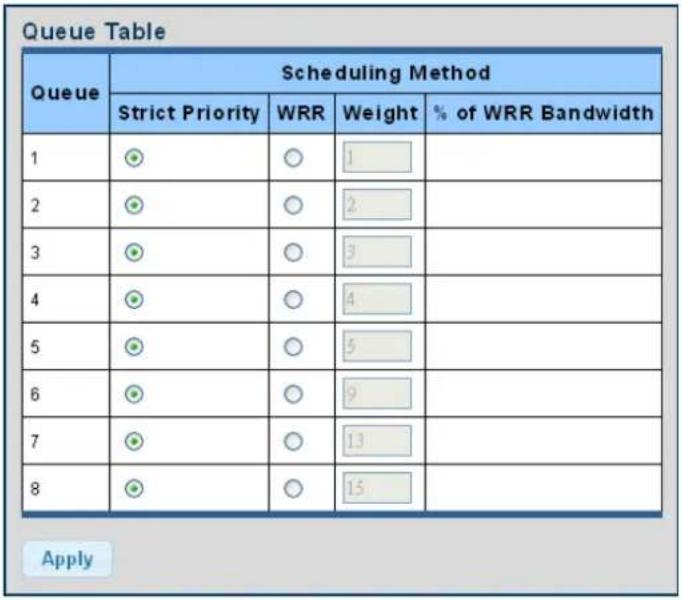

Figure 4-4-5 Queue Table Page Screenshot

The page includes the following fields:

Object	Description
• Queue	Display the current queue ID
• Strict Priority	Controls whether the scheduler mode is "Strict Priority" on this switch port
• WRR	Controls whether the scheduler mode is "Weighted" on this switch port
• Weight	Controls the weight for this queue. This value is restricted to 1-100. This parameter is only shown if "Scheduler Mode" is set to "Weighted".
• % of WRR Bandwidth	Display the current bandwidth for each queue

Buttons

Apply

: Click to apply changes.

Information Name	Information Value
Strict Priority Queue Number	8

Figure 4-4-6 Queue Information Page Screenshot

The page includes the following fields:

Object	Description
• Information Name	Display the current queue method information.
• Information Value	Display the current queue value information.

4.4.2.4 CoS Mapping

The CoS to Queue and Queue to CoS Mapping screens in Figure 4-4-7 & Figure 4-4-8 appear.

CoS to Queue Mapping Class of Service 0 1 2 3 4 5 6 7 Queue 2 1 3 4 5 6 7 8 Queue to CoS Mapping Queue 1 2 3 4 5 6 7 8 Class of Service 1 0 2 3 4 5 6 7 Apply

Figure 4-4-7 CoS to Queue and Queue to CoS Mapping Page Screenshot

The page includes the following fields:

Object	Description
• Queue	Select Queue value for this drop down list.
• Class of Service	Select CoS value for this drop down list.

Buttons

Apply

: Click to apply changes.

CoS Mapping

CoS mapping

CoS	Mapping to Queue
0	2
1	1
2	3
3	4
4	5
5	6
6	7
7	8

Queue	Mapping to CoS
1	1
2	0
3	2
4	3
5	4
6	5
7	6
8	7

Figure 4-4-8 CoS Mapping Page Screenshot

The page includes the following fields:

Object	Description
• CoS	Display the current CoS value.
• Mapping to Queue	Display the current mapping to queue.
• Queue	Display the current queue value.
• Mapping to CoS	Display the current mapping to CoS.

4.4.2.5 DSCP Mapping

The DSCP to Queue and Queue to DSCP Mapping screens in Figure 4-4-9 & Figure 4-4-10 appear.

DSCP to Queue Mapping DSCP Queue Select DSCP 1 Queue to DSCP Mapping Queue 1 2 3 4 5 6 7 8 DSCP 0 8 16 24 32 40 48 56 Apply

Figure 4-4-9 DSCP to Queue and Queue to DSCP Mapping Page Screenshot

The page includes the following fields:

Object	Description
• DSCP	Select DSCP value for this drop down list.
• Queue	Select Queue value for this drop down list.

Buttons

Apply

: Click to apply changes.

DSCP mapping

DSCP	Mapping to Queue
0	1
1	1
2	1
3	1
4	1

60	8
61	8
62	8
63	8
Queue	Mapping to DSCP
1	0
2	8
3	16
4	24
5	32
6	40
7	48
8	56

Figure 4-4-10 DSCP Mapping Page Screenshot

The page includes the following fields:

Object	Description
• DSCP	Display the current CoS value
• Mapping to Queue	Display the current mapping to queue
• Queue	Display the current queue value
• Mapping to DSCP	Display the current mapping to DSCP

The IP Precedence to Queue and Queue to IP Precedence Mapping screens in Figure 4-4-11 & Figure 4-4-12 appear.

IP Precedence to Queue Mapping IP Precedence 0 1 2 3 4 5 6 7 Queue 1 2 3 4 5 6 7 8 Queue to IP Precedence Mapping Queue 1 2 3 4 5 6 7 8 IP Precedence 0 1 2 3 4 5 6 7 Apply

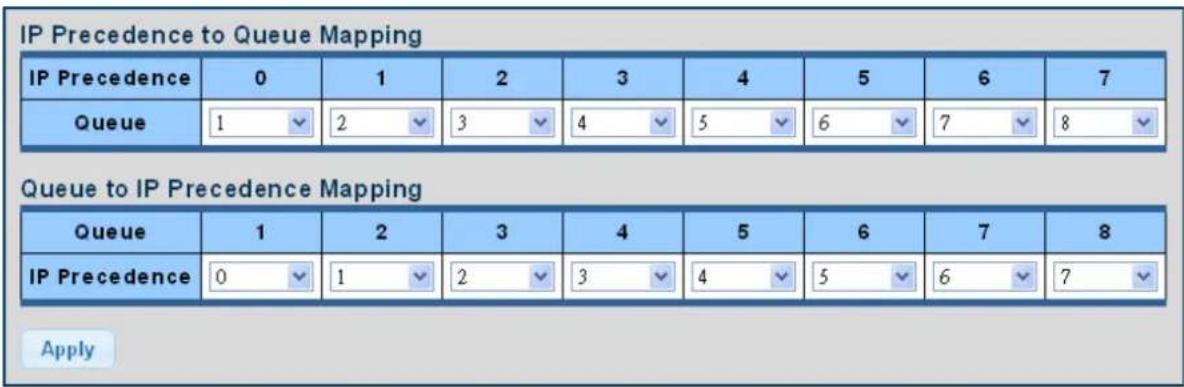

Figure 4-4-11 IP Precedence to Queue and Queue to IP Precedence Mapping Page Screenshot

The page includes the following fields:

Object	Description
• Queue	Select Queue value for this drop down list
• IP Precedence	Select IP Precedence value for this drop down list

Buttons

Apply

: Click to apply changes.

IP Precedence	Mapping to Queue
0	1
1	2
2	3
3	4
4	5
5	6
6	7
7	8
Queue Mapping to IP Precedence
1	0
2	1
3	2
4	3
5	4
6	5
7	6
8	7

Figure 4-4-12 IP Precedence Mapping Page Screenshot

The page includes the following fields:

Object	Description
• IP Precedence	Display the current CoS value.
• Mapping to Queue	Display the current mapping to queue.
• Queue	Display the current queue value.
• Mapping to IP Precedence	Display the current mapping to IP Precedence.

4.4.3 QoS Basic Mode

4.4.3.1 Global Settings

The Basic Mode Global Settings and QoS Information screen in Figure 4-4-13 & Figure 4-4-14 appear.

Basic Mode Global Settings Trust Mode ○CoS/802.1p ○DSCP ○CoS/802.1p-DSCP ○IP Precedence ○None Apply

Figure 4-4-13 Basic Mode Global Settings Page Screenshot

The page includes the following fields:

Object	Description
• Trust Mode	Set the QoS mode.

Buttons

Apply

: Click to apply changes.

QoS Information

Information Name	Information Value
Trust Mode	COS

Figure 4-4-14 QoS Information Page Screenshot

The page includes the following fields:

Object	Description
• Trust Mode	Display the current QoS mode.

4.4.3.2 Port Settings

The QoS Port Setting and Status screen in Figure 4-4-15 & Figure 4-4-16 appear.

QoS Port Setting Port Trust Select Ports Enabled Disabled Apply

Figure 4-4-15 Basic Mode Global Settings Page Screenshot

The page includes the following fields:

Object	Description
• Port	Select port number for this drop down list.
• Trust Mode	Enable or disable the trust mode.

Buttons

Apply

: Click to apply changes.

Port	Trust Type
XG1	Enable
XG2	Enable
XG3	Enable

Figure 4-4-16 QoS Port Status Page Screenshot

The page includes the following fields:

Object	Description
• Port	The switch port number of the logical port.
• Trust Mode	Display the current trust type.

4.4.4 Bandwidth Control

Configure the switch port rate limit for the switch port on this page.

4.4.4.1 Ingress Bandwidth Control

This page provides to select the ingress bandwidth preamble. The Ingress Bandwidth Control Setting and Status screens in Figure 4-4-17 & Figure 4-4-18 appear.

Ingress Bandwidth Control Settings Port State Rate(Kbps) Select Ports ● Disable ○ Enable (16-1000000) Apply

Figure 4-4-17 Ingress Bandwidth Control Settings Page Screenshot

The page includes the following fields:

Object	Description
• Port	Select port number for this drop down list.
• State	Enable or disable the port rate policer. The default value is "Disabled".
• Rate (Kbps)	Configure the rate for the port policer. The default value is "unlimited". Valid values are in the range 16 to 1000000.

Buttons

Apply

: Click to apply changes.

Port	Ingress RateLimit (Kbps)
XG1	Off
XG2	Off
XG3	Off

Figure 4-4-18 Ingress Bandwidth Control Status Page Screenshot

The page includes the following fields:

Object	Description
• Port	The switch port number of the logical port.
• Ingress Rate Limit (Kbps)	Display the current ingress rate limit.

4.4.4.2 Egress Bandwidth Control

This page provides to select the egress bandwidth preamble. The Egress Bandwidth Control Setting and Status screens in Figure 4-4-19 & Figure 4-4-20 appear.

Egress Bandwidth Control Settings Port State Rate(Kbps) Select Ports ● Disable ○ Enable (16-1000000) Apply

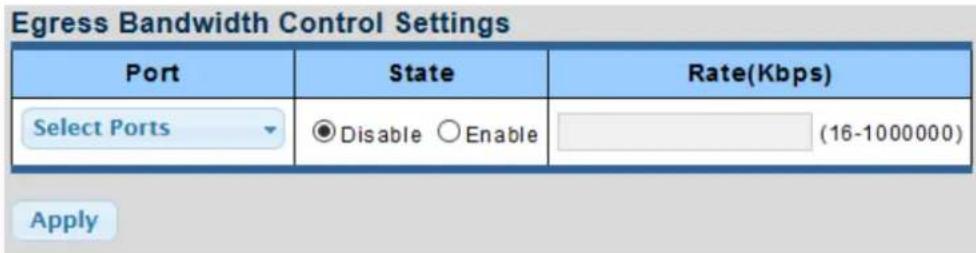

Figure 4-4-19 Egress Bandwidth Control Settings Page Screenshot

The page includes the following fields:

Object	Description
• Port	Select port number for this drop down list.
• State	Enable or disable the port rate policer. The default value is "Disabled".
• Rate (Kbps)	Configure the rate for the port policer. The default value is "unlimited". Valid values are in the range 16 to 1000000.

Buttons

Apply

: Click to apply changes.

Port	Egress RateLimit (Kbps)
XG1	Off
XG2	Off
XG3	Off

Figure 4-4-20 Egress Bandwidth Control Status Page Screenshot

The page includes the following fields:

Object	Description
• Port	The switch port number of the logical port.
• Egress Rate Limit (Kbps)	Display the current egress rate limit.

4.4.4.3 Egress Queue

The Egress Queue Bandwidth Control Settings and Status screens in Figure 4-4-21 & Figure 4-4-22 appear.

Egress Queue Bandwidth Control Settings

Port	Queue	State	CIR(Kbps)
GE1	1	Disable Enable	(16-1000000)

Apply

Figure 4-4-21 Egress Queue Bandwidth Settings Page Screenshot

The page includes the following fields:

Object	Description
• Port	Select port number for this drop down list.
• Queue	Select queue number for this drop down list.
• State	Enable or disable the port rate policer. The default value is "Disabled".
• CIR (Kbps)	Configure the CIR for the port policer. The default value is "unlimited". Valid values are in the range 16 to 1000000.

Buttons

Apply

Click to apply changes.

Queue ID	Rate Limit (Kbps)
1	Off
2	Off
3	Off
4	Off
5	Off
6	Off
7	Off
8	Off

Figure 4-4-22 Egress Queue Status Page Screenshot

The page includes the following fields:

Object	Description
• Queue ID	Display the current queue ID.
• Rate Limit (Kbps)	Display the current rate limit.

4.4.5 Storm Control

Storm control for the switch is configured on this Page.

There is an unknown unicast storm rate control, unknown multicast storm rate control, and a broadcast storm rate control.

These only affect flooded frames, i.e. frames with a (VLAN ID, DMAC) pair not present on the MAC Address table.

4.4.5.1 Global Setting

The Storm Control Global Setting and Information screens in Figure 4-4-23 & Figure 4-4-24 appear.

Storm Control Global Setting Unit ○pps ○bps Preamble & IFG ○Excluded ○Included Apply

Figure 4-4-23 Storm Control Global Setting Page Screenshot

The page includes the following fields:

Object	Description
• Unit	Controls the unit of measure for the storm control rate as "pps" or "bps". The default value is "bps".
• Preamble & IFG	Set the excluded or included interframe gap

Buttons

Apply

: Click to apply changes.

Information Name	Information Value
Unit	bps
Preamble & IFG	Excluded

Figure 4-4-24 Storm Control Global Information Page Screenshot

The page includes the following fields:

Object	Description
• Unit	Display the current unit.
• Preamble & IFG	Display the current preamble & IFG.

4.4.5.2 Port Setting

Storm control for the switch is configured on this page. There are three types of storm rate control:

■ Broadcast storm rate control
■ Unknown Multicast storm rate control
■ Unknown Unicast storm rate control

The configuration indicates the permitted packet rate for unknown unicast, unknown multicast, or broadcast traffic across the switch. The Storm Control Configuration screens in Figure 4-4-25 & Figure 4-4-26 appear.

Storm Control Setting Port Port State Action Type Enable Rate (Kbps) Select Ports Disable Enable drop Broadcast 10000 Unknown Multicast 10000 Unknown Unicast 10000 Apply

Figure 4-4-25 Storm Control Setting Page Screenshot

The page includes the following fields:

Object	Description
• Port	Select port for this drop down list.
• Port State	Enable or disable the storm control status for the given storm type.
• Action	Configures the action performed when storm control is over rate on a port. Valid values are Shutdown or Drop.
• Type Enable	The settings in a particular row apply to the frame type listed here: ■ Broadcast ■ Unknown Multicast ■ Unknown Unicast
• Rate (kbps/pps)	Configure the rate for the storm control. The default value is "10,000".

Buttons

Apply

: Click to apply changes

Storm Control Information

Port	Port State	Broadcast (Kbps)	Unknown Multicast (Kbps)	Unknown Unicast (Kbps)	Action
XG1	Disable	Off (10000)	Off (10000)	Off (10000)	Drop
XG2	Disable	Off (10000)	Off (10000)	Off (10000)	Drop
XG3	Disable	Off (10000)	Off (10000)	Off (10000)	Drop

Figure 4-4-26 Storm Control Information Page Screenshot

The page includes the following fields:

Object	Description
• Port	The switch port number of the logical port.
• Port State	Display the current port state.
• Broadcast (Kbps/pps)	Display the current broadcast storm control rate.
• Unknown Multicast (Kbps/pps)	Display the current unknown multicast storm control rate.
• Unknown Unicast (Kbps/pps)	Display the current unknown unicast storm control rate.
• Action	Display the current action.

4.5 Security

This section is to control the access of the Managed Media Converter, including the user access and management control.

The Security Page contains links to the following main topics:

■ Access Security

4.5.1 Access Security

This section is to control the access of the Managed Media Converter, including the different access methods – Telnet, SSH, HTTP and HTTPS.

4.5.1.1 Telnet

The Telnet Settings and Information screen in Figure 4-5-1 & Figure 4-5-2 appear.

Telnet Settings

Telnet Service	Disabled
Login Authentication List	default
Enable Authentication List	default
Session Timeout	10 (0-65535) minutes
Password Retry Count	3 (0-120)
Silent Time	0 (0-65535) seconds

Apply

Disconnect

Figure 4-5-1 Telnet Settings Page Screenshot
The page includes the following fields:

Object	Description
• Telnet Service	Disable or enable telnet service.
• Login Authentication List	Select login authentication list for this drop down list.
• Enable Authentication List	Select enable authentication list for this drop down list.
• Session Timeout	Set the session timeout value.
• Password Retry Count	Set the password retry count value.
• Silent Time	Set the silent time value.

Buttons

Apply

: Click to apply changes

Disconnect

: Click to disconnect telnet communication

Telnet Information

Information Name	Information Value
Telnet Service	Disabled
Login Authentication List	default
Enable Authentication List	default
Session Timeout	10
Password Retry Count	3
Silent Time	0
Current Telnet Sessions Count	0

Figure 4-5-2 Telnet Information Page Screenshot

The page includes the following fields:

Object	Description
Telnet Service	Display the current Telnet service.
Login Authentication List	Display the current login authentication list.
Enable Authentication List	Display the current enable authentication list.
Session Timeout	Display the current session timeout.
Password Retry Count	Display the current password retry count.
Silent Time	Display the current silent time.
Current Telnet Session Count	Display the current telnet session count

4.5.1.2 SSH

Configure SSH on this Page. This Page shows the Port Security status. Port Security is a module with no direct configuration. Configuration comes indirectly from other modules - the user modules. When a user module has enabled port security on a port, the port is set-up for software-based learning. In this mode, frames from unknown MAC addresses are passed on to the port security module, which in turn asks all user modules whether to allow this new MAC address to forward or block it. For a MAC address to be set in the forwarding state, all enabled user modules must unanimously agree on allowing the MAC address to forward. If only one chooses to block it, it will be blocked until that user module decides otherwise.

The SSH Settings and Information screens in Figure 4-5-3 & Figure 4-5-4 appear.

SSH Settings

SSH Service	Disabled
Login Authentication List	default
Enable Authentication List	default
Session Timeout	10 (0-65535) minutes
Password Retry Count	3 (0-120) minutes
Silent Time	0 (0-65535) seconds

Apply

Disconnect

Figure 4-5-3 SSH Settings Page Screenshot

The page includes the following fields:

Object	Description
• SSH Service	Disable or enable SSH service.
• Login Authentication List	Select login authentication list for this drop down list.
• Enable Authentication List	Select enable authentication list for this drop down list.
• Session Timeout	Set the session timeout value.
• Password Retry Count	Set the password retry count value.
• Silent Time	Set the silent time value.

Buttons

Apply

: Click to apply changes.

Disconnect

: Click to disconnect telnet communication.

SSH Information

Information Name	Information Value
SSH Service	Disabled
Login Authentication List	default
Enable Authentication List	default
Session Timeout	10
Password Retry Count	3
Silent Time	0
Current SSH Sessions Count	0

Figure 4-5-4 SSH Information Page Screenshot

The page includes the following fields:

Object	Description
• SSH Service	Display the current SSH service.
• Login Authentication List	Display the current login authentication list.
• Enable Authentication List	Display the current enable authentication list.
• Session Timeout	Display the current session timeout.
• Password Retry Count	Display the current password retry count.
• Silent Time	Display the current silent time.
• Current SSH Session Count	Display the current SSH session count.

4.5.1.3 HTTP

The HTTP Settings and Information screens in Figure 4-5-5 & Figure 4-5-6 appear.

HTTP Settings

HTTP Service	Enabled Disabled
Login Authentication List	default
Session Timeout	10 (0-86400) minutes

Apply

Figure 4-5-5 HTTP Settings Page Screenshot

The page includes the following fields:

Object	Description
• HTTP Service	Disable or enable HTTP service
• Login Authentication List	Select login authentication list for this drop down list
• Session Timeout	Set the session timeout value

Buttons

Apply

Click to apply changes.

Information Name	Information Value
HTTP Service	Enabled
Login Authentication List	default
Session Timeout	10

Figure 4-5-6 HTTP Information Page Screenshot

The page includes the following fields:

Object	Description
• HTTP Service	Display the current HTTP service.
• Login Authentication List	Display the current login authentication list.
• Session Timeout	Display the current session timeout.

4.5.1.4 HTTPS

The HTTPS Settings and Information screen in Figure 4-5-7 & Figure 4-5-8 appear.

HTTPS Settings

HTTPS Service	● Enable ○ Disable
Automatic Redirect	● Enable ○ Disable
Login Authentication List	Default √
Session Timeout	10 (0-86400) minutes

Apply

Figure 4-5-7 HTTPS Settings Page Screenshot

The page includes the following fields:

Object	Description
HTTPS Service	Disable or enable HTTPS service.
Automatic Redirect	Disable or enable automatic redirect service.
Login Authentication List	Select login authentication list for this drop down list.
Session Timeout	Set the session timeout value.

Buttons

Apply

: Click to apply changes.

HTTPS Information

Information Name	Information Value
HTTPS Service	Enable
Automatic Redirect	Enable
Login Authentication List	Default
Session Timeout	10

Figure 4-5-8 HTTPS Information Page Screenshot

The page includes the following fields:

Object	Description
HTTPS Service	Display the current HTTPS service.
Automatic Redirect	Disable the automatic redirect service.
Login Authentication List	Display the current login authentication list.
Session Timeout	Display the current session timeout.

4.5.1.5 Access Method Profile Rules

The Access Method Profile Rules Table Setting and Table screens in Figure 4-5-9 & Figure 4-5-10 appear.

Profile Rule Table Setting

Access Profile Name(1-32 characters)	Priority(1-65535)	Management Method	Action	Port	IP-Source
	1	All	Permit	Select Ports	AllIPv4/Mask0,0,0.0IPv6/Prefix0:0:0.0128

Figure 4-5-9 Profile Rule Table Setting Page Screenshot

The page includes the following fields:

Object	Description
• Access Profile Name(1-32 characters)	Indicates the access profile name.
• Priority (1-65535)	Set priorityThe allowed value is from 1 to 65535
• Management Method	Indicates the host can access the switch from HTTP/HTTPS/telnet/SSH/SNMP/All interface that the host IP address matched the entry.
• Action	An IP address can contain any combination of permit or deny rules.(Default: Permit rules)Sets the access mode of the profile; either permit or deny.
• Port	Select port for this drop down list
• IP-Source	Indicates the IP address for the access management entry

Buttons

Apply

: Click to apply changes.

Access Profile Name	Priority	Management Method	Action	Port	Source IPV4	Source IPV4 Mask	Source IPV6	Source IPV6 Prefix	Modify
default	1	All	Permit	gi1-10,lag1-8					Edit Delete

Figure 4-5-10 Profile Rule Table Page Screenshot

The page includes the following fields:

Object	Description
• Access Profile Name	Display the current access profile name.
• Priority	Display the current priority.
• Management Method	Display the current management method.
• Action	Display the current action.
• Port	Display the current port list.
• Source IPv4	Display the current source IPv4 address.
• Source IPv4 Mask	Display the current source IPv4 mask.
• Source IPv6	Display the current source IPv6 address.
• Source IPv6 Prefix	Display the current source IPv6 prefix.
• Modify	Click to edit profile rule parameter.Click to delete profile rule entry.

4.5.1.6 Access Profiles

The access profile screens in Figure 4-5-11 & Figure 4-5-12 appear.

Access Profile: None Active Deactive Apply

Figure 4-5-11 Access Profile Page Screenshot

The page includes the following fields:

Object	Description
• Access Profile	Select access profile for this drop down list.

Buttons

Apply

: Click to apply changes.

Access Profile Name	Delete
default	Delete

Figure 4-5-12 Access Profile Table Page Screenshot

The page includes the following fields:

Object	Description
• Access Profile	Display the current access profile.
• Delete	Click to delete access profile entry.

4.6 Ring

Use the Maintenance menu items to display and configure basic configurations of The Wall-mount Managed Media Converter. Under maintenance, the following topics are provided to back up, upgrade, save and restore the configuration. This section has the following items:

Ring Wizard	You can quickly build an ERPS ring by wizard.
ERPS	You can configure ERPS ring in detail.

ITU-T G.8032 Ethernet Ring protection switching (ERPS) is a link layer protocol applied on Ethernet loop protection to provide sub-50ms protection and recovery switching for Ethernet traffic in a ring topology. ERPS provides a faster redundant recovery than Spanning Tree topology. The action is similar to STP or RSTP, but the algorithms between them are not the same. In the Ring topology, every switch should be enabled with Ring function and two ports should be assigned as the member ports in the ERPS. Only one switch in the Ring group would be set as the RPL owner switch that one port would be blocked, called owner port, and PRL neighbor switch has one port that one port would be blocked, called neighbor port that connect to owner port directly and this link is called the Ring Protection Link or RPL. Each switch will sends ETH-CCM message to check the link status in the ring group. When the failure of network connection occurs, the nodes block the failed link and report the signal failure message, the RPL owner switch will automatically unblocks the PRL to recover from the failure.

Normal Link Status

Fault Link Status

4.6.1 Ring Wizard

This page allows the user to configure the ERPS by wizard; screen in Figure 4-6-1 appears.

Ring Wizard

Note: 1.Please make sure the DHCP client function has been disabled. 2.Please note that the ring port cannot be applied to spanning tree function at the same time. Total Switch Number ( 3 ~ 30): 3 Switch ID: 1 Next Configuration Switch-3 Port (Owner) Switch-1 Vlan 3001 Port 2 (Neighbor) Switch-2 Set Show Topology

Figure 4-6-1 Ring Wizard page screenshot

The page includes the following fields:

Object	Description
• All Switch Numbers	Set all the switch numbers for the ring group. The default number is 3 and maximum number is 30.
• Number ID	The switch where you are requesting ERPS.
• Port	Configures the port number for the MEP.
• VLAN	Set the ERPS VLAN.

Buttons

Click to configure ERPS.

: Click to save changes.

Click to show the ring topology.

4.6.2 ERPS

This page allows the user to inspect and configure the current ERPS Instance; screen in Figure 4-6-2 and Figure 4-6-3 appears.

Ethernet Ring Protection Switching

Note: 1. Please make sure the DHCP client function has been disabled. 2. Please note that the ring port can not be applied to spanning tree function at the same time.

Refresh

Delete

Enable

ERPS ID

Version

Ring Type

Port0

Port1

Node ID

Control Vlan

Revertive

Guard Time

WTR Time

Holdoff Time

Yes

1

2

Major

5

6

00:30:4f.1a:12:35

3001

Yes

500

1

0

Add New Protection Group Apply Reset

Figure 4-6-2 Ethernet Ring Protocol Switch page screenshot

Object	Description
Enable	Enables ERPS on the switch. ERPS must be enabled globally on the switch before it can enable on an ERPS ring.
ERPS ID	Major ring group ID for the interconnected sub-ring. It is used to send topology change updates on major ring. If ring is major, this value is same as the protection group ID of this ring.
Version	ERPS Protocol Version - v1 or v2
Ring Type	Type of Protecting ring.
Port 0	This will create a Port 0 of the switch in the ring.
Port 1	This will create "Port 1" of the switch in the Ring. As interconnected sub-ring will have only one ring port, "Port 1" is configured as "0" for interconnected sub-ring. "0" in this field indicates that no "Port 1" is associated with this instance
Node ID	A MAC address unique to the ring node. The MAC address must be specified in the format xx:xx:xx:xx:xx:xx
Control Vlan	VLAN configuration of the Protection Group.
Revertive	ERPS Protocol Version - v1 or v2
Guard Time	Guard timeout value to be used to prevent ring nodes from receiving outdated R-APS messages.The period of the guard timer can be configured in 10 ms steps between 10 ms and 2 seconds, with a default value of 500 ms
WTR Time	Remaining WTR timeout in milliseconds.
Holdoff Time	The timing value to be used to make persistent check on Signal Fail before switching.The range of the hold off timer is 0 to 10 seconds in steps of 100 ms

Buttons

Add New Protection Group

Click to add a new Protection group entry.

Refresh

Click to refresh the page immediately.

Save

Click to save changes.

Reset

: Click to undo any changes made locally and revert to previously saved values.

ERPS Configuration 1

Enable	ERPS ID	Version	Ring Type	Port0	Port1	Node ID	Control VLAN	Revertive	Guard Time	WTR Time	Hold off Time
√	1	√2	Major	5	6	00:30:4f:1a:12:35	3001		500	1min	0

Protected VLANs

VLAN ID	VLAN config
1	Add/Remove

RPL Configuration

RPL Role	RPL Port	Clear
RPL_Owner	Port1

Instance Command

Command	Port
None	None

ERPS State

Protection State	Port 0	Port 1	WTR Remaining	RPL Un-blocked	Port 0 Block Status	Port 1 Block Status
Protected	OK	SF	0	No	Unblocked	Blocked

Apply Reset

Figure 4-6-3 Ethernet Ring Protocol Switch Configuration page screenshot

RPL Configuration:

Object	Description
RPL Role	It can be either RPL owner or RPL Neighbor.
RPL Port	This allows to select the east port or west port as the RPL block.
Clear	If the owner has to be changed, then the clear check box allows to clear the RPL owner for that ERPS ring.

Instance Command:

Object	Description
• Command	Administrative command. A port can be administratively configured to be in either manual switch or forced switch state.
• Port	Port selection - Port0 or Port1 of the protection Group on which the command is applied.

ERPS state:

Object	Description
• Protection State	ERPS state according to State Transition Tables in G.8032.
• Port 0	OK: State of East port is okSF: State of East port is Signal Fail
• Port 1	OK: State of West port is okSF: State of West port is Signal Fail
• WTR Remaining	Remaining WTR timeout in milliseconds.
• RPL Un-blocked	APS is received on the working flow.
• Port 0 Block Status	Block status for Port 0 (Both traffic and R-APS block status). R-APS channel is never blocked on sub-rings without virtual channel.
• Port 1 Block Status	Block status for Port 1 (Both traffic and R-APS block status). R-APS channel is never blocked on sub-rings without virtual channel.

4.7 Maintenance

Use the Maintenance menu items to display and configure basic configurations of the GS-4210 802.3BT PoE++ Series. Under maintenance, the following two topics are provided:

Switch Maintenance

You can save the configuration, reboot or reset default, configuration backup/restore of the switch on this page.

■ Diagnostics

You can run the cable diagnostics or ping IPv4/IPv6 IP address of the switch on this page.

4.7.1 Switch Maintenance

Under the switch maintenance, the following topics are provided to back up, upgrade, save and restore the configuration. This section has the following items:

Save Configuration	You can save the configuration of the switch on this page.
Factory Default	You can reset default the configuration of the switch on this page.
Reboot Switch	You can restart the switch on this page. After restart, the switch will t normally.
Backup Manager	You can back up the switch configuration.
Upgrade Manager	You can upgrade the switch configuration.
Dual Image	Select active or backup image on this Page.

4.7.1.1 Save Configuration

You can save the configuration of the switch on this page. The Factory Default screen in Figure 4-7-1 appears.

Save Configuration

Source File	◎Running configuration○Startup configuration○Backup configuration
Destination File	◎Startup configuration○Backup configuration

Apply

Figure 4-7-1 Save Configuration Page Screenshot

Buttons

Apply

: Click to apply changes.

4.7.1.2 Factory Default

You can reset the configuration default of the switch on this page. Only the IP configuration is retained. The new configuration is available immediately, which means that no restart is necessary. The Factory Default screen in Figure 4-7-2 appears and clicks to reset the configuration to Factory Defaults.

Factory Default Restore

Figure 4-7-2 Factory Default Page Screenshot

After the "Restore" button is pressed and rebooted, the system will load the default IP settings as follows:

Default IP address: 192.168.0.100
Subnet mask: 255.255.255.0
Default Gateway: 192.168.0.254
The other setting value is back to disable or none.

To reset the GS-4210 802.3BT PoE++ Series to the Factory default setting, you can also press the hardware reset button at the front panel about 10 seconds. After the device be rebooted. You can login the management WEB interface within the same subnet of 192.168.0.xx.

4.7.1.3 Reboot

The Reboot button enables the device to be rebooted from a remote location. Once the Reboot button is pressed, user has to re-login the Web interface for about 30 seconds. The Reboot button is shown in Figure 4-7-3 and clicks to reboot the system.

Reboot Reboot

Figure 4-7-3 Reboot Button

4.7.1.4 Backup Manager

This function allows backup of the current image or configuration of the Managed Media Converter to the local management station. The Backup Manager screen in Figure 4-7-4 appears.

Backup Manager

Backup Method	TFTP
Server IP	(IPv4 or IPv6 Address)
Backup Type	◎ Image○ Running Configuration○ Startup Configuration○ Backup Configuration○ Flash log○ Buffered log
Image	◎ FW-GS-4210-24UP4C_v3.305b230131.bix (Active) ○ FW-GS-4210-24UP4C_v3.305b230131.bix (Backup)

Backup

Figure 4-7-4 Backup Manager Page Screenshot

The page includes the following fields:

Object	Description
• Backup Method	Select backup method for this drop down list.
• Server IP	Fill in your TFTP server IP address.
• Backup Type	Select backup type.
• Image	Select active or backup image.

Buttons

Backup

: Click to back up image, configuration or log.

4.7.1.5 Upgrade Manager

This function allows reloading of the current image or configuration of the Managed Media Converter to the local management station. The Upgrade Manager screen in Figure 4-7-5 appears.

Upgrade Manager Upgrade Method TFTP Server IP (IPv4 or IPv6 Address) File Name Upgrade Type Image Startup Configuration Backup Configuration Running Configuration Image (Active) (Backup) Upgrade

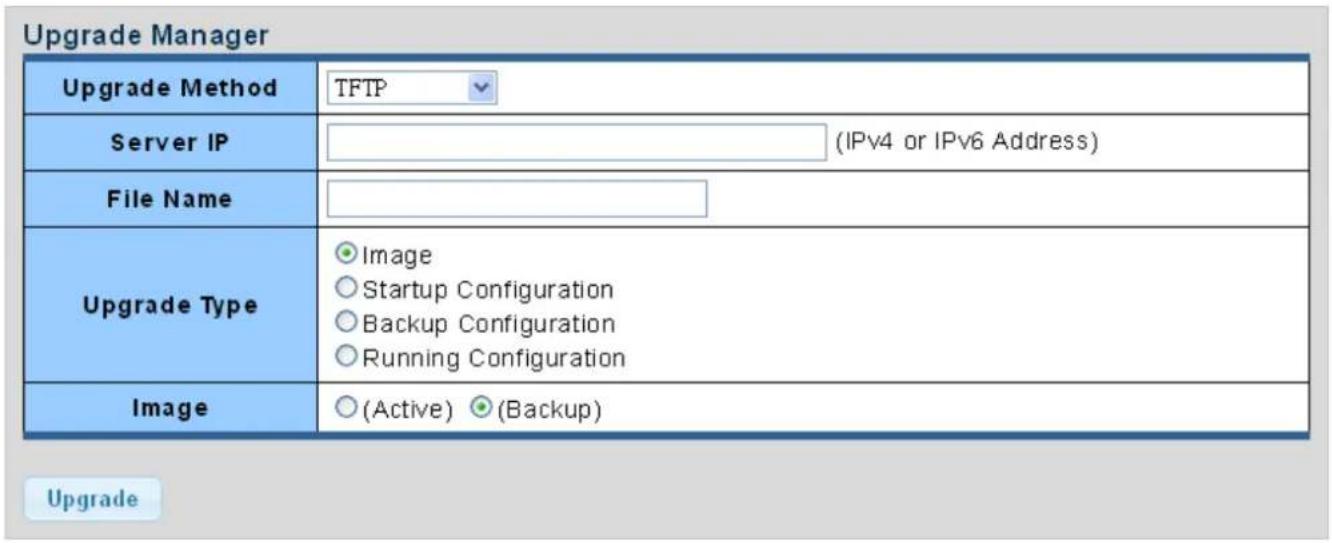

Figure 4-7-5 Upgrade Manager Page Screenshot

The page includes the following fields:

Object	Description
• Upgrade Method	Select upgrade method for this drop down list.
• Server IP	Fill in your TFTP server IP address.
• File Name	The name of firmware image or configuration.
• Upgrade Type	Select upgrade type.
• Image	Select active or backup image.

Buttons

Upgrade

Click to upgrade image or configuration.

4.7.1.6 Dual Image

This page provides information about the active and backup firmware images in the device, and allows you to revert to the backup image. The web page displays two tables with information about the active and backup firmware images. The Dual Image Configuration and Information screens in Figure 4-7-6 & Figure 4-7-7 appear.

Dual Image Configuration

Active Image	FW-GS-4210-24UP4C_v3.305b230131.bix (Active) ○ FW-GS-4210- 24UP4C_v3.305b230131.bix (Backup)
Apply

Figure 4-7-6 Dual Image Configuration Page Screenshot

The page includes the following fields:

Object	Description
• Active Image	Select the active or backup image

Buttons

Apply

: Click to apply active image.

Images Information

FW GS 4210.24UP4C_v3.305b230131.bix	Active
Flash Partition	0
Image Name	FW-GS-4210-24UP4C_v3.305b230131.bix
Image Size	6546400 Bytes
Created Time	2023-01-31 11:24.05 UTC

FW-GS-4210-24UP4C_v3.305b230131.bix	Backup
Flash Partition	1
Image Name	FW-GS-4210-24UP4C_v3.305b230131.bix
Image Size	6546400 Bytes
Created Time	2023-01-31 11:24.05 UTC

Figure 4-7-7 Dual Image Information Page Screenshot

The page includes the following fields:

Object	Description
• Flash Partition	Display the current flash partition.
• Image Name	Display the current image name.
• Image Size	Display the current image size.
• Created Time	Display the created time.

4.7.2 Diagnostics

This section provide the Physical layer and IP layer network diagnostics tools for troubleshoot. The diagnostic tools are designed for network manager to help them quickly diagnose problems between point to point and better service customers.

Use the Diagnostics menu items to display and configure basic administrative details of the GS-4210 802.3BT PoE++ Series. The ping and IPv6 ping allow you to issue ICMP PING packets to troubleshoot IP connectivity issues. The GS-4210 802.3BT PoE++ Series transmits ICMP packets, and the sequence number and roundtrip time are displayed upon reception of a reply. Under System the following topics are provided to configure and view the system information:

This section has the following items:

■ Ping Test	You can run the IPv4 IP address ping test of the switch on this page.
■ IPv6 Ping Test	You can run the IPv6 IP address ping test of the switch on this page.

4.7.2.1 Ping Test

This page allows you to issue ICMP PING packets to troubleshoot IP connectivity issues. After you press "Apply", ICMP packets are transmitted, and the sequence number and roundtrip time are displayed upon reception of a reply. The page refreshes automatically until responses to all packets are received, or until a timeout occurs. The ICMP Ping screen in Figure 4-7-8 appears.

IP Address	(x.x.x.x or hostname)
Count	4 (1 - 5 | Default : 4 )
Interval (in sec)	1 (1 - 5 | Default : 1 )
Size (in bytes)	64 (8 - 5120 | Default : 64 )
Ping Results

Figure 4-7-8 ICMP Ping Page Screenshot

The page includes the following fields:

Object	Description
• IP Address	The destination IP Address.
• Count	Number of echo requests to send.
• Interval (in sec)	Send interval for each ICMP packet.
• Size (in bytes)	The payload size of the ICMP packet. Values range from 8bytes to 5120bytes.
• Ping Results	Display the current ping result.

Buttons

Apply

Click to transmit ICMP packets.

Be sure the target IP Address is within the same network subnet of the switch, or you have to set up the correct gateway IP address.

4.7.2.2 IPv6 Ping Test

This page allows you to issue ICMPv6 PING packets to troubleshoot IPv6 connectivity issues.

After you press "Apply", 5 ICMPv6 packets are transmitted, and the sequence number and roundtrip time are displayed upon reception of a reply. The page refreshes automatically until responses to all packets are received, or until a timeout occurs. The ICMPv6 Ping screen in Figure 4-7-9 appears.

IPv6 Address	(XX:XX::XX:XX)
Count	4 (1 - 5 | Default : 4 )
Interval (in sec)	1 (1 - 5 | Default : 1 )
Size (in bytes)	64 (8 - 5120 | Default : 64 )
Ping Results

Figure 4-7-9 ICMPv6 Ping Page Screenshot

The page includes the following fields:

Object	Description
• IPv6 Address	The destination IPv6 Address.
• Count	Number of echo requests to send.
• Interval (in sec)	Send interval for each ICMP packet.
• Size (in bytes)	The payload size of the ICMP packet. Values range from 8bytes to 5120bytes.
• Ping Results	Display the current ping result.

Buttons

Apply

: Click to transmit ICMPv6 packets

5. SWITCHING OPERATION

5.1 Address Table

The Switch is implemented with an address table. This address table is composed of many entries. Each entry is used to store the address information of some nodes on the network, including MAC address, port no, etc. This information comes from the learning process of Ethernet Switch.

5.2 Learning

When one packet comes in from any port, the Switch will record the source address, port number and the other related information in the address table. This information will be used to decide either forwarding or filtering for future packets.

5.3 Forwarding & Filtering

When one packet comes from some port of the Ethernet Switching, it will also check the destination address besides the source address learning. The Ethernet Switching will look up the address table for the destination address. If not found, this packet will be forwarded to all the other ports except the port, which this packet comes in. And these ports will transmit this packet to the network it connected. If found, and the destination address is located at a different port from this packet comes in, the Ethernet Switching will forward this packet to the port where this destination address is located according to the information from the address table. But, if the destination address is located at the same port with this packet, then this packet will be filtered, thereby increasing the network throughput and availability

5.4 Store-and-Forward

Store-and-Forward is one type of packet-forwarding techniques. A Store-and-Forward Ethernet Switching stores the incoming frame in an internal buffer and does the complete error checking before transmission. Therefore, no error packets occur. It is the best choice when a network needs efficiency and stability.

The Ethernet Switch scans the destination address from the packet-header, searches the routing table provided for the incoming port and forwards the packet, only if required. The fast forwarding makes the switch attractive for connecting servers directly to the network, thereby increasing throughput and availability. However, the switch is most commonly used to segment existence hubs, which nearly always improves the overall performance. An Ethernet Switching can be easily configured in any Ethernet network environment to significantly boost bandwidth using the conventional cabling and adapters.

Due to the learning function of the Ethernet switching, the source address and corresponding port number of each incoming and outgoing packet is stored in a routing table. This information is subsequently used to filter packets whose destination address is on the same segment as the source address. This confines network traffic to its respective domain and reduces the overall load on the network.

The Switch performs "Store and forward"; therefore, no error packets occur. More reliably, it reduces the re-transmission rate. No packet loss will occur.

5.5 Auto-Negotiation

The STP ports on the Switch have a built-in "Auto-negotiation". This technology automatically sets the best possible bandwidth when a connection is established with another network device (usually at Power On or Reset). This is done by detecting the modes and speeds when both devices are connected. Both 10BASE-T and 100BASE-TX devices can connect with the port in either half- or full-duplex mode.

If attached device is:	100BASE-TX port will set to:
10Mbps, without auto-negotiation	10Mbps.
10Mbps, with auto-negotiation	10/20Mbps (10BASE-T/full-duplex)
100Mbps, without auto-negotiation	100Mbps
100Mbps, with auto-negotiation	100/200Mbps (100BASE-TX/full-duplex)

6. TROUBLESHOOTING

This chapter contains information to help you solve your issue. If the Managed Media Converter is not functioning properly, make sure the Managed Media Converter is set up according to instructions in this manual.

■ The Link LED is not lit

Solution:

Check the cable connection and disable duplex mode of the Managed Media Converter

■ Some stations cannot talk to other stations located on the other port

Solution:

Please check the VLAN settings, trunk settings, and port enabled / disabled status.

■ Performance is not as good as expected

Solution:

Check the duplex status of the Managed Media Converter. If the Managed Media Converter is set to full duplex and its counterpart is set to half duplex, the performance will be poor. Please also check the in/out rate of the port.

Why the media converter doesn't connect to the network

Solution:

1. Check the LNK/ACT LED on the Managed Media Converter
2. Make sure the cable is connected properly
3. Make sure the cable is the right type
4. Turn off the power. Wait for a while and turn the power back on.

■ 100BASE-TX port link LED is lit, but the traffic is irregular

Solution:

Check that the attached device is not set to full duplex. Some devices use a physical or software switch to change duplex modes. Auto-negotiation may not recognize this type of full-duplex setting.

■ Media Converter does not power up

Solution:

1. Check if the power adapter plug is inserted correctly.
2. If the power adapter is well connected, check the AC power.
