USER MANUAL JC95W-B Schmick

Cooling the Beers of a Nation Australia

Operation Manual

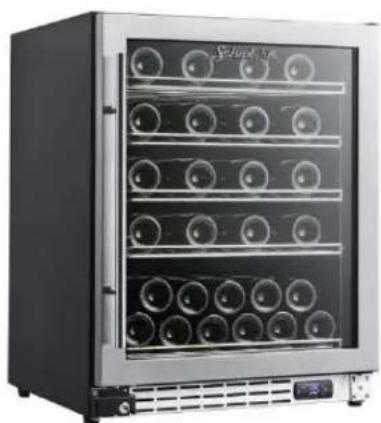

Exterior view of a modern stainless steel double-decker refrigerator with multiple wine bottles on the glass (no visible text or labels)

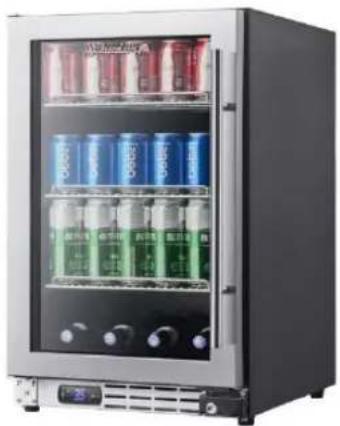

Exterior view of a modern stainless steel beer refrigerator with multiple beverage cans on the glass (no visible text or labels)

Models JC95B, JC95W, JC132B, JC132W

TABLE OF CONTENTS

1	GENERAL INFORMATION	Pages
1.1	Foreword	3
1.2	General use	3
1.2.1	Children	3
1.2.2	Warnings	3
1.2.3	Safety	4
1.3	Controller Settings	5
1.4	Responsibility of the customer	5
2	TECHNICAL DATA
2.1	Materials and Refrigerant	5
3	INSTALLATION
3.1	Positioning	6
3.1.1	Cooler levelling	6
3.2	Electrical connection	6
4	MAINTENANCE	7
5	TROUBLESHOOTING	7
6	WARRANTY	8
6.1	Warranty Statement	9
6.2	Stainless Steel Care	10

1. GENERAL INFORMATION

1.1 FOREWORD

The purpose of this document is to provide important information regarding the installation, use and maintenance of the cooler.

Before any operation, you should read carefully the information contained in this manual.

The manufacturer assumes no liability for parts or labour coverage for component failure or other damages resulting from improper usage, installation or failure to clean and / or maintain product as set forth in these instructions.

1.2 GENERAL USE

The cooler is designed for commercial use, warranty is voided if incorrectly placed or unit is subjected to environments including actions of atmospheric agents (rain, direct sun light). It's sub-tropical rating means it will chill and work, but cannot be in direct sunlight or weather.

The manufacturer is not responsible for damages resulting from the improper use of the product.

1.2.1 CHILDREN

Children should be supervised to ensure that they do not play with the appliance.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

1.2.2 WARNINGS

Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

Do not damage the refrigerant circuit.

Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

Do not Store explosive substances such as aerosol cans with a flammable propellant in this appliance. Don't store flammable liquids near unit that may omit vapour.

Unplug unit when not in use and also when maintenance and cleaning is taking place.

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes. Please check with your local council on the correct way to dispose of unit, this will prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Caution: risk of fire.

1.2.3 Safety

-Do not pull plug directly from socket without turning 'OFF' first
-Do not try to access unit electrics unless authorized to do so and unless unit is "OFF" and "UNPLUGGED"
-Do not have items near unit that could be damaged by heat, the condenser coils are located in the walls so these get quite warm (40oC) during normal operation
-Do not rest heavy items (including the fridge) on the electrical lead
-Queensland installation/servicing requirement: Needs a Gas Repair Job (hydrocarbon refrigerants) if the appliance gas system is being opened or charged.

Danger Caution: Fire of the CAUTION: Contains flammable gases. This cooler contains a small quantity of R800g refrigerant gas within its sealed system. Repairs should only be performed by a suitably qualified person. The insulation foam contains cyclopentene which is also flammable.

Not to be used for preservation of Fresh Foods, this is a drinks fridge.

1.3 CONTROLLER SETTINGS

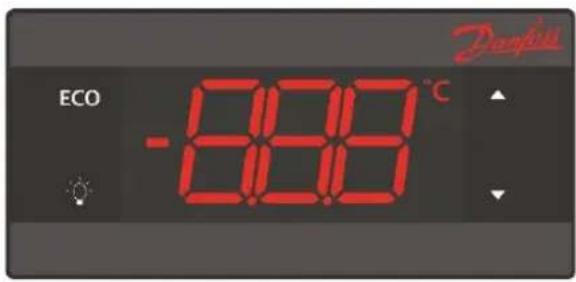

Interface

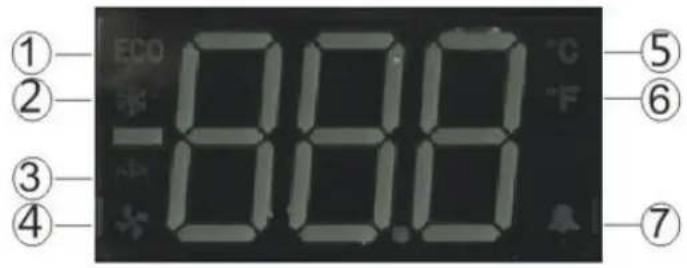

① ② ③ ④ ECO -81.0 °C F ⑤ ⑥ ⑦

Explanation of the icons:

Item	Function	When controller is running
		ON	OFF
1	ECO mode	ON	OFF
2	Compressor	ON	OFF
3	Defrost	ON	OFF
4	Evaporator fan	ON	OFF
5	Celsius	ON	OFF
6	Fahrenheit	ON	OFF
7	Alarm	In alarm	No alarm

Keypad introduction

Jenfus ECO -8.88°C

Explanation of the buttons

Buttons	Normal operation
	Press for short press	Press for long press
	Toggle ECO mode	Toggle defrost
	Light ON/OFF	Power ON/OFF
	Increase set point	/
	Decrease set point	Toggle °C and °F

How to set the temperature

Set the desired cooling temperature by pressing the corresponding button 🧆 or . Each depression of the buttons will raise or lower the temperature setting. The temperature selected will flash in the LED display for approximately 10 seconds, then revert back to displaying the temperature of the cabinet interior.

Red Wines	15 - 18 °C
Dry/White Wines	9 - 14 °C
Rose Wines	10 - 11 °C
Sparkling Wines	5 - 8 °C
Beer	1 - 4 °C

If you set your fridge to 0, your fridge will cycle from 0 – 4 and keep your drinks around 2 degrees Celsius

1.4 INSTALLATION OF THE HANDLE

To install the handle, please follow these instructions

• Carefully pull the door gasket (seal) away from the door in the area where the handle will be attached.
• Place the handle over the screw holes on the outside of the door and attach it with the screws that have been provided. Tighten the screws.
• Press the door gasket back into its groove.

1.5 REVERSING THE DOOR SWING

This appliance has the capability of the door opening from either the left or right side. The unit is delivered to you with the door opening from the left side. Should you desire to reverse the opening direction, please follow the instructions below:

1. Carefully lay the appliance on its back. Use cushioning to protect the floor and appliance.
2. Using a Philips screwdriver, remove the two screws and bottom right hinge beneath the door. Keep the hinge in a safe place in case you need to reverse the door again in the future.
3. Carefully slide the door off and place it on a padded surface.
4. Remove the bottom support bracket from the right side.
5. Remove the top right hinge and keep in a safe place in case you want to reverse the door in the future.
6. Remove the screws from the top left and transfer to the right.
7. Install the top left hinge.
8. Install the bottom left hinge to the door. Do not over-tighten the screw.
9. Rotate the door 180^ and relocate it on the top hinge.
10. Install the bottom support bracket.
11. Adjust door alignment. When set, tighten screw on hinge.

Please note: Keep the spare hinge plate(s) to be able to reverse the door back again.

To prevent damaging the door gasket, make sure you have the door opened fully all the way before pulling the shelves out.

1.6 RESPONSIBILITY OF THE CUSTOMER

Ensure that the electrical outlet is connected effectively to earth (ground), suitable to provide the voltage indicated on the data plate. Make sure that the cooler is placed on a level surface.

2. TECHNICAL DATA

2.1 MATERIALS AND REFRIGERANTS

Interior or exterior surfaces that come into contact with the product are made of steel, aluminium or non-toxic plastic materials. The refrigerant used is approved by government regulations.

The type and quantity of the gas charged, in the refrigeration unit, is indicated on the data plate, this unit is R600A.

3. INSTALLATION

For safe proper operation, follow the manufacturer's instructions reported in this section.

3.1 POSITIONING

IMPORTANT NOTE: Coolers that have been tilted MUST remain in the upright position for 24 hours prior to plugging in the cooler, the cooler is built in style so can go under benches, front grill must be clear. Keep away from heat sources, such as radiators or air conditioning pipes.

Allow free air circulation to the refrigerator unit if you have option, this can help lessen run times.

The installation instructions furnished with the device indicate a clearance of min 10mm at top, 100mm at the rear and min 10mm at each side.

Do not place unit in sunlight or behind a cupboard door.

The appliance should be placed where the ambient temperature is between 10 – 38 degrees Celsius for optimum performance. If the ambient temperature is above or below this range, the performance of the unit may be affected. Placing your unit in extreme cold or hot conditions may cause interior temperatures to fluctuate.

The shelf can withstand the maximum load 50kg (all glass bottles)

To provide the best performance the cooler must remain level.

3.2 ELECTRICAL CONNECTION

Warning: Do not use extension cords

The cooler works on single-phase voltage (220-240V/50Hz) power supply. To switch on the cooler, insert the plug into the outlet.

Ensure that: .

When the cooler is operating, check that the supply voltage is not dropping or increasing under/over +10% the rated voltage (195 Volts to 253 Volts)

*Ensure the cooler is connected to correct voltage prior to plugging it in; there is a description to identify the correct voltage on rear of the cooler.

*The vent should not be blocked when fridge is working (front Grill).

*Avoid any water dropping or leaking into, or on top of the cooler. It could cause damage to the internal workings and is potentially dangerous.

*Danger-Risk of fire or explosion. Flammable refrigerant used. Do not use mechanical devices to defrost refrigerator. Do not puncture refrigerant tubing.

*Danger-Risk of fire or explosion. Flammable refrigerant used. To be repaired only by trained service personnel. Do not puncture refrigerant tubing. Consult repair manual/owner's guide before attempting to service this product. All safety precautions must be followed.

The manufacturer is not responsible for damages or accidents arising from the misuse or disregard of electrical laws relevant to the country where the cooler is used.

4. MAINTENANCE

• Before cleaning the cooler always remember to unplug it.
• Unplug the cooler at the electrical outlet; never pull the service cord.
• Do not use sharp objects for cleaning.
• Clean the inside cabinet of cooler with a clean damp cloth or with neutral soap. Avoid damage by never using abrasive or flammable cleaning products.

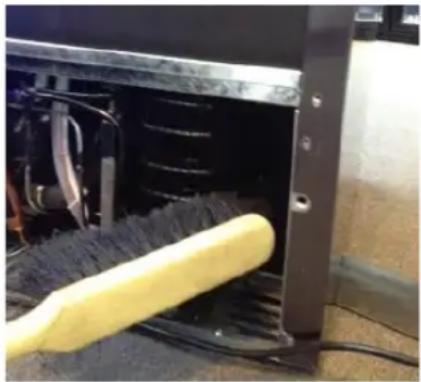

• Clean the condenser every 6 – 12 months with a vacuum cleaner or a brush to eliminate the dust accumulation. This is located at rear of unit at the bottom and is the big wire part.
• Do not wash the cooler with direct or high pressure water jets.
• Clean door seal annually using clean cloth and eucalyptus oil
• If you have purchased a stainless steel model, please see stainless steel care

Close-up of a yellow-handled tool interacting with a black appliance panel, showing mesh and wiring (no visible text or symbols)

5. TROUBLE SHOOTING

Often problems that occur during normal operation can be resolved without the assistance of a specialized technician. Before calling the technical assistance, verify the following:

a) The appliance does not operate.

• Check that the plug is correctly inserted into the electrical outlet.
• Verify that there is voltage at the electrical outlet (Use another Appliance in same socket)

b) The product is too warm.

• Check the setting of the thermostat. (See 1.3 Testing Section)
• Check the closing of the door, and ensure door gasket seals.
• Check that the interior fan is operating, and not blocked.
• Check and clean the condenser located at rear bottom section near compressor

c) The appliance is excessively noisy.

-Verify the equipment is level.

-Ensure that the equipment is not touching other equipment that could cause vibration, like piping touching metal cover or other parts.

-If fan is causing noise it may be faulty bearing

For extra trouble shooting information please go to:

http://kb.bar-fridges-australia.com.au/

6. WARRANTY

Prepare to answer the following:

- The type of problem: (electrical, mechanical)

- The model, code and serial number of the cooler can be found on the manufacturer label attached to the interior wall of the cooler

Refer to your WARRANTY STATEMENT that arrived with your Tax Invoice, it explains all that is needed or go to our website: The hotline for warranty is 1300 170640, if there is no answer leave a message and it will be attended to within 24Hrs.

You can always go to this link to lodge a claim also, where basic questions need to get answered. https://www.bar-fridges-australia.com.au/making-a-warranty-claim.html

Bar Fridges Australia has a great reputation for back up service, so please don't panic if problems arise, it will be fixed.

"Thank you for choosing Bar Fridges Australia as supplier of your Glass Door Bar Fridge"

BAR FRIDGES Cooling the Beers of a Nation Australia

Postal: P.O Box 166, Sebastopol, Vic, 3356

Warehouse: 40 Production Drive, Alfredton, Vic, 3350

Phone: [phone] Service 1300 170640

Email: [e-mail]

Web: www.bar-fridges-australia.com.au

Golden Bear Enterprises T/As Bar Fridges Australia ABN 13 101 612 239

All refrigerated compressor driven products purchased from Bar Fridges Australia (BFA) are covered by our exclusive 'Product Confidence' warranty;

*Products purchased OVER \$500, 2 Years Australia Wide 'On Site' parts and Labor Warranty strictly from the invoice purchase date. This is NOT 'parts only' or 'back to base', this is real warranty no cost to you. *Exceptions: Scratch 'n' Dent and items on special (see below) and any application where products other than drinks are used for cold storage.

*Products purchased UNDER \$500: 1 Year Australia Wide 'New Replacement' Warranty from the invoice purchase date will be replaced with new, depending on location and logistics.

*The warranty has been stream-lined in May 2017 to include commercial and domestic under one umbrella. *Exceptions: Scratch 'n' Dent and items on special (see below) and any application where products other than drinks are used for cold storage.

All 'Scratch N' Dent bargains and Sales / Specials' where stock is reduced in price have separate warranty terms which are stipulated on both the website listing and the invoice. These units are deemed to be second hand and are discounted accordingly - their warranty periods are also reduced.

BFA will pay all costs to repair, replace (with similar or equivalent model) or refund (at our sole discretion) for any faulty unit or part thereof should the fault be deemed as a defect in operation, material, or workmanship. BFA is geared towards fairness in all cases. In most instances when we recognise a problem and the problem can be remedied on-site, the work is undertaken via our fleet of service technicians. Should it prove difficult to diagnose the fault or perform the repair work in the space or environment provided, or if the unit is located outside the BFA service area then the unit will need to go off site for repair and return.

Warranty Does Not Include;

• Any expenses resulting from service calls for either products or faults that are not specifically covered by this warranty, (including units which are found to be operating normally). All call out fees will then be borne by the client (at our discretion).
• Any expenses resulting from service calls for both fault diagnosis and repair after the above warranty terms have expired. BFA will always attempt to assist after warranty periods have expired with spare parts and service, just as we would within warranty periods. Glass door fridges are more prone to needing maintenance than domestic units do.
• Any client wishing to return a purchased unit with no legitimate reason. It is understood that the client has read our listing and knows all of the specifications in regards to size, noise levels, condensation, power consumption and the correct environment suited for the fridge. The cost to return is fully borne by the client as well as the initial cost of the delivery, plus a re-stocking fee of 10%. This strictly applies for a 14 day period from the date of the delivery.
• Any expenses resulting from defects to the unit caused by any person, other than BFA or its authorized service agents, including;

a) Incorrect installation – such as a lack of ventilation, exposure to the elements where it's not part of the refrigerator specification, sunlight in particular.
b) Abuse, misuse or alteration.
c) Failure to let compressor oil and/or refrigerant settle after relocation.
d) Damage during movement by the client from one location to another including lifting the unit by the doors or door handles.
e) Act of god or his son, or aliens invading earth.
f) Insect and/or vermin infestation.
g) Electrical/Power surges and/or storm damage.
h) Damage to any area or structure due to movement of the fridge, like wooden floors, walls and glass etc.
i) Faults due to client re programming or setting controllers wrong.
j) Blocked condensers due to not being cleaned, it is up to customer to ensure condensers are cleaned periodically, see www.cleanme.eu for relevant info on the type of units that need this.

VERY IMPORTANT INFORMATION

CARE AND PROTECTION OF STAINLESS STEEL SURFACES

Your Bar Fridge features Stainless Steel components, using 304 and/or 201, 430 or 418 grade Stainless Steels. All Stainless Steel grades require a level of care and protection to retain their appearance. Stainless Steel is not immune to corrosion and neither are they maintenance-free, contrary to popular public perception. Even the highest marine grade 316 Stainless Steel can rust without care, they require frequent cleaning with fresh water to avoid oxidation and other corrosive issues.

Modern tastes dictate that your Alfresco Bar Fridge or BBQ features Stainless Steel with a brushed finish. This brushed finish is attained by running Stainless Steel sheets through an abrasive process that removes the 'mirror finish' to leave it 'brushed'. Brushed finish Stainless Steel requires frequent cleaning and care, to maintain its quality of appearance. Without adequate care it is realistic to expect that it will show signs of corrosion in time, that is 100% guaranteed.

Stainless Steel is definitely not a maintenance-free material. Cleanliness and Stainless Steel are closely related.

After installation, we recommend that owners apply a thin layer of Olive Oil with a clean rag, to all exposed Stainless Steel areas. This should then be polished in and buffed off with another clean rag to a non-oily finish. This process will aid protection against dirt and other corrosive contaminants, by providing a temporary food-safe shield. The Olive Oil layer also makes later polishing and removal of fingerprints easier. This process should be repeated frequently every 3-4 months.

A lot of times rust that first appears is just 'surface rust (tea straining)', this will simply wipe off with hot 'drinking/tap' water and very fine steel wool if needed. When you wipe clean dry with clean cloth and add olive oil coating.

You must take into account with your purchase that to look after stainless steel will have added costs and time needed to periodically maintain.

Look after your investment carefully and it will serve you well for many years to come.

Postal: P.O Box 166, Sebastopol, Vic, 3358

Head Office: 40 Production Drive, Alfredton, Vic, 3350

Ph: 03 53376399 Fax: [phone]

Email: [e-mail] Web: www.bar-fridges-australia.com.au

Golden Bear Enterprises T/As Bar Fridges Australia and Aquarange ABN 13 101 612 239
