USER MANUAL GC46D Grand Cru

INSTRUCTION MANUAL Built-under Wine Cooler (s) Model No.: GC46D

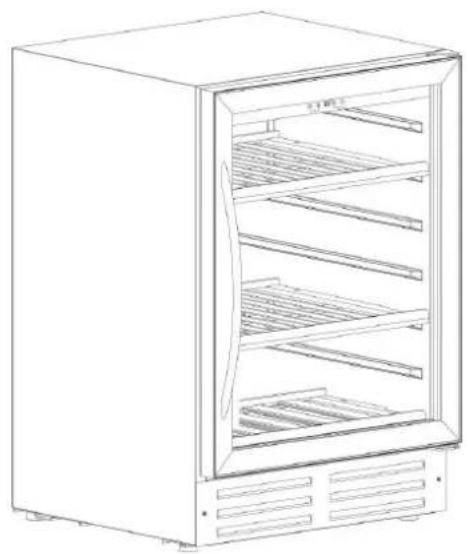

Built-under Beverage Cooler (s) Model No.: GC46BC

Line drawing of a modern stainless steel refrigerator with multiple shelves (no text or symbols visible)

Line drawing of a modern stainless steel refrigerator with closed doors and side grilles (no text or symbols)

This manual contains important information including safety and installation instructions of the appliances. Please read it carefully before use and follow al safety information & instructions. It is recommended to keep this manual for easy reference so that you can be familiar with the operation of the appliance.

Important Safeguards

When using an electrical appliance, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

For Your Safety

Read all instructions carefully, even if you are quite familiar with the appliance.

• The appliance is intended to be used exclusively for the storage of wine.
• Use this appliance only as described in this manual. Other uses not recommended may cause fire, electric shock or personal injury.
• This appliance is not intended for use by young children or infirm persons unless they have been adequately supervised by a responsible person to ensure that they can use the appliance safely.
• Young children should be supervised to ensure that they do not play with the appliance.
• To protect against the risk of electric shock, DO NOT IMMERSE the unit, cord, or plug in water or spray any other liquid.
• Unplug the appliance from the plug socket when not in use, when moving from one location to another and before cleaning.
• To disconnect the appliance, grip the plug and pull it from the wall outlet. Never pull by the cord.
• Do not operate the appliance in the presence of explosive and/or flammable fumes.
• Do not place the appliance or any

of its part near an open flame, cooking or other heating appliance.

• Do not operate the appliance with a damage cord or plug, if the product malfunctions, or if it is dropped or damaged in any manner.
• The use of attachments not recommended by the manufacturer may be hazardous.
• Place the unit on a dry level surface.
• Do not operate if the housing is removed or damaged.
• A loose fit between the AC outlet (receptacle) and plug may cause overheating and a distortion of the plug. Contact a qualified electrician to replace loose or worn outlet.
• Locate the unit away from direct sunlight and sources of heat (stove, heater, radiator, etc.).
• This appliance is CFC- and HFC-free and contains small quantities of Isobutene (R600a), an environmentally friendly coolant.
• You must ensure that the cooling circuit is undamaged when installing the appliance. However, if it becomes damaged, avoid proximity to open fires and heat sources of all kinds. The room in which the appliance is located should be ventilated for a few minutes.
• Never use an appliance with a damaged circuit.

• WARNING: Do not operate any electrical appliance inside the appliance.

• Do not attempt to repair or replace any part of your appliance unless it is specifically recommended in this manual. All other servicing should be referred to a qualified technician.

• Replace all panels after service before operating.
• Use two or more people to move and install the appliance. Failure to do so can result in back or other injury.
• Never clean appliance parts with flammable fluids. These fumes can create a fire hazard or explosion. And do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.
• Do not connect or disconnect the electric plug when your hands are wet.
• It is recommended that a separate circuit, serving only your appliance be provided. Use receptacles that cannot be turned off by a switch or pull chain.

WARNING: To reduce the risk of fire, electric shock or personal injury, unplug or disconnect the appliance from the power supply before servicing.

If you are experiencing problems, check the Troubleshooting Guide at the back of this manual. It lists causes of minor operating problems that you can correct yourself.

Disposal of Old Appliance

Dispose of your appliance packaging properly.

Refrigeration equipment must be properly disposed of in a way which protects the environment. This applies to your old appliance and to your new unit once it has reached the end of its service life.

WARNING: Please ensure that old, worn appliances are rendered unusable before disposal by removing the plug, cutting the network cable, and removing or destroying any snap fastenings or bolts. You will thus prevent children from locking themselves in the appliance during play (risk of suffocation) or endangering their lives in any other way.

Disposal instructions:

• The appliance must not be disposed of in the dustbin or with normal household rubbish.
• The coolant circuit, particularly the heat exchanger at the back/bottom of the unit, must not be damaged.
• The symbol on the product or its packaging indicates that this product is not to be handled as normal household waste but is to be taken to a recycling collection point for electrical and electronic goods. By correctly disposing of this product you are contributing to the protection of the environment and to the health of your fellow human beings. Improper disposal endangers health and the environment. Further information about the recycling of the product may be obtained from your town hall, refuse collection department or the store where you purchased the product.

--CONTENTS--

IMPORTANT SAFETY INFORMATION ....1

STRUCTURE AND INSTALLATION....2

ACCESSORY INSTALLATION BEFORE OPERATING....3

UNPACKING AND CLEANING THE WINE COOLER ....3

OPERATING THE WINE COOLER....3

WORKING CLIMATE....3

WINE STORAGE....3

CONTROL PANEL 4

POWER ON/OFF CONTROL....5

UNLOCKING THE CONTROL PANEL....5

INTERIOR LIGHTING ON/OFF CONTROL 5

TEMPERATURE DISPLAY WINDOW ....5

TEMPERATURE SETTING....5

SELECTING FAHRENHEIT (°F) & CELSIUS (°C) DISPLAY....6

CARE AND MAINTENANCE 6

CLEANING THE WINE COOLER 6

POWER FAILURE....6

MOVING THE WINE COOLER 6

ENERGY SAVING TIPS....7

TROUBLESHOOTING 7

REVERSE THE DOOR SWING....8

WARRANTY REGISTRATIONFORM....10

IMPORTANT SAFETY INFORMATION

Before using the appliance, please properly position and install it as described in this manual. To avoid the risk of fire, electrical shock or injury when using the appliance, please follow these basic precautions:

• The appliance is intended to be used exclusively for the storage of wine.
• Make sure the voltage/current marked on the rating label corresponds with your supply voltage. Plug into a standard 10amp 3-pin outlet.
• It is recommended that a separate circuit, serving only your appliance be provided.

- Never clean the appliance parts with flammable fluids which may create a fire hazard or explosion. And do not store or use gasoline or other flammable vapours and liquids in the vicinity of the appliance.

- Do not connect or disconnect the electric plug when your hands are wet.

- Unplug the appliance or disconnect power before cleaning, maintenance or servicing. Failure to do so can result in electrical shock or death.

- Do not attempt to repair or replace any part of the appliance unless it is specifically recommended in this material. All other servicing should be referred to a qualified service technician.

- To ensure proper ventilation for the appliance, the front of the unit must be completely unobstructed. Locate the unit away from direct sunlight and sources of heat (stove, heater, radiator, etc.).

- The fuse (or circuit breaker) size should be 10 amp or higher.

- It is important for the appliance to be leveled in order to work properly. You may adjust the appliance's feet to level it.

- This appliance is intended for use by persons with sufficient experience and knowledge of electrical appliances. Any other persons (including children) should be supervised or given instruction concerning use of the appliance by a person responsible for their safety.

- Children should be supervised to ensure that they do not play with the appliance.

- Do not use solvent-based cleaning agents of abrasives on the interior. These cleaners may damage or discolor the interior.

- Do not use this appliance for other than its intended purpose.

- The use of attachments not recommended by the manufacturer may be hazardous.

- When you dispose the appliance, take off the door and leave the shelves in place so that children may not easily climb inside. And make sure the coolant circuit, particularly the heat exchanger at the back/bottom of the unit not be damaged. The symbol on the product or its packaging indicates that this product is not to be handled as normal household waste and it is to be taken to a recycling collection point for electrical and electronic goods.

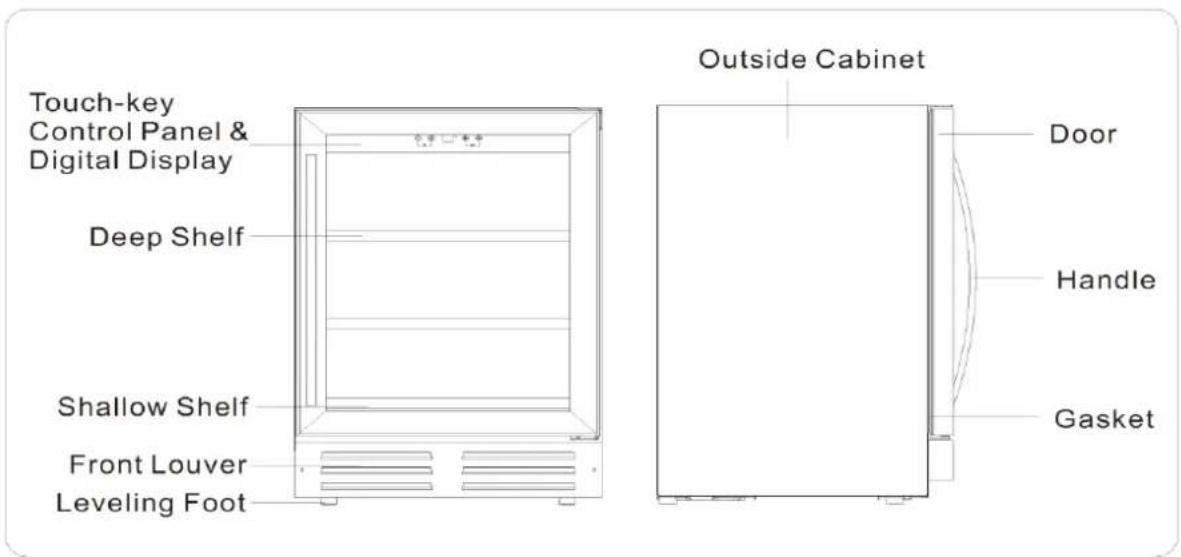

STRUCTURE AND INSTALLATION

The following pictures only show the structure of the appliance. The dimension and shelf quantity may differ among the models of the same series.

BUILT-UNDER SERIES (Built under a kitchen table top)

Touch-key Control Panel & Digital Display Deep Shelf Shallow Shelf Front Louver Leveling Foot Outside Cabinet Door Handle Gasket

Dual Zone Structure Touch-Key Control Panel & Digital Display Deep Shelf Shallow Shelf Front Louver Outside Cabinet Door Handle Gasket Leveling Foot

•Height Adjustable: 870-890mm >870mm 570mm 600mm 870mm 595mm 570mm 570mm 850mm 150mm

ACCESSORY INSTALLATION BEFORE OPERATING

UNPACKING AND CLEANING THE WINE COOLER

• Remove the exterior and interior packing materials.
• Let the appliance stand upright for approximately 24 hours before connecting it to the power source, which helps to reduce the possibility of a cooling-system malfunction from handling during transportation.
• Use a soft cloth to clean the interior surface with lukewarm water.
  • Install the door handle provided with the appliance by following these steps:

	Flat washer
	Screw	Handle
-Remove the gasket on the internal door to expose the two screw holes.	Gasket	Door Frame
-Install the handle with the screws and washers provided.
Restore the gasket.	Screw

- The appliance is designed for operating from SN to N climate (see below climate class chart). It is recommended to maintain the ambient around 22-25°C which helps the appliance working with low power consumption.

Climate Class	Ambient Temperature
SN	10 - 32 °C	(50°F-90°F)
N	16 - 32 °C	(61°F-90°F)
ST	18-38 °C	(64°F-100°F)
T	18-43 °C	(64°F-109°F)

- If the ambient temperature is above or below the designed climate range, the performance of the unit may be affected. For example, the appliance operating in extreme cold or hot conditions may cause interior temperatures to fluctuate, and the temperature set 5-22°C may not be reached sometimes.

WINE STORAGE

• The standard shelves are designed perfectly for Bordeaux style bottle storage. The maximum bottle loading may vary subject to the different size or dimension of wine bottles you store.
• The shelves can be pulled out by approximately 1/3 for easy access to the wine storage.

• The shelves are fitted with a plastic Stopper on each side of the shelf track to prevent the shelf from sliding out completely.

• To prevent damaging the door gasket, make sure to have the door opened fully all the way before pulling the shelves out.

• Please store wine in sealed bottles.
• Do not cover the shelves with aluminum foil or any other shelf material which may prevent air circulation.
• Should the wine cooler be left empty for long periods it is suggested that the appliance is unplugged, and after careful cleaning, leave the door ajar to allow air to circulate inside the cabinet in order to avoid possible condensation, mould or odours forming.

Recommended temperatures for chilling/storing your wines.

Wine Type	Recommended Temp.
Red Wines	15 - 18°C (59°F-64°F)
White Wines	9 - 14°C (48°F-57°F)
Rose Wines	10 - 11°C (50°F-52°F)
Sparkling Wines	5 - 8°C (41°F-46°F)

CONTROL PANEL

- For Single Zone

- For Dual Zone

- When the appliance is plugged in to a power outlet, it powers on automatically.

- Touch the power mark ⏻ and hold for 10 seconds to turn off (or turn on) the appliance.

- No matter whether the appliance is under a locked or unlocked situation, you can turn off the appliance by touching the power mark ⏻ and holding for 10 seconds.

Warning: To avoid breaking the compressor, please do not turn on the appliance again within 5 minutes after you turn it off.

UNLOCKING THE CONTROL PANEL

- To unlock the control panel, touch the power mark and lighting mark with 2 fingers at the same time and hold for 3 seconds. When unlocked a buzz sound will be heard.

- The control panel will be automatically locked with a buzz sound heard after 10 seconds without being touched.

- Under the locked situation, the control panel will not react to any touch operation other than for lighting on/off and temperature setting.

INTERIOR LIGHTING ON/OFF CONTROL

• Under the unlocked situation, touch the lighting mark Ⓤ to turn on (or turn off) the interior LED lighting.

• The lighting will be continuously on if it is not turned off.

TEMPERATURE DISPLAY WINDOW

- The temperature is displayed in digital display form. The digital display is shown as the set temperature when you are setting the temperature, and it will change to be the actual temperature inside cabinet after 10 seconds without being touched.

- When the temperature probe is out of order, the display window will show with "HH" or "LL" instead of a digital figure while a continuous buzz sound will be heard. In case of this happens, this appliance is designed to keep the compressor and fan running periodically which helps to keep the desired temperature of the inside cabinet to protect your stored wines.

Warning: To avoid destroying your stored wines, it is strongly recommended to have the repaired immediately, as the periodical running cannot ensure the appliance will achieve the you have set.

TEMPERATURE SETTING

For Single Zone beverage coolers:

• The temperature setting range is 2-20 °C (36-68 °F).

- Directly touch the ⭕ or ⊖ mark to set the wine cooler temperature as you want.

• The first touch on ⊕ or ⊖ mark will recall the previous set temperature displayed in the digital window.

- Touch the mark ⚠ to increase the set temperature by 1°C (or by 1°F). On the contrary, touch the mark ⚡ to decrease the set temperature by 1°C (or by 1°F).

- The digital will change to display the real temperature of the inside cabinet after 10 seconds without being touched.

For Dual Zone wine coolers:

• The temperature setting ranges are 5-12 °C (41-54 °F) for the upper zone and 12-22 °C (54-72 °F) for the bottom zone.
• You need to select the set zone by touching the mark ☐ before touching the mark ☐ to set the desired temperature. The display window with digital flashing indicates the zone ready for temperature setting.
• The first touch on mark ⚠️ will recall the previous set temperature displayed in the digital window
• Touch the mark ⚙ increase the set temperature by 1°C (or by 1°F). On the contrary, touch the mark ⚙ to decrease the set temperature by 1°C (or by 1°F).
• The digital will change to display the real temperature of the inside cabinet after 10 seconds without being touched.

Note: For the first time to use the appliance or to restart the appliance after having been shut off for a long time, you may find a few degrees variance between the set temperature and the displayed temperature. It is normal and everything of the appliance will be in the order after a few hours running.

SELECTING FAHRENHEIT (°F) or CELSIUS (°C) DISPLAY

For Single Zone

Touch the marks with 2 fingers at the same time and hold for 5 seconds, you can interchange the Fahrenheit and Celsius display.

For Dual Zone

Directly touch the mark 📄 you can interchange the Fahrenheit and Celsius display for both zones at the same time.

CARE AND MAINTENANCE

CLEANING THE WINE COOLER

• Turn off the power, unplug the appliance, and remove all items including shelves.
• Wipe the inside surfaces with a sponge and baking soda solution. The solution should be about 2 tablespoons of baking soda to 1 litre of warm water.
• Wash the shelves with a mild detergent solution. Allow the wooden shelves to dry before placing them back into the wine cooler.
• Remove excess water from the sponge or cloth when cleaning the controls, or any other electrical display areas.
• Wipe the outside cabinet with warm water and a mild liquid detergent. Wipe dry with a clean soft cloth.
• Do not use steel wool or steel brush on the stainless steel. These will contaminate the stainless steel with steel particles and rusting may occur.

POWER FAILURE

Most power failures are corrected within a few hours and should not affect the temperature of your appliance if you minimize the number of times the door is opened. If the power is going to be off for a longer period of time, you need to take the proper steps to protect your contents.

MOVING THE WINE COOLER

• Remove all items.
• Securely tape down all loose items (shelves) inside your appliance.
• Turn the adjustable legs up to the base to avoid damage.
• Tape the door shut.
• Ensure the appliance stays secure in the upright position during transportation. Also protect the outside of appliance with a blanket, or similar item.

ENERGY SAVING TIPS

• The appliance should be located away from heat producing appliances, and away from direct sunlight.
• Ensure that the unit is adequately ventilated. Never cover the air vents.
• Only open the door when necessary. Avoid leaving the door open for long periods or opening/closing the door frequently.

TROUBLESHOOTING

If you feel the appliance is out of order, follow these instructions to try to see if you can solve the problem simply by yourself before calling for service.

No.	PROBLEM	PROBLEM POSSIBLE CAUSE / MEASURE
1	The wine cooler does not operate	Not plugged in.The appliance is turned off.The circuit breaker tripped or a blown fuse.
2	The wine cooler is not cold enough	Check the temperature control setting.External environment may require a higher setting.The door is opened too frequently.The door is not closed completely.The door gasket does not seal properly.
3	Automatically turn-on and turn-off frequently	The room temperature is hotter than normal.A large amount of contents has been added to the wine cooler.The door is opened too frequently.The door is not closed completely.The temperature control is not set correctly.The door gasket does not seal properly.
4	The lighting does not work	Not plugged in.The circuit breaker tripped or a blown fuse.The lighting is turned off.
5	Too much vibration	Check to assure that the appliance is level.Check to assure no parts inside the cabinet or in the compressor chamber are loose.
6	The wine cooler seems to make too much noise	The rattling noise may come from the flow of the refrigerant, which is normal.As each cycle ends, you may hear gurgling sounds caused by the flow of refrigerant.Contraction and expansion of the inside walls may cause popping and crackling noises.The appliance is not level.
7	The door will not close properly.	The wine cooler is not level.The door was reversed and not properly installed.The gasket is dirty.The shelves are out of position.
8	The display window is shown with “HH”or “LL” instead of a digital figure, and/or with a continuous buzz sound.	The temperature probe is out of order.

REVERSE THE DOOR SWING

Remarks:

• The instruction is based on a unit with right door hinge installed already.
  • To reserve the door from right hinge to left hinge, you need to get ready 2 new spare parts: an Upper Left Hinge, and a Bottom Left Hinge.
  * All removed parts is suggested t be saved in case of door re-reversal.

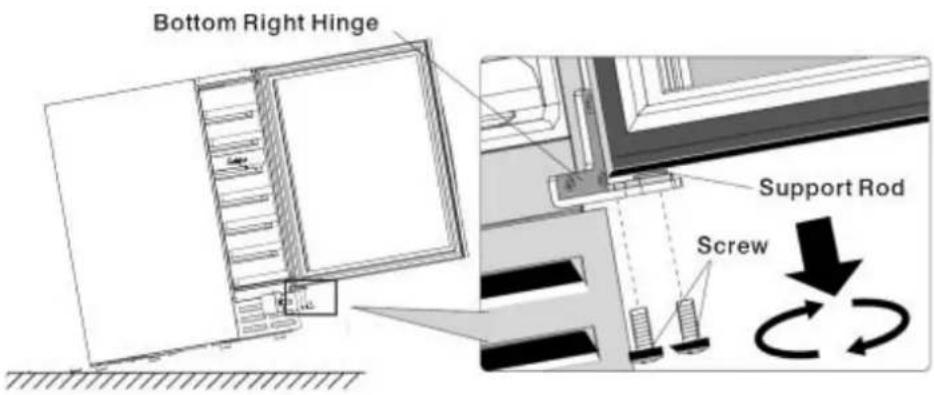

• Open the door, and loosen the screws from the support rod of the bottom hinge.

Bottom Right Hinge Support Rod Screw

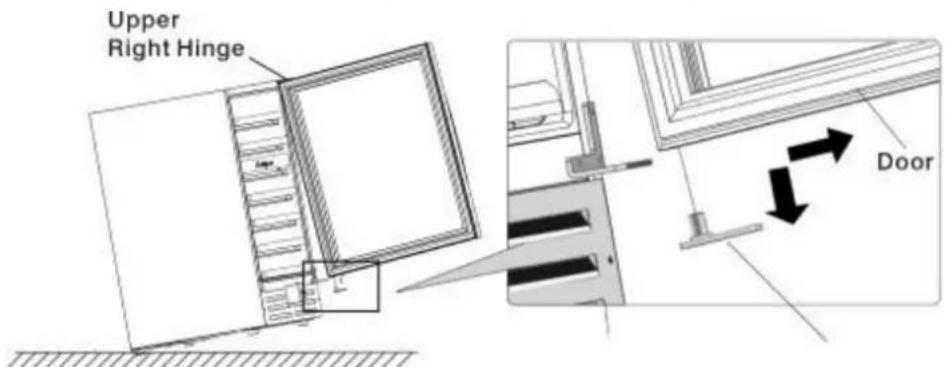

1. Remove the door off the upper hinge and take out the support rod.

Upper Right Hinge Door

1. For a door with lock, use a small flat head screwdriver to pry up the lock whole cap on the top of the door and remove to the bottom.
2. Unscrew the upper hinge and bottom hinge.

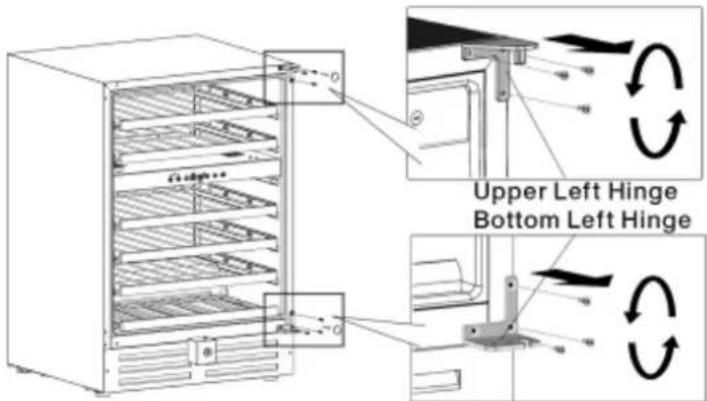

Upper Left Hinge Bottom Left Hinge

1. Pry out the plastic caps at the left side of the cabinet, and remove them to the right side.
2. Install the hinge set which are packed as accessories with the instruction manual to the opposite side.

Upper Left Hinge Bottom Left Hinge

1. Rotate the door 180° so that the top is now the bottom, and install it by attaching the support rod with screws.

Bottom Left Hinge Screws (2pcs) Support Rod

Your Grand CRU Warranty Registration Form

Thank you for purchasing a Grand Cru Wine Cooler from Home Icon Pty Ltd. Home Icon provides a 1 year warranty on the Grand Cru range of Wine Coolers.

To register your wine cooler NOW for warranty, and allow us to provide you with the best possible after sales service, please log on to our website at www.homeicon.com.au

Click on the 'Warranty' tab across the top, select the 'To register your product warranty click here' option and fill out the details as required.

Should an instance arrive where you require some after sales assistance, please log on to our website at www.homeicon.com.au

Click on the 'Warranty' tab across the top, select the 'For Service Request click here' option and fill out the details as required."

This warranty does not cover the following:

1. Any damages caused from improper use or not used in accordance with the instruction manuals.
2. Damage caused by connecting your product to the wrong power source/supply.
3. Incorrect installation or modifications made during installation or use of the product.
4. Removing screws or otherwise opening the outer case will void the warranty.
5. Any damages resulting from poor handling or moving of the product, misuse, fire or water damage etc.
6. Failure to maintain the product as per the Instruction Manual.
7. Problems caused by incorrect or inadequate venting of the product.
