USER MANUAL SB-TS327 SunBriteTV

QTY Part Description
4	#10-32 x .75 flat head screws	Table Top Stand Kit: SB-TS327 SB-TS467
2 Nylon spacers
1 Table stand assembly
4	#8-32 x .5 flat head screws w/washers	For TV Models: SB-3270HD SB-4670HD
2 Plastic Dust plugs
Nylon spacer .25" high 2 places places Top View X.75" screws 4
Round rubber stick on feet Bottom View screws #10uded

SB-3270HD

To install the Table Top Stand on the 3270:

If the 4 bottom screws look like this, Replace with this Remove these 4 screws and replace with flat head screws with washers provided.

Note: 3270 has 4 screws to replace, 4670 has 3 screws to replace.

SB-4670HD

To install the Table Top Stand on the 4670:

3D schematic of a device with purple casing, green panel, and black bolted components (no text or symbols)

Remove these 3 screws and replace with flat head screws with washers provided.

If the 3 bottom screws look like this,

Replace with this

Note: 3270 has 4 screws to replace, 4670 has 3 screws to replace.

SB-4670HD

Technical diagram of a device interior with purple walls, beige panel, and black circular features (no text or symbols)

Remove these 2 screws and replace them with the plastic Dust Plug

Close-up of a transparent plastic mechanical component with a flanged end (no visible text or symbols)

SB-3270HD

SB-4670HD

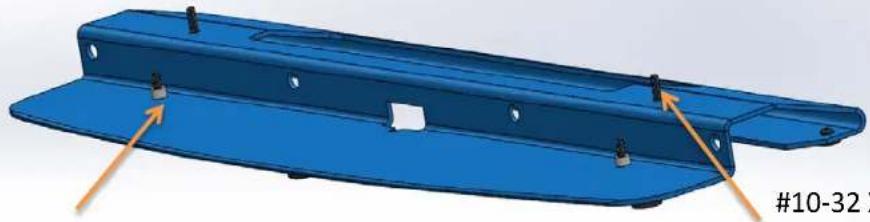

Assemble table top stand with #10 flat head screws.

Remove screws that come with the TV and discard in 4 places

Nylon washer, 2 places

10 Flat head screw 4 places

Secure Screw a

2.75"

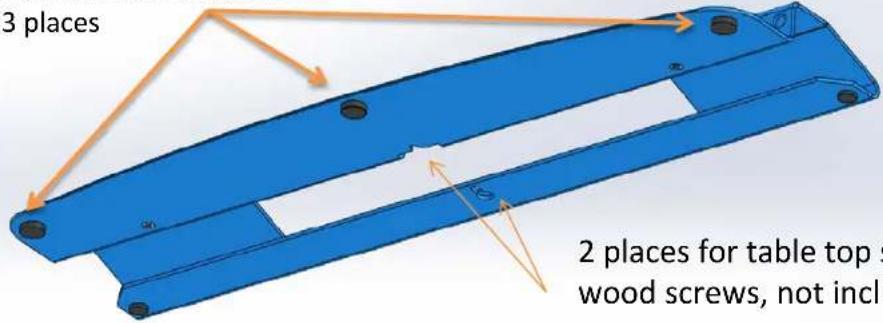

Secure stand to deck with two screws 2.75" apart. Screw are not included.

3D diagram of a mechanical assembly with layered components and mounting holes (no text or symbols)
