USER MANUAL Colorise RGBALC Blizzard
blizzard
Blizzard Lighting, LLC
http://www.blizzardpro.com
Waukesha, WI USA
Copyright (c) 2023
TABLE OF CONTENTS
1. Getting Started 3
What's In The Box? 3
Getting It Out Of The Box 3
Powering Up! 3
Getting A Hold Of Us 3
Safety Instructions 4
2. Meet The Colorise™ RGBALC 5
Main Features 5
DMX Quick Reference 5
Colorise™ RGBALC Pin-Up Picture 6
Rear Connections 6
3. Setup 7
Fuse Replacement 7
Connecting A Bunch of Colorise™ RGBALC Fixtures 7
Data/DMX Cabling 7
Cable Connectors 8
3-Pin??? 5-Pin??? Huh?!? 8
Take It To The Next Level: Setting Up DMX Control 8
Fixture Linking (M/S Mode) 9
Mounting & Rigging 9
4. Operating Adjustments 10
The Control Panel 10
Control Panel Menu Structure 11
DMX Mode 12

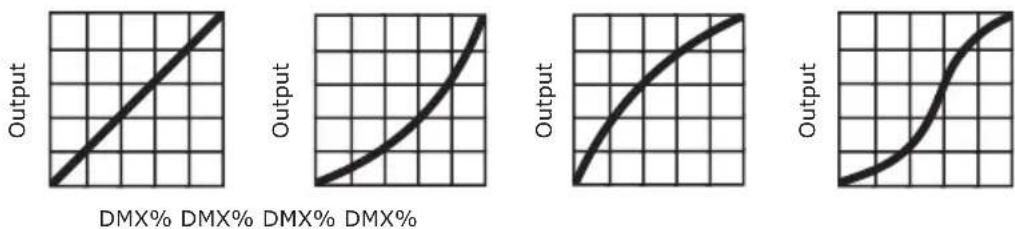

Dimming Mode Settings 12
Custom Programs 13
Auto, Modes, and Auto Speed 13
Color Calibration Settings 14
Custom Static Colors & Preset Colors 14
Fixture Reset Functions 15
Data Sync Feature 15
Fixture Information 15
DMX Values In-Depth 16
Troubleshooting 17
5. Appendix 18
Keeping Your Colorise™ RGBALC As Good As New 18
Returns (Gasp!) 18
Shipping Issues 18

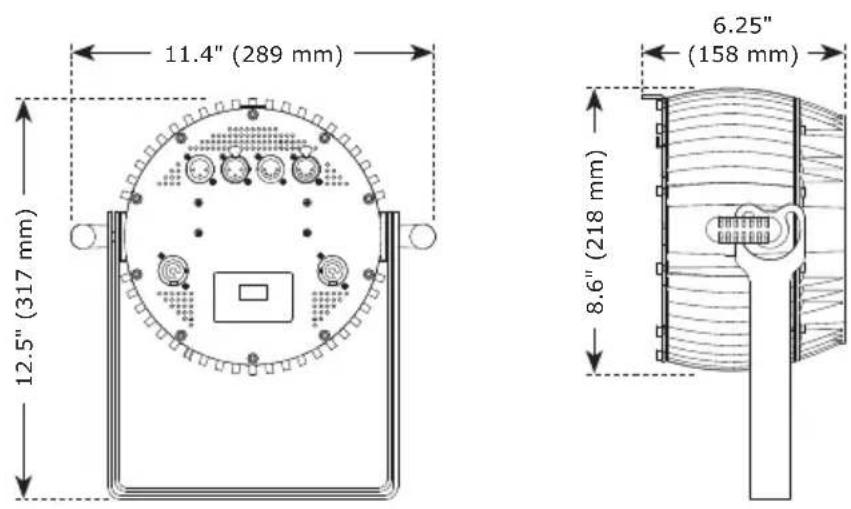

Tech Specs! 19
Photometric Data 19
1. GETTING STARTED
What's In The Box?
• 1x Colorise™ RGBALC LED Fixture
- 1x AC power cord
• This Lovely User Manual
Getting It Out Of The Box
Congratulations on purchasing the Colorise™ RGBALC. Now that you've got your fixture, you should carefully unpack the box and check the contents to ensure that all parts are present and in good condition. If anything looks as if it has been damaged in transit, notify the shipper immediately and keep the packing material for inspection. Again, please save the carton and all packing materials. If a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing.
Powering Up!
All fixtures must be powered directly off a switched circuit and cannot be run off a rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer channel is used solely for a 0% to 100% switch.
AC Voltage Switch - Not all fixtures have a voltage select switch, so please verify that the fixture you receive is suitable for your local power supply. See the label on the fixture or refer to the fixture's specifications chart for more information. A fixture's listed current rating is its average current draw under normal conditions. Check the fixture or device carefully to make sure that if a voltage selection switch exists that it is set to the correct line voltage you will use.
Warning! Verify that the voltage select switch on your unit matches the line voltage applied. Damage to your fixture may result if the line voltage applied does not match the voltage indicated on the voltage selector switch. All fixtures must be connected to circuits with a suitable Ground (Earthing).
Getting A Hold Of Us
If something is wrong, please just visit our website at www.blizzardpro.com/support and open a support ticket. We'll be happy to help, honest.
Disclaimer: The information contained in this document are subject to change without notice. Blizzard Lighting™ assumes no responsibility or liability for any errors or omissions that may appear in this user manual. We reserve the right to update the existing, or create a new document to correct any errors or omissions. You can download the latest version of this document from www.blizzardpro.com.
| Author: Date: Last Edited: Date: | |||
| J. Thomas 5/26/2023 | J. Thomas 5/26/2023 | ||
- Please keep this User Guide for future use. If you sell the unit to someone else, be sure that they also receive this User Guide.
- ALWAYS make sure that you are connecting to the proper voltage, and that the line voltage you are connecting to is not higher than that stated on the decal or rear panel of the fixture.
- This product is intended for indoor use only.
- To prevent risk of fire or shock, do not expose fixture to rain or moisture.
- Make sure there are no flammable materials close to the unit while operating.
- The unit must be installed in a location with adequate ventilation, at least 20in (50cm) from adjacent surfaces. Be sure that no ventilation slots are blocked.
- ALWAYS disconnect from the power source before servicing or replacing fuse and be sure to replace with same fuse size and type.
- ALWAYS secure fixture using a safety chain. NEVER carry the fixture by its head. Use its carrying handles.
- DO NOT operate at ambient temperatures higher than 104^ (40°C).
- In the event of a serious operating problem, stop using the unit immediately. NEVER try to repair the unit by yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please contact the nearest authorized technical assistance center. Always use the same type spare parts.
- NEVER connect the device to a dimmer pack.
- Make sure the power cord is never crimped or damaged.
- Never disconnect the power cord by pulling or tugging on the cord.
- Avoid direct eye exposure to the light source while it is on.
Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please open a support ticket at www.blizzardpro.com/support.
2. MEET THE COLORISE™ RGBALC
MAIN FEATURES
• Color mixing via 7x 20W RGBALC 6-in-1 LEDs
- OLED control menu w/touch sensitive buttons
• 25 degree beam angle
• Built-in color & chase macros via DMX
• Built-in auto programs via master/slave
- RGBALC color mixing ability in standalone mode
• 6/8/12-channel DMX profiles w/32-bit dimming
- Convection cooled cast aluminum housing
- Dual mounting brackets for positioning flexibility
- Flicker-free constant-current LED driver
• PowerCON-compatible in/out power connectors
• 3/5-pin male/female XLR input & output connections
DMX Quick Reference (6-Channel Mode)
| Channel What is does... |
| 1 Red Intensity (0 <--> 100%) |
| 2 Green Intensity (0 <--> 100%) |
| 3 Blue Intensity (0 <--> 100%) |
| 4 Amber Intensity (0 <--> 100%) |
| 5 Lime Intensity (0 <--> 100%) |
| 6 Cyan Intensity (0 <--> 100%) |
DMX Quick Reference (8-Channel Mode)
| Channel What is does... |
| 1 Master Dimmer (0 <--> 100%) |
| 2 Red Intensity (0 <--> 100%) |
| 3 Green Intensity (0 <--> 100%) |
| 4 Blue Intensity (0 <--> 100%) |
| 5 Amber Intensity (0 <--> 100%) |
| 6 Lime Intensity (0 <--> 100%) |
| 7 Cyan Intensity (0 <--> 100%) |
| 8 Strobe (Slow <--> Fast) |
DMX Quick Reference (12-Channel Mode)
| Channel What is does... |
| 1 Master Dimmer (0 <--> 100%) |
| 2 Red Intensity (0 <--> 100%) |
| 3 Green Intensity (0 <--> 100%) |
| 4 Blue Intensity (0 <--> 100%) |
| 5 Amber Intensity (0 <--> 100%) |
| 6 Lime Intensity (0 <--> 100%) |
| 7 Cyan Intensity (0 <--> 100%) |
| 8 Strobe (Slow <--> Fast) |
| 9 Built-In Programs |
| 10 Auto Speed (Slow <--> Fast) |
| 11 Virtual Color Wheel |
| 12 32-Bit Dimming |

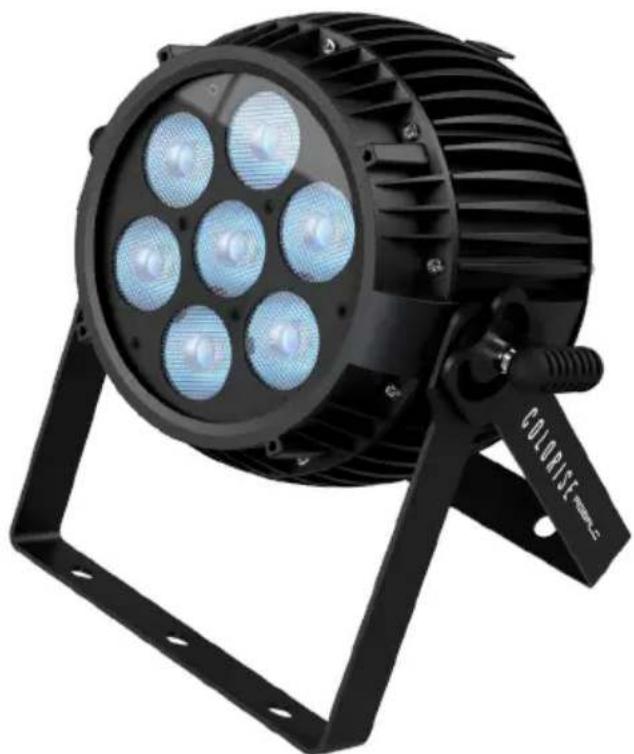

Figure 1: Colorise™ RGBALC Pin-Up Picture
Fuse Replacement
This fixture utilizes a high-output switch-mode power supply with an internal fuse. Under normal conditions, the fuse should not require replacement. Should your fixture require fuse replacement, please contact us for instructions.
Connecting A Bunch of Colorise™ RGBALC Fixtures
You will need a serial data link to run light shows using a DMX-512 controller or to run shows on two or more fixtures set to sync in master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support.
Fixtures on a serial data link must be daisy chained in a single line. Also, connecting more than 32 fixtures on one serial data link without the use of an optically-isolated DMX splitter may result in deterioration of DMX signal. The maximum recommended cable-run distance is 500 meters (1640 ft).
Data/DMX Cabling
To link fixtures together you'll need data cables. You should use data-grade cables that can carry a high quality signal and are less prone to electromagnetic interference.
For instance, Belden© 9841 meets the specifications for EIA RS-485 applications. Standard microphone cables will "probably" be OK, but note that they cannot transmit DMX data as reliably over long distances. In any event, the cable should have the following characteristics:
• 2-conductor twisted pair plus a shield
• Maximum capacitance between conductors - 30 pF/ft.
• Maximum capacitance between conductor & shield – 55 pF/ft.
• Maximum resistance of 20 ohms / 1000 ft.
• Nominal impedance 100 - 140 ohms
Disclaimer: The power connectors fitted to the fixture and fixture cord are designed for compatibility with products manufactured by Neutrik AG, Neutrik USA and their related entities, however they are not manufactured by, affiliated with or endorsed by Neutrik AG, Neutrik USA, or any related entity. Neutrik® and powerCON® are registered trademarks of Neutrik AG.
Cable Connectors
Cables must have a male XLR connector on one end and a female XLR connector on the other end. (Duh!)
DMX is a resilient communication protocol, however errors still occasionally occur. Termination reduces signal errors, and therefore best practices include use of a terminator in all circumstances. If you are experiencing problems with erratic fixture behavior, especially over long signal cable runs, a terminator may help improve performance.
To build your own DMX Terminator:
Obtain a 120-ohm, 1/4-watt resistor, and wire it between pins 2 & 3 of the last fixture. They are also readily available from specialty retailers.
CAUTION: Do not allow contact between the common and the fixture's chassis ground. Grounding the common can cause a ground loop, and your fixture may perform erratically. Test cables with an ohm meter to verify correct polarity and to make sure the pins are not grounded or shorted to the shield or each other.
3-Pin??? 5-Pin??? Huh?!?
If you use a controller with a 5-pin DMX output connector, it's no problem! you can simply use the installed 5-pin DMX input and/or output connections found on the back of your fixture(s).
| Conductor 3-Pin Female (Output) 5-Pin Male (Input) | |
| Ground/Shield Pin 1 Pin 1 | |
| Data 1- (Primary Data) Pin 2 Pin 2 | |
| Data 1+ (Primary Data) Pin 3 Pin 3 | |
| Data 2- (Optional) -- Pin 4 - Do Not Use | |
| Data 2+ (Optional) -- Pin 5 - Do Not Use |
Take It To The Next Level: Setting Up DMX Control
Step 1: Connect the male connector of the DMX cable to the female connector (output) on the controller.
Step 2: Connect the female connector of the DMX cable to the first fixture's male connector (input).
Note: It doesn't matter which fixture address is the first one connected. We recommend connecting the fixtures in terms of their proximity to the controller, rather than connecting the lowest fixture number first, and so on.
Step 3: Connect other fixtures in the chain from output to input as above. Place a DMX terminator on the output of the final fixture to ensure best communication.
- Connect the male connector side of the DMX cable to the output female connector of the first fixture.
A quick note: Often, the setup for Master-Slave and Standalone operation requires that the first fixture in the chain be initialized for this purpose via either settings in the control panel or DIP-switches. Secondarily, the fixtures that follow may also require a slave setting.
Check the "Operating Adjustments" section in this manual for complete instructions for this type of setup and configuration.
Mounting & Rigging
This fixture may be mounted in any SAFE position provided there is enough room for ventilation. The fan or vent pathway must never be obstructed.
IMPORTANT: Regardless of the rigging option you choose for your fixtures, always be sure to secure your fixture with a safety cable.
Overhead mounting requires extensive experience, which includes calculating working load limits, knowledge of the installation material being used, and periodic safety inspections. If you lack these qualifications, do not attempt the installation yourself.
4. OPERATING ADJUSTMENTS
The Control Panel
All the features and different modes possible with the Colorise™ RGBALC are accessed by using the control panel on the rear of the fixture. There are 4 control buttons which allow you to navigate through the various control panel menus.
| ≡ | <MENU> |
| Is used to navigate to the previous higher-level menu item. | |
| ^ | <UP> |
| Scrolls through menu items and numbers in ascending order. | |
| ✓ | <DOWN> |
| Scrolls through menu items and numbers in descending order. | |
| >] | <ENTER> |
| Is used to select and confirm/store the current selection. |
Use the
Control Panel Menu Structure
| ADDR 001-512 To choose the DMX address | ||||
| STATIC R Red intensity (0% <--> 100%) | ||||
DMX Mode
Allows the unit to be controlled by any universal DMX controller.
Setting the DMX Address:
1.) The default mode for the fixture is DMX, which appears as 001 on the LED readout. To select a different DMX address, using the
