Product Type	Car Installation Kit
Brand	Metra
Model	99-7318
Compatible Vehicles	2005-2006 Kia Spectra 5
Head Unit Provisions	DIN and ISO DIN
Included Components	Radio Housing, ISO Brackets, ISO Trim Plate
Tools Required	Phillips Screwdriver, Small Flat Blade Screwdriver
Wiring Standard	EIA Color Code
Power Connections	12V Ignition/Acc (Red), 12V Batt/Memory (Yellow), Ground (Black)
Speaker Connections	Front and Rear, Positive and Negative, per EIA code
Additional Connections	Power Antenna (Blue), Amp Turn-On (Blue/White), Amp Ground (Black/White), Illumination (Orange), Dimmer (Orange/White)
Installation Steps	Dash Disassembly, Kit Assembly, Final Assembly
Safety Precautions	Disconnect negative battery terminal to prevent short circuit
Material	Plastic and Metal Components
Repairability	Replaceable components: Radio Housing, ISO Brackets, ISO Trim Plate
Maintenance	No special maintenance required; keep clean and dry

Frequently Asked Questions - 99-7318 Metra

What vehicles is Metra 99-7318 compatible with?

The Metra 99-7318 installation kit is designed for the 2005-2006 Kia Spectra 5.

What head unit sizes does this kit support?

This kit supports both DIN and ISO DIN head unit provisions.

What components are included in the kit?

The kit includes a Radio Housing, ISO Brackets, and an ISO Trim Plate.

What tools are needed for installation?

You will need a Phillips screwdriver and a small flat blade screwdriver.

How do I wire the head unit using this kit?

Follow the EIA wiring code provided in the manual. Connect corresponding wires (e.g., red to 12V ignition, yellow to battery, black to ground) and tape off unused wires.

Can I install an aftermarket amplifier with this kit?

Yes, the kit includes a blue/white wire for amp turn-on and a black/white wire for amp ground.

How do I remove the factory radio?

Disconnect the battery, then unclip the entire panel surrounding the radio and A/C controls. Remove four Phillips screws to extract the radio.

Is the kit compatible with double-DIN radios?

No, the kit is designed for single DIN or ISO DIN head units, not double-DIN.

Where can I find the wiring diagram?

The EIA color code chart is printed in the installation manual and includes all wire functions and colors.

What should I do if a wire is not present on my head unit?

Not all wires may be present due to manufacturer specifications. Tape off any unused wires from the vehicle harness to prevent shorts.

USER MANUAL 99-7318 Metra

INSTALLATION INSTRUCTIONS FOR PART 99-7318

APPLICATIONS

2005-2006 Kia Spectra 5

99-7318

KIT FEATURES

• DIN Head Unit Provision
• ISO DIN Head Unit Provision

KIT COMPONENTS

A) Radio Housing I B) ISO Brackets I C) ISO Trim plate

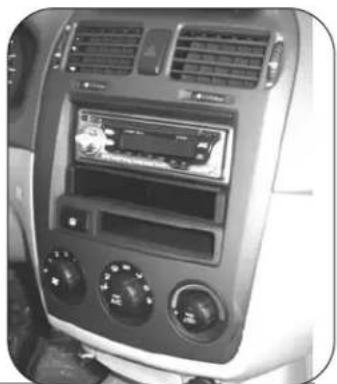

Interior view of a car infotainment system showing dashboard, air filters, and control knobs (no visible text or labels)

A

Technical line drawing of a mechanical housing or bracket component (no text or symbols)

B

C

TOOLS REQUIRED:

Phillips Screwdriver • Small Flat Blade Screwdriver

1-800-221-0932

www.metraonline.com

© COPYRIGHT 2004-07 METRA ELECTRONICS CORPORATION

TABLE OF CONTENTS

Dash Disassembly 1

Kit Assembly 2,3

Final Assembly 4

2005-2006 KIA SPECTRA 5

1 Disconnect the negative battery terminal to prevent an accidental short circuit.

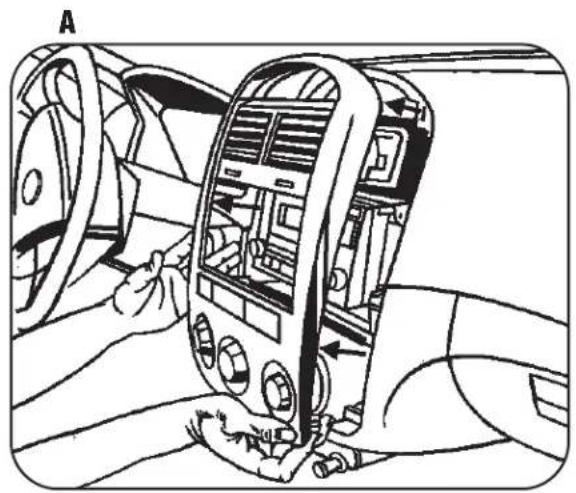

2 Unclip and remove entire panel surrounding radio and including A/C controls. (Figure A)
3 Remove (4) Phillips screws to extract radio from dash. (Figure B)

Interior view of a car dashboard with hand operating controls (no visible text or symbols)

2005-2006 KIA SPECTRA 5

DIN HEAD UNIT PROVISION

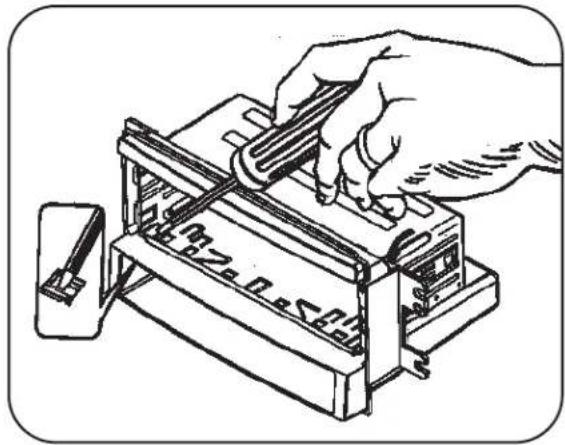

1 Slide the DIN cage into the Radio Housing and secure by bending the metal locking tabs down. (Figure A)
2 Slide the aftermarket head unit into the cage and secure. (Figure B)

A

Line drawing of a hand using a tool to press or install a mechanical component (no text or symbols visible)

B

Technical line drawing of a mechanical device with no visible text or symbols

2005-2006 KIA SPECTRA 5

ISO DIN HEAD UNIT PROVISION

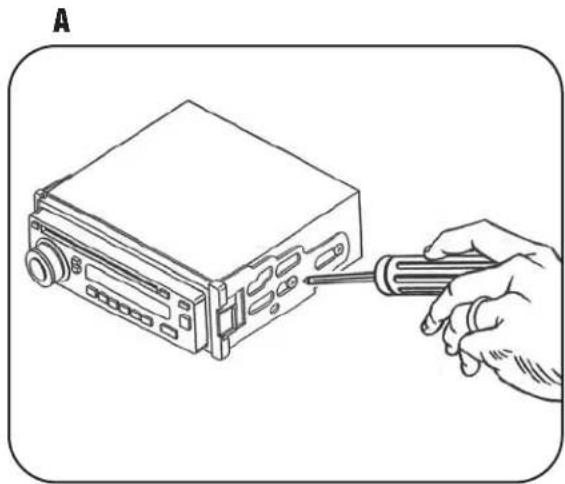

1 Mount the ISO bracket to the head unit with screws supplied with the unit. (Figure A)

2 Slide the head unit into the radio opening until the side clips engage. (Figure B)

3 Snap the trim plate into the radio housing. (Figure B)

Line drawing of a hand using a screwdriver to adjust or install a device into a rectangular box (no text or symbols)

FINAL ASSEMBLY

1 Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter and making connections as shown.
(Isolate and individually tape off the ends of any unused wires to prevent electrical short circuit.)
2 Re-connect the negative battery terminal and test the unit for proper operation.
3 Reassemble radio and dash assemblies in reverse order of disassembly.

FINAL WIRING CONNECTIONS

Make wiring connections using the EIA color code chart shown below and the instructions included with the head unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and individually tape off ends of any unused wires to prevent electrical short circuit.

METRA / EIA WIRING CODE

12V Ignition / Acc ... Red

12V Batt / Memory .. Yellow

Ground....Black*

Power Antenna ..... Blue

Amp Turn-On ..... Blue / White

Amp Ground ..... Black / White

Illumination.....Orange

Dimmer ..... Orange / White

Right Front (+) ..... Gray

Right Front (-)..... Gray / Black

Left Front (+) ..... White

Left Front (-) ..... White / Black

Right Rear (+)..... Violet

Right Rear (-) ..... Violet / Black

Left Rear (+).... Green

Left Rear (-) ..... Green / Black

*NOTE: When Black a wire is not present, ground radio to vehicle chassis.

All colors may not be present on all leads due to manufacturer's specifications.
