Product Type	Under-cabinet range hood
Brand	Blaupunkt
Model	5DA15260AU
Installation Type	Built-in (inside a cabinet)
Minimum Safety Distance (hob to hood)	650 mm
Voltage	220-240 V
Lighting Type	Halogen (E14 socket)
Lighting Power	4 W
Number of Speeds	3 + Off
Exhaust Diameter	Minimum 120 mm
Grease Filter Type	Washable in dishwasher
Grease Filter Cleaning Interval	Every 2 months
Charcoal Filter Lifetime	Approximately 4 months (not washable)
Usage	Domestic kitchen use
Disposal	WEEE recycling
Safety Features	Earthing required; flue gas backflow prevention

Frequently Asked Questions - 5DA15260AU BLAUPUNKT

How to install the hood correctly?

The hood must be installed by a specialized technician. Ensure minimum safety distance of 650 mm between hob and hood. Connect to a properly earthed mains supply and use a pipe of at least 120 mm diameter for exhaust.

What is the minimum distance between hob and hood?

The minimum safety distance is 650 mm. If the gas hob instructions specify a greater distance, that must be respected.

How often should I clean the grease filters?

Grease filters must be cleaned every 2 months of operation, or more frequently for heavy usage. They can be washed in a dishwasher.

Can I wash the charcoal filter?

No, the activated charcoal filter is not washable and cannot be regenerated. It must be replaced approximately every 4 months, or more frequently for heavy usage.

What type of bulb does the hood use?

The hood uses a 4 W halogen bulb with E14 socket, self-shielded tungsten halogen or metal halide type.

Why does the hood not work?

Check that the mains voltage matches the rating plate (220-240 V) and the plug is connected. Ensure the speed control is not set to 0. If the problem persists, contact service.

Can I use the hood with a gas hob?

Yes, but ensure adequate ventilation to prevent backflow of combustion gases. The negative pressure in the room must not exceed 0.04 mbar.

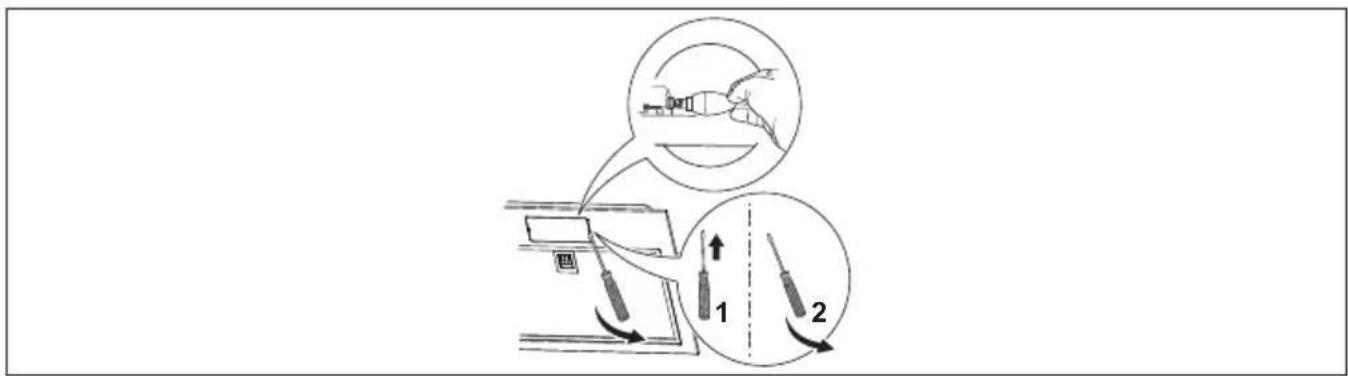

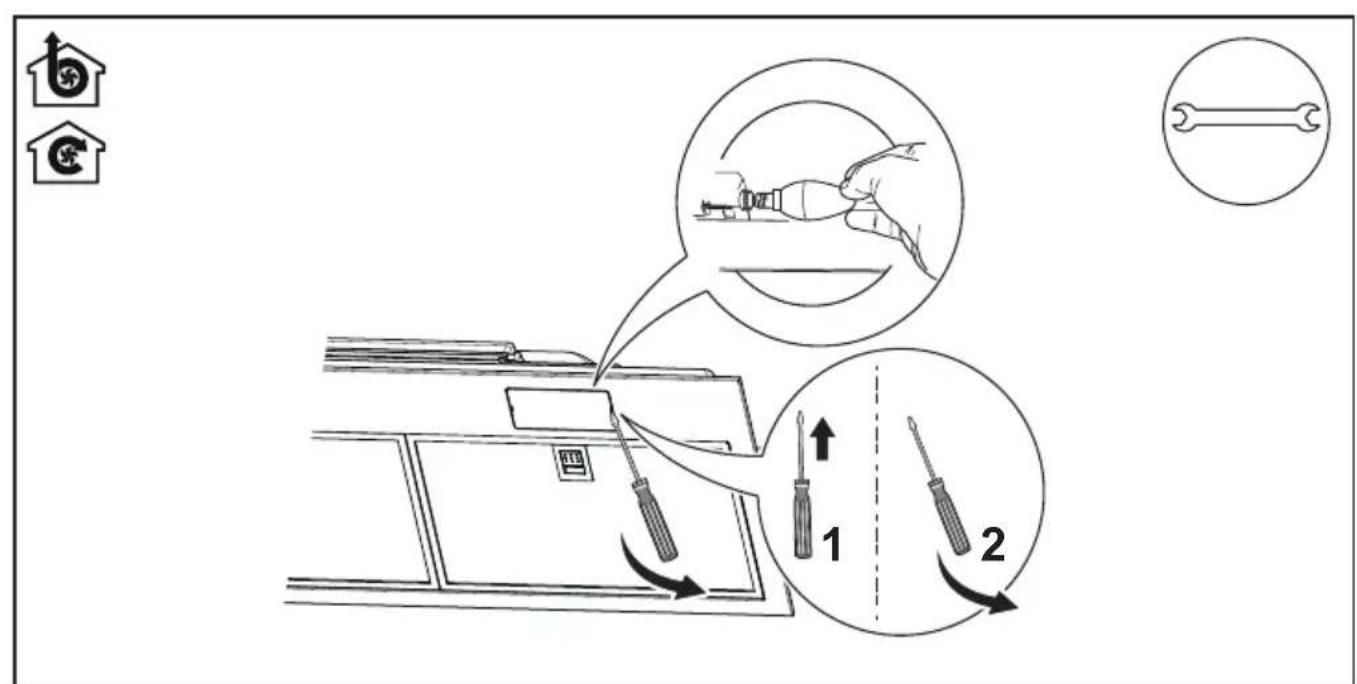

How to replace the light bulb?

Disconnect the hood from power. Remove the lamp cover and replace with a 4 W halogen bulb of the same type (E14, self-shielded). Reassemble and reconnect.

What does the 'V' button do?

The 'V' button sets the operating speed: 0 = Off, 1 = low speed for silent air change, 2 = medium speed for most conditions, 3 = maximum speed for heavy steam.

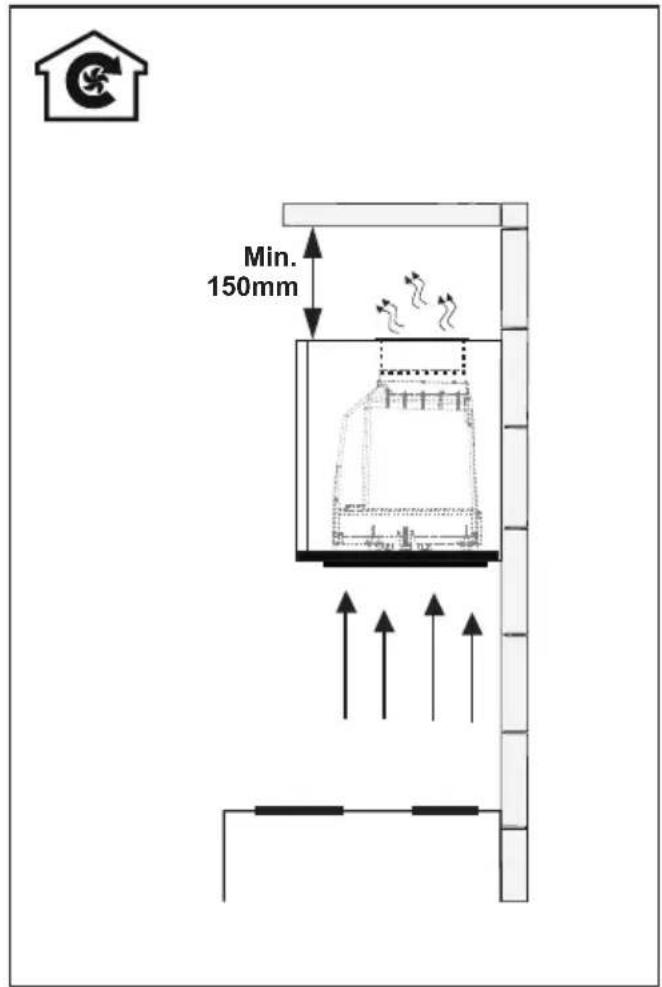

Is the hood suitable for recirculation?

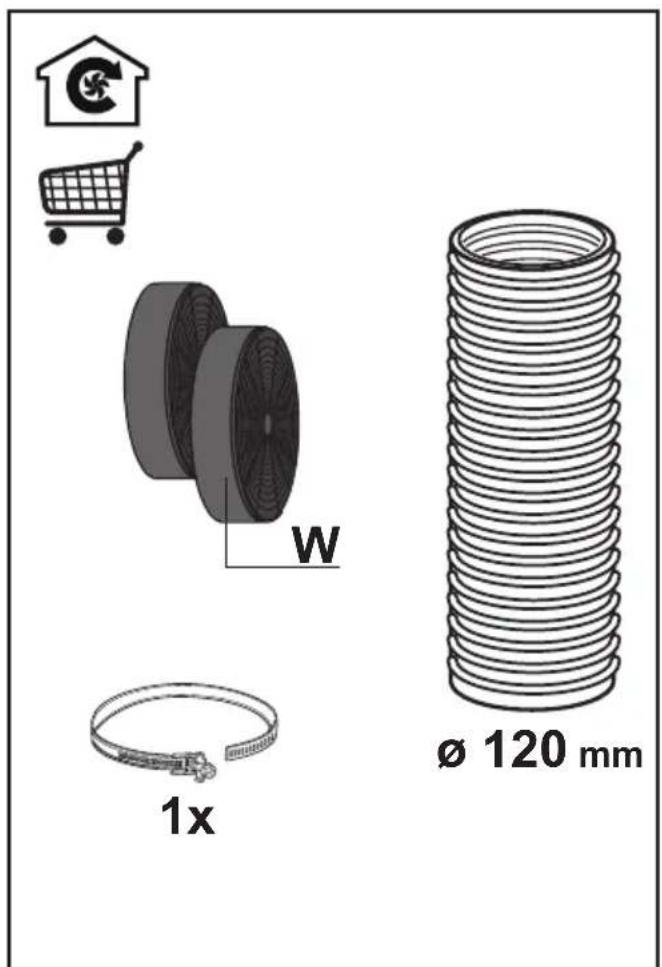

Yes, if you use a charcoal filter (not supplied) for recirculation mode. The filter must be replaced periodically. For exhaust mode, connect to an external flue.

USER MANUAL 5DA15260AU BLAUPUNKT

For your safety and correct operation of the appliance, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it. Users must fully know the operation and safety features of the appliance.

The wire connection has to be done by specialized technician.

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.

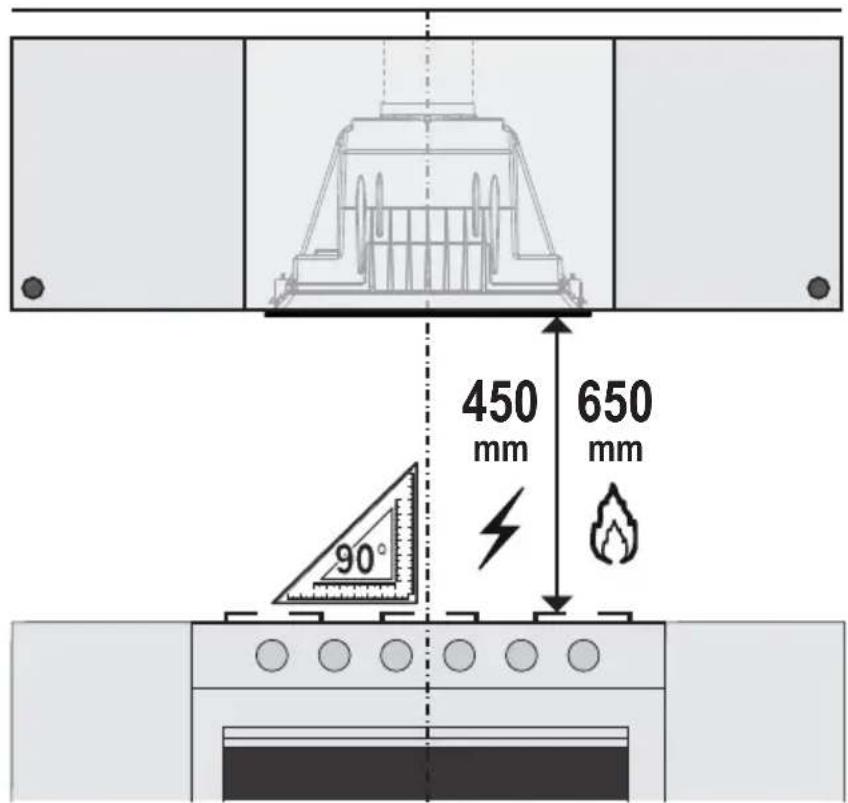

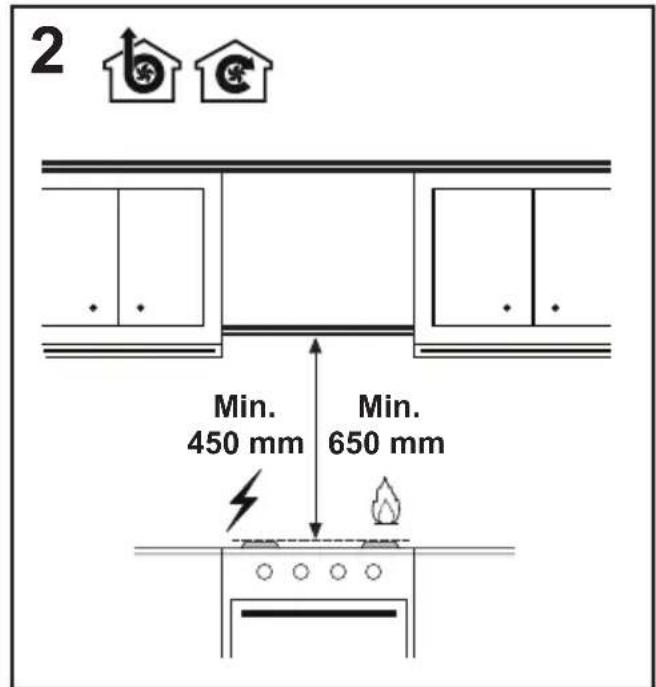

• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• If the instructions for installation for the gas hob specify a greater distance, this must be respected.
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.

• Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.

• For Class I appliances, check that the domestic power supply guarantees adequate earthing.

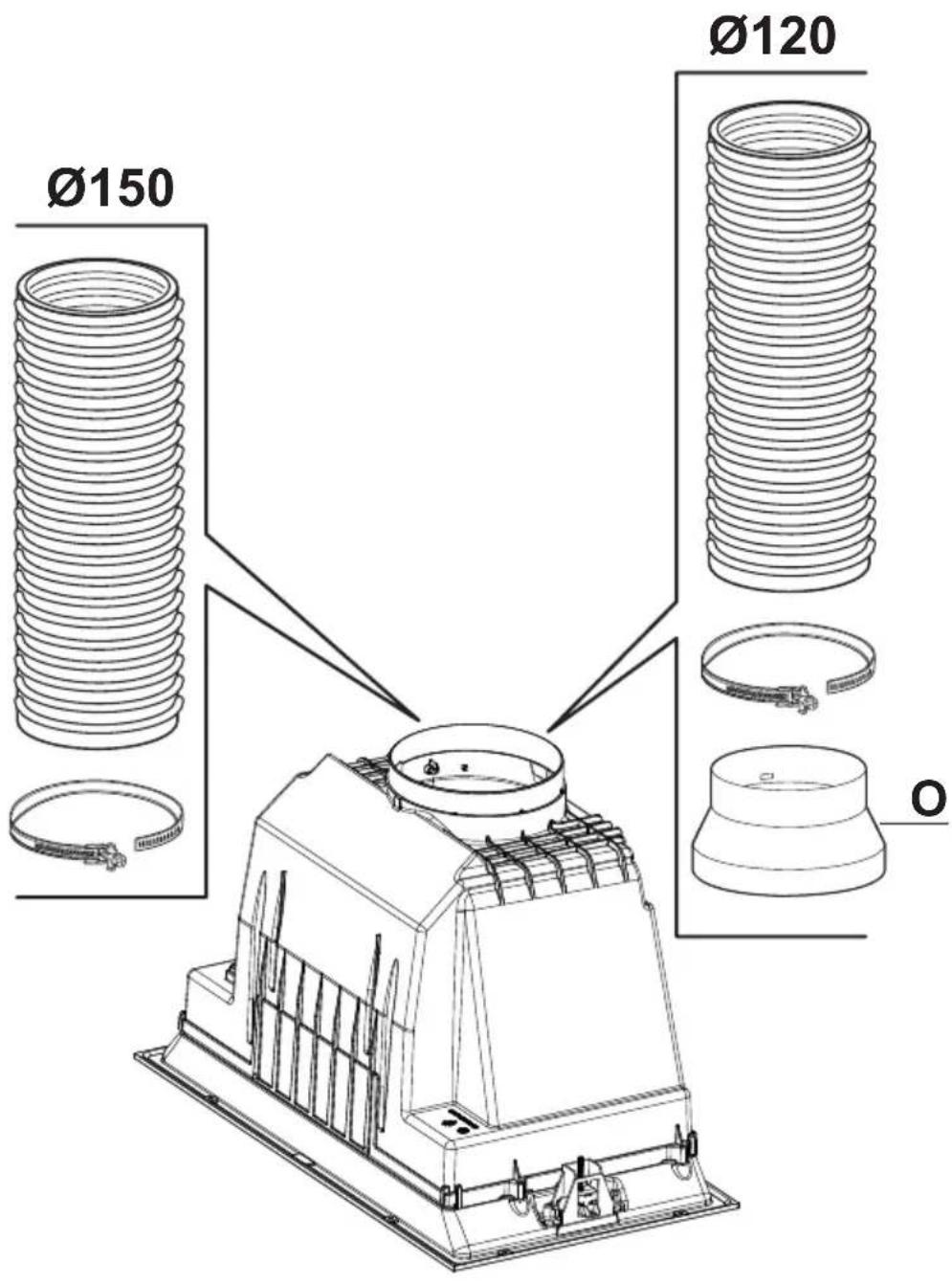

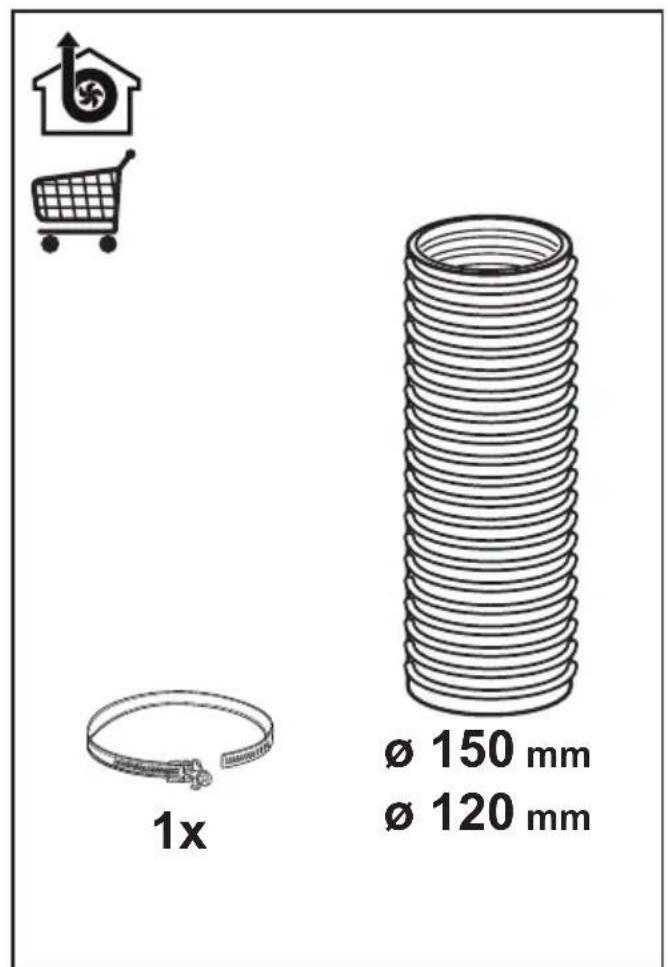

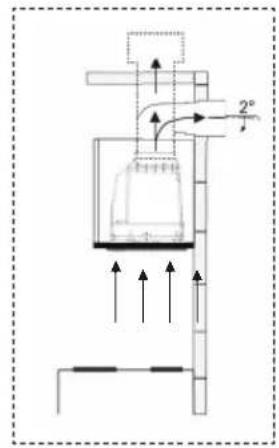

• Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.
  • Regulations concerning the discharge of air have to be fulfilled.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.
• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.
• If the supply cord is dam-

aged, it must be replaced from the manufacturer or its service agent.

• Connect the plug to a socket complying with current regulations, located in an accessible place.
• With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.

WARNING: Before installing the Hood, remove the protective films.

- Use only screws and small parts in support of the hood.

WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

• Do not look directly at the light through optical devices (binoculars, magnifying glasses...).
• Do not flambè under the range hood; risk of fire.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of

the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children should be supervised to ensure that they do not play with the appliance.
- The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.

⚠️ Accessible parts may become hot when used with cooking appliances.

• Clean and/or replace the Filters after the specified time period (Fire hazard). See paragraph Care and Cleaning.
• There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).
• The symbol ☒ on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the ap-

plicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

- Range hoods and other cooking fume extractors may adversely affect the safe operation of appliances burning gas or other fuel (including those in other rooms) due to back flow of combustion gases. These gases can potentially result in carbon monoxide poisoning. After installation of a range hood or other cooking fume extractor, the operation of flued gas appliances should be tested by a competent person to ensure that back flow of combustion gases does not occur.

"In case of replacement with halogen lamp use only self-shielded tungsten halogen lamps or self-shielded metal halide

lamps."

2. USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

3. CARE AND CLEANING

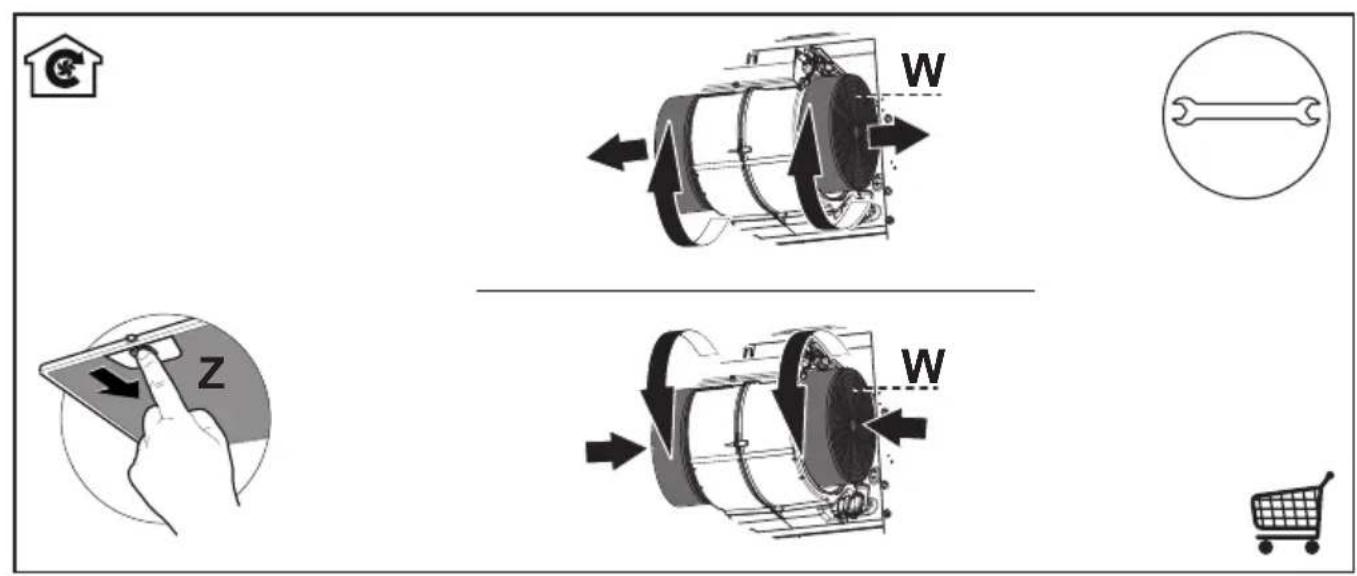

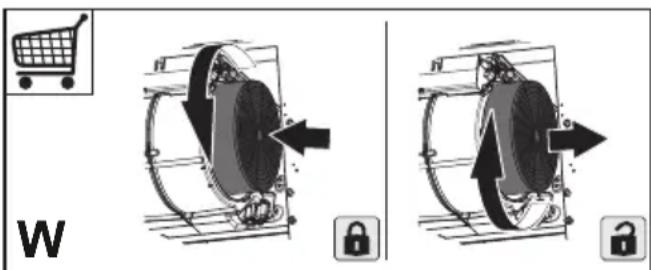

- The Activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage (W).

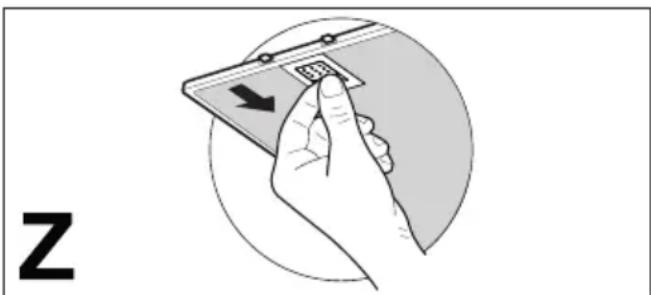

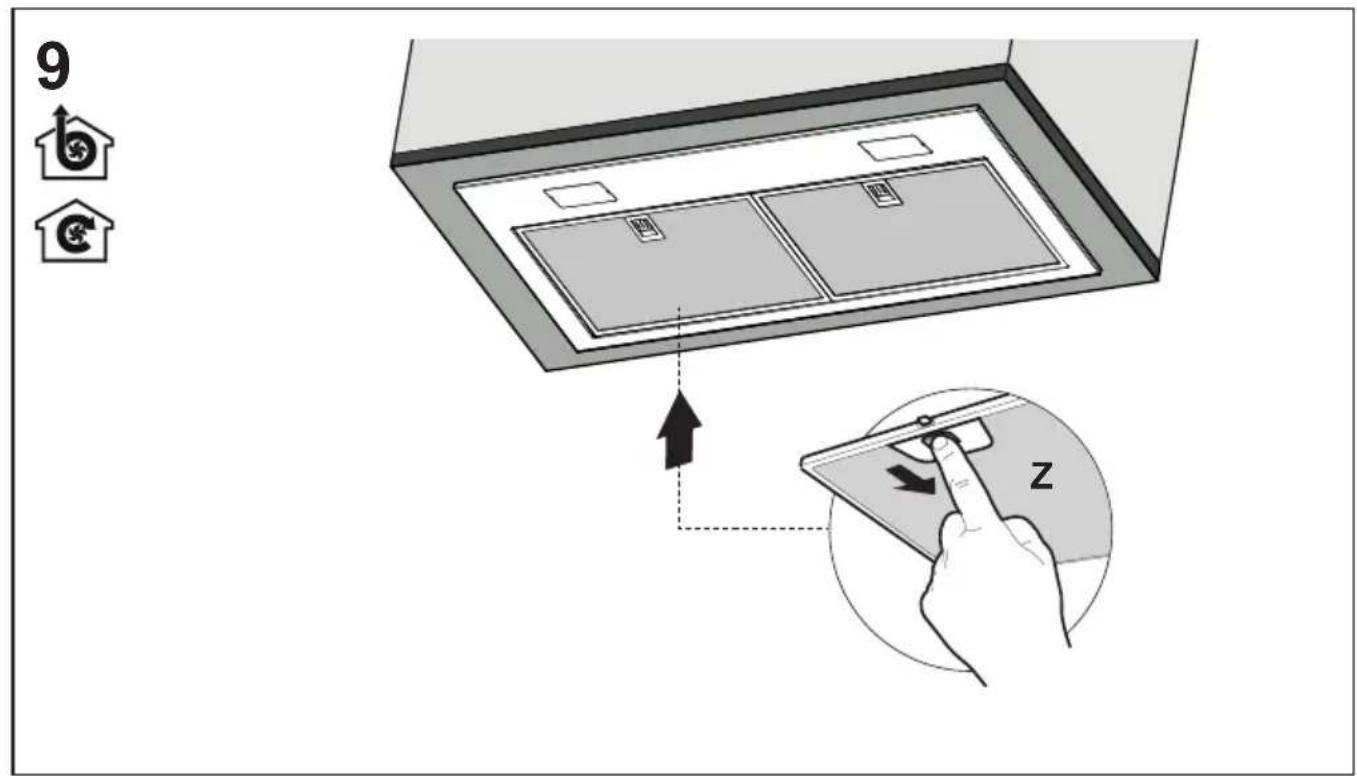

- The Grease filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher (Z).

Illustration of a hand holding a smartphone with a downward arrow, enclosed in a circular frame (no text or symbols)

- Clean the hood using a damp cloth and a neutral liquid detergent.

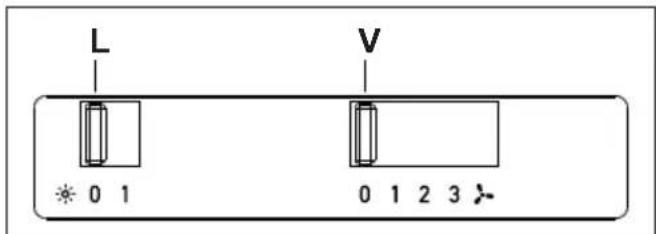

4. CONTROLS

L	Light Switches the lighting system on and off.
V	Speed Sets the operating speed of the extractor:0. Motor Off.1. Low speed, used for a continuous and silent air change in the presence of light cooking vapour.2. Medium speed, suitable for most operating conditions given the optimum treated air flow/noise level ratio.3. Maximum speed, used for eliminating the highest cooking vapour emission, including long periods.

5. LIGHTING

Lamp Power (W) Socket Voltage (V) Dimension (mm) ILCOS Code
	4 E14 2	20 – 240	107 x 37	DRBB/F-4-2	20-240-E14-35/100

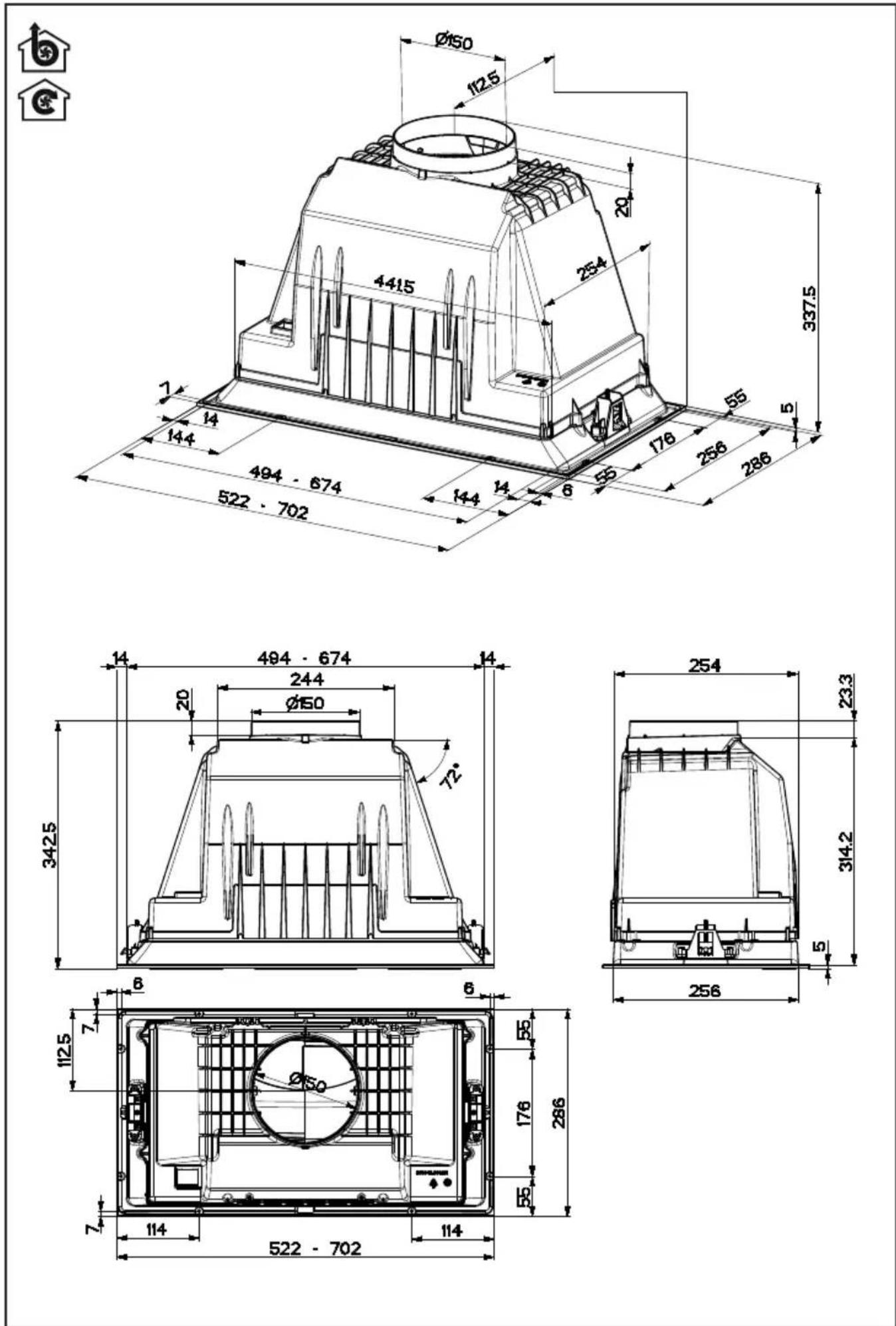

INSTALLATION MANUAL

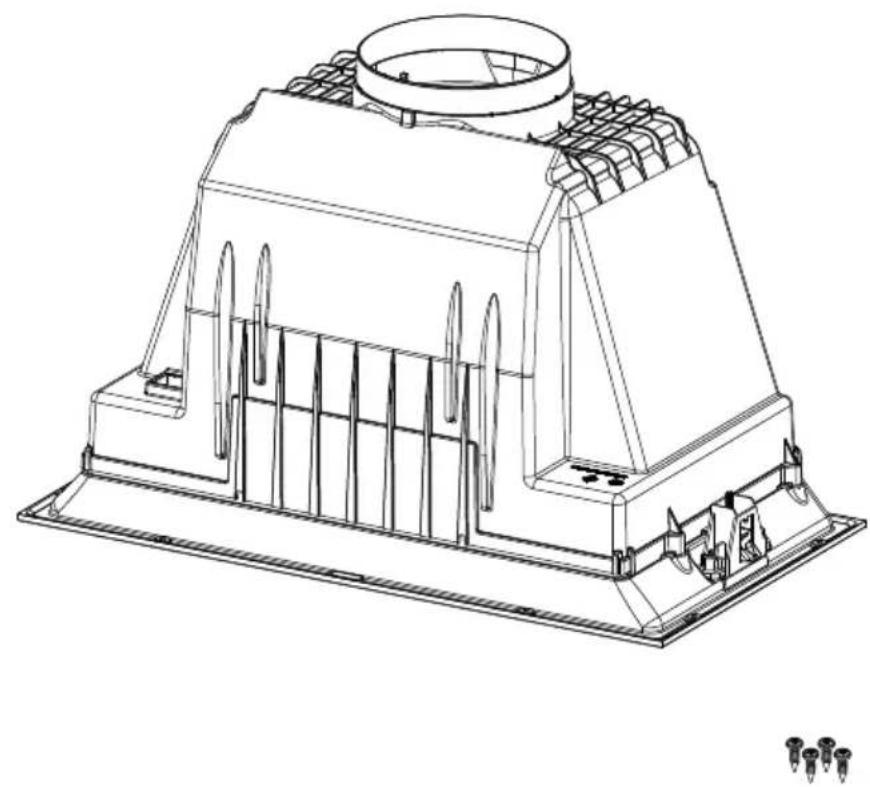

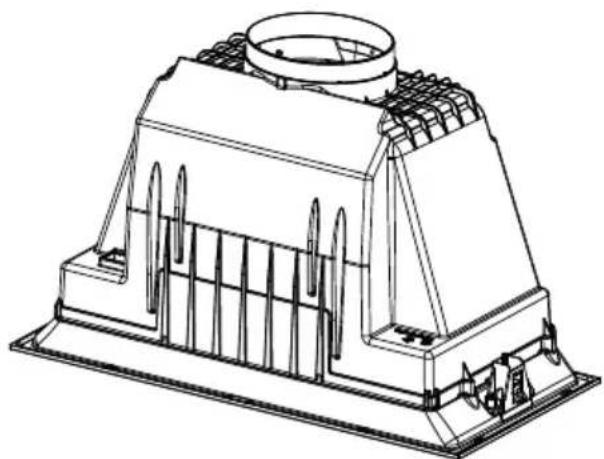

Technical line drawing of a mechanical component with internal channels and mounting base (no text or symbols)

Simple line drawing of a wrench and screwdriver (no text or symbols)

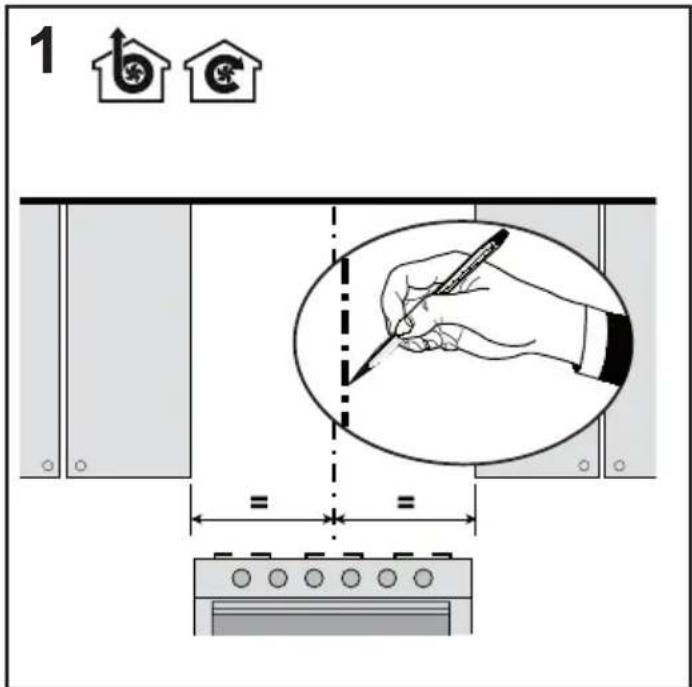

AU Warning! Before proceeding with installation, read the Recommendations and Suggestions in the User Manual.

AU The hood must be installed inside a unit, so that the plastic casing around the hood cannot be reached when installation is complete.

Simple line drawing of an open box (no text or symbols)

Simple line drawing of a conical object with a small protrusion and a label 'O' on the right side (no text or symbols on the object itself)

Technical line drawing of a mechanical component with internal channels and mounting base (no text or symbols)

Simple line drawing of a plug with a cable, no text or symbols present

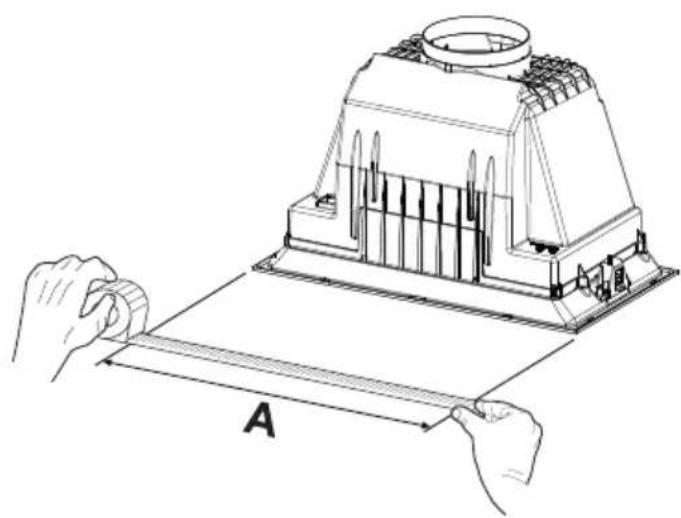

Technical line drawing of a mechanical device with hands operating it, labeled 'A' (no text or symbols on the diagram itself)

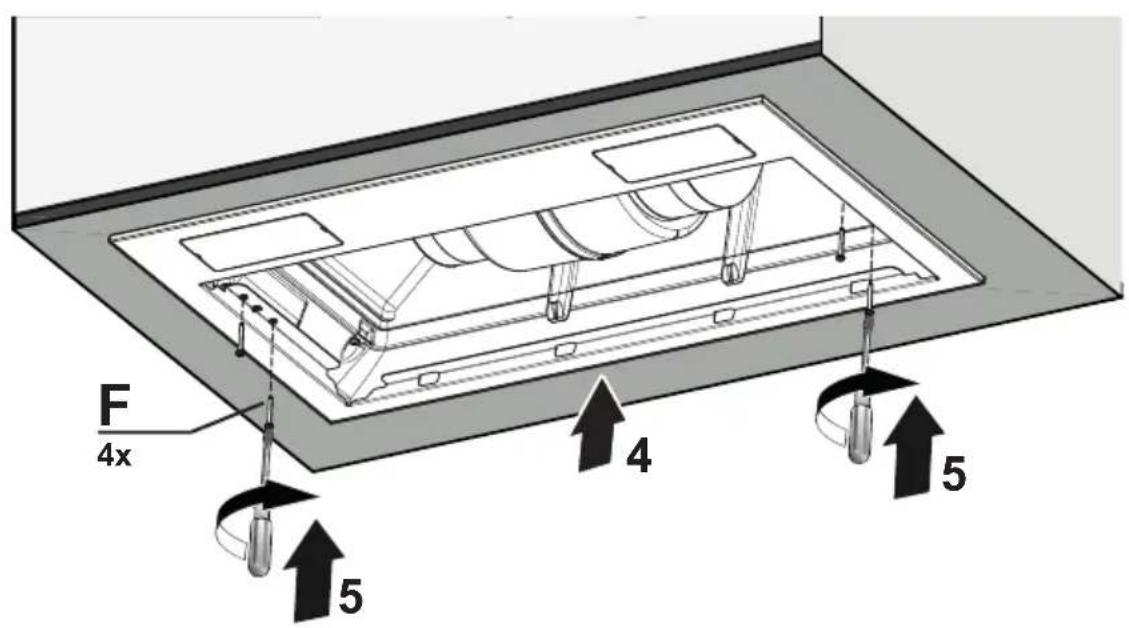

F = 4x

L = 8x (A = 520mm)

L = 10x (A = 700mm)

Symbol of a person crossed out by a diagonal line, representing prohibition or exclusion (no text present)

Two identical black silhouette figures of men, no text or symbols present

Illustration of two types of gloves, one plain and one with visible texture and stitching (no text or symbols)

5

Technical line drawing of a mechanical device with a hand adjusting a component, no text or symbols present

Technical line drawing of an industrial machine with internal components and wiring (no text or symbols)

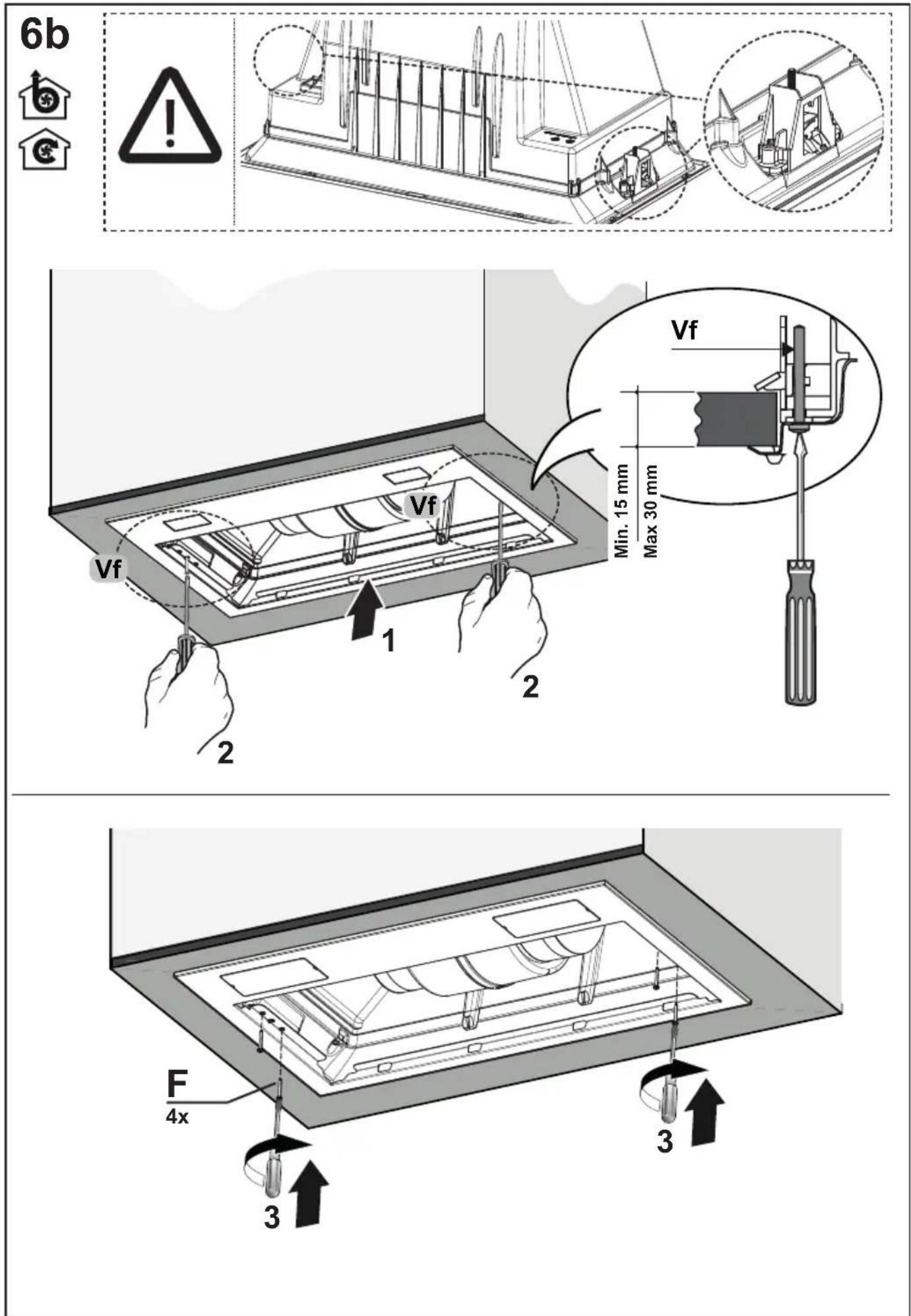

6a

Diagram of hands assembling a device into a tray, showing internal components and a labeled arrow (no text or symbols present)

7
