USER MANUAL SY58609U Microchip

4.25 Gbps Precision, CML 2:1 MUX with Internal Termination and Fail Safe Input

Features

• Precision 400 mV CML 2:1 MUX
- Guaranteed AC Performance Over Temperature and Voltage:
- DC-to >4.25 Gbps Throughput
- <370 ps Propagation Delay (IN-to-Q)
- <90 ps Rise/Fall Times
- Fail Safe Input
- Prevents Outputs from Oscillating when Input is Invalid
- Unique, Patented MUX Input Isolation Design Minimizes Adjacent Channel Crosstalk
- Ultra-low Jitter Design
- < 1 RMS Cycle-to-Cycle Jitter
- < 1 0pp Total Jitter
- < 1 RM\$ Random Jitter
- < 1 0pp Deterministic Jitter
• High-speed CML Outputs
• 2.5V ±5% or 3.3V ±10% Power Supply Operation
- Industrial Temperature Range: -40^ to +85^
• Available in 16-lead 3 mm × 3 mm VQFN Package
- High-speed CML Outputs - 2.5V ±5% or 3.3V ±10% Power Supply Operation - Industrial Temperature Range: -40°C to +85°C - Available in 16-lead 3 mm × 3 mm VQFN Package

Applications

• Data Distribution: OC-48, OC-48+FEC, XAUI
• SONET Clock and Data Distribution
• Fibre Channel Clock and Data Distribution
• Gigabit Ethernet Clock and Data Distribution

Markets

• Storage
• ATE
  • Test and Measurement
• Enterprise Networking Equipment
  • High-end Servers
• Access

General Description

The SY58609U is a 2.5/3.3V, high-speed, fully differential CML 2:1 MUX capable of processing clock signals up to 2.5 GHz and data patterns up to 4.25 Gbps. The SY58609U is optimized to provide a buffered output of the selected input with less than 20 ps of skew and less than 10pspp total jitter.

The differential input includes Microchip's unique, 3-pin input termination architecture that interfaces to LVPECL, LVDS or CML differential signals, (AC- or DC-coupled) as small as 100 mV (200 mVpp) without any level-shifting or termination resistor networks in the signal path. For AC-coupled input interface applications, an integrated reference voltage ( V_REF-AC ) is provided to bias the VT pin. The outputs are 400 mV CML, with extremely fast rise/fall times guaranteed to be less than 90 ps.

The SY58609U operates from a 2.5V ±5% supply or 3.3V ±10% supply and is guaranteed over the full industrial temperature range (-40°C to +85°C). For applications that require LVPECL or LVDS outputs, consider Microchip's SY58610U and SY58611U, 2:1 MUX with 800 mV and 325 mV output swings, respectively. The SY58609U is part of Microchip's high-speed Precision Edge® product line.

Package Type

SY58609U 16-Lead VQFN IN0 IN0 NC VCC VT0 16 15 14 13 Q VREF-AC0 2 11 GND VREF-AC1 3 10 GND VT1 4 9 /Q IN1 /IN1 SEL VCC

Functional Block Diagram

IN0 50Ω V_T0 50Ω /IN0 V_REF-AC0 IN1 50Ω V_T1 50Ω /IN1 V_REF-AC1 SEL (TTL/CMOS) 0 MUX 1 S Q /Q

1.0 ELECTRICAL CHARACTERISTICS

Absolute Maximum Ratings ^†

Supply Voltage ( V_CC )	-0.5V to +4.0V
Input Voltage ( V_IN )	-0.5V to V_CC
CML Output Voltage ( V_OUT )	V_CC - 1.0V to V_CC + 0.5V
Current (VT), source or sink on VT pin	±100 mA
Input Current, source or sink current on (IN, /IN)	±50 mA
Current ( V_REF ), source or sink current on V_REF-AC (Note 4)	±0.5 mA

Operating Ratings ^††

Supply Voltage ( V_CC )....+2.375V to +3.60V

^ Notice: Permanent device damage may occur if absolute maximum ratings are exceeded. This is a stress rating only and functional operation is not implied at conditions other than those detailed in the operational sections of this data sheet. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.

^†† Notice: The data sheet limits are not guaranteed if the device is operated beyond the operating ratings.

Note 1: Due to the limited drive capability, use for input of the same package only.

TABLE 1-1: DC ELECTRICAL CHARACTERISTICS

All values applicable for when T_A = -40°C to +85°C unless otherwise stated. (Note 1)
Parameter Symbol Min. Typ. Max. Units			Conditions
Power Supply Voltage Range	V_CC	2.375	2.5	2.625	V	—
		3.0	3.3	3.6
Power Supply Current	I_CC	—	50	60	mA	No load, max. V_CC
Differential Input Resistance (IN-to-/IN)	R_DIFF\_IN	90	100	110	Ω	—
Input HIGH Voltage (IN, /IN)	V_IH	V_CC-1.6	—	V_CC	V	Note 2
Input LOW Voltage (IN, /IN) V	I_L	0.2	—	V_IH-0.1	V	—
Input Voltage Swing (IN, /IN)	V_IN	0.1	—	1.0	V	See Figure 8-1, Note 3
Differential Input Voltage Swing (|IN - /IN|)	V_DIFF\_IN	0.2	—	—	V	See Figure 8-2
Input Voltage Threshold that Triggers FSI	V_IN\_FSI	—	30	100	mV	—
AC Reference Voltage	V_REF-AC	V_CC-1.3	—	V_CC-1.0	V	—
Voltage from Input to V_T	V_T\_IN	—	—	1.28	V	—

Note 1: The circuit is designed to meet the DC specifications shown in the above table after thermal equilibrium has been established.
2: V_IH (min.) not lower than 1.2V.
3: V_IN (max.) is specified when V_T is floating.

TABLE 1-2: CML OUTPUTS DC ELECTRICAL CHARACTERISTICS

V_CC = +2.5V ± 5% or +3.3V ± 10% ; R_L = 100 across the outputs; and T_A = -40^ to +85^ , unless otherwise stated.(Note 1)
Parameter Symbol Min.	Typ. Max. Units Conditions
Output High Voltage V	OH	V_CC - 0.020 V	_CC - 0.010 V	_CC	V	R_L = 50 to V_CC
Output Voltage Swing V	OUT	325	400	500	mV	See Figure 8-1
Differential Output Voltage Swing	V_DIFF\_OUT	650	800	1000	mV	See Figure 8-2
Output Source Impedance	R_OUT	45	50	55		—

Note 1: The circuit is designed to meet the DC specifications shown in the above table after thermal equilibrium has been established.

TABLE 1-3: LVTTL/CMOS DC ELECTRICAL CHARACTERISTICS

V_CC = +2.5V ± 5% or +3.3V ± 10% ; T_A = -40°C to +85°C , unless otherwise stated. (Note 1)
Parameter	Symbol	Min.	Typ.	Max.	Units	Conditions
Input HIGH Voltage	V_IH	2.0	—	—	V	—
Input LOW Voltage	V_IL	—	—	0.8	V	—
Input HIGH Current I	_IH	-125	—	30	A	—
Input LOW Current	I_IL	-300	—	—	A	—

Note 1: The circuit is designed to meet the DC specifications shown in the above table after thermal equilibrium has been established.

TABLE 1-4: AC ELECTRICAL CHARACTERISTICS

V_CC = +2.5V ± 5% or +3.3V ± 10%; R_L = 100 across the outputs; Input t_r/t_f ≤ 300 ps; and T_A = -40°C to +85°C, unless otherwise stated. (Note 1)
Parameter Symbol Min. Typ. Max. Units Conditions
Maximum Operating Frequency f	MAX	4.25 —	—	Gbps	NRZ Data
		2.5	3	—	GHz	\( V_OUT >200 mV (Clock)
Propagation Delay (IN-to-Q)	t_pd	180	330 450	ps V		_IN: 100 mV - 200 mV
		140	270	370	ps	V_IN: >200 mV
SEL-to-Q	t_pd	150	—	450	ps	—
Input-to-Input Skew	t_SKEW	—	5	20	ps	Note 2, Note 3
Part-to-Part Skew		—	—	150	ps	Note 4
Data (Random Jitter)	t_JITTER	—	—	1	ps_RMS	Note 5
Data (Deterministic Jitter)		—	—	10	ps_PP	Note 6
Clock (Cycle-to-Cycle Jitter)		—	—	1	ps_RMS	Note 7
Clock (Total Jitter)		—	—	10	ps_PP	Note 8
Output Rise/Fall Time20% to 80%	t_r, t_f	35	50	90	ps At full output swing.
Duty Cycle	α	47	—	53	%	Differential I/O.

Note 1: High-frequency AC-parameters are guaranteed by design and characterization.
2: Input-to-Input skew is the time difference between the two inputs and one output, under identical input transitions.
3: Input-to-Input Skew is included in IN-to-Q propagation delay.
4: Part-to-part skew is defined for two parts with identical power supply voltages at the same temperature, same transition edge, and no skew at the edges at the respective inputs.
5: Random jitter is measured with a K28.7 pattern, measured at ≤ f_MAX .
6: Deterministic jitter is measured at 2.5 Gbps with both K28.5 and 223 - 1 PRBS pattern.
7: Cycle-to-cycle jitter definition: The variation period between adjacent cycles over a random sample of adjacent cycle pairs. t_JITTER_CC = T_n - T_n+1 , where T is the time between rising edges of the output signal.
8: Total jitter definition: With an ideal clock input frequency of ≤ f_MAX (device), no more than one output edge in 10^12 output edges will deviate by more than the specified peak-to-peak jitter value.

TABLE 1-5: TEMPERATURE SPECIFICATIONS

Parameter	Symbol	Min.	Typ.	Max.	Units	Conditions
Temperature Range
Operating Ambient Temperature	T_A	-40	—	+85	°C	—
Maximum Operating Junction Temperatuer	T_JMAX	—	+125	—	°C
Lead Temperature	T_LEAD	—	+260	—	°C	Soldering, 20 sec.
Storage Temperature	T_S	-65	—	+150	°C	—
Package Thermal Resistance (Note 1)
VQFN, Still Air	_JA	—	+60	—	°C/W	—
VQFN, Junction-to-Board	_JB	—	+33	—	°C/W	—

Note 1: Package thermal resistance assumes exposed pad is soldered (or equivalent) to the device's most negative potential on the PCB. _JB and _JA values are determined for a 4-layer board in still-air number, unless otherwise stated.

2.0 PIN DESCRIPTIONS

The descriptions of the pins are listed in Table 2-1.

TABLE 2-1: PIN FUNCTION TABLE

Pin Number	Pin Name Description
1, 4 VT0,	VT1	Input Termination Center-Tap: Each side of the differential input pair terminates to the VT pin. This pin provides a center-tap to a termination network for maximum interface flexibility. See “Input Interface Applications” subsection.
2, 3	VREF-AC0VREF-AC1	Reference Voltage: These outputs bias to V_CC - 1.2V . They are used for AC-coupling inputs IN and /IN. Connect VREF-AC directly to the corresponding VT pin. Bypass with 0.01 μF low ESR capacitor to VCC. Due to limited drive capability, the VREF-AC pin is only intended to drive its respective VT pin. Maximum sink/source current is ±0.5 mA. See “Input Interface Applications” subsection.
5, 615, 16	IN1, /IN1IN0, /IN0	Differential Inputs: These input pairs are the differential signal inputs to the device. Inputs accept DC-Coupled differential signals as small as 100 mV (200 mVpp). Each pin of the pairs internally terminates with 50Ω to the VT pin. If the input swing falls below a certain threshold (typical 30 mV), the Fail Safe Input (FSI) feature will guarantee a stable output by latching the output to its last valid state. See “Input Interface Applications” subsection.
7 SEL		Single-Ended Input: This single-ended TTL/CMOS-compatible input selects the inputs to the multiplexer. Note that this input is internally connected to a 25 kΩ pull-up resistor and will default to logic HIGH state if left open. The input-switching threshold is V_CC/2 .
8, 13 VCC		Positive Power Supply: Bypass with 0.1 uF || 0.01 uF low ESR capacitors as close to the VCC pins as possible.
9, 12 /Q, Q		CML Differential Output Pair: Differential buffered output copy of the selected input signal. The output swing is typically 400 mV. Normally terminate with 100Ω across Q and /Q. Unused output pair may be left floating with no impact on jitter. See “CML Output Termination” subsection.
10, 11 GND		Ground. Exposed pad must be connected to a ground plane that is the same potential as the ground pins.
14 NC No connect.

3.0 TYPICAL CHARACTERISTICS

V_CC = 2.5V; GND = 0V; V_IN = 100 mV; R_L = 100 across the outputs; and T_A = 25^ , unless otherwise stated.

FIGURE 3-1: FREQUENCY RESPONSE.

FIGURE 3-4: PROPAGATION DELAY VS. INPUT RISE/FALL TIME.

FIGURE 3-2: PROPAGATION DELAY VS. INPUT RISE/FALL TIME.

FIGURE 3-5: PROPAGATION DELAY VS. INPUT RISE/FALL TIME.

FIGURE 3-3: PROPAGATION DELAY VS. INPUT RISE/FALL TIME.

4.0 TYPICAL WAVEFORMS (FUNCTIONAL CHARACTERISTICS)

V_CC = 2.5V; GND = 0V; V_IN = 325 mV; R_L = 100 across the outputs; and T_A = 25^ , unless otherwise stated.

FIGURE 4-1: 1.25 GBPS DATA.

FIGURE 4-4: 4.25 GBPS DATA.

FIGURE 4-2: 2.5 GBPS DATA.

FIGURE 4-5: 625 MHZ CLOCK.

Output Swing (100mV/div.) TIME (80ps/div.)

FIGURE 4-3: 3.2 GBPS DATA.

FIGURE 4-6: 1.25 GHZ CLOCK.

FIGURE 4-7: 2 GHZ CLOCK.

FIGURE 4-8: 3 GHZ CLOCK.

5.0 CML OUTPUT TERMINATION

VCC 50Ω 50Ω Z0 = 50Ω /Q 100Ω Z0 = 50Ω Q GND

FIGURE 5-1: CML DC-COUPLED TERMINATION.

VCC 50Ω 50Ω Z0 = 50Ω /Q 50Ω VBIAS Z0 = 50Ω 50Ω Q GND

FIGURE 5-3: CML AC-COUPLED TERMINATION.

VCC 50Ω 50Ω Z0 = 50Ω /Q 50Ω VCC Z0 = 50Ω Q 50Ω GND

FIGURE 5-2: CML DC-COUPLED TERMINATION.

6.0 FUNCTIONAL DESCRIPTION

6.1 Fail-Safe Input (FSI)

The input includes a special failsafe circuit to sense the amplitude of the input signal and to latch the outputs when there is no input signal present, or when the amplitude of the input signal drops sufficiently below 100mVPK (200mVPP), typically 30mVPK. Maximum frequency of the SY58609U is limited by the FSI function.

6.2 Input Clock Failure Case

If the input clock fails to a floating, static, or extremely low signal swing, the FSI function will eliminate a metastable condition and guarantee a stable output. No ringing and no undetermined state will occur at the output under these conditions.

Note that the FSI function will not prevent duty cycle distortion in case of a slowly deteriorating (but still toggling) input signal. Due to the FSI function, the propagation delay will depend on rise and fall time of the input signal and on its amplitude. Refer to "Typical Characteristics" for detailed information.

7.0 TIMING DIAGRAMS

/IN IN /Q Q t_pd t_pd V_IN V_OUT

FIGURE 7-1: TIMING DIAGRAM: PROPAGATION DELAY.

FIGURE 7-2: TIMING DIAGRAM: FAIL-SAFE FEATURE.

SEL Vcc/2 Vcc/2 tpd tpd Q /Q

FIGURE 7-3: TIMING DIAGRAM: SEL-TO-Q DELAY.

8.0 SINGLE-ENDED AND DIFFERENTIAL SWINGS

VIN, VOUT 400mV (typical)

FIGURE 8-1: SINGLE-ENDED VOLTAGE SWING.

FIGURE 8-2: DIFFERENTIAL VOLTAGE SWING.

9.0 INPUT AND OUTPUT STAGE

IN 50Ω V₁ 50Ω /IN VCC GND

FIGURE 9-1: SIMPLIFIED DIFFERENTIAL INPUT BUFFER.

VCC 50Ω 50Ω /Q Q GND

FIGURE 9-2: SIMPLIFIED CML OUTPUT BUFFER.

10.0 INPUT INTERFACE APPLICATIONS

VCC CML IN /IN SY58609U GND NC □ VT NC □ VREF-AC Option: May connect VT to VCC

FIGURE 10-1: DC-COUPLED CML INPUT INTERFACE.

VCC LVPECL IN IN Rp Rp VCC 0.1μF VT VREF-AC GND GND SY58609U Note: For 3.3V, Rp = 100Ω. For 2.5V, Rp = 50Ω.

FIGURE 10-4: AC-COUPLED LVPECL INPUT INTERFACE.

VCC CML GND IN /IN VCC 0.1μF SY58609U VT VREF-AC

FIGURE 10-2: AC-COUPLED CML INPUT INTERFACE.

VCC LVDS GND IN /IN SY58609U NC VT NC VREF-AC

FIGURE 10-5: DC-COUPLED LVDS INPUT INTERFACE.

VCC LVPECL IN /IN GND VCC 0.1μF VT NC VREF-AC Note: For 3.3V, RP = 50Ω. For 2.5V, RP = 19Ω.

FIGURE 10-3: DC-COUPLED LVPECL INPUT INTERFACE.

11.0 PACKAGING INFORMATION

11.1 Package Marking Information

16-Lead VQFN* -XXXX WNNN

Example* 609U 9026

Legend: XX...X Product code or customer-specific information

W W e e k c o d e

NNN Alphanumeric traceability code (week)

* This package is Pb-free. The Pb-free JEDEC designator can be found on the outer packaging for this package.

• Pin one index is identified by a dot

Note: In the event the full Microchip part number cannot be marked on one line, it will be carried over to the next line, thus limiting the number of available characters for customer-specific information. Package may or may not include the corporate logo.

Underbar (_) and/or Overbar (−) symbol may not be to scale.

16-Lead 3 mm × 3 mm VQFN [NCA] Package Outline and Recommended Land Pattern

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

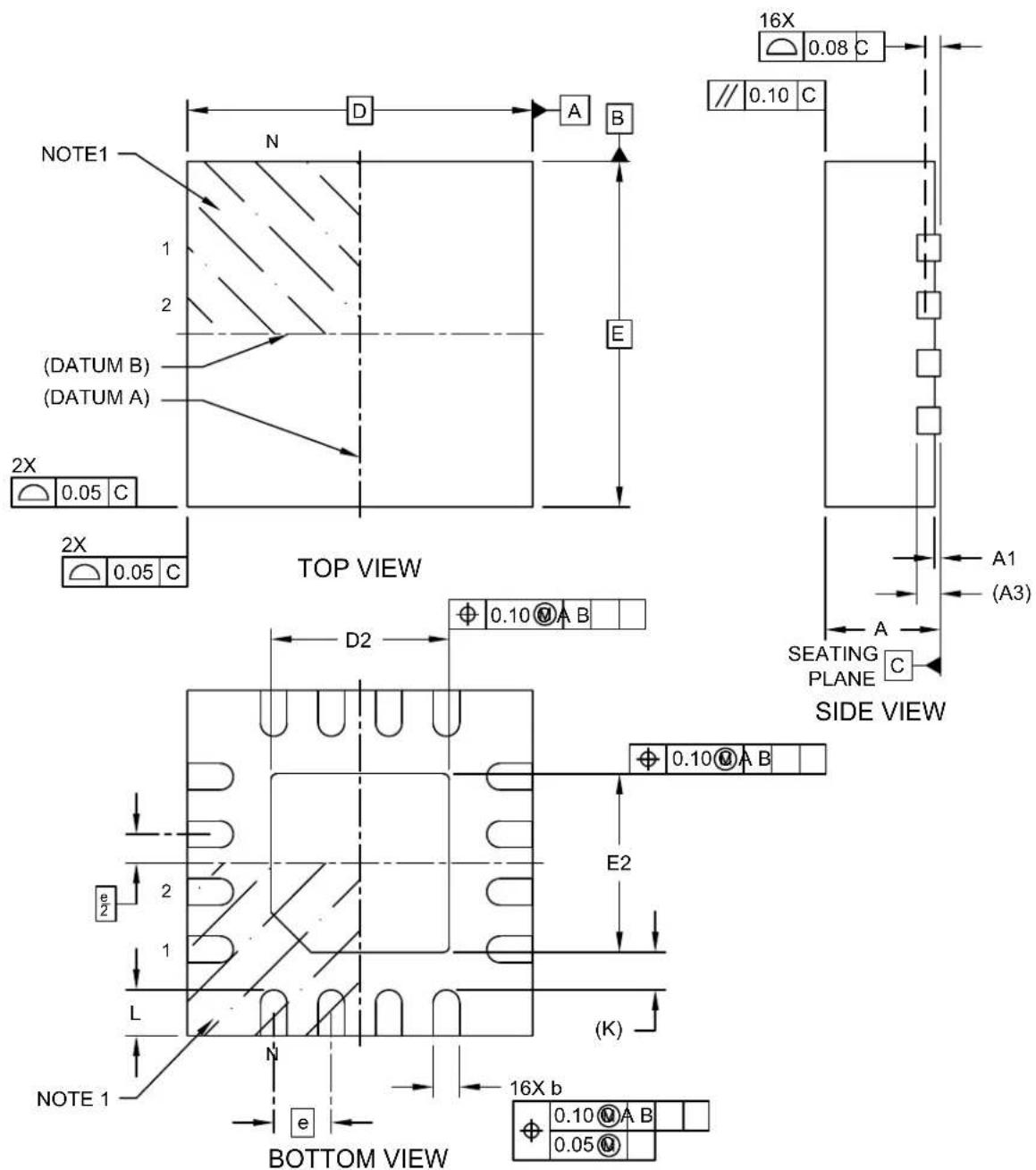

NOTE1 1 2 (DATUM B) (DATUM A) 2X 0.05 C 2X 0.05 C TOP VIEW D2 ⊕ 0.10 M A B E2 L e/2 2 1 N NOTE 1 e 16X b BOTTOM VIEW 16X 0.08 C // 0.10 C A1 (A3) SEATING PLANE C SIDE VIEW

Microchip Technology Drawing C04-1103-NCA Rev C Sheet 1 of 2

16-Lead 3 mm × 3 mm VQFN [NCA] Package Outline and Recommended Land Pattern

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

Technical line drawing of two integrated circuit chips with pinouts (no text or symbols)

Units		MILLIMETERS
Dimension Limits		MIN	NOM	MAX
Number of Terminals	N	16
Pitch	e	0.50 BSC
Overall Height	A	0.80	0.90	1.00
Standoff	A1	0.00	0.02	0.05
Terminal Thickness	A3	0.203 REF
Overall Length	D	3.00 BSC
Exposed Pad Length	D2 1.50		1.55 1.60
Overall Width	E	3.00 BSC
Exposed Pad Width	E2	1.50	1.55	1.60
Terminal Width	b	0.18	0.23	0.28
Terminal Length	L	0.35	0.40	0.45
	K 0.33 REFTerminal-to-Exposed-Pad

Notes:
1. Pin 1 visual index feature may vary, but must be located within the hatched area.
2. Package is saw singulated
3. Dimensioning and tolerancing per ASME Y14.5M BSC: Basic Dimension. Theoretically exact value shown without tolerances. REF: Reference Dimension, usually without tolerance, for information purposes only.

Microchip Technology Drawing C04-1103-NCA Rev C Sheet 2 of 2

16-Lead 3 mm × 3 mm VQFN [NCA] Package Outline and Recommended Land Pattern

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

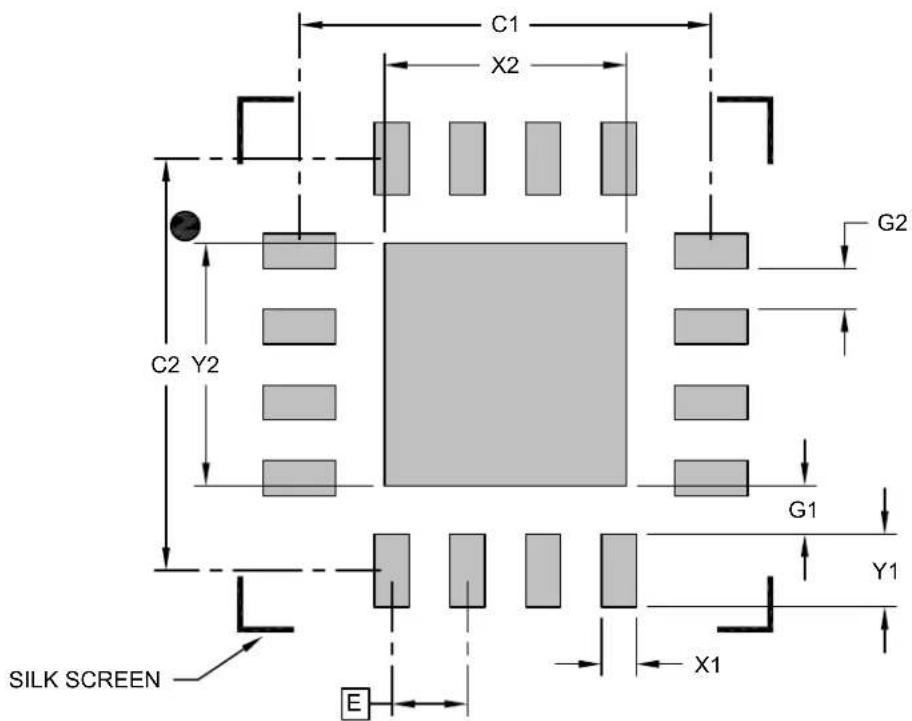

C1 X2 G2 C2 Y2 G1 Y1 X1 SILK SCREEN E

RECOMMENDED LAND PATTERN

Units		MILLIMETERS
Dimension Limits		MIN	NOM	MAX
Contact Pitch	E	0.50 BSC
Center Pad Width	X2			1.60
Center Pad Length	Y2			1.60
	C1Contact Pad Spacing 2.72
Contact Pad Spacing	C2		2.72
Contact Pad Width (Xnn)	X1			0.23
Contact Pad Length (Xnn)	Y1			0.48
Contact Pad to Center Pad (Xnn) G1	0.32
Contact Pad to Contact Pad (Xnn) G2	0.27

Notes:
Dimensioning and tolerancing per ASME Y14.5M1.
BSC: Basic Dimension. Theoretically exact value shown without tolerances.

Microchip Technology Drawing C04-3103-NCA Rev C

NOTES:

APPENDIX A: REVISION HISTORY

Revision A (March 2024)

• Converted Micrel data sheet for SY58609U to Microchip format as DS20006873A.
• Minor text changes throughout.

NOTES:

PRODUCT IDENTIFICATION SYSTEM

To order or obtain information, e.g., on pricing or delivery, contact your local Microchip representative or sales office.

Device

Supply
Voltage Range

Package

Range

Special Temperature Processing

Device: SY58609 = 4.25 Gbps Precision, CML 2:1

MUX with Internal Termination and Fail Safe Input

Voltage

$$ U = 2. 5 V / 3. 3 V $$

Option:

Package: M = 16-Lead VQFN

Temperature

$$ G = - 4 0 ^ {\circ} \mathrm{C} \text { to } 8 5 ^ {\circ} \mathrm{C} $$

Range:

Special

$$ < \text { blank } > = 1 0 0 / \text { Tube } $$

Processing:

$$ \text { TR } = 1, 0 0 0 / \text { Reel } $$

Examples:

SY58609UMG

2.5V/3.3V, 16-Lead VQFN, -40°C to 85°C, 100/Tube

b) SY58609UMG-TR

2.5V/3.3V, 16-Lead VQFN, -40°C to 85°C, 1,000/Reel

NOTES:

Note the following details of the code protection feature on Microchip products:

• Microchip products meet the specifications contained in their particular Microchip Data Sheet.
- Microchip believes that its family of products is secure when used in the intended manner, within operating specifications, and under normal conditions.
- Microchip values and aggressively protects its intellectual property rights. Attempts to breach the code protection features of Microchip product is strictly prohibited and may violate the Digital Millennium Copyright Act.
- Neither Microchip nor any other semiconductor manufacturer can guarantee the security of its code. Code protection does not mean that we are guaranteeing the product is "unbreakable" Code protection is constantly evolving. Microchip is committed to continuously improving the code protection features of our products.

This publication and the information herein may be used only with Microchip products, including to design, test, and integrate Microchip products with your application. Use of this information in any other manner violates these terms. Information regarding device applications is provided only for your convenience and may be superseded by updates. It is your responsibility to ensure that your application meets with your specifications. Contact your local Microchip sales office for additional support or, obtain additional support at https://www.microchip.com/en-us/support/design-help/client-support-services.

THIS INFORMATION IS PROVIDED BY MICROCHIP "AS IS". MICROCHIP MAKES NO REPRESENTATIONS OR WARRANTIES OF ANY KIND WHETHER EXPRESS OR IMPLIED, WRITTEN OR ORAL, STATUTORY OR OTHERWISE, RELATED TO THE INFORMATION INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY, AND FITNESS FOR A PARTICULAR PURPOSE, OR WARRANTIES RELATED TO ITS CONDITION, QUALITY, OR PERFORMANCE.

IN NO EVENT WILL MICROCHIP BE LIABLE FOR ANY INDIRECT, SPECIAL, PUNITIVE, INCIDENTAL, OR CONSEQUENTIAL LOSS, DAMAGE, COST, OR EXPENSE OF ANY KIND WHATSOEVER RELATED TO THE INFORMATION OR ITS USE, HOWEVER CAUSED, EVEN IF MICROCHIP HAS BEEN ADVISED OF THE POSSIBILITY OR THE DAMAGES ARE FORESEEABLE. TO THE FULLEST EXTENT ALLOWED BY LAW, MICROCHIP'S TOTAL LIABILITY ON ALL CLAIMS IN ANY WAY RELATED TO THE INFORMATION OR ITS USE WILL NOT EXCEED THE AMOUNT OF FEES, IF ANY, THAT YOU HAVE PAID DIRECTLY TO MICROCHIP FOR THE INFORMATION.

Use of Microchip devices in life support and/or safety applications is entirely at the buyer's risk, and the buyer agrees to defend, indemnify and hold harmless Microchip from any and all damages, claims, suits, or expenses resulting from such use. No licenses are conveyed, implicitly or otherwise, under any Microchip intellectual property rights unless otherwise stated.

Trademarks

The Microchip name and logo, the Microchip logo, Adaptec, AVR, AVR logo, AVR Freaks, BesTime, BitCloud, CryptoMemory, CryptoRF, dsPIC, flexPWR, HELDO, IGLOO, JukeBlox, KeeLoq, Kleer, LANCheck, LinkMD, maXStylus, maXTouch, MediaLB, megaAVR, Microsemi, Microsemi logo, MOST, MOST logo, MPLAB, OptoLyzer, PIC, picoPower, PICSTART, PIC32 logo, PolarFire, Prochip Designer, QTouch, SAM-BA, SenGenuity, SpyNIC, SST, SST Logo, SuperFlash, Symmetricom, SyncServer, Tachyon, TimeSource, tinyAVR, UNI/O, Vectron, and XMEGA are registered trademarks of Microchip Technology Incorporated in the U.S.A. and other countries.

AgileSwitch, ClockWorks, The Embedded Control Solutions Company, EtherSynch, Flashtec, Hyper Speed Control, HyperLight Load, Libero, motorBench, mTouch, Powermite 3, Precision Edge, ProASIC, ProASIC Plus, ProASIC Plus logo, Quiet-Wire, SmartFusion, SyncWorld, TimeCesium, TimeHub, TimePictra, TimeProvider, and ZL are registered trademarks of Microchip Technology Incorporated in the U.S.A.

Adjacent Key Suppression, AKS, Analog-for-the-Digital Age, Any Capacitor, AnyIn, AnyOut, Augmented Switching, BlueSky, BodyCom, Clockstudio, CodeGuard, CryptoAuthentication, CryptoAutomotive, CryptoCompanion, CryptoController, dsPICDEM, dsPICDEM.net, Dynamic Average Matching, DAM, ECAN, Espresso T1S, EtherGREEN, EyeOpen, GridTime, IdealBridge, IGAT, In-Circuit Serial Programming, ICSP, INICnet, Intelligent Paralleling, IntelliMOS, InterChip Connectivity, JitterBlocker, Knob-on-Display, MarginLink, maxCrypto, maxView, memBrain, Mindi, MiWi, MPASM, MPF, MPLAB Certified logo, MPLIB, MPLINK, mSiC, MultiTRAK, NetDetach, Omniscient Code Generation, PICDEM, PICDEM.net, PICkit, PICtail, Power MOS IV, Power MOS 7, PowerSmart, PureSilicon, QMatrix, REAL ICE, Ripple Blocker, RTAX, RTG4, SAM-ICE, Serial Quad I/O, simpleMAP, SimpliPHY, SmartBuffer, SmartHLS, SMART-I.S., storClad, SQI, SuperSwitcher, SuperSwitcher II, Switchtec, SynchroPHY, Total Endurance, Trusted Time, TSHARC, Turing, USBCheck, VariSense, VectorBlox, VeriPHY, ViewSpan, WiperLock, XpressConnect, and ZENA are trademarks of Microchip Technology Incorporated in the U.S.A. and other countries.

SQTP is a service mark of Microchip Technology Incorporated in the U.S.A.

The Adaptec logo, Frequency on Demand, Silicon Storage Technology, and Symmcom are registered trademarks of Microchip Technology Inc. in other countries.

GestIC is a registered trademark of Microchip Technology Germany II GmbH & Co. KG, a subsidiary of Microchip Technology Inc., in other countries.

All other trademarks mentioned herein are property of their respective companies.

© 2024, Microchip Technology Incorporated and its subsidiaries.

All Rights Reserved.

ISBN: 978-1-6683-4170-4

For information regarding Microchip's Quality Management Systems, please visit www.microchip.com/quality.

Worldwide Sales and Service

AMERICAS

Corporate Office

2355 West Chandler Blvd.

Chandler, AZ 85224-6199

Tel: [phone]

Fax: [phone]

Technical Support:

http://www.microchip.com/

support

Web Address:

www.microchip.com

Atlanta

Duluth, GA

Tel: [phone]

Fax: [phone]

Austin, TX

Tel: [phone]

Boston

Westborough, MA

Tel: [phone]

Fax: [phone]

Chicago

Itasca, IL

Tel: [phone]

Fax: [phone]

Dallas

Addison, TX

Tel: [phone]

Fax: [phone]

Detroit

Novi, MI

Tel: [phone]

Houston, TX

Tel: [phone]

Indianapolis

Noblesville, IN

Tel: [phone]

Fax: [phone]

Tel: [phone]

Los Angeles

Mission Viejo, CA

Tel: [phone]

Fax: [phone]

Tel: [phone]

Raleigh, NC

Tel: [phone]

New York, NY

Tel: [phone]

San Jose, CA

Tel: [phone]

Tel: [phone]

Canada - Toronto

Tel: [phone]

Fax: [phone]

ASIA/PACIFIC

Australia - Sydney

Tel: [phone]

China - Beijing

Tel: [phone]

China - Chengdu

Tel: [phone]

China - Chongqing

Tel: [phone]

China - Dongguan

Tel: [phone]

China - Guangzhou

Tel: [phone]

China - Hangzhou

Tel: [phone]

China - Hong Kong SAR

Tel: [phone]

China - Nanjing

Tel: [phone]

China - Qingdao

Tel: [phone]

China - Shanghai

Tel: [phone]

China - Shenyang

Tel: [phone]

China - Shenzhen

Tel: [phone]

China - Suzhou

Tel: [phone]

China - Wuhan

Tel: [phone]

China - Xian

Tel: [phone]

China - Xiamen

Tel: [phone]

China - Zhuhai

Tel: [phone]

ASIA/PACIFIC

India - Bangalore

Tel: [phone]

India - New Delhi

Tel: [phone]

India - Pune

Tel: [phone]

Japan - Osaka

Tel: [phone]

Japan - Tokyo

Tel: [phone]

Korea - Daegu

Tel: [phone]

Korea - Seoul

Tel: [phone]

Malaysia - Kuala Lumpur

Tel: [phone]

Malaysia - Penang

Tel: [phone]

Philippines - Manila

Tel: [phone]

Singapore

Tel: [phone]

Taiwan - Hsin Chu

Tel: [phone]

Taiwan - Kaohsiung

Tel: [phone]

Taiwan - Taipei

Tel: [phone]

Thailand - Bangkok

Tel: [phone]

Tel: [phone]

Fax: [phone]

Denmark - Copenhagen

Tel: [phone]

Fax: [phone]

Finland - Espoo

Tel: [phone]

France - Paris

Tel: [phone]

Fax: [phone]

Germany - Garching

Tel: [phone]

Germany - Haan

Tel: [phone]

Germany - Heilbronn

Tel: [phone]

Germany - Karlsruhe

Tel: [phone]

Germany - Munich

Tel: [phone]

Fax: [phone]

Germany - Rosenheim

Tel: [phone]

Israel - Ra'anana

Tel: [phone]

Italy - Milan

Tel: [phone]

Fax: [phone]

Italy - Padova

Tel: [phone]

Netherlands - Drunen

Tel: [phone]

Fax: [phone]

Norway - Trondheim

Tel: [phone]

Poland - Warsaw

Tel: [phone]

Romania - Bucharest

Tel: [phone]

Spain - Madrid

Tel: [phone]

Fax: [phone]

Sweden - Gothenberg

Tel: [phone]

Sweden - Stockholm

Tel: [phone]

UK - Wokingham

Tel: [phone]

Fax: [phone]
