USER MANUAL SY58017U Microchip

■ Guaranteed AC performance over temperature and voltage:

• DC to > 10.7Gbps data throughput
• DC to > 7GHz f MAX (clock)
  • < 240ps propagation delay
  • < 60ps r t/ t f times

■ Ultra-low crosstalk-induced jitter: < 0.7ps rms

■ Ultra-low jitter design:

• < 1 pMS random jitter
• < 1 Qppdeterministic jitter
• < 1 Qpp total jitter (clock)

■ Unique input termination and V_T pin accepts DC-coupled and AC-coupled inputs (CML, PECL, LVDS)
■ Internal 50Ω output source termination
■ Typical 400mV CML output swing ( R_L = 50 )
■ Power supply 2.5V ±5% or 3.3V ±10%
■ -40^ to +85^ temperature range
■ Available in 16-pin (3mm × 3mm) MLF® package

APPLICATIONS

■ Redundant clock distribution
■ OC-3 to OC-192 SONET/SDH clock/data distribution
■ Loopback
■ Fibre Channel distribution

FUNCTIONAL BLOCK DIAGRAM

IN0 50Ω V_T0 50Ω /IN0 IN1 50Ω V_T1 50Ω /IN1 SEL (TTL/CMOS) 0 MUX 1 S Q0 /Q0

Precision Edge®

DESCRIPTION

The SY58017U is a 2.5V/3.3V precision, high-speed, 2:1 differential MUX capable of handling clocks up to 7GHz and data up to 10.7Gbps.

The differential input includes Micrel's unique, 3-pin input termination architecture that allows customers to interface to any differential signal (AC- or DC-coupled) as small as 100mV without any level shifting or termination resistor networks in the signal path. The outputs are 50Ω source terminated CML, with extremely fast rise/fall times guaranteed to be less than 60ps.

The SY58017U operates from a 2.5V ±5% supply or a 3.3V ±10% supply and is guaranteed over the full industrial temperature range of -40°C to +85°C. For applications that require LVPECL outputs, consider the SY58018U or SY58019U Multiplexers with LVPECL outputs. The SY58017U is part of Micrel's high-speed, Precision Edge® product line.

All support documentation can be found on Micrel's web site at www.micrel.com.

TYPICAL PERFORMANCE

10.7Gbps Output Output Swing (100mV/div.) TIME (25ps/div.) (2²³-1 PRBS)

Precision Edge and AnyGate are registered trademarks of Micrel, Inc.

MicroLeadFrame and MLF are registered trademarks of Amkor Technology, Inc.

PACKAGE/ORDERING INFORMATION

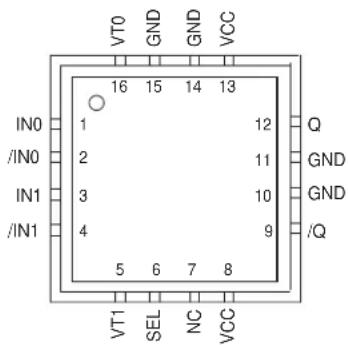

VT0 GND GND VCC 16 15 14 13 IN0 1 12 Q /IN0 2 11 GND IN1 3 10 GND /IN1 4 9 /Q 5 6 7 8 VT1 SEL NC VCC

16-Pin MLF ^® (MLF-16)

Ordering Information ^(1)

Part Number	Package Type	Operating Range Marking	Package Finish	Lead
SY58017UMI	MLF-16	Industrial	017U	Sn-Pb
SY58017UMITR(2)	MLF-16	Industrial	017U	Sn-Pb
SY58017UMG(3)	MLF-16	Industrial	017U with Pb-Free bar-line indicator	Pb-Free NiPdAu
SY58017UMGTR(2, 3)	MLF-16	Industrial	017U with Pb-Free bar-line indicator	Pb-Free NiPdAu

Notes:

1. Contact factory for die availability. Dice are guaranteed at T_A = 25^ , DC electricals only.
2. Tape and Reel.
3. Pb-Free package recommended for new designs.

PIN DESCRIPTION

Pin Number Pin	Name Pin Function
1, 2 IN0, /IN03, 4 IN1, /IN1	Differential Input: These input pairs are the differential signal inputs to the device. They accept differential AC- or DC-coupled signals as small as 100mV. Each pin of a pair internally terminates to a V_T pin through 50Ω. Note that these inputs will default to an indeterminate state if left open. Please refer to the “Input Interface Applications” section for more details.
16, 5 VT0, VT1	Input Termination	Center-Tap: Each side of the differential input pair terminates to a V T pin. The V_T0 and V_T1 pins provide a center-tap to a termination network for maximum interface flexibility. See “Input Interface Applications” section for more details.
6 SEL This	single-ended TTL	CMOS compatible input selects the inputs to the multiplexer. Note that this input is internally connected to a 25kΩ pull-up resistor and will default to a logic HIGH state if left open.
7	N	C No connect.
8, 13	VCC	Positive Power Supply: Bypass with 0.1μF||0.01μF low ESR capacitors. 0.01μF capacitor should be as close to V_CC pin as possible.
12, 9 Q, /Q Differential Outputs		This CML output pair is the output of the device. Normally terminate with 100Ω across Q and /Q. See “Output Interface Applications” section. It is a logic function of the IN0, IN1, and SEL inputs. Please refer to the “Truth Table” for details.
10, 11, 14, 15	GND, Exposed Pad	Ground. Ground pins and exposed pad must be connected to the same ground plane.

TRUTH TABLE

SEL	Output
0	IN0 Input Selected
1	IN1 Input Selected

Absolute Maximum Ratings ^(1)

Power Supply Voltage ( V_CC ) ..... -0.5V to +4.0V

Input Voltage ( V_IN ) -0.5V to V_CC

CML Output Voltage ( V_OUT )..... V_CC-1.0V to V_CC+0.5V

Termination Current ^(3)

Source or sink current on V_T pin ....±100mA Input Current

Source or sink current on IN, /IN pin ....±50mA Lead Temperature (soldering, 20 sec.) ....260°C Storage Temperature Range ( T_S ) ....-65°C to +150°C

Operating Ratings ^(2)

Power Supply Voltage ( V_CC ) ..... +2.375V to +2.625V ..... +3.0V to +3.6V

Ambient Temperature Range ( T_A ) ..... -40°C to +85°C

Package Thermal Resistance ^(4)

MLF ^ ( _JA ) Still-Air ....60°C/W MLF ^ ( _JB ) Junction-to-Board ....38°C/W

DC ELECTRICAL CHARACTERISTICS ^(5)

T_A = -40^ to 85^ , unless otherwise stated.

Symbol Parameter Condition Min Typ Max Units
V_CC	Power Supply Voltage V	_CC = 2.5V 2.375 2.5 2.625 V_CC = 3.3V 3.0 3.3 3.6 V
I_CC	Power Supply Current	No load, max. V_CC^(6)		55	70	mA
R_DIFF\_IN	Differential Input Resistance(IN0-to-/IN0, IN1-to-/IN1)		80	100	120	Ω
R_IN	Input Resistance(IN0-to- V_T0 , /IN0-to- V_T0 ,IN1-to- V_T1 , /IN1-to- V_T1 )		40	50	60	Ω
V_IH	Input HIGH Voltage(IN0, /IN0, IN1, /IN1)	Note 7	V_CC-1.6		V_CC	V
V_IL	Input LOW Voltage(IN0, /IN0, IN1, /IN1)		0		V_IH-0.1	V
V_IN	Input Voltage Swing(IN0, /IN0, IN1, /IN1)	See Figure 1a	0.1		1.7	V
V_DIFF\_IN	Differential Input Voltage Swing|IN0, /IN0|, |IN1, /IN1|	See Figure 1b	0.2			V
V_T IN	IN to V_T (IN0, /IN0, IN1, /IN1)				1.28	V

Notes:

1. Permanent device damage may occur if "Absolute Maximum Ratings" are exceeded. This is a stress rating only and functional operation is not implied at conditions other than those detailed in the operational sections of this data sheet. Exposure to "Absolute Maximum Ratings" conditions for extended periods may affect device reliability.
2. The data sheet limits are not guaranteed if the device is operated beyond the operating ratings.
3. Due to the limited drive capability, use for input of the same package only.
4. Package thermal resistance assumes exposed pad is soldered (or equivalent) to the device's most negative potential (GND) on the PCB. _JB uses 4-layer _JA in still-air measurement, unless otherwise stated.
5. The circuit is designed to meet the DC specifications shown in the above table after thermal equilibrium has been established.
6. Includes current through internal 50Ω pull-ups.
7. V_IH (min) not lower than 1.2V.

CML OUTPUT DC ELECTRICAL CHARACTERISTICS ^(8)

V_CC = 2.5V ± 5% or 3.3V ± 10% ; T_A = -40^ C to 85^ C ; R_L = 100 across each output pair, or equivalent, unless otherwise stated.

Symbol Parameter Condition Min Typ Max Units
V_OH	Output HIGH Voltage V		CC-0.020	V	CC	V
V_OUT	Output Voltage Swing See Figure 1a 325 400 mV
V_DIFF\_OUT	Differential Output Voltage Swing See Figure 1b 650 800 mV
R_OUT	Output Source Impedance 40 50 60 Ω

LVTTL/CMOS DC ELECTRICAL CHARACTERISTICS ^(8)

V_CC = 2.5V ± 5% or 3.3V ± 10% ; T_A = -40^ C to 85^ C , unless otherwise stated.

Symbol Parameter Condition Min Typ Max Units
V_IH	Input HIGH Voltage		2.0		V
V_IL	Input LOW Voltage			0.8	V
I_IH	Input HIGH Current			40	μA
I_IL	Input LOW Current		-300		μA

Note:

1. The circuit is designed to meet the DC specifications shown in the above table after thermal equilibrium has been established.

AC ELECTRICAL CHARACTERISTICS ^(9)

V_CC = 2.5V ± 5% or 3.3V ± 10% ; T_A = -40^ C to 85^ C , R_L = 100 across each output pair, or equivalent, unless otherwise stated.

Symbol Parameter Condition Min Typ Max Units
f_MAX	Maximum Operating Frequency NRZ	Data 10.7 Gbps
		V_OUT ≥ 200mV Clock 7 GHz
t_pd	Differential Propagation Delay IN-to-Q	90 160 240 ps
		SEL-to-Q	50 180 350 ps
t_pd Tempco	Differential Propagation Delay Temperature Coefficient			75		fs/°C
t_SKEW	Input-to-Input Skew	Note 10		4	15	ps
	Part-to-Part Skew	Note 11			100	ps
t_JITTER	Data Random Jitter	Note 12			1	ps_rms
	Deterministic Jitter	Note 13			10	ps_p-p
	Clock Cycle-to-Cycle Jitter	Note 14			1	ps_rms
	Total Jitter	Note 15			10	ps_p-p
	Crosstalk-Induced Jitter	Note 16			0.7	ps_rms
t_r , t_f	Output Rise/Fall Time	20% to 80%, at full swing	20	40	60	ps

Notes:

1. High-frequency AC parameters are guaranteed by design and characterization.
2. Input-to-input skew is the difference in time from and input-to-output in comparison to any other input-to-output. In addition, the input-input skew does not include the output skew.
3. Part-to-part skew is defined for two parts with identical power supply voltages at the same temperature and with no skew of the edges at the respective inputs.
4. RJ is measured with a K28.7 comma detect character pattern, measured at 2.5Gbps/3.2Gbps.
5. DJ is measured at 2.5Gbps/3.2Gbps, with both K28.5 and 2^23-1 PRBS pattern.
6. Cycle-to-cycle jitter definition: the variation of periods between adjacent cycles, T_n - T_n-1 where T is the time between rising edges of the output signal.
7. Total jitter definition: with an ideal clock input of frequency ≤ f_MAX , no more than one output edge in 10^12 output edges will deviate by more than the specified peak-to-peak jitter value.
8. Crosstalk is measured at the output while applying two similar frequencies that are asynchronous with respect to each other at the inputs.

SINGLE-ENDED AND DIFFERENTIAL SWINGS

V_{IN}, \nV_{OUT} 400mV (Typ.)

Figure 1a. Single-Ended Voltage Swing

VDIFF_IN VDIFF_OUT 800mV (Typ.)

Figure 1b. Differential Voltage Swing

TIMING DIAGRAMS

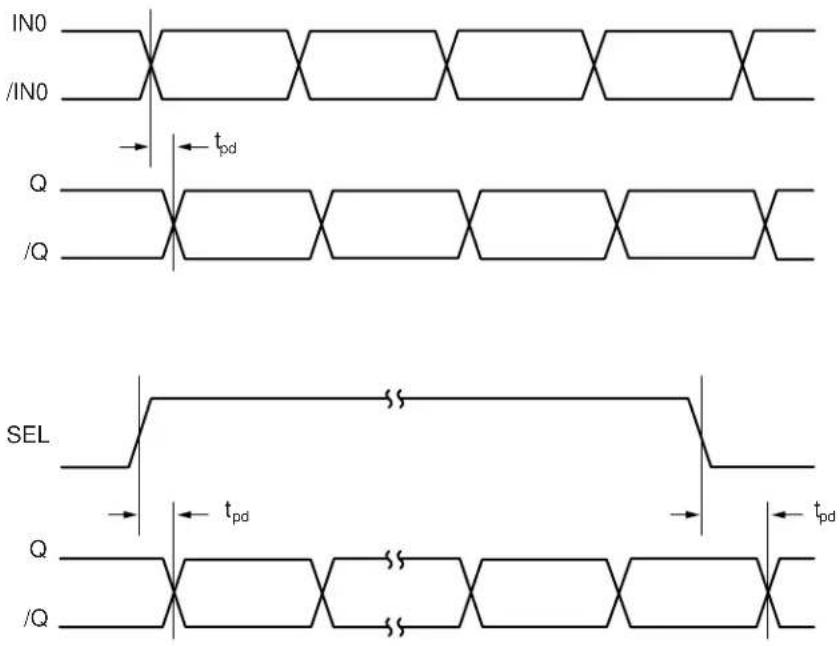

IN0 /IN0 Q /Q t_pd SEL t_pd Q /Q t_pd

TYPICAL OPERATING CHARACTERISTICS

V_CC = 2.5V, V_IN = 100mV, T_A = 25^ , unless otherwise stated.

10.7Gbps Output Output Swing (100mV/div.) TIME (25ps/div.) (2²³-1 PRBS)

TYPICAL OPERATING CHARACTERISTICS

V_CC = 2.5V, V_IN = 100mV, T_A = 25^ , unless otherwise stated.

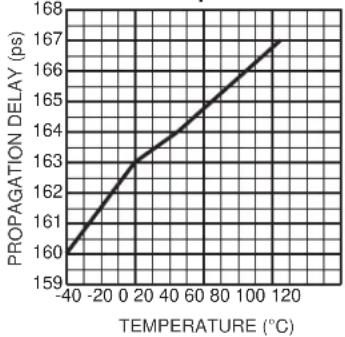

Propagation Delay vs. Temperature

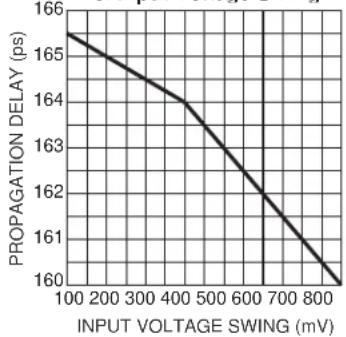

Propagation Delay . Input Voltage Swir

Output Amplitude vs. Frequency

INPUT AND OUTPUT STAGES

Vcc IN 50Ω VT 50Ω /IN GND

Figure 2a. Simplified Differential Input Stage

Vcc 50Ω50Ω /Q Q GND

Figure 2b. Simplified CML Output Stage

INPUT INTERFACE APPLICATIONS

Vcc CML GND IN IN SY58017U NC VT (Option: May connect VT to Vcc)

Figure 3a. DC-Coupled CML Interface

VCC CML IN /IN GND SY58017U VCC -1.4V VT

Figure 3b. AC-Coupled CML Interface

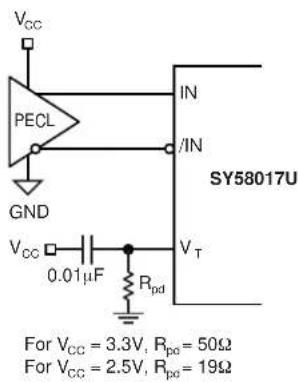

VCC PECL IN /IN GND SY58017U VCC 0.01μF Rpd VT For VCC = 3.3V, Rpe = 50Ω For VCC = 2.5V, Rpe = 19Ω

Figure 3c. DC-Coupled PECL Interface

Vcc PECL IN Rpd Rpd GND Vcc-1.4V VT For 3.3V, Rpd= 100Ω For 2.5V, Rpd= 50Ω SY58017U

Figure 3d. AC-Coupled PECL Interface

Vcc LVDS IN /IN GND SY58017U NC Vt

Figure 3e. LVDS Interface

OUTPUT INTERFACE APPLICATIONS

Vcc 50Ω 50Ω /Q 100Ω Q GND

Figure 4a. CML DC-Coupled Termination

VCC 50Ω /Q 50Ω 50Ω VCC 50Ω Q GND

Figure 4b. CML DC-Coupled Termination

VCC 50Ω 50Ω /Q Q GND 50Ω DC-bias per application 50Ω

Figure 5. CML AC-Coupled Termination

RELATED MICREL PRODUCTS AND SUPPORT DOCUMENTATION

Part Number Function Data Sheet Link
SY58016L 3.3V	10Gbps Differential CML Line Driver/Receiver http://www.with Internal I/O Termination	.micrel.com/product-info/products/sy58016l.shtml
SY58018U Ultra	Precision Differential LVPECL 2:1 Mux with http://www.Internal Termination	.micrel.com/product-info/products/sy58018u.shtml
SY58019U Ultra	Precision Differential 400mV LVPECL http://www.mix2:1 MUX with Internal Termination	.com/product-info/products/sy58019u.shtml
SY58025U 10.7Gbps Dual 2:1 CML MUX with Internal http://www.mixI/O Termination		.com/product-info/products/sy58025u.shtml
SY58026U 5Gbps Dual 2:1 MUX with Internal Termination http://www.mixInternal Termination		.com/product-info/products/sy58026u.shtml
SY58027U 10.7Gbps Dual 2:1 400mV LVPECL Mux with http://www.mixInternal Termination		.com/product-info/products/sy58027u.shtml
SY58051U 10.7Gbps AnyGate® with Internal Input and Output http://www.Termination		//www.micrel.com/product-info/products/sy58051u.shtml
SY58052U	10Gbps Clock/Data Retimer with 50Ω Input Termination	http://www.micrel.com/product-info/products/sy58052u.shtml
	MLFTM Application Note www.amkor.com/products/notes_papers/MLF_AppNote_0902.pdf
HBW Solutions	New Products and Applications www.micrel.com/product-info/products/solutions.shtml

16-PIN MicroLeadFrame® (MLF-16)

Pin 1 Dot By Marking 3.000±0.050 3.000±0.050

TOP VIEW

1.550±0.050 Exp. DAP PIN #1 IDENTIFICATION CHAMFER 0.300 X 45° 0.400±0.050 0.500 Bsc 1.550±0.050 Exp. DAP 0.230±0.050 0.400±0.050 1.500 Ref.

BOTTOM VIEW

0.850±0.050 0.000-0.050 0.203±0.025

SIDE VIEW
NOTE:
1. ALL DIMENSIONS ARE IN MILLIMETERS.
2. MAX. PACKAGE WARPAGE IS 0.05 mm.
3. MAXIMUM ALLOWABE BURRS IS 0.076 mm IN ALL DIRECTIONS.
4. PIN #1 ID ON TOP WILL BE LASER/INK MARKED.

Package EP: Exposed Pad Dia CompSide Island Heat Dissipation Heat Dissipation Heavy Copper Plane V_EF V_LL

PCB Thermal Consideration for 16-Pin MLF® Package (Always solder, or equivalent, the exposed pad to the PCB)

Package Notes:

1. Package meets Level 2 qualification.
2. All parts are dry-packaged before shipment.
3. Exposed pads must be soldered to a ground for proper thermal management.

MICREL, INC. 2180 FORTUNE DRIVE SAN JOSE, CA 95131 USA

TEL + 1 [phone] FAX + 1 [phone] WEB http://www.micrel.com

The information furnished by Micrel in this data sheet is believed to be accurate and reliable. However, no responsibility is assumed by Micrel for its use. Micrel reserves the right to change circuitry and specifications at any time without notification to the customer.

Micrel Products are not designed or authorized for use as components in life support appliances, devices or systems where malfunction of a product can reasonably be expected to result in personal injury. Life support devices or systems are devices or systems that (a) are intended for surgical implant into the body or (b) support or sustain life, and whose failure to perform can be reasonably expected to result in a significant injury to the user. A Purchaser's use or sale of Micrel Products for use in life support appliances, devices or systems is at Purchaser's own risk and Purchaser agrees to fully indemnify

Micrel for any damages resulting from such use or sale.

© 2005 Micrel, Incorporated.
