USER MANUAL WF-1477AL LG
INSTALLATION....6\~8
NORMAL WASH PROGRAM....9
OTHER WASHING PROGRAMS 10\~11
RESERVATION WASHING PROGRAM.... 12\~13
SELECTABLE WASHING METHODS....14
MAINTENANCE 15
GUIDANCE FOR SAFETY AND DURABILITY 16
TROUBLE-SHOOTING GUIDE 17\~18
SPECIFICATION....19
-2
3828FA3399Y
FEATURES

ILL YOU JUST HOW MUCH DETERGENT IS NECESSARY

E GANTLY ROUNDED DESIGN Adds more sophisticated touch to comfortable uses.

FASHING ADJUSTED TO LOAD VOLUME

UNITARY WASH
Antimicrobial additive which restrains mold or mildew from growing around the tub is applied to the washing tub for clean-er wash.
3
3828FA3399Y
3828FA3399Y

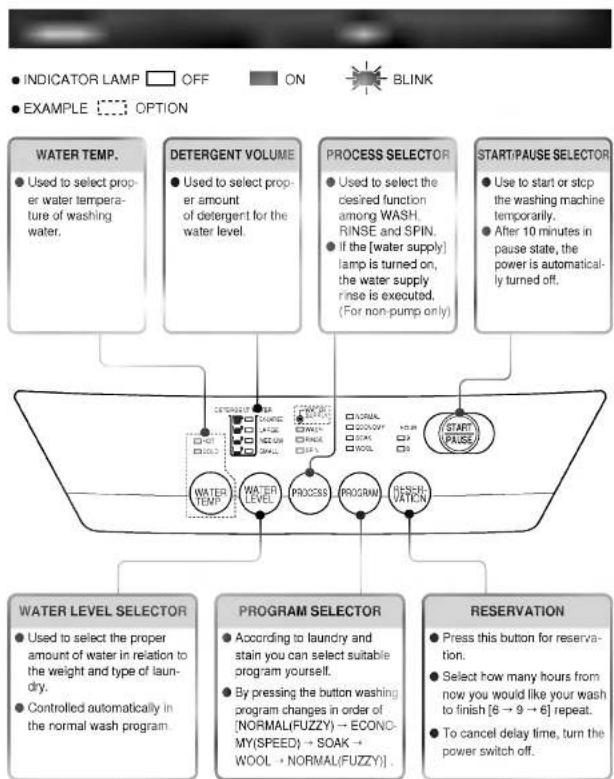

5
3828FA3399Y

INSTALL THE WASHING MACHINE ON FIRM AND EVEN PLACE
- Install the washing machine on a flat and firm surface. - Keep the washing machine over 10cm away from the wall to prevent a noisy sound while spinning.
- When washing machine does not even adjust A.L spindle. - Turn the A.L spindle CCW or CW and adjust level.
CONNECT THE DRAIN HOSE
PUMP MODEL
- Connect the drain hose to the outlet of the drain pump located at the back side of the washing machine.
● Fix the drain hose with the clip. And then push it toward the body as in the figure.
- Check out if the drain hose is hung up to proper location for drainage.
- Do not use an extension hose.
● The discharge height is approximately 0.9\~1.3m from the floor.
NON-PUMP MODEL
- Connect the drain hose to the outlet of the drain hose located at: the right hand side of the washing machine.
+ Keep downward while the washing machine is working. (Non pump)
≠ Ensure the hose is free from knking.
CHANGE THE DIRECTION OF THE DRAIN HOSE FOR NON-PUMP MODEL
1 Unlasten the set screw which secures the drain hose joint, and then push the inside drain hose into the body.
2 Change the direction of the drain hose to the hole of the opposite side.
3 Fasten the set screw to secure the drain hose joint.
-6
3828FA3399Y
CONNECT THE INLET HOSE
□ How to connect the hose of one touch type.
Used the horizontal faucet.
Horizontal faucet
Extension faucet
Square faucet
1 Untighten the upper connector screw.
- In case the diameter of the faucet is large remove the guide plate.
2 Push the upper connector up till the rubber packing is in tight contact with the faucet. Then tighten the 4 screws.
● Turn the middle connector not to have water leaked.
3 Connect the water supply hose to the middle connector, pushing the plate down.
● To separate the water supply hose from the middle connector shut off the faucet. Then pull the inlet hose down, pushing the plate down.
- Connect the inlet hose to inlet valve of the washing machine, and then lock it by turning the hose connecting part. Check to see if there is a rubber seal inside the connector.
7
3828FA3399Y
INSTALLATION
□ How to connect the hose of Nut type
● Turn the inlet Nut to the right hand direction as shown in the below figure. Tighten it firmly to prevent water leakage.
- Connect the other end of the hose to the water valve on washer securely.
● Make sure that the rubber packing is inside the union nut.
● Earth wire is installed to prevent electric shock caused by the current leakage.
- Earth wire is secured on the back side of the washing machine. Connect the earth wire to a metal faucet. In case the earth wire is connected to a plastic faucet, no effect is expected.
When an earth wire is in the power cord assembly, an additional earth wire does not need.
CAUTION
● Ground before the power plug is connected to the wall outlet.
● Never connect the earth wire to a gas pipe, a phone wire and a lightning rod.
- If the power supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent. At material used for enclosing the power supply cord connection have to be retained as origin after any services.
● The base openings must not be obstructed by carpeting, when the washing machine is installed on a carpet floor.
PREPARATION BEFORE WASH

- Check if laundry is washable in water.

● Be sure to remove things such as keys, pins and coins from the laundry.

- Wash oily or dyed laundry separately

● Shake loose dirt off before washing.

● Wash fluffy laundry by turning it inside out.

● Wash delicate clothes, wrapping them in a nylon net.
8
3828FA3399Y




READY?

● Plug the power plug into the outlet.
- Let water flow into the tub after connecting the inlet hose with the faucet.
NORMAL WASH PROGRAM

RIMAL WASH (FUZZY)
● Operate WASH, RINSE, SPIN by pressing the process button.


ASHING PROCEDURE

1 Press the power switch.

● Normal wash indicator lamp illuminates when the power is on.
● All selection changes are possible.

2 Put laundry and detergent in the tub.



- Press the START/PAUSE button.
- Press the START/PAUSE button again to stop operation temporarily (Washing operation resumes by pressing the START/PAUSE button again.)
- Select WASH, RINSE or SPIN convertible.
9
3828FA3399Y

POWER
- Press the power switch.
WASHING PROGRAMS
ECONOMY
NORMAL
ECONOM
□SOAK
WOOL

PROOFUM
PROGRAM
SOAK
NORMAL
□ ECONOM
SOAK
□ WOOL

(No text)
PROGRAM

WOOL
□ NORMAL
□ ECONOM
□SOAK
WOOI

C
PROGRAM
-
Use this program for washing little dirty laundry within short time.
● This program is economical due to short washing time.
● Preset program : 6-minute wash, one rinse, 3-min spin -
Use this program for washing terribly dirty laundry after soaking it in water.
● This program provides the best washing effect.
● Do not use this program for washing laundry easy to
be discolored.
● Preset program : 60-minute soaking, 12-minute wash, 2-rinse, 7-minute spin.
● Use this program for washing laundry woolen fabric.
● Microcomputer controls the strength of current circulation.
● Preset program : 6-minutes wash with mild current circulation, 2-rinse, 3-minute intermittent spin.
When you would like to change washing conditions, select them manually.
+ Preset programs mentioned above can be changed without notice.
NORMAL
ECONOMY
□SOAK
□WOOL
Set the course selector to
[ECONOMY(SPEED)] by pressing it.

NORMAL
ECONOMY
SOAK
WOOL
Set the course selector to [SOAK] by pressing it.

NORMAL
□ ECONOMY
SOAK
■ WOOL

● In this course hot water does not flow into the tub, and water level indicator lamp always middle level.

● After closing the lid press the START/PAUSE button.
● After washing finished pull out the plug.
Take out laundry.
● Dry woolens in shade.
● Plug out the power plug
● Lock the faucet, and separate the connection hose.
● Clean the washing machine.
3828FA3399Y
-11-
3828FA3399Y
RESERVATION WASHING PROGRAM
1
Press the power switch ON.

2
Select program.
NORMAL
ECONOMY
SOAK
WOOL

- Select a desired course.
● If not selected NORMAL (FUZZY) program will be provided,
3
Set the time.
- Select how many hours from now you would like your wash to finish.
- Select how many hours from now you would like your wash to finish.
- When you push the button the reservation time will be repeated [6 → 9 → 6].
4
Insert laundry and press the START/PAUSE button.

- Insert laundry and press the START/PAUSE button. The washer senses the amount of laundry and displays recommended amount of detergent.
5

● Pull powder detergent box forward and deposit displayed amount of detergent, then push back the box.
● Concentrated detergent is not suitable for RESERVATION WASHING.
6
Close the lid.

- If the lid is not completely closed, the machine generates an alarm sound.
- If the lid is opened RESERVATION WASHING can not proceed.
CAUTION
● A wet drawer may cause the detergent to clump together.
● Do not use powdered hand soap.
If the lid is open, the machine will not operate and an error warning will occur.
- When you would like to cancel this program press the POWER switch OFF.
-12
3828FA3399Y
-13
3828FA3399Y

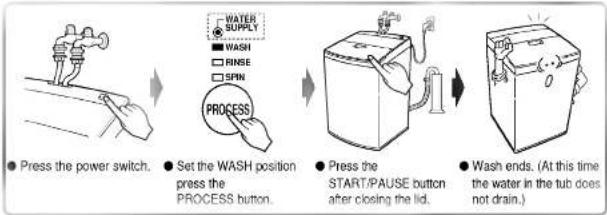

SELECTABLE WASHING METHODS

LY WASHING

LY RINSE








































































































LY SPIN
















































































-14
3828FA3399Y
MAINTENANCE
☐ Clean the filter in the inlet valve. When water supply into the tub is bad or the inlet valve is clogged with impurity.









































□ Clean the water thread collection net.









































□ Clean the pump casing (when drainage is bad).





























GUIDANCES FOR SAFETY AND DURABILITY
☐ Observe the following guidances for the durability of the washing machine and safety problems.
Do not expose the washing machine to a direct sunlight or rain. ... | Do not install the washing machine around a damp place.![]() | Do not sprinkle water over switches.![]() |
Do not plug many cords in one outlet at the same time.![]() | When plugging out the power cord, do not hold the wire.![]() | Have children stay away from the washing machine.![]() |
Keep the washing machine away from fire or heat source.![]() | Do not pour caustic soda and bleach over the washing machine. It causes damage to rut.![]() | Do not pour over 70°C water into the tub![]() |
Make sure of closing the lid, In particular during spinning.![]() | Do not put hands into the rotating tub.![]() | Let water drain away from the drain hose thoroughly.![]() |
TROUBLE-SHOOTING GUIDE
| No water supply. | |||
| WATER SUPPLYWASHRINSESPINPROCESSIndicator lamp flickers (Wash, Rinse)when water does not flowin the tub. | ![]() | ![]() | ![]() |
| Is not the water faucetshut off? | Is not the water supplycut off? | Is not the faucetfrozen? | |
| No drain. | |||
| WATER SUPPLYWASHRINSESPINPROCESSIndicator lamp flickers (Rinse, Spin) whenno drain is done. | ![]() | ![]() | ![]() |
| Check out if electricpower goes off. | Is not the drain hosefrozen? | Is the drain hose hung upproperly? The proper heightof sand pipes is 0.9~1.3m(For pump) | |
| No spinning. | |||
| WATER SUPPLYWASHRINSESPINPROCESSIndicator lamp flickers (Wash, Rinse,Spin) when tub does notspin. | ![]() | ![]() | |
| Is the laundry unevenly balanced? | Is the lid closed? | ||
TROUBLE-SHOOTING GUIDE
| No power. | ![]() | ![]() | ![]() |
| Is the power switchpressed? | Is the power cordunplugged? | Power failure?Fuse blown? | |
| No working. | ![]() | ![]() | ![]() |
| Is not the water faucetshut off? | Is the water level normal? | Has the START/PAUSEbutton been pressed? | |
| The high level of vibrationand noise during spinning. | ![]() | ||
| Is the washing machine installed on a level place? | |||
-18
3828FA3399Y

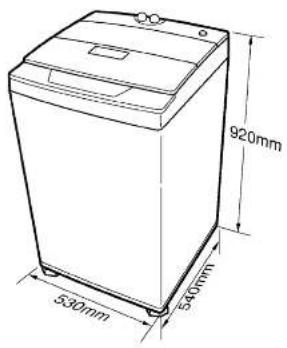

SPECIFICATION
☐ THE USE RANGE OF WATER PRESSURE
□ MOTOR OUTPUT
□WEIGHT
SIZE
□ STANDARD WATER LEVEL
ON THE RATING LABEL
: 0.3\~10kgf/cm² (30\~1000kPa)
90W
: 32 kg
: 530(W) × 540(D) × 920(H)
: EX-LARGE : 47
LARGE :39 l
MEDIUM :29l
SMALL :21l
-19
