Cautions for Safe Operation

Power Supply

This camera must always be operated DC 12 V or AC 24 V. Certified/Listed Adaptor which comply with LPS.

Handling of the unit

Be careful not to spill water or other liquids on the unit. Be cautions not to get combustible or metallic material inside the body. If used with foreign matter inside, the camera is liable to fail or to get cause of fire or electric shock.

• Remove dust or dirt on the surface of the lens with a blower.
• Use a dry soft cloth to clean the body. If it is very dirty, use a cloth dampened with a small quantity of neutral detergent then wipe dry.
• Avoid the use of volatile solvents such as thinners, alcohol, benzene and insecticides. They may damage the surface finish and/or impair the operation of the camera.

Operating and storage location

Avoid viewing a very bright object (such as light fittings) during an extended period. Avoid operating or storing the unit in the following locations.

• Extremely hot or cold places (operating temperature -10 °C to 50 °C, however, we recommend that the unit be used within a temperature range of 0 °C to 45 °C)
• Damp or dust place
• Places exposed to rain
• Places subject to strong vibration
• Close to generators of powerful electromagnetic radiation such as radio or TV transmitters.

Contents

Features......8

Accessories......8

Part Names and Functions....9

Connections 10

Basic connection....10

Installation....11

Mounting the Camera....11

Image Adjustment ....14

Menu Operation.... 17

General Operation....20

Exposure Settings....21

White Balance settings 25

Day/Night Setting 26

Motion Detection Setting......27

3D-DNR Setting....28

Privacy Setting....28

Special Menu Settings 30

SYSTEM Setting 34

Specification 35

Features

This Color Video Camera is designed for installation in a video surveillance system.

This manual contains instructions on how to install and manage the Color Video Camera in your video surveillance system.

Should you require any technical assistance, please contact authorized service center.

• High resolution and high sensitivity with a 6 mm (1/3 Type) Exview Super HAD CCD II.
• Automatically switch between DC 12 V and AC 24 V.
• Smart motion detector.
• Wide Dynamic Range (WDR)

Accessories

Installation sticker
Wrench
M4 Fixing screws

Part Names and Functions

1 2 3 4 5 6 7 8 9 10 11

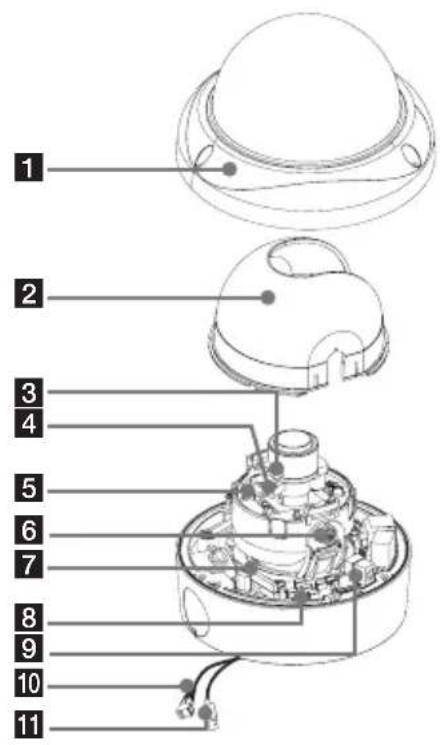

1 Dome Cover
2 Lens Cover
3 Focus lock lever Fixes the focus position after adjusting.

4 Zoom lock lever Fixes the zoom position after adjusting.

5 Rotate adjuster
6 Tilting lock screw
Fixes the tilting position after adjusting.

7 Pan adjuster
8 Setup menu control buttons
9 Video Out connector
Use this jack for checking the picture with portable monitor when install the camera.

10 Power input connector Supplies AC 24 V or DC 12 V from an external power source. 11 Video output connector (BNC type)

Connections

Basic connection

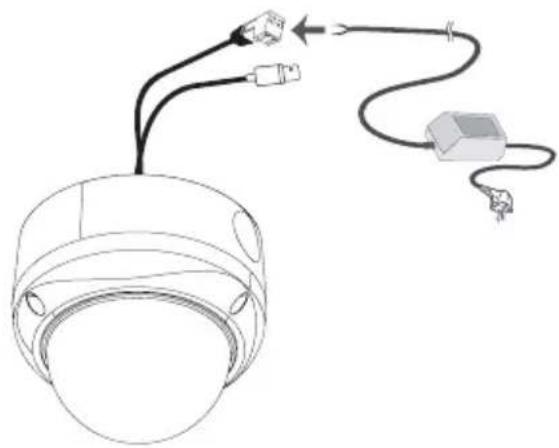

The peripheral devices (DVR, monitor, etc.), AC/DC adapter and cables are not supplied.

1. Make the video signal connection between the camera and the monitor or DVR.

Diagram of a security camera with cable and connector, connected to a monitor (no text or symbols)

1. Connect a external power source to the power input jack of the camera.

Diagram of a helmet with cable routing and connector points (no text or symbols)

Installation

Mounting the Camera

Note:

Refer the manual of Dome bracket adaptor when you mount the camera on the wall, pendant and parapet.

Follow the instructions below to surface mount the camera with supplied camera mounting bracket.

1. Use the installation guide template to check the mounting location. Face the front of the label toward the area of interest. Using the template as a guide, make a hole through the ceiling.

Diagram illustrating the transformation of a circular structure into a larger circular component, with labeled components and directional arrow.

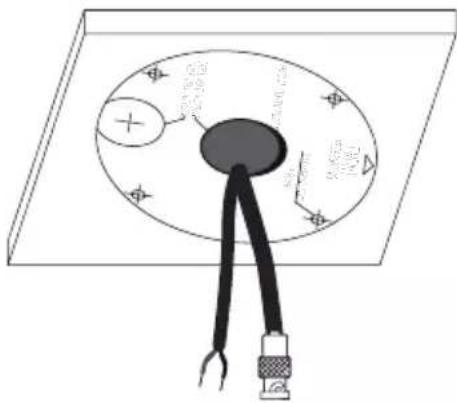

1. Pass the connection cable through the inner side of the ceiling.

Diagram of a cable or connector with labeled components and polarity indicators

Installation

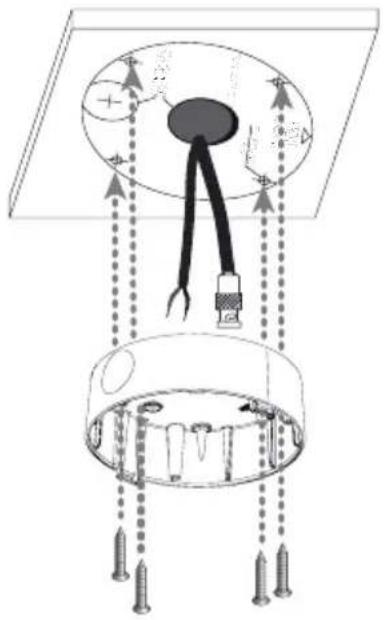

1. Install the camera mounting bracket to the ceiling.

Diagram of a ceiling lamp with internal components and wiring, showing no text or symbols

1. Connect the cables to the cable jacks of the camera body.

Diagram of a mechanical assembly showing connections between a central component and a base with internal components (no text or symbols)

Installation

1. Assemble the camera and the housing. Make sure when you assemble the camera in the right direction. And then, assemble the dome cover and lens cover.

Technical diagram showing mechanical assembly steps with labeled components and directional arrows

1. Use the supplied wrench to tighten the screws

Technical line drawing of a mechanical component with rotational arrows indicating motion (no text or symbols)

Installation

Image Adjustment

You can manually adjust the pan/tilt/azimuth angles, focus, and zoom while observing the connected monitor.

Notes:

• Do not hold the camera by lens unit to adjust panning, tilting, or azimuth.

• The video output to the BNC will be interrupted while a portable monitor is connected to the video jack.

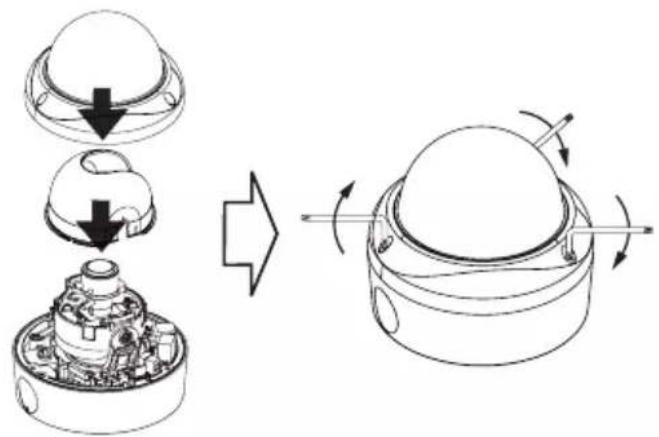

• Use the supplied wrench to loosen the screws and remove the dome cover Remove the Dome cover and lans cover.

Diagram of a mechanical component with rotating arrows indicating motion (no text or symbols)

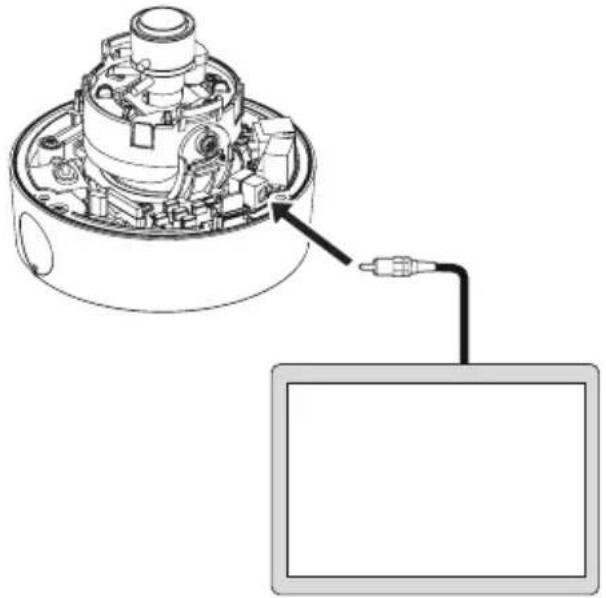

1. Connect a portable monitor to the video jack.

Technical diagram of a mechanical assembly with a cylindrical component and connected to a rectangular device (no text or symbols present)

Installation

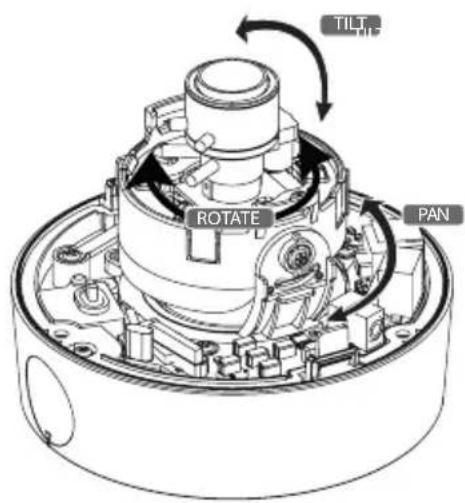

1. Adjust the pan/tilt/rotate position of the camera.

TILT ROTATE PAN

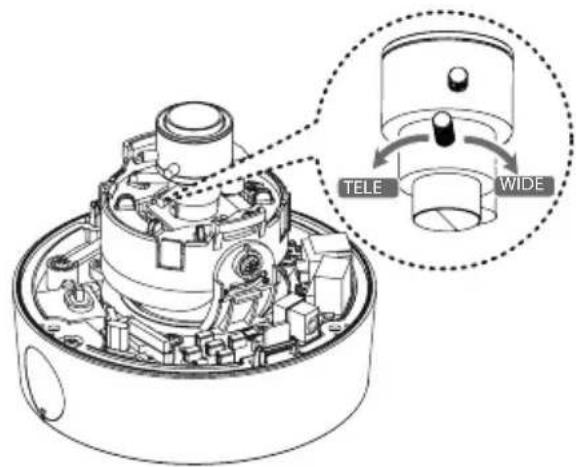

1. Adjust the zoom.

4-1. Unlock the zoom lever.
4-2. Move the lever to adjust the zoom.
4-3. Lock the lever.

TELE WIDE

Installation

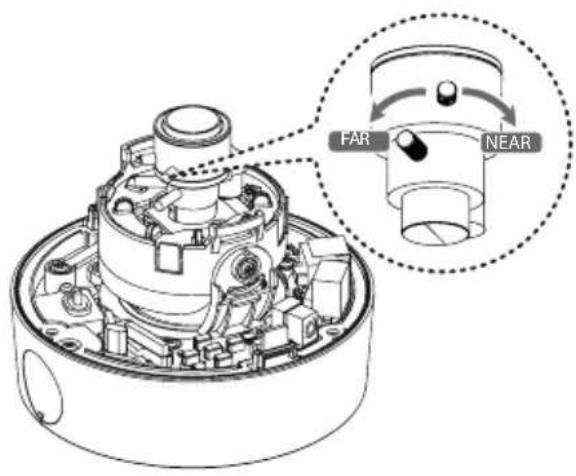

1. Adjust the focus.

5-1. Unlock the focus lever.
5-2. Move the lever to adjust the focus.
5-3. Lock the lever.

FAR NEAR

1. This camera utilizes an on-screen user MENU. To set items on the menu, use the following buttons. After then attach the lens cover and dome cover.

Technical diagram illustrating the process of a mechanical assembly with labeled components and directional arrows indicating rotation or movement.

Menu Operation

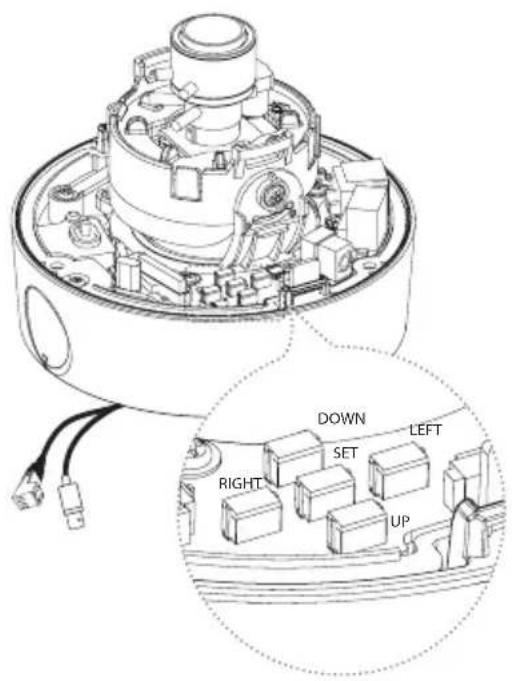

DOWN SET UP RIGHT LEFT

- UP button:

Used to move upper direction on the menu screen. Use this button to select an item or adjust the parameters.

- DOWN button:

Used to move lower direction on the menu screen. Use this button to select an item or adjust the parameters.

• RIGHT button:

Moves the cursor to the right. Used to increment the value selected in the menu. The parameter changes each time this button is pressed.

- LEFT button:

Moves the cursor to the left. Used to decrement the value selected in the menu. The parameter changes each time this button is pressed.

- SET button:

Executes selections and displays a submenu for an item with the 📂mark.

Menu Operation

The following table shows the list of menu items and options. You can adapt the camera to your requirements by setting up the respective items in these menus.

Main Menu	Sub Menu Contents
EXPOSURE ALC /ELC	BACKLIGHT OFF/WDR/BLC/HSBLC
	BRIGHTNESS 0 to 100
	AGC	OFF/LOW/MIDDLE/HIGH
	SHUTTER	1/120 000, ..., 1/160,A.FLK, OFF, AUTO, x2,..., x512
	SENS-UP	OFF
		AUTO
	EXIT TOP/RET/END
WHITE BAL	ATW -
	AUTO -
	AWC → SET KEY	-
	MANUAL	RED -100 to 100
		BLUE -100 to 100
		EXIT TOP/RET/END

Main Menu	Sub Menu Contents
DAY/NIGHT	AUTO	BURST ON/OFF
		LEVEL LOW/MIDDLE/HIGH/USER
		DWELL TIME	3 SEC to 60 SEC
		EXIT TOP/RET/END
	DAY-
	NIGHT	BURST ON/OFF
		EXIT TOP/RET/END
MOTION DET	OFF
	ON	AREA SETUP	AREA SELECTION	1 to 8
			STATE ON/OFF
			POSITION←→	0 to 7
			POSITION↑↓	0 to 5
			SIZE←→	1 to 8
			SIZE←→	1 to 6
			EXIT	TOP/RET/END
		SENSITIVITY	0 to 100
		DISPLAY	OUTLINE,MASK1,MASK2,OFF
		ALRAM OUT	MESSAGE,OFF
		EXIT TOP/RET/END

Menu Operation

Main Menu	Sub Menu	Contents
3D-DNR 0	to 100
PRIVACY MASK	OFF -
	ON	RECTANGLE	MASK SELECTION	1 to 8
			DISPLAY	OFF,MOZAIC,COLOR1 to COLOR 8
			POSITION ←→	2 to 98
			POSITION ↑↓ 2	to 98
			SIZE ←→ 4 to 100
			SIZE ←→ 4 to 100
			EXIT TOP/RET/END
		CIRCLE	MASK SELECTION	1 to 4
			DISPLAY	OFF,MOZAIC,COLOR1 to COLOR8
			POSITION ←→	0 to 100
			POSITION ↑↓ 0	to 100
			SIZE ←→ 1 to 15
			SIZE ←→ 1 to 15
			RADIOUS 1 to 100
			EXIT TOP/RET/END

Main Menu	Sub Menu	Contents
PRIVACY MASK	ON	POLYGON	MASK SELECTION	1 to 2
			DISPLAY	OFF,MOZAIC, COLOR1 to COLOR 8
			SHAPE -
			POSITION -
			EXIT TOP/RET/END
		EXIT TOP/RET/END
SPECIAL	D-ZOOM	OFF -
		ON	ZOOM x1.0 to x16.0
			PAN-100 to	100
			TILT	-100 to 100
			EXIT TOP/RET/END
	D-EFFECT	OFF / MIRROR / ROTATE / V-FILP
	SHARPNESS	0 to 100
	COLOR	0 to 100
	SYNC	INT / LL

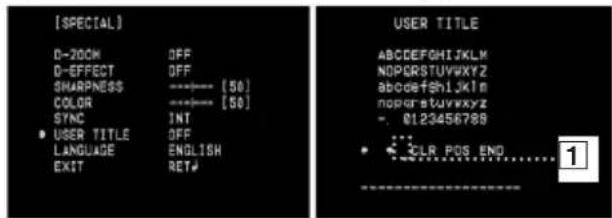

	USER TITLE	ON / OFF
	LANGUAGE	ENG/CHN/KOR/JAP/FRE/ITA/ESP/POR/DUT/GER/ POL/RUS/TUR/ARA/HEB
	EXIT	TOP/RET/END

Menu Operation

Main Menu	Sub Menu	Contents
SYSTEM	FACTORY RESET	-
	EXIT TOP/RET/END
EXIT

General Operation

1. Press [SET] button.

The setup menu screen appears on the monitor.

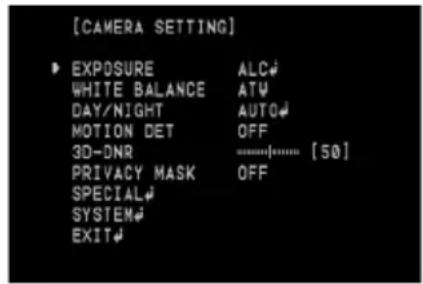

[CAMERA SETTING] ► EXPOSURE ALC WHITE BALANCE ATU DAY/NIGHT AUTO MOTION DET OFF 3D-DNR [50] PRIVACY MASK OFF SPECIAL SYSTEM EXIT

1. Use [UP] or [DOWN] button to select an option then press [SET] button. Submenu appears on the monitor.
2. Use [UP] or [DOWN] button to select a submenu option.
3. Use [LEFT] or [RIGHT] button to select a value.

• TOP: Return to the CAMERA SETTING menu screen.
• RETURN: Return to the previous.
• END: Exit the setup menu.

Menu Operation

Exposure Settings

You can set the exposure options using the EXPOSURE menu.

1. Select [EXPOSURE] option on the [CAMERA SETTING] menu.
2. Use [LEFT] or [RIGHT] button to select a mode.
3. Press [SET] button and the EXPOSURE menu appears.

[CAMERA SETTING] ► EXPOSURE ALC# WHITE BALANCE AT# DAY/NIGHT AUTO# MOTION DET OFF 3D-DNR [50] PRIVACY MASK OFF SPECIAL# SYSTEM# EXIT#

Backlight setting

Use Backlight option to view the object clearly in backlight conditions.

[EXPOSURE-ALC] ▶ BACKLIGHT OFF BRIGHTNESS ...... [50] AGC MIDDLE SHUTTER AUTO↓ SENS-UP OFF EXIT RET↓

1. Select [BACKLIGHT] option.
2. Use [LEFT] or [RIGHT] button to select a mode then press [SET].

- WDR: WDR (Wide dynamic range) feature can be very helpful to cope with very challenging lighting conditions. It is capable of capturing both of the dark part and bright part and combining the differences into a scene to generate a highly realistic image as original scene. Set the WDR limit.

Menu Operation

ACE (Adaptive Contrast Enhancement): This function is used when you want to display dark areas of WDR brightly.

• BLC: Camera's backlight compensation feature helps alleviate issues of visibility in high contrast areas. Set the BLC limit.
• HSBLC: Use for masking brightness of the specific area to view the subject more clearly. The HSBLC mode is automatically activated only in low luminance scene.

AREA SETTING: Use [LEFT] or [RIGHT] button to select a area then use [UP] or [DOWN] button to select a [ON] or [OFF]. Press [SET] to exit the Area setting menu.
GRAY SCALE: Use [LEFT] or [RIGHT] button to select a gray scale.
USER SCALE: Use [LEFT] or [RIGHT] button to select a bright level. (5 level)
MASK: Use [LEFT] or [RIGHT] button to select [ON] or [OFF]. If you set the MASK to ON, the mask function is activate only when the HSBLC is

automatically activated in low luminance scene.

• OFF: Not used.

BRIGHTNESS setting

You can increase the brightness of the darkened video. If you set the brightness to lower value, the image is darkened. If you set the brightness to higher value, the image gets bright.

[EXPOSURE-ALC] BACKLIGHT OFF BRIGHTNESS [50] AGC MIDDLE SHUTTER AUTO SENS-UP OFF EXIT RET

1. Select [BRIGHTNESS] option.
2. Use [LEFT] or [RIGHT] button to set the bright level.

Menu Operation

AGC (Automatic Gain Control) setting

If the images are too dark, change the maximum [AGC] value to make the images brighter.

[EXPOSURE-ALC] BACKLIGHT OFF BRIGHTNESS ...... [50] ▶ AGC MIDDLE SHUTTER AUTO↓ SENS-UP OFF EXIT RET↓

1. Select [AGC] option.
2. Use [LEFT] or [RIGHT] button to select a mode.

SHUTTER (Shutter Speed) setting

Select the desired shutter speed for camera exposure. You can change the shutter speed to higher speed to capture fast-moving subjects, though the image becomes darker.

[EXPOSURE-ALC] BACKLIGHT OFF BRIGHTNESS ...... [50] AGC MIDDLE SHUTTER AUTO↓ SENS-UP OFF EXIT RET↓

1. Select [SHUTTER] option.
2. Use [LEFT] or [RIGHT] button to set shutter speed.

Notes:

- When the SHUTTER is set to AUTO, the picture may become unstable if the camera faces a bright fluorescent light directly. Therefore, take care when installing.

Menu Operation

• Set the Shutter OFF when Color Rolling occurs in the indoor scene. Recommend the Shutter Auto in the outdoor scene.
• If you set to one of the SHUTTER options except AUTO and A.FLK on the [SHUTTER] menu, the [BACKLIGHT - WDR] setting is not available and [---] mark is displayed.
• If you set BACKLIGHT mode to WDR, sub menu [SHUTTER LIMIT] of [SHUTTER AUTO] will be blocked and shutter will be fixed. (LCV5500-BN : 1/60, LCV5500-BP : 1/50)

SENS-UP setting

If pictures are not clear due to darkness, this SENS-UP operation would increase the sensitivity of picture.

[EXPOSURE-ALC] BACKLIGHT OFF BRIGHTNESS [50] AGC MIDDLE SHUTTER AUTO SENS-UP OFF EXIT RET

1. Use [UP] or [DOWN] button to select [SENS-UP] option.
2. Use [LEFT] or [RIGHT] button to select mode.

• AUTO: Adjust the sensitivity of the picture automatically.

SENS-UP LIMIT: Use [LEFT] or [RIGHT] button to set the SENS-UP limit.

• OFF: Not used.

Menu Operation

Note:

If you set to one of the [SHUTTER] options except [AUTO] and [OFF] on the [SHUTTER] menu, the [SENS-UP] setting is not available and [---] mark is displayed.

White Balance settings

Select the method by which the camera shifts its output colors to compensate for the color of a light source.

[CAMERA SETTING] EXPOSURE ALC# WHITE BALANCE AT# DAY/NIGHT AUTO# MOTION DET OFF 3D-DNR [50] PRIVACY MASK OFF SPECIAL# SYSTEM# EXIT

1. Select [WHITE BAL] option.

2. Use [LEFT] or [RIGHT] button to select a mode then press [SET].

3. ATW (Auto-Tracing White Balance): Use [LEFT] or [RIGHT] button to select the ATW then press [SET] button.
   • AUTO: Use [LEFT] or [RIGHT] button to select the AUTO then press [SET] button.

4. AWC→SET KEY: If you select the AWC→SET KEY mode, you will be able to set up the White Balance automatically using [SET] button.
5. MANUAL: You can set the white balance options manually.

   RED: Obtains the optimum amount of red gain.
   BLUE: Obtains the optimum amount of blue gain.

Menu Operation

Day/Night Setting

[CAMERA SETTING] EXPOSURE ALC# WHITE BALANCE AT# DAY/NIGHT AUTO# MOTION DET OFF 3D-DNR [50] PRIVACY MASK OFF SPECIAL# SYSTEM# EXIT

1. Select [DAY/NIGHT] option.
2. Use [LEFT] or [RIGHT] button to select mode for Day/Night function.

- AUTO: You will be able to change the Day/Night mode automatically.

Note:

If you set the AGC to [OFF], the AUTO mode of the DAY/NIGHT function is not available and [---] mark is displayed.

BURST: Use [LEFT] or [RIGHT] button to

select [ON] or [OFF].

LEVEL: Use [LEFT] or [RIGHT] button to select a level.
DWELL TIME: Use [LEFT] or [RIGHT] button to select a dwell time.

• DAY: Color mode enabled.
• NIGHT: Black-and-white mode enabled.

BURST: Use [LEFT] or [RIGHT] button to select [ON] or [OFF].

Note:

Select the BURST [ON] or [OFF] when the color noise occurs on the screen in NIGHT Mode after operating the Line-Lock.

Menu Operation

Motion Detection Setting

The motion detection detects the moving objects in the scene by monitoring changes in brightness level. You can select the level of sensitivity for motion detection to 8 zone.

[CAMERA SETTING] EXPOSURE ALC WHITE BALANCE ATU DAY/NIGHT AUTO MOTION DET OFF 3D-DNR [50] PRIVACY MASK OFF SPECIAL SYSTEM EXIT

1. Select [MOTION DET] option.
2. Use [LEFT] or [RIGHT] button to select a [ON] and press [SET]. The MOTION DETECTION menu appears.
3. Select [AREA SETUP] option.

• Use [LEFT] or [RIGHT] button to select a area (1/8 to 8/8) on the [AREA SELECTION].
• Use [LEFT] or [RIGHT] button to set up the ON or

OFF on the STATE.

- Use [UP] or [DOWN] to select an option then use [LEFT] or [RIGHT] button to adjust the option.

POSITION←→: Moves horizontal position of the mask.
POSITION↑↓: Moves vertical position of the mask.
SIZE←→ : Enlarge or decrease the horizontal size of the mask.
SIZE↑↓: Enlarge or decrease the vertical size of the mask.

1. Use [SENSITIVITY] option to obtain the optimum detection level.

2. Use [LEFT] or [RIGHT] button to select the DISPLAY option.

3. Use [LEFT] or [RIGHT] button to select the ALARM OUT option.

Menu Operation

3D-DNR Setting

[CAMERA SETTING] EXPOSURE ALC# WHITE BALANCE AT# DAY/NIGHT AUTO# MOTION DET OFF ► 3D-DNR [50] PRIVACY MASK OFF SPECIAL# SYSTEM# EXIT#

1. Select [3D-DNR] option.

If pictures are not clear due to brightness, this option would reduce the noise of picture.

1. Use [LEFT] or [RIGHT] button to select a value.

Privacy Setting

This function is aiming at the protection of personal privacy, selecting a screen part black not to be displayed in the screen. Up to 14 zones can be registered.

[CAMERA SETTING] EXPOSURE ALC↓ WHITE BALANCE AT↓ DAY/NIGHT AUTO↓ MOTION DET OFF 3D-DNR [50] ▶ PRIVACY MASK OFF SPECIAL↓ SYSTEM↓ EXIT↓

1. Select [PRIVACY] option.

2. Use [LEFT] or [RIGHT] button to select a [ON] and press [SET]. The PRIVACY SETUP menu appears.

- RECTANGLE:

Use [LEFT] or [RIGHT] button to select a mask on the [MASK SELECTION].
Use [LEFT] or [RIGHT] button to set up the DISPLAY option.

Menu Operation

Use [UP] or [DOWN] to select an option then use [LEFT] or [RIGHT] button to adjust the option.

• POSITION←→: Moves horizontal position of the mask.
• POSITION↑↓: Moves vertical position of the mask.
• SIZE←→: Enlarge or decrease the horizontal size of the mask.
• SIZE↑↓: Enlarge or decrease the vertical size of the mask.

CIRCLE :

Use [LEFT] or [RIGHT] button to select a mask on the [MASK SELECTION].
Use [LEFT] or [RIGHT] button to set up the DISPLAY option.
Use [UP] or [DOWN] to select an option then use [LEFT] or [RIGHT] button to adjust the option.

• POSITION←→: Moves horizontal position of the mask.
• POSITION↑↓: Moves vertical position

of the mask.

• SIZE←→: Enlarge or decrease the horizontal size of the mask.
• SIZE↑↓: Enlarge or decrease the vertical size of the mask.
• RADIUS SIZE : You can adjust the RADIUS SIZE.

- POLYGON :

Use [LEFT] or [RIGHT] button to select a mask on the [MASK SELECTION].
Use [LEFT] or [RIGHT] button to set up the DISPLAY option.
Use the [LEFT], [RIGHT], [UP], [DOWN], [SET] button to draw the polygon on the [SHAPE].
Use the [LEFT], [RIGHT], [UP], [DOWN], [SET] button to move the polygon on the [POSITION].

Menu Operation

Notes:

• You can adjust the mask color manually except for COLOR 8.
• RED, GREEN, BLUE and TRANSPARENCY adjustments are applied in common from COLOR 1 to COLOR 7, after mask setting.

Special Menu Settings

This menu lets you adjust and set up D-ZOOM, D-EFFECT, SHARPNESS, COLOR, SYNC, USER TITLE, LANGUAGE function by yourself in the SPECIAL menu.

[CAMERA SETTING] EXPDSURE ALC# WHITE BALANCE AT# DAY/NIGHT AUTO# MOTION DET OFF 3D-DNR [50] PRIVACY MASK OFF SPECIAL# SYSTEM# EXIT#

1. Select [SPECIAL] option.
2. Press [SET] button and the SPECIAL menu appears.

Menu Operation

Setting the D-ZOOM (Digital Zoom) level

You can select the digital zoom level.

[SPECIAL] ► D-ZOOM OFF D-EFFECT OFF SHARPNESS ......[50] COLOR ......[50] SYNC INT USER TITLE OFF LANGUAGE ENGLISH EXIT RET↓

1. Select [D-ZOOM] option on the [SPECIAL] menu.
2. Use [LEFT] or [RIGHT] button to select a [ON] then press [SET] the DIGITAL ZOOM menu appears. When you set to ON, the displayed image can be shaking.
3. Use [UP] or [DOWN] to select a option then use [LEFT] or [RIGHT] button to select a level.

• ZOOM: Use [LEFT] or [RIGHT] button to enlarge the screen.

• PAN: Use [LEFT] or [RIGHT] button to move the screen. (left or right)

- TILT: Use [LEFT] or [RIGHT] button to move the screen. (up or down)

Setting the D-EFFECT (Digital effect)

You can select the digital effect.

[SPECIAL] D-ZOOM OFF ► D-EFFECT OFF SHARPNESS ......[50] COLOR ......[50] SYNC INT USER TITLE OFF LANGUAGE ENGLISH EXIT RET↓

1. Select [D-EFFECT] option on the [SPECIAL] menu.
2. Use [LEFT] or [RIGHT] button to select a digital effect.

• V-FLIP: Flip the picture vertically.
• MIRROR: Turn on the mirror effect.
• ROTATE: Rotate the picture. (180°)
• OFF: Turn off the digital effect.

Menu Operation

Setting the SHARPNESS effect

The degree to which the boundary of the two portions is clearly distinguished.

[SPECIAL] D-ZOOM OFF D-EFFECT OFF SHARPNESS ........[50] COLOR ........[50] SYNC INT USER TITLE OFF LANGUAGE ENGLISH EXIT RET↓

1. Select [SHARPNESS] option on the [SPECIAL] menu.
2. Use [LEFT] or [RIGHT] button to change a adjust the option. If you set the sharpness value to higher, the image outline becomes sharp. If you set to lower value, the image outline becomes dim.

Setting the COLOR

You can switch the displayed picture to gray scale or color.

[SPECIAL] D-ZOOM OFF D-EFFECT OFF SHARPNESS [50] COLOR [50] SYNC INT USER TITLE OFF LANGUAGE ENGLISH EXIT RET

1. Select [COLOR] option on the [SPECIAL] menu.
2. Use [LEFT] or [RIGHT] button to change a adjust the option.

Menu Operation

SYNC Setting

[SPECIAL] D-ZOOM OFF D-EFFECT OFF SHARPNESS ...... [50] COLOR ...... [50] SYNC INT USER TITLE OFF LANGUAGE ENGLISH EXIT RET

1. Select [SYNC] option on the [SPECIAL] menu.

2. The [SYNC] option is set to [INT] automatically.

Note:

AC24V Adaptor have to use for the [LL] mode setting.

Setting the USER TITLE

You can use the camera identification to assign a number and character to the camera.

The USER TITLE is displayed on the upper left of the screen. To disappear the user title, select [OFF].

1. Select [USER TITLE] option.

2. Use [LEFT] or [RIGHT] button to select a [ON] then press [SET]. The USER TITLE menu appears.

[SPECIAL] D-20CM OFF D-EFFECT OFF SHARPNESS ----[50] COLOR ----[50] SYNC INT • USER TITLE OFF LANGUAGE ENGLISH EXIT RET# USER TITLE ABCDEFGHIJKLMNOPQRSTUVWXYZ abcdefghijklmnopqrstuvwxyz -. 0123456789 • CLR POS END --------------------------

1. Use [UP], [DOWN], [LEFT] or [RIGHT] button to select a character or number then press [SET] button.

• CLR: Clear all entered characters and numbers.
• POS: Move the USER TITLE position on the screen using the arrow buttons.
• END: Confirm your selection or exit the setting

Menu Operation

• 1 (Blank): Inserts a space at the cursor position.
• Moves cursor to left or right.

LANGUAGE Setting

Select the viewer language for the camera setup menu and OSD information display.

[SPECIAL] D-ZOOM OFF D-EFFECT OFF SHARPNESS ......[50] COLOR ......[50] SYNC INT USER TITLE ON↓ LANGUAGE ENGLISH EXIT RET↓

1. Select [LANGUAGE] option on the [SPECIAL] screen.
2. Press [LEFT] or [RIGHT] button to select a language.

SYSTEM Setting

[CAMERA SETTING] EXPOSURE ALC# WHITE BALANCE AT# DAY/NIGHT AUTO# MOTION DET OFF 3D-DNR [50] PRIVACY MASK OFF SPECIAL# BYSTEN# EXIT# [SYSTEM] ► FACTORY RESET EXIT RET

1. Select the [SYSTEM] menu.
2. Press [SET] button and the [SYSTEM] menu appears.

3. Use [UP] or [DOWN] button to select the option.

4. FACTORY RESET: To reset the camera setting to factory setting, select the [FACTORY RESET] option.

5. Press [SET] button to confirm your selection.

Note:

The menu screen is move to top menu, after set up [FACTORY RESET].

Specification

Item LCV5500-BN LCV5500-BP
Signal System NTSC PAL
Total/Effective Pixels Number 520 000 Pixels / 480 000 Pixels 610 000 Pixels / 570 000 Pixels
Image Device 6 mm (1/3) Type) Exview Super HAD CCD II
DSP XDI-V
Lens 2.8 mm to 11 mm Vari-focal Lens, F1.2
Digital Zoom x16
IRIS Control DC
Sync. System Internal / Line Lock
Scanning Frequency (H/V) 15.734 KHz / 59.94 Hz 15.625 KHz / 50 Hz
Horizontal Resolution		650 TV Lines (Color), 700 TV Lines (B/W)
S/N Ratio		50 dB
Minimum Illumination (30 IRE,F1.2)	Color	0.2 lx (Sens-up Off), 0.00 3 lx (Sens-up Auto), 0.000 1 lx (Sens-up X512)
	B/W	0.02 lx (Sens-up Off), 0.000 3 lx (Sens-up Auto), 0.000 01 lx (Sens-up X512)
Video Output Signal		1 Vp-p Composite (75 Ω)
Day & Night		ICR (AUTO / DAY / NIGHT)
BACKLIGHT		OFF / WDR / BLC / HSBLC

Specification

Item LCV5500-BN LCV5500-BP
DNR 2D + 3D-DNR
Electronic Shutter Speed 1/60 to 1/120 000 1/50 to 1/120 000
White Balance ATW / AUTO / AWC→SET KEY / MANUAL
Motion Detection 8 Zones
Privacy Zone Masking 14 Masks
Digital Effect OFF / MIRROR / ROTATE / V-FILP
Communication Coaxial Communication
Power Source DC 12 V / AC 24 V
Power Consumption 190 mA
Operation Temperature/Humidity	-10 °C to 50 °C / 0 % RH to 80 % RH
Storage Temperature/Humidity -20 °C to 60 °C / 0 % RH to 90 % RH
Dimension (∅ x H)	140 mm x 122 mm
Weight	710 g
