USER MANUAL GS14R-LS Stirling

Close-up of a blue and white steam iron with a patterned strap (no visible text or symbols)

2-in-1 Steam Iron & Garment Steamer

Model Number GS14R-LS

INSTRUCTION MANUAL

Welcome

Congratulations on choosing to buy a STIRLING ^® product.

All products brought to you by STIRLING ^® are manufactured to the highest standards of performance and safety and, as part of our philosophy of customer service and satisfaction, are backed by our comprehensive 1 Year Warranty.

We hope you will enjoy using your purchase for many years to come.

Contents

02 Welcome
04 Warranty Details
05 General Safety Instructions
09 Product Overview
10 Getting Started
11 Instructions
20 FAQs & Troubleshooting Guide
21 Other Useful Information
23 Repair and Refurbished Goods or Parts Notice

ALDI

STIRLING

2-in-1 Steam Iron & Garment Steamer

Warranty Details

REGISTER YOUR PURCHASE AT www.aldi.com.au/en/about-aldi/product-registration/ TO KEEP UP-TO-DATE WITH IMPORTANT PRODUCT INFORMATION

The product is guaranteed to be free from defects in workmanship and parts for a period of 12 months from the date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired, replaced or refunded at our discretion. The benefits conferred by this warranty are in addition to all rights and remedies in respect of the product that the consumer has under the Competition and Consumer Act 2010 and similar state and territory laws.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and to compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

1 YEAR WARRANTY

General Safety Instructions

IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

Read this manual thoroughly before first use, even if you are familiar with this type of product. The safety precautions enclosed herein reduce the risk of fire, electric shock and injury when correctly adhered to. Keep the manual in a safe place for future reference, along with the completed warranty card, purchase receipt and carton. If applicable, pass these instructions on to the next owner of the appliance.

Always follow basic safety precautions and accident prevention measures when using an electrical appliance, including the following:

Electrical safety and cord handling

• Voltage: Make sure your local outlet voltage and circuit frequency correspond to the voltage indicated on the appliance rating label and your outlet socket is properly earthed. If this is not the case, do not use the garment steamer.
• Separate circuit: To reduce the likelihood of circuit overload, do not operate another high wattage appliance on the same circuit.
• WARNING: Do not immerse! Never immerse the cord, plug or appliance in water or other liquid, or expose the electrical connections to water or other liquid. Should liquids enter the housing, unplug the appliance from the power socket immediately and arrange for it to be repaired by a qualified technician.
• Protect from moisture: Do not use the appliance outdoors or expose it to humidity. Never use the appliance adjacent to water contained in a bath, shower, wash basin or other vessel. The proximity of moisture presents a danger, even when the appliance is switched off. Do not operate the appliance or touch the power cord or plug with wet hands.
• No extension cord: Always unroll the power cord fully before switching on and do not use an extension cord. If an extension cord is absolutely necessary, a 15 A rated cord should be used. Cords rated for less amperage may overheat. Take care when arranging the cord so that it cannot be pulled or tripped over.
• Protect the power cord: Do not damage, kink or squash the power cord and protect it from sharp edges. Do not let the cord touch any hot surface, including the ironing/steaming surface. Unwind and straighten the cord before use, then arrange the cord in such a way that no one can step on it or trip over it. Do not roll the cord around the appliance for storage until the appliance has cooled down, then loop the cord loosely around the appliance stand.
• Damage: Do not use the garment steamer if it has been dropped, if there are visible signs of damage or if it is leaking. A damaged cord or plug must be replaced by the manufacturer or a qualified technician in order to avoid a hazard. In case of damage, please contact our after sales support centre.

General Safety Instructions (Cont.)

• Disconnect the appliance after every usage, before cleaning and before filling or emptying the water tank. To disconnect, turn the appliance off and remove the plug from the power socket. Pull only on the plug itself, not on the cable.
• Do not open: Never attempt to open the appliance yourself, or to replace the power cord. Only have the appliance repaired by an authorised technician, or contact our after sales support centre for advice.
• RCD: Unless your home is already fitted with a residual current device (safety switch), we recommend installing an RCD with a rated residual operating current not exceeding 30mA to provide additional safety protection when using electrical appliances. See your electrician for professional advice.

Usage conditions and restrictions

• Domestic use only: This appliance is designed and intended for indoor household use only. It is not suitable for commercial, trade or outdoor use.
• Intended use: This garment steamer is intended exclusively for the smoothing and removal of creases, wrinkles and fluff on garments and other home textiles. Do not use it for anything other than its intended purpose and only use it as described in this manual. All other use is deemed improper use.
• Common sense: These instructions are not intended to cover every possible condition and situation. As with any electrical household appliance, common sense and caution are therefore always recommended when assembling, operating and maintaining the unit.
• Assembly and accessories: Ensure that all parts are correctly assembled before use. Do not use any accessories with this appliance that are not supplied or specifically recommended. Improper use of accessories may result in the risk of fire, electric shock and/or injury to persons.
• Usage restriction: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instructions concerning use of the appliance by a person responsible for their safety.
• Children: This appliance is not a toy. Supervise children to ensure they do not play with the appliance. Close supervision is necessary when any appliance is used by or near children.
• Unattended: Do not leave the appliance unattended when connected to power.
• Water usage: To extend the product life, we recommend using demineralised, distilled or filtered water (or a mix of tap and distilled water) in the tank. Do not add scented substances, vinegar, descaling agents or any other additives, as they can cause damage to the appliance. Do not add hot water to the tank.

General Safety Instructions (Cont.)

• Water tank: The water tank must be filled before connecting the appliance to the power supply. The appliance must be disconnected from the power supply before emptying or refilling water. Empty the water tank after every use.
• Filling aperture: Do not open the tank cap during use.
• Work area: Keep your work area well lit. Only use the appliance on a flat and stable surface where it is unlikely to be overturned.
• Positioning: To avoid scalding and/or scratching the iron soleplate, only rest the steam head/iron on the heat-insulated pad on the main unit.
• Flammable materials: Do not operate or store the appliance in the vicinity of flammable or explosive materials.
• Safe usage: Keep openings clear. Do not block the holes of the steam head/iron. Do not point the appliance at people or animals when in use.
• Heat sources: Keep the appliance away from heat sources (radiator, oven etc.), direct sunlight, moisture and sharp edges.
• WARNING: Do not steam clothes that are being worn! Never use the garment steamer on clothing that you are (or someone else is) wearing.
• Storage: Before storage, drain any water remaining in the tank and let the appliance cool down for at least 30 minutes. Store the appliance in a cool, dry indoor area, out of reach of children.
• Cleaning: Only clean the housing with a soft, dry cloth. Do not use liquid or aerosol cleaners. Descaling instructions are provided on page 21.
  CAUTION: Avoid harsh cleansers! Do not clean the appliance with solvents, alcohol or abrasive cleaners as these could cause damage to the steamer.
• Smoke: If you notice any smoke or fire coming out of the product, stop using it immediately and unplug the unit from the mains power supply to avoid a fire or electric shock. Contact our after sales support centre for assistance.
• Service: To reduce the risk of electric shock, do not disassemble or attempt to repair the appliance, take it to a qualified service person for examination and repair. Incorrect reassembly or repair could cause a risk of fire, electric shock, or injury to persons when the appliance is used.
• Misuse: Improper use or installation may result in the risk of fire, electric shock and/or injury. We accept no responsibility for any eventual injury or damages caused by improper use or inappropriate handling, or by any other noncompliance with the instructions in this manual.
• CAUTION: Always check the care instructions! Should the care instructions in an item to be steamed forbid ironing [ ] do not use the garment steamer on it or you could cause permanent damage to the item.

General Safety Instructions (Cont.)

CAUTION: HOT!

• Burns could occur from touching hot metal parts, hot water or steam. Use care when turning the appliance upside down — there may be hot water in the tank.
• To reduce the risk of contact with hot water emitting from the steam vents, check the appliance before each use by holding it away from your body and operating the STEAM button.
• Never hold your hand over the steam head or touch hot metal parts.
• Care should be taken when using the appliance due to the emission of steam.
• When placing the iron on its stand, ensure that the surface on which the stand is placed is stable.

WARNING: HOT SURFACES!

These symbols indicates that the appliance can become hot during use. Do not touch hot surfaces! Risk of burns! Keep the power cord away from hot parts.

WARNING: DANGER OF SCALDING!

This symbol indicates that the appliance emits hot steam during use. Exercise utmost care when using the appliance to avoid scalding. Always handle with care and warn other users of the potential danger.

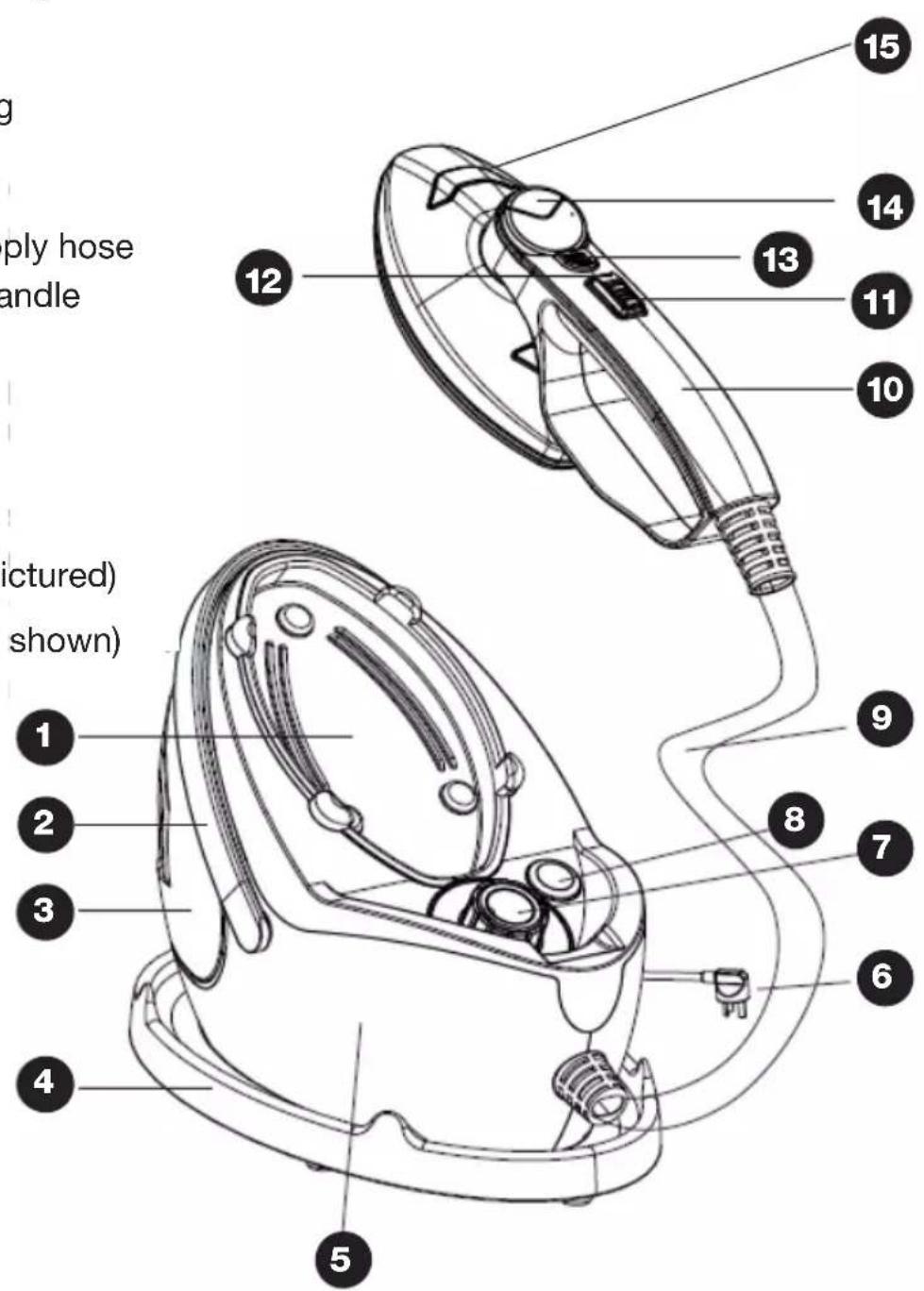

Product Overview

Scope of delivery

2-in-1 steam iron & garment steamer

1 Heat-insulated pad
2 Appliance carry handle
3 Water tank (removable)
4 Base
5 Main unit
6 Power cord and plug
7 Steam control knob
8 Power light
9 Insulated steam supply hose
10 Steam head/iron handle
11 Steam self-lock
12 Steam trigger
13 Rotation button
14 Temperature light
15 Rotation support
Anti-scald glove (not pictured)

Documentation (not shown)

Instruction manual Quick start guide Warranty certificate

g ply hose handle pictured) shown) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

NOTE: Due to continued product improvement, images and illustrations in this manual may vary slightly from the product purchased. All images in this manual are for reference purposes only. Parts are not necessarily pictured to scale.

Getting Started

Before first use

- Unpacking: This product has been packaged to protect it against transportation damage. Unpack the appliance and remove all promotional materials, stickers, protective films and packaging materials. Keep the original packaging carton and materials in a safe place. It will help prevent any damage if the product needs to be transported in the future, and you can use it to store the appliance when it is not in use. In the event that the packaging is to be disposed of, please recycle all packaging materials where possible.

Keep the packaging materials at least until you have made sure that you have unpacked all the parts listed on the previous page.

- Safe packaging disposal: Plastic wrapping can be a suffocation hazard for babies and young children, so ensure all packaging materials are out of their reach and disposed of safely.

- Inspection: Unwind and straighten the power cord. Inspect the cord and plug for damage or wear before each use. Do not use the appliance if the appliance or its cord has been damaged or is not working properly. In case of damage, please contact our after sales support centre for advice.

- Instructions: Make sure you have read and understood all instructions and warnings in this manual. Refer to the product overview (page 9) to familiarise yourself with the product and identify all parts. Pay particular attention to the safety instructions on the previous pages.

Instructions

Water usage

IMPORTANT!

• Never fill the water tank with chemical substances, perfumes, vinegar, mineral water, starch, descaling agents, ironing aids, cleaning agents or liquids other than water when using the steam iron/garment steamer. These products may cause damage to your garment steamer.
• Before filling and refilling with water, always remove the plug from the mains power socket. Never refill the water tank while the appliance is connected to the electricity supply as there is a risk of electric shock.
• Fill the appliance with purified water (distilled, demineralised) or cold, boiled water.

To extend the product life, we recommend using purified water: distilled, demineralised, or cold, boiled water. (Tap water may be used if it is rated very soft in your locality. If you are unsure about the water hardness level in your area, please inquire at your local water services provider.)

Always add cold water to the water tank, hot water will damage the tank and the inside of the garment steamer.

Filling the water tank

1. Place the appliance on flat and stable surface.
2. To remove the water tank, grip it firmly and pull it out of the main unit (Fig. 1).
3. Turn the water tank over and twist open the tank cap.
4. Fill the water tank with tap water, then empty out the water. This will rinse out any foreign particles remaining in the water tank from the manufacturing process.
5. Now fill water into the tank for steaming or ironing. Close the tank again and tighten the cap securely (Fig. 2).
6. Replace the closed water tank into its space on the main unit (Fig. 3).

Fig. 1 Fig. 2 Fig. 3

Instructions (Cont.)

Operation methods

You can use your new garment steamer for steaming garments or furnishings in vertical (hanging) position as well as for ironing garments on your own ironing board. Basic operation principles are explained below. Detailed instructions for each method follow on the next pages.

1. Connection: With the steam control set to the "Off" position and the steam self-lock button released, plug the power plug into an appropriate electrical outlet: the power light illuminates red, indicating that the power is supplied.

2.Switchingon:Turn the steam control knob to the desired position: the soleplate starts heating up and the power light turns blue.

3.a)Steamingorsteam-ironing: Wait until the red temperature light on top of then handle turns off, then press and the steam trigger button. For continuous steam emission through the holes in the soleplate, pull the button towards you to engage the steam self-lock.

b) Dry-ironing: Wait until the temperature light turns off, then start ironing.

c) Burst-of-steam ironing: Press and hold the steam trigger button for 3 seconds for a burst of steam, then release it for 10 seconds, then repeat this cycle.

Fig. 4

Release the steam trigger Press and hold the Press and hold the steam steam trigger or trigger button for 3s, then engage the steam self-lock release for 10s, then repeat

Line drawing of a vacuum cleaner with handle and base (no text or symbols)

Dry-ironing

Line drawing of a vacuum cleaner with five clamps (no text or symbols)

Steaming or steam-ironing

Line drawing of a steam iron with six small accessories below (no text or symbols)

Burst of steam

FIRST USE

On the first heating up of the appliance a small volume of vapours and/or odour may be generated, caused by production residues.

This is completely normal and is not dangerous.

Provide for sufficient ventilation, for example, open a window.

Instructions (Cont.)

First use: priming the pump

1. Place the garment steamer on a secure, level surface.
2. Take the steam head out of its space and unwind the steam supply hose from around the base.
3. Place the steam head back onto the heat-insulated pad (Fig. 5).
4. Fill the water tank as described on page 11.
5. Unwind the power cord.
6. With the steam control set the "Off" position, plug the power plug into an appropriate electrical outlet; the power indicator illuminates red.
7. Set the steam control to the "Clean" position (Fig. 6). The soleplate starts heating up and the power indicator turns blue.

CAUTION: The ceramic soleplate will heat up to between 130 °C and 150 °C. Take utmost care that you do not let it come into contact with bare hands or any other part of your body.

1. Holding the steam head over a sink or bucket, press down the steam trigger and pull it towards you to engage the steam self-lock. As the water gets pumped from the water tank, the appliance will make some noise, which is entirely normal and no cause for concern.

Line drawing of a hairless iron shaver with label 'Fig. 5' (no other text or symbols)

Fig. 6 Clean OFF Steam Control

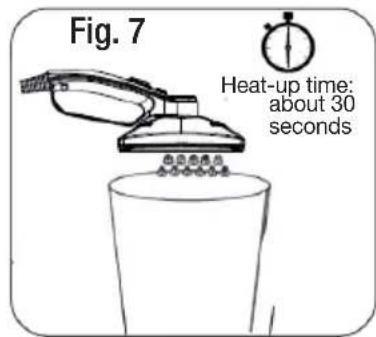

Fig. 7 Heat-up time: about 30 seconds

1. After about 30–40 seconds, the appliance will start spraying hot water and flushing the steam holes (Fig. 7).
2. When all residues have been flushed out (you may hear a drip sound), release the steam self-lock and adjust the steam control to the setting appropriate for the garments to be steamed/ironed — see page 17 for recommendations.

Instructions (Cont.)

Vertical steaming

The steam head can be rotated 90 degrees on the handle for vertical steaming.

CAUTION: Make sure the soleplate has cooled down and is safe to touch before rotating the steam head.

1. With one hand, hold the steam head handle and press the rotation button firmly until you hear the lock disengage. With the other hand, grip the rotation support. Rotate the steam head 90 degrees to the right for vertical steaming mode (Fig. 9) or back to the top for horizontal ironing mode (Fig. 8).

Fig. 8: Horizontal ironing

Rotation support Rotation button Steam trigger Steam self-lock button 90° Rotation

1. Hang the garment to be steamed on a coathanger in a suitable area accessible for steaming (Fig. 10).
2. Prepare the appliance as described on the previous pages. Ensure that the steam control is set to the appropriate setting for the garment to be steamed.
3. When the temperature light (Fig. 11) switches off, the steam is ready. Press down the steam trigger (Fig. 12) for bursts of steam, or press and pull the button towards you to lock for continuous steam emission.
4. Direct the steam away for a few seconds before you start steaming your garment as the initial steam may contain water droplets.

Illustration of a hand holding a magnifying glass over a collared shirt (no text or symbols)

Fig. 11 Temperature light Steam button

Fig. 12 Press and hold the steam button, or lock it for con- tinuous steam

Instructions (Cont.)

1. With one hand pull the garment flat for steaming. With your other hand, hold the steam head upright and direct the steam towards the creases in the fabric, then steam it from top to bottom.

ANTI-SCALD GLOVE

We recommend you put the anti-scald glove on the hand you are using to pull the garment in place for steaming.

1. To remove stubborn creases from fabrics that may be ironed, place the sole-plate on the fabric and utilise its hot temperature together with the hot steam.
2. When you have finished steaming the garment, release the steam self-lock.
3. CAUTION: If you need to replace the steam head on the main unit before the soleplate has cooled down, take utmost care to avoid scalding. Only touch the rotation support when rotating the steam head.

CAUTION!

• Do not rotate the steam head before the soleplate has cooled down and is safe to touch.
• Steaming may leave your garment slightly damp or create small wet spots. Always leave the steamed garment on a clothes hanger to cool down and fully dry before wearing it or putting it away.
• Should the water tank become empty while the appliance is in use, remove the plug from the power socket before refilling the tank.
• After use, always release the self-locking mechanism and turn off the steam. Then place the steam head on the heat-insulated pad.

Instructions (Cont.)

Horizontal (flat) ironing

Make sure steam head is in the correct position for horizontal ironing (Fig. 13).

1. Place the garment to be ironed on an ironing board.
2. Prepare the appliance as described previously. Ensure that the steam control is set to the appropriate setting for the garment to be ironed.
3. When the temperature light goes out, the steam is ready. Direct the steam head away from you and press down the steam trigger button for a few seconds. Then you may start ironing.
4. Keep the steam trigger button pressed or pull it towards you to lock for continuous steam emission. Guide the iron smoothly over the garment to remove creases and wrinkles (Fig. 14).

Steam head position for horizontal ironing

Line drawing of a steam iron on a flat surface, with no text or symbols present

1. To steam-iron, make sure you keep pressing the steam trigger button or pull it towards you to lock for continuous steam emission.

To dry-iron, release the steam self-lock button and the steam emission will stop.

To add a burst of steam when dry-ironing, press the steam trigger briefly when the temperature light is off, then release the button. Repeat this action as required to remove stubborn creases.

1. When you have finished ironing the garment, release the steam self-lock (if applicable) and place the iron back on the heat-insulated pad.

Instructions (Cont.)

Burst-of-steam method (professional ironing)

Professionals often use a burst-of-steam method for removing stubborn wrinkles. However, you need to be proficient in using this method, otherwise the repeated strong bursts of steam will leave your garment wet. We therefore recommend that you practice sufficiently before using this method.

To iron professionally with bursts of steam:

1. Set the steam control to the "Clean" position.
2. Press and hold the steam trigger button for about 3 seconds for strong steam bursts.
3. Release the button for about 10 seconds for operation without steam.
4. Repeat this "3 seconds steam – 10 seconds no steam" cycle for professional results.

Fig. 15 Professional Ironing

Steam settings

You can set the steam volume/temperature to low [I], medium [II] or high [III]. We recommend you set the steam volume to match the garment care label of your clothes.

Table 1: Steam settings
Garment care label Type of material Steam setting
	Synthetic fibres, e.g., polyester, rayon, etc.	I(low steam output/temperature)
	Silk, wool	II(medium steam output/temperature)
	Cotton, linen	III(high steam output/temperature)

In general, turn the knob to the low [I] setting for steaming thinner, more heat-sensitive garments. Use the medium [II] setting for everyday clothing and mixed fibre fabrics, and the high [III] setting for thicker fabrics that can withstand higher temperatures.

Instructions (Cont.)

HEAT-SENSITIVE FABRICS

• Exercise caution when steaming or ironing heat-sensitive fabrics such as nylon, polyamide or other synthetic fibres. Check at a concealed part first (e.g., inside seam) to ensure that the hot steam will not cause any damage to the garment.
• Do not touch heat-sensitive fabrics directly with the hot soleplate of the steam head/iron, only use the steam function.
• Should the care instructions in the garment forbid ironing (☐) do not use the garment steamer on it. Otherwise you will risk causing permanent damage to the garment.
• Do NOT use the appliance on leather, velvet, impregnated furniture or steam-sensitive materials. If you do, the material/furniture could become damaged.

Curtain and soft furnishing care

Creases and wrinkles can be removed from heat-resistant curtains and draperies. Always carry out a test first on a concealed part of the item. Hang the item over a pole, then follow the directions on pages 14–15 for vertical steaming.

WARNING!

Please ensure that everyone who is using this appliance is well aware of the operating methods. Improper operation may result in hot water and scale residues being sprayed onto the items to be steamed, or causing scalding.

Instructions (Cont.)

After use

When you have finished using the garment steamer, take the following steps to prepare it for storage.

• Take the water tank out of the appliance, open it over a sink or bucket and drain out all remaining water. Reinstall the empty water tank.
• Plug the appliance into a power outlet and turn the steam control knob to the "Clean" position.
• Press the steam trigger and engage the steam self-lock. Point the steam head away from you. (Water may drip out during the process, so you may want to hold it over a bucket or sink.)
• When all water that was left in the system has evaporated as steam, release the steam self-lock and turn the steam control knob to the "Off" position.
• Place the steam head in its space on the heat-insulated pad.
• Unplug the appliance and allow the appliance to cool down before putting it into storage. Failure to let the appliance cool down can result in the risk of fire.

Storage

• Do not roll the cord around the appliance for storage until the appliance has cooled down, then loop the cord loosely around the appliance stand.
• To protect the appliance from dust during prolonged storage, place the appliance in its original packaging, in a dry location, out of reach of children.

FAQs & Troubleshooting Guide

If you experience problems with your garment steamer, or it appears not to be operating correctly, check in the list below for answers to frequently asked questions. If none of the solutions offered help you solve your problem, please contact our after sales support centre for advice using the details at the bottom of the page. Do not attempt to repair the appliance yourself!

Table 2: Troubleshooting guide
Problem Possible cause Solution
The steam head ejects no or very little steam.	The supply of water in the tank is exhausted.	Fill the water tank with water.
	A low steam volume has been set.	Turn the steam control knob to a higher position.
	Limescale is causing intermittent steaming.	Descale the appliance following the instructions on page 21.
The steam head does not heat up.	The appliance is not properly connected to mains power.	Insert the plug into a wall power socket and turn on the power to the outlet. Then turn the steam control to the required steam setting.
Water is dripping from the holes in the soleplate.	The soleplate is not hot enough to produce steam.	Set an appropriate steam/temperature setting, then press and hold the steam trigger button, or engage the self-lock.
	The steam volume is too high, e.g, when set to "Clean".	After the cleaning cycle, select a lower steam setting.
White streaks are dripping from the holes in the soleplate.	Limescale has built up which must be removed.	Descale the appliance following the instructions on page 21.
Brown streaks are dripping from the steam holes.	Have you added anything to the water in the tank?	Only add water to the tank, no additives.
It stopped steaming during use.	The appliance will stop steaming when the water tank is empty.	Switch off and unplug the appliance, then refill the water tank.

Other Useful Information

Cleaning and care

WARNING!

Before cleaning the appliance:

• Always switch off and unplug the appliance from the power supply. There is a risk of electric shock.
• Always allow the appliance to cool down. There is a risk of scalding.

- Housing: If the housing requires cleaning, wipe it with a soft, dry or slightly damp cloth and a mild, non-aggressive cleaning agent, if required. CAUTION! Never use harsh cleansers. These can damage the surfaces.

- Steam holes: Please follow points 1–8 from the "First use" instructions (page 13) for cleaning the steam holes. If further cleaning is required, remove any remaining build-up using a cotton wool tip moistened with methylated spirits.

Scale removal

Should the steam output diminish over a period of time, you may need to clean off any mineral deposits (limescale) left by water inside the appliance. The build-up of limescale is a normal occurrence caused by the mineral content of tap water. Unless you only use demineralised or distilled water in your garment steamer, we recommend you descale the appliance once a month, or as required depending on the water hardness in your area and your frequency of use. If scaling is a problem in your area, you will have to descale it more frequently, but even in soft water areas is regular descaling important to keep the garment steamer operating efficiently.

• Set up the garment steamer near a sink. (Alternatively, keep a bucket close by.)
• Prepare your descaling solution (e.g., 1 part white vinegar, 3 parts water) and carefully pour it into the appliance's water tank.
• Plug in the appliance and set the steam control to the "Clean" position.
  • Take the steam head off the main unit and hold it over a sink (bucket).
• Press down and hold the steam trigger button. As the appliance starts the automatic cleaning cycle, hot water, steam and scale particles will be flushed out of the steam holes at the bottom of the steam head.
• When there is no more descaling solution left in the tank, repeat the automatic cleaning cycle using clear (distilled, demineralised or filtered) water. If required, repeat this cleaning process again until the water coming out of the steam holes is completely clean.

Other Useful Information (Cont.)

Safety features

The appliance is equipped with three important safety features.

A warning beep triggers when the water is about to run out in the water tank to prevent damage to the machine or injury from scalding. A thermostat shuts off the power to the appliance when the boiler is overheating. And if the thermostat fails, a fuse triggers when the boiler is overheating.

Service, repair and spare parts

If the appliance is damaged, do not attempt to repair it yourself. Do not disassemble or modify the appliance. It contains no user-serviceable parts within, and there are no spare parts available for purchase. If it requires repair or service, please contact our after sales support centre for advice.

Technical specifications

Model GS14R-LS
Rated voltage / frequency 220–240 V~ /	50–60 Hz
Motor power 1300–1550 W
Steam modes 3 (Low, Medium, High)
Water tank capacity	1.1 L
Dimensions (W x D x H) 300 x 180 x 250 mm (approx.)
Weight 2.580 kg (approx.)

Compliance

This appliance has been fully tested and meets all requirements as set out by standards AS/NZS 60335.1 and AS/NZS 60335.2.3 and AS/NZS 60335.2.85.

The RCM Mark (Regulatory Compliance Mark) indicates that the product complies with the relevant guidelines of the ACMA as well as corresponding government requirements for the safety of electrical devices.

Responsible disposal

At the end of its working life, do not throw this appliance out with your household waste. Electrical and electronic products contain substances that can have a detrimental effect on the environment and human health if disposed of inappropriately. Observe any local regulations regarding the disposal of electrical consumer goods and dispose of it appropriately for recycling. Contact your local authorities for advice on recycling facilities in your area.

ALDI

STIRLING

2-in-1 Steam Iron & Garment Steamer

Repair and Refurbished Goods or Parts Notice

Unfortunately, from time to time, faulty products are manufactured which need to be returned to the supplier for repair.

Please be aware that if your product is capable of retaining user-generated data (such as files stored on a computer hard drive, telephone numbers stored on a mobile telephone, songs stored on a portable media player, games saved on a games console or files stored on a USB memory stick) during the process of repair, some or all of your stored data may be lost. We recommend you save this data elsewhere prior to sending the product for repair.

You should also be aware that rather than repairing goods, we may replace them with refurbished goods of the same type or use refurbished parts in the repair process.

Please be assured though, refurbished parts or replacements are only used where they meet ALDI's stringent quality specifications.

If at any time you feel your repair is being handled unsatisfactorily, you may escalate your complaint. Please telephone us on 1300 112 534 or write to us at:

Tempo (Aust) Pty Ltd ABN 70 106 100 252

PO BOX 6056 Frenchs Forest, Sydney, Australia NSW 2086

Email: [e-mail]

Tempo Help Desk: 1300 112 534 (Aust)

(Operating Hours: Mon-Sat 09:00am to 06:00pm AEST)

1 YEAR WARRANTY

Icon showing a person reading a book with an exclamation mark symbol (no text or numbers present)

Please read the manual

It will help you get the best out of your product.

Still have questions?

Call after sales support

1300 112 534

Or visit www.tempo.org

Warranty returns

Should you for any reason need to return this product for a warranty claim, make sure to include all accessories with the product.

Product does not work?

If you encounter problems with this product, or if it fails to perform to your expectations, make sure to contact our After Sales Support Centre on 1300 112 534 for advice.

For an electronic copy of this manual, please go to www.stirlingappliances.com.au and download a copy, or contact our after sales support centre.

Instruction Manual Revision Index

Version No Issue Date Description

V1.0 15 March 2021 Original release

V1.1 06 April 2021 Minor updates: pages 11, 13, 22

V1.2 15 April 2021 Minor update, page 22

V1.3 22 April 2021 Minor update, page 8
