USER'S MANUAL

Revision 1.0a

The information in this User's Manual has been carefully reviewed and is believed to be accurate. The vendor assumes no responsibility for any inaccuracies that may be contained in this document, and makes no commitment to update or to keep current the information in this manual, or to notify any person or organization of the updates. Please Note: For the most up-to-date version of this manual, please see our website at www.supermicro.com.

Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product described in this manual at any time and without notice. This product, including software and documentation, is the property of Supermicro and/or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except as expressly permitted by the terms of said license.

IN NO EVENT WILL Super Micro Computer, Inc. BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL, SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN PARTICULAR, SUPER MICRO COMPUTER, INC. SHALL NOT HAVE LIABILITY FOR ANY HARDWARE, SOFTWARE, OR DATA STORED OR USED WITH THE PRODUCT, INCLUDING THE COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH HARDWARE, SOFTWARE, OR DATA.

Any disputes arising between manufacturer and customer shall be governed by the laws of Santa Clara County in the State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.

FCC Statement: This equipment has been tested and found to comply with the limits for a Class A or Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in industrial environment for Class A device or in residential environment for Class B device. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer's instruction manual, may cause harmful interference with radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case you will be required to correct the interference at your own expense.

California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate warning applies only to products containing CR (Manganese Dioxide) Lithium coin cells. "Perchlorate Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate".

WARNING: This product can expose you to chemicals including lead, known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical systems whose failure to perform be reasonably expected to result in significant injury or loss of life or catastrophic property damage. Accordingly, Supermicro disclaims any and all liability, and should buyer use or sell such products for use in such ultra-hazardous applications, it does so entirely at its own risk. Furthermore, buyer agrees to fully indemnify, defend and hold Supermicro harmless for and against any and all claims, demands, actions, litigation, and proceedings of any kind arising out of or related to such ultra-hazardous use or sale.

Manual Revision 1.0a

Release Date: May 11, 2022 mk

Unless you request and receive written permission from Super Micro Computer, Inc., you may not copy any part of this document. Information in this document is subject to change without notice. Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.

Copyright © 2022 by Super Micro Computer, Inc.

All rights reserved.

Printed in the United States of America

Preface

About this Manual

This manual is written for professional system integrators and PC technicians. It provides information for the installation and use of the server. Installation and maintenance should be performed by experienced technicians only.

Please refer to the SBA-4114S-C2N/T2N server specifications page on our website for updates on supported memory, processors and operating systems (www.supermicro.com).

Notes

For your system to work properly, please follow the links below to download all necessary drivers/utilities and the user's manual for your server.

• Supermicro product manuals: https://www.supermicro.com/support/manuals/
- Product drivers and utilities: https://www.supermicro.com/wdl
- Product safety info: https://www.supermicro.com/about/policies/safety_information.cfm

If you have any questions, please contact our support team at: [e-mail]

This manual may be periodically updated without notice. Please check the Supermicro website for possible updates to the manual revision level.

Secure Data Deletion

A secure data deletion tool designed to fully erase all data from storage devices can be found on our website: https://www.supermicro.com/about/policies/disclaimer.cfm?url=/wdl/utility/Lot9_Secure_Data_Deletion_Utility/

Warnings

Special attention should be given to the following symbols used in this manual.

Warning! Indicates important information given to prevent equipment/property damage or personal injury.

Warning! Indicates high voltage may be encountered when performing a procedure.

Contents

Chapter 1 Introduction

1.1 Overview....7 AIOM Options....7

1.2 System Features ....8 Front View....8 Drive Carrier Indicators....9 Control Panel....10 Top View....11

1.3 System Block Diagrams....13 1.4 Motherboard Layout....15 Quick Reference....16 Motherboard Block Diagram....17

Chapter 2 Installation and Setup

2.1 Unpacking the System 18
2.2 Installing or Removing the Blade Unit....19 Installing a Blade Unit into the Enclosure....19 Removing a Blade Unit from the Enclosure....19
2.3 Powering Up or Down....20 Powering Up a Blade Unit....20 Powering Down a Blade Unit....20

2.4 Removing the Cover ....21

2.5 Installing the Processor and Heatsink 22

2.6 Memory ....30 Memory Support ....30 Memory Guidelines ....30 Installing Memory....32

2.7 Motherboard Battery....33 2.8 Storage Drives....34 Installing Drives....34 Hot-Swap for NVMe Drives....37 Checking the Temperature of an NVMe Drive....38 M.2 Solid State Drives....38

2.9 AIOMs....39
2.10 System Cooling....40

Air Shrouds 40

Checking the Server Air Flow 41

Overheating....41

Chapter 3 Motherboard Connections

3.1 Headers and Connectors ....42
3.2 Jumpers....44
3.3 LED Indicators....45

Chapter 4 Software

4.1 Installing the Operating System....46

Linux Installation with Two Storage Drives—Note 46

Microsoft Windows OS Installation 47

4.2 Driver Installation....49
4.3 SuperDoctor ^® 5....50
4.4 BMC....51

BMC ADMIN User Password ....51

Chapter 5 Optional Components

5.1 TPM Security Module....52

Chapter 6 Troubleshooting and Support

6.1 Information Resources....53

Website 53

Direct Links for the SBA-4114S-C2N/T2N System 53

Direct Links for General Support and Information 53

6.2 BMC Interface ....54
6.3 Troubleshooting Procedures .....55

No Power 55
No Video ....56
System Boot Failure ....56
Memory Errors ....56
Losing the System Setup Configuration ....56
When the System Becomes Unstable....56

6.4 BIOS Error Beep (POST) Codes ....58

Additional BIOS POST Codes ....58

6.5 Crash Dump Using the BMC Dashboard....59
6.6 UEFI BIOS Recovery 60

Overview 60

Recovering the UEFI BIOS Image....60

Recovering the Main BIOS Block with a USB Device....60

6.7 CMOS Clear 65
6.8 BMC Reset....65
6.9 Where to Get Replacement Components....66
6.10 Reporting an Issue....66

Technical Support Procedures....66

Returning Merchandise for Service....66

Vendor Support Filing System 67

6.11 Feedback....67
6.12 Contacting Supermicro....68

Appendix A BIOS POST Codes

Appendix B Standardized Warning Statements for AC Systems

Appendix C System Specifications

Chapter 1

Introduction

1.1 Overview

This chapter provides a description of the functions and features of the SBA-4114S-C2N/T2N SuperBlade server. It connects into a pre-cabled enclosure that provides power, cooling, management and networking functions. One enclosure can hold up to twenty blades. Each blade contains one computing node.

In this manual, “blade” or “blade unit” refers to a single blade, and “blade enclosure” is the chassis that houses the blades, power supplies and other modules. “Blade system” refers to the enclosure, blades units, and various management and networking modules.

System Overview
Motherboard	BH12SSi-M25
Chassis	MCP-680-41006-0N
Processor	AMD EPYC 7003/7002 Series in SP3 socket (7003 processor drop-in support requires BIOS version 2.0 or newer)
Memory	Eight DIMM slots, 2TB 3DS ECC RDIMM/LRDIMM DDR4; up to 3200MHz
Storage	Two 2.5" hot-swap hybrid front drive baysSBA-4114S-C2N: NVME/SAS/SATASBA-4114S-T2N: NVMe/SATATwo M.2 PCIe x4
I/O Ports	Two AIOMs
System Cooling	One air shroud
Form Factor	4U height; 6.5" x 1.75" x 23.5" (depth) (16.5 x 4.4 x 59.7 cm)

A Quick Reference Guide can be found on the product page of the Supermicro website.

SBA-4114S-C2N: (web page link); SBA-4114S-T2N: (web page link)

AIOM Options

The system accepts many different advanced input/output modules (AIOMs) that provide network connectivity. It supports OCP 3.0 specifications using PCIe Gen 4.0 x16. Options include RJ45, SFP+, QSFP28, etc. at 1/10/25/100GbE capabilities, with two or four ports per module, up to two modules. See the web product page for current choices.

1.2 System Features

The following views of the system display the main features. Refer to Appendix C for additional specifications.

Front View

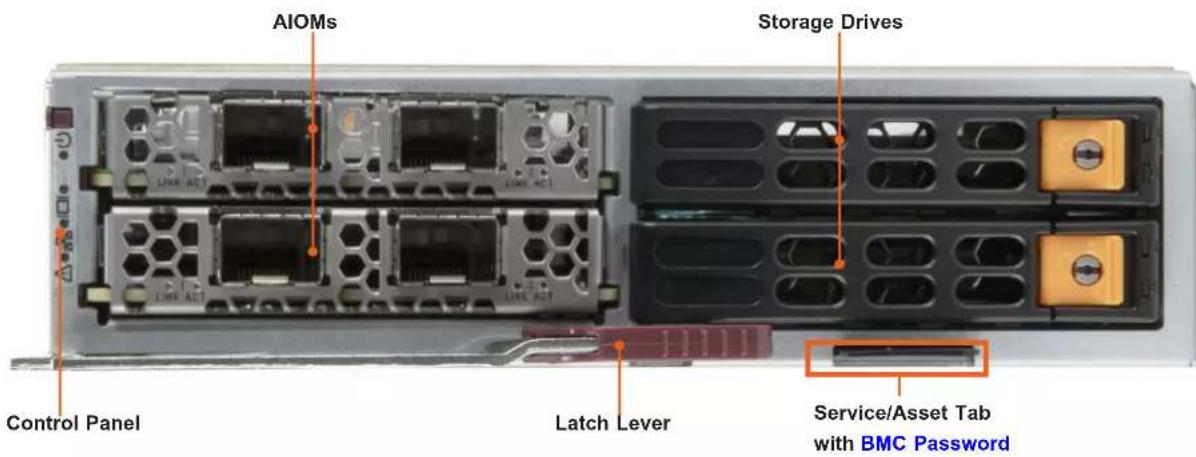

AIOMs Storage Drives Control Panel Latch Lever Service/Asset Tab with BMC Password

Figure 1-1. Front View

Logical Storage Drive Numbers
Item Description
Control Panel Power button and status indicators
AIOMs Two AIOM slots for input/output
Latch Lever Secures the blade into the enclosure
Storage Drives Two 2.5" hybrid drive bays (NVMe*/SAS*/SATA)
Service/Asset Tab Pull-out identifier (with BMC ADMIN default password sticker)

Drive Carrier Indicators

Each drive carrier has two LED indicators: an activity indicator and a status indicator. For RAID configurations using a controller, the meaning of the status indicator is described in the table below. For OS RAID or non-RAID configurations, some LED indications are not supported, such as hot spare.

Drive Carrier LED Indicators
	Color Blinking Pattern Behavior for Device
Activity LED	Blue Solid On Idle SAS/NVMe drive installed
	Blue Blinking I/O activity
	Blue Off Idle SATA drive installed
Status LED	Red Solid On Failure of drive
	Green Solid Green LED Safe to remove NVMe device
	Amber Blinking at 1Hz Do not remove NVMe device

Control Panel

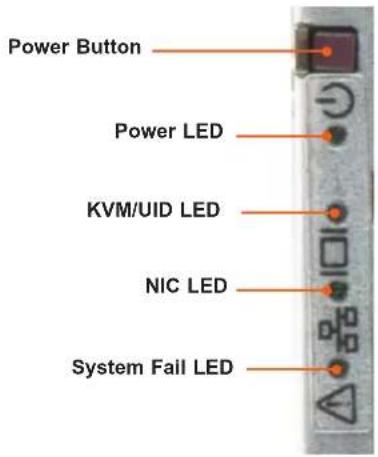

Power Button Power LED KVM/UID LED NIC LED System Fail LED

Figure 1-2. Control Panel

Control Panel Features
Features Color/State Description
Power Button		The main power switch applies or removes primary power from the power supply to the server but maintains standby power.
Power LED	Green Power on
	Amber, flashing Before the BMC is ready, blinks until every node is ready
	Amber, steady Power off
KVM/UID LED	Blue, steady Indicates that KVM has been initialized
	Blue, flashing slowly	Unit Identifier indicator (The UID function is activated with a management program.)
	Blue, flashing quickly	Firmware revision
NIC LED	Green, flashing	Indicates traffic (Tx and RX data) on the LAN connection to this blade module
	Orange, flashing Indicates traffic over the network (when present in the system)
System Fail LED Red		Indicates a fatal error. This may be a memory error, a VGA error or any other fatal error that prevents the operating system from booting.

Top View

Mezzanine CPU Memory M.2 Slots AIOMs Drives

Figure 1-3. System: Top View

System Features: Top
Feature Description
Mezzanine Add-on card
CPU Processor and heatsink
Memory DIMM slots (under air shrouds)
M.2 Slots Two slots for M.2 SSDs
AIOMs Slots for two Advanced Input/Output modules
Drives Two 2.5" storage drives

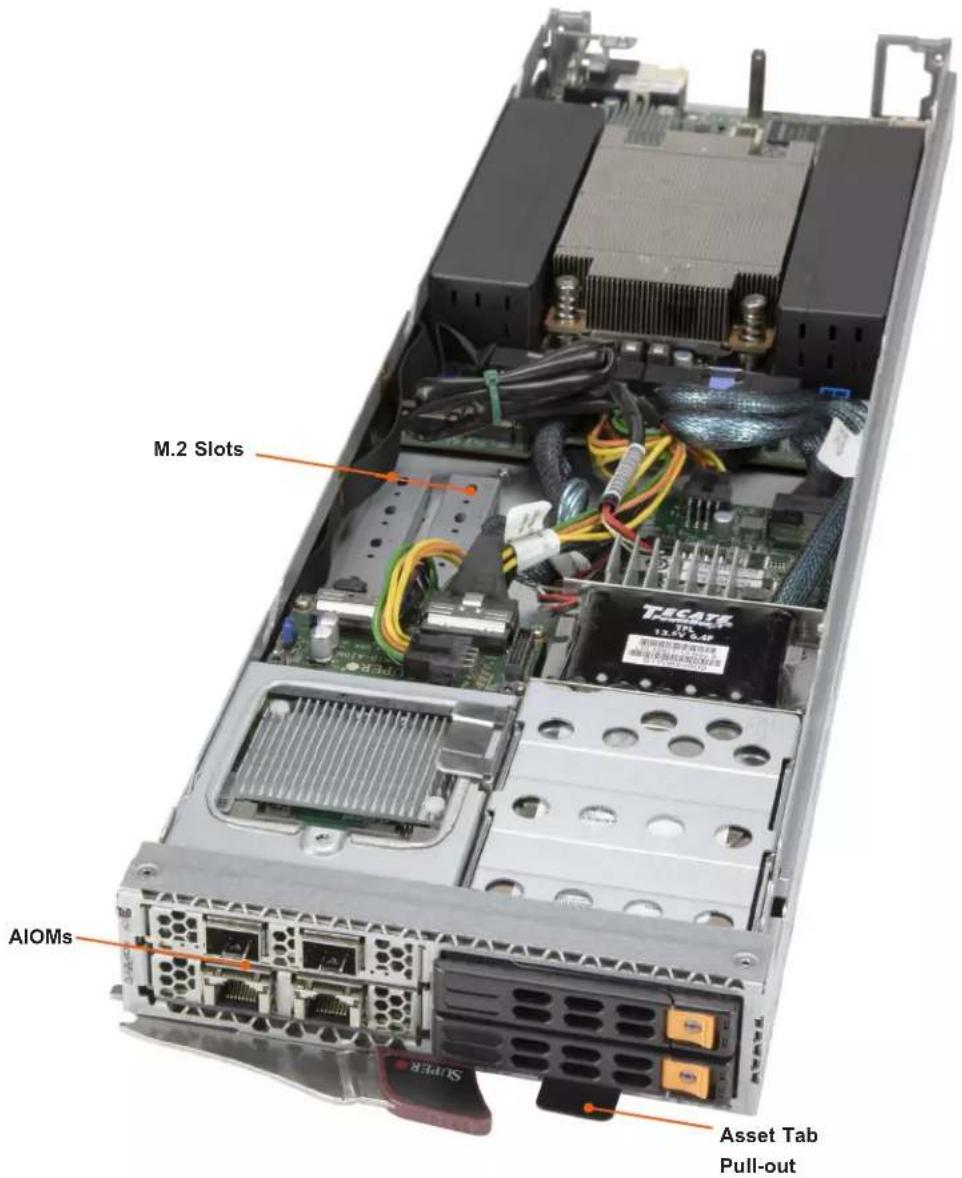

M.2 Slots AlOMs Asset Tab Pull-out

Figure 1-4. System, Angle View

1.3 System Block Diagrams


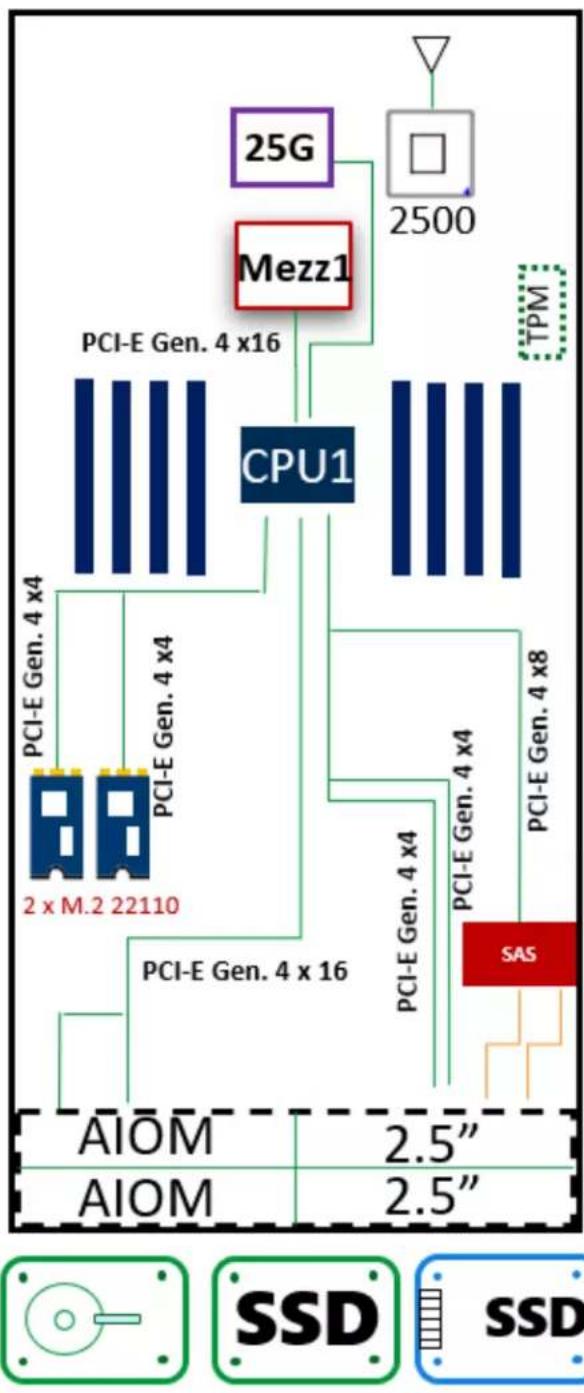

Figure 1-5. System Block Diagram, SBA-4114S-C2N

Figure 1-6. System Block Diagram, SBA-4114S-C2N

1.4 Motherboard Layout

Below is a layout of the BH12SSi-M25 motherboard with jumper, connector and LED locations shown. See the following page for descriptions. For detailed descriptions, pinout information and jumper settings, refer to Chapter 3 or the Motherboard Manual.

2X PCIe GEN 4 Connectors PCIe x16 F 6 2X M.2 Connectors PCIe Gen 4 or SATA M.2 M.2 JPWR1 JBT1 JFP1 DIMMA1 DIMMB1 DIMMC1 DIMMD1 CPU DIMMH1 DIMMG1 DIMMF1 DIMME1 MEZZ JCPLD1 JB1 JDBG1 SUPÉR BH12557-M23 JTPM1 JWD1 JKVM1 PWR LED MB PWR BMC LAN

Figure 1-7. Motherboard Layout

Quick Reference

Jumper Description Default Setting

JDBG1 Debug Mode Pins 1-2 (Enabled)

JBT1 Clear CMOS Open (Normal)

JWD1 Watch Dog Timer control Pins 1-2 (Reset)

JPG1 Onboard Video Disable/Enable Pins 1-2 (Enabled)

Connector Description

JB1 External speaker/buzzer connector
JCPLD1 Complex-Programmable Logical Device (CPLD) header
JKVM1 Connector for external keyboard, video and mouse
JFP1 Front control panel connector for LED and Power Button
BMCLAN	BMC LAN port
JTPM1	Trusted Platform Module (TPM)/Port 80 connector
2x PCIe x16 2x PCIe Gen 4 x16 connectors for MCIO cable
2x M.2	2x M.2 connectors (PCIe Gen 4 x4 or 2X SATA support)
MEZZ	PCIe Gen 4 x16 Mezzanine card connector
MB PWR	Motherboard power connector to middle plane
DIMMA1~DIMMH1	DIMM memory slots
JPWR1	12V 8-pin ATX CPU power connector

LED	Description	State: Status
PWR LED	Power LED	On: Power On

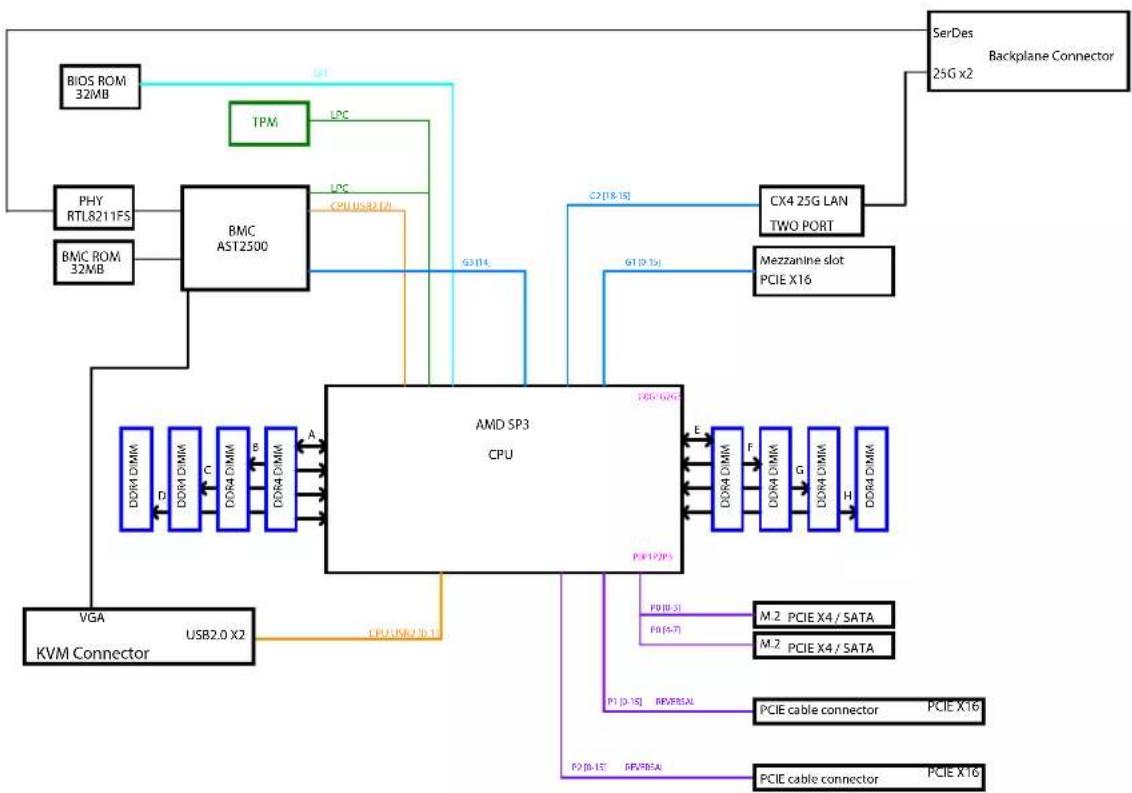

Motherboard Block Diagram

Figure 1-8. Motherboard Block Diagram

Chapter 2

Installation and Setup

This chapter provides instructions on installing and replacing main system components. To prevent compatibility issues, only use components that match the specifications or part numbers.

Twenty blade modules may be installed into a blade enclosure, depending upon your enclosure. Blade modules with Windows and Linux operating systems may be mixed together in the same blade enclosure.

2.1 Unpacking the System

Inspect the box the system was shipped in and note if it was damaged in any way. If any equipment appears damaged, please file a damage claim with the carrier who delivered it.

The enclosure should be situated in a clean, dust-free area that is well ventilated. Avoid areas where heat, electrical noise and electromagnetic fields are generated. It will also require a grounded AC power outlet nearby. Be sure to read the precautions and considerations noted in Appendix B.

2.2 Installing or Removing the Blade Unit

Installing a Blade Unit into the Enclosure

1. Pull the latch lever out, and push the blade into its bay. Caution: Insert the blade carefully so the rear connectors are not damaged.

2. As the blade is seated in the enclosure, push the lever into its locked position.

Latch Lever

Figure 2-1. Blade Latch Lever

Removing a Blade Unit from the Enclosure

A blade can be removed from the enclosure while other blades continue to operate.

Note: When a blade is removed for a length of time, cover the slot with a dummy to ensure proper airflow in the enclosure.

Removing a Blade Unit from the Enclosure

1. Power down the blade unit.

2. Pull open the latch lever and use it to pull the blade from the enclosure.

2.3 Powering Up or Down

Each blade unit may be powered on and off independently from the rest of the blades in the enclosure.

Powering Up a Blade Unit

A blade unit may be powered up in two ways:

• Press the power button on the blade unit.
• Use IPMIView or the browser based management utility to apply power using either a CMM module, or by the use of the onboard BMC chip in the blade module.

Powering Down a Blade Unit

A blade unit may be powered down in any of the following ways:

• Press the power button on the blade unit.
• Use IPMIView or the browser based management utility to power down; requires Operator or Admin privileges on the CMM.
• Use SMCIPMItool when connected to the CMM to power down; requires Operator or Admin privileges on the CMM.
• Use IPMIview or a browser connected to the onboard BMC chip to power down.
• Use SMCIPMItool to use a Command Line Interface to the onboard BMC chip; requires Operator or Admin privileges.

2.4 Removing the Cover

When the blade has been removed from the enclosure, the top cover can be removed to access the components.

- Remove the screw and slide the cover toward the rear and off.

Technical line drawing of an internal server rack with visible circuitry and ventilation slots (no text or labels)

Figure 2-2. Removing the Top Cover

2.5 Installing the Processor and Heatsink

Cautions:

• When handling the processor (CPU) package, avoid placing direct pressure on the label area of the CPU or CPU socket.
• Improper CPU installation or socket misalignment can cause serious damage to the CPU or motherboard which may result in RMA repairs.
• Take all standard precautions to avoid electrostatic discharge (ESD) which can damage components.

Assemble the processor (CPU) and heatsink together first then install that assembly onto the CPU socket.

Notes:

• The motherboard should be installed into the chassis first and the processor should be installed into the CPU socket before you install a CPU heatsink.
• If you bought a CPU separately, use a certified multi-directional heatsink only.
• When receiving a motherboard without a processor pre-installed, make sure that the plastic CPU socket cap is in place and none of the socket pins are bent; otherwise, contact your retailer immediately.
  • Refer to the SuperMicro website for updates on CPU support.

Installing the Processor and Heatsink

Begin by removing power from the system as described in Section 2.3.

1. Use a Torx T20 driver to loosen the screws holding down Force Frame in the sequence of 3-2-1. The screws are numbered on the Force Frame next to each screw hole. Tighten to 16.1 kgf-cm (14 lbf-in) of torque.

Screw #3 Screw #2 Force Frame Screw #1

Figure 2-3. Removing the Processor Force Frame

1. The spring-loaded Force Frame will raise up after the last screw (#1) is removed. Gently allow it to lift up to its stopping position.

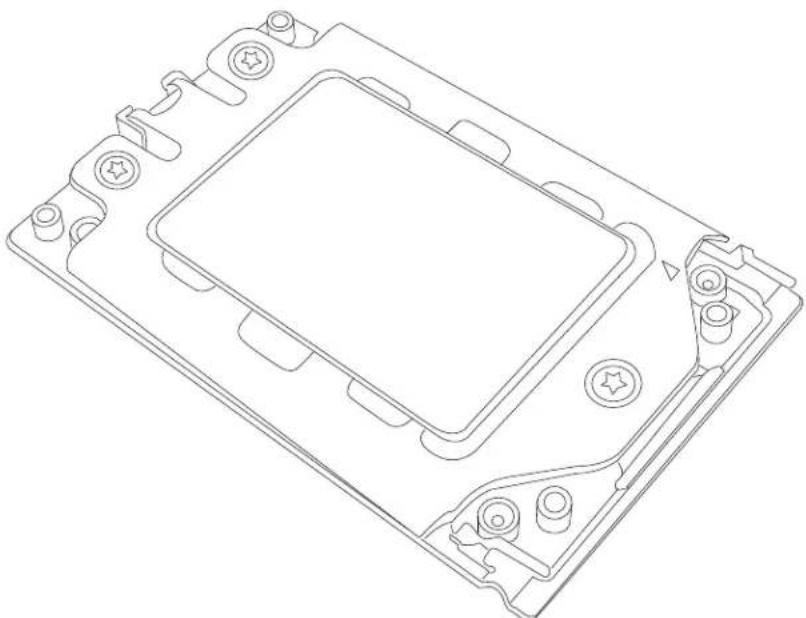

Line drawing of a hand pressing down on a computer processor casing with an arrow indicating the process (no text or symbols present)

Figure 2-4. Raising the Force Frame

1. Lift the Rail Frame up by gripping the lift tabs near the front end of the rail frame. While keeping a secure grip of the Rail Frame, lift it to a position so you can do the next step of removing the External Cap.

Note: The Rail Frame is spring loaded, so keep a secure grip on it as you lift it so it does not snap up.

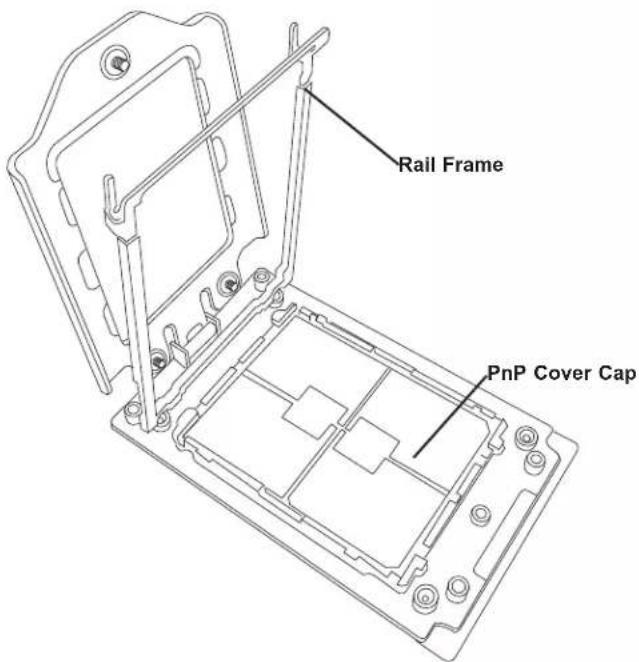

Rail Frame PnP Cover Cap

Figure 2-5. Lifting the Rail Frame

1. Remove the External Cap from the Rail Frame by pulling it upwards through the rail guides on the Rail Frame.

External Cap PnP Cover Cap

Figure 2-6. Removing the External Cap

1. The CPU Package is shipped from the factory with the blue Carrier Frame pre-assembled. Grip the handle of the Carrier Frame/CPU Package assembly from its shipping tray, and while gripping the handle, align the flanges of the Carrier Frame onto the rails of the Rail Frame so its pins will be at the bottom when the Rail Frame is lowered later.

2. Slide the Carrier Frame/CPU Package downwards to the bottom of the Rail Frame. Ensure the flanges are secure on the rails as you lower it downwards.

Carrier Frame/ CPU Package

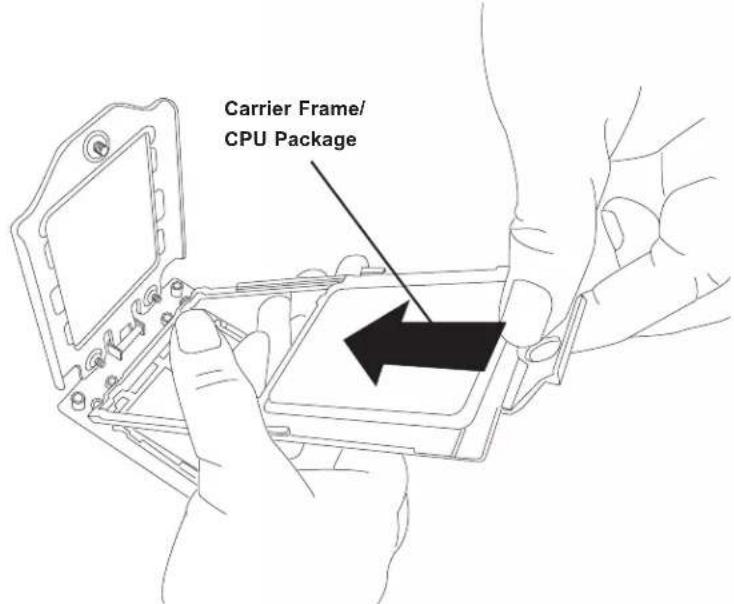

Figure 2-7. Inserting the Carrier Frame/CPU Package

Note: You can only install the CPU inside the socket in one direction with the handle at the top. Make sure that it is properly inserted into the CPU socket before closing the Rail Frame plate. If it doesn't close properly, do not force it as it may damage your CPU. Instead, open the Rail Frame plate again, and double-check that the CPU is aligned properly.

1. Lift up the Rail Frame till it securely rests in upright position. Then remove the PnP Cover Cap from the CPU socket below. Grip the two lift tabs marked "Remove" at the middle of the cap and pull vertically upwards to remove the PnP Cover Cap.
   Caution: The exposed socket contacts are extremely vulnerable and can be damaged easily. Do not touch or drop objects onto the contacts and be careful removing the PnP Cover Cap and when placing the Rail Frame over the socket.
2. Gently lower the Rail Frame down onto the socket until the latches on the Rail Frame engage with the Socket housing. and it rests in place. Do not force it into place!
3. Gently lower the Force Frame down onto the Rail Frame and hold it in place until it is seated in the Socket housing. Note that the Force Frame is spring loaded and has to be held in place before it is secured.

Line drawing of a computer processor with a hand adjusting its top panel (no text or symbols)

Figure 2-8. Lowering the Force Frame

Line drawing of hands installing or adjusting a component on a flat base (no text or symbols)

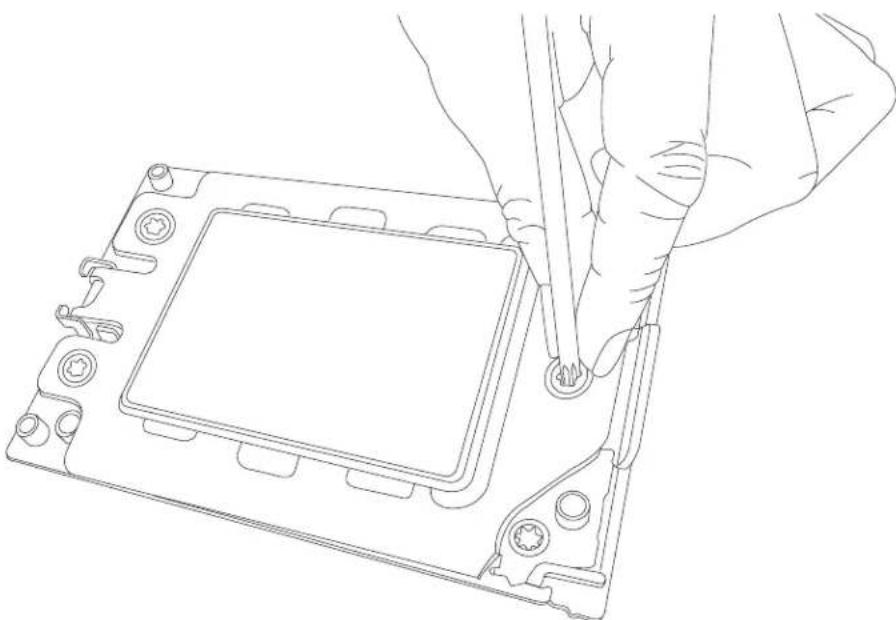

Figure 2-9. Securing the Force Frame

1. Replace the screws in the order 1-2-3, tightening to 16.1 kgf-cm (14 lbf-in) of torque. The Force Frame secures both the Rail Frame and CPU Package.

Caution: Tightening must be executed in proper 1-2-3 sequence to avoid causing catastrophic damage to the socket or CPU Package.

Technical line drawing of a mechanical component with mounting holes and a central square feature (no text or symbols)

Figure 2-10. The Force Frame Secured

1. Lower the heatsink down till it rests securely on CPU Package over the four screw holes on the socket frame.

Technical line drawing of a heat exchanger or cooling unit with internal components and mounting holes (no text or symbols)

Figure 2-11. Mounting the Heatsink

1. Using a Torx T20 driver in a diagonal pattern as below, tighten the four heatsink screws halfway and then tighten them evenly to 16.1 kgf-cm (14.0 lbf-in) of torque.

#1 Screw #3 Screw #4 Screw #2 Screw

Figure 2-12. Securing the Heatsink

The processor and heatsink installation is complete. Repeat this procedure for any remaining CPU sockets on the motherboard.

Removing a Heatsink

We do not recommend removing the heatsink. If necessary, please follow the instructions below to prevent damage to the CPU or the CPU socket.

Note: Wait for the heatsink to cool down before removing it.

1. Unscrew and remove the heatsink screws from the motherboard in the sequence as show in the figure above.
2. Hold and gently pivot the heatsink back and forth to loosen it from the CPU. (Do not use excessive force when dislodging the heatsink!)
3. Once the heatsink is loose, remove it from the CPU.
4. Clean the surface of the CPU and the heatsink to get rid of the old thermal grease. Reapply the proper amount of thermal grease to the surface before you re-install the heatsink.

2.6 Memory

Memory Support

The BH12SSi-M25 supports up to 2TB of 3DS ECC DDR4 3200 MHz speed, RDIMM/LRDIMM/3DS/NVDIMM memory in eight slots. Check the SuperMicro website for possible updates to memory support.

DDR4 Memory Support
Type	DIMM Population	DIMM Capacity (GB) Maximum			Frequency (MHz)
		1 Channel 4	Channels 8 Channels
RDIMM	1R 32GB 128GB 22R 64GB 256GB 5	56GB			3200
LRDIMM	4R 128GB 512GB2S4R 256GB 1TB	1TB
LRDIMM 3Ds	2S2R (4 Ranks) 122S4R (8 Ranks) 25	8GB 512GB 1TB6GB 1TB 2TB

Memory Guidelines

• Always use DDR4 DIMM modules of the same type, size and speed.
- Memory channels should be populated with each channel having equal capacity. This enables the memory subsystem to operate in interleaving mode, which provides the best performance.
- In most configurations, populating fewer than eight channels is supported, but not recommended.

SUPERO® DIMM CODE DIMM A1 DIMM B1 DIMM C1 DIMM D1 CPU DIMM H1 DIMM G1 DIMM F1 DIMM E1 DIMM A1 DIMM B1 DIMM C1 DIMM D1 DIMM H1 DIMM G1 DIMM F1 DIMM E1

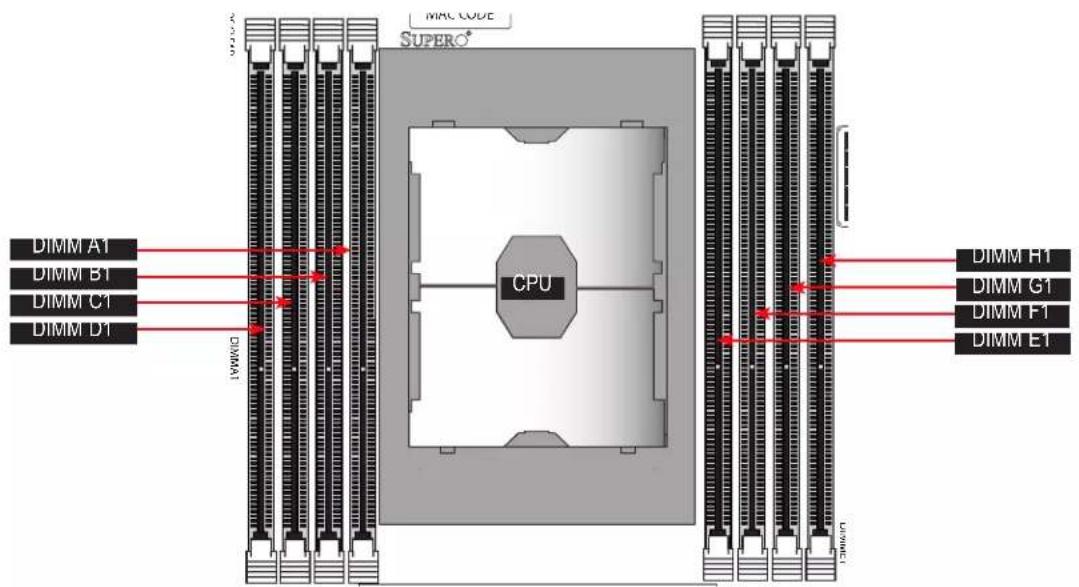

Figure 2-13. DIMM Numbering

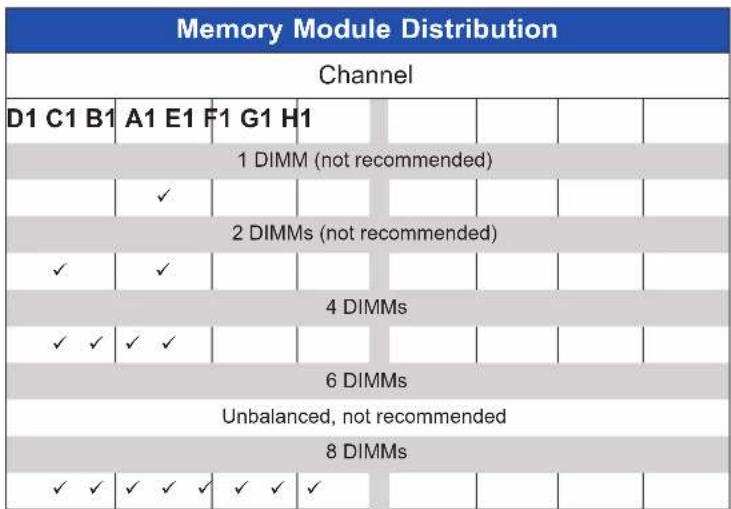

Memory Module Distribution Channel D1 C1 B1 A1 E1 F1 G1 H1 1 DIMM (not recommended) ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ 2 DIMMs (not recommended) ✓ ✓ ✓ ✓ ✓ 4 DIMMs ✓ ✓ ✓ ✓ ✓ 6 DIMMs Unbalanced, not recommended 8 DIMMs ✓ ✓ ✓ ✓ ✓ ✓ ✓

Note: Configurations populating fewer than eight channels are supported, but not recommended.

Installing Memory

ESD Precautions

Electrostatic Discharge (ESD) can damage electronic components including memory modules. To avoid damaging DIMM modules, it is important to handle them carefully. The following measures are generally sufficient.

• Use a grounded wrist strap designed to prevent static discharge.
• Handle the memory module by its edges only.
• Put the memory modules into the antistatic bags when not in use.

Installing Memory

Begin by removing power from the system as described in Section 3.1. Follow the memory population sequence in the table above.

1. Push the release tabs outwards on both ends of the DIMM slot to unlock it.

Notches Release Tabs

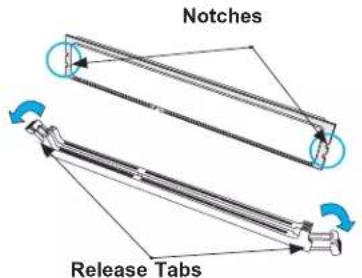

1. Align the key of the DIMM with the receptive point on the memory slot and with your thumbs on both ends of the module, press it straight down into the slot until the module snaps into place.

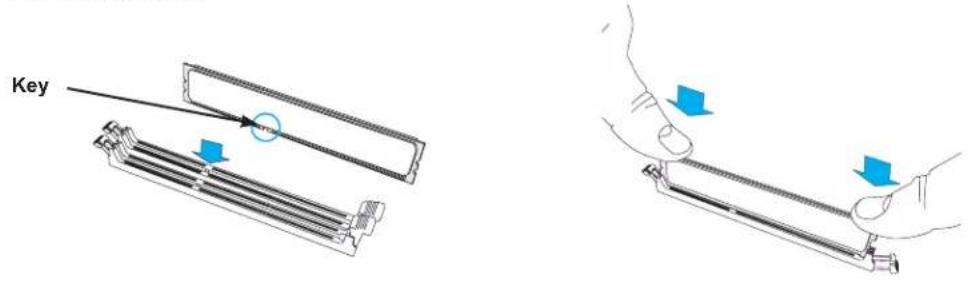

Key

1. Press the release tabs to the locked position to secure the DIMM module into the slot.

Caution: Exercise extreme caution when installing or removing memory modules to prevent damage to the DIMMs or slots.

Removing Memory

To remove a DIMM, unlock the release tabs then pull the DIMM from the memory slot.

2.7 Motherboard Battery

The motherboard uses non-volatile memory to retain system information when system power is removed. This memory is powered by a lithium battery residing on the motherboard.

Replacing the Battery

When the blade has been removed from the enclosure and the top cover removed.

1. Push aside the small clamp that covers the edge of the battery. When the battery is released, lift it out of the holder.
2. To insert a new battery, slide one edge under the lip of the holder with the positive (+) side facing up. Then push the other side down until the clamp snaps over it.

Note: Handle used batteries carefully. Do not damage the battery in any way; a damaged battery may release hazardous materials into the environment. Do not discard a used battery in the garbage or a public landfill. Please comply with the regulations set up by your local hazardous waste management agency to dispose of your used battery properly.

LITHIUM BATTERY BATTERY HOLDER

Figure 2-14. Installing the Onboard Battery

Warning: There is a danger of explosion if the onboard battery is installed upside down (which reverses its polarities). This battery must be replaced only with the same or an equivalent type recommended by the manufacturer (CR2032).

2.8 Storage Drives

The blade has two 2.5" hot-swap storage drive bays. The drives are mounted in tool-less drive carriers that simplify their removal from the chassis. These carriers also help promote proper airflow. Carriers without drives must remain in the chassis for proper airflow.

Note: Enterprise level storage drives are recommended for use in Supermicro systems. For information on recommended drives, visit the Supermicro website.

Installing Drives

Front view of a network switch device showing two drive bays with labeled ports (no readable text beyond labels)

Figure 2-15. Logical Drive Numbers

Removing a Hot-Swap Drive Carrier from the Chassis

1. Press the release button on the drive carrier, which will extend the drive carrier handle.

2. Use the drive carrier handle to pull the drive out of the chassis.

Diagram of an electronic device with labeled components and green arrows indicating rotation or direction of movement.

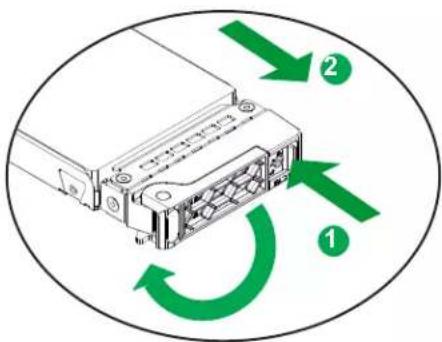

Figure 2-16. Removing a Drive Carrier

Removing a Hot-Swap Drive Carrier from the Chassis

1. Press the release button on the drive carrier, which will extend the drive carrier handle.
2. Use the drive carrier handle to pull the drive out of the chassis.

Technical diagram showing assembly of a server rack with labeled components and directional arrows indicating assembly steps.

Figure 2-17. Removing a Drive Carrier

Installing a Drive

1. Remove the dummy drive, which comes pre-installed in the drive carrier. Pull out the two spring locking clasps and lift out the dummy drive.

Post Align Both Mounting Tools Post Locking Clasps

Figure 2-18. Removing the Dummy Drive from a Carrier

1. Position the drive into the carrier with the PCB side facing down and the connector end toward the rear of the carrier.
2. Tilt the drive to insert it onto the two posts on the right inside of the carrier.
3. Pull out the two spring locking clasps to allow the drive to sit fully in the carrier, then release them to secure the drive.
4. Insert the drive carrier into its bay, keeping the release button on the bottom. When the carrier reaches the rear of the bay, the release handle will retract.
5. Push the handle in until it clicks into its locked position

Hot-Swap for NVMe Drives

Supermicro servers support NVMe surprise hot-swap. For even better data security, NVMe orderly hot-swap is recommended. NVMe drives can be ejected and replaced remotely using the BMC Dashboard.

Ejecting a Drive

1. BMC Dashboard > Server Health > NVMe SSD
2. Select Device, Group and Slot, and click Eject. After ejecting, the drive Status LED indicator turns green.
3. Remove the drive.

Note that Device and Group are categorized by the CPLD design architecture.

Slot is the slot number on which the NVMe drives are mounted.

Overview Physical View Logical View Controller Preview System Component Info Health Event Log Storage Monitoring Configuration + Remote Control Maintenance + Physical View Slunk Unblink Eject Insert Slott LED Status Supported Actions Disk Inbit Capacity Link Speed Connected Logical Drive Connected Controller 0.0 SAMSUNG MTZLWISCH HAUF- 00003 N/A 8:0 GT7b- N/A N/A MILIE Device0 0.1 SAMSUNG MTZLWISCH HAUF- 00003 N/A 8:0 GT7b- N/A N/A MILIE Device0

Figure 2-19. BMC Dashboard Screenshot

Replacing the Drive

1. Insert the replacement drive.
2. BMC Dashboard > Server Health > NVMe SSD
3. Select Device, Group and slot and click Insert. The drive Status LED indicator flashes red, then turns off. The Activity LED turns blue.

Checking the Temperature of an NVMe Drive

There are two ways to check using the BMC Dashboard.

Checking a Drive

• BMC Dashboard > Server Health > NVMe SSD – Shows the temperatures of all NVMe drives.
• BMC Dashboard > Server Health > Sensor Reading > NVME_SSD – Shows the single highest temperature among all the NVMe drives.

M.2 Solid State Drives

Up to two M.2 solid state drives (SSDs) can be installed, supporting PCIe. Several lengths are supported—42mm, 60mm 80mm or 110mm. For each length, there is an hole in the mounting platform for a plastic clasp.

M.2 Cards

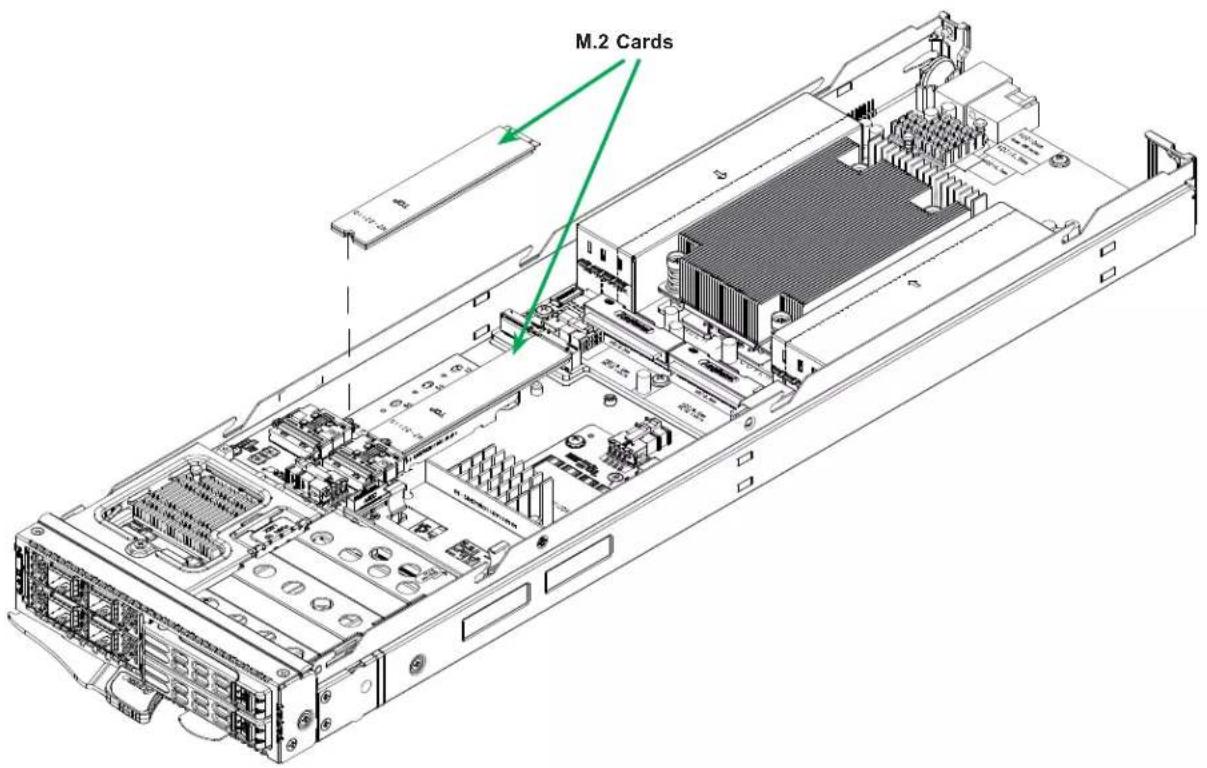

Figure 2-20. Installing M.2 SSDs

2.9 AIOMs

The system supports two advanced input/output modules (AIOMs).

Installing an AIOM

1. Pull up the locking latch.
2. Insert the cards in to the slot.
3. Push the latch down to secure the modules.

Locking Latch

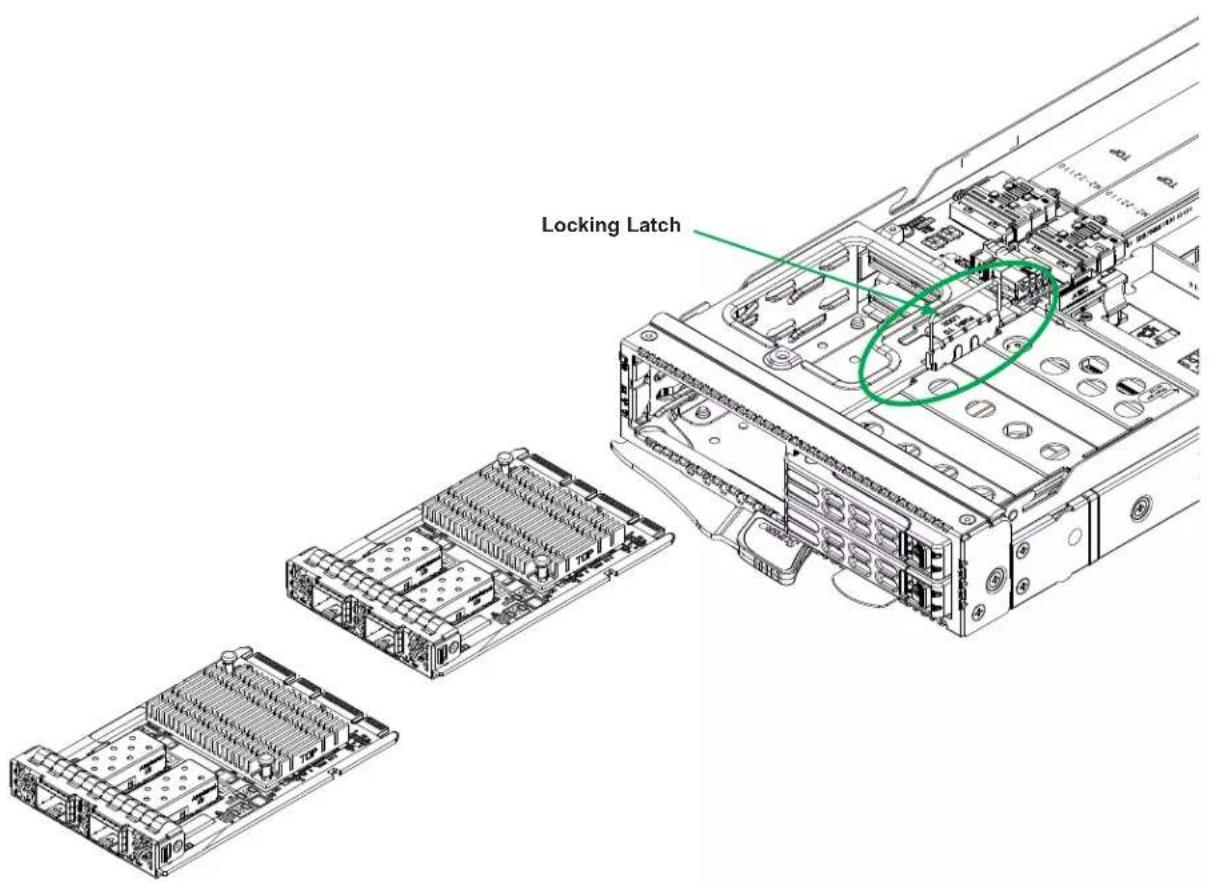

Figure 2-21. Installing AIOMs

2.10 System Cooling

Air Shrouds

Air shrouds concentrate airflow to maximize fan efficiency. These do not require screws to install.

Installing the Air Shrouds

- Position the air shrouds as illustrated in the figure below, sliding the front notch over the pin on the fan tray.

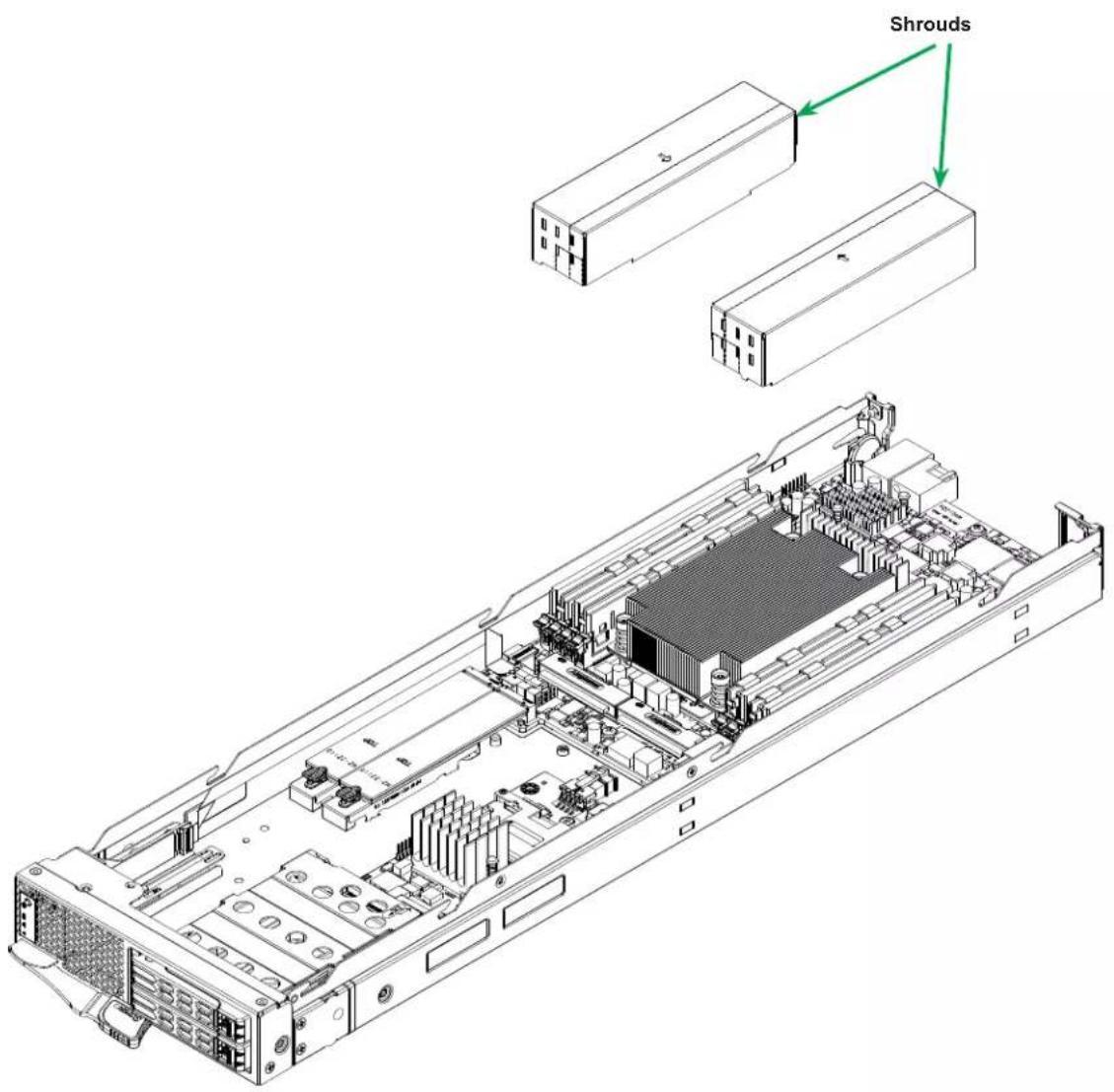

Shrouds

Figure 2-22. Installing the Standard Air Shrouds

Checking the Server Air Flow

• Make sure there are no objects to obstruct airflow in and out of the server.
• Do not operate the server without drives or drive carriers in the drive bays.
• Use only recommended server parts.
• Make sure no wires or foreign objects obstruct air flow through the chassis. Pull all excess cabling out of the airflow path or use shorter cables.

The control panel LEDs display system heat status. See “Control Panel” in Chapter 1 for details.

Overheating

There are several possible responses if the system overheats.

• Use the LEDs to determine the nature of the overheating condition.
• Confirm that the chassis covers are installed properly.
  • Make sure all fans are present and operating normally.
• Check the routing of the cables.
• Verify that the heatsinks are installed properly.

Chapter 3

Motherboard Connections

This section describes the connections on the motherboard and provides pinout definitions. Note that depending on how the system is configured, not all connections are required. The LEDs on the motherboard are also described here. A motherboard layout indicating component locations may be found in Chapter 1. More detail can be found in the Motherboard Manual. Please review the Safety Precautions in Appendix B before installing or removing components.

3.1 Headers and Connectors

12V 8-pin Power Connector (JPWR1)

JPWR1 is an 8-pin ATX power input to provide power to the motherboard.

12V 8-pin Power Connector Pin Definitions
Pins	Definition
1 through 4 Ground
5 through 8 +12V

TPM Header

The JTPM1 header is used to connect a Trusted Platform Module (TPM)/Port 80, which is available from Supermicro. A TPM/Port 80 connector is a security device that supports encryption and authentication in hard drives. It allows the motherboard to deny access if the TPM associated with the storage drive is not installed in the system.

For more information on TPM: https://www.supermicro.com/manuals/other/TPM.pdf.

Trusted Platform Module/Port 80 Header Pin Definitions
Pin# Definition Pin# Definition
1 P3V3 2 SPI_TPM_CS_N
3 PCI-E_RESET_N# 4 SPI_PCH_MISO
5 SPI_PCH_CLK# 6 Ground
7 SPI_PCH_MOSI 8 N/A
9	JTPM1_P3V3A	10	IRQ_TPM_SPIN_N

M.2 Connectors

The PCIe M.2 supports M-Key (PCIe x2) storage cards. M.2-C1 can support a speed of PCIe x4, when one M.2 device is installed.

B A C 3.056N 3+2+1 LOTE CAUTION SIN-SDI SUPER G E F SUPER G D CE D P G R47 V800 V800 V800 V800 V800 V800 V800 V800 V800 V800 V800 V800 V800 V800 V800 V800 V800 V800 V800 V800 V80

A. 2X PCIE Gen 4 x16 connector for MCIO cable
B. 2X M.2 Connector (PCIE Gen 4 x4 or 2 SATA support)
C. Front panel control connector (LED and power button)
D. PCIE Gen 4 x16 Mezzanine card connector
E. Keyboard, video & mouse port
F. BMC and on-board LAN connector to enclosure (middle plane)
G. Motherboard power connector to middle plane

Figure 3-1. Connector Locations and Definitions

3.2 Jumpers

To modify the operation of the motherboard, jumpers are used to choose between optional settings. Jumpers create shorts between two pins to change the function associated with it. Pin 1 is identified with a square solder pad on the printed circuit board. See the motherboard layout page for jumper locations.

Note: On a two-pin jumper, "Closed" means the jumper is on both pins and "Open" indicates the jumper is either on only one pin or has been completely removed.

Watch Dog (JWD1)

JWD1 controls the Watch Dog function. Watch Dog is a monitor that can reboot the system when a software application hangs. Jumping pins 1-2 will cause Watch Dog to reset the system if an application hangs. Jumping pins 2-3 will generate a non-maskable interrupt signal for the application that hangs. Watch Dog must also be enabled in BIOS. The default setting is Reset.

Note: When Watch Dog is enabled, the user must write their own application software to disable it.

Watch DogJumper Settings
Jumper Setting Definition
Pins 1-2 Reset (Default)
Pins 2-3 NMI
Open Disabled

Debug Mode Enable/Disable (JDBG1)

Jumper JDBG1 will enable or disable Debug Mode on the motherboard. The default setting is Normal Mode.

Debug Mode Enable/Disable Jumper Settings (JDBG1)
Jumper Setting Definition
Pins 1-2 Normal	Mode (default)
Pins 2-3 Debug	Mode

VGA Enable/Disable (JPG1)

JPG1 allows you to enable or disable the VGA port. The default position is Enabled.

VGA Enable/DisableJumper Settings (JPG1)

Jumper Setting Definition

Pins 1-2 Enabled (default)

Pins 2-3 Disabled

3.3 LED Indicators

Onboard Power LED (PWR LED)

When the PWR LED is illuminated, the system is turned on and all the system power rails are ready. When the system is turned off, or any one of the system power rails fails, this LED will turn off.

Onboard PowerLED Indicator
LED Color Definition
Off System Off	(power cable not connected)
Green System	On, Power OK

Chapter 4

Software

After the hardware has been installed, you can install the Operating System (OS), configure RAID settings and install the drivers.

4.1 Installing the Operating System

An operating system (OS) must be installed on each blade module. Blades with Microsoft Windows OS and blades with Linux OS can operate within the same blade enclosure. Refer to the SuperMicro web site for a list of supported operating systems.

Installing by using PXE Boot

Preboot Execution Environment (PXE) is used to boot a computer over a network. To install the OS using PXE, the following conditions must be met:

• The PXE BOOT option in BIOS must be enabled.
• A PXE server has been configured; this can be another blade in the system.
• The PXE server must be connected over a network to the blade to be booted.
• The blade has only non-partitioned/unformatted hard drives installed and no bootable devices attached to it.

Once these conditions are met, make sure the PXE server is running. Then turn on the blade on which you wish to install the OS. The BIOS in the blade will look at all bootable devices and finding none, will connect to the PXE server to begin the boot/install.

Installing by using Virtual Media (Drive Redirection)

You can install the OS via Virtual Media through either the IPMIview (Java-based client utility), SuperBladeTool or the Web-based Management Utility. With this method, the OS is installed from an ISO image that resides on another system.

Refer to the manuals on the SuperMicro web site for further details on the Virtual Media (CD-ROM or Drive Redirection) sections of these two utility programs.

Linux Installation with Two Storage Drives—Note

When installing Linux with two storage drives on the SBA-4114S-C2N/T2N you may encounter a situation where one drive is recognized as HDA and the other drive is recognized as SDA. This is normal since in this case the connection for SATA HDDs is from two different controllers.

Under Native IDE mode (which is the default), your Linux OS will see one drive as HDA and the other as SDA. If the SATA controller mode operation is changed to AMD_AHCI in the BIOS, then the HDDs will appear as SDA and SDB.

Microsoft Windows OS Installation

If you will be using RAID, you must configure RAID settings before installing the Windows OS and the RAID driver. Refer to the RAID Configuration User Guides posted on our website at www.supermicro.com/support/manuals.

Installing the OS

1. Create a method to access the MS Windows installation ISO file. That might be a DVD, perhaps using an external USB/SATA DVD drive, or a USB flash drive, or the BMC KVM console.

2. Boot from a bootable device with Windows OS installation. You can see a bootable device list by pressing F11 during the system startup.

Please select boot device: ATEN Virtual CDROM YSOJ → IPMI virtual drive (Legacy) ASUS SDRW-08D2S-U F601 → USB DVD device (Legacy) USB FLASH DRIVE PMAP → USB flash drive with OS installation (Legacy) IBA 40-10G Slot 1900 v1060 → PXE boot (Legacy) UEFI: ATEN Virtual CDROM YSOJ → IPMI virtual drive (UEFI) UEFI: ASUS SDRW-08D2S-U F601 → USB DVD device (UEFI) UEFI: Built-in EFI Shell Enter Setup ↑ and ↓ to move selection ENTER to select boot device ESC to boot using defaults

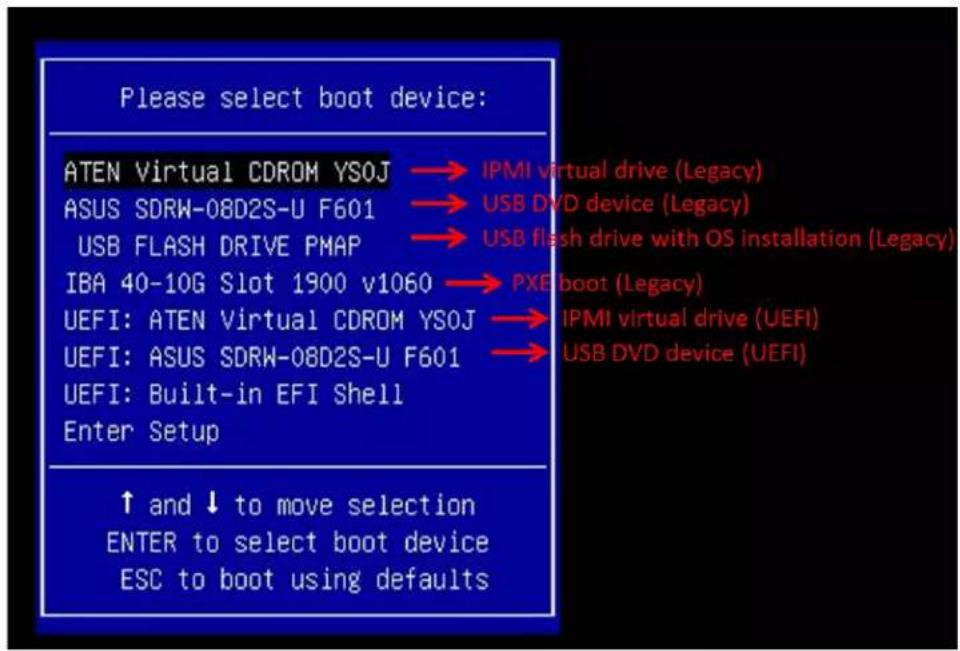

Figure 4-1. Select Boot Device

1. During Windows Setup, continue to the dialog where you select the drives on which to install Windows. If the disk you want to use is not listed, click on "Load driver" link at the bottom left corner.

Where do you want to install Windows? Name Total size Free space Type Refresh Delete Format New Load driver Extend We couldn't find any drives. To get a storage driver, click Load driver. Next

Figure 4-2. Load Driver Link

To load the driver, browse the USB flash drive for the proper driver files.

• For RAID, choose the SATA/sSATA RAID driver indicated then choose the storage drive on which you want to install it.

• For non-RAID, choose the SATA/sSATA AHCI driver indicated then choose the storage drive on which you want to install it.

• Once all devices are specified, continue with the installation.

• After the Windows OS installation has completed, the system will automatically reboot multiple times.

4.2 Driver Installation

The Supermicro website contains drivers and utilities for your system at https://www.supermicro.com/wdl/driver. Some of these must be installed, such as the chipset driver.

After accessing the website, go into the CDR_Images (in the parent directory of the above link) and locate the ISO file for your motherboard. Download this file to a USB flash drive or a DVD. (You may also use a utility to extract the ISO file if preferred.)

Another option is to go to the Supermicro website at www.supermicro.com/products/. Find the product page for your motherboard, and "Download the Latest Drivers and Utilities".

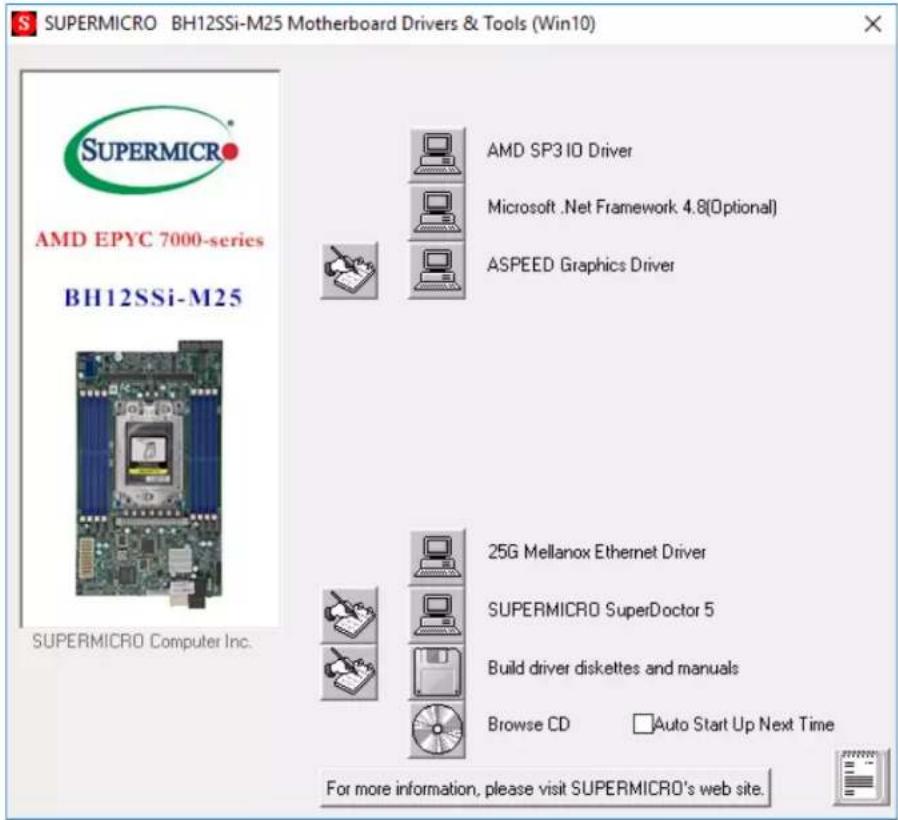

Insert the flash drive or disk and the screenshot shown below should appear.

SUPERMICRO BH12SSi-M25 Motherboard Drivers & Tools (Win10) AMD EPYC 7000-series BH12SSi-M25 SUPERMICRO Computer Inc. AMD SP3 ID Driver Microsoft .Net Framework 4.8(Optional) ASPEED Graphics Driver 25G Mellanox Ethernet Driver SUPERMICRO SuperDoctor 5 Build driver diskettes and manuals Browse CD Auto Start Up Next Time For more information, please visit SUPERMICRO's web site.

Figure 4-3. Driver & Tool Installation Screen

Note: Click the icons showing a hand writing on paper to view the readme files for each item. Click the computer icons to the right of these items to install each item (from top to the bottom) one at a time. After installing each item, you must re-boot the system before moving on to the next item on the list. The bottom icon with a CD on it allows you to view the entire contents.

4.3 SuperDoctor® 5

The Supermicro SuperDoctor 5 is a program that functions in a command-line or web-based interface for Windows and Linux operating systems. The program monitors such system health information as CPU temperature, system voltages, system power consumption, fan speed, and provides alerts via email or Simple Network Management Protocol (SNMP).

SuperDoctor 5 comes in local and remote management versions and can be used with Nagios to maximize your system monitoring needs. With SuperDoctor 5 Management Server (SSM Server), you can remotely control power on/off and reset chassis intrusion for multiple systems with SuperDoctor 5 or the BMC. SuperDoctor 5 Management Server monitors HTTP, FTP, and SMTP services to optimize the efficiency of your operation.

SuperDoctor® Manual and Resources

SuperDoctor 5 Health info: www.motherboard.com Certificate error: localhost:1644/Supersheeted Coding... Mothemboard: C7S380-CB ML Voltage CP3 Voltage CC1 Voltage VCC1A Voltage VCC2 Voltage VCCAM Voltage VCCPL2V2 Voltage VCCU2V1 Voltage VCCML2V1 Voltage VCC-1.2V2 Voltage VCC-2.2V2 Voltage Status Current Interface Temperature 47/116.3 CPU, Tires 2.10 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 12:49.2 246.2 Hard Disk Install Discontents.

PHYSICAL DRIVER (23JEGHD)

Memory All me anything

Figure 4-4. SuperDoctor 5 Interface Display Screen (Health Information)

4.4 BMC

The motherboard provides remote access, monitoring and management through the baseboard management controller (BMC) and other management controllers distributed among different system modules. There are several BIOS settings that are related to BMC. For general documentation and information on BMC, visit our website at:

www.supermicro.com/en/solutions/management-software/bmc-resources

BMC ADMIN User Password

For security, each system is assigned a unique default BMC password for the ADMIN user. This can be found on a sticker on the chassis and a sticker on the motherboard. The sticker also displays the BMC MAC address. If necessary, the password can be reset using the Supermicro IPMICFG tool.

BMC AC1F6BC PWD SUOKJ

Figure 4-5. BMC Password Label

The sticker can be found on the pull-out service tag at the front of the chassis. See Chapter 1 for the location.

Chapter 5

Optional Components

This chapter describes optional system components and installation procedures.

5.1 TPM Security Module

SPI capable TPM 2.0 (or 1.2) with Infineon 9670 controller, Horizontal form factor

The JTPM1 header is used to connect a Trusted Platform Module (TPM). A TPM is a security device that supports encryption and authentication in hard drives. It enables the motherboard to deny access if the TPM associated with the hard drive is not installed in the system.

Details and installation procedures are at:

http://www.supermicro.com/manuals/other/TPM.pdf.

Chapter 6

Troubleshooting and Support

6.1 Information Resources

Website

A great deal of information is available on the Supermicro website, supermicro.com.

2021 REPORT DATA CENTERS & THE ENVIRONMENT ON THE STATE OF THE GREEN DATA CENTER

Dense green forest scene with misty branches and trees (no text or symbols visible)

Figure 6-1. Supermicro Website

Click the menu icon, the three bars in the upper right corner, then select:

• Specifications for servers and other hardware are available by clicking the Products option.
• The Support option offers downloads (manuals, BIOS/BMC, drivers, etc.), FAQs, RMA, warranty, and other service extensions.

Direct Links for the SBA-4114S-C2N/T2N System

Web SBA-4114S-C2N/T2N specifications page

BH12SSi-M25 motherboard page for links to the Quick Reference Guide, User Manual, validated storage drives, etc.

Direct Links for General Support and Information

Frequently Asked Questions

Add-on card descriptions

TPM User Guide

BMC User Guide

SuperDoctor5 Large Deployment Guide

Direct Links (continued)

For validated memory, use our Product Resources page

Product Matrices page for links to tables summarizing specs for systems, motherboards, power supplies, riser cards, add-on cards, etc.

Security Center for recent security notices

Supermicro Phone and Addresses

6.2 BMC Interface

The system supports a Baseboard Management Controller (BMC) interface. It provides remote access, monitoring and management. There are several BIOS settings related to the BMC.

For general documentation and information on the BMC, please visit our website at: www.supermicro.com/manuals/other/BMC_Users_Guide_X12_H12.pdf.

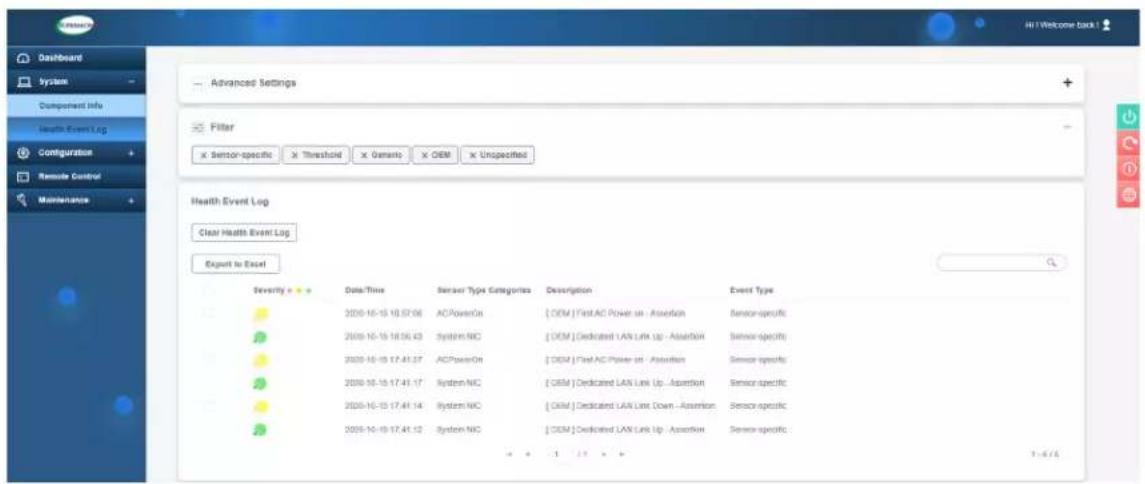

Dashboard System Component Info Health Event Log Configuration Remote Control Maintenance Advanced Settings Filter x Sensor-specific x Threshold x Gensio x OEM x Unspecified Health Event Log Clear Health Event Log Export to Excel Severity 2009-10-15 18:07:06 ACPowerOn [OEM] First AC Power on - Assetion Sensor-specific 2009-10-15 18:36:43 System NIC [OEM] Dedicated LAN Link Up - Assetion Sensor-specific 2009-10-15 17:41:37 ACPowerOn [OEM] First AC Power on - Assetion Sensor-specific 2009-10-15 17:41:17 System NIC [OEM] Dedicated LAN Link Up - Assetion Sensor-specific 2009-10-15 17:41:14 System NIC [OEM] Dedicated LAN Link Down - Assetion Sensor-specific 2009-10-15 17:41:12 System NIC [OEM] Dedicated LAN Link Up - Assetion Sensor-specific :

Figure 6-2. BMC Dashboard Sample

6.3 Troubleshooting Procedures

Use the following procedures to troubleshoot your system. If you have followed all of the procedures below and still need assistance, refer to the Technical Support Procedures or Returning Merchandise for Service sections in this chapter. Power down the system before changing any non hot-swap hardware components.

No Power

1. As you try to power up the system, note any beep codes. Refer to the next section for details on beep codes.
2. Check that the power LED on the motherboard is on.

PWR LED SUPER BH12551-ND5

Figure 6-3. Location of the MB Power LED

1. Make sure that the power connector is connected to your power supply.
2. Make sure that no short circuits exist between the motherboard and chassis.
3. Disconnect all cables from the motherboard, including those for the keyboard and mouse.
4. Remove all add-on cards.
5. Install a CPU, a heatsink, connect the internal speaker (if applicable), and the power LED to the motherboard. Make sure that the heatsink is fully seated.
6. Use the correct type of onboard CMOS battery as recommended by the manufacturer. Check to verify that it still supplies \~3VDC. If it does not, replace it with a new one. Warning: To avoid possible explosion, do not install the battery upside down.
7. Verify that all jumpers are set to their default positions.
8. Check that the power supplies' input voltage operate at 100-120v or 180-240v.
9. Turn the power switch on and off to test the system

No Video

1. If the power is on but you have no video, remove all the add-on cards and cables.
2. As you try to power up the system, note any beep codes. Refer to the next section for details on beep codes.

System Boot Failure

If the system does not display POST (Power-On-Self-Test) or does not respond after the power is turned on, check the following:

Turn on the system with only one DIMM module installed. If the system boots, check for bad DIMM modules or slots by following the Memory Errors Troubleshooting procedure below.

Memory Errors

1. Make sure that the DIMM modules are properly and fully installed.
2. Confirm that you are using the correct memory. Also, it is recommended that you use the same memory type and speed for all DIMMs in the system. See Section 3.3 for memory details.
3. Check for bad DIMM modules or slots by swapping modules between slots and noting the results.
4. Check the power supply voltage 115V/230V switch.

Losing the System Setup Configuration

1. Make sure that you are using a high quality power supply. A poor quality power supply may cause the system to lose the CMOS setup information.
2. The battery on your motherboard may be old. Check to verify that it still supplies \~3VDC. If it does not, replace it with a new one.
3. If the above steps do not fix the setup configuration problem, contact your vendor for repairs.

When the System Becomes Unstable

If the system becomes unstable during or after OS installation, check the following:

1. CPU/BIOS support: Make sure that your CPU is supported and that you have the latest BIOS installed in your system.

2. Memory support: Make sure that the memory modules are supported by testing the modules using memtest86 or a similar utility.
   Note: Refer to the product page on our website at http://www.supermicro.com for memory and CPU support and updates.

3. HDD support: Make sure that all hard disk drives (HDDs) work properly. Replace the bad HDDs with good ones.
4. System cooling: Check the system cooling to make sure that all heatsink fans and CPU/system fans, etc., work properly. Check the hardware monitoring settings in the IPMI to make sure that the CPU and system temperatures are within the normal range. Also check the front panel Overheat LED and make sure that it is not on.
5. Adequate power supply: Make sure that the power supply provides adequate power to the system. Make sure that all power connectors are connected. Please refer to our website for more information on the minimum power requirements.
6. Proper software support: Make sure that the correct drivers are used.

If the system becomes unstable before or during OS installation, check the following:

1. Source of installation: Make sure that the devices used for installation are working properly, including boot devices such as CD.
2. Cable connection: Check to make sure that all cables are connected and working properly.
3. Using the minimum configuration for troubleshooting: Remove all unnecessary components (starting with add-on cards first), and use the minimum configuration (but with a CPU and a memory module installed) to identify the trouble areas. Refer to the steps listed in Section A above for proper troubleshooting procedures.
4. Identifying bad components by isolating them: If necessary, remove a component in question from the chassis, and test it in isolation to make sure that it works properly. Replace a bad component with a good one.
5. Check and change one component at a time instead of changing several items at the same time. This will help isolate and identify the problem.
6. To find out if a component is good, swap this component with a new one to see if the system will work properly. If so, then the old component is bad. You can also install the component in question in another system. If the new system works, the component is good and the old system has problems.

6.4 BIOS Error Beep (POST) Codes

During the POST (Power-On Self-Test) routines, which are performed each time the system is powered on, errors may occur.

Non-fatal errors are those which, in most cases, allow the system to continue the boot-up process. The error messages normally appear on the screen.

Fatal errors are those which will not allow the system to continue the boot-up procedure. If a fatal error occurs, you should consult with your system manufacturer for possible repairs.

These fatal errors are usually communicated through a series of audible beeps. The table below lists some common errors and their corresponding beep codes encountered by users.

BIOS Error Beep (POST) Codes
Beep Code Error	Message Description
1 short Refresh Circuits have been reset (Ready to power up)
5 short, 1 long Memory error No memory detected in system
5 long, 2 short Display memory read/write error Video adapter missing or with faulty memory
1 long continuous System OH System overheat condition

Additional BIOS POST Codes

The AMI BIOS supplies additional checkpoint codes, which are documented online at http://www.supermicro.com/support/manuals/ ("AMI BIOS POST Codes User's Guide").

When BIOS performs the Power On Self Test, it writes checkpoint codes to I/O port 0080h. If the computer cannot complete the boot process, a diagnostic card can be attached to the computer to read I/O port 0080h (Supermicro p/n AOC-LPC80-20).

For information on AMI updates, please refer to http://www.ami.com/products/.

6.5 Crash Dump Using the BMC Dashboard

In the event of a processor internal error (IERR) that crashes your system, you may want to provide information to support staff. You can download a crash dump of status information using the BMC Dashboard. The BMC manual is available at www.supermicro.com/manuals/other/BMC_Users_Guide_X12_H12.pdf.

Check Error Log

1. Access the BMC web interface.
2. Click the Server Health tab, then Event Log to verify an IERR error.

Dashboard System Component Info Health Event Log Configuration + Remote Control + Maintenance + Advanced Settings Filter x Sensor-specific x Threshold x Generic x OEM x Unspecified Health Event Log Clear Health Event Log Expert to Excel Severity Date/Time Sensor Type Categories Description Event Type 2026-10-15 18:57:06 ACPowerOn [OEM] First AC Power on - Assertion Sensor-specific 2026-10-15 18:56:43 System NIC [OEM] Dedicated LAN Link Up - Assertion Sensor-specific 2026-10-15 17:41:37 ACPowerOn [OEM] First NC Power on - Assertion Sensor-specific 2026-10-15 17:41:17 System NIC [OEM] Dedicated LAN Link Up - Assertion Sensor-specific 2026-10-15 17:41:14 System NIC [OEM] Dedicated LAN Link Down - Assertion Sensor-specific 2026-10-15 17:41:12 System NIC [OEM] Dedicated LAN Link Up - Assertion Sensor-specific x < 1 / 1 > x 1 - 6 / 6

Figure 6-4. BMC Event Log

In the event of an IERR, the BMC executes a crash dump. You must download the crash dump and save it.

6.6 UEFI BIOS Recovery

Warning: Do not upgrade the BIOS unless your system has a BIOS-related issue. Flashing the wrong BIOS can cause irreparable damage to the system. In no event shall Supermicro be liable for direct, indirect, special, incidental, or consequential damages arising from a BIOS update. If you do update the BIOS, do not shut down or reset the system while the BIOS is updating to avoid possible boot failure.

Overview

The Unified Extensible Firmware Interface (UEFI) provides a software-based interface between the operating system and the platform firmware in the pre-boot environment. The UEFI specification supports an architecture-independent mechanism that will allow the UEFI OS loader stored in an add-on card to boot the system. The UEFI offers clean, hands-off management to a computer during system boot.

Recovering the UEFI BIOS Image

A UEFI BIOS flash chip consists of a recovery BIOS block and a main BIOS block (a main BIOS image). The recovery block contains critical BIOS codes, including memory detection and recovery codes for the user to flash a healthy BIOS image if the original main BIOS image is corrupted. When the system power is turned on, the recovery block codes execute first. Once this process is complete, the main BIOS code will continue with system initialization and the remaining POST (Power-On Self-Test) routines.

Note 1: Follow the BIOS recovery instructions below for BIOS recovery when the main BIOS block crashes.

Note 2: When the BIOS recovery block crashes, you will need to follow the procedures to make a Returned Merchandise Authorization (RMA) request. Also, you may use the Supermicro Update Manager (SUM) Out-of-Band (https://www.supermicro.com.tw/products/nfo/SMS_SUM.cfm) to reflash the BIOS.

Recovering the Main BIOS Block with a USB Device

This feature allows the user to recover the main BIOS image using a USB-attached device without additional utilities used. A USB flash device such as a USB Flash Drive, or a USB CD/DVD ROM/RW device can be used for this purpose. However, a USB Hard Disk drive cannot be used for BIOS recovery at this time.

The file system supported by the recovery block is FAT (including FAT12, FAT16, and FAT32) which is installed on a bootable or non-bootable USB-attached device. However, the BIOS might need several minutes to locate the SUPER.ROM file if the media size becomes too large due to the huge volumes of folders and files stored in the device.

To perform UEFI BIOS recovery using a USB-attached device, follow the instructions below.

1. Using a different machine, copy the "Super.ROM" binary image file into the Root "\" directory of a USB device or a writable CD/DVD.
   Note 1: If you cannot locate the "Super.ROM" file in your drive disk, visit our website at www.supermicro.com to download the BIOS package. Extract the BIOS binary image into a USB flash device and rename it "Super.ROM" for the BIOS recovery use.
   Note 2: Before recovering the main BIOS image, confirm that the "Super.ROM" binary image file you download is the same version or a close version meant for your motherboard.
2. Insert the USB device that contains the new BIOS image ("Super.ROM") into your USB drive and reset the system when the following screen appears.
3. After locating the healthy BIOS binary image, the system will enter the BIOS Recovery menu as shown below.

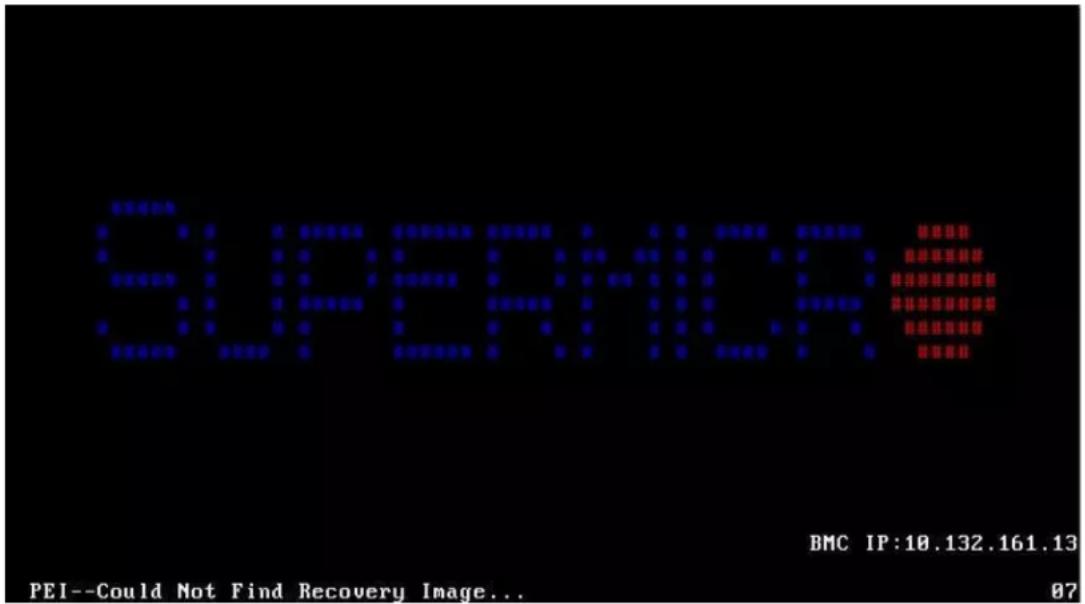

SUPERIOR BMC IP:10.132.161.13 PEI--Could Not Find Recovery Image... 87

Note: At this point, you may decide if you want to start the BIOS recovery. If you decide to proceed with BIOS recovery, follow the procedures below.

Ratio Setup Utility - Copyright (C) 2017 American Megatrends, Inc. Main Advanced Event Logs Email Recovery Security Boot Save a Exit Please select blocks you want to update Reset: NVR6M [Enabled] Boot Block Update [Enabled] ► Proceed with flash update Set this option to reset NVR6M to default values +: Select Screen T4: Select Item Enter: Select +/-: Change Out. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.19.1706. Copyright (C) 2017 American Megatrends, Inc.

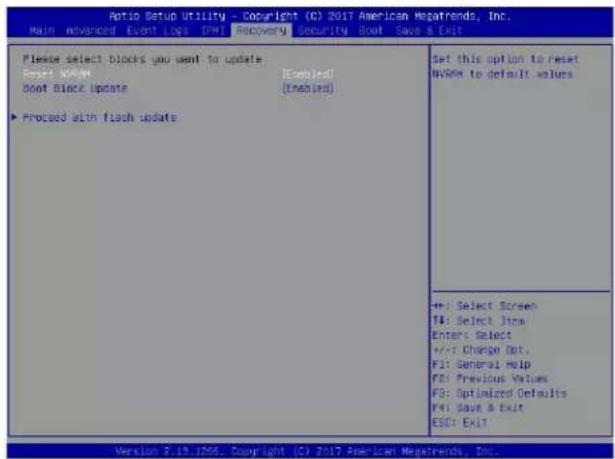

1. When the screen as shown above displays, use the arrow keys to select the item "Proceed with flash update" and press the key. You will see the BIOS recovery progress as shown in the screen below.

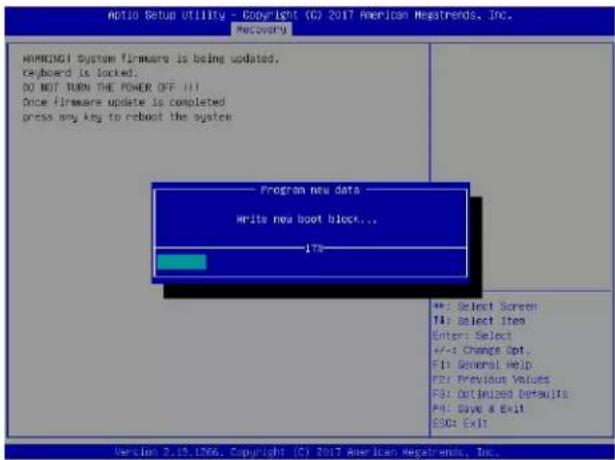

Note: Do not interrupt the BIOS flashing process until it has completed.

1. After the BIOS recovery process is complete, press any key to reboot the system.
2. Using a different system, extract the BIOS package into a USB flash drive.

Auto Setup Utility - Copyright (C) 2017 American Regatrends, Inc. Recovery WARNING System firmware is being updated. Keyboard is locked. DO NOT TURN THE POWER OFF!!. Once firmware update is completed press any key to reboot the system Program new data Write new boot block... 17% +: Select Screen T4: Select Items Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.15.1266, Copyright (C) 2017 American Regatrends, Inc.

1. Press continuously during system boot to enter the BIOS Setup utility. From the top of the tool bar, select Boot to enter the submenu. From the submenu list, select Boot

Ratio Setup Utility - Copyright (CI 2017 American Mopatrends, Inc. Recovery HANINOT System firmware is being updated. Keyboard is locked. DO NOT TURN THE POWER OFF !!! Once firmware update is completed press any key to reboot the system Flash update —— Flash update completed. Press any key to reset the system +1: Select Stream T4: Select Item Enter: Select +/-: Change Opt. F13: General Help F23: Previous Values F33: Optimized Defaults F43: Save & Exit G8C: Exit Version: 2.15.1256. Copyright (CI) 2017 American Mopatrends, Inc.

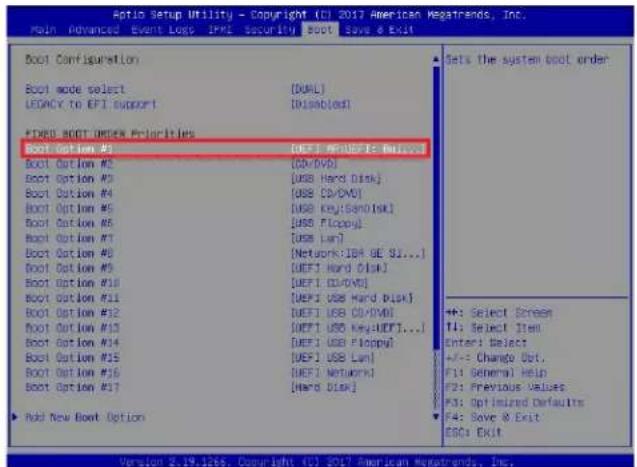

Option #1 as shown below. Then, set Boot Option #1 to [UEFI AP:UEFI: Built-in EFI Shell]. Press to save the settings and exit the BIOS Setup utility.

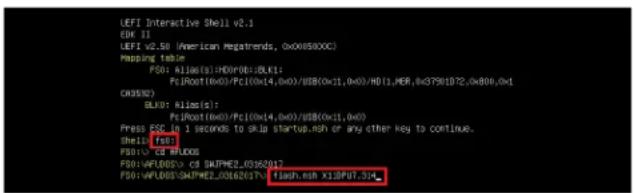

1. When the UEFI Shell prompt appears, type fs# to change the device directory path. Go to the directory that contains the BIOS package you extracted earlier from Step 6. Enter flash.nsh BIOSname.### at the prompt to start the BIOS update process.

Auto Setup Utility - Copyright (C) 2017 American Megatrends, Inc. Main Advanced Event Loss IPXL Security BOOT Save & Exit Boot Configuration Boot mode select [DOXL] LEGACY to EPI Support [Disabled] FIXED BOOT Options Properties Boot Option #3 [DEFI MP/DEFI: Main...] Boot Option #2 [DOV/DVD] Boot Option #3 [USB Hard Disk] Boot Option #4 [USB CO/DVI] Boot Option #5 [USB Key/SerD Disk] Boot Option #6 [USB Floppy] Boot Option #7 [USB Lan] Boot Option #8 [Network:JBA GE SI...] Boot Option #9 [DEFI Hard Disk] Boot Option #10 [DEFI CO/DVD] Boot Option #11 [DEFI USB Hard Disk] Boot Option #12 [DEFI USB CO/DVI] Boot Option #13 [DEFI USB Key/UEFI...] Boot Option #14 [DEFI USB Floppy] Boot Option #15 [DEFI USB Lan] Boot Option #16 [DEFI Network] Boot Option #17 [How's Disk] ▶ Add New Boot Option Sets the system boot order +:- Select Screen T4: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.19.1265. Copyright (C) 2017 American Megatrends, Inc.

Note: Do not interrupt this process until the BIOS flashing is complete.

UEFI Interactive Shell v2.1 EDI: II UEFI v2.50 (American Regatrends, 0x00890XX) Mapping table: FS0: A106(0):H0D(0):BLK1; Ps:Root(0x0)/Pc(0x14,0x0)/USB(0x11,0x0)/M0II,MER,xG79B1P2,0x800,0x1 CRASSO BLK0: Rldo(s): Ps:Root(0x0)/Pc(0x14,0x0)/USB(0x11,0x0) Press FSS to 1 seconds to skills startup.moh or any other key to continue. Shell: fss FS0: CS FLOODS FS0:WPLOOS> CS SHAPHE2_03162012 FS0:WPLOOS\SHAPHE2_03162017\ flash.nsh X13F07.34_

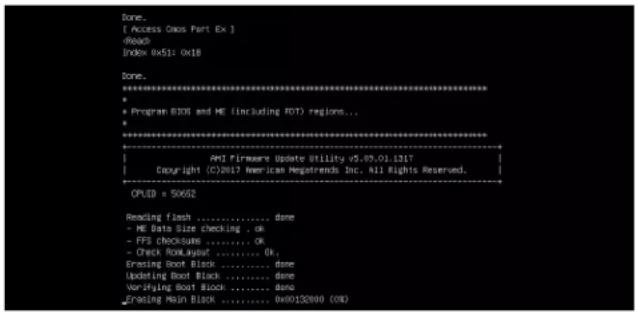

1. The screen above indicates that the BIOS update process is complete. When you see the screen above, unplug the AC power cable from the power supply, clear CMOS, and plug

Done. [ Access Oxxs Part Ex ] the AC power cable in the power supply again to power on the system. 10. Press continuously to enter the BIOS Setup utility.

Verifying NCB Block ....... done - Update success for FOR - Update success for SE. - Successful Update Recovery Loader to QPRxii - Successful Update MFBII- - Successful Update FFMII- - Successful Update MFS, VDT and TMSII - Successful Update FLOO and UDOII - ME Entire Image update success i WALMINS : System must power-off to have the changes take effect! Moving F500VAF000S&NPMIE2_0316007%40x64.efi -> F500VAF000S&NPMIE2_0316201%tf dt, smc - [com] Moving F500VAF000S&NPMIE2_0316007%afuefixx4.efi -> F500VAF000S&NPMIE2_0316201 7afuefi.smc - [com] ********************************************************************** * Please ignore this 'shell cannot read from file - device error' * Warning message due to it does not impact flashing process. * ********************************************************************** Delating ' ' Delete successful. F500v.

11. Press to load the default settings. 12. After loading the default settings, press to save the settings and exit the BIOS Setup utility.

6.7 CMOS Clear

JBT1 is used to clear CMOS, which will also clear any passwords. Instead of pins, this jumper consists of contact pads to prevent accidentally clearing the contents of CMOS.

To Clear CMOS

1. First power down the system completely. 2. Remove the cover of the chassis to access the motherboard. 3. Remove the onboard battery from the motherboard. 4. Short the CMOS pads with a metal object such as a small screwdriver for at least four seconds.  JBT1 contact pads 5. Remove the screwdriver or shorting device. 6. Replace the cover, reconnect the power cords and power on the system. Notes: Clearing CMOS will also clear all passwords. Do not use the PW\_ON connector to clear CMOS.

6.8 BMC Reset

The BMC can be reset using the UID button. - Reset – Press and hold the button. After six seconds, the LED blinks at 2Hz. The BMC resets and the reset duration is \~250 ms. Then the BMC starts to boot. - Restore factory default configuration – Hold the button for twelve seconds. The LED blinks at 4Hz while defaults are configured. Note: All BMC settings including username and password will be removed except the FRU and network settings. Firmware update – When the BMC firmware is being updated, the UID LED blinks at 10Hz.

BMC Reset Options
Event UID LED	BMC Heartbeat LED
Reset Blue, Blinks at 2Hz Green, solid
Restore Defaults	Blue, Blinks at 4Hz Off
Update Blue, Blinks at 10Hz

6.9 Where to Get Replacement Components

If you need replacement parts for your system, to ensure the highest level of professional service and technical support, purchase exclusively from our Supermicro Authorized Distributors/System Integrators/Resellers. A list can be found at: http://www.supermicro.com. Click the "Where to Buy" tab.

6.10 Reporting an Issue

Technical Support Procedures

Before contacting Technical Support, please take the following steps. If your system was purchased through a distributor or reseller, please contact them for troubleshooting services. They have the best knowledge of your specific system configuration. 1. Please review the Troubleshooting Procedures in this manual and Frequently Asked Questions on our website before contacting Technical Support. 2. BIOS upgrades can be downloaded from our website. Note: Not all BIOS can be flashed depending on the modifications to the boot block code. 3. If you still cannot resolve the problem, include the following information when contacting us for technical support: - System, motherboard, and chassis model numbers and PCB revision number - BIOS release date/version (this can be seen on the initial display when your system first boots up) - System configuration An example of a Technical Support form is posted on our website. Distributors: For immediate assistance, please have your account number ready when contacting our technical support department by email.

Returning Merchandise for Service

A receipt or copy of your invoice marked with the date of purchase is required before any warranty service will be rendered. You can obtain service by calling your vendor for a Returned Merchandise Authorization (RMA) number. When returning to the manufacturer, the RMA number should be prominently displayed on the outside of the shipping carton, and mailed prepaid or hand-carried. Shipping and handling charges will be applied for all orders that must be mailed when service is complete. For faster service, RMA authorizations may be requested online (http://www.supermicro.com/support/rma/). Whenever possible, repack the chassis in the original Supermicro carton, using the original packaging material. If these are no longer available, be sure to pack the chassis securely, using packaging material to surround the chassis so that it does not shift within the carton and become damaged during shipping. This warranty only covers normal consumer use and does not cover damages incurred in shipping or from failure due to the alteration, misuse, abuse or improper maintenance of products. During the warranty period, contact your distributor first for any product problems.

Vendor Support Filing System

For issues related to Intel, use the Intel IPS filing system: https://www.intel.com/content/www/us/en/design/support/ips/training/welcome.html For issues related to Red Hat Enterprise Linux, since it is a subscription based OS, contact your account representative.

6.11 Feedback

Supermicro values your feedback as we strive to improve our customer experience in all facets of our business. To provide feedback on our manuals, please email us at [e-mail].

6.12 Contacting Supermicro

Headquarters

Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: [phone] Fax: [phone] Email: [e-mail] (General Information) [e-mail] (Technical Support) Website: www.supermicro.com

Europe

Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML 's-Hertogenbosch, The Netherlands Tel: [phone] Fax: [phone] Email: [e-mail] (General Information) [e-mail] (Technical Support) [e-mail] (Customer Support) Website: www.supermicro.nl

Asia-Pacific

Address: Super Micro Computer, Inc. 3F, No. 150, Jian 1st Rd. Zhonghe Dist., New Taipei City 235 Taiwan (R.O.C) Tel: [phone] Fax: [phone] Email: [e-mail] Website: www.supermicro.com.tw

Appendix A

BIOS POST Codes

A.1 BIOS POST Messages

During the Power-On Self-Test (POST), the BIOS will check for problems. If a problem is found, the BIOS will activate an alarm or display a message. The following is a list of such BIOS messages.

BIOS POST Messages
BIOS Message Description
Failure Fixed Disk	Fixed disk is not working or not configured properly. Check to see if fixed disk is attached properly. Run Setup. Find out if the fixed-disk type is correctly identified.
Stuck key Stuck key on keyboard.
Keyboard error Keyboard not working.
Keyboard Controller Failed Keyboard controller failed test. May require replacing keyboard controller.
Keyboard locked - Unlock key switch	Unlock the system to proceed.
Monitor type does not match CMOS - Run SETUP	Monitor type not correctly identified in Setup
Shadow Ram Failed at offset: nnnn	Shadow RAM failed at offset nnnn of the 64k block at which the error was detected.
System RAM Failed at offset: nnnn	System RAM failed at offset nnnn of in the 64k block at which the error was detected.
Extended RAM Failed at offset: nnnn	Extended memory not working or not configured properly at offset nnnn.
System battery is dead - Replace and run SETUP	The CMOS clock battery indicator shows the battery is dead. Replace the battery and run Setup to reconfigure the system.
System CMOS checksum bad - Default configuration used	System CMOS has been corrupted or modified incorrectly, perhaps by an application program that changes data stored in CMOS. The BIOS installed Default Setup Values. If you do not want these values, enter Setup and enter your own values. If the error persists, check the system battery or contact your dealer.
System timer error The timer test	failed. Requires repair of system board.
Real time clock error Real-Time Clock fails BIOS hardware test. May require board repair.
Check date and time settings	BIOS found date or time out of range and reset the Real-Time Clock. May require setting legal date (1991-2099).
Previous boot incomplete - Default configuration used	Previous POST did not complete successfully. POST loads default values and offers to run Setup. If the failure was caused by incorrect values and they are not corrected, the next boot will likely fail. On systems with control of wait states, improper Setup settings can also terminate POST and cause this error on the next boot. Run Setup and verify that the waitstate configuration is correct. This error is cleared the next time the system is booted.
Memory Size found by POST differed from CMOS	Memory size found by POST differed from CMOS.
Diskette drive A error
Diskette drive B error	Drive A: or B: is present but fails the BIOS POST diskette tests. Check to see that the drive is defined with the proper diskette type in Setup and that the diskette drive is attached correctly.
Incorrect Drive A type - run SETUP	Type of floppy drive A: not correctly identified in Setup.
Incorrect Drive B type - run SETUP	Type of floppy drive B: not correctly identified in Setup.
System cache error - Cache disabled	RAM cache failed and BIOS disabled the cache. On older boards, check the cache jumpers. You may have to replace the cache. See your dealer. A disabled cache slows system performance considerably.
CPU ID: CPU socket number for	Multi-Processor error.
EISA CMOS not writeable Server	BIOS2 test error: Cannot write to EISA CMOS.
DMA Test Failed	ServerBIOS2 test error: Cannot write to extended DMA (Direct Memory Access) registers.
Software NMI Failed	ServerBIOS2 test error: Cannot generate software NMI (Non-Maskable Interrupt).
Fail-Safe Timer NMI Failed Server	BIOS2 test error: Fail-Safe Timer takes too long.
device Address Conflict Address	conflict for specified device.
Allocation Error for: device	Run ISA or EISA Configuration Utility to resolve resource conflict for the specified device.
CD ROM Drive CD ROM Drive identified.
Entering SETUP... Starting Setup program
Failing Bits: nnnn	The hex number nnnn is a map of the bits at the RAM address which failed the memory test. Each 1 (one) in the map indicates a failed bit. See errors 230, 231, or 232 above for offset address of the failure in System, Extended, or Shadow memory.
Fixed Disk n Fixed disk n (0-3) identified.
Invalid System Configuration Data	Problem with NVRAM (CMOS) data.
I/O device IRQ conflict I/O device	IRQ conflict error.
PS/2 Mouse Boot Summary Screen:	PS/2 Mouse installed.
nnnn kB Extended RAM Passed	Where nnnn is the amount of RAM in kilobytes successfully tested.
nnnn Cache SRAM Passed Where	where nnnn is the amount of system cache in kilobytes successfully tested.
nnnn kB Shadow RAM Passed Where	where nnnn is the amount of shadow RAM in kilobytes successfully tested.
nnnn kB System RAM Passed Where	where nnnn is the amount of system RAM in kilobytes successfully tested.
One or more I2O Block Storage Devices were excluded from the Setup Boot Menu	There was not enough room in the IPL table to display all installed I2O block-storage devices.
Operating system not found	Operating system cannot be located on either drive A: or drive C:. Enter Setup and see if fixed disk and drive A: are properly identified.
Parity Check 1 nnnn	Parity error found in the system bus. BIOS attempts to locate the address and display it on the screen. If it cannot locate the address, it displays ???? . Parity is a method for checking errors in binary data. A parity error indicates that some data has been corrupted.
Parity Check 2 nnnn	Parity error found in the I/O bus. BIOS attempts to locate the address and display it on the screen. If it cannot locate the address, it displays ???? .
Pressto resume,to Setup,for previous	Displayed after any recoverable error message. Pressto start the boot process orto enter Setup and change the settings. Pressto display the previous screen (usually an initialization error of an Option ROM, i.e., an add-on card). Write down and follow the information shown on the screen.
Pressto enter Setup Optional	mal message displayed during POST. Can be turned off in Setup.
PS/2 Mouse: PS/2 mouse identified.
Run the I2O Configuration Utility	One or more unclaimed block storage devices have the Configuration Request bit set in the LCT. Run an I2O Configuration Utility (e.g. the SAC utility).
System BIOS shadowed System	BIOS copied to shadow RAM.
UMB upper limit segment address: nnnn	Displays the address nnnn of the upper limit of Upper Memory Blocks, indicating released segments of the BIOS which can be reclaimed by a virtual memory manager.
Video BIOS shadowed Video BIOS	S successfully copied to shadow RAM.

A.2 BIOS POST Codes

This section lists the POST (Power-On Self-Test) codes for the AMI BIOS. POST codes are divided into two categories: recoverable and terminal.

Recoverable POST Errors

When a recoverable type of error occurs during POST, the BIOS will display an POST code that describes the problem. BIOS may also issue one of the following beep codes: One long and two short beeps – video configuration error One repetitive long beep – no memory detected

Terminal POST Errors

If a terminal type of error occurs, BIOS will shut down the system. Before doing so, BIOS will write the error to port 80h, attempt to initialize video and write the error in the top left corner of the screen. The following is a list of codes that may be written to port 80h.

Terminal POST Errors
Code Description
02h Verify Real Mode
03h Disable Non-Maskable Interrupt (NMI)
04h Get CPU type
06h Initialize system hardware
07h Disable shadow and execute code from the ROM.
08h Initialize chipset with initial POST values
09h Set IN POST flag
0Ah Initialize CPU registers
0Bh Enable CPU cache
0Ch Initialize caches to initial POST values
0Eh Initialize I/O component
0Fh Initialize the local bus IDE
10h Initialize Power Management
11h Load alternate registers with initial POST values
12h Restore CPU control word during warm boot
13h Initialize PCI Bus Mastering devices
14h Initialize keyboard controller
16h 1-2-2-3 BIOS ROM checksum
17h Initialize cache before memory Auto size
18h 8254 timer initialization
1Ah 8237 DMA controller initialization
1Ch Reset Programmable Interrupt Controller
20h 1-3-1-1 Test DRAM refresh
22h 1-3-1-3 Test 8742 Keyboard Controller
28h Auto size DRAM
29h Initialize POST Memory Manager
2Ah Clear 512 kB base RAM
2Ch 1-3-4-1 RAM failure on address line xxxx*
2Eh 1-3-4-3 RAM failure on data bits xxxx* of low byte of memory bus
2Fh Enable cache before system BIOS shadow
32h Test CPU bus-clock frequency
33h Initialize Phoenix Dispatch Manager
36h Warm start shut down
38h Shadow system BIOS ROM
3Ah Auto size cache
3Ch Advanced configuration of chipset registers
3Dh Load alternate registers with CMOS values
41h Initialize extended memory for RomPilot
42h Initialize interrupt vectors
45h POST device initialization
46h 2-1-2-3 Check ROM copyright notice
47h Initialize I20 support
48h Check video configuration against CMOS
49h Initialize PCI bus and devices
4Ah Initialize all video adapters in system
4Bh QuietBoot start (optional)
4Ch Shadow video BIOS ROM
4Eh Display BIOS copyright notice
4Fh Initialize MultiBoot
50h Display CPU type and speed
51h Initialize EISA board
52h Test keyboard
54h Set key click if enabled
55h Enable USB devices
58h 2-2-3-1	Test for unexpected interrupts
59h Initialize	POST display service
5Ah Display	prompt "Press F2 to enter SETUP"
5Bh Disable	CPU cache
5Ch Test RAM between 512 and 640 kB
60h Test extended memory
62h Test extended memory address lines
64h Jump to UserPatch1
66h Configure advanced cache registers
67h Initialize	Multi Processor APIC
68h Enable	external and CPU caches
69h Setup	System Management Mode (SMM) area
6Ah Display	external L2 cache size
6Bh Load	custom defaults (optional)
6Ch Display	shadow-area message
6Eh Display	possible high address for UMB recovery
70h Display	error messages
72h Check	for configuration errors
76h Check	for keyboard errors
7Ch Set up	hardware interrupt vectors
7Dh Initialize	Intelligent System Monitoring
7Eh Initialize	coprocessor if present
80h Disable	onboard Super I/O ports and IRQs
81h Late POST device initialization
82h Detect and install external RS232 ports
83h Configure	non-MCD IDE controllers
84h Detect and install external parallel ports
85h Initialize	PC-compatible PnP ISA devices
86h Re-initialize onboard I/O ports.
87h Configure Motherboard Configurable Devices (optional)
88h Initialize BIOS Data Area
89h Enable Non-Maskable Interrupts (NMIs)
8Ah Initialize Extended BIOS Data Area
8Bh Test and initialize PS/2 mouse
8Ch Initialize floppy controller
8Fh Determine number of ATA drives (optional)
90h Initialize hard-disk controllers
91h Initialize local-bus hard-disk controllers
92h Jump to UserPatch2
93h Build MPTABLE for multi-processor boards
95h Install CD ROM for boot
96h Clear huge ES segment register
98h 1-2 Search for option ROMs. One long, two short beeps on check-sum failure
99h Check for SMART Drive (optional)
9Ah Shadow option ROMs
9Ch Set up Power Management
9Dh Initialize security engine (optional)
9Eh Enable hardware interrupts
9Fh Determine number of ATA and SCSI drives
A0h Set time of day
A2h Check key lock
A4h Initialize typematic rate
A8h Erase F2 prompt
AAh Scan for F2 key stroke
ACh Enter SETUP
AEh Clear Boot flag
B0h Check for errors
B1h Inform RomPilot about the end of POST.
B2h POST	done - prepare to boot operating system
B4h 1 One	short beep before boot
B5h	Terminate QuietBoot (optional)
B6h	Check password (optional)
B7h	Initialize ACPI BIOS
B9h	Prepare Boot
BAh	Initialize SMBIOS
BBh	Initialize PnP Option ROMs
BCh	Clear parity checkers
BDh	Display MultiBoot menu
BEh	Clear screen (optional)
BFh	Check virus and backup reminders
C0h	Try to boot with INT 19
C1h	Initialize POST Error Manager (PEM)
C2h	Initialize error logging
C3h	Initialize error display function
C4h	Initialize system error handler
C5h	PnPnd dual CMOS (optional)
C6h	Initialize note dock (optional)
C7h	Initialize note dock late
C8h	Force check (optional)
C9h	Extended checksum (optional)
CAh	Redirect Int 15h to enable remote keyboard
CBh	Redirect Int 13h to Memory Technologies Devices such as ROM, RAM, PCMCIA, and serial disk
CCh	Redirect Int 10h to enable remote serial video
CDh	Re-map I/O and memory for PCMCIA
CEh	Initialize digitizer and display message
D2h	Unknown interrupt

The following are for the boot block in Flash ROM:

Boot Block Flash ROM Terminal POST Errors

Code Description

E0h Initialize the chipset

E1h Initialize the bridge

E2h Initialize the CPU

E3h Initialize system timer

E4h Initialize system I/O

E5h Check force recovery boot

E6h Checksum BIOS ROM

E7h Go to BIOS

E8h Set Huge Segment

E9h Initialize Multi Processor

EAh Initialize OEM special code

EBh Initialize PIC and DMA

ECH Initialize Memory type

EDh Initialize Memory size

EEh Shadow Boot Block

EFh System memory test

F0h Initialize interrupt vectors

F1h Initialize Run Time Clock

F2h Initialize video

F3h Initialize System Management Manager

F4h Output one beep

F5h Clear Huge Segment

F6h Boot to Mini DOS

F7h Boot to Full DOS

If the BIOS detects error 2C, 2E, or 30 (base 512K RAM error), it displays an additional word-bitmap (xxxx) indicating the address line or bits that failed. For example, "2C 0002" means address line 1 (bit one set) has failed. "2E 1020" means data bits 12 and 5 (bits 12 and 5 set) have failed in the lower 16 bits. The BIOS also sends the bitmap to the port-80 LED display. It first displays the checkpoint code, followed by a delay, the high-order byte, another delay, and then the low order byte of the error. It repeats this sequence continuously.

Appendix B

Standardized Warning Statements for AC Systems

About Standardized Warning Statements

The following statements are industry standard warnings, provided to warn the user of situations which have the potential for bodily injury. Should you have questions or experience difficulty, contact Supermicro's Technical Support department for assistance. Only certified technicians should attempt to install or configure components. Read this appendix in its entirety before installing or configuring components in the Supermicro chassis. These warnings may also be found on our website at https://www.supermicro.com/about/policies/safety\_information.cfm.

Warning Definition

 Warning! This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents. 警告の定義 この警告サインは危険を意味します。 人身事故につながる可能性がありますので、いずれの機器でも動作させる前に、 電気回路に含まれる危険性に注意して、標準的な事故防止策に精通して下さい。 此警告符号代表危险。 您正处于可能受到严重伤害的工作环境中。在您使用设备开始工作之前，必须充分意识到触电的危险，并熟练掌握防止事故发生的标准工作程序。请根据每项警告结尾的声明号码找到此设备的安全性警告说明的翻译文本。 此警告符號代表危險。 您正處於可能身體可能會受損傷的工作環境中。在您使用任何設備之前，請注意觸電的危險，並且要熟悉預防事故發生的標準工作程序。請依照每一注意事項後的號碼找到相關的翻譯說明內容。 Warnung

WICHTIGE SICHERHEITSHINWEISE

Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut. Suchen Sie mit der am Ende jeder Warnung angegebenen Anweisungsnummer nach der jeweiligen Übersetzung in den übersetzten Sicherheitshinweisen, die zusammen mit diesem Gerät ausgeliefert wurden. BEWAHREN SIE DIESE HINWEISE GUT AUF.

INSTRUCCIONES IMPORTANTES DE SEGURIDAD

Este símbolo de aviso indica peligro. Existe riesgo para su integridad física. Antes de manipular cualquier equipo, considere los riesgos de la corriente eléctrica y familiarícese con los procedimientos estándar de prevención de accidentes. Al final de cada advertencia encontrará el número que le ayudará a encontrar el texto traducido en el apartado de traducciones que acompaña a este dispositivo. GUARDE ESTAS INSTRUCCIONES.

IMPORTANTES INFORMATIONS DE SÉCURITÉ

Ce symbole d'avertissement indique un danger. Vous vous trouvez dans une situation pouvant entraîner des blessures ou des dommages corporels. Avant de travailler sur un équipement, soyez conscient des dangers liés aux circuits électriques et familiarisez-vous avec les procédures couramment utilisées pour éviter les accidents. Pour prendre connaissance des traductions des avertissements figurant dans les consignes de sécurité traduites qui accompagnent cet appareil, référez-vous au numéro de l'instruction situé à la fin de chaque avertissement. CONSERVEZ CES INFORMATIONS. תְרָה בְּרָה בְּרָה תְבָרִי אַלְאָה בְּרִי אַלְאָה, הַעֹרִי אַלְאָה בְּרִי אַלְאָה, הַעֹרִי אַלְאָה, הַעֹרִי אַלְאָה, הַעֹרִי אַלְאָה, הַעֹרִי אַלְאָה, הַעֹרִי אַלְאָה, מְקּוֹדָה, הַעֹרִי אַלְאָה, הַעֹרִי אַלְאָה, הַעֹרִי אַלְאָה, הַעֹרִי אַלְאָה, הַעֹרִי א' اَكَّ ف حالة وُكَي أي تتسبِف اصابة جسذةُّهذا الزهرز عُ خطر !تحذ زُّ. قبل أي تعول على أي ه Goals، كي على علن بالوخاطز ال أجوة عي الذواتز الكهزباي ة وَيْ عَلَى دَرَا ةُ بالوَارِسَاتِ الْقَائِيُ ةُ لُوْعُ وَقَمْعَ أَيْ حَادِث استخدم رقن الب إي الو صص ف هَّا ة كل تحذ زُ للعشر تزجوتها 안전을 위한 주의사항 경고! 이 경고 기호는 위험이 있음을 알려 줍니다. 작업자의 신체에 부상을 야기 할 수 있는 상태에 있게 됩니다. 모든 장비에 대한 작업을 수행하기 전에 전기회로와 관련된 위험요소들을 확인하시고 사전에 사고를 방지할 수 있도록 표준 작업절차를 준수해 주시기 바랍니다. 해당 번역문을 찾기 위해 각 경고의 마지막 부분에 제공된 경고문 번호를 참조하십시오

BELANGRIJKE VEILIGHEIDSINSTRUCTIES

Dit waarschuwings symbool betekent gevaar. U verkeert in een situatie die lichamelijk letsel kan veroorzaken. Voordat u aan enige apparatuur gaat werken, dient u zich bewust te zijn van de bij een elektrische installatie betrokken risico's en dient u op de hoogte te zijn van de standaard procedures om ongelukken te voorkomen. Gebruik de nummers aan het eind van elke waarschuwing om deze te herleiden naar de desbetreffende locatie. BEWAAR DEZE INSTRUCTIES

Installation Instructions

 Warning! Read the installation instructions before connecting the system to the power source.

設置手順書

システムを電源に接続する前に、設置手順書をお読み下さい。 警告 将此系统连接电源前,请先阅读安装说明。 警告 將系統與電源連接前，請先閱讀安裝說明。 Warnung Vor dem Anschließen des Systems an die Stromquelle die Installationsanweisungen lesen. ¡Advertencia! Lea las instrucciones de instalación antes de conectar el sistema a la red de alimentación. Attention Avant de brancher le système sur la source d'alimentation, consulter les directives d'installation. .תְקָרִי לַלְאָה בְּרִי לַלְאָה בְּרִי לַלְאָה בְּרִי לַלְאָה בְּרִי לַלְאָה اقر إرشادات التركيب قبل توصيل النظام إلى مصر للطاقة 시스템을 전원에 연결하기 전에 설치 안내를 읽어주십시오. Waarschuwing Raadpleeg de installatie-instructies voordat u het systeem op de voedingsbron aansluit.

Circuit Breaker

 Warning! This product relies on the building's installation for short-circuit (overcurrent) protection. Ensure that the protective device is rated not greater than: 250 V, 20 A. サーキット・ブレーカー この製品は、短絡（過電流）保護装置がある建物での設置を前提としています。 保護装置の定格が250 V、20 Aを超えないことを確認下さい。 警告 此产品的短路(过载电流)保护由建筑物的供电系统提供,确保短路保护设备的额定电流不大于250V,20A。 警告 此產品的短路(過載電流)保護由建築物的供電系統提供,確保短路保護設備的額定電流不大於250V,20A。

Warnung

Dieses Produkt ist darauf angewiesen, dass im Gebäude ein Kurzschluss- bzw. Überstromschutz installiert ist. Stellen Sie sicher, dass der Nennwert der Schutzvorrichtung nicht mehr als: 250 V, 20 A beträgt.

¡Advertencia!

Este equipo utiliza el sistema de protección contra cortocircuitos (o sobrecorrientes) del edificio. Asegúrese de que el dispositivo de protección no sea superior a: 250 V, 20 A.

Attention

Pour ce qui est de la protection contre les courts-circuits (surtension), ce produit dépend de l'installation électrique du local. Vérifiez que le courant nominal du dispositif de protection n'est pas supérieur à :250 V, 20 A. הכלהה. וְרַעָה אַלְבָרִי לְרַעָה אַלְבָרִי לְרַעָה אַלְבָרִי לְרַעָה אַלְבָרִי לְרַעָה אַלְבָרִי לְרַעּה אַלְבָרִי לְרַעּה אַלְבָרִי לְרַעּה אַלְבָרִי לְרַעּה אַלְבָרִי לְרַעּה אַלְגּוֹת אַלְגּוֹת אַלְגּוֹת אַלְגּוֹת אַלְגּוֹת אַלְגּוֹת אַלְגּוֹת אַלְגּוֹת אַלְגֶן هذه المنتج يعت Indeed على معداث الحمايت مه الدوائر القصيرة التي تم ت俯يتها في المبني تأكد من أن Bergen الجهاز الوقائي ليس أكثر من : 20A, 250V

경고!

이 제품은 전원의 단락(과전류)방지에 대해서 전적으로 건물의 관련 설비에 의존합니다. 보호장치의 정격이 반드시 250V(볼트), 20A(암페어)를 초과하지 않도록 헤야 합니다.

Waarschuwing

Dit product is afhankelijk van de kortsluitbeveiliging (overspanning) van uw electrische installatie. Controleer of het beveiligde aparaat niet groter gedimensioneerd is dan 250V, 20A.

Power Disconnection Warning

 Warning! The system must be disconnected from all sources of power and the power cord removed from the power supply module(s) before accessing the chassis interior to install or remove system components.

CAUTION: This unit has redundant power sources. Please disconnect all the power cords before servicing.

電源切断の警告 システムコンポーネントの取り付けまたは取り外しのために、シャーシー内部にアクセスするには、 システムの電源はすべてのソースから切断され、電源コードは電源モジュールから取り外す必要があります。 警告 在你打开机箱并安装或移除内部器件前,必须将系统完全断电,并移除电源线。 警告 在您打開機殼安裝或移除內部元件前，必須將系統完全斷電，並移除電源線。 Warnung Das System muss von allen Quellen der Energie und vom Netzanschlusskabel getrennt sein, das von den Spg.Versorgungsteilmodulen entfernt wird, bevor es auf den Chassisinnenraum zurückgreift, um Systemsbestandteile anzubringen oder zu entfernen. ¡Advertencia! El sistema debe ser disconnected de todas las fuentes de energía y del cable eléctrico quitado de los módulos de fuente de alimentación antes de tener acceso el interior del chasis para instalar o para quitar componentes de sistema. Attention Le système doit être débranché de toutes les sources de puissance ainsi que de son cordon d'alimentation secteur avant d'accéder à l'intérieur du chassis pour installer ou enlever des composants de système. תְבָרִי הַלְהָם הַלְהָם הַלְהָם הַרְשָׁא! בְרָהוֹתִי אַלְאָהוֹתִי אַלְאָהוֹתִי אַלְאָהוֹתִי אַלְאָהוֹתִי אַלְאָהוֹתִי אַלְאָהוֹתִי אַל בְרָהוֹתִי אַלְאָהוֹתִי אַל בְרָהוֹתִי אַל בְרָהוֹתִי אַל בְרָהוֹתִי אַל בְרָהוֹתִי אַל בְרָהוֹתִי אַל يجب ف piping انظاو من جميع مصادر انطاعت وإزادت سهک انkehrباء من وحدة امداد انطاقت قبم ان pupil إن امناطق انداخهيت نههیكم نتثبیج أو إزانت مکنناث الجهاز 경고! 시스템에 부품들을 장착하거나 세거하기 위해서는 세시 내부에 접근하기 전에 반드시 전원 공급장치로부터 연결되어있는 모든 전원과 전기코드를 분리해주어야 합니다.

Waarschuwing

Voordat u toegang neemt tot het binnenwerk van de behuizing voor het installeren of verwijderen van systeem onderdelen, dient u alle spanningsbronnen en alle stroomkabels aangesloten op de voeding(en) van de behuizing te verwijderen

Equipment Installation

 Warning! Only trained and qualified personnel should be allowed to install, replace, or service this equipment. 機器の設置 トレーニングを受け認定された人だけがこの装置の設置、交換、またはサービスを許可されています。 警告 只有经过培训且具有资格的人员才能进行此设备的安装、更换和维修。 警告 只有經過受訓且具資格人員才可安裝、更換與維修此設備。 Warnung Das Installieren, Ersetzen oder Bedienen dieser Ausrüstung sollte nur geschultem, qualifiziertem Personal gestattet werden. ¡Advertencia! Solamente el personal calificado debe instalar, reemplazar o utilizar este equipo. Attention Il est vivement recommandé de confier l'installation, le remplacement et la maintenance de ces équipements à des personnels qualifiés et expérimentés. !תְרָה . والمديربيه لتركيب واستب DEAL أو خدمة هذا الجهاس يجب أن يسمح فقط للمظفيه المؤهليه 경고! 훈련을 받고 공인된 기술자만이 이 장비의 설치, 교체 또는 서비스를 수행할 수 있습니다. Waarschuwing Deze apparatuur mag alleen worden geïnstalleerd, vervangen of hersteld door geschoold en gekwalificeerd personeel.

Restricted Area

 Warning! This unit is intended for installation in restricted access areas. A restricted access area can be accessed only through the use of a special tool, lock and key, or other means of security. (This warning does not apply to workstations). アクセス制限区域 このユニットは、アクセス制限区域に設置されることを想定しています。 アクセス制限区域は、特別なツール、鍵と錠前、その他のセキュリティの手段を用いてのみ出入りが可能です。

警告

此部件应安装在限制进出的场所，限制进出的场所指只能通过使用特殊工具、锁和钥匙或其它安全手段进出的场所。

警告

此裝置僅限安裝於進出管制區域，進出管制區域係指僅能以特殊工具、鎖頭及鑰匙或其他安全方式才能進入的區域。

Warnung

Diese Einheit ist zur Installation in Bereichen mit beschränktem Zutritt vorgesehen. Der Zutritt zu derartigen Bereichen ist nur mit einem Spezialwerkzeug, Schloss und Schlüssel oder einer sonstigen Sicherheitsvorkehrung möglich.

¡Advertencia!

Esta unidad ha sido diseñada para instalación en áreas de acceso restringido. Sólo puede obtenerse acceso a una de estas áreas mediante la utilización de una herramienta especial, cerradura con llave u otro medio de seguridad.

Attention

Cet appareil doit être installée dans des zones d'accès réservés. L'accès à une zone d'accès réservé n'est possible qu'en utilisant un outil spécial, un mécanisme de verrouillage et une clé, ou tout autre moyen de sécurité. תְבָרִיֹת אַלְעֹן אַלְעֹן !תְרָה תְרָה בְּרָה בְּרָה. בְּרָה בְּרָה בְּרָה בְּרָה בְּרָה בְּרָה בְּרָה בְּרָה בְּרָה בְּרָה בְּרָה בְּרָה (לְרַעָהִי, מְרַעָהִי (בְרַעָהִי) تخصيص هذه ان herbدة نترك بُها ف مناطق محظورة تم. مَّ كن انتصل إن منقطت محظورة فقط من خلال استخاذو أداة خاصت أو أ وس هُت أخرى نلا DALAMA قفم ومفتاح 경고! 이 장치는 접근이 제한된 구역에 설치하도록 되어있습니다. 특수도구, 잠금 장치 및 키, 또는 기타 보안 수단을 통해서만 접근 제한 구역에 들어갈 수 있습니다.

Waarschuwing

Dit apparaat is bedoeld voor installatie in gebieden met een beperkte toegang. Toegang tot dergelijke gebieden kunnen alleen verkregen worden door gebruik te maken van speciaal gereedschap, slot en sleutel of andere veiligheidsmaatregelen.

Battery Handling

 Warning! There is the danger of explosion if the battery is replaced incorrectly. Replace the battery only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions 電池の取り扱い 電池交換が正しく行われなかった場合、破裂の危険性があります。交換する電池はメーカーが推奨する型、または同等のものを使用下さい。使用済電池は製造元の指示に従って処分して下さい。 警告 电池更换不当会有爆炸危险。请只使用同类电池或制造商推荐的功能相当的电池更换原有电池。请按制造商的说明处理废旧电池。 警告 電池更換不當會有爆炸危險。請使用製造商建議之相同或功能相當的電池更換原有電池。請按照製造商的說明指示處理廢棄舊電池。

Warnung

Bei Einsetzen einer falschen Batterie besteht Explosionsgefahr. Ersetzen Sie die Batterie nur durch den gleichen oder vom Hersteller empfohlenen Batterietyp. Entsorgen Sie die benutzten Batterien nach den Anweisungen des Herstellers.

Attention

Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer que par une pile de type semblable ou équivalent, recommandée par le fabricant. Jeter les piles usagées conformément aux instructions du fabricant.

¡Advertencia!

Existe peligro de explosión si la batería se reemplaza de manera incorrecta. Reemplazar la batería exclusivamente con el mismo tipo o el equivalente recomendado por el fabricante. Desechar las baterías gastadas según las instrucciones del fabricante. ! תְקַרָה אַל. מְקַרָה אַל. תְקַרָה בְּרָה אַלְבָרִים .הכלההוּרָה אַלְבָרִים אַלְבָרִים אַלְבָרִים אַלְבָרִים אַלְבָרִים هناك خطر من انفجار في حالة اسcbdال الطارية بطريقة غير صحيحة فعليل اسحبだけ البطارية فقط بنفس النع أو ما يعادلها مما أوصث به الشرمة المصنعة جملص منprobabilityums�عملة وفقا لしています الشرمة الصانعة 경고! 배터리가 올바르게 교체되지 않으면 폭발의 위험이 있습니다. 기존 배터리와 동일하거나 제조사에서 권장하는 동등한 종류의 배터리로만 교체해야 합니다. 제조사의 안내에 따라 사용된 배터리를 처리하여 주십시오.

Waarschuwing

Er is ontploffingsgevaar indien de batterij verkeerd vervangen wordt. Vervang de batterij slechts met hetzelfde of een equivalent type die door de fabrikant aanbevolen wordt. Gebruikte batterijen dienen overeenkomstig fabrieksvoorschriften afgevoerd te worden.

Redundant Power Supplies

 Warning! This unit might have more than one power supply connection. All connections must be removed to de-energize the unit. 冗長電源裝置 このユニットは複数の電源装置が接続されている場合があります。 ユニットの電源を切るためには、すべての接続を取り外さなければなりません。 警告 此部件连接的电源可能不止一个，必须将所有电源断开才能停止给该部件供电。 警告 此裝置連接的電源可能不只一個，必須切斷所有電源才能停止對該裝置的供電。 Warnung Dieses Gerät kann mehr als eine Stromzufuhr haben. Um sicherzustellen, dass der Einheit kein trom zugeführt wird, müssen alle Verbindungen entfernt werden. ¡Advertencia! Puede que esta unidad tenga más de una conexión para fuentes de alimentación. Para cortar por completo el suministro de energía, deben desconectarse todas las conexiones. Attention Cette unité peut avoir plus d'une connexion d'alimentation. Pour supprimer toute tension et tout courant électrique de l'unité, toutes les connexions d'alimentation doivent être débranchées. תָהַעְרִי אַלְאָה אַלְאָה !תְרָה הכלההוּרָה אַלְבָרִי לֶתְאָה אַלְבָרִי לֶתְאָה אַלְבָרִי לֶתְאָה אַלְבָרִי לֶתְאָה אַלְבָרִי לֶתְאָה אַל .תְקּוֹרָה אַב قد يكون لهذا الجهاز عدة اتصالات بوحدات امداد الطاقة. يجب إزالة كافة الاتصالات لعسل الوحدة عن الكهرباء 경고! 이 장치에는 한 개 이상의 전원 공급 단자가 연결되어 있을 수 있습니다. 이 장치에 전원을 차단하기 위해서는 모든 연결 단자를 제거해야만 합니다. Waarschuwing Deze eenheid kan meer dan één stroomtoevoeraansluiting bevatten. Alle aansluitingen dienen verwijderd te worden om het apparaat stroomloos te maken.

Backplane Voltage

 Warning! Hazardous voltage or energy is present on the backplane when the system is operating. Use caution when servicing. バックプレーンの電圧 システムの稼働中は危険な電圧または電力が、バックプレーン上にかかっています。 修理する際には注意ください。 警告 当系统正在进行时，背板上有很危险的电压或能量，进行维修时务必小心。 警告 當系統正在進行時，背板上有危險的電壓或能量，進行維修時務必小心。

Warnung

Wenn das System in Betrieb ist, treten auf der Rückwandplatine gefährliche Spannungen oder Energien auf. Vorsicht bei der Wartung.

¡Advertencia!

Cuando el sistema está en funcionamiento, el voltaje del plano trasero es peligroso. Tenga cuidado cuando lo revise.

Attention

Lorsque le système est en fonctionnement, des tensions électriques circulent sur le fond de panier. Prendre des précautions lors de la maintenance. תְרָה בְּבַעֹת אַל !תְרָה תְבָרִי הַלְהָה אַעֹן. בְּבָרִי הַלְהָה אַעֹן. .תְרָׁבַע هناك خطر مه التيار الكهزباًي أوالطاقة المجيدة على اللحة عندما يكن-den نظام يعمل كه حذرا عند خدمة هذا الجهاس 경고! 시스템이 동작 중일 때 후면판 (Backplane)에는 위험한 전압이나 에너지가 발생 합니다. 서비스 작업 시 주의하십시오.

Waarschuwing

Een gevaarlijke spanning of energie is aanwezig op de backplane wanneer het systeem in gebruik is. Voorzichtigheid is geboden tijdens het onderhoud.

Comply with Local and National Electrical Codes

 Warning! Installation of the equipment must comply with local and national electrical codes. 地方および国の電気規格に準拠 機器の取り付けはその地方および国の電気規格に準拠する必要があります。 警告 设备安装必须符合本地与本国电气法规。 警告 設備安裝必須符合本地與本國電氣法規。 Warnung Die Installation der Geräte muss den Sicherheitsstandards entsprechen. ¡Advertencia! La instalacion del equipo debe cumplir con las normas de electricidad locales y nacionales. Attention L'équipement doit être installé conformément aux normes électriques nationales et locales. תְאָה בַרִיָה אַעֹבָם !תְרָה .שְׁרָה בְּרָה אַלְבָרִים לֶתֹאָה אַלְבָרִים לֶתֹאָה אַלְבָרִים לֶתֹאָה אַלְבָרִים לֶתֹאָה אַלְבָרִים לֶתֹאָה אַל تركيب المعدات الكهربائية يجب أن يعتل للقاويه المحلية والطبية المتعلقة بالكهرباء 경고! 현 지역 및 국가의 전기 규정에 따라 장비를 설치해야 합니다. Waarschuwing Bij installatie van de apparatuur moet worden voldaan aan de lokale en nationale elektriciteitsvoorschriften.

Product Disposal

 Warning! Ultimate disposal of this product should be handled according to all national laws and regulations. 製品の廃棄 この製品を廃棄処分する場合、国の関係する全ての法律・条例に従い処理する必要があります。 警告 本产品的废弃处理应根据所有国家的法律和规章进行。 警告 本產品的廢棄處理應根據所有國家的法律和規章進行。 Warnung Die Entsorgung dieses Produkts sollte gemäß allen Bestimmungen und Gesetzen des Landes erfolgen. ¡Advertencia! Al deshacerse por completo de este producto debe seguir todas las leyes y reglamentos nacionales. Attention La mise au rebut ou le recyclage de ce produit sont généralement soumis à des lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de l'organisme compétent. תָרִיְהַעֹם !תְרָה .הכלההוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָה التخلص النهائي من هذا المنتج ينبغي التعامل معه وفقا لجميع القانونين واللسائع الطنية عند 경고! 이 제품은 해당 국가의 관련 법규 및 규정에 따라 폐기되어야 합니다. Waarschuwing De uiteindelijke verwijdering van dit product dient te geschieden in overeenstemming met alle nationale wetten en reglementen.

Hot Swap Fan Warning

  Warning! Hazardous moving parts. Keep away from moving fan blades. The fans might still be turning when you remove the fan assembly from the chassis. Keep fingers, screwdrivers, and other objects away from the openings in the fan assembly's housing. ファン・ホットスワップの警告 警告！回転部品に注意。運転中は回転部(羽根)に触れないでください。シャーシから冷却ファン装置を取り外した際、ファンがまだ回転している可能性があります。ファンの開口部に、指、ドライバー、およびその他のものを近づけないで下さい。

警告!

警告！危险的可移动性零件。请务必与转动的风扇叶片保持距离。当您从机架移除风扇装置，风扇可能仍在转动。小心不要将手指、螺丝起子和其他物品太靠近风扇

警告

危險的可移動性零件。請務必與轉動的風扇葉片保持距離。當您從機架移除風扇裝置，風扇可能仍在轉動。小心不要將手指、螺絲起子和其他物品太靠近風扇。

Warnung

Gefährlich Bewegende Teile. Von den bewegenden Lüfterblätter fern halten. Die Lüfter drehen sich u. U. noch, wenn die Lüfterbaugruppe aus dem Chassis genommen wird. Halten Sie Finger, Schraubendreher und andere Gegenstände von den Öffnungen des Lüftergehäuses entfernt.

¡Advertencia!

Riesgo de piezas móviles. Mantener alejado de las aspas del ventilador. Los ventiladores podran dar vuelta cuando usted quite ell montaje del ventilador del chasis. Mandtenga los dedos, los destornilladores y todos los objetos lejos de las aberturas del ventilador

Attention

Pieces mobiles dangereuses. Se tenir a l'ecart des lames du ventilateur Il est possible que les ventilateurs soient toujours en rotation lorsque vous retirerez le bloc ventilateur du châssis. Prenez garde à ce que doigts, tournevis et autres objets soient éloignés du logement du bloc ventilateur. !תְרָה תְבָרִי אַלְה בְּרִי אַלְה בְּרִי אַלְה בְּרִי אַלְה בְּרִי אַלְה בְּרִי אַלְה בְּרִי אַלְה בְּרִם. تحذير! أجزاء متحركة خطرة. ابتعد عن شفرات المروحة المتحركة. من الممكن أن المراوح لا تزال تدورعند إزالة kéتلة المروحة من الهيكل يجب إبقاء الأصابع وorgeكات البراغي وأغیرها من الأشياء بعيدا عن الفتحات في kéتلة المروحة 경고! 움직이는 위험한 부품. 회전하는 송풍 날개에 접근하지 마세요. 새시로부터 팬 조립품을 제거할 때 팬은 여전히 회전하고 있을 수 있습니다. 팬 조립품 외판의 열려있는 부분들로부터 손가락 및 스크류드라이버, 다른 물체들이 가까이 하지 않도록 배치해 주십시오.

Waarschuwing

Gevaarlijk bewegende onderdelen. Houd voldoende afstand tot de bewegende ventilatorbladen. Het is mogelijk dat de ventilator nog draait tijdens het verwijderen van het ventilatorsamenstel uit het chassis. Houd uw vingers, schroevendraaiers en eventuele andere voorwerpen uit de buurt van de openingen in de ventilatorbehuizing.

Power Cable and AC Adapter

 Warning! When installing the product, use the provided or designated connection cables, power cables and AC adaptors. Using any other cables and adaptors could cause a malfunction or a fire. Electrical Appliance and Material Safety Law prohibits the use of UL or CSA-certified cables (that have UL/CSA shown on the cord) for any other electrical devices than products designated by Supermicro only. 電源コードとACアダプター 製品を設置する場合、提供または指定および購入された接続ケーブル、電源コードとACアダプターを該当する地域の条例や安全基準に適合するコードサイズやプラグと共に使用下さい。他のケーブルやアダプタを使用すると故障や火災の原因になることがあります。 電気用品安全法は、ULまたはCSA認定のケーブル(UL/CSAマークがコードに表記)を Supermicro が指定する製品以外に使用することを禁止しています。

警告

安装此产品时,请使用本身提供的或指定的或采购的连接线,电源线和电源适配器，包含遵照当地法规和安全要求的合规的电源线尺寸和插头.使用其它线材或适配器可能会引起故障或火灾。除了Supermicro所指定的产品,电气用品和材料安全法律规定禁止 使用未经UL或CSA认证的线材。(线材上会显示UL/CSA符号)。

警告

安裝此產品時,請使用本身提供的或指定的或採購的連接線,電源線和電源適配器，包含遵照當地法規和安全要求的合規的電源線尺寸和插頭.使用其它線材或適配器可能會引起故障或火災。除了Supermicro所指定的產品,電氣用品和材料安全法律規定禁止 使用未經UL或CSA認證的線材。(線材上會顯示UL/CSA符號)。

Warnung

Nutzen Sie beim Installieren des Produkts ausschließlich die von uns zur Verfügung gestellten Verbindungskabeln, Stromkabeln und/oder Adapter, die Ihre örtlichen Sicherheitsstandards einhalten. Der Gebrauch von anderen Kabeln und Adapter können Fehlfunktionen oder Feuer verursachen. Die Richtlinien untersagen das Nutzen von UL oder CAS zertifizierten Kabeln (mit UL/CSA gekennzeichnet), an Geräten oder Produkten die nicht mit Supermicro gekennzeichnet sind.

¡Advertencia!

Cuando instale el producto, utilice la conexión provista o designada o procure cables, Cables de alimentación y adaptadores de CA que cumplan con los códigos locales y los requisitos de seguridad, incluyendo el tamaño adecuado del cable y el enchufe. El uso de otros cables y adaptadores podría causar un mal funcionamiento o un incendio. La Ley de Seguridad de Aparatos Eléctricos y de Materiales prohíbe El uso de cables certificados por UL o CSA (que tienen el certificado UL / CSA en el código) para cualquier otros dispositivos eléctricos que los productos designados únicamente por Supermicro.

Attention

Lors de l'installation du produit, utilisez les cables de connection fournis ou désigné ou achetez des cables, cables de puissance et adaptateurs respectant les normes locales et les conditions de securite y compris les tailles de cables et les prises electriques appropriés. L'utilisation d'autres cables et adaptateurs peut provoquer un dysfonctionnement ou un incendie. Appareils électroménagers et la Loi sur la Sécurité Matériel interdit l'utilisation de câbles certifies- UL ou CSA (qui ont UL ou CSA indiqué sur le code) pour tous les autres appareils électriques sauf les produits désignés par Supermicro seulement. בְרַעָה אַרְאָהוֹתִי, AG אַתְרָה! הכלההוּרָה אַעְבָר, לֹרִיָה בְּרָה אַעְבָר, אַעְבָר, אַעְבָר, אַעְבָר, אַעְבָר, אַעְבָר, אַעְבָר, אַעְבָר, אַעְבָר, אַעְבָר, تالبكلّا عارشب مق وأ قد dhملا وأ قر فو تم لات يص وت لا ماد خ ساب مق ، جتن لبا بي كرت دن ع كل ذ يف اimb ئ يل حم لا قم الس لا تابل ط تم و ن ين اوق ب ماز تل لا عم ددر تم لا راي تل لا تال وح و ؤ ي ئ ابر هك لا ق ي رح وأ ل ط ع ي ف بب س تي دق icer خ ل WAL و مت ال باك ي أ ماد خ سا . مي يس لا س باق لا و ل ص و مل مج ل بق نم قدمت عملات بالك لا ماد خ سا تاد ع مل و ئ ي ئ ابر هك لا ئ زە ج أ لل ئ مال س لا نون اق رظ ح ي ال بق نم قد dhم لا ئ ين عملات اج تن مل ري غ ى رخ لات دع م ي أ ع م (UL/CSA) ئ مال ع لم حت يت لا و Supermicro. 전원 케이블 및 AC 어댑터 경고! 제품을 설치할 때 현지 코드 및 적절한 굵기의 코드와 플러그를 포함한 안전 요구 사항을 준수하여 제공되거나 지정된 연결 혹은 구매 케이블, 전원 케이블 및 AC 어댑터를 사용하십시오. 다른 케이블이나 어댑터를 사용하면 오작동이나 화재가 발생할 수 있습니다. 전기 용품 안전법은 UL 또는 CSA 인증 케이블 (코드에 UL / CSA가 표시된 케이블)을 Supermicro 가 지정한 제품 이외의 전기 장치에 사용하는 것을 금지합니다.

Stroomkabel en AC-Adapter

Waarschuwing! Bij het aansluiten van het Product uitsluitend gebruik maken van de geleverde Kabels of een andere geschikte aan te schaffen Aansluitmethode, deze moet altijd voldoen aan de lokale voorschriften en veiligheidsnormen, inclusief de juiste kabeldikte en stekker. Het gebruik van niet geschikte Kabels en/of Adapters kan een storing of brand veroorzaken. Wetgeving voor Elektrische apparatuur en Materiaalveiligheid verbied het gebruik van UL of CSA -gecertificeerde Kabels (met UL/CSA in de code) voor elke andere toepassing dan de door Supermicro hiervoor beoogde Producten.

Appendix C

System Specifications

Processor

AMD EPYC 7003/7002 Series processor in Socket SP3

Chipset

System on Chip (LBG-R)

BIOS

256Mb MX25L2567 BIOS

Memory

Eight DIMM slots, 2TB 3DS ECC RDIMM/LRDIMM DDR4; up to 3200MHz

Storage Drives

Two 2.5" hot-swap hybrid front drive bays SBA-4114S-C2N: NVME/SAS/SATA SBA-4114S-T2N: NVMe/SATA Two M.2 PCIe x4

Input/Output

Two AlOMs Two 25 GbE onboard

Motherboard

BH12SSi-M25; 6.3" x 11" (160 mm x 279 mm)

Chassis

MCP-680-41006-0N; 4U height; 6.5" x 1.75" x 23.5" (depth) (16.5 x 4.4 x 59.7 cm)

Operating Environment

Operating Temperature: 10° to 35° C (50° to 95° F) Non-operating Temperature: -40^ to 60^ (-40° to 140° F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

Regulatory Compliance

FCC, ICES, CE, UKCA, VCCI, RCM, NRTL, CB

Applied Directives, Standards

EMC/EMI: 2014/30/EU (EMC Directive) Electromagnetic Compatibility Regulations 2016 FCC Part 15 Subpart B ICES-003 VCCI-CISPR 32 AS/NZS CISPR 32 BS/EN55032 BS/EN55035 CISPR 32 CISPR 24/CISPR 35 BS/EN 61000-3-2 BS/EN 61000-3-3 BS/EN 61000-4-2 BS/EN 61000-4-3 BS/EN 61000-4-4 BS/EN 61000-4-5 BS/EN 61000-4-6 BS/EN 61000-4-8 BS/EN 61000-4-11 Environment: 2011/65/EU (RoHS Directive) EC 1907/2006 (REACH) 2012/19/EU (WEEE Directive) California Proposition 65 Product Safety: 2014/35/EU (LVD Directive) UL/CSA 62368-1 (USA and Canada) Electrical Equipment (Safety) Regulations 2016 IEC/BS/EN 62368-1

Perchlorate Warning

California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate warning applies only to products containing CR (Manganese Dioxide) Lithium coin cells. "Perchlorate Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate"
