USER MANUAL 75PUG7906 PHILIPS

1.1 Home Screen and Channels 4

1.2 Open the Home Screen 4

1.3 Home Screen Update 4

2 Setting Up 6

2.1 Read Safety 6

2.2 TV Stand and Wall Mounting 6

2.3 Tips on Placement 6

2.4 Power Cable 6

2.5 Antenna Cable 7

3 Remote Control 8

3.1 Key Overview (Type 1) 8

3.2 Key Overview (Type 2) 9

3.3 Pair Your Remote Control to the TV 10

3.4 Voice Search 10

3.5 IR Sensor 11

3.6 Batteries 11

3.7 Cleaning 11

4 Switching On and Off 12

5 Channel Installation 13

5.1 First Time to Install Channels 13

5.2 Antenna 13

5.3 Cable Installation 13

5.4 Channel Installation Options 13

6 Channels 15

6.1 About Channels and Switch Channels 15

6.2 Channel Lists 15

6.3 Watching channels 16

6.4 Favorite Channels 17

7 Connect Devices 19

7.1 About Connections 19

7.2 Home Theater System - HTS 20

7.3 Video Device 20

7.4 Audio Device 20

7.5 USB Hard Drive 21

7.6 USB Flash Drive 22

7.7 Computer 22

8 Bluetooth ^® 24

8.1 What You Need 24

8.2 Pairing a Device 24

8.3 Select a Device 24

8.4 Rename a Device 24

8.5 Remove a Device 24

9 Connect your Android TV 26

9.1 Network and Internet 26

9.2 Google Account 27

10 Apps 28

10.1 About Apps 28

10.2 Google Play 28

10.3 Start or Stop an App 29

10.4 Manage Apps 29

11 Sources 30

11.1 Switch to a device 30

12 Settings 31

12.1 TV Options 31

12.2 Picture Settings 31

12.3 Sound Settings 32

12.4 Power Settings 33

12.5 Advanced Options 34

12.6 Other settings 34

12.7 Reboot 35

12.8 Factory Reset 35

12.9 Clock and Language Settings 36

12.10 Accessibility Settings 36

13 Ambilight 38

13.1 Ambilight Style 38

13.2 Custom color 38

13.3 Brightness and Saturation 38

13.4 Wall Color Behind the TV 38

13.5 TV Switch Off 38

14 Videos, Photos, Music & Text 39

14.1 From a USB Connection 39

14.2 Play your Videos 39

14.3 View your Photos 39

14.4 Play your Music 40

14.5 View your Text 40

15 TV guide 41

15.1 TV Guide Data 41

15.2 Using the TV Guide 41

16 Recording and Time Shift 42

16.1 Record Options 42

16.2 Recording 42

16.3 Time Shift 43

17 Smartphones and Tablets 44

17.1 Google Cast 44

18 Netflix 45

19 Software 46

19.1 Update Software 46

19.2 Software Version 46

19.3 Open Source Licenses 46

20 Specifications 47

20.1 Environmental 47

20.2 Power 47

20.3 Operating System 47

20.4 Reception 47

20.5 Display Type 47

20.6 Display Input Resolution 47

20.7 Connectivity 48

20.8 Sound 48

20.9 Multimedia 48

21 Help and Support 49

21.1 Register your TV 49

21.2 Using Help 49

21.3 Troubleshooting 49

21.4 Online Help 51

21.5 Support and Repair 51

22 Safety and Care 52

22.1 Safety 52

22.2 Screen Care 53

23 Terms of Use 54

24 Copyrights 55

24.1 HDMI 55

24.2 HEVC Advance 55

24.3 Dolby Vision and Dolby Atmos 55

24.4 DTS-HD 55

24.5 DTVi 55

24.6 Wi-Fi Alliance 55

24.7 Kensington 55

24.8 Other Trademarks 56

25 Disclaimer regarding services and/or 57

software offered by third parties

Index 58

Home Screen

1.1

Home Screen and Channels

The Home launcher

To enjoy the benefits of your Android TV, connect the TV to the Internet. Press Home on your remote control to get your new Android Home screen. Like on your Android smartphone or tablet, the Home screen is the center of your TV. From here you can decide what to watch by browsing entertainment options from app and live TV. Your Home has channels to let you discover great contents from your favorite apps. You can also add additional channels or find new apps to get more contents.

The Home screen is organized in channels. Apps may populate their recommendation (if available) according to their own choice as an individual channels in the home screen.

Apps

Your favorite Apps are placed on the first row. This row contains a number of pre-installed apps. The order of these apps is according to business agreements with content service providers. You can also add more apps as favorite from the Apps page, such as the Live TV and MMP (MultiMediaPlayer). The Apps page can be opened by clicking the Apps icon at the left end of the Apps row.

Live TV

The Live TV row shows the currently running programs from the installed channels. It contains up to 10 channels as the recommendation for you to select the TV channels. The first channel on Live TV row is the channel you are watching, and the following channels will be the channels on your favorites list*.

* Note: If there are still more spaces available on Live TV row, it will include the channels from your DTV (digital TV) source.

Play Next channel

You can always know what to watch next from Play Next channel on the Home screen. Start watching from where you left off and get notifications about new episodes in the Play Next channel. Press and hold Select on a movie or TV show to add it directly to the Play Next channel.

Google Play Movies & TV channel

Rent movies or TV shows on this channel from Google Play Movies & TV.

YouTube channel

This channel contains your Recommended, Subscriptions or Trending YouTube videos.

Customize channels

Click the Customize channels button to add and remove channels from your Home screen.

See also www.support.google.com/androidtv

Accessing settings from Home

You can access the Settings menu via the icon at the top right corner.

Accessing USB flash drive from Home

To view the files from the USB flash drive, you need to add the MMP (MultiMediaPlayer) app to the Home page first. Press Home, clicking the Apps icon at the left end of the Apps row. You can add MMP apps from the Apps page.

System bar on Home screen

The System bar on the top of Home screen contains the following features.

- Search button: to trigger Google search with voice* or text input. The search result and its order are rendered according to business agreements with content service providers.

- Notifications: to provide you the messages about your Smart TV system.

- Input source: to launch the input source list and switch to any of the connected devices.

- Settings: to access all setting menu and adjust the TV settings.

- Clock: to indicate the system clock.

* Note: In order to take advantage of Google Assistant in case of a remote control without microphone, please use the Google Home app available in Google Play Store for Android and Apple App store for iOS devices.

1.2

Open the Home Screen

To open the Home screen and open an item...

1 - Press Home.
2 - Select an item and press OK to open or start it.
3 - Press Back continuously or press Home to go back to Home screen.

When opening the Home screen, the background application/content playback will stop. You have to select the application or content from the Home screen to resume.

1.3

Home Screen Update

You may receive the update notification from Google and have a new version of Home launcher installed. With the new Home launcher, you will have a new look and features on your TV's Home screen.

New highlights on your home screen

With multiple tabs like Home, Discover, Apps and Search, you can discover movies and shows from your services and popular apps. Sign in to your Google Account to get personalized recommendations from your streaming services based on what you have watched and what interests you.

New look, new navigation

Decide what to watch next with easy-to-use navigation. Browse your personalized recommendations, pick up where you left off, or quickly find a certain app using the new tab system.

Discover personalized recommendations

Browse shows and movies that you will love on all your favorite media services. Sign in to your Google Account to get started.

Get recommendations across Google

Your services are saved to your Google Account so you can get better recommendations across Google.

2

Setting Up

2.1

Read Safety

Read the safety instructions first before you use the TV.

To read the safety instructions, go to Safety and Care section on this Help manual for the information.

2.2

TV Stand and Wall Mounting

TV Stand

You can find the instructions for mounting the TV stand in the Quick Start Guide that came with the TV. In case you lose this guide, you can download it from www.philips.com/TVsupport.

Use the model number of the TV to look for the Quick Start Guide to download.

Wall Mounting

Your TV is also prepared for a VESA-compliant wall mount bracket (sold separately).

Use the following VESA code when purchasing the wall mount...

TV min. max.

- 50PUx7906

VESA MIS-F 200x300, M6 (Min.: 10mm, Max.: 16mm)

· 55PUx7906

VESA MIS-F 200x300, M6 (Min.: 10mm, Max.: 16mm)

· 65PUx7906

VESA MIS-F 300x300, M6 (Min.: 12mm, Max.: 20mm)

· 70PUx7906

VESA MIS-F 300x300, M8 (Min.: 12mm, Max.: 25mm)

· 75PUx7906

VESA MIS-F 300x300, M8 (Min.: 12mm, Max.: 25mm)

Caution

Wall mounting the TV requires special skills and should only be performed by qualified personnel. The TV wall mounting should meet safety standards

according to the TVs weight. Also read the safety precautions before positioning the TV.

TP Vision Europe B.V. bears no responsibility for improper mounting or any mounting that results in accident or injury.

2.3

Tips on Placement

• Position the TV where light does not shine directly on the screen.
• Dim lighting conditions in the room for best Ambilight effect.
• The ideal distance to watch TV is 2 to 5 times its diagonal screen size. When seated, your eyes should be level with the center of the screen.
• When wall mounted, position the TV up to 6 inches away from the wall.

15 cm

Note:

Please keep the TV away from dust-producing sources such as stoves. It is suggested to clean the dust regularly to avoid getting dust into the TV.

2.4

Power Cable

• Insert the power cable into the POWER connector on the back of the TV.
• Make sure the power cable is securely inserted in the connector.
• Make sure that the power plug, in the wall socket, is accessible at all times.
• When you unplug the power cable, always pull the plug, never pull the cable

POWER TV

Although this TV has a very low standby power

consumption, unplug the power cable to save energy if you do not use the TV for a long period of time.

2.5

Antenna Cable

Insert the antenna plug firmly into

the Antenna socket at the back of the TV.

You can connect your own antenna or an antenna signal from an antenna distribution system. Use an IEC Coax 75 Ohm RF antenna connector.

Use this antenna connection for antenna digital or analog input signals.

TV ANTENNA DIGITAL AUDIO OUT USB12 LED H500NA METRICINE HDMI 4 HDMI 3 HDMI 2

3

Remote Control

3.1

Key Overview (Type 1)

Top

1 2 3 ambilight 4 prime video YouTube 5 NETFLIX 6 SOURCES TV GUIDE INFO 7 8 9 10

1 - Power (Standby/On)

To switch the TV on or back to Standby.

2 - VOICE microphone

3 - Ambilight*

To select one of the Ambilight styles.

* The Ambilight setting is only for models which support the Ambilight function.

4 - Amazon Prime Video

To launch the Amazon Prime Video App.

5 - NETFLIX

To launch the Netflix App with the TV switched on or from standby.

- If you have a Netflix subscription, you can enjoy Netflix on this TV. Your TV must be connected to the Internet.

- To open Netflix, press the NETFLIX key to open the Netflix App. You can open Netflix immediately from a TV in standby.

6 - SOURCES

To open or close the Sources menu.

7 - YouTube

To launch the YouTube App.

8 - Apps

To launch the Your apps page to display the list of Apps that are pre-installed, or installed by the user.

9 - INFO

Press to open the program information screen. Press once to show brief channel information, press again to show expanded screen with program title and

more information, press again to show full program information. Keep pressing the key can switch to different views of the information.

10 - TV GUIDE

To open or close the TV Guide.

Middle

1 2 3 4 5 6 7 8 MENU

1 - OK key

To confirm a selection or setting. To open the channel list while watching TV.

2 - Back

• To return to previous menu or TV source.

• To go back to the previous App.

3 - MENU

To open the TV Menu with typical TV functions.

4 - Color keys

Follow the on-screen instructions to select more options or operations.

Press Blue key on Home screen to open the Help.

5 - Navigation keys

To navigate up, down, left or right.

6 - Google Assistant™

To launch the Google Assistant™.

7 - Home

To open the Home menu.

8 - Playback

- Play, to start playback.

- Pause, to pause playback

- Stop, to stop playback

- Rewind, to rewind

- Fast forward, to fast forward

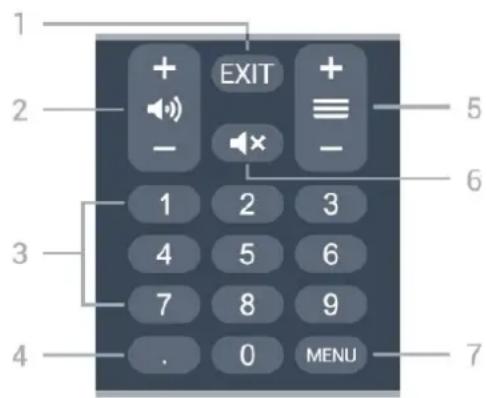

Bottom

1 2 EXIT + - 5 - 6 3 4 2 3 5 6 7 8 9 . 0 4 7

1 - EXIT

To leave from current menu or App.

2 - Volume

Press + or - to adjust the volume level.

3 - Number keys

To select a channel directly.

4 - (Dot)

To enter digital sub-channels.

5 - Channel

Press + or - to switch to the next or previous channel in the channel list.

6 - Mute

Press to mute the sound or to restore it.

7 - DASHBOARD

To open the TV Menu with typical TV functions.

3.2

Key Overview (Type 2)

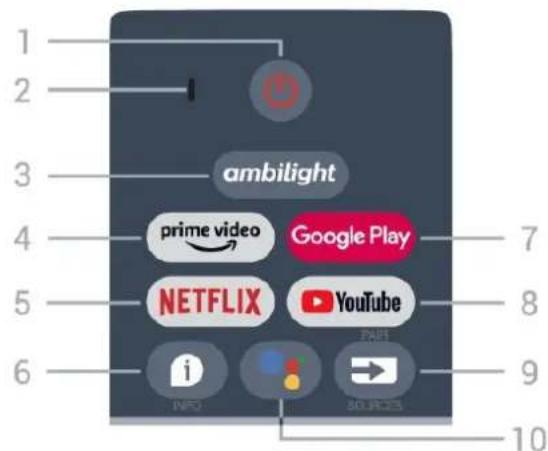

Top

1 2 3 ambilight 4 prime video Google Play 5 NETFLIX YouTube 6 i info source 7 8 9 10

1 - Power (Standby/On)

To switch the TV on or back to Standby.

2 - VOICE microphone

3 - Ambilight

To select one of the Ambilight style.

4 - Amazon Prime Video

To launch the Amazon Prime Video App

5 - NETFLIX

To launch the Netflix App with the TV switched on or from standby.

- If you have a Netflix subscription, you can enjoy Netflix on this TV. Your TV must be connected to the Internet.

• To open Netflix, press the NETFLIX key to open the Netflix App. You can open Netflix immediately from a TV in standby.

6 - INFO

Press to open the program information screen. Press once to show brief channel information, press again to show expanded screen with program title and more information, press again to show full program information. Keep pressing the key to switch to different views of the information.

7 - Google Play

To launch the Google Play App.

8 - YouTube

To launch the YouTube App.

9 - SOURCES/PAIR

• To open or close the Sources menu.

• To pair the remote control to the TV.

10 - Google Assistant™

To launch the Google Assistant™.

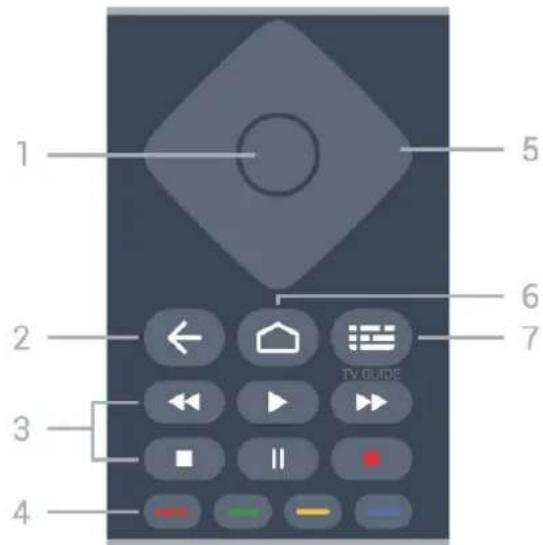

Middle

1 2 3 4 5 6 7 TV GUIDE

1 - OK key

To confirm a selection or setting. To open the channel list while watching TV.

2 - Back

• To return to previous menu or TV source.
• To go back to the previous App.

3 - Playback and Record

• Play, to playback.
• Pause, to pause playback
• Stop, to stop playback
• Rewind, to rewind
• Fast forward, to fast forward
• Record, to start recording

4 - Color keys

Follow the on-screen instructions to select more options or operations. Press Blue key on Home screen to open the Help.

5 - Navigation keys

To navigate up, down, left or right.

6 - Home

To open the Home menu.

7 - TV GUIDE

To open or close the TV Guide.

Bottom

1 2 EXIT + - 5 3 4 7 8 9 . 0 MENU 7 6

1 - EXIT

To leave from current menu or App.

2 - Volume

Press + or - to adjust the volume level.

3 - Number keys

To select a channel directly.

4 - (Dot)

To enter digital sub-channels.

5 - Channel

Press + or - to switch to the next or previous channel in the channel list.

6 - Mute

Press to mute the sound or to restore it.

7 - MENU

To open the TV Menu with typical TV functions.

3.3

Pair Your Remote Control to the TV

This remote control uses both Bluetooth ^® and IR (infrared) to send its commands to the TV.

• You can use this remote control via IR (infrared) for most operations.
• To use advanced operation like voice search and remote control keyboard, you need to pair (link) the TV with the remote control.

When you start the initial TV installation, the TV invites you to long press the PAIR (SOURCES) key until you see the light pulsing on the remote. By doing so, the pairing will be done.

Note:

1 - Once the remote control has entered pairing mode successfully, the blue LED indicator ring around the microphone on the front side of the remote control starts blinking.
2 - The remote control must be kept close to the TV (within 3 feet) during pairing in order to ensure success.
3 - If the TV does not launch the voice control field when you press Google Assistant™, pairing was unsuccessful.
4 - It is advisable to wait until the set has fully started up and launched all background processes before pairing mode is entered as the toast message containing further instructions may appear too late, thereby negatively impacting the pairing procedure.

Pairing again

If the pairing with the remote control was lost, you can pair the TV with the remote control again. Press the PAIR (SOURCES) key until you see the light pulsing on the remote for pairing.

Unpair

Press and hold 0 and Mute key on the remote control until you see the light pulsing on the remote.

3.4

Voice Search

You can search for videos, music or anything else on the Internet by simply using your voice. You can speak into the microphone on the remote control.

You need to pair the remote control to the TV before use voice search.

To use Voice...

1 - Press Google Assistant™ on remote control, the blue light on the remote control lights up and the search field opens, the microphone is active.
2 - Speak out what you are looking for with clear pronunciation. You can speak for 10 seconds before the microphone switches off. It might take some time for the results to appear.
3 - In the list of search results, you can select the item you want.

3.5

IR Sensor

The TV can receive commands from a remote control that uses IR (infrared) to send commands. If you use such a remote control, always make sure you point the remote control at the infrared sensor on the front of the TV.

Tropical beach scene with turquoise water under a blue sky with scattered clouds and a red triangular marker at the bottom left (no text or symbols)

Warning

Do not put any objects in front of IR sensor of the TV as it may block the IR signal.

3.6

Batteries

If the TV does not react on a key press on the remote control, the batteries might be empty.

To replace the batteries, open the battery compartment on the back-bottom of the remote control.

1 - Slide the battery door in the direction shown by the arrow.
2 - Replace the old batteries with 2 type AAA-1.5V batteries. Make sure the + and the - ends of the batteries line up correctly.
3 - Reposition the battery door and slide it back until it clicks.

2x AAA LR03 1.5V

Remove the batteries if you are not using the remote control for a long time.

Safely dispose of your old batteries according to the end of use directions.

For more information, in Help, select Keywords and look up End of use.

3.7

Cleaning

Your remote control is treated with a scratch-resistant coating.

To clean the remote control, use a soft damp cloth.

Never use substances such as alcohol, chemicals or household cleaners on the remote control.

Switching On and Off

Make sure the TV is connected to the mains AC power. The indicator light at the bottom of the TV lights up.

Switch on

Press Power on the remote control to turn the TV on. You can also press the small joystick key on the bottom of the TV to turn the TV on in case you can't find the remote control or its batteries are dead.

Switch to standby

To turn the TV to standby, press Power on the remote control. You can also press the small joystick key on the bottom of the TV.

Gray rectangular device with a power button and two vertical bars, one labeled 'TV' in the corner (no other text or symbols)

In standby mode, the TV is still connected to the mains power but consumes very little energy.

To turn off the TV completely, disconnect the power plug.

When disconnecting the power plug, always pull the power plug, never the cord. Ensure that you have full access to the power plug, power cord and outlet socket at all times.

5

Channel Installation

5.1

First Time to Install Channels

Install channels during the first TV installation

On the first TV installation, you can follow on-screen instructions to set the menu language, network connection, sign in Google account, select your country and complete other basic settings for the TV. Moreover, you can also install channels during the first TV installation.

To install channels during the first TV installation...

1 - The first TV installation starts from Welcome screen with language setting options, follow on-screen instruction to complete multiple TV settings until the channel installation part.
2 - Select Antenna or Cable to install channels.
Select Skip to skip the channel installation.
3 - Follow on-screen instructions to complete one of the channel installation types as your selection. You can install other types of channel installation later on MENU > TV options > Settings > Channel.

For more details about Antenna or Cable channel installation, please refer to respective installation instruction sections.

5.2

Antenna

Antenna Installation

Please note that before installing channels, you should first change the Channel Installation Mode to the one you want to install. For the Antenna channel installation, you need to change Channel Installation Mode to Antenna first and then start the installation.

To install Antenna channels...

1 - Press Home > Settings > Channel > Channel Installation Mode and press OK.
2 - Select Antenna and then go back to Channel.
3 - Select Channel Setup > Channel Scan and press OK.

Alternatively, while watching a TV channel, you can perform the channel scan by...

MENU > Navigation Keys up

Channels > Channel

5.3

Cable Installation

Please note that before installing channels, you should first change the Channel Installation Mode to the one you want to install. For the Cable channel installation, you need to change Channel Installation Mode to Cable first and then start the installation.

To install Cable channels...

1 - Press Home > Settings > Channel > Channel Installation Mode and press OK.
2 - Select Cable and then go back to Channel.
3 - Select Channel Setup > Channel Scan or Update Scan, then press OK.

Alternatively, while watching a TV channel, you can perform the channel scan by...

MENU > Navigation Keys up > Channels > Channel

5.4

Channel Installation Options

Channel Hide

You can hide the channels you do not want to watch.

To set the TV to hide the channels...

1 - While watching TV, press MENU > TV options > Settings > Channel > Channel Setup and press OK.
2 - Select Channel Hide* and press OK.
3 - Select the channels you want to hide and press OK. The check mark is shown.
4 - Press Back, repeatedly if necessary, to close the menu.

* Note: You cannot hide the channel you are currently watching.

Channel Rename

You can edit the channels from the channel list.

To edit the channels ...

1 - While watching TV, press MENU > TV options > Settings > Channel > Channel Setup and press OK.
2 - Select Channel Rename and press OK.
3 - Use the Navigation keys to select the channel and press Yellow key for Select.
4 - Edit the channel number* and channel name.
5 - Press Back, repeatedly if necessary, to close the

menu.

* Note: Depending on your installation country or operator setting, channel number editing is not always available.

Channels

6.1

About Channels and Switch Channels

To watch TV channels

• Press SOURCES and select TV to watch channels.
• Alternatively, you can Press Home > Live TV and press OK to watch TV channels. If Live TV is not on your Apps row, you can press + icon on the end of the row to add the app.

To change TV channels

• Press Channel + or Channel - to switch channels.
• If you know the channel number, type in the number with the number keys. Press OK after you entered the number to change channels.

To change to a channel from a channel list

• While watching a TV channel, press OK to open the channel lists. The channel list only includes the channels from current broadcast source.
• To view a different channel list from another broadcast source, press MENU > Navigation Keys up > Channels > Channel > Channel Installation Mode and select other broadcast source you want to watch channels and view the channel list.
• The channel list can have several pages with channels. To view the next or previous page, follow the on-screen instruction.
• To close the channel lists without changing channels, press Back.

6.2

Channel Lists

About Channel Lists

After a channel installation, channels appear on the channel list. The channels displayed in All Channel list is listed based on TV source. Channels are shown with their name if this information is available.

With a channel list selected, press Navigation keys up or down to select a channel, then press OK to watch the selected channel.

The TV may not work properly with some digital television operators that are non-compliant with the full requirements of the standard.

Open a Channel List

Next to the list with all channels, you can select a filtered list or you can select one of the favorite lists you created.

To open the current channel list...

1 - While watching TV, press OK to open the current channel list.
2 - The channel list only includes the channels from current broadcast source.

3 - To view a different channel list from another broadcast source, press MENU > Navigation Keys up

Channels > Channel > Channel Installation Mode and select other broadcast source you want to watch channels and view the channel list.

4 - Press Back to close the channel list.

To change the type of channel list...

1 - While watching TV, press OK to open the current channel list.
2 - Press Yellow key for Select More and then select Select Type (for example, Broadcast or Favorites) to immediately change the channel list to your preferred list.
3 - Press Back to close the channel list.

Search for a Channel

You can search for a channel to find it in a long list of channels.

To search for a channel...

1 - Press OK to open the current channel list.
2 - Press Yellow key for Select More.
3 - Select Operation > Find and press OK to open a text field. You can use the remote control keyboard (if available) or the on-screen keyboard to enter text.
4 - Enter a number, a name or part of a name and press OK. The TV will search for matching channel names in the list you selected.

Search results are listed with current channel list type you have selected (for example, Broadcast or Favorites). The search will return the matching channel name with the result arranged in alphabetical order. The search results disappear once you select another channel list or close the list with search results.

Channel List Sorting

You can do channel list sorting with all channels. You can set the channel list to show only TV channels or only Radio stations. For Antenna channels you can set the list to show the Free or the Scrambled channels.

To set a filter on a list with all channels...

1 - Press OK to open the current channel list.
2 - Press Yellow key for Select More.
3 - Select Operation > Sort and press OK.
4 - Select the filter you want and press OK to activate. The name of the filter appears as part of the channel list name on top of the channel list.
5 - Press Back to close the channel list.

Channel List Copy

Channel List Copy is intended for dealers and expert users.

With Channel List Copy, you can copy the channels installed* on one TV onto another Philips TV of the same range. It can avoid a time-consuming channel search by uploading a predefined channel list onto a TV. Use a USB flash drive of minimum 1GB.

* Note: The Channel List Copy operation is not allowed for the channels installed from the CAM.

Conditions

• Both TVs must be from the same year range.
• Both TVs have the same hardware type. Check the hardware type on the TV type plate on the back of the TV.
• Both TVs have compatible software versions.

Checking current software version

To check the current version of the TV software...

1 - Go to Channel > Channel List Copy and press OK.
2 - Select Current version.
3 - The version, release notes and creation date are shown.
4 - Press Back repeatedly if necessary, to close the menu.

Copy a channel list to a USB flash drive

To copy a channel list...

1 - Switch on the TV. This TV should have channels installed.
2 - Plug in a USB flash drive.
3 - Go to Channel > Channel List Copy and press OK.
4 - Select Copy to USB and press OK.

5 - When the copying is done, unplug the USB flash drive.
6 - Press Back repeatedly if necessary, to close the menu.

Now you can upload the copied channel list onto another Philips TV.

Upload a channel list to another Philips TV

To upload a channel list...

1 - Plug in the USB flash drive that holds the channel list of the other TV.
2 - Go to Channel > Channel List Copy and press OK.
3 - Select Copy to TV and press OK.
4 - The TV notifies you if the channel list has copied to the TV successfully. Unplug the USB flash drive.
5 - Press Back repeatedly if necessary, to close the menu.

6.3

Watching channels

Tune to a Channel

To start watching TV channels, press SOURCES. The TV tunes to the channel you last watched.

Alternatively, you can select Live TV from the Home screen.

Change Channels

To change channels, press Channel + or Channel -. If you know the channel number, type in the number with the number keys. Press OK after you entered the number to change immediately.

You can also tune to channels from a Channel List by pressing OK.

Parental Controls

Lock and Unlock a Channel

To prevent children from watching a channel, you can lock a channel. To watch a locked channel, you must enter the 4 digit PIN code first. You cannot lock programs from connected devices.

To lock or unlock a channel...

1 - Press MENU > Settings > Channel > Parental Controls and press OK.
2 - Enter your PIN code if necessary.
3 - Select Channels Blocked and press OK.
4 - Press Navigation keys up or down to select the channel you want to lock or unlock, and press OK.
5 - A locked channel is marked with a lock icon.

6 - Alternatively, you can select Block all or Unblock all to block/unblock all channels.
7 - Press Back, repeatedly if necessary, to close the menu.

Program Restrictions

To prevent children from watching a program that may not be suitable for them, you can set a rating.

Digital channels can have their programs rated. When the rating of a program is equal to or higher than the rating you have set, the program will be locked. To watch a locked program, you must enter the PIN code first.

To set a rating...

1 - Press MENU > Settings > Channel > Parental Controls and press OK.
2 - Enter your PIN code if necessary.
3 - Select Program Restrictions and press OK.
4 - Select On to set the rating.
5 - Select Ratings and press OK.
6 - Set the restrictions for your children.
7 - Press Back, repeatedly if necessary, to close the menu.

To turn off the parental rating, select None. However, in some countries you must set a rating.

For some broadcasters/operators, the TV only locks programs with a higher rating. The parental rating is set for all channels.

Inputs Blocked

To prevent from using connected devices, you can lock an input source. To connect a locked input source or watch a channel in the locked DTV or ATV source, you must enter the 4-digit PIN code first.

To lock or unlock an input source...

1 - Press MENU > Settings > Channel > Parental Controls and press OK.
2 - Enter your PIN code if necessary.
3 - Select Input Blocked and press OK.
4 - Press Navigation keys up or down to select the source you want to lock or unlock, and press OK.
5 - A locked source is marked with a lock icon.
6 - Press Back, repeatedly if necessary, to close the menu.

Change PIN

Set new or reset PIN code. The PIN code is used to lock or unlock channels or programs.

1 - Press MENU > Settings > Channel > Parental Controls and press OK.
2 - Enter your PIN code if necessary.

3 - Select Change PIN and press OK.
4 - Enter the current PIN code and new PIN code.
5 - Press Back, repeatedly if necessary, to close the menu.

6.4

Favorite Channels

About Favorite Channels

In a favorite channel list, you can collect the channels you like.

You can create 4 different lists of favorite channels for easy channel zapping.

With a Favorites List selected, press the Navigation keys up or down to select a channel, then press OK to watch the selected channel.

Edit a Favorites List

To add a channel to the favorite list...

1 - While watching TV, press OK to open the current channel list.
2 - Press Navigation keys up or down to select a channel.
3 - Press Blue key to add the channel to a favorites list (default list is Favorites1). Press Blue key again will remove the channel from the favorite list.
4 - Press Back to close the menu.

To create a favorite channels list...

1 - While watching TV, press OK to open the current channel list.
2 - Press Yellow key for Select More.
3 - Select Select Type > Favorites and then press Navigation keys up or down to select a list of Favorites1 to Favorites4 that you want to add.
4 - Press Yellow key for Select More and then select Select Type to change the channel list to your preferred list.
5 - Press Blue key to add the channel to the favorites list you just selected. Press Blue key again will remove the channel from the favorite list.
6 - Press Back to close the menu.

To move or remove a channel from the favorites list...

1 - Select a list of Favorites1 to Favorites4 you want to edit.
2 - Press Yellow key for Select More.
3 - Select Operation > Move to move the channel positions on the favorites channel list.
4 - Select Operation > Delete to remove the

channels from the favorites channel list.

5 - Press Back, repeatedly if necessary, to close the menu.

7

Connect Devices

7.1

About Connections

Connectivity Guide

Always connect a device to the TV with the highest quality connection available. Also, use good quality cables to ensure a good transfer of picture and sound.

When you connect a device, the TV recognizes its type and gives each device a correct type name. You can change the type name if you wish. If a correct type name for a device is set, the TV automatically switches to the ideal TV settings when you switch to this device in the Sources menu.

Antenna port

If you have a Set-top box (a digital receiver) or Recorder, connect the antenna cables to run the antenna signal through the Set-top box and/or Recorder first before it enters the TV. In this way, the antenna and the Set-top box can send possible additional channels to the Recorder to record.

HDMI ports

HDMI Quality

An HDMI connection has the best picture and sound quality. One HDMI cable combines video and audio signals. Use an HDMI cable for High Definition (HD) TV signals.

For best signal quality transfer, use a High speed HDMI cable and do not use an HDMI cable longer than 5 m.

Copy protection

HDMI ports support HDCP 2.2 (High-bandwidth Digital Content Protection). HDCP is a copy protection signal that prevents copying content from a DVD disc or Blu-ray Disc. Also referred to as DRM (Digital Rights Management).

HDMI ARC

Only HDMI 1 connection on the TV has HDMI ARC (Audio Return Channel).

If the device, typically a Home Theater System (HTS), also has the HDMI ARC connection, connect it to HDMI 1 on this TV. With the HDMI ARC connection, you do not need to connect the extra audio cable that sends the sound of the TV picture to the HTS. The HDMI ARC connection combines both signals.

TV HDMI HDMI

HDMI CEC

Connect HDMI CEC-compatible devices to your TV, you can operate them with the TV remote control.

HDMI

HDMI CEC (Consumer Electronic Control) must be turned on on the TV and the connected device.

Turn on CEC

Allow the TV to control the HDMI device.

Home > Settings > Device Preferences > Inputs > HDMI control.

Device Auto Power Off

Turn off the HDMI devices with the TV.

Home > Settings > Device Preferences > Inputs > Device auto power off.

TV Auto Power On

Power on the TV with HDMI devices.

Home > Settings > Device Preferences > Inputs > TV auto power on.

HDMI EDID Version

Check the HDMI EDID version number.

Home > Settings > Device Preferences > Inputs > HDMI EDID Version.

CEC Device List

Check the connected HDMI CEC device list.

Home > Settings > Device Preferences > Inputs > CEC device list.

Note:

• HDMI CEC might not work with devices from other brands.
- The HDMI CEC functionality has different names on different brands. Some examples are: Anynet, Aquos Link, Bravia Theatre Sync, Kuro Link, Simplink and Viera Link. Not all brands are fully compatible with EasyLink. Example HDMI CEC branding names are property of their respective owners.

7.2

Home Theater System - HTS

Connect with HDMI ARC

Use an HDMI cable to connect a Home Theater System (HTS) to the TV. You can connect a Philips Soundbar or an HTS with a built-in disc player.

HDMI ARC

If your Home Theater System has an HDMI ARC connection, you can use HDMI ARC connection on the TV to connect. With HDMI ARC, you do not need to connect the extra audio cable. The HDMI ARC connection combines both signals.

Since HDMI 1 on the TV can offer the Audio Return Channel (ARC) signal, the TV can only send the ARC signal to this HDMI connection.

Audio to video synchronization (sync)

If the sound does not match the video on screen, you can set a delay on most Home Theater Systems with a disc player to match the sound with the video.

Connect with HDMI

Use an HDMI cable to connect a Home Theater System (HTS) to the TV. You can connect a Philips Soundbar or an HTS with a built-in disc player.

If the Home Theater System has no HDMI ARC connection, add an optical audio cable to send the sound of the TV picture to the Home Theater System.

Audio to video synchronization (sync)

If the sound does not match the video on screen, you can set a delay on most Home Theater Systems with a disc player to match the sound with the video.

7.3

Video Device

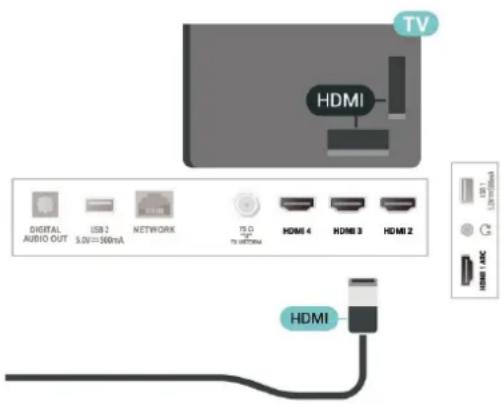

HDMI

Use a High speed HDMI cable to connect with best picture and sound quality.

For best signal quality transfer, use a high-speed HDMI cable. Do not use an HDMI cable longer than 16 feet (5 meters). You can connect devices supporting HDR to any of the HDMI connectors.

TV HDMI DIGITAL AUDIO OUT USB 2 5.0V=500mA NETWORK 75.0 75.0 HDMI HDMI 4 HDMI 3 HDMI 2 HDMI AC

Copy protection

HDMI ports support HDCP (High-bandwidth Digital Content Protection). HDCP is a copy protection signal that prevents copying content from a DVD disc or Blu-ray Disc. Also referred to as DRM (Digital Rights Management).

7.4

Audio Device

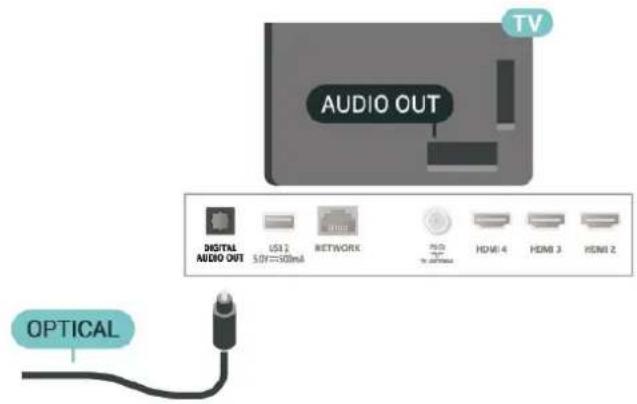

Digital Audio Out - Optical

Audio Out - Optical is a high quality sound connection.

This optical connection can carry 5.1 audio channels. If your device, typically a Home Theater System (HTS), has no HDMI ARC connection, you can use this connection with the Audio In - Optical connection on the HTS. The Audio Out - Optical connection sends the sound from the TV to the HTS.

TV AUDIO OUT DIGITAL AUDIO OUT US1 3.0V=50mA RETIWORK 70Ω TV 2.0V=50mA HDMI 4 HDMI 3 HDMI 2 OPTICAL

Headphones

You can connect a set of headphones to the headphone connector on the back of the TV. The connection is a mini-jack 3.5mm.

* Note: TV Speakers will be muted when the Headphones are plugged in.

Headphones TV USB C

7.5

USB Hard Drive

What You Need

If you connect a USB Hard Drive, you can pause or record digital TV broadcasts. The TV broadcast must be a digital broadcast (DVB broadcasts or similar).

Minimum Disk Space

• To Pause

To pause a broadcast, you need a USB 2.0 compatible Hard Drive with a minimum of 4GB disk space.

• To Record

To pause and record a broadcast, you need a minimum of 250GB disk space.

Installation

Before you can pause or record a broadcast, you must connect and format a USB Hard Drive. Formatting removes all files from the USB Hard Drive.

1 - Connect the USB Hard Drive to one of the USB connections on the TV. Do not connect another USB device to the other USB ports when formatting.

2 - Switch on the USB Hard Drive and the TV.

3 - When the TV is tuned to a digital TV channel, press Pause. Trying to pause will start the formatting.

Follow the instructions on screen.

When the USB Hard Drive is formatted, leave it connected permanently.

TV USB USB USB 1.0V/2.0mA HDMI / HRC

Warning

The USB Hard Drive is formatted exclusively for this TV, you cannot use the stored recordings on another TV or PC. Do not copy or change recording files on the USB Hard Drive with any PC application. This will corrupt your recordings. When you format another USB Hard Drive, the content on the former will be lost. A USB Hard Drive installed on your TV will need reformatting for use with a computer.

Formatting

Before you can pause or record a broadcast, or store apps, you must connect and format a USB Hard Drive*. Formatting removes all files from the USB Hard Drive.

Warning

The USB Hard Drive is formatted exclusively for this TV, you cannot use the stored recordings on another TV or PC. Do not copy or change recording files on the USB Hard Drive with any PC application. This will corrupt your recordings.

* Connect the USB Hard Drive with size less than 2TB and make sure the available space is more than 1 GB.

To format a USB Hard Drive...

1 - Connect the USB Hard Drive to one of the USB connections on the TV. Do not connect another USB device to the other USB ports when formatting.
2 - Switch on the USB Hard Drive and the TV.
3 - Press MENU while watching TV, then press Navigation keys down to Record > Device info.
4 - Select the device you want to format and press OK.
5 - Select Format to star the formatting. All files and data will be removed after formatting.
6 - When the USB Hard Drive is formatted, it is recommended to leave it connected permanently.

To assign the storage device for PVR and Time shift...

1 - Once the formatting is done, you can assign the storage device for PVR or Time shift functions.
2 - Press MENU while watching TV, then press Navigation keys down to Record > Device info.
3 - Select the device you want to assign and press OK.
4 - Select Set timeshift to assign the device for Time shift data storage. The device will be marked with TSHIFT on Device info list.
5 - Select Set PVR to assign the device for recording data storage. The device will be marked with PVR on Device info list.

7.6

USB Flash Drive

You can view photos or play your music and videos from a connected USB flash drive.

Insert a USB flash drive in one of the USB connections on the TV while the TV is switched on.

TV USB USB Flash Drive USB1 SUN/USB2 G HUSB1 / HBC

To view the files from the USB flash drive, you need to add the MMP (MultiMediaPlayer) app to the Home screen first. Press Home, clicking the Apps icon at the left end of the Apps row. You can add MMP apps from the Apps page.

To stop watching the USB flash drive content, press EXIT or select another activity. Exit the MMP app before you disconnect the flash drive.

To remove the USB flash drive safely...

1 - Press HOME.
2 - Select the Notifications icon from the top-right corner and press OK.
3 - Select your flash drive and press OK.
4 - Select Eject and press OK.
5 - Wait until the eject procedure is finished and then pull out the flash drive.

Ultra HD on USB

You can view photos in Ultra HD resolution from a connected USB device or flash drive. The TV will downscale the resolution if the resolution of the photo is higher.

7.7

Computer

You can connect your computer to the TV and use the TV as a PC monitor. Use a HDMI cable to connect the computer to the TV.

* Note for NVIDIA graphics card users: If you connect the NVIDIA graphics card to the TV via a HDMI cable, the NVIDIA card may automatically output Variable Refresh Rate (VRR) video to the TV. If you want to turn off the VRR function, you need to apply this setting in the graphics card settings on your computer.

* Note for AMD graphics card users: If you connect an AMD graphics card to the TV via a HDMI cable, please ensure the following graphics card settings are used in order to have the best performance. When the graphics card output video is 4096 x 2160p or 3840 x 2160p and an RGB pixel format is used, the

RGB 4:4:4 pixel format studio (limited RGB) will be set in the graphics card.

Bluetooth®

8.1

What You Need

You can connect a wireless device with Bluetooth® to this TV – a wireless speaker or headphones*.

To play the TV sound on a wireless speaker, you must pair the wireless speaker with the TV. The TV can only play the sound on one speaker at a time.

Attention - Audio to Video synchronization

Many Bluetooth ^® speaker systems have a high so-called 'latency.' High latency means that the audio lags behind the video, causing unsynchronized 'lip sync.' Before you purchase a wireless Bluetooth ^® speaker system, inform yourself about the newest models and look for a device with a low latency rating. Ask your dealer for advice.

* Note: The Bluetooth® on TV may not work properly with cable-free true wireless headphones.

8.2

Pairing a Device

Position the wireless speaker within 15 feet of the TV. Read the user manual of the device for specific information on pairing and on wireless range. Make sure the Bluetooth ^® setting on TV is switched on.

Once a wireless speaker is paired, you can select it to play the TV sound. When a device is paired, you do not need to pair it again unless you remove the device.

To pair a Bluetooth ^® device with the TV...

1 - Switch on the Bluetooth ^® device and place it within range of the TV.

2 - Press MENU > TV

options > Settings > Remote & Accessories and press OK.

3 - Follow the instructions on screen. You will pair the device with the TV and the TV will store the connection. You might need to unpair a paired device first if the maximum number of paired devices was reached.

4 - Press Back, repeatedly if necessary, to close the menu.

8.3

Select a Device

To select a wireless device...

1 - Press MENU > TV

options > Settings > Remote & Accessories and press OK.

2 - In the list, select the wireless device and press OK.

3 - Press Back, repeatedly if necessary, to close the menu.

8.4

Rename a Device

To rename a wireless device...

1 - Press MENU > TV

options > Settings > Remote & Accessories and press OK.

2 - In the list, select the wireless device and press OK.

3 - Select Change name and press OK.

4 - Enter a new name for the device.

5 - Press Back, repeatedly if necessary, to close the menu.

8.5

Remove a Device

You can disconnect a wireless Bluetooth ^® device. Once the Bluetooth ^® device is disconnected, the audio output device will go back to the TV speakers.

To disconnect a wireless device...

1 - Press MENU > TV

options > Settings > Remote & Accessories and press OK.

2 - In the list, select the wireless device and press OK.

3 - Select Disconnect and press OK.

4 - Press Back, repeatedly if necessary, to close the menu.

You can also remove a wireless Bluetooth ^® device. If you remove a Bluetooth ^® device, the device will be unpaired.

To remove a wireless device...

1 - Press MENU > TV

options > Settings > Remote & Accessories and press OK.

2 - In the list, select the wireless device and press OK.

3 - Select Unpair and press OK.

4 - Press Back, repeatedly if necessary, to close the menu.

9

Connect your Android TV

9.1

Network and Internet

Home Network

To enjoy the full capabilities of your Philips Android TV, your TV must be connected to the Internet.

Connect the TV to a home network with a high-speed Internet connection. You can connect your TV wirelessly or wired to your network router.

Connect to Network

Wireless Connection

What You Need

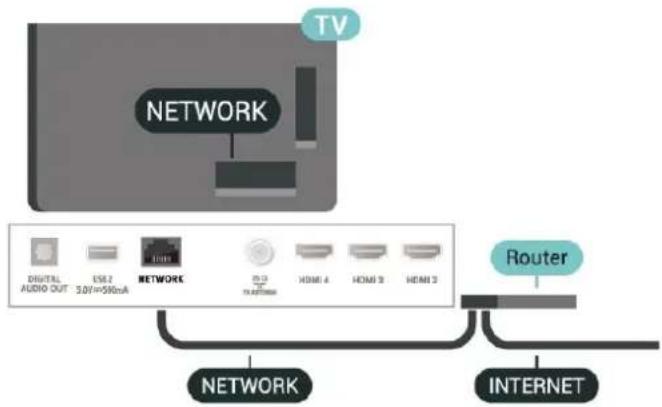

To connect the TV to the Internet wirelessly, you need a Wi-Fi router with a connection to the Internet.

Use a high-speed (broadband) Internet connection.

Router INTERNET

Turn Wi-Fi On or Off

MENU > TV options > Settings > Network & Internet > Wi-Fi.

Make the Connection

MENU > TV options > Settings > Network & Internet > Wi-Fi.

1 - In the list of found networks, select on your wireless network. If your network is not in the list because the network name is hidden (you switched off the SSID broadcast of the router), select Add new network to enter the network name yourself.

2 - Follow the on-screen instruction.

3 - A message will be shown when the connection is successful.

Problems

Wireless network not found or distorted

- Microwave ovens, DECT phones or other Wi-Fi 802.11b/g/n devices in your proximity might disturb the wireless network.

• Make sure that the firewalls in your network allow access to the TV's wireless connection.

- If the wireless network does not work properly in your home, try the wired network installation.

Internet does not work

- If the connection to the router is OK, check the router connection to the Internet.

The PC and Internet connection are slow

- Look in your wireless router's user manual for information on indoor range, transfer rate and other factors of signal quality.

- Use a high-speed (broadband) Internet connection for your router.

DHCP

- If the connection fails, you can check the DHCP (Dynamic Host Configuration Protocol) setting of the router. DHCP should be turned on.

Wired Connection

What You Need

What You Need

To connect the TV to the Internet, you need a network router with an Internet connection. Use a high-speed (broadband) Internet connection.

TV NETWORK DIGITAL AUDIO OUT ESE 2 NETWORK 50V=50mA HDMI 4 HDMI 3 HDMI 2 Router NETWORK INTERNET

Make the Connection

1 - Connect the router to the TV with a network cable (Ethernet cable**).

2 - Make sure that the router is turned on.

3 - The TV constantly searches for the network connection.

4 - A message will be shown when the connection is successful.

If the connection fails, you can check the DHCP setting of the router. DHCP should be turned on.

**To fulfill EMC regulations, use a shielded FTP Cat. 5E Ethernet cable.

Network settings

Proxy Settings

MENU > TV options > Settings > Network & Internet > Proxy settings.

Enter a valid proxy hostname manually by selecting Manual.

Network Configuration - IP settings

MENU > TV options > Settings > Network & Internet > IP settings.

If the connection fails, you can check the DHCP setting of the router.

Alternatively, if you are an advanced user and want to install your network with static IP addressing, set the TV to Static IP.

9.2

Google Account

Sign In

To enjoy the full capabilities of your Philips Android TV, you can sign in to Google with your Google Account.

By signing in you'll be able to play your favorite games across phone, tablet and TV. You'll also get customized video and music recommendations on your TV home screen as well as access to YouTube, Google Play and other apps.

Sign In

Use your existing Google Account to sign in to Google on your TV. A Google Account consists of an email address and a password. If you don't have a Google Account yet, use your computer or tablet to create one (accounts.google.com). To play games with Google Play, you need a Google+ profile. If you did not sign in during the first TV installation, you can always sign in later.

To sign in after completing the TV installation...

1 - Select Settings.
2 - Select Account & Sign-In and press OK.
3 - Select Sign In and press OK.
4 - Select Use your remote and press OK.

5 - With the on-screen keyboard, enter your email address and press OK.
6 - Enter your password and press OK to sign in.
7 - Press Navigation keys left repeatedly if necessary, to close the menu.

Android Settings

You can set or view several Android specific settings or information. You can find the list of apps installed on your TV and the storage space they need. You can configure the onscreen keyboard or allow apps to use your location. Explore the different Android settings. You can go

to www.support.google.com/androidtv for more information on these settings.

To open these settings...

1 - Select Settings and press OK.
2 - Explore the different Android settings.
3 - Press Back if necessary, to close the menu.

10

Apps

10.1

About Apps

You can find your favorite Apps on Apps row in the Home menu.

Like apps on your smartphone or tablet, the apps on your TV offer specific functions for an enriched TV experience. Apps like YouTube, games, video stores or weather forecasts (a.o.).

Apps can come from the Google Play™ Store. To get you started, some practical apps are pre-installed on your TV.

To install apps from the Google Play™ Store, the TV must be connected to the Internet. You must sign in with a Google Account to use the Google Play apps and Google Play™ Store.

10.2

Google Play

Movies and TV

With Google Play Movies & TV, you can rent or buy movies and TV shows to watch on TV.

What You Need

• your TV must be connected to the Internet
• you must sign in with your Google Account on the TV
• add a credit card to your Google Account to purchase movies and TV shows

To rent or buy a movie or TV show...

1 - Press Home.
2 - Select Google Play Movies & TV.
3 - Select a movie or TV show and press OK.
4 - Select the purchase you want and press OK. You will be taken through the purchase procedure.

To watch a rented or purchased movie or TV show...

1 - Press Home.
2 - Select Google Play Movies & TV.
3 - Select the movie or TV show from your library in the app, select the title and press OK.
4 - You can use the Stop, Pause, Rewind or Fast forward keys on the remote control.
5 - To stop the Movies & TV app, press Back repeatedly or press EXIT.

If the App is not on you Home screen, you can add via the Apps page or by the Add app to favorites item on the Apps row. Some Google Play products and features aren't available in all countries.

Find more information

on www.support.google.com/androidtv

Music

With YouTube Music you can play your favorite music on TV and buy new music on your computer or mobile device. Or, on your TV, you can sign up for All Access, the YouTube Music subscription. Alternatively, you can play the music you already own, stored on your computer.

What You Need

• your TV must be connected to the Internet
• you must sign in with your Google Account on the TV
• add a credit card to your Google Account to add a music subscription

To start YouTube Music...

1 - Press Home.
2 - Select YouTube Music.
3 - Select the music you want and press OK.
4 - To stop the Music app, press Back repeatedly or press EXIT.

If the App is not on you Home screen, you can add via the Apps page or by the Add app to favorites item on the Apps row. Some Google Play products and features aren't available in all countries.

Find more information

on www.support.google.com/androidtv

Games

With Google Play Games, you can play games on TV. Online or offline.

You can see what your friends are playing currently or you can join the game and compete. You can track your achievements or start wherever you left off.

What You Need

• your TV must be connected to the Internet
• you must sign in with your Google Account on the TV
• add a credit card to your Google Account to purchase new games

Start the Google Play Games app to select and install new game apps on your TV. Some games are free of charge. A message appears if a particular game needs a gamepad to play the game.

To start or stop a Google Play Game...

1 - Press Home.

2 - Select Google Play Games.

3 - Select a game to play or select a new game to install and press OK.

4 - When done, press Back repeatedly or press EXIT or stop the app with its dedicated exit/stop button.

If the App is not on you Home screen, you can add via the Apps page or by the Add app to favorites item on the Apps row. Some Google Play products and features aren't available in all countries.

Find more information on www.support.google.com/androidtv

Google Play Store

From the Google Play Store you can download and install new apps. Some apps are free of charge.

What You Need

• your TV must be connected to the Internet
• you must sign in with your Google Account on the TV
• add a credit card to your Google Account to purchase apps

To install a new app...

1 - Press Home.
2 - Select Google Play Store and press OK.
3 - Select the app you want to install and press OK.
4 - To close the Google Play Store,
press Back repeatedly or press EXIT.

Parental Controls

In the Google Play Store, you can hide apps according to users/buyers maturity. You need to enter a PIN code to select or change the level of maturity.

To set the parental control...

1 - Press Home.
2 - Select Google Play Store and press OK.
3 - Select Settings > Parental controls.
4 - Select the level of maturity you want.
5 - When prompted, enter the PIN code.
6 - To close the Google Play Store,
press Back repeatedly or press EXIT.

If the App is not on you Home screen, you can add via the Apps page or by the Add app to favorites item on the Apps row. Some Google Play products and features aren't available in all countries.

Find more information on www.support.google.com/androidtv

Payments

To make a payment on Google Play on TV, you must add a form of payment - a credit card (outside the United States) - to your Google Account. When you purchase a movie or TV show, you will be charged on this credit card.

To add a credit card ...

1 - On your computer, go to accounts.google.com and sign in with the Google Account you will use with Google Play on TV.
2 - Go to wallet.google.com to add a card to your Google Account.
3 - Enter your credit card data and accept the terms and conditions.

10.3

Start or Stop an App

You can start an app from the Home screen.

To start an app...

1 - Press Home.
2 - Move to Apps row, select the app you want and press OK.
3 - To stop an app, press Back or press EXIT or stop the app with its dedicated exit/stop button.

When opening the Home screen, the background application/content playback will stop. You have to select the application or content from the Home screen to resume.

A note to start the Live TV app

If you have installed the Live TV app on Home screen, please note that the HDMI sources are regard as App's sources. When the Live TV app is started, it will open with current source, which includes TV and HDMI sources.

10.4

Manage Apps

If you stop an app and return to the Home menu, the app is not really stopped. The app is still running in the background to be readily available when you start it again. To run fluently, most apps need to save some data in the cache memory of the TV. It might be good to stop an app completely or clear the cache data of a particular app to optimize the overall performance of apps and to keep memory usage low on your Android TV. Also, it is best to uninstall apps that you are not using anymore.

Sources

11.1

Switch to a device

From the list of Sources, you can switch to any of the connected devices. You can switch to a tuner to watch TV or switch to your connected devices to watch their program, a digital receiver or a Blu-ray Disc player.

To switch to a connected device...

1 - Press SOURCES to open the Sources menu.
2 - Select one of the items in the source list and press OK. The TV will show the program or content of the device.

One Touch Play

With the TV in standby, you can turn on a disc player with your TV remote control.

To turn on both disc player and TV from standby and start playing the disc immediately, press Play on the TV remote control. The device must be connected with an HDMI cable and both TV and device must have HDMI CEC switched on.

12

Settings

12.1

TV Options

Press MENU while watching TV, press Navigation keys up or down to select one of below menus. Press Navigation keys right or left to view more options from the selected menu.


Adjust the picture settings.

Sound

Adjust the sound settings.

Closed Captions

To enable/disable Closed Caption, or to show it on mute.

Power

Set the timers for saving energy.

Ginga

To open the Ginga* menu. You can go to MENU > TV options > Advanced Options > Ginga Setup to switch the Ginga on or off.

* Note: Ginga is for Brazil only.

Advanced Options

Adjust advanced settings.

Settings

View settings menu.

12.2

Picture Settings

Picture Mode

Select a style

MENU > TV options > Picture > Picture mode.

For easy picture adjustment, you can select a preset picture style.

• User – The picture preferences you set during the first start up.
• Standard - Most energy conscious setting - Factory setting
  • Vivid - Ideal for daylight viewing
• Sport - Ideal for sport
• Movie - Ideal for watching movies with original studio effect
  • Game ^* - Ideal for playing games

* Picture mode - Game is not available for some video sources.

When TV receives Dolby Vision HDR signal, select a picture style below:

• Dolby Vision Bright
• Dolby Vision Dark
• Dolby Vision Vivid

Dolby Vision Notification

MENU > TV options > Picture > Dolby Vision Notification and press OK.

Turn On or Off the Dolby Vision notification when Dolby Vision content begins to play on your TV.

Display Mode

If the picture is not filling the whole screen, if black bars are showing on the top or bottom or at both sides, you can adjust the picture to fill the screen completely.

To select one of the basic settings to fill the screen...

MENU > TV options > Picture > Display mode.

Automatic

Automatically zooms in the picture to fit the screen with original aspect ratio. No content lost visible.

Super zoom

Remove the black bars on the sides of 4:3 broadcasts. Not recommended for HD or PC.

4:3

Display the classic 4:3 format.

Movie expand 14:9

Scale 4:3 format to 14:9. Not recommended for HD or PC.

Movie expand 16:9

Scale 4:3 format to 16:9. Not recommended for HD or PC.

Wide screen

Stretches the picture to a 16:9 format.

Full

Automatically enlarges the picture to fill the screen. Picture distortion is minimal, subtitles remain visible. Not suitable for PC input. Some extreme picture content can still show black bars. Picture content aspect ratio may change.

Original

Provide maximum detail for PC.

Other Picture Settings

MENU > TV options > Picture and press OK.

Backlight

Adjust the video backlight intensity.

Brightness

Set the level of brightness of the picture signal.

Note: Setting of brightness much away from reference value (50) may result lower contrast.

Contrast

Adjust the contrast value of the picture.

Saturation

Adjust the color saturation value of the picture.

Hue

Adjust the hue value of the picture.

Sharpness

Adjust the level of sharpness in fine detail of the picture.

Gamma

Set a non-linear setting for picture luminance and contrast. This is a setting intended for expert users.

Color Temperature

Set the picture to a preset color temperature or adjust the setting yourself.

Light sensor

Select On to adjust the picture settings automatically to the lighting conditions of the room.

Advanced Video

Set the advance settings.

· DNR

Digital Noise Reduction, image noise reduction filters to reduces the image noise.

• MPEG NR

MPEG Noise Reduction feature to improve the quality of pictures by reducing the noise without compromising the picture resolution.

- Adaptive Luma Control

Dynamic video contrast enhancement to adjust the Luma level of the picture signal automatically. If the PC Mode setting is On, this feature will be off.

- Local Contrast Control

Enhance the contrast level in local area for the image.

- Game Mode

Switch TV to Game mode to have fast response time.

- PC Mode

Switch TV to PC mode to have original picture look.

• HDMI Auto Game Mode

Allow TV to automatically switch to Game mode when the game content is notified by source.

- Motion styles (Only available for 70" and 75" models)

Motion styles provides optimized motion setting modes for different video contents. Select one of the motion styles (Off, Movie, Standard, Smooth) to have a different viewing experience on motion video.

Color Tuner

Fine-tune the color setting yourself.

11 Point White Balance Alignment

Customize the white point balance based on the selected color temperature of the picture.

Reset to Default

Reset the current picture settings to default.

12.3

Sound Settings

Sound Mode

MENU > TV options > Sound > Sound Mode > and press OK.

For easy sound adjustment, you can select a preset setting with sound mode.

• Game - Ideal for gaming
- Movie - Ideal for watching movies
• Music - Ideal for listening to music
- Dialog - Ideal for speech
- AI mode - Select AI mode for intelligent switching of sound mode base on audio content.
- User – The sound preferences you set during the first start up

Other Sound Settings

MENU > TV options > Sound and press OK.

Speakers

Set the TV to play the sound on TV or on the connected audio system.

You can select where you want to hear the TV sound and how you want to control it.

- If you select TV speakers off, you will permanently switch off the TV speakers.

If you select TV speakers, the TV speakers are always

on.

With an audio device connected with HDMI CEC, select HDMI sound system. The TV will switch off the TV speakers when the device is playing the sound.

* Note: TV Speakers will be muted when the Headphones are plugged in.

Digital Output

Digital output settings are available for optical and HDMI ARC sound signals.

Set the audio out signal of the TV to fit the sound capabilities of the connected Home Theater System.

Digital Output Delay

For some Home Theater Systems you might need to adjust the audio sync delay to synchronize the audio to the video. Select 0 if a sound delay is set on your Home Theater System.

DTS night mode

Select DTS night Mode for a more comfortable quiet listening experience when watching content with DTS Master Audio.

Dolby Audio Processing

Set the advance settings.

• Volume Leveler: select On to adjust the volume automatically.
- Dialogue Enhancer: select to get an improved sound quality for speech program.
- Surround Virtualizer: select On to create a virtual surround sound experience.
- Dolby Atmos: select On to enable Dolby Atmos, which can add height dimension in sound. With height dimension, sound can be precisely placed and moved in three-dimensional space.

Reset to Default

Reset the current sound settings to default.

Other Sound Settings

MENU > TV options > Sound and press OK.

Speakers

Set the TV to play the sound on TV or on the connected audio system.

You can select where you want to hear the TV sound and how you want to control it.

- If you select TV speakers off, you will permanently switch off the TV speakers. If you select TV speakers, the TV speakers are always on.

With an audio device connected with HDMI CEC, select HDMI sound system. The TV will switch off

the TV speakers when the device is playing the sound.

* Note: TV Speakers will be muted when the Headphones are plugged in.

USB Audio

Turn On or Off for the audio output through USB audio device if there is a USB audio peripheral attached to the TV USB port. USB Audio is only available when the device TAH6206 is detected.

Digital Output

Digital output settings are available for optical and HDMI ARC sound signals.

Set the audio out signal of the TV to fit the sound capabilities of the connected Home Theater System.

Digital Output Delay

For some Home Theater Systems you might need to adjust the audio sync delay to synchronize the audio to the video. Select 0 if a sound delay is set on your Home Theater System.

DTS night mode

Select DTS night Mode for a more comfortable quiet listening experience when watching content with DTS Master Audio.

Dolby Audio Processing

Set the advance settings.

• Volume Leveler: select On to adjust the volume automatically.
- Dialogue Enhancer: select to get an improved sound quality for speech program.
- Surround Virtualizer: select On to create a virtual surround sound experience.
- Dolby Atmos: select On to enable Dolby Atmos, which can add height dimension in sound. With height dimension, sound can be precisely placed and moved in three-dimensional space.

Reset to Default

Reset the current sound settings to default.

12.4

Power Settings

MENU > TV options > Power.

Set Sleep timer

Power > Sleep timer.

TV switches to standby mode automatically after a preset time. You can stop the timer when the notification pops to say that two minutes are left.

Set screen off to save energy consumption

Power > Picture off.

Select Picture off, the TV screen is turned off, to turn the TV screen back on, press any key on the remote control.

Set TV switch off timer

Power > Switch off timer.

Select Switch off timer, the TV switches off automatically at a preset time to save energy. The timer will not stop unless the setting is changed to Off.

No Signal Auto Power Off

Power > No signal auto power off.

Press Navigation keys up or down to set the value. Select Off to deactivate the automatic turn off.

* If you use the TV as a monitor or use a digital receiver to watch TV (a Set-Top Box - STB) and you do not use the remote control of the TV, you should deactivate this automatic switch off, to set the value to Off.

Set auto sleep timer

Power > Auto sleep.

The TV switches to standby mode automatically after a preset time if the TV does not receive any command from the remote control.

12.5

Advanced Options

Audio

Set the audio language

MENU > TV options > Advanced Options > Audio Language.

The TV channels can broadcast audio with several spoken languages for a program. You can set a preferred audio language. If audio in one of these languages is available, the TV will switch to this audio.

MTS

MENU > TV options > Advanced Options > MTS.

You can switch the sound of an analog channel to Mono, SAP or Stereo.

* Note: MTS is for analog channel only.

Ginga Setup

MENU > TV options > Advanced Options > Ginga Setup.

Turn the Ginga on or off with Ginga Enable. You can also set to start the Ginga application automatically with Auto Start Application.

* Note: Ginga is for Brazil only.

12.6

Other settings

Device Preferences

Home > Settings > Device Preferences.

System Update

Update TV software from local update or from the Internet.

About

To show the information about this TV or perform Factory reset operation for the TV.

Date & Time

Adjust the date and time settings.

Timer

Set TV switch on or off timer.

Language

Set or change the menu language.

Keyboard

Set the on-screen keyboard type.

Inputs

Rename the Inputs name and adjust the settings for

Consumer Electronic Control (CEC).

Power

Set the timers for saving energy.


Adjust the picture settings.

Sound

Adjust the sound settings.

Ambilight

Adjust the Ambilight settings.

* The Ambilight setting is only for models which support the Ambilight function.

Storage

Check the device storage.

Home Screen

Customize the home screen. You can enable or disable the video and audio previews. Reorder the apps and games. Read the Open-source licenses.

Retail Mode

Switch On or Off the retail mode. If you set the retail mode to on. You can set the retail message type and demo.

Google Assistant

Adjust the settings for Google Assistant. You can also view the Open-source licenses.

Chromecast built-in

Adjust the settings for Chromecast built-in. You can view the Open-source licenses and the version number.

Screen Saver

Adjust the screen saver setting for your preference.

Location

Set the location status.

Usage & Diagnostics

Set to on for automatically send diagnostic information to Google, such as crash reports and usage data from your device, apps and Chromecast built in.

Accessibility

Activate special functions for hearing and visually impaired people.

Reboot

Reboot your TV for better performance when needed.

Remote and Accessories

Home > Settings > Remote and Accessories.

You can select the stored Bluetooth ^® connection from the list.

If you cannot find your accessory, select Add accessory to search for Bluetooth® connections.

12.7

Reboot

Home > Settings > Device Preferences > Reboot.

Note:

• Disconnect the external USB hard disc before rebooting.
• Wait for few seconds, the TV restarts automatically.

This will remove unnecessary data and information in the memory.

If your TV runs low performance when using Apps, such as the video and audio are not synchronized or the App is running slow, reboot your TV for better performance.

12.8

Factory Reset

Reset all settings value to original TV settings

Home > Settings > Device Preferences > About > Factory reset.

This will erase all data from your device's internal storage, including: your Google account, system app data, download apps and settings. All settings will be

12.9

Clock and Language Settings

Menu Language

Change the language of the TV menu

Home > Settings > Device

Preferences > Language.

1 - Press Home to go to Home screen.
2 - Select Device Preferences > Language.
3 - Select your language and press OK.
4 - Press Back or EXIT repeatedly to close the menu.

Audio Language

Set audio preference language

MENU > TV options > Advanced Options > Audio Language

The TV channels can broadcast audio with several spoken languages for a program. You can set a preferred audio language.

Clock

Home > Settings > Device Preferences > Date & time.

Correct clock automatically

Automatic date & time > Use network-provided time.

- The standard setting for the TV clock is automatic. The time information comes from the broadcasted UTC - Coordinated Universal Time information.

Correct clock manually

Automatic date & time > Off.

Select Set date and Set time to adjust the value.

Note:

If none of the automatic settings display the time correctly, you can set the time manually.

Set time zone or set a time offset for your region

Date & time > Set time zone.

Select the time zone of your preference.

Set the time format to 24-hour

Date & time > Use 24-hour format.

Enable to show the system time in 24-hour format, else show in 12-hour format time.

Timer

Set TV switch on or off timer

Home > Settings > Device Preferences > Timer.

Auto power on

To activate the auto power on function, set Power on timer to On or Once, and then set the actual time you need to power on the TV on Auto power on time. When Power on timer is set to Off, the time set on Auto power on time will not work.

Auto power off

To activate the auto power off function, set Power off timer to On or Once, and then set the actual time you need to power off the TV on Auto power off time. When Power off timer is set to Off, the time set on Auto power off time will not work.

12.10

Accessibility Settings

The TV is prepared for use of the deaf, hard of hearing, blind or partially sighted people.

Accessibility for blind or partially sighted people

Home > Settings > Device Preferences > Accessibility > Audio Description.

Digital TV channels can broadcast special audio commentary describing what is happening on screen. Select to enable or disable the audio description.

Visually Impaired

Accessibility > Visually Impaired.

When Audio Description is on, more Visually Impaired options are available. Set the speaker, headphone volume of the normal audio with the audio commentary or set the extra audio effects in the commentary audio. You can adjust the effect with below settings.

• Speaker
• Headphone
  • Volume
• Pan and Fade

• Audio for Visually Impaired
- Fader Control

Audio Hearing Impaired

Accessibility > Audio Hearing Impaired.

Turn on/off the text to describe the sound or visual information on screen.

13

Ambilight

13.1

Ambilight Style

You can set Ambilight to follow the video dynamics of a TV program. Alternatively, you can set Ambilight to show a preset color style or you can switch Ambilight off.

Follow Video

If you select Follow Video, you can select one of the styles that follow the dynamics of the picture on your TV screen.

To set the Ambilight Style...

1 - Press ambilight key.
2 - Enable the Ambilight.
3 - You can select from Follow Video and Lounge light styles.
4 - Select the style you want and press OK.

The available Follow Video styles are...

• Standard time - Ideal for day-to-day TV watching
• Natural – Follows the picture or sound as truthfully as possible
• Sports - Ideal for sports program
  • Vivid - Ideal for daylight viewing

• Game - Ideal for gaming

The available Lounge light styles are...

• Hot Lava - Red color variations
• Deep Water – Blue color variations
• Fresh Nature - Green color variations
• Warm white - Static color
• Cool white - Static color
• Custom color - Static color of your choice. To set the color for Ambilight static light, go to Home

  Settings > Device Preferences > Ambilight > Custom color and pick a color you like.

13.2

Custom color

Custom color

Home > Settings > Device Preferences > Ambilight > Custom color.

To set the color for Ambilight static light of your choice. You can pick a color you like from the color palette.

To set the color for Ambilight static light...

1 - Press ambilight key.

2 - Enable the Ambilight.
3 - Set Ambilight style to Custom color.
4 - Go to Home > Settings > Device Preferences > Ambilight > Custom color to pick a color.
5 - Select a color you want and press OK.

13.3

Brightness and Saturation

Adjust the Ambilight brightness

Home > Settings > Device Preferences > Ambilight > Brightness.

When Ambilight is enabled, press the arrows right or left to set the level of Ambilight brightness.

Adjust the Ambilight saturation

Home > Settings > Device Preferences > Ambilight > Saturation.

When Ambilight is enabled, press the arrows right or left to set the level of Ambilight saturation.

13.4

Wall Color Behind the TV

Set the wall color behind the TV

Home > Settings > Device Preferences > Ambilight > Wall color behind the TV.

You can select your wall color to compensate Ambilight colors so that the perceived Ambilight colors are correct again.

13.5

TV Switch Off

Set Ambilight to switch off immediately or slowly fade out when you switch off the TV

Home > Settings > Device Preferences > Ambilight > TV switch Off.

Select Fade out or Immediate to let the Ambilight slowly fade out or turn off immediately when TV is switching off.

14

Videos, Photos, Music & Text

14.1

From a USB Connection

You can view your photos or play your music and videos from a connected USB flash drive.

With the TV turned on, plug in a USB flash drive to one of the USB connections.

1 - Press Home, select MMP from the Apps list and press OK.
2 - Use Navigation keys to select the file type.
3 - Follow the on-screen instructions to play the files.

14.2

Play your Videos

Play a video

1 - Press Home, select MMP from the Apps list and press OK.
2 - Use Navigation keys to select Video.
3 - Select one of the videos, and press OK to play.

During the video playback...

- Press MENU to show the options.

Play, Pause

Press OK to play or pause the video.

Repeat

Play videos repeatedly or once.

Show Info

Display the information of the video file.

Display Mode

Adjust the display mode.


Adjust the picture settings.

Sound

Adjust the sound settings.

Sound Tracks

Display the soundtracks.

Last Memory

When set to On, you can play the video where you left last time. Set to Off to turn off the function.

14.3

View your Photos

View Photos

View a photo

1 - Press Home, select MMP from the Apps list and press OK.
2 - Use Navigation keys to select Photo.
3 - Select one of the photos, and press OK.

When browsing photo thumbnails, press MENU to...

Sort

Sort the photo files by your preference.

Media Type

Sort the files by media type.

Thumbnail Size

Change the thumbnail viewing size.

Copy

Copy the file and place it in your preferred folder.

Paste

Place the copied file to your preferred folder.

Delete

Delete the selected file.

Recursive parser

Select from the Recursive parser or Normal parser.

Photo Frame

Select to start the Photo Frame mode.

Photo Options

When viewing photo files, press MENU to...

Pause

Press OK to pause the photos.

Repeat

View the pictures repeatedly or once only.

Shuffle on, Shuffle off

View the pictures in sequential order, or at random.

Duration

Set the speed of the slideshow.

Effect

Set the transition from one picture to the next.

Show info

Display the information of the picture file.

Photo Frame image

Set the picture as Photo Frame image.


Adjust the picture settings.

14.4

Play your Music

Play music

1 - Press Home, select MMP from the Apps list and press OK.

2 - Use Navigation keys to select Audio.

3 - Select one of the audio, and press OK to play.

During the audio playback...

- Press MENU to show the options.

Play, Pause

Press OK to play or pause the music.

Repeat

Play music repeatedly or once.

Shuffle On, Shuffle Off

Play audio in sequential order, or at random.

Show Info

Display the information of the music file.

Lyric Options

Select the options when the lyrics are available.

Picture Off

Close the screen when play the music for energy saving.

Sound

Adjust the sound settings.

14.5

View your Text

View text

1 - Press Home, select MMP from the Apps list and press OK.

2 - Use Navigation keys to select Text.

3 - Select one of the text file, and press OK to preview.

During the preview...

• Each file lasts 3 seconds for preview. Press OK to pause the preview to read.

- Press MENU to show the options.

Play, Pause

Press OK to play or pause the text file preview.

Repeat

Preview the text files repeatedly or once.

Shuffle On, Shuffle Off

Preview the text files in sequential order, or at random.

Font

Adjust the text Size, Style and Color.

Show Info

Display the information of the text file.

15

TV guide

15.1

TV Guide Data

With the TV Guide you can view a list of the current and scheduled TV programs of your channels. Not all channels offer TV Guide information.

The TV Guide receives information (data) from broadcasters. The TV can collect TV Guide information for the channels that are installed on the TV. The TV cannot collect the TV Guide information for channels viewed from a digital receiver or decoder.

15.2

Using the TV Guide

To open the TV Guide, press TV GUIDE key on the remote control. The TV Guide shows the channels of the selected tuner. Press TV GUIDE again to close

Alternately, while watching TV, press MENU > Navigation keys up > Channels > Program Guide to open the TV Guide.

The TV Guide receives information (data) from broadcasters. In some regions and for some channels, TV Guide information might not be available.

16

Recording and Time Shift

16.1

Record Options

Press MENU while watching TV, then press Navigation keys down and select one of below menus.

Record List

You can view and manage your recordings in the list of recordings.

Device Info

Check the information about the storage device for TV recording. You can also format or test the speed of the device.

Schedule List

You can schedule a recording of an upcoming program and view the scheduled list.

Time Shift Mode

Turn on/off Time Shift Mode. When the mode is on and your storage device is ready for the time shift recording, you can pause a TV broadcast and resume watching it a bit later.

16.2

Recording

What You Need

You can record a digital TV broadcast and watch it later.

To record a TV program, you need...

• a connected USB storage device formatted to FAT32
  • digital TV channels installed on this TV
  • to receive channel information for the on-screen TV Guide
• a reliable TV clock setting. If you reset the TV clock manually, recordings may fail.

A storage device needs to be assigned as the recording data storage before you can start the recording.

To assign a storage device for recording...

1 - Press MENU while watching TV, then press Navigation keys down to Record > Device info.
2 - Select the device you want to assign and press OK.

3 - Select Set PVR to assign the device for recording data storage. The device will be marked with PVR on Device info list.

You cannot record when you are using Time shift function.

In terms of enforcement of copyright legislation, some channel providers can apply different restriction by means of DRM (Digital Right Management) technology. In case of broadcasting protected channels, recording, record validity or number of views may be restricted. Recording may be completely prohibited. In case of trying to record a protected broadcasting or play back an expired recording, an error message can appear.

Note:

Recording function is only for digital TV broadcast. It is not possible to record content from external devices (e.g. HDMI).

Record a program

Record Now

To record the program you are watching right now, press Record key on the remote control. The recording will start immediately.

To stop the recording, press Stop key on the remote control.

* Note: The instant recording will be stopped when a reminder or scheduled recording is triggered.

Schedule a Recording or Reminder

You can schedule a recording or reminder of an upcoming program for today or a few days from today (maximum of 8 days away). The TV will use the data from the TV Guide to start and end the recording.

To record a program...

1 - Press MENU > Navigation keys down > Record > Schedule list and press OK.
2 - Press Record key on the remote control.
3 - Follow the on-screen instruction. Use Navigation keys to select and set the settings.
4 - Select Add and press OK.
5 - If you need to set a reminder, go to Schedule Type and change the setting to Reminder.

List of Recordings

You can view and manage your recordings in the list of recordings.

To open the list of recordings...

1 - Press MENU > Navigation keys down > Record > Record list and press OK.
2 - With a recording selected in the list, you can use the color keys to remove the recording or show the recording information.
3 - Press Back to close the menu.

Watch a Recording

To watch a recording...

1 - Press MENU > Navigation keys down > Record > Record list and press OK.
2 - In the list of recordings, press OK to play the recording.
3 - You can use the Playback keys for pause, play, rewind, fast forward or stop.
4 - To switch back to watch TV, press EXIT.

16.3

Time Shift

What You Need

You can pause a digital TV broadcast and resume watching later.

To pause a TV program, you need...

• a connected USB storage device formatted to FAT32
  • digital TV channels installed on this TV

A storage device needs to be assigned as the Time shift data storage before you can start the Time shift. To assign a storage device for Time shift...

1 - Press MENU while watching TV, then press Navigation keys down to Record > Device info. 2 - Select the device you want to assign and press OK.

3 - Select Set timeshift to assign the device for Time shift data storage. The device will be marked with TSHIFT on Device info list.

With the USB storage device connected and formatted, the TV continuously stores the TV broadcast you are watching. When you switch to another channel, the broadcast of the former channel is cleared. Also when you switch the TV to standby, the broadcast is cleared.

You cannot use Time shift function when you are recording.

Pause a program

To pause and resume a broadcast...

• To pause a broadcast, press Pause. A progress bar at the bottom of the screen appears briefly.
  • To call up the progress bar, press Pause again.
  • To resume watching, press Play.

With the progress bar on screen, press Rewind or press Forward to select from where you want to start viewing the paused broadcast. Press these keys repeatedly to change speed.

You can pause a broadcast for a maximum time span of 90 minutes.

To switch back to the live TV broadcast, press Stop.

Replay

Since the TV stores the broadcast you are watching, you can replay the broadcast for a few seconds.

To replay a current broadcast...

1 - Press Pause
2 - Press Rewind. You can press it repeatedly to select from where you want to start viewing the paused broadcast. Press these keys repeatedly to change speed. At one point you will reach the start of the broadcast storage or the maximum time span.
3 - Press Play to watch the broadcast again.
4 - Press Stop to watch the broadcast live.

17

Smartphones and Tablets

17.1

Google Cast

What You Need

If an app on your mobile device has Google Cast, you can cast your app on this TV. On the mobile app, look for the Google Cast icon. You can use your mobile device to control what's on TV. Google Cast works on Android and iOS.

Your mobile device must be connected to the same Wi-Fi home network as your TV.

Apps with Google Cast

New Google Cast apps come available every day. You can already try it with YouTube, Chrome, Netflix, Photowall ... or Big Web Quiz for Chromecast. See also google.com/cast

Some Google Play products and features aren't available in all countries.

Find more information on www.support.google.com/androidtv

Cast to Your TV

To cast an app to the TV screen...

1 - On your smartphone or tablet, open an app that supports Google Cast.
2 - Tab the Google Cast icon.
3 - Select the TV you would like to cast to.
4 - Press play on your smartphone or tablet. What you selected should start playing on TV.

18

Netflix

If you have a Netflix subscription, you can enjoy Netflix on this TV. Your TV must be connected to the Internet. In your region, Netflix might only come available with future software updates.

To open Netflix, press NETFLIX on the remote control to open the Netflix App. You can open Netflix immediately from a TV in standby.

www.netflix.com

19

Software

19.1

Update Software

Local Updates

You need a computer with a high-speed Internet connection and a USB flash drive to upload the software on the TV. Use a USB flash drive with at least 2GB free space. Make sure that write protection is switched off.

1 - Press Home > Settings > Device Preferences > System update > Local Updates and press OK.
2 - Follow the instructions on screen.

Update from Internet

If the TV is connected to the Internet, you may receive a message to update the TV software. You need a high-speed (broadband) Internet connection. If you receive this message, we recommend you carry out the update.

1 - Press Home > Settings > Device Preferences > System update > Internet and press OK.
2 - Follow the instructions on screen.

19.2

Software Version

To view the current TV software version...

1 - Select Home > Settings > Device Preferences > About > Software version.
2 - The version, release notes and creation date are shown. Also, the Netflix ESN Number is shown if available.
3 - Press Back if necessary, to close the menu.

19.3

Open Source Licenses

To view the Open-source licenses...

1 - Select Home > Settings > Channel, or select Home > Settings > Device Preferences > Google Assistant.
2 - Select Open-source licenses and press OK.
3 - Press Back if necessary, to close the menu.

20

Specifications

20.1

Environmental

End of Use

Disposal of your old product and batteries

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product, it means that the product is covered by European Directive 2012/19/EU.

Please inform yourself about the local separate collection system for electrical and electronic products.

Please act according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps prevent potential negative consequences for the environment and human health.

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be disposed with normal household waste.

Please find out for yourself about the local rules on separate collection of batteries because correct disposal will help prevent negative consequences for the environment and human health.

20.2

Power

Product specifications are subject to change without notice. For more specification details for this product, see www.philips.com/TVsupport.

Power

• Mains power: AC 110-240V +/-10%
- Ambient temperature: 5^ to 35^ (40°F to 95°F)
- Power saving features: Sleep timer, Switch off timer,
Picture off, No Signal Auto Power Off, Auto sleep.

20.3

Operating System

Android OS:

Android 10

20.4

Reception

• Antenna input: 75 ohm coaxial (F-type)
  • Tuner bands: Hyperband, UHF, VHF
  • ISDBT
  • Analog video playback: PAL, SECAM
• Digital video playback: MPEG2 SD/HD (ISO/IEC 13818–2), MPEG4 SD/HD (ISO/IEC 14496–10)
  • Digital audio playback (ISO/IEC 13818-3)

20.5

Display Type

Diagonal screen size

• 126 cm/50 inch
  • 139 cm/55 inch
• 164 cm/65 inch
• 177 cm/70 inch
• 189 cm/75 inch

Display resolution

· 3840 × 2160

20.6

Display Input Resolution

Supported Video only resolution

Resolution — Refresh rate

· 480i - 60 Hz
• 576i - 50 Hz
• 1080i - 50 Hz, 60 Hz

Supported Computer/Video resolution

Resolution — Refresh rate

- 640 x 480 - 60Hz

- 576p - 50Hz

- 720p - 50 Hz, 60 Hz

- 1920 x 1080p - 24 Hz, 25 Hz, 30 Hz, 50 Hz, 60 Hz

• 2560 x 1440 - 60 Hz

- 3840 x 2160p - 24 Hz, 25 Hz, 30 Hz, 50 Hz, 60 Hz

20.7

Connectivity

TV Side

- USB 1: USB 2.0

• Headphones: Stereo mini-jack 3.5mm

• HDMI 1 in: ARC - Ultra HD - HDR

TV Bottom

• Digital Audio out: Optical

- USB 2: USB 2.0

• Network LAN: RJ45

- Antenna (75 ohm)

Output power (RMS): 20W

Dolby MS12 V2.5

• Dolby Atmos

• DTS – HD (M6)

- Surround Virtualizer + Height Virtualizer

Supported USB file systems

• FAT 16, FAT 32, NTFS

Playback formats

- Containers: PS, TS, M2TS, TTS, AVCHD, MP4, M4V, MKV, ASF, AVI, 3GP, QuickTime

• Video Codecs: AVI, MKV, HEVC, H264/MPEG-4 AVC, MPEG-1, MPEG-2, MPEG-4, VP9, HEVC (H.265), AV1

• Audio Codecs: MP3, WAV, AAC, WMA (v2 up to v9.2), WMA-PRO (v9 and v10)

- Subtitles:

- Formats: SRT, SMI, SSA, SUB, ASS, TXT

– Character encodings: UTF-8(Unicode), UTF-16, Simplified Chinese, Central Europe, Cyrillic, Western Europe, Greek, Turkish, Hebrew, Korean

• Maximum Supported Data Rate:

- MPEG-4 AVC (H.264) is supported up to High Profile @ L5.1. 30Mbps

- H.265 (HEVC) is supported up to Main/Main 10 Profile up to Level 5.1 40Mbps

• Image Codecs: JPEG, GIF, PNG, BMP, HEIF

21

Help and Support

21.1

Register your TV

Register your TV and enjoy a range of benefits including full support (including downloads), privileged access to information about new products, exclusive offers and discounts, the chance to win prizes and even participate in special surveys about new releases.

Go to www.philips.com/TVsupport.

21.2

Using Help

Home > Settings > Help.

You can use the Help function to diagnose and get more information about your TV.

• TV information - View the Model name, Serial number and Software version of your TV.
• View weak signal history - Display the list of channel numbers that were automatically saved when signal strength was weak.
• System update - Check available software updates.
• User manual - Read the user manual for TV information.
• Factory reset - Reset all settings to factory settings.

21.3

Troubleshooting

Switch On and Remote Control

The TV does not switch on

• Disconnect the power cable from the power outlet. Wait for one minute then reconnect it.
• Make sure that the power cable is securely connected.

Creaking sound at startup or switch off

When you are turn the TV on, off or to standby, you hear a creaking sound from the TV chassis. The creaking sound is due to the normal expansion and contraction of the TV as it cools and warms up. This does not affect performance.

TV does not respond to the remote control

The TV requires some time to start up. During this time, the TV does not respond to the remote control or TV controls. This is normal behavior.

If the TV continues to be unresponsive to the remote control, you can check if the remote control is working by means of a mobile phone camera. Put the phone in camera mode and point the remote control to the camera lens. If you press any key on the remote control and you notice the infra red LED flicker through the camera, the remote control is working. The TV needs to be checked.

If you do not notice the flickering, the remote control might be broken or its batteries are low.

This method of checking the remote control is not possible with remote controls which are wirelessly paired with the TV.

The TV goes back to standby after showing the Philips startup screen

When the TV is in standby, a Philips startup screen is displayed, then the TV returns to standby mode. This is normal behavior. When the TV is disconnected and reconnected to the power supply, the startup screen is displayed at the next startup. To turn on the TV from standby, press power key on the remote control or on the TV.

The standby light keeps on blinking

Disconnect the power cable from the power outlet. Wait 5 minutes before you reconnect the power cable. If the blinking reoccurs, contact Philips TV Consumer Care.

Channels

No digital channels found during the installation

See the technical specifications to make sure that your TV supports digital channels in your country. Make sure that all cables are properly connected and that the correct network is selected.

Previously installed channels are not in the channel list

Make sure that the correct channel list is selected.

PIN Code

The PIN code can be set to lock channels or protect against unauthorized operations, e.g. the TV being reinstalled or the PIN code being reset. If you forget your PIN code, you can override the current one by using the code 8888 and entering a new one.


No picture/distorted picture

• Make sure that the antenna is properly connected to the TV.
• Make sure that the correct device is selected as the display source.
• Make sure that the external device or source is properly connected.

Sound but no picture

- Change to other video sources and then change back to current source, then do picture style restore in Picture settings or do Factory reset in General settings option.

Poor antenna reception

• Make sure that the antenna is properly connected to the TV.
• Loud speakers, unearthed audio devices, neon lights, high buildings and other large objects can influence reception quality. If possible, try to improve the reception quality by changing the antenna direction or moving devices away from the TV.
• If reception on only one channel is poor, fine-tune this channel with Manual Installation.

Poor picture from a device

• Make sure that the device is connected properly. Make sure the device's output video setting is the highest possible resolution if applicable.
• Restore picture style or change to other picture styles.

Picture settings change after a while

Make sure that Retail mode is set to Off. You can change and save settings in this mode.

A commercial banner appears

Make sure that Retail mode is set to Off. Press Home > Settings > Device Preferences > Retail mode and press OK

Picture does not fit the screen

• Change to a different picture format.
• Change Display mode to Automatic.

Picture position is incorrect

• Picture signals from some devices may not fit the screen correctly. Check the signal output of the connected device.
• Change Display mode to Automatic.

Computer picture is not stable

• Make sure that your PC uses the supported resolution and refresh rate.
• Make sure HDMI video source is not supported HDR content.

Sound

No sound or poor sound quality

If no audio signal is detected, the TV automatically switches the audio output off — this does not indicate malfunction.

• Make sure that the sound settings are correctly set.
• Make sure that all cables are properly connected.
• Make sure that the volume is not muted or set to zero.
• Make sure that the TV audio output is connected to the audio input on the Home Theater System. Sound should be heard from the HTS speakers.
• Some devices may require you to manually enable HDMI audio output. If HDMI audio is already enabled, but you still do not hear audio, try changing the digital audio format of the device to PCM (Pulse Code Modulation). Refer to the documentation accompanying your device for instructions.

HDMI and USB

HDMI

• Note that HDCP (High-bandwidth Digital Content Protection) support can delay the time taken for a TV to display content from an HDMI device.
• If the TV does not recognize the HDMI device and no picture is displayed, switch the source from one device to another and back again.
• If the picture and sound of a device connected to HDMI is distorted, connect the device to another HDMI port on TV and power reboot your source device.
• If there are intermittent sound disruptions, make sure that output settings from the HDMI device are correct.
• If you use an HDMI-to-DVI adaptor or HDMI-to-DVI cable, make sure that an additional audio cable is connected to AUDIO IN (mini-jack only), if available.

HDMI EasyLink does not work

- Make sure that your HDMI devices are HDMI-CEC compatible. EasyLink features only work with devices that are HDMI-CEC compatible.

No volume icon shown

- When an HDMI-CEC audio device is connected and you use the TV Remote Control to adjust the volume level from the device, this behavior is normal.

Photos, videos and music from a USB device do not show

• Make sure that the USB storage device is set to Mass Storage Class compliant, as described in the storage device's documentation.
• Make sure that the USB storage device is compatible with the TV.
• Make sure that the audio and picture file formats are supported by the TV.

Choppy playback of USB files

- The transfer performance of the USB storage device may limit the data transfer rate to the TV which causes poor playback.

Network

Wi-Fi network not found or distorted

• Microwave ovens, DECT phones or other Wi-Fi 802.11b/g/n devices in your proximity might disturb the wireless network.
• Make sure that the firewalls in your network allow access to the TV's wireless connection.
• If the wireless network does not work properly in your home, try the wired network installation.

Internet does not work

- If the connection to the router is OK, check the router connection to the Internet.

The PC and Internet connection are slow

• Look in your wireless router's user manual for information on indoor range, transfer rate and other factors of signal quality.
• Use a high-speed (broadband) Internet connection for your router.

DHCP

- If the connection fails, you can check the DHCP (Dynamic Host Configuration Protocol) setting of the router. DHCP should be turned on.

Bluetooth®

Unable to pair

• Make sure the device is in pairing mode. Read the user manual of the device.
• Keep the wireless speaker as close to the TV as possible.
• Trying to pair several devices with the TV at the same time may not work.

Bluetooth ^® lost connection

• Always position the wireless speaker within a range of 15 feet from the TV.

Bluetooth® Audio and Video synchronization

- Before you purchase a wireless Bluetooth® speaker, inform yourself about its Audio to Video synchronization quality, commonly called 'lip sync.' Not all Bluetooth® devices perform correctly. Ask your dealer for advice.

Wrong Menu Language

Change the language back to your language

1 - Press Home to go to Home screen.
2 - Press MENU.
3 - Press Navigation key - down for 4 times and press OK.
4 - Press Navigation key - down for 4 times and press OK.
5 - Select your language and press OK.
6 - Press Back or EXIT repeatedly to close the menu.

21.4

Online Help

To solve any Philips TV related problem, you can consult our online support. You can select your language and enter your product model number.

Go to www.philips.com/TVsupport.

On the support site you can find your country's telephone number to contact us as well as answers to frequently asked questions (FAQs). In some countries, you can chat with one of our collaborators and ask your question directly or send a question by email. You can download new TV software or the manual to read on your computer.

21.5

Support and Repair

For support and repair, call the Consumer Care hotline in your country. Our service engineers will take care of a repair, if necessary.

Find the telephone number in the printed documentation that came with the TV.

Or consult our

website www.philips.com/TVsupport and select your country if needed.

TV model number and serial number

You might be asked to provide the TV product model number and serial number. Find these numbers on the packaging label or on the type label on the back or bottom of the TV.

Warning

Do not attempt to repair the TV yourself. This may cause severe injury, irreparable damage to your TV or void your warranty.

22

Safety and Care

22.1

Safety

Important

Read and understand all safety instructions before you use the TV. If damage is caused by failure to follow instructions, the warranty does not apply.

Risk of Electric Shock or Fire

• Never expose the TV to rain or water. Never place liquid containers, such as vases, near the TV. If liquids are spilled on or into the TV, disconnect the TV from the power outlet immediately.
  Contact Philips TV Consumer Care to have the TV checked before use.
• Never expose the TV, remote control or batteries to excessive heat. Never place them near burning candles, naked flames or other heat sources, including direct sunlight.
• Never insert objects into the ventilation slots or other openings on the TV.
• Never place heavy objects on the power cord.
• Avoid force coming onto power plugs. Loose power plugs can cause arcing or fire. Ensure that no strain is exerted on the power cord when you swivel the TV screen.
• To disconnect the TV from the mains power, the power plug of the TV must be disconnected. When disconnecting the power, always pull the power plug, never the cord. Ensure that you have full access to the power plug, power cord and outlet socket at all times.

Risk of Injury or Damage to the TV

• Two people are required to lift and carry a TV that weighs more than 25 kg or 55 lbs.
• If you mount the TV on a stand, only use the supplied stand. Secure the stand to the TV tightly. Place the TV on a flat, level surface that can support the weight of the TV and the stand.
• When wall mounted, ensure that the wall mount can safely bear the weight of the TV set. TP Vision bears no responsibility for improper wall mounting that results in accident, injury or damage.
• Parts of this product are made of glass. Handle with care to avoid injury or damage.

Risk of damage to the TV!

Before you connect the TV to the power outlet,

ensure that the power voltage matches the value printed on the back of the TV. Never connect the TV to the power outlet if the voltage is different.

Stability Hazards

A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• ALWAYS ensure the television set is not overhanging the edge of the supporting furniture.
• ALWAYS use cabinets or stands or mounting methods recommended by the manufacturer of the television.
• ALWAYS use furniture that can safely support the television.
• ALWAYS educate children about the dangers of climbing on furniture to reach the television or its controls.
• ALWAYS route cords and cables connected to the television so that they cannot be tripped over, pulled or grabbed.
• NEVER place a television in an unstable location.
• NEVER place the television on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and television to a suitable support.
• NEVER place the television on cloth or other materials that may be located between the television and supporting furniture.
• NEVER place items that might tempt children to climb, such as toys and remote controls, on the top of the television or furniture on which the television is placed.

If the existing television is going to be retained and relocated, the same considerations as above should be applied.

Risk of Batteries

• Do not ingest the battery. Chemical burn hazard.
• The remote control may contain a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.
• Keep new and used batteries away from children.
• If the battery compartment does not close securely, stop using the product and keep it away from children.
• If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
• Risk of fire or explosion if the battery is replaced by an incorrect type.

• Replacement of a battery with an incorrect type that can defeat a safeguard (e.g. in the case of some lithium battery types).

• Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.

• Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas.
• A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas.

Risk of Overheating

Never install the TV in a confined space. Always leave a space of at least 10 cm or 4 in around the TV for ventilation. Ensure curtains or other objects never cover the ventilation slots on the TV.

Lightning Storms

Disconnect the TV from the power outlet and antenna before lightning storms.

During lightning storms, never touch any part of the TV, power cord or antenna cable.

Risk of Hearing Damage

Avoid using earphones or headphones at high volumes or for prolonged periods of time.

Low Temperatures

If the TV is transported in temperatures below 5^ C or 41^ F, unpack the TV and wait until the TV temperature reaches room temperature before connecting the TV to the power outlet.

Humidity

In rare occasions, depending on temperature and humidity, minor condensation can occur on the inside of the TV glass front (on some models). To prevent this, do not expose the TV to direct sunlight, heat or extreme humidity. If condensation occurs, it will disappear spontaneously while the TV is playing for a few hours.

The condensation moisture will not harm the TV or cause malfunction.

22.2

Screen Care

• Never touch, push, rub or strike the screen with any object.
• Unplug the TV before cleaning.
• Clean the TV and frame with a soft damp cloth and wipe gently. Avoid touching the Ambilight® LEDs on the backside of the TV. Never use substances such as alcohol, chemicals or household cleaners on the TV.
• To avoid deformations and color fading, wipe off water drops as quickly as possible.
• Avoid stationary images as much as possible. Stationary images are images that remain onscreen for extended periods of time. Stationary images include onscreen menus, black bars, time displays, etc. If you must use stationary images, reduce screen contrast and brightness to avoid screen damage.
  * Ambilight LED is only for models which support Ambilight function.

Terms of Use

2021 © TP Vision Europe B.V. All rights reserved.

This product was brought to the market by TP Vision Europe B.V. or one of its affiliates, hereinafter referred to as TP Vision, which is the manufacturer of the product. TP Vision is the warrantor in relation to the TV with which this booklet was packaged. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V.

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V or their respective owners. TP Vision reserves the right to change products at any time without being obliged to adjust earlier supplies accordingly.

The written material packaged with the TV and the manual stored in the memory of the TV or downloaded from the Philips website www.philips.com/TVsupport are believed to be adequate for the intended use of the system.

The material in this manual is believed adequate for the intended use of the system. If the product, or its individual modules or procedures, are used for purposes other than those specified herein, confirmation of their validity and suitability must be obtained. TP Vision warrants that the material itself does not infringe any United States patents. No further warranty is expressed or implied. TP Vision cannot be held responsible neither for any errors in the content of this document nor for any problems as a result of the content in this document. Errors reported to Philips will be adapted and published on the Philips support website as soon as possible.

Terms of warranty - Risk of injury, damage to TV or void of warranty!

Never attempt to repair the TV yourself. Use the TV and accessories only as intended by the manufacturer. The caution sign printed on the back of the TV indicates risk of electric shock. Never remove the TV cover. Always contact Philips TV Customer Care for service or repairs. Find the telephone number in the printed documentation that came with the TV. Or consult our website www.philips.com/TVsupport and select your country if needed. Any operation expressly prohibited in this manual, or any adjustments and assembly procedures not recommended or authorized in this manual, shall void the warranty.

Pixel characteristics

This TV product has a high number of color pixels. Although it has effective pixels of 99.999% or more, black dots or bright points of light (red, green or blue) may appear constantly on the screen. This is a structural property of the display (within common industry standards) and is not a malfunction.

Therefore, please note this is not subject to repair, exchange or refund within and/or outside of the warranty period.

Backlight characteristics

All Philips TV have gone through stringent tests and checks before shipping to you. You can rest assured that we place utmost importance on the quality of our TVs so you don't suffer any viewing displeasure while watching your TV. However, please note that backlight bleeding (the 'Mura effect') and/or background light unevenness that can only be observed in dark images or in a very dark and dim room are considered to be within normal TV specifications. Such occurrences do not represent deterioration nor should be regarded as a defect of the TV. Hence, we regret that claims of this nature for warranty cover, free-of-charge service, replacements or refunds cannot be accepted within and/or outside of the warranty period.

TP Vision is committed to developing, producing and marketing products that cause no adverse health effects. TP Vision confirms that, as long as its products are handled properly for their intended use, they are safe to use according to scientific evidence available today. TP Vision plays an active role in the development of international safety standards, enabling TP Vision to anticipate further developments in standardization for early integration in its products.

24

Copyrights

24.1

HDMI

HDMI

The terms HDMI, HDMI High-Definition Multimedia Interface and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

HDMI®

HIGH-DEFINITION MULTIMEDIA INTERFACE

24.2

HEVC Advance

HEVC Advance

Covered by one or more claims of the HEVC patents listed at patentlist.accessadvance.com. Future-proof with advanced HEVC decoding.

HE NC Advance™ Covered by patents at patentlist.accessadvance.com

24.3

Dolby Vision and Dolby Atmos

Dolby Vision and Dolby Atmos

Dolby, Dolby Vision, Dolby Atmos, Dolby Audio and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 2012–2022 Dolby Laboratories. All rights reserved.

DOLby

VISION·ATMOS

24.4

DTS-HD

DTS-HD

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS and the Symbol together, DTS-HD, and the DTS-HD logo are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. ALL RIGHTS RESERVED.

24.5

DTVi

The DTVi brand and logo are registered marks of Pontifical Catholic University of Rio de Janeiro (PUC-Rio) and the Federal University of Paraíba (UFPB).

DTV_i

24.6

Wi-Fi Alliance

Wi-Fi

The Wi-Fi CERTIFIED ^® Logo is a registered trademark of Wi-Fi Alliance ^® .

CERTIFIED

24.7

Kensington

(If applicable)

Kensington and Micro Saver are registered US trademarks of ACCO World Corporation with issued registrations and pending applications in other countries throughout the world.

24.8

Other Trademarks

All other registered and unregistered trademarks are the property of their respective owners.

Disclaimer regarding services and/or software offered by third parties

Services and/or software offered by third parties may be changed, suspended or terminated without prior notice. TP Vision does not bear any responsibility in these sorts of situations.

Index

Sound settings, other 33

A

Age Rating 17

Ambilight 38

Android Settings 27

Apps 28

B

Bluetooth® 24

Bluetooth ^® , Devices 24

Bluetooth ^® , Remove device 24

Bluetooth ^® , Select device 24

C

Channel 15

Channel Install, Antenna 13

Channel List 15

Channel List sorting 16

Channel, age rating 17

Channel, switch to a channel 16

Channel, TV guide 41

Connectivity Guide 19

Consumer Care 51

Contact Philips 51

D

Display Mode 31

Disposal of TV or batteries 47

E

Eco Settings 33

End of use 47

F

Factory Reset 35

H

Home 4

|

Input blocked 17

L

Lock channel 16

M

Media 39

Media files, from a USB drive 39

N

Network connection 26

Network, setting 27

Network, Wired 26

Network, Wireless 26

O

Online support 51

P

Parental Controls 16

Parental Rating 17

Pause TV 42

Photos, Videos and Music 39

Picture Setting 31

Picture, picture format 31

Power cable 6

Problems, Channel 49

Problems, Connection, Internet 51

Problems, Connection, Wi-Fi 51

Problems, HDMI Connection 50

Problems, Picture 50

Problems, Remote control 49

Problems, Sound 50

Problems, USB Connection 50

Problems, Wrong menu language 51

Product Fiche 47

R

Recording 42

Register your product 49

Repair 51

S

Safety Instructions 52

Screen care 53

Search for a Channel 15

Set PIN Code 17

Software, Update 46

Sound Mode 32

Sound, style setting 32

Support, online 51

Switching On 12

T

Troubleshooting 49

TV guide 41

TV Guide Data 41

TV placement 6

TV, standby 12

U

USB Hard Drive, disk space 22

USB Hard Drive, Install 21

V

Viewing distance 6

W

Watch TV 16

Wi-Fi 26

Wired connection 26

Wireless connection 26

PHILIPS

All registered and unregistered trademarks are property of their respective owners.

Specifications are subject to change without notice.

Philips and the Philips' shield emblem are trademarks of Koninklijke Philips N.V. and are used under license from Koninklijke Philips N.V.

This product has been manufactured by and is sold under the responsibility of TP Vision Europe B.V., and TP Vision Europe B.V. is the warrantor in relation to this product.

2021© TP Vision Europe B.V. All rights reserved.

www.philips.com/welcome
