USER MANUAL G-Master GB2745QS IIYAMA

Thank you very much for choosing the iiyama LCD monitor.

We recommend that you take a few minutes to read this comprehensive manual carefully before installing and switching on the monitor.

Please keep this manual in a safe place for your future reference.

Dear user, we congratulate you on the purchase of your iiyama LCD.

For details on warranty and locally used pixel policies that apply directly after installation of your product please check the iiyama website.

To report a fault, please contact your local support centre found at https://liyama.com

Things to check before you call the iiyama information line

| if the power cable is connected securely and turned on?
| if the display has been turned on?
| if the signal cable is connected securely and the correct input selected?
| if the computer has been restarted with the display connected?
| if the graphics card is correctly installed with the latest drivers possible?
| if the correct native resolution has been selected via 'Display Properties'?
| If the R/G/B signal configuration is correct?
| if the displays On Screen Menu is shown?
| if the correct brightness and contrast settings have been set?
| if given display tolerances and compatibility have been considered?

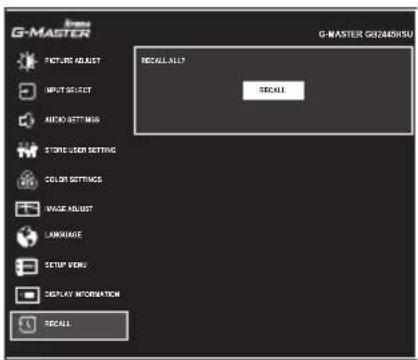

| if via the On Screen Menu you have performed a Factory Reset/Recall?

Before reporting the screen defect, please prepare the following information/evidence:

| model number *
| purchase receipt and serial number *
| name and address for collection
| telephone/fax number, for availability during the day
| convenient collection date (date, time)
| short description of the defect

Important Note:

If there is no fault found in the collected equipment after inspection, the transferring party shall incur charges for transport and administration.

If you have checked all of the above and there is still no picture, call our information line for assistance in your country.

CE MARKING DECLARATION OF CONFORMITY

This LCD monitor complies with the requirements of the EC/EU Directive 2014/30/EU “EMC Directive”, 2014/35/EU “Low Voltage Directive”, 2009/125/EC “ErP Directive” and 2011/65/EU “RoHS Directive”.

The electro-magnetic susceptibility has been chosen at a level that gives correct operation in residential areas, business and light industrial premises and small-scale enterprises, inside as well as outside of the buildings. All places of operation are characterised by their connection to the public low voltage power supply system.

We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: https://iiyama.com

You can access the Web page of different countries from there.

■ We reserve the right to change specifications without notice.
■ All trademarks used in this user manual are the property of their respective owners.
■ The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
■ The font used in the OSD menu is licensed under the Apache License, Version 2.0. You may obtain a copy of the License at http://www.apache.org/licenses/LICENSE-2.0

■ Eprel registration number GB2445HSU-B1 : 1660657 GB2455HSU-B1 : 1589946

GB2745HSU-B1:1703803 GB2755HSU-B1:1593353

GB2745QSU-B1:1692557 GB2755QSU-B1:1607352

G2445HSU-B1:1660690 G2455HSU-B1:1590832

G2745HSU-B1:1704132 G2755HSU-B1:1593439

G2745QSU-B1:1692561 G2755QSU-B1:1607379

TABLE OF CONTENTS

FOR YOUR SAFETY....1

SAFETY PRECAUTIONS....1

SPECIAL NOTES ON LCD MONITORS 3

CUSTOMER SERVICE 3

CLEANING 3

GB2745HSU, GB2745QSU, GB2455HSU, GB2755HSU,

GB2755QSU 7

FITTING AND REMOVAL OF STAND : G-MASTER G2445HSU,

G2745HSU, G2745QSU, G2455HSU, G2755HSU, G2755QSU ....9

CONTROLS AND CONNECTORS : G-MASTER GB2445HSU,

GB2745HSU, GB2745QSU, GB2455HSU, GB2755HSU,

GB2755QSU 11

CONTROLS AND CONNECTORS : G-MASTER G2445HSU,

G2745HSU, G2745QSU, G2455HSU, G2755HSU, G2755QSU ... 12

CONNECTING YOUR MONITOR : G-MASTER GB2445HSU,

GB2745HSU, GB2745QSU, GB2455HSU, GB2755HSU,

GB2755QSU 13

CONNECTING YOUR MONITOR: G-MASTER G2445HSU,

G2745HSU, G2745QSU, G2455HSU, G2755HSU, G2755QSU ..14

COMPUTER SETTING 15

ADJUSTING THE HEIGHT AND THE VIEWING ANGLE :

G-MASTER GB2445HSU, GB2745HSU, GB2745QSU,

GB2455HSU, GB2755HSU, GB2755QSU....15

ADJUSTING THE VIEWING ANGLE : G-MASTER G2445HSU,

G2745HSU, G2745QSU, G2455HSU, G2755HSU, G2755QSU ..16

ADJUSTMENT MENU CONTENTS....18

STANDBY FEATURE 29

TROUBLE SHOOTING 30

RECYCLING INFORMATION....31

APPENDIX 32

SPECIFICATIONS :

G-MASTER GB2445HSU-B1, G-MASTER GB2455HSU-B1 .....32

SPECIFICATIONS :

G-MASTER GB2745HSU-B1, G-MASTER GB2755HSU-B1 .....33

SPECIFICATIONS :

G-MASTER GB2745QSU-B1, G-MASTER GB2755QSU-B1......34

SPECIFICATIONS :

G-MASTER G2445HSU-B1, G-MASTER G2455HSU-B1 ....35

SPECIFICATIONS :

G-MASTER G2745HSU-B1, G-MASTER G2755HSU-B1 36

SPECIFICATIONS :

G-MASTER G2745QSU-B1, G-MASTER G2755QSU-B1....37

DIMENSIONS :

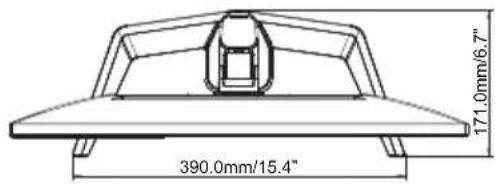

G-MASTER GB2445HSU, G-MASTER GB2455HSU....38

DIMENSIONS :

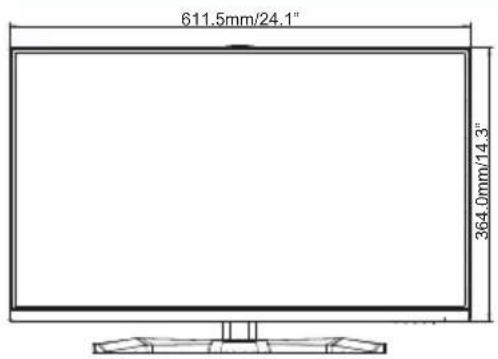

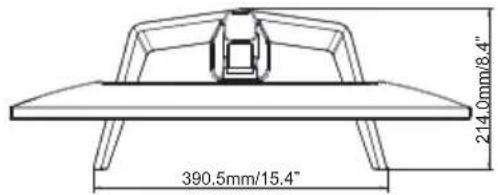

G-MASTER GB2745HSU, G-MASTER GB2745QSU....39

DIMENSIONS :

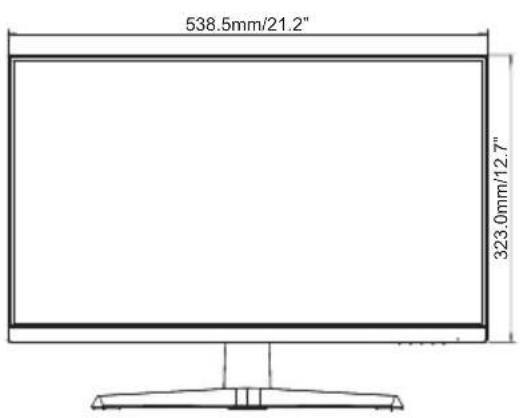

G-MASTER GB2755HSU, G-MASTER GB2755QSU....39

DIMENSIONS :

G-MASTER G2445HSU, G-MASTER G2455HSU....40

DIMENSIONS :

G-MASTER G2745HSU, G-MASTER G2745QSU ....40

DIMENSIONS :

G-MASTER G2755HSU, G-MASTER G2755QSU ....40

COMPLIANT TIMING....41

SAFETY PRECAUTIONS

WARNING

STOP OPERATING THE MONITOR WHEN YOU SENSE TROUBLE

If you notice any abnormal phenomena such as smoke, strange sounds or fumes, unplug the monitor and contact your dealer or iiyama service center immediately. Further use may be dangerous and can cause fire or electric shock.

NEVER REMOVE THE CABINET

High voltage circuits are inside the monitor. Removing the cabinet may expose you to the danger of fire or electric shock.

DO NOT PUT ANY OBJECT INTO THE MONITOR

Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause fire, electric shock or damage.

INSTALL THE MONITOR ON A FLAT, STABLE SURFACE

The monitor may cause an injury if it falls or is dropped.

DO NOT USE THE MONITOR NEAR WATER

Do not use where water may be splashed or spilt onto the monitor as it may cause fire or electric shock.

OPERATE UNDER THE SPECIFIED POWER SUPPLY

Be sure to operate the monitor only with the specified power supply. Use of an incorrect voltage will cause malfunction and may cause fire or electric shock.

PROTECT THE CABLES

Do not pull or bend the power cable and signal cable. Do not place the monitor or any other heavy objects on the cables. If damaged, the cables may cause fire or electric shock.

ADVERSE WEATHER CONDITIONS

It is advisable not to operate the monitor during a heavy thunder storm as the continual breaks in power may cause malfunction. It is also advised not to touch the plug in these circumstances as it may cause electric shock.

CAUTION

INSTALLATION LOCATION

Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fire, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor.

DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION

The monitor may topple and cause injury if not suitably located. Please also ensure that you do not place any heavy objects on the monitor, and that all cables are routed such that children may not pull the cables and possibly cause injury.

MAINTAIN GOOD VENTILATION

Ventilation slots are provided to keep the monitor from overheating. Covering the slots may cause fire. To allow adequate air circulation, place the monitor at least 10cm (or 4 inches) from any walls. When removing the tilt stand, the ventilation slots on the back side of the monitor can be blocked. This may overheat the monitor and may cause fire or damage. Make sure to allow enough ventilation when removing the tilt stand. Operating the monitor on its back, side, upside down or on a carpet or any other soft material may also cause damage.

DISCONNECT THE CABLES WHEN YOU MOVE THE MONITOR

When you move the monitor, turn off the Power Button, unplug the monitor and be sure the signal cable is disconnected. If you do not disconnect them, it may cause fire or electric shock.

UNPLUG THE MONITOR

If the monitor is not in use for a long period of time it is recommended that it is left unplugged to avoid accidents.

HOLD THE PLUG WHEN DISCONNECTING

To disconnect the power cable or signal cable, always pull it by the plug. Never pull on the cable itself as this may cause fire or electric shock.

DO NOT TOUCH THE PLUG WITH WET HANDS

Pulling or inserting the plug with wet hands may cause electric shock.

WHEN YOU INSTALL THE MONITOR ON YOUR COMPUTER

Be sure the computer is strong enough to hold the weight of the monitor, otherwise, you may damage your computer.

CAREFUL! PROTECT YOUR HANDS AND FINGERS

■ Be careful not to hurt your fingers or hands when you change the height or the angle.
■ Injury can occur if care is not taken to avoid finger contact with the displays base when adjusting the height. (Just for height adjustable model.)

REMARK FOR 24/7 USAGE

This product is not specifically designed for 24/7 usage in all environments.

REMARK SPECIFIC TO DESKTOP USE

This product is designed for desktop use, not for digital signage (electronic signboard) applications such as ceiling hanging or wall mounting.

OTHERS

ERGONOMIC RECOMMENDATIONS

To eliminate eye fatigue, do not operate the monitor against a bright background or in a dark room. For optimal viewing comfort, the monitor should be just below eye level and 40-60cm (16-24 inches) away from your eyes. When using the monitor over a prolonged time, a ten minute break every hour is recommended as looking at the screen continuously can cause eye strain.

SPECIAL NOTES ON LCD MONITORS

The following symptoms are normal with LCD monitors and do not indicate a problem.

NOTE

■ When you first turn on the LCD monitor, the picture may not fit in the display area because of the type of computer that is used. In this case, adjust the picture position to the correct position.
■ You may find slightly uneven brightness on the screen depending on the desktop pattern you use.
■ Due to the nature of the LCD screen, an afterimage of the previous screen may remain after switching the image, when the same image is displayed for hours. In this case, the screen can be recovered slowly by changing the image or turning off the Power Button for some hours.

CUSTOMER SERVICE

NOTE

If you have to return your unit for service and the original packaging has been discarded, please contact your dealer or iiyama service center for advice or replacement packaging.

CLEANING

WARNING

■ If you drop any materials or liquids such as water into the monitor when cleaning, unplug the power cable immediately and contact your dealer or iiyama service center.

CAUTION

■ For safety reasons, turn off the Power Button and unplug the monitor before you clean it.

NOTE

■ To protect the LCD panel, do not scratch or rub the screen with a hard object.

■ Never use any of the following strong solvents. These will damage the cabinet and the LCD screen.

Thinner	Spray-type cleaner
Benzine	Wax
Abrasive cleaner	Acid or Alkaline solvent

■ Touching the cabinet with any product made from rubber or plastic for a long time may cause degeneration or loss of paint on the cabinet.

CABINET

Stains can be removed with a cloth lightly moistened with a mild detergent solvent. Then wipe the cabinet with a soft dry cloth.

LCD

Periodic cleaning with a soft dry cloth is recommended.

SCREEN

Don't use tissue paper etc. because these will damage the LCD screen.

◆ Supports Resolutions up to 1920 × 1080

G-MASTER G(B)2445HSU, G(B)2745HSU, G(B)2455HSU,

G(B)2755HSU

2560 × 1440

G-MASTER G(B)2745QSU, G(B)2755QSU

◆ High Contrast 1000:1 (Typical)

G-MASTER G(B)2745HSU

1300:1(Typical)

G-MASTER G(B)2445HSU, G(B)2745QSU

4000:1(Typical)

G-MASTER G(B)2455HSU, G(B)2755HSU, G(B)2755QSU

◆ Adv. Contrast Function Available
◆Brightness250cd/m ^2 (Typical)
◆ Supports AMD FreeSync™ Technology
◆ Moving Picture Response Time 1ms
Flicker - Free
Blue Light Reducer
◆ Digital Character Smoothing
◆ 2 × 2W Stereo Speakers
Standby Feature
◆ VESA Mounting Standard (100mm×100mm) Compliant
◆ Keyhole for Security Lock

CHECKING THE CONTENTS OF THE PACKAGE

The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama office.

■ Power Cable *^1

■ HDMI Cable

■ DisplayPort Cable *^2

USB Cable

■ VESA Plate *3

■ Screwdriver *3

■ Stand-Neck

■ Stand-Base with a screw *^3

■ Stand-Base *4

■ Cable Holder *4

■ Safety Guide

■ Quick Start Guide

CAUTION

*1 All guarantees and warranties are void for any problems or damage caused by a power cable not supplied by iiyama.

An approved power cable greater or equal to H05VVF, 3G, 0.75mm ^4 must be used.

*2 Accessory for G-MASTER G(B)2745QSU, G(B)2755QSU

*3 Accessory for G-MASTER GB2445HSU, GB2745HSU, GB2745QSU, GB2455HSU, GB2755HSU, GB2755QSU

*4 Accessory for G-MASTER G2445HSU, G2745HSU, G2745QSU, G2455HSU, G2755HSU, G2755QSU

USING ARM OR STAND

CAUTION

■ This product is designed for desktop use, not for digital signage (electronic signboard) applications such as ceiling hanging or wall mounting.

■ Before installation, make sure the display arm or desk arm stand is strong enough to hold the necessary weight of the monitor and the mount.

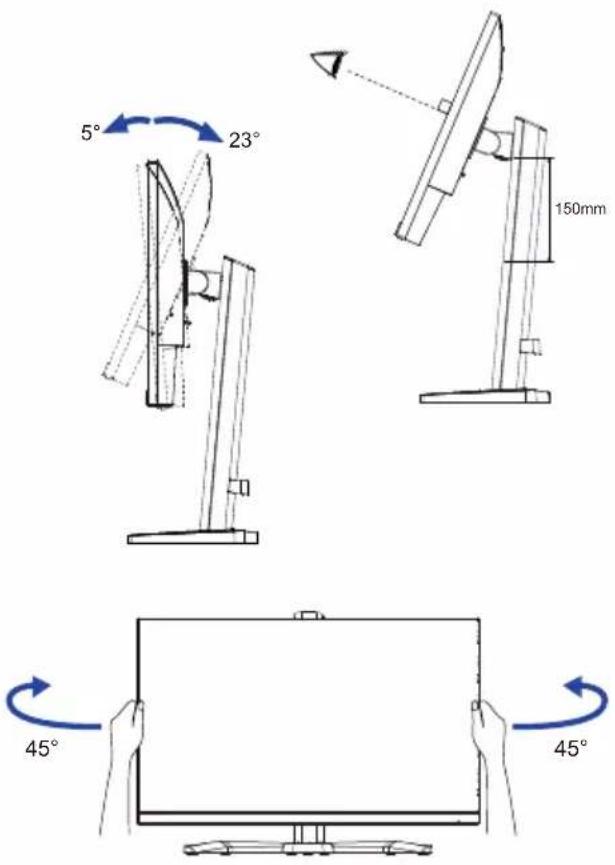

■ Panel angle adjustment range : 23° upward and 5° downward

■ This product cannot be used with the monitor screen facing downward/upward.

5° 23°

< DISPLAY ARM OR DESK ARM STAND >

WARNING

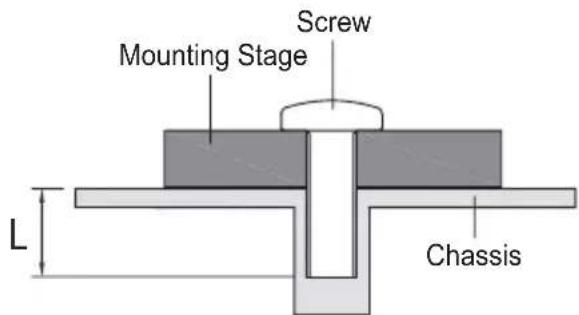

■ When you use with the display arm or desk arm stand, in consideration of thickness of the mounting stage, tighten the M4 Screws (4pcs) which “L” leng fasten the monitor. Using the screw longer than this may cause electric shock or damage because it may contact with the electrical parts inside the monitor.

Mounting Stage Screw L Chassis

• G-MASTER GB2445HSU, GB2745HSU, GB2745QSU, GB2455HSU, GB2755HSU, GB2755QSU

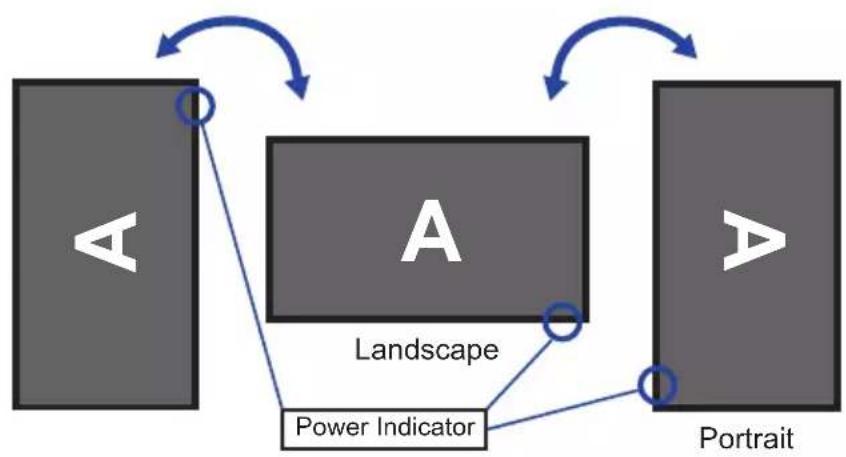

The monitor is designed to be compatible with both landscape and portrait modes.

Video card for portrait display will be required for rotating the image on the screen.

Available

Not Available

Power Indicator A

With Stand:

NOTE

• Adjust the monitor's height before panel rotation.
  ■ Attempting to rotate the panel forcibly without adjusting the stand height may cause damage to the panel or the stand.

• G-MASTER G2445HSU, G2745HSU, G2745QSU, G2455HSU, G2755HSU, G2755QSU

This monitor can only be used in landscape.

Available

A Landscape Power Indicator

Not Available

Power Indicator A A A Power Indicator Portrait

FITTING AND REMOVAL OF STAND : G-MASTER GB2445HSU, GB2745HSU, GB2745QSU, GB2455HSU, GB2755HSU, GB2755QSU

CAUTION

■ Put the monitor on a stable surface. The monitor may cause injury or damage if it falls or is dropped.
■ Do not give a strong impact to the monitor. It may cause damage.
■ Unplug the monitor before removal or installation to avoid an electric shock or a damage.

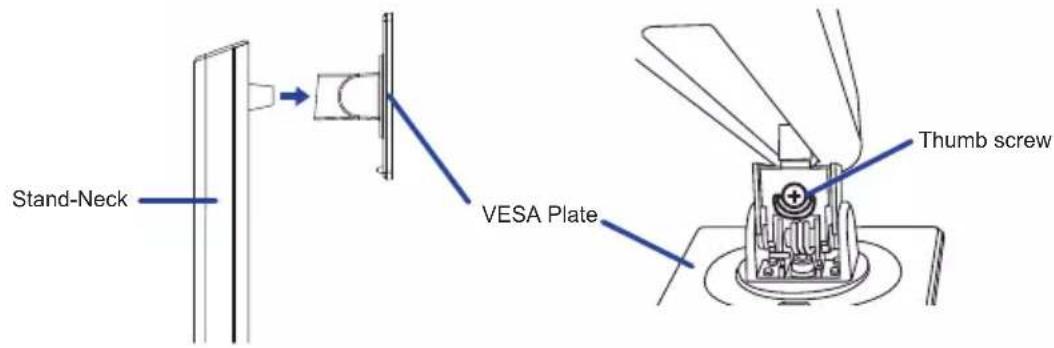

① Attach the Stand-Neck to the VESA Plate and then tighten the 'thumb screw' with the provided screwdriver to secure them.

Stand-Neck VESA Plate Thumb screw

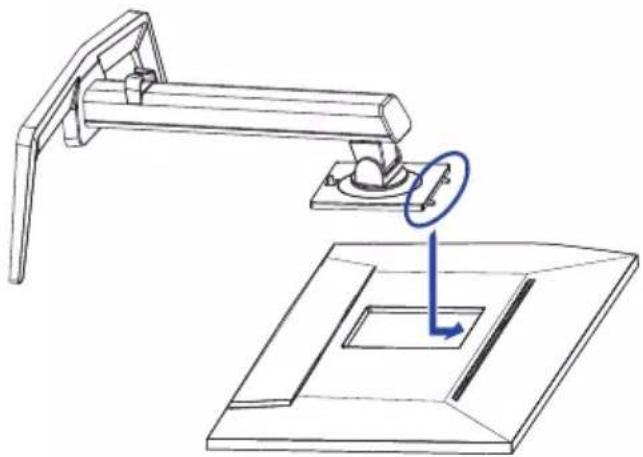

② Install the Stand-Base to the Stand-Neck and then tighten the 'thumb screw' with the provided screwdriver to secure them.

Stand-Neck Stand-Base Thumb screw for Stand-Base

③ Put a piece of soft cloth on the table beforehand to prevent the monitor from being scratched. Lay the monitor flat on a table with front face down.

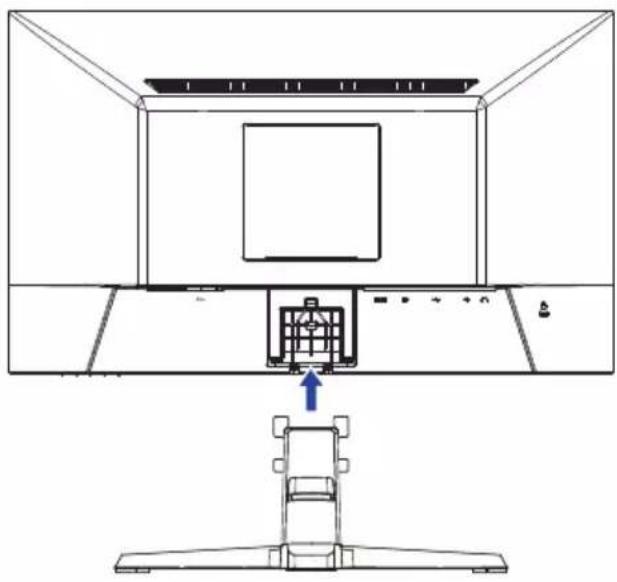

④ Hold the monitor and install the assembled stand to the monitor until it clicks to secure.

Technical line drawing of a mechanical assembly with a lever and base plate (no text or symbols)

① Put a piece of soft cloth on the table beforehand to prevent the monitor from being scratched. Lay the monitor flat on a table with front face down.

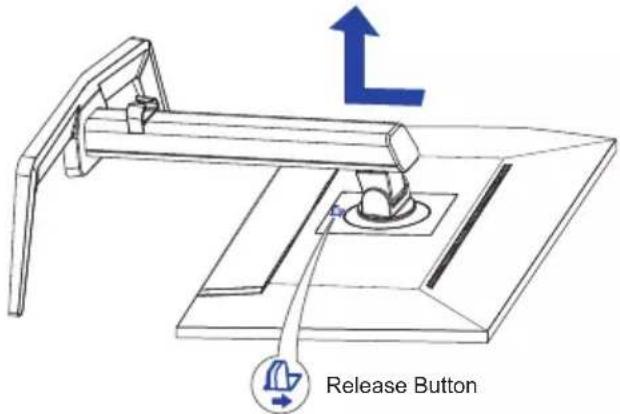

② Press the release button to remove the stand.

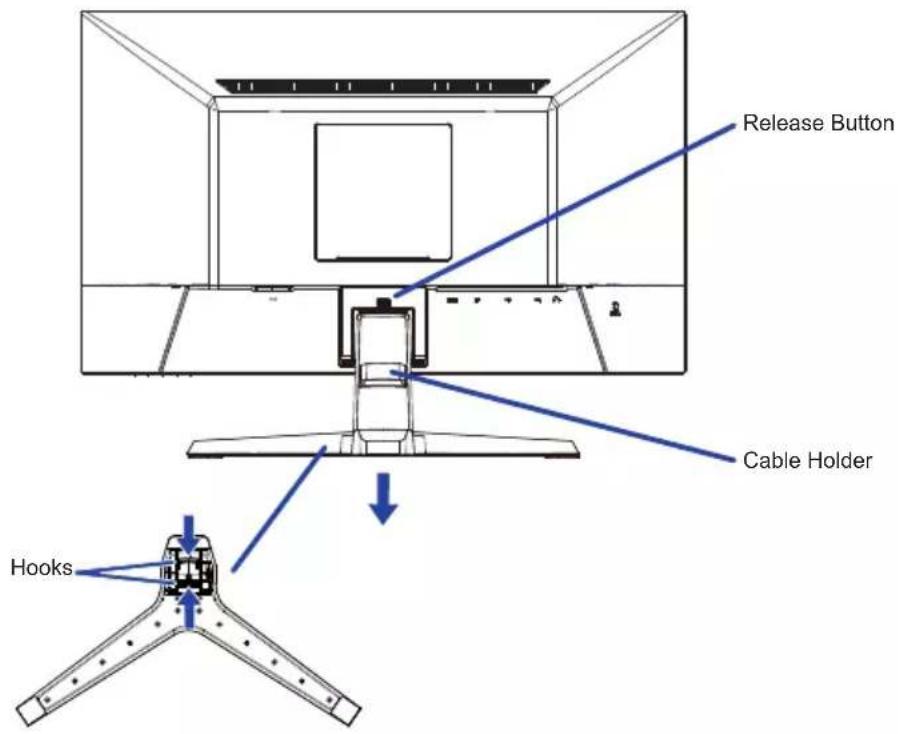

Release Button

③ Loosen the 'thumb screw' with the provided screwdriver to remove the Stand-Neck from the VESA Plate.
④ Loosen the 'thumb screw' with the provided screwdriver to remove the Stand-Base from the Stand-Neck.

FITTING AND REMOVAL OF STAND : G-MASTER G2445HSU, G2745HSU, G2745QSU, G2455HSU, G2755HSU, G2755QSU

CAUTION

■ Put the monitor on a stable surface. The monitor may cause injury or damage if it falls or is dropped.
■ Do not give a strong impact to the monitor. It may cause damage.
■ Unplug the monitor before removal or installation to avoid an electric shock or a damage.

① Combine the Stand-Neck and the Stand-Base.
② Place the Cable Holder.

Cable Holder

Stand-Neck Stand-Base

③ Put a piece of soft cloth on the table beforehand to prevent the monitor from being scratched. Lay the monitor flat on a table with front face down.
④ Hold the monitor and install the assembled stand to the monitor until it clicks to secure.

Technical line drawing of a monitor setup with an elevator shaft and control panel (no text or symbols)

① Put a piece of soft cloth on the table beforehand to prevent the monitor from being scratched. Lay the monitor flat on a table with front face down.
② Keep pressing the Hooks inward to pull out the Stand-Base.
③ Press the release button and remove the Stand-Neck from the monitor.
④ Remove the Cable Holder.

Release Button Cable Holder Hooks

CONTROLS AND CONNECTORS :

G-MASTER GB2445HSU, GB2745HSU, GB2745QSU, GB2455HSU,

GB2755HSU, GB2755QSU

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

① Power Indicator

NOTE normal operation

Orange: Standby Mode

② Power Button (⏻)
③ Menu Button (MENU)
④ Up / Right / Volume Button (▶ / 📋)
⑤ Down / Left / Black Tuner / MBR / AMD FreeSync / Night Mode Button (◀ 1)
⑥ Input Select / Exit Button (INPUT / EXIT)
⑦ Speakers
⑧ Keyhole for Security Lock

NOTE You can fasten a security lock and cable to prevent the monitor from being removed without your permission.

⑨ Headphone Connector ( ∩)
⑩ USB Upstream Connector (
⑪ USB Downstream Connector (USB2.0: 5V, 500mA* ^1 / USB3.2 Gen 1: 5Gbps, 5V, 900mA ^2 )
⑫ USB Downstream Connector (USB2.0: 5V, 500mA* ^1 / USB3.2 Gen 1: 5Gbps, 5V, 900mA ^2 )
⑬ DisplayPort Connector (DP)
⑭ HDMI Connector (HDMI)
⑮ Cable Holder
⑯ AC Connector (\~: Alternating current)

*1 For G-MASTER GB2445HSU, GB2745HSU, GB2455HSU, GB2755HSU

*2 For G-MASTER GB2745QSU, GB2755QSU

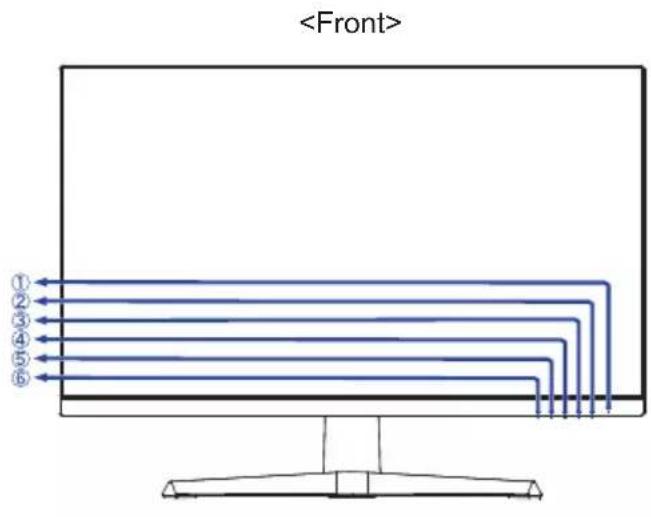

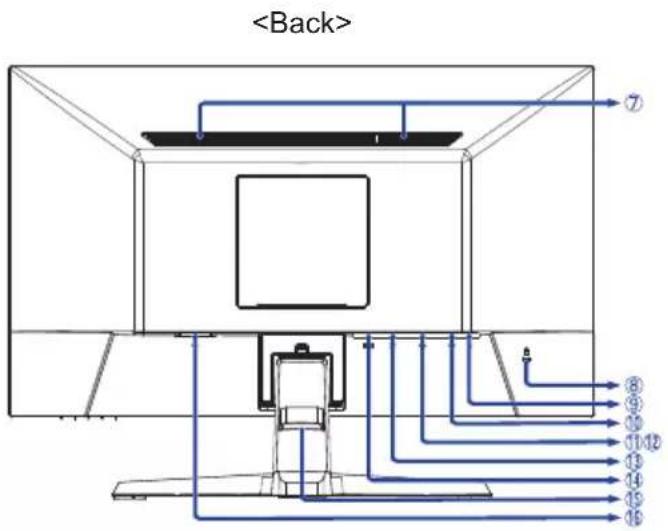

CONTROLS AND CONNECTORS : G-MASTER G2445HSU, G2745HSU, G2745QSU, G2455HSU, G2755HSU, G2755QSU

① ② ③ ④ ⑤ ⑥

① Power Indicator

NOTE normal operation

Orange: Standby Mode

② Power Button (⏻)
③ Menu Button (MENU)
④ Up / Right / Volume Button (▶ / 📋)
⑤ Down / Left / Black Tuner / MBR / AMD FreeSync / Night Mode Button (◀)
⑥ Input Select / Exit Button (INPUT / EXIT)
⑦ Speakers
⑧ Keyhole for Security Lock

NOTE You can fasten a security lock and cable to prevent the monitor from being removed without your permission.

⑨ Headphone Connector ( )
⑩ USB Upstream Connector (
⑪ USB Downstream Connector (USB2.0: 5V, 500mA* ^1 / USB3.2 Gen 1: 5Gbps, 5V, 900mA* ^2 )
⑫ USB Downstream Connector (USB2.0: 5V, 500mA* ^1 / USB3.2 Gen 1: 5Gbps, 5V, 900mA* ^2 )
⑬ DisplayPort Connector (DP)
⑭ HDMI Connector (HDMI)
⑮ Cable Holder
⑯ AC Connector (\~: Alternating current)

*1 For G-MASTER G2445HSU, G2745HSU, G2455HSU, G2755HSU

*2 For G-MASTER G2745QSU, G2755QSU

CONNECTING YOUR MONITOR :

G-MASTER GB2445HSU, GB2745HSU, GB2745QSU, GB2455HSU GB2755HSU, GB2755QSU

① Ensure that both the computer and the monitor are switched off.
② Connect the computer to the monitor with the signal cable.
③ Connect the computer to the monitor with the USB cable.
④ Connect the Power Cable to the monitor first and then to the power source.
⑤ Turn on your monitor and computer.

NOTE

■ Make sure that the building installation has a circuit breaker of 120/240V, 20A (maximum).
■ The signal cables used for connecting the computer and monitor may vary with the type of computer used. An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama office.
■ The Class I pluggable equipment Type A must be connected to protective earth.
■ The socket-outlet shall be installed near the equipment and shall be easily accessible.
■ Excessive sound pressure from ear-/headphones can cause hearing damage/hearing loss.

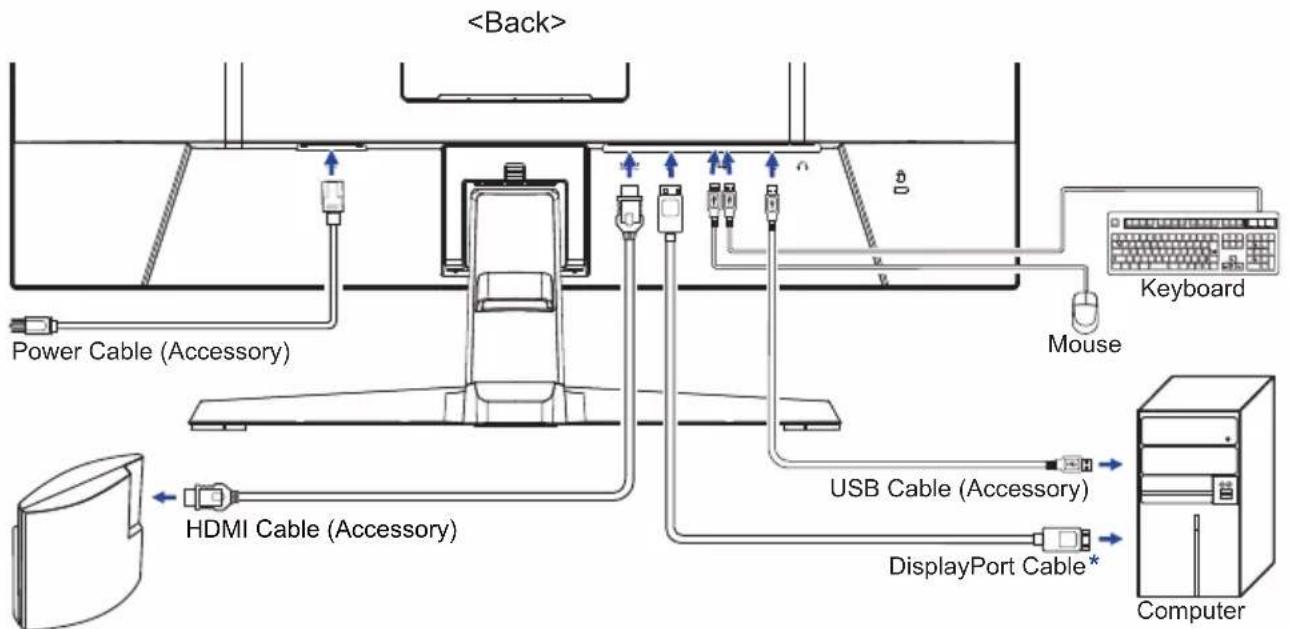

[Example of Connection]

Game Equipment etc.
* Accessory for G-MASTER GB2745QSU and GB2755QSU only

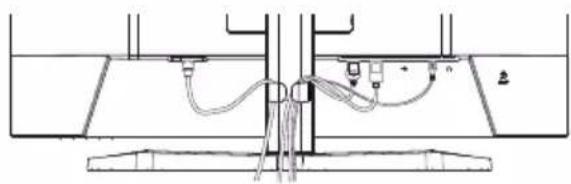

[Collect Cables]

Put the cables through the cable holder to bundle them.

Technical line drawing of a mechanical assembly with no visible text or symbols

CONNECTING YOUR MONITOR : G-MASTER G2445HSU, G2745HSU, G2745QSU, G2455HSU, G2755HSU, G2755QSU

① Ensure that both the computer and the monitor are switched off.
② Connect the computer to the monitor with the signal cable.
③ Connect the computer to the monitor with the USB cable.
④ Connect the Power Cable to the monitor first and then to the power source.
⑤ Turn on your monitor and computer.

NOTE

■ Make sure that the building installation has a circuit breaker of 120/240V, 20A (maximum).
■ The signal cables used for connecting the computer and monitor may vary with the type of computer used. An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama office.
■ The Class I pluggable equipment Type A must be connected to protective earth.
■ The socket-outlet shall be installed near the equipment and shall be easily accessible.
■ Excessive sound pressure from ear-/headphones can cause hearing damage/hearing loss.

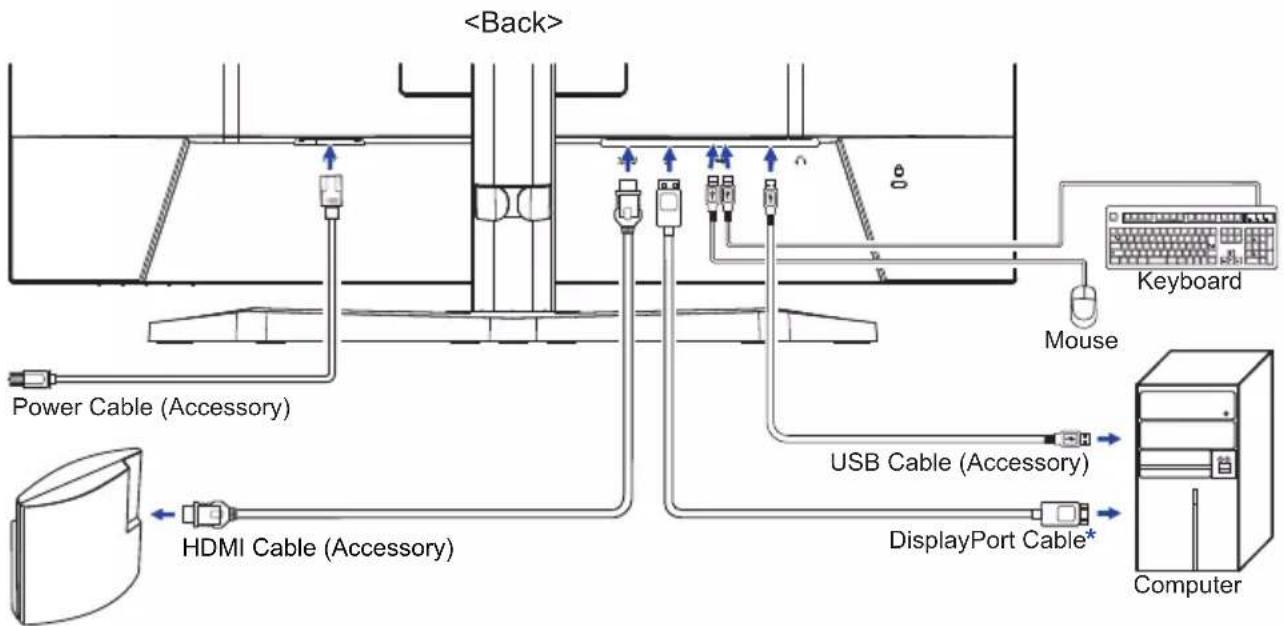

[Example of Connection]

Game Equipment etc.
* Accessory for G-MASTER G2745QSU and G2755QSU only

[Collect Cables]

Put the cables through the cable holder to bundle them.

Technical line drawing of a mechanical assembly with no visible text or symbols

COMPUTER SETTING

■ Signal Timing

Change to the desired signal timing listed on page 41: COMPLIANT TIMING.

ADJUSTING THE HEIGHT AND THE VIEWING ANGLE: G-MASTER GB2445HSU, GB2745HSU, GB2745QSU, GB2455HSU GB2755HSU, GB2755QSU

■ For optimal viewing it is recommended to position yourself directly opposite to the full face of the monitor, then adjust the monitor's height and angle to your own preference.
- Hold the panel so that the monitor does not topple when you change the monitor's height or angle.
- You are able to adjust the monitor's height up to 150mm, angle up to 45° right and left, 23° upward and 5° downward.

NOTE

■ Do not touch the LCD screen when you change the height or the angle. It may cause damage or break the LCD screen.
■ Careful attention is required not to pinch your fingers or hands into the moving part of the stand when you change the height or the angle.
■ Injury can occur if care is not taken to avoid finger contact with the displays base when adjusting the height.

Stand-Base

ADJUSTING THE VIEWING ANGLE : G-MASTER G2445HSU, G2745HSU, G2745QSU, G2455HSU, G2755HSU, G2755QSU

■ For optimal viewing it is recommended to look at the full face of the monitor.
- Hold the stand so that the monitor does not topple when you change the monitor's angle.
- You are able to adjust the monitor's angle up to 22^ upward, 4^ downward.
In order to ensure a healthy and relaxed body position when using the monitor at visual display workstations, it is recommended that the adjusted tilt angle should not exceed 10^ . Adjust the monitor's angle to your own preference.

NOTE

■ Do not touch the LCD screen when you change the angle. It may cause damage or break the LCD screen.
■ Careful attention is required not to pinch your fingers or hands into the moving part of the stand when you change the angle.

Simple line drawing of a computer monitor with an arrow pointing to the screen (no text or symbols)

4° 22°

To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 41. You are also able to adjust the picture by following the button operation shown below.

① Press the MENU Button to start the On Screen Display (OSD) feature. There are additional Menu items which can be switched by using the ◀ Buttons.

Toolbar with application icons including camera, speaker, hand gesture, globe, calendar, and timer

② Select the Menu item which contains the adjustment icon relating to the adjustment you want to make. Press the MENU Button. Then, use the ◀ ► Buttons to highlight the desired adjustment icon.
③ Press the MENU Button again. Use the ◀ Buttons to make the appropriate adjustment or setting.
④ Press the EXIT Button to leave the menu, and the settings you just made would be automatically saved.

For example, to correct for OSD vertical position, select Menu item of "Setup Menu" and press the MENU Button. Then, select "OSD Vertical Position" by using the ▶ Buttons and press the MENU Button. Use the ▶ Buttons to change the OSD vertical position settings. The OSD vertical position should be changing accordingly while you are doing this.

G-MASTER G-MASTER GB2445HSU PICTURE ADJUST INPUT SELECT AUDIO SETTINGS STORE USER SETTING COLOR SETTINGS IMAGE ADJUST LANGUAGE SETUP MENU DISPLAY INFORMATION RECALL SETUP MENU OSD HORIZONTAL POSITION OSD VERTICAL POSITION OSD ROTATE OSD TIME OPENING LOGO ON OFF LED ON OFF

When you press the EXIT Button to end the adjustment, all changes are saved in the memory.

NOTE

■ When button operations are aborted during adjustment, On Screen Display disappears when the time set for the "OSD Time" has passed. Also, the EXIT Button can be used to return previous menu and turn off the On Screen Display.
■ Any changes are automatically saved in the memory when the On Screen Display disappears. Turning off the power should be avoided while using the Menu.

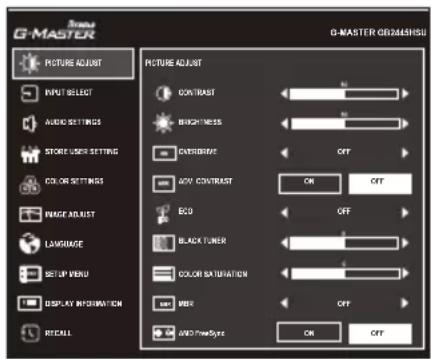

ADJUSTMENT MENU CONTENTS

Picture Adjust *^1

G-MASTER G-MASTER GEO/ASHSU PIKTURE ADJUST INPUT SELECT AUDIO SETTINGS STORE USER SETTING COLOR SETTINGS IMAGE ADJUST LANGUAGE SETUP MENU DISPLAY INFORMATION RECALL PIKTURE ADJUST CONTRAST BEETHNESS DUSTRIENCE AVIY CONTRAST ECO BLACK TUNER COLOR SATURATION MIX AND/TreeSyre ON OFF ON OFF ON OFF

Adjustment Item Problem	/ Option	Button to Press
Contrast	Too dullToo intense
Brightness ^*2	Too darkToo bright
Overdrive	Off / 1 / 2 / 3 / 4 / 5Improves the gray level response time of the LCD panel.A higher level results in a faster response time.
Adv. Contrast	On	Increased Contrast Ratio
	Off	Typical Contrast Ratio
EcoDirect	Off Normal
	Mode 1	Brightness of back-light is reduced.
		Brightness of back-light is reduced more than Mode 1.M
		Brightness of back-light is reduced more than Mode 2.M
Black TunerDirect	From -5 to +5You can adjust Dark shades.
Color Saturation	Too weakToo strong
MBR ^*3 Direct	Off / 1 / 2 / 3 / 4 / 5 / 6 / 7Reduces motion blur on the LCD panel.
AMD FreeSyncDirect	On Activates the FreeSync function.
	Off	The FreeSync function is turned off.

*1 Adjustments and settings may not be possible due to other items that are enabled. See the "Function Correlation Matrix" on the next page for more details.
*2 Adjust the Brightness when you are using the monitor in a dark room and feel the screen is too bright. There is also a “Night Mode” function that allows you to adjust the brightness in 3 levels according to your preference. See page 28.
*3 Disabled when “AMD FreeSync” is activated. Available when the refresh rate is 75Hz or higher. 100Hz is recommended.

Direct

You can skip the Menu items and directly display an option setting screen by using the following button operations.

• Eco : Press the i Button for 3 seconds while no Menu is displayed.
• Black Tuner / MBR / AMD FreeSync : Press the i Button while no Menu is displayed and select the appropriate menu.

■ Function Correlation Matrix

Active itemSelected item	Picture Adjust Color Settings Image Adjust
	Adv.Contrast	Eco MBR Blue	Light Reducer	i-Style Color
				StandardSport GameFPS GameStrategy GameText
Contrast	–	√	√√		–
Brightness	– – –			√	–
Overdrive	√	√	–	√	–
Adv. Contrast		√	– – –
Eco	√		– – –
Black Tuner	√	√	–	√	–
MBR	– – – –
AMD FreeSync	√√	√√	√

√ : Available
- : Not available

Input SelectDirect
Adjustment Item	Option
Input Source	Auto	Searches for an available input source and selects automatically.
	Manual	HDMI	Selects the Digital (HDMI) input.
		DisplayPort(DP)	Selects the Digital (DisplayPort) input.
NOTE “Auto” function enables automatic selection of the input sources available.The input source from the computer in standby mode can not be selected.If you manually select one of the input sources, the other source is not automatically selected.

Direct

You can skip the Menu items and directly display an option setting screen by using the following button operations.

- Input Select : Press the INPUT Button while no Menu is displayed.

SELECT INPUT SOURCE AUTO HDMI DP

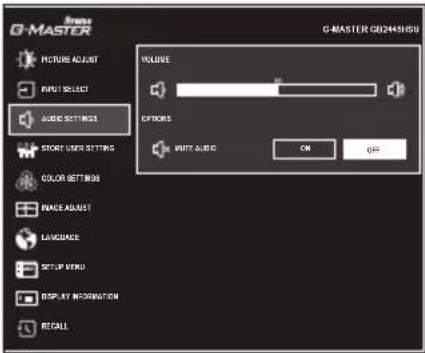

Audio Settings
Adjustment Item Problem / Option Button to Press
Volume Direct	Too soft Too loud
Mute Audio Direct	On	Turns off the sound temporarily.
	Off	Returns the sound volume to the previous level.

Direct

You can skip the Menu items and directly display an option setting screen by using the following button operations.

● Volume : Press the Button while no Menu is displayed.
● Mute Audio : Press the Button for 3 seconds while no Menu is displayed.

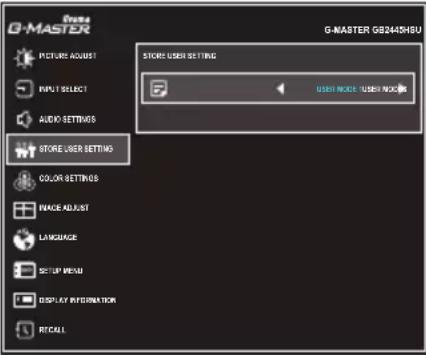

Store User Setting
Adjustment Item Option
User Modes		Saves the settings of the screen adjustment. User Mode 1
		Saves the settings of the screen adjustment. User Mode 2
		Saves the settings of the screen adjustment. User Mode 3
NOTE The monitor memorizes your customized settings below. Those settings can be invoked from “i-Style Color” menu of “Image Adjust” later. Contrast, Brightness, Overdrive, Adv. Contrast, Eco, Black Tuner, Color Saturation, Volume, Mute Audio, Gamma, Color Temperature, User Preset, Sharp and Soft, Video Mode Adjust

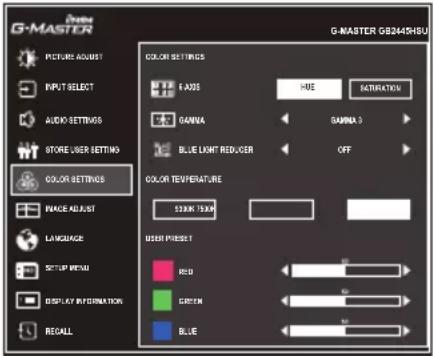

Color Settings

G-MASTER G-MASTER GS2445HSU PICTURE ADJUST INPUT SELECT AUDIO SETTINGS STORE USER SETTING COLOR SETTINGS IMAGE ADJUST LANGUAGE SETUP MENU DISPLAY INFORMATION RECALL COLOR SETTINGS FAXES HUE SATURATION GANNA SARMA 3 BLUE LIGHT REDUCER OFF COLOR TEMPERATURE $300/750M USER PRESET RED GREEN BLUE

Adjustment Item Problem	/ Option		Button to Press
6-Axis *	Hue	Red	Too weak Too strong
		Yellow
		Green
		Cyan
		Blue
		Magenta
	Saturation	Red	Too weak Too strong
		Yellow
		Green
		Cyan
		Blue
		Magenta
Gamma	Gamma 1
	Gamma 2
	Gamma 3
Blue Light Reducer *	Off	Typical
	Mode 1	Blue light is reduced.
	Mode 2	Blue light is reduced more than Mode 1.
	Mode 3	Blue light is reduced more than Mode 2.
Color Temperature	9300K	Cool color
	7500K	Normal color
	6500K	Warm color
User Preset	Red	Too weak Too strong
	Green
	Blue

* Disabled when "i-Style Color" is activated.

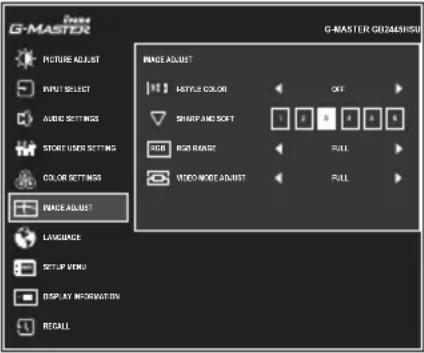

Image Adjust
Adjustment Item Option	Button to Press
i-Style Color *1	Off	The i-Style Color function is turned off.
	Standard	For general windows environment and monitor default setting
	Sport Game	For Sports game environment
	FPS Game	For FPS game environment
	Strategy Game	For Strategy game environment
	Text	For text editing and viewing in a word processing environment
	User Mode 1	Applies customized monitor settings.
	User Mode 2	Applies customized monitor settings.
	User Mode 3	Applies customized monitor settings.
Sharp and Soft	1 2 3 4 5 6You can change the picture quality from 1 to 6 (sharp to soft). Press the ▶ Button to change the picture quality in numerical order. Press the ◀ Button to change the picture quality in reverse numerical order.
RGB Range	Auto	Automatically selects color scale signal.
	Full	For full-range color scale signal
	Limited For limited color scale signal
Video Mode Adjust	Full	Expansion display
	Aspect *2	Expansion display of Aspect

*1 Disabled when "Blue Light Reducer" is activated.
*2 Disabled with 16:9 resolution.

Language

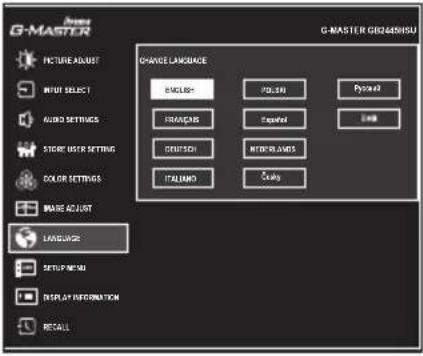

G-MASTER GIS248MISU G-MASTER GIS248MISU CHANGE LANGUAGE ENGLISH POLD RICHEN FRAZARE TOMATO SUSKM ITALIANO SCALE WRITE WRITE SELECT AUDIO SETTINGS STORE USER SETTING COLOR SETTINGS WRITE INSERT LANGUAGE SETUP MENU DISPLAY INFORMATION RETAIL

Adjustment Item Option
Language	English	English		Español	Spanish
	Français	French		Nederlands Dutch
	Deutsch	German		Česky	Czech
	Italiano	Italian		Русский	Russian
	Polski	Polish		日本語	Japanese

Setup Menu
Adjustment Item Problem	m / Option	Button to Press
OSD Horizontal Position	OSD is too leftOSD is too right
OSD Vertical Position	OSD is too highOSD is too low
OSD Rotate *	Rotates the OSD.0° (Normal) / +90° (Rotate right) / -90° (Rotate left)
OSD Time	You can set the OSD display duration time between 5 and 30 seconds.
Opening Logo	On	G-MASTER Logo is displayed when the monitor is turned on.
	Off	G-MASTER Logo is not displayed when the monitor is turned on.
LED	On	The Power Indicator is turned On.
	Off	The Power Indicator is turned Off.
NOTE Turn Off the Power Indicator when you are bothered by the light.

* For G-MASTER GB2445HSU, GB2745HSU, GB2745QSU, GB2455HSU, GB2755HSU, GB2755QSU

Display Information

G-MASTER GS2445HBU FUTURE ADJUST INPUT SELECT AUDIO SETT WAS STORE USER SETTINGS COLOR SETTINGS WAGE ADJUST LANGUAGE SETUP VIEW DISPLAY INFORMATION RECALL DISPLAY INFORMATION 100 x 100 GHz DP G-MASTER GS2445HBU

Displays information regarding the current input signal coming from the graphic card in your computer.

See your graphic card user guide for more information about changing the resolution and refresh.

Recall

G-MASTER GE246HSU FIGURE ADDRESS INPUT SELECT AUDIO SETT MRS STORE USER SETTING COLOR SETTINGS WAGE ADJUST LANGUAGE SETUP VIEW DISPLAY INFORMATION RECALL RECALL ALL? RECALL

Adjustment Item Option

Recall

Factory-preset data is restored.

Direct

● Night Mode : Press the i Button while no Menu is displayed and select the appropriate menu.

Adjustment Item Option
Night Mode		Off Normal
		Mode 1	Brightness is reduced.
		Mode 2	Brightness is reduced more than Mode 1.
		Mode 3	Brightness is reduced more than Mode 2.

- Lock Mode

1. The OSD lock will be activated by pressing the MENU Button for 10 seconds. If you try to access the OSD by pressing any of the buttons, message "OSD LOCKED" will appear on the screen.
2. The OSD lock will be deactivated by pressing the MENU Button again for 10 seconds.

1. The Power Button lock will be activated by pressing the EXIT Button for 10 seconds. Locking the Power Button means that won't be able to turn off the Monitor while the Power Button is locked. If you press the Power Button, message "POWER BUTTON LOCKED" will appear on the screen.
2. The Power Button lock will be deactivated by pressing the EXIT Button again for 10 seconds.

STANDBY FEATURE

This product features the standby function. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use.

There is a standby step the monitor takes as described below. The standby function, including any timer settings is configured by the operating system. Check your operating system manual for information on how this can be configured.

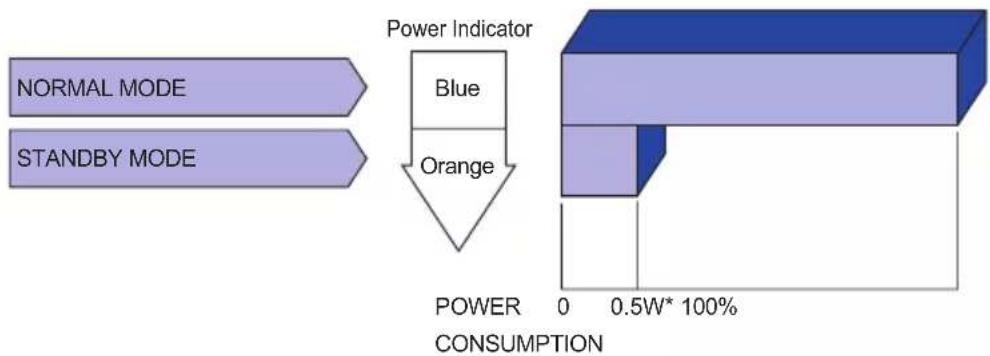

■ Standby Mode

When the video signal from the computer is off, the monitor enters into Standby Mode which reduces the power consumption to less than 0.5W*. The screen becomes dark, and the power indicator turns to orange. From Standby Mode, the image reappears in several seconds when either the keyboard or the mouse are touched again.

* When the USB devices are not connected.

TROUBLE SHOOTING

If the monitor fails to operate correctly, please follow the steps below for a possible solution.

1. Perform the adjustments described in OPERATING THE MONITOR, depending on the problem you have. If the monitor does not get a picture, skip to 2.
2. Consult the following items if you cannot find an appropriate adjustment item in OPERATING THE MONITOR or if the problem persists.
3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance.

Problem Check

① The picture does not appear.

(Power indicator □The Power Cable is firmly seated in the socket.
does not light □The Power Button is turned ON.
up.) □The AC socket is live. Please check with another piece of equipment.
(Power indicator □ If the blank screen saver is in active mode, touch the keyboard or the mouse.
is blue.) □ Increase the Contrast and/or Brightness.
□ The computer is ON.
☐ The Signal Cable is properly connected.
☐ The signal timing of the computer is within the specification of the monitor.

(Power indicator □ If the monitor is in standby mode, touch the keyboard or the mouse.

□ The computer is ON.

☐ The Signal Cable is properly connected.

☐ The signal timing of the computer is within the specification of the monitor.

② The screen is not □The Signal Cable is properly connected.
synchronized. □ The signal timing of the computer is within the specification of the monitor.

③ The screen position is not in the center. □ The signal timing of the computer is within the specification of the monitor.

④ The screen is too bright or too dark. □The video output level of the computer is within the specification of the monitor.

⑤ The screen is □The power voltage is within the specification of the monitor.

☐ The signal timing of the computer is within the specification of the monitor.

shaking. □ The signal timing of the computer is within the specification of the monitor.

⑥ No sound. □ The audio equipment (computer etc.) is ON.

□The Volume is turned up.

□The Mute is OFF.

☐ The audio output level of the audio equipment is within the specification of the monitor.

⑦ The sound is too loud or too quiet. □The audio output level of the audio equipment is within the specification of the monitor.

RECYCLING INFORMATION

For better environment protection please don't dispose your monitor.

Please visit our web site: https://iiyama.com for monitor recycling.

APPENDIX

Design and specifications are subject to change without prior notice.

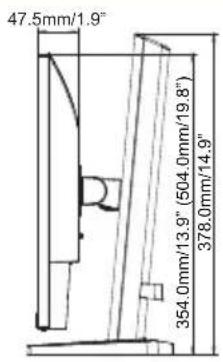

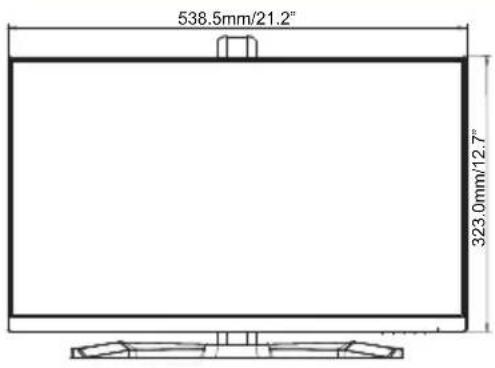

SPECIFICATIONS : G-MASTER GB2445HSU-B1, G-MASTER GB2455HSU-B1

			G-MASTER GB2445HSU-B1 G-MASTER GB2455HSU-B1
Size Category 24"
LCD Panel	Panel technology		IPS (In-Plane-Switching) VA
	Size Diagonal: 23.8" (60.5cm)
	Pixel pitch 0.275mm H × 0.275mm V
	Brightness		250cd/m2 (Typical)
			160cd/m2 (Default / Energy Saving)	155cd/m2 (Default / Energy Saving)
	Contrast ratio		1300 : 1 (Typical) 4000 : 1 (Typical)
			Adv. Contrast Function Available
	Viewable angle		Right / Left: 89 degrees each, Up / Down: 89 degrees each (Typical)
	MPRT 1ms
Display Colors Approx. 16.7M
Sync Frequency		HDMI	FreeSync-On: Horizontal: 30.0-110.0kHz, Vertical: 48-100HzFreeSync-Off: Horizontal: 30.0-110.0kHz, Vertical: 55-100Hz
		DisplayPort	FreeSync-On: Horizontal: 110.0kHz, Vertical: 48-100HzFreeSync-Off: Horizontal: 30.0-110.0kHz, Vertical: 55-100Hz
Native Resolution 1920 × 1080, 2.1 MegaPixels
Support Max. Resolution 1920 × 1080 100Hz
Input Connector HDMI ×1, DisplayPort ×1
Input Video Signal HDMI, DisplayPort
USB Standard			USB2.0 (DC5V, 500mA)
Number of USB Ports Connector Shape			1 Upstream: Type-B2 Downstream: Type-A
Headphone Connector			ø 3.5mm mini jack (Stereo)
Speakers			2W × 2 (Stereo speakers)
Maximum Screen Size			527.0mm W × 296.5mm H / 20.7" W × 11.7" H
Power Source 100-240VAC, 50/60Hz, 1.5A
Power Consumption			18W typical *	19W typical *
			Standby mode: 0.5W maximum, Off mode: 0.3W maximum
Dimensions			538.5 × 354.0 - 504.0 × 171.0mm / 21.2 × 13.9 - 19.8 × 6.7" (W×H×D)
Net Weight			4.4kg / 9.7lbs	4.3kg / 9.5lbs
Height Adjustment Range			150mm
Angle			Tilt: Upward: 23 degrees, Downward: 5 degreesSwivel: Left / Right: 45 degrees eachRotation: Clockwise / Counterclockwise: 90 degrees each
Environmental Considerations			Operating: Temperature 5 to 35°C / 41 to 95°FHumidity 10 to 90% (No condensation)Storage: Temperature -20 to 60°C / -4 to 140°FHumidity 10 to 90% (No condensation)
Approvals			CE, UKCA, TÜV-Bauart, EAC, VCCI, PSE

NOTE

* When the USB devices are not connected.

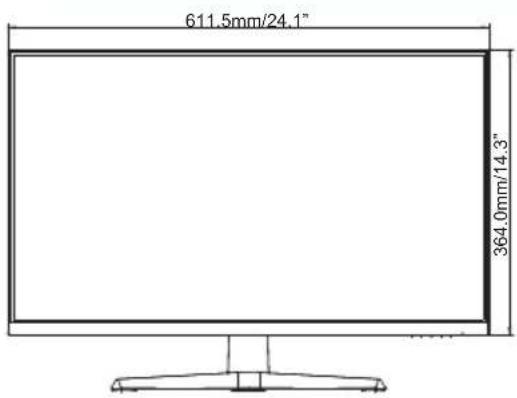

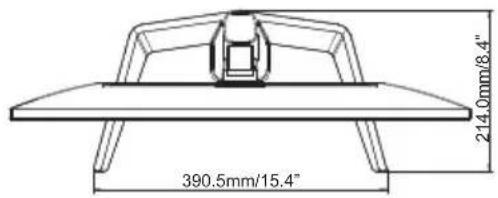

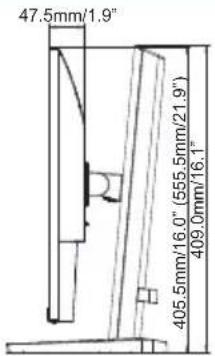

			G-MASTER GB2745HSU-B1 G-MASTER GB2755HSU-B1
Size Category 27"
LCD Panel	Panel technology		IPS (In-Plane-Switching) VA
	Size Diagonal: 27" (68.5cm)
	Pixel pitch 0.311mm H × 0.311mm V
	Brightness		250cd/m2 (Typical)
			170cd/m2 (Default / Energy Saving)	160cd/m2 (Default / Energy Saving)
	Contrast ratio		1000 : 1 (Typical) 4000 : 1 (Typical)
			Adv. Contrast Function Available
	Viewable angle		Right / Left: 89 degrees each, Up / Down: 89 degrees each (Typical)
	MPRT 1ms
Display Colors Approx. 16.7M
Sync Frequency		HDMI	FreeSync-On: Horizontal: 30.0-110.0kHz, Vertical: 48-100HzFreeSync-Off: Horizontal: 30.0-110.0kHz, Vertical: 55-100Hz
		DisplayPort	FreeSync-On: Horizontal: 110.0kHz, Vertical: 48-100HzFreeSync-Off: Horizontal: 30.0-110.0kHz, Vertical: 55-100Hz
Native Resolution 1920 ×			1080, 2.1 MegaPixels
Support Max. Resolution			1920 × 1080 100Hz
Input Connector HDMI ×1			DisplayPort ×1
Input Video Signal HDMI,			DisplayPort
USB Standard USB2.0 (DC5V, 500mA)
Number of USB Ports Connector Shape			1 Upstream: Type-B2 Downstream: Type-A
Headphone Connector ø			3.5mm mini jack (Stereo)
Speakers 2W × 2 (Stereo speakers)
Maximum Screen Size			596.7mm W × 335.7mm H /23.5" W × 13.2" H	597.9mm W × 336.3mm H /23.5" W × 13.2" H
Power Source 100-240VAC, 50/60Hz, 1.5A
Power Consumption			22W typical * 21W typical *
			Standby mode: 0.5W maximum, Off mode: 0.3W maximum
Dimensions			611.5 × 405.5 - 555.5 × 214.0mm /24.1 × 16.0 - 21.9 × 8.4" (W×H×D)	613.5 × 405.5 - 555.5 × 214.0mm /24.2 × 16.0 - 21.9 × 8.4" (W×H×D)
Net Weight			5.2kg / 11.5lbs	5.1kg / 11.2lbs
Height Adjustment Range			150mm
Angle			Tilt: Upward: 23 degrees, Downward: 5 degreesSwivel: Left / Right: 45 degrees eachRotation: Clockwise / Counterclockwise: 90 degrees each
Environmental Considerations			Operating: Temperature 5 to 35°C / 41 to 95°FHumidity 10 to 90% (No condensation)Storage: Temperature -20 to 60°C / -4 to 140°FHumidity 10 to 90% (No condensation)
Approvals			CE, UKCA, TÜV-Bauart, EAC, VCCI, PSE

NOTE

* When the USB devices are not connected.

			G-MASTER GB2745QSU-B1 G-MASTER GB2755QSU-B1
Size Category 27"
LCD Panel	Panel technology		IPS (In-Plane-Switching) VA
	Size Diagonal: 27" (68.5cm)
	Pixel pitch 0.233mm H × 0.233mm V
	Brightness 250cd/m ^2 (Typical), 165cd/m ^2 (Default / Energy Saving)
	Contrast ratio		1300 : 1 (Typical) 4000 : 1 (Typical)
			Adv. Contrast Function Available
	Viewable angle		Right / Left: 89 degrees each, Up / Down: 89 degrees each (Typical)
	MPRT 1ms
Display Colors Approx. 16.7M
Sync Frequency		HDMI	FreeSync-On: Horizontal: 30.0-151.0kHz, Vertical: 48-100HzFreeSync-Off: Horizontal: 30.0-151.0kHz, Vertical: 55-100Hz
		DisplayPort	FreeSync-On: Horizontal: 151.0kHz, Vertical: 48-100HzFreeSync-Off: Horizontal: 30.0-151.0kHz, Vertical: 55-100Hz
Native Resolution 2560 ×			1440, 3.7 MegaPixels
Support Max. Resolution			2560 × 1440 100Hz
Input Connector HDMI ×1			, DisplayPort ×1
Input Video Signal HDMI,			DisplayPort
USB Standard USB3.2 Gen 1 (5Gbps, DC5V, 900mA)
Number of USB Ports Connector Shape			1 Upstream: Type-B2 Downstream: Type-A
Headphone Connector ø			3.5mm mini jack (Stereo)
Speakers 2W × 2 (Stereo			speakers)
Maximum Screen Size			596.7mm W × 335.7mm H / 23.5" W × 13.2" H
Power Source 100-240VAC, 50/60Hz, 1.5A
Power Consumption			21W typical *	24W typical *
			Standby mode: 0.5W maximum, Off mode: 0.3W maximum
Dimensions			611.5 × 405.5 - 555.5 × 214.0mm / 24.1 × 16.0 - 21.9 × 8.4" (W×H×D)	613.5 × 405.5 - 555.5 × 214.0mm / 24.2 × 16.0 - 21.9 × 8.4" (W×H×D)
Net Weight			5.5kg / 12.1lbs	5.4kg / 11.9lbs
Height Adjustment Range			150mm
Angle			Tilt: Upward: 23 degrees, Downward: 5 degreesSwivel: Left / Right: 45 degrees eachRotation: Clockwise / Counterclockwise: 90 degrees each
Environmental Considerations			Operating: Temperature 5 to 35°C / 41 to 95°FHumidity 10 to 90% (No condensation)Storage: Temperature -20 to 60°C / -4 to 140°FHumidity 10 to 90% (No condensation)
Approvals			CE, UKCA, TÜV-Bauart, EAC, VCCI, PSE

NOTE

* When the USB devices are not connected.

			G-MASTER G2445HSU-B1 G-MASTER G2455HSU-B1
Size Category 24"
LCD Panel	Panel technology		IPS (In-Plane-Switching) VA
	Size Diagonal: 23.8" (60.5cm)
	Pixel pitch 0.275mm H × 0.275mm V
	Brightness		250cd/m2 (Typical)
			160cd/m2 (Default / Energy Saving)	155cd/m2 (Default / Energy Saving)
	Contrast ratio		1300 : 1 (Typical) 4000 : 1 (Typical)
			Adv. Contrast Function Available
	Viewable angle		Right / Left: 89 degrees each, Up / Down: 89 degrees each (Typical)
	MPRT 1ms
Display Colors Approx. 16			7M
Sync Frequency		HDMI	FreeSync-On: Horizontal: 30.0-110.0kHz, Vertical: 48-100HzFreeSync-Off: Horizontal: 30.0-110.0kHz, Vertical: 55-100Hz
		DisplayPort	FreeSync-On: Horizontal: 110.0kHz, Vertical: 48-100HzFreeSync-Off: Horizontal: 30.0-110.0kHz, Vertical: 55-100Hz
Native Resolution 1920 × 1080, 2.1 MegaPixels
Support Max. Resolution 1920 × 1080 100Hz
Input Connector HDMI ×1, DisplayPort ×1
Input Video Signal HDMI, DisplayPort
USB Standard USB2.0 (DC5V, 500mA)
Number of USB Ports Connector Shape			1 Upstream: Type-B2 Downstream: Type-A
Headphone Connector			ø 3.5mm mini jack (Stereo)
Speakers			2W × 2 (Stereo speakers)
Maximum Screen Size			527.0mm W × 296.5mm H / 20.7" W × 11.7" H
Power Source 100-240VAC, 50/60Hz, 1.5A
Power Consumption			18W typical *	19W typical *
			Standby mode: 0.5W maximum, Off mode: 0.3W maximum
Dimensions			538.5 × 397.0 × 192.5mm / 21.2 × 15.6 × 7.6" (W×H×D)
Net Weight			3.0kg / 6.6lbs	3.0kg / 6.6lbs
Tilt Angle			Upward: 22 degrees, Downward: 4 degrees
Environmental Considerations			Operating: Temperature Humidity 5 to 35°C / 41 to 95°FStorage: Temperature -20 to 60°C / -4 to 140°FHumidity 10 to 90% (No condensation)
Approvals			CE, UKCA, TÜV-Bauart, EAC, VCCI, PSE

NOTE

* When the USB devices are not connected.

			G-MASTER G2745HSU-B1 G-MASTER G2755HSU-B1
Size Category 27"
LCD Panel	Panel technology		IPS (In-Plane-Switching) VA
	Size Diagonal: 27" (68.5cm)
	Pixel pitch 0.311mm H × 0.311mm V
	Brightness		250cd/m2 (Typical)
			170cd/m2 (Default / Energy Saving)	160cd/m2 (Default / Energy Saving)
	Contrast ratio		1000 : 1 (Typical) 4000 : 1 (Typical)
			Adv. Contrast Function Available
	Viewable angle		Right / Left: 89 degrees each, Up / Down: 89 degrees each (Typical)
	MPRT 1ms
Display Colors Approx. 16.7M
Sync Frequency		HDMI	FreeSync-On: Horizontal: 30.0-110.0kHz, Vertical: 48-100HzFreeSync-Off: Horizontal: 30.0-110.0kHz, Vertical: 55-100Hz
		DisplayPort	FreeSync-On: Horizontal: 110.0kHz, Vertical: 48-100HzFreeSync-Off: Horizontal: 30.0-110.0kHz, Vertical: 55-100Hz
Native Resolution 1920 ×			1080, 2.1 MegaPixels
Support Max. Resolution			1920 × 1080 100Hz
Input Connector HDMI ×1			, DisplayPort ×1
Input Video Signal HDMI,			DisplayPort
USB Standard USB2.0 (D)			C5V, 500mA)
Number of USB Ports Connector Shape			1 Upstream: Type-B2 Downstream: Type-A
Headphone Connector ø			3.5mm mini jack (Stereo)
Speakers 2W × 2 (Stereo)			speakers)
Maximum Screen Size			596.7mm W × 335.7mm H /23.5" W × 13.2" H	597.9mm W × 336.3mm H /23.5" W × 13.2" H
Power Source 100-240VAC, 50/60Hz, 1.5A
Power Consumption			22W typical *	21W typical *
			Standby mode: 0.5W maximum, Off mode: 0.3W maximum
Dimensions			611.5 × 434.0 × 192.5mm /24.1 × 17.1 × 7.6" (W×H×D)	613.5 × 434.0 × 192.5mm /24.2 × 17.1 × 7.6" (W×H×D)
Net Weight			3.9kg / 8.6lbs	3.7kg / 8.2lbs
Tilt Angle			Upward: 22 degrees, Downward: 4 degrees
Environmental Considerations			Operating: Temperature 5 to 35°C / 41 to 95°FHumidity 10 to 90% (No condensation)Storage: Temperature -20 to 60°C / -4 to 140°FHumidity 10 to 90% (No condensation)
Approvals			CE, UKCA, TÜV-Bauart, EAC, VCCI, PSE

NOTE

* When the USB devices are not connected.

			G-MASTER G2745QSU-B1 G-MASTER G2755QSU-B1
Size Category 27"
LCD Panel	Panel technology		IPS (In-Plane-Switching) VA
	Size Diagonal: 27" (68.5cm)
	Pixel pitch 0.233mm H × 0.233mm V
	Brightness 250cd/m ^2 (Typical), 165cd/m ^2 (Default / Energy Saving)
	Contrast ratio		1300 : 1 (Typical) 4000 : 1 (Typical)
			Adv. Contrast Function Available
	Viewable angle		Right / Left: 89 degrees each, Up / Down: 89 degrees each (Typical)
	MPRT 1ms
Display Colors Approx. 16.7M
Sync Frequency		HDMI	FreeSync-On: Horizontal: 30.0-151.0kHz, Vertical: 48-100HzFreeSync-Off: Horizontal: 30.0-151.0kHz, Vertical: 55-100Hz
		DisplayPort	FreeSync-On: Horizontal: 151.0kHz, Vertical: 48-100HzFreeSync-Off: Horizontal: 30.0-151.0kHz, Vertical: 55-100Hz
Native Resolution 2560 × 1440, 3.7 MegaPixels
Support Max. Resolution 2560 × 1440 100Hz
Input Connector HDMI ×1, DisplayPort ×1
Input Video Signal HDMI, DisplayPort
USB Standard USB3.2 Gen 1 (5Gbps, DC5V, 900mA)
Number of USB Ports Connector Shape			1 Upstream: Type-B2 Downstream: Type-A
Headphone Connector ø 3.5mm mini jack (Stereo)
Speakers 2W × 2 (Stereo speakers)
Maximum Screen Size 596.7mm W × 335.7mm H / 23.5" W × 13.2" H
Power Source 100-240VAC, 50/60Hz, 1.5A
Power Consumption			21W typical *	24W typical *
			Standby mode: 0.5W maximum, Off mode: 0.3W maximum
Dimensions			611.5 × 434.0 × 192.5mm /24.1 × 17.1 × 7.6" (W×H×D)	613.5 × 434.0 × 192.5mm /24.2 × 17.1 × 7.6" (W×H×D)
Net Weight			4.2kg / 9.3lbs	4.0kg / 8.8lbs
Tilt Angle			Upward: 22 degrees, Downward: 4 degrees
Environmental Considerations			Operating: Temperature 5 to 35°C / 41 to 95°FHumidity 10 to 90% (No condensation)Storage: Temperature -20 to 60°C / -4 to 140°FHumidity 10 to 90% (No condensation)
Approvals			CE, UKCA, TÜV-Bauart, EAC, VCCI, PSE

NOTE

* When the USB devices are not connected.

DIMENSIONS : G-MASTER GB2445HSU, G-MASTER GB2455HSU

538.5mm/21.2" 323.0mm/12.7"

47.5mm/1.9" 354.0mm/13.9" (504.0mm/19.8") 378.0mm/14.9"

390.0mm/15.4" 171.0mm/6.7"

560.5mm/22.1" (612.0mm/24.1")

( ) : Maximum adjustment range

DIMENSIONS : G-MASTER GB2745HSU, G-MASTER GB2745QSU

611.5mm/24.1" 364.0mm/14.3"

47.5mm/1.9" 405.5mm/16.0" (555.5mm/21.9") 409.0mm/16.1"

390.5mm/15.4" 214.0mm/8.4"

633.0mm/24.9" (679.0mm/26.7")

( ) : Maximum adjustment range

DIMENSIONS : G-MASTER GB2755HSU, G-MASTER GB2755QSU

613.5mm/24.2" 364.0mm/14.3"

47.5mm/1.9" 405.5mm/16.0" (555.5mm/21.9") 409.0mm/16.1"

390.5mm/15.4" 214.0mm/8.4"

Front view of a rectangular electronic device with a flat base and vertical measurement label (no text or symbols on the device itself)

( ) : Maximum adjustment range

DIMENSIONS : G-MASTER G2445HSU, G-MASTER G2455HSU

538.5mm/21.2" 323.0mm/12.7"

47.5mm/1.9" 397.0mm/15.6" 127.5mm/5.0"

349.0mm/13.7" 192.5mm/7.6"

DIMENSIONS : G-MASTER G2745HSU, G-MASTER G2745QSU

611.5mm/24.1" 364.0mm/14.3"

47.5mm/1.9" 434.0mm/17.1" 150.5mm/5.9"

349.0mm/13.7" 192.5mm/7.6"

DIMENSIONS : G-MASTER G2755HSU, G-MASTER G2755QSU

613.5mm/24.2" 364.0mm/14.3"

47.5mm/1.9" 434.0mm/17.1" 150.5mm/5.9"

349.0mm/13.7" 192.5mm/7.6"

Video Mode	Horizontal Frequency	Vertical Frequency	Dot Clock
800 × 600	37.879kHz 60.	317Hz 40.000MHz
	46.875kHz 75.	000Hz	49.500MHz
1024 × 768	48.363kHz 60.	004Hz 65.000MHz
	60.023kHz 75.	029Hz 78.750MHz
1280 × 1024 79.	980kHz	75.020Hz	135.000MHz
1680 × 1050 65.	290kHz 60.000Hz	146.250MHz
1920 × 1080	67.500kHz 60.	000Hz 148.500MHz
	83.890kHz	74.970Hz 174.	500MHz
	95.430kHz 84.	910Hz 198.500MHz *
	110.000kHz 10	0.000Hz 228.800MHz *
2560 × 1440	89.520kHz 59.	961Hz 312.250MHz *
	111.788kHz 74.	925Hz 298.470MHz *
	150.849kHz 99.	900Hz 398.242MHz *
	150.918kHz 99.	900Hz 410.500MHz *

NOTE

*1 Only available for G-MASTER G(B)2445HSU, G(B)2745HSU, G(B)2455HSU, G(B)2755HSU.
*2 Only available for G-MASTER G(B)2745QSU, G(B)2755QSU.
*3 Available for DisplayPort input only.
*4 Available for HDMI input only.
