Preface

About This Manual

This manual is written for system integrators, IT technicians and knowledgeable end users. It provides information for the installation and use of the X11SDW-4C/14CN/16C-TP13F+ motherboard.

About This Motherboard

The Supermicro X11SDW-4C/14CN/16C-TP13F+ motherboard supports an Intel® Xeon D-2100 SoC processor. This a high performance, proprietary form factor motherboard that is ideal for embedded networking and storage systems. The latest features for this motherboard include support for 13 LAN ports with quad 10GbE SFP+, M.2 M-Key/B-Key/E-Key connections, and an NVMe connection. Please note that this motherboard is intended to be installed and serviced by professional technicians only. For processor/memory updates, please refer to our website at http://www.supermicro.com/products/.

Manual Organization

Chapter 1 describes the features, specifications and performance of the motherboard, and provides detailed information on the processor.

Chapter 2 provides hardware installation instructions. Read this chapter when installing the processor, memory modules, and other hardware components into the system.

If you encounter any problems, see Chapter 3, which describes troubleshooting procedures for video, memory, and system setup stored in the CMOS.

Chapter 4 includes an introduction to the BIOS, and provides detailed information on running the CMOS Setup utility.

Appendix A provides BIOS Error Beep Codes.

Appendix B lists software program installation instructions.

Appendix C lists standardized warning statements in various languages.

Appendix D provides UEFI BIOS Recovery instructions.

Contacting Supermicro

Headquarters

Address: Super Micro Computer, Inc.

980 Rock Ave.

San Jose, CA 95131 U.S.A.

Tel: [phone]

Fax: [phone]

Email: [e-mail] (General Information)

[e-mail] (Sales Inquiries)

[e-mail] (Gov. Sales Inquiries)

[e-mail] (Technical Support)

[e-mail] (RMA Support)

[e-mail] (Webmaster)

Website: www.supermicro.com

Europe

Address: Super Micro Computer B.V.

's-Hertogenbosch, The Netherlands

Tel: [phone]

Fax: [phone]

Email: [e-mail] (General Information)

[e-mail] (Technical Support)

[e-mail] (RMA Support)

Website: www.supermicro.nl

Asia-Pacific

Address: Super Micro Computer, Inc.

3F, No. 150, Jian 1st Rd.

Zhonghe Dist., New Taipei City 235

Taiwan (R.O.C)

Tel: [phone]

Fax: [phone]

Email: [e-mail] (Sales Inquiry)

[e-mail] (Technical Support)

[e-mail] (RMA Support)

Website: www.supermicro.com.tw

Table of Contents

Chapter 1 Introduction

1.1 Checklist....8

Quick Reference 11

Quick Reference Table....13

Motherboard Features....15

1.2 Processor Overview....19

1.3 Special Features ....19

Recovery from AC Power Loss....19

1.4 System Health Monitoring....20

Onboard Voltage Monitors ....20

Fan Status Monitor with Firmware Control ....20

System Resource Alert....20

1.5 ACPI Features....21

1.6 Power Supply 21

1.7 Serial Port....21

Chapter 2 Installation

2.1 Static-Sensitive Devices....22

Precautions 22

Unpacking 22

2.2 Motherboard Installation....23

Tools Needed 23

Location of Mounting Holes 23

Installing the Motherboard....24

2.3 Memory Support and Population....25

Memory Support....25

DIMM Module Population Configuration 25

DIMM Module Population Sequence 26

DIMM Installation 27

DIMM Removal 27

2.4 Rear I/O Ports ....28

2.5 Front Control Panel 33

2.6 Connectors and Headers ....37
2.7 Jumper Settings ....50

How Jumpers Work....50

2.8 LED Indicators....57

Chapter 3 Troubleshooting

3.1 Troubleshooting Procedures ......60

Before Power On ....60

No Power 60

No Video ....60

System Boot Failure....61

Memory Errors 61

Losing the System's Setup Configuration....62

When the System Becomes Unstable....62

3.2 Technical Support Procedures ....64
3.3 Frequently Asked Questions ....65
3.4 Battery Removal and Installation 66

Battery Removal....66

Proper Battery Disposal....66

Battery Installation....66

3.5 Returning Merchandise for Service....67

Chapter 4 UEFI BIOS

4.1 Introduction....68
Starting the Setup Utility 68
4.2 Main Setup....69
4.3 Advanced....71
4.4 Event Logs 98
4.5 IPMI 100
4.6 Security....104
4.7 Boot....107
4.8 Save & Exit....109

Appendix A BIOS Codes

A.1 BIOS Error POST (Beep) Codes....111
A.2 Additional BIOS POST Codes....112

Appendix B Software Installation

B.1 Installing Software Programs ....113
B.2 SuperDoctor ^® 5....114

Appendix C Standardized Warning Statements

Battery Handling....115
Product Disposal 117

Appendix D UEFI BIOS Recovery

D.1 Overview....118
D.2 Recovering the UEFI BIOS Image....118
D.3 Recovering the Main BIOS Block with a USB Device 119

Chapter 1

Introduction

Congratulations on purchasing your computer motherboard from an acknowledged leader in the industry. Supermicro boards are designed with the utmost attention to detail to provide you with the highest standards in quality and performance.

Please check that the following items have all been included with your motherboard. If anything listed here is damaged or missing, contact your retailer. The following items are included in the retail box:

1.1 Checklist

Main Parts List (included in the retail box)
Description Part Number Quantity
Supermicro Motherboard X11SDW-4C/14CN/16C-TP13F+ 1
SATA Cables CBL-0044L 4
Quick Reference Guide MNL-2276-QRG 1
I/O Shield MCP-260-00152-0N 1
VGA Cable CBL-CDAT-0850 1

Important Links

For your system to work properly, please follow the links below to download all necessary drivers/utilities and the user's manual for your server.

• Supermicro product manuals: http://www.supermicro.com/support/manuals/
- Product drivers and utilities: https://www.supermicro.com/wdl/driver
- Product safety info: http://www.supermicro.com/about/policies/safety_information.cfm
- A secure data deletion tool designed to fully erase all data from storage devices can be found at our website: https://www.supermicro.com/about/policies/disclaimer.cfm?url=/wftp/utility/Lot9_Secure_Data_Deletion_Utility/
- If you have any questions, please contact our support team at: [e-mail]

This manual may be periodically updated without notice. Please check the Supermicro website for possible updates to the manual revision level.

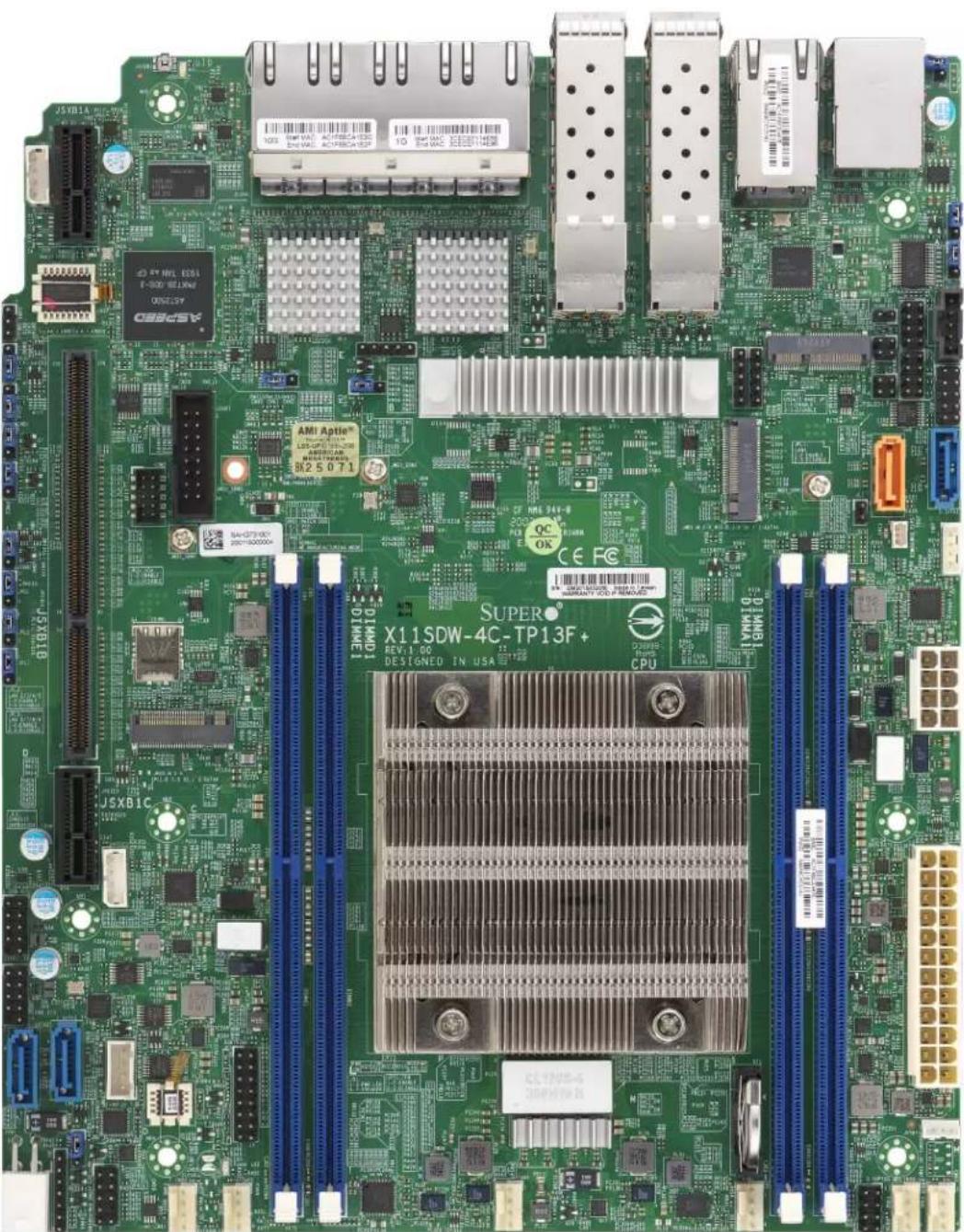

Figure 1-1. X11SDW-4C-TP13F+ Motherboard Image

JSX81A E-SD 00156 002597 AMI Aptie® LESP-CP 00156 NESTOCKS BI2.5.0.71 NCI 00156 CE FC DIMMD X11SDW-4C-TP13F+ REV.1.00 DESIGNED IN USA CPU CLINOS-5 002597

Figure 1-2. X11SDW-4C-TP13F+ Motherboard Layout
(not drawn to scale)

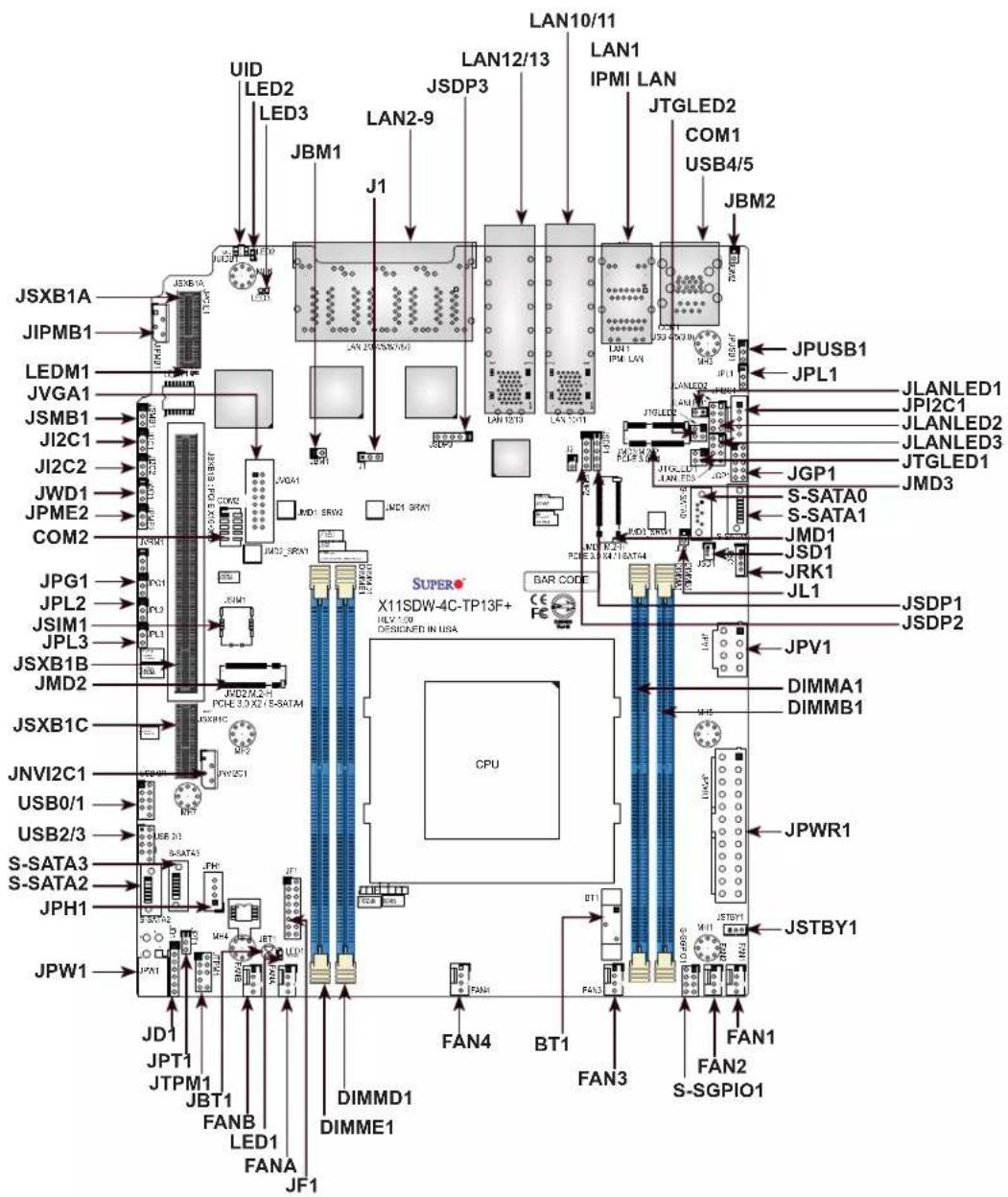

JSXB1A JPGIE1 JPM81 LEDM16 JPM80 JSXB1A JPGIE1 JPM80 LEDM16 JPM80 JSXB1A JPGIE1 JPM80 JPM80 JSXB1A JPGIE1 JPM80 JPM80 JSXB1A JPGIE1 JPM80 JPM80 JSXB1A JPGIE1 JPM80 JPM80 JSXB1A JPGIE1 JPM80 JPM80 JSXB1A JPGIE1 JPM82 JPM80 JPM80 JSXB1A JPGIE1 JPM80 JPM80 JSXB1A JPGIE1 JPM80 JPM80 JSXB1A JPGIE1 JPM80 JPM80 JSXB1A JPGIE1 JPM80 JPM80 JSXB1A JPGIE9 JPM80 JPM80 JSXB1A JPGIE9 JPM80 JPM80 JSXB1A JPGIE9 JPM80 JPM80 JSXB1A JPGIE9 JPM80 JPM80 JSXB1A JPGIE9 JPM80 JPM80 JSXB1A JPGIE1 JPM80 JPM80 JSXB1A JPGIE1 JPM80 JPM80 JSXB1A JPGIE1 JPM80 JPM80 JSXB1A JPGIE9 JPM80 JPM80 JSXB1A JPGIE1 JPM80 JPM80 JSXB1A JPGIE9 JPM80 JPM80 JSXB1A JPGIE9 JPM80 JPM80

Note: Components not documented are for internal testing only.

Quick Reference

JSXB1A JIPMB1 LEDM1 JVGA1 JSMB1 JI2C1 JI2C2 JWD1 JPME2 COM2 JPG1 JPL2 JSIM1 JPL3 JSXB1B JMD2 JSXB1C JNVI2C1 USB0/1 USB2/3 S-SATA3 S-SATA2 JPH1 JPW1 JD1 JPT1 JTPM1 JBT1 FANB LED1 FANA JF1 UID LED2 LED3 JBM1 J1 JSDP3 LAN12/13 LAN10/11 LAN1 IPMI LAN JTGLED2 COM1 USB4/5 JBM2 JPNLED1 JPL1 JLANLED1 JPI2C1 JLANLED2 JLANLED3 JTGLED1 JGP1 S-SATA0 S-SATA1 JMD1 JSD1 JRK1 JL1 JSDP1 JSDP2 JPNLED2 JPL1 JLANLED2 JLANLED3 JTGLED1 JMD3 JGP1 S-SATA0 S-SATA1 JMD1 JSD1 JRK1 JL1 JPUSB1 SUPER-X11SDW-4C-TP13F+ HIVV 7.00 DESIGNED IN USA CPU BAR CODE FEVCE CPU40000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 JPNLED2/SPX866/SPX866/SPX866/SPX866/SPX866/SPX866/SPX866/SPX866/SPX866/SPX866/SPX866/SPX866/SPX866/SPX866/SPX866/SPX866/SPX866/SPX

Notes:

• See Chapter 2 for detailed information on jumpers, I/O ports, and JF1 front panel connections. Jumpers/LED indicators not indicated are used for testing only.
- "■" indicates the location of Pin 1.
- When LED1 (Onboard Power LED indicator) is on, system power is on. Unplug the power cable before installing or removing any components.

Figure 1-3. X11SDW-TP13F+ Series Motherboard Model Variation Table

X11SDW-TP13F+ Series Motherboard Model Variation Table
Motherboard Model Name X11SDW-4C-	TP13F+	X11SDW-14CN-TP13F+	X11SDW-16C-TP13F+
Processor Name D-2123IT D-2177NT D-2183IT
Number of Cores 4 14 16
Number of Threads 8 28 32
Processor Base Frequency 2.20 GHz 1.90 GHz 2.20 GHz
Max Turbo Frequency	3.00 GHz 3.00	GHz 3.00 GHz
SoC Max TDP	60W	105W	100W
Number of Memory Channels	4	4	4
Maximum Memory Speed	2400 MHz	2667 MHz	2400 MHz
Intel® Turbo Boost Technology	2.0	2.0	2.0
Embedded Options Available	Yes	Yes	Yes
Integrated Intel® QuickAssist Technology	No	Yes	No
Intel® Virtualization Technology (VT-x)	Yes	Yes	Yes
Intel® Virtualization Technology for Directed I/O (VT-d)	Yes	Yes	Yes
Intel® TSX-NI	Yes	Yes	Yes
Instruction Set	64-bit	64-bit	64-bit
Instruction Set Extensions	Intel® AVX2	Intel® AVX2	Intel® AVX2
Number of AVX-512 FMA Units	1	1	1

Quick Reference Table
Jumper Description Default Setting

J1 M.2 SMBus Enable/Disable Pins 1-2 (Enabled)
JBM1 IPMI Share LAN Enable/Disable Open: Enabled (Default)		Closed: Disabled
JBM2 IPMI Dedicated/Share LAN Enable/Disable Open: Enabled (Default)		Closed: Disabled
JBT1 CMOS Clear Open: Normal		Closed: Clear CMOS
JI2C1/JI2C2 SMB to PCIe Slots Enable/Disable Pins 2-3 (Disabled)
JPG1 VGA Enable/Disable Pins 1-2 (Enabled)
JPL1 LAN1 Enable/Disable	Pins 1-2 (Enabled)
JPL2 LAN2/3/4/5 Enable/Disable	Pins 1-2 (Enabled)
JPL3 LAN6/7/8/9 Enable/Disable	Pins 1-2 (Enabled)
JPME2	Manufacturing Mode Select Pins 1-2 (Normal)
JPT1 TPM Enable/Disable	Pins 1-2 (Enabled)
JPUSB1	USB0/1 Wake up	Pins 1-2 (Enabled)
JWD1	Watch Dog Timer	Pins 1-2 (Reset)

LED Description

LED1 Power LED		Solid Green: Power On
LED2	UID LED	Solid Blue: Unit Identified

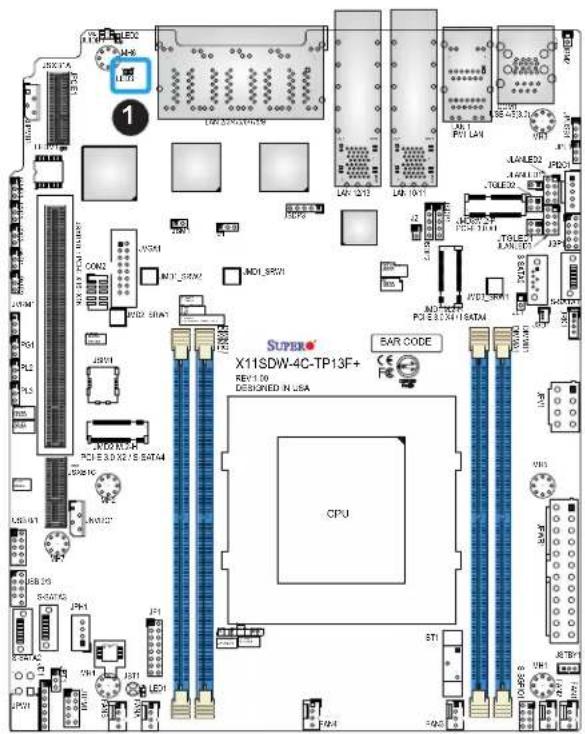

LED3 Overheat/Power Fail/Fan Fail LED		Solid Red: OverheatBlinking Red: Power Failure/Fan Failure
LEDM1	BMC Heartbeat	Blinking Green: BMC Normal

Connector

BT1	Onboard Battery
COM1/COM2	COM1: Port, COM2: Header
FAN1 – FAN4, FANA, FANB	CPU/System Fan Headers
IPMI LAN	Dedicated IPMI LAN Port
JD1	Power LED/Speaker Header (Pins 1–3: Power LED, Pins 4–7: Speaker)

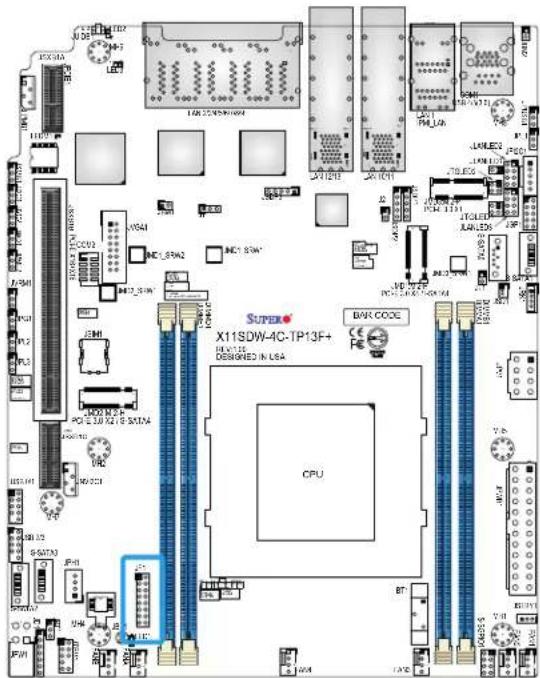

JF1	Front Control Panel Header
JGP1	General Purpose I/O Header
JIPMB1	System Management Bus Header (for IPMI only)
JL1	Chassis Intrusion Header
JLANLED1	LAN1 Activity LED Header
JLANLED2	LAN2-5 Activity LED Header
JLANLED3	LAN6-9 Activity LED Header
JMD1	M.2 Slot M-Key 2280/22110 (SATA3.0 / PCIe x4)
JMD2	M.2 Slot B-Key 2242/3042 (USB2.0 / USB3.0 / SATA3.0 / PCIe x2)

Connector Description

JMD3 M.2 Slot E-Key 2230 (USB2.0 / PCIe x1)
JNVI2C1 Non-volatile Memory (NVMe) I	^2 C Header
JPH1 4-pin HDD Power Connector
JPI ^2 C1 Power I2C System Management Bus (Power SMB) Header
JPV1 12V 8-pin DC Power Connector (Required to provide extra power to the CPU, or as alternative power for special enclosure when the 24 pin ATX power is not in use)
JPW1 GPU Power Connector
JPWR1 24-pin ATX Power Connector
JRK1 Intel RAID Key Header
JSD1 SATA DOM Power Connector
JSDP1 Software-Defined Pins (From X722, LAN 10/11)
JSDP2 Software-Defined Pins (From X722, LAN 12/13)
JSDP3 Software-Defined Pins (From I350 LAN2)
JSIM1 Nano SIM Card Slot
JSMB1 System Management Bus Header
JSTBY1 Standby Power Connector
JSXB1A	WIO Connector
JSXB1B	WIO Connector
JSXB1C	WIO Connector
JTGLED1	LAN10/11 Activity LED Header
JTGLED2	LAN12/13 Activity LED Header
JTPM1	Trusted Platform Module (TPM)/Port 80 Connector
JVGA1	VGA Header
JLAN1	1G LAN Port (from I210, LAN1)
JLAN2	10G SFP+ Ports (LAN10/11)
JLAN3	10G SFP+ Ports (LAN11/12)
JLAN4	1G LAN Ports (from I350, LAN2–9)
S-SATA0 – S-SATA3	SATA 3.0 Ports
S-SGPIO1	Serial Link General Purpose I/O Header
UID	Unit Identifier Switch
USB0/1, USB2/3	Front Accessible USB 2.0 Headers
USB4/5	Back Panel USB 3.0 Ports

Motherboard Features

Motherboard Features
CPU
Intel® Xeon D-2100 SoC Series SoC with a TDP of up to 105W
Memory
Supports up to 256GB of ECC RDIMM or 512GB of ECC LRDIMM DDR4 memory with speeds of up to 2667MHz.
DIMM Size
Up to 128GB at 1.2V
Expansion Slots
One M.2 M-Key 2280/22110 (SATA3.0 / PCIe x4)One M.2 B-Key 2242/3042 (USB2.0 / USB3.0 / SATA3.0 / PCIe x2)One M.2 E-Key Slot 2230 (USB2.0 / PCIe x1)One SMC Proprietary WIO-L Slot (JSXB1A, JSXB1B, JSXB1C)
Network
Intel SoC Integrated 1G and 10G Controller
Baseboard Management Controller (BMC)
ASpeed AST2500
Graphics
Graphics controller via ASpeed AST2500
I/O Devices
SATA 3.0VideoCOM Port/Header	Four S-SATA 3.0 PortsOne VGA HeaderOne COM Port (COM1), one COM Header (COM2)
Peripheral Devices
Two USB 2.0 Headers (USB0/1, USB2/3)Two USB 3.0 Gen 1 Ports (USB4/5)
BIOS
256Mb AMI BIOS® SPI Flash BIOSPlug and Play (PnP), ACPI 6.1, BIOS rescue hot-key, SMBIOS 2.8/3.1, PCI F/W 3.2, RTC Wakeup, UEFI 2.7

Note: The table above is continued on the next page.

Motherboard Features

Power Management

ACPI power managementCPU fan auto-off in sleep modePower button override mechanismPower-on mode for AC power recovery

System Health Monitoring

Onboard voltage monitors for CPU cores, +1.8V, +3.3V, +5V, +/-12V, +3.3V Stby, +5V Stby, VBAT, HT, Memory, PCH temperature, system temperature, and memory temperatureCPU phase switching voltage regulatorCPU/System overheat controlCPU Thermal Trip support

Fan Control

Fan status monitoring with firmwareMulti-speed fan control via onboard BMC

System Management

Platform Environment Control Interface (PECI) 3.1 supportIntel® Node ManagerIPMI 2.0 with KVM supportSuperDoctor® 5, Watch Dog, NMIChassis Intrusion header and detectionPower supply monitoring

LED Indicators

CPU/System Overheat LEDPower/Suspend State Indicator LEDUID/Remote UIDLAN Activity LEDFan Fail LDHdd Activity LED

Other

RoHS

Dimensions

Proprietary form factor (8.0" x 9.6") (203.2 mm x 243.84 mm)

Note 1: The CPU maximum thermal design power (TDP) is subject to chassis and heatsink cooling restrictions. For proper thermal management, please check the chassis and heatsink specifications for proper CPU TDP sizing.

Note 2: For IPMI configuration instructions, please refer to the Embedded IPMI Configuration User's Guide available at http://www.supermicro.com/support/manuals/.

Note 3: If you purchase a Supermicro Out of Band (OOB) software license key (Supermicro P/N: SFT-OOB--LIC), please do not change the IPMI MAC address. Once you change the IPMI MAC address, the license will be invalid.

Note 4: Supermicro ships standard products with a unique password for the BMC ADMIN user. This password can be found on a label on the motherboard. For general documentation and information on IPMI, please visit our website at https://www.supermicro.com/en/support/BMC_Unique_Password.

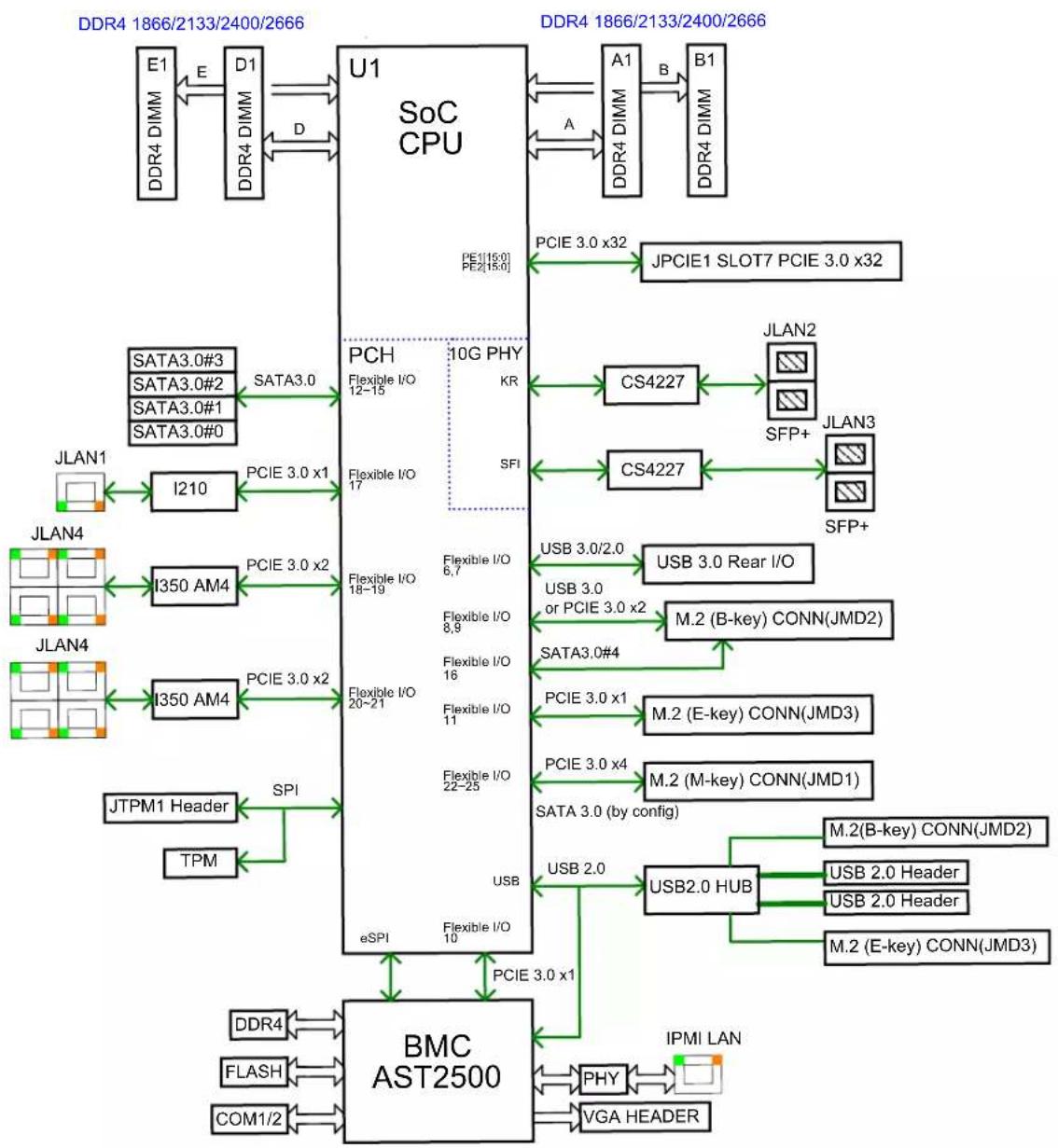

Figure 1-4. Chipset Block Diagram
        USB2.0header_footnote["M.2(E-key) CONN(JMD3)"]
    end

    PCH["PCH"] --> FlexibleI/O10
    FlexibleI/O10 --> FlexibleI/O22-25
    FlexibleI/O22-25 --> FlexibleI/O6.7
    FlexibleI/O6.7 --> FlexibleI/O8.9
    FlexibleI/O8.9 --> FlexibleI/O16
    FlexibleI/O16 --> FlexibleI/O17
    FlexibleI/O17 --> FlexibleI/O6.7
    FlexibleI/O6.7 --> FlexibleI/O8.9
    FlexibleI/O8.9 --> FlexibleI/O16
    FlexibleI/O16 --> FlexibleI/O17
    FlexibleI/O17 --> FlexibleI/O6.7
    FlexibleI/O6.7 --> FlexibleI/O8.9
    FlexibleI/O8.9 --> FlexibleI/O16
    FlexibleI/O8.9 --> FlexibleI/O17
    FlexibleI/O8.9 --> FlexibleI/O6.7
    FlexibleI/O8.9 --> FlexibleI/O17
    FlexibleI/O8.9 --> FlexibleI/O6.7
    FlexibleI/O8.9 --> FlexibleI/O8.9
    FlexibleI/O8.9 --> FlexibleI/O16
    FlexibleI/O8.9 --> FlexibleI/O17
    FlexibleI/O8.9 --> FlexibleI/O6.7
    FlexibleI/O8.9 --> FlexibleI/O8.9
    FlexibleI/O8.9 --> FlexibleI/O16
    FlexibleI/O8.9 --> FlexibleI/O17
    FlexibleI/O8.9 --> FlexibleI/O6.7
    FlexibleI/O8.9 --> FlexibleI/O17
    FlexibleI/O8.9 --> FlexibleI/O6.7
    FlexibleI/O8.9 --> FlexibleI/O8.9
    FlexibleI/O6.7 <--> PCH_PCH

    PCIE3.0x32["JPCIE1 SLOT7 PCIE 3.0 x32"]
    CS4227["CS4227"] --> CS4227["SFP+"]
    CS4227["SFP+"] --> CS4227["SFP+"]

    JLAN2["JLAN2"] --> CS4227["SFP+"]
    JLAN3["JLAN3"] --> CS4227["SFP+"]

    M2(2B-key)CONN(JMD2)
    M2(2B-key)CONN(JMD3)

Note: This is a general block diagram and may not exactly represent the features on your motherboard. See the previous pages for the actual specifications of your motherboard.

1.2 Processor Overview

The Intel Xeon D-2100 series SoC processor family, with up to 16 cores and up to 105W of power, offers performance, reliability, and high intelligence. As a low-power system-on-a-chip motherboard, the X11SDW-4C/14CN/16C-TP13F+ is optimized for a variety of workloads that requires high compute power in a compact form factor.

• ACPI Power Management Logic Support Rev. 4.0a
• Intel Quick Assist Technology
• Intel Turbo Boost Technology
• Adaptive Thermal Management/Monitoring
• PCIe 3.0, SATA 3.0, NVMe
• System Management Bus (SMBus) Specification Version 2.0
• Intel Trusted Execution Technology (Intel TXT)
• Intel Rapid Storage Technology
• Intel Virtualization Technology for Directed I/O (Intel VT-d)

1.3 Special Features

This section describes the health monitoring features of the X11SDW-4C/14CN/16C-TP13F+ motherboard. The motherboard has an onboard System Hardware Monitor chip that supports system health monitoring.

Recovery from AC Power Loss

The Basic I/O System (BIOS) provides a setting that determines how the system will respond when AC power is lost and then restored to the system. You can choose for the system to remain powered off (in which case you must press the power switch to turn it back on), or for it to automatically return to the power-on state. See the Advanced BIOS Setup section for this setting. The default setting is Last State.

1.4 System Health Monitoring

The motherboard has an onboard Baseboard Management Controller (BMC) chip that supports system health monitoring.

Onboard Voltage Monitors

The onboard voltage monitor will continuously scan crucial voltage levels. Once a voltage becomes unstable, it will give a warning or send an error message to the screen. Users can adjust the voltage thresholds to define the sensitivity of the voltage monitor. Real time readings of these voltage levels are all displayed in IPMI.

Fan Status Monitor with Firmware Control

The system health monitor chip can check the RPM status of a cooling fan. The CPU and chassis fans are controlled by BIOS Thermal Management through the back panel. Refer to the below table for available fan modes to choose the most appropriate one for nominal operation.

Figure 1-5. Fan Speed Modes

Fan Mode Description
Full Speed Use	this mode to set fan speed at full speed for maximum system cooling
Standard Use th	is mode to set fan speed for normal system cooling
Heavy I/O Use	this mode to set fan speed for higher PCI-E add-on card area cooling
Optimal Use this	mode to set fan speed for normal PCI-E add-on card area cooling
PUE2 Use this	mode to set fan speed for best power effi ciency and maximum noise reduction

Environmental Temperature Control

System Health sensors monitor temperatures and voltage settings of onboard processors and the system in real time via the IPMI interface. Whenever the temperature of the CPU or the system exceeds a user-defined threshold, system/CPU cooling fans will be turned on to prevent the CPU or the system from overheating

Note: To avoid possible system overheating, please provide adequate airflow to your system.

System Resource Alert

This feature is available when used with SuperDoctor 5® in the Windows OS or in the Linux environment. SuperDoctor is used to notify the user of certain system events. For example, you can configure SuperDoctor to provide you with warnings when the system temperature, CPU temperatures, voltages and fan speeds go beyond a predefined range.

1.5 ACPI Features

The Advanced Configuration and Power Interface (ACPI) specification defines a flexible and abstract hardware interface that provides a standard way to integrate power management features throughout a computer system, including its hardware, operating system and application software. This enables the system to automatically turn on and off peripherals such as CD-ROMs, network cards, hard disk drives and printers.

In addition to enabling operating system-directed power management, ACPI also provides a generic system event mechanism for Plug and Play, and an operating system-independent interface for configuration control. ACPI leverages the Plug and Play BIOS data structures, while providing a processor architecture-independent implementation that is compatible with Windows 2012/R2 and 2016 Server operating systems.

1.6 Power Supply

As with all computer products, a stable power source is necessary for proper and reliable operation. It is even more important for processors that have high CPU clock rates. In areas where noisy power transmission is present, you may choose to install a line filter to shield the computer from noise. It is recommended that you also install a power surge protector to help avoid problems caused by power surges. It is strongly recommended that you use a high quality power supply that meets ATX power supply Specification 2.02 or above. It must also be SSI compliant. For more information, please refer to the website at http://www.ssiforum.org/.

The X11SDW-4C/14CN/16C-TP13F+ motherboard supports an 8-pin 12V DC input power supply at JPV1 for embedded applications. The 12V DC input is limited to 30A by design. It provides up to 360W power input to the motherboard. Keep the onboard power usage within the power limits specified above. Over current power usage may cause damage to the motherboard.

1.7 Serial Port

The X11SDW-4C/14CN/16C-TP13F+ motherboard supports two serial communication connections. COM Port 1 (RJ45 type) and COM Header 2 can be used for input/output. The UART provides legacy speeds with a baud rate of up to 115.2 Kbps as well as an advanced speed with baud rates of 250 K, 500 K, or 1 Mb/s, which support high-speed serial communication devices.

Chapter 2

Installation

2.1 Static-Sensitive Devices

Electrostatic Discharge (ESD) can damage electronic components. To prevent damage to your motherboard, it is important to handle it very carefully. The following measures are generally sufficient to protect your equipment from ESD.

Precautions

• Use a grounded wrist strap designed to prevent static discharge.
• Touch a grounded metal object before removing the board from the antistatic bag.
• Handle the board by its edges only; do not touch its components, peripheral chips, memory modules or gold contacts.
• When handling chips or modules, avoid touching their pins.
• Put the motherboard and peripherals back into their antistatic bags when not in use.
• For grounding purposes, make sure your computer chassis provides excellent conductivity between the power supply, the case, the mounting fasteners and the motherboard.
• Use only the correct type of onboard CMOS battery. Do not install the onboard battery upside down to avoid possible explosion.

Unpacking

The motherboard is shipped in antistatic packaging to avoid static damage. When unpacking the motherboard, make sure that the person handling it is static protected.

2.2 Motherboard Installation

All motherboards have standard mounting holes to fit different types of chassis. Make sure that the locations of all the mounting holes for both the motherboard and the chassis match. Although a chassis may have both plastic and metal mounting fasteners, metal ones are highly recommended because they ground the motherboard to the chassis. Make sure that the metal standoffs click in or are screwed in tightly.

Phillips Screwdriver (1)

Phillips Screws (7)

Standoffs (7) Only if Needed

Tools Needed

JX8B1A LED1 LED2 LED3 LED4 LED5 LED6 LED7 LED8 LED9 LED10 LED11 LED12 LED13 LED14 LED15 LED16 LED17 LED18 LED19 LED20 LED21 LED22 LED23 LED24 LED25 LED26 LED27 LED28 LED29 LED30 LED31 LED32 LED33 LED34 LED35 LED36 LED37 LED38 LED39 LED40 LED41 LED42 LED43 LED44 LED45 LED46 LED47 LED48 LED49 LED50 LED51 LED52 LED53 LED54 LED55 LED56 LED57 LED58 LED59 LED60 LED61 LED62 LED63 LED64 LED65 LED66 LED67 LED68 LED69 LED70 LED71 LED72 LED73 LED74 LED75 LED76 LED77 LED78 LED79 LED80 LED81 LED82 LED83 LED84 LED85 LED86 LED87 LED88 LED89 LED90 LED91 LED92 LED93 LED94 LED95 LED96 LED97 LED98 LED99 LAM1 200V/5.5V/100V LAN 12013 LAN 12021 LAN 12031 LAN 12041 LAN 12051 LAN 12061 LAN 12071 LAN 12081 LAN 12091 LAN 12101 LAN 12111 LAN 12121 LAN 12131 LAN 12141 LAN 12151 LAN 12161 LAN 12171 LAN 12181 LAN 12191 LAN 12201 LAN 12211 LAN 12221 LAN 12231 LAN 12241 LAN 12251 LAN 12261 LAN 12271 LAN 12281 LAN 12291 LAN 12301 LAN 12311 LAN 12321 LAN 12331 LAN 12341 LAN 12351 LAN 12361 LAN 12371 LAN 12381 LAN 12391 LAN 12401 LAN 12411 LAN 12421 LAN 12431 LAN 12441 LAN 12451 LAN 12461 LAN 12471 LAN 12481 LAN 12491 LAN 12501

Location of Mounting Holes

Note: 1) To avoid damaging the motherboard and its components, please do not use a force greater than 8 lb/inch on each mounting screw during motherboard installation. 2) Some components are very close to the mounting holes. Please take precautionary measures to avoid damaging these components when installing the motherboard to the chassis.

Installing the Motherboard

1. Locate the mounting holes on the motherboard. See the previous page for the location.

Chassis Chassis

1. Locate the matching mounting holes on the chassis. Align the mounting holes on the motherboard against the mounting holes on the chassis.

S2G Motherboard Chassis S2G Motherboard Chassis

1. Install standoffs in the chassis as needed.
2. Install the motherboard into the chassis carefully to avoid damaging other motherboard components.
3. Using the Phillips screwdriver, insert a Phillips head #6 screw into a mounting hole on the motherboard and its matching mounting hole on the chassis.
4. Repeat Step 5 to insert #6 screws into all mounting holes.
5. Make sure that the motherboard is securely placed in the chassis.

Note: Images displayed are for illustration only. Your chassis or components might look different from those shown in this manual.

2.3 Memory Support and Population

Important: Exercise extreme care when installing or removing DIMM modules to prevent any possible damage.

Memory Support

The X11SDW-4C/14CN/16C-TP13F+ motherboard supports up to 256GB of ECC RDIMM or 512GB of ECC LRDIMM DDR4 memory in four memory slots. Populating these DIMM slots with memory modules of the same type and size will result in interleaved memory, which will improve memory performance.

DIMM Module Population Configuration

For optimal memory performance, follow the table below when populating memory.

Memory Population (Balanced)
DIMMA1 D	MMB1 DIMMD1 DIMME1		Total System Memory
4GB 4GB	8GB
4GB 4GB	4GB 12GB
8GB 8GB	16GB
4GB 4GB	4GB 4GB 16GB
8GB 8GB	8GB 24GB
8GB 8GB	8GB 8GB 32GB
16GB 16GB	32GB
16GB 16GB	16GB 48GB
16GB 16GB	16GB 16GB	64GB
32GB 32GB	64GB
32GB 32GB	32GB 96GB
32GB 32GB	32GB 32GB	128GB
64GB 64GB	128GB
64GB 64GB	64GB		192GB
64GB 64GB	64GB 64GB	256GB
128GB	128GB			256GB
128GB	128GB	128GB		384GB
128GB	128GB	128GB	128GB	512GB

DIMM Module Population Sequence

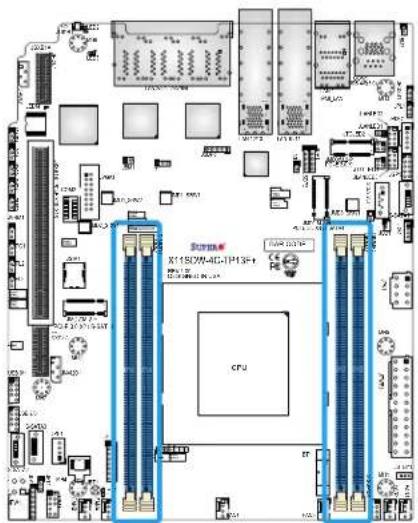

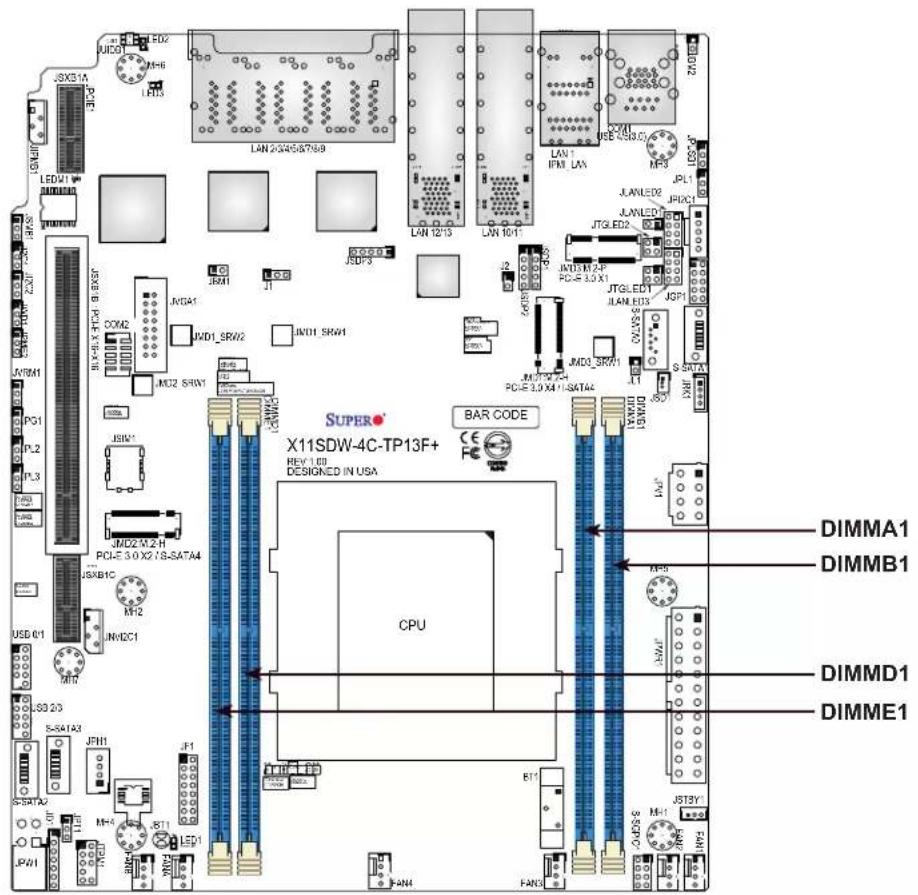

When installing memory modules, the DIMM slots should be populated in the following order: DIMMA1, DIMMB1, DIMMD1, DIMME1.

• Always use DDR4 DIMM modules of the same type and speed.
- Mixed DIMM speeds can be installed. However, all DIMMs will run at the speed of the slowest DIMM.
- The motherboard will support odd-numbered modules (one or three modules installed). However, for best memory performance, install DIMM modules in pairs to activate memory interleaving.

JX631A LED2 MH6 LED3 LAN 205458769 LED1 JNDA1 JNDA2 JNDA3 JNDA4 JNDA5 JNDA6 JNDA7 JNDA8 JNDA9 JNDA10 JNDA11 JNDA12 JNDA13 JNDA14 JNDA15 JNDA16 JNDA17 JNDA18 JNDA19 JNDA20 JNDA21 JNDA22 JNDA23 JNDA24 JNDA25 JNDA26 JNDA27 JNDA28 JNDA29 JNDA30 JNDA31 JNDA32 JNDA33 JNDA34 JNDA35 JNDA36 JNDA37 JNDA38 JNDA39 JNDA40 JNDA41 JNDA42 JNDA43 JNDA44 JNDA45 JNDA46 JNDA47 JNDA48 JNDA49 JNDA50 JNDA51 JNDA52 JNDA53 JNDA54 JNDA55 JNDA56 JNDA57 JNDA58 JNDA59 JNDA60 JNDA61 JNDA62 JNDA63 JNDA64 JNDA65 JNDA66 JNDA67 JNDA68 JNDA69 JNDA70 JNDA71 JNDA72 JNDA73 JNDA74 JNDA75 JNDA76 JNDA77 JNDA78 JNDA79 JNDA80 JNDA81 JNDA82 JNDA83 JNDA84 JNDA85 JNDA86 JNDA87 JNDA88 JNDA89 JNDA90 JNDA91 JNDA92 JNDA93 JNDA94 JNDA95 JNDA96 JNDA97 JNDA98 JNDA99 JNDA100 SUSDB-X11SDW-4C-TP13F+ REV 1.00I DESIGNED IN USA CPU BAR CODE DIMMA1 DIMMB1 DIMMD1 DIMME1

DIMM Installation

1. Insert the desired number of DIMMs into the memory slots, starting with DIMMA1, DIMMB1, DIMMD1, DIMME1. For best performance, please use the memory modules of the same type and speed.
2. Push the release tabs outwards on both ends of the DIMM slot to unlock it.
3. Align the key of the DIMM module with the receptive point on the memory slot.
4. Align the notches on both ends of the module against the receptive points on the ends of the slot.
5. Press both ends of the module straight down into the slot until the module snaps into place.
6. Press the release tabs to the lock positions to secure the DIMM module into the slot.

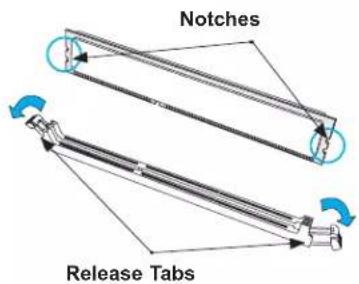

DIMM Removal

Press both release tabs on the ends of the DIMM module to unlock it. Once the DIMM module is loosened, remove it from the memory slot.

X11S20W-4C-JP13-P CPU

Technical illustration of a mechanical component with a magnified view showing internal structure (no text or symbols)

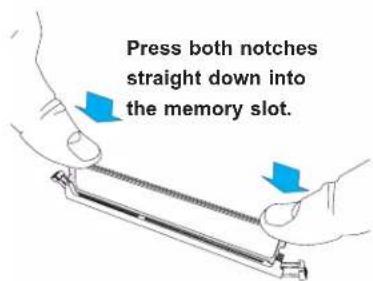

Notches Release Tabs

Press both notches straight down into the memory slot.

2.4 Rear I/O Ports

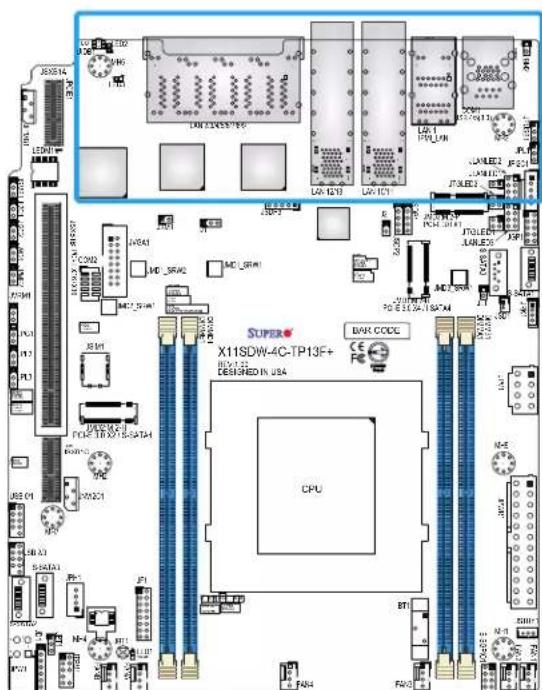

See the figure below for the locations and descriptions of the various I/O ports on the rear of the motherboard.

X11SDW-AC-TP13F+ DESIGNED IN USA CPU SUSPER X11SDW-AC-TP13F+ DESIGNED IN USA BAR CODE FAN4 FAN2 FEN1 FEN0 FEN3 FEN5 FEN7 FEN8 FEN9 FEN10 FEN11 FEN12 FEN13 FEN14 FEN15 FEN16 FEN17 FEN18 FEN19 FEN20 FEN21 FEN22 FEN23 FEN24 FEN25 FEN26 FEN27 FEN28 FEN29 FEN30 FEN31 FEN32 FEN33 FEN34 FEN35 FEN36 FEN37 FEN38 FEN39 FEN40 FEN41 FEN42 FEN43 FEN44 FEN45 FEN46 FEN47 FEN48 FEN49 FEN50 FEN51 FEN52 FEN53 FEN54 FEN55 FEN56 FEN57 FEN58 FEN59 FEN60 FEN61 FEN62 FEN63 FEN64 FEN65 FEN66 FEN67 FEN68 FEN69 FEN70 FEN71 FEN72 FEN73 FEN74 FEN75 FEN76 FEN77 FEN78 FEN79 FEN80 FEN81 FEN82 FEN83 FEN84 FEN85 FEN86 FEN87 FEN88 FEN89 FEN90 FEN91 FEN92 FEN93 FEN94 FEN95 FEN96 FEN97 FEN98 FEN99 FEN100

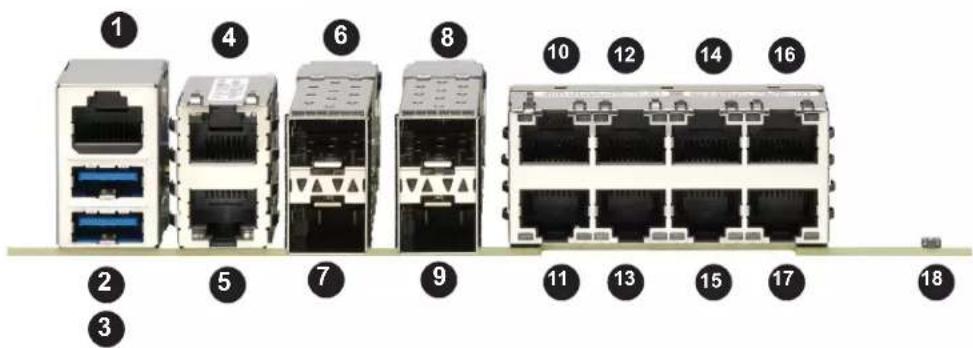

Figure 2-1. I/O Port Definitions

Diagram of 18 Ethernet ports with numbered labels pointing to each port

#	Description	#	Description	#	Description	#	Description
1.	COM1	6.	SFP+ LAN11	11.	LAN2	16.	LAN9
2.	USB5 (USB3.0)	7.	SFP+ LAN10	12.	LAN5	17.	LAN8
3.	USB4 (USB3.0)	8.	SFP+ LAN13	13.	LAN4	18.	UID Switch
4.	IPMI LAN	9.	SFP+ LAN12	14.	LAN7
5.	LAN1	10.	LAN3	15.	LAN6

LAN Ports

The motherboard has 13 LAN ports. LAN1 – LAN9 are 1G ports and LAN10 – LAN13 are 10G SFP+ ports. In addition to the LAN ports, the motherboard offers a dedicated IPMI LAN port. Refer to the table below for the pin definitions.

LAN PortPin Definition
Pin# Definition Pin# Definition
1 TX_D1+ 5 BI_D3-
2 TX_D1- 6 RX_D2-
3 RX_D2+ 7 BI_D4+
4 BI_D3+ 8 BI_D4-

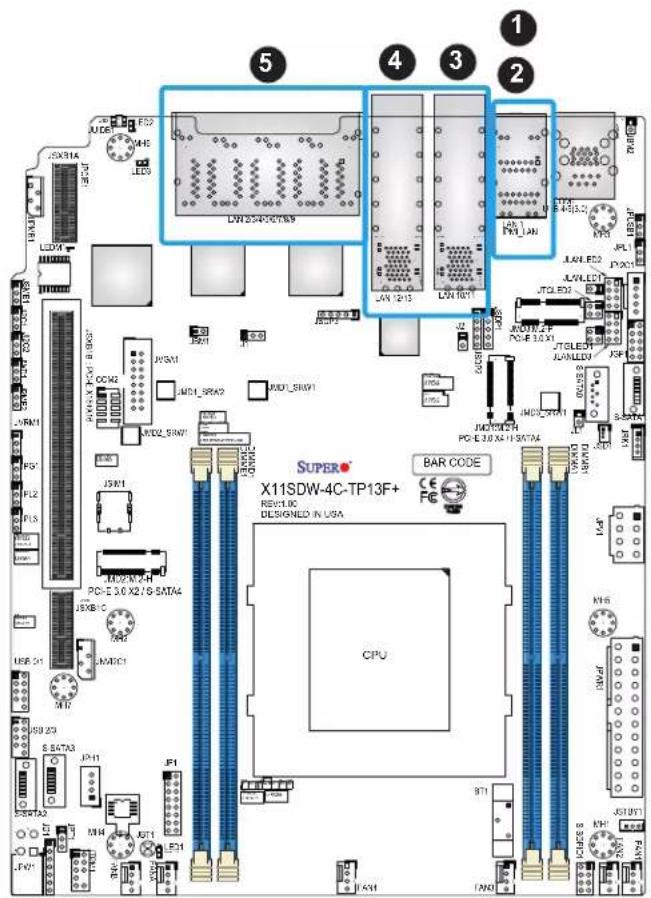

5 4 3 1 2 JSX81A JSP LED9 LCD9 JSP JSP JSP JSP JSP JSP JSP JSP JSP JSP JSP JSP JSP JSP JSP JSP JSP JSP JSP JSP JSP JSP JSP JSP JSP JSP JSP JSP JSP JSP JSP JSP JSP JSP 2012-06-2013-06-2013-06-2013-06-2013-06-2013-06-2013-06-2013-06-2013-06-2013-06-2013-06-2013-06-2013-06-2013-06- SUSER® X11SDW-4C-TP13F+ REV:1.0C DESIGNED IN USA CPU BAR CODE CE PC JNCKD2H PCI-E 3.0 X2 / 1.5X74 JNCKD2H PCI-E 3.0 X2 / 1.5X74 JNCKD2H PCI-E 3.0 X2 / 1.5X74 JNCKD2H PCI-E 3.0 X2 / 1.5X74 JNCKD2H PCI-E 3.0 X2 / 1.5X74 JNSKD2H PCI-E 3.0 X2 / 1.5X74 JNSKD2H PCI-E 3.0 X2 / 1.5X74 JNSKD2H PCI-E 3.0 X2 / 1.5X74 JNSKD2H PCI-E 3.0 X2 / 1.5X74 JNSKD2H

1. IPMI LAN
2. LAN1
3. LAN10/LAN11
4. LAN12/LAN13
5. LAN2 - LAN9

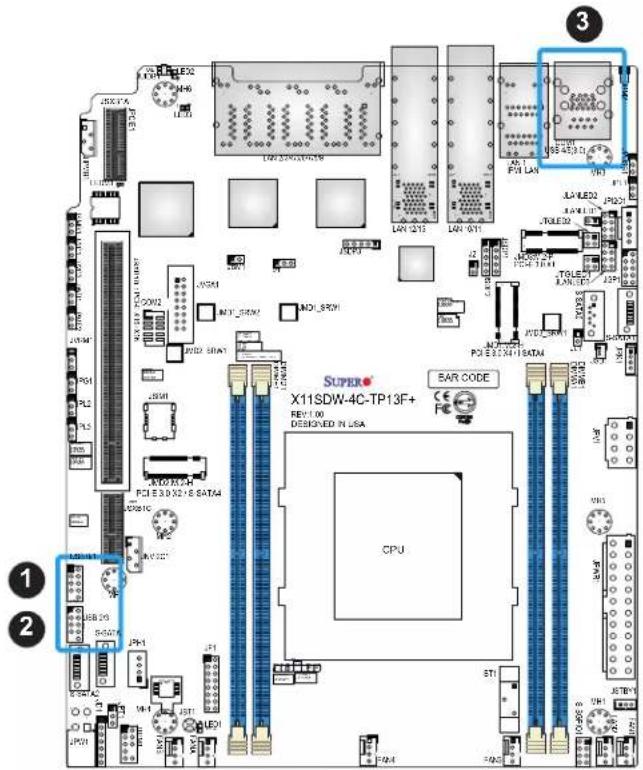

COM Port/Header

The motherboard has one COM port on the back panel I/O and one COM header on the motherboard to provide serial connections.

COM PortPin Definitions
Pin#	Definition	Pin#	Definition
1	SP_DCDA	2	SP_DSRA
3	SP_RXDA	4	SP_RTSA
5	SP_TXDA	6	SP_STSA
7	SP_DTRA	8	SP_RIA
9	GND	10	NC

RJ45 PortPin Definitions
Pin#	Definition	Pin#	Definition
1	RTS	6	RXD
2	DTR	7	DSR
3	TXD	8	CTS
4	GND
5	GND

The motherboard has two USB 3.0 Gen 1 ports (USB4/5) on the I/O back panel. There are two USB 2.0 headers (USB0/1, USB2/3). These onboard headers can be used to provide front side USB access with a cable (not included).

USB4/5 (USB 3.0 Type A)Pin Definitions
Pin#	Definition	Pin#	Definition
1	VBUS	5	SSRX-
2	USB_N	6	SSRX+
3	USB_P	7	GND
4	GND	8	SSTX-
		9	SSTX+

Front Panel USB 2.0 Header Pin Definitions
Pin#	Definition	Pin#	Definition
1	+5V	2	+5V
3	USB_PN2	4	USB_PN3
5	USB_PP2	6	USB_PP3
7	Ground	8	Ground
9	Key	10	NC

1 2 3 SUPER X11SDW-4C-TP13F+ REV: 100 DESIGNED IN USA CPU BAR CODE STI STI JPG1 JPG2 JPG3 JPG4 JPG5 JPG6 JPG7 JPG8 JPG9 JPG10 JPG11 JPG12 JPG13 JPG14 JPG15 JPG16 JPG17 JPG18 JPG19 JPG20 JPG21 JPG22 JPG23 JPG24 JPG25 JPG26 JPG27 JPG28 JPG29 JPG30 JPG31 JPG32 JPG33 JPG34 JPG35 JPG36 JPG37 JPG38 JPG39 JPG40 JPG41 JPG42 JPG43 JPG44 JPG45 JPG46 JPG47 JPG48 JPG49 JPG50 JPG51 JPG52 JPG53 JPG54 JPG55 JPG56 JPG57 JPG58 JPG59 JPG60 JPG61 JPG62 JPG63 JPG64 JPG65 JPG66 JPG67 JPG68 JPG69 JPG70 JPG71 JPG72 JPG73 JPG74 JPG75 JPG76 JPG77 JPG78 JPG79 JPG80 JPG81 JPG82 JPG83 JPG84 JPG85 JPG86 JPG87 JPG88 JPG89 JPG90 JPG91 JPG92 JPG93 JPG94 JPG95 JPG96 JPG97 JPG98 JPG99 JPG100

1. USB0/1
2. USB2/3
3. USB4/5

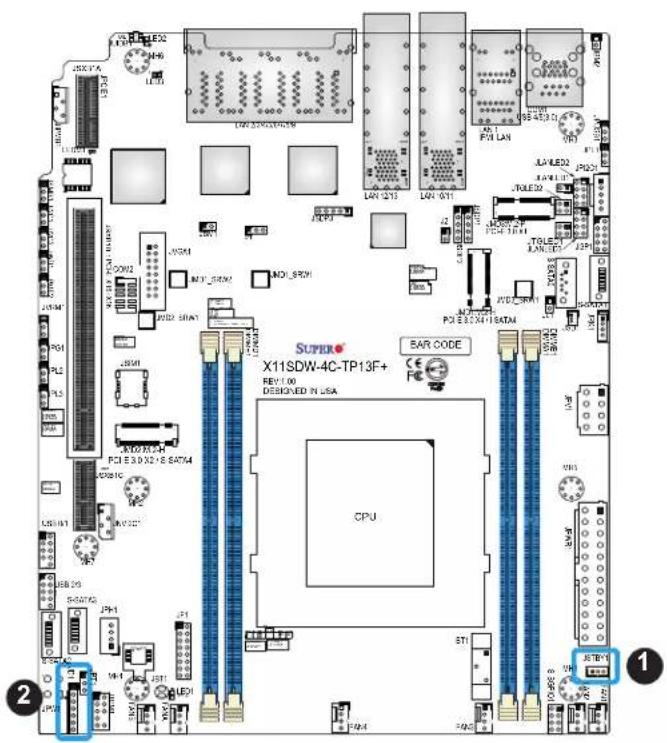

Unit Identifier Button/UID LED Indicator

A Unit Identifier (UID) button and an LED indicator are located on the motherboard. The UID button is located at UID. The UID LED is located LED2, next to the UID switch. When you press the UID button, the UID LED will be turned on. Press the UID button again to turn off the LED indicator. The UID Indicator provides easy identification of a system unit that may be in need of service.

Note: UID can also be triggered via IPMI on the motherboard. For more information on IPMI, please refer to the IPMI User's Guide posted on our website at http://www.supermicro.com/support/manuals/.

UID Button Pin Definitions
Pin#	Definition
1	Ground
2	Ground
3	Button In
4	Button In

UID LEDPin Definitions
Color	Status
Blue: On	Unit Identified

1 2 X11SDW-4C-TP13F+ REV 100 DESIGNED N USA CPU BAR CODE STI PAN JPN LED1 JPN LED2 JPN JPN1 JPN2 JPN3 JPN4 JPN5 JPN6 JPN7 JPN8 JPN9 JPN10 JPN11 JPN12 JPN13 JPN14 JPN15 JPN16 JPN17 JPN18 JPN19 JPN20 JPN21 JPN22 JPN23 JPN24 JPN25 JPN26 JPN27 JPN28 JPN29 JPN30 JPN31 JPN32 JPN33 JPN34 JPN35 JPN36 JPN37 JPN38 JPN39 JPN40 JPN41 JPN42 JPN43 JPN44 JPN45 JPN46 JPN47 JPN48 JPN49 JPN50 JPN51 JPN52 JPN53 JPN54 JPN55 JPN56 JPN57 JPN58 JPN59 JPN60 JPN61 JPN62 JPN63 JPN64 JPN65 JPN66 JPN67 JPN68 JPN69 JPN70 JPN71 JPN72 JPN73 JPN74 JPN75 JPN76 JPN77 JPN78 JPN79 JPN80 JPN81 JPN82 JPN83 JPN84 JPN85 JPN86 JPN87 JPN88 JPN89 JPN90 JPN91 JPN92 JPN93 JPN94 JPN95 JPN96 JPN97 JPN98 JPN99 JPN100

1. UID Button
2. UID LED

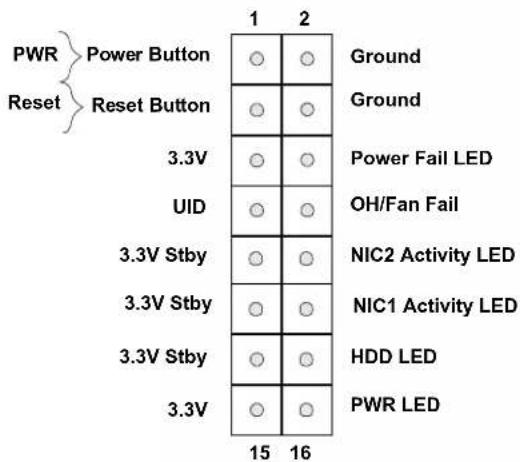

2.5 Front Control Panel

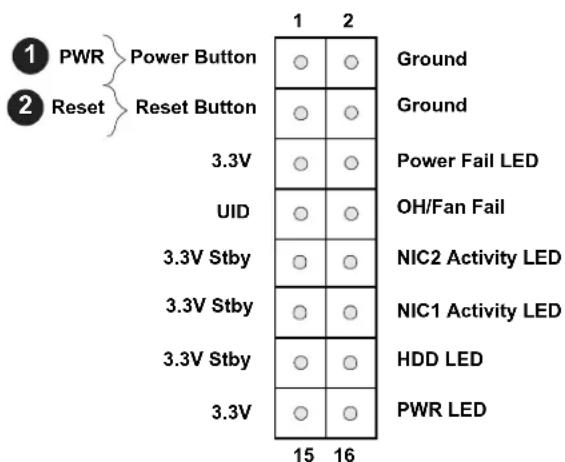

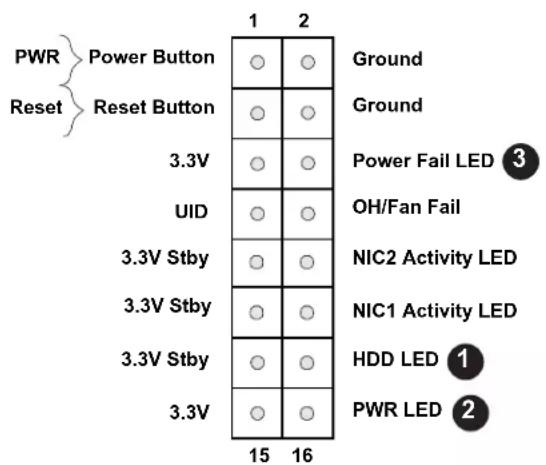

JF1 contains header pins for various buttons and indicators that are normally located on a control panel at the front of the chassis. These connectors are designed specifically for use with Supermicro chassis. See the figure below for the descriptions of the front control panel buttons and LED indicators.

SUPER X11SDW-4C-TP13F+ DESIGNED IN USA CPU

Figure 2-2. JF1 Header Definitions

PWR Power Button Reset Reset Button 3.3V UID 3.3V Stby 3.3V Stby 3.3V Stby 15 16 Ground Ground Power Fail LED OH/Fan Fail NIC2 Activity LED NIC1 Activity LED HDD LED PWR LED

Power Button

The Power Button connection is located on pins 1 and 2 of JF1. Momentarily contacting both pins will power on/off the system. This button can also be configured to function as a suspend button (with a setting in the BIOS - see Chapter 4). To turn off the power in the suspend mode, press the button for at least seconds seconds. Refer to the table below for pin definitions.

Power ButtonPin Definitions (JF1)

Pins Definition

1 Signal

2 Ground

Reset Button

The Reset Button connection is located on pins 3 and 4 of JF1. Attach it to a hardware reset switch on the computer case to reset the system. Refer to the table below for pin definitions.

Reset ButtonPin Definitions (JF1)

Pins Definition

3 Reset

4 Ground

1 PWR Power Button 2 Reset Reset Button 3.3V UID 3.3V Stby 3.3V Stby 3.3V Stby 3.3V Ground Ground Power Fail LED OH/Fan Fail NIC2 Activity LED NIC1 Activity LED HDD LED PWR LED 15 16

1. Power Button
2. Reset Button

Overheat (OH)/Fan Fail

Connect an LED cable to OH/Fan Fail connections on pins 7 and 8 of JF1 to provide warnings for chassis overheat and fan failure. Refer to the table below for pin definitions.

OH/Fan Fail Indicator Pin Definitions
Pin# Definition
Off Normal
On Overheat
Flashing Fan Fail

OH/Fan Fail LEDPin Definitions (JF1)

Pins Definition

7 +3.3V

8 OH/Fan Fail LED

The NIC (Network Interface Controller) LED connection for LAN port 1 is located on pins 11 and 12 of JF1, and the LED connection for LAN Port 2 is on pins 9 and 10. Attach NIC LED cables to NIC1 and NIC2 LED indicators to display network activities. Refer to the table below for pin definitions.

LAN1/LAN2 LEDPin Definitions (JF1)

Pins Definition

9/11 3.3V Stby

10/12 NIC Activity LED

PWR Power Button Reset Reset Button 3.3V UID 3.3V Stby 3.3V Stby 3.3V Stby 15 16 Ground Ground Power Fail LED OH/Fan Fail ① NIC2 Activity LED ③ NIC1 Activity LED ② HDD LED PWR LED

1. OH/Fan Fail LED
2. NIC1 Activity LED
3. NIC2 Activity LED

HDD LED

The HDD LED connection is located on pins 13 and 14 of JF1. Attach a cable here to show hard drive activity status. Refer to the table below for pin definitions.

HDD LEDPin Definitions (JF1)

Pins Definition

13 +3.3V

14 HDD LED

Power LED

The Power LED connection is located on pins 15 and 16 of JF1. Refer to the table below for pin definitions.

Power LEDPin Definitions (JF1)

Pins Definition

15 +3.3V Stby

16 PWR LED

Power Fail LED

The Power Fail LED connection is located on pins 5 and 6 of JF1. Refer to the table below for pin definitions.

Power Fail LEDPin Definitions (JF1)

Pins Definition

5 3.3V

6 Power Fail LED

PWR Power Button Reset Reset Button 3.3V UID 3.3V Stby 3.3V Stby 3.3V Stby 15 16 Ground Ground Power Fail LED ③ OH/Fan Fail NIC2 Activity LED NIC1 Activity LED HDD LED ① PWR LED ②

1. HDD LED
2. Power LED
3. Power Fail LED

2.6 Connectors and Headers

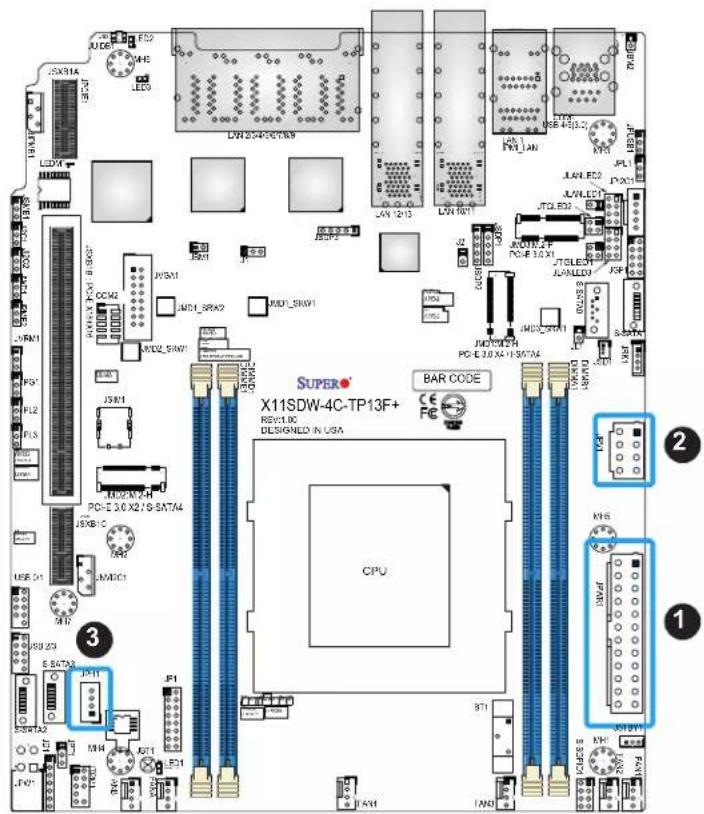

Power Connectors

The primary ATX power supply connector (JPWR1) meets the ATX SSI EPS 12V specification. JPV1 is the 12V DC power connector that provides power to the motherboard. JPH1 is a 4-pin HDD power connector that provides power to onboard hard disk drives.

8-pin 12V Power Pin Definitions
Pins	Definition
1 - 4	Ground
5 - 8	+12V

4-pin HDD Power Pin Definitions
Pins	Definition
1	12V
2-3	Ground
4	5V

ATX Power 24-pin Connector Pin Definitions
Pin#	Definition	Pin#	Definition
13	+3.3V	1	+3.3V
14	-12V	2	+3.3V
15	Ground	3	Ground
16	PS_ON	4	+5V
17	Ground	5	Ground
18	Ground	6	+5V
19	Ground	7	Ground
20	Res (NC)	8	PWR_OK
21	+5V	9	5VSB
22	+5V	10	+12V
23	+5V	11	+12V
24	Ground	12	+3.3V

JX8E JX8E JX8E JX8E JX8E JX8E JX8E JX8E JX8E JX8E JX8E JX8E JX8E JX8E JX8E JX8E JX8E JX8E JX8E JX8E JX8E

1. 24-pin ATX Power
2. 8-Pin 12V Power
3. 4-pin HDD Power

GPU Power Connector

JPW1 is a GPU power connector. This connector provides additional power for graphic cards.

GPU Power Pin Definitions
Pin#	Definition
1	GND
2	GND
3	12V
4	12V

Power SMB (I²C) Header

The Power System Management Bus (I²C) connector (JPI²C1) monitors the power supply, fan, and system temperatures. Refer to the table below for pin definitions.

Power SMB Header Pin Definitions
Pin#	Definition
1	Clock
2	Data
3	PMBUS_Alert
4	Ground
5	NC

LXN 5N4067589 JNLS2005789 JNLS2005789 JNLS2005789 JNLS2005789 JNLS2005789 JNLS2005789 JNLS2005789 JNLS2005789 JNLS2005789 JNLS20057A JNLS20057A JNLS20057A JNLS20057A JNLS20057A JNLS20057A JNLS20057A JNLS20057A JNLS20057A JNLS20057A JNLS20057B JNLS20057B JNLS20057B JNLS20057B JNLS20057B JNLS20057B JNLS20057B JNLS20057B JNLS20057B JNLS20057B JNLS20057A JNLS20057A JNLS20057A JNLS20057A JNLS20057A JNLS20057A JNLS20057A JNLS20057A JNLS20057A JNLS20057C JNLS20057C JNLS20057C JNLS20057C JNLS20057C JNLS20057C JNLS20057C JNLS20057C JNLS20057C JNLS20057C JNLS20057A JNLS20057A JNLS20057A JNLS20057A JNLS20057A JNLS20057A JNLS20057A JNLS20057A JNLS20057A JNLS20057D JNLS20057D JNLS20057D JNLS20057D JNLS20057D JNLS20057D JNLS20057D JNLS20057D JNLS20057D JNLS20057D JNLS20057A JNLS20057A JNLS20057A JNLS20057A JNLS20057A JNLS20057A JNLS20057A JNLS20057A JNLS20057A JNLS20057E JNLS20057E JNLS20057E JNLS20057E JNLS20057E JNLS20057E JNLS201111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111

1. GPU Power Connector

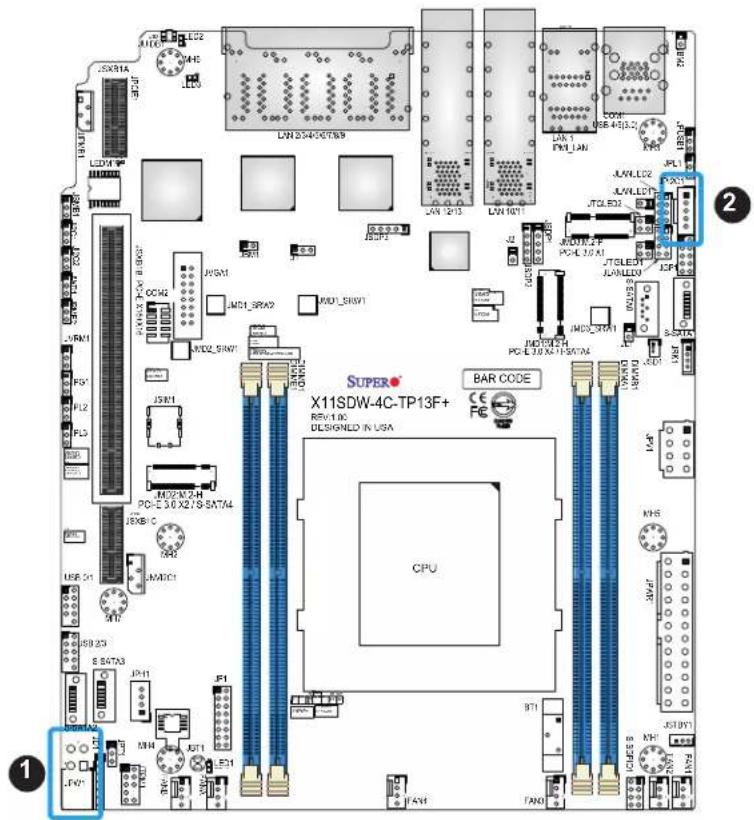

2. Power SMBus Header

Fan Headers

The X11SDW-4C/14CN/16C-TP13F+ has six 4-pin fan headers (FAN1 – FAN4, FANA, FANB). These headers are backwards-compatible with the traditional 3-pin fans. However, fan speed control is available for 4-pin fans only by Thermal Management via the IPMI 2.0 interface. This motherboard supports dual cooling zone. The table below specifies which fan belongs in which zone. Refer to the table below for pin definitions.

Fan HeaderPin Definitions

Pin# Definition

1 Ground (Black)

2 2.5A/+12V (Red)

3 Tachometer

4 PWM_Control

Fan ZonePin Definitions
Zone 1 2
Fan # FAN1/2/3/4 FANA/B

Chassis Intrusion

A Chassis Intrusion header is located at JL1 on the motherboard. Attach the appropriate cable from the chassis to inform you of a chassis intrusion when the chassis is opened. Refer to the table below for pin definitions.

Chassis Intrusion Pin Definitions

Pin# Definition

1 Ground

2 Intrusion Input

X11SDW-4C-TP13F+ REV 1.00 DESIGNED IN USA CPU BAR CODE 6 5 4 3 2 1 SUPER X11SDW-4C-TP13F+

1. FAN1
2. FAN2
3. FAN3
4. FAN4
5. FANA
6. FANB

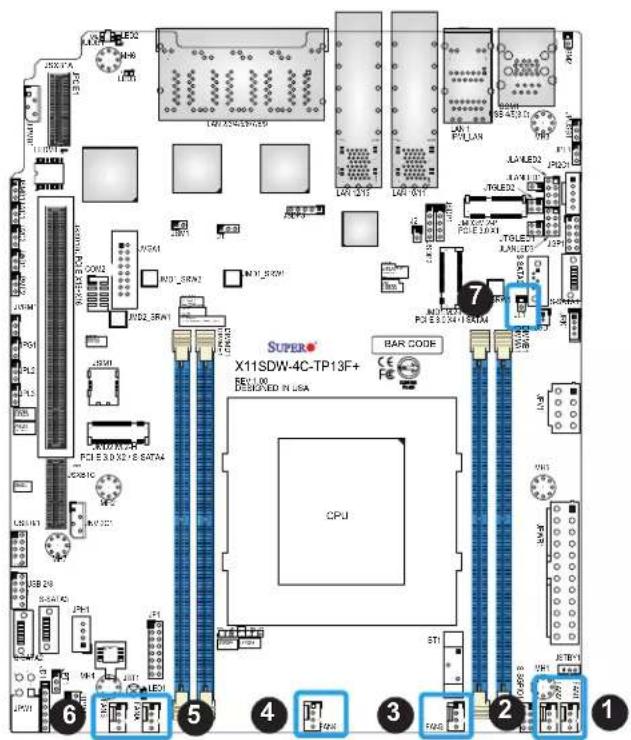

7. Chassis Intrusion

SATA Ports

The X11SDW-4C/14CN/16C-TP13F+ motherboard has four S-SATA 3.0 ports. Refer to the tables below for pin definitions. SATA ports provide serial-link signal connections, which are faster than the connections of Parallel ATA.

SATA 3.0 Port Pin Definitions
Pin#	Signal
1	Ground
2	SATA_TXP
3	SATA_TXN
4	Ground
5	SATA_RXN
6	SATA_RXP
7	Ground

M.2 Slot

The X11SDW-4C/14CN/16C-TP13F+ motherboard has four M.2 slots. M.2 was formerly known as Next Generation Form Factor (NGFF). M.2 allows for a variety of card sizes, increased functionality, and spatial efficiency. The M.2 slot at JMD1 supports PCIe 3.0 x4 and SATA 3.0 interfaces in a 2280/22110 form factor, whereas the M.2 slot at JMD2 supports PCIe 3.0 x4, SATA 3.0, and USB 3.0 interfaces in a 3042 form factor. The M.2 slot at JMD3 supports PCIe 3.0 x1.

X11SDW-4C-TP13F+ REV 1.00 DESIGNED IN USA CPU BAR CODE SUSP LED2 LED6 LED7 LED8 LED9 LED10 LED11 LED12 LED13 LED14 LED15 LED16 LED17 LED18 LED19 LED20 LED21 LED22 LED23 LED24 LED25 LED26 LED27 LED28 LED29 LED30 LED31 LED32 LED33 LED34 LED35 LED36 LED37 LED38 LED39 LED40 LED41 LED42 LED43 LED44 LED45 LED46 LED47 LED48 LED49 LED50 LED51 LED52 LED53 LED54 LED55 LED56 LED57 LED58 LED59 LED60 LED61 LED62 LED63 LED64 LED65 LED66 LED67 LED68 LED69 LED70 LED71 LED72 LED73 LED74 LED75 LED76 LED77 LED78 LED79 LED80 LED81 LED82 LED83 LED84 LED85 LED86 LED87 LED88 LED89 LED90 LED91 LED92 LED93 LED94 LED95 LED96 LED97 LED98 LED99 LED100

1. S-SATA0
2. S-SATA1
3. S-SATA2
4. S-SATA3
5. JMD1 - M.2 M-Key
6. JMD2 - M.2 B-Key
7. JMD3 - M.2 E-Key

TPM/Port 80 Header

A Trusted Platform Module (TPM)/Port 80 header is located at JTPM1 to provide TPM support and a Port 80 connection. Use this header to enhance system performance and data security. Refer to the table below for pin definitions.

Trusted Platform Module Header Pin Definitions
Pin#	Definition	Pin#	Definition
1	+3.3V	2	SPI_CS#
3	RESET#	4	SPI_MISO
5	SPI_CLK	6	GND
7	SPI_MOSI	8
9	+3.3V Stby	10	SPI_IRQ#

SUPER X11SDW-4C-TP13F+ REV 1.00 DESIGNED IN USA CPU BAR CODE S2510 S2511 S2512 S2513 S2514 S2515 S2516 S2517 S2518 S2519 S2520 S2521 S2522 S2523 S2524 S2525 S2526 S2527 S2528 S2529 S2530 S2531 S2532 S2533 S2534 S2535 S2536 S2537 S2538 S2539 S2540 S2541 S2542 S2543 S2544 S2545 S2546 S2547 S2548 S2549 S2550 S2551 S2552 S2553 S2554 S2555 S2556 S2557 S2558 S2559 S2560 S2561 S2562 S2563 S2564 S2565 S2566 S2567 S2568 S2569 S2570 S2571 S2572 S2573 S2574 S2575 S2576 S2577 S2578 S2579 S2580 S2581 S2582 S2583 S2584 S2585 S2586 S2587 S2588 S2589 S2590 S2591 S2592 S2593 S2594 S2595 S2596 S2597 S2598 S2599 S3000

1. TPM Header

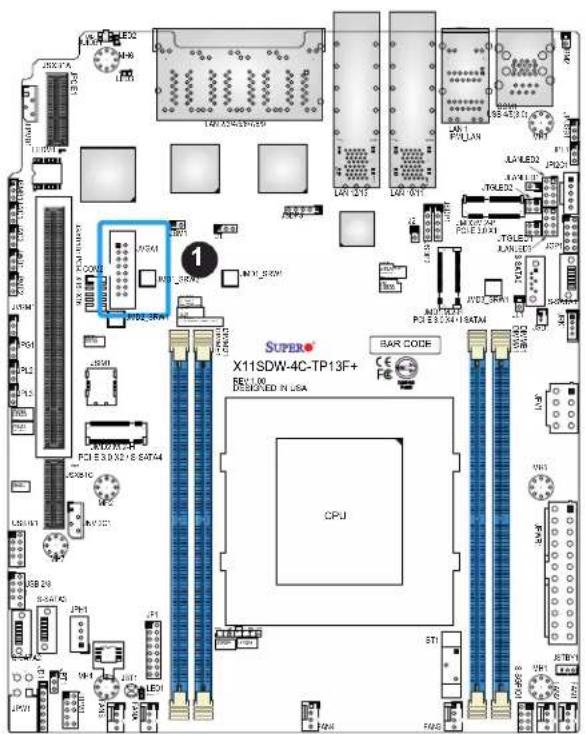

VGA Header

Connect a 16-pin VGA extension cable to JVGA1 for a VGA connection.

VGA HeaderPin Definitions
Pin# Definition Pin# Definition
1 VGA_RED 2 VGA_GRE
3 VGA_BLE 4 N/C
5 GND 6 VGA_DET (GND)
7 GND 8 GND
9 5V 10 GND
11 N/C 12 DDCSDA
13 HSYNC 14 VSYNC
15 DDCSCL 16 N/C

SUPER X11SDW-4C-TP13F+ REV 1.00 DESIGNED IN USA CPU BAR CODE STI LED1 LED2 LED3 LED4 LED5 LED6 LED7 LED8 LED9 LED10 LED11 LED12 LED13 LED14 LED15 LED16 LED17 LED18 LED19 LED20 LED21 LED22 LED23 LED24 LED25 LED26 LED27 LED28 LED29 LED30 LED31 LED32 LED33 LED34 LED35 LED36 LED37 LED38 LED39 LED40 LED41 LED42 LED43 LED44 LED45 LED46 LED47 LED48 LED49 LED50 LED51 LED52 LED53 LED54 LED55 LED56 LED57 LED58 LED59 LED60 LED61 LED62 LED63 LED64 LED65 LED66 LED67 LED68 LED69 LED70 LED71 LED72 LED73 LED74 LED75 LED76 LED77 LED78 LED79 LED80 LED81 LED82 LED83 LED84 LED85 LED86 LED87 LED88 LED89 LED90 LED91 LED92 LED93 LED94 LED95 LED96 LED97 LED98 LED99 LPG1

1. VGA Header

Intel RAID Key Header

The JRK1 header allows the user to enable RAID functions. Refer to the table below for pin definitions.

Intel RAID Key Pin Definitions
Pins	Definition
1	GND
2	PU 3.3V Stdby
3	GND
4	PCH RAID KEY

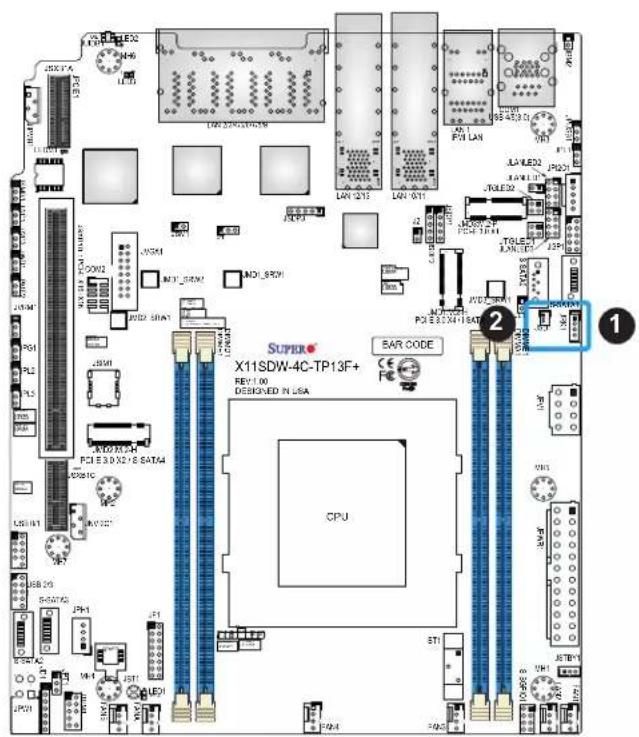

Disk On Module Power Connector

The Disk On Module (DOM) power connector at JSD1 provides 5V power to a solid state DOM storage device connected to one of the SATA ports. Refer to the table below for pin definitions.

DOM Power Pin Definitions
Pin#	Definition
1	5V
2	Ground
3	Ground

SUPERX X11SDW-4C-TP13F+ REV 1.00 DESIGNED IN USA CPU EAR CODE 2 1

1. Intel RAID Key Header

2. SATA DOM

General Purpose I/O Header

The JGP1 (General Purpose Input/Output) header is a general purpose I/O expander on a pin header via the SMBus. Refer to the table below for pin definitions.

GPIO HeaderPin Definitions
Pin#	Definition	Pin#	Definition
1	+3.3V	2	GND
3	GP0	4	GP4
5	GP1	6	GP5
7	GP2	8	GP6
9	GP3	10	GP7

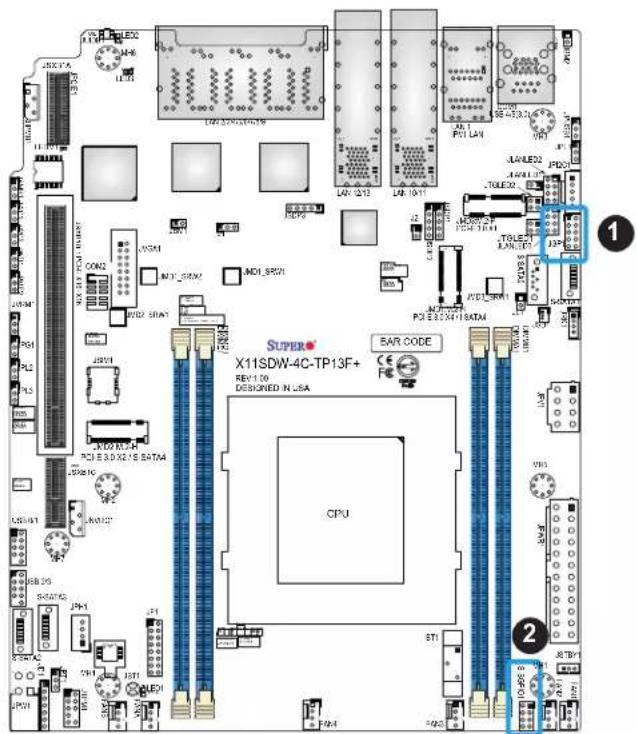

S-SGPIO Header

The Serial Link General Purpose Input/Output (S-SGPIO1) header is used to communicate with the enclosure management chip on the back panel.

SGPIO HeaderPin Definitions
Pin#	Definition	Pin#	Definition
1	NC	2	NC
3	Ground	4	DATA Out
5	Load	6	Ground
7	Clock	8	NC

SUPER X11SDW-4C-TP13F+ REV 1.00 DESIGNED IN USA CPU BAR CODE 1 2

1. General Purpose Header

Standby Power

The Standby Power header is located at JSTBY1 on the motherboard. Refer to the table below for pin definitions.

Standby Power Pin Definitions
Pin# Definition
1 +5V	Standby
2 Ground
3 No Connection

Power LED/Speaker Header

On the JD1 header, pins 1–3 are for the Power LED and pins 4–7 are for the speaker.

Speaker ConnectorPin Definitions

Pin Setting Definition

Pins 1-3 Power LED

Pins 4-7 Speaker

SUPER X11SDW-4C-TP13F+ REV 1.00 DESIGNED IN USA CPU BAR CODE STI P2A P2B P2C P2D P2E P2F P2G P2H P2I P2J P2K P2L P2M P2N P3A P3B P3C P3D P3E P3F P3G P3H P3I P3J P3K P3L P3M P3N P4A P4B P4C P4D P4E P4F P4G P4H P4I P4J P4K P4L P4M P4N P5A P5B P5C P5D P5E P5F P5G P5H P5I P5J P6A P6B P6C P6D P6E P6F P6G P6H P6I P6J P6K P6L P6M P6N P7A P7B P7C P7D P7E P7F P7G P7H P7I P7J P8A P8B P8C P8D P8E P8F P8G P8H P8I P8J P9A P9B P9C P9D P9E P9F P9G P9H P9I P9J S10A10101010101010101010101010101010101010101010101010101010101010101010101010101010101010101010101010101

1. Standby Power Header
2. Power LED/Speaker

External I²C Header

The system management bus header is located at JIPMB1. Connect the appropriate cable here to use the IPMB I²C connection on your system. Refer to the table below for pin definitions.

SMBus Header Pin Definitions
Pin#	Definition
1	Data
2	GND
3	Clock
4	NC

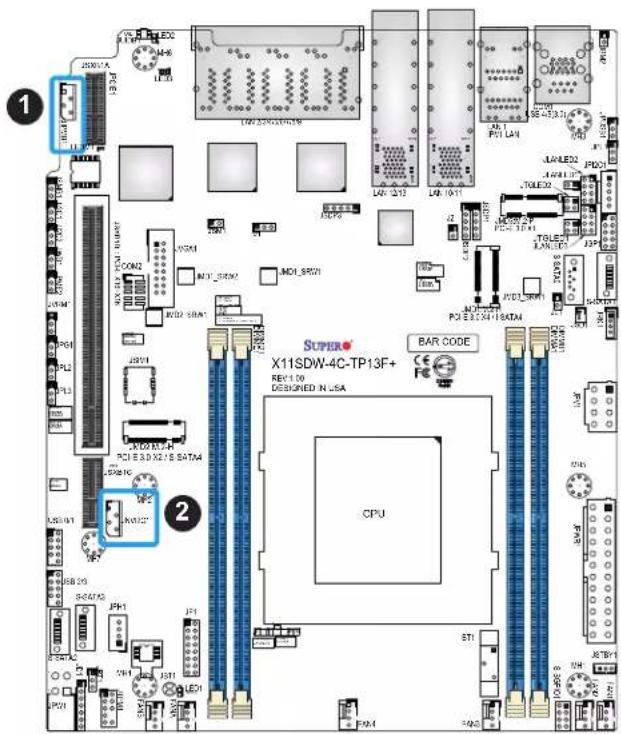

NVMe I²C Header

JNVI ^2 C1 is a management header for the Supermicro AOC NVMe PCIe peripheral cards. Connect a corresponding I ^2 C cable to this header. Refer to the table below for pin definitions.

NVMe I2C Header Pin Definitions
Pin#	Definition
1	PE_HP_SDA
2	Ground
3	PE_HP_SCL
4	PVCCIO

1 2 SUPERX X11SDW-4C-TP13F+ REV 1.00 DESIGNED IN USA CPU BAR CODE ST1 ST2 ST3 ST4 ST5 ST6 ST7 ST8 ST9 ST10 ST11 ST12 ST13 ST14 ST15 ST16 ST17 ST18 ST19 ST20 ST21 ST22 ST23 ST24 ST25 ST26 ST27 ST28 ST29 ST30 ST31 ST32 ST33 ST34 ST35 ST36 ST37 ST38 ST39 ST40 ST41 ST42 ST43 ST44 ST45 ST46 ST47 ST48 ST49 ST50 ST51 ST52 ST53 ST54 ST55 ST56 ST57 ST58 ST59 ST60 ST61 ST62 ST63 ST64 ST65 ST66 ST67 ST68 ST69 ST70 ST71 ST72 ST73 ST74 ST75 ST76 ST77 ST78 ST79 ST80 ST81 ST82 ST83 ST84 ST85 ST86 ST87 ST88 ST89 ST90 ST91 ST92 ST93 ST94 ST95 ST96 ST97 ST98 ST99 ST100

1. External I²C Header
2. NVMe I²C Header

System Management Bus Header

A System Management Bus header for additional slave devices or sensors is located at JSMB1. Refer to the table below for pin definitions.

SMBus Header Pin Definitions
Pin#	Definition
1	Data
2	Ground
3	Clock

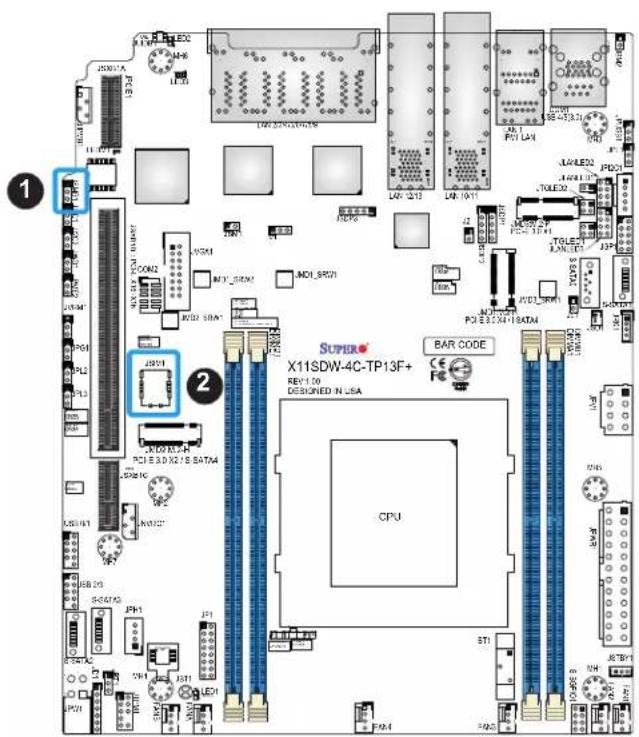

Nano SIM Slot

The JSIM1 slot supports a Nano SIM card.

1 2 SUPERX X11SDW-4C-TP13F+ REV 1.00 DESIGNED N USA CPU BAR CODE STI STI PAN JPN1 JPN2 JPN3 JPN4 JPN5 JPN6 JPN7 JPN8 JPN9 JPN10 JPN11 JPN12 JPN13 JPN14 JPN15 JPN16 JPN17 JPN18 JPN19 JPN20 JPN21 JPN22 JPN23 JPN24 JPN25 JPN26 JPN27 JPN28 JPN29 JPN30 JPN31 JPN32 JPN33 JPN34 JPN35 JPN36 JPN37 JPN38 JPN39 JPN40 JPN41 JPN42 JPN43 JPN44 JPN45 JPN46 JPN47 JPN48 JPN49 JPN50 JPN51 JPN52 JPN53 JPN54 JPN55 JPN56 JPN57 JPN58 JPN59 JPN60 JPN61 JPN62 JPN63 JPN64 JPN65 JPN66 JPN67 JPN68 JPN69 JPN70 JPN71 JPN72 JPN73 JPN74 JPN75 JPN76 JPN77 JPN78 JPN79 JPN80 JPN81 JPN82 JPN83 JPN84 JPN85 JPN86 JPN87 JPN88 JPN89 JPN90 JPN91 JPN92 JPN93 JPN94 JPN95 JPN96 JPN97 JPN98 JPN99 JPN100

1. SMBus Header
2. Nano SIM Slot

LAN Port Activity LED

JLANLED1 is the activity LED for LAN1, JLANLED2 is the activity LED for LAN2 – LAN5, and JLANLED3 is the activity LED for LAN6 – LAN9.

JLANLED1LAN Activity LEDPin Definitions
Pin#	Definition
1	P3V3 Dual
2	GLAN1_ACT_N

JLANLED2LAN Activity LEDPin Definitions
Pin#	Definition	Pin#	Definition
1	P3V3 Dual	2	LINK0_ACT_N
3	P3V3 Dual	4	LINK1_ACT_N
5	P3V3 Dual	6	LINK2_ACT_N
7	P3V3 Dual	8	LINK3_ACT_N

JLANLED3LAN Activity LEDPin Definitions
Pin#	Definition	Pin#	Definition
1	P3V3 Dual	2	LINK4_ACT_N
3	P3V3 Dual	4	LINK5_ACT_N
5	P3V3 Dual	6	LINK6_ACT_N
7	P3V3 Dual	8	LINK7_ACT_N

JTGLED1, JTGLED2

JTGLED1 is the activity LED for LAN10 – LAN11, and JTGLED2 is the activity LED for LAN12 – LAN13.

JTGLED1LAN Activity LEDPin Definitions
Pin#	Definition
1	P3V3 Dual
2	10G_P0_ACT_N
3	P3V3 Dual
4	10G_P1_ACT_N

JTGLED2LAN Activity LEDPin Definitions
Pin#	Definition
1	P3V3 Dual
2	10G_P2_ACT_N
3	P3V3 Dual
4	10G_P3_ACT_N

J26.17A P01 LAD 2545-198759 J26.17A P01 LAD 2545-198759 J26.17A P01 LAD 2545-198759 J26.17A P01 LAD 2545-198759 J26.17A P01 LAD 2546-198759 J26.17A P01 LAD 2546-198759 J26.17A P01 LAD 2546-198759 J26.17A P01 LAD 2546-198759 J26.17A P02 LAD 2546-198759 J26.17A P02 LAD 2546-198759 J26.17A P02 LAD 2546-198759 J26.17A P02 LAD 2546-198759 J27.17A P03 LAD 2546-198759 J27.17A P03 LAD 2546-198759 J27.17A P03 LAD 2546-198759 J27.17A P03 LAD 2546-198759 J28.17A P04 LAD 2546-198759 J28.17A P04 LAD 2546-198759 J28.17A P04 LAD 2546-198759 J28.17A P04 LAD 2546-198759 J29.17A P05 LAD 2546-198759 J29.17A P05 LAD 2546-198759 J29.17A P05 LAD 2546-198759 J30.17A P06 LAD 2546-198759 J30.17A P06 LAD 2546-198759 J30.17A P06 LAD 2546-198759 J30.17A P06 LAD 2546-198759 J31.17A P07 LAD 2546-198759 J31.17A P07 LAD 2546-198759 J31.17A P07 LAD 2546-198759 J32.17A P08 LAD 2546-198759 J32.17A P08 LAD 2546-198759 J32.17A P08 LAD 2546-198759 J33.17A P09 LAD 2546-198759 J33.17A P09 LAD 2546-198759 J33.17A P09 LAD 2546-198759 J34.17A P10 LAD 2546-198759 J34.17A P10 LAD 2546-198759 J34.17A P14.17A P14.17A J34.17A P14.17A J34.17A P14.17A J34.17A P14.17A

1. JLANLED1
2. JLANLED2
3. JLANLED3
4. JTGLED1
5. JTGLED2

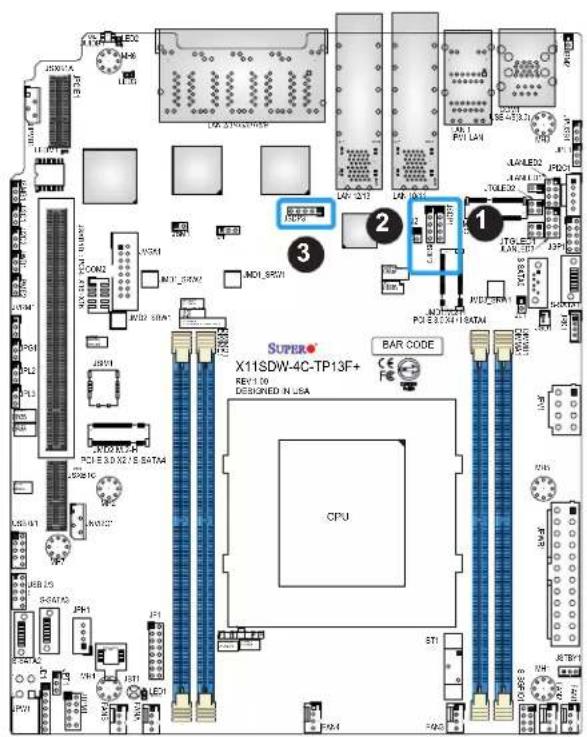

Software-Defined Pins (SDP)

JSDP1, JSDP2, and JSDP3 are software-defined pins that can be used to support IEEE 1588 auxiliary devices and other hardware or software-control purposes. These pins can be configured to function as standard inputs or General-Purpose Interrupt (GPI) input or output pins. In order for pins to function as GPI, they must be configured as inputs and enabled by the PCH Ethernet or I350.

JSDP1Pin Definitions
Pin#	Definition
1	X722_SDP1_1
2	X722_SDP1_0
3	X722_SDP0_1
4	X722_SDP0_0
5	Ground

JSDP2Pin Definitions
Pin#	Definition
1	10G_P3_LOW_SPEED
2	X722_SDP3_0
3	10G_P2_LOW_SPEED
4	X722_SDP2_0
5	Ground

JSDP3Pin Definitions
Pin#	Definition
1	I350_SDP0_0
2	I350_SDP0_1
3	I350_SDP0_2
4	I350_SDP0_3
5	Ground

JN01A PCE1 LPG LPG LPG LPG LPG LPG LPG LPG LPG LPG LPG LPG LPG LPG LPG LPG LPG LPG LPG LPG LPG LPG LPG LPG LPG LPG LPG LPG LPG LPG LPG LPG LPG LPG 210520058 LPG 210520059 LPG 21052010 LPG 21052011 LPG 21052012 LPG 21052013 LPG 21052014 LPG 21052015 LPG 21052016 LPG 21052017 LPG 21052018 LPG 21052019 LPG 21052020 LPG 21052021 LPG 21052022 LPG 21052023 LPG 21052024 LPG 21052025 LPG 21052026 LPG 21052027 LPG 21052028 LPG 21052029 LPG 21052030 LPG 21052031 LPG 21052032 LPG 21052033 LPG 21052034 LPG 21052035 LPG 21052036 LPG 21052037 LPG 21052038 LPG 21052039 LPG 21052040 LPG 21052041 LPG 21052042 LPG 21052043 LPG 21052044 LPG 21052045 LPG 21052046 LPG 21052047 LPG 21052048 LPG 21052049 LPG 21052050 LPG 21052051 LPG 21052052 LPG 21052053 LPG 21052054 LPG 21052055 LPG 21052056 LPG 21052057 LPG 21052058 LPG 21052059 LPG 21052060 LPG 21052061 LPG 21052062 LPG 21052063 LPG 21052064 LPG 21052065 LPG 21052066 LPG 21052067 LPG 21052068 LPG 21052069 LPG 21052070 LPG 21052071 LPG 21052072 LPG 21052073 LPG 21052074 LPG 21052075 LPG 21052076 LPG 21052077 LPG 21052078 LPG 21052079 LPG 21052080 LPG 21052081 LPG 21052082 LPG 21052083 LPG 21052084 LPG 21052085 LPG 21052086 LPG 21052087 LPG 21052088 LPG 21052089 LPG 21052090 LPG 21052091 LPG 21052092 LPG 21052093 LPG 21052094 LPG 21052095 LPG 21052096 LPG 21052097 LPG 21052098 LPG 21052099 LPG 21053D4X-TP-TP-TP-TP-TP-TP-TP-TP-TP-TP-TP-TP-TP-TP-TP-TP-TP-TP-TP-TP-TP-TP-TP-TP-TP-TP-TP-TP-TP-TP-TP-TP-TP-TP-TP-TP-TP-TP-TP-TP-TP-TP-TP-TP-TP-TP-TP-TP-TP-TP-PP-TP-PP-PP-PP-PP-PP-PP-PP-PP-PP-PP-PP-PP-PP-PP-PP-PP-PP-PP-PP-PP-PP-PP-PP-PP-PP-PP-PP-PP-PP-PP-PP-PP-PP-PP-PP-PP-PP-PP-PP-PP-PP-PP-PP-PP-PP-PP-PP-PP-PP-PP-FFG/FFG/FFG/FFG/FFG/FFG/FFG/FFG/FFG/FFG/FFG/FFG/FFG/FFG/FFG/FFG/FFG/FFG/FFG/FFG/FFG/FFG/FFG/FFG/FFG/FFG/FFG/FFG/FFG/FFG/FFG/FFG/FFG/FFG/CCN/CCN/CCN/CCN/CCN/CCN/CCN/CCN/CCN/CCN/CCN/CCN/CCN/CCN/CCN/CCN/CCN/CCN/CCN/CCN/CCN/CCN/CCN/CCN/CCN/CCN/CCN/CCN/CCN/CCN/CCN/CCN/CCN/CCN/ SUPERX X11SDW-4C-TP-TP-TP+ REV.1.99 DESIGNED N USA CPU BAR CODE STI SAGS SAGS SAGS SAGS SAGS SAGS SAGS SAGS SAGS SAGS SAGS SAGS SAGS SAGS SAGS SAGS SAGS SAGS SAGS SAGS SAGS SAGS SAGS SAGS SAGS SAGS SAGS SAGS SAGS SAGS SAGS SAGS SAGS SAGS TSPB/TSPB/TSPB/TSPB/TSPB/TSPB/TSPB/TSPB/TSPB/TSPB/TSPB/TSPB/TSPB/TSPB/TSPB/TSPB/TSPB/TSPB/TSPB/TSPB/TSPB/TSPB/TSPB/TSPB/TSPB/TSPB/TSPB/TSPB/TSPB/TSPB/TSPB/TSPB/TSPB/TSPB/TFP-BP/BP/BP/BP/BP/BP/BP/BP/BP/BP/BP/BP/BP/BP/BP/BP/BP/BP/BP/BP/BP/BP/BP/BP/BP/BP/BP/BP/BP/BP/BP/BP/BP/BP/BP/BP/BP/BP/BP/BP/BP/BP/BP/BP/BP/BP/BP/BP/BP/BP/BP/CNP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BEP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP C NP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CNP CWP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP BIP B IPB E3 D3 D3 D3 D3 D3 D3 D3 D3 D3 D3 D3 D3 D3 D3 D3 D3 D3 D3 D3 D3 D3 D3 D3 D3 D3 D3 D3 D3 D3 D3 D3 D3 D3 D3 D3 D3 D3 D3 D3 D3 D3 D3 D3 D3 D3 D3 D3 D3 D3 D3 A P P A P A P A P A P A P A P A P A P A P A P A P A P A P A P A P A P A P A P A P A P A P A P A P A P A P A P A P A P A P A P A P A P A P A P A P A P A P A P A P A P A P A P A P A P A P A P A P A P A P A P T E T T E T T E T T E T T E T T E T T E T T E T T E T T E T T E T T E T T E T T E T T E T T E T T E T T E T T E T T E T T E T T E T T E T T E T T E T T E T T E T T E T T E T T E T T E T T E T T E T T E T

1. JSDP1
2. JSDP2
3. JSDP3

2.7 Jumper Settings

How Jumpers Work

To modify the operation of the motherboard, jumpers can be used to choose between optional settings. Jumpers create shorts between two pins to change the function of the connector. Pin 1 is identified with a square solder pad on the printed circuit board. See the diagram below for an example of jumping pins 1 and 2. Refer to the motherboard layout page for jumper locations.

Note: On two-pin jumpers, Closed means the jumper is on the pins and Open means the jumper is off.

Connector Pins Jumper Setting 3 2 1 3 2 1

CMOS Clear

JBT1 is used to clear the CMOS. Instead of pins, this jumper consists of contact pads to prevent accidental clearing of the CMOS. To clear the CMOS, use a metal object such as a small screwdriver to touch both pads at the same time to short the connection.

Note: Shut down the system and then short JBT1 to clear the CMOS.

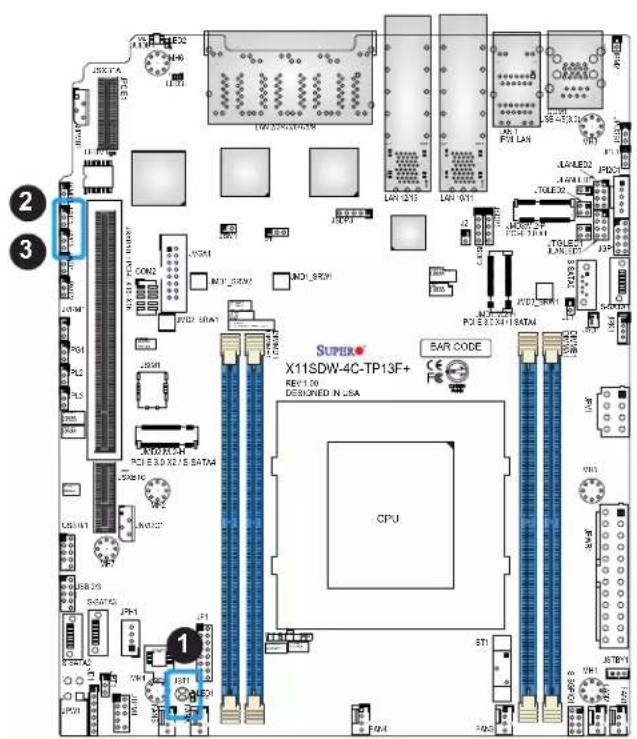

SMBus to PCI-E Slots

Jumpers JI2C1 and JI2C2 allow you to connect the System Management Bus (I2C) to the PCIe slots. Both jumpers must be set to the same setting (JI2C1 controls the clock and JI2C2 controls the data).

SMBus to PCI-E SlotsJumper Settings
Jumper Setting	Definition
Pins 1-2	Enabled
Pins 2-3	Disabled (Default)

2 3 1 2 3 SUPERX X11SDW-4C-TP13F+ REV 1.00 DESIGNED IN USA CPU SAR CODE STI P3A-1 P3B-1 P3C-1 P3D-1 P3E-1 P3F-1 P3G-1 P3H-1 P3I-1 P3J-1 P3K-1 P3L-1 P3M-1 P3N-1 P3O-1 P3P-1 P3Q-1 P3R-1 P3S-1 P3T-1 P3U-1 P3V-1 P3W-1 P3X-1 P3Y-1 P3Z-1 P3A-2 P3B-2 P3C-2 P3D-2 P3E-2 P3F-2 P3G-2 P3H-2 P3I-2 P3J-2 P3K-2 P3L-2 P3M-2 P3N-2 P4A-2 P4B-2 P4C-2 P4D-2 P4E-2 P4F-2 P4G-2 P4H-2 P4I-2 P4J-2 P4K-2 P4L-2 P4M-2 P4N-2 P5A-2 P5B-2 P5C-2 P5D-2 P5E-2 P5F-2 P5G-2 P5H-2 P5I-2 P5J-2 P6A-2 P6B-2 P6C-2 P6D-2 P6E-2 P6F-2 P6G-2 P6H-2 P6I-2 P6J-2 P7A-2 P7B-2 P7C-2 P7D-2 P7E-2 P7F-2 P7G-2 P7H-2 P7I-2 P7J-2 P8A-2 P8B-2 P8C-2 P8D-2 P8E-2 P8F-2 P8G-2 P8H-2

1. CMOS Clear
2. JI^2C1
3. JI ^2 C2

Manufacturing Mode Select

Close pins 2-3 of jumper JPME2 to bypass SPI flash security and force the system to operate in the manufacturing mode, which will allow the user to flash the system firmware from a host server for system setting modifications. Refer to the table below for jumper settings.

Manufacturing ModeJumper Settings
Jumper Setting	Definition
Pins 1-2	Normal (Default)
Pins 2-3	Manufacturing Mode

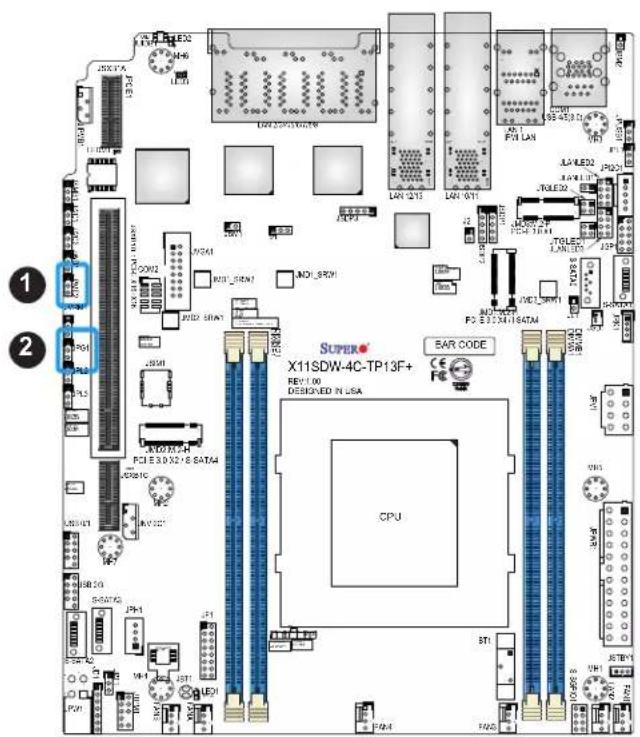

VGA Enable/Disable

JPG1 allows you to enable or disable the VGA port using the onboard graphics controller. The default setting is Enabled.

VGA Enable/Disable Jumper Settings
Jumper Setting	Definition
Pins 1-2	Enabled (Default)
Pins 2-3	Disabled

1 2 SUPER X11SDW-4C-TP13F+ REV 1.00 DESIGNED IN USA CPU BAR CODE STI STI FAN2 FAN3 FAN4 FAN5 FAN6 FAN7 FAN8 FAN9 FAN10 FAN11 FAN12 FAN13 FAN14 FAN15 FAN16 FAN17 FAN18 FAN19 FAN20 FAN21 FAN22 FAN23 FAN24 FAN25 FAN26 FAN27 FAN28 FAN29 FAN30 FAN31 FAN32 FAN33 FAN34 FAN35 FAN36 FAN37 FAN38 FAN39 FAN40 FAN41 FAN42 FAN43 FAN44 FAN45 FAN46 FAN47 FAN48 FAN49 FAN50 FAN51 FAN52 FAN53 FAN54 FAN55 FAN56 FAN57 FAN58 FAN59 FAN60 FAN61 FAN62 FAN63 FAN64 FAN65 FAN66 FAN67 FAN68 FAN69 FAN70 FAN71 FAN72 FAN73 FAN74 FAN75 FAN76 FAN77 FAN78 FAN79 FAN80 FAN81 FAN82 FAN83 FAN84 FAN85 FAN86 FAN87 FAN88 FAN89 FAN90 FAN91 FAN92 FAN93 FAN94 FAN95 FAN96 FAN97 FAN98 FAN99 FAN100

1. Manufacturing Mode
2. VGA Enable/Disable

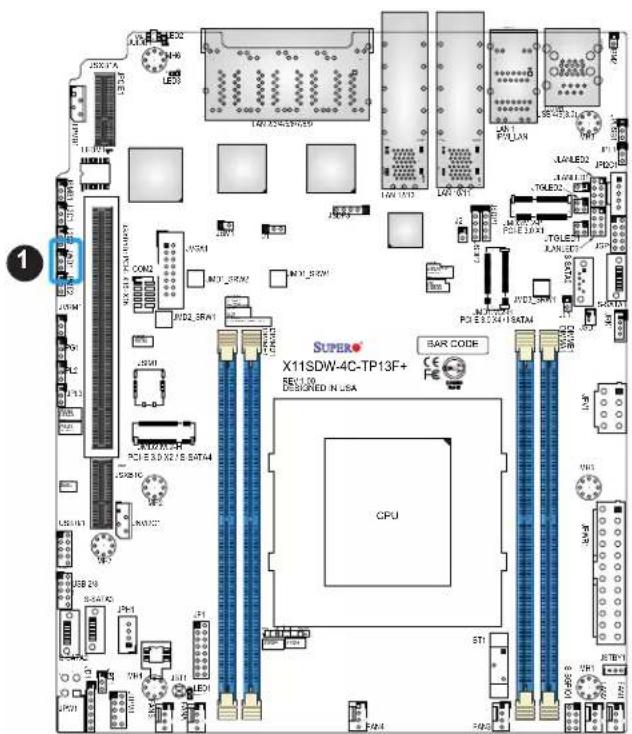

Watch Dog Timer

JWD1 controls the Watch Dog function. Watch Dog is a monitor that can reboot the system when a software application hangs. Jumping pins 1-2 will cause Watch Dog to reset the system if an application hangs. Jumping pins 2-3 will generate a non-maskable interrupt signal for the application that hangs. Watch Dog must also be enabled in BIOS.

Note: When Watch Dog is enabled, users need to write their own application software to disable it.

Watch DogJumper Settings
Jumper Setting Definition
Pins 1-2 Reset (Default)
Pins 2-3 NMI
Open Disabled

1 20X1A LED2 J5V1 LED3 J5V1 J5V2 J5V3 J5V4 J5V5 J5V6 J5V7 J5V8 J5V9 J5V10 J5V11 J5V12 J5V13 J5V14 J5V15 J5V16 J5V17 J5V18 J5V19 J5V20 J5V21 J5V22 J5V23 J5V24 J5V25 J5V26 J5V27 J5V28 J5V29 J5V30 J5V31 J5V32 J5V33 J5V34 J5V35 J5V36 J5V37 J5V38 J5V39 J5V40 J5V41 J5V42 J5V43 J5V44 J5V45 J5V46 J5V47 J5V48 J5V49 J5V50 J5V51 J5V52 J5V53 J5V54 J5V55 J5V56 J5V57 J5V58 J5V59 J5V60 J5V61 J5V62 J5V63 J5V64 J5V65 J5V66 J5V67 J5V68 J5V69 J5V70 J5V71 J5V72 J5V73 J5V74 J5V75 J5V76 J5V77 J5V78 J5V79 J5V80 J5V81 J5V82 J5V83 J5V84 J5V85 J5V86 J5V87 J5V88 J5V89 J5V90 J5V91 J5V92 J5V93 J5V94 J5V95 J5V96 J5V97 J5V98 J5V99 J6X100X-4C-TP13F+ SEVI 1.00, DESIGNED IN USA CPU BAR CODE CE PCE

1. Watch Dog Timer

LAN Port Enable/Disable

Change the setting of jumpers JPL1 for LAN1, JPL2 for LAN2 – LAN5, and JPL3 for LAN6 – LAN9 to enable or disable the LAN ports.

LAN Port Enable/Disable Jumper Settings
Jumper Setting	Definition
Pins 1-2	Enabled
Pins 2-3	Disabled

TPM Enable

Use JPT1 to enable or disable support for the TPM module. Refer to the table below for jumper settings.

TPM Enable/DisableJumper Settings
Jumper Setting	Definition
Pins 1-2	Enabled (Default)
Pins 2-3	Disabled

1 2 SUPER X11SDW-4C-TP13F+ REV 1.00 DESIGNED IN USA CPU BAR CODE STI PWR JPN JPN-LAN JPN-LAN JPN-LAN JPN-LAN JPN-LAN JPN-LAN JPN-LAN JPN-LAN JPN-LAN JPN-LAN JPN-LAN JPN-LAN JPN-LAN JPN-LAN JPN-LAN JPN-LAN JPN-LAN JPN-LAN JPN-LAN JPN-LAN JPN-LN JPN-LN JPN-LN JPN-LN JPN-LN JPN-LN JPN-LN JPN-LN JPN-LN JPN-LN JPN-LN JPN-LN JPN-LN JPN-LN JPN-LN JPN-LN JPN-LN JPN-LN JPN-LN JPN-LN JPN-LNN JPN-LNN JPN-LNN JPN-LNN JPN-LNN JPN-LNN JPN-LNN JPN-LNN JPN-LNN JPN-LNN JPN-LNN JPN-LNN JPN-LNN JPN-LNN JPN-LNN JPN-LNN JPN-LNN JPN-LNN JPN-LNN JPN-LNN JPN-LN JPN-LNN JPN-LNN JPN-LNN JPN-LNN JPN-LNN JPN-LNN JPN-LNN JPN-LNN JPN-LNN JPN-LNN JPN-LNN JPN-LNN JPN-LNN JPN-LNN JPN-LNN JPN-LNN JPN-LNN JPN-LNN JPN-LN JPN-LN JPN-LNN JPN-LNN JPN-LNN JPN-LNN JPN-LNN JPN-LNN JPN-LNN JPN-LNN JPN-LNN JPN-LNN JPN-LNN JPN-LNN JPN-LNN JPN-LNN JPN-LNN JPN-LNN JPN-LNN JPN-LN JPN-LNN JPN-LN JPN-LNN JPN-LNN JPN-LNN JPN-LNN JPN-LNN JPN-LNN JPN-LNN JPN-LNN JPN-LNN JPN-LNN JPN-LNN JPN-LNN JPN-LNN JPN-LNN JPN-LNN JPN-LNN JPN-LNN JPN-LN JPN-LN123456789101112131415161718192021222324252627282930313233343536373839404142434445464748495051525354555657585960616263646566676869707172737475767778798081828384858687888990919293949596979899100

1. LAN Port Enable/Disable
2. TPM Enable

USB Wake Up

Use the JPUSB1 jumper to enable system wake up via a USB device. This jumper allows you to wake up the system by pressing a key on the USB keyboard or by clicking the USB mouse of your system. The JPUSB1 jumper is used together with the USB Wake Up function in the BIOS. Enable both the jumper and the BIOS setting to activate this function. When the USB Wake Up function is enabled, it will be active on all USB ports. Refer to the table below for jumper settings.

USB Wake UpJumper Settings

Jumper Setting Definition

Pins 1-2 Enabled (Default)

Pins 2-3 Disabled

M.2 SMBus Enable

Use J1 to enable or disable the M.2 SMBus. Refer to the table below for jumper settings.

M.2 SMBus Enable/Disable Jumper Settings

Jumper Setting Definition

Pins 1-2 Enabled (Default)

Pins 2-3 Disabled

1 2 SUPERX X11SDW-4C-TP13F+ REV 1.00 DESIGNED IN USA CPU BAR CODE STI FJN1 FJN2 FJN3 FJN4 FJN5 FJN6 FJN7 FJN8 FJN9 FJN10 FJN11 FJN12 FJN13 FJN14 FJN15 FJN16 FJN17 FJN18 FJN19 FJN20 FJN21 FJN22 FJN23 FJN24 FJN25 FJN26 FJN27 FJN28 FJN29 FJN30 FJN31 FJN32 FJN33 FJN34 FJN35 FJN36 FJN37 FJN38 FJN39 FJN40 FJN41 FJN42 FJN43 FJN44 FJN45 FJN46 FJN47 FJN48 FJN49 FJN50 FJN51 FJN52 FJN53 FJN54 FJN55 FJN56 FJN57 FJN58 FJN59 FJN60 FJN61 FJN62 FJN63 FJN64 FJN65 FJN66 FJN67 FJN68 FJN69 FJN70 FJN71 FJN72 FJN73 FJN74 FJN75 FJN76 FJN77 FJN78 FJN79 FJN80 FJN81 FJN82 FJN83 FJN84 FJN85 FJN86 FJN87 FJN88 FJN89 FJN90 FJN91 FJN92 FJN93 FJN94 FJN95 FJN96 FJN97 FJN98 FJN99 FJN100

1. USB Wake Up
2. M.2 SMBus

IPMI Share LAN Enable/Disable

Set the JBM1 jumper to enabled to share i210 LAN with IPMI.

IPMI Share LAN Enable/Disable Jumper Settings
Jumper Setting	Definition
Pins 1-2 (Open)	Enabled (Default)
Pins 1-2 (Short)	Disabled

IPMI Dedicated/Share LAN Enable/Disable

Use JBM2 to enable or disable the dedicated IPMI LAN port. Refer to the table below for jumper settings.

IPMI Dedicated/Share LAN Enable/Disable Jumper Settings
Jumper Setting	Definition
Pins 1-2 (Open)	Enabled (Default)
Pins 1-2 (Short)	Disabled

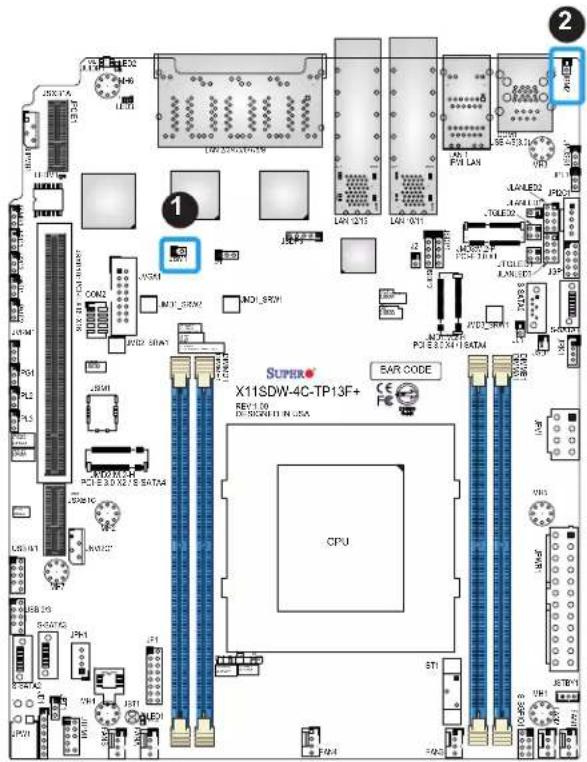

1 2 SUPERX X11SDW-4C-TP13F+ REV 1.09 DE SCRN11 IN USA CPU BAR CODE CE STI STI STI STI STI STI STI STI STI STI STI STI STI STI STI STI STI STI STI STI STI STI STI STI STI STI STI STI STI STI STI STI STI STI

1. IPMI Share LAN Enable/Disable
2. IPMI Dedicated/Share Enable/Disable

2.8 LED Indicators

LAN LEDs

Thirteen LAN ports (LAN1 – LAN13) are located on the I/O back panel. Each LAN port has two LEDs. The yellow LED indicates activity, while the other Link LED may be green, amber, or off to indicate the speed of the connection. Refer to the tables below for more information.

LAN Activity LEDs (Left)LED State
Color Status Definition
Yellow Flashing	Active

LAN Link LEDs (Right)LED State
LED Color Definition
Off No Connection
Amber 1 Gbps
Green 10 Gbps

1 SUPER® X11SDW-4C-TP13F+ REV 1.00 DESIGNED IN USA CPU BAR CODE STI STI JPG JPG JPG JPG JPG JPG JPG JPG JPG JPG JPG JPG JPG JPG JPG JPG JPG JPG JPG JPG JPG JPG JPG JPG JPG JPG JPG JPG JPG JPG JPG JPG JPG JPG

1. LAN LEDs

Power LED

LED1 is an Onboard Power LED. When this LED is lit, it means power is present on the motherboard. In suspend mode, this LED will blink on and off. Be sure to turn off the system and unplug the power cord(s) before removing or installing components.

Onboard Power LED Indicator
LED Color Definition
Off	System Off(power cable not connected)
Green System	On

BMC Heartbeat LED

LEDM1 is the BMC heartbeat LED. When the LED is blinking green, BMC is working. Refer to the table below for the LED status.

Onboard Power LED Indicator
LED Color Definition
Blinking Green	BMC Normal

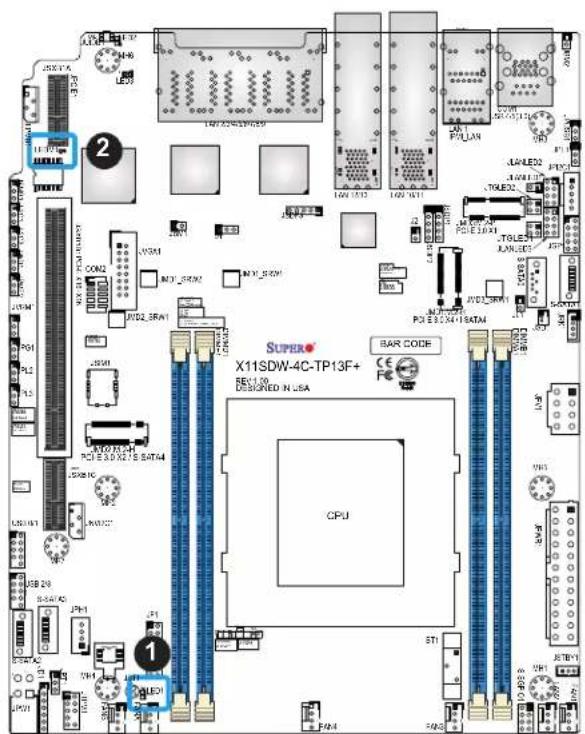

2 1 SUPER X11SDW-4C-TP13F+ REV 1.0 DESIGNED IN USA CPU BAR CODE CE FC STI PAN JPN JPN1 JPN2 JPN3 JPN4 JPN5 JPN6 JPN7 JPN8 JPN9 JPN10 JPN11 JPN12 JPN13 JPN14 JPN15 JPN16 JPN17 JPN18 JPN19 JPN20 JPN21 JPN22 JPN23 JPN24 JPN25 JPN26 JPN27 JPN28 JPN29 JPN30 JPN31 JPN32 JPN33 JPN34 JPN35 JPN36 JPN37 JPN38 JPN39 JPN40 JPN41 JPN42 JPN43 JPN44 JPN45 JPN46 JPN47 JPN48 JPN49 JPN50 JPN51 JPN52 JPN53 JPN54 JPN55 JPN56 JPN57 JPN58 JPN59 JPN60 JPN61 JPN62 JPN63 JPN64 JPN65 JPN66 JPN67 JPN68 JPN69 JPN70 JPN71 JPN72 JPN73 JPN74 JPN75 JPN76 JPN77 JPN78 JPN79 JPN80 JPN81 JPN82 JPN83 JPN84 JPN85 JPN86 JPN87 JPN88 JPN89 JPN90 JPN91 JPN92 JPN93 JPN94 JPN95 JPN96 JPN97 JPN98 JPN99 JPN100

1. Power LED
2. BMC Heartbeat LED

Overheat/Power Fail/Fan Fail LED

When the light for LED3 is solid red, it means overheating. When the LED is blinking red, it means a power failure or fan failure.

Overheat/Power Fail/Fan FailLED Indicator
LED Color Definition
Solid Red Overheat
Blinking	Power Failure/
Red	Fan Failure

1 25X 4A LW-250V-40V-39 LW-250V-40V-38 LW-250V-40V-37 LW-250V-40V-36 LW-250V-40V-35 LW-250V-40V-34 LW-250V-40V-33 LW-250V-40V-32 LW-250V-40V-31 LW-250V-40V-30 LW-250V-40V-29 LW-250V-40V-28 LW-250V-40V-27 LW-250V-40V-26 LW-250V-40V-25 LW-250V-40V-24 LW-250V-40V-23 LW-250V-40V-22 LW-250V-40V-21 LW-250V-40V-20 LW-250V-40V-19 LW-250V-40V-18 LW-250V-40V-17 LW-250V-40V-16 LW-250V-40V-15 LW-250V-40V-14 LW-250V-40V-13 LW-250V-40V-12 LW-250V-40V-11 LW-250V-40V-10 LW-250V-40V-9 LW-250V-40V-8 LW-250V-40V-7 LW-250V-40V-6 LW-250V-40V-5 LW-250V-40V-4 LW-250V-40V-3 LW-250V-40V-2 LW-250V-40V-1 LW-250V-40V 1 SULPER X11SDW-4C-TP13F+ REV 1.19 DESIGNED IN USA CPU BAR CODE STI STI STI STI STI STI STI STI STI STI STI

1. Overheat/Power Failure/Fan Failure LED

Chapter 3

Troubleshooting

3.1 Troubleshooting Procedures

Use the following procedures to troubleshoot your system. If you have followed all of the procedures below and still need assistance, refer to the 'Technical Support Procedures' and/or 'Returning Merchandise for Service' section(s) in this chapter. Always disconnect the AC power cord before adding, changing or installing any non hot-swap hardware components.

Before Power On

1. Make sure that there are no short circuits between the motherboard and chassis.
2. Disconnect all ribbon/wire cables from the motherboard, including those for the keyboard and mouse.
3. Remove all add-on cards.
4. Connect the front panel connectors to the motherboard.

No Power

1. Make sure that there are no short circuits between the motherboard and the chassis.
2. Make sure that the 12V DC and/or ATX power connectors are properly connected.
3. Check that the 115V/230V switch, if available, on the power supply is properly set.
4. Turn the power switch on and off to test the system, if applicable.
5. The battery on your motherboard may be old. Check to verify that it still supplies approximately 3VDC. If it does not, replace it with a new one.

No Video

1. If the power is on but you have no video, remove all add-on cards and cables.

2. Use the speaker to determine if any beep codes are present. Refer to Appendix A for details on beep codes.

3. Remove all memory modules and turn on the system (if the alarm is on, check the specs of memory modules, reset the memory or try a different one).

System Boot Failure

If the system does not display POST or does not respond after the power is turned on, check the following:

1. Check for any error beep from the motherboard speaker.

- If there is no error beep, try to turn on the system without DIMM modules installed. If there is still no error beep, replace the motherboard.

- If there are error beeps, clear the CMOS settings by unplugging the power cord and contacting both pads on the CMOS clear jumper (JBT1). (Refer to Section 2-7 in Chapter 2.)

1. Remove all components from the motherboard, especially the DIMM modules. Make sure that system power is on and that memory error beeps are activated.

2. Turn on the system with only one DIMM module installed. If the system boots, check for bad DIMM modules or slots by following the Memory Errors Troubleshooting procedure in this chapter.

Memory Errors

When a no-memory beep code is issued by the system, check the following:

1. Make sure that the memory modules are compatible with the system and that the DIMMs are properly and fully installed. Click on the Tested Memory List link on the motherboard product page to see a list of supported memory.

2. Check if different speeds of DIMMs have been installed. It is strongly recommended that you use the same RAM type and speed for all DIMMs in the system.

3. Make sure that you are using the correct type of ECC DDR4 RDIMM modules recommended by the manufacturer.

4. Check for bad DIMM modules or slots by swapping a single module among all memory slots and check the results.

5. Make sure that all memory modules are fully seated in their slots. Follow the instructions given in Section 2-3 in Chapter 2.

6. Please follow the instructions given in the DIMM population tables listed in Section 2-3 to install your memory modules.

Losing the System's Setup Configuration

1. Make sure that you are using a high-quality power supply. A poor-quality power supply may cause the system to lose the CMOS setup information. Refer to Section 2-7 for details on recommended power supplies.
2. The battery on your motherboard may be old. Check to verify that it still supplies approximately 3VDC. If it does not, replace it with a new one. If the above steps do not fix the setup configuration problem, contact your vendor for repairs.

When the System Becomes Unstable

A. If the system becomes unstable during or after OS installation, check the following:

1. CPU/BIOS support: Make sure that your CPU is supported and that you have the latest BIOS installed in your system.
2. Memory support: Make sure that the memory modules are supported by testing the modules using memtest86 or a similar utility.

Note: Click on the Tested Memory List link on the motherboard product page to see a list of supported memory.

1. HDD support: Make sure that all hard disk drives (HDDs) work properly. Replace the bad HDDs with good ones.
2. System cooling: Check the system cooling to make sure that all heatsink fans and CPU/system fans, etc., work properly. Check the hardware monitoring settings in the IPMI to make sure that the CPU and system temperatures are within the normal range. Also check the front panel Overheat LED and make sure that it is not on.
3. Adequate power supply: Make sure that the power supply provides adequate power to the system. Make sure that all power connectors are connected. Please refer to our website for more information on the minimum power requirements.
4. Proper software support: Make sure that the correct drivers are used.

B. If the system becomes unstable before or during OS installation, check the following:

1. Source of installation: Make sure that the devices used for installation are working properly, including boot devices such as CD/DVD.

2. Cable connection: Check to make sure that all cables are connected and working properly.

3. Use the minimum configuration for troubleshooting: Remove all unnecessary components (starting with add-on cards first), and use the minimum configuration (but with the CPU and a memory module installed) to identify the trouble areas. Refer to the steps listed in Section A above for proper troubleshooting procedures.

4. Identify bad components by isolating them: If necessary, remove a component in question from the chassis, and test it in isolation to make sure that it works properly. Replace a bad component with a good one.
5. Check and change one component at a time instead of changing several items at the same time. This will help isolate and identify the problem.
6. To find out if a component is good, swap this component with a new one to see if the system will work properly. If so, then the old component is bad. You can also install the component in question in another system. If the new system works, the component is good and the old system has problems.

3.2 Technical Support Procedures

Before contacting Technical Support, please take the following steps. Also, please note that as a motherboard manufacturer, Supermicro also sells motherboards through its channels, so it is best to first check with your distributor or reseller for troubleshooting services. They should know of any possible problems with the specific system configuration that was sold to you.

1. Please go through the Troubleshooting Procedures and Frequently Asked Questions (FAQ) sections in this chapter or see the FAQs on our website (http://www.supermicro.com/FAQ/index.php) before contacting Technical Support.
2. BIOS upgrades can be downloaded from our website (http://www.supermicro.com/ResourceApps/BIOS_IPMI_Intel.html).

3. If you still cannot resolve the problem, include the following information when contacting Supermicro for technical support:

4. Motherboard model and PCB revision number

5. BIOS release date/version (This can be seen on the initial display when your system first boots up.)

6. System configuration

7. An example of a Technical Support form is on our website at http://www.supermicro.com/RmaForm/.

- Distributors: For immediate assistance, please have your account number ready when placing a call to our Technical Support department. We can be reached by email at [e-mail].

3.3 Frequently Asked Questions

Question: What type of memory does my motherboard support?

Answer: The motherboard supports up to 256GB of RDIMM or 512GB of LRDIMM DDR4 memory. To enhance memory performance, do not mix memory modules of different speeds and sizes. Please follow all memory installation instructions given on Section 2-3 in Chapter 2.

Question: How do I update my BIOS?

Answer: It is recommended that you do not upgrade your BIOS if you are not experiencing any problems with your system. Updated BIOS files are located on our website at http://www.supermicro.com/ResourceApps/BIOS_IPMI_Intel.html. Please check our BIOS warning message and the information on how to update your BIOS on our website. Select your motherboard model and download the BIOS file to your computer. Also, check the current BIOS revision to make sure that it is newer than your BIOS before downloading. Unzip the BIOS file onto a bootable USB device in the UEFI shell. Run the batch file using the format FLASH.NSH filename.rom from your bootable USB device in the UEFI shell to flash the BIOS. Then your system will automatically reboot.

Warning: Do not shut down or reset the system while updating the BIOS to prevent possible system boot failure!)

Note: The SPI BIOS chip used on this motherboard cannot be removed. Send your motherboard back to our RMA Department at Supermicro for repair. For BIOS Recovery instructions, please refer to the AMI BIOS Recovery Instructions posted at http://www.supermicro.com/support/manuals/.

3.4 Battery Removal and Installation

Battery Removal

To remove the onboard battery, follow the steps below:

1. Power off your system and unplug your power cable.
2. Locate the onboard battery as shown below.
3. Using a tool such as a pen or a small screwdriver, push the battery lock outwards to unlock it. Once unlocked, the battery will pop out from the holder.
4. Remove the battery.

Proper Battery Disposal

Please handle used batteries carefully. Do not damage the battery in any way; a damaged battery may release hazardous materials into the environment. Do not discard a used battery in the garbage or a public landfill. Please comply with the regulations set up by your local hazardous waste management agency to dispose of your used battery properly.

Battery Installation

1. To install an onboard battery, follow steps 1 and 2 above and continue below:
2. Identify the battery's polarity. The positive (+) side should be facing up.
3. Insert the battery into the battery holder and push it down until you hear a click to ensure that the battery is securely locked.

Important: When replacing a battery, be sure to only replace it with the same type.

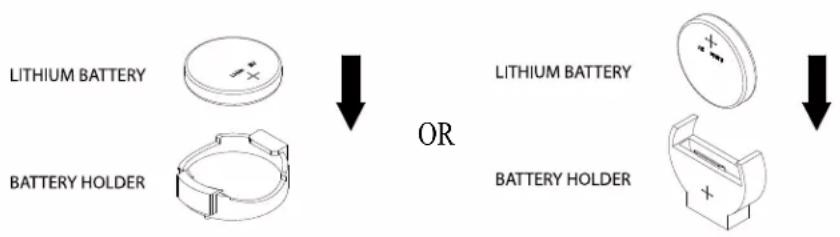

LITHIUM BATTERY BATTERY HOLDER OR LITHIUM BATTERY BATTERY HOLDER

3.5 Returning Merchandise for Service

A receipt or copy of your invoice marked with the date of purchase is required before any warranty service will be rendered. You can obtain service by calling your vendor for a Returned Merchandise Authorization (RMA) number. When returning to the manufacturer, the RMA number should be prominently displayed on the outside of the shipping carton and mailed prepaid or hand-carried. Shipping and handling charges will be applied for all orders that must be mailed when service is complete.

For faster service, RMA authorizations may be requested online (http://www.supermicro.com/support/rma/).

This warranty only covers normal consumer use and does not cover damages incurred in shipping or from failure due to the alteration, misuse, abuse or improper maintenance of products.

During the warranty period, contact your distributor first for any product problems.

Chapter 4

UEFI BIOS

4.1 Introduction

This chapter describes the AMIBIOS™ Setup utility for the X11SDW-16C-TP13F+ motherboard. The BIOS is stored on a chip and can be easily upgraded using a flash program.

Note: Due to periodic changes to the BIOS, some settings may have been added or deleted and might not yet be recorded in this manual. Please refer to the Manual Download area of our website for any changes to the BIOS that may not be reflected in this manual.

Starting the Setup Utility

To enter the BIOS Setup Utility, hit the key while the system is booting-up. (In most cases, the key is used to invoke the BIOS setup screen. There are a few cases when other keys are used, such as , , etc.) Each main BIOS menu option is described in this manual.

The Main BIOS screen has two main frames. The left frame displays all the options that can be configured. "Grayed-out" options cannot be configured. The right frame displays the key legend. Above the key legend is an area reserved for a text message. When an option is selected in the left frame, it is highlighted in white. Often a text message will accompany it. (Note that BIOS has default text messages built in. We retain the option to include, omit, or change any of these text messages.) Settings printed in Bold are the default values.

A "▶" indicates a submenu. Highlighting such an item and pressing the key will open the list of settings within that submenu.

The BIOS setup utility uses a key-based navigation system called hot keys. Most of these hot keys (, , , keys, etc.) can be used at any time during the setup navigation process.

4.2 Main Setup

When you first enter the AMI BIOS setup utility, you will enter the Main setup screen. You can always return to the Main setup screen by selecting the Main tab on the top of the screen. The Main BIOS setup screen is shown below and the following features will be displayed:

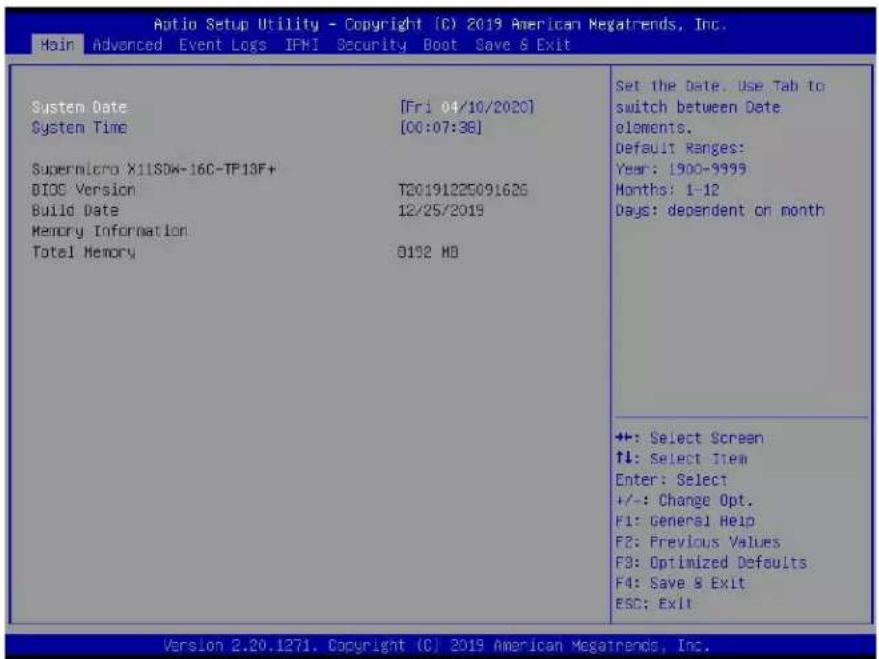

Antio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Main Advanced Event Logs IPMI Security Boot Save & Exit System Date [Fri 04/10/2020] System Time [00:07:38] Supermicro X11SDK-16C-TP13F+ BIOG Version T20191225091626 Build Date 12/25/2019 Memory Information Total Memory 0192 HD Set the Date. Use Tab to switch between Date elements. Default Ranges: Year: 1900-9999 Months: 1-12 Days: dependent on month +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.20.1271. Copyright (C) 2019 American Megatrends, Inc.

System Date/System Time

Use this option to change the system date and time. Highlight System Date or System Time using the arrow keys. Enter new values using the keyboard. Press the key or the arrow keys to move between fields. The date must be entered in MM/DD/YYYY format. The time is entered in HH:MM:SS format.

Note: The time is in the 24-hour format. For example, 5:30 P.M. appears as 17:30:00. The date's default value is the BIOS build date after RTC reset.

Supermicro X11SDW-16C-TP13F+

BIOS Version

This feature displays the version of the BIOS ROM used in the system.

Build Date

This feature displays the date when the version of the BIOS ROM used in the system was built.

Memory Information

Total Memory

This feature displays the total size of memory available in the system.

4.3 Advanced

Use this menu to configure advanced settings.

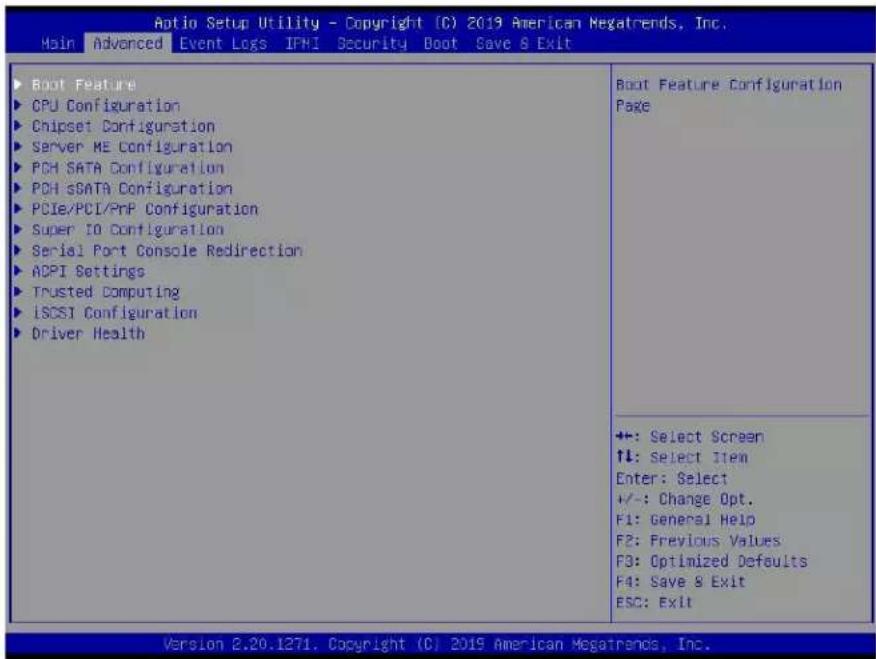

Auto Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Main Advanced Event Logs IFNI Security Boot Save & Exit Boot Feature CPU Configuration Chipset Configuration Server ME Configuration PDH SATA Configuration PDH sSATA Configuration PCIe/PCI/PnP Configuration Super IO Configuration Serial Port Console Redirection ACPI Settings Trusted Computing iSCSI Configuration Driver Health Boot Feature Configuration Page +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.20.1271. Copyright (C) 2019 American Megatrends, Inc.

Warning: Take caution when changing the Advanced settings. An incorrect value, a very high DRAM frequency or an incorrect BIOS timing setting may cause the system to malfunction. When this occurs, restore to default manufacturer settings.

▶Boot Feature

Quiet Boot

Use this feature to select the screen display between POST messages or the OEM logo at boot up. Select Disabled to display the POST messages. Select Enabled to display the OEM logo instead of the normal POST messages. The options are Disabled and Enabled.

Option ROM Messages

Use this feature to set the display mode for the Option ROM. The options are Force BIOS and Keep Current.

Bootup NumLock State

Use this feature to set the Power-on state for the Numlock key. The options are Off and On.

Wait For "F1" If Error

This feature forces the system to wait until the F1 key is pressed if an error occurs. The options are Disabled and Enabled.

INT19 Trap Response

Interrupt 19 is the software interrupt that handles the boot disk function. When this feature is set to Immediate, the ROM BIOS of the host adaptors will "capture" Interrupt 19 at boot up immediately and allow the drives that are attached to these host adaptors to function as bootable disks. If this feature is set to Postponed, the ROM BIOS of the host adaptors will not capture Interrupt 19 immediately and allow the drives attached to these adaptors to function as bootable devices at boot up. The options are Immediate and Postponed.

Re-try Boot

If this feature is enabled, the BIOS will automatically reboot the system from a specified boot device after its initial boot failure. The options are Disabled and EFI Boot.

Port 61h bit-4 Emulation

Select Enabled to enable the emulation of Port 61h bit-4 toggling in SMM (System Management Mode). The options are Disabled and Enabled.

Power Configuration

Watch Dog Function

If enabled, the Watch Dog timer will allow the system to reboot when it is inactive for more than five minutes. The options are Disabled and Enabled.

Power Button Function

This feature controls how the system shuts down when the power button is pressed. Select 4 Seconds Override for the user to power off the system after pressing and holding the power button for four seconds or longer. Select Instant Off to instantly power off the system as soon as the user presses the power button. The options are Instant Off and 4 Seconds Override.

Restore on AC Power Loss

Use this feature to set the power state after a power outage. Select Power Off for the system power to remain off after a power loss. Select Power On for the system power to be turned on after a power loss. Select Last State to allow the system to resume its last power state before a power loss. The options are Stay Off, Power On, and Last State.

▶CPU Configuration

The following CPU information will display:

• Processor BSP Revision
• Processor Socket
• Processor ID

• Processor Frequency

• Processor Max Ratio

• Processor Min Ratio
• Microcode Revision
• L1 Cache RAM
• L2 Cache RAM
• L3 Cache RAM
• Processor 0 Version

Hyper-Threading (ALL)

Select Enabled to support Intel Hyper-threading Technology to enhance CPU performance. The options are Disable and Enable.

Cores Enabled

Set a numeric value to enable the number of cores. Refer to Intel's website for more information. Enter 0 to enable all cores.

Execute Disable Bit (Available if supported by the OS & the CPU)

Set to Enable for Execute Disable Bit support, which will allow the processor to designate areas in the system memory where an application code can execute and where it cannot, thus preventing a worm or a virus from flooding illegal codes to overwhelm the processor or damage the system during a virus attack. The options are Disable and Enable. Refer to Intel and Microsoft websites for more information.

Intel Virtualization Technology

Use this feature to enable the Vanderpool Technology. This technology allows the system to run several operating systems simultaneously. The options are Disable and Enable.

PPIN Control

Select Unlock/Enable to use the Protected Processor Inventory Number (PPIN) in the system. The options are Unlock/Disable and Unlock/Enable.

Hardware Prefetcher (Available when supported by the CPU)

If set to Enable, the hardware prefetcher will prefetch streams of data and instructions from the main memory to the L2 cache to improve CPU performance. The options are Enable and Disable.

Adjacent Cache Prefetch (Available when supported by the CPU)

The CPU prefetches the cache line for 64 bytes if this feature is set to Disabled. The CPU prefetches both cache lines for 128 bytes as comprised if this feature is set to Enable. The options are Enable and Disable.

DCU Streamer Prefetcher (Available when supported by the CPU)

Select Enable to enable the DCU (Data Cache Unit) Streamer Prefetcher which will stream and prefetch data and send it to the Level 1 data cache to improve data processing and system performance. The options are Enable and Disable.

DCU IP Prefetcher (Available when supported by the CPU)

Select Enable for DCU (Data Cache Unit) IP Prefetcher support, which will prefetch IP addresses to improve network connectivity and system performance. The options are Enable and Disable.

LLC Prefetch

If set to Enable, the hardware prefetcher will prefetch streams of data and instructions from the main memory to the L3 cache to improve CPU performance. The options are Disable and Enable.

Extended APIC

Select Enable to activate APIC (Advanced Programmable Interrupt Controller) support. The options are Disable and Enable.

AES-NI

Select Enable to use the Intel Advanced Encryption Standard (AES) New Instructions (NI) to ensure data security. The options are Disable and Enable.

▶Advanced Power Management Configuration

Power Technology

This feature allows you to configure CPU power management settings. The options are Disable, Energy Efficient, and Custom.

*If the feature above is set to Custom, the following features will be available for configuration:

Power Performance Tuning

This feature allows you to set whether the operating system or the BIOS controls the Energy Performance BIAS (EPB). The options are OS Controls EPB and BIOS Controls EPB.

*If the feature above is set to BIOS Controls EPB, the following features will be available for configuration:

ENERGY\_PERF\_BIAS\_CFG Mode

The Energy Performance BIAS (EPB) feature allows you to configure CPU power and performance settings. Select Maximum Performance to set the highest performance. Select Performance to optimize performance over energy efficiency. Select Balanced Performance to prioritize performance optimization while conserving energy. Select Balanced Power to prioritize energy conservation while maintaining good performance. Select Power to optimize energy efficiency over performance. The options are Maximum Performance, Performance, Balanced Performance, Balanced Power, and Power.

▶CPU P State Control

This feature allows you to configure the following CPU power settings:

Uncore Freq Scaling (UFS)

Use this feature to enable or disable uncore frequency scaling. The options are Enable and Disable.

SpeedStep (Pstates)

Intel SpeedStep Technology allows the system to automatically adjust processor voltage and core frequency to reduce power consumption and heat dissipation. The options are Disable and Enable. This feature must be set to Enable to be able to configure the next two features.

Config TDP

Use this feature to configure the TDP level. The options are Nominal, Level 1, and Level 2.

EIST PSD Funtion

This feature allows you to choose between Hardware and Software to control the processor's frequency and performance (P-state). In HW_ALL mode, the processor hardware is responsible for coordinating the P-state, and the OS is responsible for keeping the P-state request up to date on all Logical Processors. In SW_ALL mode, the OS Power Manager is responsible for coordinating the P-state, and must initiate the transition on all Logical Processors. In SW_ANY mode, the OS Power Manager is responsible for coordinating the P-state and may initiate the transition on any Logical Processors. The options are HW_ALL and SW_ALL.

Energy Efficient Turbo

Use this feature to enable or disable energy efficient turbo. The options are Enable and Disable.

Turbo Mode

This feature will enable dynamic control of the processor, allowing it to run above stock frequency. The options are Disable and Enable.

▶Hardware PM State Control

Hardware P-States

This setting allows you to select between OS and hardware-controlled P-states. Selecting Native Mode allows the OS to choose a P-state. Selecting Out of Band Mode allows the hardware to autonomously choose a P-state without OS guidance. Selecting Native Mode with No Legacy Support functions as Native Mode with no support for older hardware. The options are Disable, Native Mode, Out of Band Mode, and Native Mode with No Legacy Support.

▶CPU C State Control

Autonomous Core C-State

Enabling this setting allows the hardware to autonomously choose to enter a C-state based on power consumption and clock speed. The options are Disable and Enable. This feature must be set to Disable to be able to configure the next two features.

CPU C6 report

Select Enable to allow the BIOS to report the CPU C6 State (ACPI C3) to the operating system. During the CPU C6 State, the power to all cache is turned off. The options are Disable, Enable, and Auto.

Enhanced Halt State (C1E)

Select Enable to use Enhanced Halt State technology, which will significantly reduce the CPU's power consumption by reducing its clock cycle and voltage during a Halt state. The options are Disable and Enable.

▶Package C State Control

Package C State

This feature allows you to set the limit on the C State package register. The options are C0/C1 State, C2 State, C6 (Non Retention) State, C6 (Retention) State, No Limit, and Auto.

▶CPU T State Control

Software Controlled T-States

Use this feature to enable Software Controlled T-States. The options are Disable and Enable.

▶Chipset Configuration

Warning: Setting the wrong values in the sections below may cause the system to malfunction.

▶North Bridge Configuration

▶ Memory Configuration

Enforce POR

Select POR (Plan of Record) to enforce POR restrictions on DDR4 frequency and voltage programming. The options are POR and Disable.

Memory Frequency

Use this feature to set the maximum memory frequency for onboard memory modules. The options are Auto, 2133, 2400, and 2666.

Data Scrambling for DDR4

Use this feature to enable or disable data scrambling for DDR4 memory. The options are Auto, Disable, and Enable.

tCCD\_L Relaxation

Select Auto to get TCDD settings from SPD (Serial Presence Detect) into memory RC code to improve system reliability. Select Disable for TCCD to follow Intel POR. The options are Disable and Auto.

2X REFRESH

Use this feature to select the memory controller refresh rate to 2x refresh mode. The options are Auto and Enable.

▶ Memory Topology

This feature displays the information of onboard memory modules detected by the BIOS.

▶ Memory RAS Configuration

Static Virtual Lockstep Mode

Select Enable to run the system's memory channels in lockstep mode to minimize memory access latency. The options are Disable and Enable.

Mirror Mode

This feature allows memory to be mirrored between two channels, providing 100% redundancy. The options are Disable and Enable Mirror Mode (1LM).

Memory Rank Sparing

Select Enable to enable memory-sparing support for memory ranks to improve memory performance. The options are Disable and Enable.

*If the feature above is set to Enable, Multi Rank Sparing will be available for configuration:

Multi Rank Sparing

Use this feature to indicate how many memory ranks to reserve in case of memory failure. The options are One Rank and Two Rank.

Correctable Error Threshold

Use this feature to specify the threshold value for correctable memory error logging, which sets a limit on the maximum number of events that can be logged in the memory error log at a given time. The default setting is 100.

SDDC

Single device data correction +1 (SDDC Plus One) organizes data in a single bundle (x4/x8 DRAM). If any or all of the bits become corrupted, corrections occur. The x4 condition is corrected on all cases. The x8 condition is corrected only if the system is in Lockstep Mode. The options are Disable and Enable.

ADDDC Sparing

Adaptive Double Device Data Correction (ADDDC) Sparing detects when the predetermined threshold for correctable errors is reached, copying the contents of the failing DIMM to spare memory. The failing DIMM or memory rank will then be disabled. The options are Disable and Enable.

Patrol Scrub

Patrol Scrub is a process that allows the CPU to correct correctable memory errors detected on a memory module and send the correction to the requestor (the original source). When this feature is set to Enable, the IO hub will read and write back one cache line every 16K cycles if there is no delay caused by internal processing. By using this method, roughly 64 GB of memory behind the IO hub will be scrubbed every day. The options are Disable and Enable.

*If the feature above is set to Enable, Patrol Scrub Interval will be available for configuration:

Patrol Scrub Interval

This feature allows you to decide how many hours the system should wait before the next complete patrol scrub is performed. Use the keyboard to enter a value from 0-24. The default setting is 24.

▶IIO Configuration

EV DFX Features

When this feature is set to Enable, the EV_DFX Lock Bits that are located on a processor will always remain clear during electric tuning. The options are Disable and Enable.

▶CPU Configuration

IOU0 (II0 PCIe Br1)

Use this feature to configure the PCIe port Bifuraction setting for a PCIe port specified by the user. The options are x4x4x4x4, x4x4x8, x8x4x4, x8x8, x16, and Auto.

IOU1 (II0 PCIe Br2)

Use this feature to configure the PCIe port Bifuraction setting for a PCIe port specified by the user. The options are x4x4x4x4, x4x4x8, x8x4x4, x8x8, x16, and Auto.

IOU2 (II0 PCIe Br3)

Use this feature to configure the PCIe port Bifuraction setting for a PCIe port specified by the user. The options are x4x4x4x4, x4x4x8, x8x4x4, x8x8, x16, and Auto.

▶RSC-R1UW-2E16 SLOT1 / RSC-R1UW-2E16 SLOT2 (Option Riser Card)

Link Speed

Use this feature to select the link speed for this port. The options are Auto, Gen 1 (2.5 GT/s), Gen 2 (5GT/s), and Gen 3 (8GT/s).

PCIe Port Link Status

This feature shows the status of the device plugged into this slot.

PCIe Port Link Max

This feature shows the status of the device plugged into this slot.

PCIe Port Link Speed

This feature shows the status of the device plugged into this slot.

PCIe Port Max Payload Size

Use this feature to select the maximum payload size for this port. The options are 128B, 256B, and Auto.

▶ IOAT Configuration

Disable TPH

Transparent Huge Pages (TPH) is a Linux memory management system that enables communication in larger blocks (pages). Enabling this feature will increase performance. The options are No and Yes.

*If the feature above is set to No, Relax Ordering will be available for configuration:

Prioritize TPH

Select Yes to prioritize TPL requests that will allow the hints to be sent to help facilitate and optimize the processing of certain transactions in the system memory. The options are Enable and Disable.

Relaxed Ordering

Select Enable to enable Relaxed Ordering support, which will allow certain transactions to violate the strict-ordering rules of PCI bus for a transaction to be completed prior to other transactions that have already been enqueued. The options are Disable and Enable.

▶Intel® VT for Directed I/O (VT-d)

Intel® VT for Directed I/O (VT-d)

Select Enable to use Intel Virtualization Technology for Direct I/O VT-d support by reporting the I/O device assignments to the VMM (Virtual Machine Monitor) through the DMAR ACPI tables. This feature offers fully-protected I/O resource sharing across Intel platforms, providing greater reliability, security, and availability in networking and data-sharing. The options are Enable and Disable.

*If the feature above is set to Enable, the five features below will be available for configuration:

Interrupt Remapping

Use this feature to enable Interrupt Remapping support, which detects and controls external interrupt requests. The options are Enable and Disable.

PassThrough DMA

Use this feature to allow devices such as network cards to access the system memory without using a processor. Select Enable to use the Non-Isoch VT-d Engine Pass Through Direct Memory Access (DMA) support. The options are Enable and Disable.

ATS

Use this feature to enable Non-Isoch VT-d Engine Address Translation Services (ATS) support. ATS translates virtual addresses to physical addresses. The options are Enable and Disable.

Posted Interrupt

Use this feature to enable VT-d Posted Interrupt. The options are Enable and Disable.

Coherency Support (Non-Isoch)

Use this feature to maintain setting coherency between processors or other devices. Select Enable for the Non-Isoch VT-d engine to pass through DMA to enhance system performance. The options are Enable and Disable.

Intel® VMD Technology

Note: After you've enabled VMD on a PCIe slot of your choice, this PCIe slot will be dedicated for NVMe storage devices use only, and it will no longer support PCIe devices of other functionalities. To re-activate this slot for PCIe use, please disable VMD.

Intel® VMD for Volume Management Device on CPU

VMD Config for PStack0

Intel® VMD for Volume Management Device

Select Enable to use the Intel Volume Management Device Technology for this stack. The options are Disable and Enable.

*If the feature Intel VMD for Volume Management Device above is set to Enable, the following features are available for configuration:

RSC-R1UW-2E16 SLOT1 VMD (Available when detected by the system)

Select Enable to use the Intel Volume Management Device Technology for this specific root port. The options are Disable and Enable.

Hot Plug Capable (Available when the device is detected by the system)

Use this feature to enable hot plug support for PCIe root ports 1A\~1D. The options are Disable and Enable.

VMD Config for PStack1

Intel® VMD for Volume Management Device

Select Enable to use the Intel Volume Management Device Technology for this stack. The options are Disable and Enable.

*If the feature "Intel VMD for Volume Management Device" above is set to Enable, the following features are available for configuration:

RSC-R1UW-2E16 SLOT2 VMD (Available when detected by the system)

Select Enable to use the Intel Volume Management Device Technology for this specific root port. The options are Disable and Enable.

Hot Plug Capable (Available when the device is detected by the system)

Use this feature to enable hot plug support for PCIe root ports 2A\~2D. The options are Disable and Enable.

VMD Config for PStack1

Intel® VMD for Volume Management Device

Select Enable to use the Intel Volume Management Device Technology for this stack. The options are Disable and Enable.

*If the feature Intel VMD for Volume Management Device above is set to Enable, the following features are available for configuration:

RSC-R1UW-2E16 SLOT2 VMD (Available when detected by the system)

Select Enable to use the Intel Volume Management Device Technology for this specific root port. The options are Disable and Enable.

Hot Plug Capable (Available when the device is detected by the system)

Use this feature to enable hot plug support for PCIe root ports 2A\~2D. The options are Disable and Enable.

PCIe Completion Timeout Disable

Use this feature to enable PCIe Completion Timeout support for electric tuning. The options are Yes, No, and Per-Port.

▶ South Bridge Configuration

The following South Bridge information will display:

• USB Module Version
• USB Devices

Legacy USB Support

Select Enabled to support onboard legacy USB devices. Select Auto to disable legacy support if there are no legacy USB devices present. Select Disable to have all USB devices available for EFI applications only. The options are Enabled, Disabled, and Auto.

XHCI Hand-off

This is a workaround solution for operating systems that do not support XHCI (Extensible Host Controller Interface) hand-off. The XHCI ownership change should be claimed by the XHCI driver. The settings are Enabled and Disabled.

Port 60/64 Emulation

Select Enabled for I/O port 60h/64h emulation support, which in turn will provide complete legacy USB keyboard support for the operating systems that do not support legacy USB devices. The options are Disabled and Enabled.

▶Server ME Configuration

• General ME Configuration
  • Oper. Firmware Version
• Backup Firmware Version
  • Recovery Firmware Version
  • ME Firmware Status #1
  • ME Firmware Status #2
• Current State
• Error Code

PCH SATA Configuration

When this submenu is selected, the AMI BIOS automatically detects the presence of the SATA devices that are supported by the Intel PCH chip and displays the following features:

SATA Controller

Use this feature to enable or disable the onboard SATA controller supported by the Intel PCH chip. The options are Disable and Enable.

*If the feature above is set to enabled, SATA HDD Unlock is available for configuration:

SATA HDD Unlock

This feature allows you to remove any password-protected SATA disk drives. The options are Enable and Disable.

Aggressive Link Power Management

When this feature is set to Enable, the SATA AHCI controller manages the power usage of the SATA link. The controller will put the link in a low power mode during extended periods of I/O inactivity, and will return the link to an active state when I/O activity resumes. The options are Disable and Enable.

SATA Port 4

This feature displays the information detected on the installed SATA drive on the particular SATA port.

• Model number of drive and capacity
- Software Preserve Support

SATA Port 4 Hot Plug

Set this feature to Enable for hot plug support, which will allow the user to replace a SATA drive without shutting down the system. The options are Disable and Enable.

SATA Port 4 Spin Up Device

Set this feature to enable or disable the PCH to initialize the device. The options are Disable and Enable.

SATA Port 4 SATA Device Type

Use this feature to specify if the SATA port specified by the user should be connected to a Solid State Drive or a Hard Disk Drive. The options are Hard Disk Drive and Solid State Drive.

▶PCH sSATA Configuration

When this submenu is selected, the AMI BIOS automatically detects the presence of the SATA devices that are supported by the Intel PCH chip and displays the following features:

sSATA Controller

This feature enables or disables the onboard sSATA controller supported by the Intel PCH chip. The options are Enable and Disable.

Configure sSATA as

Select AHCI to configure an sSATA drive specified by the user as an AHCI drive. Select RAID to configure an sSATA drive specified by the user as a RAID drive. The options are AHCI and RAID.

SATA HDD Unlock

This feature allows you to remove any password-protected SATA disk drives. The options are Disable and Enable.

*If the feature Configure sSATA as above is set to RAID, sSATA RSTe Boot Info and sSATA RAID Option ROM/UEFI Driver will be available for configuration:

sSATA RSTe Boot Info

Select Enable to provide full int13h support for the devices attached to sSATA controller. The options are Disable and Enable.

Aggressive Link Power Management

When this feature is set to Enable, the SATA AHCI controller manages the power usage of the SATA link. The controller will put the link in a low power mode during extended periods of I/O inactivity and will return the link to an active state when I/O activity resumes. The options are Disable and Enable.

sSATA RAID Option ROM/UEFI Driver

Select UEFI to load the EFI driver for system boot. Select Legacy to load a legacy driver for system boot. The options are Disable, EFI, and Legacy.

sSATA Port 0 \~ Port 4

This feature displays the information detected on the installed sSATA drive on the particular sSATA port.

• Model number of drive and capacity
- Software Preserve Support

Port 0 \~ Port 4 Hot Plug

Set this feature to Enable for hot plug support, which will allow the user to replace a SATA drive without shutting down the system. The options are Disable and Enable.

Port 0 \~ Port 4 Spin Up Device

Set this feature to enable or disable the PCH to initialize the device. The options are Disable and Enable.

Port 0 \~ Port 4 sSATA Device Type

Use this feature to specify if the SATA port specified by the user should be connected to a Solid State Drive or a Hard Disk Drive. The options are Hard Disk Drive and Solid State Drive.

▶PCIe/PCI/PnP Configuration

The following information will display:

• PCI Bus Driver Version
  • PCI Devices Common Settings:

Above 4G Decoding (Available if the system supports 64-bit PCI decoding)

Select Enabled to decode a PCI device that supports 64-bit in the space above 4G Address. The options are Disabled and Enabled.

SR-IOV Support

Use this feature to enable or disable Single Root IO Virtualization Support. The options are Disabled and Enabled.

BME DMA Mitigation

Enable this feature to help block DMA attacks. The options are Enabled and Disabled.

MMIO High Base

Use this feature to select the base memory size according to memory-address mapping for the IO hub. The options are 56T, 40T, 24T, 16T, 4T, and 1T.

MMIO High Granularity Size

Use this feature to select the high memory size according to memory-address mapping for the IO hub. The options are 1G, 4G, 16G, 64G, 256G, and 1024G.

Maximum Read Request

Use this feature to select the Maximum Read Request size of the PCIe device, or select Auto to allow the System BIOS to determine the value. The options are Auto, 128 Bytes, 256 Bytes, 512 Bytes, 1024 Bytes, 2048 Bytes, and 4096 Bytes.

MMCFG Base

Use this feature to select the low base address for PCIe adapters to increase base memory. The options are 1G, 1.5G, 1.75G, 2G, 2.25G, and 3G.

NVMe Firmware Source

Use this feature to select the NVMe firmware to support booting. The default option, Vendor Defined Firmware, is pre-installed on the drive and may resolve errata or enable innovative functions for the drive. The other option, AMI Native Support, is offered by the BIOS with a generic method. The options are Vendor Defined Firmware and AMI Native Support.

VGA Priority

Use this feature to select VGA priority when multiple VGA devices are detected. Select On-board to give priority to your onboard video device. Select Offboard to give priority to your graphics card. The options are Onboard and Offboard.

Consistent Device Name Support

Select enabled for the BIOS to consistently name network devices. The options are Disabled and Enabled.

JMD2: M.2-H PCIe 3.0 X2 lane 1 Type

Use this feature to select the I/O type for this slot. The options are PCIE and USB 3.0.

JMD1: M.2-H PCIe 3.0 X4 OPROM

Use this feature to select which firmware type to be loaded for the add-on card in this slot. The options are Disabled, Legacy, and EFI.

JMD2: M.2-H PCIe 3.0 X2 OPROM

Use this feature to select which firmware type to be loaded for the add-on card in this slot. The options are Disabled, Legacy, and EFI.

JMD3: M.2-P PCIe 3.0 X1 OPROM

Use this feature to select which firmware type to be loaded for the add-on card in this slot. The options are Disabled, Legacy, and EFI.

RSC-R1UW-2E16 SLOT1 PCIe 3.0 X16 OPROM (Option RISER Card)

Use this feature to select which firmware type to be loaded for the add-on card in this slot. The options are Disabled, Legacy, and EFI.

RSC-R1UW-2E16 SLOT2 PCIe 3.0 X16 OPROM (Option RISER Card)

Use this feature to select which firmware type to be loaded for the add-on card in this slot. The options are Disabled, Legacy, and EFI.

Onboard LAN Option ROM Type

Use this feature to select which firmware type to be loaded for onboard LAN devices. The options Legacy and EFI. Select Legacy to display and configure the Onboard LAN1 - LAN13 Option ROM features.

Onboard LAN1 - LAN13 Option ROM

Use this feature to select which firmware function to be loaded for the specified LAN port used for system boot. The options for LAN1 Disabled, PXE, and iSCSI. The options are LAN2 - LAN13 are Disabled and PXE.

Onboard Video Option ROM

Use this feature to select the Onboard Video Option ROM type. The options are Disabled, Legacy, and EFI.

▶Network Stack Configuration

Network Stack

Select Enabled to enable PXE (Preboot Execution Environment) or UEFI (Unified Extensible Firmware Interface) for network stack support. The options are Enabled and Disabled.

*If the feature above is set to Enabled, the next six features will be available for configuration:

Ipv4 PXE Support

Select Enabled to enable IPv4 PXE boot support. The options are Disabled and Enabled.

Ipv4 HTTP Support

Select Enabled to enable IPv4 HTTP boot support. The options are Disabled and Enabled.

Ipv6 PXE Support

Select Enabled to enable IPv6 PXE boot support. The options are Disabled and Enabled.

Ipv6 HTTP Support

Select Enabled to enable IPv6 HTTP boot support. The options are Disabled and Enabled.

PXE boot wait time

Use this option to specify the wait time to press the ESC key to abort the PXE boot. Press "+" or "-" on your keyboard to change the value. The default setting is 0.

Media detect count

Use this option to specify the number of times media will be checked. Press "+" or "-" on your keyboard to change the value. The default setting is 1.

▶Super IO Configuration

Super IO Chip AST2500

▶ Serial Port 1 Configuration

Serial Port 1

Select Enabled to enable the onboard serial port specified by the user. The options are Enabled and Disabled. Enable this feature for the next two features to display and only the Change Settings feature is available for configuration.

Device Settings

This feature displays the base I/O port address and the Interrupt Request address of a serial port specified by the user.

Change Settings

This feature specifies the base I/O port address and the Interrupt Request address of Serial Port 1. Select Auto for the BIOS to automatically assign the base I/O and IRQ address to a serial port specified. The options are Auto, (IO=3F8h; IRQ=4), (IO=2F8h; IRQ=4), (IO=3E8h; IRQ=4), and (IO=2E8h; IRQ=4).

▶ Serial Port 2 Configuration

Serial Port 2

Select Enabled to enable the onboard serial port specified by the user. The options are Enabled and Disabled. Enable this feature for the next two features to display and only the Change Settings feature is available for configuration.

Device Settings

This feature displays the base I/O port address and the Interrupt Request address of a serial port specified by the user.

Change Settings

This feature specifies the base I/O port address and the Interrupt Request address of Serial Port 1. Select Auto for the BIOS to automatically assign the base I/O and IRQ address to a serial port specified. The options are Auto, (IO=2F8h; IRQ=3), (IO=3F8h; IRQ=3), (IO=3E8h; IRQ=3), and (IO=2E8h; IRQ=3).

Serial Port 2 Attribute

Select SOL to use COM Port 2 as a Serial Over LAN (SOL) port for console redirection. The options are SOL and COM.

▶ Serial Port Console Redirection

COM1

Console Redirection

Select Enabled to enable COM Port 1 for Console Redirection, which will allow a client machine to be connected to a host machine at a remote site for networking. The options are Disabled and Enabled.

*If the feature above is set to Enabled, the following features will become available for configuration:

▶Console Redirection Settings

Terminal Type

This feature allows you to select the target terminal emulation type for Console Redirection. Select VT100 to use the ASCII Character set. Select VT100+ to add color and function key support. Select ANSI to use the Extended ASCII Character Set. Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or more bytes. The options are VT100, VT100+, VT-UTF8, and ANSI.

Bits per second

Use this feature to set the transmission speed for a serial port used in Console Redirection. Make sure that the same speed is used in the host computer and the client computer. A lower transmission speed may be required for long and busy lines. The options are 9600, 19200, 38400, 57600, and 115200 (bits per second).

Data Bits

Use this feature to set the data transmission size for Console Redirection. The options are 7 and 8.

Parity

A parity bit can be sent along with regular data bits to detect data transmission errors. Select Even if the parity bit is set to 0, and the number of 1's in data bits is even. Select Odd if the parity bit is set to 0, and the number of 1's in data bits is odd. Select None if you do not want to send a parity bit with your data bits in transmission. Select Mark to add a mark as a parity bit to be sent along with the data bits. Select Space to add a Space as a parity bit to be sent with your data bits. The options are None, Even, Odd, Mark, and Space.

Stop Bits

A stop bit indicates the end of a serial data packet. Select 1 Stop Bit for standard serial data communication. Select 2 Stop Bits if slower devices are used. The options are 1 and 2.

Flow Control

Use this feature to set the flow control for Console Redirection to prevent data loss caused by buffer overflow. Send a "Stop" signal to stop sending data when the receiving buffer is full. Send a "Start" signal to start sending data when the receiving buffer is empty. The options are None and Hardware RTS/CTS.

VT-UTF8 Combo Key Support

Select Enabled to enable VT-UTF8 Combination Key support for ANSI/VT100 terminals. The options are Disabled and Enabled.

Recorder Mode

Select Enabled to capture the data displayed on a terminal and send it as text messages to a remote server. The options are Disabled and Enabled.

Resolution 100x31

Select Enabled for extended-terminal resolution support. The options are Disabled and Enabled.

Legacy OS Redirection Resolution

Use this feature to select the number of rows and columns used in Console Redirection for legacy OS support. The options are 80x24 and 80x25.

Putty KeyPad

This feature selects Function Keys and KeyPad settings for Putty, which is a terminal emulator designed for the Windows OS. The options are VT100, LINUX, XTERMR6, SCO, ESCN, and VT400.

Redirection After BIOS POST

Use this feature to enable or disable legacy console redirection after BIOS POST. When set to BootLoader, legacy console redirection is disabled before booting the OS. When set to Always Enable, legacy console redirection remains enabled when booting the OS. The options are Always Enable and BootLoader.

SOL/COM2

Console Redirection

Select Enabled to use the SOL port for Console Redirection. The options are Disabled and Enabled.

*If the feature above is set to Enabled, the following features are available for configuration:

▶Console Redirection Settings

Use this feature to specify how the host computer will exchange data with the client computer, which is the remote computer used by the user.

SOL/COM2

Terminal Type

Use this feature to select the target terminal emulation type for Console Redirection. Select VT100 to use the ASCII Character set. Select VT100+ to add color and function key support. Select ANSI to use the Extended ASCII Character Set. Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or more bytes. The options are VT100, VT100+, VT-UTF8, and ANSI.

Bits per second

Use this feature to set the transmission speed for a serial port used in Console Redirection. Make sure that the same speed is used in the host computer and the client computer. A lower transmission speed may be required for long and busy lines. The options are 9600, 19200, 38400, 57600, and 115200 (bits per second).

Data Bits

Use this feature to set the data transmission size for Console Redirection. The options are 7 and 8.

Parity

A parity bit can be sent along with regular data bits to detect data transmission errors. Select Even if the parity bit is set to 0, and the number of 1's in data bits is even. Select Odd if the parity bit is set to 0, and the number of 1's in data bits is odd. Select None if you do not want to send a parity bit with your data bits in transmission. Select Mark to add a mark as a parity bit to be sent along with the data bits. Select Space to add a Space as a parity bit to be sent with your data bits. The options are None, Even, Odd, Mark and Space.

Stop Bits

A stop bit indicates the end of a serial data packet. Select 1 Stop Bit for standard serial data communication. Select 2 Stop Bits if slower devices are used. The options are 1 and 2.

Flow Control

Use this feature to set the flow control for Console Redirection to prevent data loss caused by buffer overflow. Send a "Stop" signal to stop sending data when the receiving buffer is full. Send a "Start" signal to start sending data when the receiving buffer is empty. The options are None and Hardware RTS/CTS.

VT-UTF8 Combo Key Support

Select Enabled to enable VT-UTF8 Combination Key support for ANSI/VT100 terminals. The options are Disabled and Enabled.

Recorder Mode

Select Enabled to capture the data displayed on a terminal and send it as text messages to a remote server. The options are Disabled and Enabled.

Resolution 100x31

Select Enabled for extended-terminal resolution support. The options are Disabled and Enabled.

Legacy OS Redirection Resolution

Use this feature to select the number of rows and columns used in Console Redirection for legacy OS support. The options are 80x24 and 80x25.

Putty KeyPad

This feature selects Function Keys and KeyPad settings for Putty, which is a terminal emulator designed for the Windows OS. The options are VT100, LINUX, XTERMR6, SCO, ESCN, and VT400.

Redirection After BIOS POST

Use this feature to enable or disable legacy console redirection after BIOS POST. When set to BootLoader, legacy console redirection is disabled before booting the OS. When set to Always Enable, legacy console redirection remains enabled when booting the OS. The options are Always Enable and BootLoader.

Legacy Console Redirection

Redirection COM Port

Use this feature to select a COM port to display redirection of Legacy OS and Legacy OPROM messages. The options are COM1 and SOL/COM2.

Serial Port for Out-of-Band Management/Windows Emergency Management Services (EMS)

This submenu allows you to configure Console Redirection settings to support Out-of-Band Serial Port management.

Console Redirection

Select Enabled to use a COM port selected by the user for EMS Console Redirection. The options are Disabled and Enabled.

*If the feature above is set to Enabled, the following features are available for configuration:

▶Console Redirection Settings

This feature allows you to specify how the host computer will exchange data with the client computer, which is the remote computer used by the user.

Out-of-Band Mgmt Port

The feature selects a serial port in a client server to be used by the Microsoft Windows Emergency Management Services (EMS) to communicate with a remote host server. The options are COM1 and SOL/COM2.

Terminal Type

Use this feature to select the target terminal emulation type for Console Redirection. Select VT100 to use the ASCII character set. Select VT100+ to add color and function key support. Select ANSI to use the extended ASCII character set. Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or more bytes. The options are VT100, VT100+, VT-UTF8, and ANSI.

Bits per second

This feature sets the transmission speed for a serial port used in Console Redirection. Make sure that the same speed is used in the host computer and the client computer. A lower transmission speed may be required for long and busy lines. The options are 9600, 19200, 57600, and 115200 (bits per second).

Flow Control

Use this feature to set the flow control for Console Redirection to prevent data loss caused by buffer overflow. Send a "Stop" signal to stop sending data when the receiving buffer is full. Send a "Start" signal to start sending data when the receiving buffer is empty. The options are None, Hardware RTS/CTS, and Software Xon/Xoff.

Data Bits

Parity

Stop Bits

▶ ACPI Settings

Use this feature to configure Advanced Configuration and Power Interface (ACPI) power management settings for your system.

Headless Support

Enable this feature for the system to function without a keyboard, monitor, or mouse attached. The options are Disabled and Enabled.

WHEA Support

Select Enabled to support the Windows Hardware Error Architecture (WHEA) platform and provide a common infrastructure for the system to handle hardware errors within the Windows OS environment in order to reduce system crashes and enhance system recovery and health monitoring. The options are Disabled and Enabled.

High Precision Event Timer

Select Enabled to activate the High Precision Event Timer (HPET) that produces periodic interrupts at a much higher frequency than a Real-time Clock (RTC) does in synchronizing multimedia streams, providing smooth playback and reducing the dependency on other timestamp calculation devices, such as an x86 RDTSC Instruction embedded in the CPU. The High Performance Event Timer is used to replace the 8254 Programmable Interval Timer. The options are Disabled and Enabled.

▶Trusted Computing

This motherboard supports TPM 1.2 and 2.0. The following Trusted Platform Module (TPM) information will display if a TPM 2.0 module is detected:

TPM20 Device Found

Vendor:

Frimware Version:

Security Device Support

If this feature and the TPM jumper on the motherboard are both set to Enabled, onboard security devices will be enabled for TPM support to enhance data integrity and network security. Reboot the system for a change on this setting to take effect. The options are Disable and Enable.

The following TPM information will be displayed:

• Active PCR banks
• Available PCR banks

*If the feature "Security Device Support" is enabled, the following features are available for configuration:

SHA256 PCR Bank

Use this item to disable or enable the SHA256 Platform Configuration Register (PCR) bank for the installed TPM device. The options are Disabled and Enabled.

Pending Operation

Use this feature to schedule a TPM-related operation to be performed by a security device for system data integrity. Your system will reboot to carry out a pending TPM operation. The options are None and TPM Clear.

Platform Hierarchy

Use this feature to disable or enable platform hierarchy for platform protection. The options are Disabled and Enabled.

Storage Hierarchy

Use this feature to disable or enable storage hierarchy for cryptographic protection. The options are Disabled and Enabled.

Endorsement Hierarchy

Use this feature to disable or enable endorsement hierarchy for privacy control. The options are Disabled and Enabled.

SMCI BIOS-Based TPM Provision Support

Use feature to enable the Supermicro TPM Provision support. The options are Disabled and Enabled.

TXT Support

Intel TXT (Trusted Execution Technology) helps protect against software-based attacks and ensures protection, confidentiality and integrity of data stored or created on the system. Use this feature to enable or disable TXT Support. The options are Disabled and Enabled.

▶iSCSI Configuration

iSCSI Initiator Name

This feature allows you to enter the unique name of the iSCSI Initiator in IQN format. Once the name of the iSCSI Initiator is entered into the system, configure the proper settings for the following features.

▶ Add an Attempt
▶ Delete Attempts
▶ Change Attempt Order

▶Driver Health

This submenu displays the health status of the drivers and controllers below.

▶Apache Pass 1.0.0.1970 Driver

4.4 Event Logs

Use this menu to configure event log settings.

Auto Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Main Advanced Event Logs IPNI Security Boot Save & Exit Change SMBIOS Event Log Settings View SMBIOS Event Log Press (Enter) to change the SMBIOS Event Log configuration. +: Select Screen ↑1: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.20.1271. Copyright (C) 2019 American Megatrends, Inc.

▶Change SMBIOS Event Log Settings

Enabling/Disabling Options

SMBIOS Event Log

Change this feature to enable or disable all features of the SMBIOS Event Logging during system boot. The options are Disabled and Enabled.

Erasing Settings

Erase Event Log

Select Enabled to erase all error events in the SMBIOS (System Management BIOS) log before an event logging is initialized at boot up. The options are No, "Yes, Next reset," and "Yes, Every reset."

When Log is Full

Select Erase Immediately to immediately erase all errors in the SMBIOS event log when the event log is full. Select Do Nothing for the system to do nothing when the SMBIOS event log is full. The options are Do Nothing and Erase Immediately.

SMBIOS Event Log Standard Settings

Log System Boot Event

Select Enabled to log system boot events. The options are Enabled and Disabled.

MECI (Multiple Event Count Increment)

Enter the increment value for the multiple event counter. Enter a number between 1 to 255. The default setting is 1.

METW (Multiple Event Count Time Window)

This feature is used to determine how long (in minutes) the multiple event counter should wait before generating a new event log. Enter a number between 0 to 99. The default setting is 60.

Note: Reboot the system for the changes to take effect.

▶View SMBIOS Event Log

This feature allows you to view the event in the SMBIOS event log. The following categories are displayed:

DATE/TIME/ERROR CODE/SEVERITY

4.5 IPMI

Use this menu to configure Intelligent Platform Management Interface (IPMI) settings.

Auto Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Main Advanced Event Logs IPMI Security Boot Save & Exit BMC Firmware Revision 3.74.10 IPMI STATUS Working System Event Log BMC Network Configuration IPMI Extended Instruction [Enabled] Press to change the SEL event log configuration. +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.20.1271. Copyright (C) 2019 American Megatrends, Inc.

BMC Firmware Revision

This feature displays the IPMI firmware revision used in your system.

IPMI STATUS

This feature displays the status of the IPMI firmware installed in your system.

▶System Event Log

Enabling/Disabling Options

SEL Components

Select Enabled for all system event logging at boot up. The options are Disabled and Enabled.

Erasing Settings

Erase SEL

Select Yes, On next reset to erase all system event logs upon next system reboot. Select Yes, On every reset to erase all system event logs upon each system reboot. Select No to keep all system event logs after each system reboot. The options are No, "Yes, On next reset," and "Yes, On every reset."

When SEL is Full

This feature allows you to determine what the BIOS should do when the system event log is full. Select Erase Immediately to erase all events in the log when the system event log is full. The options are Do Nothing and Erase Immediately.

Note: Reboot the system for the changes to take effect.

▶BMC Network Configuration

BMC network configuration

Update IPMI LAN Configuration

Select Yes for the BIOS to implement all IP/MAC address changes at the next system boot. The options are No and Yes.

*If the feature above is set to Yes, the Configuration Address Source, VLAN, IPV6 Support, and Configuration Address source features are available for configuration.

Configure IPV4 support

IPMI LAN Selection

This feature displays the IPMI LAN setting. The default setting is Failover.

IPMI Network Link Status

This feature displays the IPMI Network Link status. The default setting is Dedicated LAN.

Configuration Address Source

Use this feature to select the source of the IP address for this computer. If Static is selected, you will need to know the IP address of this computer and enter it to the system manually in the field. If DHCP is selected, the BIOS will search for a DHCP (Dynamic Host Configuration Protocol) server in the network that is attached to and request the next available IP address for this computer. The options are DHCP and Static.

*If the feature above is set to Static, the Station IP Address/Subnet Mask/Gateway IP Address features are available for configuration:

Station IP Address

This feature displays the Station IP address for this computer. This should be in decimal and in dotted quad form (i.e., 192.168.10.253).

Subnet Mask

This feature displays the sub-network that this computer belongs to. The value of each three-digit number separated by dots should not exceed 255.

Station MAC Address

This feature displays the Station MAC address for this computer. Mac addresses are 6 two-digit hexadecimal numbers.

Gateway IP Address

This feature displays the Gateway IP address for this computer. This should be in decimal and in dotted quad form (i.e., 192.168.10.253).

VLAN

This feature is configurable if the Update IPMI LAN Configuration feature is set to Yes. Use this feature to enable or disable the IPMI VLAN function. The options are Disable and Enable.

*If the feature above is set to Enabled, the VLAN ID feature below is available for configuration:

VLAN ID

Use this feature to select a value for VLAN ID.

Configure IPV6 support

IPV6 Support

Use this feature to enable IPV6 support. The options are Enabled and Disabled.

Configuration Address Source

Use this feature to select the source of the IP address for this computer. If Static is selected, you will need to know the IP address of this computer and enter it to the system manually in the field. If DHCP is selected, the BIOS will search for a DHCP (Dynamic Host Configuration Protocol) server in the network that is attached to and request the next available IP address for this computer. The options are Unspecified, Static, and DHCP.

*If the feature above is set to Static, the Station IP Address/Prefix Length/IPV6 Router1 IP Address features are available for configuration:

Station IPV6 Address

Use this feature to enter the IPV6 address.

Prefix Length

Use this feature to change the prefix length.

IPV6 Router1 IP Address

Use this feature to change the IPV6 Router1 IP address.

IPMI Extended Instruction

Use this feature to enable IPMI extended function support. The options are Enabled and Disabled. When Disabled, the system powers on quickly by removing BIOS support for extended IPMI features. The Disable option is for applications that require faster power on time without using Supermicro Update Manager (SUM) or extended IPMI features. The BMC network configuration in the BIOS setup will also be invalid when IPMI Extended Instruction is disabled. The general BMC function and motherboard health monitor such as fan control will still function even when this option is disabled.

4.6 Security

Use this menu to configure the security settings.

Antio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Main Advanced Event Logs IFMI Security Boot Save & Exit Administrator Password Not Installed User Password Not Installed Password Description If the Administrator's / User's password is set, then this only limits access to Setup and is asked for when entering Setup. Please set Administrator's password first in order to set User's password, if clear Administrator's password, the User's password will be cleared as well. The password length must be in the following range: in the following range: Minimum length 3 Maximum length 20 Administrator Password Password Check [Setup] Hard Drive Security Frozen [Disable] Secure Boot Set Administrator Password +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.20.1271. Copyright (C) 2019 American Megatrends, Inc.

Administrator Password

Use this feature to set the administrator password which is required to enter the BIOS setup utility. The length of the password should be from three to 20 characters long.

Password Check

Select Setup for the system to check for a password at Setup. Select Always for the system to check for a password at boot up or upon entering the BIOS Setup utility. The options are Setup and Always.

Hard Drive Security Frozen

Use this feature to enable or disable the Security Frozen command to SATA and NVMe devices. The options are Enable and Disable.

▶ Secure Boot

System Mode

Secure Boot

Select Enable for secure boot support to ensure system security at boot up. The options are Disabled and Enabled.

Secure Boot Mode

This feature allows you to select the desired secure boot mode for the system. The options are Standard and Custom.

*If Secure Boot Mode is set to Custom, Key Management features are available for configuration:

CSM Support

This feature is for manufacturing debugging purposes.

▶Key Management

This submenu allows you to configure the following Key Management settings.

Factory Key Provision

Select Enabled to install the default Secure Boot keys set by the manufacturer. The options are Disabled and Enabled.

*If the feature above is set to Enabled, all features below are available for configuration:

Select Yes to restore all factory keys to the default settings. The options are Yes and No.

▶ Reset to Setup Mode

Select Yes to delete all Secure Boot key databases and force the system to Setup Mode. The options are Yes and No.

▶ Export Secure Boot variables

Use this feature to copy the NVRAM contents of the secure boot variables to a file.

▶Enroll Efi Image

This feature allows the image to run in Secure Boot mode.

Device Guard Ready

▶Remove 'UEFI CA' from DB

Use this feature to remove the Microsoft UEFI CA certificate from the database. The options are Yes and No.

Select Yes to restore the DB defaults.

▶ Platform Key (PK)

Update

Select Yes to load a factory default PK or No to load from a file on an external media.

▶Key Exchange Keys (KEK)

Update

Select Yes to load a factory default KEK or No to load from a file on an external media.

Append

Select Yes to add the KEK from the manufacturer's defaults list to the existing KEK. Select No to load the KEK from a file. The options are Yes and No.

▶ Authorized Signatures

Update

Select Yes to load a factory default db or No to load from a file on an external media.

Append

Select Yes to add the db from the manufacturer's defaults list to the existing db. Select No to load the db from a file. The options are Yes and No.

▶Forbidden Signatures

Update

Select Yes to load a factory default dbx or No to load from a file on an external media.

Append

Select Yes to add the dbx from the manufacturer's defaults list to the existing dbx. Select No to load the dbx from a file. The options are Yes and No.

▶ Authorized TimeStamps

Update

Select Yes to load a factory default dbt or No to load from a file on an external media.

Append

Select Yes to add the dbt from the manufacturer's defaults list to the existing dbt. Select No to load the dbt from a file. The options are Yes and No.

▶OsRecovery Signatures

Update

Select Yes to load a factory default dbr or No to load from a file on an external media.

Append

Select Yes to add the dbr from the manufacturer's defaults list to the existing dbr. Select No to load the dbr from a file. The options are Yes and No.

4.7 Boot

Use this menu to configure boot settings:

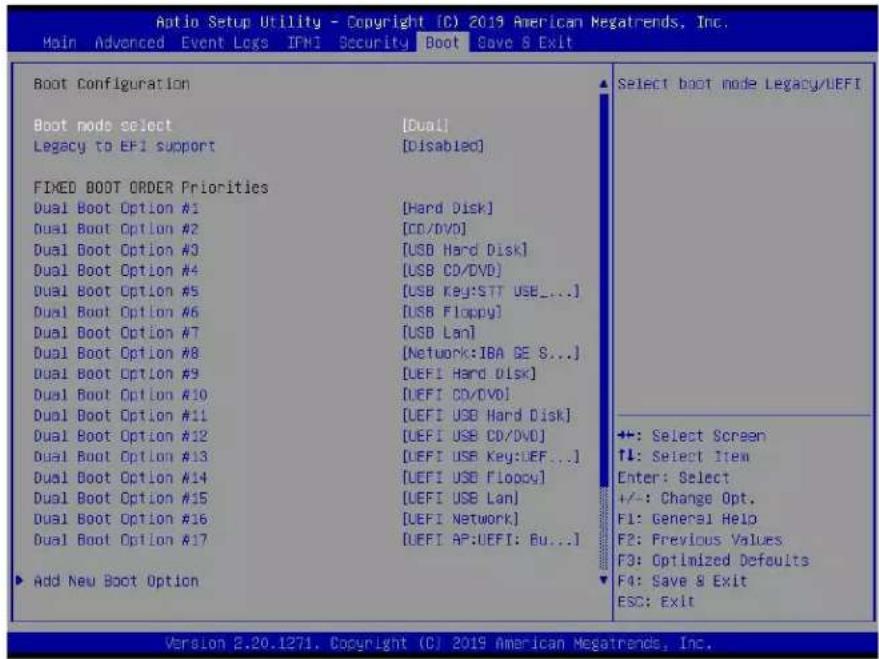

Antio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Main Advanced Event Logs IFHI Security Boot Save & Exit Boot Configuration Boot mode select [Dual] Legacy to EFI support [Disabled] FIXED BOOT ORDER Priorities Dual Boot Option #1 [Hard Disk] Dual Boot Option #2 [CD/DVD] Dual Boot Option #3 [USB Hard Disk] Dual Boot Option #4 [USB CD/DVD] Dual Boot Option #5 [USB Key:STT USE_...] Dual Boot Option #6 [USB Floppy] Dual Boot Option #7 [USB Lan] Dual Boot Option #8 [Network:IBA GE S...] Dual Boot Option #9 [UEFI Hard Disk] Dual Boot Option #10 [UEFI CD/DVD] Dual Boot Option #11 [UEFI USB Hard Disk] Dual Boot Option #12 [UEFI USB CD/DVD] Dual Boot Option #13 [UEFI USB Key:UEF...] Dual Boot Option #14 [UEFI USB Floppy] Dual Boot Option #15 [UEFI USB Lan] Dual Boot Option #16 [UEFI Network] Dual Boot Option #17 [UEFI AP:UEFI: Bu...] Add New Boot Option Select boot mode Legacy/UEFI ++: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.20.1271. Copyright (C) 2019 American Megatrends, Inc.

Boot mode select

Use this feature to select the boot mode. The options are Legacy, UEFI, and Dual.

Legacy to EFI Support

Select Enabled to boot EFI OS support after Legacy boot order has failed. The options are Disabled and Enabled.

Fixed BOOT ORDER Priorities

This option prioritizes the order of bootable devices that the system to boot from. Press on each entry from top to bottom to select devices.

• Boot Option #1
• Boot Option #2
• Boot Option #3
• Boot Option #4
• Boot Option #5
• Boot Option #6

• Boot Option #7

• Boot Option #8

• Boot Option #9
• Boot Option #10
• Boot Option #11
• Boot Option #12
• Boot Option #13
• Boot Option #14
• Boot Option #15
• Boot Option #16
• Boot Option #17

Add New Boot Option

Use this feature to add a new boot option to system boot priority features.

▶ Delete Boot Option

Use this feature to select a boot device to delete from the boot priority list.

▶UEFI Application Boot Priorities

- Boot Option # - This feature sets the system boot order of detected devices. The options are [the list of detected boot device(s)] and Disabled.

▶UEFI USB Key Drive BBS Priorities

This feature is displayed when a storage media is detected.

▶USB Key Drive BBS Priorities

- Boot Option # - This feature sets the system boot order of detected devices. The options are [the list of detected boot device(s)] and Disabled.

▶ NETWORK Drive BBS Priorities

- Boot Option # - This feature sets the system boot order of detected devices. The options are [the list of detected boot device(s)] and Disabled.

4.8 Save & Exit

Use this menu to configure save and exit settings.

Auto Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Main Advanced Event Logs IPHI Security Boot Save & Exit Save Options Discard Changes and Exit Save Changes and Reset Save Changes Discard Changes Default Options Restore Optimized Defaults Save as User Defaults Restore User Defaults Boot Override STT USB_RM2M 1100 IBA GE Slot 0500 V1404 UEFI: STT USB_RM2M 1100, Partition 1 UEFI: Built-in EFI Shell Launch EFI Shell from filesystem device Exit system setup without saving any changes. +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.30.1271. Copyright (C) 2019 American Megatrends, Inc.

Save Options

Discard Changes and Exit

Select this feature to quit the BIOS Setup without making any permanent changes to the system configuration and reboot the computer. Select Discard Changes and Exit from the Exit menu and press .

Save Changes and Reset

When you have completed the system configuration changes, select this option to save all changes made and reset the system.

Save Changes

When you have completed the system configuration changes, select this option to save all changes made. This will not reset (reboot) the system.

Discard Changes

Select this feature and press to discard all the changes and return to the AMI BIOS Utility Program.

Default Options

Restore Defaults

To set this feature, select Restore Optimized Defaults and press . These are factory settings designed for maximum system performance but not for maximum stability.

Save as User Defaults

To set this feature, select Save as User Defaults from the Exit menu and press . This enables the user to save any changes to the BIOS setup for future use.

To set this feature, select Restore User Defaults from the Exit menu and press . Use this feature to retrieve user-defined settings that were saved previously.

Boot Override

Other boot options are listed in this section. The system will boot to the selected boot option.

IBA GE Slot 0500 v1404

UEFI: Built-in EFI Shell

Launch EFI Shell from filesystem device

Appendix A

BIOS Codes

A.1 BIOS Error POST (Beep) Codes

During the Power-On Self-Test (POST) routines, which are performed upon each system boot, errors may occur.

Non-fatal errors are those which, in most cases, allow the system to continue to boot. These error messages normally appear on the screen.

Fatal errors will not allow the system to continue with bootup. If a fatal error occurs, you should consult with your system manufacturer for possible repairs.

These fatal errors are usually communicated through a series of audible beeps. The table below lists some common errors and their corresponding beep codes encountered by users.

BIOS Beep (POST) Codes
Beep Code Error	Message Description
1 beep Refresh Circuits have been reset (Ready to power up)
5 short, 1 long Memory error No memory detected in system
5 long, 2 short Display memory read/write error Video adapter missing or with faulty memory
1 long continuous System OH System overheat condition

A.2 Additional BIOS POST Codes

The AMI BIOS supplies additional checkpoint codes, which are documented online at http://www.supermicro.com/support/manuals/ ("AMI BIOS POST Codes User's Guide").

When BIOS performs the Power On Self Test, it writes checkpoint codes to I/O port 0080h. If the computer cannot complete the boot process, a diagnostic card can be attached to the computer to read I/O port 0080h (Supermicro p/n AOM-SPI80-V).

For information on AMI updates, please refer to http://www.ami.com/products/.

Appendix B

Software Installation

B.1 Installing Software Programs

The Supermicro website contains drivers and utilities for your system at https://www.supermicro.com/wdl/driver. Some of these must be installed, such as the chipset driver.

After accessing the website, go into the CDR_Images (in the parent directory of the above link) and locate the ISO file for your motherboard. Download this file to create a DVD of the drivers and utilities it contains. (You may also use a utility to extract the ISO file if preferred.)

After creating a DVD with the ISO files, insert the disk into the DVD drive on your system and the display shown in Figure B-1 should appear.

Another option is to go to the Supermicro website at http://www.supermicro.com/products/. Find the product page for your motherboard here, where you may download individual drivers and utilities to your hard drive or a USB flash drive and install from there.

Note: To install the Windows operating system, please refer to the instructions posted on our website at http://www.supermicro.com/support/manuals/.

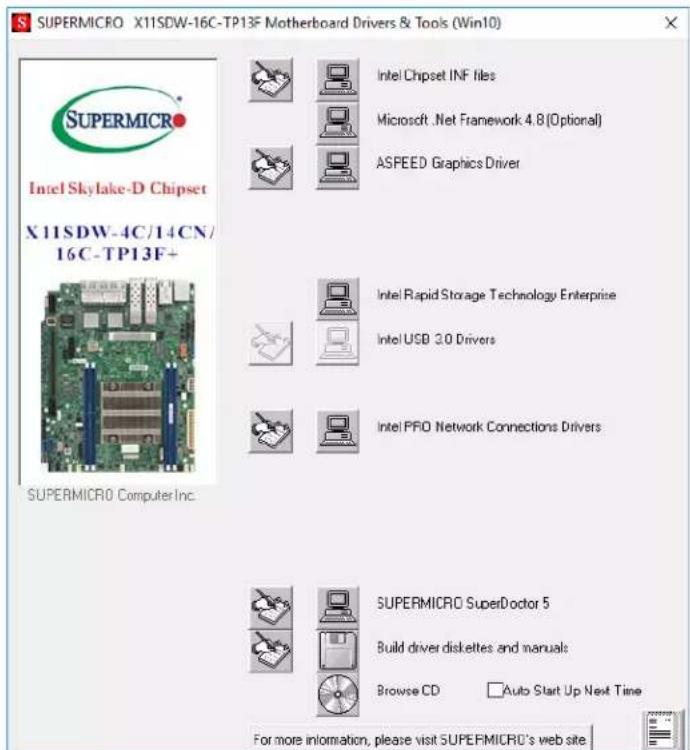

SUPERMICRO X11SDW-16C-TP13F Motherboard Drivers & Tools (Win10) Intel Skylake-D Chipset X11SDW-4C/14CN/ 16C-TP13F+ SUPERMICRO Computer Inc. Intel Chipset INF files Microsoft .Net Framework 4.8(Optional) ASPEED Graphics Driver Intel Rapid Storage Technology Enterprise Intel USB 3.0 Drivers Intel PFO Network Connections Drivers SUPERMICRO SuperDoctor 5 Build driver diskettes and manuals Browse CD Auto Start Up Next Time For more information, please visit SUPERMICRO's web site

Figure B-1. Driver/Tool Installation Display Screen

Click the icons showing a hand writing on the paper to view the readme files for each item. Click a computer icon to the right of an item to install an item (from top to bottom) one at a time. After installing each item, you must reboot the system before proceeding with the next item on the list. The bottom icon with a DVD on it allows you to view the entire contents of the DVD.

When making a storage driver disk by booting into a driver DVD, please set the SATA Configuration to "Compatible Mode" and configure SATA as IDE in the BIOS Setup. After making the driver diskette, be sure to change the SATA settings back to your original settings.

B.2 SuperDoctor® 5

The Supermicro SuperDoctor 5 is a hardware monitoring program that functions in a command-line or web-based interface in Windows and Linux operating systems. The program monitors system health information such as CPU temperature, system voltages, system power consumption, fan speed, and provides alerts via email or Simple Network Management Protocol (SNMP).

SuperDoctor 5 comes in local and remote management versions and can be used with Nagios to maximize your system monitoring needs. With SuperDoctor 5 Management Server (SSM Server), you can remotely control power on/off and reset chassis intrusion for multiple systems with SuperDoctor 5 or IPMI. SD5 Management Server monitors HTTP, FTP, and SMTP services to optimize the efficiency of your operation.

Note: The default Username and Password for SuperDoctor 5 is ADMIN / ADMIN.

SuperDoctor 5 Multi-Board: CTR330-CT-RL Voltage 1000 V 200 V 300 V 400 V 500 V 600 V 700 V 800 V 900 V 1000 V 1100 V 1200 V 1300 V 1400 V 1500 V 1600 V 1700 V 1800 V 1900 V 2000 V 2100 V 2200 V 2300 V 2400 V 2500 V 2600 V 2700 V 2800 V 2900 V 3000 V 3100 V 3200 V 3300 V 3400 V 3500 V 3600 V 3700 V 3800 V 3900 V 4000 V 4100 V 4200 V 4300 V 4400 V 4500 V 4600 V 4700 V 4800 V 4900 V 5000 V 5100 V 5200 V 5300 V 5400 V 5500 V 5600 V 5700 V 5800 V 5900 V 6000 V 6100 V 6200 V 6300 V 6400 V 6500 V 6600 V 6700 V 6800 V 6900 V 7000 V 7100 V 7200 V 7300 V 7400 V 7500 V 7600 V 7700 V 7800 V 7900 V 8000 V 8100 V 8200 V 8300 V 8400 V 8500 V 8600 V 8700 V 8800 V 8900 V 9000 V 9100 V 9200 V 9300 V 9400 V 9500 V 9600 V 9700 V 9800 V 9900 V 1000V

Figure B-2. SuperDoctor 5 Interface Display Screen (Health Information)

Note: The SuperDoctor 5 program and user's manual can be downloaded from the Supermicro website at http://www.supermicro.com/products/nfo/sms_sd5.cfm.

Appendix C

Standardized Warning Statements

The following statements are industry standard warnings, provided to warn the user of situations which have the potential for bodily injury. Should you have questions or experience difficulty, contact Supermicro's Technical Support department for assistance. Only certified technicians should attempt to install or configure components.

Read this section in its entirety before installing or configuring components.

These warnings may also be found on our website at http://www.supermicro.com/about/policies/safety_information.cfm.

Battery Handling

Warning! There is the danger of explosion if the battery is replaced incorrectly. Replace the battery only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions

電池の取り扱い

Warning! Ultimate disposal of this product should be handled according to all national laws and regulations.

製品の廃棄

Warning: Do not upgrade the BIOS unless your system has a BIOS-related issue. Flashing the wrong BIOS can cause irreparable damage to the system. In no event shall Supermicro be liable for direct, indirect, special, incidental, or consequential damages arising from a BIOS update. If you need to update the BIOS, do not shut down or reset the system while the BIOS is updating to avoid possible boot failure.

D.1 Overview

The Unified Extensible Firmware Interface (UEFI) provides a software-based interface between the operating system and the platform firmware in the pre-boot environment. The UEFI specification supports an architecture-independent mechanism that will allow the UEFI OS loader stored in an add-on card to boot the system. The UEFI offers clean, hands-off management to a computer during system boot.

D.2 Recovering the UEFI BIOS Image

A UEFI BIOS flash chip consists of a recovery BIOS block and a main BIOS block (a main BIOS image). The recovery block contains critical BIOS codes, including memory detection and recovery codes for the user to flash a healthy BIOS image if the original main BIOS image is corrupted. When the system power is turned on, the recovery block codes execute first. Once this process is complete, the main BIOS code will continue with system initialization and the remaining POST (Power-On Self-Test) routines.

Note 1: Follow the BIOS recovery instructions below for BIOS recovery when the main BIOS block crashes.

Note 2: When the BIOS recovery block crashes, you will need to follow the procedures to make a Returned Merchandise Authorization (RMA) request. (For a RMA request, please see section 3.5 for more information). Also, you may use the Supermicro Update Manager (SUM) Out-of-Band (OOB) (https://www.supermicro.com.tw/products/nfo/SMS_SUM.cfm) to reflash the BIOS.

D.3 Recovering the Main BIOS Block with a USB Device

This feature allows the user to recover the main BIOS image using a USB-attached device without additional utilities used. A USB flash or media drive can be used for this purpose. However, a USB Hard Disk drive cannot be used for BIOS recovery at this time.

The file system supported by the recovery block is FAT (including FAT12, FAT16, and FAT32) which is installed on a bootable or non-bootable USB-attached device. However, the BIOS might need several minutes to locate the SUPER.ROM file if the media size becomes too large due to the huge volumes of folders and files stored in the device.

To perform UEFI BIOS recovery using a USB-attached device, follow the instructions below.

1. Using a different machine, copy the "Super.ROM" binary image file into the Root "\" directory of a USB flash or media drive.

Note 1: If you cannot locate the "Super.ROM" file in your drive disk, visit our website at www.supermicro.com to download the BIOS package. Extract the BIOS binary image into a USB flash device and rename it "Super.ROM" for the BIOS recovery use.

Note 2: Before recovering the main BIOS image, confirm that the "Super.ROM" binary image file you download is the same version or a close version meant for your motherboard.

1. Insert the USB device that contains the new BIOS image ("Super.ROM") into your USB drive and reset the system when the following screen appears.

PEI-- DMC IP:10.132.168.92 PEI--Could Not Find Recovery Image... 87

1. After locating the healthy BIOS binary image, the system will enter the BIOS Recovery menu as shown below.

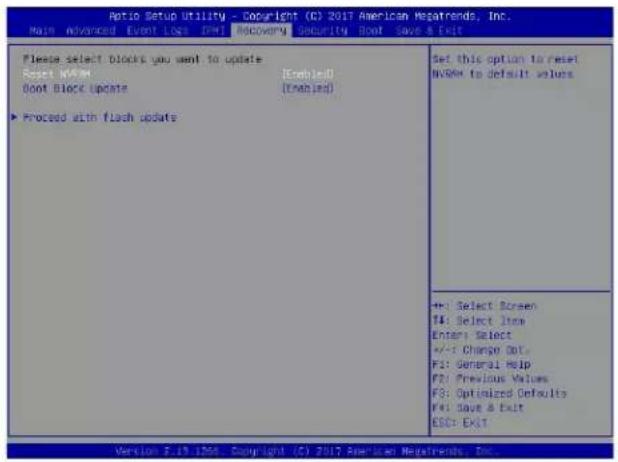

Ratio Setup Utility - Copyright (C) 2017 American Megatrends, Inc. Main Advanced Event Line CM Recovery Security Boot Save & Exit Please select Blocks you want to update Reset NVSW [Combined] Boot Block Update [Unchanged] ▶ Proceed with flash update Set this option to reset NVSW to default values +/- Select Screen T4: Select Item Enter: Select +/- Change Out F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 3.19.1906 Copyright (C) 2017 American Megatrends, Inc.

Note: At this point, you may decide if you want to start the BIOS recovery. If you decide to proceed with BIOS recovery, follow the procedures below.

1. When the screen as shown above displays, use the arrow keys to select the item "Proceed with flash update" and press the key. You will see the BIOS recovery progress as shown in the screen below.

Note: Do not interrupt the BIOS flashing process until it has completed.

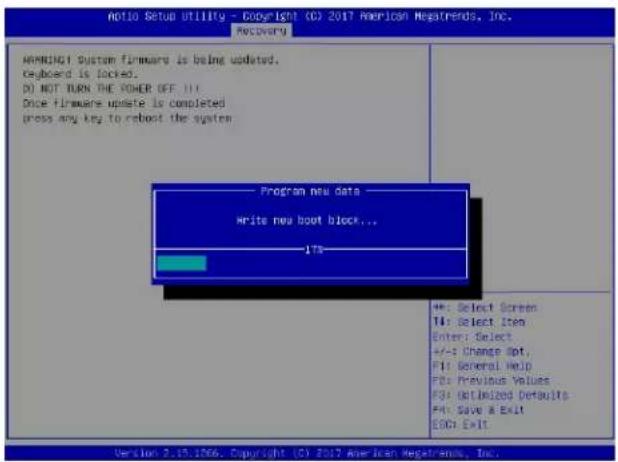

Avis Setup utility - Copyright (C) 2017 American Megatrends, Inc. Recovery WARNING System Firmware is being updated. Keyboard is locked. DO NOT TURN THE POWER OFF... Once Firmware update is completed press any key to reboot the system Program new data Write new boot block... 1TB ++: Select Screen T4: Select Item Enter: Select +/-: Change Mkt. F1: General Help F3: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.19.1066. Copyright (C) 2017 American Megatrends, Inc.

1. After the BIOS recovery process is complete, press any key to reboot the system.

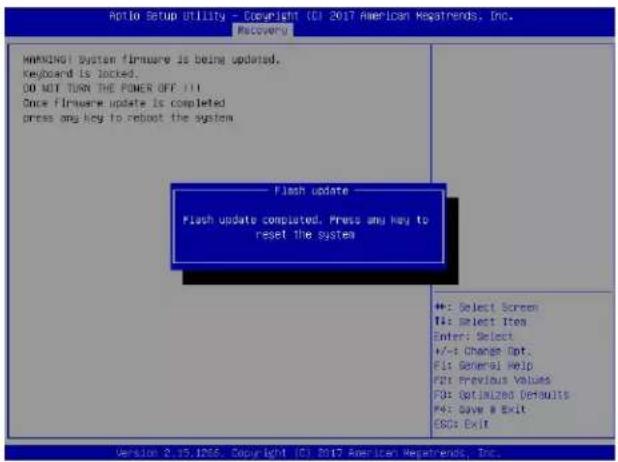

Ratio Setup Utility - Copyright CCI 2017 American Hexpatrends, Inc. Recovery MAYNDVI System firmware is being updated. Keyboard is locked. DO NOT TURN THE POWER OFF !!! Once firmware update is completed press any key to reboot the system Flash update Flash update completed. Press any key to reset the system +: Select Screen +: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save a Exit ESC: Exit Version 2.15.1206. Copyright ICI 2017 American Hexpatrends, Inc.

1. Using a different system, extract the BIOS package into a USB flash drive.

2. Press continuously during system boot to enter the BIOS Setup utility. From the top of the tool bar, select Boot to enter the submenu. From the submenu list, select Boot Option #1 as shown below. Then, set Boot Option #1 to [UEFI AP:UEFI: Built-in EFI Shell]. Press to save the settings and exit the BIOS Setup utility.

Auto Setup Utility - Copyright (CI 2017 American Megatrends, Inc. Main Advanced Event Logs IRML Security Boot Save & Exit Boot Configuration Boot mode select [DUAL] LEGACY to EFI Support [DISMULSD] FDBP BOOT ORDER Priorities Boot Option #3 [DEF] NC:DCF1: NoJ... Boot Option #2 [COMVVD] Boot Option #3 [USB Hard Disk] Boot Option #4 [USB CDVVD] Boot Option #5 [USB KeySanOkl] Boot Option #6 [USB Floppy] Boot Option #7 [USB Lan] Boot Option #8 [Network:10P OE SI...] Boot Option #9 [DEF] Hard Disk Boot Option #10 [DEF] CDVVD Boot Option #11 [DEF] USB Hard Disk Boot Option #12 [DEF] USB CDVVD Boot Option #13 [DEF] USB Key:UCFTI... Boot Option #14 [DEF] USB Floppy Boot Option #15 [DEF] USB Lan Boot Option #16 [DEF] Network Boot Option #17 [Hera Disk] Add New Boot Option Sets the system boot order +: Select Screen T4: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit GSC: Exit Version 2.19.128e, Copyright (CI 2017 American Megatrends, Inc.

1. When the UEFI Shell prompt appears, type fs# to change the device directory path. Go to the directory that contains the BIOS package you extracted earlier from Step 6. Enter flash.nsh BIOSname.### at the prompt to start the BIOS update process.

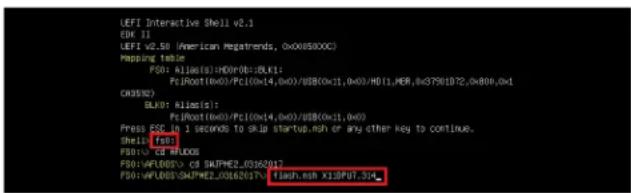

LEFI Interactive Shell v2.1 EXK 11 LEFI v2.50 (American Regatrends, 0x0080000) Mapping table FSO: Aliak(s):HDOR(0):BLK1; PsROOT(x0):PCI(0x14,0x0)/USB(0x11,0x0)/HD11_MER,xG7901D72,0x806,0x1 CRMS(2) BLK1: Aliak(s): PsROOT(x0):PCI(0x14,0x0)/USB(0x11,0x0) Press FSG to 1 seconds to skip startup.nsh or any other key to continue. Shell fso FSO: CD #FLOOS FSO: WFL00S\CD SKAPHE2_05162017 FSO: WFL00S\SKAPHE2_05162637\Flash.nsh X13P07.534

Note: Do not interrupt this process until the BIOS flashing is complete.

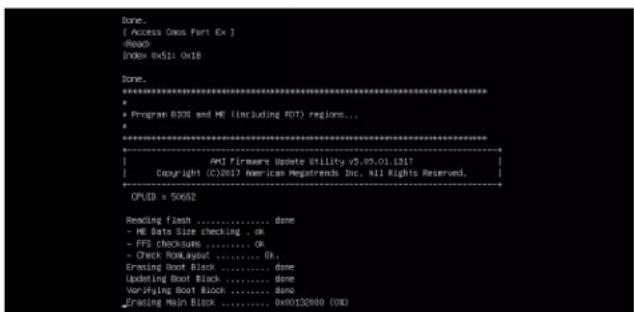

Done. [ Access Oros Part Ex ] BDO Index 8x51: 0x18 Done. ********************************************************************** * + Program BIOS and ME (including RDT) regions... ****************************************************************... Antl Firmware Update utility v5.09.01.1317 Copyright (C)2017 American Negatrends Inc. All Rights Reserved. OPLED = 50652 Reading Flash ....... done - ME Data Size checking . ok - PFS checksums ....... OK - Check Book default ....... ok, Erasing Boot Black ....... done Updating Boot Block ....... done Verifying Boot Stock ....... done Frying Main Block ....... 0x00132000 (OD)

1. The screen above indicates that the BIOS update process is complete. When you see the screen above, unplug the AC power cable from the power supply, clear CMOS, and plug the AC power cable in the power supply again to power on the system.

Verifying NCM Block ......... done - Update success for FOR - Update success for IS. - Successful Update Recovery Loader to (PRx!! - Successful Update MFSB11- - Successful Update FTRM11- - Successful Update MFs, [081 and 10021] - Successful Update FLOD and UTOK11 - ME Entire Image update success!! WALVING : System must power-off to have the changes take effect! Moving FS01:AFU005/S4MPME2_0316207/40x64,ef1 -> FS01:AFU005/S4MPME2_0316201YF dt,smc - [oX] Moving FS01:AFU005/S4MPME2_0316207/aufexfix4,ef1 -> FS01:AFU005/S4MPME2_0316201 ?afuxfi,smc - [oX] ********************************************************************** * Please ignore this 'shell cannot read from file - device error' * Learning message due to it does not impact flashing process. ********************************************************************** Deleting ' Delete successful. FSB2:5

1. Press continuously to enter the BIOS Setup utility.
2. Press to load the default settings.
3. After loading the default settings, press to save the settings and exit the BIOS Setup utility.
