USER MANUAL WGCXR122EG HAGER
16AX switches 1way/2way 10AX intermediate switch Hager Muse / Hager Inspire
Installation manual
Safety instructions
Electrical equipment must only be installed and assembled by a qualified electrician in accordance with the relevant installation standards, regulations, directives and safety and accident prevention directives of the country.
Failure to comply with these installation instructions may result in damage to the device, fire or other hazards.
Function
Mechanical light switches for electrical installations in buildings.
Correct use
- For the flush-mounted installation in standard wall boxes (recommended wall box depth ≥ 35 mm).
- Only suitable for use in indoor areas with no drip and no spray water.
Technical data
Rated voltage: 250 V\~
Frequency: 50/60 Hz
Conductor cross-section of screw terminals: max. 3 x 1.5 mm ^4
Distance of fixing holes: 60.3 mm
Switch compliance: BS EN 60669-1, IEC 60669-1
16AX switches 1way/2way
Rated current: max. 16 AX
10AX intermediate switch
Rated current: max. 10 AX
Information for electricians Installation and electrical connection
DANGER!
Touching live parts can result in an electric shock.
An electric shock can lead to death.
Disconnect the connecting cables before working on the device and cover all live parts in the area!
Preparing the device for installation
(for example "16AX 2gang 1way switch")
■ Remove the rockers also with a flat-blade screwdriver.
Connecting the device
2A


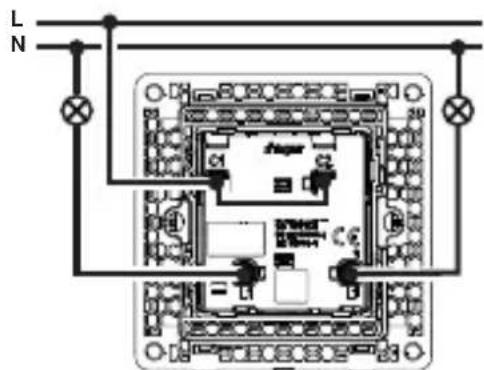

L N C C1 C2 C31gang 1way switch
1way switch
2B


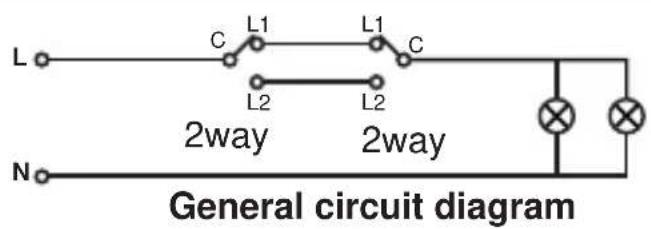

L C L1 L1 C L2 L2 2way 2way N General circuit diagram2way switch
Intermediate switch


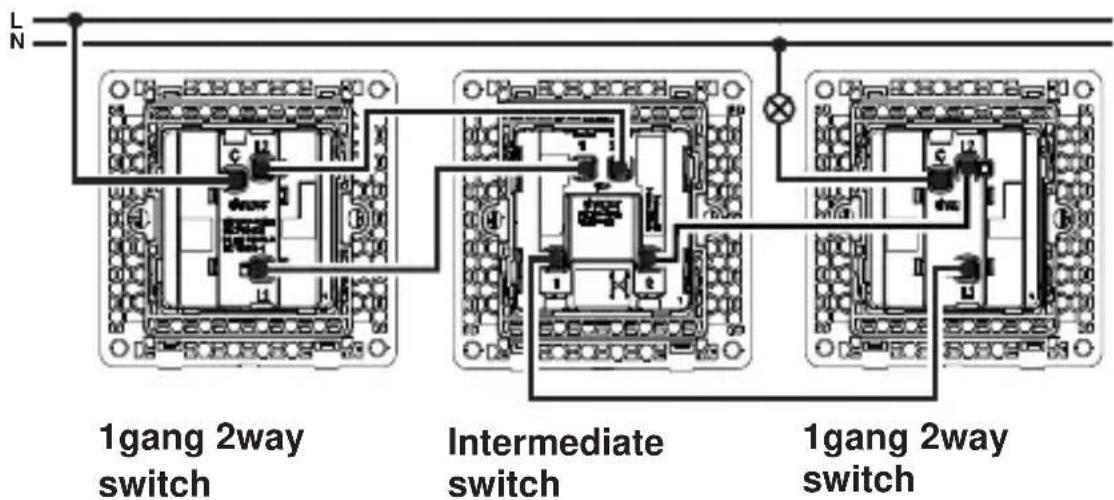

1gang 2way switch Intermediate switch 1gang 2way switch- Strip connection cables approx. 10 ... 12 mm.
■ Wire the switch according to the appropriate wiring diagram (2A or 2B or 2C).
Installing the device into the wall box
(for example "16AX 2gang 1way switch")
3
Assembling the rockers and frame
(for example "16AX 2gang 1way switch")
4


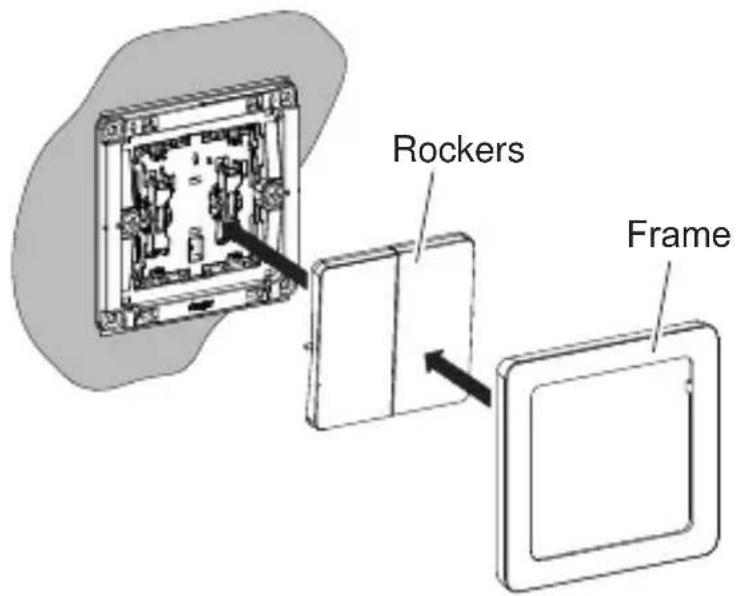

Rockers Frame■ Fix the rockers and frame onto the device (4).
2-5gang frames are available for multiple combinations.
