USER MANUAL WGCXL121PEG HAGER
Electrical equipment must only be installed and assembled by a qualified electrician in accordance with the relevant installation standards, regulations, directives and safety and accident prevention directives of the country.
Failure to comply with these installation instructions may result in damage to the device, fire or other hazards.
Function
Mechanical press switches for electrical installations in buildings.
Bell switch comes with imprinted bell symbol for door bell applications.
Correct use
- For the flush-mounted installation in standard wall boxes (recommended wall box depth ≥ 35 mm).
- Only suitable for use in indoor areas with no drip and no spray water.
Technical data
Rated voltage: 250 V\~
Frequency: 50/60 Hz
Rated current: max. 10 A
Conductor cross-section of screw terminals: max. 3 x 1.5 mm ^4
Distance of fixing holes: 60.3 mm
Switch compliance: BS EN 60669-1, IEC 60669-1
Information for electricians Installation and electrical connection
DANGER!
Touching live parts can result in an electric shock.
An electric shock can lead to death.
Disconnect the connecting cables before working on the device and cover all live parts in the area!
Preparing the device for installation
(for example "10A 2gang press switch")
■ Remove the rockers also with a flat-blade screwdriver.
Connecting the device
2A


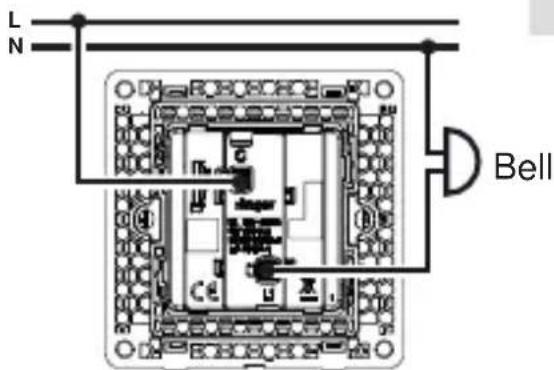

Bell switch
2B
Press switch


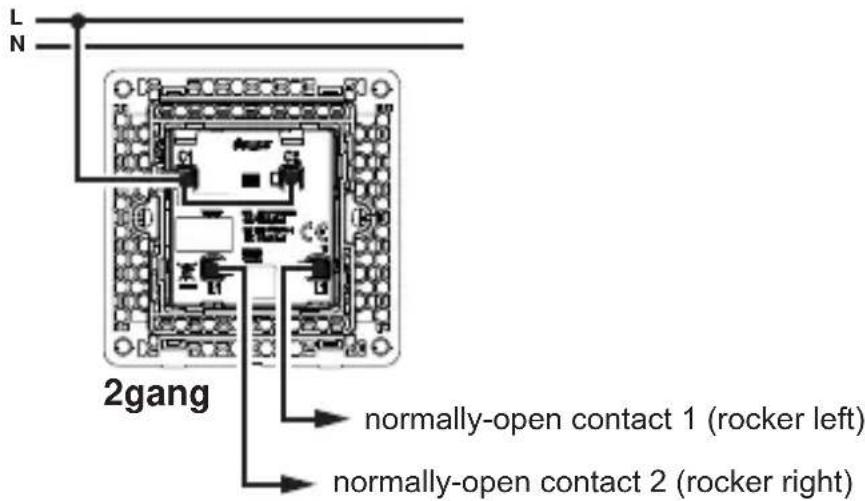

2C

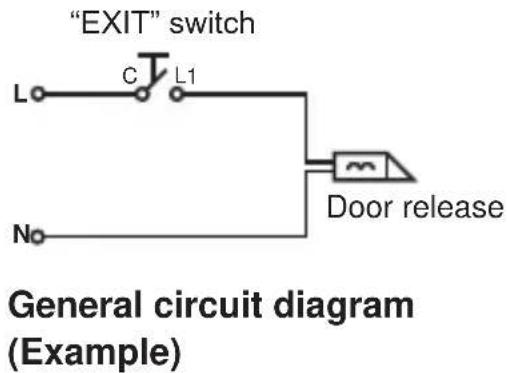

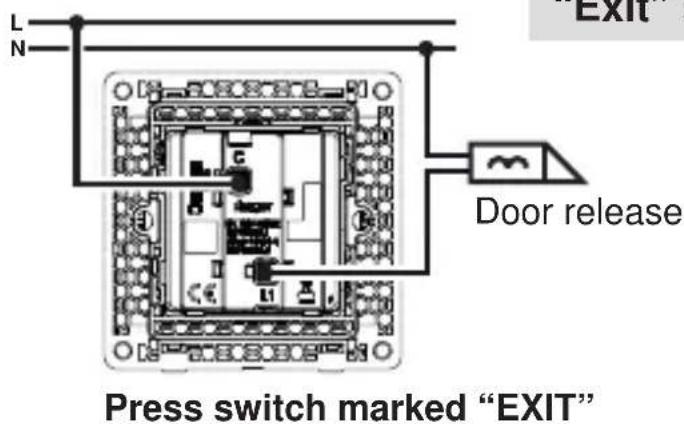

Wire the switch according to the appropriate wiring diagram (2A or 2B or 2C).
Installing the device into the wall box
(for example "10A 2gang press switch")
3

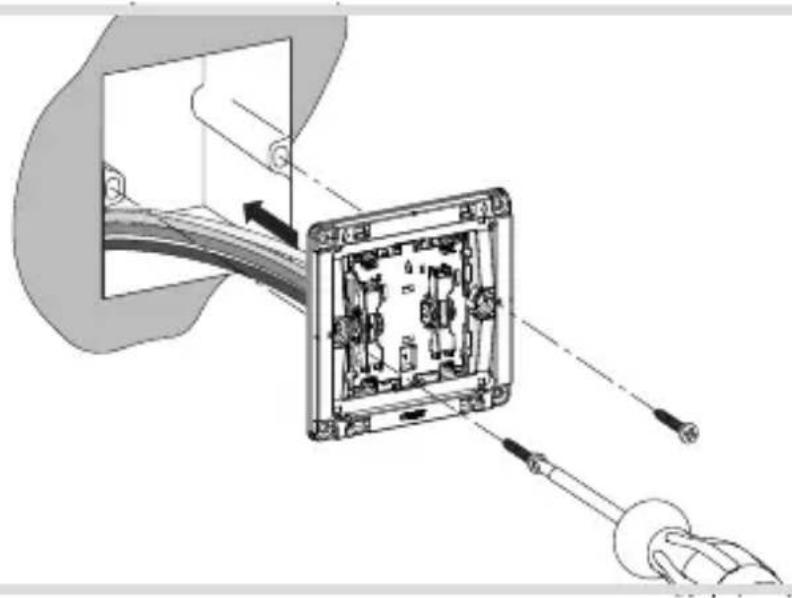

Assembling the rockers and frame
(for example "10A 2gang press switch")
4
2-5gang frames are available for multiple combinations.
