USER MANUAL WGCXHKTRFIDEG HAGER
16A key card switch - mechanical
16A key card switch - RFID
Hager Muse / Hager Inspire
Installation and operating
instructions
Safety instructions
Electrical equipment must only be installed and assembled by a qualified electrician in accordance with the relevant installation standards, regulations, directives and safety and accident prevention directives of the country.
Failure to comply with these installation instructions may result in damage to the device, fire or other hazards.
Function

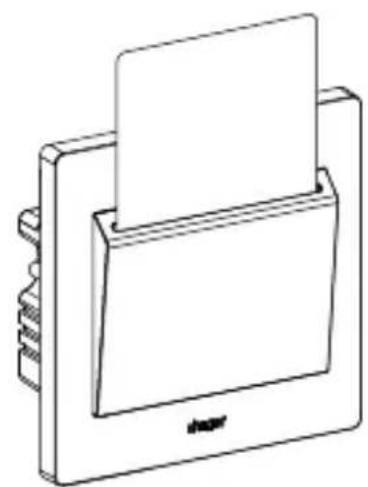

The key card switch is used for central switching on of electric loads by inserting a key card as well as for storage of the key card. The key card switch is installed in the entrance area. When the key card is removed the connected loads will be switched off automatically after the delay time has expired (approx. 30 seconds) and the LED orientation light of the key card switch is switched on.
The key card switch RFID works exclusively with the RFID key card programmed for this purpose.
Correct use
- Switching of incandescent lamps, high-voltage halogen lamps, fluorescent lamps, 230 V LED lamps as well as dimmable electronic transformers (marked with L, C) with halogen lamps.
- For the flush-mounted installation in standard wall boxes (recommended wall box depth ≥ 35 mm).
- Only suitable for use in indoor areas with no drip and no spray water.
Technical data
Rated voltage: 230 V\~
Frequency: 50/60 Hz
Rated current: 16 A
Delay time: 30 s (+/- 10 s)
Power consumption (standby): < 1.5 W
Contact type: relay, 1 normally-open contact
Conductor cross-section of screw terminals: max. 3 x 1.5 mm²
Distance of fixing holes: 60.3 mm
Operating temperature: -5 ... +45°C
Relative humidity (without condensation): 5 ... 95 % (at 25 °C)
Standards: BS EN 60669-2-1, IEC 60669-2-1
WARNING!
To avoid possible damage to the product or spurious insulation readings, please DISCONNECT the product before carrying out insulation resistance testing!
Information for electricians Installation and electrical connection
DANGER!
Touching live parts can result in an electric shock.
An electric shock can lead to death.
Disconnect the connecting cables before working on the device and cover all live parts in the area!
Preparing the device for installation


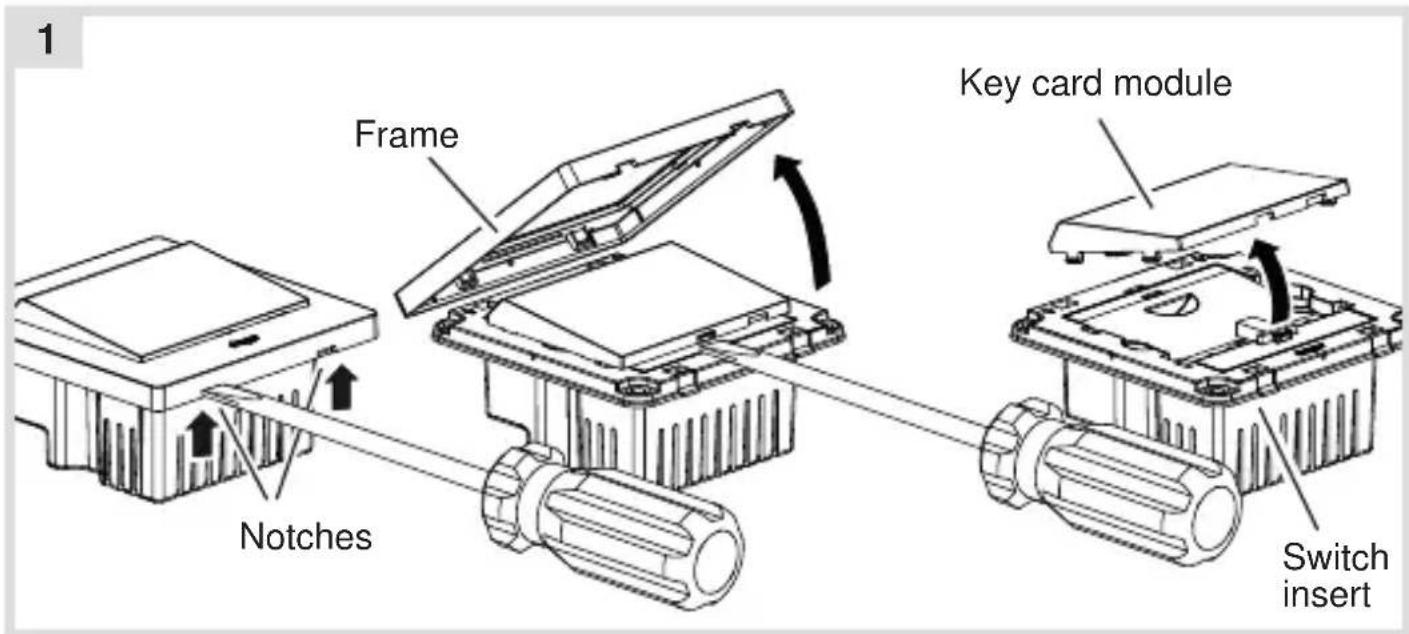

1 Frame Key card module Notches Switch insert■ Loosen the frame on the notches with a flat-blade screwdriver (1).
- Carefully remove the key card module from the switch insert.
Connecting the device


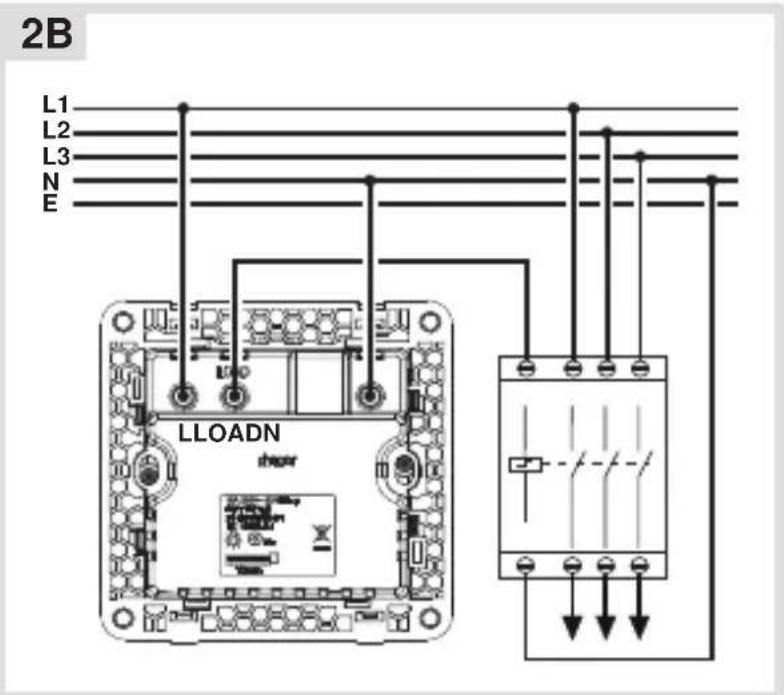

2B L1 L2 L3 N E LLOADN steuer- Strip connection cables approx. 12 mm.
■ Connect key card switch for direct switching of loads according to connecting diagram (2A). Can be installed alternatively with a load contactor (2B).
Installing the device into the wall box
3
Assembling the key card module and frame
4


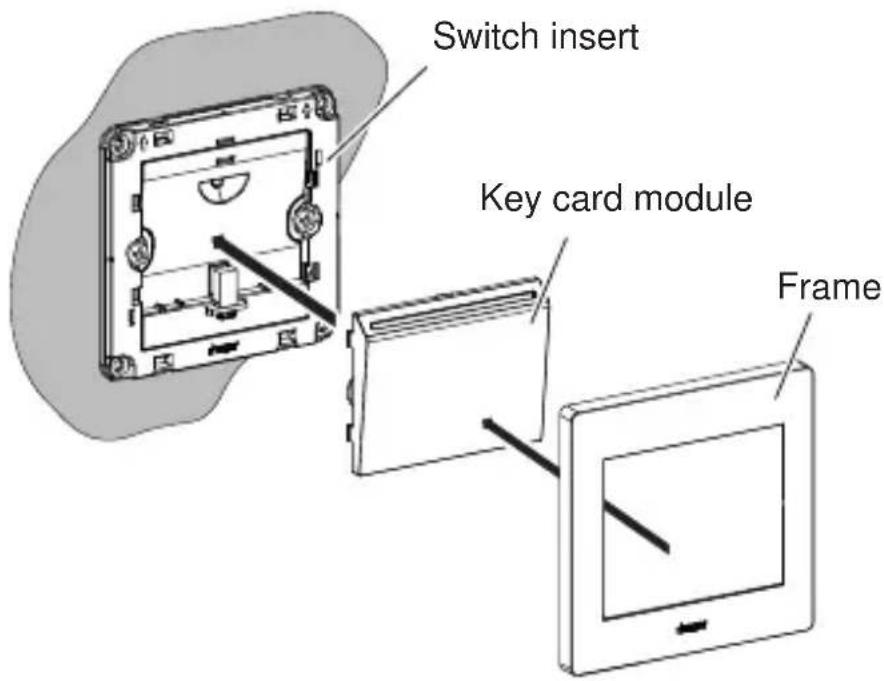

Switch insert Key card module FramePlace the key card module in the correct position and let snap in carefully (4).
Fit frame.
2-5gang frames are available for multiple combinations.
