Thank you for purchasing this Samsung product.

SAMSUNG

contents

FEATURES . . . . . . . . . . . . . . . . . . . 2

SAFETY INSTRUCTIONS .....2

cautions . . . . . . . . . . . . . . . . . . . . 2

precautions when operating . . . . . . . . . 3

DESCRIPTION OF PARTS .....4

CONTROL PANEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Environment . . . . . . . . . . . . . . . . . . . 6

Connecting the inlet hose . . . . . . . . . . . 6

CLEANING THE MACHINE. . . . . . . . . . .6

Cleaning the lint filter. . . . . . . . . . . . . . . 6

Cleaning the wash tub . . . . . . . . . . . . . 6

WASHING PROCEDURE .....6

Washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Spinning dry . . . . . . . . . . . . . . . . . . . . . . . 7

Heavy wash . . . . . . . . . . . . . . . . . . 7

Over flow wash. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Spinning rinse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

LAUNDRY GUIDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

TROUBLESHOOTING. . . . . . . . . . . . . . 9

SPECIFICATIONS 10

Instruction about the WEEE mark

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

This marking on the product, accessories or literature indicates that the product and its electronic accessories should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

For more information on safe disposal and recycling visit our website www.samsung.com or contact our Helpline number - 1800 3000 8282, 1800 266 8282

features

• Double Storm Pulsator (option)

- By rotating an inner and outer blade at different speeds, two powerful currents of water created that ensure that clothes get clean with less damage than a conventional washing machine. The Double Storm like water currents enhance both washing and rinsing power while reducing unnecessary fractions and in creating both the durability and reliability of your fine fabrics by preventing the laundry from getting twisted and knotted.

• Transparent Window (option)

- This Transparent Window is the new concept to solve the curiosity of users to see inside of washing machine while operation.

While operation, the laundry progress inside of washing machine can be checked by looking through the transparent window.

safety instructions

- Must follow the cautions and precautions for safety intend to prevent unpredictable danger and damage by helping the proper use in safety.

cautions

- Be sure that the washing machine is grounded.

To avoid electrical shock, use a metal pipe for the ground connection. But, don't ground the washing machine with gas pipes or telephone lines to avoid to dangers of explosion or lightning strike.

- Do not put your hands into the spin dryer basket when it is spinning.

Your fingers can be caught by spinning laundry and damaged.

- Never allow children to operate or play with the washing machine.

Children playing with the washing machine may accidentally fall into the washing tub.

- Do not climb up the Washing Machine or lid.

- Must follow the cautions below when the washing machine is working. Do not fall the WASH-COVER to the wash-tub when the washing running.

• Disconnect the power cord from the power supply when not in use.
• Ventilation opening must not be obstructed by carpeting when the washing machine is installed on a carpeted floor.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• To avoid overfilling and damages this appliance must be filled with the operator present using a moderate water supply pressure only.
• For washing machines with ventilation openings in the base, that a carpet must not obstruct the openings.
• Do not use adapter or extension cord to supply power to your washing machine.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.

⚠ precautions when operating

- Don't use excessively hot water. (50°C or more)

Plastic parts may be deformed or damaged.

Also, clothing may be deformed or decolored.

Do not connect to the hot water supply.

• Before washing, check all pockets.
If nails or pins remain in pockets, they may damage the washing machine or clothes.
- Close the water tap a little if the water pressure is too high.
• To avoid water splashes, close the wash tub lid.
- Never splash water on the control panel.
• Take out personal belongings from pockets.

Check the pockets! Hairpins and coins cause damages to clothes and washing machine.

They make noise and problems to the machine. Must check the pocket.

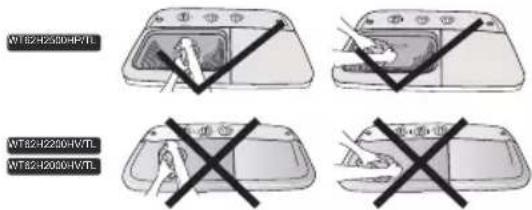

- Put only washing cloths on WASH-COVER.

Heavy cloths & thing not to be kept.

• The using of WASH-COVER as bellow.

WT82-H2304VTL WT82-H2204VTL WT82-H2004VTL

- Don't put candle & Hot Things on washing machine.

WT62H220H/VTTL WT62H250HP/VTTL WT62H250HP/VTTL

- Be able to hang the WASH-COVER on the side hook, while operating the Washing Machine or not.

Technical line drawings of two portable water heaters (no text or symbols on the devices themselves)

- Be sure to cover with the inner cover on laundry before spinning.

This prevents laundry from being tossed out and damaged.

Inner Lid Safety Cover

- Be sure lay the drain hose(A) down.

Diagram showing two scenarios of a dam or embankment with labeled points A and a circle, and a cross symbol indicating failure.

- Heavy laundry or loads on WASH-COVER may make it buckle and fall out of washing machine.

Do not overload WASH-COVER.

- Don't pull off the Knobs. Knobs can't take off from outside of the Panel.

1 2 3 4 5 6 7 8 9 10 11 12 Option

1 CONTROL PANEL

2 WASH COVER

3 LINT FILTER

4 WASH TUB

5 PULSATOR

6 BASE

7 SPIN COVER

8 SAFETY COVER

9 FRAME

10 CABINET

11 POWER PLUG

12 DRAIN HOSE

control panel

WT62H2200HV/TL

WT62H2000HV/TL

WT62H2500HP/TL

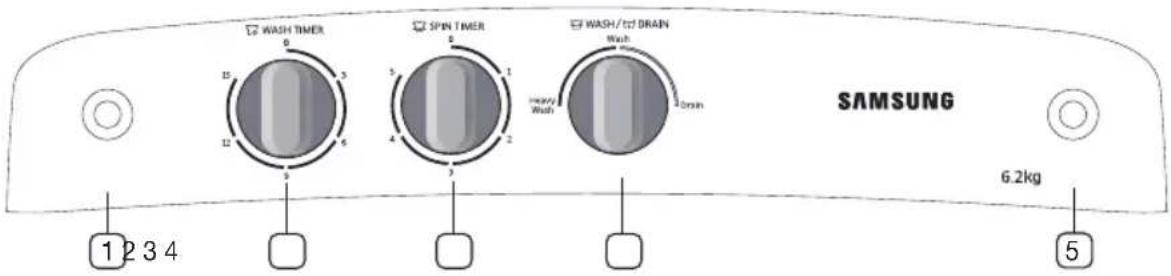

WASH TIMER SPIN TIMER WASH/T2 DRAIN Wash Heavy Wash 3min 1 2 3 4 SAMSUNG 6.2kg 5

1	WATER INLET	Be used to inject water for washing.
2	WASH TIMER	Be used to select required washing time.
3	SPIN TIMER	Be used to select required spinning time.
4	WASH-DRAIN SELECTOR	For washing or rinsing, select “Wash”or“Heavy wash”. For Draining ,select “Drain”.
5	SPIN INLET	Be used to inject water for spin rinsing.

Environment

• How to move the machine.

Wheels are provided for easy translocation of machine.

- Hold the machine firmly as shown in the figure below.

below. WT62H2000HV/TL WT62H2500HP/TLV

Do not move machine when it is loaded.

- Leave some space.

Space at last 15 cm between the washing machine and the wall.

- Place the washing machine on a sturdy flat surface.

If the washing machine is placed on an uneven or weak surface, noise or vibration may be occurred. (Allowable is 2°)

- Never install the washing machine near water.

Do not place the washing machine in steamy rooms or where the washing machine is directly exposed to rain. Moisture may destroy the electrical insulation and cause an electrical shock hazard.

- Avoid direct sunlight or heating devices.

As plastic and electrical components are affected by direct heat, never place the washing machine near heaters, boilers, etc. Do not place under direct sunlight.

Connecting the drain hose

Insert the drain hose(a) and push it tightly to be connected as arrow direction.

a

- Push it with force further to the bottom of the drain outlet

- Check the drain hose for not getting apart from the outlet by drawing it.

Connecting the inlet hose

(Insert the inlet hose (Insert the inlet hose into washing machine) into faucet)

The new hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused.

6_ installation

cleaning the machine

Cleaning the lint filter

If the dregs are filled up in the lint filter after finishing the wash, push down(1) and pull it out(2) as shown in figure.

Remove the collected lint and rinse the filter net.

① ② Lint filter

Cleaning the wash tub

Wipe off strains on the cabinet and operation panel with soft cloth.

Do not use benzene, thinners, cleanser, or wax, nor scrub the washing machine with a brush. Painted surfaces or plastic parts will be damaged.

washing procedure

Washing

1. Before starting washing, check the following:

- Connect the water inlet hose and open the water tap.

- Connect the power cord to the power supply outlet.

- Lay the drain hose(A) down toward a sinkhole.

Diagram showing two scenarios of a water channel with labeled components A and a cross symbol, likely illustrating fluid or traffic flow.

1. Set the WASH / DRAIN SELECTOR KNOB to the desired mode.

1. Set the WASH / DRAIN SELECTOR KNOB to 'WASH.HEAVY WASH'.

1. Set the WATER INLET SELECTOR.

1. Load laundry in the wash tub.

1. Fill water in the wash tub and add the detergent.

1. Set the WASH TIMER.

WASH TIMER

Set the Wash Timer 1-15 min. (option)

1. After washing, set the WASH / DRAIN SELECTOR KNOB to 'DRAIN' for draining.

Spinning dry

1. Transfer the clothes into the spin basket and arrange the clothes evenly.

Bottom of balancer

safety cover

1. Be sure to attach the safety cover and close the inner lid.

Inner Lid
Safety Cover

1. Close the spin dryer lid.

1. Set the SPIN DRYER TIMER 1-5 minutes.

1. Incomplete spining.(Severe vibration or unbalance) See "When you load ..." on page 9.

Heavy wash

1. Set the WASH / DRAIN SELECTOR KNOB to 'HEAVY WASH'.

1. Supply the proper amount of water as not to overflow the top of the washing tub.

2. Set the WASH TIMER 10\~15 minutes.

WASH TIMER

1. Drain the water. Set the WASH / DRAIN SELECTOR KNOB to 'DRAIN'.

1. Repeat this cycle until drain water is clean. (2\~3 cycles)

2. Be sure lay the drain hose down.

Over flow wash

1. Keep suppling water.

Adjust water pressure to ensure that the amount of water supplied does not exceed that water drained.

1. Set the WASH TIMER 6\~8 minutes.

1. As soon as the WASH TIMER shuts off, turn off the water tap.

1. Set the WASH / DRAIN SELECTOR KNOB to 'DRAIN'.

Spinning rinse

After rinsing you can select this course for more effective rinse (Don't select only this course for rinse.)

1. Load the laundry evenly into the spin basket.

1. Connect the water inlet pipe to the right side. And set the time of spinning as per your favor.

1. After stopping water supply, cover the laundry with safety cover and close the inner lid.

Inner Lid Safety Cover

1. Close the spin dryer lid.

2. Set the SPIN DRY TIMER 2\~3 minutes.

laundry guide

Washing time

Kinds of clothing	Washing time	Washing Selection
Extremely soiled heavy fabric	10 to 15 minutes	HEAVY WASH
Linen,cotton,etc.	8 to 10 minutes
Ordinary clothes (underwear,etc)	7 minutes	WASH
Slightly soiled synthetic fiber	2 to 5 minutes
100% wool,mixed wool knitting, thin synthetic fiber with tags indicating hand washing	2 to 5 minutes

Detergent

6.2kg Capacity
Amount of detergent Water level
39 g Low (39 l)
51 g Med (51 l)
59 g High (59 l)

The amount of detergent is average.

Follow the instruction detergent printed on the package for amount of detergent.

Choose the amount of detergent depending on the fabric type.

Spin dry time

Type of laundry Time
Thin (synthetic fiber) 1 min.
Wool 1~2 min.
Cotton 3~5 min.
Thick (cotton) 5 min.

8_ laundry guide

WHEN YOU LOAD THE LAUNDRY INTO THE SPIN BASKET.

Press the laundry evenly and put the safety cover into the spin basket drum as shown in the figure.

Bottom of balancer Safety cover Inner Lid Safety Cover

troubleshooting

TROUBLE CHECK POINT
The washing machine does not work.	Check that the power supply is in good condition.Check that the power plug is inserted properly.Check that the wash timer knob or the spin timer knob is not in the "0" position.
The drain hose does not work.	Check that the drain hose is not laid too high.Check that the drain hose is not frozen.
There is abnormal noise during washing.	Check that there are no coins or any other foreign objects dropped into the wash tub.that the drain hose is not blocked by foreign matter.
There is abnormal noise and violent vibration during spinning.	Check that the washing machine is placed on flat, stable floor.Check that clothes are evenly distributed in the spin tub.Check that there are no washing materials or foaming debris dropped into the outside of the spin tub.

		WASH SP	INMODEL
CAPACITY	WT62H2000HV/TLWT62H2200HV/TLWT62H2500HP/TL	6.2kg	4.6kg
DIMENSIONS (W x D x H)mm	WT62H2000HV/TLWT62H2200HV/TL	(W)761 x (D)448 x (H)885
	WT62H2500HP/TL	(W)768 x (D)448 x (H)885
MAXIMUM WATER PRESSURE	0.6 MPa
WEIGHT	WT62H2000HV/TLWT62H2200HV/TL	19 kg
	WT62H2500HP/TL	19.5 kg
STANDARD QUANTITY OF WATER	59 l
RATING TIME	Washing 15 Minutes / Spinning 5 minutes

memo

QUESTIONS OR COMMENTS?

Country CALL		OR VISIT US ONLINE AT
RUSSIA 8-800	-555-55-55 www.samsung.com/ru/support
AUSTRALIA 1300	362 603 www.samsung.com/au/support
INDIA	1800 3000 8282 - Toll Free1800 266 8282 - Toll Free30308282 - Non Toll Free	www.samsung.com/in/support
MALAYSIA 1800	-88-9999	www.samsung.com/my/support
PHILIPPINES	1-800-10-7267864 [PLDT]1-800-8-7267864 [Globe landline amd Mobile]02-4222111 [Other landline]	www.samsung.com/ph/support
SINGAPORE 1800	-SAMSUNG(726-7864)	www.samsung.com/sg/support
VIETNAM 1 800	588 889	www.samsung.com/vn/support
SOUTH AFRICA 0860	-SAMSUNG(726-7864 )	www.samsung.com/support

This product is RoHS compliant.

WT62H2200HV/TL

WT62H2000HV/TL

WT62H2500HP/TL

वाशिंग मशीन

उपयोक्ता पुस्तिका

Diagram showing two scenarios of a dam or pipeline system with labeled components A and a cross symbol indicating failure.

Diagram illustrating a step-by-step procedure for using a tool to remove or apply liquid, with labeled arrows indicating the process.

Illustration showing three steps of hair treatment: first with brush, second with cloth, and third with cotton swab.

वाश टब की सफाई

Diagram showing two scenarios of a pipe or channel with labeled points A and a circle, and an 'X' symbol indicating a condition.
