USER MANUAL UN48H8000AH SAMSUNG

Thank you for purchasing this Samsung product. To receive more complete service, please register your product at

www.samsung.com/register

Model ____ Serial No. ____

Contents

Quick Guide

Using the Smart TV

Using Voice Control

Using Motion Control

Using the Samsung Smart Control

Using the Soccer Mode

Using the Multi-Link Screen

Connecting Antenna and External devices

Antenna Connection

Video Device Connection

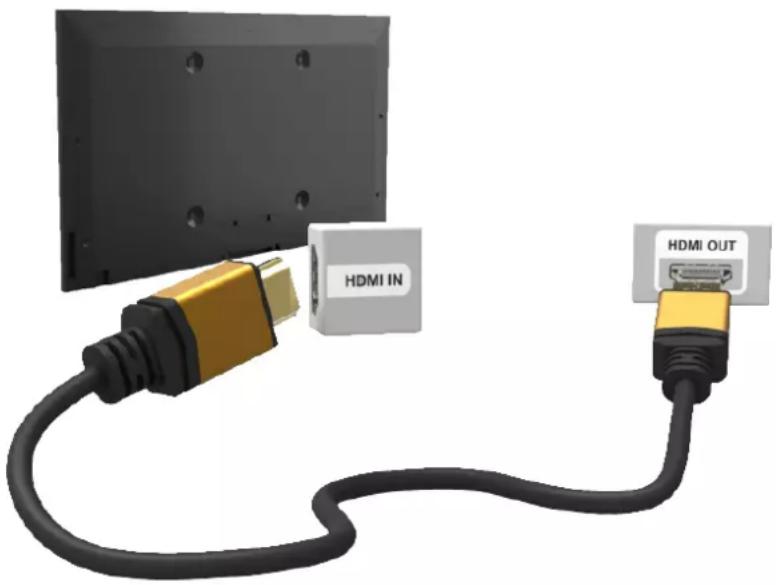

10 HDMI Connection

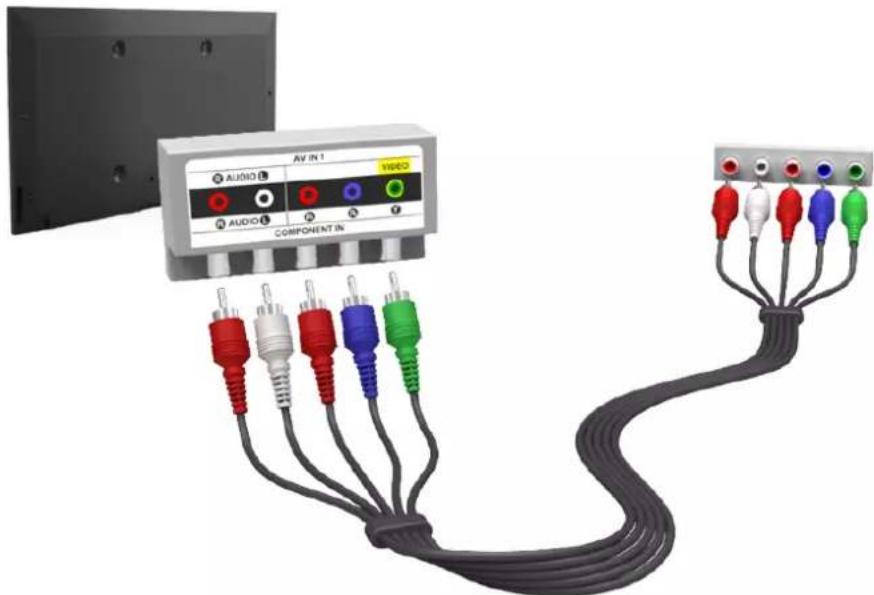

11 Component Connection

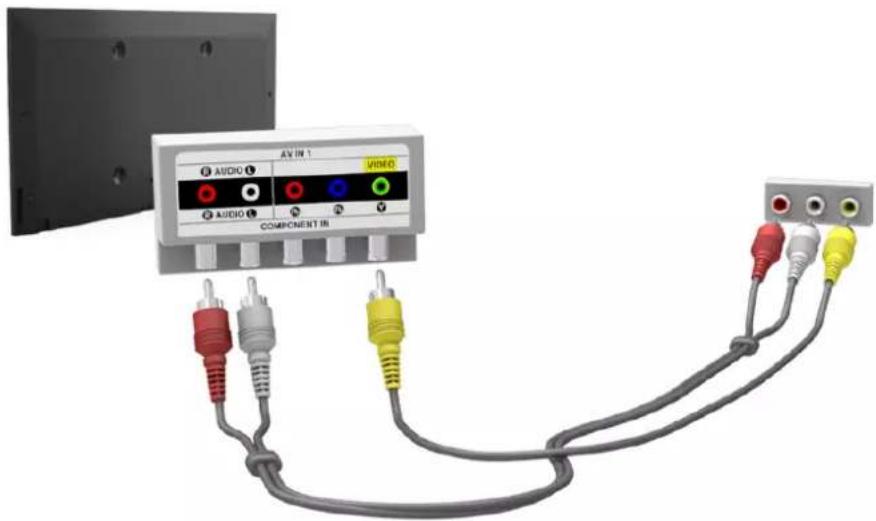

12 External Input Connection

TV Audio through the External Speakers

13 HDMI (ARC) Connection

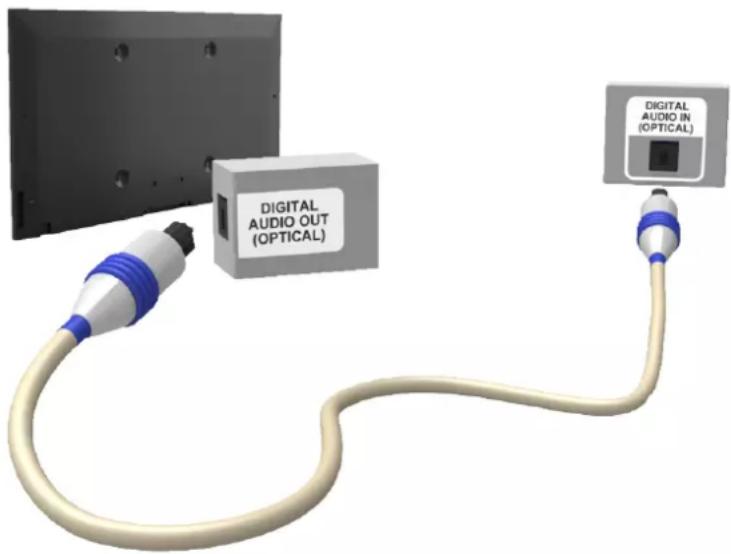

14 Digital Audio (Optical) Connection

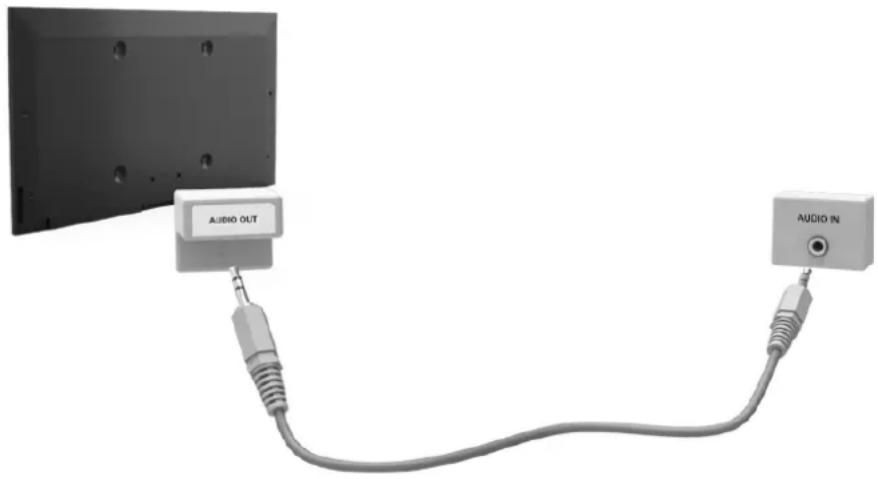

15 Audio Output Connection

Connecting to a Computer

17 Connecting Through the HDMI Port

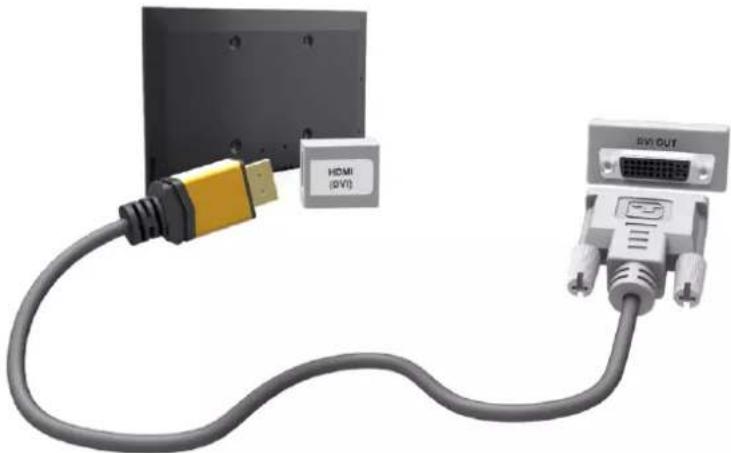

18 Connecting With the DVI to HDMI Cable

19 Connecting Through Samsung Link

19 Connecting Through Home Network (DLNA)

Connecting to a Mobile Device

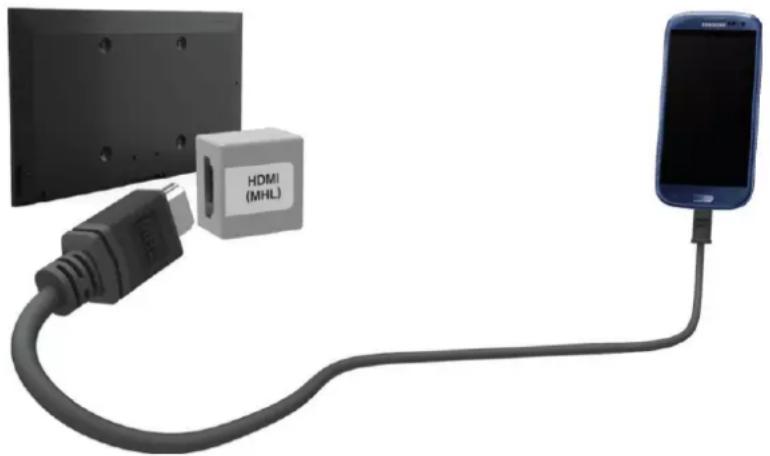

21 Connecting With an MHL to HDMI Cable

22 Mobile Device Screen on TV (Screen Mirroring)

24 Connecting Mobile Devices without a Wireless Router (Wi-Fi Direct)

24 Connecting Through Samsung Link

25 Connecting Through Home Network (DLNA)

25 Connecting via Smart View 2.0

25 The name of the TV on the Network

Switching Between Video Sources

Using the Remote Control and Peripherals

Installing Batteries into the Samsung Smart Control

27 The Low Battery Alarm Window

Pairing the Samsung Smart Control

28 Reconnecting the Samsung Smart Control

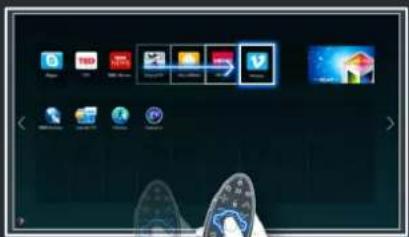

Using the Samsung Smart Control

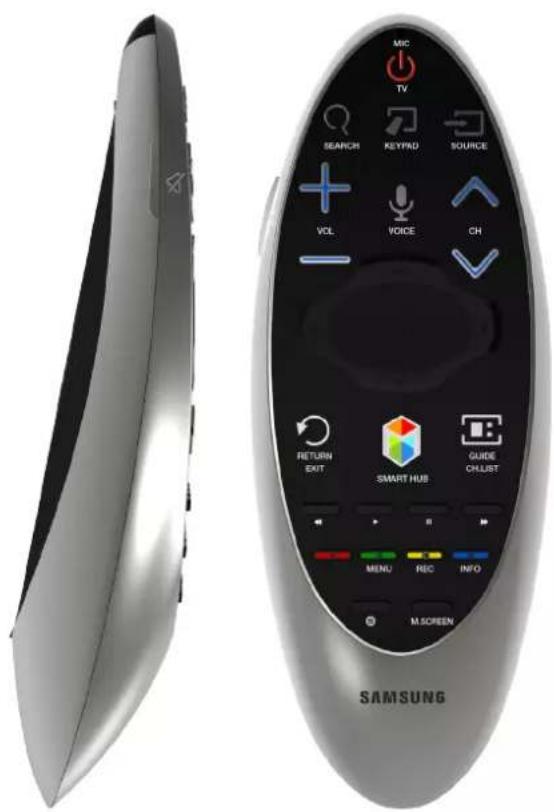

29 Button Functions

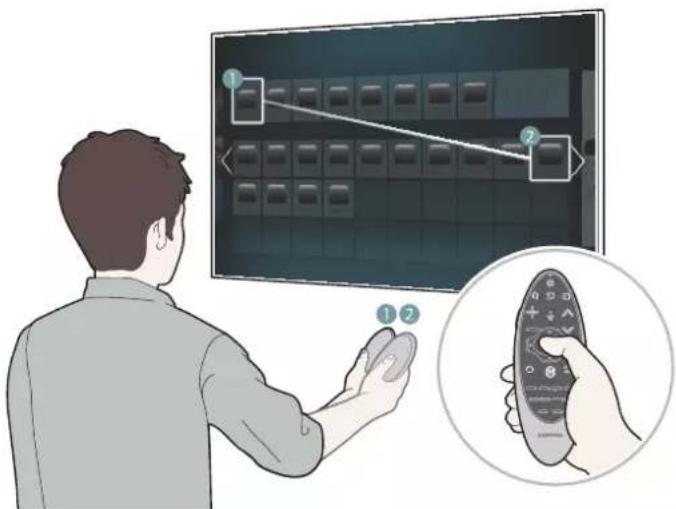

31 Controlling the TV by Moving the Samsung Smart Control

32 Using the Touch pad

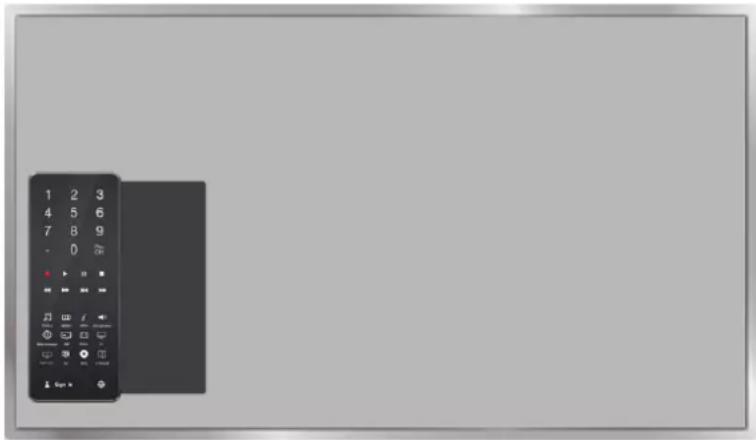

34 Displaying and Using the On-Screen Remote

Controlling External Devices with the TV Remote (Universal Remote Setup)

36 Setting Up the Universal Remote Control

37 Controlling External Devices with the TV Remote

38 Universal Remote Features

Controlling the TV with a Keyboard

39 Connecting a Keyboard

40 Using the Keyboard

Controlling the TV with a Mouse

41 Connecting a Mouse

42 Using the Mouse

Entering Text Using QWERTY

43 Using Additional Functions

Internet Connection

Establishing a Wired Internet Connection

44 Using Cat 7 LAN Cables
45 Connecting to a Wired Internet Network Automatically

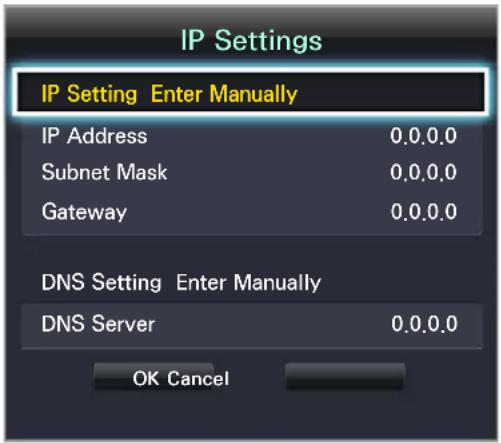

45 Connecting to a Wired Internet Network Manually

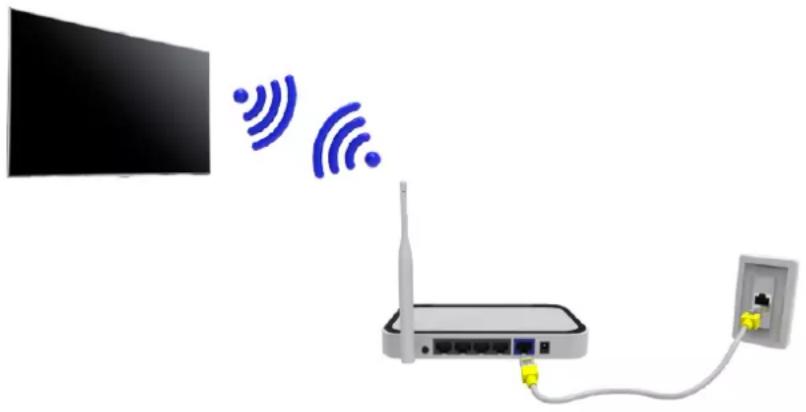

Establishing a Wireless Internet Connection

47 Connecting to a Wireless Internet Network Automatically
48 Connecting to a Wireless Internet Network Manually
49 Connecting to a Wireless Internet Network with WPS

Troubleshooting Internet Connectivity Issues

50 Troubleshooting Wired Internet Connectivity Issues
51 Troubleshooting Wireless Internet Connectivity Issues

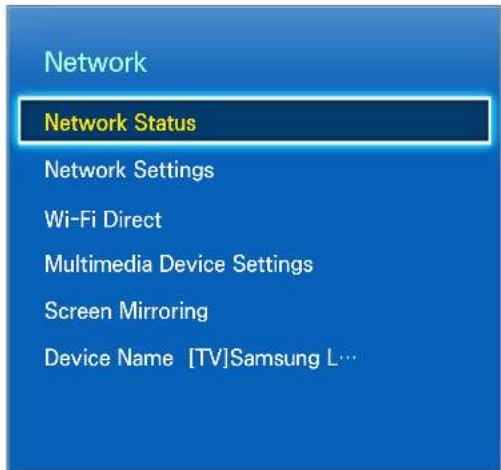

Checking the Internet Connection Status

Smart Features

Using Multiple Functions in a Single Screen (Multi-Link Screen)

53 Launching Multi-Link Screen
53 Using Multi-Link Screen

Smart Hub

55 Testing Smart Hub connections
56 Opening the First Screen
57 Moving to the Panel Screen
57 Using the Smart Hub Tutorial
57 Resetting Smart Hub

Using Smart Hub with a Samsung Account

58 Creating a Samsung Account
60 Signing in to a Samsung Account
61 Linking Your Samsung Account to External Service Accounts
62 Changing and Adding Information to Samsung Account
62 Deleting All Samsung Accounts from the TV

Using the NewsON Panel

63 News
63 Weather

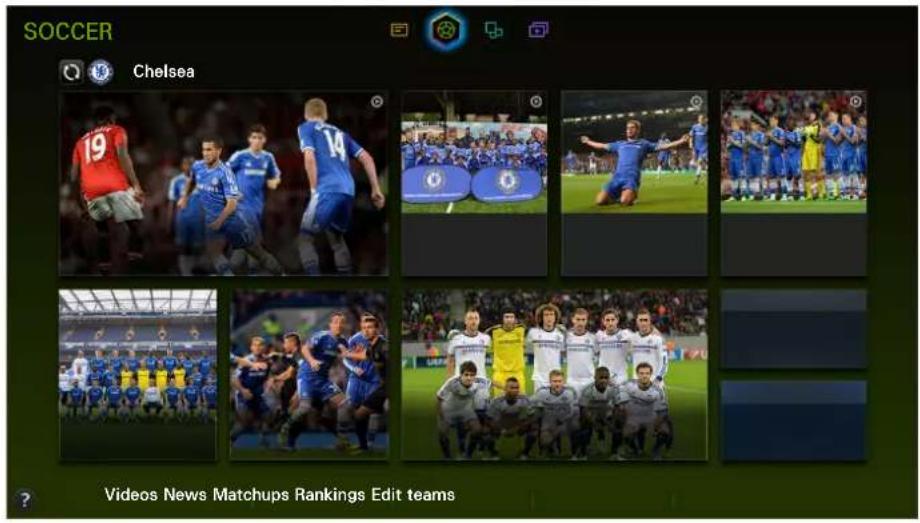

Using the SOCCER Panel

65 Setting Your Favorite Team

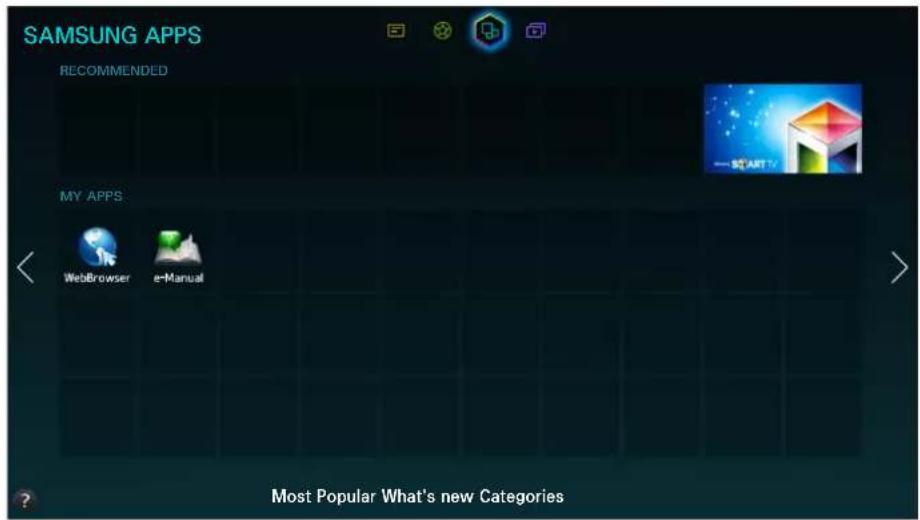

Using the SAMSUNG APPS Panel

67 Using Supported Features via the Pop-Up Menu - Downloaded Apps
68 Installing an App
69 Default Apps
70 Rearranging Apps on the SAMSUNG APPS Screen
70 Deleting an App from the TV
71 Rating/Reviewing an App
72 Updating an App
72 SAMSUNG APPS Features

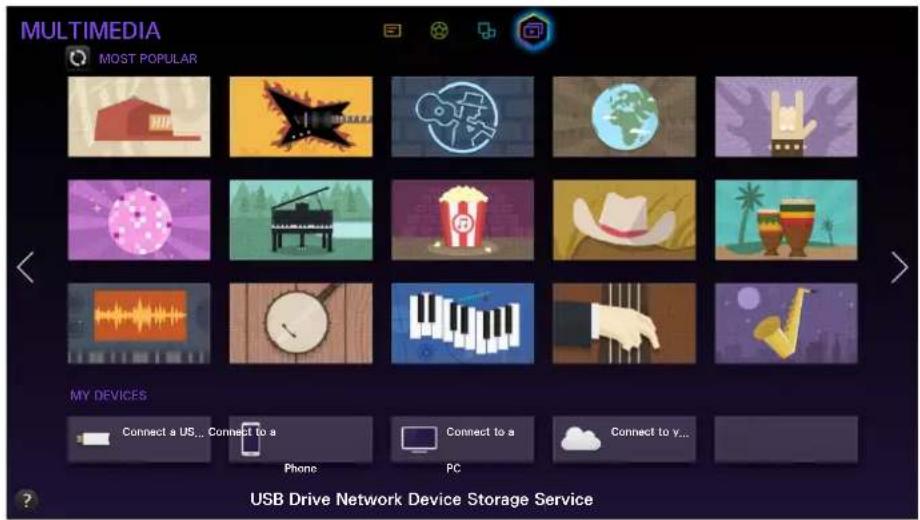

Playing Photos, Videos, and Music (MULTIMEDIA)

74 Playing Media Content Saved on a USB Device
75 Playing Multimedia Content Saved on a Computer/Mobile Device
76 Playing Media Content Saved in a Storage Service
77 Buttons and Functions Available While Viewing Photos
78 Buttons and Functions Available While Viewing Videos
80 Buttons and Functions Available While Playing Music
81 Functions on the Media Content List Screen

Controlling the TV with Your Voice (Voice Control)

82 Using Voice Control Imperatively

Controlling the TV using Motions (Motion Control)

84 Testing Ambient Illumination Using the TV Camera
85 Activating Motion Control

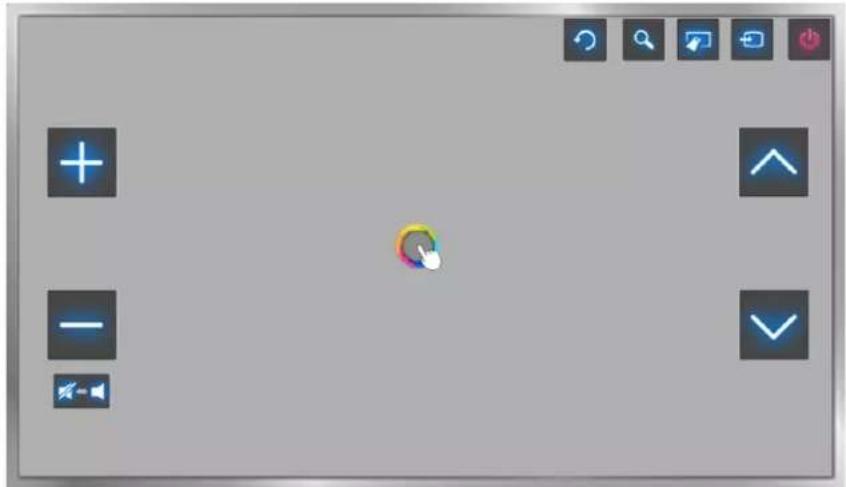

88 Motion Control Screen Layout

Signing in with Face Recognition

91 Registering Your Face to Your Samsung Account
92 Changing the Login Method to Face Recognition
92 Signing in to a Samsung Account Using Face Recognition

TV Viewing and Recording Features

Digital Broadcast Information at a Glance

93 Using the Guide
94 Checking the Current Program Info
94 Changing the broadcast signal
94 Digital Channel Signal Info and Strength

Recording Programs

95 Creating a USB Recording Device
97 Recording Programs
98 Buttons and Functions Available While Recording a Program
99 Managing the Schedule Recording List
100 Watching a Recorded TV
103 Managing Recorded Files

Setting Up a Schedule Viewing

104 Setting Up Schedule Viewing
105 Managing the Schedule Viewing List

Using Timeshift

Using the Channel List

Registering, Removing, and Editing Channels

108 Registering and Removing Channels
109 Editing Registered Channels
110 Program Rating Lock
110 Enabling/Disabling Password Protection on Channels
110 Locking/ Unlocking Channels

Creating a Personal Favorites List

111 Registering Channels as a Favorites
112 Viewing Favorites List Channels Only

Editing a Favorites List

113 Edit Favorites Screen Menu Items

Watching a Sports Game Realistically (Soccer Mode)

116 Enabling Soccer Mode
116 Extracting Highlights Automatically
117 Functions Available While Watching a Sports Game in Soccer Mode
118 Viewing a sports game recorded in Soccer Mode

TV-Viewing Support Features

119 Showing Subtitle
119 Subtitle Options
120 Showing Captions
121 PIP Broadcast Viewing
122 Scanning for Available Channels (Auto)
122 Storing for available digital channel (Manual)
122 Selecting the Broadcast Audio Options
123 Fine-Tuning the Screen
123 Color System

Picture and Sound Settings

Changing the Picture Mode and Adjusting the Picture Quality

124 Choosing the Right Picture Mode for the Viewing Environment
125 Adjusting the Picture Quality for Each Picture Mode
126 Fine-Tuning Each Picture Mode (Advanced Settings)
128 Adjusting the Picture for Easier Viewing (Picture Options)

Viewing in 3D

129 Starting 3D
130 Changing the 3D Mode
131 Adjusting the 3D Effect

Picture Support Functions

132 PIP Broadcast Viewing
133 Changing the Picture Size and Position
134 Listening to Audio Only with the Screen Turned Off (Picture Off)
134 Resetting the Picture Mode Settings

Changing the Sound Mode and Using Sound Effects

135 Choosing the Right Sound Mode for the Environment
136 Using Sound Effects

Customizing Sound (Sound Customizer)

137 Customizing Sound
137 Using a Custom Sound Profile
138 Renaming and Deleting Custom Sound Profiles
138 Modifying a Custom Sound

Sound Support Functions

139 Selecting Speakers
139 Designating the TV's Installation Type
139 Listening to TV Sound through Samsung Bluetooth or Wi-Fi Audio
140 Listening to TV Sound through Samsung Network Speaker
141 Enabling Digital Audio Output
142 Listening to 3D Audio in 3D Mode
142 Resetting All Sound Settings

General

Setting the Time and Using the Timer

143 Setting the Current Time
145 Using the Timers

Using the Screen Burn Protection and Energy Saving Features

147 Preventing Screen Burn
147 Using Energy Saving Features

Using Anynet+ (HDMI-CEC)

148 Setting Up Anynet+ (HDMI-CEC)
149 Using Anynet+ (HDMI-CEC)

Using the e-Manual

150 Launching the e-Manual
150 Additional e-Manual Features
151 Accessing the Menu from the e-Manual (Try Now)
151 Loading Reference Pages
151 Updating the e-Manual to the Latest Version

Updating the TV's Software

152 Update now
153 Enabling Automatic Software Updates

Protecting the TV from Hacking and malicious code

153 Checking the TV and Connected Storage Media
154 Automatically Scanning when the TV is Powered On
154 Automatically Adding malicious code to the Blocked List

Using Other Functions

155 Adjusting the Menu Transparency
155 White Text on Black Background (High Contrast)
155 Expanding the Smart Hub's Focus Area
156 Checking Notifications
156 Changing the Menu Language
156 Setting Up a Password
157 Enabling Game Mode
157 Enjoying Rich Colors and Superior Picture Quality (BD Wise)
157 Enabling/Disabling Sound Feedback
158 Locking/Unlocking the Panel Keys
158 Showing/Hiding the Samsung Logo while Booting
158 Enabling the TV to Boot Faster
158 Enabling/Disabling the Front Indicators
158 Enabling the AV Color System
159 Registering the TV as a DivX-Certified Device (Watching Paid DivX Movies)
160 Restoring the TV to the Factory Settings
160 Turning the TV into a Display Model (exclusively for retail stores)

Troubleshooting

Getting Support

161 Support through Remote Management

162 Finding the Information You Need for Service

There is a problem with the picture.

163 Testing the Picture

I can't hear the sound clearly.

165 Testing the Sound

I can't see 3D images clearly.

166 Testing 3D Picture Quality

There is a problem with the broadcast.

The computer won't connect.

I can't connect to the Internet.

The Schedule Recording/Timeshift function isn't working.

Anynet+ (HDMI-CEC) isn't working.

I am having trouble launching/using apps.

My file won't play.

I want to reset the TV.

Other Issues

Appendix

Read Before Using 3D Viewing Mode

173 3D Precautions

176 Supported Resolutions for 3D Modes

Read Before Using Voice, Motion, or Face Recognition

178 Voice, Motion, and Face Recognition Precautions

180 Requirements for Using Voice, Motion, or Face Recognition

Read Before Using Apps

Read Before Using the Web Browser

Read Before Playing Photo, Video, or Music Files

185 Photo, Video, and Music File Use Limitations

185 Sending Files between Storage Devices Table

186 Supported External Subtitles

186 Supported Internal Subtitles

187 Supported Image Formats and Resolutions

187 Supported Music Formats and Codecs

188 Supported Video Codecs

Read After Installing the TV

190 Picture Sizes and Input Signals

190 Installing an Anti-Theft Lock

191 Read Before Setting Up a Wireless Internet Connection

Read Before Connecting a Computer (Supported Resolutions)

192 IBM

192 MAC

193 VESA DMT

Supported Resolutions for Video Signal

194 CEA-861

License

Glossary

Using the Smart TV

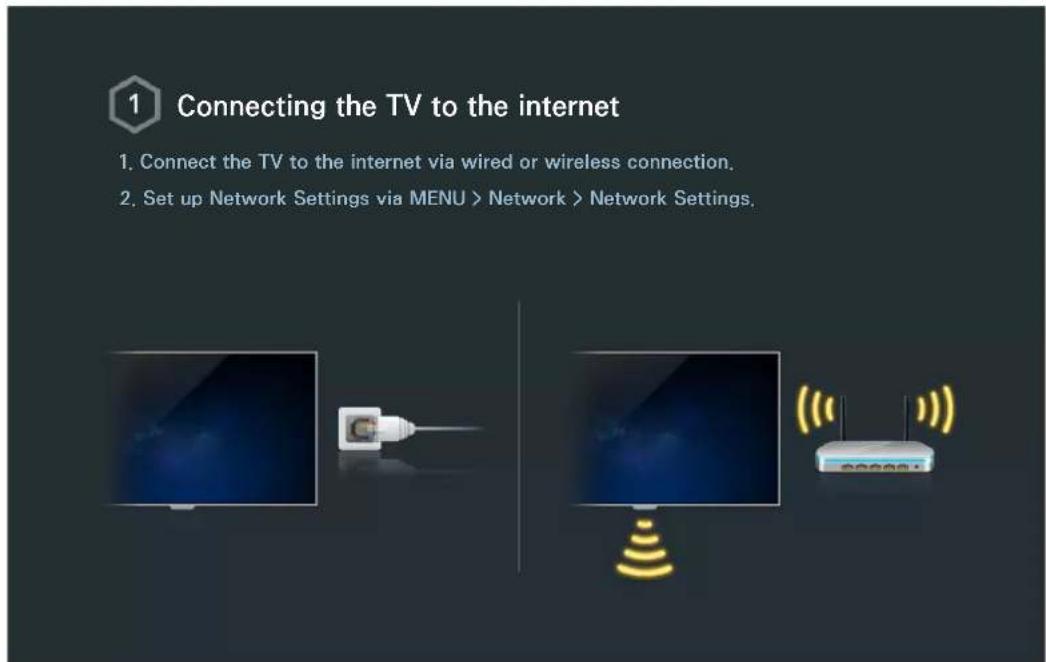

1 Connecting the TV to the internet 1. Connect the TV to the internet via wired or wireless connection. 2. Set up Network Settings via MENU > Network > Network Settings.

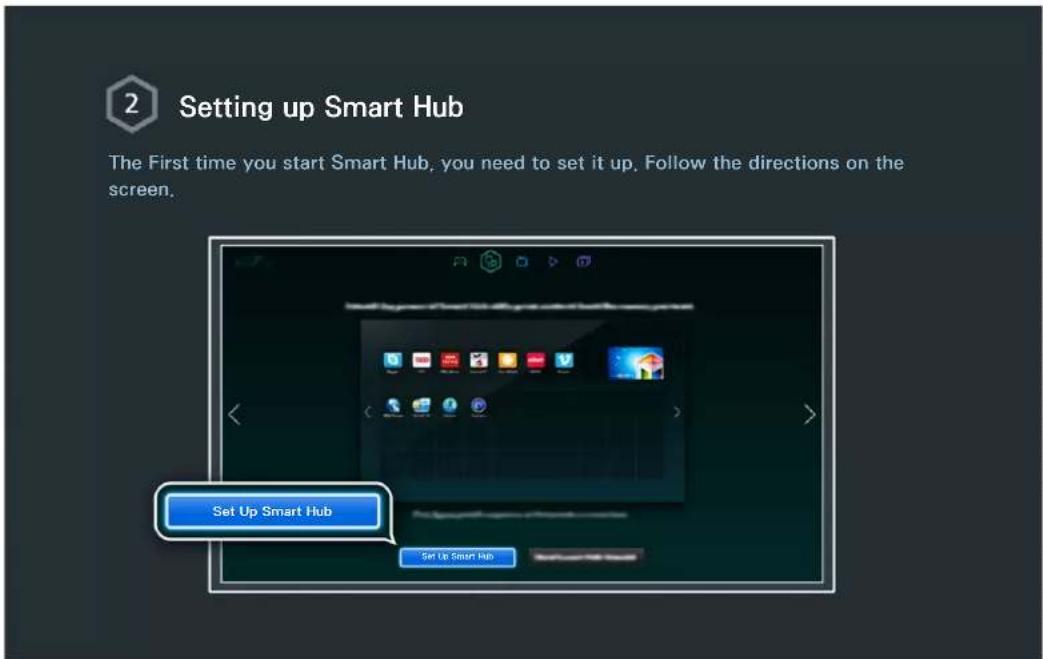

2 Setting up Smart Hub The First time you start Smart Hub, you need to set it up. Follow the directions on the screen. Set Up Smart Hub Set Up Smart Hub

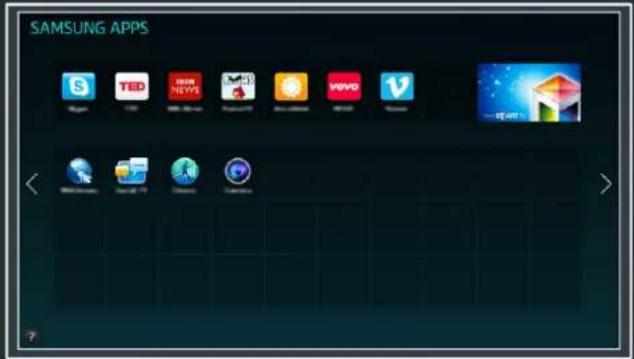

Using Smart Hub

Go to Smart Hub > Apps and download applications from Samsung Smart TV.

SAMSUNG APPS SAMSUNG TED NEWS MOS VIVO V SAMSUNG TOD NEWS MOS VIVO V SAMSUNG TOD NEWS MOS VIVO

For more information, refer to "Smart Hub".

Using Voice Control

Setting up Voice Control

Set up the desired value via MENU > System > Voice Control.

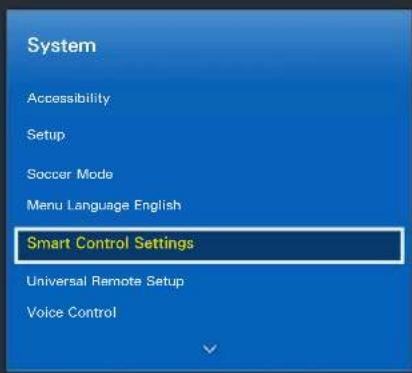

System Accessibility Setup Soccer Mode Menu Language English Smart Control Settings Universal Remote Setup Voice Control

Setting up Voice Control Set up the desired value via MENU > System > Voice Control. System Accessibility Setup Soccer Mode Menu Language English Smart Control Settings Universal Remote Setup Voice Control

2 Using Voice Control Press the VOICE button on the Samsung Smart Control, and then say the desired commands.

For more information, refer to "Controlling the TV with Your Voice (Voice Control)".

Using Motion Control

Setting up Motion Control

Enter required values via MENU > System > Motion Control.

System Setup Soccer Mode Menu Language English Smart Control Settings Universal Remote Setup Voice Control Motion Control On

2 Using Motion Control 1. Raise a hand with stretching an index finger, until an arrow cursor appears on the screen. 2. Move the hand to move the pointer on the screen, and then gesture like clicking a mouse to click a button.

A TV camera (sold separately) needs to be connected in order to use Motion Control.
For more information, refer to "Controlling the TV using Motions (Motion Control)".

Using the Samsung Smart Control

Connecting the TV

To pair again, press RETURN and GUIDE simultaneously for 3 seconds.

Set the Smart Control Settings via MENU > System > Smart Control Settings.

System Accessibility Setup Soccer Mode Menu Language English Smart Control Settings Universal Remote Setup Voice Control

Using the Samsung Smart Control

Use the buttons to perform actions. Move the Samsung Smart Control while

touching the touch pad to move the focus.

北京超值回车器

Screenshot of a mobile home screen with app icons and navigation arrows, showing a hand hovering over the screen.

For more information, refer to "Using the Samsung Smart Control".

Using the Soccer Mode

Activating Soccer Mode

To record the sports game, connect the USB device to the TV and go to MENU > System > Soccer Mode, Set Soccer Mode to On.

System Accessibility Setup Soccer Mode Menu Language English Smart Control Settings Universal Remote Setup Voice Control

Using Soccer Mode

Press enter while watching a sports game and then press the desired button on the screen. Record, use social media, zoom, and save and view highlights.

Two soccer players in action, one blocking the ball while the other assists (no text or symbols visible)

Silhouettes of soccer players in action against a dark blue background, with a soccer ball and silhouettes of two running figures (no text or symbols)

or more information, refer to "Watching a Sports Game Realistically (Soccer Mode)".

Using the Multi-Link Screen

Running Multi-Link Screen

Press the M.SCREEN button.

是反超数字调制

Using the Multi-Link Screen

After selecting a desired screen using Samsung Smart Control, search the website or play an app while viewing TV.

If you press the M.SCREEN button, you can select the function which is supported on Multi-Link Screen.

Desktop screenshot showing a person silhouette with icons and a timeline interface on the right

Screenshot of a mobile app interface with a virtual avatar and a screen displaying multiple app icons.

For more information, refer to "Using Multiple Functions in a Single Screen (Multi-Link Screen)".

Antenna Connection

If you are not connecting your TV to a cable or satellite box, you must connect an antenna or a cable outlet to the TV to receive broadcast signals.

Connect a cable from an antenna or cable outlet to the ANT IN connector as shown in the diagram below.

An antenna connection is not necessary when a cable box or satellite receiver is used.

Diagram showing connections between an antenna, cable, and wall-mounted antenna (no text or symbols present)

Video Device Connection

Your TV has a variety of connectors for video input from external devices such as cable boxes, satellite receivers, Blu-ray players, DVD players, camcorders, and gaming consoles. Below is a list of featured connectors shown in descending order of picture quality.

• HDMI
- Component
- External Input

Connect a video device to the TV via an HDMI connector for the best picture quality. If the device does not have an HDMI connector, try a component connector to get the next best picture quality.

The number of connectors and their names and locations may vary depending on the model.

Refer to the external device's operating manual when connecting it to the TV. The number of external device connectors and their names and locations may vary depending on the manufacturer.

HDMI Connection

Before connecting any external devices and cables to the TV, first verify the model number of the TV you purchased. A sticker containing the model number is attached to the back of the TV.

The connection method varies depending on the model.

The following types of HDMI cables are recommended:

• High-Speed HDMI Cable
• High-Speed HDMI Cable with Ethernet

Use an HDMI cable with a thickness of 14 mm or less.

Using a non-certified HDMI cable may result in a blank screen or a connection error.

Some HDMI cables and devices may not be compatible with the TV due to different HDMI specifications.

This TV does not support HDMI Ethernet Channel. Ethernet is a LAN (Local Area Network) built with coaxial cables standardized by the IEEE.

Refer to the diagram and connect the HDMI cable to the video device's HDMI output connector and the TV's HDMI input connector.

The number of connectors and their names and locations may vary depending on the model.

HDMI IN HDMI OUT

Once the connection has been made, you will be able to select the connected external device using the SOURCE button.

Component Connection

Before connecting any external devices and cables to the TV, first verify the model number of the TV you purchased. A sticker containing the model number is attached to the back of the TV.

The connection method varies depending on the model.

Make sure the cable colors match the connector colors.

Electrical terminal block connected to a multi-colored audio and video cable (no text or symbols visible)

Once the connection has been made, you will be able to select the connected external device using the SOURCE button.

External Input Connection

Before connecting any external devices and cables to the TV, first verify the model number of the TV you purchased. A sticker containing the model number is attached to the back of the TV.

The connection method varies depending on the model.

Refer to the diagram and connect the AV cable to the TV's AV input connectors and the device's AV output connectors.

If you are using the TV's AV1 input connectors, connect the device's audio output to the TV using a Y connector.

Close-up of audio and video components connected via a cable, showing terminal blocks and colored wires (no text or symbols visible)

If you are using the TV's AV2 input connectors, use the included AV connection adapter to connect the device's audio and video output to the TV.

3D rendering of a cable with multiple colored connectors and an air vent (AV 18.2) connected to a black panel (no text or symbols visible)

Once the connection has been made, you will be able to select the connected external device using the SOURCE button.

TV Audio through the External Speakers

Your TV has a variety of connectors for audio input from devices such as Blu-ray players and DVD players and for audio output to such devices as amplifiers. The connectors are listed below.

• ARC (Audio Return Channel)
• Digital Audio (Optical)
- Audio

For better audio quality, it is a good idea to use an AV receiver.
The number of connectors and their names and locations may vary depending on the model.
Refer to the external device's operating manual when connecting it to the TV. The number of external device connectors and their names and locations may vary depending on the manufacturer.

HDMI (ARC) Connection

Before connecting any external devices and cables to the TV, first verify the model number of the TV you purchased. A sticker showing the model number is attached to the back of the TV.

The connection method varies depending on the model.

ARC lets the TV output digital sound to an audio device and input digital sound from the same audio device through one HDMI cable. However, ARC is only available through the HDMI (ARC) port and only when the TV is connected to an ARC-enabled AV receiver.

Certain functions such as Smart Hub may not be available if the Source is set to HDMI and 3D Auto View is set to On. If this is the case, set 3D Auto View or 3D Mode to Off.

Connect an HDMI cable to the TV's HDMI (ARC) connector and the device's HDMI output connector.

3D diagram of a HDMI cable with gold connector and two labeled connectors (ARC and OUT), no text or symbols present.

Digital Audio (Optical) Connection

Before connecting any external devices and cables to the TV, first verify the model number of the TV you purchased. A sticker containing the model number is attached to the back of the TV.

The connection method varies depending on the model.

Connecting an AV receiver to the TV via a digital audio (optical) connector lets you listen to digital audio.

Connecting a device using an optical cable does not automatically turn off the TV speakers. To turn off the TV's speakers, set TV Sound Output (Sound > Speaker Settings > TV Sound Output) to something other than TV Speaker.
Adjust the audio device's volume using its remote control.
An unusual noise coming from the audio device while you are using it may indicate a problem with the audio device itself. If this occurs, ask for assistance from the audio device manufacturer.
Digital audio is only available with 5.1-channel broadcasts.

Refer to the diagram and connect the optical cable to the TV's digital audio output connector and the device's digital audio input connector.

DIGITAL AUDIO OUT (OPTICAL) DIGITAL AUDIO IN (OPTICAL)

Audio Output Connection

Before connecting any external devices and cables to the TV, first verify the model number of the TV you purchased. A sticker containing the model number is attached to the back of the TV.

The connection method varies depending on the model.

Refer to the diagram and connect the audio cable to the TV's audio output connector and the device's audio input connector.

Pure electrical connection diagram showing audio output and audio input connected to a panel (no text or symbols beyond labels)

Connecting to a Computer

You can directly connect a computer to the TV or to the network to view the computer screen or content on the TV. Connect the computer to the TV as follows.

- Connecting through the HDMI Port

You can connect the computer to the TV using the HDMI cable to display the computer screen on the TV.

- Connecting with the DVI to HDMI cable

You can connect a computer to the TV by connecting the computer's DVI port to the TV's HDMI port with the DVI to HDMI cable to display the computer screen on the TV.

• Connecting Through Samsung Link

Quickly access the photo, video and music files saved on a computer on which Samsung Link software is installed, even if you do not connect the TV directly to the computer.

- Connecting Through Home Network (DLNA)

Quickly access the photo, video and music files saved on a computer by connecting the TV and the computer to the same router or AP.

Connecting Through the HDMI Port

First, check the TV model before connecting an external device to the TV. On the back of the TV, the model number sticker is attached.

The connection method differs depending on the model.

For HDMI connection, one of the following HDMI cable types is recommended:

• High-Speed HDMI Cable
• High-Speed HDMI Cable with Ethernet

Use an HDMI cable with a thickness of 14 mm or less. Using a non-certified HDMI cable may result in a blank screen or a connection error.

Some HDMI cables and devices may not be compatible with the TV due to different HDMI specifications.

This TV does not support HDMI Ethernet Channel. Ethernet is a LAN (Local Area Network) built on coaxial cables standardized by the IEEE.

Some computers do not support HDMI interface depending on the graphics adapter specifications. In this case, use a DVI to HDMI cable to connect the computer to the TV. For more information, refer to "Connecting With the DVI to HDMI Cable".

Refer to the diagram and connect the HDMI cable to the external video device's HDMI output connector and the TV's HDMI input connector.

The number of ports, and their names and locations may vary depending on the model.

HDMI IN HDMI OUT

Once the connection has been made, you will be able to select the connected external device using the SOURCE button.

Connecting With the DVI to HDMI Cable

If the graphics adapter of your computer does not support HDMI interface, connect the computer to the TV with the DVI (Digital Visual Interactive) to HDMI cable. However, the DVI to HDMI connection is only supported by the HDMI port for DVI and it does not support audio signal transmission. To listen to the computer sound, connect the external speaker to the computer's audio output connector.

For the resolutions supported by the TV, refer to "Read Before Connecting a Computer (Supported Resolutions)".

Refer to the diagram and connect an HDMI-to-DVI cable to the TV's HDMI (DVI) port and the computer's DVI output port.

Close-up of a HDMI (DVI) cable connector with a yellow USB connector and a white DVI OUT connector (no text or symbols on the diagram itself)

Once the connection has been made, you will be able to select the connected external device using the SOURCE button.

Connecting Through Samsung Link

Quickly access the photo, video and music files saved on a computer on which Samsung Link software is installed. In addition, using Samsung Link, you can play the content of the computer, which is registered to Samsung Link with your Samsung account even if the computer and the TV are not connected to the same router or AP.

1. On a computer, connect to the Samsung content and service portal (http://link.samsung.com) and sign into a Samsung account.

To install the Samsung Link desktop software, you need to sign into your Samsung account. If you don't have a Samsung account, create one first.

1. Install the Samsung Link desktop software. When the installation is complete, the computer will be registered to Samsung Link.

2. Specify a folder to connect to the TV. You can play the photo, video and music files in the specified folder on the TV screen. For more information on the multimedia content, refer to the "Playing Multimedia Content Saved on a Computer/Mobile Device" section.

For more information on using the Samsung Link desktop software, refer to the Help section of the software.

Connecting Through Home Network (DLNA)

Quick access and play the photo, video and music files in a computer on the TV screen.

1. Connect the TV and the computer to the same router or AP. Once you connect them to one router or AP, a home network is configured.

Home Network (DLNA) refers to the technology to share content between TV, computer and mobile device by connecting them to one wired or wireless router.

1. On the computer, select [Control Panel] > [Network and Internet] > [Network and Sharing Center] > [Change advanced sharing settings] and select [Choose media streaming options...] to activate media streaming.

2. From the list, set the TV to [Allowed].

3. Launch Windows Media Player on a computer, select [Settings] > [Library Management], add the location where photo, video and music files are saved to play them on the TV screen. For more information on playing content, refer to "Playing Multimedia Content Saved on a Computer/Mobile Device" section.

Alternatively, once you move the files to the folder that is specified by Windows Media Player by default, you can play them on the TV screen.

As long as File Sharing is activated, unauthorized access may be allowed. When you do not need to access data, disable the File Sharing.

Connecting to a Mobile Device

You can directly connect a mobile device such as a smartphone or tablet to the TV, or connect it to the network and play the mobile device screen or content on the TV screen. Connect the mobile device to the TV as follows.

- Connecting with an MHL to HDMI cable

Connect the USB port of the mobile device and the HDMI port of the TV with an MHL to HDMI cable to view the mobile device's screen on the TV screen.

• Mobile Device Screen on TV (Screen Mirroring)

Wirelessly connect the TV and the mobile device with the Screen Mirroring function, you can view the mobile device screen on the TV screen.

This option is available only on a mobile device that supports the Screen Mirroring function.

- Connecting Mobile Devices without a Wireless Router (Wi-Fi Direct)

Wi-Fi Direct enables you to connect the TV and the mobile device without a router or AP. Quick access and play the photo, video and music files in the connected mobile device on the TV screen.

This option is available only on a mobile device that supports the Wi-Fi Direct function.

• Connecting Through Samsung Link

Samsung Link enables you to play the photo, video and music files saved on a Samsung Link enabled mobile device with ease without the need for connection to the TV.

- Connecting Through Home Network (DLNA)

You can conveniently play the photo, video and music files saved on a mobile device by connecting the mobile device and the TV to the same router or AP.

• Connecting via Smart View 2.0

Install and run the Smart View 2.0 app on your mobile device, and connect your mobile device to the TV on the same network.

Connecting With an MHL to HDMI Cable

MHL (Mobile High-definition Link) lets you display a mobile device's screen on the TV. However, MHL is only available through the TV's HDMI (MHL) port and only when used in conjunction with an MHL-enabled mobile device. For information on configuring MHL on your mobile device, refer to the device's User Manual.

Connecting the MHL-to-HDMI cable automatically switches Picture Size to Screen Fit. This setting will not change automatically if you are using an HDMI adapter. In this case, change the settings manually in the menu.
If you are using an HDMI adapter, the TV recognizes the signal as an HDMI signal and may respond differently than it would to an MHL to HDMI cable connection.

Refer to the diagram and connect the MHL-to-HDMI cable to the TV's HDMI (MHL) port and the mobile device's USB port.

Diagram showing a HDMI (MHL) connector connected to a smartphone via cable, with a black USB plug attached nearby (no text or symbols on the diagram itself)

Once the connection has been made, you will be able to select the connected external device using the SOURCE button.

Mobile Device Screen on TV (Screen Mirroring)

MENU > Network > Screen Mirroring Try Now

Wirelessly connect a Screen Mirroring function-enabled mobile device to the TV to play the video and listen to the audio of the mobile device on the TV. Screen Mirroring refers to the function that outputs the video and audio of the mobile device on the TV as well as the mobile device.

To use the Screen Mirroring function, the mobile device must support the Screen Mirroring function such as AllShare Cast. To check whether your mobile device supports the Screen Mirroring function, please visit the mobile device manufacturer's website.

The video or audio may intermittently stop depending on the network condition.

Connecting via a mobile device…

1. On the mobile device, run Screen Mirroring. The mobile device searches for available devices to connect to.
2. From the search result list, select TV. The TV displays a pop-up window.
3. In the pop-up window, select Allow to connect the mobile device.

All previously allowed mobile devices will automatically connect without needing approval.

If you select Deny, the device won't appear and can't be activated in this way. Navigate to Network > Screen Mirroring > Device Manager to allow the previously denied mobile device.

Not searching for the TV on mobile devices...

1. Navigate to Network > Screen Mirroring to run Screen Mirroring. Also, you can select Screen Mirroring on a list by pressing SOURCE.

2. Run mirroring on the mobile device. Display a list while automatically searching for mobile devices.

3. Select the TV and it connects automatically.

When the mobile devices cannot connect, try turning the TV off and on.

Allow/Reject the connection via mobile devices

This is only available for watching when mobile devices allow the connection.

1. Navigate to Network > Screen Mirroring > Device Manager to select Device Manager. This displays a list of required mobile devices connection.

2. You can allow access or deny connections with mobile devices.

Connecting Mobile Devices without a Wireless Router (Wi-Fi Direct)

MENU > Network > Wi-Fi Direct Try Now

You can directly connect a mobile device with Wi-Fi Direct feature to the TV without using a wireless router or AP. By connecting a mobile device with the TV through Wi-Fi Direct, you can play photo, video and music files saved in the mobile device on the TV.

This option is available only on a mobile device that supports the Wi-Fi Direct function. Please check if your mobile device supports Wi-Fi Direct,

1. Enable Wi-Fi Direct on the mobile device and then navigate to Network and select Wi-Fi Direct on the TV. The TV automatically scans for and displays a list of available devices. The TV's name also appears on the mobile device.
2. Select the device from the list to initiate a connection. If a connection request is made by the TV, a permission message appears on the mobile device and vice versa.
3. Allow the connection. Then, the TV and the mobile device are connected. For more information on the multimedia content, refer to the "Playing Multimedia Content Saved on a Computer/Mobile Device" section.

Connecting Through Samsung Link

Samsung Link enables you to play the photo, video and music files saved on a Samsung Link-enabled mobile device with ease. In addition, using Samsung Link, you can play the content of the mobile device, which is registered to Samsung Link with your Samsung account, even if the mobile device and the TV are not connected to the same router or AP.

1. Run the Samsung Link app on the mobile device and then sign in with your Samsung account.

To use Samsung Link, you have to sign in with a Samsung account. If you don't have a Samsung account, create one first.

1. Quickly access and play the photo, video and music files saved on the mobile device on which you launched the Samsung Link app with your Samsung account. For more information on the multimedia content, refer to the "Playing Multimedia Content Saved on a Computer/Mobile Device" section.

For more information on using the Samsung Link app, refer to the Help section of the manual,

Connecting Through Home Network (DLNA)

You can conveniently play the photo, video and music files in a mobile device on the TV.

1. Connect both the TV and the mobile device to the same router or AP. Once you connect them to a single router or AP, a home network is configured.

Home Network (DLNA) refers to the technology to share content between TV, computer and mobile device by connecting them to one wired or wireless router.

1. Enable File Sharing on the mobile device. You can play the content shared by the mobile device on the TV. For more information on the multimedia content, refer to the "Playing Multimedia Content Saved on a Computer/Mobile Device" section.

As long as File Sharing is activated, unauthorized access may be allowed. When you do not need to access data, disable the File Sharing.

Connecting via Smart View 2.0

By installing and running the Smart View 2.0 app on the mobile device, you can view the device screen on the TV, or play the device's multimedia content (videos, photos, and music) on the TV.

Go to Google Play, and search for and install Smart View 2.0 on your mobile device. Smart View 2.0 is a crossplatform multi-screen app that enables you to load the TV screen on a mobile device, share multimedia contents between two devices, and control the TV remotely. For more information, refer to the Smart View 2.0 manual.

The name of the TV on the Network

MENU > Network > Device Name Try Now

Choose or specify the name of the TV that will appear on mobile devices and laptop computers.

1. Select Device Name from the Network menu, and then choose a name from the list that appears. Alternatively, select User Input to enter a name manually.
2. Check the name from a mobile device or laptop computer.

Switching Between Video Sources

Press the SOURCE button to switch between external devices connected to the TV. For example, to switch to a game console connected to the second HDMI connector, press the SOURCE button. From the Source list on the Source screen, select HDMI2.

The connector names may vary depending on the product.

The following options are also available on the Source screen:

- Option menu (Tools)

Using your remote, highlight the source you want to assign a device name to.

Open the option menu using your remote.

The available options for each of the connectors may vary.

• Edit Name: You can rename devices connected to the TV to more easily identify external sources. For example, you can designate a computer connected to the TV via an HDMI-DVI cable as DVI PC. Alternatively, simply designate a computer connected to the TV via an HDMI cable as PC. You can also designate an AV device connected to the TV via an HDMI-DVI cable as DVI Devices.
  – Information: View detailed information about the connected devices.
• Anynet+ (HDMI-CEC): Displays a list of Anynet+ (HDMI-CEC)-compliant devices that are connected to the TV.

This option is only available with Anynet+ (HDMI-CEC) set to On.

– Device Format: Formats USB recording devices connected to the TV.

This is available only if a USB recording device is selected.

- Remove USB: Use to safely remove a USB device connected to the TV.

This option is only available when a USB device has been selected.

• Universal Remote Setup

Select Universal Remote Setup from the screen to configure the universal remote function. By configuring a universal remote control, you can control cable boxes, Blu-ray players, home theaters, and other external devices using a single remote control. Refer to the "Controlling External Devices with the TV Remote (Universal Remote Setup)" section for more information on configuring the universal remote.

Installing Batteries into the Samsung Smart Control

To use the Samsung Smart Control, insert the batteries into the device referring to the figure below.

The color of the Samsung Smart Control may vary depending on the country.

1. Gently pull on the notch in the battery cover. When the cover comes loose, remove the cover completely.
2. Insert 2 AA alkaline batteries, making sure to align the positive and negative polarities correctly.
3. Place the battery cover on the remote control, and then the top part of the cover into the remote control.
4. Press the catches on both sides of the battery cover in the order shown in the figure above until the cover is completely attached to the remote control.

The Low Battery Alarm Window

If the Samsung Smart Control's batteries become low, the Low Battery Alarm appears on the screen. When the Alarm appears, replace the batteries. We recommend using alkaline batteries for longer operating life.

Close-up of a remote control with a battery icon (no text or symbols visible)

Pairing the Samsung Smart Control

To use the Samsung Smart Control with the TV, you must first pair it to the TV via Bluetooth. To pair the Samsung Smart Control to the TV for the first time, follow these steps:

The Samsung Smart Control can only connect to one TV at a time.

1. To turn on the TV, point the Samsung Smart Control at the remote panel receiver of the TV, and then press the TV button.

The remote control receiver's location may vary depending on the model.

1. If pairing is successful, the TV displays a small green circle between graphics representing the TV and the Samsung Smart Control.

Reconnecting the Samsung Smart Control

If the Samsung Smart Control stops operating or works abnormally, replace the batteries as this may be due to insufficient battery power. If the problem persists, the Samsung Smart Control restore pairing with the TV.

1. Press the RETURN button and GUIDE button simultaneously for 3 second or more.

You have to control Samsung Smart Control apart from TV within 30cm \~ 40cm. But, you must place Samsung Smart Control toward to TV's remote control receiver.

1. Connection image is appeared on the screen. And then, Samsung Smart Control is connecting to TV automatically.

Image showing a remote control with navigation icons and a digital interface panel, likely illustrating a system or application.

Using the Samsung Smart Control

The Samsung Smart Control makes it easier and more convenient to use the TV. Unlike conventional remote controls that feature buttons only, the Samsung Smart Control has a touch pad that you can use like the touch pad on a lap top computer to move the focus and make selections. If you press the KEYPAD button, an On-Screen Remote appears on the screen that allows you to enter numbers, control content, and use functions easily.

We recommend using the Samsung Smart Control at a distance of less than 20ft (6m). The usable distance may vary depending on the wireless environmental conditions.

Button Functions

Exterior and back view of a Samsung remote control device showing function buttons and navigation controls (no readable text or symbols beyond icons)

Button Description

TV	Turns the TV on and off.
SEARCH	Press this button to use the search window.
KEYPAD	Displays the On-Screen Remote. With the On-Screen Remote on the screen, you can easily enter numbers, control content, and use functions. For more information, refer to the "Displaying and Using the On-Screen Remote" section.
SOURCE	Changes the source.
VOL	Changes the volume.
VOICE	Starts voice recognition. When the microphone icon appears on the screen, speak a voice command into the microphone. Say "Help" to learn about basic usage and voice commands.Speak a voice command 10 to 15cm from the microphone at an appropriate volume.
◀	Turns the sound off and on.
CH	Changes the channel.
^. ∨. <. >	Moves the pointer or focus.
Touch pad	Place a finger on the touch pad and move the Samsung Smart Control. The pointer on the screen moves in the direction and as much as the Samsung Smart Control is moved. Press the touch pad to select or run the focused item. For more information, refer to the "Using the Touch pad" section.
◀, ▶, ||, ▶	Controls video, photo, or music file playback on the TV. You can also use these buttons to control the playback of content on an external device (for example, a Blu-ray player).
RETURN	Returns to the previous menu.
SMART HUB	This launches the First Screen. From the First Screen, you can search through favorite apps, channels or sources and quickly access previously run or frequently used functions. Also, when you move to the Smart Hub, you can use services provided for each service panel. For more information, refer to the "Smart Hub" section.
GUIDE	Displays the digital channel broadcasting schedule. For more information, refer to the "Digital Broadcast Information at a Glance" section.
A, B, C, D	Use these color buttons to access additional options specific to the feature in use.
◎	Enable Soccer Mode for the optimal sports viewing experience.
M.SCREEN	Lets you split the TV screen and use multiple functions - such as watching TV, surfing the web, and playing a video - at the same time. For more information, refer to "Using Multiple Functions in a Single Screen (Multi-Link Screen)".

Additional Functions

Press and hold the following buttons for 1 second to use additional functions.

Button Description
RETURN (EXIT)	Press and hold this button to exit all currently running applications.
GUIDE (CH,LIST)	Press and hold to launch the CH List.
B (MENU)	Press and hold to display a menu on the screen.
C (REC)	Press and hold to record the broadcast.
D (INFO)	Press and hold to view information about the current digital channel or media file.
	Press and hold to turn on or turn off the Caption functions,For more information Caption function, refer to the "Showing Captions" section.

Controlling the TV by Moving the Samsung Smart Control

The Samsung Smart Control has a motion sensor (gyro sensor) that allows you to control the TV easily by holding and moving the Samsung Smart Control.

Place a finger on the Samsung Smart Control's touch pad. A pointer appears on the screen. Move the Samsung Smart Control, and pointer moves on the screen in the direction you moved the Samsung Smart Control and the same distance. Highlight an item on the screen with the pointer, and then press the touch pad to select it.

Release the finger from the touchpad, and the pointer disappears.

Navigate to System > Smart Control Settings, and select Motion Sensitivity to adjust the pointer speed in the Samsung Smart Controll environment. Use this to adapt the pointer speed to your motion. Try Now

Illustration showing a person using a remote control system with labeled buttons and a hand holding a remote controller.

Using the Touch pad

Navigate to the Support menu, and then select the Smart Control Tutorial option to view a tutorial that demonstrates how to use the touch pad. Try Nov

If the touch pad's sensitivity is too high or low, navigate to the System > Smart Control Settings menu, and then select the Touch Sensitivity option to change the touch pad sensitivity. Try Now

Moving the Focus or Pointer

Illustration of a hand holding a remote control with icons on the screen (no text or symbols visible)

Press the directional buttons (up, down, left, and right) to move the pointer or focus in the direction.

Entering a Menu / Selecting an Item

Illustration of a hand holding a remote control with icons on the screen (no text or symbols visible)

To enter a menu or select an item, highlight the menu title or the item, and then press the touch pad.

Loading the Channel List

Illustration of a hand holding a remote control with icons and a 1s stopwatch (no text or symbols on the device itself)

Press and hold the touch pad while watching TV. To launch the Channel List.

Displaying the Context-sensitive Menu in Smart Hub

Hand holding a Samsung remote control with a stopwatch icon and '1s' label (no text or symbols on the device itself)

In Smart Hub, highlight an item, and then press and hold the touch pad. The context-sensitive menu for the item pops up.

The context-sensitive menu may vary depending on the selected item.

Changing the Smart Hub Panel

Illustration of a hand holding a remote control with icons on the screen (no text or symbols visible)

On the Smart Hub screen, drag left or right on the touch pad. This transits the screen by panel.

Scrolling on the Web Browser

Illustration of a hand holding a remote control with icons on the right (no text or symbols)

Drag up/down on the touch pad in the web browser screen. This scrolls through the web screen.

Displaying and Using the On-Screen Remote

Press the KEYPAD item to display the Onscreen Remote control on the screen. You can easily enter digits, control content, and use TV buttons with the Onscreen Remote.

The Onscreen Remote buttons may vary depending on the current status of the TV.

1 2 3 4 5 6 7 B 9 - D + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - - + - + - - + - + - - + - + - - + - + - - + - + - - + - + - - + - + - - + - + - - + - + - - + - + - - + - + - - + - + - - + - + - - + - + - - + - + - - + - + - - + - + - - + - + - - + - + - - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - < img src="box1230123012301230123012301230123012301230123012301230123012301230123012301230123012301230123012301230123

Button Description
1 2 34 5 67 8 9- 0 Pre-CH	You can directly enter the channel number to switch to that channel. Select Pre-CH to return to the previous channel.
● ▶ II □◀ ▶ ▶ ▶	Controls the item when you are playing a video, photo or music file. You can also use these buttons to control the playback of content on an external device (for example, a Blu-ray player).
TOOLS	You can easily use frequently used functions while watching TV. In addition, you can use additional functions that may vary depending on the currently running function.
MENU	Displays the menu on the screen.
INFO	Shows the information about the current digital broadcast program or content.
Speaker Settings	You can select the speakers which you want to use to listen to the TV sound. To set this option, external speakers must be connected to the TV.
Web Browser	Launches the Web Browser.
PIP	You can display the video from an external device or computer on the main screen and the TV as a picture-in-picture.
3D	You can turn the 3D effect on or off.
Multi-Link Screen	Lets you split the TV screen and use multiple functions - such as watching TV, surfing the web, and playing a video - at the same time.
CC	You can turn subtitles on or off.
P.Size	You can change the picture size.
MTS	Press to choose stereo, mono, Separate Audio Program (SAP broadcast).
e-Manual	You can launch the e-manual.
Sign In	You can log in or out of your Samsung account.
	Move to the right / Move to the left: You can move the Onscreen Remote on the screen.Large size / Normal size: You can resize the Onscreen Remote on the screen.Alternatively, navigate to the System > Smart Control Settings menu and select and set the Onscreen Remote Size option.Motion Sensitivity: Put a finger on the touchpad and move it to adjust the speed of the pointer on the screen.Alternatively, navigate to the System > Smart Control Settings menu and select and set the Motion Sensitivity option.Touch Sensitivity: Lets you change the touch pad sensitivity.Alternatively, navigate to the System > Smart Control Settings menu, and then select and set the Touch Sensitivity option.Universal Remote Setup: Moves to the Universal Remote Setup screen. For more information, refer to the "Controlling External Devices with the TV Remote (Universal Remote Setup)" section.Cancel: Close the pop-up menu.

Controlling External Devices with the TV Remote (Universal Remote Setup)

MENU > System > Universal Remote Setup Try Now

The universal remote control feature lets you control cable boxes, Blu-ray players, home theaters, and other third-party external devices connected to the TV using the TV's remote control. In order to use the TV's remote control as a universal remote, you must first connect the IR extension cable (included).

You can also use the Anynet+ (HDMI-CEC) function to operate external Samsung devices with your TV's remote control without any additional setup. Refer to the "Using Anynet+ (HDMI-CEC)" section for more information.

Certain external devices connected to the TV may not support the universal remote feature.

Setting Up the Universal Remote Control

Before connecting any external devices and cables to the TV, first verify the model number of the purchased TV. A sticker containing the model number is attached to the back of the TV.

The connection method varies depending on the model.

To use the TV remote as a universal remote, connect the IR extender cable (included) to the TV and position it within 10 cm of the external device's remote control receiver.

The color and design of the IR extender cable may vary depending on the model.

Connect the IR extender cable to the TV's IR output connector as shown in the diagram and place the transmitter end within 10 cm of the external device's receiver pointing in the direction of the remote receiver. However, there must be no obstacles between the IR extender cable and the external device. The presence of obstacles interferes with the transmission of the remote control signal.

When you use an external device registered with the Universal Remote Control on the Samsung Smart Control, you can use the external device without connecting an IR extender cable. However, if you want to use an external device using Motion Control or Voice Control, be sure to connect an IR extender cable.

Diagram showing an IR output connected to a Samsung device via cable (no text or symbols on the device itself)

Controlling External Devices with the TV Remote

External Device Registration

1. Turn on the external device to set up the universal remote function for, and press the SOURCE to bring up the Source screen.
2. Select Universal Remote Setup from the screen. This initiates the universal remote setup process.
3. Follow the onscreen instructions and register the external device.

Using the TV Remote

Registering an external device to the TV remote also registers the connector through which the device is connected. You can control external devices using the TV remote control simply by selecting the external device without any additional operations.

Universal Remote Features

1. Press the SOURCE button to bring up the Source screen.
2. Select Universal Remote Setup. This initiate the universal remote setup process.
3. Select the desired external device on the Universal Remote Setup screen. Following features are also available.
   • Use with Home Theater
   Listen to the audio from the external device through the connected home theater.

This function is available only on the set-top box or Blu-ray player.

• Use with Set-Top Box

Listen to the audio from the set-top box through the home theater that is connected to the TV.

This function is available only on the home theater.

• Use with Blu-ray player

Listen to the audio from the Blu-ray player through the home theater that is connected to the TV.

This function is available only on the home theater.

- Source Setup

Change the TV's input connector that the external device is connected to,

- Synced TV power

Configure the set-top box to turn off when the TV is turned off.

This function is available only on the set-top box,

- Rename

Rename the registered external device (up to 15 characters long).

- Delete

Remove the registered external device.

Controlling the TV with a Keyboard

MENU > System > Device Manager > Keyboard Settings Try Now

You can use a keyboard to control the TV with greater ease and comfort.

Certain models do not support USB HID class keyboards.

Connecting a Keyboard

Connecting a USB Keyboard

Plug the keyboard cable into the TV's USB port. A connection message will appear on the screen.

Connecting a Bluetooth Keyboard Try Now

1. Place the Bluetooth keyboard into the standby status.

Refer to the keyboard manual for information on putting the keyboard into the standby status.

1. Select System > Device Manager > Keyboard Settings > Add Bluetooth Keyboard. The Add Bluetooth Keyboard screen will appear and automatically scan for available keyboards.

If your keyboard was not detected, position the keyboard close to the TV and then select Refresh. This will initiate the TV to scan for available keyboards again.

1. Select the Bluetooth keyboard from the scan list and then select Pair and connect. A number will appear on the screen.

2. Enter the number on the Bluetooth keyboard. This pairs the Bluetooth keyboard to the TV.

Select Yes to change the keyboard's options or No to leave them as they are. Refer to the "Input Languages, Keyboard Type, and Switch Language Key" section for more information.

Using the Keyboard

Use the following remote features with the USB or Bluetooth keyboard connected to the TV.

• Arrow Keys (moving the focus), Windows Key (MENU Button), Menu List Key (TOOLS Button), Enter Key (Select/run item), ESC (RETURN Button), Number Keys (Number Buttons)
• F1 (A), F2 (B), F3 (C), F4 (D), F5 (F), F6 (SOURCE Button), F7 (CH LIST Button), F8 (☑ Button), F9/F10 (Volume Buttons), F11 / F12 (Channel Buttons)
  • Page Up/Page Down: Scroll web browser pages up/down.

Changing Keyboards Try Now

Select System > Device Manager > Keyboard Settings > Select Keyboard. Designate which keyboard to use.

Only one keyboard can be used at a time.

Input Languages, Keyboard Type, and Switch Language Key

Select System > Device Manager > Keyboard Settings > Keyboard Options. The following options are available: Try Now

• Keyboard Language
  If the keyboard supports multiple languages, choose which language you want to use from the list.
• Keyboard Type

Specify the type of language selected under Keyboard Language.

The Keyboard Type list varies depending on which language was selected under Keyboard Language.

- Switch Input Language

If the keyboard supports multiple languages, choose from the list which key to use to switch between languages.

Controlling the TV with a Mouse

MENU > System > Device Manager > Mouse Settings Try Now

You can use a keyboard to control the TV with greater ease and comfort.

Certain models do not support USB HID class keyboards.

Connecting a Mouse

Connecting a USB Mouse

Plug the mouse cable into the TV's USB port. A connection message will appear on the screen.

Connecting a Bluetooth Mouse Try Now

1. Place the Bluetooth mouse in standby status.

Refer to the mouse manual for information on getting the mouse into standby status.

1. Select System > Device Manager > Mouse Settings > Add Bluetooth Mouse. The Add Bluetooth Mouse screen will appear and automatically scan for available mice.
2. Select the Bluetooth mouse from the scanned list, and then select Pair and connect. This pairs the Bluetooth mouse to the TV.

Using the Mouse

Once a USB or Bluetooth mouse is connected to the TV, a pointer will appear on the TV's screen. You can use this pointer to control the TV as you would a computer.

- Selecting and Running an Item

Left-click on the mouse.

- Displaying the Volume, Mute, and Channel Buttons

Select the volume/channel icon on the screen while watching TV. Use the on-screen buttons to adjust the volume or switch the channel.

Select the volume/channel icon again to hide the buttons.

- Displaying the Context-sensitive Menu on Smart Hub

On the Smart Hub screen, navigate to an item, and hold down the left mouse button for 1 second. The context-sensitive menu available to the selected item appears.

The context-sensitive menu may vary depending on the item you selected.

• Showing Tools Buttons

Right-clicking shows the Tools buttons on the screen so that you can easily use the TV functions.

The Tools buttons may vary depending on the function.

• Scrolling the TV Menu or Screen

Move the mouse wheel up or down. This scrolls the TV menu or screen up/down.

- Exiting the TV Menu or Feature

Click on the X button. This closes the menu.

The X button appears on the TV menu when a mouse is being used. Left-clicking once while using a feature displays the X button on the current screen.

Changing Mouse Try Now

Select System > Device Manager > Mouse Settings > Select Mouse. Designate which mouse to use.

Only one mouse may be used at a time.

Changing Mouse Buttons and Pointer Speed Try Now

Select System > Device Manager > Mouse Settings > Mouse Options. The following options are available:

- Primary Button

Choose which (left or right) button to use to select and run items.

- Pointer Speed

Adjust the movement speed of the pointer that appears on the screen.

Entering Text Using QWERTY

A QWERTY keypad appears when you need to enter text (entering the network password, logging into your Samsung account, etc.), allowing you to enter text using your remote control.

Using Additional Functions

Select on the QWERTY keyboard screen. The following options are available:

- Recommended text

Enable/disable the Recommended Text feature. Enabling the Recommended text feature allows you to quickly enter text starting with the characters you typed in by showing the recommended words. To enter the word "Internet," for example, all you have to do is enter "In" and select the word "Internet" from the list of recommended words. And the selected word will be memorized by the keyboard so that you can enter the same text with ease using this function.

- Reset recommended text data

Delete both the recommended words and the memorized words to clear the list.

• Predict Next Letter

Enable/disable the Predict Next Letter feature. Enabling the Predict Next Letter feature eliminates the need to find and select individual character keys. To enter the word "Internet," for example, select "I". A predicted word will then appear next to the I key. Simply select the predicted word to enter "Internet".

This feature is limited to words that have previously been added to the dictionary.

Establishing a Wired Internet Connection

Connecting the TV to the Internet gives you access to online services and SMART features, and lets you update the TV's software quickly and easily through the Internet.

Using Cat 7 LAN Cables

Use Cat 7 LAN cables to link your TV to the Internet Access Points.

The TV will not be able to connect to the Internet if the network speed is below 10Mbps.

There are three ways to connect the TV to your Internet Access Points. Using Cat 7 cables, connect the TV to the Access Points as shown in one of the following illustrations.

- External Modem

Diagram of a network device showing a router connected to a switch and a separate panel (no text or symbols visible)

- ① IP Router + ② External Modem

Three connected network devices (labeled ①, ②, and a gray terminal) shown with yellow connectors and cables, no text or symbols present.

• Wall-mounted LAN Outlet

3D diagram of a network connection showing a LAN connector attached to an Ethernet port, with yellow connectors and connecting cable (no text or symbols)

Connecting to a Wired Internet Network Automatically

MENU > Network > Network Settings Try Now

Automatically connect to an available network.

1. Set the Network type to Wired, and then select Connect.
2. The TV attempts to connect to an available network. Once it is successful, you will see a confirmation message. Select OK. If the attempt fails, try again, or connect manually.

Connecting to a Wired Internet Network Manually

MENU > Network > Network Settings

With networks that require a static IP address, you will need to enter the IP address, subnet mask, gateway, and DNS values manually to connect to the network. To get these values, contact your Internet Service Provider (ISP).

Refer to the "Dynamic versus Static IP Addresses" section for more information on dynamic IP and static IP addresses.

1. Set the Network type to Wired, and then select Connect.

Network Settings Select your network type. Network type Wired Wired You can connect your TV to the internet,

1. Select Stop when the TV attempts to connect to the network. Once the network connection has been interrupted, select IP Settings.

Network Settings Connection verification cancelled. Wired network connection test is stopped. Change Network IP Settings Retry Close

1. In the IP Settings screen, set IP Setting to Enter Manually.

IP Settings IP Setting Enter Manually IP Address 0.0.0.0 Subnet Mask 0.0.0.0 Gateway 0.0.0.0 DNS Setting Enter Manually DNS Server 0.0.0.0 OK Cancel

1. Press the ☐ button or press the touch pad, enter a value for the IP Address using the number buttons, and then select OK.

You can use the virtual remote's number buttons on the Samsung Smart Control to enter an IP Address value.

1. Repeat the process for Subnet Mask, Gateway, and DNS Server.

2. When done, select OK.

3. The TV attempts to connect to the network again using the settings you entered. Once it has established the connection, it displays a confirmation message. Select OK.

The network connection speed may differ depending on the DNS server settings.
For details on the DNS server settings, contact your Internet service provider (ISP).

Establishing a Wireless Internet Connection

Connecting the TV to the Internet gives you access to online services and SMART features, and lets you update the TV's software quickly and easily through the Internet.

Diagram showing a flat-screen TV connected to a wireless router via a power outlet, with signal waves indicating wireless connectivity (no text or symbols present)

Connecting to a Wireless Internet Network Automatically

MENU > Network > Network Settings

Connect the TV to the Internet via a wireless router. Make sure you have the wireless router's SSID (name) and security key settings before attempting to connect. The security key can be found on the wireless router's configuration screen.

1. On the Network Settings screen, set Network type to Wireless. The TV automatically displays a list of available wireless networks.
2. Select a network (SSID). If the network you want doesn't appear in the list, select Add Network, and enter the network's SSID manually.

3. Using the on-screen keyboard that appears, enter the security key. When finished, select Done. If the selected network is not security-enabled, the TV will by-pass the on-screen keyboard and attempt to connect right away.

4. To select a character on the on-screen keyboard, highlight the character and then press the touch pad to select. On a standard remote, press the button. Select Caps to view capital letters. Select the 123#& key to view additional characters.

5. To view the security key as you enter it, select Show Password.

6. The TV attempts to connect to the network. Once a connection is established, the TV displays a confirmation message. Select OK. If the attempt fails, try again or connect manually.

Connecting to a Wireless Internet Network Manually

MENU > Network > Network Settings

With networks that require a static IP address, you will need to enter the IP address, subnet mask, gateway, and DNS values manually to connect to the network. To get the IP address, subnet mask, gateway and DNS values, contact your Internet Service Provider (ISP).

Refer to the "Dynamic versus Static IP Addresses" section for more information on dynamic IP and static IP addresses.

1. On the Network Settings screen, set Network type to Wireless. The TV automatically displays a list of available wireless networks.

Network Settings Select your network type. Network type Wireless Wireless network AP0000 AP0001 Add Network Refresh WPS(PBC) You can connect your TV to the internet. Please select which wireless network to use.

1. Select a network (SSID). If the network you want doesn't appear in the list, select Add Network, and enter the network's SSID manually.
2. Using the on-screen keyboard that appears, enter the security key. When finished, select Done. If the selected network is not security-enabled, the TV will by-pass the on-screen keyboard and attempt to connect right away.
3. Select Stop when the TV attempts to connect to the network. Once the network connection has been interrupted, select IP Settings.

Network Settings Connection verification cancelled. abc1234 Wireless network connection test is stopped. Change Network IP Settings Retry Close

1. In the IP Settings screen, set IP Setting to Enter Manually.

IP Settings IP Setting Enter Manually IP Address 0.0.0.0 Subnet Mask 0.0.0.0 Gateway 0.0.0.0 DNS Setting Enter Manually DNS Server 0.0.0.0 OK Cancel

1. Press the □ button or press the touch pad, enter a value for the IP Address using the number buttons, and then select OK.

You can use the virtual remote's number buttons on the Samsung Smart Control to enter an IP Address value.

1. Repeat the process for Subnet Mask, Gateway, and DNS Server.

2. When done, select OK.

3. The TV attempts to connect to the network again using the entered settings. Once it has established the connection, it displays a confirmation message. Select OK.

Network connection speeds may differ depending on the DNS server settings.

For details on the correct DNS server settings, contact your Internet service provider (ISP).

Connecting to a Wireless Internet Network with WPS

MENU > Network > Network Settings

If the router has a WPS push button, you can use it to connect the TV to the router automatically. WPS automatically configures the SSID and WPA key settings.

• Your router must support WPS to use the WPS functionality.
• On the Network Settings screen, set Network type to Wireless. The TV automatically displays a list of available wireless networks.
• Select WPS (PBC), and then press the router's WPS or PBC button within two minutes.
• The TV automatically acquires the SSID and security key settings, and then connects to the network. Once a connection is established, the TV displays a connection message. Select OK.

Troubleshooting Internet Connectivity Issues

If you are not able to connect the TV to the Internet read the information below.

Troubleshooting Wired Internet Connectivity Issues

No network cable found Try Now Try Now

Make sure the network cable is plugged in. If it is connected, make sure the router is turned on. If it is on, try turning if off and on again.

IP auto setting failed Try Now

Do the following or configure the IP Settings manually.

1. Ensure that the DHCP server is enabled on the router and reset the router.
2. If this does not work, contact your Internet Service Provider for more information.

Unable to connect to the network Try Now

Do the following:

1. Check all IP Settings.
2. Ensure that the DHCP server is enabled on the router. Then, unplug the router and plug it back in.
3. If this does not work, contact your Internet Service Provider for more information.

Connected to a local network, but not to the Internet Try Now

1. Make sure that the Internet LAN cable is connected to the router's external LAN port.
2. Check the DNS values in the IP Settings.
3. If the problem persists, contact your Internet Service Provider.

Network setup is complete, but unable to connect to the Internet Try Now

If the problem persists, contact your Internet Service Provider.

Troubleshooting Wireless Internet Connectivity Issues

Wireless network connection failed, Try Now Try Now

Selected wireless router not found. Go to Network Settings and select the correct router.

Unable to connect to a wireless router Try Now Try Now

Check the following:

1. Check if the router is turned on. If it is, turn it off and on again.
2. Enter the correct security key if required.

IP auto setting failed Try Now

Do the following or configure the IP Settings manually.

1. Make sure that the DHCP server is enabled on the router. Then, unplug the router and plug it back in.
2. Enter the correct security key if required.
3. If this does not work, contact your Internet Service Provider for more information.

Unable to connect to the network Try Now

Do the following:

1. Check all IP Settings.
2. Enter the correct security key if required.
3. If this does not work, contact your Internet Service Provider for more information.

Connected to a local network, but not to the Internet Try Now

1. Make sure that the Internet LAN cable is connected to the router's external LAN port.
2. Check the DNS values in the IP Settings.
3. If the problem persists, contact your Internet Service Provider.

Network setup is complete, but unable to connect to the Internet Try Now

If the problem persists, contact your Internet Service Provider.

Checking the Internet Connection Status

MENU > Network > Network Status Try Now

Network Network Status Network Settings Wi-Fi Direct Multimedia Device Settings Screen Mirroring Device Name [TV]Samsung L…

The screen shown may vary depending on the model.

View the current network and Internet status.

Using Multiple Functions in a Single Screen (Multi-Link Screen)

MENU > Picture > Open Multi-Link Screen Try Now

This allows you to search the Web, use apps, and much more while watching TV.

Before using Multi-Link Screen, make sure the TV is connected to the Internet. Using Multi-Link Screen requires an Internet connection.

If the Multi-Link Screen launches while the TV did not configure the Smart Hub, a pop-up window appears. To use the Multi-Link Screen, you need to configure the Smart Hub first. On the pop-up window, select the Set Up Smart Hub to finish configuring the Smart Hub.

Launching Multi-Link Screen

From the Picture menu, select Open Multi-Link Screen.

Press the M.SCREEN on the Samsung Smart Control to launch Multi-Link Screen.

Using Multi-Link Screen

UHD and FHD contents and channels cannot be viewed simultaneously.

Launching Smart Hub while using Multi-Link Screen automatically terminates Multi-Link Screen.

Certain TV features and apps may not be supported by Multi-Link Screen. If this is the case, exit from Multi-Link Screen and then use the feature.

Selecting a Feature

1. Press the Samsung Smart Control's M.SCREEN button while Multi-Link Screen is running. The options menu appears.
2. Select a feature from the options menu. This initializes the selected feature.

Features supported by Multi-Link Screen vary depending on the country.

Changing the Channel/Volume

1. Place the pointer or focus over the screen for which you want to change the channel or adjust the volume.
2. Use the channel buttons to change the channel or the volume buttons to adjust the volume. This changes the selected screen's channel/volume.

Pairing Bluetooth Headphones

Pairing Bluetooth headphones to the TV makes it possible to hear the audio from a different screen through the headphones.

Compatibility issues may occur with Mobile headphones, which may not work.
Sync issues may occur, depending on the video and audio and on the devices used.
The headphones and the TV may disconnect, depending on the distance between them.
You can't use Bluetooth headphones and SoundShare features simultaneously.

1. Put the Bluetooth headphones in the pairing-ready status.

Refer to the headphones' manual for instructions on enabling the pairing-ready status.

1. Press the Samsung Smart Control's M.SCREEN button while Multi-Link Screen is running. The options menu appears.
2. Select Settings from the options menu.
3. Select Connect Bluetooth Headphones from the Settings menu. The TV will display the Bluetooth pairing window and then automatically scan for available headphones.

If the scan fails to locate your headphones, try placing the headphones closer to the TV and then select Scan Again. This will scan for the headphones again.

1. Select your headphones from the list of scanned headphones and then select Pairing & Connection. This pairs the headphones to the TV.

Selecting the Audio-Source Screen

It's possible to listen to audio from one screen through the speakers and audio from a different screen through the Bluetooth headphones.

1. Press the Samsung Smart Control's M.SCREEN button while Multi-Link Screen is running. The options menu appears.
2. Select Settings from the options.
3. Select Speaker Settings from the Settings menu.
4. Select a screen for TV Speaker and another for Bluetooth Headphones.

The same screen cannot be selected for both TV Speaker and Bluetooth Headphones.

Auto is only supported by the TV speaker. Bluetooth headphones are not supported.

Smart Hub

MENU > Smart Hub > Open Smart Hub Try Now

With Smart Hub, you can surf the web, download apps, and stay in touch with family and friends through social networking services. In addition, you can enjoy photo, video, and music files stored on external storage devices.

Some of the Smart Hub services for pay services. To use a for pay service, you must have an account with the service provider or a Samsung Apps TV account. Refer to the "Using Smart Hub with a Samsung Account" section for more information about a Samsung account.

The TV must be connected to the Internet in order to use Smart Hub.

Smart Hub features may not be available depending on the service provider, language, or region.

To use Smart Hub, you must agree to the end user agreement and privacy policy. Otherwise, you will not be able to access the features and services associated with them. You can view the entire content of the Terms & Policy by navigating to Smart Hub > Terms & Policy. If you want to stop using Smart Hub, you can cancel the agreement. Try Now

Testing Smart Hub connections

MENU > Support > Self Diagnosis > Smart Hub Connection Test Try Now

If Smart Hub is not functioning, navigate to Support > Self Diagnosis > Smart Hub Connection Test. Diagnose the problem by checking the internet connection, your ISP, the Samsung server and the Samsung Apps panels.

After completing the test, if Smart Hub continues to have problems, contact your Internet Service Provider or a Samsung Contact Center.

Opening the First Screen

Press the button while watching TV to open the First Screen.

On the First Screen, search through favorite apps, channels or sources and quickly access previously run or frequently used functions.

You can configure the TV to automatically open the First Screen when it turns on. Navigate to Smart Hub > First Screen Settings, and set Auto Start to On.

Setting your favorite item

1. Press the button to open the First Screen, and move to a desired item.
2. Press and hold the touch pad. The Options menu appears.
3. In the Options menu, select Add to Favorites to add the selected item to the favorite list, which will move top of the list.

To delete a favorite item, select it and tap and hold the touchpad to display the context menu. Then, select Remove from Favorites.

Deleting browsing history

1. Press the button to open the First Screen, and select Clear All. You will be asked to confirm your selection.
2. Select OK on the screen. Your browsing history is deleted completely.

However, the Favorites list items will not be deleted.

You can also delete your browsing history by selecting Clear All in the Smart Hub > First Screen Settings menu.

Moving to the Panel Screen

Press the button to launch Smart Hub. Select an icon on top of the screen to use the services of the corresponding panel.

NewsON

(Depending on the country) NewsON provides a real-world service that informs users of news and weather-related information in one place without the need for a newspaper, smartphone, or computer.

SOCCER

(Depending on the country) The SOCCER panel offers a variety of information about world soccer matches, featuring videos, news, matchups, and ratings.

• SAMSUNG APPS

You can enjoy variety of free and for pay news, sports, weather, and gaming apps on the TV as you would on a smart phone or tablet.

• MULTIMEDIA

You can play back photo, video, and music files from an external storage device or watch recorded videos.

Using the Smart Hub Tutorial

MENU > Support > Smart Hub Tutorial

Select Support > Smart Hub Tutorial. This will familiarize yourself with the basics of Smart Hub and panels.

Resetting Smart Hub

MENU > Smart Hub > Reset Smart Hub

It is possible to remove Samsung accounts and everything linked to them, including apps, from the TV. Enter the password when accessing this menu.

Using Smart Hub with a Samsung Account

Samsung Account Log In Edit Profile Link Service Accounts Remove Accounts from TV Create Account Terms and Conditions, Privacy Policy

The screen shown may vary depending on the model.

Creating a Samsung Account

MENU > Smart Hub > Samsung Account Try Now

Some of the Smart Hub services are paid services. To use a for pay service, you must have an account with the service provider or a Samsung Apps TV account (a Samsung account).

You can create a Samsung account using your email address as your ID.

To create a Samsung account, you must be over 14 years old.

To create a Samsung account, you must agree to the Samsung account end user agreement and privacy policy. Otherwise, you cannot create a Samsung account. You can view the entire content of the agreement by navigating to Smart Hub > Samsung Account > Terms and Conditions, Privacy Policy.

Alternatively, you can create a Samsung account at http://content.samsung.com. You can use one ID for both the TV and the website.

Creating a Samsung Account using Sign Up Samsung Account Menu

1. Navigate to Smart Hub > Samsung Account > Create Account and select Create Samsung Account.
2. Agree to use a Samsung account and select Next.
3. Create a Samsung account according to the instructions on the Create Account screen.
4. Once a Samsung account is created, you are automatically logged in to Smart Hub.

Creating a Samsung Account using a Facebook Account

A Facebook user can easily obtain necessary information from Facebook and create a Samsung account.

1. Navigate to Smart Hub > Samsung Account and select Log In. The Sign In screen appears.
2. Select + and select the Create with Facebook on the Sign In screen.
3. Enter your Facebook ID and password and select Sign In.
4. Agree to use a Samsung account and select Next.
5. Create a Samsung account according to the instructions on the Create Account screen.
6. Once a Samsung account is created, you are automatically signed in.

If you create a Samsung account using your Facebook account, they are automatically linked.

Signing in to a Samsung Account

MENU > Smart Hub > Samsung Account > Log In

Logging Into and Saving a Samsung Account on the TV

1. Navigate to Smart Hub > Samsung Account and select Log In.
2. Select + and select Sign In on the Sign In screen.

If you save your Samsung account on the TV, you can easily sign up later on.

1. Enter your ID and password and then select Sign In.

Check the Sign me in automatically option if you wish to log into Smart Hub automatically.
If you forgot your password, select Reset Password to receive the password resetting instructions via email.

1. Agree to use a Samsung account and select Next.
2. Select an image to be used as the profile picture.
3. The Samsung account has been saved on the TV. Select Done to log into your Samsung account.

Easily Logging Into Your Samsung Account Saved on the TV

1. Navigate to Smart Hub > Samsung Account and select Log In.
2. Choose your Samsung account on the Sign In and select Sign In.
3. Using the login method configured for the selected Samsung account, log into your Samsung account. To change the login method, refer to the "Changing and Adding Information to Samsung Account" section.

Linking Your Samsung Account to External Service Accounts

MENU > Smart Hub > Samsung Account > Link Service Accounts

Linking your Samsung account to an app account of the app installed on the TV lets you automatically log into your linked app accounts when you log into your Samsung account. For example, you can download the Facebook app and link your Facebook account to your Samsung account. In this case, logging into your Samsung account then automatically logs you into your Facebook account as well.

To use Link Service Accounts, you must first log into your Samsung account.

Linking a Service Account

1. Navigate to Smart Hub > Samsung Account and select Link Service Accounts. The available apps that can be linked to your Samsung account are listed.
2. Select an app from the list. The Link to other accounts window appears on the screen.
3. Enter the current ID and password of the app to log in and select OK.
4. When the login is complete, the app account is linked to the Samsung account.

Disconnecting a Linked Account

1. Navigate to Smart Hub > Samsung Account, select Link Service Accounts. Select an app to unlink.
2. A confirmation dialog box appears. Select Yes to unlink the app.

Changing and Adding Information to Samsung Account

MENU > Smart Hub > Samsung Account

Using the Samsung Account menu, you can manage your Samsung account.

To change the account information, you must be logged into your Samsung account.

1. Navigate to Smart Hub > Samsung Account and select Edit Profile. The keyboard appears.
2. Enter your password, and then select Done. The Edit Profile screen appears.

The Edit Profile screen lets you do the following:

• Changing Profile Picture
If you select Edit Profile Picture on the login screen, you can change the profile image.
• Registering Your Face to Samsung Account

If you select Register Face on the login screen, you can register your face to your Samsung account. The registered face is used by the Face recognition.

- Choosing a Samsung Account Login Method for TV

Select Sign-in Method on the login screen and choose a login method. You can determine how to log into the TV with the saved Samsung account.

• Turn Auto Login On or Off

Select Sign me in automatically from the login screen and select the checkbox. Then, you are automatically logged into the TV with your Samsung account when the TV is turned on.

- Entering Basic User Information

You can enter your given name, surname, and date of birth.

- Add a Credit Card to Your Samsung Account

Select Add Card to add a credit card to your Samsung Account. Adding a credit card to your account makes it easier to purchase online movies and TV shows. Follow the easy directions on the screen.

- Setting Newsletter Subscription

You can determine whether to subscribe to the newsletter containing the latest information.

Deleting All Samsung Accounts from the TV

MENU > Smart Hub > Samsung Account > Remove Accounts from TV

Navigate to Smart Hub > Samsung Account and select Remove Accounts from TV. The account and password information saved on the TV is deleted, and the account information of any linked apps are also deleted.

Using the NewsON Panel

NewsON 64° More News

The screen shown may vary depending on the model.

This service may be not available depending on the country or region.

NewsON provides a real-world service that informs users of news and weather-related information in one place without the need for a newspaper, smartphone, or computer.

NewsON users can find daily information on a wide variety of topics in a smart and convenient way. Updated in real time, NewsON informs users of the latest headlines, top stories, popular issues, and weather forecasts.

News

News articles are updated in real time. Simply select an article on the screen. The selected article will be displayed on the screen in details.

For longer articles, press the ^ or √ button on the remote control to scroll the screen.

To move to a different article, press the < or > button on the remote control.

Weather

Weather information is provided for major cities of the user's country. Select a weather-related item on the screen. The selected item will be displayed in details.

Using the SOCCER Panel

SOCCER Chelsea Videos News Matchups Rankings Edit teams

The screen shown may vary depending on the model.

This service may be not available depending on the country or region.

The SOCCER panel offers a variety of information about world soccer matches, featuring videos, news, matchups, and ratings. Adding a favorite team to the Favorite list allows easy access to the team.

Before you use SOCCER panel, check if the TV is connected to the Internet. Internet connection is required to access the SOCCER panel.

To view the Quick Guide, select the button.

Move to the navigation bar at the bottom of the screen to access the following options:

• Game highlights

Select Videos to view game highlights of your favorite soccer team.

- Hot news

Select News to check the latest news from various information sources around the world.

- Matchup schedules

Select Matchups to check the matchup schedule and game records of your favorite team. Also, if the game is in progress or has ended, you can check the detailed information about the game.

• Team and player rankings

If you select the Rankings, you can confirm the Team standings or player's stats (goals, Assists).

- Setting your favorite team

Select Edit teams, and add a team you support to the favorite list.

Setting Your Favorite Team

Once you set a favorite team, the SOCCER panel will be rearranged to offer various information on the favorite team.

If you have never set a favorite team, select Set your favorite team!! and simply add a team to the list.

You can add up to 6 teams to the list.

1. Select Edit teams on the SOCCER panel.

2. Select +.

3. Select a league to which the selected team belongs.

4. Select the team.

If you have added multiple teams to the list, select the button on the SOCCER panel to move to the next team section.

Modifying the Favorite Team

1. Select Edit teams on the SOCCER panel.
2. Select a favorite team to change.
3. Select the league to which the favorite team belongs.
4. Select the team.

Deleting favorite teams

1. Select Edit teams on the SOCCER panel.
2. Select Options > Delete.
3. Select all of the teams you want to remove.
4. Select Delete to remove all the selected teams from the list.

On Edit teams screen, move the team you want to delete. After that, you can delete the team press and hold the touch pad.

Using the SAMSUNG APPS Panel

SAMSUNG APPS RECOMMENDED MY APPS WebBrowser e-Manual Most Popular What's new Categories

The screen shown may vary depending on the model.

Smart Hub offers a variety of free news, sports, weather, and gaming content you can directly install and enjoy on your TV as you do on your smartphone or tablet.

Before you use SAMSUNG APPS, check if the TV is connected to the Internet. Your TV must be connected to the Internet in order to use SAMSUNG APPS.

When the Smart Hub is launched for the first time, the default apps are automatically installed. The default apps may differ depending on the region.

Using Supported Features via the Pop-Up Menu - Downloaded Apps

Move the focus to an app in the second row or below, and then press and hold the touch pad. On a standard remote, press and hold the button. The Tools menu appears displaying the following functions.

- Move

Lets you relocate an app on the screen.

- Delete

Lets you remove a selected app from your TV.

- Multi Delete

Lets you remove multiple apps from the TV.

• View Details

Displays detailed information about a selected app.

- Change View

You can change view mode sort by Custom or Most Played.

- Lock/Unlock

You can lock or unlock a selected app from the screen.

- Update Apps

Displays a list of apps that have updates available. You can select which apps to update.

Installing an App

When the TV's internal memory is insufficient, you can install an app on a USB device.

You can view icons for the apps saved on the USB device on the SAMSUNG APPS screen only when the device is connected to the TV. You can use an app installed on a USB device only when the USB device is connected to the TV. If the USB device is disconnected while the app is running, the app is terminated,

You can use the app installed on the USB device on another PC or TV.

Quick Installation

1. On the SAMSUNG APPS screen, select Most Popular, What's new, or Categories.

The Most Popular and What's new show the most popular and new Samsung Apps. To view the entire app list, select Categories. You can view all Samsung Apps classified by genre.

1. Move the focus to an app, and then press and hold the touch pad. On a standard remote, press and hold the button. A pop-up menu appears.

2. On the pop-up menu, select Download.

Most apps are free to install.

While an app is being installed, the progress bar appears at the bottom of the app icon so that you can easily figure out the installation progress.

1. The selected app is installed on the TV.

You can view installed apps on the SAMSUNG APPS screen.

Installing an App in the Detailed App Information Screen

1. On the SAMSUNG APPS screen, select Most Popular, What's new, or Categories.

The Most Popular and What's new show the most popular and new Samsung Apps. To view the entire app list, select Categories. You can view all Samsung Apps classified by genre.

1. Select an app from the list. Detailed information about your selection appears on the screen.

2. Select Download on the detailed information screen to install the selected app on the TV.

Most apps are free to install.

While an app is being installed, the progress bar appears at the bottom of the app icon so that you can easily figure out the installation progress.

1. When the installation is complete, the Download button turns to Open.

You can view installed apps on the SAMSUNG APPS screen.

Launching an App

Select an app on the SAMSUNG APPS screen to launch it.

The icons indicate the following:

• 👍 : The app supports motion control.
A TV camera (sold separately) needs to be connected in order to use Motion Control.
• 0 : The app supports voice control.
• : The app is installed on a USB device.
• 📞: The app supports a pointer that can move by the Samsung Smart Control.

Default Apps

e-Manual

The embedded e-manual contains information about your TV's key features.

Web Browser

Web Browser is an Internet browsing app. Using Web Browser, you can surf the Internet on the TV in the same manner as you would using a PC even while watching a TV program on PIP. Use a keyboard and mouse for a more convenient web browsing experience.

The browsing page may differ from that on a PC.

Rearranging Apps on the SAMSUNG APPS Screen

1. On the SAMSUNG APPS screen, move to the app you wish to change the order.
2. Press and hold the touch pad. On a standard remote, press and hold the button. A pop-up menu appears.
3. On the pop-up menu select Move.
4. Move an app to a desired location and select the app again.

Deleting an App from the TV

If an app is deleted, the data related to the app is also deleted.

Deleting an App

1. On the SAMSUNG APPS screen, move to the app you wish to remove.
2. Press and hold the touch pad. On a standard remote, press and hold the button. A pop-up menu appears.
3. On the pop-up select Delete. A removal confirmation window appears.
4. Select Yes. The selected app is removed.

Removing Multiple Apps

1. On the SAMSUNG APPS screen, move to the app you wish to remove.
2. Press and hold the touch pad. On a standard remote, press and hold the button. A pop-up menu appears.
3. On the pop-up select Multi Delete. A check box appears on the app icons.
4. Select all the apps you wish to remove and then select Delete. A removal confirmation window appears.
5. Select Yes. The selected app is removed.

Rating/Reviewing an App

On the detailed app information screen, you can rate the app or send a review to the app developer.

To rate or review an app, you must log into your Samsung account. You can only rate or review apps that You can only rate or review with a TV purchasing apps and games.

Updating an App

1. On the SAMSUNG APPS screen, move to the app you wish to update.
2. Press and hold the touch pad. On a standard remote, press and hold the button. A pop-up menu appears.
3. On the pop-up select Update Apps. A pop-up window appears.
4. Select all the apps you wish to update and then select Update. All the selected apps are updated to the latest version.

Setting Auto App Update

To update apps automatically, navigate to Smart Hub > Apps Settings and set Auto Update to On. The apps will then be updated automatically when an update becomes available.

SAMSUNG APPS Features

MENU > Smart Hub > Apps Settings Try Now

You can configure the features related to the apps installed on your TV.

Enabling Automatic Tickers

You can configure selected tickers to display automatically when the TV is turned on. Ticker Service enables you to use other services while watching TV. You can view news, stocks, weather, and more in real-time while watching TV.

To use this feature, make sure that an app supporting the Auto Ticker function is installed on the TV.

1. Navigate to Smart Hub > Apps Settings and select Auto Ticker. The apps supporting the Ticker Auto run from among the apps installed on the TV will appear.
2. Select apps from the list that you wish to automatically run when the TV is turned on.

Setting Push Notification

The Push notification function enables apps installed on the TV to send alarm messages notifying users of news, messages, etc.

1. Navigate to Smart Hub > Apps Settings > Push Notification Settings and set the Push Notification to On.

2. Set the desired apps below the Push Notification to On to allow them to send push notifications. The push notification function of the selected app is activated.

The Push Notification app list only the apps that supports Push Notification Settings from among the apps installed on the TV.

Using an App while Watching TV

If an app linked to a channel is installed on the TV, you can view the program information and use the related service through the app while watching TV.

Navigate to Smart Hub > Apps Settings and set Channel-Bound Apps to On.

You can use this feature only when an app supporting Channel-Bound Apps is installed on the TV.

Playing Photos, Videos, and Music (MULTIMEDIA)

MULTIMEDIA MOST POPULAR MY DEVICES Connect a US... Connect to a Phone PC Connect to a Connect to y... USB Drive Network Device Storage Service

The screen shown may vary depending on the model.

You can play media content saved on a USB device, smartphone, camera, computer, or cloud service on the TV.

However, you cannot play media content if the content or the storage device is not supported by the TV. For more information, refer to "Read Before Playing Photo, Video, or Music Files".

Backup important files before connecting a USB device. Samsung is not responsible for damaged or lost files.

Playing Media Content Saved on a USB Device

1. Select USB Drive in the MULTIMEDIA panel. The USB devices connected to the TV are listed.

2. Select the device you want to connect to. The folders and files in the selected USB are listed.

3. Select the media content you want to play from the list. The media content plays.

Alternatively, navigate to the media content you want to play, and then ▶ button to play the content.

If you connect a USB device to the TV while watching the TV, a pop-up window appears on the screen so that you can easily navigate the folders and files of the USB device.

Alternatively, if you select a USB device on the Source screen, a pop-up window appears on the screen so you can easily navigate the folders and files of the USB device.

Safely Removing a USB Device

1. Press the SOURCE button. The Source screen appears.
2. Navigate to the USB device you want to remove. Press and hold the touch pad on the Samsung Smart Control or the button on a standard remote. An options window appears.
3. Select Remove USB in the list.

Playing Multimedia Content Saved on a Computer/Mobile Device

Allowing Connection with a Computer/Mobile Device

To play multimedia content in a computer or mobile device on the TV, you need to allow the connection with the computer on the TV.

You can connect to a computer or mobile device on any DLNA DMC device. DLNA DMC function enables users to connect a mobile device to the TV, search for multimedia content and control play operations on the TV.

1. Select Network Device in the MULTIMEDIA panel. Storages devices connected to the same network of the TV are listed.
2. Select Options and then Multimedia device settings. The devices connected to the TV are listed.

Alternatively, select Multimedia Device Settings from the Network menu to see the list of the device to it. connected to the TV.

1. Allow connection with the desired device you wish to connect to the TV. You can only play media files from devices that have been allowed to connect to the TV.

If a computer or mobile device requests to connect to the TV and play media content, connection allowance confirmation window appears on the TV so that you can easily connect the computer or mobile device to it.

When Connected Through the Home Network (DLNA)

To connect a computer through home network (DLNA), refer to "Connecting to a Computer" section.
To connect a mobile device through home network (DLNA), refer to the "Connecting to a Mobile Device" section.
You may experience compatibility issues when attempting to play media files via a third-party DLNA server.
However, the content shared by a computer of a mobile device may not play depending on the encoding type and file format of the content. In addition, some functions may not be available.
The multimedia content may not smoothly play depending on the network status. If this is the case, use a USB storage device.

1. Select Network Device in the MULTIMEDIA panel. The devices connected to the TV are listed.

2. Select a device connected through home network (DLNA). The folders and files shared by the selected device will be listed.

3. Select media content you wish to play from the list. The media content plays.

Alternatively, move to the media content to play and press the ▶ button to play the content.

When Connected Through Samsung Link

To connect a computer through Samsung Link, refer to "Connecting to a Computer" section.
To connect a mobile device through Samsung Link, refer to "Connecting to a Mobile Device" section.
However, the content shared by a computer of a mobile device may not play depending on the encoding type and file format of the content. In addition, some functions may not be available.
The multimedia content may not smoothly play depending on the network status. If this is the case, use a USB storage device.

1. Navigate to Smart Hub > Samsung Account menu and select Log In to sign in with your the Samsung account.
2. Select Network Device in the MULTIMEDIA panel. The devices connected to the TV are listed.
3. Select a device connected through Samsung Link. The folders and files shared by the selected device will be listed.
4. Select media content you wish to play from the list. The media content plays.

Alternatively, move to the media content to play and press the ▶ button to play the content.

Playing Media Content Saved in a Storage Service

A storage service saves user content such as photos, videos, and music files on a server accessible through the Internet. You can view the media content saved in a cloud service such as Dropbox and SkyDrive on the TV.

To play the content in a storage service, you must log into your Samsung account and link the Samsung account to the storage service account. For the information about linking your Samsung account to a storage service account, refer to "Linking Your Samsung Account to External Service Accounts" section.

1. Navigate to Smart Hub > Samsung Account menu and select Log In to sign in with your the Samsung account.
2. Select Storage Service in the MULTIMEDIA panel. The storage services linked with your Samsung account appears.
3. Select a desired storage service. The folders and files in the selected storage service are listed.
4. Select media content you wish to play from the list. The media content plays.

Alternatively, move to the media content to play and press the ▶ button to play the content.

Buttons and Functions Available While Viewing Photos

The TV displays the buttons below when you press the touch pad - or the button on a standard remote - while viewing photos from a multimedia source. The playback buttons will disappear if the RETURN button is pressed.

- Pause / Play

Start or stop the slideshow. Using slideshow, you can play all the photos in a folder one by one.

- Previous / Next

View the previous or the next photo.

- Settings

The following functions are available when you select the Settings button.

Function Description
Slide Show Settings	Speed: Set the slideshow speed.Effects: Apply transition effects for the slide show.
Rotate	Rotate the photo.
Zoom	Zoom in by up to a factor of 4.
Picture Mode	Change the Picture Mode setting.
Background Music	Listen to background music while viewing photos.The music file must be saved in the same device as the photo file.When background music plays, the mini player appears on the screen. Using the mini player, you can pause the current music or play another music file.
Sound Mode	Change the Sound Mode setting.This option is supported only when background music is playing.
Select Speakers	Choose a speaker to play the background music.
Send	This function is the same as the 'Copy' function of a computer. Using this function, you can send the current photo to another storage device.For the supported storage devices for this feature, refer to "Sending Files between Storage Devices Table".
Information	View detailed information about the current photo.

Buttons and Functions Available While Viewing Videos

The TV displays the buttons below when you press the touch pad - or the button on a standard

remote - while viewing videos from a multimedia source. The playback buttons will disappear if the RETURN button is pressed.

- Pause / Play

Pause or play the video.

When the video is paused, you can use the following functions. However, audio will not be heard while the video is paused.

- Step: Whenever you press the 11 button, it scans the paused video one frame at a time.

- Slow Motion: Select the button to play the video in slow playback speed (1/8, 1/4, 1/2).

- Rewind / Fast Forward

Rewind or fast forward the video. Repeatedly select the button to make the rewind/fast forward speed faster by up to 3 times. To restore normal playback speed, select ▶.

- Previous / Next

Select the ◀ button twice to play the previous video. Selecting ◀ once reloads the current video from the beginning.

To play the next video, select the ▶ button.

- Settings

The following functions are available when you select the Settings button.

Function Description
Select Scene	Thumbnails: Select a scene and play the video from the scene. ✓ Thumbnails is not available when 1) the thumbnail of the video is not extracted yet, 2) the video contains audio only or 3) the video play time is shorter than 10 seconds. Chapter Titles: Select and play another video in the same folder. Time Bar: You can use < or > to scan through the file in 10-seconds intervals or enter a specific time value to jump to that point in the video.
Subtitle	Control the subtitles of the video. Language: Turn the subtitles on or off. Sync: When the video and the subtitles are not synchronized, you can adjust the synchronization. Reset Sync: Reset the subtitle synchronization adjustment to 0. Size: Choose the font size for the subtitles. Encoding: If the subtitles are broken, you can change the encoding language.
Repeat	Set the repeat mode. Repeat One repeats the current program only. Repeat All repeats all programs contained in the folder.
Picture Size	Change the picture size. However, the supported picture size is determined by the video content.
Picture Mode	Change the Picture Mode setting.
Sound Mode	Change the Sound Mode setting.
Select Speakers	Choose a speaker to play the audio.
Audio Language	Choose a desired audio language. This option works only when the video supports multi-track sound.
Information	View detailed information about the video.

Buttons and Functions Available While Playing Music

The TV displays the buttons below when you press the touch pad - or the button on a standard remote - while playing music files from a multimedia source. The playback buttons will disappear if the RETURN button is pressed.

- Pause / Play

Pause or resume the music.

- Rewind / Fast Forward

You can rewind or fast forward the music in 3 steps. To restore normal playback speed, select.

- Previous / Next

Select the ◀ button twice to play the previous music file. Selecting ◀ once reloads the current music file from the beginning.

To play the next music file, select the▶ button.

- Repeat

Set the repeat mode. Repeat One repeats the current music file only. Repeat All repeats all music files contained in the folder.

- Shuffle

Play the music files in order or randomly.

- Select Speakers

Choose a speaker to play the audio.

- Sound Mode

Change the Sound Mode setting.

Functions on the Media Content List Screen

On the media content list screen of a storage device, the following functions are provided.

- Filter

You can view only one type of content - photo, video, or music - saved on a storage device.

- Sort By

Sort the list of the selected type of content.

This function is not available when Filter is set to All Content.

- Options

The following options are available when you select the Options button.

This function is not available when Filter is set to All Content.

Function Description
Slide Show	Start the slide show.✓ You can use this function when the media content type is photo. If Sort By is set to Folder, this function is not available.
Play Selected	Play only content you want from the media content list.
Send	This function is the same as the 'Copy' function of a computer. Using this function, you can send the media content to another storage device.✓ For the supported storage devices for this feature, refer to "Sending Files between Storage Devices Table".
Encoding	If the media content title is broken, you can change the encoding language.✓ This function is available only when the media content is music.
Delete Playlist	Delete a playlist that you have created.✓ This function is available only when the media content is music.
Add to Playlist	Add a file to a playlist that you have created or create a new playlist.✓ This function is available only when the media content is music.
Index	For quick access to a content item in a large list, use the index and select a character to jump to the start of the applicable list.✓ This is not available when Sort By is set to Folder.✓ The Index is provided in formats of date, number, and English alphabet in descending/ascending order.

Controlling the TV with Your Voice (Voice Control)

MENU > System > Voice Control Try Now

You can access and select certain menu options and functions using voice commands. For more effective voice recognition, speak slowly and clearly in the language specified in the System > Voice Control > Language option.

Voice Control is classified into two: interactive voice control that enables conversational instructions, and imperative voice control where only pre-defined instructions are used. Smart Hub setup, and time settings, as well as the user's agreement on the use terms. Trying the interactive voice control without completing any of these requirements will display a notification pop-up. Follow the on screen instructions and complete the necessary settings. The imperative voice control is available regardless of the interactive voice control settings. Use only "pre-defined commands" in the imperative voice control mode.

Please read through the instructions before using Voice Control. For more information, refer to "Read Before Using Voice, Motion, or Face Recognition".

If you use the Voice Control function interactively at least once, the TV will change the on-screen menu name from Voice Control to Voice Interaction.

Using Voice Control Imperatively

1. Press the VOICE button on the Samsung Smart Control. When the microphone icon appears on the screen, you can use the Voice Control function.

2. Say a command. You can use Voice Control to operate the TV when you are watching a TV program or other videos.

Say the command 10 \~ 15 cm from the microphone on the Samsung Smart Control. Voice commands may not be recognized properly if you speak too softly or loudly. The optimal volume for voice commands is between 75 dB and 80dB.

Using the Voice Recognition Tutorial

MENU > Support > Voice Recognition Tutorial Try Now

The tutorial lets you familiarize yourself with the basics of using Voice Control. Run Voice Recognition Tutorial from the Support menu, or run Voice Control and say "Quick Guide".

Learning Voice Control Basics

- Moving the focus

Say "Focus Left", "Focus Right", "Focus Up", or "Focus Down" to move the focus. However, these commands can only be used in situations when the focus can be moved.

- Selecting an item

Say "Select" to confirm the selection.

• View available Voice Commands:

Say "View commands". A list of basic voice commands available in context is shown.

• View all Voice Commands:

Say "Help" to display a complete list of voice commands by category. Say the name of a category.

• Deactivating Voice Control

Say "Close Voice Recognition", or press the VOICE button. This terminates Voice Control.

The TV recognizes predefined voice commands only. These voice commands may differ from the manual depending on the version of the TV.

Changing the Voice Control Language

MENU > System > Voice Control > Language Try Now

Navigate to System > Voice Control > Language, and then select a preferred language from the list. Now you can use Voice Control in the specified language.

The Performance Level of Voice Control Function is optimized to work under a "Espanol Mexicano". Please consider this limitation when you pretend to use it.

Interactive Voice Control is not available in some languages. If the language you wanted initially is not available, choose a different language.

Controlling the TV using Motions (Motion Control)

MENU > System > Motion Control Try Now

It's possible to use motion commands to change channels, adjust the volume, and control the pointer while searching the web using Smart Hub.

The motion control features require a separately-sold camera installed on the TV.

Please note, that not all apps support Motion Control.

Please read through the instructions before using Motion Control. For more information, refer to "Read Before Using Voice, Motion, or Face Recognition".

When connecting the TV camera to 2014 Samsung TV models, make sure to connect it to the specified USB port of the TV. Other USB ports are not supported for this purpose.

Testing Ambient Illumination Using the TV Camera

MENU > System > Motion Control > Motion Control Environment Test Try Now

Run this test before using Motion Control to ensure proper functionality.

1. Initiate the Motion Control Environment Test, and select Start 1.5m to 3.5m away from the TV. If the TV reflects light onto the screen, the motion may not be properly recognized by the TV.
2. Face the TV camera, and follow the onscreen instructions to raise your hand from a comfortable position with the index finger spreading upwards, and move it left or right slowly. A pointer appears on the screen when the TV recognizes the action. If the recognition fails, try again.

Checking Ambient Noise and Illumination (Motion Control Environment Check)

MENU > Support > Self Diagnosis > Motion Control Environment Check Try Now

Navigate to Support > Self Diagnosis menu and select Motion Control Environment Check.

This function measures the ambient noise and illumination levels around the built-in camera of the TV to check if they are suitable for motion control use.

Activating Motion Control

MENU > System > Motion Control > Motion Control Try Now

To enable Motion Control, face the TV camera and raise your hand from a comfortable position with the index finger spreading upwards, and move it left or right slowly. When your hand is successfully recognized by the TV camera, Motion Control is activated and a pointer appears on the screen.

If Motion Control is activated, a pop-up window appears and guides you through basic use of Motion Control.

Moving your hand out of the range of the TV camera deactivates Motion Control. To reactivate Motion Control, simply raise your hand toward the TV camera within 3 seconds.

The recognition may be terminated if the index finger does not fully spread out or is moved too fast.

Using the Motion Control Tutorial

MENU > Support > Motion Control Tutorial Try Now

This lets you familiarize yourself with the basics of using Motion Control. From the Support menu, run Motion Control Tutorial.

If Motion Control is activated, a pop-up window appears and guides you through basic use of Motion Control.

Learning Motion Control Basics

The following basic motion control commands are available:

- Moving the pointer

Moving your hand moves the pointer accordingly.

- Selecting an item

Fold and spread your index finger as you would click a mouse button. You can select a TV menu or run a function. Keeping your index finger folded is like holding down the remote control button.

• Returning to the previous menu

Make a circle with your hand in the counterclockwise direction to return to the previous menu.

- Moving to the Smart Hub panel

Illustration of two hands pointing with index fingers, one with a blue curved arrow indicating rotation (no text or symbols)

Move your hand from left to right or from right to left as you would turn a book page. You can directly move from Smart Hub to another panel screen. (Example: SOCCER panel → SAMSUNG APPS panel)

• Displaying the Context-sensitive Menu on Smart Hub

Fold your index finger for 1 second and then spread it out. You can display the context-sensitive menu that is available for the selected item.

Showing and Hiding Motion Animation Guide Try Now

Navigate to System > Motion Control, and select Animated Motion Guide from the menu. Now you can display an animated guide when Motion Control is activated.

Adjusting Pointer Speed Try Now

Navigate to System > Motion Control > Pointer Speed, and select a pointer speed.

Motion Control Screen Layout

Motion Control Layout on the TV Screen

Activating Motion Control while watching the TV displays the following icons on the screen:

The screen shown may vary depending on the model.

Pure UI control panel with navigation buttons and icons, no text or symbols present

Screen Icons Explanation

	Adjust the volume.
	Turns the TV sound on/off.
	Changes the channel.
	Launch Smart Hub.
	You can split the TV screen and use variable functions such as watching the TV, surfing the web and watching the video and so on. For more information, refer to the "Using Multiple Functions in a Single Screen (Multi-Link Screen)".
	Press this button to search for information through the search window in various services.
	The virtual remote control appears. For more information, refer to the "Displaying and Using the On-Screen Remote" section.
	Change the source.
	Turn off the TV.

Motion Control Layout on the Smart Hub Screen

Activating Motion Control while using Smart Hub displays the following icons on the screen:

User interface toolbar with navigation and action buttons (no text or symbols)

Icon Description
	Adjust the volume.However, this is only available forSAMSUNG APPS.
	Turns the TV sound on/off.However, this is only available forSAMSUNG APPS.
	Changes the channel.However, this is only available forSAMSUNG APPS.
	Returns to the previous menu.
	Press this button to search for information through the search window in various services.
	The virtual remote control appears. For more information, refer to the "Displaying and Using the On-Screen Remote" section.
	Change the source.
	Turn off the TV.

Displaying Hidden Icons When Using Smart Hub

When using Motion Control with Smart Hub, the icons will disappear automatically after 2 seconds of inactivity. To display the hidden icons, move the pointer to one of the three edges shown below (marked in blue) and then hold it there for 1 second. The icons will reappear on the screen.

① ② ③

Icon Description
1
2
3

Signing in with Face Recognition

Users can register their faces using the TV camera, and sign in to their Samsung accounts using Face Recognition. Only one face can be registered per account. Depending on the ambient illumination level and/or shadows over a face, the TV may have difficulty recognizing it.

To use the Face Recognition feature, you need to install a sold-separately camera on the TV.

Please read through the instructions before using Face Recognition. For more information, refer to "Read Before Using Voice, Motion, or Face Recognition".

When connecting the TV camera to 2014 Samsung TV models, make sure to connect it to the specified USB port of the TV. Other USB ports do not support the TV camera or Face Recognition.

Registering Your Face to Your Samsung Account

Register your face to your Samsung account, and then log in by letting the TV recognize your face. Create a Samsung account if you do not already have one. Refer to "Creating a Samsung Account".

1. Sign in to your Samsung Account.

To register your face using the Virtual Remote panel, press KEYPAD to select your active Samsung account and then select Edit Profile.

1. Navigate to Edit Profile (Smart Hub > Samsung Account > Edit Profile), and select Register Face in the account information screen.

2. Read the information displayed in the pop-up window, select OK, and then enter the account password.

3. On the face registration screen, select Take Picture and then align your face with the red-dotted line displayed on the screen. The dotted line will turn green once your face is recognized.

Your entire face must be visible to the camera. Avoid shadows over your face. Shadows prevent the camera from recognizing your face accurately.

Keep your expression as neutral as possible. In addition, keep your mouth closed but at the same time as neutral as possible.

For stronger security, add a password when signing in using Face Recognition by checking the checkbox.

1. On the Samsung account information screen, select Save. This completes the face registration process.

Changing the Login Method to Face Recognition

To sign in to your Samsung account using Face Recognition, navigate to Edit Profile (Smart Hub >Samsung Account >Edit Profile), and then change the login method.

1. Sign in to your Samsung Account.

To change the sign-in method using the Virtual Remote panel, press the KEYPAD to select the currently signed-in Samsung account and then select Edit Profile.

1. Navigate to Smart Hub > Samsung Account, and then select Edit Profile.

2. Enter the password in the password input box, and then select Done. The profile editing screen appears.

3. Select Sign-in Method, and then change the login method to Face Recognition.

4. Select Done.

Signing in to a Samsung Account Using Face Recognition

1. Navigate to Smart Hub > Samsung Account, and then select Login.

2. Choose your Samsung account in the login screen.

3. If you have set the Samsung account login option to Face Recognition, the TV will automatically recognize your face. If recognition fails, try again.

If you checked the Password Required box when you set up Face recognition, you must also enter your password to log in.
Your entire face must be visible to the camera. Avoid shadows over your face. Shadows prevent the camera from recognizing your face accurately.
Keep your expression as neutral as possible. In addition, keep your mouth closed but at the same time as neutral as possible.
Once recognition succeeds, the TV logs in to Smart Hub automatically. If the TV recognizes two or more registered faces, a list of corresponding accounts appears. Select the appropriate account. If the TV detects an unregistered face, it displays "Unregistered" on the screen.

Digital Broadcast Information at a Glance

MENU > Broadcasting > Guide

Availability depends on the specific area.

The Guide provides an overview of each digital channel's program lineup. You can check the program schedules and set up a Schedule Viewing.

Press the GUIDE button on the remote to launch the Guide.

The information in the Guide is for digital channels only. Analog channels are not supported.

Using the Guide

To access the Guide functions, press and hold the touch pad. A pop-up window listing the following functions appears.

• Changing the Channel List

If you select Channel Filter, you can change the channels displayed in the channel lists.

• Navigating the Program Schedule

Press the ◀ or ▶ button to navigate the program schedule by 2 hours. You can only view the future program schedule.

It is available for moving the page using the^, √ button.

- Moving to the Schedule Manager

You can move to the Schedule Manager screen.

- Adding Favorites

Select Edit Favorite Channels to add the selected program to the Favorites.

• Viewing Detailed Information

View detailed information about the selected program. The program information may vary depending on the type of incoming signal and may not be available at all for certain programs.

• Select a current program on another channel and select View Details to Watch or Record the program.
• Select an upcoming program and select View Details for Schedule Viewing or Schedule Recording.

Checking the Current Program Info

While watching TV, select INFO using the remote to view information about the current program.

To view the program info, you must first set the TV's clock. Go to Clock (System > Time > Clock).

The program information may vary depending on the type of incoming signal and may not be available at all for certain programs.

Select the current program in the Program Info window to instantly record the program. Press the buttons, you can view the upcoming programs. If you select a desired program you can set the Schedule Viewing or Schedule Recording for the program.

For more information on Schedule Viewing, refer to "Setting Up a Schedule Viewing".

For more information on Schedule Recording, refer to "Recording Programs"

Changing the broadcast signal

MENU > Broadcasting > Antenna Try Now

You can choose the appropriate DTV mode for your viewing environment. Choose Air or Cable. Air is suitable for homes equipped with a separate, over-the-air antenna. Cable is suitable for homes that have subscribed to a local cable-service or satellite-service provider.

Do not use this function if your TV is connected to a cable or satellite box.

Digital Channel Signal Info and Strength

MENU > Support > Self Diagnosis > Signal Information

Availability depends on the specific area.

Select Support > Self Diagnosis > Signal Information. Displays the digital channel's signal information and strength.

If your TV is attached to a separate, over-the-air antenna, you can use the signal strength information to adjust the antenna for increased signal strength and improved HD channel reception.

Signal information is only available for digital channels.

Recording Programs

You can record current and upcoming programs using a USB device instead of a video recorder.

However, this is only available for digital channels. The 📁 icon appears next to programs and channels for which a Schedule Recording has been set.

We recommend a USB hard disk drive with a minimum speed of 5,400rpm for TV recording. USB memory sticks are not supported.

Read all precautions before using the recording feature.

Creating a USB Recording Device

In order to record programs on a USB device connected to the TV, the device must first be formatted for the TV. Use the Format Device option to prepare the USB device.

Formatting a USB device erases all data contained on the device. Back up the data before proceeding. Samsung will not be held responsible for damaged or lost files.

1. Press the 📋 button to open the First Screen, and select the Panel icon. You will move to the Panel screen.
2. Select the USB Drive from the bottom of the MULTIMEDIA screen. A list of connected devices appears.
3. Select the USB device to use. A pop-up window appears.
4. Select Yes. This will bring up the Format Device screen and allow you to format the device for TV recordings.
5. Once formatting is complete, the USB device is tested to see if it has been properly formatted. You will be able to start using the device after the test is completed. If the device fails the test, it means that this device cannot be used to record TV.

Managing USB Recording Devices

You can use the following to manage USB recording devices.

1. Press the 📋 button to open the First Screen, and select the Panel icon. You will move to the Panel screen.
2. Select the USB Drive from the bottom of the MULTIMEDIA screen. A list of connected devices appears.
3. Select a USB recording device from the list. The list of recordings contained on the device appears.
4. Select Options from the top of the screen and then Manage Device. The Manage Device screen appears.

The following options are available from the Manage Device screen:

- Format Device

Formats the USB device for TV recordings.

- Checking Device

Check the malfunctions of USB device. If the USB have a problem, try to recover.

• Device Performance Test

Tests the performance of the USB device. This test tells you whether the USB device can be used for TV recordings.

- Default Recording Device

If there are multiple USB recording devices connected to the TV, use this option to specify the default device.

Recording Programs

You can record current and upcoming Programs.

Instant Recording

Press the ●button. A pop-up window appears.

Specify the recording duration from the pop-up window to start recording.

The Instant and Schedule Recording options from the Guide

Select a current program from the Guide and then select INFO on the virtual remote panel. You can instantly start recording the program. Alternatively, select a program that will air in the future.

The Instant and Schedule Recording options from the Program Info

Select INFO from the virtual remote panel to display information about the current program. In the information screen, select a program that is currently airing to start recording it right away. Alternatively, press left/right button and select a program that will air in the future to record it.

The Schedule Recording option on a Specified Date and Time

1. Select Broadcasting > Schedule Manager.
2. Select Schedule from the Schedule Manager to bring up a pop-up menu. Select Schedule Recording.
3. Specify the Antenna, Channel, Repeat, Start Time, and End Time options for the program you want to record, and then select OK to finish.

Buttons and Functions Available While Recording a Program

Press enter while recording a program. The following buttons will appear as well as the recording progress bar.

• Information

This displays detailed information about the program being recorded.

The program information may differ depending on the broadcasting signal and may not be available at all for certain programs.

- REC Time

You can select the recording time.

- Stop Recording

You can stop recording.

- Rewind / Fast forward

Pressing these buttons decreases or increases playback by up to max 5 steps. To restore normal playback speed, select Play.

Fast forward cannot be used while watching the Current Program.

- Pause / Play

You can pause or resume the video.

- Go to Live TV

You can watch the current program by selecting this button while watching a recorded program,

This button is only available while watching a recorded program.

- CH List

You can view the channel list.

- Tools

You can launch the Tools menu. The Tools menu provides functions that you can use while watching a recorded program.

Managing the Schedule Recording List

MENU > Broadcasting > Schedule Manager

You can change the settings of scheduled recording sessions or cancel scheduled sessions altogether.

Deleting Schedule Recording Sessions

You can delete scheduled recording sessions.

1. Select Broadcasting > Schedule Manager.
2. Select a session from the Schedule Manager. A pop-up window appears.
3. Select Delete. This cancels the selected recording session.

Editing Schedule Recording Sessions

You can change the settings of scheduled recording sessions.

1. Select Broadcasting > Schedule Manager.
2. Select a session from the Schedule Manager. A pop-up window appears,
3. Select Edit and change the settings of the selected session.
4. Once finished, select OK. This applies the changes you made to the selected recording session.

Watching a Recorded TV

Recorded broadcasts can be viewed using the USB Drive option at the bottom of the MULTIMEDIA screen.

1. Press the 📋 button to open the First Screen, and select the Panel icon. You will move to the Panel screen.
2. Select the USB Drive from the bottom of the MULTIMEDIA screen. A list of connected devices appears.
3. Select a USB recording device. A list of recordings appears.
4. Select a recording file from the list or select ▶ on the virtual remote panel to play the selected file.

Available Buttons and Features while playing Recordings

On Standard remote, press the ➕ button. On Samsung Smart Control, press the touch pad. The following buttons will appear. Press the RETURN button will hide the buttons.

Buttons that appear are different depending on the file being played.

- Zoom

You can pause the current file (recorded program) and select and Zoom in on one of the 9 sections of the paused picture.

Press the A button for easier use.

You can only use this function for programs recorded in Soccer Mode.

- Stop

You can stop the playing the file (recorded broadcast) and move to the file list screen.

- Pause / Play

Pause the file (recorded broadcast) or resume playing the file if paused.

When the video is paused, you can use the following functions. However, audio will not be heard while the video is paused.

• Step: Whenever you press the "button", it scans the paused video one frame at a time.
• Slow Motion: The ▶ button plays the video back at 1/4 the normal speed.

- Rewind / Fast forward

Rewind or fast forward the recording file (recorded program). Repeatedly select the button to make the rewind/fast forward speed faster by up to max 5 steps. To restore normal playback speed, press the ▶ button.

- Previous / Next

To play the previous file (recorded program), press twice. Pressing once reloads the current video from the beginning.

To play the next file (recorded program), press the button.

This function is not available when the program is recorded in Soccer Mode.

- Highlight Player

You can select Highlight Player and view highlights of the current recording.

You can only use this function when highlights of a program which was recorded in Soccer Mode have been saved.

- PIP

This function enables the PIP feature so that you can watch a live program through PIP.

Switching channels is not supported.

You can only use this function for programs recorded in Soccer Mode.

Function Description
Search	Search Scene: This will take you to a scene in the video.Search Scene cannot be used if 1) the extraction of the thumbnails from the file (Recorded broadcast) being played back is not finished, 2) playing back a file with audio only (recorded broadcast), or 3) the duration of the recorded file (recorded broadcast) is less than 60 seconds.Search Titles: Select and play a different file located in the same folder.Search Time bar: Press left/right button to scan through the file in 1-minute increments or enter a specific time value to jump to that point in the video.
Subtitle Settings	Subtitle: Turn the subtitles On or Off.Language: Used to change the language.
Repeat Mode	This changes the repeat mode. Choose Repeat One to repeat playing the current file and Repeat All to repeat playing all files contained in the same folder.
Picture Size	Used to change the size of the screen. The supported picture sizes vary depending on the video.
Picture Mode	Used to change the picture mode.
Sound Mode	Used to change the sound mode.
Select Speakers	Choose a speaker to play the audio.
Audio Language	Used to select a different audio language. This option is only available with files that support multi-track sound.
Information	Displays detailed information about the current file.

Managing Recorded Files

Select USB Drive at the bottom of the MULTIMEDIA screen to lock/unlock, rename, delete, and generally manage the recording files.

1. Press the 📋 button to open the First Screen, and select the Panel icon. You will move to the Panel screen.
2. Select the USB Drive from the bottom of the MULTIMEDIA screen. A list of connected devices appears.
3. Select a USB recording device. A list of recordings appears.

Saved File List Features

- Sorting the Saved File List

Sorting with Sort By: Select Sort By at the top of the screen and then select a viewing mode. The list is sorted based on the selected viewing mode.

Sorting with Filter: Select Filter at the top of the screen and then select a filter. The list is refreshed to only show files that match the selected filter.

- Options

Function Description
Play Selected	Select files from the file list and then select Play. You can create a playlist.
Lock	To prevent to delete the files (recorded program), you can lock the files (recorded program). This locks all the selected files.
Unlock	Use this option to unlock any locked files. Select the files and then select Unlock. This unlocks all selected files.
Delete	Deletes recording files. Select the files and then select Delete. This deletes all selected files.
Rename	Renames the file. Enter the new name using the keypad and then select Done to finish. The new name can be up to 29 characters long.
Index	When navigating a large number of media items, select a character. Media items starting with that character appear.This is not available when View is set to Folder view.
Manage Device	Used to manage USB recording devices connected to the TV. Refer to the "Managing USB Recording Devices" section for more information.

Setting Up a Schedule Viewing

Configure the TV to show a specific channel or program at a specific time and date. The Licon appears next to programs that have been configured for a Schedule Viewing.

To set up a Schedule Viewing, you must first set the TV's clock. Go to Clock (System > Time > Clock).

Setting Up Schedule Viewing

Digital Channel Schedule Viewing

You can set up Schedule Viewing for programs on digital channels on the following screens:

• The Guide Screen

Select an upcoming program from the Guide to set up a Schedule Viewing for it.

• The Program Info Screen

Press the INFO button to display information about the current program. From the program information screen, select right button to view information about the next program, and press enter, to set up a Schedule Viewing or Schedule Recording for the upcoming program.

Analog Channel Schedule Viewing

MENU > Broadcasting > Schedule Manager Try Now

The Schedule Viewing function for programs on analog channels can be set up by specifying the time and date.

1. Select Broadcasting > Schedule Manager.
2. Select Schedule from the Schedule Manager to bring up a pop-up menu. Select Schedule Viewing.
3. Specify the Antenna, Channel, Repeat, and Start Time options for the program you want to watch and then select OK to finish.

Managing the Schedule Viewing List

MENU > Broadcasting > Schedule Manager

You can change the settings of Schedule Viewing sessions or cancel scheduled sessions altogether.

Deleting Schedule Viewing Sessions

You can delete Schedule Viewing sessions.

1. Select Broadcasting > Schedule Manager.
2. Select a session from the Schedule Manager. A pop-up window appears.
3. Select Delete. This cancels the selected viewing session.

Editing Schedule Viewing Sessions

1. You can change the settings of Schedule Viewing sessions. Select Broadcasting > Schedule Manager.
2. Select a session from the Schedule Manager. A pop-up window appears.
3. Select Edit and change the settings of the selected session.
4. Once finished, select OK. This applies the changes you made to the selected viewing session.

Using Timeshift

Timeshift lets you pause and rewind live TV as you would a DVD. Timeshift is only available for digital channels and activating Timeshift disables the Broadcasting option.

• A USB recording device must be connected to the TV in order to use Timeshift. Refer to the "Creating a USB Recording Device" section for more information.
• We recommend a USB hard disk drive with a minimum speed of 5,400rpm for use with the TV's Timeshift feature. USB memory sticks are not supported.
• Read all precautions before using the Timeshift function.

Press the ▶ while watching TV to activate the Timeshift function. This activates Timeshift and displays a progress bar and the following buttons at the top of the screen:

• Information

This displays detailed information about the current program.

The program information may vary depending on the type of incoming signal and may not be available at all for certain programs.
This button is only available while watching a live program.

- Go to Live TV / Stop Timeshift

Watches the live TV or Exits the Timeshift.

- Pause

Pauses the screen.

The following features are available while paused. However, audio is not supported while the video is paused.

• Step: 1 Scans the paused video one frame at a time.
• Slow Playback: Select ◀ / ▶ to play the video back at 1/4 the normal speed.

- Rewind / Fast forward

Slows down or speeds up playback by a factor of up to 5. To restore the normal playback speed, press the ▶.

Fast forward cannot be used while watching the Current Program.

- Channel List

Displays the channel list.

- Tools

You can launch the Tools menu.

Using the Channel List

MENU > Broadcasting > Channel List Try Now

Press the CH LIST button while watching TV to bring up the Channel List and change the channel or check programs on other digital channels.

Select a channel from the Channel List to jump to it right away. To quickly scroll through the list, use the channel up/down buttons. This moves the focus one page at a time.

The Channel List screen contains the following icons:

- A : An analog channel

- ♥ : A favorite channel

- : A locked channel

- Using Options

Press the < button, and then select Options. The following options are available:

Function Description
Antenna	ChooseAirorCableas the DTV mode.Airis suitable for homes equipped with separate, over-the-air.Cables suitable for homes that subscribe to a local cable-service or satellite-service provider.
Sorting	(Digital channels only)Sort the list by ChannelNumberor byName.Availability depends on the area.Availability depends on the specific area.
Edit Favorites	Designate favorite channels. Refer to the "Creating a Personal Favorites List" section for more information.

• Viewing the Added Channels or Favorites Lists

Press the > button, and then select Added Ch. or Favorites. Favorites will only appear if you have registered at least one favorite channel. For more information, refer to "Creating a Personal Favorites List".

Registering, Removing, and Editing Channels

MENU > Broadcasting > Edit Channel Try Now

Remove channels from the index of channels, restore removed channels, and rename analog channels. The Edit Channel screen icons indicate the following:

• A : An analog channel

• ♥ : A favorite channel

• : A locked channel

Registering and Removing Channels

MENU > Broadcasting > Edit Channel

Removing Registered Channels

Remove registered channels from the index.

1. Select the channels you want to remove. Unselect channels by choosing them again. To select all the channels, select Options and then select Select All from the list.
2. Once you have made your selection, select Delete from the left of the screen to remove the selected channels.

Adding Back Removed Channels

Availability depends on the specific area.

You restore channels to the index of channels by adding them back. Removed channels are displayed in gray in the All list only. In addition, the Add option is only available for removed channels.

1. Select Options to display a list of options. Select Category from the list, and then select All.
2. From the All list, select the channels you wish to restore. Unselect channels by choosing them again. To select all the channels, select Options and then select Select All from the list.
3. Once you have made your selection, select Add to restore the channels.

Editing Registered Channels

MENU > Broadcasting > Edit Channel

Select Options at the bottom left of the screen to access the following options. The available options may vary depending on the broadcast signal.

• Select All
  Selects all channels displayed the Edit Channel screen.

- Sorting

(Digital channels only)

Change the list ordered by Channel Name or Number.

Availability depends on the specific area.

- Antenna

Choose Air or Cable as the DTV mode.

Category

Channels stored in the TV are grouped into the following categories: All and Added Ch..

- Edit Favorites

Designate favorite channels. For more information, refer to "Creating a Personal Favorites List".

- Rename Channel

Rename analog channels. The new name can be up to 5 characters long.

- Channel Info

(Digital channels only)

Check the information of the channel.

Availability depends on the specific area.

• Information

View detailed information about the current program.

Program Rating Lock

Availability depends on the specific area.

MENU > Broadcasting > Program Rating Lock

The Program Rating Lock blocks programs with ratings higher than those desired. This is useful for controlling what children watch on TV. This will not function for programs originating from external sources, such as DVD players or USB files.

This PIN is required to watch a blocked program.

The Program Rating Lock is available only in TV mode.

Enabling/Disabling Password Protection on Channels

MENU > Broadcasting > Edit Channel

Availability depends on the specific area.

You can lock channels you don't want your children to view.

To enable password protection, set Channel Lock to On. First, navigate to Broadcasting > Channel Lock and set it to On.

Locking/ Unlocking Channels

Select channels from the Edit Channel screen and then select Lock or Unlock at the bottom of the screen. When the password entry window appears, enter the password. This locks or unlocks the selected channels.

Creating a Personal Favorites List

MENU > Broadcasting > Edit Favorites Try Now

You can designate frequently watched channels as favorite channels. Favorite channels are highlighted in the Edit Channel and Channel List screens with the ♥ symbol. You can create up to 5 favorite channel lists.

Registering Channels as a Favorites

MENU > Broadcasting > Edit Favorites

Registering the Current Channel as a Favorites

Add the current channel to a Favorites list.

1. While watching a TV channel, press the TOOLS button on the standard remote. On the touch pad remote, press the KEYPAD button, and then select TOOLS on the On-Screen Remote. Select Edit Favorites from the list.
2. From the pop-up window, select all the Favorites lists you want to add the current channel to and
3. then select OK.
4. This adds the current channel to the selected Favorites list(s). Select OK.

Registering Multiple Channels as Favorites

It's possible to register multiple channels as favorites at the same time.

1. Select Broadcasting > Edit Favorites.
2. Select the channels from the list in the middle of the screen.
3. Select Change Fav, and then change the Favorites list on the right side of the screen to the Favorites list you want to use.
4. Select Add on the screen. The TV adds the channels you selected to the Favorites list you chose.

Viewing Favorites List Channels Only

It's possible to flip through Favorites list channels using only the channel up/down buttons.

A Favorites list can only be selected if it contains at least one favorite channel.

1. Run Channel List. (Broadcasting > Channel List).
2. Press the > button to select Favorites 1 through Favorites 5.
3. Choose a channel from the selected Favorites list. This changes the channels and Channel List changes to the selected Favorites channel.

Editing a Favorites List

MENU > Broadcasting > Edit Favorites

You can rename and edit Favorites lists.

Edit Favorites Screen Menu Items

Select Options on the Edit Favorites screen to access the following options:

- Copy to Favorites

Copy channels from one favorite channels list to another. Refer to the "Copying a Favorites List to a Different Favorites List" section for more information.

You can use Copy to Favorites only if you have registered one or more channels to at least one Favorites list.

- Rename Favorites

Rename an existing favorite channels list. Refer to the "Renaming a Favorites List" section for more information.

You can use Rename only if you have registered one or more channels to at least one Favorites list.

- Antenna

Choose between Air and Cable.

- Sorting

(Digital channels only)

Change the list ordered by Channel Name or Number.

Availability depends on the specific area.

- Edit Channel

Lets you manage the channels saved on the TV. For more information, refer to "Registering, Removing, and Editing Channels".

• Information

View detailed information about the current program.

Removing Registered Channels from a Favorites List

Remove channels from the favorites list.

1. Select Change Fav. at the bottom of the screen and then change the Favorites list to the Favorites list you want to use.
2. Select the channels you want to remove from the selected Favorites list.
3. Select Delete.

Rearranging a Favorites List

Rearrange the order of the channels in a Favorites Channels List.

1. Select Change Fav. at the bottom of the screen and then change the Favorites list to the Favorites list you want to use.
2. From the selected Favorites list, select the channels you want to rearrange.
3. Select Change order from the bottom of the screen and then rearrange the selected channels. Press enter to finish.

Renaming a Favorites List

Rename an existing favorites channels list.

1. Select Change Fav. at the bottom of the screen and then change the Favorites list to the Favorites list you want to use.
2. From the selected Favorites list, select the channels you want to rename.
3. Select Options. A list appears.
4. Select Rename Favorites from the list. A pop-up window appears. Rename the list in the pop-up window. The new name can be up to 20 characters long.

Copying a Favorites List to a Different Favorites List

Copy channels from one favorites channels list to another.

1. Select Change Fav, and then change the Favorites list on the side of the screen to the Favorites list you want to use.
2. From the Favorites list displayed on the side of the screen, select all the channels you want to copy.
3. Select Options. A list appears.
4. Select Copy to Favorites from the list. A pop-up window appears.
5. From the pop-up window that appears on the screen, select the Favorites lists you want to copy the selected channels to. This copies the selected channels to the selected Favorites lists.

Copy to Favorites is only available when there are channels in the Favorites list.

Watching a Sports Game Realistically (Soccer Mode)

MENU > System > Soccer Mode

Soccer Mode enables the optimal picture and sound settings for sports events, making them appear and sound as if you are there. In addition, if a recording device is connected to the TV when you are using Soccer Mode, you can use both the video recording and time shift functions at the same time while watching the sports game, as well as watching the highlights extracted from the recorded sports game automatically or manually.

For more information about recording a program and using a recording device, refer to the "Recording Programs" section.

For more information about the Timeshift feature, refer to the "Using Timeshift" section.

Enabling Soccer Mode

MENU > System > Soccer Mode > Soccer Mode

Go to System > Soccer Mode and then set Soccer Mode to On. The picture and sound modes of the TV are automatically optimized for sports events.

Enabling Soccer Mode changes the Picture Mode to Stadium and the Sound Mode to Stadium, and disables some Picture and Sound menus.

Press the TOOLS button to turn Soccer Mode on or off.

Extracting Highlights Automatically

MENU > System > Soccer Mode > Auto Highlights

Select System > Soccer Mode and set the Auto Highlights to On. You can set the TV to automatically save highlights without user intervention.

However, Auto Highlights is not available with these TV operations:

• Recording two channels simultaneously
• While Auto Description is active
- Switching the input signal using the SOURCE button

The Auto Highlights performance depends on the signal characteristics.

It is only available while watching a soccer game.

Functions Available While Watching a Sports Game in Soccer Mode

Press enter. The following buttons will appear.

- Zoom

You can pause the current video and select and zoom into one of the 9 blocks of the still picture. You can pan out of the zoomed-in picture using the ∧, ∨, < and > buttons.

You can easily use the function using the A button.
You cannot use this function when watching 3D channels or when PIP or MULTIMEDIA is active,

- Manual Highlight

You can save a video from 10 seconds before pressing the button as a highlight to 10 seconds after.

You can easily use the function using the B button.
You can only use this function when a recording is in progress.
You can set the TV to automatically save highlights without user intervention. Select System > Soccer Mode and then set Auto Highlights to On.

- Stop Recording / Go to Live TV

When you are watching a live program, you can stop a recording by pressing this button. When you are watching a recorded program, you can watch a live program by pressing this button.

You can only use this function when a recording is in progress.

- Record

You can instantly record the sports game you are currently watching on the TV.

You can only use this function when the recording function is supported.

- Rewind

You can rewind the current video. Repeatedly select this button to increase the rewind speed up to 5 times.

You can only use this function when a recording is in progress.

- Pause / Play

You can pause or resume the video.

You can only use this function when a recording is in progress.

- Fast forward

You can fast forward the current video. Repeatedly select this button to increase the rewind speed up to 5 times.

You can only use this function when a recording is in progress.

• Highlights Player

You can move to the Highlights Player screen and play the automatically or manually saved highlights of the recording file.

You can only use this function when a recording is in progress.

Live TV

You can watch the current program by selecting this button through PIP while watching a recorded program. To exit PIP mode, press the button again.

You can only use this function when a recording is in progress.

This button is only available while watching a recorded program.

• Information

This displays detailed information about the current program.

This button is only available while watching a live program.

- SOCIAL TV

You can launch an SNS app.

Viewing a sports game recorded in Soccer Mode

Recorded sports game can be viewed using the USB Drive option of the MULTIMEDIA screen.

For more information, refer to "Watching a Recorded TV".

TV-Viewing Support Features

Showing Subtitle

System > Accessibility > Subtitle

Availability depends on the specific area.

This function is only available for digital channels.

Show subtitles. Subtitles will be displayed when you choose a broadcast that supports subtitles. Switches subtitles On or Off.

DVD subtitles are only available if the DVD player is connected to an external input connector.

- Subtitle Mode

Sets the subtitle mode.

- Subtitle Language

Sets the subtitle language.

The TV cannot control or modify DVD or Blu-ray subtitles. To control DVD or Blu-ray subtitles, use the sub-title feature of the DVD or Blu-ray player and the player's remote control.

Subtitle Options

System > Accessibility > Subtitle

Select a subtitle mode. The list of modes may vary depending on the broadcast.

- Primary Subtitle

Set the primary subtitle language.

• Secondary Subtitle

Set the secondary subtitle language.

Showing Captions

MENU > System > Accessibility > Caption Try Now

Availability depends on the area.

You can watch TV broadcasts with captions.

Even if enabled, captions will not be displayed by programs that do not support captions.

On the Samsung Smart Control, press and hold the 📋 button to turn Caption on or off easily.

Enabling Captions Try Now

Select System > Accessibility > Caption > Caption

The TV cannot control or modify DVD or Blu-ray subtitles. To control DVD or Blu-ray subtitles, use the subtitle feature of the DVD or Blu-ray player and the player's remote control.

Selecting the Caption Language Try Now

Select System > Accessibility > Caption > Caption Mode to display a list of subtitle modes. Select a subtitle mode. The list of modes may vary depending on the broadcast.

- Default / CC1 \~ CC4 / Text1 \~ Text4

(Analog channels only) The analog caption function operates in either analog TV channel mode or when a signal is supplied from an external device to the TV. (Depending on the broadcasting signal, the analog caption function may or may not work with digital channels.)

PIP Broadcast Viewing

MENU > Picture > PIP Try Now

Use the PIP ("Picture-In-Picture") function to watch TV in a small window while also watching content from a DVD player, Blu-ray player, computer, or a different external device in the background.

Select Picture > PIP to display the PIP settings screen. The PIP settings screen contains the following options:

- PIP Setting

Activates/deactivates PIP.

- Antenna

Choose Air or Cable as the digital channel method.

- Channel

Select the PIP sub-picture channel.

- Size

Select the PIP sub-picture size.

- Position

Select the PIP sub-picture position.

- Sound Select

Select the audio source.

Choose a broadcast.

You cannot use PIP while using Smart Hub or the 3D function.

Turning off the TV automatically disables PIP.

Playing a game or using the karaoke feature on the main screen can result in lower PIP picture quality.

For PIP to work, the main screen's source must be Component or HDMI and the input resolution must be less Full HD (FHD - 1080p). The subscreen supports digital channels only.

Scanning for Available Channels (Auto)

Availability depends on the specific area.

MENU > Broadcasting > Auto Program or Auto Tuning

Automatically scans and indexes all channels received through the TV's antenna input connector.

Do not use this function if your TV is connected to a cable or satellite box.

If the TV has saved channels, Auto Program or Auto Tuning deletes the existing list, and then saves the newly scanned channels.

1. Select Broadcasting > Auto Program or Auto Tuning.

2. Select Start when prompted. This initiates the Auto Program or Auto Tuning function. The process can take up to 30 minutes to complete.

Storing for available digital channel (Manual)

Availability depends on the specific area.

MENU > Broadcasting > Channel Settings > Digital Manual Tuning

Scans for a digital channel manually and stores in the TV. This function is available only when the Antenna is set to Air.

If a channel is locked using the Channel Lock function, the PIN input window appears.

1. Select the New, and then input the desired digital channel information.

2. Select the Search. When scanning has finished, a channels is updated in the channel list.

Selecting the Broadcast Audio Options

MENU > Broadcasting > Audio Options Try Now

Configure the program's audio language. Audio Options functions differently for analog and digital channels.

Press the INFO button to view the current broadcast's audio signal information. On the Samsung Smart Control, press and hold the D button to view the current broadcast's audio signal information.

Digital Broadcast Audio Options

• Audio Language Try Now

Select Audio Options > Audio Language and then choose a language. Digital broadcasts contain audio signals in multiple languages. Digital programs that include the language you selected in Audio Language are automatically played using that language. If the language you selected is not supported by the broadcast signal, the TV will use the default audio language broadcast by the TV station.

- Audio Format

Availability depends on the specific area.

Select Audio Options > Audio Format. Select the audio format of current broadcasting. The available items may differ depending on the broadcasting status.

Analog Broadcast Audio Options

• Multi-Track Sound Try Now

Select Audio Options > Multi-Track Sound. Configure the audio for the current broadcast. Multi-Track Sound can be set to mono or stereo, depending on the broadcast signal or program.

However, this option is automatically set to mono if the broadcast signal or program does not support stereo.

Press the INFO button to view the current broadcast's audio signal information.

While watching TV, press the KEYPAD button on the Samsung Smart Control select TOOLS on the On-Screen Remote, and then select Multi-Track Sound. On the standard remote, press the TOOLS button, and then select Multi-Track Sound.

Fine-Tuning the Screen

MENU > Broadcasting > Channel Settings > Fine Tune Try Now

Available for analog broadcasts only.

Analog pictures can become shaky and full of noise. If this happens, you can fine-tune the signal and/or reduce noise to clear up the picture.

1. Select Broadcasting > Channel Settings > Fine Tune. An adjustment bar appears on the screen.
2. Press the < or > button to make adjustments. Select Save or Close to apply the new setting. Select Reset to reset the Fine-Tune operation.

Color System

MENU > Broadcasting > Channel Settings > Color System

Available for analog broadcasts only.
Availability depends on the specific area.

Normally the TV can receive image and sound with good quality when in the mode auto. This mode detects the signal color system automatically. In case of some signal reception with color unsatisfactory, select the Color System mode to PAL-M, PAL-N or NTSC.

Changing the Picture Mode and Adjusting the Picture Quality

Choosing the Right Picture Mode for the Viewing Environment

MENU > Picture > Picture Mode Try Now

The following picture modes utilize different contrast and brightness settings to provide the best viewing experience for the environment.

Navigate to Edit Name, if you use the PC setting for PC or DVI PC, you can only available Standard and Entertain.

• Dynamic

If the ambient lighting is too bright and makes the screen blurry, use this mode to make the picture clearer.

- Standard

This is the default mode suitable for most environments.

Natural

This mode is useful for reducing eye strain.

- Movie

Appropriate for darkened rooms, for watching movies, and when experiencing eye fatigue. Darkens the screen and reduces glare.

- Entertain

Sharpens images for a more dynamic viewing experience.

This mode is only available when you use a PC setting for PC or DVI PC on Edit Name.

Adjusting the Picture Quality for Each Picture Mode

MENU > Picture

Select one of the settings below from the Picture menu to display the slide bar for the selected setting. Adjust the value by pressing the < or > arrow button on your remote. Choose a different setting by pressing the ^ or √ button. Adjusted values are applied to the current source and picture mode.

The Color and Tint (G/R) settings cannot be adjusted when the TV is connected to a computer via an HDMI to DVI cable.

Choose a Picture Mode - Dynamic, Standard, Natural, Movie - and then adjust the settings.

- Backlight Try Now

Adjusts the brightness of individual pixels. Decreasing the brightness reduces power consumption.

- Contrast Try Now

Adjusts the screen contrast.

- Brightness Try Now

Adjusts the overall brightness.

- Sharpness Try Now

Sharpens or dulls the edges of objects.

• Color Try Now

Adjusts the overall color saturation.

- Tint (G/R) Try Now

Adjusts the ratio of green to red. Increase the green value to saturate the greens and the red value to saturate the reds.

Adjusted values are saved by the TV for the current source and picture mode, and remain in effect each time the source and picture mode is selected. Consequently, the TV can have different picture settings for each external source.

Applying the Current Picture Settings to Other Input Sources

MENU > Picture > Apply Picture Mode Try Now

You can apply the picture quality setting that you configured for the TV to all external devices connected to the TV or to the current source only.

To apply the setting to all external devices connected to the TV, select All Sources. To apply the setting to the current input only, select Current Source.

Fine-Tuning Each Picture Mode (Advanced Settings)

MENU > Picture > Advanced Settings Try Now

Select Picture > Advanced Settings to fine-tune how images are displayed on the TV screen for each Picture Mode.

Advanced Settings is only available when the Picture Mode is set to Standard or Movie.

When the TV is connected to a computer via an HDMI-DVI cable, only White Balance and Gamma can be adjusted.

Choose a Picture Mode and then adjust the settings.

• Dynamic Contrast Try Now

Automatically adjusts the screen contrast. Use this option to achieve the optimal contrast setting.

- Black Tone Try Now

Adjusts the black color depth.

- Flesh Tone Try Now

Darkens or lightens skin tones.

• RGB Only Mode Try Now

Adjusts the red, green, and blue levels individually.

• Color Space Try Now

Adjusts the range of colors (the color space) that the TV can display. Auto automatically adjusts the color space depending on the input signal. Native applies a range that is wider than the input signal. Custom allows you to adjust the color space manually.

• White Balance Try Now

You can adjust the color temperature of the picture to make white objects look white, and the overall picture appear natural.

2 Point: Lets you adjust red, green, and blue luminosity with the offset menu and brightness with the gain menu. To restore the default values, select Reset.

10 Point: Divides red, green, and blue into 10 sections each, and lets you modify the white balance by adjusting the brightness of each section. Select the section to adjust in the Level field.

You can use the 10 Point function only when the Picture Mode is set to Movie. Some external devices may not support the function.

- Gamma Try Now

Adjusts the primary color intensity.

• Motion Lighting Try Now

Adjusts the brightness in response to on-screen movements to reduce power consumption.

This feature is only available when the Picture Mode is set to Standard and is not available in 3D mode.

Adjusting the Contrast, Brightness, and other picture quality settings deactivates Motion Lighting.

Adjusting the Picture for Easier Viewing (Picture Options)

MENU > Picture > Picture Options Try Now

Select Picture > Picture Options to make additional adjustments for an easier viewing experience.

When the TV is connected to a computer via an HDMI-DVI cable, only Color Tone can be adjusted.

Choose a Picture Mode and then adjust the settings.

• Color Tone Try Now

Adjusts the color tone. The setting is applied on an individual Picture Mode basis. When you select a new Picture Mode, the TV applies the Color Tone you selected for that mode automatically.

If the Picture Mode is set to Dynamic, you will only be able to choose Cool or Standard.

• Digital Clean View Try Now

Reduces static and ghosting caused by a weak signal. Selecting Auto Visualization displays the signal strength at the screen. Green indicates the best possible signal.

Available by analog channels only.

• MPEG Noise Filter Try Now

Reduces MPEG noise and improves video quality.

• HDMI Black Level Try Now

Some external devices connected to the TV via an HDMI cable can have issues such as low black level, low contrast, and dull colors. Use HDMI Black Level to adjust the black level to compensate.

HDMI Black Level is only available when you are viewing content from an external device connected to the TV via an HDMI connection.

• Film Mode Try Now

Optimizes the picture quality for movies. Select this mode for watching movies.

This feature is only available when you are watching a TV broadcast or when the input signal is AV, Component (480i, 1080i), or HDMI (1080i).

• Auto Motion Plus Try Now

Removes blurring and judder from scenes with rapid movement. If you select Custom, you can configure Blur Reduction and Judder Reduction manually and set LED Clear Motion on for a sharper LED image.

If you have Auto Motion Plus on, and then bring up the INFO screen, the INFO screen displays the resolution and frequency of the incoming video signal (60Hz). This frequency is not the same as the frequency of the picture the TV is displaying when Auto Motion Plus is on.

• Cinema Black Try Now

In Movie mode, this feature dims the upper and lower zones of the video image to provide a more immersive viewing experience.

Viewing in 3D

MENU > Picture > 3D Try Now

The 3D option lets you view 3D media content and broadcasts. You will need to wear Samsung 3D Active Glasses to play 3D content. IR-type Samsung 3D Active Glasses and third-party 3D glasses are not supported.

Carefully read the health and safety information concerning 3D viewing before viewing 3D content. Refer to the "3D Precautions" section for more information.

Whether 3D video is displayed in true HD is usually determined by the quality of the content.

Starting 3D

1. Play 3D content or turn on a channel that's showing a 3D broadcast.
2. Put on the Samsung 3D glasses, and then set the 3D Mode you want to view from Picture > 3D menu. The 3D viewing is enabled.

The ideal viewing distance is three times the height of the screen or more. 3D images may not appear if you do not adhere to the recommended viewing angle or distance.
The 3D feature may not work properly if there is another 3D product or an electronic device running nearby. If there is a problem, keep other electronic devices as far away as possible from the 3D Active Glasses,
The left and right 3D images may initially overlap when the TV is turned on. It takes a moment for the display to optimize and the overlapping to go away.

There are several restrictions when using 3D TV:

• Launching Smart Hub automatically disables 3D mode.
• PIP cannot be used.
  • Certain Picture options are disabled.

Changing the 3D Mode

MENU > Picture > 3D > 3D Mode Try Now

1. Launch 3D and then select 3D Mode under Picture > 3D.

2. Choose from the 3D modes that appear on the screen. The supported 3D Modes may vary depending on the 3D content.

3D Mode is automatically configured for most 3D content.

The following 3D Modes are available. However, mode availability may vary depending on the 3D content's format.

The supported resolutions vary for each mode. Refer to the "Supported Resolutions for 3D Modes" section for more information.

• Off (Off)

Deactivates 3D viewing.

• (Normal)

Converts normal images to 3D images.

Some formats do not support this mode.

• (L/R)

Splits a single image into left and right overlapping images to create the 3D effect.

• (T/B)

Splits a single image into top and bottom overlapping images to create the 3D effect.

• (Horizontal Line)

Switches between left and right images one horizontal line at a time.

• (Vertical Line)

Switches between left and right images one vertical line at a time.

• (Pixel)

Switches between left and right images one pixel at a time.

• (Frame)

Switches between left and right images one frame at a time.

When the TV is connected to a computer:

The (Horizontal Line), Vertical Line), and Pixel) settings can only be selected when the computer's resolution is set to 1920x1800, or the computer is connected to the TV via an HDMI-DVI cable.

The (Frame) setting can only be selected when the computer's resolution is set to 1920x1080 and the frequency to 60Hz.

Adjusting the 3D Effect

MENU > Picture > 3D

Configure the viewpoint, depth, and other 3D settings for a custom viewing experience.

All 3D effects with the exception of 3D Auto View can only be used while watching 3D content.

• Adjusting the 3D Viewpoint Try Now

Select Picture > 3D > 3D Perspective. Use the adjustment bar shown on the screen to adjust the viewpoint.

• Adjusting the 3D Depth Try Now

Select Picture > 3D > Depth. Use the adjustment bar shown on the screen to adjust the depth.

This option cannot be used if 3D mode is set to 📄_R) or 📄B).

• Reversing the Left/Right 3D Images Try Now

Select Picture > 3D > L/R Change. This option is used to reverse the left and right images.

• Displaying 3D Content in 2D Try Now

Select Picture > 3D > 3D → 2D. This option is used to enable 2D viewing of 3D content.

This function is not available if 3D mode is set to Normal) or Off (Off)

• Automatically Turning on 3D if 3d Content is Detected Try Now

Select Picture > 3D > 3D Auto View. Use 3D Auto View to set the TV to activate 3D mode automatically when 3D content or a 3D broadcast is detected.

If 3D Auto View is set to Message Notice, a window confirming 3D activation will be displayed. 3D is activated once confirmed.

3D is not displayed while certain applications are running. To watch the TV in 3D mode, exit the application.

• Adjusting 3D Brightness Try Now

Select Picture > 3D > 3D Light Control. Adjust the 3D brightness level. If the screen is too dark, select High.

Picture Support Functions

PIP Broadcast Viewing

MENU > Picture > PIP

Watch video from an external device such as a Blu-ray player on the main screen while viewing a TV broadcast in a picture-in-picture window.

Select Picture > PIP to display the PIP settings window. The PIP settings window contains the following options:

- PIP

Activates/deactivates PIP.

- Antenna

Choose Air or Cable as the input source for the PIP sub-picture window.

- Channel

Selects the PIP sub-picture channel.

- Size

Selects the PIP sub-picture size.

- Position

Selects the PIP sub-picture position.

- Sound Select

Selects the audio source.

Choose a broadcast.

PIP cannot be used while Smart Hub or 3D is active.

Turning off the TV automatically disables PIP.

Playing a game or using the karaoke feature on the main screen can result in a lower PIP picture quality.

For PIP to work, the main screen's source must be Component or HDMI and the input resolution must be less than FHD (Full HD). The subscreen supports digital channels only.

Changing the Picture Size and Position

Choosing the Right Screen Size

MENU > Picture > Picture Size > Picture Size Try Now

Most TV programs and videos are displayed in full screen, but some programs and videos are displayed in sizes that are larger or smaller. You can change the screen size for such programs and videos so that the picture fits the screen better.

Supported screen sizes vary depending on the input signal. Refer to the "Picture Sizes and Input Signals" section for more information about supported screen sizes.

• 16:9

Set the picture to the 16:9 wide-screen format.

- Zoom1

Availability depends on the specific area.

Magnify 16:9 pictures vertically. A magnified picture can be moved up and down.

- Zoom2

Availability depends on the specific area.

Magnify Zoom1 picture even more. A magnified picture can be moved up and down.

- Wide Fit

Availability depends on the specific area.

Enlarge the aspect ratio of the picture so it fits the entire screen. Enjoy 4:3 images as undistorted 16:9 images.

- Wide Zoom

Availability depends on the specific area.

Magnifies the picture size more than 4:3. A magnified picture can be moved up and down.

- Zoom

Availability depends on the specific area.

Magnifies the 16:9 wide pictures vertically to fit the screen size. A magnified picture can be moved up and down.

4:3

Sets the picture to basic 4:3 mode.

- Screen Fit

Displays the full image without any cutoff.

- Smart View 1

Reduces a 16:9 picture by 50%.

- Smart View 2

Reduces a 16:9 picture by 25%.

Adjusting the Screen Position

MENU > Picture > Picture Size > Position Try Now

Adjusts the screen position.

This option is only available with Picture Size set to Zoom1, Zoom2, Wide Fit, Wide Zoom, Zoom, or Screen Fit. When the TV is tuned to a digital channel, the screen position cannot be adjusted if the Picture Size is set to Screen Fit.

1. To adjust the screen's position, select Picture > Picture Size > Position. A pop-up window appears.
2. Select Position again from the pop-up window.
3. Press the ∧, ∨, < or > button to move the screen. Once done, select Position and then Close. Select Reset to reset the screen position.

Listening to Audio Only with the Screen Turned Off (Picture Off)

MENU > Picture > Picture Off Try Now

Turns off the screen and plays audio through the speakers only. To turn the screen back on, press any button other than the power and volume buttons.

Resetting the Picture Mode Settings

MENU > Picture > Reset Picture Try Now

Use this option to reset the current Picture Mode to its factory settings. This does not affect the settings of other Picture Mode.

Changing the Sound Mode and Using Sound Effects

Choosing the Right Sound Mode for the Environment

MENU > Sound > Sound Mode Try Now

Sound modes apply preset adjustments to the sound output, optimized for different viewing and listening circumstances.

The sound modes cannot be used when you are listening to audio through external speakers.

- Standard

This is the normal sound mode.

Music

This mode emphasizes normal music instead of voice.

- Movie

This mode is calibrated to provide the best sound for movies.

- Clear Voice

This mode emphasizes voice.

- Amplify

This mode increases the overall intensity of high-frequency sounds for a better listening experience. It is designed for hearing-impaired listeners.

- Stadium

This is chosen automatically when Soccer Mode is turned on under the System menu.

Using Sound Effects

MENU > Sound > Sound Effect Try Now

Use sound effects to alter how the TV projects sound.

Sound effects can only be used with the Sound Mode set to Standard.

The sound effects cannot be used when you are listening to audio through external speakers.

Choose a Sound Effect and then adjust the settings.

• Virtual Surround Try Now

Produces sound that will make you feel like you are sitting in a movie theater or concert hall.

• Dialog Clarity Try Now

Increases voice intensity to make dialog clearer.

• Equalizer Try Now

Lets you adjust the speaker balance and make bandwidth adjustments. Select Reset to reset the settings.

Customizing Sound (Sound Customizer)

MENU > Sound > Sound Customizer Try Now

Sound Customizer lets you calibrate the TV for optimal sound quality based on your hearing capabilities and the ambient conditions.

Customizing Sound

MENU > Sound > Sound Customizer > Add Custom Sound Try Now

1. Select Add Custom Sound. A pop-up appears asking if you want to create a profile. Select Yes.
2. On the next screen, read the instructions, and then select Start.
3. Select Preview, listen to the Preview tone, and then select Next.
4. A 6-step test will start. During each stage, the TV will sound a test tone at a different frequency. The tone will begin softly and increase in volume. Select Yes when you can hear the test tone. If you want to listen to it again, select No. Once the test is complete, a screen appears that lets you compare the original sound to the calibrated sound.
5. Select Next. The on-screen keyboard appears with a default profile name. Enter a name for the calibrated sound profile or accept the default name, and then select Done.
6. Select OK on the next screen. The Sound Customizer screen reappears.

You can create additional profiles by selecting Add Custom Sound on the Sound Customizer screen, and then following the instructions above from Step 2.

Using a Custom Sound Profile

MENU > Sound > Sound Customizer > Custom Sound Profile Try Now

If there are multiple Custom Sounds, simply choose the one you want to use.

1. Select Sound > Sound Customizer > Custom Sound Profile.
2. Select a Custom Sound Profile from the list.

Renaming and Deleting Custom Sound Profiles

MENU > Sound > Sound Customizer > Manage Custom Sound Try Now

Rename or delete custom sound profiles.

To use Manage Custom Sound, you must have a Custom Sound Profile in the Custom Sound Profile list.

1. Select Sound > Sound Customizer > Custom Sound Profile.
2. Choose a Custom Sound Profile you want to rename or delete.
3. Select Sound > Sound Customizer > Manage Custom Sound. This brings up the Manage Custom Sound window.
4. Select a Custom Sound Profile you want to rename or delete, and then select Rename or Delete. Selecting Rename brings up the on-screen keyboard. Use the keyboard to change the name. Delete deletes the selected Custom Sound Profile.

Modifying a Custom Sound

MENU > Sound > Sound Customizer > Edit Custom Sound Try Now

Modify the sound settings of a Custom Sound profile.

1. Select Sound > Sound Customizer > Edit Custom Sound, and then select the Custom Sound you want to edit from the pop-up window.
2. Select Preview to listen to the preview test tone, and then select Next.
3. A 6-step test will start. During each stage, select Yes when you can hear the test tone. If you want to listen to it again, select No. Once the test is complete, you can compare the original to the calibrated sound.
4. Select Next, and then enter a name for the calibrated sound profile.
5. When finished, select Done.

Sound Support Functions

Selecting Speakers

MENU > Sound > Speaker Settings > TV Sound Output

This lets you choose which speakers the TV uses for audio output. To listen to the audio through the speakers of a connected receiver or home theater only, select Receiver or Audio Out. To listen to audio through the TV's speakers and the speakers of a connected AV receiver or home theater simultaneously, select TV Speaker. If this causes an echo effect, choose any speaker option other than TV Speaker to mute the TV speakers, or turn off the receiver or home theater.

Using external speakers alone disables the volume button and the mute function. In addition, certain Sound options will are also disabled.

Designating the TV's Installation Type

MENU > Sound > Speaker Settings > TV Installation Type

Specify the TV's installation type. Choose between Wall Mount and Stand to optimize the TV's sound automatically.

Listening to TV Sound through Samsung Bluetooth or Wi-Fi Audio

MENU > Sound > Speaker Settings > SoundShare Settings

Connect the TV to a Samsung audio device for a richer, clearer sound.

This option is only available for Samsung audio devices that support SoundShare.

You can't use Bluetooth headphones and SoundShare features simultaneously.

Pair the Samsung audio device using the TV's Bluetooth function. Refer to the Samsung audio device's operating manual for more information on pairing.

When listening to TV audio through a Samsung audio device, certain types of content may produce video-to-audio synching issues.

• Samsung Audio Device List

Displays a list of paired Samsung audio devices. Select a device to display its menu options. You can activate/deactivate the audio device or remove it from the list.

- Add New Device

Enables/disables SoundShare. The connection signals from new devices are ignored if Add New Device is set to Off.

Listening to TV Sound through Samsung Network Speaker

MENU > Sound > Speaker Settings > Multiroom Link

Set the configuration of the network speaker(s) you connected to the TV.

Audio and visual sync mismatches may occur, depending on the model.
Network speakers can disconnect depending on the network environment.
While playing the Multi-Link Screen, you can hear the selected audio.
Activating Screen Mirroring disables Multiroom Link.

- Settings

- Multiroom Link

Multiroom: Configure the network speakers so that all play the same, combined audio. Channels are ignored.

SoundBar+Surround: If you have connected a Sound Bar, set SoundBar+Surround to rear speakers. The Sound Bar already includes the Center and Front Left and Right channels.

Activating Screen Mirroring disables Multiroom Link.

- Volume Level

Adjust the volume of each speaker individually or all speakers at once.

- Speaker Test

Send a test sound to each speaker to make sure your system is working properly.

- Edit Name

You can give each speaker a name.

Enabling Digital Audio Output

MENU > Sound > Additional Settings Try Now

This Smart TV is SPDIF-enabled. The Sony Philips Digital Interface (SPDIF) provides digital audio output to speakers and various digital devices, including A/V Receivers and home theaters.

DTV Audio Level

(Digital channels only)

Availability depends on the specific area.

The TV cannot freely control the volume of the digital audio that it sends to the AV receiver. Use this to set the digital audio volume at a comfortable level.

According to the type of broadcast signal, MPEG / HE-AAC can be adjusted between -10dB and 0dB.

To increase or decrease the volume, adjust between the range 0 and -10 respectively.

- Audio Format

Availability depends on the specific area.

Selects the Digital Audio output (SPDIF) format. The available Digital Audio output (SPDIF) formats may vary depending on the input source.

- Audio Delay

Availability depends on the specific area.

This setting helps correct timing mismatches between the audio and video tracks when you are watching TV and listening to audio through a digital audio device. Enabling the feature displays a slide bar that you can use to adjust the delay by up to 250ms.

• Dolby Digital Comp

Availability depends on the specific area.

Some digital TV programs provide 5.1-channel Dolby audio. This TV converts Dolby audio to stereo audio so that it can play the sound through the TV's speakers. There are two methods to choose from. RF is for better sound at lower volumes, and Line is for higher volumes.

- Auto Volume

Because each station has its own set of broadcasting conditions, the volume may fluctuate as the channel changes. The Auto Volume function automatically adjusts the volume of a channel by lowering or raising the sound output. Normal applies a normal level of volume adjustment, whereas Night applies a slightly lower volume level than Normal and is ideal for nighttime TV viewing. To use the volume control of a connected source device, deactivate the Auto Volume function. When using the Auto Volume function with a source device, the device's volume control may not function properly.

Listening to 3D Audio in 3D Mode

MENU > Sound > 3D Audio Try Now

3D audio technology provides immersive sound that matches the pop-up effect of 3D video by using perspective in the audio depth control.

Only available in 3D mode.

Resetting All Sound Settings

MENU > Sound > Reset Sound Try Now

Use to reset all sound settings to the factory defaults.

Setting the Time and Using the Timer

Setting the Current Time

MENU > System > Time > Clock or Clock Set

Availability depends on the specific area.

Set the clock manually or automatically. Once the clock has been set, you can select the virtual remote panel's INFO to check the current time.

The clock must be reset every time the power is disconnected.

Setting the Clock using Digital Broadcast Info

MENU > System > Time > Clock > Clock Mode

Availability depends on the area supported digital channels.

The TV automatically downloads the correct time from a digital channel. To enable this option, the TV's Antenna jack must be connected to either an antenna or a cable output and must be receiving digital broadcasts. The accuracy of the time information received may vary depending on the channel and signal. If your TV is connected to a set-top-box or satellite box using HDMI or Component connections, you must set the time manually.

1. Set the Clock Mode (System > Time > Clock > Clock Mode) to Auto.

2. Select the Time Zone (System > Time > Clock > Time Zone) and select your time zone.

The Time Zone is only available when the Clock Mode is set to Auto.

If the Clock is Wrong in Auto Mode...

MENU > System > Time > Clock > Time Offset

Availability depends on the area supported digital channels.

If the time set automatically is incorrect, you can offset the clock in 1-hour increments by as much as -/+12 hours. Select System > Time > Clock > Time Offset and offset the clock to the correct time.

Time Offset adjusts the time through a network connections and is only available if the Clock Mode is set to Auto and the TV is connected to the Internet though a local area network.

Time Offset will adjust the time if the TV fails to receive time information through normal digital broadcast signals.

Setting the Clock Manually

MENU > System > Time > Clock Set or MENU > System > Time > Clock > Clock Mode

1. Select the Clock Mode (System > Time > Clock > Clock Mode) to Manual and select the Clock Set.

When the Country is set to Others and Digital TV System is set to Analog only, you can select the Clock Set in the System > Time menu.

1. Select Date and enter the current date using your remote.
2. Select Time and enter the current time using your remote.
3. Select Time and enter the current time using your remote.

Using the Timers

Using the Sleep Timer

MENU > System > Time > Sleep Timer Try Now

This function automatically shuts off the TV after a preconfigured period of time. Select System >

Time > Sleep Timer. You can set the timer up to 180 minutes in 30-minute increments.

Turning On the TV using On Timer

MENU > System > Time > On Timer Try Now

Set the On Timer so that the TV turns on automatically at a chosen time. You can set up three separate On Timer configurations concurrently: On Timer 1, On Timer 2, and On Timer 3. The On Timer is only available if the Clock has been set.

- Setup

Select Off, Everyday, Mon\~Fri, Sat\~Sun, or Manual. If you select Manual, you can select the days you want the On Timer to turn on the TV by highlighting each day, and then press the touch pad. On a standard remote, press the button.

• Time

Set the time that the TV turns on automatically. See Manual under Setting the Time for time setting instructions.

Volume

Specify the volume the TV will set itself to when it turns on.

- Source

Select a signal source from the list. This is the source the TV will access when it turns on. If you want to use a USB device, that USB device must be connected to the TV before you start the On Timer set up. To play back media from an HDMI or Component source such as a DVD player, Blu-ray player, or set-top-box, you must leave the device on. It must be on and playing when the TV turns on.

- Antenna

If you have set the Source to TV, select a broadcast signal source, Air or Cable.

- Channel

If you have set the Source to TV, select a channel.

- Music / Photo

If you have set the Source to USB, specify a USB device folder containing music files in the music field and/or a folder containing photos in the photo field. If you select a folder that contains music files and a folder that contains photo files, the TV plays the music files and displays the photos at the same time.

To select (for example) a music folder, follow these steps:

1. Select the music field. The music screen appears.
2. If you have no folders in the USB drive and all your music files are in the root directory, highlight, and then select the Select button. The USB drive is selected and the On Timer screen reappears displaying the name of the USB drive in the music field.
3. If you have folders with music on the USB drive, press the touch pad on the Samsung Smart Control or the button on the standard remote. The TV displays all the folders on the drive.
4. Scroll the list of folders until the folder you want appears. Move the highlight to the Select button to the right of the folder. Press the touch pad. On a standard remote, press the button. The On Timer screen reappears displaying the folder name in the music field.

If the folder you choose has sub-folders, you can select a sub-folder in the same fashion.

1. If you want, select a photo folder in the same way. Start by selecting the photo field.

This feature will not function properly if the selected USB device does not contain media files or a folder has not been specified.
The slideshow will not start if there is only one image file on the USB device.
Folders with long names cannot be selected.
Always use different folder names for multiple USB devices.
Use a USB memory stick or multi-card reader. The On Timer may not work with certain battery-powered USB devices, MP3 players, or PMPs because the TV may take too long to recognize the device.

Turning Off the TV Using the Off Timer

MENU > System > Time > Off Timer Try Now

Set the Off Timer to turn the TV off automatically at a specific time. You can set up three separate Off Timer configurations concurrently: Off Timer 1, Off Timer 2, and Off Timer 3. The Off Timer is available only if the Clock has been set.

- Setup

Select Off, Everyday, Mon\~Fri, Sat\~Sun, or Manual. If you select Manual, you can select the days you want the Off Timer to turn off the TV by highlighting each day, and then press the touch pad. On a standard remote, press the button.

• Time

Set the time that the TV turns off automatically.

Using the Screen Burn Protection and Energy Saving Features

Preventing Screen Burn

MENU > System > Auto Protection Time Try Now

Still images can leave burned-in after-images on the screen if left on the screen for a long period of time. Use Screen Burn Protection to protect the screen. Select System > Auto Protection Time and then choose a time setting from the list. If a still image is shown on the screen for longer than the time you selected, the TV will automatically activate the Screen Burn Protection function to prevent burnt-in after-images.

Using Energy Saving Features

MENU > System > Eco Solution Try Now

Eco Solution adjusts the TV's brightness level and prevents overheating to reduce overall power consumption.

• Energy Saving Try Now

Select a brightness setting from the list to reduce the TV's power consumption.

- Eco Sensor Try Now

Automatically adjusts the TV's brightness level based on the ambient light level to reduce the TV's power consumption. If the Eco Sensor has adjusted the screen's brightness level, you can manually adjust the screen's minimum brightness level by adjusting the Min. Backlight. Changing the Backlight setting while Eco Sensor is running automatically disables Eco Sensor.

• No Signal Power Off Try Now

Select a time from the list. If no signal is received for the specified duration, the TV will automatically cut off the power to reduce power consumption.

• Auto Power Off Try Now

If the TV remains turned on for four hours without any user input, the TV will automatically turn off to prevent overheating.

Using Anynet+ (HDMI-CEC)

Use Anynet+ (HDMI-CEC) to control all external devices that support HDMI-CEC using just the TV's remote control. Note that Anynet+ (HDMI-CEC) only works with the TV's remote control and not with the panel keys.

You can configure the TV's universal remote function to control third-party cable boxes, Blu-ray players, and home theaters that do not support HDMI-CEC using the TV's remote control. Refer to the "Controlling External Devices with the TV Remote (Universal Remote Setup)" section for more information.
Anynet+ cannot be used to control external devices that do not support HDMI-CEC.
Anynet+ devices must be connected to the TV using an HDMI cable. Some HDMI cables may not support Anynet+ (HDMI-CEC). In this case, you will need to replace the HDMI cable.
The TV remote control may not function under certain circumstances. If this occurs, select the Anynet+ device again.
Anynet+ (HDMI-CEC) only works with external devices that support HDMI-CEC and only when those devices are either in standby mode or turned on.
Anynet+ (HDMI-CEC) can control up to 12 compatible external devices (up to 3 of the same type). With home theater systems, however, the number of systems that can be controlled is limited to one.
To listen to 5.1-channel audio from an external device, connect the device to the TV via an HDMI cable and the device's digital audio output connector directly to the home theater system.
A home theater system that has been connected to the TV using an HDMI cable and an optical cable supports 2-channel audio only. 5.1-channel audio is, however, available for digital broadcasts with 5.1-channel audio.

Setting Up Anynet+ (HDMI-CEC)

MENU > System > Anynet+ (HDMI-CEC) Try Now

• Anynet+ (HDMI-CEC) Try Now

Enables/disables Anynet+ (HDMI-CEC). Set to Off to disable all Anynet+ related features. Set to On to enable all Anynet+ related features.

• Auto Turn Off Try Now

When set to Yes, turns off Anynet + compatible external devices when the TV is turned off.

Some Anynet + compatible devices do not support this feature.

• Device search Try Now

Search for Anynet+ (HDMI-CEC) compatible devices.

Using Anynet+ (HDMI-CEC)

Selecting an External Device

1. On the Samsung Smart Control, press the KEYPAD button, and then select TOOLS on the On-Screen Remote. On a standard remote, press the TOOLS button. The Tools list appears.
2. Select Anynet+ (HDMI-CEC) from the list. The Select Device screen appears.
3. Select a device and wait for the switch to take place. This process may take up to 2 minutes to complete and cannot be cancelled once started.

Accessing the External Device's Menu

Once the TV has switched over to the selected device, you can access the device's menu using the TV's remote control.

1. On the Samsung Smart Control, press the KEYPAD button, and then select TOOLS on the On-Screen Remote. On a standard remote, press the TOOLS button. The Tools list appears.

2. Select Anynet+ (HDMI-CEC) from the list. The following list appears.

The menu options available in Tools may differ depending on the external device.

• Anynet+ (HDMI-CEC)

Displays a list of HDMI-CEC-compliant devices connected to the TV. Select View TV to exit Anynet+ (HDMI-CEC), and start watching TV. To switch to the screen of an external device, simply select that respective device.

• (Connected Device) Menu

Display the menu of the connected device. If the target device is a DVD player, the DVD menu is shown.

• (Connected Device) Tools

Displays a list of frequently-used functions available for the device. If the target device is a DVD player, the DVD playback menu is shown.

Some external devices may not support this option.

• (Connected Device) Title Menu

Displays the title menu of the disc in the connected device. For example, if the target device is a Blu-ray player, the title menu of the disc in the player is shown.

Some external devices may not support this option.

Using the e-Manual

Launching the e-Manual

MENU > Support > e-Manual

The embedded e-manual contains information about your TV's key features.

Alternatively, you can download a copy of the e-manual from Samsung's website, and read it on your computer or print it out.
Words in yellow (e.g., Picture Mode) indicate a menu item and bold words in white (e.g., Smart Hub) indicate remote control buttons.
Arrows are used to indicate the menu path. (Example: MENU > Picture > Picture Mode)

1. On the Samsung Smart Control, press the KEYPAD button, and then select e-Manual on the On-Screen Remote. On a standard remote, press the E-MANUAL button. You can also select Support > e-Manual in the TV's menu. The e-Manual is loaded on the screen.
2. Select a category from the left side of the screen. Once a selection has been made, the contents of the selected category appears on the right side of the screen.
3. Select an item from the list. This opens the e-manual on the corresponding page.

If a description doesn't fit on a single screen...

Scroll pages using one of the following methods.

- Position the focus on the page to display / on the screen and move through the page.

^ or ▼ to scroll

Additional e-Manual Features

Loading Pages using Keywords

Select Search from the screen to bring up the search screen. Enter a search term and then select Done. Select an item from the search results to load the corresponding page.

Loading Pages from the Index Page

Select Index to bring up the index screen. Select a keyword from the list to navigate to the relevant page.

Using History to Load Previously Read Pages

Select Opened page. A list of previously read pages is shown. Select a page. The e-Manual jumps to the selected page.

Accessing the Menu from the e-Manual (Try Now)

Select insert space. (Try Now) from the right side of a feature-description page to access the corresponding menu and try out the feature right away. If you want to read the e-Manual entry on a specific screen menu feature:

• On the Samsung Smart Control, press the KEYPAD button, and then select e-Manual to load the corresponding e-Manual page.
• On a standard remote, press the E-MANUAL button.

Certain menu options cannot be used.

Loading Reference Pages

Select ⓄLink) from the right side of a feature-description page to access the corresponding reference page.

Updating the e-Manual to the Latest Version

You can update the e-Manual in the same way you update apps.

1. Press the 📋 button to open the First Screen, and then select the Panel icon. The Panel screen appears.
2. Go to the SAMSUNG APPS screen and the highlight the e-Manual.
3. On the Samsung Smart Control, press and hold the touch pad. On a standard remote, press and hold the button. The Tools menu appears.
4. Select Update Apps from the Tools menu. A pop-up window appears.
5. Select e-Manual in the pop-up window and then select Update. To update the e-Manual to the latest version.

Configuring Auto Update

MENU > Smart Hub > Apps Settings

To update the e-manual automatically, navigate to the Smart Hub > Apps Settings menu and set the Auto Update option to On. The e-manual is updated automatically when an update becomes available.

Updating the TV's Software

MENU > Support > Software Update Try Now

View your TV's software version and update it if necessary.

DO NOT turn off the TV's power until the update is complete. The TV will turn off and on automatically after completing the software update. All video and audio settings return to the default settings after a software update.

Update now

MENU > Support > Software Update > Update now Try Now

An online upgrade downloads and installs the upgrade software directly from the Internet. Configure the TV to connect to a network and make sure it can access the Internet. Select Online.

Manual Update

Download the latest update file from the Samsung website. Decompress the file and copy it into the root directory of a flash drive. Insert the flash drive one of the TV's USB ports to install the update.

Enabling Automatic Software Updates

MENU > Support > Software Update > Auto Update Try Now

From the Support > Software Update menu, set Auto Update to On. The TV can always keep to the latest software because the TV can update a software internally. It also operates when using the TV.

While updating, you may experience that the TV functions for using internet may be slower.

This option requires an Internet connection.

If you agree to the Smart Hub terms and conditions, Auto Update will be set to On, If you don't want the TV's software updated automatically, set Auto Update (Support > Software Update > Auto Update) to Off.

Protecting the TV from Hacking and malicious code

MENU > System > Smart Security Try Now

When the TV is connected to the Internet, it is vulnerable to hacks and malicious code. Smart Security protects the TV and storage media connected to the TV from such threats.

Navigate to System > Smart Security and set Smart Security to On.

Checking the TV and Connected Storage Media

MENU > System > Smart Security > Scan Try Now

Navigate to System > Smart Security and select Scan. This scans the TV and connected media for the presence of malicious code. If no malicious code was detected, a notification window appears on the screen.

If malicious code is detected...

If malicious code was found, the results of the scan will appear on the screen. This result window displays all malicious code found, and provides options to either quarantine the code or allow them to continue.

1. Select all malicious code to quarantine or allow.
2. Select Block or Allow. This moves the selected malicious code to the Isolated List or Allowed List.

The Isolated List displays all blocked malicious code. You can also relocate codes from this list to the Allowed List. Try Now

The Allowed List displays all allowed malicious code. You can also relocate codes from this list to the Isolated List. Try Now

Automatically Scanning when the TV is Powered On

MENU > System > Smart Security > Settings > Auto Scan

Navigate to System > Smart Security > Settings and then set Auto Scan to On. This automatically scans the TV and connected storage media when the TV is powered on.

Automatically Adding malicious code to the Blocked List

MENU > System > Smart Security > Settings > Move to Isolated List automatically

Navigate to System > Smart Security > Settings and set Move to Isolated List automatically to On. Malicious code found during the scanning process is automatically added to the Blocked List.

Using Other Functions

Adjusting the Menu Transparency

MENU > System > Accessibility > Menu Transparency Try Now

Navigate to System > Accessibility and adjust the opacity level. Adjust the menu's transparency.

When the High Contrast (System > Accessibility > High Contrast) setting is set to On, menu display is automatically set to opaque and you cannot change the Menu Transparency settings.

White Text on Black Background (High Contrast)

MENU > System > Accessibility > High Contrast Try Now

Navigate to System > Accessibility and set High Contrast to On. This option changes major service screens to white text on black background or change the transparent TV menus to opaque so that text can be more easily read.

Expanding the Smart Hub's Focus Area

MENU > System > Accessibility > Enlarge Try Now

Navigate to System > Accessibility and set Enlarge to On. This zooms in the focused item when you use Smart Hub.

Checking Notifications

MENU > System > Notifications Try Now

Select Notifications from the System menu to view the list of event messages generated by the TV. Notifications appear on the screen when events such as an update release for an app or Samsung Account login/logout occurs.

Select Delete All to delete all notifications.

Select Service Notice to check the SMART TV service notifications in a web browser.

Changing the Menu Language

MENU > System > Menu Language Try Now

Select System > Menu Language and then choose a language from the list. Use this option to change the menu language.

Setting Up a Password

MENU > System > Change PIN Try Now

Set a PIN (Personal Identification Number) to lock channels, reset the TV, and change the TV settings.

1. Select System > Change PIN. The PIN input window appears.
2. Enter a PIN. The default PIN is 0000.
3. Enter a new PIN and then enter it again to confirm it. The PIN change is complete.

If you forget your PIN, you can reset it using your remote control. With the TV turned on, press the following buttons on the remote to reset the PIN to 0000: ↕ → + → RETURN → — → RETURN → + → RETURN. "+" is the Volume Up button. "-" is the Volume Down button.

Enabling Game Mode

MENU > System > General > Game Mode Try Now

Game Mode optimizes the TV's settings for playing video games on a gaming console such as PlayStation™ or Xbox™.

Game Mode cannot be used for normal TV viewing.

Connect the gaming console before enabling Game Mode. Otherwise, the picture quality may suffer.

The screen may shake a little.

Enabling Game Mode automatically sets the Picture Mode to Standard and the Sound Mode to Movie.

To use a different external device, first disconnect the game console and disable Game Mode.

Enjoying Rich Colors and Superior Picture Quality (BD Wise)

MENU > System > General > BD Wise Try Now

Connecting a Samsung DVD player, Blu-ray player, or home theater system that supports BD Wise enables the richest colors and best possible picture quality. Enabling BD Wise automatically optimizes the TV's resolution.

This feature is only available when the external device is connected via an HDMI cable.

Enabling/Disabling Sound Feedback

MENU > System > General > Sound Feedback Try Now

Sound Feedback provides audio cues as you navigate through menus and select menu options. Sound Feedback is on by default. You can set it to Low, Medium, High, or Off.

Locking/Unlocking the Panel Keys

MENU > System > General > Panel Lock Try Now

Use to lock and unlock the TV's front panel buttons (menu, channel, and volume). Select System > General > Panel Lock and lock/unlock the keys.

Showing/Hiding the Samsung Logo while Booting

MENU > System > General > Boot Logo Try Now

Use to enable or disable the Samsung logo display that appears when the TV starts up.

Enabling the TV to Boot Faster

MENU > System > General > Samsung Instant On Try Now

Set Fast Boot on to have the TV boot up faster.

Enabling/Disabling the Front Indicators

MENU > System > General > Light Effect Try Now

Use to turn the indicators on the front of the TV on/off. Turning the Light Effect off reduces the TV's power consumption.

The color of the TV's light may vary depending on the model.

Enabling the AV Color System

MENU > System > General > AV Color System

Availability depends on the specific area.

Normally the TV can receive image and sound with good quality when in the mode Auto. This mode detects the signal color system automatically. In case of some signal reception with color unsatisfactory, select the AV Color System mode to PAL-M, PAL-N or NTSC.

Available only in AV mode.

Registering the TV as a DivX-Certified Device (Watching Paid DivX Movies)

MENU > System > DivX® Video On Demand Try Now

To watch DivX DRM protected movies on the TV, you must register the TV as a DivX certified device.

DRM stands for Digital Rights Management and is a technical security mechanism to protect the copyright of the content provider.
You can watch movies that you have recorded or free DivX movies without registration.
Visit the DivX website (http://www.divx.com) and log into your user account before registering the TV as a DivX-certified device. If you do not have an account, please create one.

1. Select System > DivX® Video On Demand. A window with a registration code appears on the screen.
2. Visit the DivX website on a computer and click [Register Your Device] under [Support] from the top menu.
3. Enter the registration code shown on the TV's screen in the [Enter your registration code] field.
4. Enter the TV's name in the [Name your device] field and then click [NEXT].
5. Click [DOWNLOAD] and save the [device_name.divx] file.
6. Transfer the [device_name.divx] file from the computer onto a USB device and then plug the USB device into the TV.
7. Play the [device_name.divx] file on the TV to register the TV as a DivX-certified device.

Restoring the TV to the Factory Settings

MENU > Support > Self Diagnosis > Reset Try Now

This option restores all TV settings (excluding the Internet) to the factory defaults.

1. Select Support > Self Diagnosis > Reset. The Security PIN entry window appears on the screen.
2. Enter the Security PIN and then select Yes. All settings are then reset. The TV turns off and on again automatically, and then displays the Setup screen.

For more information on Setup, refer to the user manual that came with the TV.

Turning the TV into a Display Model (exclusively for retail stores)

MENU > Support > Use Mode Try Now

Select Support > Use Mode > Store Demo. This turns the TV into a display model for use in a retail environment.

For all other uses, select Home Use.

Store Demo should be used in retail environments only. With Store Demo, certain functions are disabled and the TV automatically resets itself after a certain amount of time.

Getting Support

The TV has several built-in systems designed for user and TV system support.

Support through Remote Management

MENU > Support > Remote Management Try Now

If you need assistance with your TV, you can use this feature to let Samsung Electronics diagnose your TV remotely. You will need to read and agree to the service agreement before using this feature. A Samsung Electronics technician will then diagnose, repair, and update your TV remotely. These features are only available when your TV is connected to the Internet.

What Does Remote Service Do?

Samsung Remote Support service offers you one-on-one support with a Samsung Technician who can remotely.

• Diagnose your TV
• Adjust the TV settings for you
  • Perform a factory reset your TV
  • Install recommended firmware updates

How Does it Work?

Having a Samsung Tech remotely service your TV is easy.

Laptop screen displaying a video call interface with user profile and chat messages, alongside a blue telephone icon.

Call the Samsung Contact Center and ask for remote support.

MENU SUPPORT

Open the menu on your TV and go to the Support section.

PIN# SAMSUNG

Select Remote Management, and then read and agree to the service agreements. When the PIN screen appears, provide the PIN number to the agent.

Illustration of a doctor on a computer screen displaying ECG waveform and Chinese text '基本健康评价报告'

The agent accesses your TV.

Finding the Information You Need for Service

MENU > Support > Contact Samsung Try Now

Use this option to display the address of the Samsung website, the call center phone number, your TV's model number, your TV's software version, the Smart Hub info, and other information you need to get service support from a Samsung call agent or the Samsung website.

There is a problem with the picture.

Testing the Picture

MENU > Support > Self Diagnosis > Picture Test Try Now

Before you review the list of problems and solutions below, use Picture Test to determine if the problem is caused by the TV. The Picture Test displays a high definition picture you can examine for flaws or faults. If the test picture does not appear or there is noise or distortion, the TV may have a problem. Contact Samsung's Call Center for assistance. If the test picture is displayed properly, there may be a problem with an external device. Please check the connections. If the problem persists, check the signal strength or refer to the external device's user manual.

The Problem Try this!
Flickering and Dimming	If your Samsung Television is flickering or dimming sporadically, you may need to disable some of the energy efficiency features. Disable Energy Saving (System > Eco Solution > Energy Saving) or Eco Sensor (System > Eco Solution > Eco Sensor).
Component Connections/Screen Color	If the color on your Samsung television screen is not correct or the black and white colors are off, run Picture Test (Support > Self Diagnosis > Picture Test). If the test results indicate that the problem is not caused by the TV, do the following:Confirm that the TV's video input connectors are connected to the correct external device video output connectors.Check the other connections as well. If the TV is connected to an external device via a component cable, confirm that the Pb, Pr, and Y jacks are plugged into their proper connectors.
Screen Brightness	If the colors on your Samsung TV are correct but just a little too dark or bright, try adjusting the following settings first.Go to the Picture menu and adjust the Backlight, Contrast, Brightness, Sharpness, Color, and Tint (G/R) settings.
Auto Motion Plus/Blur	If you notice ghosting or blurring on the screen, use the Auto Motion Plus option (Picture > Picture Options > Auto Motion Plus) to resolve the issue.
Unwanted Powering Off	If your Samsung TV appears to turn off by itself, try disabling some of the TV's energy efficiency features. See if Sleep Timer (System > Time > Sleep Timer) has been enabled. The Sleep Timer automatically turns the TV off after a specified period of time. If the Sleep Timer has not been enabled, see if No Signal Power Off (System > Eco Solution > No Signal Power Off) or Auto Power Off (System > Eco Solution > Auto Power Off) has been enabled and disable them.
Problems Powering On	When the TV is turned on, the remote control receiver flashes 5 times before the screen turns on.If you are having problems powering on your Samsung television, there are a number of things to check before calling the service department. Confirm that the TV's power cord is connected correctly at both ends and that the remote control is operating normally. Make sure that the antenna cable or cable TV cable is firmly connected. If you have a cable/satellite box confirm that it is plugged in and turned on.

The Problem Try this!

Unable to find a Channel	If your TV is not connected to a cable box or satellite box, run Setup (System > Setup) or Auto Program / Auto Tuning (Broadcasting > Auto Program / Auto Tuning).
The TV image does not look as good as it did in the store.	Store displays are all tuned to digital, HD (high definition) channels.If you have an analog cable/set top box, upgrade to a digital set top box. Use HDMI or Component cables to deliver HD (high definition) picture quality.Many HD channels are upscaled from SD (Standard Definition) content. Look for a channel that is broadcasting true HD content.Cable/Satellite Subscribers: Try HD channels from the channel lineup.Air/Cable Antenna Connection: Try HD channels after running the Auto Program function.Adjust the cable/satellite box's video output resolution to 1080i or 720p.
The picture is distorted.	The compression of video content may cause picture distortions, especially in fast moving pictures from sports programs and action movies.A weak or bad quality signal can cause picture distortions. This is not an issue with the TV.Mobile phones used close to the TV (within 3 ft/1m) may cause noise in analog and digital channels.
The color is wrong or missing.	If you're using a Component connection, make sure that the Component cables are connected to the correct jacks. Incorrect or loose connections may cause color problems or a blank screen.
The color is poor or the picture is not bright enough.	Go to the Picture menu and then adjust the Picture Mode, Brightness, Sharpness, and Color settings.See if Energy Saving (System > Eco Solution > Energy Saving) has been enabled. Try resetting the picture. (Picture > Reset Picture)
There is a dotted line on the edge of the screen.	If the Picture Size has been set to Screen Fit, change the setting to 16:9.Change the cable/satellite box resolution.
The picture is black and white.	If you are using AV composite input, connect the video cable (yellow) to the TV's green component jack.

I can't hear the sound clearly.

Testing the Sound

MENU > Support > Self Diagnosis > Sound Test Try Now

Before you review the list of problems and solutions below, make sure that the TV Sound Output menu item is set to TV Speaker, and then listen to the speakers again. If the TV still does not play audio, run the Sound Test. The Sound Test uses a built-in melody to check for sound problems. If the TV does not play sound during the Sound Test, or the sound is distorted, there may be a problem with the TV. Contact Samsung's Call Center for assistance. If the TV plays the Sound Test melody without distortion, there may be a problem with an external device. Please check the connections. If the problem persists, refer to the external device's user manual.

The Problem Try this!
There is no sound or the sound is too low at maximum volume.	Check the volume control of the device (cable/satellite box, DVD, Blu-ray, etc.) connected to your TV.
The picture is good but there is no sound.	SetSound >Speaker Settings >TV Sound Output to TV Speaker.If you are using an external device, check the device's audio output option. (For example, you may need to change your cable box's audio option to HDMI if the box connected to your TV is using an HDMI cable.)To listen to the computer sound, connect the external speaker to the computer's audio output connector.If your TV has a headphone jack, make sure there is nothing plugged into it.Reboot the connected device by disconnecting and then reconnecting the device's power cable.
The speakers are making an odd sound.	Make sure that the audio cable is connected to the correct audio output connector on the external device.For antenna or cable connections, check the signal information, A low signal level may cause sound distortions.RunSound Test (Support >Self Diagnosis >Sound Test).

I can't see 3D images clearly.

Testing 3D Picture Quality

MENU > Support > Self Diagnosis > 3D Picture Test Try Now

To test 3D picture quality, you must be wearing 3D glasses and the glasses and the TV must be paired.

To test 3D picture quality, the TV and the 3D glasses must have been paired. Put on the 3D glasses, navigate to Support > Self Diagnosis and select 3D Picture Test. The 3D Picture Test displays a high definition picture to examine the 3D screen for flaws or faults. If the test fails to identify a problem, there may be a problem with an external device or the signal strength.

If the test picture does not appear or there is noise or distortion, the TV may have a problem. Contact Samsung's Call Center for assistance.

If the test picture is displayed properly, there may be a problem with the external device. Please check the connections. If the problem persists, check the signal strength or refer to the external device's user manual.

The Problem Try this!

The 3D glasses are not working correctly.	Make sure the glasses are powered on.The 3D feature may not work properly if there is another 3D product or an electronic device running nearby.If there is a problem, keep other electronic devices as far away as possible from the 3D Active Glasses.
I can't see 3D images clearly.	The ideal viewing distance is three times or more the height of the screen.We also recommend watching 3D content with your eyes level with the screen.
The batteries in the 3D glasses are flat.	Turn off the 3D glasses when they are not in use. If you leave the 3D glasses on, the battery lifespan is shortened.

There is a problem with the broadcast.

The Problem Try this!
The TV is not receiving all channels.	If your TV is not connected to a cable box or satellite box:Confirm that the coaxial cable is securely connected to the TV.If you are using an antenna, verify it is positioned correctly and the all the connections are secure.Run Setup (System > Setup) or Auto Program / Auto Tuning (Broadcasting > Auto Program / Auto Tuning).
There are no captions with digital channels.	Go to Caption (System > Accessibility > Caption) and change the Caption Mode. Some channels may not have caption data.
The picture is distorted.	The compression of the video content may cause picture distortions. This is especially true with fast moving pictures from sports programs and action movies.A weak signal can cause picture distortions. This is not a problem with the TV.

The computer won't connect.

The Problem Try this!
The "Mode Not Supported" message appears.	Set your PC's output resolution so it matches a resolution supported by the TV.
The video is OK but there is no audio.	If you are using an HDMI connection, check the audio output setting on your PC.If you are using a DVI to HDMI cable, a separate audio cable is required.

I can't connect to the Internet.

The Problem Try this!
The wireless network connection failed.	Make sure the TV is connected to a wireless IP router.
The software update over the Internet has failed.	Check the network connection status.If the TV is not connected to a network, connect to a network.The upgrade stops if you already have the latest software version.

The Schedule Recording/Timeshift function isn't working.

There is something wrong with the TV.	Try this!
The TV cannot recognize the USB device or the Format Device, Check Device and Device Performance Test.	Refer to the USB device's manual and see if data can be stored on it.Check if the USB device is in a locked state.Check if the USB device was formatted when it was connected to a computer. Formatting a USB device after connecting it to the TV may result in a formatting failure. If Device Performance Test or Format Device has failed, there may be a problem with the USB device or its specifications. Try using a different USB device.
There is a message saying I need to format the USB storage device.	Check if the USB device is in a locked state.Use the USB recovery function to recover the USB device.
Schedule Recording cannot be used.	Check if there is a USB device connected to the TV.Check if the channel is a digital channel that can be recorded. Recording will automatically stop if the signal becomes too weak. The Timeshift function will not work if there isn't enough storage space on the USB device.
I get a performance test failure message and then Schedule Recording and the Timeshift operation stops working.	This problem can occur when using a low-performance USB storage device that does not support recording. A USB hard drive with a speed of 5,400rpm or above is recommended. A USB memory Stick is not supported.

Anynet+ (HDMI-CEC) isn't working.

The Problem Try this!

Anynet+ does not work.	Confirm that the device is an Anynet+ device. The Anynet+ system supports Anynet+ devices only.Check if the power cord of the Anynet+ device is properly connected.Check the cable connections of the Anynet+ device.Go to System and see if Anynet+ (HDMI-CEC) has been set to On.Check whether the TV remote control is in TV mode.Check whether the remote control is Anynet+ compatible.Anynet+ may not function when some other functions are active, including ... (Channel Search, Smart Hub, Start Up, etc.)If you have disconnected and then reconnected the HDMI cable, scan for devices again or turn your TV off and on.
I want to start Anynet+.	Check if the Anynet+ device is properly connected to the TV and then navigate to the System menu to see if Anynet+ (HDMI-CEC) is set to On.Once verified, press the TOOLS button on a standard remote. On the Samsang Smart Control, press the KEYPAD button, and then select the Tools button, A list appears. Select Anynet+ (HDMI-CEC) from the list and then a device.
I want to exit Anynet+.	Select View TV from the Anynet+ menu.Select a non-Anynet+ device from the Source list.
The message "Connecting to Anynet+ device..." or "Disconnecting from Anynet+ device" appears on the screen.	You cannot use the remote control when you are configuring Anynet+ or switching to a viewing mode. Use the remote control after the TV has completed the Anynet+ configuration or has switched to a viewing mode.
The Anynet+ device won't play.	You cannot use the play function when Setup is in progress.
The connected device is not displayed.	Check whether the device supports Anynet+.Check whether the HDMI cable is properly connected.Go to System and see if Anynet+ (HDMI-CEC) has been set to On.Scan for Anynet+ devices again.Anynet+ devices must be connected to the TV using an HDMI cable. Make sure the device is connected to your TV with an HDMI cable. Some HDMI cables may not support Anynet+.If the connection is terminated because there has been a power failure or the HDMI cable has been disconnected, please scan for the device again.
The TV audio is not being played through the receiver.	Connect an optical cable to the TV and the receiver.ARC enables digital sound to be outputted via the HDMI (ARC) port.However, ARC is only available when the TV is connected to an audio receiver that supports ARC.

I am having trouble launching/using apps.

The Problem Try this!
I launched an app, but it's in English, How can I change the language?	Languages supported by the app may be different from the user interface language. The ability to change the language depends on the service provider.
My application is not working.	Check with the service provider.Refer to the help section on the application service provider's website.

My file won't play.

The Problem Try this!
Some files can't be played.	This problem may occur with high-bitrate files. Most files can be played back, but you might experience problems with high-bitrate files.

I want to reset the TV.

Reset Path Description
Reset Settings	MENU > Support > Self Diagnosis > Reset	Reset Picture, Sound, Channel, Smart Hub, and all other settings except for the network settings to their factory default settings.
Resetting Smart Hub	MENU > Smart Hub > Smart Hub Reset	Reset all saved information relating to Samsung accounts and linked service accounts, as well as Smart Hub service agreements and applications.

Other Issues

The Problem Try this!
The TV is hot.	Watching TV for an extended period of time causes the panel to generate heat.The heat from the panel is dissipated through internal vents running along the top of the TV. The bottom, however, may feel hot to the touch after extended use. Children watching TV need constant adult supervision to prevent them from touching the TV. This heat, however, is not a defect and does not affect the TV's functionality.
The picture won't display in full screen.	HD channels will have black bars on either side of the screen when displaying upscaled SD (4:3) content.Black bars will appear at the top and bottom of the screen when you watch movies that have aspect ratios different from your TV.Adjust the picture size options on your external device or set the TV to full screen.
The "Mode Not Supported" message appears.	The output resolution of the attached device is not supported by the TV. Check the TV's supported resolutions accordingly.
The Captions item in the TV menu is grayed out.	You cannot select the Caption menu if you have selected a source connected to the TV via HDMI or Component. To view captions, turn on the external device's caption function.
The TV smells of plastic.	This smell is normal and will dissipate over time.
The Signal Information option under Self Diagnosis isn't activated.	Verify that the current channel is a digital channel.The Signal Information is only available for digital channels.
The TV is tilted to the side.	Remove the base stand from the TV and reassemble it.
The Broadcasting option has been deactivated.	Broadcasting is only available when the Source is set to TV.The Broadcasting menu cannot be accessed while watching TV using a cable box or satellite receiver.
The settings are lost after 5 minutes or every time the TV is turned off.	If the Use Mode is set to Store Demo, the TV's audio and video settings are automatically reset every 5 minutes.Change the Use Mode (Support > Use Mode) to Home Use.
There is an intermittent loss of audio or video.	Check the cable connections and reconnect them.Loss of audio or video can be caused by using overly rigid or thick cables.Make sure the cables are flexible enough for long term use. If you are mounting the TV to a wall, we recommend using cables with 90-degree connectors.
There are small particles on the TV's bezel.	This is part of the product's design and is not a defect.
The PIP menu is not available.	PIP functionality is only available when you are using an HDMI or Component source.
A POP (TV's internal banner ad) appears on the screen.	Change the Use Mode (Support > Use Mode) to Home Use.
The TV is making a popping noise.	The expansion and contraction of the TV's outer casing may cause a popping noise. This does not indicate a product malfunction. The TV is safe to use.
The TV is making a humming noise.	Your TV utilizes high-speed switching circuits and high levels of electrical current. Depending on the TV's brightness level, the TV may seem slightly noisier than a conventional TV.Your TV has undergone strict quality control procedures that meet our demanding performance and reliability requirements.Some noise coming from the TV is considered normal and is not an acceptable cause for an exchange or refund.

Read Before Using 3D Viewing Mode

3D Precautions

Warning

- In 3D view mode, the screen may flicker under fluorescent lighting (50Hz \~ 60Hz) or three-way lighting.

If this occurs, turn off the lighting or adjust it to a lower level.

- When you switch the picture mode from 3D view, the 3D view mode turns off, and the 3D glasses no longer provide a 3D image.

When you turn off 3D mode, the 3D glasses also turn off in a few moments.

- If you are watching TV with 3D glasses and you lie on your side, the picture may look darker or may not be visible.

- If the 3D glasses are defective or damaged, they cannot be repaired and should be exchanged for a new pair. The repair service is free of charge within the warranty period. Note that the warranty does not cover damage caused by the user.

- The actual 3D effect may be experienced differently depending on the viewer. The 3D effect may not be experienced by a person who has a large difference of vision between the left and right eyes.

- In 3D view mode, watch TV within the recommended distance.

The 3D functionality of the glasses may not work properly if you move out of the recommended range for about 3 seconds or more.

If you stay out of the recommended range, the 3D glasses lose wireless communications with the TV. If this occurs, the 3D display turns off and, a few seconds later the glasses turn off.

- The 3D glasses may not work properly if there are any nearby active 3D devices or electronic or wireless communication devices (for example, a device that uses the 2.4GHz or 5GHz frequency range such as a microwave or AP). If this occurs, move the devices away from the 3D glasses.

- The 3D glasses may not work properly near metal objects or in an electromagnetic field. If this occurs, move the metal objects or the electromagnetic device away from the 3D glasses.

- The vividness of the image may be degraded if you watch TV in a location that is exposed to direct sunlight or illumination.

- The temples of the 3D glasses do not fold. Do not attempt to fold the temples. You can damage the 3D glasses.

- With SSG-3570 model glasses, if you watch 3D content for an extended time, the 3D glasses may turn off automatically.

- For SSG-3570 model glasses, if they do not work when you first put them on, take them off, and then put them on again.

- The Samsung Multi View 3D Glasses may not work properly near metal objects or near an electromagnetic field. If this occurs, move the metal objects or the electromagnetic device away from the 3D glasses.

Caution

IMPORTANT HEALTH AND SAFETY INFORMATION. YOU MUST READ THE FOLLOWING CAUTIONS BEFORE YOU OR YOUR CHILD USE THE 3D FUNCTION.

• Adults should frequently check on children who are using the 3D function. If your child shows any symptom such as eye fatigue, headache, dizziness, or nausea, stop the child from watching 3D video immediately, and have the child remove the 3D glasses and rest.
• Do not use the 3D glasses for other purposes such as general eyeglasses, sunglasses, protective goggles, etc.
• While watching 3D content, you may experience eye strain, headache, dizziness and nausea. If eye fatigue occurs, stop viewing 3D video immediately, take off the 3D glasses, and rest.
• Viewing 3D video for an extended period of time may cause eye fatigue. If eye fatigue occurs, stop viewing 3D video immediately, take off the 3D glasses, and rest.
• Do not use the 3D function or 3D glasses while walking or moving around. Using the 3D function or 3D Active Glasses while moving around may result in injury from running into objects, tripping, and/or falling.
• If you sleep with the 3D glasses on, the temples on the glasses may become broken.
• Note that the temples on your 3D glasses are not foldable. Trying to fold the temples by force may damage the glasses.
• Do not shake your 3D glasses repeatedly. Shaking the glasses will power them on and can cause the battery to discharge faster than it should.

Safety Precautions

Follow the safety instructions below to ensure your personal safety and prevent property damage.

• Do not place the product in a location exposed to direct sunlight, heat, fire, or water. Exposure may result in a product malfunction or fire.
• Do not apply force to the lenses of the 3D glasses. Do not drop or bend the glasses. Applying force, dropping, or bending may result in a product malfunction.
• Keep components of the 3D glasses out of reach of children so that children do not swallow one of the components. If your child swallows a component, consult your doctor immediately.
• When cleaning the glasses, do not spray water or cleaner directly onto the glasses' surface. Spraying water or cleaner directly onto the glasses may result in fire or electric shock, damage to the product's surface, or cause the indicator labels on the glasses' surface to come loose.
• Do not apply alcohol, solvents, wax, benzene, thinners, pesticides, air fresheners, lubricants, or cleaners, or any product containing these substances, to the glasses. These chemicals may cause the glasses' exterior to discolor or crack, or remove the labels or instructions
• Use only a soft cloth made of superfine fibers or cotton flannels to clean the glasses as the surface or the lenses scratch easily. Because the glasses can be easily scratched by foreign substances, make sure to shake any dust off the cloth before using it.
• Do not disassemble, or attempt to repair or modify your 3D active glasses by yourself.
• Be careful not to injure your eyes with the temple ends of the 3D glasses.
• Do not sleep with the 3D glasses on. You can damage the them.
• Put the 3D Glasses on and take them off with both hands.
• Use only approved batteries, and make sure to insert the batteries with the polarities (+ and -) positioned correct. If the batteries are replaced with the polarities incorrectly positioned the batteries may explode or leak. This may cause a fire, inflict injury on users, or contaminate (damage) the environment. (For the SSG-5100 model).
• With SSG-5100 model glasses, keep the used battery out of the reach of children so that they do not accidentally swallow the battery. If your child has swallowed the battery, consult your doctor immediately.
• If you have the SSG-5100 model glasses, keep batteries you have removed from the glasses out of children's reach to prevent children from swallowing them. If a child swallows a battery, consult with a doctor immediately.

Supported Resolutions for 3D Modes

These specifications apply to the 16:9 display ratio only.

HDMI

• 3D Mode: (L/R), (T/B)

Resolution Frequency (Hz)
1280 x 720p 50 / 60
1920 x 1080i 50 / 60
1920 x 1080p 24 / 25 / 30 / 50 / 60

- 3D Mode: Horizontal Line), (Vertical Line), (Pixel), (Frame)

Resolution Frequency (Hz)
1280 x 720p 50 / 60
1920 x 1080i 50 / 60
1920 x 1080p 25 / 30

Component

Resolution Frequency (Hz)
1280 x 720p 59.94 / 60
1920 x 1080i 59.94 / 60
1920 x 1080p 23.98 / 24 / 29.97 / 30 / 59.94 / 60

Digital Channel

Resolution Frequency (Hz)
1280 x 720p 59.94 / 60
1920 x 1080i 59.94 / 60

Videos/Photos

Refer to the "Read Before Playing Photo, Video, or Music Files" section.

Computer via HDMI Cable

The optimal resolution for computers connected to the TV via an HDMI cable is 1920 x 1080. If you select another resolution, the TV may not display 3D images correctly and may not be able to display the computer video in full screen.

Read Before Using Voice, Motion, or Face Recognition

Voice, Motion, and Face Recognition Precautions

Face Recognition

• This product saves thumbnail images of users' faces for use during the Face Login.
• Logging into the Smart Hub via Face Recognition may be less secure than logging in using an ID and password.

Using the TV Camera

• Under some circumstances and under certain legal conditions, the use/misuse of the TV camera may result in illegal actions. There may be obligations under local privacy laws regarding the protection of individuals concerning personal data and on the free movement of such data, and possibly other laws including criminal laws regulating camera surveillance both in the workplace and elsewhere.
• By using the TV camera, users agree that it will not be used (i) in locations where cameras are generally prohibited (such as bathrooms, locker rooms or changing rooms), (ii) in any manner that will result in an invasion of a person's privacy, or (iii) in violation of any applicable laws, regulations or statutes.
• When you are no longer using the camera, close the lens cover of the camera. This prevents any inadvertent or unintentional camera operation.

Motion Control

• Motion Control work by connecting the camera. For Motion Control to work, you must be within the camera's recognition range. The camera's recognition range varies depending on the ambient light level and other factors.
• Run the Motion Control Environment Test before using Motion Control to determine the camera's recognition range.
• You may experience physical fatigue when using Motion Control for extended periods.

Voice Control

• Voice Control is not available in all languages, dialects or regions. The performance varies depending on the language chosen, voice volume, and ambient noise levels in the surrounding area.
• Voice Text Input requires that you agree to any third-party app's voice privacy policy and that you provide Samsung with the your MAC address and other private information.
• Voice Text Input lets you enter text using voice commands instead of a mouse, keyboard, or remote control. This feature is particularly useful for searching, browsing the web, and using applications.
• You must agree to the following privacy notices before using Interactive Voice Control:
  – Voice Recognition Privacy Notice and Nuance Privacy Notice

Requirements for Using Voice, Motion, or Face Recognition

Requirements for Using Voice Recognition

- The voice recognition rate varies depending on the volume/tone, pronunciation, and ambient sound environment (TV sound and ambient noise)

Requirements for Using Motion Recognition

• You should be located between 1.5m and 3.5m from the camera. The actual recognition range may vary depending on the camera angle and other factors.
• Motion Control relies on the TV camera and therefore will not function if the camera is pointed up or down. Adjust the camera's position toward the front. Do not point the camera directly at the sun or any other light source or obstruct its view.
• For the camera to recognize movement, you have to stand out from the background.
• The appropriate ambient brightness is 50 to 500 lux. (100 Lux: Bathroom, 400 Lux: Living Room)
• Avoid direct sunlight when using Motion Control.
• Run the Motion Control Environment Test to assess the camera's recognition range before using Motion Control.

Requirements for using Face Recognition

• You should be located between 1.5m and 4m from the camera. The actual recognition range may vary depending on the camera angle and other factors.
• The appropriate ambient brightness is 50 to 500 lux. (100 Lux: Bathroom, 400 Lux: Living Room)
• Face Recognition can recognize up to 5 different users at a time.

• The TV may have difficulty recognizing twins and people with similar faces as two different individuals.
  • Note the following when using Face Recognition:

• Do not cover your face with a hat, a pair of sunglasses, or your hair.

• Your entire face must be visible to the camera. Avoid shadows over your face. Shadows prevent the camera from recognizing faces accurately.
• Keep your expression as neutral as possible. In addition, keep your mouth closed and as neutral as possible.
• When you log into your Samsung account, your facial expression must be the same as the facial expression you had when you registered. Facial expression you had during the registration process.

Read Before Using Apps

• Due to the product characteristics featured on the Samsung Smart Hub, as well as limitations in available content, certain features, applications, and services may not be available on all devices or in all territories. Some Smart Hub features may also require additional peripheral devices or membership fees. Visit http://www.samsung.com for more information on specific device information and content availability. Services and content availability are subject to change without prior notice.
• Samsung Electronics takes no legal responsibility whatsoever for any interruption of app services caused by the service provider for any reason.
• Application services may be provided in English only and available content may vary depending on the area.
• For more information about applications, visit the applicable service provider's website.
• An unstable Internet connection may cause delays or interruptions. In addition, applications may terminate automatically depending on the network environment. If this occurs, check your Internet connection and try again.
• Application services and updates may become unavailable.
• Application content is subject to change by the service provider without prior notice.
• Specific services may vary depending on the version of the application installed on the TV.
• An application's functionality may change in future versions of the application. If this occurs, run the application's tutorial or visit the service provider's website.
• Depending on the service provider's policies, certain applications may not support multitasking.

Read Before Using the Web Browser

1. Select Web Browser. The browsing screen may differ from the one on your computer.
2. The web browser is not compatible with Java applications.
3. You cannot download files. If you attempt to download a file, you will receive an error message instead.
4. The web browser may not be able to access certain websites.
5. Playing Flash videos may be restricted.
6. E-commerce for online purchases is not supported.
7. With websites that have scrollable windows, scrolling a window can result in corrupted characters.
8. ActiveX is not supported.
9. Certain options are not accessible in Link Browsing mode. (Switch to Pointer Browsing to activate those options.)
10. Only a limited number of fonts are supported. Certain symbols and characters may not be displayed properly.
11. The response to remote commands and the resulting on-screen display may be delayed while a webpage is loading.
12. Loading a webpage may be delayed or suspended completely with certain operating systems.
13. The copy and paste operations are not supported.
14. When composing an email or a simple message, certain functions such as the font size and color selection may not be available.
15. There is a limit to the number of bookmarks and the size of the log file that can be saved.

16. The number of windows that can be opened concurrently varies depending on the search conditions and the TV model.

17. The web browsing speed will vary depending on the network environment.

18. The web browser supports .mp3 audio files only.
19. The web browser supports a specific file format for importing and exporting bookmarks. (Compatible Format: Netscape-bookmarkfile- 1)
20. The folder tree information is not included when importing and exporting bookmarks.
21. Exporting bookmarks to a USB device connected to the TV saves the bookmarks under a folder named "Samsung SmartTV Bookmark".
22. If the Clock (System > Time > Clock) has not been set, the browsing history will not be saved.
23. The browsing history is saved from latest to oldest, with the oldest entries being overwritten first.
24. Depending on the types of video/audio codecs supported, it might not be possible to play certain video and audio files while playing Flash content.
25. Video sources from PC-optimized streaming service providers may not play properly on our proprietary web browser.
26. Using the on-screen QWERTY keyboard automatically disables PIP. (Except when entering a URL.)

Read Before Playing Photo, Video, or Music Files

Photo, Video, and Music File Use Limitations

• The TV supports MSC (Mass Storage Class) USB devices only. MSC is a class designation for mass storage devices. Types of MSC devices include external hard drives, flash card readers, and digital cameras. (USB hubs are not supported.) These kinds of devices must be connected directly to the TV's USB port. The TV may not be able to recognize the USB device or read the files on the device if it is connected to the TV via a USB extension cable. Do not disconnect the USB device while transferring files.
• When connecting an external hard drive, use the USB (HDD) port. We recommend that you use an external hard drive with its own power adapter.
• Certain digital cameras and audio devices may not be compatible with the TV.
• If there are multiple USB devices connected to the TV, the TV might not be able to recognize some or all the devices. USB devices that use high-power input (500mA or 5V) may not be supported.
• The TV supports the FAT, exFAT, and NTFS file systems.
• After sorting files in the Folder view mode, the TV can display up to 1000 files per folder. If the USB device contains more than 8,000 files and folders, however, some files and folders might not be accessible.
• The PTP (pier to pier) connection mode is available only for digital cameras. If you connect a smartphone or tablet to the TV using PTP mode, the TV will not recognize it.

Sending Files between Storage Devices Table

Storage device containing media content Target device
USB Device	DLNA Device, SugarSync, Dropbox, SkyDrive, Mobile Device
Camera DLNA Device
DLNA Device USB Device
SugarSync, Dropbox, SkyDrive USB Device
Mobile Device USB Device

Supported External Subtitles

Certain files, depending on how they were encoded, may not play on the TV.

Name Format
MPEG-4 Timed text .ttxt
SAMI .smi
SubRip .srt
SubViewer .sub
Micro DVD .sub or .txt
SubStation Alpha .ssa
Advanced SubStation Alpha .ass
Powerdivx .psb
SMPTE-TT Text .xml

Supported Internal Subtitles

Certain files, depending on how they were encoded, may not play on the TV.

Name Format
Xsub AVI
SubStation Alpha MKV
Advanced SubStation Alpha MKV
SubRip MKV
MPEG-4 Timed text MP4
TTML in smooth streaming	MP4
SMPTE-TT TEXT	MP4
SMPTE-TT PNG	MP4

Supported Image Formats and Resolutions

Certain files, depending on how they were encoded, may not play on the TV.

File Extension Format Resoltuion
*.jpg*.jpeg	JPEG 15360x8640
*.png PNG 4096x4096
*.bmp BMP 4096x4096
*.mpo MPO 15360x8640

Supported Music Formats and Codecs

Certain files, depending on how they were encoded, may not play on the TV.

File Extension	Format Codec Note
*.mp3	MPEG	MPEG1 Audio Layer 3
*.m4a *.mpa *.aac	MPEG4	AAC
*.flac	FLAC	FLAC	Supports up to 2 channels
*.ogg	OGG	Vorbis	Supports up to 2 channels
*.wma	WMA	WMA	Supports up to 10 Pro 5.1 channelsWMA lossless audio is not supportedSupports up to the M2 profile
*.wav	wav	wav
*.mid *.midi	midi	midi	Supports type 0 and type 1Seek is not supportedUSB is supported
*.ape	ape	ape
*.aif *.aiff	AIFF	AIFF
*.m4a	ALAC	ALAC

Supported Video Codecs

Certain files, depending on how they were encoded, may not play on the TV.

File Format	Container Video Codecs Resolution			Frame Rate (fps)	Bitrate (Mbps)	Audio Codec
*.avi*.mkv*.asf*.wmv*.mp4*.mov*.3gp*.vro*.mpg*.mpeg*.ts*.tp*.trp*.mov*.flv*.vob*.svi*.m2ts*.mts*.divx	AVIMKVASFMP43GPMOVFLVVROVOBPSTSSVAF	HEVC(H.265) 8	30	FHD: MAX 30 HD: MAX 60		AC3LPCMADPCM(IMA, MS)AACHE-AACWMADD+MPEG(MP3)DTS(Core, LBR)G.711(A-Law, μ-Law)
		Motion JPEG
		H.264 BP / MP / HP
		DivX 3.11 / 4 / 5 / 6
		MPEG4 SP/ASP
		Window Media Video v9(VC1)
		MVC 1920x1080
		MPEG2 30
		MPEG1
		Microsoft MPEG-4 v1, v2, v3
		H.263 Sorrenson MAX
		Window Media Video v7(WMV1),v8(WMV2)
		VP6
*.webm	WebM	VP8	1920x1080	6~30	20	Vorbis

Other Restrictions

• Codecs may not function properly if there is a problem with the content data.
• Video content does not play or does not play correctly if there is an error in the content or container.
• Sound or video may not work if they have standard bit rates/frame rates above the TV's compatibility ratings.
• If the Index Table is wrong, the Seek (Jump) function does not work.
• When playing video over a network connection, the video may not play smoothly because of data transmission speeds.
• Some USB/digital camera devices may not be compatible with the player.
  • HEVC codec is only available in MKV /MP4 / TS containers.

Video Decoders

• Supports up to H.264, Level 4.1 (does not support FMO/ASO/RS)
• VC1 AP L4 is not supported.
- All video codecs excluding WMV v7, v8, MSMPEG4 v3, MVC, and VP6:
Below 1280x720: 60 frame max
Above 1280x720: 30 frame max
• GMC 2 or above is not supported.
• Supports SVAF top/bottom and left/right only.
• Supports Blu-ray/DVD MVC specs only.

Audio Decoders

• WMA 10 Pro supports up to 5.1 channels. Supports up to the M2 profile.
  • This does not support WMA 10Pro M3.
  • WMA lossless audio is not supported.
  • QCELP and AMR NB/WB are not supported.
  • Vorbis is supported for up to 2 channels.
  • DD+ is supported for up to 5.1 channels.
• The DTS LBR codec is only available for MKV / MP4 /TS containers.

Read After Installing the TV

Picture Sizes and Input Signals

Input Signal Picture Size
Analog Channel/External Input	16:9, Zoom1, Zoom2, Wide Zoom, Zoom, 4:3
Component (480i, 480p)	16:9, Zoom1, Zoom2, Wide Zoom, Zoom, 4:3
Component (720p)	16:9, Wide Zoom, Zoom, Wide Fit, 4:3
Component (1080i, 1080p)	16:9, Wide Zoom, Zoom, Wide Fit, 4:3, Screen Fit
Digital Channel (720p)	16:9, Zoom, Wide Fit, 4:3, Smart View 2
Digital Channel (1080i, 1080p)	16:9, Zoom, Wide Fit, 4:3, Screen Fit, Smart View 2
HDMI (720p, 1080i, 1080p)	16:9, Zoom, Wide Fit, 4:3, Screen Fit, Smart View 1, Smart View 2

Availability depends on the specific area.

The Picture Size setting is applied to the current source. The applied Picture Size will remain in effect whenever you select that source unless you change it.

Installing an Anti-Theft Lock

An anti-theft lock is a physical device that can be used to protect the TV against theft. Look for the lock slot on the back of the TV. The slot has a 🔒 icon next to it. To use the lock, wrap the lock cable around an object that is too heavy to carry and then thread it through the TV's lock slot. The lock, is sold separately.

The method of using an anti-theft lock may differ for each TV model. Refer to the lock's user manual for more information.

Read Before Setting Up a Wireless Internet Connection

Wireless Internet Precautions

• This TV supports the IEEE 802.11a/b/g /n communication protocols. Samsung recommends using IEEE 802.11n. Video files stored on a device connected to the TV via DLNA may not play back smoothly.
• To use wireless Internet, the TV must be connected to a wireless router or modem. If the wireless router supports DHCP, the TV can use a DHCP or static IP address to connect to the wireless network.
• Select a channel that is not currently in use for the wireless router. If the channel set for the wireless router is currently being used by another device, the result is usually interference and/or a communications failure.
• Most wireless networks have an optional security system. To enable a wireless network's security system, you need to create a security key using characters and numbers. This security key is then needed to connect to a security-enabled AP.

Wireless Security Protocols

The TV only supports the following wireless network security protocols and is unable to connect to non-certified wireless routers:

• Authentication Modes: WEP, WPAPSK, WPA2PSK
• Encryption Types: WEP, TKIP, AES

In compliance with the newest Wi-Fi certification specifications, Samsung TVs do not support WEP or TKIP security encryption in networks running in the 802.11n mode.

If the wireless router supports WPS (Wi-Fi Protected Setup), you can connect the TV to your network using PBC (Push Button Configuration) or a PIN (Personal Identification Number). WPS automatically configures the SSID and WPA key settings.

Read Before Connecting a Computer (Supported Resolutions)

When you connect your TV to a computer, set the computer's video card to one of the standard resolutions listed in the tables below or on the next page. The TV will automatically adjust to the resolution you choose. Note that the optimal and recommended resolution is 1920 x1080.

Choosing a resolution not included in the tables can result in a blank screen or just the power indicator turning on.

Refer to the user manual of your graphics card for compatible resolutions.

IBM

Resolution(DotsxLines)	Display Format	Horizontal Frequency(KHz)	Vertical Frequency(Hz)	Clock Frequency(MHz)	Polarity(Horizontal/Vertical)
720x400 70Hz	31.469 70.087 28.322 -/+

MAC

Resolution(DotsxLines)	Display Format	Horizontal Frequency(KHz)	Vertical Frequency(Hz)	Clock Frequency(MHz)	Polarity(Horizontal/Vertical)
640x480 67Hz	35.000 66.667 30.240 -/-
832x624 75Hz	49.726 74.551 57.284 -/-
1152x870 75Hz	68.681 75.062 100.000 -/-

VESA DMT

Resolution(DotsxLines)	Display Format	Horizontal Frequency(KHz)	Vertical Frequency(Hz)	Clock Frequency(MHz)	Polarity(Horizontal/Vertical)
640x480 60Hz	31.469 59.940 25.175 -/-
640x480 72Hz	37.861 72.809 31.500 -/-
640x480 75Hz	37.500 75.000 31.500 -/-
800x600 60Hz	37.879 60.317 40.000 +/+
800x600 72Hz	48.077 72.188 50.000 +/+
800x600 75Hz	46.875 75.000 49.500 +/+
1024x768 60Hz	48.363 60.004 65.000 -/-
1024x768 70Hz	56.476 70.069 75.000 -/-
1024x768 75Hz	60.023 75.029 78.750 +/+
1152x864 75Hz	67.500 75.000 108.000 +/+
1280x720 60Hz	45.000 60.000 74.250 +/+
1280x800 60Hz	49.702 59.810 83.500 -/+
1280x1024 60Hz	63.981 60.020 108.000 +/+
1280x1024 75Hz	79.976 75.025 135.000 +/+
1366x768 60Hz	47.712 59.790 85.500 +/+
1440x900 60Hz	55.935 59.887 106.500	-/+
1600x900RB	60Hz 60.000 60.000 108.000 +/+
1680x1050 60Hz	65.290 59.954 146.250	-/+
1920x1080 60Hz	67.500 60.000 148.500 +/+

Supported Resolutions for Video Signal

CEA-861

Resolution(DotsxLines)	Display Format	Horizontal Frequency(KHz)	Vertical Frequency(Hz)	Clock Frequency(MHz)	Polarity(Horizontal/Vertical)
720(1440)x480i	60Hz 15.734 59.940	27.000 -/-
720(1440)x576i	50Hz 15.625 50.000	27.000 -/-
720x480 60Hz	31.469 59.940 27.000 -/-
720x576 50Hz	31.250 50.000 27.000 -/-
1280x720 60Hz	45.000 60.000 74.250 +/+
1280x720 50Hz	37.500 50.000 74.250 +/+
1920x1080i	60Hz 33.750 60.000 74.250 +/+
1920x1080i	50Hz 28.125 50.000 74.250 +/+
1920x1080 60Hz	67.500 60.000 148.500 +/+
1920x1080 50Hz	56.250 50.000 148.500 +/+
1920x1080 30Hz	33.750 30.000 74.250 +/+
1920x1080 25Hz	28.125 25.000 74.250 +/+
1920x1080 24Hz	27.000 24.000 74.250 +/+

License

DIVX HD

DivX Certified® to play DivX® video up to HD 1080p, including premium content.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified® device that has passed rigorous testing to verify that it plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX videos.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration.

DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license.

Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668; 7,515,710; 7,519,274

Premium Sound | 5.1

Manufactured under a license from U.S. Patent No's: 5,956,674, 5,974,380, 5,978,762, 6,487,535, 6,226,616, 7,212,872, 7,003,467, 7,272,567, 7,668,723, 7,392,195, 7,930,184, 7,333,929 and 7,548,853. DTS, the Symbol, and DTS and the Symbol together are registered trademarks & DTS Premium Sound | 5.1 is a trademark of DTS, Inc. ©2012 DTS, Inc. All Rights Reserved.

DOLBY. DIGITAL PLUS

Manufactured under license from Dolby Laboratories.

Dolby and the double-D symbol are trademarks of Dolby Laboratories.

HDMI

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

MHL

Open Source License Notice

Open Source used in this product can be found on the following webpage. (http://opensource.samsung.com)

Open Source License Notice is written only English.

Glossary

• 480i/480p/720p/1080i/1080p

Generally refers to the number of effective scanning lines that determines the screen's resolution. There are two scanning methods: interlaced and progressive.

- Scanning

Sequential projection of pixels to form images. The higher the number of pixels, the clearer and more vivid the images.

- Progressive

A sequential scanning method that scans every line, one after another.

- Interlaced

A staggered scanning method that scans every other line until the end of the screen and then fills in the remaining lines.

Example) If the number of horizontal scan lines is 480i

Scans 240 lines from start to finish and then scans the remaining 240 lines for a total of 480 lines.

* General differences between 480i and 480p are as follows:

	480i 480p
Horizontal Frequency	15.75Khz 31.5Khz
FPS 30 60
Lines on Screen	480 480

• ARC (Audio Return Channel)

ARC lets the TV output digital sound to an audio device and input digital sound from the same audio device through one HDMI cable. However, ARC is only available through the HDMI (ARC) port and only when the TV is connected to an ARC-enabled AV receiver.

• DVI (Digital Visual Interface)

Connecting the TV's DVI connector to a computer's DVI connector via an HDMI-to-DVI cable lets you use the TV as a computer monitor. However, HDMI-to-DVI cables deliver video signals only. You must connect a set of speakers to the computer using a separate cable to hear the computer's audio.

• HDMI (High Definition Multimedia Interface)

HDMI is a method of transmitting both video and audio signals via a single cable.

• Dynamic versus Static IP Addresses

If the network requires a dynamic IP address, use an ADSL modem or router that supports the Dynamic Host Configuration Protocol (DHCP). Modems and routers that support DHCP automatically provide the IP address, subnet mask, gateway and DNS values the TV needs to access the Internet, so they do not have to be entered manually. Most home networks use a dynamic IP address.

If the network requires a static IP address, enter the IP address, subnet mask, gateway, and DNS values manually when setting up the network connection. To get the IP address, subnet mask, gateway and DNS values, contact your Internet Service Provider (ISP).

If the network requires a static IP address, use an ADSL modem that supports DHCP. ADSL modems that support DHCP also allow static IP addresses.

- Ethernet

Ethernet is a LAN (Local Area Network) that uses coaxial cables standardized by the IEEE.

- Component Connection

Component connections are mostly used for game consoles and transmit the video signal by splitting it into a luminance signal (Y) and two color signals (Pb and Pr). The connector is marked as [Component IN]_(Pr, Pb, Y) on the back of the TV. On some devices, it is sometimes marked as Cr, Cb, Y. Cb and Cr are the digital conversions of the Pb and Pr signals.

The connectors are normally color-coded red (R), blue (B), and green (G) and offer the best picture quality possible for an analog connection.
