USER MANUAL N8SW20 Sani-Lav

COLUMBIA PRODUCTS SANI-LAV

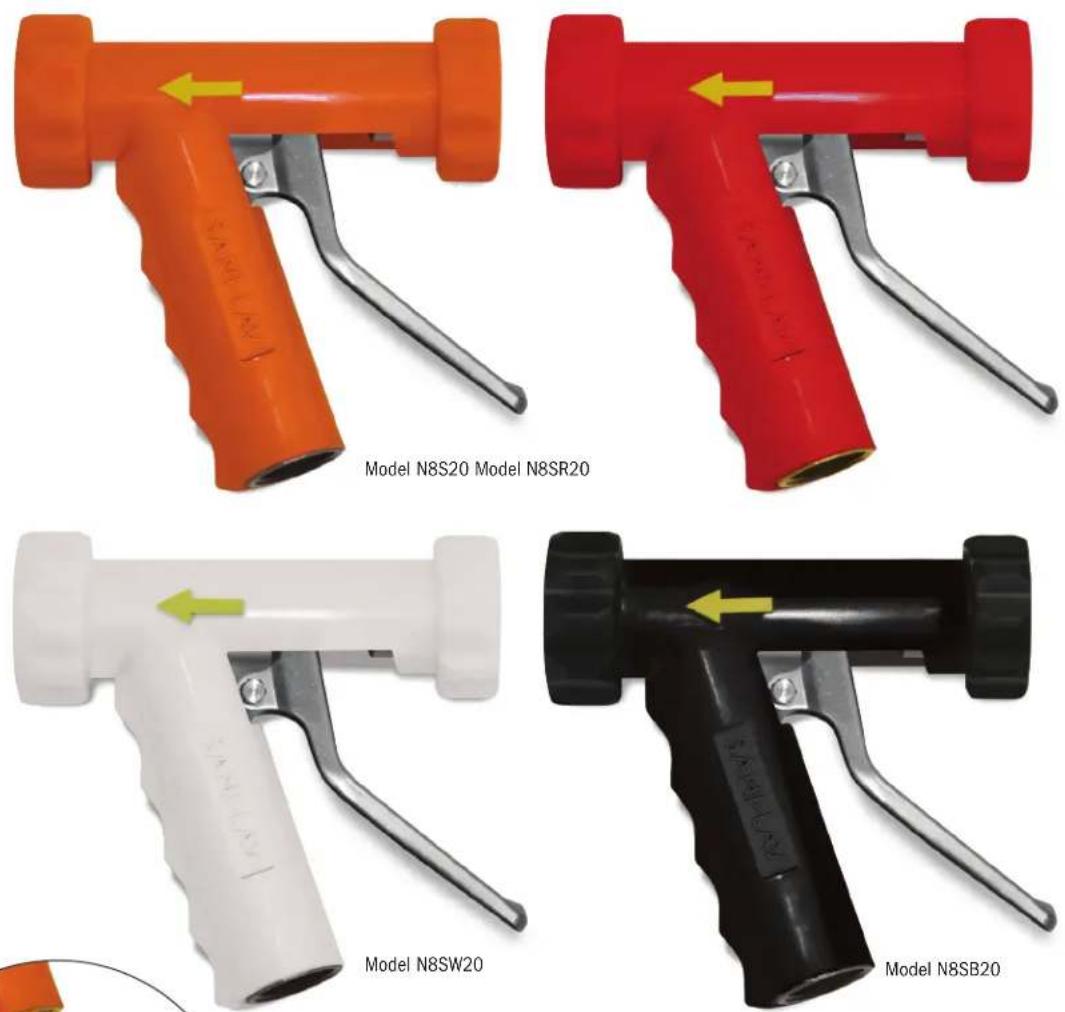

Model N8S20 Nozzle Series

Model N8S20 Model N8SR20

Close-up of a metallic mechanical component with a red cap and threaded shaft, enclosed in a circular frame (no visible text or symbols)

Large-sized nozzle with a stainless steel body

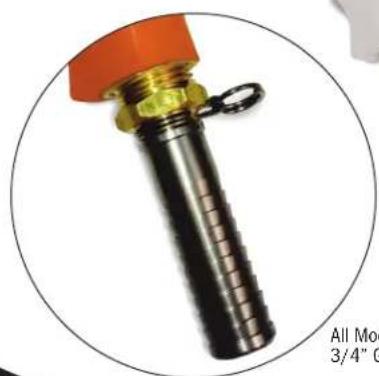

All Models include N20 Swivel 3/4" GHT, 3/4" hose barb

N8\$20 Universal Features

• 3/4" GHT inlet allows direct hose connection
  • Maximum working pressure 150 psi
  • Maximum operating temperature: 200°F/93°C
• Weight 2.6 lbs.
  • Safety shut off trigger when released

- Replaceable insulated safety orange, red, white or black covers

Model	Color	Body	Handle Type	Inlet	Max psi	Max Temp	Weight	GPM @ 100 psi	Swivel Adapter
Stainless Steel
N8S20	Safety Orange	Stainless	Stainless	3/4" FGHT	150	200	2.6	8.9	N20
N8SR20	Red	Stainless	Stainless	3/4" FGHT	150	200	2.6	8.9	N20
N8SB20	Black	Stainless	Stainless	3/4" FGHT	150	200	2.6	8.9	N20
N8SW20	White	Stainless	Stainless	3/4" FGHT	150	200	2.6	8.9	N20

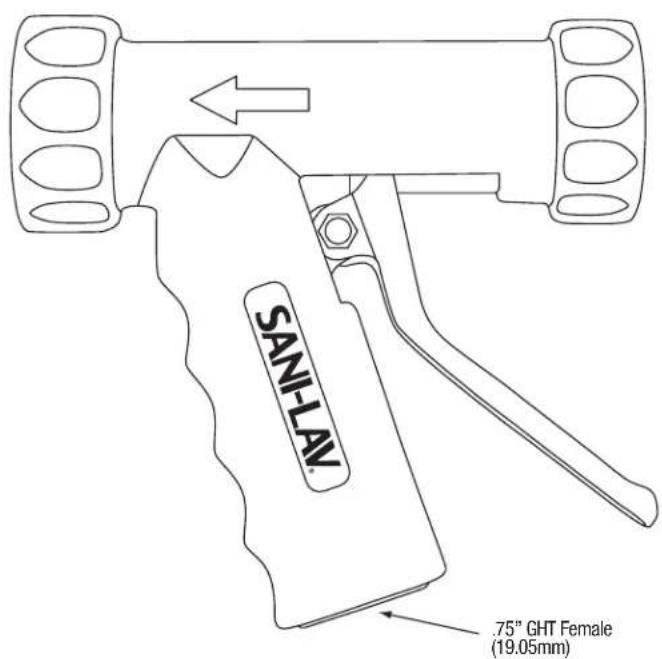

SANI-LAY .75" GHT Female (19.05mm)

Variable Spray Nozzle wide

Trigger lever controls variable spray patem

Close-up of two metallic threaded connectors with metal fittings, one attached to a blue cap and the other with a coiled spring (no text or symbols visible)

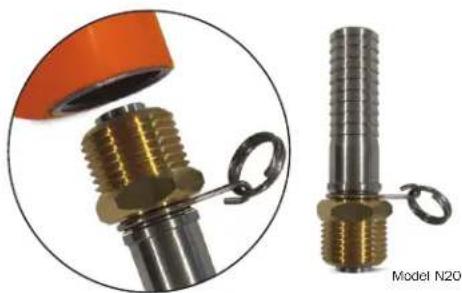

Model N20 Swivel Hose Barb
(3/4" GHT, 3/4")

Included

Close-up of a metallic mechanical component with threaded shaft and attached ring, enclosed in a circular frame (no text or symbols visible)

Model N17S Swivel Hose Adapter
(3/4" FGHT x 3/4" MGHT)
Sold Separately

Water Flow Rate Comparison

PSI	Standard Model N8	Water Saver Model N81	Water Savings % Model N81
100	8.90 gpm	5.25 gpm	41.01%

Notice for California Consumers

WARNING: This product can expose you to chemicals including Lead, and Phthalates (DEHP) which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

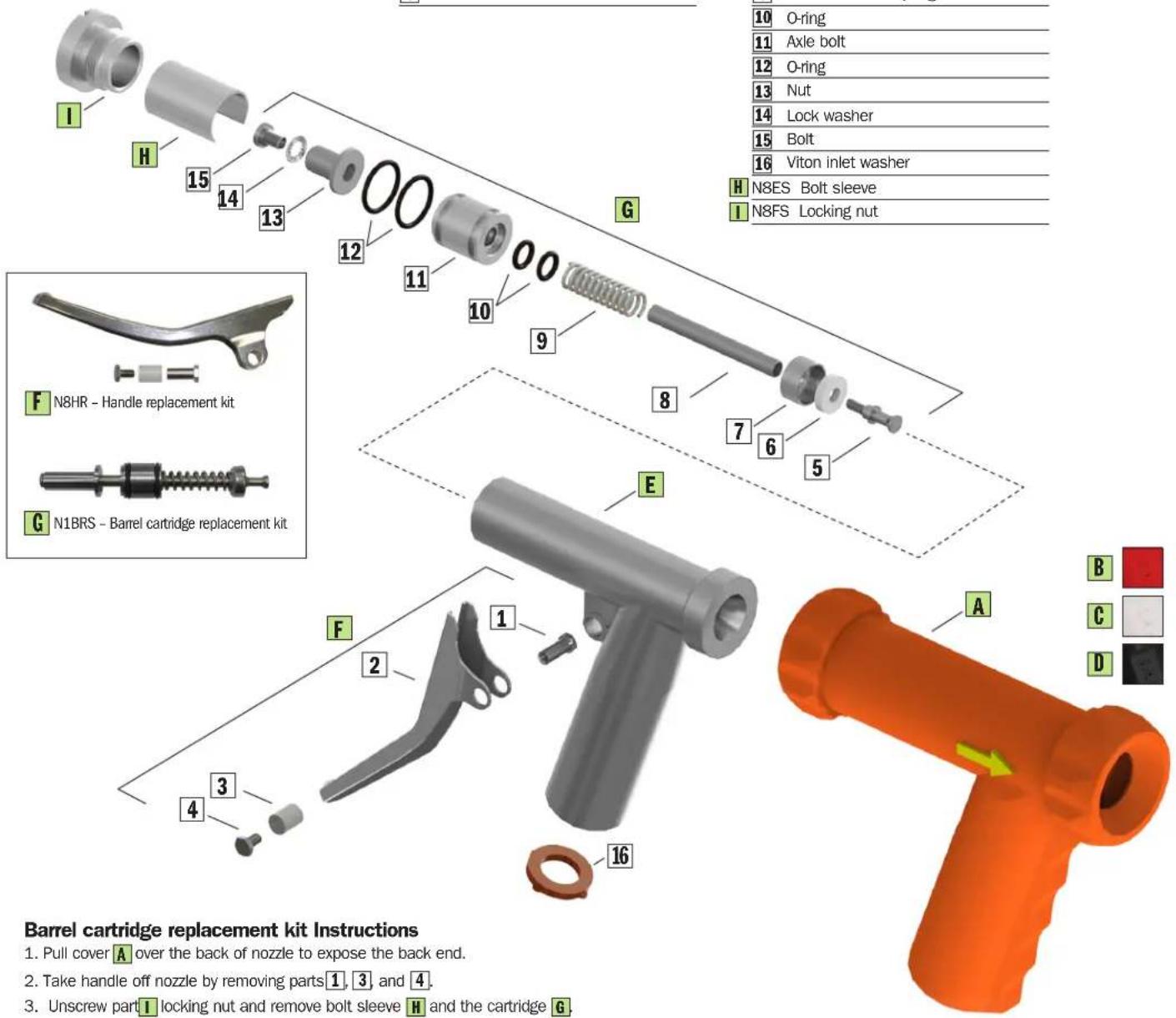

N8S20 Replacement Parts

Part No. Decrption

A N80C Orange insolated cover
B N8RC Red insulated cover
c N8WC White insolated cover
D N8BC Black insulated cover

E N8SSMB Main body
F N8HR Handle replacement kit

1 Stainless steel nut
2 Stainless steel handle
3 Stainless steel handle arm sleeve
4 Stainless steel handle bolt

G N8BRS Barrel cartridge replacement kit

5 Flow adjustment tip
6 Washer
7 Washer sleeve
8 Axle
9 Stainless steel spring
10 O-ring
11 Axle bolt
12 O-ring
13 Nut
14 Lock washer
15 Bolt
16 Viton inlet washer

H N8ES Bolt sleeve

N8FS Locking nut

10 O-ring 11 Axle bolt 12 O-ring 13 Nut 14 Lock washer 15 Bolt 16 Viton inlet washer H N8ES Bolt sleeve I N8FS Locking nut F N8HR - Handle replacement kit G N1BRS - Barrel cartridge replacement kit A B C D F 2 1 3 4 16 Barrel cartridge replacement kit Instructions 1. Pull cover A over the back of nozzle to expose the back end. 2. Take handle off nozzle by removing parts 1, 3 and 4. 3. Unscrew part I locking nut and remove bolt sleeve H and the cartridge G

Barrel cartridge replacement kit Instructions

1. Pull cover A over the back of nozzle to expose the back end.
2. Take handle off nozzle by removing parts 1, 3, and 4.
3. Unscrew part I locking nut and remove bolt sleeve H and the cartridge G.
4. Insert the new cartridge.
5. Re-Install the handle.
6. Replace the sleeve with the open end facing down.
7. Screw the locking nut back into place.
8. Slip the cover back over the nozzle end using a round ended tool similar to a shoe horn.
