■ Provides six ultra-low skew copies of the selected input
■ 2:1 MUX input included for clock switchover applications
■ Guaranteed AC performance over temperature and voltage:

• Clock frequency range: DC to > 6GHz
- < 300ps IN-to-OUT tpd
• <80ps tr/t_f times
• <20ps skew (output-to-output)

■ Ultra-low jitter design:
- 50fs_RMS phase jitter (typ)
■ Low supply voltage operation: 2.5V and 3.3V
■ Unique input termination and VT pin accepts DC-coupled and AC-coupled inputs (CML, PECL, LVDS)
■ Unique input isolation design minimizes crosstalk
■ 400mV LVPECL (100K compatible) output swing
■ -40^ to +85^ temperature range
■ Available in 32-pin (5mm x 5mm) MLF® package

Precision Edge®

DESCRIPTION

The SY58036U is a 2.5V/3.3V precision, high-speed, 1:6 fanout buffer capable of handling clocks up to 6GHz. A differential 2:1 MUX input is included for redundant clock switchover applications.

The differential input includes Micrel's unique, 3-pin input termination architecture that allows the device to interface to any differential signal (AC- or DC-coupled) as small as 100mV without any level shifting or termination resistor networks in the signal path. The outputs are 400mV LVPECL (100K temperature compensated), with extremely fast rise/fall times guaranteed to be less than 80ps.

The SY58036U operates from a 2.5V ±5% supply or a 3.3V ±10% supply and is guaranteed over the full industrial temperature range of -40°C to +85°C. For applications that require CML outputs, consider the SY58034U or for 800mV LVPECL outputs the SY58035U. The SY58036U is part of Micrel's high-speed, Precision Edge® product line.

All support documentation can be found on Micrel's web site at www.micrel.com.

APPLICATIONS

■ Redundant clock distribution
■ All SONET/SDH clock distribution
■ All Fibre Channel distribution
■ All Gigabit Ethernet clock distribution

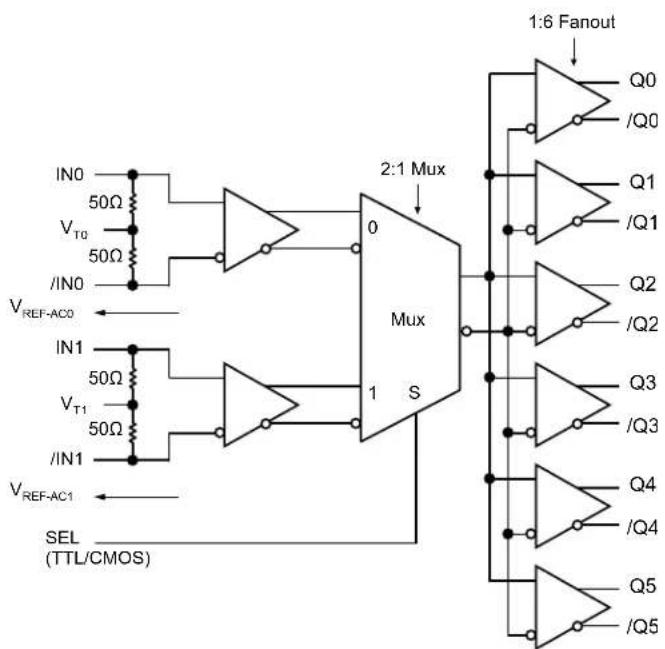

FUNCTIONAL BLOCK DIAGRAM

Precision Edge is a registered trademark of Micrel, Inc.

MicroLeadFrame and MLF are registered trademarks of Amkor Technology, Inc.

PACKAGE/ORDERING INFORMATION

GND SEL VCC Q0 /Q0 Q1 /Q1 VCC IN0 32 31 30 29 28 27 26 25 1○ 24 VT0 2 23 VREF-AC0 3 22 /IN0 4 21 IN1 5 20 VT1 6 19 VREF-AC1 7 18 /IN1 8 17 GND VCC Q2 /Q2 Q3 /Q3 VCC GND GND NC VCC /Q5 Q6 /Q4 Q4 VCC

32-Pin MLF ^® (MLF-32)

Ordering Information ^(1)

Part Number	Package Type	Operating Range	Package Marking	Lead Finish
SY58036UMI	MLF-32	Industrial	SY58036U	Sn-Pb
SY58036UMITR(2)	MLF-32	Industrial	SY58036U	Sn-Pb
SY58036UMG(3)	MLF-32	Industrial	SY58036U with Pb-Free bar-line indicator	NiPdAu Pb-Free
SY58036UMGTR(2, 3)	MLF-32	Industrial	SY58036U with Pb-Free bar-line indicator	NiPdAu Pb-Free

Notes:
1. Contact factory for die availability. Dice are guaranteed at T_A = 25^ , DC electricals only.
2. Tape and Reel.
3. Pb-Free package recommended for new designs.

PIN DESCRIPTION

Pin Number	Pin Name	Pin Function
1,4 IN0, /IN0 Differential Input: These input pairs are the differential signal inputs to the device. These 5,8 IN1, /IN1 inputs accept AC- or DC-coupled signals as small as 100mV. Each pin of a pair internally terminates to a VT pin through 50y. Note that these inputs will default to an indeterminate state if left open. Please refer to the "Input Interface Applications" section for more details.
2,6 interface flexibility. See "Input Interface Applications" section for more details.
31 that this input is SEL internally connected to a 25kΩ pull-up resistor and will default to a logic high state if left open. The MUX select switchover function is asynchronous.
10	NC	No connect.
11, 16, 18, 23, 25, 30	VCC close to	Positive Power Supply: Bypass with 0.1μF || 0.01μF low ESR capacitors and place as the VCC pins as possible.
29, 28 27, 26 22, 21 20, 19 15, 14 13, 12	Q0, /Q0, Q1, /Q1, Q2, /Q2, Q3, /Q3, Q4, /Q4, Q5, /Q5	Differential Outputs: These 100K (temperature compensated) LVPECL output pairs are low skew copies of the selected input. Please refer to the "Truth Table" for details.
9, 17, 24, 32 Exposed Pad		Ground. Ground pin and exposed pad must be connected to the same ground plane.
3,7 VREF-AC0 Reference Voltage: These output biases to V CC-1.2V. It is used for AC-coupling inputs VREF-AC1 (IN, /IN). Connect V REF-AC directly to the VT pin. Bypass with 0.01μF low ESR capacitor to V See "Input Interface Applications" section. Maximum sink/source current is ±1.5mA. Due to the limited drive capability, the VREF-AC pin is only intended to drive its respective VT pin.

TRUTH TABLE

SEL
0	IN0 Input Selected
1	IN1 Input Selected

Absolute Maximum Ratings ^(1)

Power Supply Voltage ( V_CC ) .....-0.5V to +4.0V

Input Voltage ( V_IN ) ....-0.5V to V_CC

LVPECL Output Current ( I_OUT )

Continuous 50mA

Surge 100mA

Termination Current

Source or sink current on V_T pin.... ±100mA

Input Current

Source or sink current on IN, /IN pin .... ±50mA

Source or sink current on VREF-AC pin .... ±2mA

Lead Temperature (soldering, 10 sec.) 220°C

Storage Temperature Range ( T_S ) ..... -65°C to +150°C

Operating Ratings ^(2)

Power Supply Voltage ( V_CC ) ..... +2.375V to +2.625V ..... +3.0V to +3.6V

Ambient Temperature Range ( T_A ) ..... -40°C to +85°C

Package Thermal Resistance ^(3)

MLF® (θJA)

Still-Air 35°C/W

MLF ^ ( _JB )

Junction-to-Board 16°C/W

DC ELECTRICAL CHARACTERISTICS ^(4)

T_A = -40^ to +85^ , unless otherwise stated.

Symbol	Parameter	Condition	Min	Typ	Max Units
V_CC		Power Supply Voltage				2.375	2.5	2.625	V
						3.0	3.3	3.6	V
I_CC		Power Supply Current			No load, max. V_CC		180	250 mA
R_DIFF\_IN		Differential Input Resistance (IN-to-/IN)				90	100	110	Ω
R_IN		Input Resistance (IN-to- V_T )				45	50	55	Ω
V_IH		Input HIGH Voltage (IN, /IN)			Note 5	V_CC-1.6		V_CC	V
V_IL		Input LOW Voltage (IN, /IN)				0		V_IH-0.1	V
V_IN		Input Voltage Swing (IN, /IN)			See Figure 1a.	0.1		1.7	V
V_DIFF\_IN		Differential Input Voltage Swing |IN, /IN|			See Figure 1b.	0.2			V
V_T IN		IN to V_T (IN, /IN)						1.28	V
V_REF-AC		Reference Voltage				V_CC-1.3	V_CC-1.2	V_CC-1.1	V

Notes:

1. Permanent device damage may occur if absolute maximum ratings are exceeded. This is a stress rating only and functional operation is not implied at conditions other than those detailed in the operational sections of this data sheet. Exposure to absolute maximum ratings conditions for extended periods may affect device reliability.
2. The data sheet limits are not guaranteed if the device is operated beyond the operating ratings.
3. Thermal performance assumes exposed pad is soldered (or equivalent) to the device's most negative potential on the PCB. _JB and _JA are shown for a 4-layer PCB in a still air environment, unless otherwise stated.
4. The circuit is designed to meet the DC specifications shown in the above table after thermal equilibrium has been established.
5. V_IH (min) not lower than 1.2V.

LVPECL OUTPUT DC ELECTRICAL CHARACTERISTICS ^(6)

V_CC = 2.5V ± 5% or 3.3V ± 10% , R_L = 50 to V_CC - 2V ; T_A = -40^ to +85^ , unless otherwise stated.

Symbol	Parameter	Condition	Min	Typ	Max	Units
V_OH	Output	HIGH Voltage	V				_CC^-1.145	V	_CC^-0.895	V
V_OL	Output	LOW Voltage	V				_CC^-1.545	V	_CC^-1.295	V
V_OUT		Output Differential Swing			See Figure 1a.		150	400		mV
V_DIFF\_OUT		Differential Output Voltage Swing			See Figure 1b.		300	800		mV

LVTTL/CMOS DC ELECTRICAL CHARACTERISTICS ^(6)

V_CC = 2.5V ± 5% or 3.3V ± 10% ; T_A = -40^ C to +85^ C , unless otherwise stated.

Symbol	Parameter	Condition	Min	Typ	Max	Units
V_IH	Input HIGH Voltage		2.0			V
V_IL	Input LOW Voltage				0.8	V
I_IH	Input HIGH Current		-125		40	μA
I_IL	Input LOW Current		-300			μA

Note:

1. The circuit is designed to meet the DC specifications shown in the above table after thermal equilibrium has been established.

AC ELECTRICAL CHARACTERISTICS ^(7)

V_CC = 2.5V ± 5% or 3.3V ± 10% , R_L = 50 to V_CC - 2V ; T_A = -40^ to +85^ , unless otherwise stated.

Symbol Parameter Condition Min Typ Max Units
f_MAX Maximum Operating Frequency V		OUT ≥ 200mV 6 7 GHz
t_pd	Differential Propagation Delay (IN0 or IN1-to-Q)		150	220	300	ps
	(SEL-to-Q)		100	220	400	ps
t_pd Tempco	Differential Propagation Delay Temperature Coefficient			65		fs/°C
t_SKEW	Output-to-Output Part-to-Part	Note 8			20	ps
		Note 9			100	ps
t_JITTER	RMS Phase Jitter	Output: 622MHz Integrated Range: 12kHz - 20MHz		50		fs
	Adjacent Channel Crosstalk-Induced Jitter	Note 10			0.7	ps_RMS
t_r, t_f	Output Rise/Fall Time	Full Swing, 20% to 80%	20	40	80	ps

Notes:
7. High frequency AC electricals are guaranteed by design and characterization.
8. Output-to-output skew is measured between outputs under identical transitions.
9. Part-to-part skew is defined for two parts with identical power supply voltages at the same temperature and with no skew of the edges at the respective inputs.
10. Crosstalk is measured at the output while applying two similar clock frequencies that are asynchronous with respect to each other at the inputs.

PHASE NOISE

Phase Noise Plot: 622MHz @ 3.3V

SINGLE-ENDED AND DIFFERENTIAL SWINGS

V_IN, 400mV (Typ.) V_OUT

Figure 1a. Single-Ended Voltage Swing

VDIFF_IN VDIFF_OUT 800mV (Typ.)

Figure 1b. Differential Voltage Swing

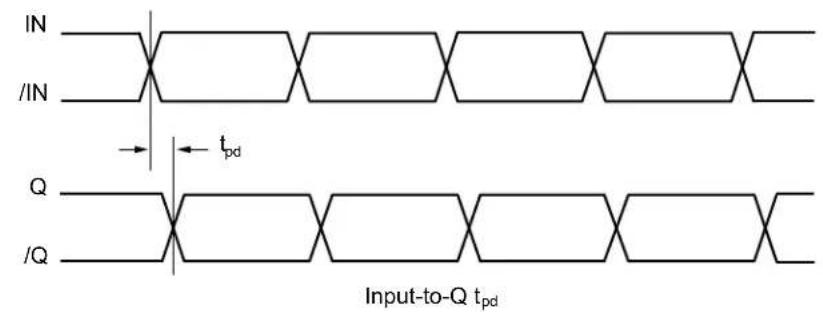

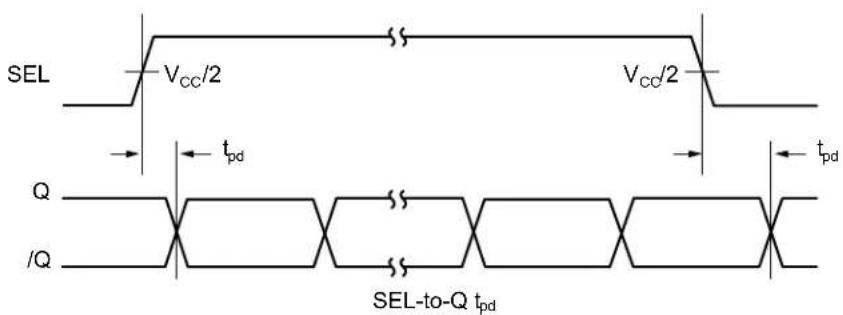

TIMING DIAGRAMS

IN /IN Q /Q Input-to-Q tpd

SEL Vcc/2 Vcc/2 tpd Q /Q tpd SEL-to-Q tpd

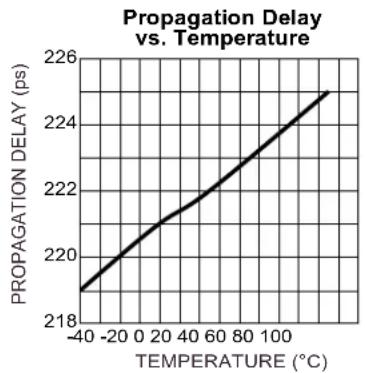

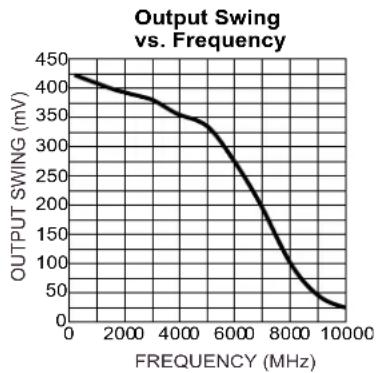

TYPICAL OPERATING CHARACTERISTICS

V_CC = 2.5V , GND = 0, V_IN = 100mV , R_L = 50 to V_CC - 2V ; T_A = 25^ , unless otherwise stated.

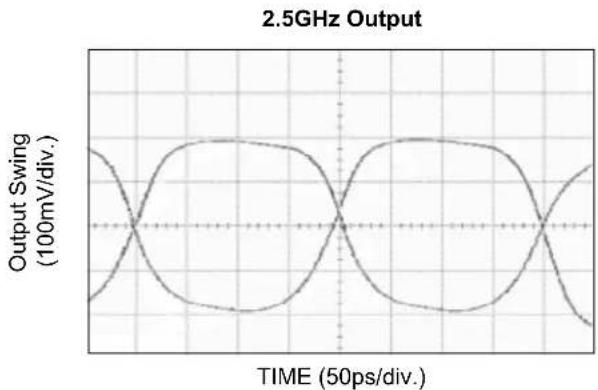

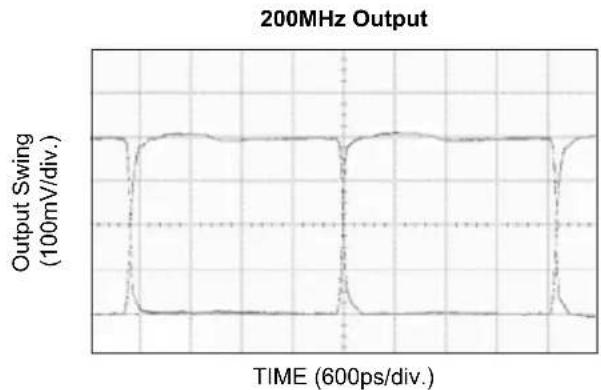

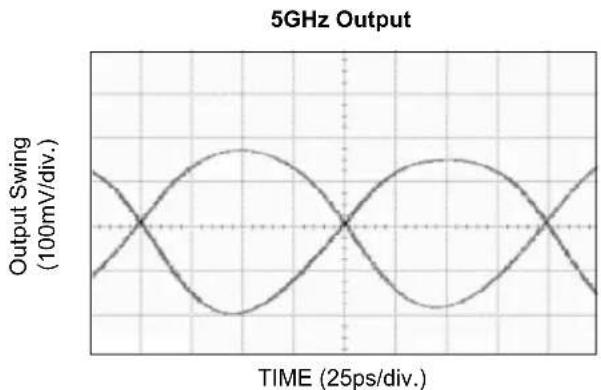

FUNCTIONAL CHARACTERISTICS

V_CC = 3.3V , GND = 0, V_IN = 100mV , R_L = 50 to V_CC - 2V ; T_A = 25^ , unless otherwise stated.

INPUT AND OUTPUT STAGES

VCC IN 50Ω VT 50Ω /IN GND

Figure 2a. Simplified Differential Input Stage

Vcc /Q Q

Figure 2b. Simplified LVPECL Output Stage

INPUT INTERFACE APPLICATIONS

Vcc LVPECL GND IN /IN SY58036U VREF-ACNC VT Vcc 0.01μF Rpd For 3.3V, Rpd = 50Ω. For 2.5V, Rpd = 19Ω.

Figure 3a. LVPECL Interface (DC-Coupled)

Vcc LVPECL IN IN Rpd Rpd GND Vcc 0.01μF VREF-AC VT For 3.3V, Rpd = 100Ω. For 2.5V, Rpd = 50Ω. SY58036U

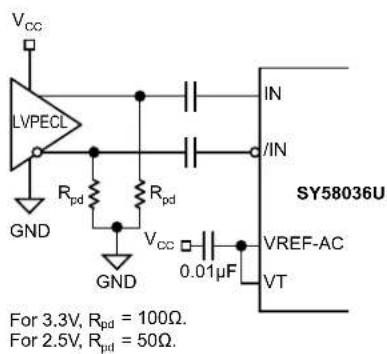

Figure 3b. LVPECL Interface (AC-Coupled)

VCC CML IN /IN GND SY58036U NC □ VREF-AC NC □ VT Option: May connect VT to VCC.

Figure 3c. CML Interface (DC-Coupled)

VCC CML GND IN /IN SY58036U VCC 0.01μF VREF-AC VT

Figure 3d. CML Interface (AC-Coupled)

Vcc LVDS IN IN GND SY58036U NC □ VREF-AC NC □ VT

Figure 3e. LVDS Interface

OUTPUT INTERFACE APPLICATIONS

LVPECL has high input impedance, very low output (open emitter) impedance, and small signal swing, which results in low EMI. LVPECL is ideal driving 50Ω and 100Ω controlled impedance transmission lines. There are several techniques for terminating the LVECL output: parallel-thevenin equivalent termination and parallel termination (3-resistor). Unused output pairs may be left floating. However, single-ended outputs must be terminated, or balanced.

+3.3V Z₀ = 50Ω Z₀ = 50Ω R1 130Ω +3.3V R1 130Ω +3.3V R2 82Ω R2 82Ω Note: For 2.5V systems: R1 = 250Ω, R2 = 62.5Ω

Figure 4a. Parallel Thevenin-Equivalent Termination

+3.3V +3.3V Z = 50Ω Z = 50Ω "source" "destination" Note: For 2.5V systems: Rb = 19Ω 50Ω 50Ω 50Ω Rb C1 0.01μF (optional) Vcc

Figure 4b. Parallel Termination (3-Resistor)

RELATED MICREL PRODUCTS AND SUPPORT DOCUMENTATION

Part Number	Function Data Sheet Link
SY58034U and Internal I/O Termination	6GHz, 1:6 CML Fanout Buffer with 2:1 MUX Input	http://www.micrel.com/product-info/products/sy58034u.shtml
SY58035U Input and Internal Termination	4.5GHz, 1:6 LVPECL Fanout Buffer with 2:1 MUX	http://www.micrel.com/product-info/products/sy58035u.shtml
MLF	® Application Note	www.amkor.com/products/notes_papers/MLF_AppNote_0902.pdf
HBW Solutions	New Products and Applications	www.micrel.com/product-info/products/solutions.shtml

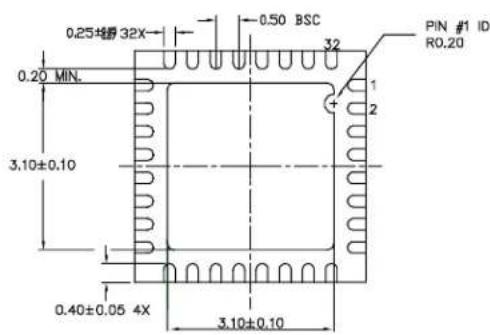

32-PIN MicroLeadFrame ^® (MLF-32)

5.0 BSC 32 1 2 PIN #1 ID 0.20 DIA TYP. 5.0 BSC

TOP VIEW

0.25±0.05 32X 0.20 MIN. 3.10±0.10 0.40±0.05 4X 0.50 BSC 32 PIN #1 ID R0.20

BOTTOM VIEW

SIDE VIEW
NOTE:
1. ALL DIMENSIONS ARE IN MILLIMETERS.
2. MAX. PACKAGE WARPAGE IS 0.05 mm.
3. MAXIMUM ALLOWABE BURRS IS 0.076 mm IN ALL DIRECTIONS.
4. PIN #1 ID ON TOP WILL BE LASER/INK MARKED.

Package EP- Exposed Pack Die CompSide Island Heat Dissipation Heat Dissipation Heavy Copper Plane V_EE V_EE Heavy Copper Plane

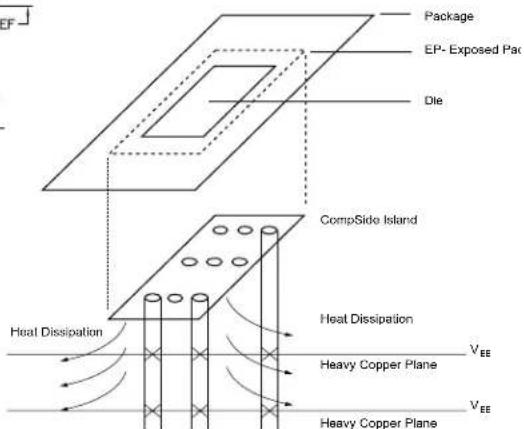

PCB Thermal Consideration for 32-Pin MLP® Package (Always solder, or equivalent, the exposed pad to the PCB)

Package Notes:

1. Package meets Level 2 qualification.
2. All parts are dry-packaged before shipment.
3. Exposed pads must be soldered to a ground for proper thermal management.
