USER MANUAL SY58021U Microchip

4 GHz, 1:4 LVPECL Fanout Buffer/Translator with Internal Termination

Features

• Precision 1:4 LVPECL Fanout Buffer
• Low Jitter Performance
• 70 fs RMS Phase Jitter (Typical)
• Accepts an Input Signal as Low as 100 mV
• Unique Input Termination and VT Pin Accept DC-Coupled and AC-Coupled Differential Inputs: LVPECL, LVDS, and CML
  • 100K LVPECL-Compatible 800 mV Swing Output
  • Power Supply 2.5V ±5% and 3.3V ±10%
• - 40^ C to + 85^ C Temperature Range
  • Available in 16-Lead, 3 mm x 3 mm VQFN Package

Applications

• All SONET and GigE Clock Distribution
• Fibre Channel Clock and Data Distribution
- Backplane Distribution
• High-End, Low-Skew, Multiprocessor, Synchronous Clock Distribution

General Description

The SY58021U is a 2.5V/3.3V precision, high-speed, fully differential 1:4 LVPECL fanout buffer. Optimized to provide four identical output copies with less than 15 ps output skew and only 70 fs RMS phase jitter, the SY58021U can process clock signals as fast as 4 GHz.

The differential input includes Microchip's unique, 3-pin input termination architecture interfaces to differential LVPECL, CML, and LVDS signals (AC- or DC-coupled) as small as 100 mV without any level-shifting or termination resistor networks in the signal path. For AC-coupled input interface applications, an on-board output reference voltage ( V_REFAC ) is provided to bias the VT pin. The outputs are 100K LVPECL compatible, with extremely fast rise/fall times guaranteed to 70 ps.

The SY58021U operates from a 2.5V ±5% supply or 3.3V ±10% supply and is guaranteed over the full industrial temperature range (-40°C to +85°C). For applications that require faster rise/fall times, or greater bandwidth, consider the SY58022U 1:4 fanout buffer with 400 mV LVPECL output swing, or the SY58020U 1:4 CML fanout buffer. The SY58021U is part of Microchip's high-speed, Precision Edge® product line.

Package Type

SY58021U 16-Lead VQFN (M) (Top View) GND Q0 /Q0 VCC IN 16 15 14 13 VT 2 12 Q1 VREF-AC 3 11 /Q1 /IN 4 10 Q2 GND Q3 Q3 VCC 5 6 7 8

Functional Block Diagram

1.0 ELECTRICAL CHARACTERISTICS

Absolute Maximum Ratings †

Power Supply Voltage ( V_CC )	-0.5V to +4V
Input Voltage ( V_IN )	-0.5V to V_CC
LVPECL Continuous Output Current ( I_OUT )	50 mA
LVPECL Surge Output Current ( I_OUT )	100 mA
Source or Sink Current on VT Pin	±100 mA
Source or Sink Current on IN, /IN Pins	±50 mA
Source or Sink Current on VREF-AC Pin (Note 1)	±1.5 mA

Operating Ratings ‡

Power Supply Voltage ( V_CC )....+2.375V to +3.60V

† Notice: Stresses above those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress rating only and functional operation of the device at those or any other conditions above those indicated in the operational sections of this specification is not intended. Exposure to maximum rating conditions for extended periods may affect device reliability.
‡ Notice: The device is not guaranteed to function outside its operating ratings.

Note 1: Due to the limited drive capability, use for input of the same package only.

INPUT DC ELECTRICAL CHARACTERISTICS

T_A = -40^ to +85^ . Note 1

Parameter Symbol Min. Typ. Max. Units				Conditions
Power Supply Voltage	V_CC	2.375 2.5	2.625	V	V_CC = 2.5V
		3.0	3.3	3.6
Power Supply Current	I_CC	—	125	160	mA No load, V_CC = maximum
Input High Voltage	V_IH	V_CC - 1.6	—	V_CC	V IN, /IN (Note 2)
Input Low Voltage	V_IL	0	—	V_IH - 0.1	V IN, /IN
Input Voltage Swing	V_IN	0.1	—	1.7	V IN, /IN (See Figure 1-1)
Differential Input Voltage Swing	V_DIFF\_IN	0.2	—	—	V IN, /IN (See Figure 1-2)
IN-to-VT Resistance	R_IN	40	50	60	Ω —
IN-to-VT Voltage	V_T\_IN	—	—	1.28	V —
Output Reference Voltage	V_REF-AC	V_CC - 1.3	V_CC - 1.2	V_CC - 1.1	V —

Note 1: The circuit is designed to meet the DC specifications shown in the table above after thermal equilibrium has been established.
2: V_IH(MIN) not lower than 1.2V.

V_{IN'} 800mV V_{OUT}

FIGURE 1-1: Single-Ended Voltage Swing.

FIGURE 1-2: Differential Voltage Swing.

LVPECL OUTPUT DC ELECTRICAL CHARACTERISTICS

V_CC = 3.3V ± 10% or 2.5 ± 5% ; R_L = 50 to V_CC - 2V ; T_A = -40^ to +85^ , unless otherwise stated. Note 1

Parameter Symbol	Min. Typ.	Max. Units Conditions
Output High Voltage V	_OH	V_CC - 1.145 — V		_CC - 0.895 V —
Output Low Voltage	V_OL	V_CC - 1.945 — V		_CC - 1.695 V —
Output Voltage Swing	V_OUT	550	780	1050	mV	See Figure 1-1
Differential Output Voltage Swing	V_DIFF\_OUT	1100	1560	2100	mV	See Figure 1-2

Note 1: The circuit is designed to meet the DC specifications shown in the table above after thermal equilibrium has been established.

AC ELECTRICAL CHARACTERISTICS

V_CC = 2.5V ± 5% or 3.3 ± 10% ; R_L = 50 to V_CC - 2V ; T_A = -40^ to +85^ , unless otherwise stated.

Parameter	Symbol	Min.	Typ.	Max.	Units	Conditions
Maximum Operating Frequency	f_MAX	4 —	—	GHz	Clock, V OUT ≥ 400 mV
		— 5	—	Gbps	Data, V OUT ≥ 400 mV
Propagation Delay	t_PD	150	220	300	ps	—
Channel-to-Channel Skew	t_CHAN	— 4	15 ps	Note 1
Part-to-Part Skew	t_SKEW	—	—	30	ps	Note 2
RMS Phase Jitter	t_JITTER	—	70	— fs		Output: 622 MHz, Integration Range: 12 kHz to 20 MHz
Output Rise/Fall Time (20% to 80%)	t_r,t_f	35	75 110	ps	At full swing.

Note 1: Skew is measured between outputs of the same bank under identical transitions.
2: Skew is defined for two parts with identical power supply voltages at the same temperature and with no skew of the edges at the respective inputs.

TEMPERATURE SPECIFICATIONS

Parameters	Sym.	Min.	Typ.	Max.	Units	Conditions
Temperature Ranges
Storage Temperature Range	T_S	-65	—	+150	°C	—
Lead Temperature	T_LEAD	— —	+260	°C	Soldering, 20 sec.
Operating Temperature Range	T_A	-40	— +85	°C	—
Package Thermal Resistances
Thermal Resistance, VQFN 16-Ld	_JA	— 60	—	°C/W	Still-Air
	_JA	—	54	—	°C/W	500 Ifpm
	_JB	— 33	—	°C/W		Junction-to-Board Resistance, Note 1

Note 1: Thermal performance assumes exposed pad is soldered (or equivalent) to the device's most negative potential on the PCB.

/IN IN /Q Q tpd

FIGURE 1-3: Timing Diagram.

2.0 TYPICAL PERFORMANCE CURVES

Note: The graphs and tables provided following this note are a statistical summary based on a limited number of samples and are provided for informational purposes only. The performance characteristics listed herein are not tested or guaranteed. In some graphs or tables, the data presented may be outside the specified operating range (e.g., outside specified power supply range) and therefore outside the warranted range.

V_CC = 2.5V , GND = 0V, V_IN = 100 mV , T_A = +25^ , unless otherwise stated.

FIGURE 2-1: Amplitude vs. Frequency.

FIGURE 2-4: Propagation Delay vs. Temperature.

FIGURE 2-2: Skew vs. Temperature.

FIGURE 2-5: Skew vs. Temperature.

FIGURE 2-3: Propagation Delay vs. Input Voltage Swing.

FIGURE 2-6: 200 MHz Output.

FIGURE 2-7: 4 GHz Output.

FIGURE 2-8: 5 GHz Output.

FIGURE 2-9: Phase Noise Graph.

3.0 PIN DESCRIPTIONS

The descriptions of the pins are listed in Table 3-1.

TABLE 3-1: PIN FUNCTION TABLE

Pin Number	Pin Name Description
1, 4 IN, /IN		Differential Input: This input pair receives the signal to be buffered. Each pin of this pair internally terminates with 50Ω to the VT pin. Note that this input will default to an indeterminate state if left open. See the “Input Interface Applications” section.
2	VT	Input Termination Center-Tap: Each input terminates to this pin. The VT pin provides a center-tap for each input (IN, /IN) to the termination network for maximum interface flexibility. See the “Input Interface Applications” section.
3 VREF-AC		Reference Output Voltage: This output biases to V_CC - 1.2V . It is used when AC-coupling to differential inputs. Connect VREF-AC directly to the VT pin. Bypass with 0.01 μF low ESR capacitor to VCC. See the “Input Interface Applications” section.
8, 13 VCC		Positive Power Supply: Bypass with 0.1 μF//0.01 μF low-ESR capacitors as close to the VCC pins as possible.
5, 16 GND, ePAD		Ground. Exposed pad must be connected to a ground plane that is the same potential as the ground pin.
14, 15, 11, 12, 9, 10, 6, 7	/Q0, Q0, /Q1, Q1, /Q2. Q2, /Q3, Q3	LVPECL Differential Output Pairs: Differential buffered output copy of the input signal. The output swing is typically 800 mV Proper termination is 50Ω to V_CC - 2V at the receiving end. Unused output pairs may be left floating with no impact on jitter or skew. See the “LVPECL Output Termination” section.

Input Stage

Vcc IN 50Ω VT 50Ω /IN GND

FIGURE 3-1: Simplified Differential Input Buffer.

4.0 INPUT INTERFACE APPLICATIONS

VCC LVPECL IN /IN SY58021U VT VREF-AC 0.01μF VDD Rpd NC For VCC = 2.5V, Rp = 19Ω For VCC = 3.3V, Rp = 50Ω

FIGURE 4-1: LVPECL Input Interface.

VCC CML IN /IN NC □ VT NC □ VREF-AC SY58021U Option: May connect VT to VCC

FIGURE 4-4: DC-Coupled CML Input Interface.

Vcc LVPECL IN IN VT VREF-AC 0.01μF VCC For 3.3V, Rpd = 100Ω For 2.5V, Rpd = 50Ω SY58021U

FIGURE 4-2: AC-Coupled LVPECL Input Interface.

Vcc CML IN /IN SY58021U VT VREF-AC 0.01μF Vcc

FIGURE 4-5: AC-Coupled CML Input Interface.

VCC LVDS IN /IN NC □ VT NC □ VREF-AC SY58021U VCC

FIGURE 4-3: LVDS Input Interface.

5.0 LVPECL OUTPUT

LVPECL outputs have very-low output impedance (open emitter) and small signal swing, which results in low EMI. LVPECL is ideal for driving 50Ω- and 100Ω-controlled impedance transmission lines. There are several techniques in terminating the LVPECL output (Figure 5-1 through Figure 5-3).

+3.3V* SY58021U Z₀ = 50Ω Z₀ = 50Ω R1 130Ω +3.3V* R1 130Ω +3.3V* R2 82Ω R2 82Ω Vₜ = Vₒc -2V

Note:
1. For +2.5V systems, R1 = 250Ω, R2 = 62.5Ω.

FIGURE 5-1: Parallel Termination: Thevenin Equivalent.

+3.3V Z = 50Ω +3.3V SY58021U Z = 50Ω "source" 50Ω 50Ω 50Ω "destination" 50Ω Rb* VDD C1 (optional) 0.01μF * For +2.5V, Rb = 19Ω * For +3.3V, Rb = 46Ω to 50Ω

Notes:
1. Power-saving alternative to Thevenin termination.
2. Place termination resistors as close to destination inputs as possible.
3. Rb resistor sets the DC bias voltage, equal to VT.

FIGURE 5-2: Parallel Termination: Three-Resistor.

+3.3V +3.3V R1 130Ω Zo = 50Ω +3.3V R1 130Ω R4 1kΩ VT = VCC -2V +3.3V R2 82Ω R2 82Ω R3 1.6kΩ VT = VCC -1.3V

Notes:
1. Unused output (/Q) must be terminated to balance the output.
2. For +2.5V systems: R1 = 250, R2 = 62.5, R3 = 1.25k, R4 = 1.2k
For +3.3V systems: R1 = 130, R2 = 82, R3 = 1k, R4 = 1.6k
3. Unused output pairs (Q and /Q) may be left floating.

FIGURE 5-3: Terminating Unused I/O.

6.0 PACKAGING INFORMATION

6.1 Package Marking Information

Example16-L XXXX WNNN 021U 3HI8

Legend: XX...X Product code or customer-specific information Y Year code (last digit of calendar year) YY Year code (last 2 digits of calendar year) WW Week code (week of January 1 is week '01') NNN Alphanumeric traceability code (e3) Pb-free JEDEC® designator for Matte Tin (Sn) * This package is Pb-free. The Pb-free JEDEC designator (e3) can be found on the outer packaging for this package. •, ▲, ▼ Pin one index is identified by a dot, delta up, or delta down (triangle mark).

Note:

In the event the full Microchip part number cannot be marked on one line, it will be carried over to the next line, thus limiting the number of available characters for customer-specific information. Package may or may not include the corporate logo. Underbar (_) and/or Overbar (~) symbol may not be to scale.

Note: If the full seven-character YYWWNNN code cannot fit on the package, the following truncated codes are used based on the available marking space: 6 Characters = YWWNNN; 5 Characters = WWNNN; 4 Characters = WNNN; 3 Characters = NNN; 2 Characters = NN; 1 Character = N

16-Lead Very Thin Plastic Quad Flat, No Lead Package (NCA) - 3x3x1.0 mm Body [VQFN] With 1.55 mm Exposed Pad; Micrel Legacy Package QFN33-16LD-PL-1

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

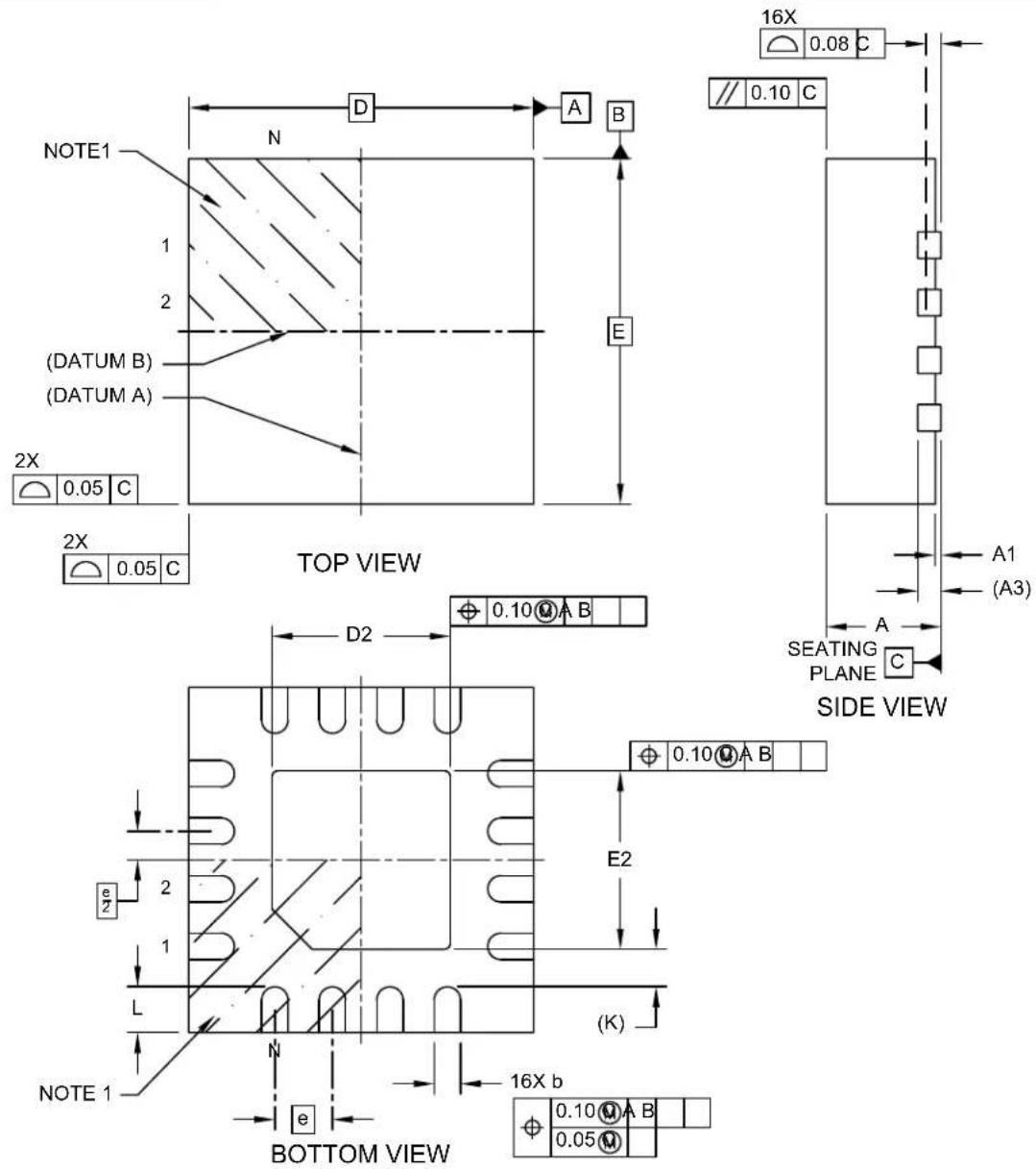

NOTE1 N 1 2 (DATUM B) (DATUM A) 2X 0.05 C 2X 0.05 C TOP VIEW 16X 0.08 C // 0.10 C A1 (A3) A SEATING PLANE C SIDE VIEW D2 ⊕ 0.10 A B ⊕ 0.10 A B E2 K e/2 2 1 L N NOTE 1 e 16X b BOTTOM VIEW ⊕ 0.10 A B ⊕ 0.05 M

Microchip Technology Drawing C04-1103-NCA Rev C Sheet 1 of 2

16-Lead Very Thin Plastic Quad Flat, No Lead Package (NCA) - 3x3x1.0 mm Body [VQFN] With 1.55 mm Exposed Pad; Micrel Legacy Package QFN33-16LD-PL-1

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

Technical line drawing of two integrated circuit chips with pinouts (no text or symbols)

Units		MILLIMETERS
Dimension Limits		MIN	NOM	MAX
Number of Terminals	N	16
Pitch	e	0.50 BSC
Overall Height	A	0.80	0.90	1.00
Standoff	A1	0.00	0.02	0.05
Terminal Thickness	A3	0.203 REF
Overall Length	D	3.00 BSC
Exposed Pad Length	D2 1	50	1.55 1.60
Overall Width	E	3.00 BSC
Exposed Pad Width	E2	1.50	1.55	1.60
Terminal Width	b	0.18	0.23	0.28
Terminal Length	L	0.35	0.40	0.45
	K 0.33 REFTerminal-to-Exposed-Pad

Notes:

1. Pin 1 visual index feature may vary, but must be located within the hatched area.
2. Package is saw singulated
3. Dimensioning and tolerancing per ASME Y14.5M BSC: Basic Dimension. Theoretically exact value shown without tolerances. REF: Reference Dimension, usually without tolerance, for information purposes only.

Microchip Technology Drawing C04-1103-NCA Rev C Sheet 2 of 2

16-Lead Very Thin Plastic Quad Flat, No Lead Package (NCA) - 3x3x1.0 mm Body [VQFN] With 1.55 mm Exposed Pad; Micrel Legacy Package QFN33-16LD-PL-1

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

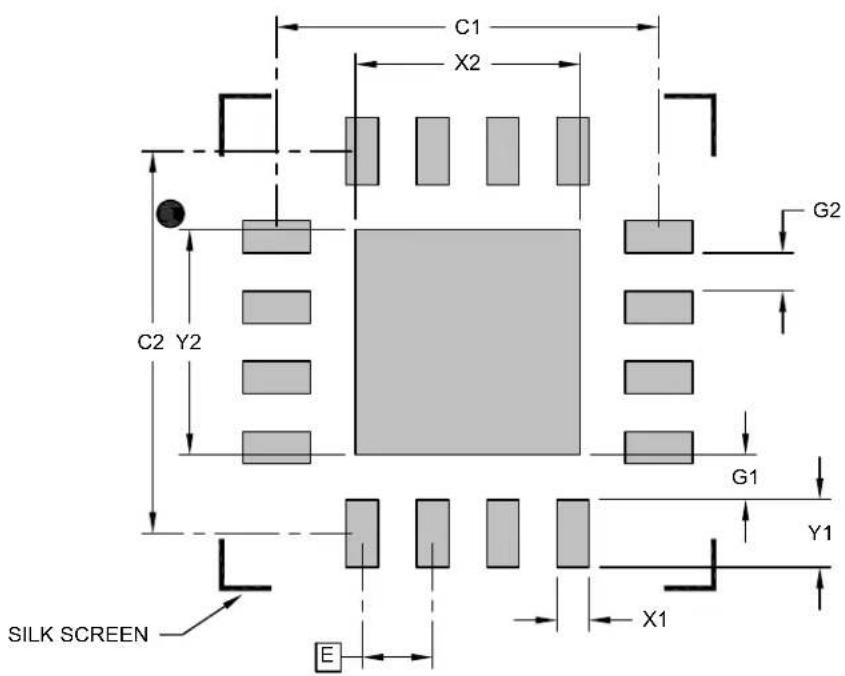

C1 X2 G2 C2 Y2 G1 Y1 X1 SILK SCREEN E

RECOMMENDED LAND PATTERN

Units		MILLIMETERS
Dimension Limits		MIN	NOM	MAX
Contact Pitch	E	0.50 BSC
Center Pad Width	X2			1.60
Center Pad Length	Y2			1.60
	C1Contact Pad Spacing 2.72
Contact Pad Spacing	C2		2.72
Contact Pad Width (Xnn)	X1			0.23
Contact Pad Length (Xnn)	Y1			0.48
Contact Pad to Center Pad (Xnn) G1	0.32
Contact Pad to Contact Pad (Xnn) G2	0.27

Notes:
Dimensioning and tolerancing per ASME Y14.5M1.
BSC: Basic Dimension. Theoretically exact value shown without tolerances.

Microchip Technology Drawing C04-3103-NCA Rev C

APPENDIX A: REVISION HISTORY

Revision A (October 2023)

• Converted Micrel document SY58021U to Microchip data sheet template DS20006822A.
• Minor text changes throughout.

PRODUCT IDENTIFICATION SYSTEM

To order or obtain information, e.g., on pricing or delivery, contact your local Microchip representative or sales office.

Part No.

Device

XXX

Supply

Voltage

_ [-XX]

Package

Temperature

Range

Media Type

Device:

SY58021:

4 GHz, 1:4 LVPECL Fanout Buffer/Translator with Internal Termination

Supply Voltage: U = 2.5V/3.3V

Package: M = 16-Lead 3 mm x 3 mm VQFN

Temperature

G = -40^ to +85^

Range:

Media Type:

TP

100/Tube

1.000/Reel

Examples:

a) SY58021UMG:

SY58021, 2.5V/3.3V Supply Voltage, 16-Lead VQFN, -40°C to +85°C Temperature Range, 100/Tube

b) SY58021UMG-TR:

SY58021, 2.5V/3.3V Supply Voltage, 16-Lead VQFN, -40°C to +85°C Temperature Range, 1,000/Reel

Note 1: Tape and Reel identifier only appears in the catalog part number description. This identifier is used for ordering purposes and is not printed on the device package. Check with your Microchip Sales Office for package availability with the Tape and Reel option.

NOTES:

Note the following details of the code protection feature on Microchip products:

• Microchip products meet the specifications contained in their particular Microchip Data Sheet.
- Microchip believes that its family of products is secure when used in the intended manner, within operating specifications, and under normal conditions.
- Microchip values and aggressively protects its intellectual property rights. Attempts to breach the code protection features of Microchip product is strictly prohibited and may violate the Digital Millennium Copyright Act.
- Neither Microchip nor any other semiconductor manufacturer can guarantee the security of its code. Code protection does not mean that we are guaranteeing the product is "unbreakable" Code protection is constantly evolving. Microchip is committed to continuously improving the code protection features of our products.

This publication and the information herein may be used only with Microchip products, including to design, test, and integrate Microchip products with your application. Use of this information in any other manner violates these terms. Information regarding device applications is provided only for your convenience and may be superseded by updates. It is your responsibility to ensure that your application meets with your specifications. Contact your local Microchip sales office for additional support or, obtain additional support at https://www.microchip.com/en-us/support/design-help/client-support-services.

THIS INFORMATION IS PROVIDED BY MICROCHIP "AS IS". MICROCHIP MAKES NO REPRESENTATIONS OR WARRANTIES OF ANY KIND WHETHER EXPRESS OR IMPLIED, WRITTEN OR ORAL, STATUTORY OR OTHERWISE, RELATED TO THE INFORMATION INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY, AND FITNESS FOR A PARTICULAR PURPOSE, OR WARRANTIES RELATED TO ITS CONDITION, QUALITY, OR PERFORMANCE.

IN NO EVENT WILL MICROCHIP BE LIABLE FOR ANY INDIRECT, SPECIAL, PUNITIVE, INCIDENTAL, OR CONSEQUENTIAL LOSS, DAMAGE, COST, OR EXPENSE OF ANY KIND WHATSOEVER RELATED TO THE INFORMATION OR ITS USE, HOWEVER CAUSED, EVEN IF MICROCHIP HAS BEEN ADVISED OF THE POSSIBILITY OR THE DAMAGES ARE FORESEEABLE. TO THE FULLEST EXTENT ALLOWED BY LAW, MICROCHIP'S TOTAL LIABILITY ON ALL CLAIMS IN ANY WAY RELATED TO THE INFORMATION OR ITS USE WILL NOT EXCEED THE AMOUNT OF FEES, IF ANY, THAT YOU HAVE PAID DIRECTLY TO MICROCHIP FOR THE INFORMATION.

Use of Microchip devices in life support and/or safety applications is entirely at the buyer's risk, and the buyer agrees to defend, indemnify and hold harmless Microchip from any and all damages, claims, suits, or expenses resulting from such use. No licenses are conveyed, implicitly or otherwise, under any Microchip intellectual property rights unless otherwise stated.

Trademarks

The Microchip name and logo, the Microchip logo, Adaptec, AVR, AVR logo, AVR Freaks, BesTime, BitCloud, CryptoMemory, CryptoRF, dsPIC, flexPWR, HELDO, IGLOO, JukeBlox, KeeLoq, Kleer, LANCheck, LinkMD, maXStylus, maXTouch, MediaLB, megaAVR, Microsemi, Microsemi logo, MOST, MOST logo, MPLAB, OptoLyzer, PIC, picoPower, PICSTART, PIC32 logo, PolarFire, Prochip Designer, QTouch, SAM-BA, SenGenuity, SpyNIC, SST, SST Logo, SuperFlash, Symmetricom, SyncServer, Tachyon, TimeSource, tinyAVR, UNI/O, Vectron, and XMEGA are registered trademarks of Microchip Technology Incorporated in the U.S.A. and other countries.

AgileSwitch, ClockWorks, The Embedded Control Solutions Company, EtherSynch, Flashtec, Hyper Speed Control, HyperLight Load, Libero, motorBench, mTouch, Powermite 3, Precision Edge, ProASIC, ProASIC Plus, ProASIC Plus logo, Quiet-Wire, SmartFusion, SyncWorld, TimeCesium, TimeHub, TimePictra, TimeProvider, and ZL are registered trademarks of Microchip Technology Incorporated in the U.S.A.

Adjacent Key Suppression, AKS, Analog-for-the-Digital Age, Any Capacitor, AnyIn, AnyOut, Augmented Switching, BlueSky, BodyCom, Clockstudio, CodeGuard, CryptoAuthentication, CryptoAutomotive, CryptoCompanion, CryptoController, dsPICDEM, dsPICDEM.net, Dynamic Average Matching, DAM, ECAN, Espresso T1S, EtherGREEN, EyeOpen, GridTime, IdealBridge, IGAT, In-Circuit Serial Programming, ICSP, INICnet, Intelligent Paralleling, IntelliMOS, InterChip Connectivity, JitterBlocker, Knob-on-Display, MarginLink, maxCrypto, maxView, memBrain, Mindi, MiWi, MPASM, MPF, MPLAB Certified logo, MPLIB, MPLINK, mSiC, MultiTRAK, NetDetach, Omniscient Code Generation, PICDEM, PICDEM.net, PICkit, PICtail, Power MOS IV, Power MOS 7, PowerSmart, PureSilicon, QMatrix, REAL ICE, Ripple Blocker, RTAX, RTG4, SAM-ICE, Serial Quad I/O, simpleMAP, SimpliPHY, SmartBuffer, SmartHLS, SMART-I.S., storClad, SQI, SuperSwitcher, SuperSwitcher II, Switchtec, SynchroPHY, Total Endurance, Trusted Time, TSHARC, Turing, USBCheck, VariSense, VectorBlox, VeriPHY, ViewSpan, WiperLock, XpressConnect, and ZENA are trademarks of Microchip Technology Incorporated in the U.S.A. and other countries.

SQTP is a service mark of Microchip Technology Incorporated in the U.S.A.

The Adaptec logo, Frequency on Demand, Silicon Storage Technology, and Symmcom are registered trademarks of Microchip Technology Inc. in other countries.

GestIC is a registered trademark of Microchip Technology Germany II GmbH & Co. KG, a subsidiary of Microchip Technology Inc., in other countries.

All other trademarks mentioned herein are property of their respective companies.

© 2023, Microchip Technology Incorporated and its subsidiaries.

All Rights Reserved.

ISBN: 978-1-6683-3287-0

For information regarding Microchip's Quality Management Systems, please visit www.microchip.com/quality.

Worldwide Sales and Service

AMERICAS

Corporate Office

2355 West Chandler Blvd.

Chandler, AZ 85224-6199

Tel: [phone]

Fax: [phone]

Technical Support:

http://www.microchip.com/

support

Web Address:

www.microchip.com

Atlanta

Duluth, GA

Tel: [phone]

Fax: [phone]

Austin, TX

Tel: [phone]

Boston

Westborough, MA

Tel: [phone]

Fax: [phone]

Chicago

Itasca, IL

Tel: [phone]

Fax: [phone]

Dallas

Addison, TX

Tel: [phone]

Fax: [phone]

Detroit

Novi, MI

Tel: [phone]

Houston, TX

Tel: [phone]

Indianapolis

Noblesville, IN

Tel: [phone]

Fax: [phone]

Tel: [phone]

Los Angeles

Mission Viejo, CA

Tel: [phone]

Fax: [phone]

Tel: [phone]

Raleigh, NC

Tel: [phone]

New York, NY

Tel: [phone]

San Jose, CA

Tel: [phone]

Tel: [phone]

Canada - Toronto

Tel: [phone]

Fax: [phone]

ASIA/PACIFIC

Australia - Sydney

Tel: [phone]

China - Beijing

Tel: [phone]

China - Chengdu

Tel: [phone]

China - Chongqing

Tel: [phone]

China - Dongguan

Tel: [phone]

China - Guangzhou

Tel: [phone]

China - Hangzhou

Tel: [phone]

China - Hong Kong SAR

Tel: [phone]

China - Nanjing

Tel: [phone]

China - Qingdao

Tel: [phone]

China - Shanghai

Tel: [phone]

China - Shenyang

Tel: [phone]

China - Shenzhen

Tel: [phone]

China - Suzhou

Tel: [phone]

China - Wuhan

Tel: [phone]

China - Xian

Tel: [phone]

China - Xiamen

Tel: [phone]

China - Zhuhai

Tel: [phone]

ASIA/PACIFIC

India - Bangalore

Tel: [phone]

India - New Delhi

Tel: [phone]

India - Pune

Tel: [phone]

Japan - Osaka

Tel: [phone]

Japan - Tokyo

Tel: [phone]

Korea - Daegu

Tel: [phone]

Korea - Seoul

Tel: [phone]

Malaysia - Kuala Lumpur

Tel: [phone]

Malaysia - Penang

Tel: [phone]

Philippines - Manila

Tel: [phone]

Singapore

Tel: [phone]

Taiwan - Hsin Chu

Tel: [phone]

Taiwan - Kaohsiung

Tel: [phone]

Taiwan - Taipei

Tel: [phone]

Thailand - Bangkok

Tel: [phone]

Tel: [phone]

Fax: [phone]

Denmark - Copenhagen

Tel: [phone]

Fax: [phone]

Finland - Espoo

Tel: [phone]

France - Paris

Tel: [phone]

Fax: [phone]

Germany - Garching

Tel: [phone]

Germany - Haan

Tel: [phone]

Germany - Heilbronn

Tel: [phone]

Germany - Karlsruhe

Tel: [phone]

Germany - Munich

Tel: [phone]

Fax: [phone]

Germany - Rosenheim

Tel: [phone]

Israel - Ra'anana

Tel: [phone]

Italy - Milan

Tel: [phone]

Fax: [phone]

Italy - Padova

Tel: [phone]

Netherlands - Drunen

Tel: [phone]

Fax: [phone]

Norway - Trondheim

Tel: [phone]

Poland - Warsaw

Tel: [phone]

Romania - Bucharest

Tel: [phone]

Spain - Madrid

Tel: [phone]

Fax: [phone]

Sweden - Gothenberg

Tel: [phone]

Sweden - Stockholm

Tel: [phone]

UK - Wokingham

Tel: [phone]

Fax: [phone]
