USER MANUAL ATF1502BE Microchip

The Atmel ^® ATF15xx-DK3-U Complex Programmable Logic Device (CPLD) Development/Programmer Kit is a complete development system and an In-System Programming (ISP) programmer for the Atmel ATF15xx Family of industry standard pin compatible CPLDs with Logic Doubling ^® features. This kit provides designers a very quick and easy way to develop prototypes and evaluate new designs with an ATF15xx ISP CPLD. The ATF15xx Family of ISP CPLDs includes the Atmel ATF15xxAS, ATF15xxASL, ATF15xxASV, and ATF15xxASVL CPLDs. With the availability of the different socket adapter boards to support most of the package types ^(1) offered in the ATF15xx Family of ISP CPLDs, this kit can be used as an ISP programmer to program the ATF15xx ISP CPLDs in most of the available package types ^(1) through the industry standard JTAG interface (IEEE 1149.1).

Kit Contents

CPLD Development/Programmer Board (ATF15xx-DK3)
44-pin TQFP Socket Adapter Board (ATF15xxDK3-SAA44) ^(2)
• ATF15xx USB-based JTAG ISP Download Cable (ATDH1150USB or ATDH1150USB-K)
• Two Atmel 44-pin TQFP Sample Devices

Device Support

The ATF15xx-DK3-U CPLD Development/Programmer Kit supports the following devices in all currently available Atmel speed grades and packages (except the 100-PQFP):

• ATF1502AS/ASL
• ATF1504AS/ASL
• ATF1508ASV/ASVL

• ATF1502ASV
• ATF1504ASV/ASVL
• ATF1508AS/ASL

1. The socket adapter board is not offered for the 100-pin PQFP.
2. Only the 44-pin TQFP Socket Adapter Board is included in this kit. Other socket adapter boards are sold separately. See "Hardware Description" section for more information on socket adapter board ordering codes.

Table of Contents

Kit Features 3

CPLD Development/Programmer Board 3

Logic Doubling CPLDs 3

ATF15xx ISP Download Cable....3

PLD Development Software 3

System Requirements 3

Ordering Information....4

Hardware Description 4

CPLD Development/Programmer Board 4

7-segment Displays with Selectable Jumpers 5

LEDs with Selectable Jumpers 7

Push-button Switches with Selectable Jumpers for I/O Pins 8

Push-button Switches with Selectable Jumpers for GCLR and OE1 Pins 9

2MHz Oscillator and Clock Selection Jumper 10

V_ccIO and V_ccINT Voltage Selection Jumpers and LEDs 11

I_ccIO and I_ccINT Jumpers 11

Voltage Regulators 11

Power Supply Switch and Power LED 11

Power Supply Jack and Power Supply Header 11

JTAG ISP Connector and TDO Selection Jumper 12

Socket Adapter Board 14

Atmel ATF15xx ISP Download Cable.... 14

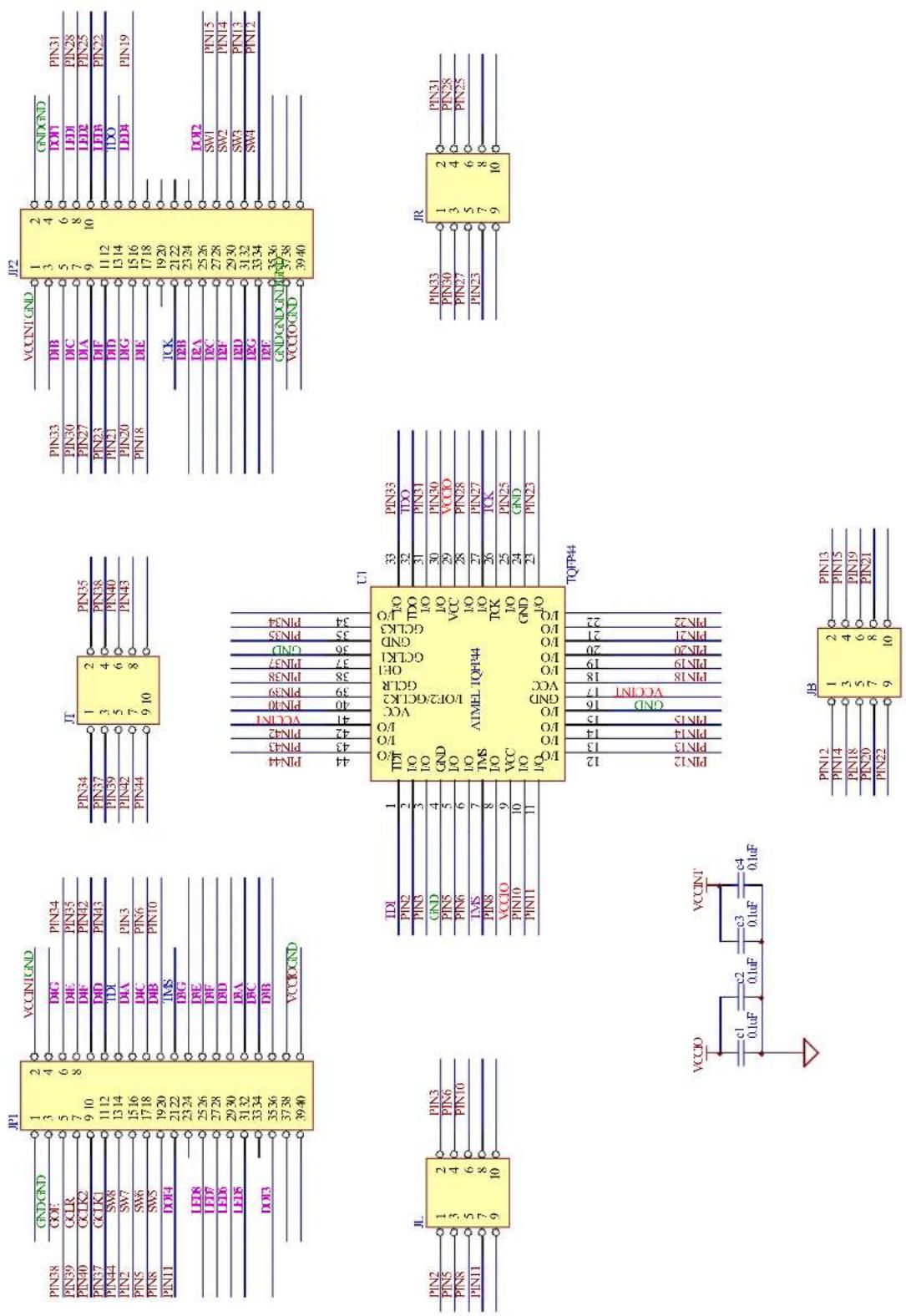

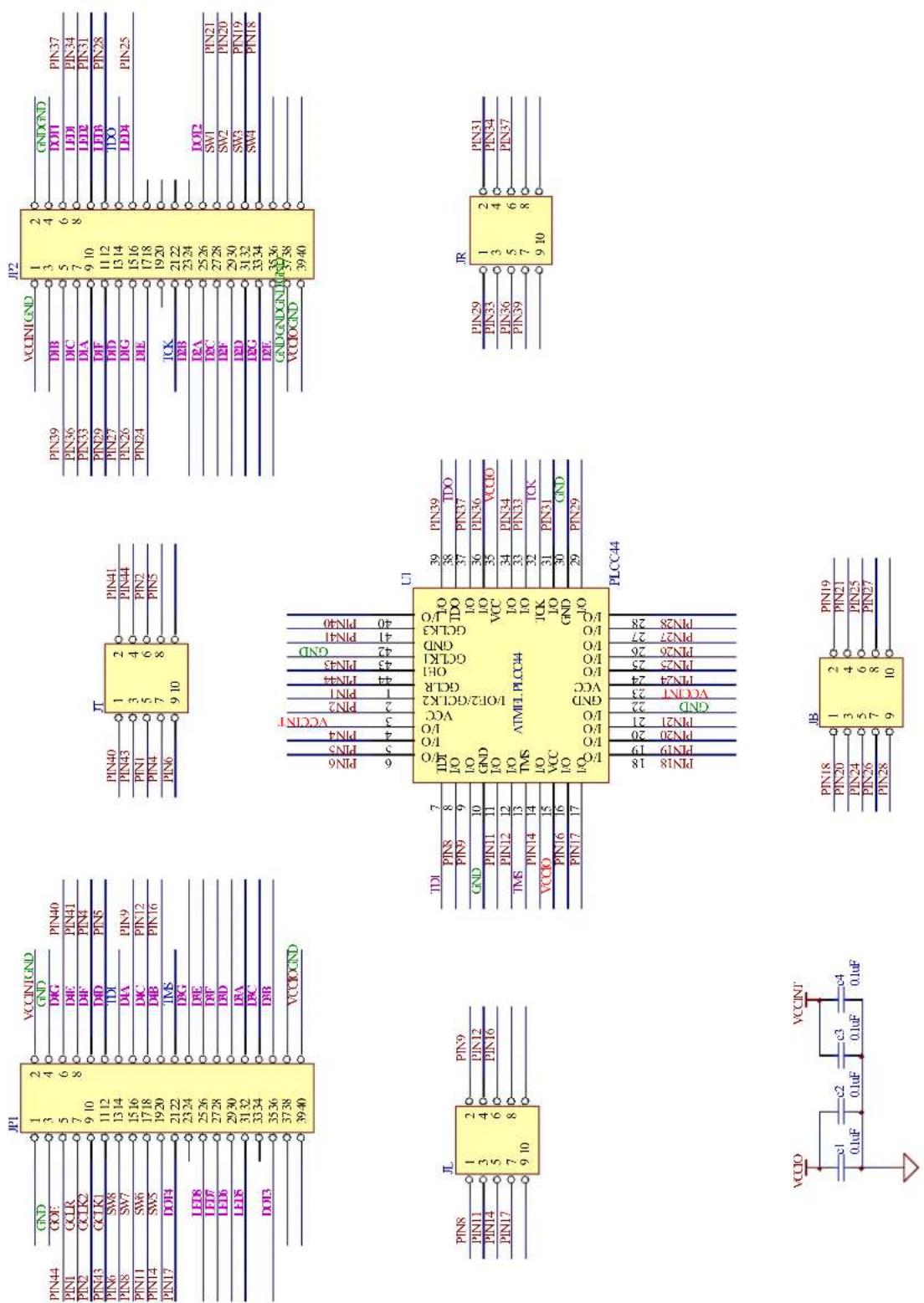

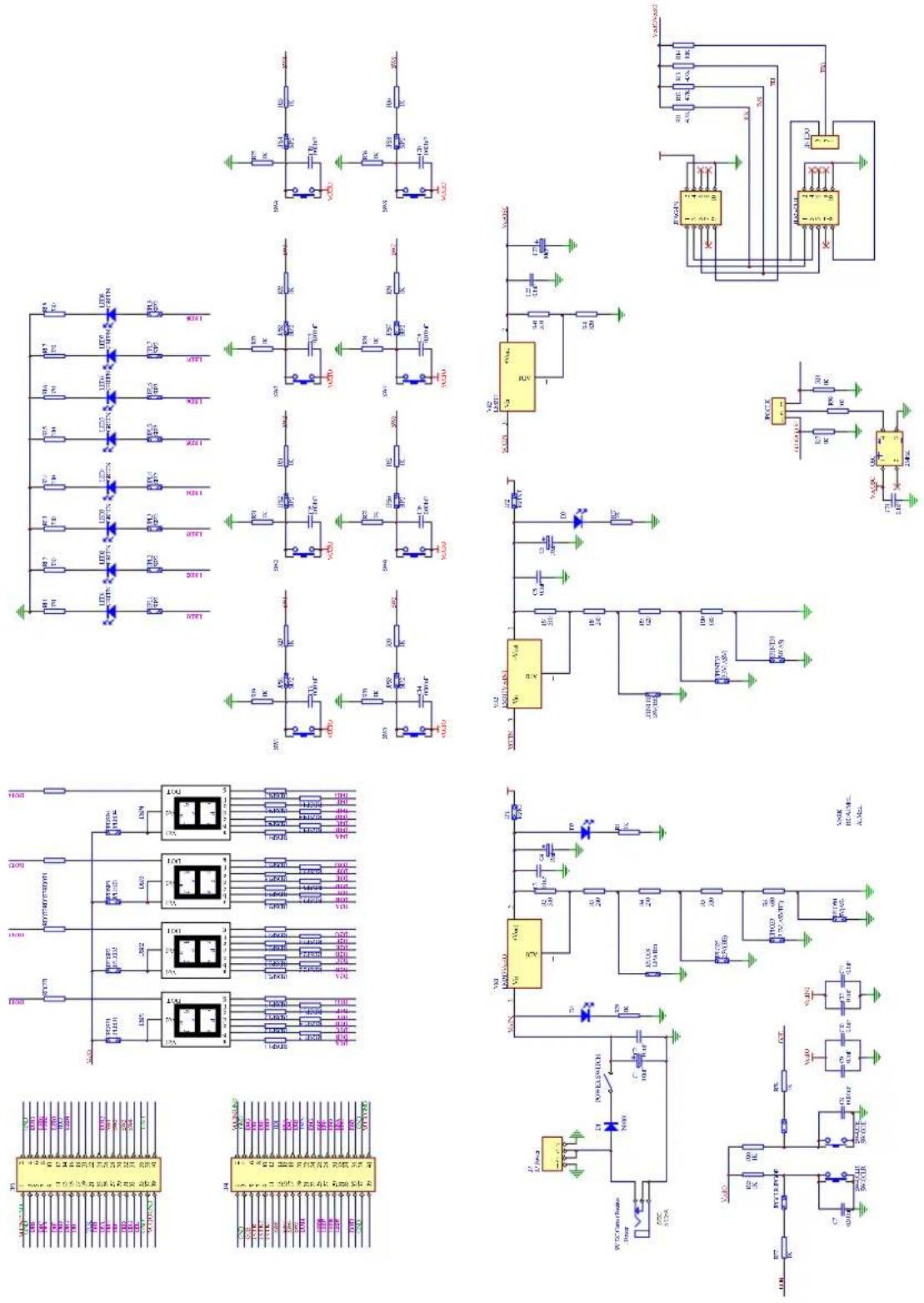

Schematic Diagrams 15

References and Support 20

Atmel ProChip Designer Software 20

Atmel WinCUPL Software 20

Atmel ATMISP Software....20

Atmel POF2JED Conversion Software....20

Technical Support 21

Revision History 21

Kit Features

CPLD Development/Programmer Board

10-pin JTAG-ISP Port
• Regulated Power Supply Circuits for 9VDC Power Source
- Selectable 5V, 3.3V, 2.5V, or 1.8V I/O Voltage Supply
- Selectable 1.8V, 3.3V, or 5.0V Core Voltage Supply
• 44-pin TQFP Socket Adapter Board
- Headers for I/O Pins of the ATF15xx Device
• 2MHz Crystal Oscillator
• Four 7-segment LED Displays
• Eight Individual LEDs
• Eight Push-button Switches
- Global Clear and Output Enable Push-button Switches
• Current Measurement Jumpers

Logic Doubling CPLDs

• ATF15xx ISP CPLD with Logic Doubling Architecture

ATF15xx ISP Download Cable

- 5V, 3.3V, 2.5V, or 1.8V ISP Download Cable for the Universal Serial Bus (USB) port of a PC

There are two versions of the ATF15xx USB ISP Download Cable; ATDH1150USB and ATDH1150USB-K. They are built by two different vendors but have identical circuit design, and the Atmel Ordering Code is ATDH1150USB. The ATDH1150USB-K is built by Kanda (www.kanda.com) and it can be directly purchased from Kanda. More details are available online at www.atmel.com/tools/ATDH1150USB.aspx.

PLD Development Software

The Atmel PLD development software tools are available online for PLD designer's use of the ATF15xx ISP CPLDs. Please reference the Overview document, "PLD Design Software Overview" available at:

http://www.atmel.com/images/atmel-3629-pld-design-software-overview.pdf

System Requirements

The minimum hardware and software required to program an ATF15xx ISP CPLD device designed using the Atmel ProChip Designer Software on the CPLD Development/Programmer Board through the Atmel ATMISP (ATF15xx CPLD ISP Software) are:

• x86 or x64 Microprocessor-based Computer
- Windows XP ^ or Windows 7
128-MByte RAM
500-MByte Free Hard Disk Space
- Windows-supported Mouse
• Available USB 1.1 / 2.0 / 3.0 Port
- 9VDC Power Supply with 500mA of Supply Current
• SVGA Monitor (800 x 600 Resolution)

Ordering Information

Atmel Part Number Description
ATF15xx-DK3-U	CPLD Development/Programmer Kit (includes the ATF15xxDK3-SAA44 ^(1) and ATDH1150USB or ATDH1150USB-K)
ATF15xxDK3-SAA100 100-pin TQFP Socket Adapter Board for DK3 Board
ATF15xxDK3-SAJ44 44-pin PLCC Socket Adapter Board for DK3 Board
ATF15xxDK3-SAJ84 84-pin PLCC Socket Adapter Board for DK3 Board
ATF15xxDK3-SAA44 ^(1)	44-pin TQFP Socket Adapter Board for DK3 Board

Note: 1. Only the 44-pin TQFP Socket Adapter Board is included in this kit. Other socket adapter boards are sold separately. See "Hardware Description" section for more information on socket adapter board ordering codes.

Hardware Description

CPLD Development/Programmer Board

The CPLD Development/Programmer and Socket Adapter Boards shown in the below figure contain features that are useful for developing, prototyping, or evaluating ATF15xx CPLD designs. Features that make this a very versatile starter/development kit and an ISP programmer for the ATF15xx family of JTAG-ISP CPLDs include:

• Push-button Switches
  • LEDs
  7-segment Displays
  • 2MHz Crystal Oscillator

5V, 3.3V, 2.5V, or 1.8V V _cc IO Selector
1.8V, 3.3V, or 5.0V V CCINT Selector
- JTAG ISP Port
- Socket Adapters

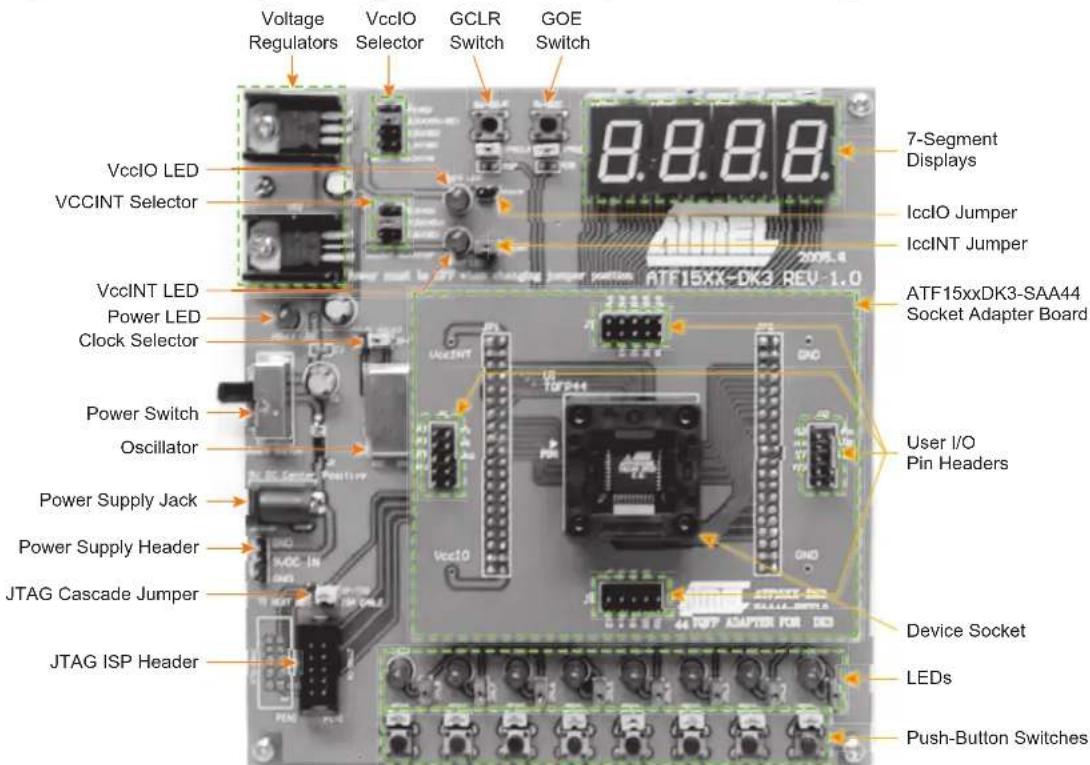

Figure 1. CPLD Development/Programmer Kit with 44-pin TQFP Socket Adapter Board

Voltage Regulators VccIO Selector GCLR Switch GOE Switch VccIO LED VCCINT Selector 7-Segment Displays IccIO Jumper IccINT Jumper VccINT LED Power LED Clock Selector ATF15xxDK3-SAA44 Socket Adapter Board Power Switch Oscillator User I/O Pin Headers Power Supply Jack Power Supply Header JTAG Cascade Jumper Device Socket JTAG ISP Header LEDs Push-Button Switches

7-segment Displays with Selectable Jumpers

The CPLD Development/Programmer Board contains four 7-segment displays which allow the observation of the ATF15xx CPLD outputs. These four displays are labeled as DSP1, DSP2, DSP3, and DSP4. The 7-segment displays have common anode LEDs with the common anode lines connected to the VCCIO (I/O supply voltage for the CPLD) through a series of resistors with selectable jumpers labeled as JPDSP1, JPDSP2, JPDSP3, and JPDSP4. These jumpers can be removed to disable the displays by unconnecting the V_cc IO to the displays. Individual cathode lines are connected to the I/O pins of the ATF15xx CPLD on the CPLD Development/Programmer Kit. To turn on a particular segment, including the DOT of a display, the corresponding ATF15xx I/O pin connected to this LED segment must be in a logic low state with the corresponding selectable jumper set; therefore, the outputs of the ATF15xx device will require configuration for active-low outputs in the design file. The displays work best at 2.5V V_cc IO or higher.

Each segment of each display is hard-wired to one specific I/O pin of the ATF15xx device. For the higher pin count devices (100-pin and larger), all seven segments and the DOT segments of the four displays are connected to the I/O pins; however, for the lower pin count devices, only a subset of the displays, first and fourth displays, are connected to the ATF15xx device's I/O pins. Tables 1 and 2 show the 7-segment display package connections to the ATF15xx device. The circuit schematic of the displays and jumpers is shown in the figure below.

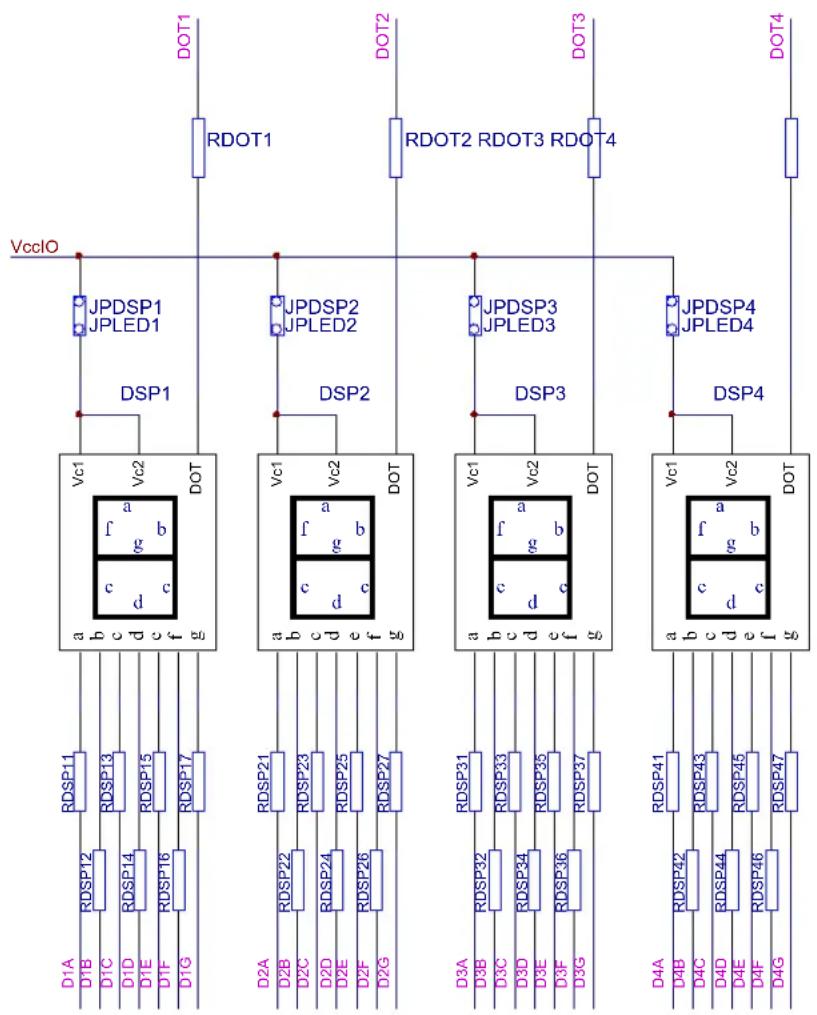

Figure 2. Circuit Diagram of 7-segment Display and Jumpers

Table 1. ATF15xx 44-pin Connections to 7-segment Displays

44-pin TQFP 44-pin PLCC
DSP/Segment	PLD Pin	DSP/Segment	PLD Pin DSP
1/A 27 3/A NC	1/A 33	3/A NC
1/B 33 3/B NC	1/B 39	3/B NC
1/C 30 3/C NC	1/C 36	3/C NC
1/D 21 3/D NC	1/D 27	3/D NC
1/E 18 3/E NC	1/E 24	3/E NC
1/F 23 3/F NC	1/F 29	3/F NC
1/G 20 3/G NC	1/G 26	3/G NC
1/DOT 31 3/DOT NC		1/DOT 37 3/DOT
2/A	NC	4/A	3
2/B	NC	4/B	10
2/C	NC	4/C	6
2/D	NC	4/D	43
2/E	NC	4/E	35
2/F	NC	4/F	42
2/G	NC	4/G	34
2/DOT	NC	4/DOT	11

Segment PLD Pin	DSP/Segment PLD Pin
2/A	NC	4/A
2/B	NC	4/B
2/C	NC	4/C
2/D	NC	4/D
2/E	NC	4/E
2/F	NC	4/F
2/G	NC	4/G
2/DOT	NC	4/DOT

Table 2. ATF15xx 84-pin and 100-pin Connections to 7-segment Displays

84-pin PLCC
DSP/Segment	PLD Pin	DSP/Segment	PLD Pin
1/A	68	3/A	22
1/B	74	3/B	28
1/C	70	3/C	25
1/D	63	3/D	21
1/E	58	3/E	16
1/F	65	3/F	17
1/G 61 3/G 12		1/G 60	3/G
1/DOT	73	3/DOT	29
2/A	52	4/A	5
2/B	57	4/B	10
2/C	55	4/C	8
2/D	48	4/D	79
2/E	41	4/E	76
2/F	50	4/F	77
2/G 45 4/G 75		2/G 45	4/G
2/DOT	56	4/DOT	11

100-pin TQFP
DSP/Segment	PLD Pin	DSP/Segment	PLD Pin
1/A	67	3/A	13
1/B	71	3/B	19
1/C	69	3/C	16
1/D	61	3/D	8
1/E	57	3/E	83
1/F	64	3/F	6
92
1/DOT	75	3/DOT	20
2/A	52	4/A	100
2/B	54	4/B	94
2/C	47	4/C	97
2/D	41	4/D	81
2/E	46	4/E	76
2/F	40	4/F	80
79
2/DOT	56	4/DOT	93

LEDs with Selectable Jumpers

The CPLD Development/Programmer Board has eight individual LEDs, which allow designers to display the output signals from the user I/Os of the ATF15xx devices. These eight LEDs are labeled LED1 to LED8 on the CPLD Development/Programmer Board. The cathode of each LED is connected to Ground (GND) through a series resistor, while the anode of each LED is connected to a user I/O pin of the CPLD through the JPL1/2/3/4/5/6/7/8 selectable jumper. These jumpers can be removed to disable the LEDs by unconnecting the anodes of the LEDs to the I/O pins of the CPLD. The figure below illustrates the circuit diagram of the LEDs with the selection jumpers.

To turn on a particular LED, the corresponding ATF15xx I/O pin connected to the LED must be in a logic high state with the corresponding jumper set; therefore, the outputs of the ATF15xx device will need to be configured as active high outputs. The LEDs work best at 2.5V V _CC IO or higher.

The lower pin count devices (44-pin) only have four I/Os connected to LED1/2/3/4. For the higher pin-count devices (100-pin and larger), all eight LEDs are connected to the I/Os of the device. Table 3 shows the different package connections of the CPLD I/Os to the LEDs.

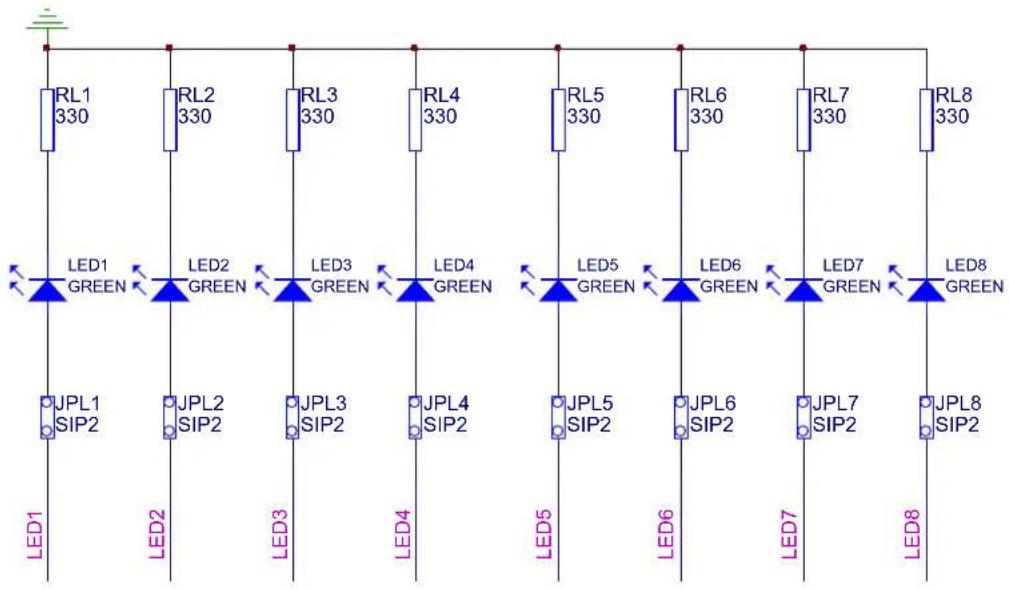

Figure 3. Circuit Diagram of the LEDs and Jumpers

RL1 330 RL2 330 RL3 330 RL4 330 RL5 330 RL6 330 RL7 330 RL8 330 LED1 GREEN LED2 GREEN LED3 GREEN LED4 GREEN LED5 GREEN LED6 GREEN LED7 GREEN LED8 GREEN JPL1 SIP2 JPL2 SIP2 JPL3 SIP2 JPL4 SIP2 JPL5 SIP2 JPL6 SIP2 JPL7 SIP2 JPL8 SIP2 LED1 LED2 LED3 LED4 LED5 LED6 LED7 LED8

Table 3. ATF15xx Connections to LEDs

44-pin TQFP 44-pin		CC 84-pin PLCC 100-pin
LED PLD Pin LED P		Pin LED PLD Pin LED P
LED1 28	LED1 34 LED1 69	LED1 68
LED2 25	LED2 31 LED2 67	LED2 65
LED3 22	LED3 28 LED3 64	LED3 63
LED4 19	LED4 25 LED4 60	LED4 58

FP
n
LED5 27	LED5 17
LED6 24	LED6 14
LED7 18	LED7 10
LED8 15	LED8 9

Push-button Switches with Selectable Jumpers for I/O Pins

The CPLD Development/Programmer Board contains eight push-button switches, which are connected to the I/O pins of the CPLD. The switches send input logic signals to the user I/O pins of the ATF15xx device. These switches are labeled SW1 to SW8 on the CPLD Development/Programmer Board. One end of each input push-button switch is connected to V_CCIO , while the other end of each push-button switch is connected to a pull-down resistor and then connected to the specific I/O pin of the CPLD through the JPS1/2/3/4/5/6/7/8 selectable jumper.

If any one of these switches is pressed and the corresponding jumper is set, the specific I/O pin of the device will be driven to a logic high state by the output of switch circuit. Since each push-button switch is also connected to a pull-down resistor, the input will have a logic low state if the switch is not pressed with the corresponding jumper set. If the push-button jumper is not set, the corresponding pin will be treated as an unconnected pin. Figure 4 is a circuit diagram of the push-button switch and selectable jumper. Table 4 shows the connections of these eight push-button switches to the CPLD I/O pins in the different package types.

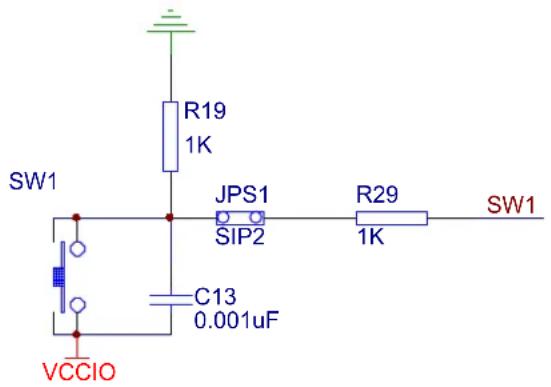

Figure 4. Circuit Diagram of the Push-button Switches and Jumpers for the I/O Pins

SW1 R19 1K JPS1 SIP2 R29 1K SW1 C13 0.001uF VCCIO

Table 4. ATF15xx Connections to the I/O Pin Switches

44-pin TQFP 44-pin LCC 84-pin PLCC 100-pin QFP
Push Button	PLD Pin	Push Button	PLD Pin	Push B	on PLD Pin	Push Button	LD Pin
SW1 15	SW1 21	SW1 54	SW1 48
SW2 14	SW2 20	SW2 51	SW2 36
SW3 13	SW3 19	SW3 49	SW3 44
SW4 12	SW4 18	SW4 44	SW4 37
SW5 8	SW5 14	SW5 9	SW5 96
SW6 5	SW6 11	SW6 6	SW6 98
SW7 2	SW7 8	SW7 4	SW7 84
SW8 44	SW8 6	SW8 80	SW8 99

Push-button Switches with Selectable Jumpers for GCLR and OE1 Pins

The CPLD Development/Programmer Board contains two push-button switches for the Global Clear (GCLR) and Output Enable (OE1) pins of the CPLD. The switches control the logic states of the OE1 and GCLR inputs of the ATF15xx devices. These switches are labeled SW-GCLR and SW-GOE1 on the board. One end of the SW-GCLR input push-button switch is connected to GND. The other end of the push-button switch is connected to a pull-up resistor to V_CCIO , and then connected to the GCLR dedicated input pin of the ATF15xx device. It is intended to be used as an active-low reset signal to reset the registers in the ATF15xx device with the JPGCLR selectable jumper set. Similarly, one end of the SW-GOE1 input push-button switch is connected to GND. The other end of the push-button switch is connected to a pull-up resistor to V_CCIO , and then connected to the OE1 dedicated input pin of the ATF15xx device. It is intended to be used as an active-low output enable signal to control the enabling/disabling of the tri-state output buffers in the ATF15xx with the JPGOE selectable jumper set.

Figure 5 is the circuit diagram of the push-button switches and the jumpers for the GCLR and OE1 pins.

If any of these push-button switches is pressed and the corresponding jumper is set, the specific I/O of the CPLD will be driven to a logic low state. Since each push-button is also connected to a pull-up resistor, the corresponding CPLD input will have a logic high state if the push-button switch is not pressed with the corresponding selectable jumper set. If the selectable jumper is not set, the corresponding dedicated input pin of the CPLD can be considered a No Connect (NC) pin. Table 5 shows the pin numbers of the GCLR and OE1 dedicated input pins of the ATF15xx devices in all available package types.

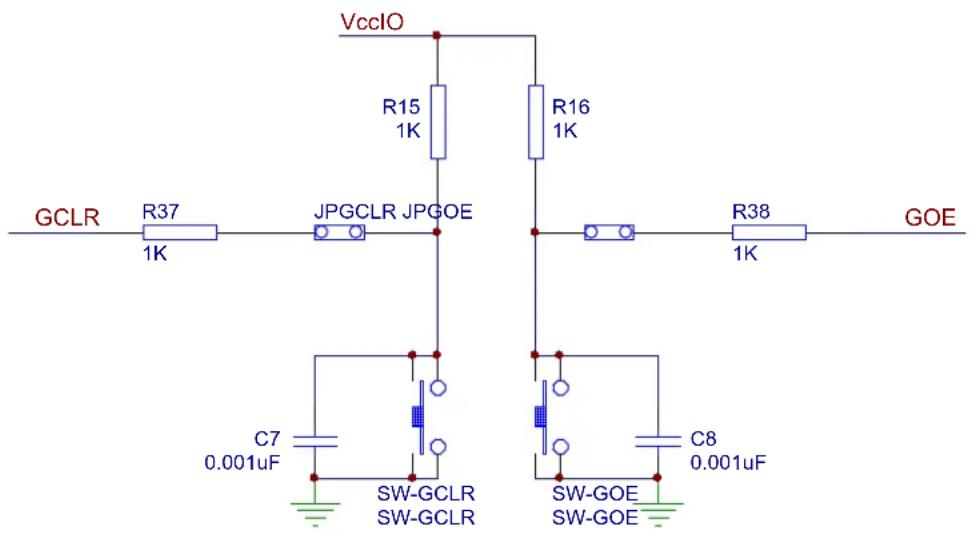

Figure 5. Circuit Diagram of Push-button Switches and Selectable Jumpers for GCLR and OE1

VccIO R15 1K R16 1K GCLR R37 1K JPGCLR JPGOE R38 1K GOE C7 0.001uF SW-GCLR SW-GCLR SW-GOE SW-GOE C8 0.001uF

Table 5. Pin Numbers of GCLR and OE1

	44-pin TQFP 44-pin PLCC 84-pin PLCC 100-pin TQFP
GCLR 39 1	1 89
OE1 38 44	84 88

2MHz Oscillator and Clock Selection Jumper

The Clock Selection Jumper labeled JP-GCLK on the CPLD Development/Programmer Board is a two-position jumper that allows the users to select which GCLK dedicated input pin (either GCLK1 or GCLK2) of the ATF15xx device should be connected to the output of the 2MHz oscillator. In addition, the jumper can be removed to allow an external clock source to be connected to GCLK1 and/or GCLK2 of the ATF15xx device. Figure 6 is an illustration of the circuit diagram of the oscillator and selection jumper. Table 6 shows the pin numbers for the GCLK1 and GCLK2 dedicated input pins of the ATF15xx device in all the different available package types.

If GCLK1 jumper is set, the jumper will be located toward the side of the board. On the other hand, if GCLK2 jumper is set, the jumper will be located toward the middle of the board.

Figure 6. Circuit Diagram of Oscillator and Clock Selection Jumper

JPGCLK GCLK2 GCLK1 R17 1K R39 100 R18 1K VccOSC OSC 1 4 2 3 C21 0.1uF 2MHZ

Table 6. Pin Numbers of GCLK1 and GCLK2

	44-pin TQFP 44-pin PLCC 84-pin PLCC	100-pin TQFP
GCLK1 37 43 83 87
GCLK2 40 2 2 90

V_ccIO and V_ccINT Voltage Selection Jumpers and LEDs

The V_cc IO and V_cc INT Voltage Selection Jumpers, labeled VCCIO Selector and VCCINT Selector respectively on ATF15xx-DK3 Development/Programming Kit, allow the selection of the I/O supply voltage level ( V_cc IO) and core supply voltage level ( V_cc INT) that are used for the target CPLD on the kit. Once these jumpers are set correctly, the LEDs (labeled VCCINT LED and VCCIO LED) will turn on; however, at lower supply voltage levels (i.e. 2.5V or lower), the LEDs might be very dim.

• For ATF15xxAS/ASL (5.0V) CPLDs, both the VCCIO Selector and VCCINT Selector jumpers must be set to 5.0V.
• For ATF15xxASV/ASVL (3.3V) CPLDs, both the VCCIO Selector and VCCINT Selector Jumpers must be set to 3.3V only.

The power of the CPLD Development/Programmer Kit must be turned OFF when changing the position of the V_CCIO or V_CCINT Voltage Selection Jumper (VCCIO Selector or VCCINT Selector).

I_ccIO and I_ccINT Jumpers

The I_CCIO and I_CCINT jumpers can be removed and used as I_CC measurement points. When the jumpers are removed, current meters can be connected to the posts to measure the current consumption of the target CPLD. When users are not using these jumpers to measure the current, these jumpers must be set in order for the kit and CPLD to operate.

Voltage Regulators

Two voltage regulators, labeled VR1 and VR2, are used to independently generate and regulate the V_CC INT and V_CC IO voltages from the 9VDC power supply. For details, please see the ATF15xx-DK3 kit schematic, Figure 11.

Power Supply Switch and Power LED

The Power Supply Switch, labeled POWER SWITCH, can be switched to the on or off position, which is used to turn on or off the power of the ATF15xx-DK3 board respectively. It allows the 9VDC voltage at the Power Supply Jack to pass to the voltage regulators when it is in the on position. When the Power Supply Switch is turned on, the Power LED (labeled POWER LED) will light up to indicate that the ATF15xx-DK3 Kit is supplied with power.

Power Supply Jack and Power Supply Header

The ATF15xx-DK3 board contains two different types of power supply connectors labeled JPower and JP Power. Either one of these power supply connectors can be used to connect a 9VDC power source to the kit. The first power connector labeled JPower, is a barrel power jack with a 2.1mm diameter post, and it mates to a 2.1mm (inner diameter) x 5.5mm (outer diameter) female plug. The second power supply header labeled JP Power, is a 4-pin male 0.100" header with 0.025" square posts. The availability of these two types of power connectors allows the users to choose the type of power supply equipment to use for ATF15xx-DK3 Development/Programmer Kit.

Only one of these two power supply connectors should be powered with a 9VDC source but not both at the same time.

JTAG ISP Connector and TDO Selection Jumper

The JTAG ISP Connector labeled JTAG-IN, is used to connect the ATF15xx JTAG port pins (TCK, TDI, TMS, and TDO) through the ISP download cable to the parallel printer (LPT) port of a PC for JTAG ISP programming of the ATF15xx device. Polarized connectors are used on the ATF15xx-DK3 and ISP Download Cable to minimize connection problems. The PIN1 label at the bottom of the JTAG ISP connector indicates the pin 1 position of the 10-pin header and further reduces the chance of connecting the ISP Download Cable incorrectly.

To the left of the JTAG-IN connector, there are two columns of vias, and they are labeled JTAG-OUT. They are intended to allow the users to create a JTAG daisy chain to perform JTAG operations to multiple devices. Users will need to solder the same type of connector as the one used for JTAG-IN into the JTAG-OUT position in order to utilize this available feature.

To create a JTAG daisy chain using multiple ATF15xx-DK3 boards, the TDO Selection Jumper, labeled JP-TDO, must be set to the appropriate position. For all the devices in the daisy chain except the last device, this jumper must be set to the TO NEXT DEVICE position. For the last device in the chain, this jumper must be set to the TO ISP CABLE position. When this jumper is in the TO NEXT DEVICE position, the TDO of that particular JTAG device will be connected to the TDI of the next JTAG device in the chain. When this jumper is in the TO ISP CABLE position, the TDO of that device will be connected to the TDO of the JTAG 10-pin connector, which will allow the TDO signal of the that device in the chain to be transmitted back to the host PC with the ISP software. The figure below is a circuit diagram of the JTAG connectors and the JP-TDO jumper. The table below lists the pin numbers of the four JTAG pins for the ATF15xx device in all the available packages.

For a single device setup, the position of the JP-TDO jumper must be set to TO ISP CABLE.

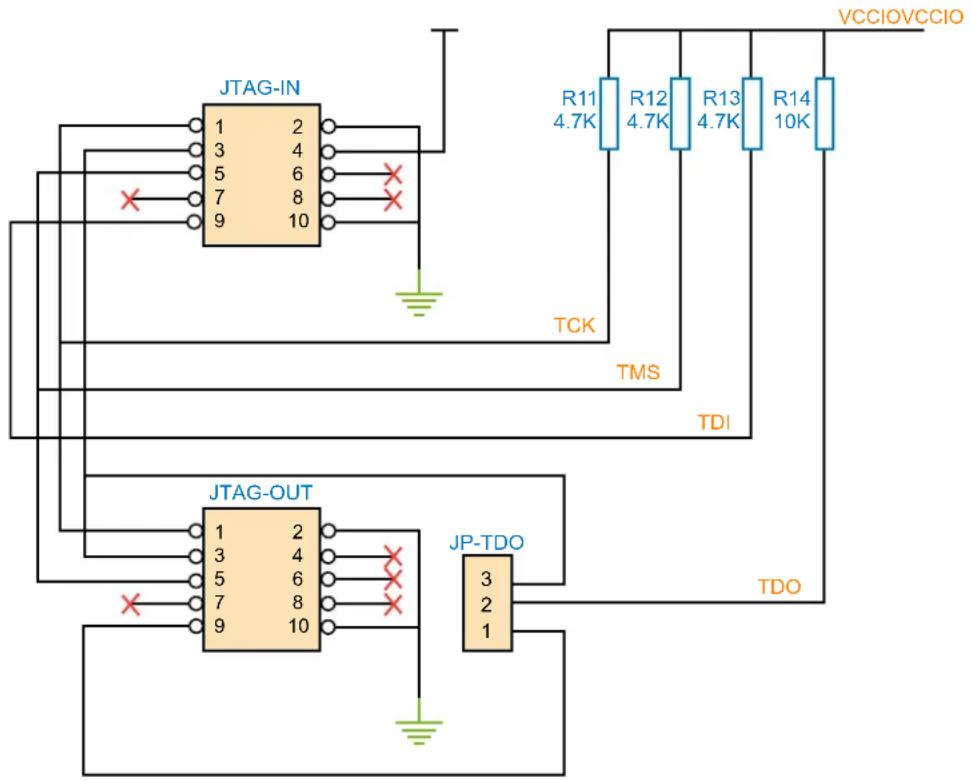

Figure 7. Circuit Diagram of the JTAG ISP Connectors and TDO Jumper

JTAG-IN 1 2 3 4 5 6 7 8 9 10 TCK R11 R12 R13 R14 4.7K 4.7K 4.7K 10K TMS TDI JTAG-OUT 1 2 3 4 5 6 7 8 9 10 JP-TDO 3 2 1 TDO VCCIOVCCIO

Table 7. Pin Numbers of JTAG Port Signals

	44-pin TQFP 44-pin PLCC 84-pin PLCC	100-pin TQFP
TDI 1 7 14 4
TDO 32 38 71 73
TMS 7 13 23 15
TCK 26 32 62 62

The ISP algorithm is controlled by the ATMISP software, which is running on the PC. The four JTAG signals are generated and buffered by the ISP download cable before going into the ATF15xx device on the CPLD Development/Programmer board. The 10-pin JTAG Port Header pinout on the CPLD Development/Programmer board is shown in Figure 8, and the dimensions of this 10-pin male JTAG header are shown in Figure 9.

Figure 8. 10-pin JTAG Port Header Pinout
10-Pin JTAG Port Header (Top View)

GND 10 9 TDI NC 8 7 NC NC 6 5 TMS Vcc 4 3 TDO GND 2 1 TCK

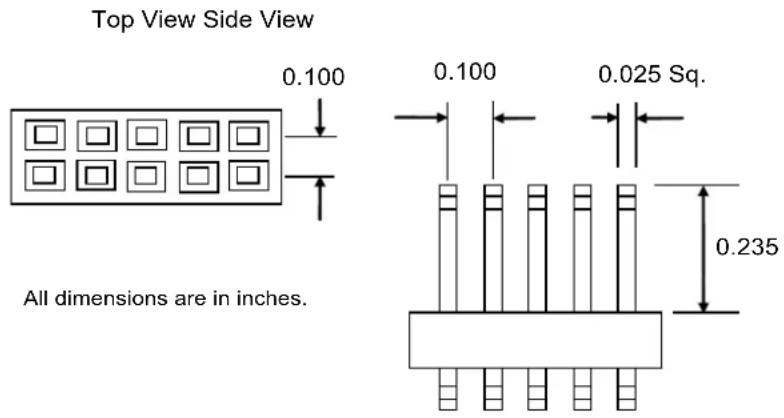

Figure 9. 10-pin Male Header Dimensions

Top View Side View 0.100 0.100 0.025 Sq. 0.235 All dimensions are in inches.

The 10-pin JTAG Port Header pinout is compatible with the ATDH1150USB and ATDH1150USB-K USB based ISP cables as well as the ATDH1150PC/VPC and ByteBlaster/MV/II LPT port based ISP cables. ATMISP v6.7 supports both the USB and LPT port based ISP cables while ATMISP v7.x and later only supports the USB port based ISP cables.

Socket Adapter Board

The ATF15xx-DK3 CPLD Development/Programmer Socket Adapter Boards (ATF15xxDK3-XXXXX) are circuit boards that interface with the ATF15xx-DK3 CPLD Development/Programmer Board. They are used in conjunction with the ATF15xx-DK3 CPLD Development/Programmer Board to evaluate or program ATF15xx ISP CPLD devices in different package types. There are four Socket Adapter Boards available for the ATF15xx-DK3 covering the 44-TQFP, 44-PLCC, 84-PLCC, and 100-TQFP package types in the ATF15xx family of CPLDs.

Each socket adapter board contains a socket for the ATF15xx device and has male headers on the bottom side, labeled JP1 and JP2. The headers on the bottom side mate with the female headers on the ATF15xx-DK3 board, labeled JP4 and JP3. The four 7-segment displays, push-button switches, JTAG port signals, oscillator, V_CC INT, V_CC IO, and GND on the CPLD Development/Programmer Board are connected to the ATF15xx device on the Socket Adapter Board through these two sets of connectors.

On the top of the 44-TQFP socket adapter, there are four 10-pin connectors with the same dimensions as the JTAG ISP connector. The pins of these four connectors are connected to the input and I/O pins (except the four JTAG pins) of the target CPLD device. They can be used to connect to an oscilloscope or logic analyzer to capture the activities of the input and I/O pins of the CPLD. They also can be used to connect the input and I/O pins of the CPLD to other external boards or devices for system level evaluation or testing.

Atmel ATF15xx ISP Download Cable

The ATF15xx USB ISP Download Cable connects the USB port of the PC to the 10-pin JTAG header on the CPLD Development/Programmer Board or a custom circuit board. This ISP cable also acts as a buffer to buffer the JTAG signals for the JTAG devices on the target circuit board. The status LED on the ATF15xx USB ISP Download Cable indicates whether the communication between the PC and the target JTAG devices and the JTAG operation are successful or not.

This ISP cable contains a standard B USB connector, which is connected to the USB port of a PC. The 10-pin female plug connects to the 10-pin male JTAG header on the ISP circuit board. The red color stripe on the ribbon cable indicates the orientation of pin 1 of the female plug. The 10-pin male JTAG header on the CPLD Development/Programmer Board is polarized to prevent users from inserting the female plug in the wrong orientation.

The CPLD Development/Programmer kits includes the ATF15xx USB ISP Download Cable (ATDH1150USB or ATDH1150USB-K); however, other supported ISP cables can also be used. The ATDH1150VPC, ATDH1150USB, ByteBlasterMV, and ByteBlasterII cables can be used for the ATF15xx/ASL (5V) and ATF15xxASV/ASVL (3.3V) devices, while the older ATDH1150PC and the ByteBlaster cables can be used for the ATF15xxAS/ASL (5V) only.

Figure 10 illustrates the 10-pin female header pinout for the ATF15xx ISP Download Cable. The 10-pin male header pinout on the PC board (if used for ISP) must match this pinout.

Figure 10. ATF15xx ISP Download Cable 10-pin Female Header Pinout

Color Stripe 1 3 5 7 9 2 4 6 8 1 0

Note: The circuit board must supply V _cc and GND to the CPLD ISP Cable through the 10-pin male header.

Figure 11. ATF15xx-D3 Development/Programmer Kit Schematic Diagram

Electrical schematic diagram with multiple circuit components and labeled pins, including ICs, resistors, capacitors, and power supply connections.

Figure 12. 44-pin TQFP Socket Adapter Board Schematic Diagram

PINS3 PINS39 PINS40 PINS37 PINS44 PINS2 PINS5 PINS8 PINS11 PICD CCK PINS3 PINS39 PINS44 PINS2 PINS5 PINS8 PICD PICD PICD PICD PICD PICD PICD PICD PICD PICD PICD PICD PICD PICD PICD PICD PICD PICD PICD PICD PICD PICD PICD PICD PICD PICD PICD PICD PICD PICD PICD PICD PICD PICD

Figure 13. 44-pin PLCC Socket Adapter Board Schematic Diagram

Circuit schematic diagram showing pin connections, resistors, capacitors, and microcontroller PLCC44 with labeled pins and pin numbers

Figure 14. 84-pin PLCC Socket Adapter Board Schematic Diagram

P2 VCCNTGND 1 2 GND 3 4 PINS74 DBD 5 6 PINS73 DLD 7 8 PINS70 LDD 9 10 PINS68 DIA 11 12 PINS65 DBD 12 13 PINS63 DFG 13 14 PINS61 DHC 14 15 PINS58 DFE 15 16 PINS57 17 18 PINS55 19 20 PINS53 21 22 PINS50 22 23 PINS48 23 24 PINS45 24 25 PINS41 25 26 PINS37 PINS4 26 PINS35 PINS5 27 PINS33 PINS6 28 PINS31 PINS7 29 PINS29 PINS8 30 PINS27 PINS9 31 PINS25 PINS10 32 PINS23 PINS11 33 PINS21 PINS12 34 PINS19 PINS13 35 PINS17 PINS14 36 PINS15 PINS15 37 PINS13 PINS16 38 PINS11 PINS17 39 PINS9 PINS18 40 PINS8 PINS19 41 PINS7 PINS20 42 PINS6 PINS21 43 PINS5 PINS22 44 PINS4 PINS23 45 PINS3 PINS24 46 PINS2 PINS25 47 PINS1 PINS26 48 PINS0 PINS27 49 PINS0 PINS28 50 PINS0 PINS29 51 PINS0 PINS30 52 PINS0 PINS31 53 PINS0 PINS32 54 PINS0 PINS33 55 PINS0 PINS34 56 PINS0 PINS35 57 PINS0 PINS36 58 PINS0 PINS37 59 PINS0 PINS38 60 PINS0 PINS39 61 PINS0 PINS40 62 PINS0 PINS41 63 PINS0 PINS42 64 PINS0 PINS43 65 PINS0 PINS44 66 PINS0 PINS45 67 PINS0 PINS46 68 PINS0 PINS47 69 PINS0 PINS48 70 PINS0 PINS49 71 PINS0 PINS50 72 PINS0 PINS51 73 PINS0 PINS52 74 PINS0 PINS53 75 PINS0 PINS54 76 PINS0 PINS55 77 PINS0 PINS56 78 PINS0 PINS57 79 PINS0 PINS58 80 PINS0 PINS59 81 PINS0 PINS60 82 PINS0 PINS61 83 PINS0 PINS62 84 PINS0 PINS63 85 PINS0 PINS64 86 PINS0 PINS65 87 PINS0 PINS66 88 PINS0 PINS67 89 PINS0 PINS68 90 PINS0 PINS69 91 PINS0 PINS70 92 PINS0 PINS71 93 PINS0 PINS72 94 PINS0 PINS73 95 PINS0 PINS74 96 PINS0 PINS75 97 PINS0 PINS76 98 PINS0 PINS77 99 PINS0 PINS78 100 PINS0 PINS79 101 PINS0 PINS80 102 PINS0 PINS81 103 PINS0 PINS82 104 PINS0 PINS83 105 PINS0 PINS84 106 PINS0 PINS85 107 PINS0 PINS86 108 PINS0 PINS87 109 PINS0 PINS88 110 PINS0 PINS89 111 PINS0 PINS90 112 PINS0 PINS91 113 PINS0 PINS92 114 PINS0 PINS93 115 PINS0 PINS94 116 PINFALLMELI VCCIO TO VCCIO TO VCCIO TO VCCIO TO VCCIO TO VCCIO TO VCCIO TO VCCIO TO VCCIO TO VCCIO TO VCCIO TO VCCIO TO VCCIO TO VCCIO TO VCCIO TO VCCIO TO VCCIO TO VCCIO TO VCCIO TO VCCIO TO VCCIO TO VCCIO TO VCCIO TO VCCIO TO VCCIO TO VCCIO to VCCIO to VCCIO to VCCIO to VCCIO to VCCIO to VCCIO to VCCIO to VCCIO to VCCIO to VCCIO to VCCIO to VCCIO to VCCIO to VCCIO to VCCIO to VCCIO to VCCIO to VCCIO to VCCIO to VCCIO to VCCIO to VCCIO to VCCIO to VCCIO to VCCIO TO VCCIO TO VCCIO TO VCCIO TO VCCIO TO VCCIO TO VCCIO TO VCCIO TO VCCIO TO VCCIO TO VCCIO TO VCCIO TO VCCIO TO VCCIO TO VCCIO TO VCCIO TO VCCIO TO VCCIO TO VCCIO TO VCCIO TO VCCIO TO VCCIO TO VCCIO TO VCCIO TO VCCIO TIPRPTOMA

Figure 15. 100-pin TQFP Socket Adapter Board Schematic Diagram

PIN08 PIN09 PIN10 PIN11 PIN12 PIN13 PIN14 PIN15 PIN16 PIN17 PIN18 PIN19 PIN20 PIN21 PIN22 PIN23 PIN24 PIN25 PIN26 PIN27 PIN28 PIN29 PIN30 PIN31 PIN32 PIN33 PIN34 PIN35 PIN36 PIN37 PIN38 PIN39 PIN40 PIN41 PIN42 PIN43 PIN44 PIN45 PIN46 PIN47 PIN48 PIN49 PIN50 PIN51 PIN52 PIN53 PIN54 PIN55 PIN56 PIN57 PIN58 PIN59 PIN60 PIN61 PIN62 PIN63 PIN64 PIN65 PIN66 PIN67 PIN68 PIN69 PIN70 PIN71 PIN72 PIN73 PIN74 PIN75 PIN76 PIN77 PIN78 PIN79 PIN80 PIN81 PIN82 PIN83 PIN84 PIN85 PIN86 PIN87 PIN88 PIN89 PIN90 PIN91 PIN92 PIN93 PIN94 PIN95 PIN96 PIN97 PIN98 PIN99 PEN00 PEN01 PEN02 PEN03 PEN04 PEN05 PEN06 PEN07 PEN08 PEN09 PEN10 PEN11 PEN12 PEN13 PEN14 PEN15 PEN16 PEN17 PEN18 PEN19 PEN20 PEN21 PEN22 PEN23 PEN24 PEN25 PEN26 PEN27 PEN28 PEN29 PEN30 PEN31 PEN32 PEN33 PEN34 PEN35 PEN36 PEN37 PEN38 PEN39 PEN40 PEN41 PEN42 PEN43 PEN44 PEN45 PEN46 PEN47 PEN48 PEN49 PEN50 PEN51 PEN52 PEN53 PEN54 PEN55 PEN56 PEN57 PEN58 PEN59 PEN60 PEN61 PEN62 PEN63 PEN64 PEN65 PEN66 PEN67 PEN68 PEN69 PEN70 PEN71 PEN72 PEN73 PEN74 PEN75 PEN76 PEN77 PEN78 PEN79 PEN80 PENA 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 TO GPIO pins (Pinout) pin numbers (Pinout/Pinout) pin counts (Pinout/Pinout) pin functions (Pinout/Pinout) pin functions (Pinout/Pinout) pin functions (Pinout/Pinout) pin functions (Pinout/Pinout) pin functions (Pinout/Pinout) pin functions (Pinout/Pinout) pin functions (Pinout/Pinout) pin functions (Pinout/Pinout) pin functions (Pinout/Pinout) pin functions (Pinout/Pinout) pin functions (Pinout/Pinout) pin functions(Pinout/Pinout) pin functions(Pinout/Pinout) pin functions(Pinout/Pinout) pin functions(Pinout/Pinout) pin functions(Pinout/Pinout) pin functions(Pinout/Pinout) pin functions(Pinout/Pinout) pin functions(Pinout/Pinout) pin functions(Pinout/Pinout) pin functions(Pinout/Pinout) pin functions(Pinout/Pinout) pin functions( Pinout/Pinout) pin functions( Pinout/Pinout) pin functions( Pinout/Pinout) pin functions( Pinout/Pinout) pin functions( Pinout/Pinout) pin functions( Pinout/Pinout) pin functions( Pinout/Pinout) pin functions( Pinout/Pinout) pin functions( Pinout/Pinout) pin functions( Pinout/Pinout) pin functions( Pinout/Pinout) pin functions( PinOUT) pin functions( PinOUT/ PinOUT) pin functions( PinOUT/ PinOUT) pin functions( PinOUT/ PinOUT) pin functions( PinOUT/ PinOUT) pin functions( PinOUT/ PinOUT) pin functions( PinOUT/ PinOUT) pin functions( PinOUT/ PinOUT) pin functions( PinOUT/ PinOUT) pin functions( PinOUT/ PinOUT) pin functions( PinOUT/ PinOUT) pin functions( PinOUT/ PinOUT) pin functions( PinOUT/ InNPT) VCCNT CCL CCL CCL CCL CCL CCL CCL CCL CCL CCL CCL CCL CCL CCL CCL CCL CCL CCL CCL CCL CCL CCL CCL CCL CCL CCL CCL CCL CCL CCL CCL CCL CCL CCL CCL CCL CCL CCL CCL CCL CCL CCL CCL CCL CCL CCL CCL CCL CCL CCL CCL DCC DCC DCC DCC DCC DCC DCC DCC DCC DCC DCC DCC DCC DCC DCC DCC DCC DCC DCC DCC DCC DCC DCC DCC DCC DCC DCC DCC DCC DCC DCC DCC DCC DCC DCC DCC DCC DCC DCC DCC DCC DCC DCC DCC DCC DCC DCC DCC DCC DCC DSS DSS DSS DSS DSS DSS DSS DSS DSS DSS DSS DSS DSS DSS DSS DSS DSS DSS DSS DSS DSS DSS DSS DSS DSS DSS DSS DSS DSS DSS DSS DSS DSS DSS DSS DSS DSS DSS DSS DSS DSS DSS DSS DSS DSS DSS DSS DSS DSS DSS DFFD FQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQFQ FDD FDD FDD FDD FDD FDD FDD FDD FDD FDD FDD FDD FDD FDD FDD FDD FDD FDD FDD FDD FDD FDD FDD FDD FDD FDD FDD FDD FDD FDD FDD FDD FDD FDD FDD FDD FDD FDD FDD FDD FDD FDD FDD FDD FDD FDD FDD FDD FDD FDD FDO FDO FDO FDO FDO FDO FDO FDO FDO FDO FDO FDO FDO FDO FDO FDO FDO FDO FDO FDO FDO FDO FDO FDO FDO FDO FDO FDO FDO FDO FDO FDO FDO FDO FDO FDO FDO FDO FDO FDO FDO FDO FDO FDO FDO FDO FDO FDO FDO FDO FFO GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GNOG NCOO NCOO NCOO NCOO NCOO NCOO NCOO NCOO NCOO NCOO NCOO NCOO NCOO NCOO NCOO NCOO NCOO NCOO NCOO NCOO NCOO NCOO NCOO NCOO NCOO NCOO NCOO NCOO NCOO NCOO NCOO NCOO NCOO NCOO NOI NOI NOI NOI NOI NOI NOI NOI NOI NOI NOI NOI NOI NOI NOI NOI NOI NOI NOI NOI NOI NOI NOI NOI NOI NOI NOI NOI NOI NOI NOI NOI NOI NOI NOI NOI NOI NOI NOI NOI NOI NOI NOI NOI NOI NOI NOI NOI NOI NOI NOi NOi NOi NOi NOi NOi NOi NOi NOi NOi NOi NOi NOi NOi NOi NOi NOi NOi NOi NOi NOi NOi NOi NOi NOi NOi NOi NOi NOi NOi NOi NOi NOi Noi Noi Noi Noi Noi Noi Noi Noi Noi Noi Noi Noi Noi Noi Noi Noi Noi Noi Noi Noi Noi Noi Noi Noi Noi Noi Noi Noi Noi Noi Noi Noi Noi Noi Noi Noi Noi Noi Noi Noi Noi Noi Noi Noi Noi Noi Noi Noi Noi NoiNo i nNPT O u o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o uo uo uo uo uo uo uo uo uo uo uo uo uo uo uo uo uo uo uo uo uo uo uo uo uo uo uo uo uo uo uo uo uo uo uo uo uo uo uo uo uo uo uo uo uo uo uo uo uo uo uu UU UU UU UU UU UU UU UU UU UU UU UU UU UU UU UU UU UU UU UU UU UU UU UU UU UU UU UU UU UU UU UU UU UU UU UU UU UU UU UU UU UU UU UU UU UU UU UU UU UU Uu Uu Uu Uu Uu Uu Uu Uu Uu Uu Uu Uu Uu Uu Uu Uu Uu Uu Uu Uu Uu Uu Uu Uu Uu Uu Uu Uu Uu Uu Uu Uu Uu Uu Uu Uu Uu Uu Uu Uu Uu Uu Uu Uu Uu Uu Uu Uu Uu Uu Uus VCCNT VCCNT VCCNT VCCNT VCCNT VCCNT VCCNT VCCNT VCCNT VCCNT VCCNT VCCNT VCCNT VCCNT VCCNT VCCNT VCCNT VCCNT VCCNT VCCNT VCCNT VCCNT VCCNT VCCNT VCCNT VCCNT VCCNT VCCNT VCCNT VCCNT Vccnt Vccnt Vccnt Vccnt Vccnt Vccnt Vccnt Vccnt Vccnt Vccnt Vccnt Vccnt Vccnt Vccnt Vccnt Vccnt Vccnt Vccnt Vccnt Vccnt Vccnt Vccnt Vccnt Vccnt Vccnt Vccnt Vccnt Vccnt Vccnt Vccnt Vccnt Vccnt Vccnt VccntVccntVccntVccntVccntVccntVccntVccntVccntVccntVccntVccntVccntVccntVccntVccntVccntVccntVccntVccntVccntVccntVccntVccntVccntVccntVccntVccntVccntVccntVccntVccntVccntVccntVcncncncncncncncncncncncncncncncncncncncncncncncncncncncncncncncncncncncncncncncncncncncncncncncncncncncncncncncncncncncncncncncncncncncncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncm nco nco nco nco nco nco nco nco nco nco nco nco nco nco nco nco nco nco nco nco nco nco nco nco nco nco nco nco nco nco nco nco nco nco nco nco nco nco nco nco nco nco nco nco nco nco nco nco nco nco nca c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c c cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc cc caa ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca ca Ca CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO Co CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO CO Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co Co CA CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CG CGCG CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCCCCC

References and Support

For additional PLD design software references and support, documentation such as help files, tutorials, application notes/briefs, and user guides are available at www.atmel.com.

Atmel ProChip Designer Software

Table 8. ProChip Designer References and Support

ProChip Designer From the main ProChip window menu...

Help Select Help > Prochip Designer Help.

Tutorials Select Help > Tutorials.

Known Problems and Solutions Select Help > Review KPS.

Website www.atmel.com/tools/PROCHIPDESIGNERV5_0.aspx

Atmel WinCUPL Software

Table 9. WinCUPL References and Support

WinCUPL From the main WinCUPL window menu...
Help Select Help > Contents.
CUPL Programmers Reference Guide	Select Help > CUPL Programmers Reference.
Tutorials	Select Help > Atmel Info > Tutorial1.pdf.
Known Problems and Solutions	Select Help > Atmel Info > CUPL BUG.pdf.
Website www.atmel.com/tools/WINCUPL.aspx

Atmel ATMISP Software

Table 10. ATMISP References and Support

ATMISP From the main ATMISP window menu...
Help Files Select Help > ATMISP Help.
Tutorials	Select Help > Quick Start Tutorial.
Known Problems and Solutions	Using the Windows Explorer browser, locate the ATMISP folder and open the readme.txt file with an ASCII text editor.
Website www.atmel.com/tools/ATMISP.aspx

Atmel POF2JED Conversion Software

Table 11. POF2JED References and Support

POF2JED From the main POF2JED window menu...
ATF15xx Conversion Application Brief	Select Help > Conversion Options.

Technical Support

For technical support on any Atmel PLD related issues, contact the Atmel PLD Applications Group at:

Email [e-mail]

Hotline [phone]

Online Support Form www.atmel.com/design-support/

Revision History

Revision Date Description

8961A 07/2015 Initial document release.

Atmel

Enabling Unlimited Possibilities®

Atmel Corporation

1600 Technology Drive, San Jose, CA 95110 USA

T: (+1)[phone]

F: (+1)[phone]

| www.atmel.com

© 2015 Atmel Corporation. / Rev.: Atmel-8961A-CPLD-ATF15xx-DK3-U-Development-Kit-UserGuide_072015.

Atmel ^® , Atmel logo and combinations thereof, Enabling Unlimited Possibilities, and others are registered trademarks or trademarks of Atmel Corporation in U.S. and other countries. Windows ^® is a registered trademark of Microsoft Corporation in U.S. and or other countries. Other terms and product names may be trademarks of others.

DISCLAIMER: The information in this document is provided in connection with Atmel products. No license, express or implied, by estoppel or otherwise, to any intellectual property right is granted by this document or in connection with the sale of Atmel products. EXCEPT AS SET FORTH IN THE ATMEL TERMS AND CONDITIONS OF SALES LOCATED ON THE ATMEL WEBSITE, ATMEL ASSUMES NO LIABILITY WHATSOEVER AND DISCLAIMS ANY EXPRESS, IMPLIED OR STATUTORY WARRANTY RELATING TO ITS PRODUCTS INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, OR NON-INFRINGEMENT. IN NO EVENT SHALL ATMEL BE LIABLE FOR ANY DIRECT, INDIRECT, CONSEQUENTIAL, PUNITIVE, SPECIAL OR INCIDENTAL DAMAGES (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS AND PROFITS, BUSINESS INTERRUPTION, OR LOSS OF INFORMATION) ARISING OUT OF THE USE OR INABILITY TO USE THIS DOCUMENT, EVEN IF ATMEL HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Atmel makes no representations or warranties with respect to the accuracy or completeness of the contents of this document and reserves the right to make changes to specifications and products descriptions at any time without notice. Atmel does not make any commitment to update the information contained herein. Unless specifically provided otherwise, Atmel products are not suitable for, and shall not be used in, automotive applications. Atmel products are not intended, authorized, or warranted for use as components in applications intended to support or sustain life.

SAFETY-CRITICAL, MILITARY, AND AUTOMOTIVE APPLICATIONS DISCLAIMER: Atmel products are not designed for and will not be used in connection with any applications where the failure of such products would reasonably be expected to result in significant personal injury or death ("Safety-Critical Applications") without an Atmel officer's specific written consent. Safety-Critical Applications include, without limitation, life support devices and systems, equipment or systems for the operation of nuclear facilities and weapons systems. Atmel products are not designed nor intended for use in military or aerospace applications or environments unless specifically designated by Atmel as military-grade. Atmel products are not designed nor intended for use in automotive applications unless specifically designated by Atmel as automotive-grade.
