USER MANUAL X11SCV-L Supermicro

The information in this user's manual has been carefully reviewed and is believed to be accurate. The vendor assumes no responsibility for any inaccuracies that may be contained in this document, and makes no commitment to update or to keep current the information in this manual, or to notify any person or organization of the updates. Please Note: For the most up-to-date version of this manual, please see our website at www.supermicro.com.

Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product described in this manual at any time and without notice. This product, including software and documentation, is the property of Supermicro and/or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except as expressly permitted by the terms of said license.

IN NO EVENT WILL Super Micro Computer, Inc. BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL, SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN PARTICULAR, SUPER MICRO COMPUTER, INC. SHALL NOT HAVE LIABILITY FOR ANY HARDWARE, SOFTWARE, OR DATA STORED OR USED WITH THE PRODUCT, INCLUDING THE COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH HARDWARE, SOFTWARE, OR DATA.

Any disputes arising between manufacturer and customer shall be governed by the laws of Santa Clara County in the State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.

FCC Statement: This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer's instruction manual, may cause harmful interference with radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case you will be required to correct the interference at your own expense.

California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate warning applies only to products containing CR (Manganese Dioxide) Lithium coin cells. "Perchlorate Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate".

WARNING: This product can expose you to chemicals including lead, known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical systems whose failure to perform be reasonably expected to result in significant injury or loss of life or catastrophic property damage. Accordingly, Supermicro disclaims any and all liability, and should buyer use or sell such products for use in such ultra-hazardous applications, it does so entirely at its own risk. Furthermore, buyer agrees to fully indemnify, defend and hold Supermicro harmless for and against any and all claims, demands, actions, litigation, and proceedings of any kind arising out of or related to such ultra-hazardous use or sale.

Manual Revision 1.0b

Release Date: July 15, 2022

Unless you request and receive written permission from Super Micro Computer, Inc., you may not copy any part of this document. Information in this document is subject to change without notice. Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.

Copyright © 2022 by Super Micro Computer, Inc.

All rights reserved.

Printed in the United States of America

Preface

About This Manual

This manual is written for system integrators, IT technicians, and knowledgeable end users. It provides information for the installation and use of the X11SCV-Q/-L motherboard.

About This Motherboard

The Super X11SCV-Q/-L motherboard supports an Intel® 8th Generation Core™ i7/i5/i3 processor up to 65W in an LGA1151 socket. This motherboard features PCI Express 3.0, DDR4, USB3.1, SATA3.0, M.2 M key and E key, HDMI, DisplayPort, DVI-D, AMT with the Intel Q370 chipset. The X11SCV-Q/-L is a mini-ITX form factor motherboard that provides maximum performance and is optimized for mini servers, mini storage and KIOSK devices. Please note that this motherboard is intended to be installed and serviced by professional technicians only. For processor and memory updates, please refer to our website at http://www.supermicro.com/products/.

Manual Organization

Chapter 1 describes the features, specifications and performance of the motherboard, and provides detailed information on the Q370/H310 chipset.

Chapter 2 provides hardware installation instructions. Read this chapter when installing the processor, memory modules, and other hardware components into the system.

If you encounter any problems, see Chapter 3, which describes troubleshooting procedures for video, memory, and system setup stored in the CMOS.

Chapter 4 includes an introduction to the BIOS, and provides detailed information on running the CMOS Setup utility.

Appendix A provides BIOS Error Beep Codes.

Appendix B lists software program installation instructions.

Appendix C lists standardized warning statements in various languages.

Appendix D provides UEFI BIOS Recovery instructions.

Contacting Supermicro

Headquarters

Address: Super Micro Computer, Inc.

980 Rock Ave.

San Jose, CA 95131 U.S.A.

Tel: [phone]

Fax: [phone]

Email: [e-mail] (General Information)

[e-mail] (Sales Inquiries)

[e-mail] (Gov. Sales Inquiries)

[e-mail] (Technical Support)

[e-mail] (RMA Support)

[e-mail] (Webmaster)

Website: www.supermicro.com

Europe

Address: Super Micro Computer B.V.

's-Hertogenbosch, The Netherlands

Tel: [phone]

Fax: [phone]

Email: [e-mail] (General Information)

[e-mail] (Technical Support)

[e-mail] (RMA Support)

Website: www.supermicro.nl

Asia-Pacific

Address: Super Micro Computer, Inc.

3F, No. 150, Jian 1st Rd.

Zhonghe Dist., New Taipei City 235

Taiwan (R.O.C)

Tel: [phone]

Fax: [phone]

Email: [e-mail] (Sales Inquiry)

[e-mail] (Technical Support)

[e-mail] (RMA Support)

Website: www.supermicro.com.tw

Table of Contents

Chapter 1 Introduction

1.1 Checklist....8
Quick Reference Table....11
Motherboard Features....13

1.2 Processor and Chipset Overview....16

1.3 Special Features ....16

Recovery from AC Power Loss....16

1.4 System Health Monitoring....16

Onboard Voltage Monitors ....17

Fan Status Monitor with Firmware Control ....17

Environmental Temperature Control ....17

System Resource Alert....17

1.5 ACPI Features....18

1.6 Power Supply 18

1.7 Super I/O 19

Chapter 2 Installation

2.1 Static-Sensitive Devices....20
Precautions ......20
Unpacking ....20

2.2 Motherboard Installation....21
Tools Needed 21

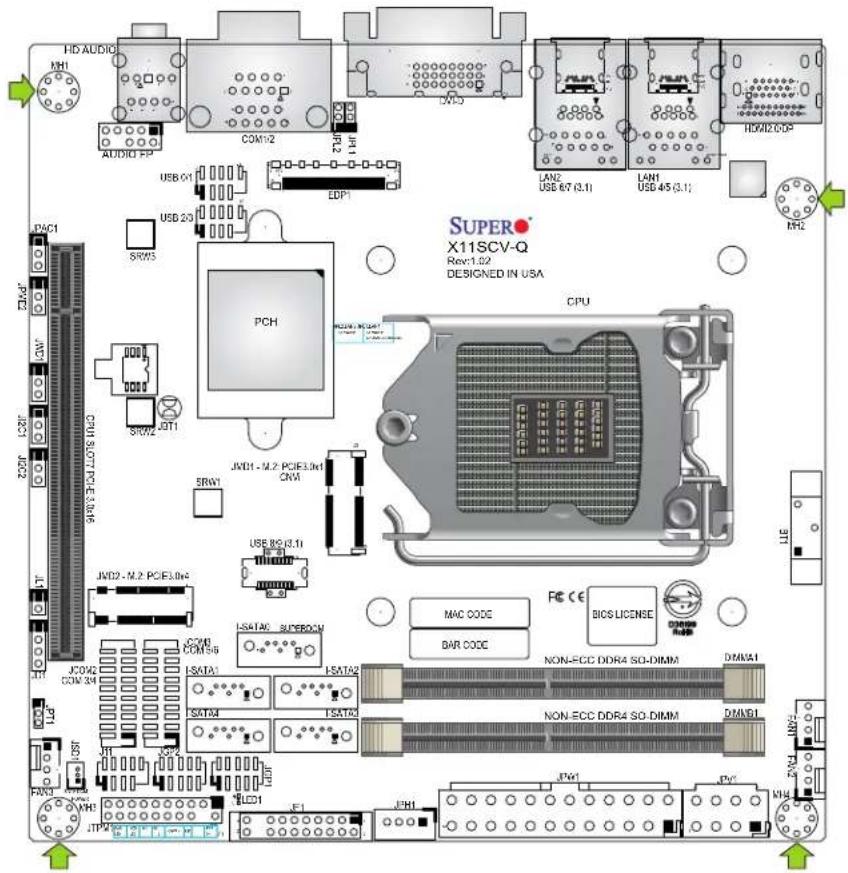

Location of Mounting Holes 21
Installing the Motherboard....22

2.3 Processor and Heatsink Installation....23

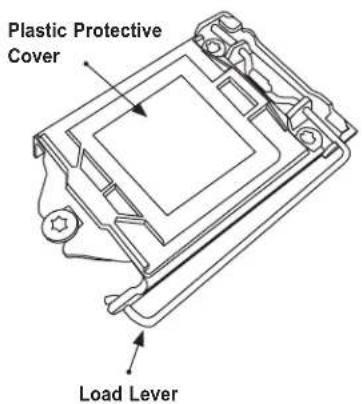

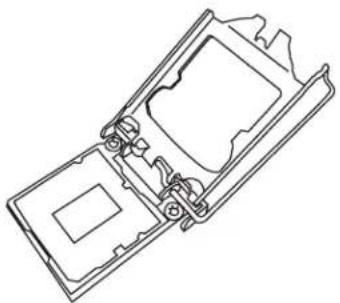

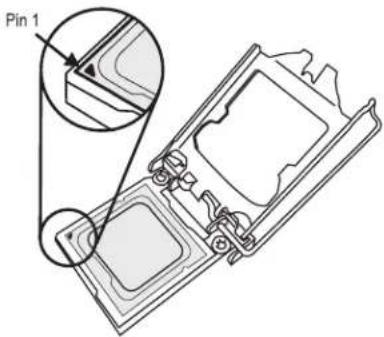

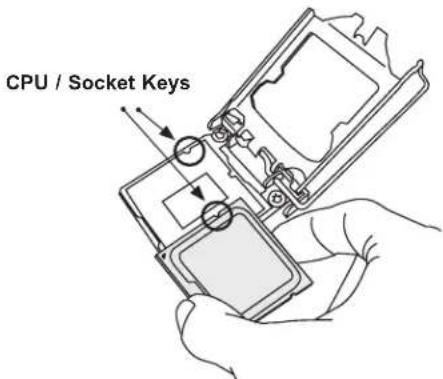

Installing the LGA1151 Processor....23
Installing an Active CPU Heatsink with Fan 25

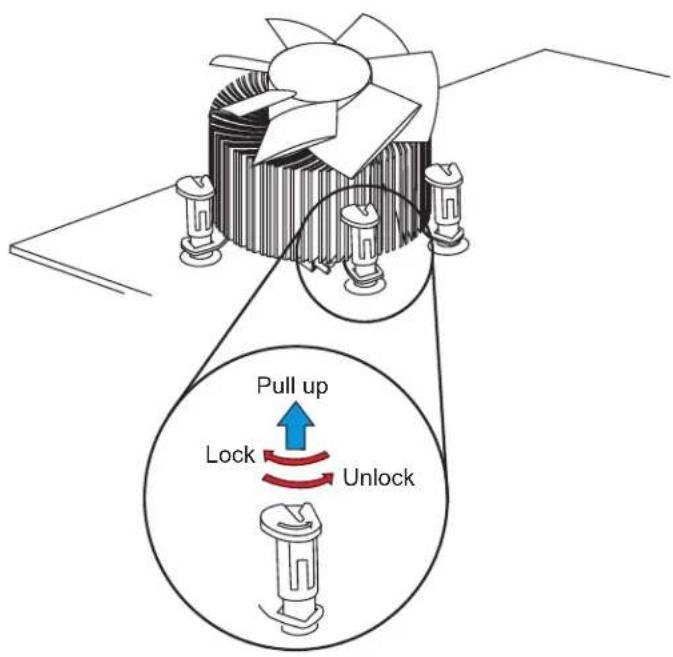

Removing the Heatsink....27

2.4 Memory Support and Installation 28
Memory Support....28
DIMM Module Population Configuration....28

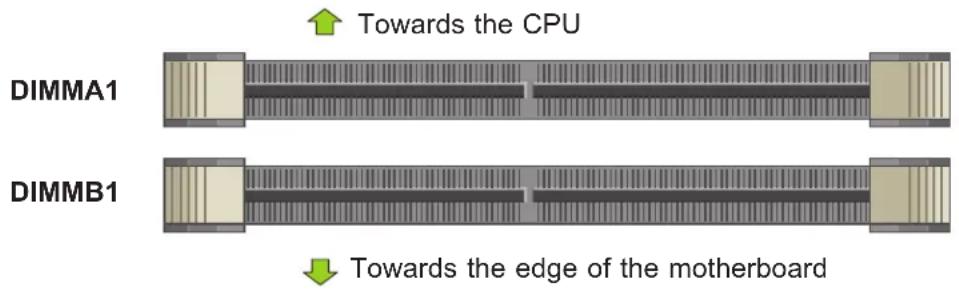

DIMM Module Population Sequence ....28

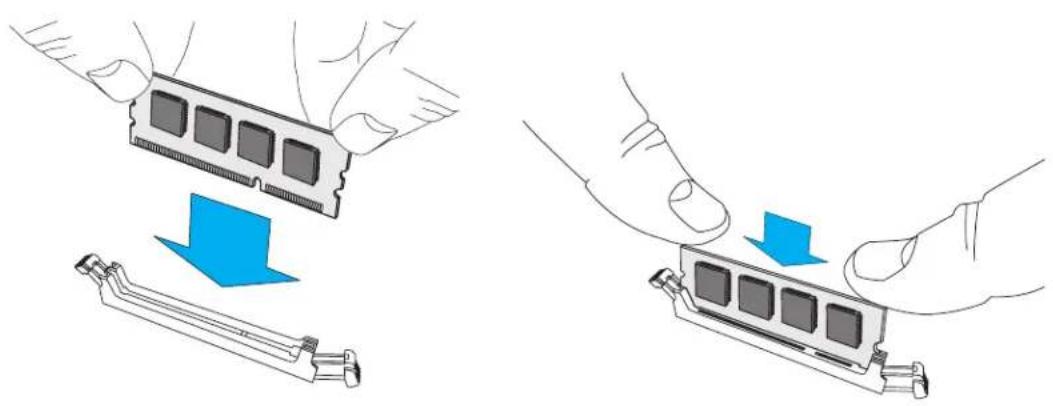

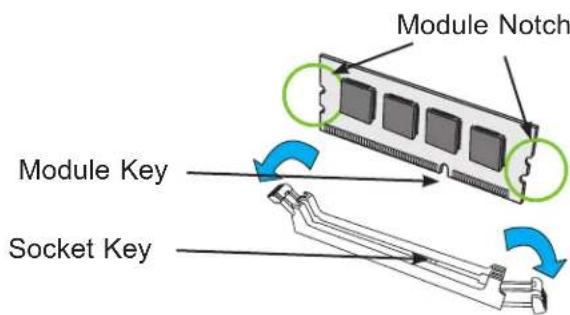

DIMM Installation 29

DIMM Removal 29

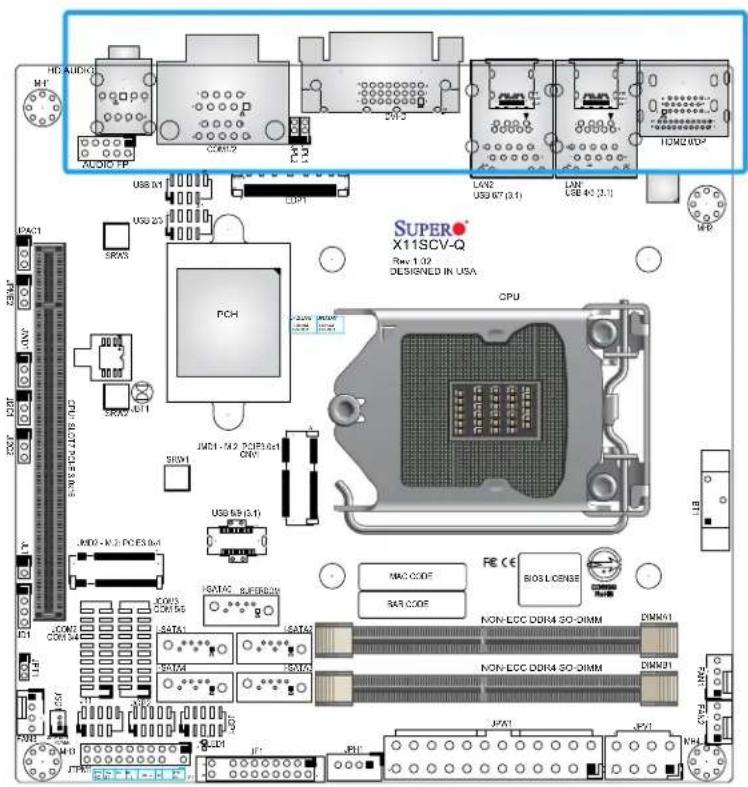

2.5 Rear I/O Ports ....30

2.6 Front Control Panel 35

2.7 Connectors 40

2.8 Jumper Settings 49

How Jumpers Work....49

2.9 LED Indicators....55

Chapter 3 Troubleshooting

3.1 Troubleshooting Procedures ....56

Before Power On 56

No Power 56

No Video ....57

System Boot Failure 57

Memory Errors 57

Losing the System's Setup Configuration....58

When the System Becomes Unstable ....58

3.2 Technical Support Procedures ....60

3.3 Frequently Asked Questions ....61

3.4 Battery Removal and Installation 62

Battery Removal....62

Proper Battery Disposal 62

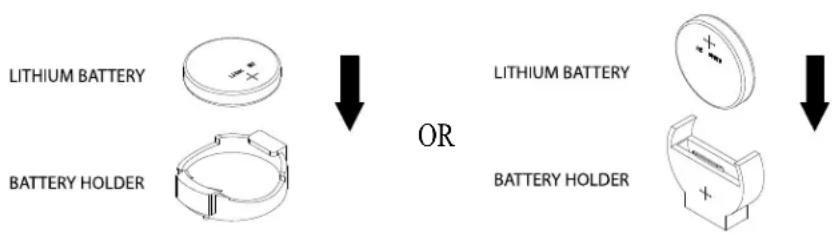

Battery Installation....62

3.5 Returning Merchandise for Service....63

Chapter 4 UEFI BIOS

4.1 Introduction....64

Starting the Setup Utility 64

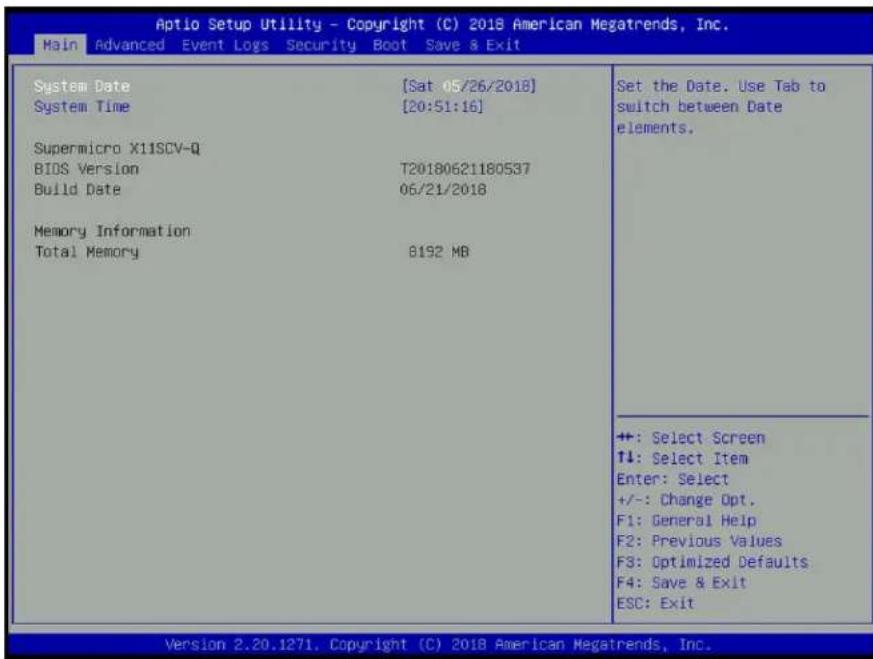

4.2 Main Setup 65

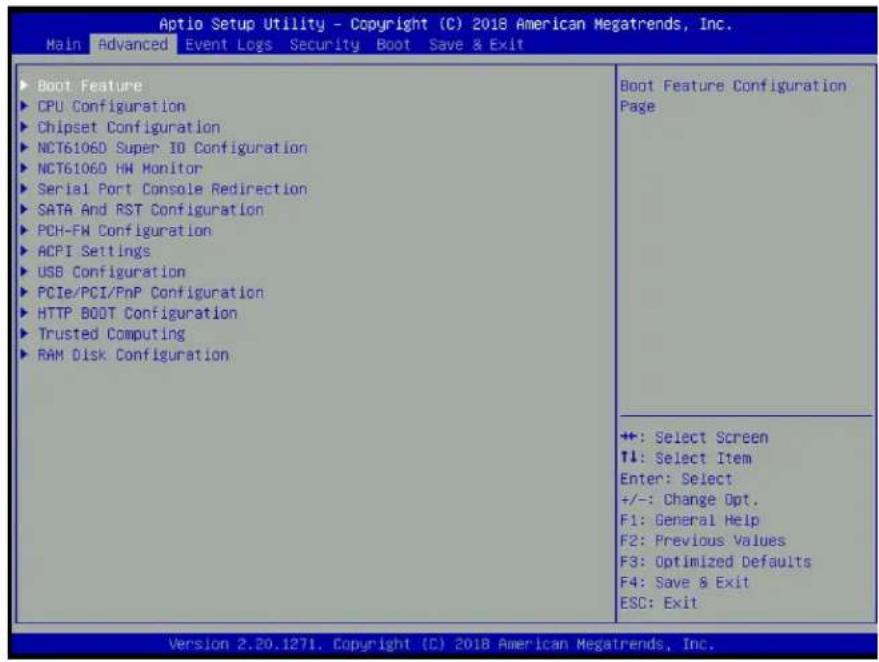

4.3 Advanced....67

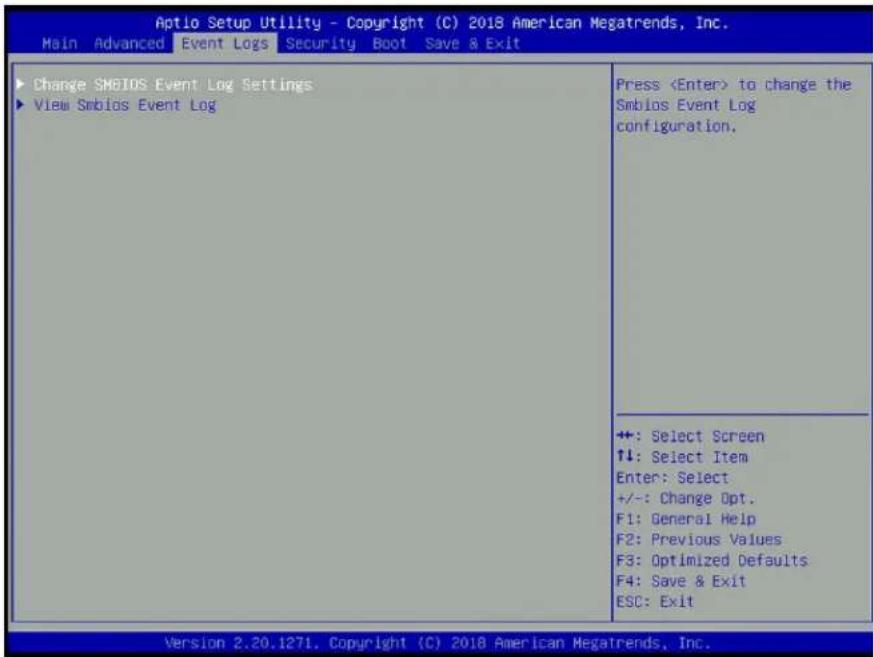

4.4 Event Logs 95

4.5 Security....97

4.6 Boot....101

4.7 Save & Exit....103

Appendix A BIOS Codes

A.1 BIOS Error POST (Beep) Codes ....105

Appendix B Software Installation

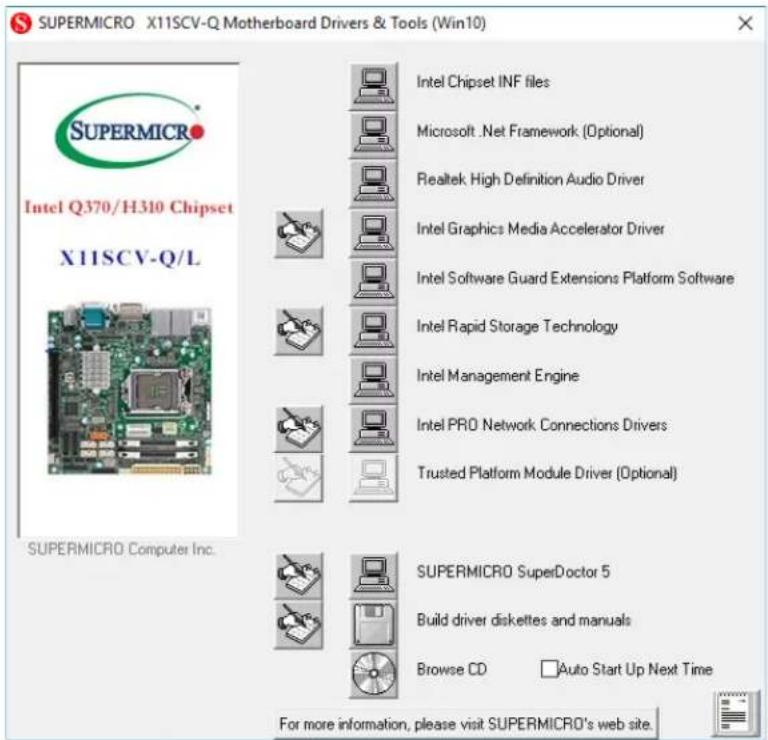

B.1 Installing Software Programs ....107
B.2 SuperDoctor ^® 5....108

Appendix C Standardized Warning Statements

Appendix D UEFI BIOS Recovery

D.1 Overview....112
D.2 Recovering the UEFI BIOS Image....112

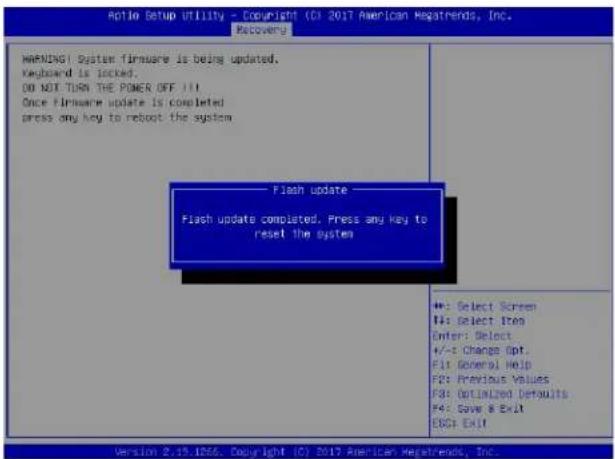

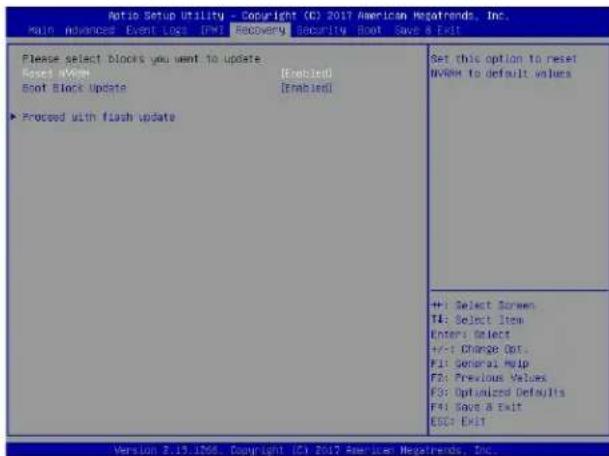

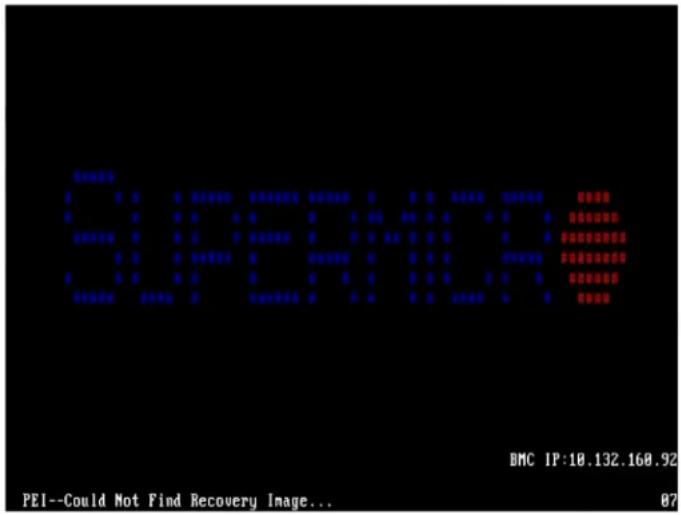

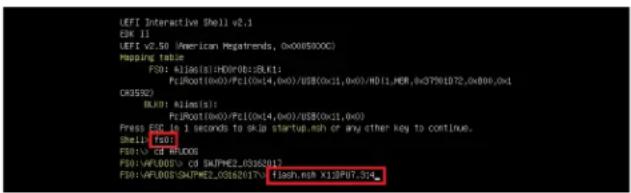

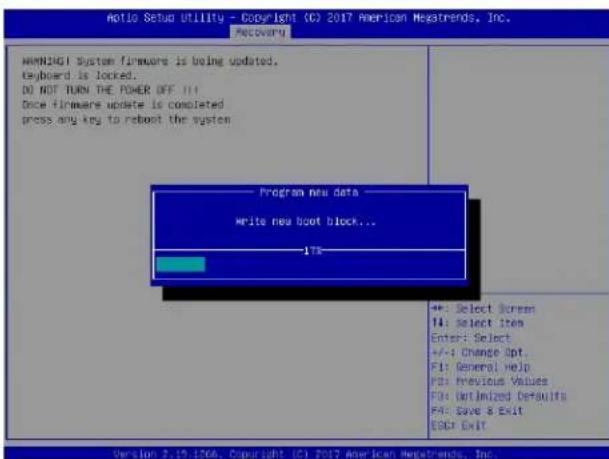

D.3 Recovering the Main BIOS Block with a USB Device....113

Chapter 1

Introduction

Congratulations on purchasing your computer motherboard from an industry leader. Supermicro motherboards are designed to provide you with the highest standards in quality and performance.

In addition to the motherboard, several important parts that are included with your shipment are listed below. If anything listed is damaged or missing, please contact your retailer.

1.1 Checklist

Main Parts List
Description Part Number Quantity
Supermicro motherboard X11SCV-Q/-L MNL-2096 1
SATA cables CBL-0044L 5 (4 for -L)
I/O Shield MCP-260-00137-0B 1
Quick Reference Guide MNL-2096-QRG 1

Important Links

For your system to work properly, please follow the links below to download all necessary drivers/utilities and the user's manual for your server.

• Supermicro product manuals: http://www.supermicro.com/support/manuals/
• Product drivers and utilities: https://www.supermicro.com/wdl/driver
• Product safety info: http://www.supermicro.com/about/policies/safety_information.cfm
• If you have any questions, please contact our support team at: [e-mail]

This manual may be periodically updated without notice. Please check the Supermicro website for possible updates to the manual revision level.

Figure 1-1. X11SCV-Q Motherboard Image

Close-up of a green computer motherboard with various electronic components and connectors (no readable text or symbols)

Note: All graphics shown in this manual were based upon the latest PCB revision available at the time of publication of the manual. The motherboard you received may or may not look exactly the same as the graphics shown in this manual.

Figure 1-2. X11SCV-Q/-L Motherboard Layout (not drawn to scale)

HD AUDIO AUDIO FP SRW3 JPAC1 JPME2 JWD1 JBT1 SRW2 JI2C1 JI2C2 SLOT7 JL1 JMD2 JD1 COM5/6 COM3/4 JPT1 FAN3 JSD1 J11 JTPM1 JGP2 LED1 I-SATA4 I-SATA1 JCP0 COM5/6 COM3/4 JCP1 JCP2 JCP3 JCP4 JCP5 JCP6 JCP7 JCP8 JCP9 JCP10 JCP11 JCP12 JCP13 JCP14 JCP15 JCP16 JCP17 JCP18 JCP19 JCP20 JCP21 JCP22 JCP23 JCP24 JCP25 JCP26 JCP27 JCP28 JCP29 JCP30 JCP31 JCP32 JCP33 JCP34 JCP35 JCP36 JCP37 JCP38 JCP39 JCP40 JCP41 JCP42 JCP43 JCP44 JCP45 JCP46 JCP47 JCP48 JCP49 JCP50 JCP51 JCP52 JCP53 JCP54 JCP55 JCP56 JCP57 JCP58 JCP59 JCP60 JCP61 JCP62 JCP63 JCP64 JCP65 JCP66 JCP67 JCP68 JCP69 JCP70 JCP71 JCP72 JCP73 JCP74 JCP75 JCP76 JCP77 JCP78 JCP79 JCP80 JCP81 JCP82 JCP83 JCP84 JCP85 JCP86 JCP87 JCP88 JCP89 JCP90 JCP91 JCP92 JCP93 JCP94 JCP95 JCP96 JCP97 JCP98 JCP99 JCP100

Notes:

• See Chapter 2 for detailed information on jumpers, I/O ports, and JF1 front panel connections. Jumpers/components/LED indicators not indicated are for internal testing only.
- "■" indicates the location of Pin 1.
- Use only the correct type of onboard CMOS battery as specified by the manufacturer. Do not install the onboard battery upside down to avoid possible explosion.

Quick Reference Table

Jumper Description Default Setting

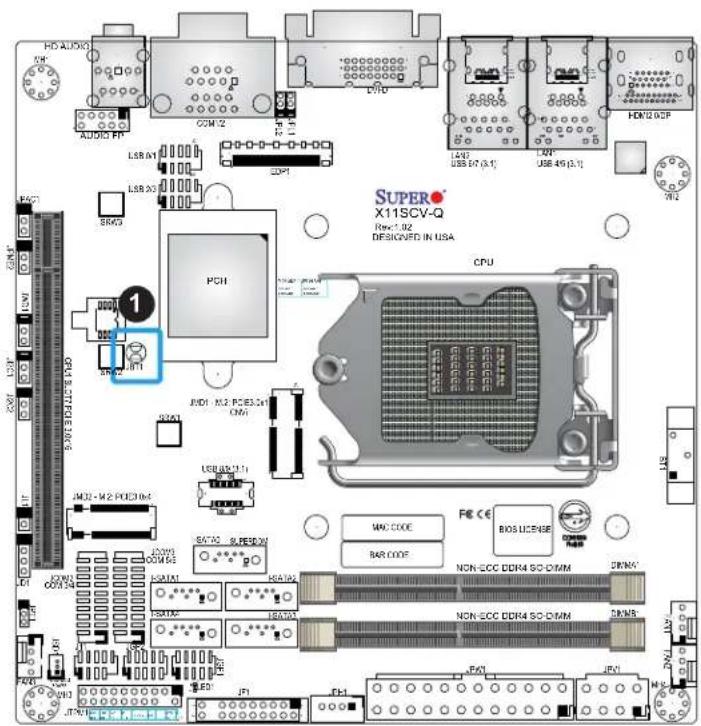

JBT1 CMOS Clear Open (Normal)
JI2C1, JI2C2 PCIe Slot SMBus (Data/Clock) Pins 2-3 (Disabled)
JPAC1 Audio Enable Pins 1-2 (Enable)
JPL1, JPL2 LAN1, LAN2 Enable/Disable Pins 1-2 (Enable)
JPME2 Manufacturing Mode Pins 1-2 (Normal)

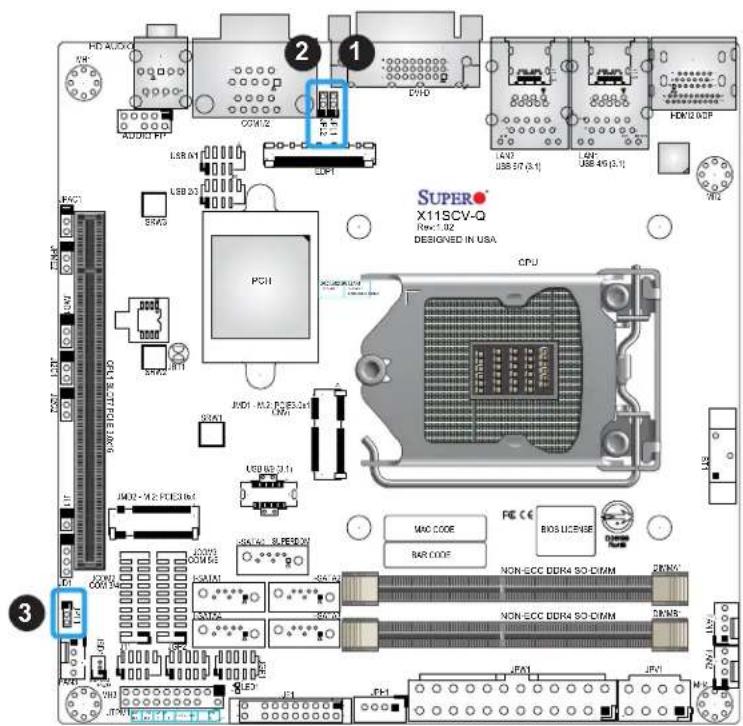

JPT1 TPM Enable/Disable Pins 1-2 (Enable)
JWD1 Watch Dog Timer	Pins 1-2 (Reset)
Connector	Description
AUDIO FP	Front Panel Audio Header
BT1	Onboard CMOS battery socket

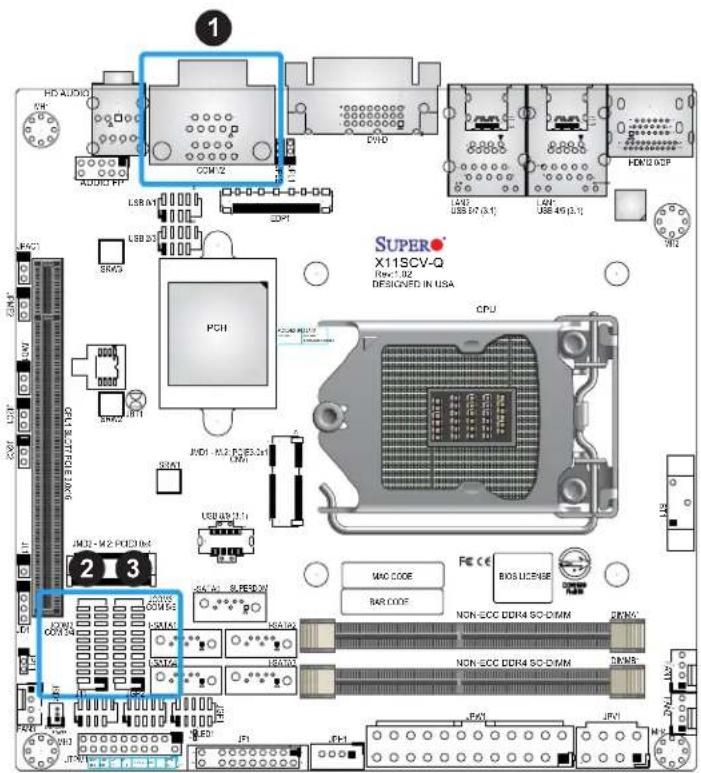

COM1/2	COM1 and COM2 Ports (back panel)
COM3/4	COM3 and COM4 Headers
COM5/6	COM5 and COM6 Headers

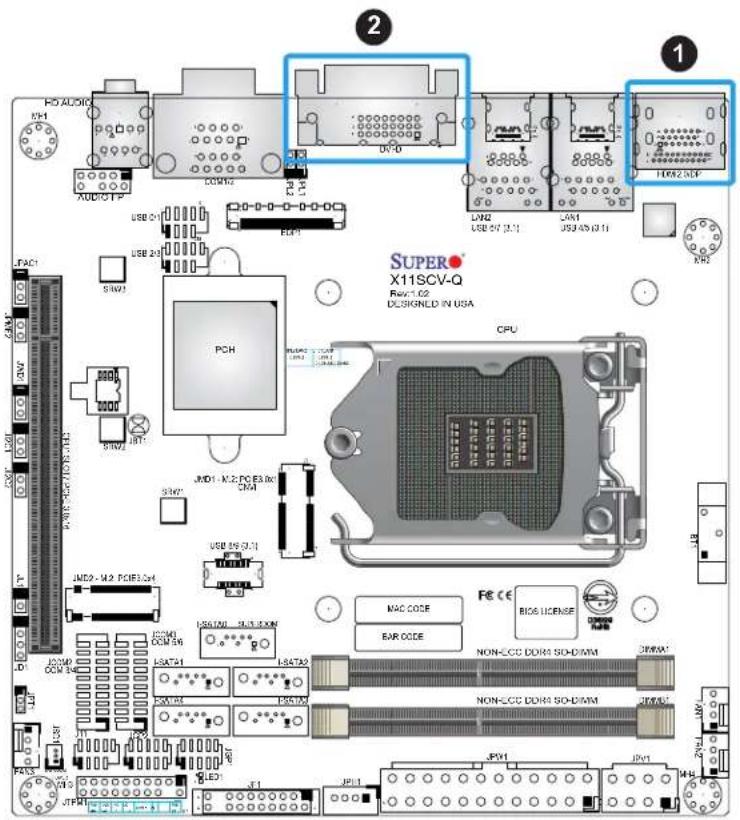

DVI-D	Digital Visual Interface Port (digital only)
EDP1	Embedded DisplayPort
FAN1 - FAN3 CPU/System Fan Headers (FAN1: CPU Fan)

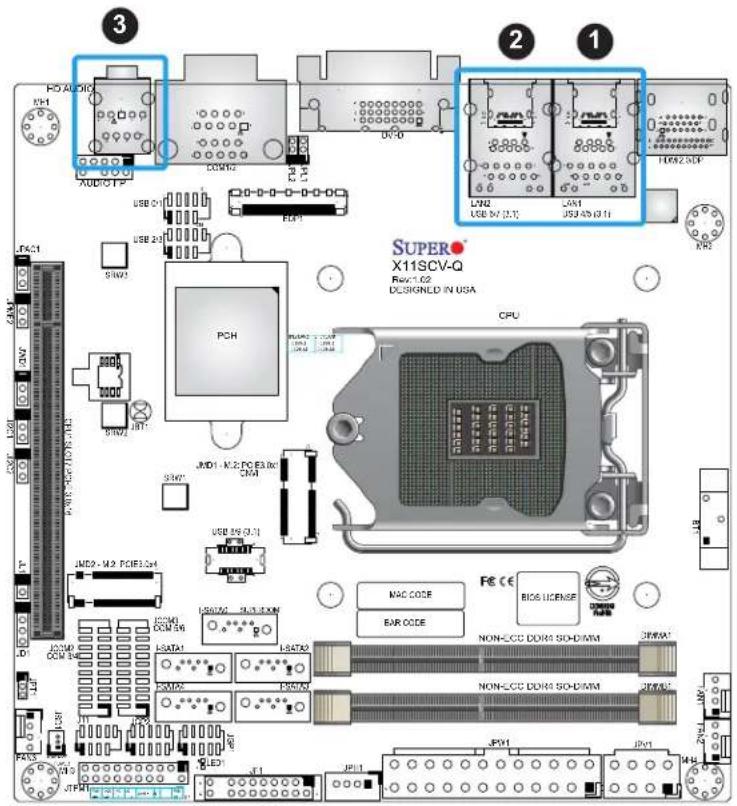

HD AUDIO	High Definition Audio Ports (back panel)
HDMI 2.0/DP	High Definition Multimedia Interface/DisplayPort
I-SATA0 - I-SATA4	SATA 3.0 Ports(-L: Only I-SATA0 - I-SATA3)
J11	PS2 Keyboard and Mouse Header
JD1	Speaker/Buzzer (Pins 1-4: Speaker)

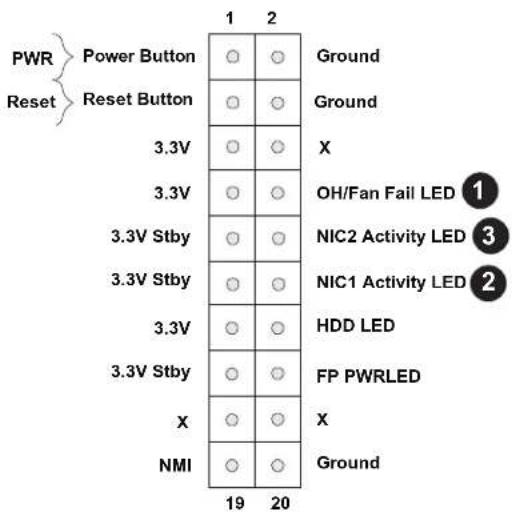

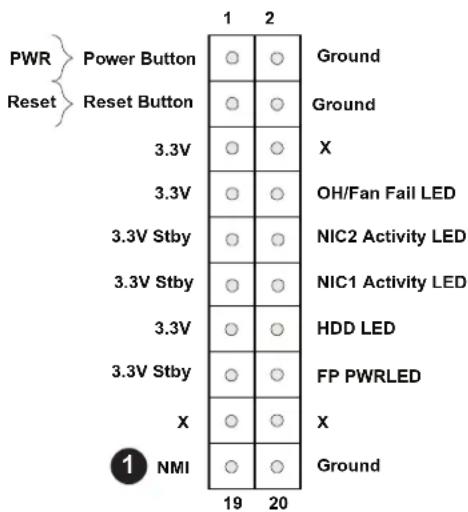

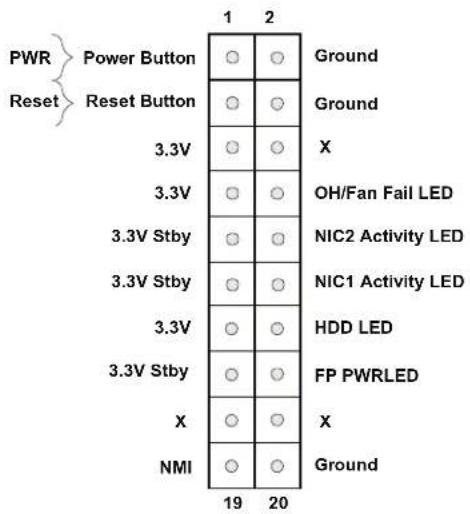

JF1	Front Control Panel Header

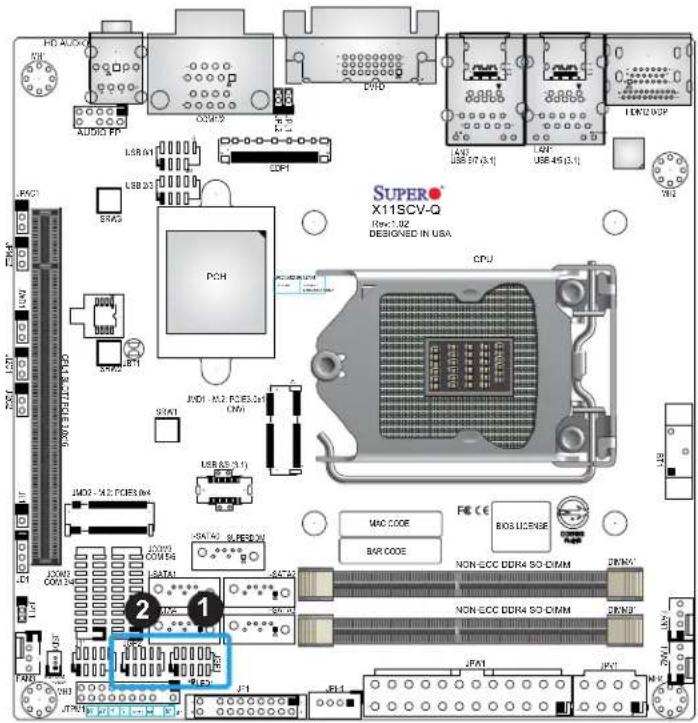

JGP1, JGP2	General Purpose I/O Headers

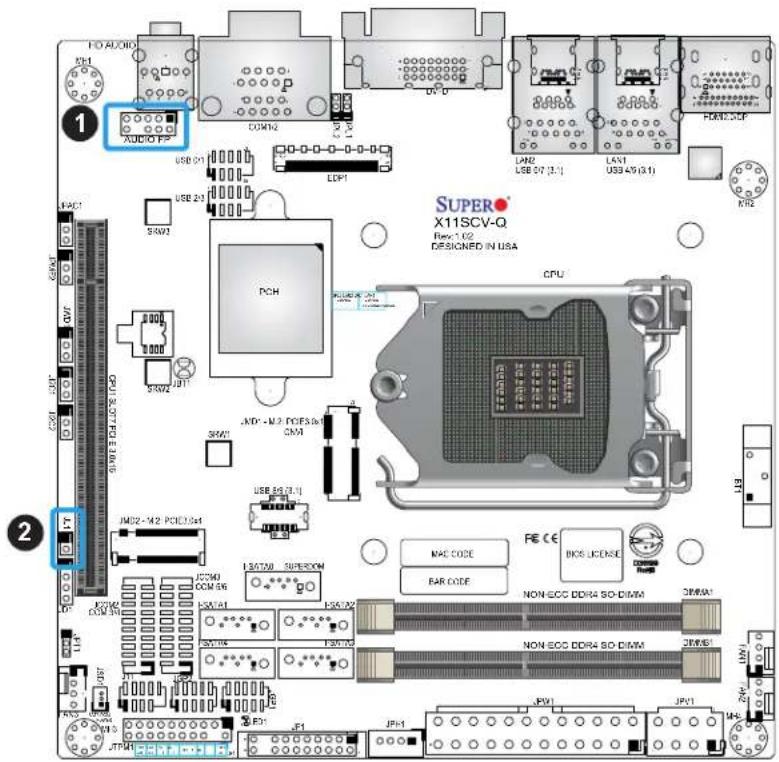

JL1	Chassis Intrusion Header

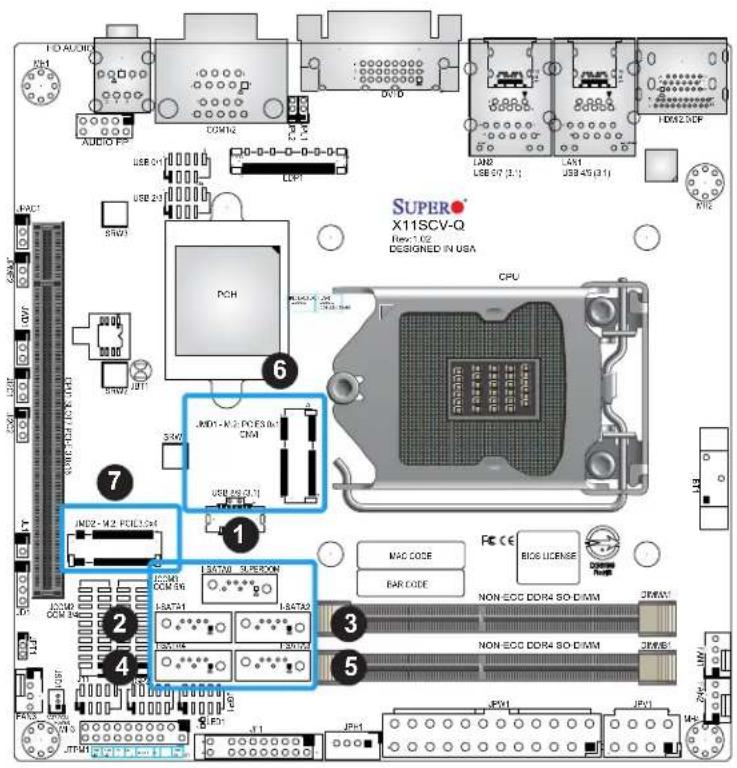

JMD1	M.2 PCIe 3.0 x1 CNVi Slot (E Key 2230)
JMD2	M.2 PCIe 3.0 x4 Slot (M Key 2242/2280)(-L: Not available)
JPH1	4-pin Power Connector for HDD
JPW1	24-pin ATX Power Connector
JPV1	12V 8-pin DC Power Connector (Required to provide extra power to the CPU, or as alternative power for a special enclosure when the 24 pin ATX power is not in use)
JSD1	SATA DOM Power Connector

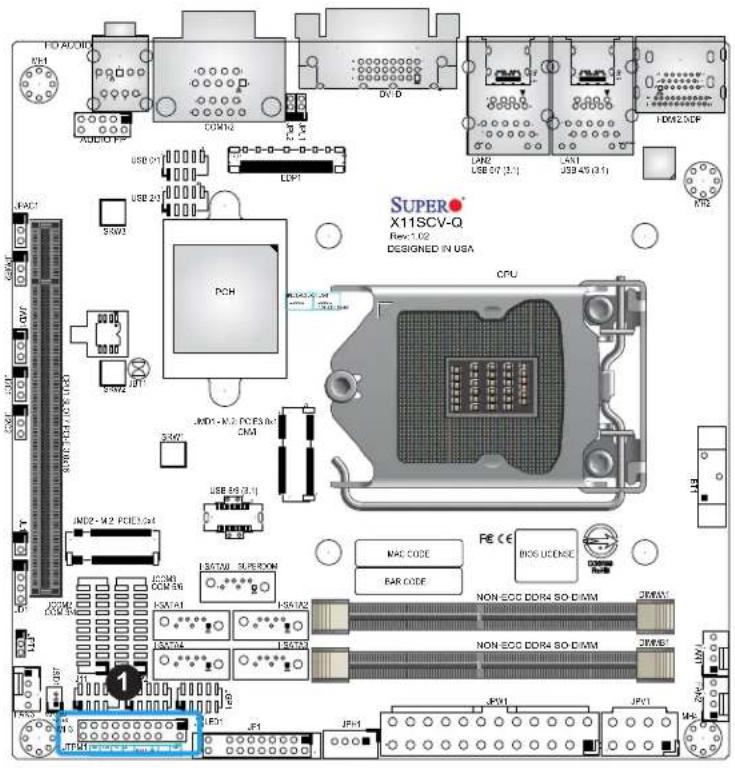

JTPM1	Trusted Platform Module (TPM)/Port 80 Connector
LAN1, LAN2	GbE LAN Ports

Note: The table above is continued on the next page.

Connector Description
SLOT7 CPU PCIe 3.0 x16 Slot
SRW1 - SRW3 M.2 Mounting Screws

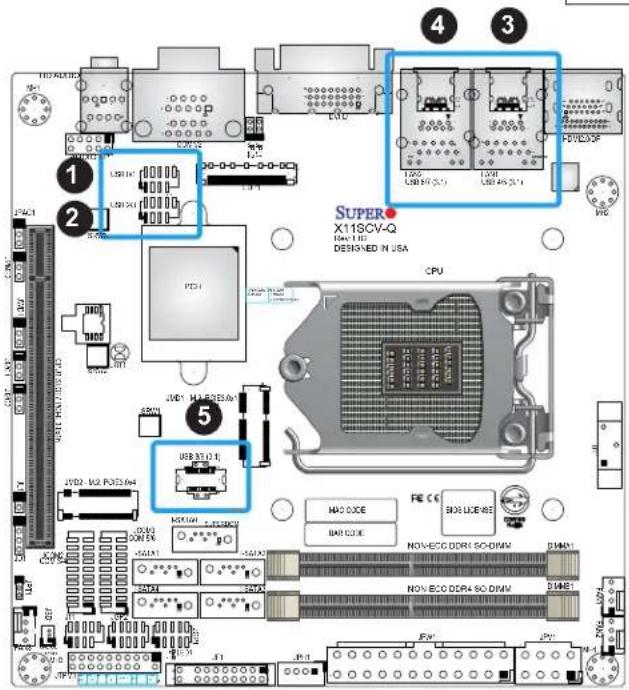

USB0/1, USB2/3 Front Accessible USB 2.0 Ports
USB4/5, USB6/7 Back Panel USB 3.1 Ports

USB8/9

Front Accessible USB Header (Two USB 3.1 Type A)(-L: Not available)

LED Description Status
LED1 Power LED Solid Green: Power On

Motherboard Features

Motherboard Features
CPU
• Supports an Intel 8th Generation Core i7/i5/i3, Celeron, and Pentium processor with up to 65W in an LGA1151 socket.
Memory
• Supports up to 64GB of Non-ECC SO-DIMM with speeds of 2400/2666MHz in two slots.
DIMM Size
• Up to 32GB at 1.2VNote 1: Refer to the motherboard product page for the list of supported memory.
Chipset
• Intel Q370/H310
Expansion Slots
• One M.2 PCIe 3.0 x1 CNVi Slot (E Key 2230)• One M.2 PCIe 3.0 x4 Slot (M Key 2242/2280) (-L: Not available)• One PCIe 3.0 x16 Slot
Network Controller
• Intel I219LM• Intel I210AT
Graphics
• Intel UHD Graphics
I/O Devices
• COM Headers • Six COM Headers
• SATA 3.0	• X11SCV-Q: Five SATA 3.0 ports• X11SCV-L: Four SATA 3.0 ports
• Video ports	• DVI-D, HDMI, DisplayPort, eDP
• Audio • Line Out/Mic In ports
Peripheral Devices
• Two USB 2.0 Front Accessible Header• Four USB 3.1 Back Panel I/O Ports• One USB 3.1 Front Accessible Header (-L: Not available)
BIOS
• 256Mb SPI AMI BIOS SM Flash UEFI BIOS• ACPI 4.0, SMBIOS 2.7, PCI F/W 3.0, Plug-and-Play (PnP), SPI dual/quad speed support, RTC wakeup

Note: The table above is continued on the next page.

Motherboard Features

Power Management

• Power button override mechanism

• Management Engine (ME)

• Power-on mode for AC recovery

• Keyboard wakeup from S5

System Health Monitoring

• Onboard voltage monitoring for +3.3V, +5V, +12V, VBAT, Memory, Vcore (CPU)

• 4+2 CPU switching phase voltage regulator

• CPU Thermal Trip support

System Management

• Trusted Platform Module (TPM) support

• PECI (Platform Environment Control Interface) 2.0 support

• System resource alert via SuperDoctor® 5

• Watch Dog, NMI

LED Indicators

• CPU/System Overheat LED

• Power/Suspend-state indicator LED

• Fan Fail LED

• HDD Activity LED

• LAN Activity LED

Dimensions

• 6.7" (L) x 6.7" (W) (170.18 mm x 170.18 mm)

Note 1: The CPU maximum thermal design power (TDP) is subject to chassis and heatsink cooling restrictions. For proper thermal management, please check the chassis and heatsink specifications for proper CPU TDP sizing.

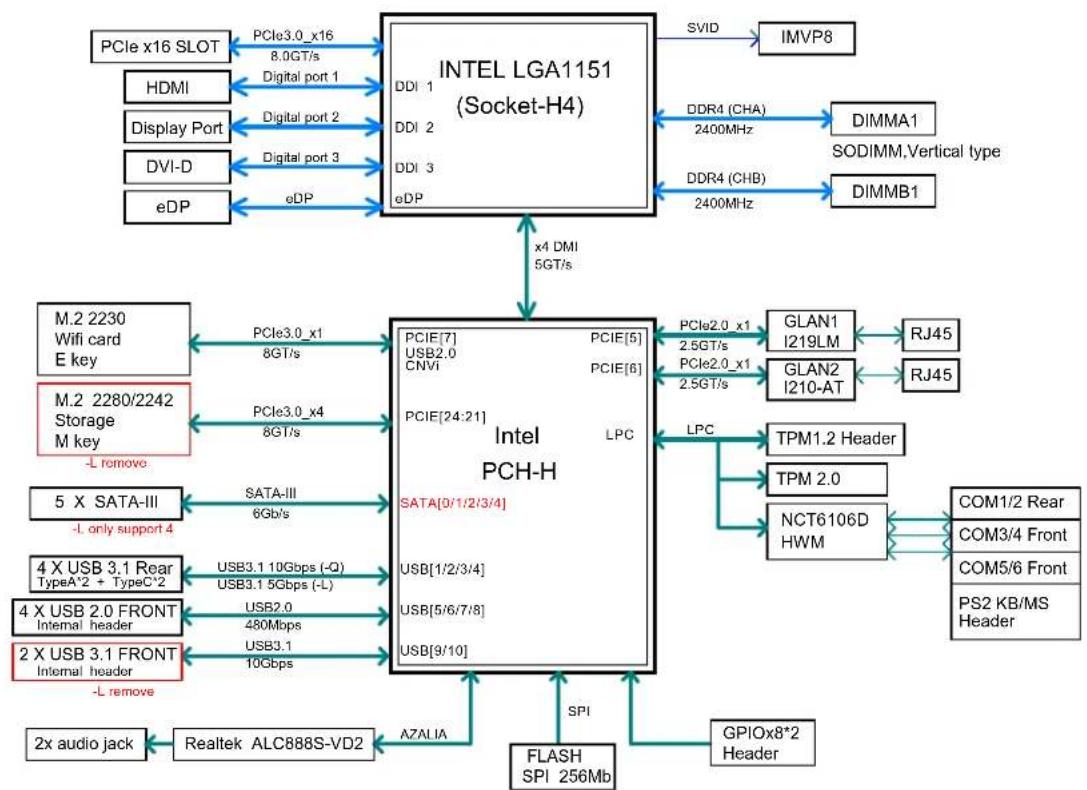

Figure 1-3. Q370/H310 System Block Diagram

Note: This is a general block diagram and may not exactly represent the features on your motherboard. See the previous pages for the actual specifications of your motherboard.

1.2 Processor and Chipset Overview

Built upon the functionality and capability of the Intel 8th Generation Core i7/i5/i3 and the Q370/H310 chipset, this motherboard provides superb system performance, efficient power management, and a rich feature set based on cutting edge technology to address the needs of next-generation computer users. This motherboard is optimized for medical and surveillance devices.

The Intel 8th Generation Core i7/i5/i3 processor and the Q370/H310 chipset support the following features:

• Intel vPro, AMT 12.0, and TXT
• Intel TSX-NI, AES, and SGX Technologies
• Intel Turbo Boost and Rapid Storage Technology
- Increased platform security with Intel Boot Guard for hardware-based boot integrity protection ; prevention of buffer overflow class security threads
• Three independent Graphics Displays and Intel Quick Sync Video Technology
• PCIe 3.0, SATA 3.0, and USB 3.1
• Intel Hyper-Threading, Intel VT-d, and VT-x

1.3 Special Features

Recovery from AC Power Loss

The Basic I/O System (BIOS) provides a setting that determines how the system will respond when AC power is lost and then restored to the system. You can choose for the system to remain powered off (in which case you must press the power switch to turn it back on), or for it to automatically return to the power-on state. See the Advanced BIOS Setup section for this setting. The default setting is Last State.

1.4 System Health Monitoring

This section describes the health monitoring features of the X11SCV-Q/-L motherboard. The motherboard has an onboard System Hardware Monitoring chip that supports system health monitoring.

Onboard Voltage Monitors

The onboard voltage monitor will continuously scan crucial voltage levels. Real time readings of these voltage levels are all displayed in BIOS. Once a voltage becomes unstable, it will give a warning or send an error message to the screen. Users can adjust the voltage thresholds to define the sensitivity of the voltage monitor.

Fan Status Monitor with Firmware Control

PC health monitoring in the BIOS can check the RPM status of the cooling fans. The onboard CPU and chassis fans are controlled by Thermal Management. Refer to the below table for available fan modes to choose the most appropriate one for nominal operation.

Environmental Temperature Control

The thermal control sensor monitors the CPU temperature in real time and will turn on the thermal control fan whenever the CPU temperature exceeds a user-defined threshold. The overheat circuitry runs independently from the CPU. Once the thermal sensor detects that the CPU temperature is too high, it will automatically turn on the thermal fans to prevent the CPU from overheating. The onboard chassis thermal circuitry can monitor the overall system temperature and alert the user when the chassis temperature is too high.

Note: To avoid possible system overheating, please be sure to provide adequate airflow to your system.

System Resource Alert

This feature is available when used with SuperDoctor 5 ^® . SuperDoctor 5 is used to notify the user of certain system events. For example, you can configure SuperDoctor 5 to provide you with warnings when the system temperature, CPU temperatures, voltages and fan speeds go beyond a predefined range.

Figure 1-4. Fan Speed Modes

Fan Mode Description
Full Speed Use	this mode to set fan speed at full speed for maximum system cooling
Standard Use this mode to set fan speed for normal system cooling
PUE2 Use this mode to set fan speed for best power efficiency and maximum noise reduction

1.5 ACPI Features

The Advanced Configuration and Power Interface (ACPI) specification defines a flexible and abstract hardware interface that provides a standard way to integrate power management features throughout a computer system including its hardware, operating system and application software. This enables the system to automatically turn on and off peripherals such as network cards, hard disk drives and printers.

In addition to enabling operating system-directed power management, ACPI also provides a generic system event mechanism for Plug and Play and an operating system-independent interface for configuration control. ACPI leverages the Plug and Play BIOS data structures while providing a processor architecture-independent implementation that is compatible with Windows® 10 and Windows 2012 operating systems.

1.6 Power Supply

As with all computer products, a stable power source is necessary for proper and reliable operation. It is even more important for processors that have high CPU clock rates. In areas where noisy power transmission is present, you may choose to install a line filter to shield the computer from noise. It is recommended that you also install a power surge protector to help avoid problems caused by power surges.

This motherboard accommodates 24-pin ATX power supplies. Although most power supplies generally meet the sepcifications required by the CPU, some are inadequate. In addition, the 12V 8-pin power connector located at JPV1 is always required to ensure adequate power supply to the CPU.

Note 1: The X11SCV-Q/L motherboard alternatively supports an 8-pin 12V DC input power supply at JPV1 for embedded applications. The 12V DC input is limited to 30A by design. It provides up to 360W power input to the motherboard. Keep the onboard power usage within the power limits specified above. Over current power usage may cause damage to the motherboard.

Note 2: Connect both the 8-pin DC power at JPV1 and JPW1 to make sure the CPU receives enough power for normal operation when using the ATX power supply

1.7 Super I/O

The Super I/O (NCT6106D) provides high-speed, 16550 compatible serial communication ports (UART), which support serial infrared communication. The UART includes send/receive FIFO, a programmable baud rate generator, complete modem control capability, and a processor interrupt system. The UART provides legacy speed with baud rate of up to 115.2 Kbps as well as an advanced speed with baud rates of 250 K, 500 K, or 1 Mb/s, supporting higher speed modems.

The Super I/O provides functions that comply with ACPI (Advanced Configuration and Power Interface), which includes support of legacy and ACPI power management through a SMI or SCI function pin. It also features auto power management to reduce power consumption.

Chapter 2

Installation

2.1 Static-Sensitive Devices

Electrostatic Discharge (ESD) can damage electronic components. To avoid damaging your motherboard and your system, it is important to handle it very carefully. The following measures are generally sufficient to protect your equipment from ESD.

Precautions

• Use a grounded wrist strap designed to prevent static discharge.
• Touch a grounded metal object before removing the board from the antistatic bag.
• Handle the board by its edges only; do not touch its components, peripheral chips, memory modules or gold contacts.
• When handling chips or modules, avoid touching their pins.
• Put the motherboard and peripherals back into their antistatic bags when not in use.
• For grounding purposes, make sure that your chassis provides excellent conductivity between the power supply, the case, the mounting fasteners and the motherboard.
• Use only the correct type of CMOS onboard battery as specified by the manufacturer. Do not install the CMOS battery upside down, which may result in a possible explosion.

Unpacking

The motherboard is shipped in antistatic packaging to avoid static damage. When unpacking the motherboard, make sure that the person handling it is static protected.

2.2 Motherboard Installation

All motherboards have standard mounting holes to fit different types of chassis. Make sure that the locations of all the mounting holes for both the motherboard and the chassis match. Although a chassis may have both plastic and metal mounting fasteners, metal ones are highly recommended because they ground the motherboard to the chassis. Make sure that the metal standoffs click in or are screwed in tightly.

Tools Needed

HD AUDIO MHz1 AUDIO 2.2 COM1/2 USB 0/1 USB 2/3 EDP1 PAC1 SRWS CPU S/CTT PCE-1.046 JND2 - M.2 PCE3.046 JND1 - M.2 PCE3.041 QW1 SICW2 JGT1 SPW1 USB 8G 8.11 PCH CPU SATA6 SUPERCV JND2 - M.2 PCE3.046 JND1 - M.2 PCE3.041 QW1 SATA6 SUPERCV JND2 - M.2 PCE3.046 JND1 - M.2 PCE3.041 JND2 - M.2 PCE3.046 JND1 - M.2 PCE3.041 JND2 - M.2 PCE3.046 JND1 - M.2 PCE3.041 JND2 - M.2 PCE3.046 JND1 - M.2 PCE3.041 JND2 - M.2 PGE3.046 JND1 - M.2 PGE3.041 JND2 - M.2 PGE3.046 JND1 - M.2 PGE3.041 JND2 - M.2 PGE3.046 JND1 - M.2 PGE3.041 JND2 - M.2 PGE3.046 JND1 - M.2 PGE3.041 JND2- M.2 PGE3.046 JND1 - M.2 PGE3.041 JND2 - M.2 PGE3.046 JND1 - M.2 PGE3.041 JND2 - M.2 PGE3.046 JND1 - M.2 PGE3.041 JND2 - M.2 PGE3.045 JND1 - M.2 PGE3.041 JND2 - M.2 PGE3.041 JND1 - M.2 PGE3.041 JND2 - M.2 PGE3.041 JND1 - M.2 PGE3.041 JND2 - M.2 PGE3.041 JND1 - M.2 PGE3.041 JND2 - M.2 PGE3.041 JND1 - M.2 PGS-CDM-CDM-CDM-CDM-CDM-CDM-CDM-CDM-CDM-CDM-CDM-CDM-CDM-CDM-CDM-CDM-CDM-CDM-CDM-CDM-CDM-CDM-CDM-CDM-CDM-CDM-CDM-CDM-CDM-CDM-CDM-CDM-CDM-CDM- JND1 - M.2 PGE3.046 JND2 - M.2 PGE3.046 JND1 - M.2 PGE3.046 JND2 - M.2 PGE3.046 JND1 - M.2 PGE3.046 JND2 - M.2 PGE3.046 JND1 - M.2 PGE3.046 JND2 - M.2 PGE3.046 JND1 - M.2 PGE5-CDM-CDM-CDM-CDM-CDM-CDM-CDM-CDM-CDM-CDM-CDM-CDM-CDM-CDM-CDM-CDM-CDM-CDM-CDM-CDM-CDM- JND1 - M.2 PGE5-CDM-CDM-CDM-CDM-CDM-CDM-CDM-CDM-CDM-CDM-CDM-CDM-CDM-CDM-CDM-CDM-CDM-CDM-CDM-CDM- JND1 - M.2 PGE5-CDM-CDM-CDM-CDM-CDM-CDM-CDM-CDM-CDM-CPG-CCE BISOLICENSE BAR CODE NON-ECC DDR4 SO-DIMMD DMNATI NON-ECC DDR4 SO-DIMMD DMNATI NON-ECC DDR4 SO-DIMMD DMNATI NON-ECC DDR4 SO-DIMMD DMNATI NON-ECC DDR4 SO-DIMMD DMNATI NON-ECC DDR4 SO-DIMMD DMNATI NON-ECC DDR4 SO-DIMMD DMNATI NON-ECC DDR4 SO-DIMMD DMNATI NON-ECC DDR4 SO-DIMMC DMNATI NON-ECC DDR4 SO-DIMMC DMNATI NON-ECC DDR4 SO-DIMMC DMNATI NON-ECC DDR4 SO-DIMMC DMNATI NON-ECC DDR4 SO-DIMMC DMNATI NON-ECC DDR4 SO-DIMMC DMNATI NON-ECC DDR4 SO-DIMMC DMNATI NON-ECC DDR4 SO-DIMMC DMNATI NON-ECC DDR 5DINAMHANNA HDX/HDX/HDX/HDX/HDX/HDX/HDX/HDX/HDX/HDX/HDX/HDX/HDX/HDX/HDX/HDX/HDX/HDX/HDX/HDX/HDX/HDX/HDX/HDX/HDX/HDX/HDX/HDX/HDX/HDX/HDX/HDX/HDX/HDX/HDx HDx HDx HDx HDx HDx HDx HDx HDx HDx HDx HDx HDx HDx HDx HDx HDx HDx HDx HDx HDx HDx HDx HDx HDx HDx HDx HDx HDx HDx HDx HDx HDx HDx HDx HDx HDx HDx HDx HDx HDx HDx HDx HDx HDx HDx HDx HDx HDx HDx HDx HLDIA I E F LPHI DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVYA HDX HDX HDX HDX HDX HDX HDX HDX HDX HDX HDX HDX HDX HDX HDX HDX HDX HDX HDX HDX HDX HDX HDX HDX HDX HDX HDX HDX HDX HDX HDX HDX HDX HDX HDX HDX HDX HDX HDX HDX HDX HDX HDX HDX HDX HDX HDX HDX HDX HDX HDx HLDIA I E F LPHI DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVY DVYDV YD X HLDIA I E F LPHI DV YD YD YD YD YD YD YD YD YD YD YD YD YD YD YD YD YD YD YD YD YD YD YD YD YD YD YD YD YD YD YD YD YD YD YD YD YD YD YD YD YD YD YD YD YD YD YD YD YD YD Yd X HLDIA I E F LPHI DV YD YD YD YD YD YD YD YD YD YD YD YD YD YD YD YD YD YD YD YD Yd X HLDIA I E F LPHI DV YD YD YD YD YD YD YD YD YD YD YD YD YD Yd X HLDIA I E F LPHI DV YD YD YD Yd Yd Yd Yd Yd Yd Yd Yd Yd Yd Yd Yd Yd Yd Yd Yd Yd Yd Yd Yd Yd Yd Yd VLDIA I D NVDIA I D NVDIA I D NVDIA I D NVDIA I D NVDIA I D NVDIA I D NVDIA I D NVDIA I D NVDIA I D NVDIA I D NVDIA I D NVDIA I D NVDIA I D NVDIA I D NVDIA I D NVDIA I D NVDIA I D NVDIA I D NVDIA I D NVDIA I D NWDIA I D NWDIA I D NWDIA I D NWDIA I D NWDIA I D NWDIA I D NWDIA I D NWDIA I D NWDIA I D NWDIA I D NWDIA I D NWDIA I D NWDIA I D NWDIA I D NWDIA I D NWDIA I D NWDIA I D NWDIA I D NWDIA I D NWDIA I D NWMIDA I D NWMIDA I D NWMIDA I D NWMIDA I D NWMIDA I D NWMIDA I D NWMIDA I D NWMIDA I D NWMIDA I D NWMIDA I D NWMIDA I D NWMIDA I D NWMIDA I D NWMIDA I D NWMIDA I D NWMIDA I D NWMIDA I D NVMIDA I D NVMIDA I D NVMIDA I D NVMIDA I D NVMIDA I D NVMIDA I D NVMIDA I D NVMIDA I D NVMIDA I D NVMIDA I D NVMIDA I D NVMIDA I D NVMIDA I D NVMIDA I D NVMIDA I D NVMIDA I D NVMIDA I GNDIA A B C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C C/C

Location of Mounting Holes

Notes: 1) To avoid damaging the motherboard and its components, please do not use a force greater than 8 lb/inch on each mounting screw during motherboard installation. 2) Some components are very close to the mounting holes. Please take precautionary measures to avoid damaging these components when installing the motherboard to the chassis.

Installing the Motherboard

1. Install the I/O shield into the back of the chassis.

Isometric line drawing of a computer monitor with ventilation slots and a green arrow pointing to the front panel (no text or symbols)

1. Locate the mounting holes on the motherboard. See the previous page for the location.

Chassis Chassis

1. Locate the matching mounting holes on the chassis. Align the mounting holes on the motherboard against the mounting holes on the chassis.

S2 Motherboard Chassis Motherboard Chassis

1. Install standoffs in the chassis as needed.

2. Install the motherboard into the chassis carefully to avoid damaging other motherboard components.

3. Using the Phillips screwdriver, insert a Phillips head #6 screw into a mounting hole on the motherboard and its matching mounting hole on the chassis.

4. Repeat Step 5 to insert #6 screws into all mounting holes.

5. Make sure that the motherboard is securely placed in the chassis.

Note: Images displayed are for illustration only. Your chassis or components might look different from those shown in this manual.

2.3 Processor and Heatsink Installation

Warning: When handling the processor package, avoid placing direct pressure on the label area of the fan.

Important:

• Always connect the power cord last, and always remove it before adding, removing or changing any hardware components. Make sure that you install the processor into the CPU socket before you install the CPU heatsink.
• If you buy a CPU separately, make sure that you use an Intel-certified multi-directional heatsink only.
• Make sure to install the motherboard into the chassis before you install the CPU heatsink.
• When receiving a motherboard without a processor pre-installed, make sure that the plastic CPU socket cap is in place and none of the socket pins are bent; otherwise, contact your retailer immediately.
  • Refer to the Supermicro website for updates on CPU support.

Installing the LGA1151 Processor

1. Press the load lever down to release the load plate from its locking position.

Plastic Protective Cover Load Lever

Load Plate 1 2

1. Gently lift the load lever to open the load plate. Remove the plastic protective cover. Do not touch the CPU socket contacts.

Technical line drawing of a mechanical assembly with no visible text or symbols

1. Locate the triangle on the CPU and CPU socket, which indicates the location of Pin 1. Holding the CPU by the edges with your thumb and index finger, align the triangle on the CPU with the triangle on the socket. The CPU keys (the semi-circle cutouts) may also be aligned against the socket keys as a guide.

Pin 1

CPU / Socket Keys

1. Carefully lower the CPU straight down into the socket. Do not drop the CPU on the socket, or move it horizontally or vertically to avoid damaging the CPU or socket. Inspect the four corners of the CPU to make sure that the CPU is properly installed.

Technical line drawing of a mechanical component with no visible text or symbols

1. Close the load plate, then gently push down the load lever into its locking position.

CPU properly installed Load lever locked into place

Note: You can only install the CPU in one direction. Make sure it is properly inserted into the socket before closing the load plate. If it doesn't close properly, do not force it as it may damage your CPU. Instead, open the load plate again and double-check that the CPU is properly aligned.

Installing an Active CPU Heatsink with Fan

1. Locate the CPU fan header on the motherboard (FAN1: CPU FAN).

2. Position the heatsink so that the heatsink fan wires are closest to the CPU fan header and are not interfering with other components.

3. Inspect the CPU fan wires to make sure they are routed through the bottom of the heatsink.

4. Remove the thin layer of protective film from the heatsink. CPU overheating may occur if the protective film is not removed from the heatsink.

5. Apply the proper amount of thermal grease on the CPU. If your heatsink came with a thermal pad, please ignore this step.

Thermal Grease

1. Align the four heatsink fasteners with the mounting holes on the motherboard. Gently push down the fasteners in a diagonal order (Example: #1 and #2, then #3 and #4) into the mounting holes until you hear a click. Then lock the fasteners by turning each one 90° clockwise.

Technical diagram of a cooling fan assembly with numbered components and exploded view

Push down Lock Unlock

1. Once all four fasteners are secured, connect the heatsink fan wire connector to the CPU fan header.

Illustration of hands connecting a cable to a terminal block (no text or symbols)

Removing the Heatsink

Note: We do not recommend that the CPU or heatsink be removed. However, if you do need to remove the heatsink, please follow the instructions below to remove the heatsink and prevent damage done to the CPU or other components.

1. Unplug the power connector from the power supply.
2. Disconnect the heatsink fan connector from the CPU fan header.
3. Gently press down each fastener cap and turn them 90°counter clockwise, then pull the fasteners upwards to loosen them.
4. Remove the heatsink from the CPU.

Pull up Lock Unlock

2.4 Memory Support and Installation

Memory Support

The motherboard supports up to 64GB of DDR4 Non-ECC SO-DIMM with speeds of up to 2666MHz in two slots. Populating the DIMM slots with a pair of memory modules of the same type, speed, and size will result in interleaved memory, which improves performance.

DIMM Module Population Configuration

For optimal memory performance, follow the table below when populating memory.

Recommended Population (Balanced)
DIMMA1 DIM	IMB1 Total	System Memory
4GB 4GB
4GB 4GB	8GB
8GB 8GB
8GB 8GB	16GB
16GB 16GB
16GB 16GB	32GB
32GB 32GB
32GB 32GB	64GB

DIMM Module Population Sequence

Insert the desired number of DIMM modules into the memory slots, starting with DIMMA1 and then DIMMB1. For optimal performance, use memory modules of the same type and speed.

Towards the CPU DIMMA1 DIMMB1 Towards the edge of the motherboard

DIMM Installation

1. Install the desired number of SO-DIMMs into the memory slots, starting with DIMMA1 and then DIMMB1.

2. Align the key on the bottom of the SO-DIMM module against the receptive point on the memory slot. Take note of the notches on the side of the DIMM module and of the locking clips on the socket to avoid causing damage.

Module Notch Module Key Socket Key

1. Press the SO-DIMM module straight down into the socket with both hands until it is securely seated in the socket. The side clips will automatically lock the module into place.

Illustration showing two hands holding a computer RAM module with blue arrows indicating compression or disassembly (no text or symbols present)

DIMM Removal

Push the side clips away from the module to release it from the socket.

2.5 Rear I/O Ports

See the figure below for the locations and descriptions of the various I/O ports on the rear of the motherboard.

HD AUDIO M1 ACOIC FP USB A1 USB 23 SPAX3 PCH JMD1-X4.2 201E1.0x1 ON USB 6.9 (5.1) JMD2 - M-2 PC E3 0x4 SATA1 SATA4 SATA5 SATA6 SATA7 SATA8 SATA9 SATA10 SATA11 SATA12 SATA13 SATA14 SATA15 SATA16 SATA17 SATA18 SATA19 SATA20 SATA21 SATA22 SATA23 SATA24 SATA25 SATA26 SATA27 SATA28 SATA29 SATA30 SATA31 SATA32 SATA33 SATA34 SATA35 SATA36 SATA37 SATA38 SATA39 SATA40 SATA41 SATA42 SATA43 SATA44 SATA45 SATA46 SATA47 SATA48 SATA49 SATA50 SATA51 SATA52 SATA53 SATA54 SATA55 SATA56 SATA57 SATA58 SATA59 SATA60 SATA61 SATA62 SATA63 SATA64 SATA65 SATA66 SATA67 SATA68 SATA69 SATA70 SATA71 SATA72 SATA73 SATA74 SATA75 SATA76 SATA77 SATA78 SATA79 SATA80 SATA81 SATA82 SATA83 SATA84 SATA85 SATA86 SATA87 SATA88 SATA89 SATA90 SATA91 SATA92 SATA93 SATA94 SATA95 SATA96 SATA97 SATA98 SATA99 SATA100

Figure 2-2. I/O Port Location and Definitions

Diagram of network equipment components with numbered labels pointing to different device types

#	Description	#	Description	#	Description
1.	DP Port	6.	LAN2	11.	COM1
2.	HDMI Port	7.	USB7 (3.1 Type A)	12.	Line Out
3.	LAN1	8.	USB6 (3.1 Type C)	13.	Mic In
4.	USB5 (3.1 Type A)	9.	DVI-D
5.	USB4 (3.1 Type C)	10.	COM2

HDMI Port

One High Definition Multimedia Interface (HDMI) 2.0 port is on the I/O back panel. This connector is used to display both high definition video and digital sound through an HDMI-capable display, using a single HDMI cable (not included). This port provides Intel HD Graphics digital output with resolution up to 4096x2160 at 60Hz Refresh Rate with HDR.

DP Port

DisplayPort, developed by the VESA consortium, delivers digital display and fast refresh rate. It can connect to virtually any display device using a DisplayPort adapter for devices such as VGA, DVI or HDMI. This port provides Intel HD Graphics digital output with resolution up to 4096x2304 at 60Hz Refresh Rate.

DVI-D Port

A DVI-D port is on the I/O back panel. Use this port to connect to a compatible Digital Visual Interface (DVI) display. DVI-D provides digital signal for the output display.

2 1 SUPER X11SCV-Q REV: 02 DUSIGNLED IN USA CPU MAC CODE BAR CODE BIO6 LICENSE NON-LCCO DOM SO-D/AM JPM1 JPM2 JPM3 JPM4 JPM5 JPM6 JPM7 JPM8 JPM9 JPM10 JPM11 JPM12 JPM13 JPM14 JPM15 JPM16 JPM17 JPM18 JPM19 JPM20 JPM21 JPM22 JPM23 JPM24 JPM25 JPM26 JPM27 JPM28 JPM29 JPM30 JPM31 JPM32 JPM33 JPM34 JPM35 JPM36 JPM37 JPM38 JPM39 JPM40 JPM41 JPM42 JPM43 JPM44 JPM45 JPM46 JPM47 JPM48 JPM49 JPM50 JPM51 JPM52 JPM53 JPM54 JPM55 JPM56 JPM57 JPM58 JPM59 JPM60 JPM61 JPM62 JPM63 JPM64 JPM65 JPM66 JPM67 JPM68 JPM69 JPM70 JPM71 JPM72 JPM73 JPM74 JPM75 JPM76 JPM77 JPM78 JPM79 JPM80 JPM81 JPM82 JPM83 JPM84 JPM85 JPM86 JPM87 JPM88 JPM89 JPM90 JPM91 JPM92 JPM93 JPM94 JPM95 JPM96 JPM97 JPM98 JPM99 JPM100

1. HDMI/DP Port
2. DVI-D Port

Embedded DisplayPort

The eDP header is used to connect an embedded display LED or LCD Panel. It can also support an LVDS display through an AOM-PICO-LVDS module. eDP is a companion standard to the DisplayPort interface designed for embedded display applications, including notebook PCs, tablets, netbooks, and all-in-one desktop PCs. The X11SCV-Q/-L supports 3.3V eDP LED or LCD panel only. The X11SCV-Q/-L supports eDP standard version 1.4. Refer to the table below for pin definitions.

G11 G7 G1 G9 40 eDP G12 G8 1

SUPER X115CV-Q REV 1.00 DESIGNED IN USA CPU VAC CODE BAT CODE PAC CODE BOS CODES NON-CCC CODES COM/AN USB/CC USB/CC USB/CC USB/CC USB/CC USB/CC USB/CC USB/CC USB/CC USB/CC USB/CC USB/CC USB/CC USB/CC USB/CC USB/CC USB/CC USB/CC USB/CC USB/CC USB/CC USB/CC USB/CC USB/CC USB/CC USB/SC USB/SC USB/SC USB/SC USB/SC USB/SC USB/SC USB/SC USB/SC USB/SC USB/SC USB/SC USB/SC USB/SC USB/SC USB/SC USB/SC USB/SC USB/SC USB/SC USB/SC USB/SC USB/SC USB/SC USB/SC USB/SPC USB/SPC USB/SPC USB/SPC USB/SPC USB/SPC USB/SPC USB/SPC USB/SPC USB/SPC USB/SPC USB/SPC USB/SPC USB/SPC USB/SPC USB/SPC USB/SPC USB/SPC USB/SPC USB/SPC USB/SPc USB/SPc USB/SPc USB/SPc USB/SPc USB/SPc USB/SPc USB/SPc USB/SPc USB/SPc USB/SPc USB/SPc USB/SPc USB/SPc USB/SPc USB/SPc USB/SPc USB/SPc USB/SPc USB/SPc USB/SPC USB/SPc USB/SPc USB/SPc USB/SPc USB/SPc USB/SPc USB/SPc USB/SPc USB/SPc USB/SPc USB/SPc USB/SPc USB/SPc USB/SPc USB/SPc USB/SPc USB/SPc USB/SPc USB/SPs

eDP HeaderConnector: DF80-40S-0.5V(51)Pin Definitions
Pin# Definition Pin# Definition
1 P3V3_EDP 21 eDP_TXN0
2 P3V3_EDP 22 eDP_TXP0
3 P3V3_EDP 23 GND
4 P3V3_EDP 24 eDP_AUXP
5 P3V3_EDP 25 eDP_AUXN
6 GND 26 NC
7 GND 27 P3V3
8 GND 28 NC
9 GND 29 P12V
10 EDP_HPD 30 NC
11 GND 31 GND
12 eDP_TXN3 32 P5V
13	eDP_TXP3	33	EDP_3P3_BKLTCTL
14	GND	34	EDP_3P3_BKLEN
15 eDP_TXN2 35 P12V
16 eDP_TXP2 36 P3V3
17 GND 37 GND
18 eDP_TXN1 38 NC
19 eDP_TXP1 39 NC
20	GND	40	NC

1. eDP Port

LAN Ports

There are two 1GbE LAN ports (LAN1 and LAN2) on the I/O back panel. These ports accept RJ45 type cables. Refer to the table below for the pin definitions.

LAN PortPin Definition
Pin# Definition Pin# Definition
1 TX_D1+ 5 BI_D3-
2 TX_D1- 6 RX_D2-
3 RX_D2+ 7 BI_D4+
4 BI_D3+ 8 BI_D4-

High Definition Audio Ports

The green jack on the I/O back panel audio port is the Line Out connection and the pink jack is the Mic In connection.

HD AudioPin Definitions
Color	Definition
Green	Line Out
Pink	Mic In

3 2 1 X11SCV-Q REV: 1.02 DESIGNED IN USA CPU SPLC USB 24 USB 24 USB 24 USB 24 USB 24 USB 24 USB 24 USB 24 USB 24 USB 24 USB 24 USB 24 USB 24 USB 24 USB 24 USB 24 USB 24 USB 24 USB 24 USB 24 USB 25 USB 25 USB 25 USB 25 USB 25 USB 25 USB 25 USB 25 USB 25 USB 25 USB 25 USB 25 USB 25 USB 25 USB 25 USB 25 USB 25 USB 25 USB 25 USB 25 USB 26 USB 26 USB 26 USB 26 USB 26 USB 26 USB 26 USB 26 USB 26 USB 26 USB 26 USB 26 USB 26 USB 26 USB 26 USB 26 USB 26 USB 26 USB 26 USB 26 USB 27 USB 27 USB 27 USB 27 USB 27 USB 27 USB 27 USB 27 USB 27 USB 27 USB 27 USB 27 USB 27 USB 27 USB 27 USB 27 USB 27 USB 27 USB 27 USB 27 USB 28 USB 28 USB 28 USB 28 USB 28 USB 28 USB 28 USB 28 USB 28 USB 28 USB 28 USB 28 USB 28 USB 28 USB 28 USB 28 USB 28 USB 28 USB 28 USB 28 USB 29 USB 29 USB 29 USB 29 USB 29 USB 29 USB 29 USB 29 USB 30 USB 30 USB 30 USB 30 USB 30 USB 30 USB 30 USB 30 USB 30 USB 30 USB 30 USB 30 USB 30 USB 30 USB 30 USB 30 USB 30 USB 30 USB 30 USB 30 USB 31 USB 31 USB 31 USB 31 USB 31 USB 31 USB 31 USB 31 USB 31 USB 31 USB 31 USB 31 USB 31 USB 31 USB 31 USB 31 USB 31

1. LAN1
2. LAN2
3. Audio Ports

Universal Serial Bus (USB) Header

There are two USB 2.0 headers (USB0/1, USB2/3) and one USB 3.1 header (USB8/9) on the motherboard to provide two USB 3.1 Type A front access connection with a cable (not included). There are also four USB 3.1 ports (USB4/5, USB6/7) on the I/O back panel.

Front Panel USB (3.1) Header Pin Definitions
Pin#	Definition	Pin#	Definition
1	GND	11	GND
2	TX1+	12	TX2-
3	TX1-	13	TX2+
4	GND	14	GND
5	RX1+	15	RX2-
6	RX1-	16	RX2+
7	GND	17	GND
8	D1+	18	D2+
9	D1-	19	D2-
10	VBUS1	20	VBUS2

Front Panel USB 2.0 Header Pin Definitions
Pin#	Definition	Pin#	Definition
1	+5V	2	+5V
3	USB_PN2	4	USB_PN3
5	USB_PP2	6	USB_PP3
7	Ground	8	Ground
9	Key	10	Ground

Back Panel USB (3.1) Header Pin Definitions
Pin#	Definition	Pin#	Definition
1	GND	11	GND
2	TX1+	12	TX2-
3	TX1-	13	TX2+
4	GND	14	GND
5	RX1+	15	RX2-
6	RX1-	16	RX2+
7	GND	17	GND
8	D1+	18	D2+
9	D1-	19	D2-
10	VBUS1	20	VBUS2

SUPER X11SCV-Q Next 130 DESIGNED IN USA CPU M2O OCE M2B OCE NON-ECO DDR4 SODIMN D14M1 NON-ECO DDR4 SODIMN D14M1 JW1 JW2 JW3 JW4 JW5 JW6 JW7 JW8 JW9 JW10 JW11 JW12 JW13 JW14 JW15 JW16 JW17 JW18 JW19 JW20 JW21 JW22 JW23 JW24 JW25 JW26 JW27 JW28 JW29 JW30 JW31 JW32 JW33 JW34 JW35 JW36 JW37 JW38 JW39 JW40 JW41 JW42 JW43 JW44 JW45 JW46 JW47 JW48 JW49 JW50 JW51 JW52 JW53 JW54 JW55 JW56 JW57 JW58 JW59 JW60 JW61 JW62 JW63 JW64 JW65 JW66 JW67 JW68 JW69 JW70 JW71 JW72 JW73 JW74 JW75 JW76 JW77 JW78 JW79 JW80

1. USB0/1
2. USB2/3
3. USB4/5
4. USB6/7
5. USB8/9

2.6 Front Control Panel

JF1 contains header pins for various buttons and indicators that are normally located on a control panel at the front of the chassis. These connectors are designed specifically for use with Supermicro chassis. See the figure below for the descriptions of the front control panel buttons and LED indicators.

HD AUDIO AUDIO TP USB 51 USB 23 SRN4 SRN2 JF1 JMC1 M2 PCI E30M ON USB 60 (3.1) JMC2 - M2 PCI E30M JCOM DCN 56 LSATA1 SATA2 SATA3 SATA4 SATA5 SATA6 SATA7 SATA8 SATA9 SATA10 SATA11 SATA12 SATA13 SATA14 SATA15 SATA16 SATA17 SATA18 SATA19 SATA20 SATA21 SATA22 SATA23 SATA24 SATA25 SATA26 SATA27 SATA28 SATA29 SATA30 SATA31 SATA32 SATA33 SATA34 SATA35 SATA36 SATA37 SATA38 SATA39 SATA40 SATA41 SATA42 SATA43 SATA44 SATA45 SATA46 SATA47 SATA48 SATA49 SATA50 SATA51 SATA52 SATA53 SATA54 SATA55 SATA56 SATA57 SATA58 SATA59 SATA60 SATA61 SATA62 SATA63 SATA64 SATA65 SATA66 SATA67 SATA68 SATA69 SATA70 SATA71 SATA72 SATA73 SATA74 SATA75 SATA76 SATA77 SATA78 SATA79 SATA80 SATA81 SATA82 SATA83 SATA84 SATA85 SATA86 SATA87 SATA88 SATA89 SATA90 SATA91 SATA92 SATA93 SATA94 SATA95 SATA96 SATA97 SATA98 SATA99 SATA100

Figure 2-3. JF1 Header Definitions

PWR Power Button Reset Reset Button 3.3V 3.3V 3.3V Stby 3.3V Stby 3.3V 3.3V Stby X NMI 19 20 Ground Ground X OH/Fan Fail LED NIC2 Activity LED NIC1 Activity LED HDD LED FP PWRLED X Ground

Power Button

The Power Button connection is located on pins 1 and 2 of JF1. Momentarily contacting both pins will power on/off the system. This button can also be configured to function as a suspend button (with a setting in the BIOS - see Chapter 4). To turn off the power in the suspend mode, press the button for at least 4 seconds. Refer to the table below for pin definitions.

Power ButtonPin Definitions (JF1)

Pins Definition

1 Signal

2 Ground

Reset Button

The Reset Button connection is located on pins 3 and 4 of JF1. Attach it to a hardware reset switch on the computer case to reset the system. Refer to the table below for pin definitions.

Reset ButtonPin Definitions (JF1)

Pins Definition

3 Reset

4 Ground

1 PWR Power Button 2 Reset Reset Button 3.3V 3.3V 3.3V Stby 3.3V Stby 3.3V 3.3V Stby X NMI Ground Ground X OH/Fan Fail LED NIC2 Activity LED NIC1 Activity LED HDD LED FP PWRLED X Ground 19 20

1. Power Button
2. Reset Button

Overheat (OH)/Fan Fail

Connect an LED cable to OH/Fan Fail connections on pins 7 and 8 of JF1 to provide warnings for chassis overheat/fan failure. Refer to the table below for pin definitions.

OH/Fan Fail Indicator Pin Definitions
Pins Definition
Off Normal
On Overheat
Flashing Fan Fail

OH/Fan Fail LEDPin Definitions (JF1)

Pins Definition

7 Vcc/Blue UID LED

8 OH/Fan Fail LED

The NIC (Network Interface Controller) LED connection for LAN port 1 is located on pins 11 and 12 of JF1, and the LED connection for LAN Port 2 is on pins 9 and 10. Attach NIC LED cables to NIC1 and NIC2 LED indicators to display network activities. Refer to the table below for pin definitions.

LAN1/LAN2 LEDPin Definitions (JF1)

Pins Definition

9/11 +3.3V Stby

10/12 NIC Activity LED

LAN1/LAN2 Link LEDs (Left)LED State

LED Color Definition

Off No Connection

Green 10 Mbps/100 Mbps

Orange 1 Gbps

LAN1/LAN2 Link LEDs (Right)LED State
Color Status Definition
Yellow	Flashing	Active

PWR Reset Power Button Reset Button 3.3V 3.3V 3.3V Stby 3.3V Stby 3.3V 3.3V Stby X NMI 1 2 Ground Ground X OH/Fan Fail LED NIC2 Activity LED NIC1 Activity LED HDD LED FP PWRLED X Ground 19 20

1. HDD LED
2. NIC1 Activity
3. NIC2 Activity

HDD LED

The HDD LED connection is located on pins 13 and 14 of JF1. Attach a cable here to indicate the status of HDD-related activities, including IDE, SATA activities. Refer to the table below for pin definitions.

HDD LEDPin Definitions (JF1)

Pins Definition

13 +3.8V

14 HDD LED

Power LED

The Power LED connection is located on pins 15 and 16 of JF1. Refer to the table below for pin definitions.

Power LEDPin Definitions (JF1)
Pins Definition
15 3.3	V Stby
16 PWR	LED

PWR Reset Power Button Reset Button 3.3V 3.3V 3.3V Stby 3.3V Stby 3.3V 3.3V Stby X NMI 1 2 Ground Ground X OH/Fan Fail LED NIC2 Activity LED NIC1 Activity LED HDD LED ① FP PWRLED ② X Ground 19 20

1. HDD LED
2. Power LED

NMI Button

The non-maskable interrupt button header is located on pins 19 and 20 of JF1. Refer to the table below for pin definitions.

NMI ButtonPin Definitions (JF1)

Pins Definition

19 Control

20 Ground

PWR Power Button Reset Reset Button 3.3V 3.3V 3.3V Stby 3.3V Stby 3.3V 3.3V Stby X NMI 1 2 Ground Ground X OH/Fan Fail LED NIC2 Activity LED NIC1 Activity LED HDD LED FP PWRLED X Ground 19 20

1. NMI Button

2.7 Connectors

Main ATX Power Supply Connector

The primary power supply connector (JPW1) meets the ATX SSI EPS 24-pin specification. JPV1 is the 12V DC power connector that provides alternative power for special enclosure when the 24-pin ATX power is not in use. JPH1 is a 4-pin HDD power connector that provides power to onboard HDD devices.

ATX Power 24-pin Connector Pin Definitions
Pin#	Definition	Pin#	Definition
13	+3.3V	1 +3.3V
14	-12V	2 +3.3V
15	COM	3 COM
16	PS_ON	4 +5V
17	COM	5 COM
18	COM	6 +5V
19	COM	7 COM
20	Res (NC)	8	PWR_OK
21	+5V	9 5VSB
22	+5V	10	+12V
23	+5V	11	+12V
24	COM	12	+3.3V

4-pin HDD Power Pin Definitions
Pin#	Definition
1 12V
2-3	Ground
4 5V

JPH1

+12V 8-pin Power Pin Definitions
Pin#	Definition
1-4	Ground
5-8	+12V

JPV1

Required Connection

HD A/C/D USB 0/1 RUDC 0/2 USB 0/3 USB 2/4 USB 2/3 SINX3 JND2-M-2 FCE3.0/4 JND2-M-2 FCE3.0/4 JCM1 COM PE JCM1 COM PE JCM1 JCM1 JCM1 JCM1 JCM1 JCM1 JCM1 JCM1 JCM1 JCM1 JCM1 JCM1 JCM1 JCM1 JCM1 JCM1 JCM1 JCM1 JCM1 JCM1 JCM1 JCM1 JCM1 JCM1 JCM1 JCM2 JCM2 JCM2 JCM2 JCM2 JCM2 JCM2 JCM2 JCM2 JCM2 JCM2 JCM2 JCM2 JCM2 JCM2 JCM2 JCM2 JCM2 JCM2 JCM2 JCM2 JCM2 JCM2 JCM2 JCM2 JCM3 JCM3 JCM3 JCM3 JCM3 JCM3 JCM3 JCM3 JCM3 JCM3 JCM3 JCM3 JCM3 JCM3 JCM3 JCM3 JCM3 JCM3 JCM3 JCM3 JCM3 JCM3 JCM3 JCM3 JCM3 JCM4 JCM4 JCM4 JCM4 JCM4 JCM4 JCM4 JCM4 JCM4 JCM4 JCM4 JCM4 JCM4 JCM4 JCM4 JCM4 JCM4 JCM4 JCM4 JCM4 JCM4 JCM4 JCM4 JCM4 JCM4 JCM5 JCM5 JCM5 JCM5 JCM5 JCM5 JCM5 JCM5 JCM5 JCM5 JCM5 JCM5 JCM5 JCM5 JCM5 JCM5 JCM5 JCM5 JCM5 JCM5 JCM5 JCM5 JCM5 JCM6 JCM6 JCM6 JCM6 JCM6 JCM6 JCM6 JCM6 JCM6 JCM6 JCM6 JCM6 JCM6 JCM6 JCM6 JCM6 JCM6 JCM6 JCM6 JCM6 JCM6 JCM6 JCAI1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1A1B9878888888888888888888888888888888888888888888888888888888888888888888888888888888888888888888888888888B9999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999

1. 24-pin ATX Power
2. 4-pin HDD Power
3. 12V 8-pin Power

TPM Header

The JTPM1 header is used to connect a Trusted Platform Module (TPM)/Port 80, which is available from a third-party vendor. A TPM/Port 80 connector is a security device that supports encryption and authentication in hard drives. It allows the motherboard to deny access if the TPM associated with the hard drive is not installed in the system. See the layout below for the location of the TPM header.

Trusted Platform Module HeaderPin Definitions
Pin#	Definition	Pin#	Definition
1 LCLK	2 GND
3 LFRAME#	4 No Pin
5 LRESET#	6 +5 V (X)
7 LAD3	8 LAD2
9 3.3V	10	LAD1
11	LAD0	12	GND
13	SMB_CLK4 (X)	14	SMB_DAT4 (X)
15	P3V3_STBY	16	SERIRQ
17	GND	18	GND
19	P3V3_STBY	20	LDRQ# (X)

FO ADO VCH AUDIO TIP COM12 DV D LED1 USB 0/1 USB 2/1 PCH JND1-X-2, PCE3.64 CM1 JND2-42, PCE3.64 JNCR1 COM 56 JNCR1 JNCR1 JNCR1 JNCR1 JNCR1 JNCR1 JNCR1 JNCR1 JNCR1 JNCR1 JNCR1 JNCR1 JNCR1 JNCR1 JNCR1 JNCR1 JNCR1 JNCR1 JNCR1 JNCR1 JNCR2-500 JNCR2-500 JNCR2-500 JNCR2-500 JNCR2-500 JNCR2-500 JNCR2-500 JNCR2-500 JNCR2-500 JNCR2-500 JNCR2-500 JNCR2-500

1. TPM/Port 80 Header

Speaker/Buzzer

On the JD1 header, pins 1-4 are for the external speaker.

SpeakerPin Definitions
Pin#	Definition
1-4	External Speaker

Disk On Module Power Connector

The Disk On Module (DOM) power connector at JSD1 provides 5V power to a solid-state DOM storage device connected to the I-SATA0 port. Refer to the table below for pin definitions.

DOM Power Pin Definitions
Pin#	Definition
1 5V
2 Ground
3 Ground

DO AUDIO AUDIO FF COM102 USB 01 USB 231 LED1 LDH1 LND2 USB 07 (3.1) LND1 JDS 45 (3.1) HDRX2-3DF M2 PCH SMD JMD1-M2 FCE3/64 CM1 CPU JMD2-M2 FCE3/64 USB 85 (3.1) JMD2-M2 FCE3/64 JCDM COM 86 USB700 SUPERCOM JDCM COM 86 JSD/41 JSD/44 JSD/45 JSD/46 JSD/47 JSD/48 JSD/49 JSD/50 JSD/51 JSD/52 JSD/53 JSD/54 JSD/55 JSD/56 JSD/57 JSD/58 JSD/59 JSD/60 JSD/61 JSD/62 JSD/63 JSD/64 JSD/65 JSD/66 JSD/67 JSD/68 JSD/69 JSD/70 JSD/71 JSD/72 JSD/73 JSD/74 JSD/75 JSD/76 JSD/77 JSD/78 JSD/79 JSD/80 JSD/81 JSD/82 JSD/83 JSD/84 JSD/85 JSD/86 JSD/87 JSD/88 JSD/89 JSD/90 JSD/91 JSD/92 JSD/93 JSD/94 JSD/95 JSD/96 JSD/97 JSD/98 JSD/99 JSD/100 SUPERO® X11SCV-Q Rev: 1.02 DESIGNED IN USA MAC CODE BAR CODE FE CE BIOS LICENSED

1. Speaker/Buzzer
2. DOM Connector

I-SATA 3.0 Ports

The X11SCV-Q has five I-SATA 3.0 ports (I-SATA0 - I-SATA4), while X11SCV-L has four (I-SATA0 - I-SATA3). I-SATA0 can be used with Supermicro SuperDOMs that are yellow SATA DOM connectors with power pins built in, and do not require external power cables. Supermicro SuperDOMs are backward-compatible with regular SATA HDDs or SATA DOMs that need external power cables. All these SATA ports provide serial-link signal connections, which are faster than the connections of Parallel ATA.

M.2 Slot

There is one M.2 PCIe 3.0 x4 slot that supports M Key 2242/2280 and one M.2 PCI-E x1 CNVi slot that supports E Key 2230. M.2 is formerly known as Next Generation Form Factor (NGFF) and designed for internal mounting devices.

I/O AUDIO X1 AUDIO FP COM12 CPU USB 0-1 USB 23 LCP1 LAN2 USB 57 (3.1) LAN1 USB 45 (3.1) I/O X2/DCP R12 SIN21 PCH 6 CPU JMD1-M2-PCES3.0 CM1 USB 26 (3.1) JMD2-M2-PCES3.0 1 MAC CODE BAR CODE BIO6 LICENSE NON-ECG DDR4 SO-DMM JPM1 JPM2 JPM3 JPM4 JPM5 JPM6 JPM7 JPM8 JPM9 JPM10 JPM11 JPM12 JPM13 JPM14 JPM15 JPM16 JPM17 JPM18 JPM19 JPM20 JPM21 JPM22 JPM23 JPM24 JPM25 JPM26 JPM27 JPM28 JPM29 JPM30 JPM31 JPM32 JPM33 JPM34 JPM35 JPM36 JPM37 JPM38 JPM39 JPM40 JPM41 JPM42 JPM43 JPM44 JPM45 JPM46 JPM47 JPM48 JPM49 JPM50 JPM51 JPM52 JPM53 JPM54 JPM55 JPM56 JPM57 JPM58 JPM59 JPM60 JPM61 JPM62 JPM63 JPM64 JPM65 JPM66 JPM67 JPM68 JPM69 JPM70 JPM71 JPM72 JPM73 JPM74 JPM75 JPM76 JPM77 JPM78 JPM79 JPM80 JPM81 JPM82 JPM83 JPM84 JPM85 JPM86 JPM87 JPM88 JPM89 JPM90 JPM91 JPM92 JPM93 JPM94 JPM95 JPM96 JPM97 JPM98 JPM99 JPM100

1. I-SATA0
2. I-SATA1
3. I-SATA2
4. I-SATA3
5. I-SATA4
6. M.2 Slot CNVi
7. M.2 Slot

Front Accessible Audio Header

A 10-pin audio header located AUDIO FP allows you to use the onboard sound for audio playback. Connect an audio cable to this header to use this feature. Refer to the table below for pin definitions.

Audio HeaderPin Definitions
Pin#	Definition	Pin#	Definition
1	Mic_2_Left	2	Audio_Ground
3	Mic_2_Right	4	Audio_Detect
5	Line_2_Right	6	Mic_2_JD
7	Jack_Detect	8	Key
9 Line	2_Left 10	Line	2_JD

Chassis Intrusion

A Chassis Intrusion header is located at JL1 on the motherboard. Attach the appropriate cable from the chassis to the header to inform you when the chassis is opened.

Chassis Intrusion Pin Definitions
Pins	Definition
1	Intrusion Input
2	Ground

1 AUDIOFF USB 0/1 USB 2/1 SRM3 PCH JW7 JW7 - M2 PDCF5.04 CMN USB 48 [7,1] JW62 - M2 PDCF5.04 JW62 - M2 PDCF5.04 JW62 - M2 PDCF5.04 JW62 - M2 PDCF5.04 JW62 - M2 PDCF5.04 JW62 - M2 PDCF5.04 JW62 - M2 PDCF5.04 JW62 - M2 PDC F5.04 JW62 - M2 PDC F5.04 JW62 - M2 PDC F5.04 JW62 - M2 PDC F5.04 JW62 - M2 PDC F5.04 JW62 - M2 PDC F5.04 JW62 - M2 PDC F5.04 JW62- M2 PDC F5.04 JW62- M2 PDC F5.04 JW62- M2 PDC F5.04 JW62- M2 PDC F5.04 JW62- M2 PDC F5.04 JW62- M2 PDC F5.04 JW62- M2 PDC F5.04

1. Audio Header
2. Chassis Intrusion

COM Ports and Headers

The motherboard has two COM ports on the I/O back panel and two COM headers (COM1/2, COM3/4, COM5/6) that provide six serial connections. COM1/2 support RS-232/422/485 by auto and COM3-6 support RS-232 only.

COM Header (COM1, COM2) Pin Definitions
Pin#	Definition	Pin#	Definition
1	DCD	6	DSR
2	RXD	7	RTS
3	TXD	8	CTS
4	DTR	9	RI
5	GrND	10	N/A

COM Header (COM3/4, COM5/6) Pin Definitions
Pin#	Definition	Pin#	Definition
1	DCD4	2	DSR4
3	RXD4	4	RTS4
5	TXD4	6	CTS4
7	DTR4	8	RI4_N
9	GND	10	N/A
11	DCD3	12	DSR3
13	RXD3	14	RTS3
15	TXD3	16	CTS3
17	DTR3	18	RI3_N
19	GND	20	N/A

HD AUDIO VH AUDIO FI USB AT1 USB 32 SWM3 SPW2 JND1 M2 PCE53.2x1 CSAT USB 40/1.1 JND1-M2-PUO3/MC 2 3 MAC CODE BAR CODE NON-ECC DDR4 SO-DMM NON-ECC DDR4 SO-DMM CPU BIOS LICENSE FCE CE BAS CODE JPN JPN-1 JPN-1 JPN-1 JPN-1 JPN-1 JPN-1 JPN-1 JPN-1 JPN-1 JPN-1 JPN-1 JPN-1 JPN-1 JPN-1 JPN-1 JPN-1 JPN-1 JPN-1 JPN-1 JPN-1 JPN-2 JPN-2 JPN-2 JPN-2 JPN-2 JPN-2 JPN-2 JPN-2 JPN-2 JPN-2 JPN-2 JPN-2 JPN-2 JPN-2 JPN-2 JPN-2 JPN-2 JPN-2 JPN-2 JPN-2 JPN-3 JPN-3 JPN-3 JPN-3 JPN-3 JPN-3 JPN-3 JPN-3 JPN-3 JPN-3 JPN-3 JPN-3 JPN-3 JPN-3 JPN-3 JPN-3 JPN-3 JPN-3 JPN-3 JPN-3 JPN-4 JPN-4 JPN-4 JPN-4 JPN-4 JPN-4 JPN-4 JPN-4 JPN-4 JPN-4 JPN-4 JPN-4 JPN-4 JPN-4 JPN-4 JPN-4 JPN-4 JPN-4 JPN-4 JPN-4 JPN-5 JPN-5 JPN-5 JPN-5 JPN-5 JPN-5 JPN-5 JPN-5 JPN-5 JPN-5 JPN-5 JPN-5 JPN-5 JPN-5 JPN-5 JPN-5 JPN-5 JPN-5 JPN-5 JPN-5 JPN-6 JPN-6 JPN-6 JPN-6 JPN-6 JPN-6 JPN-6 JPN-6 JPN-6 JPN-6 JPN-6 JPN-6 JPN-6 JPN-6 JPN-6 JPN-6 JPN-6 JPN-6 JPN-6 JPN-6 JPN-7

1. COM1/2
2. COM3/4
3. COM5/6

Fan Headers

There are three 4-pin fan headers on the motherboard. Although these are 4-pin fan headers, pins 1-3 are backward compatible with traditional 3-pin fans. The onboard fan speeds are controlled by the Thermal Management (via Hardware Monitoring) in the BIOS. When using the Thermal Management setting, please use all 3-pin fans or all 4-pin fans.

Fan Header Pin Definitions
Pin#	Definition
1	Ground (Black)
2	+12V (Red)
3	Tachometer
4	PWM Control

HD AUDIO COM 2 LVD HON2 DCP AUDIO FI LSB 3.1 USB 67 (3.1) USB 45 (3.1) PCH CPU SUPPORTS M2 PCE3.04 M2 M2 PCE3.04 USB182.7.1 MAC CODE BOS LICENSE BAR CODE NON-CCC DDR4 SD-DMM DINNA NON-CCC DDR4 SD-DMM DINNA FCAI FCAI FCAI FCAI FCAI FCAI FCAI FCAI FCAI FCAI FCAI FCAI FCAI FCAI FCAI FCAI FCAI FCAI FCAI FCAI FCAI FCAI FCAI FCAI FCAI FCA1 FCA1 FCA1 FCA1 FCA1 FCA1 FCA1 FCA1 FCA1 FCA1 FCA1 FCA1 FCA1 FCA1 FCA1 FCA1 FCA1 FCA1 FCA1 FCA1 FCA1 FCA1 FCA1 FCA1 FCA1 FCA2 FCA2 FCA2 FCA2 FCA2 FCA2 FCA2 FCA2 FCA2 FCA2 FCA2 FCA2 FCA2 FCA2 FCA2 FCA2 FCA2 FCA2 FCA2 FCA2 FCA2 FCA2 FCA2 FCA2 FCA2 FCA3 FCA3 FCA3 FCA3 FCA3 FCA3 FCA3 FCA3 FCA3 FCA3 FCA3 FCA3 FCA3 FCA3 FCA3 FCA3 FCA3 FCA3 FCA3 FCA3 FCA3 FCA3 FCA3 FCA3 FCA3 FCA4 FCA4 FCA4 FCA4 FCA4 FCA4 FCA4 FCA4 FCA4 FCA4 FCA4 FCA4 FCA4 FCA4 FCA4 FCA4 FCA4 FCA4 FCA4 FCA4 FCA4 FCA4 FCA4 FCA4 FCA4 FCA5 FCA5 FCA5 FCA5 FCA5 FCA5 FCA5 FCA5 FCA5 FCA5 FCA5 FCA5 FCA5 FCA5 FCA5 FCA5 FCA5 FCA5 FCA5 FCA5 FCA5 FCA5

1. FAN1
2. FAN2
3. FAN3

General Purpose I/O Header

The JGP1 and JGP2 (General Purpose Input/Output) headers are general purpose I/O expanders on a pin header via the SMBus. Refer to the tables below for pin definitions.

JGP1 HeaderPin Definitions
Pin#	Definition	PCH Definition	Memory Address
1	3.3V 3.3V
2	Ground	Ground
3	GP0 GPP_K20	0xFD6B0740
4	GP1 GPP_K4	0xFD6B0640
5	GP2 GPP_K21	0xFD6B0750
6	GP3 GPP_K5	0xFD6B0650
7	GP4 GPP_K23	0xFD6B0770
8	GP5 GPP_K6	0xFD6B0660
9	GP6 GPP_K3	0xFD6B0630
10	GP7 GPP_K7	0xFD6B0670

JGP2 HeaderPin Definitions
Pin#	Definition	PCH Definition	Memory Address
1	3.3V 3.3V
2	Ground	Ground
3	GP0 GPP_K8	0xFD6B0680
4	GP1 GPP_K12	0xFD6B06C0
5	GP2 GPP_K9	0xFD6B0690
6	GP3 GPP_K13	0xFD6B06D0
7	GP4 GPP_K10	0xFD6B06A0
8	GP5 GPP_K14	0xFD6B06E0
9	GP6 GPP_K11	0xFD6B06B0
10	GP7 GPP_K15	0xFD6B06F0

HD ALX5C AUDIO FP USB 01 USB 23 SPAS PCH JMD1 - M2: PCES2x1 ON USB 65.9.1) JMD2 - M2: PCES3.0M JMD3 - M2: PCES4.0M JMD4 - M2: PCES5.0M JMD5 - M2: PCES6.0M JMD6 - M2: PCES7.0M JMD7 - M2: PCES8.0M JMD8 - M2: PCES9.0M JMD9 - M2: PCES10.0M JMD10 - M2: PCES11.0M JMD11 - M2: PCES12.0M JMD12 - M2: PCES13.0M JMD13 - M2: PCES14.0M JMD14 - M2: PCES15.0M JMD15 - M2: PCES16.0M JMD16 - M2: PCES17.0M JMD17 - M2: PCES18.0M JMD18 - M2: PCES19.0M JMD19 - M2: PCES20.0M JMD20 - M2: PCES21.0M JMD21 - M2: PCES22.0M JMD22 - M2: PCES23.0M JMD23 - M2: PCES24.0M JMD24 - M2: PCES25.0M JMD25 - M2: PCES26.0M JMD26 - M2: PCES27.0M JMD27 - M2: PCES28.0M JMD28 - M2: PCES29.0M JMD29 - M2: PCES30.0M JMD30 - M2: PCES31.0M JMD31 - M2: PCES32.0M JMD32 - M2: PCES33.0M JMD33 - M2: PCES34.0M JMD34 - M2: PCES35.0M JMD35 - M2: PCES36.0M JMD36 - M2: PCES37.0M JMD37 - M2: PCES38.0M JMD38 - M2: PCES39.0M JMD39 - M2: PCES40.0M JMD40 - M2: PCES41.0M JMD41 - M2: PCES42.0M JMD42 - M2: PCES43.0M JMD43 - M2: PCES44.0M JMD44 - M2: PCES45.0M JMD45 - M2: PCES46.0M JMD46 - M2: PCES47.0M JMD47 - M2: PCES48.0M JMD48 - M2: PCES49.0M JMD49 - M2: PCES50.0M JMD50 - M2: PCES51.0M JMD51 - M2: PCES52.0M JMD52 - M2: PCES53.0M JMD53 - M2: PCES54.0M JMD54 - M2: PCES55.0M JMD55 - M2: PCES56.0M JMD56 - M2: PCES57.0M JMD57 - M2: PCES58.0M JMD58 - M2: PCES59.0M JMD59 - M2: PCES60.0M JMD60 - M2: PCES61.0M JMD61 - M2: PCES62.0M JMD62 - M2: PCES63.0M JMD63 - M2: PCES64.0M JMD64 - M2: PCES65.0M JMD65 - M2: PCES66.0M JMD66 - M2: PCES67.0M JMD67 - M2: PCES68.0M JMD68 - M2: PCES69.0M JMD69 - M2: PCES70.0M JMD70 - M2: PCES71.0M JMD71 - M2: PCES72.0M JMD72 - M2: PCES73.0M JMD73 - M2: PCES74.0M JMD74 - M2: PCES75.0M JMD75 - M2: PCES76.0M JMD76 - M2: PCES77.0M JMD77 - M2: PCES78.0M JMD78 - M2: PCES79.0M JMD79 - M2: PCES80.0M JMD80 - M2: PCES81.0M JMD81 - M2: PCES82.0M JMD82 - M2: PCES83.0M JMD83 - M2: PCES84.0M JMD84 - M2: PCES85.0M JMD85 - M2: PCES86.0M JMD86 - M2: PCES87.0M JMD87 - M2: PCES88.0M JMD88 - M2: PCES89.0M JMD89 - M2: PCES90.0M JMD90 - M2: PCES91.0M JMD91 - M2: PCES92.0M JMD92 - M2: PCES93.0M JMD93 - M2: PCES94.0M JMD94 - M2: PCES95.0M JMD95 - M2: PCES96.0M JMD96 - M2: PCES97.0M JMD97 - M2: PCES98.0M JMD98 - M2: PCES99.0M JMD99 - M2: PCES100.0M

1. General Purpose Header 1
2. General Purpose Header 2

PS2 Keyboard and Mouse Header

Connect a 10-pin PS2 adapter to this internal header to provide external PS2 ports for either keyboards or mice.

PS2 Keyboard and Mouse Header Pin Definitions
Pin#	Definition	Pin#	Definition
1	+5V	2	+5V
3	KB_DATA	4	MS_DATA
5	GND	6	GND
7	KB_CLK	8	MS_CLK
9	Key	10	GND

HD-AUX3 AUDIO FP CSM '2' USB A1 USB A3 CPU USB 67 (3.1) USB 45 (3.1) HDI2 BSP SUPER X11SCV-Q Rev: 3.02 DESIGNED IN USA CPU USB 67 (3.1) USB 45 (3.1) AMD - M2 PCS3.0k AMD - M2 PCS3.0k AMD - M2 PCS3.0k AMD - M2 PCS3.0k AMD - M2 PCS3.0k AMD - M2 PCS3.0k AMD - M2 PCS3.0k AMD - M2 PCS3.0k AMD - M2 PCS3.0k AMD - M2 PCS3.0k AMD - M2 PCS3.0k

1. PS2 Header

2.8 Jumper Settings

How Jumpers Work

To modify the operation of the motherboard, jumpers can be used to choose between optional settings. Jumpers create shorts between two pins to change the function of the connector. Pin 1 is identified with a square solder pad on the printed circuit board. See the diagram at right for an example of jumping pins 1 and 2. Refer to the motherboard layout page for jumper locations.

Note: On two-pin jumpers, Closed means the jumper is on and Open means the jumper is off the pins.

Connector Pins Jumper Setting 3 2 1 3 2 1

CMOS Clear

JBT1 is used to clear CMOS, which will also clear any passwords. Instead of pins, this jumper consists of contact pads to prevent accidentally clearing the contents of CMOS.

To Clear CMOS:

1. First power down the system and unplug the power cord(s).

2. Remove the cover of the chassis to access the motherboard.

3. Remove the onboard battery from the motherboard.

4. Short the CMOS pads with a metal object such as a small screwdriver for at least four seconds.

5. Remove the screwdriver (or shorting device).

6. Replace the cover, reconnect the power cord(s), and power on the system.

Note: Clearing CMOS will also clear all passwords.

JBT1 contact pads

HD-AUX30 AUDIO FF COM '2' LSB 61 USB 23 USB 23 PCN JMD1 M2 PCB3.2x1 CM7 USB 82.1.1 JMD2-M2 PCB3.0x4 COM S/TO SUPER 20 COM S/TO SUPER 20 S/TO SUPER 20 S/TO SUPER 20 S/TO SUPER 20 S/TO SUPER 20 S/TO SUPER 20 S/TO SUPER 20 S/TO SUPER 20 S/TO SUPER 20 S/TO SUPER 20 S/TO SUPER 20 S/TO SUPER 20 S/TO SUPER 20 S/DO S/DO S/DO S/DO S/DO S/DO S/DO S/DO S/DO S/DO S/DO S/DO S/DO S/DO S/DO S/DO S/DO S/DO S/DO S/DO S/DO S/DO S/DO S/DO S/DO S/COE BAR CODE FEC CE BIOS LICENSE NON-ECC DDR4 SO-DMM DINM* NON-ECC DDR4 SO-DMM DINM* PAXY PAXY PAXY

1. Clear CMOS

Onboard Audio Enable

JPAC1 allows you to enable or disable the onboard audio support. The default position is on pins 1-2 to enable onboard audio connections. Refer to the table below for jumper settings.

Audio Enable/DisableJumper Settings
Jumper Setting	Definition
Pins 1-2	Enabled (Default)
Pins 2-3	Disabled

ME Manufacturing Mode

Close JPME2 to bypass SPI flash security and force the system to use the Manufacturing Mode, which will allow the user to flash the system firmware from a host server to modify system settings. Refer to the table below for jumper settings.

Manufacturing ModeJumper Settings
Jumper Setting	Definition
Pins 1-2	Normal (Default)
Pins 2-3	Manufacturing Mode

HD ALC-X ACO-CP USB 01 USB 03 USB 04 USB 05 USB 06 USB 07 USB 08 USB 09 USB 10 USB 11 USB 12 USB 13 USB 14 USB 15 USB 16 USB 17 USB 18 USB 19 USB 20 USB 21 USB 22 USB 23 USB 24 USB 25 USB 26 USB 27 USB 28 USB 29 USB 30 USB 31 USB 32 USB 33 USB 34 USB 35 USB 36 USB 37 USB 38 USB 39 USB 40 USB 41 USB 42 USB 43 USB 44 USB 45 USB 46 USB 47 USB 48 USB 49 USB 50 USB 51 USB 52 USB 53 USB 54 USB 55 USB 56 USB 57 USB 58 USB 59 USB 60 USB 61 USB 62 USB 63 USB 64 USB 65 USB 66 USB 67 USB 68 USB 69 USB 70 USB 71 USB 72 USB 73 USB 74 USB 75 USB 76 USB 77 USB 78 USB 79 USB 80 USB 81 USB 82 USB 83 USB 84 USB 85 USB 86 USB 87 USB 88 USB 89 USB 90 USB 91 USB 92 USB 93 USB 94 USB 95 USB 96 USB 97 USB 98 USB 99 USB100 CPU SUPERX X11SCV-Q (Rev.1.02 DESIGNED IN USA) MAC CODE BIOS LICENSED BAR CODE NON-CCC DDR4 SO-DIMM DIN/MAN NON-CCC DDR4 SO-DIMM DIN/MAN JEA1 JEA2 JEA3 JEA4 JEA5 JEA6 JEA7 JEA8 JEA9 JEA10 JEA11 JEA12 JEA13 JEA14 JEA15 JEA16 JEA17 JEA18 JEA19 JEA20 JEA21 JEA22 JEA23 JEA24 JEA25 JEA26 JEA27 JEA28 JEA29 JEA30 JEA31 JEA32 JEA33 JEA34 JEA35 JEA36 JEA37 JEA38 JEA39 JEA40 JEA41 JEA42 JEA43 JEA44 JEA45 JEA46 JEA47 JEA48 JEA49 JEA50 JEA51 JEA52 JEA53 JEA54 JEA55 JEA56 JEA57 JEA58 JEA59 JEA60 JEA61 JEA62 JEA63 JEA64 JEA65 JEA66 JEA67 JEA68 JEA69 JEA70 JEA71 JEA72 JEA73 JEA74 JEA75 JEA76 JEA77 JEA78 JEA79 JEA80 JEA81 JEA82 JEA83 JEA84 JEA85 JEA86 JEA87 JEA88 JEA89 JEA90 JEA91 JEA92 JEA93 JEA94 JEA95 JEA96 JEA97 JEA98 JEA99 JEA100

1. Audio Enable
2. Manufacturing Mode

LAN Port Enable/Disable

Use JPL1 to enable or disable LAN1, and JPL2 to enable or disable LAN2. The default setting is Enabled.

LAN Port Enable/Disable Jumper Settings
Jumper Setting	Definition
Pins 1-2	Enabled (Default)
Pins 2-3	Disabled

TPM Enable

Use JPT1 to enable or disable support for the TPM module. Refer to the table below for jumper settings.

TPM Enable/DisableJumper Settings
Jumper Setting	Definition
Pins 1-2	Enabled (Default)
Pins 2-3	Disabled

2 1 HD AUDIO AUDIO RT USB 61 USB 23 SVM5 PCN1 CPU JND1 - M2 PCES-24 USB 62.0.1 JND2 - M2 PECER-64 SVM5 SVM50 - SUPERXOM SVM10 SVM10 SVM10 SVM10 SVM10 SVM10 SVM10 SVM10 SVM10 SVM10 SVM10 SVM10 SVM10 SVM10 SVM10 SVM10 SVM10 SVM10 SVM10 SVM10 SVM1 SVM10 SVM10 SVM10 SVM10 SVM10 SVM10 SVM10 SVM10 SVM10 SVM10 SVM10 SVM10 SVM10 SVM10 SVM10 SVM10 SVM10 SVM10 SVM10 SVM1M SVM1M SVM1M SVM1M SVM1M SVM1M SVM1M SVM1M SVM1M SVM1M SVM1M SVM1M SVM1M SVM1M SVM1M SVM1M SVM1M SVM1M SVM1M SVM1M SVM10 SVM10 SVM10 SVM10 SVM10 SVM10 SVM10 SVM10 SVM10 SVM10 SVM10 SVM10 SVM10 SVM10 SVM10 SVM10 SVM10 SVM10 SVM10 SVM15 SVM15 SVM15 SVM15 SVM15 SVM15 SVM15 SVM15 SVM15 SVM15 SVM15 SVM15 SVM15 SVM15 SVM15 SVM15 SVM15 SVM15 SVM15 SVM15 SVM10 SVM10 SVM10 SVM10 SVM10 SVM10 SVM10 SVM10 SVM10 SVM10 SVM10 SVM10 SVM10 SVM10 SVM10 SVM10

1. LAN1 Enable/Disable
2. LAN2 Enable/Disable
3. TPM Enable/Disable

SMBus to PCIe Slots

Use jumpers JI²C1 and JI²C2 to enable PCIe System Management Bus (SMB) support to improve system management for the onboard PCIe slot.

SMBus to PCIe SlotsJumper Settings
Jumper Setting	Definition
Pins 1-2	Enabled
Pins 2-3	Disabled (Default)

HD ALU3X0 VH ACO 201 USB 0-1 USB 201 I/O CPU-1 JWD1 M.2 PC/ES.04 CPU USB(0.5.1) JWD2-M.2 FEC3.04 JWD3 SCT40 SUPEROM SCT40 JW30 CDD 546 JW31 SCT40 JW32 SCT40 JW33 SCT40 JW34 SCT40 JW35 SCT40 JW36 SCT40 JW37 SCT40 JW38 SCT40 JW39 SCT40 JW40 SCT40 JW41 SCT40 JW42 SCT40 JW43 SCT40 JW44 SCT40 JW45 SCT40 JW46 SCT40 JW47 SCT40 JW48 SCT40 JW49 SCT40 JW50 SCT40 JW51 SCT40 JW52 SCT40 JW53 SCT40 JW54 SCT40 JW55 SCT40 JW56 SCT40 JW57 SCT40 JW58 SCT40 JW59 SCT40 JW60 SCT40 JW61 SCT40 JW62 SCT40 JW63 SCT40 JW64 SCT40 JW65 SCT40 JW66 SCT40 JW67 SCT40 JW68 SCT40 JW69 SCT40 JW70 SCT40 JW71 SCT40 JW72 SCT40 JW73 SCT40 JW74 SCT40 JW75 SCT40 JW76 SCT40 JW77 SCT40 JW78 SCT40 JW79 SCT40 JW80 SCT40 JW81 SCT40 JW82 SCT40 JW83 SCT40 JW84 SCT40 JW85 SCT40 JW86 SCT40 JW87 SCT40 JW88 SCT40 JW89 SCT40 JW90 SCT40

1. SMBus to PCIe Slots

Watch Dog

JWD1 controls the Watch Dog function. Watch Dog is a monitor that can reboot the system when a software application hangs. Jumping pins 1-2 will cause Watch Dog to reset the system if an application hangs. Jumping pins 2-3 will generate a non-maskable interrupt signal for the application that hangs. Watch Dog must also be enabled in BIOS. The default setting is Reset.

Note: When Watch Dog is enabled, users need to write their own application software to disable it.

Watch DogJumper Settings
Jumper Setting	Definition
Pins 1-2	Reset (Default)
Pins 2-3	NMI
Open	Disabled

P0 AUDIO AUDIO PT COM-2 USB 6/1 USB 23 SRM2 JN1 PCB ACAD-RUSS CPU JN1 - M.2, PC B5.2A USB 49 (1.1) JN2 - M.2, PDCB0A S2A1 JN2 - M.2, PDCB0A S2A1 JN2 - M.2, PDCB0A S2A1 JN2 - M.2, PDCB0A S2A1 JN2 - M.2, PDCB0A S2A1 JN2 - M.2, PDCB0A S2A1 JN2 - S.2, PDCB0A S2A1 JN2 - S.2, PDCB0A S2A1 JN2 - S.2, PDCB0A S2A1 JN2 - S.2, PDCB0A S2A1 JN2 - S.2, PDCB0A S2A1 JN2 - S.2, PFCB0A S2A1 JN2 - S.2, PFCB0A S2A1 JN2 - S.2, PFCB0A S2A1 JN2 - S.2, PFCB0A S2A1 JN2 - S.2, PFCB0A S2A1 JN2 - S.2, PFCB0A JN2 - S.2, PFCB0A S2A1 JN2 - S.2, PFCB0A S2A1 JN2 - S.2, PFCB0A S2A1 JN2 - S.2, PFCB0A S2A1 JN2 - S.2, PFCB0A S2A1 JN2 = 10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 SUPER® X11SCV-Q Rev: 3.32 DESIGNED IN USA MAC CODE BIOS LICENSED BAR CODE

1. Watch Dog Timer

2.9 LED Indicators

Power LED

LED1 is an Onboard Power LED. When this LED is lit, it means power is present on the motherboard. In suspend mode, this LED will blink on and off. Be sure to turn off the system and unplug the power cord(s) before removing or installing components.

Onboard Power LED Indicator
LED Color	Definition
Off	System Off(power cable not connected)
Green	System On

HD ALIEN M4 AUDIO 2P1 USB 2P1 USB 2P2 USB 2P3 USB 2P4 USB 2P5 USB 2P6 USB 2P7 USB 2P8 USB 2P9 USB 2P10 USB 2P11 USB 2P12 USB 2P13 USB 2P14 USB 2P15 USB 2P16 USB 2P17 USB 2P18 USB 2P19 USB 2P20 USB 2P21 USB 2P22 USB 2P23 USB 2P24 USB 2P25 USB 2P26 USB 2P27 USB 2P28 USB 2P29 USB 2P30 USB 2P31 USB 2P32 USB 2P33 USB 2P34 USB 2P35 USB 2P36 USB 2P37 USB 2P38 USB 2P39 USB 2P40 USB 2P41 USB 2P42 USB 2P43 USB 2P44 USB 2P45 USB 2P46 USB 2P47 USB 2P48 USB 2P49 USB 2P50 USB 2P51 USB 2P52 USB 2P53 USB 2P54 USB 2P55 USB 2P56 USB 2P57 USB 2P58 USB 2P59 USB 2P60 USB 2P61 USB 2P62 USB 2P63 USB 2P64 USB 2P65 USB 2P66 USB 2P67 USB 2P68 USB 2P69 USB 2P70 USB 2P71 USB 2P72 USB 2P73 USB 2P74 USB 2P75 USB 2P76 USB 2P77 USB 2P78 USB 2P79 USB 2P80 USB 2P81 USB 2P82 USB 2P83 USB 2P84 USB 2P85 USB 2P86 USB 2P87 USB 2P88 USB 2P89 USB 2P90 USB 2P91 USB 2P92 USB 2P93 USB 2P94 USB 2P95 USB 2P96 USB 2P97 USB 2P98 USB 2P99 USB 3D10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

1. Power LED

Chapter 3

Troubleshooting

3.1 Troubleshooting Procedures

Use the following procedures to troubleshoot your system. If you have followed all of the procedures below and still need assistance, refer to the 'Technical Support Procedures' and/or 'Returning Merchandise for Service' section(s) in this chapter. Always disconnect the AC power cord before adding, changing or installing any non hot-swap hardware components.

Before Power On

1. Check that the power LED on the motherboard is on.
2. Make sure that the power connector is connected to your power supply.
3. Make sure that no short circuits exist between the motherboard and chassis.
4. Disconnect all cables from the motherboard, including those for the keyboard and mouse.
5. Remove all add-on cards.
6. Install a CPU, a heatsink, and connect the internal speaker and the power LED to the motherboard. Check all jumper settings as well. (Make sure that the heatsink is fully seated.)
7. Use the correct type of onboard CMOS battery as recommended by the manufacturer. To avoid possible explosion, do not install the CMOS battery upside down.

No Power

1. Make sure that no short circuits exist between the motherboard and the chassis.
2. Verify that all jumpers are set to their default positions.
3. Check that the 115V/230V switch on the power supply is properly set.
4. Turn the power switch on and off to test the system.
5. The battery on your motherboard may be old. Check to verify that it still supplies \~3VDC. If it does not, replace it with a new one.

No Video

1. If the power is on but you have no video, remove all the add-on cards and cables.
2. Use the speaker to determine if any beep codes exist. Refer to Appendix A for details on beep codes.

System Boot Failure

If the system does not display Power-On-Self-Test (POST) or does not respond after the power is turned on, check the following:

1. Check for any error beeps from the motherboard speaker.

2. If there is no error beep, try to turn on the system without DIMM modules installed. If there is still no error beep, replace the motherboard.

3. If there are error beeps, clear the CMOS settings by unplugging the power cord and contacting both pads on the CMOS Clear Jumper (JBT1). Refer to chapter 2.

4. Remove all components from the motherboard, especially the DIMM modules. Make sure that system power is on and that memory error beeps are activated.

5. Turn on the system with only one DIMM module installed. If the system boots, check for bad DIMM modules or slots by following the Memory Errors Troubleshooting procedure in this Chapter.

Memory Errors

1. Make sure that the DIMM modules are properly and fully installed.
2. Confirm that you are using the correct memory. Also, it is recommended that you use the same memory type and speed for all DIMMs in the system. See Section 2.4 for memory details.
3. Check for bad DIMM modules or slots by swapping modules between slots and noting the results.
4. Check the power supply voltage 115V/230V switch.

Losing the System's Setup Configuration

1. Make sure that you are using a high quality power supply. A poor quality power supply may cause the system to lose the CMOS setup information. Refer to Section 1.6 for details on recommended power supplies.
2. The battery on your motherboard may be old. Check to verify that it still supplies \~3VDC. If it does not, replace it with a new one.
3. If the above steps do not fix the setup configuration problem, contact your vendor for repairs.

When the System Becomes Unstable

A. If the system becomes unstable during or after OS installation, check the following:

1. CPU/BIOS support: Make sure that your CPU is supported and that you have the latest BIOS installed in your system.
2. Memory support: Make sure that the memory modules are supported by testing the modules using memtest86 or a similar utility.

Note: Click on the Tested Memory List link on the motherboard product page to see a list of supported memory.

1. HDD support: Make sure that all hard disk drives (HDDs) work properly. Replace the bad HDDs with good ones.
2. System cooling: Check the system cooling to make sure that all heatsink fans and CPU/system fans, etc., work properly. Check the hardware monitoring settings in the IPMI to make sure that the CPU and system temperatures are within the normal range. Also check the front panel Overheat LED and make sure that it is not on.
3. Adequate power supply: Make sure that the power supply provides adequate power to the system. Make sure that all power connectors are connected. Please refer to our website for more information on the minimum power requirements.
4. Proper software support: Make sure that the correct drivers are used.

B. If the system becomes unstable before or during OS installation, check the following:

1. Source of installation: Make sure that the devices used for installation are working properly, including boot devices such as a USB flash or media drive.

2. Cable connection: Check to make sure that all cables are connected and working properly.

3. Use the minimum configuration for troubleshooting: Remove all unnecessary components (starting with add-on cards first), and use the minimum configuration (but with a CPU and a memory module installed) to identify the trouble areas. Refer to the steps listed in Section A above for proper troubleshooting procedures.

4. Identify bad components by isolating them: If necessary, remove a component in question from the chassis, and test it in isolation to make sure that it works properly. Replace a bad component with a good one.
5. Check and change one component at a time instead of changing several items at the same time. This will help isolate and identify the problem.
6. To find out if a component is good, swap this component with a new one to see if the system will work properly. If so, then the old component is bad. You can also install the component in question in another system. If the new system works, the component is good and the old system has problems.

3.2 Technical Support Procedures

Before contacting Technical Support, please take the following steps. Also, note that as a motherboard manufacturer, we do not sell directly to end-users, so it is best to first check with your distributor or reseller for troubleshooting services. They should know of any possible problem(s) with the specific system configuration that was sold to you.

1. Please review the 'Troubleshooting Procedures' and 'Frequently Asked Questions' (FAQs) sections in this chapter or see the FAQs on our website before contacting Technical Support.
2. BIOS upgrades can be downloaded from our website. Note: Not all BIOS can be flashed depending on the modifications to the boot block code.

3. If you still cannot resolve the problem, include the following information when contacting us for technical support:

4. Motherboard model and PCB revision number

5. BIOS release date/version (this can be seen on the initial display when your system first boots up)
6. System configuration

An example of a Technical Support form is posted on our website.

Distributors: For immediate assistance, please have your account number ready when contacting our technical support department by e-mail.

3.3 Frequently Asked Questions

Question: What type of memory does my motherboard support?

Answer: The X11SCV-Q/-L motherboard supports up to 64GB of DDR4 Non-ECC SO-DIMM with speeds of up to 2666MHz in two slots. See Section 2.4 for details on installing memory.

Question: How do I update my BIOS?

Answer: It is recommended that you do not upgrade your BIOS if you are not experiencing any problems with your system. Updated BIOS files are located on our website at http://www.supermicro.com. Please check our BIOS warning message and the information on how to update your BIOS on our website. Select your motherboard model and download the BIOS file to your computer. Also, check the current BIOS revision to make sure that it is newer than your BIOS before downloading. You can choose from the zip file and the .exe file. If you choose the zip BIOS file, please unzip the BIOS file onto a bootable USB device. Run the batch file using the format FLASH.BAT filename.rom from your bootable USB device to flash the BIOS. Then, your system will automatically reboot.

Question: Why can't I turn off the power using the momentary power on/off switch?

Answer: The instant power off function is controlled in BIOS by the Power Button Mode setting. When the On/Off feature is enabled, the motherboard will have instant off capabilities as long as the BIOS has control of the system. When the Standby or Suspend feature is enabled or when the BIOS is not in control such as during memory count (the first screen that appears when the system is turned on), the momentary on/off switch must be held for more than four seconds to shut down the system. This feature is required to implement the ACPI features on the motherboard.

3.4 Battery Removal and Installation

Battery Removal

To remove the onboard battery, follow the steps below:

1. Power off your system and unplug your power cable.
2. Using a tool such as a pen or a small screwdriver, push the battery lock outwards to unlock it. Once unlocked, the battery will pop out from the holder.
3. Remove the battery.

Proper Battery Disposal

Please handle used batteries carefully. Do not damage the battery in any way; a damaged battery may release hazardous materials into the environment. Do not discard a used battery in the garbage or a public landfill. Please comply with the regulations set up by your local hazardous waste management agency to dispose of your used battery properly.

Battery Installation

1. To install an onboard battery, follow the steps 1 and 2 above and continue below:
2. Identify the battery's polarity. The positive (+) side should be facing up.
3. Insert the battery into the battery holder and push it down until you hear a click to ensure that the battery is securely locked.

Note: When replacing a battery, be sure to only replace it with the same type.

LITHIUM BATTERY BATTERY HOLDER OR LITHIUM BATTERY BATTERY HOLDER

3.5 Returning Merchandise for Service

A receipt or copy of your invoice marked with the date of purchase is required before any warranty service will be rendered. You can obtain service by calling your vendor for a Returned Merchandise Authorization (RMA) number. When returning to the manufacturer, the RMA number should be prominently displayed on the outside of the shipping carton and mailed prepaid or hand-carried. Shipping and handling charges will be applied for all orders that must be mailed when service is complete.

For faster service, RMA authorizations may be requested online at http://www.supermicro.com/RmaForm/.

This warranty only covers normal consumer use and does not cover damages incurred in shipping or from failure due to the alteration, misuse, abuse or improper maintenance of products.

During the warranty period, contact your distributor first for any product problems.

Chapter 4

UEFI BIOS

4.1 Introduction

This chapter describes the AMIBIOS™ Setup utility for the X11SCV-Q motherboard. The BIOS is stored on a chip and can be easily upgraded using a flash program.

Note: Due to periodic changes to the BIOS, some settings may have been added or deleted and might not yet be recorded in this manual. Please refer to the Manual Download area of our website for any changes to the BIOS that may not be reflected in this manual.

Starting the Setup Utility

To enter the BIOS Setup Utility, hit the key while the system is booting up. (In most cases, the key is used to invoke the BIOS setup screen. There are a few cases when other keys are used, such as , , etc.) Each main BIOS menu option is described in this manual.

The Main BIOS screen has two main frames. The left frame displays all the options that can be configured. "Grayed-out" options cannot be configured. The right frame displays the key legend. Above the key legend is an area reserved for a text message. When an option is selected in the left frame, it is highlighted in white. Often a text message will accompany it. (Note that BIOS has default text messages built in. We retain the option to include, omit, or change any of these text messages.) Settings printed in Bold are the default values.

A "▶" indicates a submenu. Highlighting such an item and pressing the key will open the list of settings within that submenu.

The BIOS setup utility uses a key-based navigation system called hot keys. Most of these hot keys (, , , keys, etc.) can be used at any time during the setup navigation process.

4.2 Main Setup

When you first enter the AMI BIOS setup utility, you will enter the Main setup screen. You can always return to the Main setup screen by selecting the Main tab on the top of the screen. The Main BIOS setup screen is shown below and the following features will be displayed:

Aptio Setup Utility - Copyright (C) 2018 American Megatrends, Inc. Main Advanced Event Logs Security Boot Save & Exit System Date [Sat 05/26/2018] System Time [20:51:16] Supermicro X11SCV-Q BIDS Version T20180621180537 Build Date 06/21/2018 Memory Information Total Memory 8192 MB Set the Date. Use Tab to switch between Date elements. +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.20.1271. Copyright (C) 2018 American Megatrends, Inc.

System Date/System Time

Use this option to change the system date and time. Highlight System Date or System Time using the arrow keys. Enter new values using the keyboard. Press the key or the arrow keys to move between fields. The date must be entered in MM/DD/YYYY format. The time is entered in HH:MM:SS format.

Note: The time is in the 24-hour format. For example, 5:30 P.M. appears as 17:30:00. The date's default value is the BIOS build date after RTC reset.

Supermicro X11SCV-Q

BIOS Version

This feature displays the version of the BIOS ROM used in the system.

Build Date

This feature displays the date when the version of the BIOS ROM used in the system was built.

Memory Information

Total Memory

This feature displays the total size of memory available in the system.

4.3 Advanced

Use this menu to configure advanced settings.

Aptio Setup Utility - Copyright (C) 2018 American Megatrends, Inc. Main Advanced Event Logs Security Boot Save & Exit ▶ Boot Feature ▶ CPU Configuration ▶ Chipset Configuration ▶ NCT61060 Super ID Configuration ▶ NCT61060 HM Monitor ▶ Serial Port Console Redirection ▶ SATA And RST Configuration ▶ PCH-FM Configuration ▶ ACPI Settings ▶ USB Configuration ▶ PCIe/PCI/PnP Configuration ▶ HTTP BOOT Configuration ▶ Trusted Computing ▶ RAM Disk Configuration Boot Feature Configuration Page +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.20.1271. Copyright (C) 2018 American Megatrends, Inc.

Warning: Take caution when changing the Advanced settings. An incorrect value, a very high DRAM frequency or an incorrect BIOS timing setting may cause the system to malfunction. When this occurs, restore to default manufacturer settings.

▶Boot Feature

Fast Boot

Enable this feature to reduce the time the computer takes to boot up. The computer will boot with a minimal set of required devices. This feature does not have an effect on BBS boot options in the Boot tab. The options are Disabled and Enabled.

Quiet Boot

Use this feature to select the screen display between POST messages or the OEM logo at bootup. Select Disabled to display the POST messages. Select Enabled to display the OEM logo instead of the normal POST messages. The options are Disabled and Enabled.

Bootup NumLock State

Use this feature to set the Power-on state for the Numlock key. The options are Off and On.

Option ROM Messages

Use this feature to set the display mode for the Option ROM. Select Keep Current to display the current AddOn ROM setting. Select Force BIOS to use the Option ROM display set by the system BIOS. The options are Force BIOS and Keep Current.

Wait For "F1" If Error

This feature forces the system to wait until the F1 key is pressed if an error occurs. The options are Disabled and Enabled.

Re-try Boot

If this feature is enabled, the BIOS will automatically reboot the system from a specified boot device after its initial boot failure. The options are Disabled, Legacy Boot, and EFI Boot.

Watch Dog Function

If enabled, the Watch Dog timer will allow the system to reboot when it is inactive for more than five minutes. The options are Disabled and Enabled.

AC Loss Policy Depend on

Use this feature to set the power state after a power outage. Select Power Off for the system power to remain off after a power loss. Select Power On for the system power to be turned on after a power loss. Select Last State to allow the system to resume its last power state before a power loss. The options are Stay Off, Power On, and Last State.

Power Button Function

This feature controls how the system shuts down when the power button is pressed. Select 4 Seconds Override for the user to power off the system after pressing and holding the power button for four seconds or longer. Select Instant Off to instantly power off the system as soon as the user presses the power button. The options are Instant Off and 4 Seconds Override.

DeepSx Power Policies

Use this feature to configure the Advanced Configuration and Power Interface (ACPI) settings for the system. Enable S5 to power off the whole system except the power supply unit (PSU) and keep the power button alive so that the user can wake up the system by using an USB keyboard or mouse. The options are Disabled and Enabled in S4-S5.

Install Windows 7 USB Support

Enable this feature to use the USB keyboard and mouse during the Windows 7 installation, since the native XHCI driver support is unavailable. Use a SATA optical drive as a USB drive, and USB CD/DVD drives are not supported. Disable this feature after the XHCI driver has been installed in Windows. The options are Disabled and Enabled.

▶CPU Configuration

The following CPU information will display:

• Processor type
• CPU Signature
• Microcode Patch
• Max CPU Speed
• Min CPU Speed
• CPU Speed
• Processor Cores
  • Hyper Threading Technology
• VMX
• SMX/TXT
• 64-bit
• EIST Technology
• CPU C3 state
• CPU C6 state
• CPU C7 state
• CPU C8 state
• CPU C9 state
• CPU C10 state
• L1 Data Cache
  • L1 Instruction Cache
• L2 Cache
• L3 Cache
• L4 Cache

C6DRAM

Select Enabled to activate moving the DRAM contents to PRM memory when the CPU is in the C6 state. The options are Disabled and Enabled.

Hardware Prefetcher

If set to Enable, the hardware prefetcher will prefetch streams of data and instructions from the main memory to the L2 cache to improve CPU performance. The options are Disabled and Enabled.

Adjacent Cache Line Prefetch

The CPU prefetches the cache line for 64 bytes if this feature is set to Disabled. The CPU prefetches both cache lines for 128 bytes as comprised if this feature is set to Enabled. The options are Disabled and Enabled.

Intel (VMX) Virtualization Technology

Use this feature to enable the Vanderpool Technology. This technology allows the system to run several operating systems simultaneously. The options are Disabled and Enabled.

Active Processor Cores

This feature determines how many CPU cores will be activated for each CPU. When all is selected, all cores in the CPU will be activated. The options are All and 1, 2, 3, 4, and 5.

AES

Select Enabled for Intel CPU Advanced Encryption Standard (AES) instructions support to enhance data integrity. The options are Disabled and Enabled.

Boot Performance Mode

This feature allows the user to select the performance state that the BIOS will set before the operating system handoff. The options are Power Saving, Max Non-Turbo Performance, and Turbo Performance.

Intel® SpeedStep™

Intel SpeedStep Technology allows the system to automatically adjust processor voltage and core frequency to reduce power consumption and heat dissipation. The options are Disabled and Enabled.

Intel® Speed Shift Technology

Use this feature to enable or disable Intel Speed Shift Technology support. When this feature is enabled, the Collaborative Processor Performance Control (CPPC) version 2 interface will be available to control CPU P-States. The options are Disabled and Enabled.

Turbo Mode

Select Enable for processor cores to run faster than the frequency specified by the manufacturer. The options are Disable and Enable.

Package Power Limit MSR Lock

Select Enabled to lock the package power limit for the model specific registers. The options are Disabled and Enabled.

Power Limit 1 Override

Select Enabled to support average power limit (PL1) override. The options are Disabled and Enabled.

Power Limit 1

Use this feature to configure the value for Power Limit 1. The value is in milli watts and the step size is 125mW. Use the number keys on your keyboard to enter the value. Enter 0 to use the manufacture default setting If the value is 0, the BIOS will set PL1 as 1.25* TDP. This feature is hidden when Power Limit 1 Override is Disabled.

Power Limit 2 Override

Select Enabled to support rapid power limit (PL2) override. The options are Disabled and Enabled.

Power Limit 2

Use this feature to configure the value for Power Limit 2. The value is in milli watts and the step size is 125mW. Use the number keys on your keyboard to enter the value. Enter 0 to use the manufacture default setting If the value is 0, the BIOS will set PL2 as 1.25* TDP.

1-Core Ratio Limit Override

This increases (multiplies) 1 clock speed in the CPU core in relation to the bus speed when one CPU core is active. Press "+" or "-" on your keyboard to change the value. Enter 32 to use the manufacture default setting. The default value is 0 for X11SCV-Q.

2-Core Ratio Limit Override

This increases (multiplies) 2 clock speeds in the CPU core in relation to the bus speed when two CPU cores are active. Press "+" or "-" on your keyboard to change the value. Enter 32 to use the manufacture default setting. The default value is 0 for X11SCV-Q.

3-Core Ratio Limit Override

This increases (multiplies) 3 clock speeds in the CPU core in relation to the bus speed when three CPU cores are active. Press "+" or "-" on your keyboard to change the value. Enter 32 to use the manufacture default setting. The default value is 0 for X11SCV-Q.

4-Core Ratio Limit Override

This increases (multiplies) 4 clock speeds in the CPU core in relation to the bus speed when four CPU cores are active. Press "+" or "-" on your keyboard to change the value. Enter 32 to use the manufacture default setting. The default value is 0 for X11SCV-Q.

C states

Use this feature to enable the C-State of the CPU. The options are Disabled and Enabled.

Enhanced C-states

Use this feature to enable the enhanced C-State of the CPU. The options are Disabled and Enabled.

C-State Auto Demotion

Use this feature to prevent unnecessary excursions into the C-states to improve latency. The options are Disabled, C1, C3, and C1 and C3.

C-State Un-demotion

This feature allows the user to enable or disable the un-demotion of C-State. The options are Disabled, C1, C3, and C1 and C3.

Package C-State Demotion

Use this feature to enable or disable the Package C-State demotion. The options are Disabled and Enabled.

Package C-State Un-demotion

Use this feature to enable or disable the Package C-State un-demotion. The options are Disabled and Enabled.

CState Pre-Wake

This feature allows the user to enable or disable the C-State Pre-Wake. The options are Disabled and Enabled.

Package C State Limit

Use this feature to set the Package C-State limit. The options are C0/C1, C2, C3, C6, C7, C7s, C8, C9, C10, Cpu Default, and Auto.

▶Chipset Configuration

Warning: Setting the wrong values in the sections below may cause the system to malfunction.

▶System Agent (SA) Configuration

The following information will display:

• SA PCIe Code Version
- VT-d: Supported

▶ Memory Configuration

Memory Configuration

• Memory RC Version
• Memory Frequency
• Memory Timing (tCL-tRCD-tRP-tRAS)
- DIMMA1
- DIMMA2
- DIMMB1
- DIMMB2

Maximum Memory Frequency

Use this feature to set the maximum memory frequency for onboard memory modules. The options are Auto, 1067, 1333, 1400, 1600, 1800, 1867, 2000, 2133, 2200, 2400, 2600, and 2667.

Max TOLUD

This feature sets the maximum TOLUD value, which specifies the "Top of Low Usable DRAM" memory space to be used by internal graphics devices, GTT Stolen Memory, and TSEG, respectively, if these devices are enabled. The options are Dynamic, 1 GB, 1.25 GB, 1.5 GB, 1.75 GB, 2 GB, 2.25 GB, 2.5 GB, 2.75 GB, 3 GB, 3.25 GB, and 3.5 GB.

Memory Scrambler

Use this feature to enable or disable memory scrambler support. The options are Disable and Enable.

MRC Fast Boot

Use this feature to enable or disable fast path through the memory reference code. The options are Disable and Enable.

REFRESH\_2X\_MODE

Use this feature to select the refresh mode. The options are Disabled, 1-Enabled for WARM or HOT, and 2-Enabled HOT only.

▶ Graphics Configuration

Graphics Configuration

IGFX VBIOS Version 1013

IGFX GOP Version N/A

Primary Display

Use this feature to select the primary video display. The options are Auto, IGFX, PEG, and PCI.

Primary PEG

Use this feature to select which graphics device should be the primary PEG. The default is CPU SLOT7 PCIe 3.0 X16.

Primary PCIE

Use this feature to select which device will be the primary PCIe graphics display. The options are Auto and PCH SOLT7 PCIe 3.0 X16.

Internal Graphics

Select Auto to keep an internal graphics device installed on an expansion slot supported by the CPU to be automatically enabled. The options are Auto, Disable, and Enable.

GTT Size

Use this feature to set the memory size to be used by the graphics translation table (GTT). The options are 2MB, 4MB, and 8MB.

Aperture Size

Use this feature to set the Aperture size, which is the size of system memory reserved by the BIOS for graphics device use. The options are 128MB, 256MB, 512MB, 1024MB, and 2048MB.

DVMT Pre-Allocated

Dynamic Video Memory Technology (DVMT) allows dynamic allocation of system memory to be used for video devices to ensure best use of available system memory based on the DVMT 5.0 platform. The options are 0M, 32M, 64M, 4M, 8M, 12M, 16M, 20M, 24M, 28M, 36M, 40M, 44M, 48M, 52M, 56M, and 60M.

DVMT Total Gfx Mem

Use this feature to set the total memory size to be used by internal graphics devices based on the DVMT 5.0 platform. The options are 128MB, 256MB, and MAX.

VDD Enable

Enabling this feature will force VDD in the BIOS. The options are Enable and Disable.

PM Support

Enable this feature to activate Power Management BIOS support. The options are Enable and Disable.

PAVP Enable

Protected Audio Video Path (PAVP) decodes Intel integrated graphics encrypted video. The options are Disable and Enable.

Cdynmax Clamping Enable

Enable this feature to activate Cdynmax Clamping. The options are Enable and Disable.

Graphics Clock Frequency

Use this feature to set the internal graphics clock frequency. The options are 337.5 Mhz, 450 Mhz, 540 Mhz, and 675 Mhz.

Skip CD Clock Init in S3 resume

Use this feature to enable skipping of the full CD initialization. If set to Disabled, the full CD clock will initialize. The options are Enable and Disable.

▶DMI/OPI Configuration

DMI X4 Gen3

DMI Link ASPM Control

Use this feature to set the ASPM (Active State Power Management) state on the SA (System Agent) side of the DMI Link. The options are Disable, L0s, L1, and L0sL1.

DMI Extended Sync Control

Use this feature to enable or disable the DMI extended synchronization. The options are Enable and Disable.

DMI De-emphasis Control

Use this feature to configure the De-emphasis control on DMI. The options are -6 dB and -3.5 dB.

▶PEG Port Configuration

CPU1 SLOT7 PCI-E 3.0 X16 OPROM

SLOT7 Enable Root Port

Use this feature to enable or disable the PCI Express Graphics (PEG) device in the port specified by the user. The options are Disable, Enable, and Auto.

SLOT7 Max Link Speed

Use this feature to select PCIe support for the device installed on SLOT7. The options are Auto, Gen 1, Gen 2, and Gen 3.

SLOT7 Power Limit Value

Use this feature to set the upper limit on the power supplied by the PCIE slot. Press "+" or "-" on your keyboard to change this value. The default setting is 75.

SLOT7 Slot Power Limit Scale

Use this feature to select the scale used for the slot power limit value. The options are 1.0x, 0.1x, 0.01x, and 0.001x.

Program PCIe ASPM After OpROM

PCIe ASPM, the Active State Power Management for PCI-Express slots, is a power management protocol used to manage power consumption of serial link devices installed on PCIe slots during a prolonged off-peak time. If this feature is set to Enabled, PCIeASMP will be programmed after OPROM. If set to Disabled, the PCIe ASPM will be programmed before OPROM. The options are Disabled and Enabled.

▶GT - Power Management Control

RC6 (Render Standby)

Use this feature to enable render standby support. The options are Disabled and En- abled.

Maximum GT frequency

Use this feature to define the Maximum GT frequency. Choose between 33MHz (RPN) and 1200Mhz (RP0). Any value beyond this range will be clipped to its min/max supported by the CPU. The options are Default Max Frequency, 100Mhz, 150MHz, 200MHz, 250MHz, 300MHz, 350MHz, 400MHz, 450MHz, 500MHz, 550MHz, 600MHz, 650MHz, 700MHz, 750MHz, 800MHz, 850MHz, 900MHz, 950MHz, 1000MHz, 1050MHz, 1100MHz, 1150MHz, and 1200MHz.

Disable Turbo GT frequency

Use this feature to disable Turbo GT frequency. If set to Enabled, Turbo GT frequency becomes disabled. If set to Disabled, GT frequency limiters will be removed. The options are Enable and Disable.

VT-d

Select Enabled to activate Intel Virtualization Technology support for Direct I/O VT-d by reporting the I/O device assignments to VMM through the DMAR ACPI Tables. This feature offers fully-protected I/O resource-sharing across the Intel platforms, providing the user with greater reliability, security and availability in networking and data-sharing. The options are Disable and Enable.

SW Guard Extensions (SGX)

Select Enabled to activate the Software Guard Extensions (SGX). The options are Disabled, Enabled, and Software Controlled.

Select Owner EPOCH input type

There are three Owner EPOCH modes (each EPOCH is 64 bit). The options are Select Owner EPOCH input type, Change to New Random Owner EPOCHs, and Manual User Defined Owner EPOCHs.

PRMRR Size

This feature appears if SW Guard Extensions is set to Enabled. This BIOS must reserve a contiguous region of Processor Reserved Memory (PRM) in the Processor Reserved Memory Range Register (PRMRR). The options are 32MB, 64MB, and 128MB.

GNA Device (B0:D8:F0)

Use this feature to enable SA GNA device. The options are Enable and Disable.

X2APIC Opt Out

The feature "VT-D" must be enabled for this feature to be configurable. Use this feature to enable or disable X2APIC Opt Out. The options are Enable and Disable.

▶PCH-IO Configuration

PCH-IO Configuration

PCH SKU Name Q370

Stepping B0

▶PCI Express Configuration

DMI Link ASPM Control

Use this feature to set the ASPM (Active State Power Management) state on the SA (System Agent) side of the DMI Link. The options are Disabled, L0s, L1, L0sL1, and Auto.

Peer Memory Write Enable

Use this feature to enable or disable peer memory write. The options are Disabled and Enabled.

▶PCI Express Root Port 1 - PCI Express Root Port 24

ASPM 0

Use this feature to activate the Active State Power Management (ASPM) level for a PCIe device. Select Auto for the system BIOS to automatically set the ASPM level based on the system configuration. Select Disabled to disable ASPM support. The options are Disabled, L0s, L1, L0sL1, and Auto.

L1 Substates

Use this feature to set the PCI Express L1 Substates. The options are Disabled, L1.1, and L1.1 & L1.2.

PTM

Use this feature to enable or disable Precision Time Measurement. The options are Disabled and Enabled.

DPC

Use this feature to enable or disable Downstream Port Containment. The options are Disabled and Enabled.

EDPC

Use this feature to enable or disable rootport extensions for Downstream Port Containment. The options are Disabled and Enabled.

PCIe Speed

Use this feature to select the PCI Express port speed. The options are Auto, Gen1, Gen2, and Gen3.

▶NCT6106D Super IO Configuration

NCT6106D Super IO Configuration

Super IO Chip NCT6106D

▶ Serial Port 1 Configuration

Serial Port 1

Select Enabled to enable the selected onboard serial port. The options are Disabled and Enabled.

Device Settings

This feature displays the status of a serial port specified by the user.

Change Settings

This feature specifies the base I/O port address and the Interrupt Request address of a serial port specified by the user. Select Auto to allow the BIOS to automatically assign the base I/O and IRQ address. The options are Auto, (IO=3F8h; IRQ=4;), (IO=3F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;), (IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;), (IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;), and (IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;).

COM1 Serial Port Type

Use this feature to select the COM1 port type. The options are RS232, RS422, and RS485.

▶ Serial Port 2 Configuration

Serial Port 2

Select Enabled to enable the selected onboard serial port. The options are Disabled and Enabled.

Device Settings

This feature displays the status of a serial port specified by the user.

Change Settings

This feature specifies the base I/O port address and the Interrupt Request address of a serial port specified by the user. Select Auto to allow the BIOS to automatically assign the base I/O and IRQ address. The options are Auto, (IO=2F8h; IRQ=3;), (IO=3F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;), (IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;), (IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;), and (IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;).

COM2 Serial Port Type

Use this feature to select the COM2 port type. The options are RS232, RS422, and RS485.

▶ Serial Port 3 Configuration

Serial Port 3

Select Enabled to enable the selected onboard serial port. The options are Disabled and Enabled.

Device Settings

This feature displays the status of a serial port specified by the user.

Change Settings

This feature specifies the base I/O port address and the Interrupt Request address of a serial port specified by the user. Select Auto to allow the BIOS to automatically assign the base I/O and IRQ address. The options are Auto, (IO=3E8h; IRQ=7;), (IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;), (IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;), (IO=220h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;), and (IO=228h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;).

▶ Serial Port 4 Configuration

Serial Port 4

Select Enabled to enable the selected onboard serial port. The options are Disabled and Enabled.

Device Settings

This feature displays the status of a serial port specified by the user.

Change Settings

This feature specifies the base I/O port address and the Interrupt Request address of a serial port specified by the user. Select Auto to allow the BIOS to automatically assign the base I/O and IRQ address. The options are Auto, (IO=2E8h; IRQ=7;), (IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;), (IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;), (IO=220h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;), and (IO=228h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;).

▶ Serial Port 5 Configuration

Serial Port 5

Select Enabled to enable the selected onboard serial port. The options are Disabled and Enabled.

Device Settings

This feature displays the status of a serial port specified by the user.

Change Settings

This feature specifies the base I/O port address and the Interrupt Request address of a serial port specified by the user. Select Auto to allow the BIOS to automatically assign the base I/O and IRQ address. The options are Auto, (IO=228h; IRQ=7;), (IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;), (IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;), (IO=220h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;), and (IO=228h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;).

▶ Serial Port 6 Configuration

Serial Port 6

Select Enabled to enable the selected onboard serial port. The options are Disabled and Enabled.

Device Settings

This feature displays the status of a serial port specified by the user.

Change Settings

This feature specifies the base I/O port address and the Interrupt Request address of a serial port specified by the user. Select Auto to allow the BIOS to automatically assign the base I/O and IRQ address. The options are Auto, (IO=220h; IRQ=7;), (IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;), (IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;), (IO=220h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;), and (IO=228h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;).

▶NCT6106D HW Monitor

▶System Health

Fan Speed Control Mode

Use this feature to set the fan speed control mode. The options are Standard, PUE, and Full Speed.

• CPU Temperature
• System Temperature
  • Peripheral Temperature
• PCH Temperature

• Fan1 Speed

• Fan2 Speed

• Fan3 Speed
• CPUVCORE
  • 12V
• VDIMM
• VDIMM
• 5Vcc
  3.3Vcc
• VBAT

▶Serial Port Console Redirection

COM1 - COM6

Console Redirection

Select Enabled to enable COM ports 1-4 for Console Redirection, which will allow a client machine to be connected to a host machine at a remote site for networking. The options are Disabled and Enabled.

*If the feature above is set to Enabled, the following features will become available for configuration:

▶Console Redirection Settings

Terminal Type

This feature allows the user to select the target terminal emulation type for Console Redirection. Select VT100 to use the ASCII Character set. Select VT100+ to add color and function key support. Select ANSI to use the Extended ASCII Character Set. Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or more bytes. The options are VT100, VT100+, VT-UTF8, and ANSI.

Bits per second

Use this feature to set the transmission speed for a serial port used in Console Redirection. Make sure that the same speed is used in the host computer and the client computer. A lower transmission speed may be required for long and busy lines. The options are 9600, 19200, 38400, 57600, and 115200 (bits per second).

Data Bits

Use this feature to set the data transmission size for Console Redirection. The options are 7 (Bits) and 8 (Bits).

Parity

A parity bit can be sent along with regular data bits to detect data transmission errors. Select Even if the parity bit is set to 0, and the number of 1's in data bits is even. Select Odd if the parity bit is set to 0, and the number of 1's in data bits is odd. Select None if you do not want to send a parity bit with your data bits in transmission. Select Mark to add a mark as a parity bit to be sent along with the data bits. Select Space to add a Space as a parity bit to be sent with your data bits. The options are None, Even, Odd, Mark, and Space.

Stop Bits

A stop bit indicates the end of a serial data packet. Select 1 Stop Bit for standard serial data communication. Select 2 Stop Bits if slower devices are used. The options are 1 and 2.

Flow Control

Use this feature to set the flow control for Console Redirection to prevent data loss caused by buffer overflow. Send a "Stop" signal to stop sending data when the receiving buffer is full. Send a "Start" signal to start sending data when the receiving buffer is empty. The options are None and Hardware RTS/CTS.

VT-UTF8 Combo Key Support

Select Enabled to enable VT-UTF8 Combination Key support for ANSI/VT100 terminals. The options are Disabled and Enabled.

Recorder Mode

Select Enabled to capture the data displayed on a terminal and send it as text messages to a remote server. The options are Disabled and Enabled.

Resolution 100x31

Select Enabled for extended-terminal resolution support. The options are Disabled and Enabled.

Legacy OS Redirection Resolution

Use this feature to select the number of rows and columns used in Console Redirection for legacy OS support. The options are 80x24 and 80x25.

Putty KeyPad

This feature selects Function Keys and KeyPad settings for Putty, which is a terminal emulator designed for the Windows OS. The options are VT100, LINUX, XTERMR6, SCO, ESCN, and VT400.

Redirection After BIOS POST

Use this feature to enable or disable legacy console redirection after BIOS POST. When set to BootLoader, legacy console redirection is disabled before booting the OS. When set to Always Enable, legacy console redirection remains enabled when booting the OS. The options are Always Enable and BootLoader.

AMT SOL

AMT SOL Console Redirection

This port is disabled.

Legacy Console Redirection

Redirection COM Port

Use this feature to select a COM port to display redirection of Legacy OS and Legacy OPROM messages. The options are COM1, COM2, COM3, COM4, COM5, and COM6.

Serial Port for Out-of-Band Management/Windows Emergency Management Services (EMS)

Console Redirection

Select Enabled to use a COM port selected by the user for EMS Console Redirection. The options are Disabled and Enabled.

*If the feature above is set to Enabled, the following features are available for configuration:

▶Console Redirection Settings

Out-of-Band Mgmt Port

The feature selects a serial port in a client server to be used by the Microsoft Windows Emergency Management Services (EMS) to communicate with a remote host server. The options are COM1, COM2, COM3, COM4, COM5, and COM6.

Terminal Type

Use this feature to select the target terminal emulation type for Console Redirection. Select VT100 to use the ASCII character set. Select VT100+ to add color and function key support. Select ANSI to use the extended ASCII character set. Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or more bytes. The options are VT100, VT100+, VT-UTF8, and ANSI.

Bits per second

This feature sets the transmission speed for a serial port used in Console Redirection. Make sure that the same speed is used in the host computer and the client computer. A lower transmission speed may be required for long and busy lines. The options are 9600, 19200, 57600, and 115200 (bits per second).

Flow Control

Use this feature to set the flow control for Console Redirection to prevent data loss caused by buffer overflow. Send a "Stop" signal to stop sending data when the receiving buffer is full. Send a "Start" signal to start sending data when the receiving buffer is empty. The options are None, Hardware RTS/CTS, and Software Xon/Xoff.

Data Bits

Parity

Stop Bits

▶SATA And RST Configuration

SATA Controller(s)

This feature enables or disables the onboard SATA controller supported by the Intel PCH chip. The options are Enabled and Disabled.

SATA Mode Selection

Select AHCI to configure a SATA drive specified by the user as an AHCI drive. Select RAID to configure a SATA drive specified by the user as a RAID drive. The options are AHCI and RAID.

Aggressive LPM Support

When this feature is enabled, the SATA AHCI controller manages the power usage of the SATA link. The controller will put the link in a low power mode during extended periods of I/O inactivity, and will return the link to an active state when I/O activity resumes. The options are Disabled and Enabled.

Storage Option ROM/UEFI Driver

Select UEFI to load the EFI driver for system boot. Select Legacy to load a legacy driver for system boot. The options are Do not Launch, EFI, and Legacy.

Serial ATA Port 0-4

This feature displays the information detected on the installed SATA drive on the particular SATA port.

• Model number of drive and capacity

- Software Preserve Support

Serial ATA Port 0-4 Hot Plug

Set this feature to Enable for hot plug support, which will allow the user to replace a SATA drive without shutting down the system. The options are Disabled and Enabled.

Serial ATA Port 0-4 Spin Up Device

Set this feature to enable or disable the PCH to initialize the device. The options are Disabled and Enabled.

Serial ATA Port 0-4 SATA Device Type

Use this feature to specify if the SATA port specified by the user should be connected to a Solid State Drive or a Hard Disk Drive. The options are Hard Disk Drive and Solid State Drive.

▶PCH-FW Configuration

ME Firmware Version

ME Firmware Mode: Normal Mode

ME Firmware SKU: Corporate SKU

ME FW Image Re-Flash

Use this feature to update the Mangement Engine firmware. The options are Disabled and Enabled.

Manageability Features State

Enabled this feature to allow system administrators to configure the ME BIOS extension (MEBx) configuration settings. The options are Disabled and Enabled.

AMT BIOS Features

Disable this feature to deny access to the MEBx setup. The options are Disabled and Enabled.

*If the feature "AMT BIOS Features" is set to Enabled, the AMT Configuration submenu will be available for configuration:

▶AMT Configuration

ASF support

Use this feature to enable or disable Alert Standard Format support. This feature sends an alert about a potential issue when the operating system is in a sleep state. The options are Disabled and Enabled.

USB Provisioning of AMT

Use this feature to enable or disable USB provisioning. The options are Disabled and Enabled.

▶CIRCA Configuration

Activate Remote Assistance Process

Use this feature to activate Remote Assistance. Enabling this feature will also trigger the CIRCA boot. The options are Disabled and Enabled.

*If the feature "Activate Remote Assistance Process" above is set to Enabled, the feature below will be available for configuration:

CIRA Timeout

Use this feature to set the timeout value for MPS connection. Use 0 for the default timeout value of 60 seconds.

▶ASF Configuration

PET Progress

Use this feature to enable or disable PET Events Progress to receive PET Events alerts. The options are Disabled and Enabled.

WatchDog

Select Enabled to allow AMT to reset or power down the system if the operating system or BIOS hangs or crashes. The options are Disabled and Enabled.

OS Timer / BIOS Timer

These options appear if Watch Dog (above) is enabled. This is a timed delay in seconds, before a system power down or reset after a BIOS or operating system failure is detected. Enter the value in seconds.

ASF Sensors Table

Enable this feature for the ASF Sensor Table to be added into the ASF! ACPI table. The options are Disabled and Enabled.

▶Secure Erase Configuration

Secure Erase mode

Select Real to securely erase a solid state drive. The options are Simulated and Real.

Force Secure Erase

Select Enabled to force a secure erase of the solid state drive on the next boot. The options are Disabled and Enabled.

▶OEM Flags Settings

MEBx hotkey Pressed

Use this feature to specify whether the MEBx hotkey should be enabled during the system boot. The options are Disabled and Enabled.

MEBx Selection Screen

Use this feature to select the type of MEBx selection screen. Press 1 to enter the ME Configuration screen and 2 to initiate a remote connection. Network access must be activated for a remote connection. The options are Disabled and Enabled.

Hide Unconfigure ME Confirmation Prompt

Use this feature to hide the unconfigure ME confirmation prompt. The options are Disabled and Enabled.

MEBx OEM Debug Menu Enable

Use this feature to enable or disable the OEM debug menu in MEBx. The options are Disabled and Enabled.

Unconfigure ME

Use this feature to reset the MEBx password to default. The options are Disabled and Enabled.

▶MEBx Resolution Settings

Non-UI Mode Resolution

Use this feature to specify the resolution for the non-UI text mode. The options are Auto, 80x25, and 100x31.

UI Mode Resolution

Use this feature to specify the resolution for the UI text mode. The options are Auto, 80x25, and 100x31.

Graphics Mode Resolution

Use this feature to specify the resolution for the graphics mode. The options are Auto, 640x480, 800x600, 1024x768.

▶ACPI Settings

ACPI Sleep State

Use this feature to select the ACPI Sleep State that the system will enter into when the suspend button is activated. The options are Suspend Disabled and S3 (Suspend to RAM).

WHEA Support

Select Enabled to support the Windows Hardware Error Architecture (WHEA) platform and provide a common infrastructure for the system to handle hardware errors within the Windows OS environment in order to reduce system crashes and enhance system recovery and health monitoring. The options are Disabled and Enabled.

High Precision Event Timer

Select Enabled to activate the High Precision Event Timer (HPET) that produces periodic interrupts at a much higher frequency than a Real-time Clock (RTC) does in synchronizing multimedia streams, providing smooth playback and reducing the dependency on other timestamp calculation devices, such as an x86 RDTSC Instruction embedded in the CPU. The High Performance Event Timer is used to replace the 8254 Programmable Interval Timer. The options are Disabled and Enabled.

Native PCIE Enable

Enable this feature to grant control of PCI Express Native hot plug, PCI Express Power Management Events, and PCI Express Capability Structure Control. The options are Disabled and Enabled.

Native ASPM

Select Enabled for the operating system to control the ASPM, or Disabled for the BIOS to control the ASPM. The options are Auto, Enabled, and Disabled.

▶USB Configuration

USB Configuration

USB Module Version: 21

USB Controllers: 1 XHCI

USB Devices: 1 Keyboard

Legacy USB Support

Select Enabled to support onboard legacy USB devices. Select Auto to disable legacy support if there are no legacy USB devices present. Select Disable to have all USB devices available for EFI applications only. The options are Enabled, Disabled, and Auto.

XHCI Hand-off

This is a work-around solution for operating systems that do not support XHCI (Extensible Host Controller Interface) hand-off. The XHCI ownership change should be claimed by the XHCI driver. The settings are Enabled and Disabled.

USB Mass Storage Driver Support

Select Enabled for USB mass storage device support. The options are Disabled and Enabled.

Port 60/64 Emulation

Select Enabled for I/O port 60h/64h emulation support, which in turn, will provide complete legacy USB keyboard support for the operating systems that do not support legacy USB devices. The options are Disabled and Enabled.

▶PCIe/PCI/PnP Configuration

Option ROM execution

Video

Use this feature to select the execution of the video OpROM. The options are Do not launch, UEFI, and Legacy.

PCI PERR/SERR Support

Use this feature to enable or disable the runtime event for PCI errors. The options are Disabled and Enabled.

Above 4G MMIO BIOS Assignment

Select Enabled to decode a PCI device that supports 64-bit in the space above 4G Address. The options are Disabled and Enabled.

BME DMA Mitigation

Enable this feature to help block DMA attacks. The options are Enable and Disable.

PCIe/PCI/PnP Configuration

CPU SLOT7 PCIe 3.0 X16 OPROM

Use this feature to select which firmware to be loaded for the add-on card in this slot. The options are Disabled, Legacy, and EFI.

M.2:PCIE3.0x4 OPROM/M.2:PCIE3.0x1 CNVI OPROM

Use this feature to select which firmware to be loaded for the add-on card in this slot. The options are Disabled, Legacy, and EFI.

Onboard LAN Option ROM Type

Use this feature to select which firmware to be loaded for onboard LAN devices. The options Legacy and EFI. Select Legacy to display and configure the Onboard LAN1 \~ LAN8 Option ROM features.

Onboard LAN1 Option ROM

Use this feature to select which firmware function to be loaded for LAN Port1 used for system boot. The options are Disabled and PXE.

Onboard LAN2 Option ROM

Use this feature to select which firmware function to be loaded for LAN Port2 used for system boot. The options are Disabled, PXE, and iSCSI.

Network Stack

Select Enabled to enable Preboot Execution Environment (PXE) or Unified Extensible Firmware Interface (UEFI) for network stack support. The options are Enabled and Disabled.

*If the feature above is set to Enabled, the features below will be available for configuration:

Ipv4 PXE Support

Select Enabled to enable IPv4 PXE boot support. The options are Disabled and Enabled.

Ipv4 HTTP Support

Select Enabled to enable IPv4 HTTP boot support. The options are Disabled and Enabled.

Ipv6 PXE Support

Select Enabled to enable IPv6 PXE boot support. The options are Disabled and Enabled.

Ipv6 HTTP Support

Select Enabled to enable IPv6 HTTP boot support. The options are Disabled and Enabled.

IPSEC Certificate

The feature appears if Network Stack is enabled. Internet Protocol Security (IPSEC) offers a secure connection for remote computers using a secure tunnel. The options are Enabled and Disabled.

PXE boot wait time

Use this feature to specify the wait time to press the ESC key to abort the PXE boot. Press "+" or "-" on your keyboard to change the value. The default setting is 0.

Media detect count

Use this option to specify the number of times media will be checked. Press "+" or "-" on your keyboard to change the value. The default setting is 1.

▶HTTP BOOT Configuration

HTTP BOOT Configuration

Http Boot One Time

Use this feature to create the HTTP boot option. The options are Disabled and Enable.

Input the description

Highlight the feature and press enter to create a description.

Boot URI

Highlight the feature and press enter to create a boot URI.

▶Trusted Computing

*The features in the Trusted Computing section on this page are displayed if a TPM 1.2 module is detected:

Configuration

Security Device Support

If this feature and the TPM jumper on the motherboard are both set to Enabled, onboard security devices will be enabled for TPM support to enhance data integrity and network security. Please reboot the system for a change on this setting to take effect. The options are Disable and Enable.

TPM State

Select Enabled to use TPM (Trusted Platform Module) settings to enhance system data security. Please reboot your system for any change on the TPM state to take effect. The options are Disabled and Enabled.

Pending Operation

Use this feature to schedule a TPM-related operation to be performed by a security device for system data integrity. Your system will reboot to carry out a pending TPM operation. The options are None and TPM Clear.

Note: Your system will reboot to carry out a pending TPM operation.

Device Select

Use this feature to select the TPM version. TPM 1.2 will restrict support to TPM 1.2 devices. TPM 2.0 will restrict support for TPM 2.0 devices. Select Auto to enable support for both versions. The default setting is Auto.

Current Status Information

This feature displays the status of the TPM support on this motherboard.

• TPM Enabled Status
• TPM Active Status
• TPM Owner Status

TXT Support

Intel Trusted Execution Technology (TXT) helps protect against software-based attacks and ensures protection, confidentiality and integrity of data stored or created on the system. Use this feature to enable or disable TXT Support. The options are Disabled and Enabled.

*The features in the Trusted Computing section on this page and the next are displayed if a TPM 2.0 module is detected:

TPM20 Device Found

Firmware Version

Vendor: IFX

Security Device Support

If this feature and the TPM jumper on the motherboard are both set to Enabled, onboard security devices will be enabled for TPM support to enhance data integrity and network security. Reboot the system for a change on this setting to take effect. The options are Disabled and Enabled.

The following TPM information will be displayed:

• Active PCR banks
• Available PCR banks

*If the feature "Security Device Support" is enabled, the following features are available for configuration:

SHA-1 PCR Bank

Use this feature to disable or enable the SHA-1 Platform Configuration Register (PCR) bank for the installed TPM device. The options are Disabled and Enabled.

SHA256 PCR Bank

Use this feature to disable or enable the SHA256 Platform Configuration Register (PCR) bank for the installed TPM device. The options are Disabled and Enabled.

Pending operation

Use this feature to schedule a TPM-related operation to be performed by a security device for system data integrity. Your system will reboot to carry out a pending TPM operation. The options are None and TPM Clear.

Platform Hierarchy

Use this feature to disable or enable platform hierarchy for platform protection. The options are Disabled and Enabled.

Storage Hierarchy

Use this feature to disable or enable storage hierarchy for cryptographic protection. The options are Disabled and Enabled.

Endorsement Hierarchy

Use this feature to disable or enable endorsement hierarchy for privacy control. The options are Disabled and Enabled.

TPM2.0 UEFI Spec Version

Use this feature to specify the TPM UEFI spec version. TCG 1.2 has support for Windows® 2012, Windows 8, and Windows 10. TCG 2 has support for Windows 10 or later. The options are TCG_1_2 and TCG_2.

Physical Presence Spec Version

Use this feature to select the PPI spec version. The options are 1.2 and 1.3.

TPM2.0 Interface Type

Use this feature to disable or enable Platform Hierarchy (PH) Randomization. The options are Disabled and Enabled.

Device Select

Use this feature to select the TPM version. TPM 1.2 will restrict support to TPM 1.2 devices. TPM 2.0 will restrict support for TPM 2.0 devices. Select Auto to enable support for both versions. The options are TPM 1.2, TPM 2.0, Auto.

TXT Support

Intel TXT (Trusted Execution Technology) helps protect against software-based attacks and ensures protection, confidentiality and integrity of data stored or created on the system. Use this feature to enable or disable TXT Support. The options are Disabled and Enabled.

4.4 Event Logs

Use this menu to configure event log settings.

Aptio Setup Utility - Copyright (C) 2018 American Megatrends, Inc. Main Advanced Event Logs Security Boot Save & Exit Change SMBIOS Event Log Settings View SMBIOS Event Log Press to change the Smbios Event Log configuration. +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.20.1271. Copyright (C) 2018 American Megatrends, Inc.

▶Change SMBIOS Event Log Settings

Enabling/Disabling Options

SMBIOS Event Log

Change this feature to enable or disable all features of the SMBIOS Event Logging during system boot. The options are Disabled and Enabled.

Erasing Settings

Erase Event Log

Select Enabled to erase all error events in the SMBIOS (System Management BIOS) log before an event logging is initialized at bootup. The options are No, "Yes, Next reset," and "Yes, Every reset."

When Log is Full

Select Erase Immediately to immediately erase all errors in the SMBIOS event log when the event log is full. Select Do Nothing for the system to do nothing when the SMBIOS event log is full. The options are Do Nothing and Erase Immediately.

SMBIOS Event Log Standard Settings

Log System Boot Event

Select Enabled to log system boot events. The options are Enabled and Disabled.

MECI (Multiple Event Count Increment)

Enter the increment value for the multiple event counter. Enter a number between 1 to 255. The default setting is 1.

METW (Multiple Event Count Time Window)

This feature is used to determine how long (in minutes) should the multiple event counter wait before generating a new event log. Enter a number between 0 to 99. The default setting is 60.

Note: Please reboot the system for the changes to take effect.

▶View Smbios Event Log

This feature allows the user to view the event in the SMBIOS event log. The following categories are displayed:

DATE/TIME/ERROR CODE/SEVERITY

4.5 Security

Use this menu to configure the security settings for the system.

Aptio Setup Utility - Copyright (C) 2018 American Megatrends, Inc. Main Advanced Event Logs Security Boot Save & Exit Administrator Password Not Installed User Password Not Installed Password Description If the Administrator / User password is set, then this only limits access to Setup and is asked for when entering Setup. Please set Administrator password first in order for setting User password, if clear Administrator password, User password will be cleared as well. The password length must be In the following range: Minimum length 3 Maximum length 20 Administrator Password Password Check [Setup] Secure Boot Set Administrator Password +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.20.1271. Copyright (C) 2018 American Megatrends, Inc.

Administrator Password

Use this feature to set the administrator password, which is required to enter the BIOS setup utility. The length of the password should be from three characters to 20 characters long.

Password Check

Select Setup for the system to check for a password at Setup. Select Always for the system to check for a password at bootup or upon entering the BIOS Setup utility. The options are Setup and Always.

▶Secure Boot

System Mode

Attempt Secure Boot

Select Enable for secure boot support to ensure system security at bootup. The options are Disabled and Enabled.

Secure Boot Mode

This feature allows the user to select the desired secure boot mode for the system. The options are Standard and Customized.

*If Secure Boot Mode is set to Customized, Key Management features are available for configuration:

CSM Support

This feature is for manufacturing debugging purposes.

▶ Install Factory Default Keys

Select Yes to install all factory keys to the default settings. The options are Yes and No.

▶Key Management

Vendor Keys

Provision Factory Default keys

Select Enabled to install the default Secure Boot keys set by the manufacturer. The options are Disabled and Enabled.

*If the feature above is set to Enabled, the next four features are available for configuration:

▶ Install Factory Default Keys

Select Yes to install all factory keys to the default settings. The options are Yes and No.

▶ Reset to Setup Mode

Select Yes to delete all Secure Boot key databases and force the system to Setup Mode. The options are Yes and No.

▶ Save all Secure Boot variables

Use this feature to copy the NVRAM contents of the secure boot variables to a file.

▶Enroll Efi Image

This feature allows the image to run in Secure Boot mode.

Device Guard Ready

▶Remove 'UEFI CA' from DB

Use this feature to remove the Microsoft UEFI CA certificate from the database. The options are Yes and No.

Select Yes to restore all DBs to the default settings. The options are Yes and No.

Secure Boot variable | Size | Keys# | Key Source

▶ Platform Key (PK)

Update

Select Yes to load a factory default PK or No to load from a file on an external media.

▶Key Exchange Keys

Update

Select Yes to load a factory default KEK or No to load from a file on an external media.

Append

Select Yes to add the KEK from the manufacturer's defaults list to the existing KEK. Select No to load the KEK from a file. The options are Yes and No.

▶ Authorized Signatures

Update

Select Yes to load a factory default db or No to load from a file on an external media.

Append

Select Yes to add the db from the manufacturer's defaults list to the existing db. Select No to load the db from a file. The options are Yes and No.

▶Forbidden Signatures

Update

Select Yes to load a factory default dbx or No to load from a file on an external media.

Append

Select Yes to add the dbx from the manufacturer's defaults list to the existing dbx. Select No to load the dbx from a file. The options are Yes and No.

▶ Authorized TimeStamps

Update

Select Yes to load a factory default dbt or No to load from a file on an external media.

Append

Select Yes to add the dbt from the manufacturer's defaults list to the existing dbt. Select No to load the dbt from a file. The options are Yes and No.

▶OsRecovery Signatures

Update

Select Yes to load a factory default dbr or No to load from a file on an external media.

Append

Select Yes to add the dbr from the manufacturer's defaults list to the existing dbr. Select No to load the dbr from a file. The options are Yes and No.

4.6 Boot

Use this menu to configure boot settings:

Aptio Setup Utility - Copyright (C) 2018 American Megatrends, Inc. Main Advanced Event Logs Security Boot Save & Exit Boot Configuration Setup Prompt Timeout 1 Boot mode select [DUAL] FIXED BOOT ORDER Priorities DUAL Boot Order #1 [Hard Disk] DUAL Boot Order #2 [CD/DVD] DUAL Boot Order #3 [USB Hard Disk] DUAL Boot Order #4 [USB CD/DVD] DUAL Boot Order #5 [USB Key] DUAL Boot Order #6 [USB Floppy] DUAL Boot Order #7 [USB Lan] DUAL Boot Order #8 [Network: IBA CL Slot 00FE v0113] DUAL Boot Order #9 [UEFI Hard Disk] DUAL Boot Order #10 [UEFI CD/DVD] DUAL Boot Order #11 [UEFI USB Hard Disk] DUAL Boot Order #12 [UEFI USB CD/DVD] DUAL Boot Order #13 [UEFI USB Key] DUAL Boot Order #14 [UEFI USB Floppy] DUAL Boot Order #15 [UEFI USB Lan] DUAL Boot Order #16 [UEFI Network] DUAL Boot Order #17 [UEFI AP:UEFI: Built-in EFI Shell] Number of seconds to wait for setup activation key. 65535(0xFFFF) means indefinite waiting. +: Select Screen T↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.20.1271. Copyright (C) 2018 American Megatrends, Inc.

Setup Prompt Timeout

Use this feature to specify the length of time (the number of seconds) for the BIOS to wait before rebooting the system when the setup activation key is pressed. Enter the value of 65535 (0xFFFF) for the BIOS to wait indefinitely. The default setting is 1.

Boot mode select

Use this feature to select the boot mode. The options are LEGACY, UEFI, and DUAL.

Fixed BOOT ORDER Priorities

This option prioritizes the order of bootable devices that the system to boot from. Press on each entry from top to bottom to select devices.

• LEGACY/UEFI/DUAL Boot Order #1
• LEGACY/UEFI/DUAL Boot Order #2
• LEGACY/UEFI/DUAL Boot Order #3
• LEGACY/UEFI/DUAL Boot Order #4
• LEGACY/UEFI/DUAL Boot Order #5
• LEGACY/UEFI/DUAL Boot Order #6

• LEGACY/UEFI/DUAL Boot Order #7
• LEGACY/UEFI/DUAL Boot Order #8
• LEGACY/UEFI/DUAL Boot Order #9
• LEGACY/UEFI/DUAL Boot Order #10
• LEGACY/UEFI/DUAL Boot Order #11
• LEGACY/UEFI/DUAL Boot Order #12
• LEGACY/UEFI/DUAL Boot Order #13
• LEGACY/UEFI/DUAL Boot Order #14
• LEGACY/UEFI/DUAL Boot Order #15
• LEGACY/UEFI/DUAL Boot Order #16
• LEGACY/UEFI/DUAL Boot Order #17

▶ Delete Boot Option

Use this feature to select a boot device to delete from the boot priority list.

▶ Delete Driver Option

Use this feature to remove an EFI driver option from the driver order.

▶UEFI Application Boot Priorities

- Boot Option # - This feature sets the system boot order of detected devices. The options are [the list of detected boot device(s)] and Disabled.

▶ NETWORK Drive BBS Priorities

- Boot Option # - This feature sets the system boot order of detected devices. The options are [the list of detected boot device(s)] and Disabled.

4.7 Save & Exit

Use this menu to configure save and exit settings.

Aptio Setup Utility - Copyright (C) 2018 American Megatrends, Inc. Main Advanced Event Logs Security Boot Save & Exit Save Options Discard Changes and Exit Save Changes and Reset Save Changes Discard Changes Default Options Restore Defaults Save as User Defaults Restore User Defaults Boot Override IBA CL Slot OOFE v0113 UEFI: Built-in EFI Shell Launch EFI Shell from filesystem device Exit system setup without saving any changes. +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.20.1271. Copyright (C) 2018 American Megatrends, Inc.

Save Options

Discard Changes and Exit

Select this option to quit the BIOS Setup without making any permanent changes to the system configuration and reboot the computer. Select Discard Changes and Exit from the Exit menu and press .

Save Changes and Reset

When you have completed the system configuration changes, select this option to save all changes made and reset the system.

Save Changes

When you have completed the system configuration changes, select this option to save all changes made. This will not reset (reboot) the system.

Discard Changes

Select this option and press to discard all the changes and return to the AMI BIOS Utility Program.

Default Options

Restore Defaults

To set this feature, select Restore Optimized Defaults and press . These are factory settings designed for maximum system performance but not for maximum stability.

Save as User Defaults

To set this feature, select Save as User Defaults from the Exit menu and press . This enables the user to save any changes to the BIOS setup for future use.

To set this feature, select Restore User Defaults from the Exit menu and press . Use this feature to retrieve user-defined settings that were saved previously.

Boot Override

Other boot options are listed in this section. The system will boot to the selected boot option.

IBA GE Slot 00FE v0113

UEFI: Built-in EFI Shell

Launch EFI Shell from filesystem device

Appendix A

BIOS Codes

A.1 BIOS Error POST (Beep) Codes

During the POST (Power-On Self-Test) routines, which are performed each time the system is powered on, errors may occur.

Non-fatal errors are those which, in most cases, allow the system to continue the boot-up process. The error messages normally appear on the screen.

Fatal errors are those which will not allow the system to continue the boot-up procedure. If a fatal error occurs, you should consult with your system manufacturer for possible repairs.

These fatal errors are usually communicated through a series of audible beeps. The table below lists some common errors and their corresponding beep codes encountered by users.

BIOS Beep (POST) Codes
Beep Code Error	Message Description
1 beep Refresh Circuits have been reset (Ready to power up)
5 short, 1 long Memory error No memory detected in system
5 long, 2 short Display memory read/write error Video adapter missing or with faulty memory
1 long continuous System OH System overheat condition

A.2 Additional BIOS POST Codes

The AMI BIOS supplies additional checkpoint codes, which are documented online at http://www.supermicro.com/support/manuals/ ("AMI BIOS POST Codes User's Guide").

When BIOS performs the Power On Self Test, it writes checkpoint codes to I/O port 0080h. If the computer cannot complete the boot process, a diagnostic card can be attached to the computer to read I/O port 0080h (Supermicro p/n AOM-SPI80-V).

For information on AMI updates, please refer to http://www.ami.com/products/.

Appendix B

Software Installation

B.1 Installing Software Programs

The Supermicro website contains drivers and utilities for your system is at https://www.supermicro.com/wdl/driver. Some of these must be installed, such as the chipset driver.

After accessing the website, go into the CDR_Images (in the parent directory of the above link) and locate the ISO file for your motherboard. Download this file to a USB flash or media drive. You may also use a utility to extract the ISO file if preferred.

Another option is to go to the Supermicro website at http://www.supermicro.com/products/. Find the product page for your motherboard here, where you may download individual drivers and utilities to your hard drive or a USB flash drive and install from there.

Insert the flash or media drive and the screenshot shown below should appear.

SUPERMICRO X11SCV-Q Motherboard Drivers & Tools (Win10) Intel Chipset INF files Microsoft .Net Framework (Optional) Realtek High Definition Audio Driver Intel Graphics Media Accelerator Driver Intel Software Guard Extensions Platform Software Intel Rapid Storage Technology Intel Management Engine Intel PRO Network Connections Drivers Trusted Platform Module Driver (Optional) SUPERMICRO SuperDoctor 5 Build driver diskettes and manuals Browse CD Auto Start Up Next Time For more information, please visit SUPERMICRO's web site.

Figure B-1. Driver/Tool Installation Display Screen

Click the icons showing a hand writing on the paper to view the readme files for each item. Click a computer icon to the right of an item to install an item (from top to bottom) one at a time. After installing each item, you must reboot the system before proceeding with the next item on the list. The bottom icon with a DVD on it allows you to view the entire contents of the DVD.

When making a storage driver disk by booting into a driver DVD, please set the SATA Configuration to "Compatible Mode" and configure SATA as IDE in the BIOS Setup. After making the driver diskette, be sure to change the SATA settings back to your original settings.

B.2 SuperDoctor® 5

The Supermicro SuperDoctor 5 is a hardware monitoring program that functions in a command-line or web-based interface in Windows and Linux operating systems. The program monitors system health information such as CPU temperature, system voltages, system power consumption, fan speed, and provides alerts via email or Simple Network Management Protocol (SNMP).

SuperDoctor 5 comes in local and remote management versions and can be used with Nagios to maximize your system monitoring needs. With SuperDoctor 5 Management Server (SSM Server), you can remotely control power on/off and reset chassis intrusion for multiple systems with SuperDoctor 5 or IPMI. SD5 Management Server monitors HTTP, FTP, and SMTP services to optimize the efficiency of your operation.

Note: The default Username and Password for SuperDoctor 5 is ADMIN / ADMIN.

SuperDollar 5 Switch Info User: 123400000000000000000000000000000000000000000000000000000000000000000000000000000000 Motherboard: XSDTU-LHA* Fan Speed 1.84 2.64 3.74 4.84 5.94 6.14 7.24 8.34 9.44 10.54 11.64 12.74 13.84 14.94 16.14 17.24 18.34 19.44 20.54 21.64 22.74 23.84 24.94 26.14 27.24 28.34 29.44 30.54 31.64 32.74 33.84 34.94 36.14 37.24 38.34 39.44 40.54 41.64 42.74 43.84 44.94 46.14 47.24 48.34 49.44 50.54 51.64 52.74 53.84 54.94 56.14 57.24 58.34 59.44 60.54 61.64 62.74 63.84 64.94 66.14 67.24 68.34 69.44 70.54 71.64 72.74 73.84 74.94 76.14 77.24 78.34 79.44 80.54 81.64 82.74 83.84 84.94 86.14 87.24 88.34 89.44 90.54 91.64 92.74 93.84 94.94 96.14 97.24 98.34 99.44 100.54 101.64 102.74 103.84 104.94 106.14 107.24

Figure B-2. SuperDoctor 5 Interface Display Screen (Health Information)

Note: The SuperDoctor 5 program and user's manual can be downloaded from the Supermicro website at http://www.supermicro.com/products/nfo/sms_sd5.cfm.

Appendix C

Standardized Warning Statements

The following statements are industry standard warnings, provided to warn the user of situations which have the potential for bodily injury. Should you have questions or experience difficulty, contact Supermicro's Technical Support department for assistance. Only certified technicians should attempt to install or configure components.

Read this section in its entirety before installing or configuring components.

These warnings may also be found on our website at http://www.supermicro.com/about/policies/safety_information.cfm.

Battery Handling

Warning! There is the danger of explosion if the battery is replaced incorrectly. Replace the battery only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions

電池の取り扱い

Warning! Ultimate disposal of this product should be handled according to all national laws and regulations.

製品の廃棄

Warning: Do not upgrade the BIOS unless your system has a BIOS-related issue. Flashing the wrong BIOS can cause irreparable damage to the system. In no event shall Supermicro be liable for direct, indirect, special, incidental, or consequential damages arising from a BIOS update. If you need to update the BIOS, do not shut down or reset the system while the BIOS is updating to avoid possible boot failure.

D.1 Overview

The Unified Extensible Firmware Interface (UEFI) provides a software-based interface between the operating system and the platform firmware in the pre-boot environment. The UEFI specification supports an architecture-independent mechanism that will allow the UEFI OS loader stored in an add-on card to boot the system. The UEFI offers clean, hands-off management to a computer during system boot.

D.2 Recovering the UEFI BIOS Image

A UEFI BIOS flash chip consists of a recovery BIOS block and a main BIOS block (a main BIOS image). The recovery block contains critical BIOS codes, including memory detection and recovery codes for the user to flash a healthy BIOS image if the original main BIOS image is corrupted. When the system power is turned on, the recovery block codes execute first. Once this process is complete, the main BIOS code will continue with system initialization and the remaining Power-On Self-Test (POST) routines.

Note 1: Follow the BIOS recovery instructions below for BIOS recovery when the main BIOS block crashes.

Note 2: When the BIOS recovery block crashes, you will need to follow the procedures to make a Returned Merchandise Authorization (RMA) request. (For a RMA request, please see section 3.5 for more information). Also, you may use the Supermicro Update Manager (SUM) Out-of-Band (OOB) (https://www.supermicro.com.tw/products/nfo/SMS_SUM.cfm) to reflash the BIOS.

D.3 Recovering the Main BIOS Block with a USB Device

This feature allows you to recover the main BIOS image using a USB-attached device without additional utilities used. A USB flash or media drive can be used for this purpose. However, a USB Hard Disk drive cannot be used for BIOS recovery at this time.

The file system supported by the recovery block is FAT (including FAT12, FAT16, and FAT32) which is installed on a bootable or non-bootable USB-attached device. However, the BIOS might need several minutes to locate the SUPER.ROM file if the media size becomes too large due to the huge volumes of folders and files stored in the device.

To perform UEFI BIOS recovery using a USB-attached device, follow the instructions below.

1. Using a different machine, copy the "Super.ROM" binary image file into the Root "\" directory of a USB flash or media drive.

Note 1: If you cannot locate the "Super.ROM" file in your drive disk, visit our website at www.supermicro.com to download the BIOS package. Extract the BIOS binary image into a USB flash device and rename it "Super.ROM" for the BIOS recovery use.

Note 2: Before recovering the main BIOS image, confirm that the "Super.ROM" binary image file you download is the same version or a close version meant for your motherboard.

1. Insert the USB device that contains the new BIOS image ("Super.ROM") into your USB drive and reset the system when the following screen appears.

BMC IP:10.132.168.92 PEI--Could Not Find Recovery Image... 07

1. After locating the healthy BIOS binary image, the system will enter the BIOS Recovery menu as shown below.

Option Setup Utility - Copyright (C) 2017 American Megatrends, Inc. Main Advanced Event Log (PMI) Recovery Security Boot Save a Exit Please select Blocks you want to update Reset VView (Enabled) Boot Block Update (Enabled) ►Proceed with flash update Set this option to reset MVAMs to default Values +: Select Screen T4: Select Item Enter: Select +/-: Change Out... F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.19.176d Copyright (C) 2017 American Megatrends, Inc.

Note: At this point, you may decide if you want to start the BIOS recovery. If you decide to proceed with BIOS recovery, follow the procedures below.

1. When the screen as shown above displays, use the arrow keys to select the item "Proceed with flash update" and press the key. You will see the BIOS recovery progress as shown in the screen below.

Note: Do not interrupt the BIOS flashing process until it has completed.

Motio Setup Utility - Copyright (C) 2017 American Megatrends, Inc. Accuracy WARNING System firmware is being updated. Keyboard is locked. DO NOT TURN THE POWER OFF III Once firmware update is completed press any key to reboot the system Program new data Write new boot block... 178 +/-: Select Screen T4: Select Item Enter: Select +/-: Change Opt. F1: General Help Pds: Previous Values F0: Optimized Defaults #4: Save a Exit ESC: Exit Version 2.19.1766. Copyright (C) 2017 American Megatrends, Inc.

1. After the BIOS recovery process is complete, press any key to reboot the system.

Rotor Setup Utility - Copyright (CI) 2017 American Hsgatrends, Inc. Recovery WARNING | System firmware is being updated, Keyboard is locked, DO NOT TURN THE POWER OFF !!! Once Firmware update is completed press any key to reboot the system Flash update Flash update completed. Press any key to reset the system +: Select Screen #: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit E6G: Exit Version 2.19.1266. Copyright (C) 2017 American Hsgatrends, Inc.

1. Using a different system, extract the BIOS package into a USB flash drive.

2. Press continuously during system boot to enter the BIOS Setup utility. From the top of the tool bar, select Boot to enter the submenu. From the submenu list, select Boot Option #1 as shown below. Then, set Boot Option #1 to [UEFI AP:UEFI: Built-in EFI Shell]. Press to save the settings and exit the BIOS Setup utility.

Auto Setup Utility - Copyright (CI 2017 American Megatrends, Inc. Main Advanced Event Loss IPML Security BOOT Save a Exit Boot Configuration Boot mode select [DUAL] LEGACY to EFI support [Disabled] FIXED BOOT ORDER Priorities Boot Option #1 [DEF1 MP:UEFI: Max...] Boot Option #2 [DSV/DVI] Boot Option #3 [DMS Hard Disk] Boot Option #4 [DMS CD/DVI] Boot Option #5 [DMS Key(SandDisk)] Boot Option #6 [DMS Flopey] Boot Option #7 [DUS Lan] Boot Option #8 [Network: IBM GE SI...] Boot Option #9 [UEFI Hard Disk] Boot Option #10 [DFI CD/DVI] Boot Option #11 [DFI USB Hard Disk] Boot Option #12 [DEFI USB CD/DVI] Boot Option #13 [DEFI USB Key:UEFI...] Boot Option #14 [DFI USB Flopey] Boot Option #15 [DFI USB Lan] Boot Option #16 [DFI Network] Boot Option #17 [Hard Disk] Add New Boot Option Sets the system boot order <<: Select Screen T4: Select Item Enteri Select +/-: Change Opt. F1: General) Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 3.19.12SS Copyright (C) 2017 American Megatrends, Inc.

1. When the UEFI Shell prompt appears, type fs# to change the device directory path. Go to the directory that contains the BIOS package you extracted earlier from Step 6. Enter flash.nsh BIOSname.### at the prompt to start the BIOS update process.

LEFI Interactive Shell v2.1 ESK 11 LEFI v2.50 (American MegaTrends, 0x0089XXC) Mapping table: F30: E106(0):H0D0E1:BLK1; PcJROOT(0x0)/PcI(0x14,0x0)/USB(0x11,0x0)/H0II,MER,0xG7P01D72,0xB06,0xI OR3522) BLK0: E106(0): PcJROOT(0x0)/PcI(0x14,0x0)/USB(0x11,0x0) Press ESCR to 1 seconds to skip startup.msh or any other key to continue. Shell (f5) F30: VCD BLK06 F30:VAPL005V CD SKAPME2_03162017 F30:VAPL005V SKAPME2_03162017\ flash.nsh X13P07.3X

Note: Do not interrupt this process until the BIOS flashing is complete.

Done. [ Access Oms Part Ex ] Reads Index 0x51: 0x18 Done. ********************************************************************** * Program BIOS and ME (including RDT) regions... ********************************************************************** AMI Firmware Update Utility v5.09.01.131T Copyright (©)2017 American Registrends Inc. All Rights Reserved. OPUD = 50652 Reading Flash ....... done - ME Data Size checking . ok - PFS checksums ....... ok - Check BookLayout ....... ok, Erasing Boot Block ....... done Updating Boot Block ....... done Verifying Boot Block ....... done Froiling Mesh Block ....... 0x00132049 (00)

verifying NBL Book ....... done - Update success for FSR. - Update success for St. - - Successful Update Recovery Loader to (PRx!!) - Successful Update MFSB((-) - Successful Update RTR((-) - Successful Update NFS, [WSI and TWX2((-)) - Successful Update FLOD and UTO((-)) - ME Entire Image update success []. WARNING : System must power-off to have the changes take effect! Moving FS01:AFUDOS/SJPMIE2_03162017/fdxv64.efi -> FS01:AFUDOS/SJPMIE2_03162017/f df.sac - [cik] Moving FS01:AFUDOS/SJPMIE2_03162017/fuxfm64.efi -> FS01:AFUDOS/SJPMIE2_03162017/f ?faufui1.sac - [cik] ********************************************************************** * * Please ignore this 'Shell cannot read from file - device error' * Warning message due to it does not impact flashing process. ********************************************************************** * Delating ' Delete successful. F5b->

1. The screen above indicates that the BIOS update process is complete. When you see the screen above, unplug the AC power cable from the power supply, clear CMOS, and plug the AC power cable in the power supply again to power on the system.
2. Press continuously to enter the BIOS Setup utility.
3. Press to load the default settings.
4. After loading the default settings, press to save the settings and exit the BIOS Setup utility.
