Preface

About This Manual

This manual is written for system integrators, IT technicians, and knowledgeable end users. It provides information for the installation and use of the X11DSN-TS/X11DSN-TSq motherboard.

About This Motherboard

The X11DSN-TS/X11DSN-TSq motherboard supports dual Intel® Xeon Scalable-SP or 2nd Generation Intel® Xeon Scalable-SP (Socket P) processors with the TDP (Thermal Design Power) of up to 205W and three UPIs (Ultra Path Interconnects) links of up to 11.2 GT/s (Note1 below). With the Intel C624/C627 built-in (Note2 below), this motherboard supports one x32 PCIe riser (w/two PCIe 3.0 x16 slots), one SIOM (Super I/O), one M.2 slot, 48 NVMe Solid State Devices (SSDs) (max), and 3TB of LRDIMM/LRDIMM/3DS RDIMM/RDIMM/NV-DIMM DDR4 ECC 2933*/2666/2400/2133 MHz memory in 12 DIMM slots (Note3 below). It also supports up to 4TB memory with Intel Optane™ DC Persistent Memory Modules (DCPMM). This motherboard provides maximal system performance and I/O expandability currently available on the market. This motherboard offers High-Performance Computing (HPC) storage capability optimized for NVMe SBB solutions, database applications, and virtualization platforms. Please note that this motherboard is intended to be installed and serviced by professional technicians only. For processor/memory updates, please refer to our website at http://www.supermicro.com/products/.

Notes: 1. UPI/memory speeds are dependent on the processors installed in your system. 2. The X11DSN-TSq supports the Intel C627 chipset, and the X11DSN-TS supports the C624 chipset. *3. Support for 2933 MHz memory is dependent on the CPU SKU.

Manual Organization

Chapter 1 describes the features, specifications and performance of the motherboard, and provides detailed information on the C624/C627 chipset.

Chapter 2 provides hardware installation instructions. Read this chapter when installing the processor, memory modules, and other hardware components into the system.

Chapter 3 describes troubleshooting procedures for video, memory, and system setup stored in the CMOS.

Chapter 4 includes an introduction to the BIOS, and provides detailed information on running the CMOS Setup utility.

Appendix A provides BIOS Error Beep Codes.

Appendix B lists software program installation instructions.

Appendix C lists standardized warning statements in various languages.

Appendix D provides UEFI BIOS Recovery instructions.

Appendix E provides information on how to configure secure boot settings.

Appendix F provides information on how to configure iSCSI settings.

Appendix G provides information on how to configure Network Interface Card (NIC) settings.

Contacting Supermicro

Headquarters

Address: Super Micro Computer, Inc.

980 Rock Ave.

San Jose, CA 95131 U.S.A.

Tel: [phone]

Fax: [phone]

Email: [e-mail] (General Information)

[e-mail] (Technical Support)

Website: www.supermicro.com

Europe

Address: Super Micro Computer B.V.

's-Hertogenbosch, The Netherlands

Tel: [phone]

Fax: [phone]

Email: [e-mail] (General Information)

[e-mail] (Technical Support)

[e-mail] (Customer Support)

Website: www.supermicro.nl

Asia-Pacific

Address: Super Micro Computer, Inc.

3F, No. 150, Jian 1st Rd.

Zhonghe Dist., New Taipei City 235

Taiwan (R.O.C)

Tel: [phone]

Fax: [phone]

Email: [e-mail]

Website: www.supermicro.com.tw

Table of Contents

Chapter 1 Introduction

1.1 Checklist....8
1.2 Processor and Chipset Overview....17
1.3 Special Features ....18
1.4 System Health Monitoring....18
1.5 ACPI Features....19
1.6 Power Supply 19
1.7 Advanced Power Management....19

Intel® Intelligent Power Node Manager (IPNM)....19

Management Engine (ME)....20

1.8 Intel® QuickAssist Technology (Available on the X11DSN-TSq only)....20

1.9 Intel® Optane DC Persistent Memory ....20

Chapter 2 Installation

2.1 Static-Sensitive Devices....21

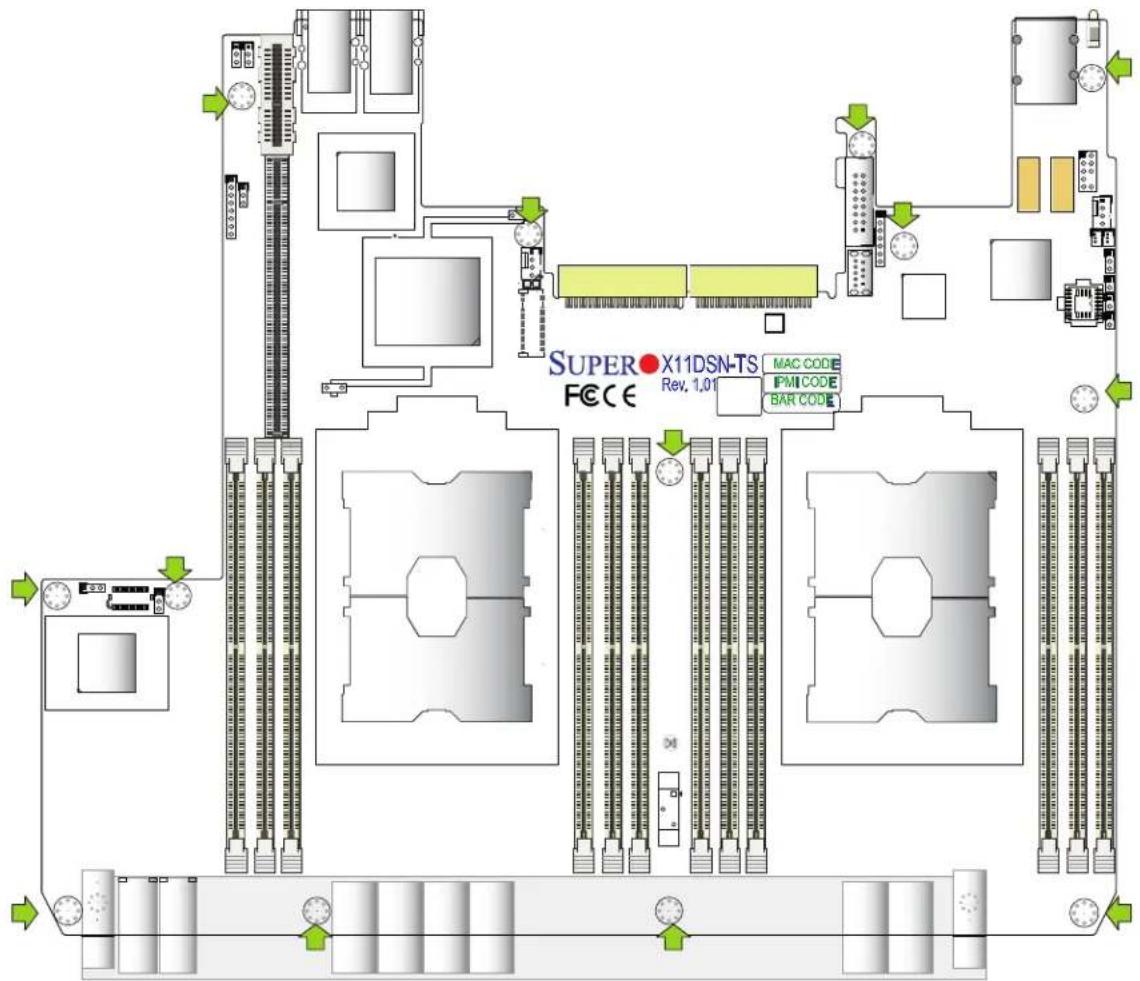

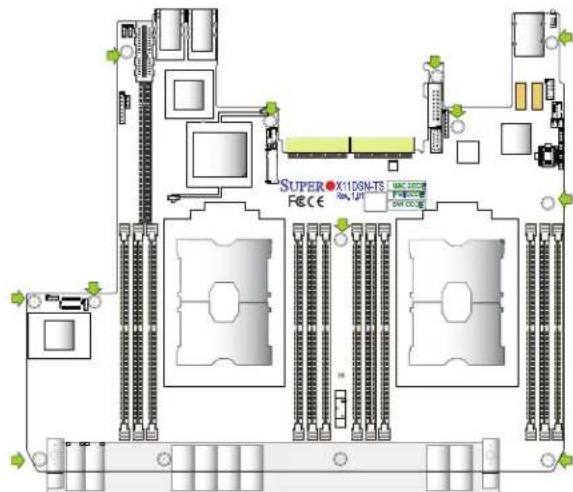

2.2 Motherboard Installation....22

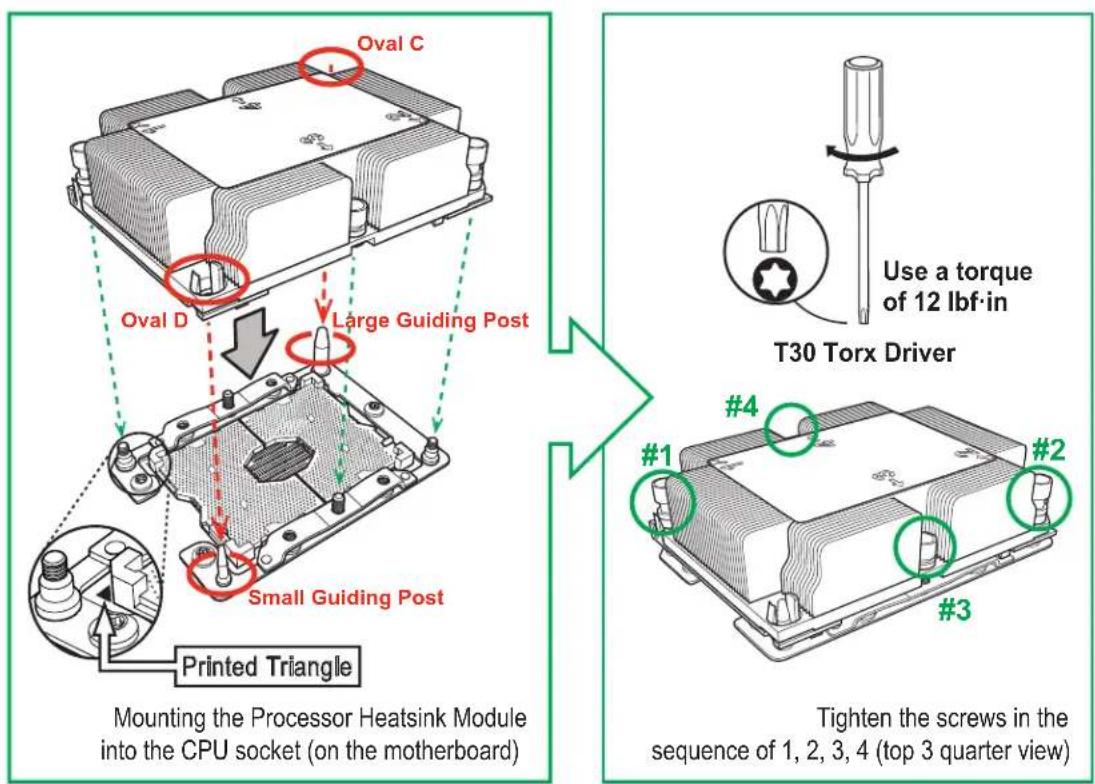

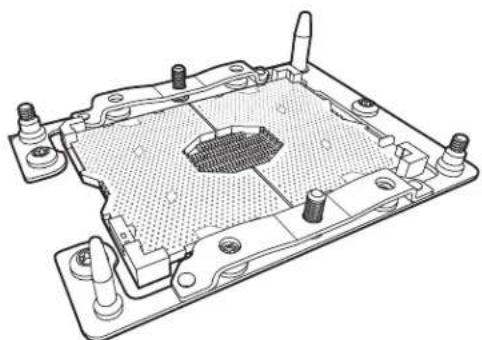

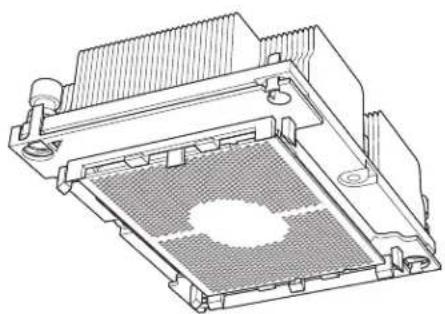

2.3 Processor and Heatsink Installation....24

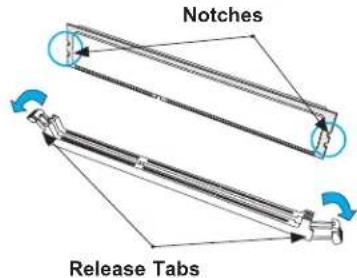

2.4 Memory Support and Installation ....32
2.5 Rear I/O Ports 39
2.6 Connectors and Headers 42
2.7 Jumper Settings 48
2.8 LED Indicators....52

Chapter 3 Troubleshooting

3.1 Troubleshooting Procedures ....55
3.2 Technical Support Procedures ....58
3.3 Frequently Asked Questions ....58

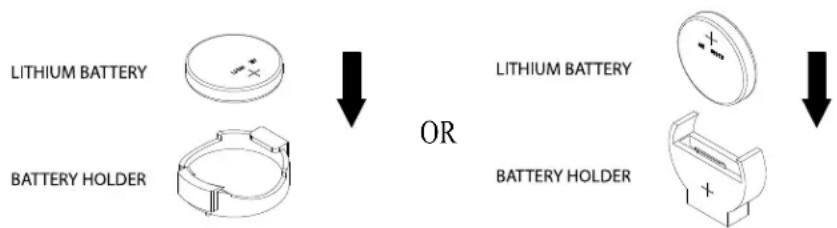

3.4 Battery Removal and Installation 61
3.5 Returning Merchandise for Service....62

Chapter 4 UEFI BIOS

4.1 Introduction....63
4.2 Main Setup....64

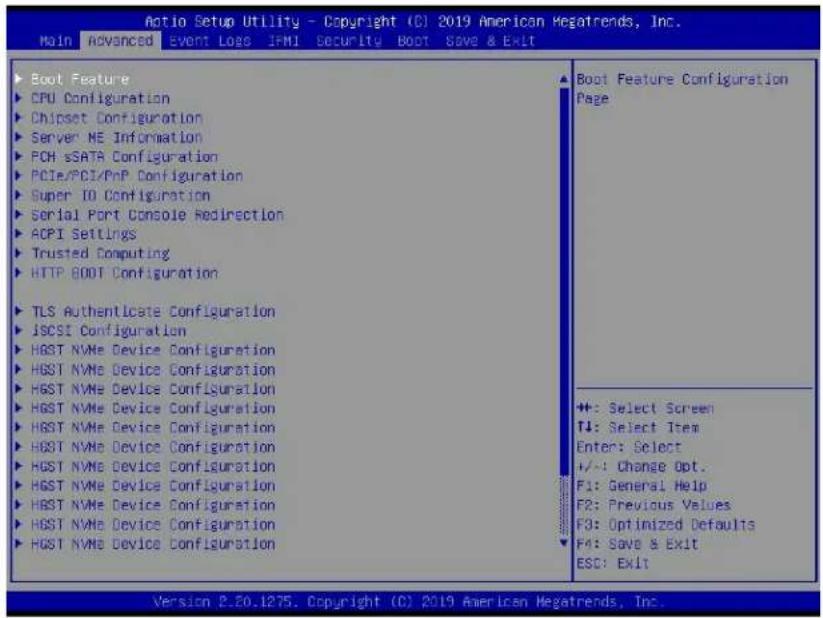

4.3 Advanced Setup Configurations....66

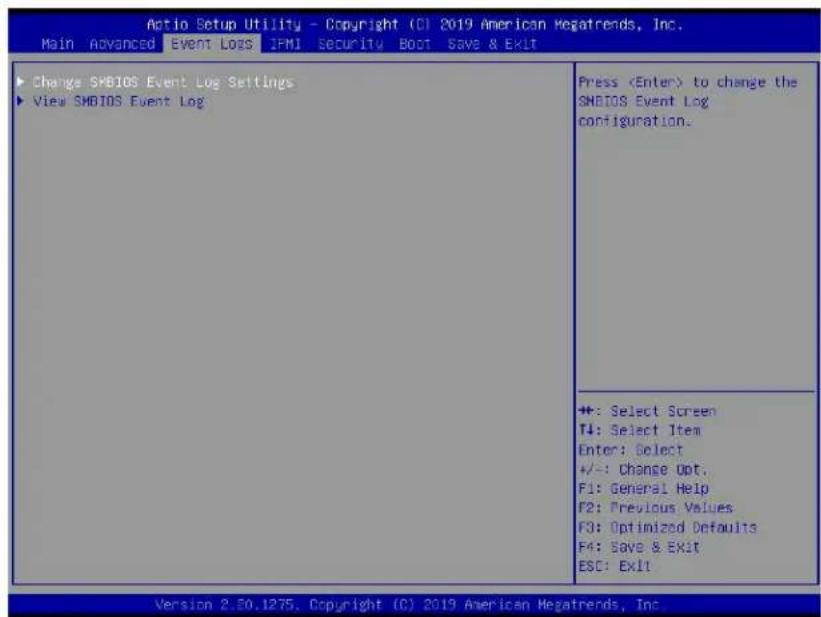

4.4 Event Logs ....108
4.5 IPMI 110

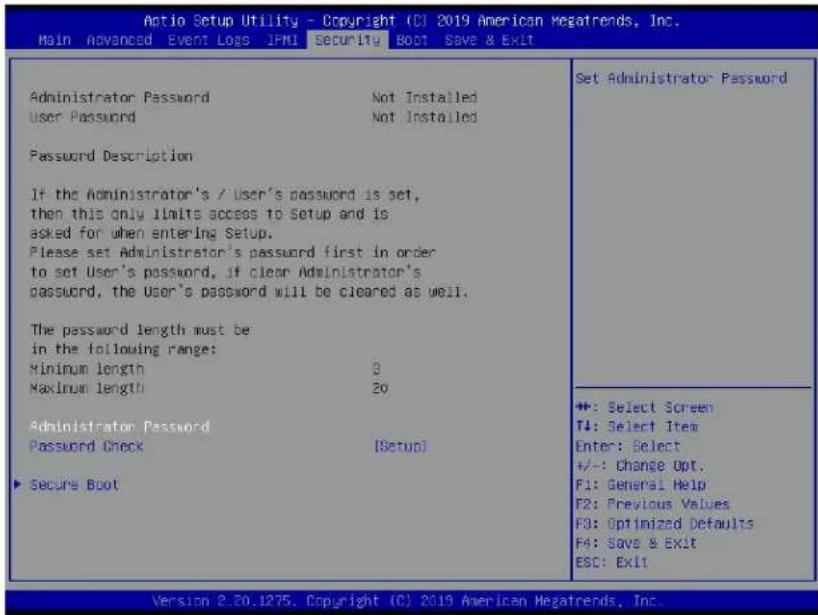

4.6 Security Settings 113
4.7 Boot Settings....116
4.8 Save & Exit....118

Appendix A BIOS Codes

Appendix B Software Installation

B.1 Microsoft Windows OS Installation....122

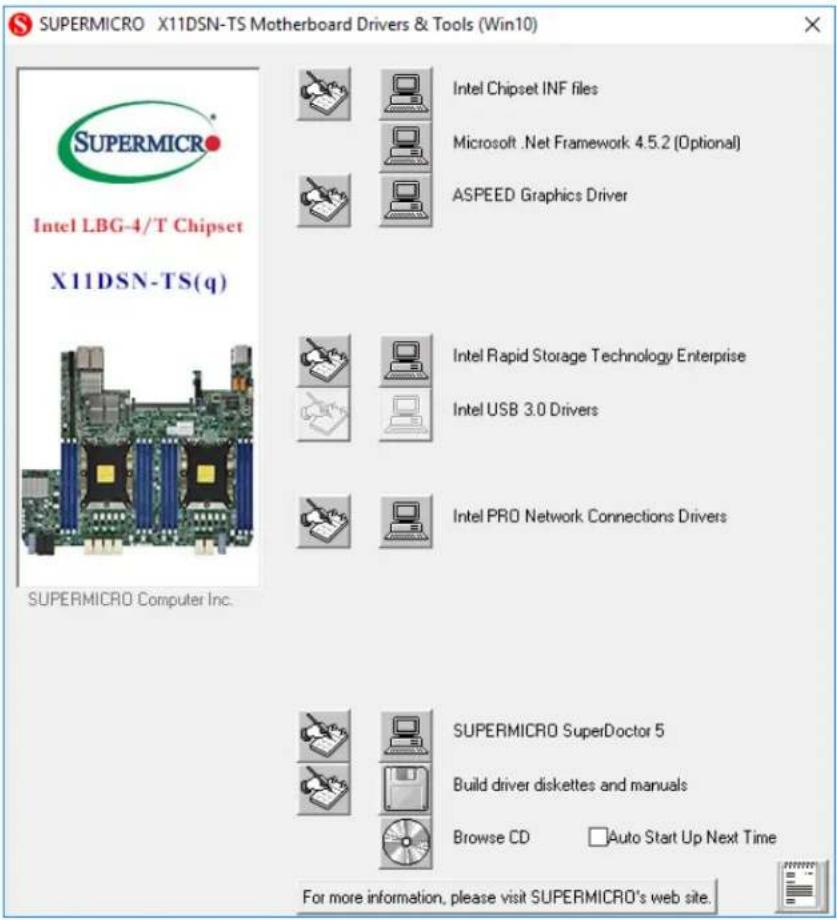

B.2 Driver Installation....124
B.3 SuperDoctor ^® 5....125
B.4 IPMI....126
B.5 Logging into the BMC (Baseboard Management Controller)....126

Appendix C Standardized Warning Statements

Appendix D UEFI BIOS Recovery

D.1 Overview....130
D.2 Recovering the UEFI BIOS Image....130

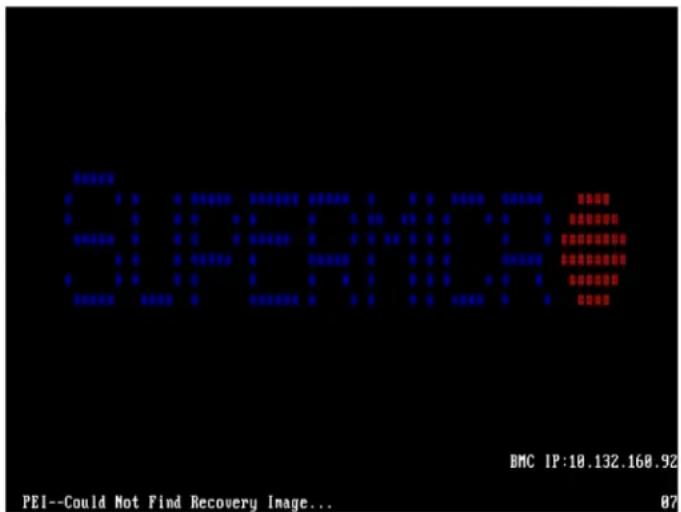

D.3 Recovering the Main BIOS Block with a USB Device....131

Appendix E Secure Boot Settings

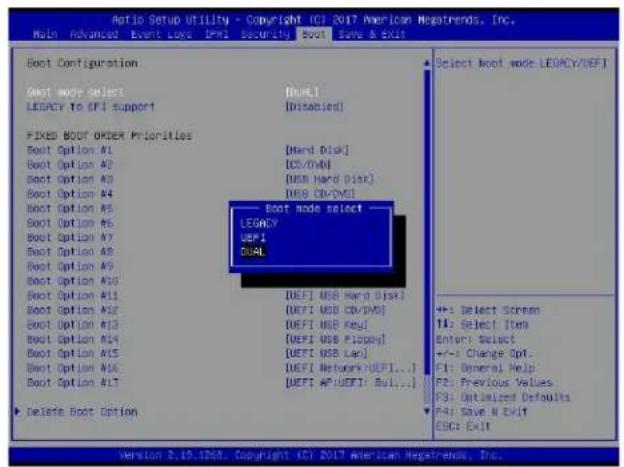

E.1 Boot mode select Feature....135

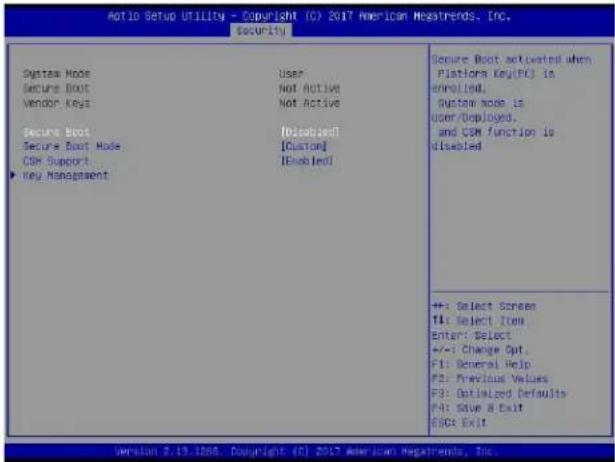

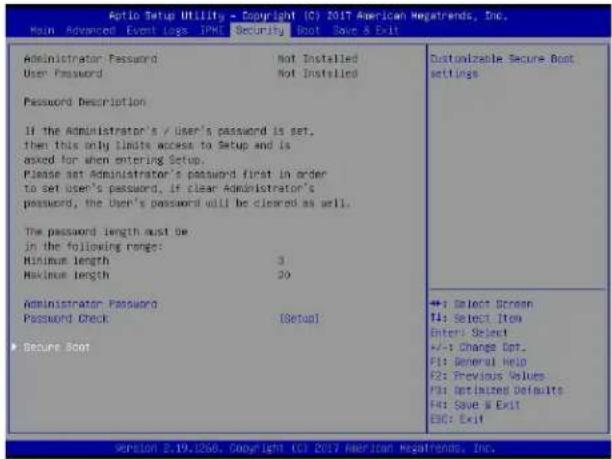

E.2 Secure Boot/ Secure Boot Mode/ CSM Support Features....136

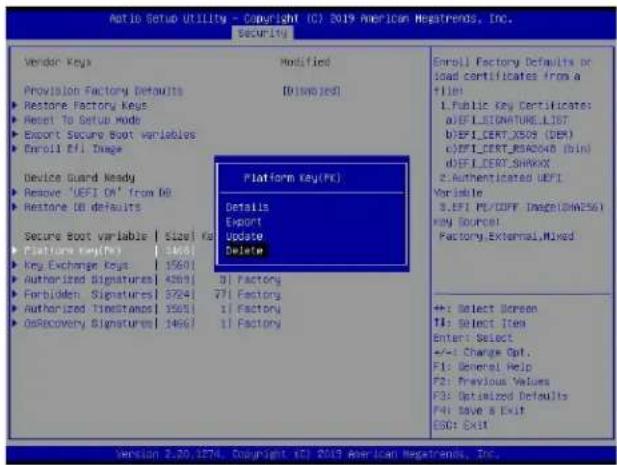

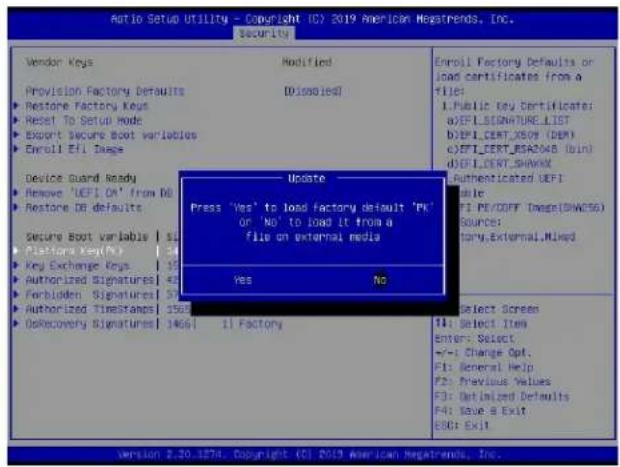

E.3 Secure Boot Settings ....137

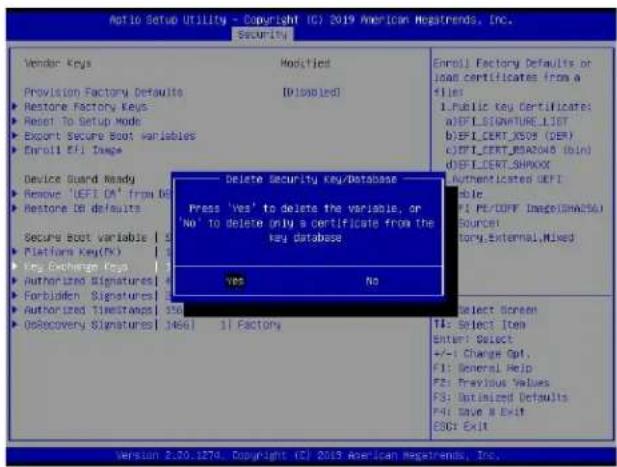

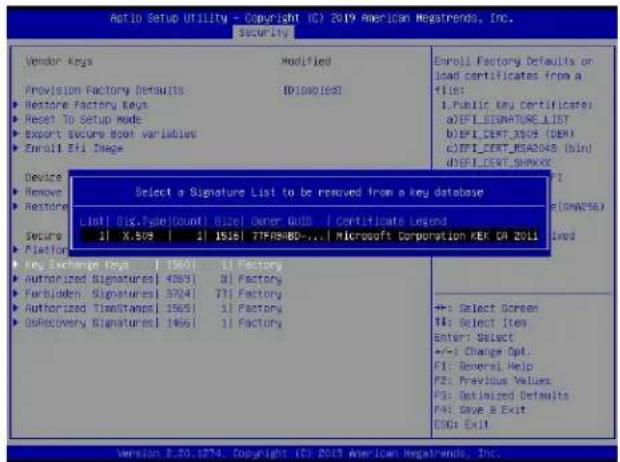

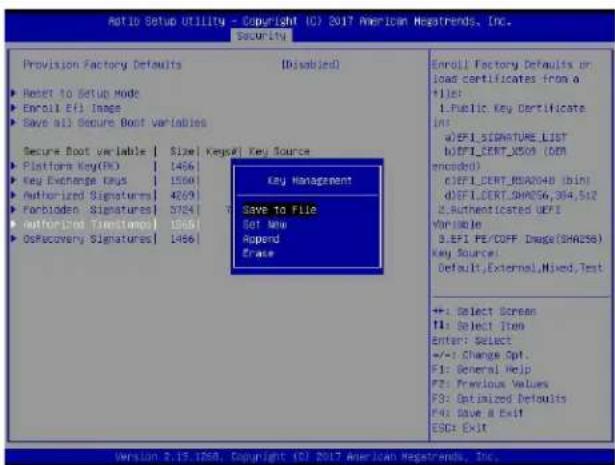

E.4 Key Management Settings....140

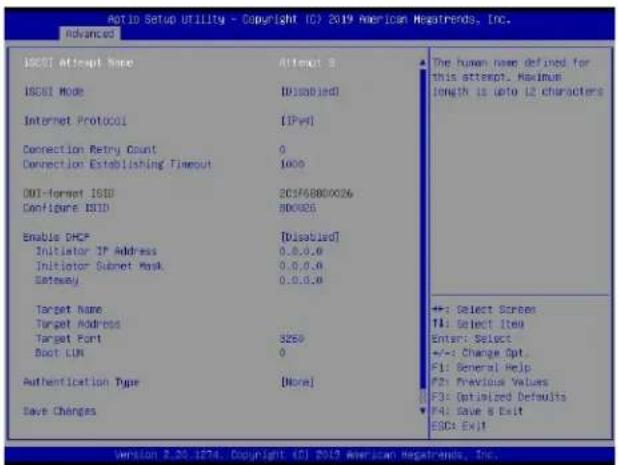

Appendix F Configuring iSCSI Settings

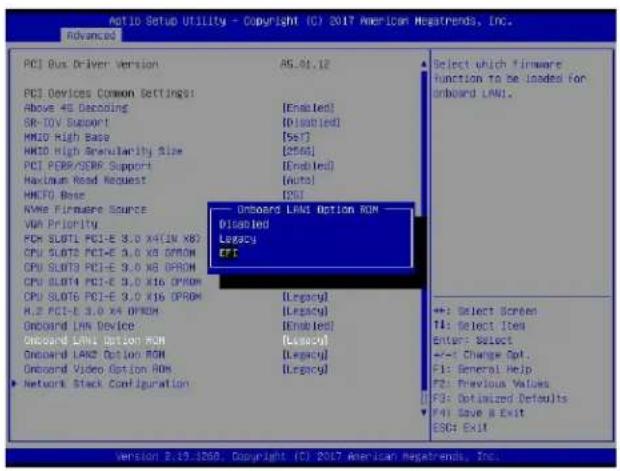

F.1 PCIe/PCI/PnP Features....157

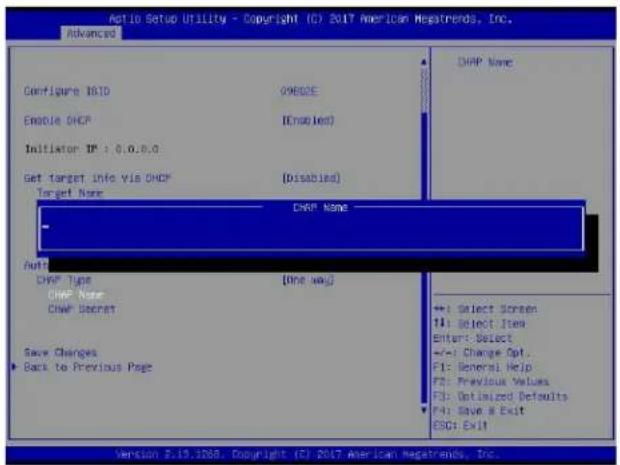

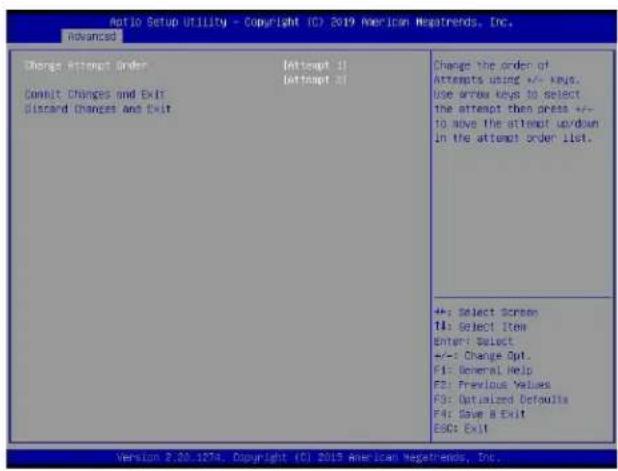

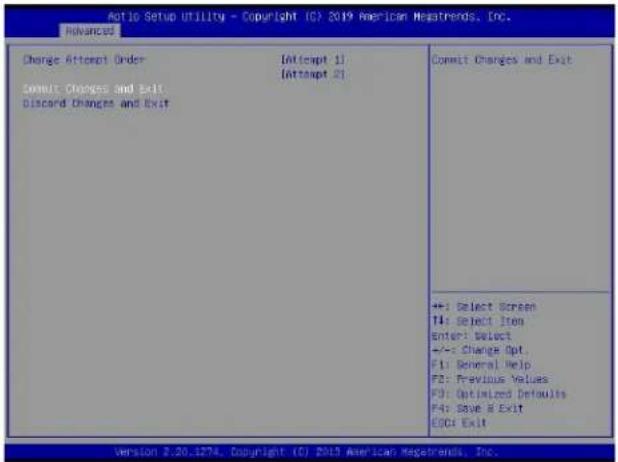

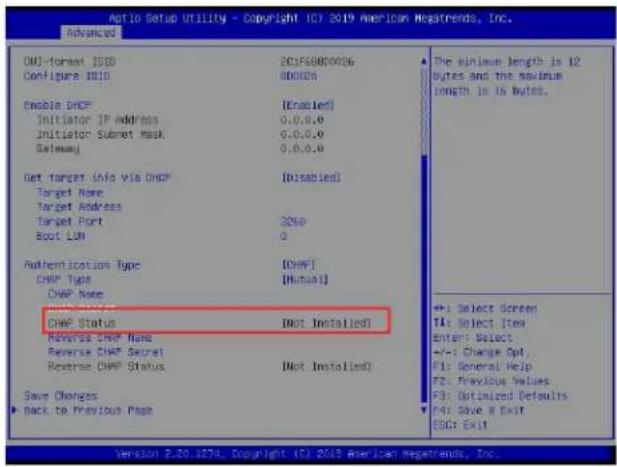

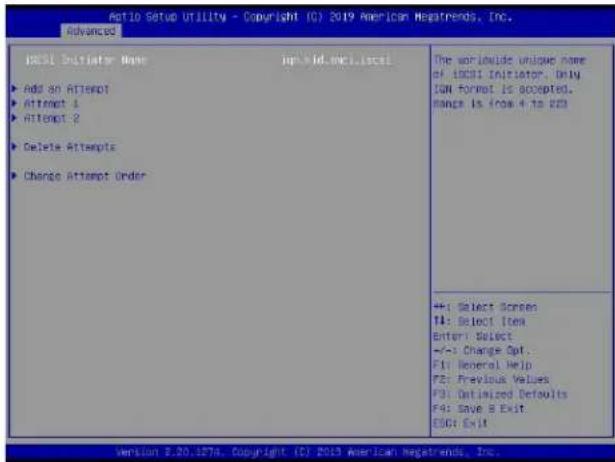

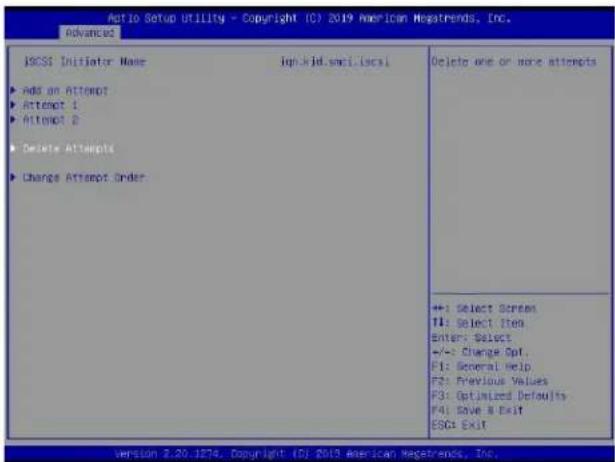

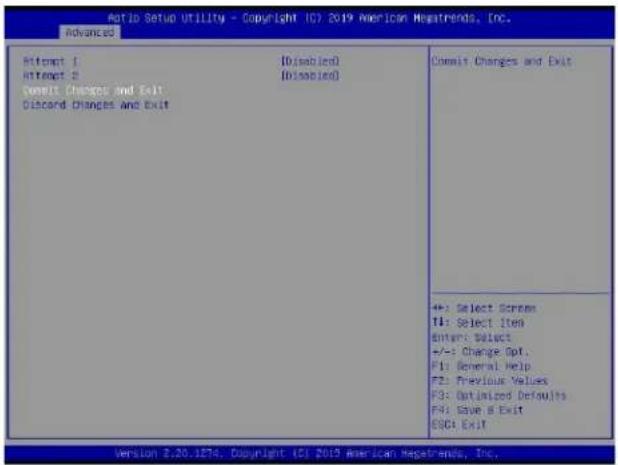

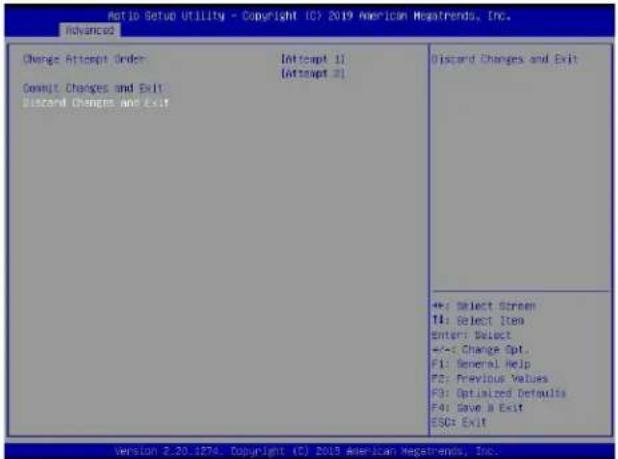

F.2 Configuring iSCSI Settings....160

Appendix G Configuring Network Interface Card (NIC) Settings

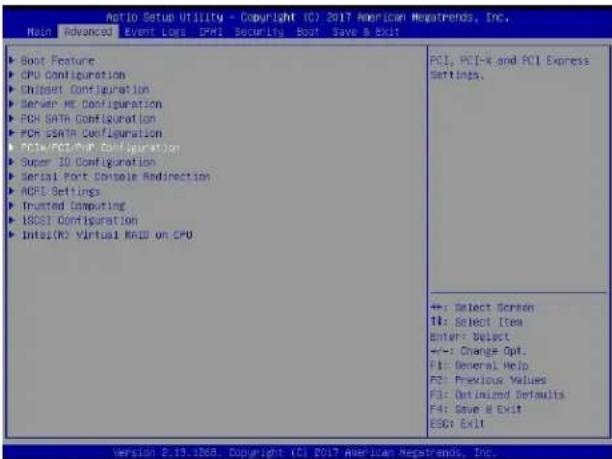

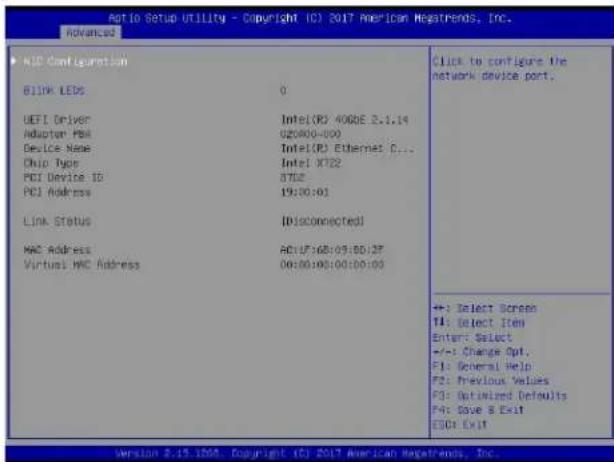

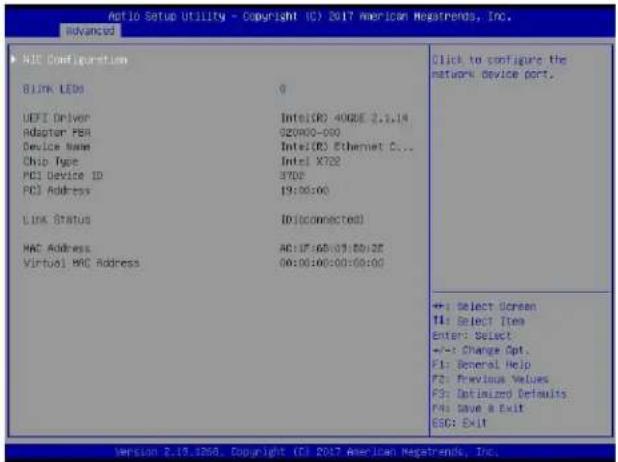

G.1 Network Interface Card (NIC) Settings 179

Chapter 1

Introduction

Congratulations on purchasing your computer motherboard from an industry leader. Supermicro motherboards are designed to provide you with the highest standards in quality and performance.

In addition to the motherboard, several important parts that are included with your shipment are listed below. If anything listed is damaged or missing, please contact your retailer.

1.1 Checklist

This motherboard was designed to be used with an SMCI-proprietary chassis as an integrated server platform. There will be no shipping package included in the shipment.

Important Links

For your system to work properly, please follow the links below to download all necessary drivers/utilities and the user's manual for your motherboard.

• Supermicro product manuals: http://www.supermicro.com/support/manuals/
- Product drivers and utilities: http://www.supermicro.com/wftp
- Product safety info: http://www.supermicro.com/about/policies/safety_information.cfm
- If you have any questions, please contact our support team at: [e-mail]
- A secure data deletion tool designed to fully erase all data from storage devices can be found at our website: https://www.supermicro.com/about/policies/disclaimer.cfm?url=/wftp/utility/Lot9_Secure_Data_Deletion_Utility/

This manual may be periodically updated without notice. Please check the Supermicro website for possible updates to the manual revision level.

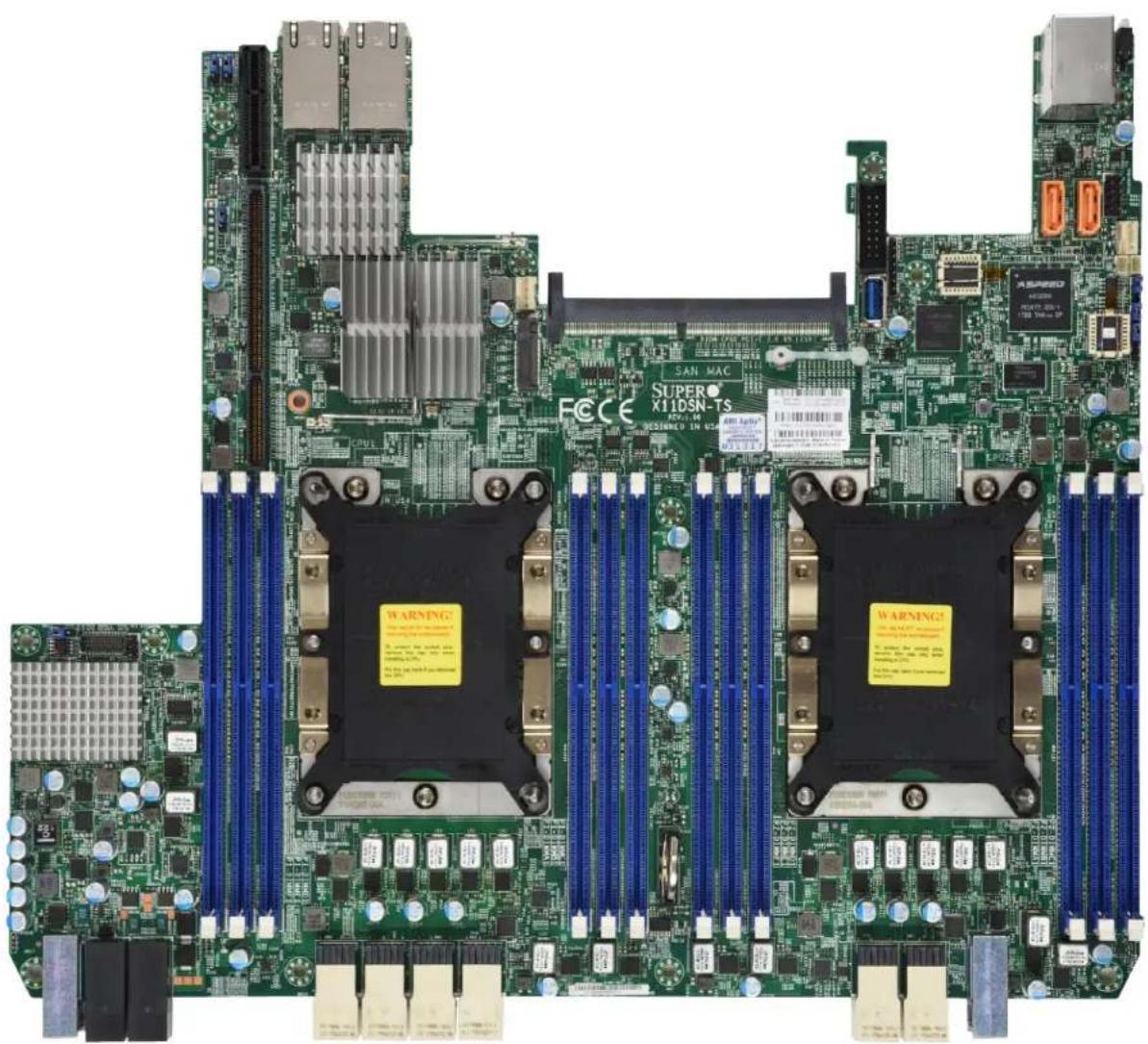

Figure 1-1. X11DSN-TS Motherboard Image

Top-down view of a computer motherboard with visible CPU socket, RAM slots, and ventilation slots (no readable text or symbols)

Note: All graphics shown in this manual were based upon the latest PCB revision available at the time of publication of the manual. The motherboard you received may or may not look exactly the same as the graphics shown in this manual.

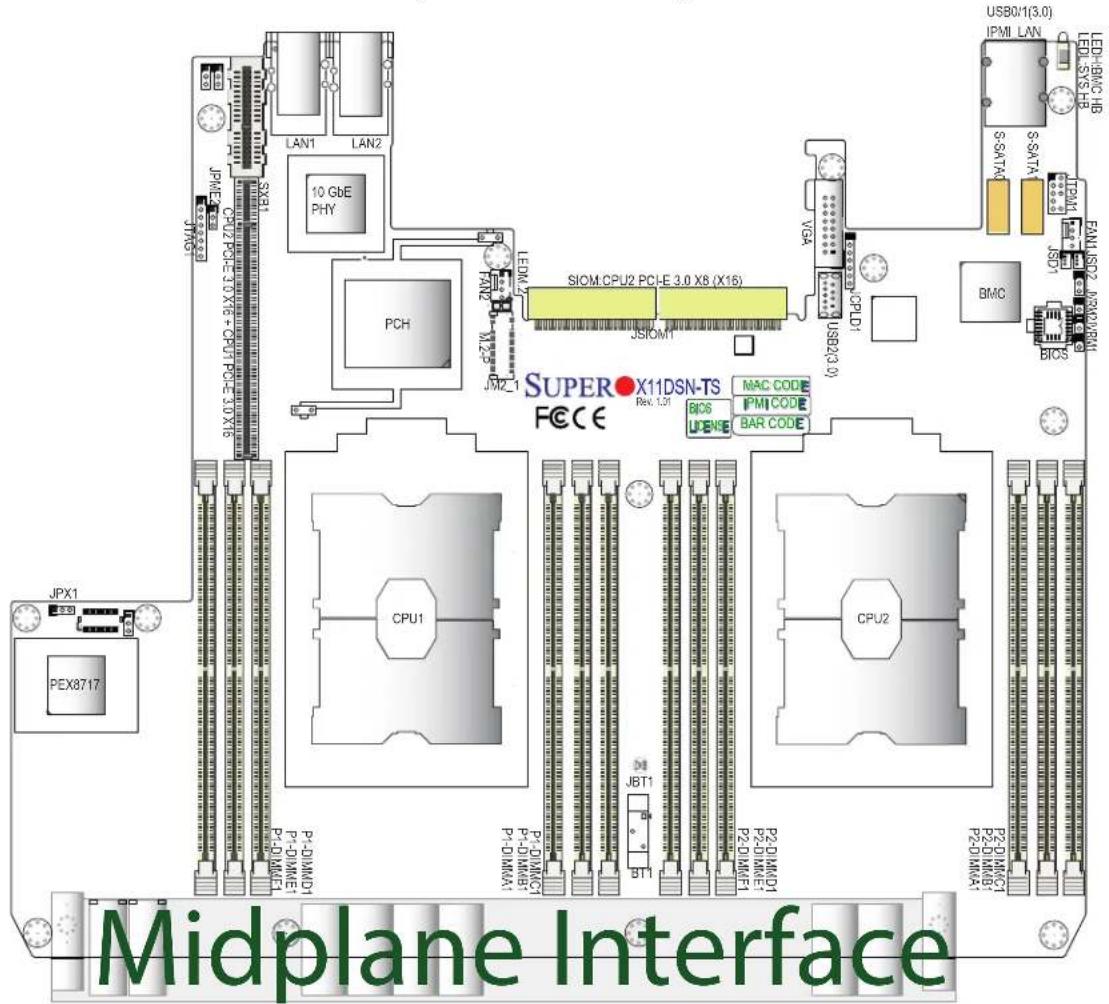

Figure 1-2. X11DSN-TS Motherboard Layout (not drawn to scale)

LAN1 LAN2 JPME JPMG CPU2 PC-E 3.0 X16 CPU1 PC-E 3.0 X16 10 GbE PHY PCH JAN2 JMC-1 LEDM-2 SIOM:CPU2 PC-E 3.0 X8 (X16) JSIOM1 VGA USB2/3 (x) BMC USB0/1(3.0) IPMI LAN S-SATA S-SATA TPM1 JSD1 FAN ISO2 LAN2/FRM1 BICS SUPER●X11DSN-TS FCECE Rev. 1.5f MAC CODE IPMI CODE BAR CODE BIOS UPENSIE CPU1 CPU2 JPX1 PEX8717 P-DIMM0T P-DIMM0T P-DIMM0T P-DIMM0T P-DIMM0T P-DIMM0T P-DIMM0T P-DIMM0T P-DIMM0T P-DIMM0T P-DIMM0T P-DIMM0T P-DIMM0T P-DIMM0T P-DIMM0T Midplane Interface

Notes:

1. See Chapter 2 for detailed information on jumpers, I/O ports, and JF1 front panel connections.
   2."■" indicates the location of Pin 1.
2. Jumpers/components/LED indicators not indicated are used for internal testing only.
3. The X11DSN-TSq supports Intel C627 chipset, and the X11DSN-TS supports the C624 chipset.
4. To avoid causing interference with other components, please be sure to use an add-on card that is fully compliant with the PCI-standard on a PCI slot.
5. Use only the correct type of onboard CMOS battery as specified by the manufacturer. Do not install the onboard battery upside down to avoid possible explosion.

Quick Reference Table

Jumper Description Default Setting

JBT1 CMOS Clear Open (Normal)

JPME2 ME Manufacturing Mode Pins 1-2 (Normal)

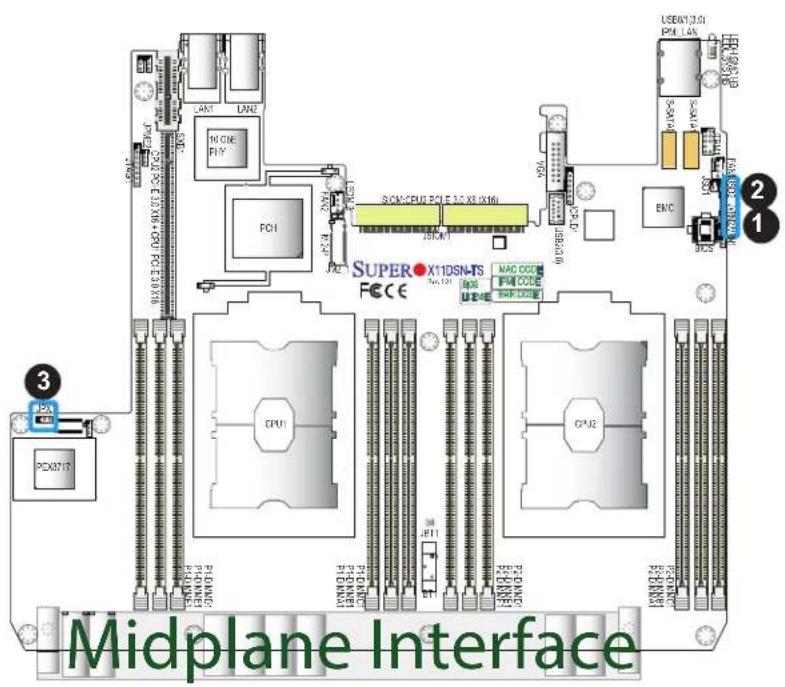

JPX1 NTB (Non-Transparent Bridge) Enable Pins 1-2 (Enabled)

JVRM1 VRM SMBus Clock On (to BMC, Normal)

JVRM2 VRM SMBus Data On (to BMC, Normal)

Connector Description

BT1	Onboard CMOS battery socket
FAN1/FAN2	System cooling fan headers
IPMI_LAN	Dedicated IPMI_LAN port
LAN1/LAN2	10GbE LAN ports 1/2 on the IO back panel
JCOM1	COM port on the Riser card (RSC-X-66-C)
JCPLD1	Complex-Programmable Logical Device (CPLD) header
JSD1/JSD2	Power connectors for SATA DOM (Disk-on-module) devices.
JTPM1	Port 80 connector for Trusted Platform Module (TPM)

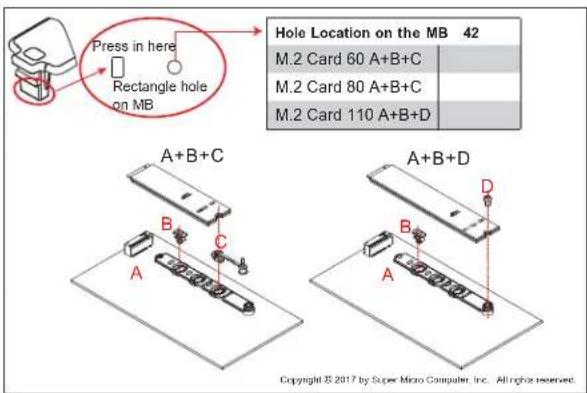

M.2-P	PCIe M.2 slot (See the note below.)
S-SATA0/S-SATA1	S-SATA 3.0 connection ports 0/1 supported by the Intel SCU. These S-SATA ports have power pins built-in and support Supermicro SuperDOM (Disk On Module) devices
SIOM1	PCIe 3.0 x8 (x16) slot supported by CPU2 (PCIe 3.0 x16: for X11DSN-TS, 3.0 x8: for X11DSN-TSq) (See the note below.)

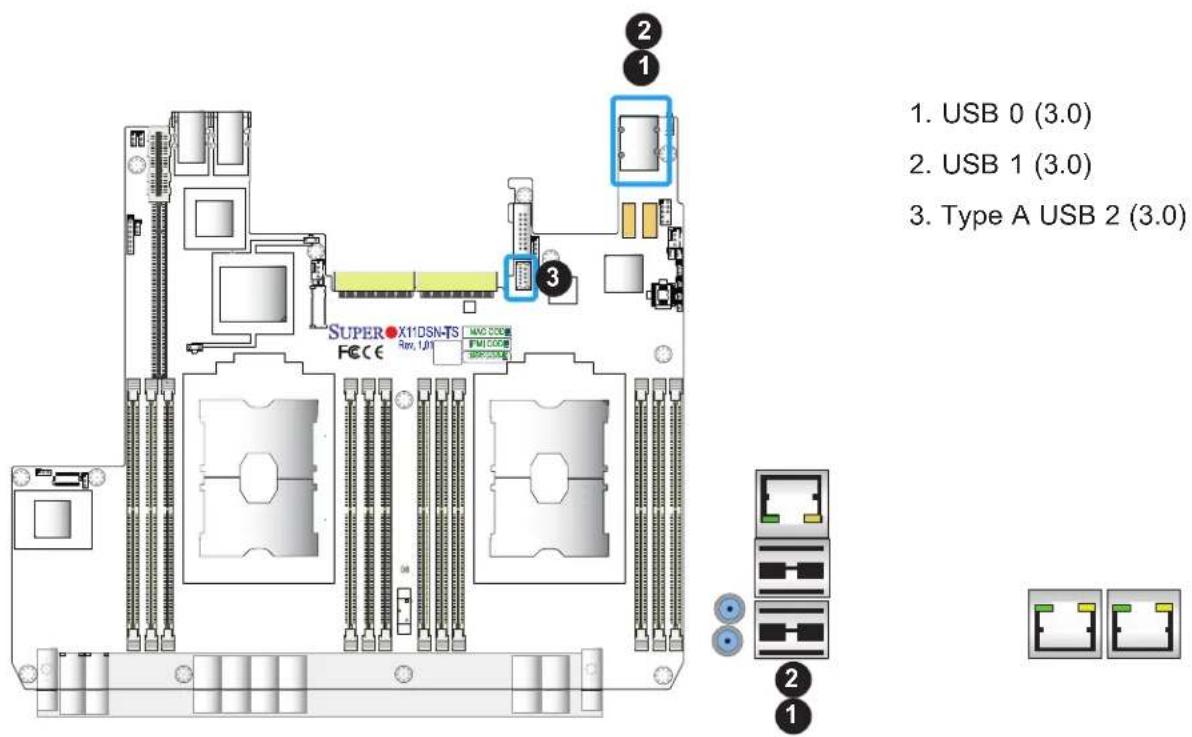

USB0/1	Back panel USB 3.0 ports
USB2	Type A USB 3.0 header for front access

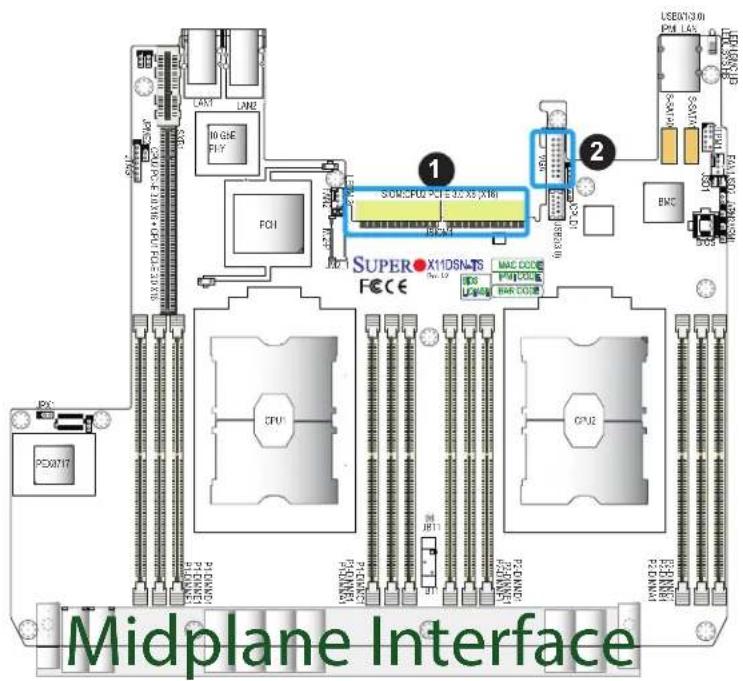

VGA	VGA port

LED	Description	Status
LEDM.2	Activity LED for M.2 slot	On: M.2 slot active
LEDH/LEDL	LEDH (the top LED): BMC Heartbeat LED	LEDH (Blinking): BMC: normal
	LEDL (the bottom LED): System Heatbeat LED	LEDL (Blinking): system: normal

Note:

To avoid causing interference with other components, please be sure to use an add-on card that is fully compliant with the PCI-standard on a PCI slot.

1. Intel VMD is supported by PCIe Slots(SXB 1).
2. After you've enabled VMD in the BIOS on a PCIe slot(SXB 1), this PCIe slot will be dedicated for VMD use only, and it will no longer support any PCIe device. To reactivate this slot for PCIe use, please disable VMD in the BIOS.

Motherboard Features

Motherboard Features
CPU
This motherboard supports dual Intel Xeon Scalable-SP and 2nd Gen Intel Xeon Scalable-SP processors with three Intel®UltraPath Interconnects (UPIs) links of up to 11.2 GT/s (per processor)[R-CX]Note:Both CPUs need to be installed for full access to the PCIe slots, DIMM slots, and onboard controllers. Refer to the block diagram in this chapter to determine which slots or devices may be affected.
Memory
Integrated memory controller embedded in the processor supports up to 3TB of 3DS Load Reduced DIMM (3DS LRDIMM), Load Reduced DIMM (LRDIMM), 3DS Registered DIMM (3DS RDIMM), Registered DIMM (RDIMM) DDR4 (288-pin) ECC memory with speeds of 2933*/2666/2400/2133 MHz modules in 12 slots.[S7T)]Notes:1.Up to 4TB of memory is supported with RDIMM and DCPMM modules installed. *2.Support for 2933 MHz memory is dependent on the CPU SKU.
DIMM Size
Up to 128 GB at 1.2V
Note 1: Memory speed support depends on the processors used in the system.
Note 2: For the latest CPU/memory updates, please refer to our website athttp://www.supermicro.com/products/motherboard.
Chipset
Intel C627 chipset (for X11DSN-TSq only)/Intel C624 chipset (for X11DSN-TS only)
Expansion Slots
One PCIe x32 riser card with support of two (2) PCIe 3.0 x16 slotsOne SIOMNTB (Non-Transparent Bridge) by PLX PCIe x8Forty-eight (48) NVMe Solid State Devices (SSDs) maximumOne PCIe M.2 slot
BaseBoard Management Controller (BMC)
ASPEED AST 2500 Baseboard Controller (BMC) supports IPMI 2.0One (1) Dedicated IPMI LAN located on the rear IO back panel
Graphics
Graphics controller via ASPEED AST 2500 BMC (BaseBoard Management Controller)
Network Connection
Intel X557 10G LAN controller supports two 10 Gigabit LAN (10 GbE) ports (two external)One dedicated IPMI LAN supported by the ASPEED AST 2500 BMC
I/O Devices
Serial (COM) Port	One Fast UART 16550 port on the I/O backpanel via a riser card
SATA 3.0	Two SATA 3.0 ports with power-pins built-in, w/support of Supermicro SuperDOM(S-SATA0/S-SATA1)
RAID (PCH) • RAID 0, 1, 5, and 10

Motherboard Features

Peripheral Devices

• Two USB 3.0 ports on the rear I/O panel (USB 0/1)
• One Type A 3.0 USB port (USB 2)

BIOS

• 256 Mb SPI AMI BIOS SM Flash UEFI BIOS
- ACPI 3.0/4.0, USB keyboard, Plug-and-Play (PnP), SPI dual/quad speed support, riser-card auto detection support, and SMBIOS 2.7 or later

Power Management

• Main switch override mechanism
• Power-on mode for AC power recovery
- Intel® Intelligent Power Node Manager 4.0 (available when the Supermicro Power Manager [SPM] is installed and a special power supply is used)
• Management Engine (ME)

System Health Monitoring

• Onboard voltage monitoring for +3.3V, 3.3V standby, +5V, +5V standby, +12V, CPU core, memory, chipset, BMC, and PCH voltages
  • CPU System LED and control
  • CPU Thermal Trip support
  • Status monitor for on/off control
  • CPU Thermal Design Power (TDP) support of up to 205W (See Note1 on next page.)

Fan Control

• Fan status monitoring via IPMI connections
- Dual cooling zone
• Multi-speed fan control support via onboard BMC
• Pulse Width Modulation (PWM) fan control

System Management

• Trusted Platform Module (TPM) support
• PECI (Platform Environment Control Interface) 2.0 support
• System resource alert via SuperDoctor® 5
• SuperDoctor 5, Watch Dog, NMI
- Chassis intrusion header and detection (Note: please connect a cable from the Chassis Intrusion header at JL1 to the chassis to receive an alert via IPMI.)

LED Indicators

• CPU/Overheating
• Fan Failure
  • System Heartbeat LED
  • BMC Heartbeat LED
  • LAN Activity
  • PCIe M.2 Slot Activity LED

Dimensions

• 11.80" (L) x 13.85" (W) (299.72 mm x 351.79 mm)

Note 1: The CPU maximum thermal design power (TDP) is subject to chassis and heatsink cooling restrictions. For proper thermal management, please check the chassis and heatsink specifications for proper CPU TDP sizing.

Note 2: For IPMI configuration instructions, please refer to the Embedded IPMI Configuration User's Guide available at http://www.supermicro.com/support/manuals/.

Note 3: It is strongly recommended that you change BMC login information upon initial system power-on. The manufacturer default username is ADMIN and the password is ADMIN. For proper BMC configuration, please refer to http://www.supermicro.com.

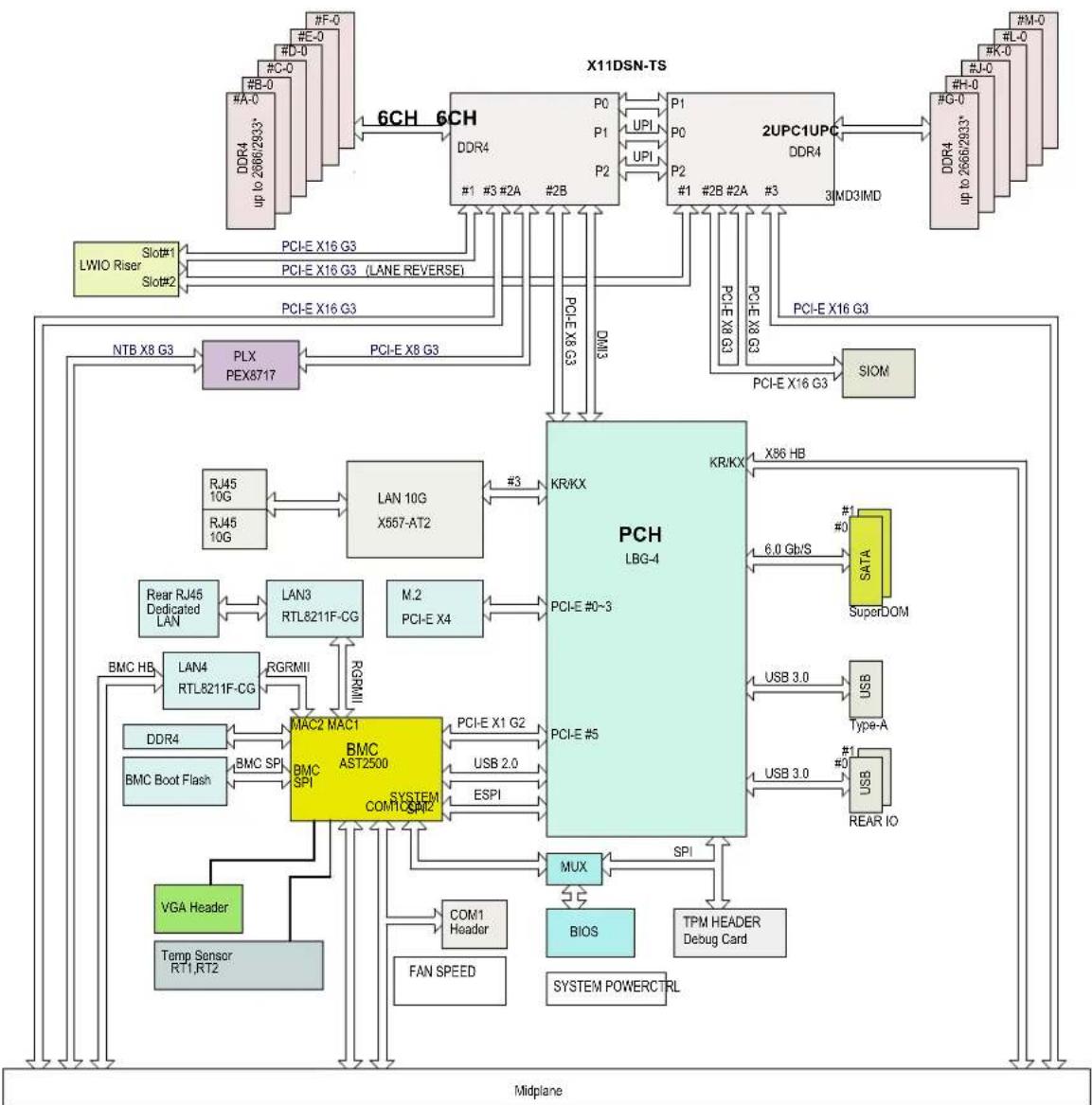

System Block Diagram for the X11DSN-TS Motherboard
    subgraph_X11DSN-TS["2UPC1UPC DDR4 3MD3IMD"]
        A["DDR4 up to 2666/2933*"] --> B["X11DSN-TS"]
        C["DDR4 up to 2666/2933*"] --> D["X11DSN-TS"]
        E["DDR4 up to 2666/2933*"] --> F["X11DSN-TS"]
    end

    subgraph_PCH_LBG-4["PCI-E #0~3"]
        G["PCH LBG-4"] --> H["X86 HB"]
        I["PCH LBG-4"] --> J["SATA SuperDOM"]
        K["PCH LBG-4"] --> L["USB Type-A"]
        M["PCH LBG-4"] --> N["USB REAR IO"]
    end

    subgraph PCH_LBG-4
        O["PCH LBG-4"] --> P["X86 HB"]
        Q["PCH LBG-4"] --> R["SATA SuperDOM"]
        S["PCH LBG-4"] --> T["USB Type-A"]
        U["PCH LBG-4"] --> V["USB REAR IO"]
    end

    subgraph PCH_LBG-4
        W["PCH LBG-4"] --> X["X86 HB"]
        Y["PCH LBG-4"] --> Z["SATA SuperDOM"]
        AA["PCH LBG-4"] --> AB["USB Type-A"]
        AC["PCH LBG-4"] --> AD["USB REAR IO"]
    end

    subgraph PCH_LBG-4
        AE["PCH LBG-4"] --> AF["X86 HB"]
        AG["PCH LBG-4"] --> AH["SATA SuperDOM"]
        AI["PCH LBG-4"] --> AJ["USB Type-A"]
        AK["PCH LBG-4"] --> AL["USB REAR IO"]
    end

    subgraph PCH_LBG-4
        AM["PCH LBG-4"] --> AN["X86 HB"]
        AO["PCH LBG-4"] --> AP["SATA SuperDOM"]
        AQ["PCH LBG-4"] --> AR["USB Type-A"]
        AS["PCH LBG-4"] --> AT["USB REAR IO"]
    end

    subgraph PCH_LBG-4
        AU["PCH LBG-4"] --> AV["X86 HB"]
        AW["PCH LBG-4"] --> AX["SATA SuperDOM"]
        AY["PCH LBG-4"] --> AZ["X86 HB"]
        BA["PCH LBG-4"] --> BB["SATA SuperDOM"]
        BC["PCH LBG-4"] --> BD["X86 HB"]
    end

    subgraph PCH_LBG-4
        BE["PCH LBG-4"] --> BF["X86 HB"]
        BG["PCH LBG-4"] --> BH["SATA SuperDOM"]
        BI["PCH LBG-4"] --> BJ["X86 HB"]
        BK["PCH LBG-4"] --> BL["SATA SuperDOM"]
        BM["PCH LBG-4"] --> BN["X86 HB"]
    end

    subgraph PCH_LBG-4
        BO["PCH LBG-4"] --> BP["X86 HB"]
        BQ["PCH LBG-4"] --> BR["SATA SuperDOM"]
        BS["PCH LBG-4"] --> BT["SATA SuperDOM"]
        BU["PCH LBG-4"] --> BV["X86 HB"]
    end

    subgraph PCH_LBG-4
        BW["PCH LBG-4"] --> BX["X86 HB"]
        BY["PCH LBG-4"] --> BYX["SATA SuperDOM"]
        BZ["PCH LBG-4"] --> CA["X86 HB"]
    end

    subgraph PCH_LBG-4
        CB["PCH LBG-4"] --> CC["X86 HB"]
        DD["PCH LBG-4"] --> DEX["SATA SuperDOM"]
        BEX["PCH LBG-4"] --> EAX["X86 HB"]
    end

    subgraph PCH_LBG-4
        BFX["PCH LBG-4"] --> BGAX["X86 HB"]
        BHX["PCH LBG-4"] --> BHXT["SATA SuperDOM"]
        BIY["PCH LBG-4"] --> BIYX["SATA SuperDOM"]
        BZY["PCH LBG-4"] --> BZYX["SATA SuperDOM"]
        CXZP["PCH LBG-4"] --> CXZPX["SATA SuperDOM"]
        ZBXP["PCH LBG-4"] --> ZBXPXX["SATA SuperDOM"]
    end

    subgraph PCH_LBG-4
        BZXP["PCH LBG-4"] --> BZXY["X86 HB"]
        BZXYP["PCH LBG-4"] --> BZXYX["SATA SuperDOM"]
        BZXYP["PCH LBG-4"] --> BZXYXX["SATA SuperDOM"]
        BZXYP["PCH LBG-4"] --> BZXYXXX["SATA SuperDOM"]
    end

    subgraph PCH_LBG-4
        BZXYP["PCH LBG-4"] --> BZXYX["PCHA AST2500 COM1000012"]
        BZXYP["PCH LBG-4"] --> BZXYXP["PCHA AST2500 COM1000012"]
        BZXYP["PCH LBG-4"] --> BZXYXQ["PCHA AST2500 COM1000012"]
        BZXYP["PCH LBG-4"] --> BZXYXR["BIOS SYSTEM POWERCTRL"]
    end

    subgraph PCH_LBG-4
        BZXYP["PCHA AST2500 COM1000012"]
        BZXYP["PCHA LBG-4"] --> BZXYXQ["BIOS SYSTEM POWERCTRL"]
        BZXYP["PCHA LBG-4"] --> BZXYXR["BIOS SYSTEM POWERCTRL"]
    end

    subgraph PCH_LBG-4
        BZXYP["PCHA AST2500 COM1000012"]
        BZXYP["PCHA LBG-4"] --> BZXYXQ["BIOS SYSTEM POWERCTRL"]
        BZXYP["PCHA LBG-4"] --> BZXYXR["BIOS SYSTEM PowerCTRL"]

    end

    subgraph PCH_LBG-4
        BZXYP["PCHA AST2500 COM1000012"]
        BZXYP["PCHA LBG-4"] --> BZXYXQ["BIOS SYSTEM PowerCTRL"]
        BZXYP["PCHA LBG-4"] --> BZXYXR["BIOS SYSTEM PowerCTRL"]

    end

    subgraph PCH_LBG-4
        BZXYP["PCHA AST2500 COM1000012"]
        BZXYP["PCHA LBG-4"] --> BZXYXQ["BIOS SYSTEM PowerCTRL"]
        BZXYP["PCHA LBG-4"] --> CUM["COM1 Header FAN SPEED"]
    end

    subgraph PCH_LBG-4
        BZXYP["PCHA AST2500 COM1000012"]
        BZXYP["PCHA LBG-4"] --> BZXYXQ["BIOS SYSTEM PowerCTRL"]

    end

    subgraph PCH_LBG-4
        BZXYP["PCHA AST2500 COM1000012"]
        BZXYP["PCHA LBG-4"] --> BZXYXQ["BIOS SYSTEM PowerCTRL"]

    end

    subgraph PCH_LBG-4
        BZXYP["PCHA AST2500 COM1000012"]
        BZXYP["PQA SPI 8.7Gbps MHz/Hz"]
    end

    subgraph PCH_LBG-4
        BZXYP["PCHA AST2500 COM1000012"]
        BZXYP["BMC Boot Flash 8.7Gbps MHz/Hz"]
    end

    subgraph PCH_LBG-4
        BZXYP["PCHA AST2500 COM1000012"]
        BZXYP["BMC Boot Flash 8.7Gbps MHz/Hz"]
    end

    subgraph PCH_LBG-4
        BZXYP["PCHA AST2500 COM1000012"]
        BzYPBPGL["PLX PEX8717"] --> NC["PCI-E X8 G3 / PCI-E X16 G3 / PCI-E X8 G3 / PCI-E X8 G3 / PCI-E X8 G3 / PCI-E X8 G3 / PCI-E X8 G3 / PCI-E X8 G3 / PCI-E X8 G3 / PCI-E X8 G3 / PCI-E X8 G3 / PCI-E X8 G3 / PCI-E X8 G3 / PCI-E X8 G3 / PCI-E X8 G3 / PCI-E X8 G3 / PCI-E X8 G6 [SIOM"]

    A -->|6CH 6CH| B
    A -->|PCI-E X8 G3| C
    A -->|PCI-E X8 G3| D
    A -->|PCI-E X8 G3| E
    A -->|PCI-E X8 G3| F
    A -->|PCI-E X8 G3| G
    A -->|PCI-E X8 G3| H
    A -->|PCI-E X8 G3| I
    A -->|PCI-E X8 G3| J
    A -->|PCI-E X8 G3| K
    A -->|PCI-E X8 G3| L
    A -->|PCI-E X8 G3| M
    A -->|PCI-E X8 G3| N
    A -->|PCI-E X8 G3| O
    A -->|PCI-E X8 G3| P
    A -->|PCI-E X8 G3| Q
    A -->|PCI-E X8 G3| R
    A -->|PCI-E X8 G3| S
    A -->|PCI-E X8 G3| T
    A -->|PCI-E X8 G3| U
    A -->|PCI-E X8 G3| V
    A -->|PCI-E X8 G3| W
    A -->|PCI-E X8 G3| X
    A -->|PCI-E X8 G3| Y
    A -->|PCI-E X8 G3| Z
    A -->|PCI-E X8 G3| AA
    A -->|PCI-E X8 G3| AB
    A -->|PCI-E X8 G3| AC
    A -->|PCI-E X8 G3| AD
    A -->|PCI-E X8 G3| AE
    A -->|PCI-E X8 G3| AF
    A -->|PCI-E X8 G3| AG
    A -->|PCI-E X8 G3| AH

*Note: Support for 2933 MHz memory is dependent on the CPU SKU

System Block Diagram for the X11DSN-TSq Motherboard
    subgraph_X11DSN-TSq["6CH"]
        A["DDR4"] -->|up to 2666/2933*| B["X11DSN-TSq"]
        C["DDR4"] -->|up to 2666/2933*| D["X11DSN-TSq"]
        E["DDR4"] -->|up to 2666/2933*| F["X11DSN-TSq"]
        G["DDR4"] -->|up to 2666/2933*| H["X11DSN-TSq"]
        I["DDR4"] -->|up to 2666/2933*| J["X11DSN-TSq"]
        K["DDR4"] -->|up to 2666/2933*| L["X11DSN-TSq"]
    end

    subgraph_PCH["PCH"]
        M["LRG-T X16 UPLINK QAT"] --> N["X11DSN-TSq"]
        O["PCI-E #0~3"] --> PCH
        P["PCI-E #5"] --> PCH
        Q["PCI-E X8 G3"] --> PCH
        R["KR/KX"] --> PCH
        S["SIOM"] --> PCH
        T["RJ45 10G"] --> U["LAN 10G X567-AT2"]
        V["RJ45 10G"] --> U
        W["Rear RJ45 Dedicated LAN"] --> X["LAN3 RTL8211F-CG"]
        Y["BMC HB"] --> Z["LAN4 RTL8211F-CG"]
        AA["BMC Boot Flash"] --> AB["M.2 PCI-E X4"]
        AC["BMC AST2500"] --> AD["M.2 PCI-E X4"]
        AE["VGA Header"] --> AF["MAC2 MAC1"]
        AG["Temp Sensor RT1,RT2"] --> AH["COM1 Header"]
        AI["FAN SPEED"] --> AJ["SYSTEM POWERCTRL"]
        AK["MUX"] --> AL["MUX"]
        AM["BIOS"] --> AN["TPM HEADER Debug Card"]
        AO["TPM HEADER Debug Card"] --> AP["USB 3.0"]
        AQ["USB 3.0"] --> AR["USB REAR IO"]
    end

    subgraph Midplane
        AS["X86 HB"] --> AT["SATA SuperDOM"]
        AU["6.0 Gb/S"] --> AV["#0"]
        AW["USB 3.0"] --> AX["Type-A"]
        AY["USB 3.0"] --> AZ["#0"]
    end
    subgraph Control
        BA["X11DSN-TSq"]
        BB["DDR4"] --> BC["DDR4"]
        BD["DDR4"] --> BE["DDR4"]
        BF["DDR4"] --> BG["DDR4"]
        BH["DDR4"] --> BI["DDR4"]
    end

    subgraph External
        BJ["X11DSN-TSq"]
        BK["DDR4"] --> BL["X11DSN-TSq"]
        BM["DDR4"] --> BN["X11DSN-TSq"]
        BO["DDR4"] --> BP["X11DSN-TSq"]
    end

    subgraph Internal
        BQ["X11DSN-TSq"]
        BR["X11DSN-TSq"]
    end

    subgraph External
        BS["X11DSN-TSq"]
        BT["X11DSN-TSq"]
    end

    subgraph Control
        BU["X11DSN-TSq"]
        BV["X11DSN-TSq"]
        BW["X11DSN-TSq"]
    end

    subgraph External
        BX["X11DSN-TSq"]
        BY["X11DSN-TSq"]
    end

    subgraph Internal
        BZ["X11DSN-TSq"]
        CA["X11DSN-TSq"]
    end

    subgraph External
        CB["X11DSN-TSq"]
        CC["X11DSN-TSq"]
    end

    subgraph Control
        CD["X11DSN-TSq"]
        CE["X11DSN-TSq"]
    end

    subgraph External
        CF["X11DSN-TSq"]
        CG["X11DSN-TSq"]
    end

    subgraph Internal
        CH["X11DSN-TSq"]
        CI["X11DSN-TSq"]
    end

    subgraph External
        DD["X11DSN-TSq"]
        DE["X11DSN-TSq"]
    end

    subgraph Internal
        EF["X11DSN-TSq"]
        GF["X11DSN-TSq"]
    end

    subgraph External
        GH["X11DSN-TSq"]
        ID["X11DSN-TSq"]
    end

    subgraph Control
        I["X86 HB"]
        J["SATA SuperDOM"]
    end

    subgraph External
        KX["X86 HB"]
        LA["SATA SuperDOM"]
    end

    subgraph Internal
        AM["X86 HB"]
        AN["SATA SuperDOM"]
    end

    subgraph External
        AO["X86 HB"]
        AP["SATA SuperDOM"]
    end

    subgraph Internal
        AQ["X86 HB"]
        AR["SATA SuperDOM"]
    end

    subgraph External
        AS["X86 HB"]
        AT["SATA SuperDOM"]
    end

    subgraph Internal
        AU["X86 HB"]
        AV["SATA SuperDOM"]
    end

    subgraph External
        AW["X86 HB"]
        AX["SATA SuperDOM"]
    end

    subgraph Internal
        AY["X86 HB"]
        AZ["SATA SuperDOM"]
    end

    subgraph External
        BA["X86 HB"]
        BB["SATA SuperDOM"]
    end

    subgraph Internal
        BC["X86 HB"]
        DA["SATA SuperDOM"]
    end

    subgraph External
        AE["X86 HB"]
        AF["SATA SuperDOM"]
    end

    subgraph Internal
        AG["X86 HB"]
        AH["SATA SuperDOM"]
    end

    subgraph External
        AI["X86 HB"]
        AJ["SATA SuperDOM"]
    end

    subgraph Internal
        AK["X86 HB"]
        AL["SATA SuperDOM"]
    end

    subgraph External
        AM["X86 HB"]
        AM["SATA SuperDOM"]
    end

    subgraph Internal
        ANX["X86 HB"]
        ANX["SATA SuperDOM"]
    end

    subgraph External
        AOX["X86 HB"]
        AOX["SATA SuperDOM"]
    end

    subgraph Internal
        AP["X86 HB"]
        AP["SATA SuperDOM"]
    end

    subgraph External
        AQX["X86 HB"]
        AQX["SATA SuperDOM"]
    end

    subgraph Internal
        ARX["X86 HB"]
        ARX["SATA SuperDOM"]
    end

    subgraph External
        ASX["X86 HB"]
        ASX["SATA SuperDOM"]
    end

    subgraph Internal
        AZX["X86 HB"]
        AZX["SATA SuperDOM"]
    end

    subgraph External
        BAIX["X86 HB"]
        BAIX["SATA SuperDOM"]
    end

    subgraph Internal
        BBAX["X86 HB"]
        BBAX["SATA SuperDOM"]
    end

    subgraph External
        BAXX["X86 HB"]
        BAXX["SATA SuperDOM"]
    end

    subgraph Internal
        CAIX["X86 HB"]
        CAIX["SATA SuperDOM"]
    end

    subgraph External
        DBX["X86 HB"]
        DBX["SATA SuperDOM"]
    end

    subgraph Internal
        DCX["X86 HB"]
        DCX["SATA SuperDOM"]
    end

    subgraph External
        EDX["X86 HB"]
        EDX["SATA SuperDOM"]
    end

    subgraph Internal
        EAX["X86 HB"]
        EAX["SATA SuperDOM"]
    end

    subgraph External
        AFAX["X86 HB"]
        AFAX["SATA SuperDOM"]
    end

    subgraph Internal
        AGAX["X86 HB"]
        AGAX["SATA SuperDOM"]
    end

    subgraph External
        AHAX["X86 HB"]
        AHAX["SATA SuperDOM"]
    end

    subgraph Internal
        AIAX["X86 HB"]
        AIAX["SATA SuperDOM"]
    end

    subgraph External
        AJAX["X86 HB"]
        AJAX["SATA SuperDOM"]
    end

    subgraph Internal
        AKAX["X86 HB"]
        AKAX["SATA SuperDOM"]
    end

    subgraph External
        ALAX["X86 HB"]
        ALAX["SATA SuperDOM"]
    end

    subgraph Internal
        AMAX["X86 HB"]
        AMAX["SATA SuperDOM"]
    end

    subgraph External
        ANAX["X86 HB"]
        ANAX["SATA SuperDOM"]
    end

    subgraph Internal
        AOAX["X86 HB"]
        AOAX["SATA SuperDOM"]
    end

    subgraph External
        APAX["X86 HB"]
        APAX["SATA SuperDOM"]
    end

    subgraph Internal
        AQAX["X86 HB"]
        AQAX["SATA SuperDOM"]
    end

    subgraph External
        ARAX["X86 HB"]
        ARAX["SATA SuperDOM"]

    subgraph Internal
        ASAX["X86 HB"]
        ASAX["SATA SuperDOM"]
    end

    subgraph External
        ATAX["X86 HB"]

    subgraph Internal
        AUAX["X86 HB"]

    subgraph External
        AVAX["X86 HB"]

    subgraph Internal
        AWAX["X86 HB"]

    subgraph External
        AXAX["X86 HB"]

    subgraph Internal
        AYAX["X86 HB"]

    subgraph External
        AZAX["X86 HB"]

    subgraph Internal
        BAIX["X86 HB"]

    subgraph External
        BBAX["X86 HB"]

    subgraph Internal
        ACAX["X86 HB"]

    subgraph External
        ADAX["X86 HB"]

    subgraph Internal
        AEAX["X86 HB"]

    subgraph External
        AFAX["X86 HB"]

    subgraph Internal
        AGAX["X86 HB"]

    subgraph External
        AHAX["X86 HB"]

    subgraph Internal
        AIAX["X86 HB"]

    subgraph External
        AJAX["X86 HB"]

    subgraph Internal
        AKAX["X86 HB"]

    subgraph External
        ALAX["X86 HB"]

    subgraph Internal
        ANAX["X86 HB"]

    subgraph External
        AOAX["X86 HB"]

    subgraph Internal
        APAX["X86 HB"]

    subgraph External
        AQAX["X86 HB"]

    subgraph Internal
        ARAX["X86 HB"]

    subgraph External
        ASAX["X86 HB"]

    subgraph Internal
        ATAX["X86 HB"]

    subgraph External
        AUAX["X86 HB"]

    subgraph Internal
        AVAX["X86 HB"]

    subgraph External
        AWAX["X86 HB"]

    subgraph Internal
        AXAX["X86 HB"]

    subgraph External
        AZAX["X86 HB"]

    subgraph Internal
        AYAX["X86 HB"]

    subgraph External
        AOAX["X86 HB"]

    subgraph Internal
        APAX["X86 HB"]

    subgraph External
        AQAX["X86 HB"]

    subgraph Internal
        ARAX["X86 HB"]

    subgraph External
        ASAX["X86 HB"]

    subgraph Internal
        ATAX["SATE PRODIC)"]

    end

    style X fill:#f9f,stroke:#333,stroke-width:2px,stroke-dasharray: 5 5

*Note: Support for 2933 MHz memory is dependent on the CPU SKU.

Notes: 1. This is a general block diagram and may not exactly represent the features on your motherboard. See the previous pages for the actual specifications of your motherboard. 2. Intel QuickAssist Technology (QAT) is available on the X11DSN-TSq.

1.2 Processor and Chipset Overview

Built upon the functionality and capability of Intel Xeon Scalable-SP and 2nd Gen Intel Xeon Scalable-SP processors (Socket P) with support of C624/C627 chipset (Note 1 below), this motherboard provides superb system performance, efficient power management, and a rich feature set based on cutting edge technology to address the needs of next-generation computer users. With support of Intel® UltraPath Interconnect (UPI) of up to 11.2 GT/s, Intel® AVX-512 new instructions, and Intel® Quick Assist Technology (QAT) (Note below), this motherboard offers an innovative solution with maximum system performance to meet the ongoing demands of High Performance Computing (HPC) systems and is ideal for use in NVMe SBB solutions, database applications, and virtualization platforms.

Features Supported by Intel Xeon Scalable-SP Processors

Intel Xeon Scalable-SP processors support the following features:

• Intel AVX-512 instruction support to handle complex workloads
• 1.5x memory bandwidth increased to 6 channels
- Rich set of available IOs with increased PCIe lanes (48 lanes)
- Integrated Intel Ethernet Connection X722 with iWARP RDMA

• Hot plug and enclosure management with Intel Volume Management Device (Intel VMD)

New features supported by 2nd Gen Intel Xeon Scalable-SP Processors

2nd Gen Intel Xeon Scalable-SP processors support the following features:

• Higher performance for a wider range of workloads with per-core performance increase
• Support of Intel Optane DC Persistent Memory Module (DCPMM) with affordable, persistent, and large capacity (see Section 1.9 for details)
  • Up to 2993 MHz memory supported
• Vector Neural Network Instruction (VNNI) support for Accelerate Deep Learning & Artificial Intelligence (AI) workloads
• Speed Select Technology provides multiple CPU profiles that can be set in the BIOS. (This feature is available on select CPU SKUs).

- Seamless hardware security mitigations & performance/frequency flexibility

Note 1: Intel QuickAssist Technology is available on the X11DSN-TSq only. Please refer to Section 1.8 for more information on the Intel® QuickAssist Technology (QAT).

Note 2: DCPMM and 2933 MHz memory are supported by 2nd Gen Intel Xeon Scalable-SP processors only.

1.3 Special Features

This section describes the health monitoring features of the motherboard. The motherboard has an onboard ASPEED 2500 Baseboard Management Controller (BMC) that supports system health monitoring.

Recovery from AC Power Loss

The Basic I/O System (BIOS) provides a setting that determines how the system will respond when AC power is lost and then restored to the system. You can choose for the system to remain powered off (in which case you must press the power switch to turn it back on), or for it to automatically return to the power-on state. See the Advanced BIOS Setup section for this setting. The default setting is Last State.

1.4 System Health Monitoring

This section describes the health monitoring features of the motherboard. The motherboard has an onboard Baseboard Management Controller (BMC) chip (AST2500) that supports system health monitoring.

Onboard Voltage Monitoring

The onboard voltage monitor will continuously scan crucial voltage levels. Once a voltage becomes unstable, it will give a warning or send an error message to the IPMI WebGUI and IPMIView. Real time readings of these voltage levels are all displayed in IPMI.

Fan Status Monitor with Firmware Control

The system health monitor embedded in the BMC chip (AST2500) can check the RPM status of the cooling fans. The CPU and chassis fan speeds are controlled thermal management via IPMI.

Environmental Temperature Control

System Health sensors in the BMC monitor the temperatures and voltage settings of onboard processors and the system in real time via the IPMI interface. Whenever the temperature of the CPU or the system exceeds a pre-defined or a manufacturer-defined threshold, system/CPU cooling fans will be turned on to prevent the CPU or the system from overheating.

Note: To avoid possible system overheating, please be sure to provide adequate airflow to your system.

System Resource Alert

This feature is available when used with SuperDoctor 5 ^® . SuperDoctor 5 is used to notify the user of certain system events. For example, you can configure SuperDoctor 5 to provide you with warnings when the system temperature, CPU temperatures, voltages and fan speeds go beyond a predefined range.

1.5 ACPI Features

ACPI stands for Advanced Configuration and Power Interface. The ACPI specification defines a flexible and abstract hardware interface that provides a standard way to integrate power management features throughout a computer system including its hardware, operating system and application software. This enables the system to automatically turn on and off peripherals such as network cards, hard disk drives and printers.

In addition to enabling operating system-directed power management, ACPI also provides a generic system event mechanism for Plug and Play and an operating system-independent interface for configuration control. ACPI leverages the Plug and Play BIOS data structures while providing a processor architecture-independent implementation that is compatible with the appropriate Windows operating systems. For detailed information on OS support, please refer to our website at www.supermicro.com.

1.6 Power Supply

As with all computer products, a stable power source is necessary for proper and reliable operation. It is even more important for processors that have high CPU clock rates and in areas where noisy power transmission is present.

1.7 Advanced Power Management

The following new advanced power management features are supported by the motherboard.

Intel® Intelligent Power Node Manager (IPNM)

Intel's Intelligent Power Node Manager (IPNM) provides your system with real-time thermal control and power management for maximum energy efficiency. Although IPNM Specification Version 2.0/3.0 is supported by the BMC (Baseboard Management Controller), your system must also have IPNM-compatible Management Engine (ME) firmware installed to use this feature.

Note: Support for IPNM 2.0/3.0 support is dependent on the power supply used in the system.

Management Engine (ME)

The Management Engine, which is an ARC controller embedded in the IOH (I/O Hub), provides Server Platform Services (SPS) to your system. The services provided by SPS are different from those provided by the ME on client platforms.

1.8 Intel® QuickAssist Technology (Available on the X11DSN-TSq only)

Built upon the architecture of Intel Xeon Scalable-SP processors and PCH627 chipset, the X11DSN-TSq supports Intel® QuickAssist Technology (Intel QAT), which offers high-profile security and compression acceleration to standard server platforms in a software-defined infrastructure.

By eliminating unneeded roadblocks, Intel QAT accelerates computation-intensive operations; provides software-enabled foundation for security, authentication and compression; and significantly increases the performance and efficiency across applications and platforms, including cryptography, symmetric encryption and authentication, asymmetric encryption, digital signature, pattern matching, and lossless data compression.

With Intel QuickAssist Technology built in, the X11DSN-TSq is optimized for the use and deployment of integrated accelerators in networking and security applications, and efficiently meets the complex demands of High-Performance Computing (HPC), Virtualization, storage, and big data platforms.

1.9 Intel® Optane DC Persistent Memory

2nd Gen Intel Xeon Scalable-SP processors support new DCPMM (Optane™ DC Persistent Memory Modules) technology that offers data persistence with higher capacity than existing memory modules and lower latency than NVMe SSDs. DCPMM memory provides hyper-speed storage capability for high performance computing platforms with flexible configuration options.

Chapter 2

Installation

2.1 Static-Sensitive Devices

Electrostatic Discharge (ESD) can damage electronic components. To avoid damaging your motherboard and your system, it is important to handle it very carefully. The following measures are generally sufficient to protect your equipment from ESD.

Precautions

• Use a grounded wrist strap designed to prevent static discharge.
• Touch a grounded metal object before removing the board from the antistatic bag.
• Handle the board by its edges only; do not touch its components, peripheral chips, memory modules or gold contacts.
• When handling chips or modules, avoid touching their pins.
• Put the motherboard and peripherals back into their antistatic bags when not in use.
• For grounding purposes, make sure that your chassis provides excellent conductivity between the power supply, the case, the mounting fasteners and the motherboard.
• Use only the correct type of CMOS onboard battery as specified by the manufacturer. Do not install the CMOS battery upside down, which may result in a possible explosion.

Unpacking

The motherboard is shipped in antistatic packaging to avoid static damage. When unpacking the motherboard, make sure that the person handling it is static protected.

2.2 Motherboard Installation

All motherboards have standard mounting holes to fit different types of chassis. Make sure that the locations of all the mounting holes for both the motherboard and the chassis match. Although a chassis may have both plastic and metal mounting fasteners, metal ones are highly recommended because they ground the motherboard to the chassis. Make sure that the metal standoffs click in or are screwed in tightly.

Phillips Screwdriver (1)

Phillips Screws (13)

Standoffs (13) if needed

Tools Needed

Location of Mounting Holes

Notes: 1. To avoid damaging the motherboard and its components, please do not use a force greater than 8 lb/inch on each mounting screw during motherboard installation. 2. Some components are very close to the mounting holes. Please take precautionary measures to avoid damaging these components when installing the motherboard to the chassis.

Installing the Motherboard

Follow the instructions below to install the motherboard into your system.

1. Locate the mounting holes on the motherboard. See the previous page for additional information.

SUPER X109NTS FECE SAP 2000 PREF PREF PREF

1. Locate the matching mounting holes on the chassis. Align the mounting holes on the motherboard against the mounting holes on the chassis.

Chassis Chassis Motherboard Chassis Motherboard Chassis

1. Install standoffs in the chassis as needed.

2. Install the motherboard into the chassis carefully to avoid damaging other motherboard components.

3. Using the Phillips screwdriver, insert a Phillips head #6 screw into a mounting hole on the motherboard and its matching mounting hole on the chassis.

4. Repeat Step 5 to insert #6 screws into all mounting holes.

5. Make sure that the motherboard is securely placed in the chassis.

Note: Images displayed in this manual are for illustration only. Your chassis or components might look different from those shown in this manual.

2.3 Processor and Heatsink Installation

Warning: When handling the processor package, avoid placing direct pressure on the label area of the CPU or CPU socket. Also, improper CPU installation or socket misalignment can cause serious damage to the CPU or motherboard which may result in RMA repairs. Please read and follow all instructions thoroughly before installing your CPU and heatsink.

Notes:

• Always connect the power cord last, and always remove it before adding, removing, or changing any hardware components. Please note that the processor and heatsink should be assembled together first to form the Processor Heatsink Module (PHM), and then install the entire PHM into the CPU socket.
• When you receive a motherboard without a processor pre-installed, make sure that the plastic CPU socket cap is in place and that none of the socket pins are bent; otherwise, contact your retailer immediately.
  • Refer to the Supermicro website for updates on CPU support.
• Please follow the instructions given in the ESD Warning section on the first page of this chapter before handling, installing, or removing system components.

Intel Xeon Scalable-SP or 2nd Gen Intel Xeon Scalable-SP Processors

Note: Intel Xeon Scalable-SP or 2nd Gen Intel Xeon Scalable-SP processors contain two models-the F model processors and the Non-F model processors. However, this motherboard only supports the Non-F model processors.

Technical line drawing of a rectangular electronic component with mounting holes and internal structure (no text or symbols)

Intel Processor (Non-F Model)

Note: All graphics, drawings, and pictures shown in this manual are for illustration only. The components that came with your machine may or may not look exactly the same as those shown in this manual.

Overview of the Processor Socket Assembly

The processor socket assembly contains 1) Intel Xeon Scalable-SP or 2nd Gen Intel Xeon Scalable-SP processor, 2) the narrow processor clip, 3) the dust cover, and 4) the CPU socket.

1. Intel Processor

Technical line drawing of a rectangular electronic component or enclosure (no text or symbols)

1. Narrow processor clip (the plastic processor package carrier used for the CPU)

Technical line drawing of a mechanical bracket or frame structure (no text or symbols)

1. Dust Cover

Line drawing of a microprocessor base with mounting holes and a central chip (no text or symbols)

1. CPU Socket

Technical line drawing of a mechanical housing component with mounting holes and internal mesh structure (no text or symbols)

Note: Be sure to cover the CPU socket with the dust cover when the CPU is not installed.

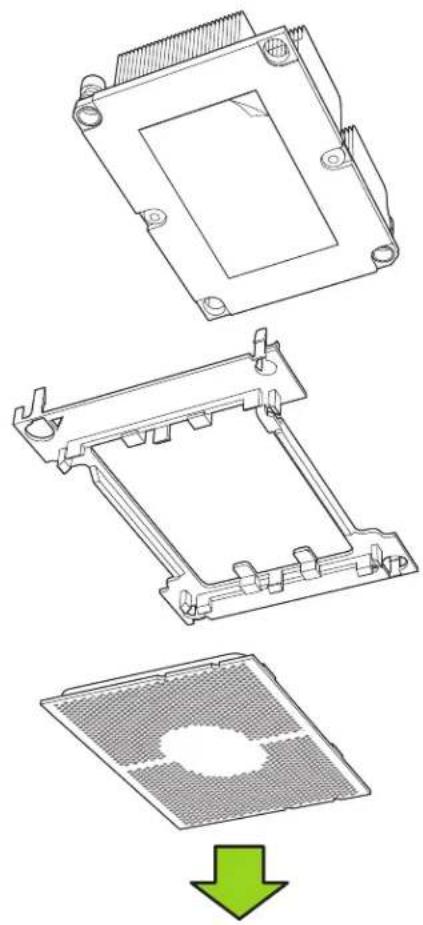

Overview of the Processor Heatsink Module (PHM)

The Processor Heatsink Module (PHM) contains 1) a heatsink, 2) a narrow processor clip, and 3) Intel Xeon Scalable-SP or 2nd Gen Intel Xeon Scalable-SP processor.

1. Heatsink

2. Narrow processor clip

3. Intel Processor

Processor Heatsink Module (PHM)

Technical line drawings of a mechanical component with a green downward arrow indicating a reduction or disassembly (no text or symbols present)

Technical line drawing of a computer processor housing (no text or symbols)

Attaching the Processor to the Narrow Processor Clip to Create the Processor Package Assembly

To properly install the CPU into the narrow processor clip, please follow the steps below.

1. Locate pin 1 (notch A), which is the triangle located on the top of the narrow processor clip. Also locate notch B and notch C on the processor clip.

2. Locate pin 1 (notch A), which is the triangle on the substrate of the CPU. Also, locate notch B and notch C on the CPU as shown below.

3. Align pin 1 (the triangle on the substrate) of the CPU with pin 1 (the triangle) of the narrow processor clip. Once they are aligned, carefully insert the CPU into the processor clip by sliding notch B of the CPU into notch B of the processor clip, and sliding notch C of the CPU into notch C of the processor clip.

4. Examine all corners of the CPU to ensure that it is properly seated on the processor clip. Once the CPU is securely attached to the processor clip, the processor package assembly is created.

Note: Please exercise extreme caution when handling the CPU. Do not touch the CPU LGA-lands to avoid damaging the LGA-lands or the CPU. Be sure to wear ESD gloves when handling components.

Allow Notch B to latch on to CPU Allow Notch C to latch on to CPU

Processor Package Carrier (w/CPU mounted on the Processor Clip)

Attaching the Processor Package Assembly to the Heatsink to Form the Processor Heatsink Module (PHM)

After you have made a processor package assembly by following the instructions on the previous page, please follow the steps below to mount the processor package assembly onto the heatsink to create the Processor Heatsink Module (PHM).

1. Locate "1" on the heatsink label and the triangular corner next to it on the heatsink. With your index finger pressing against the screw at this triangular corner, carefully hold and turn the heatsink upside down with the thermal-grease side facing up. Remove the protective thermal film if present, and apply the proper amount of the thermal grease as needed. (Skip this step if you have a new heatsink because the necessary thermal grease is pre-applied in the factory.)

2. Holding the processor package assembly at the center edge, turn it upside down. With the thermal-grease side facing up, locate the hollow triangle located at the corner of the processor carrier assembly ("a" in the graphic). Note a larger hole and plastic mounting clicks located next to the hollow triangle. Also locate another set of mounting clicks and a larger hole at the diagonal corner of the same (reverse) side of the processor carrier assembly ("b" in the graphic). Non-Fabric CPU and Processor Clip

3. With the back of heatsink and the reverse side of the processor package assembly facing up, align the triangular corner on the heatsink ("A" in the graphic) against the mounting clips next to the hollow triangle ("a") on the processor package assembly.

4. Also align the triangular corner ("B") at the diagonal side of the heatsink with the corresponding clips on the processor package assembly ("b").

5. Once the mounting clips on the processor package assembly are properly aligned with the corresponding holes on the back of heatsink, securely attach the heatsink to the processor package assembly by snapping the mounting clips at the proper places on the heatsink to create the processor heatsink module (PHM).

Non-Fabric CPU and Processor Clip ( Upside Down ) Triangle on the CPU Triangle on the Processor Clip Heatsink ( Upside Down ) On Locations of (C, D), the notches snap onto the heat sink's mounting holes On Locations (A, B), the notches snap onto the heatsink's sides Make sure Mounting Notches snap into place

Preparing the CPU Socket for Installation

This motherboard comes with the CPU socket pre-assembled in the factory. The CPU socket contains 1) a dust cover, 2) a socket bracket, 3) the CPU (P socket), and 4) a back plate. These components are pre-installed on the motherboard before shipping.

Technical line drawing of a computer processor casing with mounting hardware (no text or symbols)

CPU Socket w/Dust Cover On

Removing the Dust Cover from the CPU Socket

Remove the dust cover from the CPU socket, exposing the CPU socket and socket pins as shown on the illustration below.

Note: Do not touch the socket pins to avoid damaging them, causing the CPU to malfunction.

Dusk Cover Remove the dust cover from the CPU socket. Do not touch the socket pins! Socket Pins CPU Socket

Installing the Processor Heatsink Module (PHM)

1. Once you have assembled the processor heatsink module (PHM) by following the instructions listed on page 28 or page 29, you are ready to install the processor heatsink module (PHM) into the CPU socket on the motherboard. To install the PHM into the CPU socket, follow the instructions below.
2. Locate the triangle (pin 1) on the CPU socket, and locate the triangle (pin 1) at the corner of the PHM that is closest to "1." (If you have difficulty locating pin 1 of the PHM, turn the PHM upside down. With the LGA-lands side facing up, you will note the hollow triangle located next to a screw at the corner. Turn the PHM right side up, and you will see a triangle marked on the processor clip at the same corner of hollow triangle.)
3. Carefully align pin 1 (the triangle) on the the PHM against pin 1 (the triangle) on the CPU socket.
4. Once they are properly aligned, insert the two diagonal oval holes on the heatsink into the guiding posts.
5. Using a T30 Torx-bit screwdriver, install four screws into the mounting holes on the socket to securely attach the PHM onto the motherboard starting with the screw marked "1" (in the sequence of 1, 2, 3, and 4).

Note: Do not use excessive force when tightening the screws to avoid damaging the LGA-lands and the processor.

Oval C Oval D Large Guiding Post Small Guiding Post Printed Triangle Mounting the Processor Heatsink Module into the CPU socket (on the motherboard) T30 Torx Driver Use a torque of 12 lbf·in #1 #2 #3 Tighten the screws in the sequence of 1, 2, 3, 4 (top 3 quarter view)

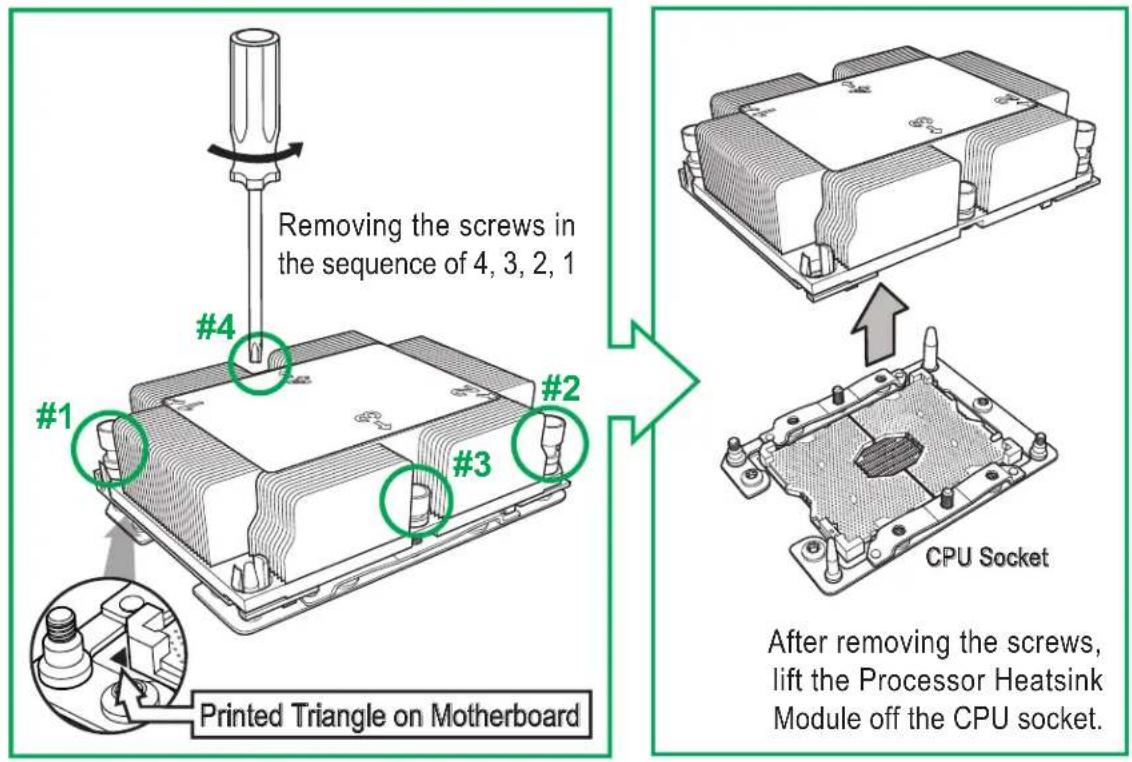

Removing the Processor Heatsink Module (PHM) from the Motherboard

Before removing the processor heatsink module (PHM), unplug power cord from the power outlet.

1. Using a T30 Torx-bit screwdriver, turn the screws on the PHM counterclockwise to loosen them from the socket, starting with screw marked #4 (in the sequence of 4, 3, 2, 1).

2. After all four screws are removed, wiggle the PHM gently and pull it up to remove it from the socket.

Note: To properly remove the processor heatsink module, be sure to loosen and remove the screws on the PHM in the sequence of 4, 3, 2, 1 as shown below.

Removing the screws in the sequence of 4, 3, 2, 1 #1 #2 #3 Printed Triangle on Motherboard CPU Socket After removing the screws, lift the Processor Heatsink Module off the CPU socket.

2.4 Memory Support and Installation

Notes: Check the Supermicro website for recommended memory modules. Exercise extreme care when installing or removing DIMM modules to prevent any damage.

Memory Support

The motherboard supports up to 3TB of 3DS Load Reduced DIMM (3DS LRDIMM), Load Reduced DIMM (LRDIMM), 3DS Registered DIMM (3DS RDIMM), Registered DIMM (RDIMM) DDR4 (288-pin) ECC 2933*/2666/2400/2133 MHz memory modules in 12 slots (*Note1 below). This motherboard also supports up to 4TB memory with DCPMM modules installed based on the "DCPMM Memory Population Table for 2nd Gen Intel Xeon Scalable-SP Processors" on page 37.

Notes: *1. Support for 2933 MHz memory is dependent on the CPU SKU. 2. 16Gb-based memory modules are supported by 2nd Gen Intel Xeon Scalable-SP processors only.

General Memory Population Requirements

1. Be sure to use the memory modules of the same type and speed on the motherboard Mixing of memory modules of different types and speeds is not allowed.
2. Using unbalanced memory topology such as populating two DIMMs in one channel while populating one DIMM in another channel on the same motherboard will result in reduced memory performance.
3. Populating memory slots with a pair of DIMM modules of the same type and size will result in interleaved memory, which will improve memory performance.

DDR4 Memory Support for Intel Xeon Scalable-SP Processors

DDR4 Memory Support
Type	Ranks Per DIMM & Data Width	DIMM Capacity (GB)		Speed (MT/s); Voltage (V); Slots Per Channel (SPC) and DIMMs Per Channel (DPC)
				1 Slot Per Channel	2 Slots Per Channel
		DRAM Density		1DPC (1-DIMM Per Channel)	1DPC (1-DIMM Per Channel)	2DPC (2-DIMM Per Channel)
		4Gb	8Gb	1.2 V	1.2 V	1.2 V
RDIMM	SRx4	4GB	8GB	2666	2666	2666
RDIMM	SRx8	8GB	16GB	2666	2666	2666
RDIMM	DRx8	8GB	16GB	2666	2666	2666
RDIMM	DRx4	16GB	32GB	2666	2666	2666
RDIMM 3Ds	QRX4	N/A	2H-64GB	2666	2666	2666
RDIMM 3Ds	8RX4	N/A	4H-128GB	2666	2666	2666
LRDIMM	QRx4	32GB	64GB	2666	2666	2666
LRDIMM 3Ds	QRX4	N/A	2H-64GB	2666	2666	2666
LRDIMM 3Ds	8Rx4	N/A	4H-128GB	2666	2666	2666

DDR4 Memory Support for 2nd Gen Intel Xeon Scalable-SP Processors

DDR4 Memory Support
Type	Ranks Per DIMM & Data Width	DIMM Capacity (GB)			Speed (MT/s); Voltage (V); Slots Per Channel (SPC) and DIMMs Per Channel (DPC)
					1 Slot Per Channel 2 Slots Per Channel
		DRAM Density			1DPC (1-DIMM Per Channel)	1DPC (1-DIMM Per Channel)	2DPC (2-DIMM Per Channel)
		4Gb 8Gb	16Gb 1.2 V	1.2 V
RDIMM SRx4	4GB 8GB 16GB 2933	2933	2933
RDIMM SRx8	8GB 16GB 32GB 2933	2933	2933
RDIMM DRx8	8GB 16GB 32GB 2933	2933	2933
RDIMM DRx4	16GB 32GB 64GB 2933	2933	2933
RDIMM 3Ds	QRX4	N/A	2H-64GB	2H-128GB	2933	2933	2933
RDIMM 3Ds	8RX4	N/A	4H-128GB	4H-256GB	2933	2933	2933
LRDIMM	QRx4	32GB	64GB	128GB	2933	2933	2933
LRDIMM 3Ds	QRX4	N/A	2H-64GB	2H-128GB	2933	2933	2933
LRDIMM 3Ds	8Rx4	N/A	4H-128GB	4H-256GB	2933	2933	2933

Note: 1. Support for 2933 MHz memory is dependent on the CPU SKU. 2. 16Gb-based memory modules are supported by 2nd Gen Intel Xeon Scalable-SP processors only

DIMM Population Guidelines for Optimal Performance

For optimal memory performance, follow the instructions listed in the tables below when populating memory modules.

Key Parameters for DIMM Configuration

Key Parameters for DIMM Configurations
Parameters Possible Values
Number of Channels 1, 2, 3, 4, 5, or 6
Number of DIMMs per Channel 1DPC (1 DIMM Per Channel) or 2DPC (2 DIMMs Per Channel)
DIMM Type RDIMM (w/ECC), 3DS RDIMM, LRDIMM, 3DS LRDIMM
DIMM Construction non-3DS RDIMM Raw Cards: A/B (2Rx4), C (1Rx4), D (1Rx8), E (2Rx8)3DS RDIMM Raw Cards: A/B (4Rx4)non-3DS LRDIMM Raw Cards: D/E (4Rx4)3DS LRDIMM Raw Cards: A/B (8Rx4)

DIMM Mixing Guidelines

General DIMM Mixing Guidelines

DIMM Mixing Rules

All DIMMs must be all DDR4 DIMMs.x4 and x8 DIMMs can be mixed in the same channel.Mixing of LRDIMMs and RDIMMs is not allowed in the same channel, across different channels, and across different sockets.Mixing of non-3DS and 3DS LRDIMM is not allowed in the same channel, across different channels, and across different sockets.

Mixing of DIMM Types within a Channel
DIMM Types RDIMM LRDIMM 3DS LRDIMM
RDIMM Allowed Not Allowed Not Allowed
LRDIMM	Not Allowed Allowed Not Allowed
3DS LRDIMM	Not Allowed	Not Allowed	Allowed

DIMM Population Table

Notes: Unbalanced memory configuration decreases memory performance and is not recommended for Supermicro motherboards.

Memory Population Table for the Motherboards using Intel Xeon Scalable-SP and 2nd Gen Intel Xeon Scalable-SP Processors

Memory Population Tables for X11DP Motherboards w/12 DIMM Slots
When 1 CPU is used: Memory Population Sequence
1 CPU & 1 DIMM CPU1: P1-DIMMA1
1 CPU & 2 DIMMs CPU1: P1-DIMMA1/P1-DIMMD1
1 CPU & 3 DIMMs CPU1: P1-DIMMC1/P1-DIMMB1/P1-DIMMA1
1 CPU & 4 DIMMs CPU1: P1-DIMMB1/P1-DIMMA1/P1-DIMMD1/P1-DIMME1
1 CPU & 5 DIMMs(Unbalanced: not recommended)	CPU1: P1-DIMMC1/P1-DIMMB1/P1-DIMMA1/P1-DIMMD1/P1-DIMME1
1 CPU & 6 DIMM CPU1: P1-DIMMC1/P1-DIMMB1/P1-DIMMA1/P1-DIMMD1/P1-DIMME1/P1-DIMMF1
When 2 CPUs are used: Memory Population Sequence
2 CPUs & 2 DIMMs	CPU1: P1-DIMMA1CPU2: P2-DIMMA1
2 CPUs & 4 DIMMs	CPU1: P1-DIMMA1/P1-DIMMD1CPU2: P2-DIMMA1/P2-DIMMD1
2 CPUs & 6 DIMMs	CPU1: P1-DIMMC1/P1-DIMMB1/P1-DIMMA1CPU2: P2-DIMMC1/P2-DIMMB1/P2-DIMMA1
2 CPUs & 8 DIMMs	CPU1: P1-DIMMB1/P1-DIMMA1/P1-DIMMD1/P1-DIMME1CPU2: P2-DIMMB1/P2-DIMMA1/P2-DIMMD1/P2-DIMME1
2 CPUs & 10 DIMMs	CPU1: P1-DIMMC1/P1-DIMMB1/P1-DIMMA1/P1-DIMMD1/P1-DIMME1/P1-DIMMF1CPU2: P2-DIMMB1/P2-DIMMA1/P2-DIMMD1/P2-DIMME1
2 CPUs & 12 DIMMs	CPU1: P1-DIMMC1/P1-DIMMB1/P1-DIMMA1/P1-DIMMD1/P1-DIMME1/P1-DIMMF1CPU2: P2-DIMMC1/P2-DIMMB1/P2-DIMMA1/P2-DIMMD1/P2-DIMME1/P2-DIMMF1

Note: Please refer to the Memory Configuration User Guide for the X11 UP/DP/MP Motherboards that is posted on our website for detailed information on memory support for this motherboard.

Memory Rank Sparing Tables for the X11DSN-TS (w/12 Slots)

Dual Rank Memory Rank Sparing (16GB DIMM)
Memory Population Total RAM Detected
	One Rank Configuration Two Rank Configuration
A1 8GB 8GB
A1+B1 16GB 16GB
A1+B1+C1 24GB 24GB
A1+B1+C1+D1 32GB 32GB
A1+B1+C1+D1+E1 40GB 40GB
A1+B1+C1+D1+E1+F1 49GB	49GB

Quad Rank Memory Rank Sparing (64GB DIMM)
Memory Population Total RAM Detected
	One Rank Configuration Two Rank Configuration
A1 48GB 32GB
A1+B1 96GB 64GB
A1+B1+C1 144GB 96GB
A1+B1+C1+D1 192GB 128GB
A1+B1+C1+D1+E1 240GB	60GB
A1+B1+C1+D1+E1+F1 288GB	192GB

DCPMM Memory Population Table for 2nd Gen Intel Xeon Scalable-SP Processors

Note: Only 2nd Gen Intel Xeon Scalable-SP(82xx/62xx/52xx/4215 series) processors support DCPMM memory.

Symmetric Population within 1 CPU Socket
Modes P1-	DIMMF1 P1-DIMM	E1 P1-DIMMD1 P1	-DIMMA1 P1-DIN	MB1 P1-DIMMC1	Channel Config.
AD DCPMM	DRAM1 DRAM1	DRAM1 DRAM1	DCPMM 1-1-1
MM DCPMM	DRAM1 DRAM1	DRAM1 DRAM1	DCPMM 1-1-1
AD + MM DCPMM	DRAM3 DRAM3	DRAM3 DRAM3	DCPMM 1-1-1

Legend(for the table above)
DDR4 Type Capacity
DRAM1	RDIMM	3DS RDIMM	LRDIMM	3DS LRDIMM	Refer to Validation Matrix (DDR4 DIMMs validated with DCPMM) below.
DRAM2	RDIMM -		-
DRAM3	RDIMM	3DS RDIMM	LRDIMM	-

Note: DDR4 single rank x8 is not available for DCPMM Memory Mode or App-Direct Mode.

Legend(for the first table above)
Capacity
DCPMM	Any Capacity (Uniformly for all channels for a given configuration)

• Mode definitions: AD=App Direct Mode, MM=Memory Mode, AD+MM=Mixed Mode
• For MM, general DDR4-to-DCPMM ratio is between 1:4 and 1:16. Excessive capacity for DCPMM can be used for AD
• For each individual population, rearrangements between channels are allowed as long as the resulting population is compliant with the X11 memory population rules for the 2nd Gen Intel Xeon Scalable-SP processors.
• For each individual population, please use the same DDR4 DIMM in all slots.
• For each individual population, sockets are normally symmetric with exceptions for 1 DCPMM per socket and 1 DCPMM per node case. Currently, DCPMM modules operate at 2666 MHz.
• No mixing of DCPMM and NVMDIMMs within the same platform is allowed.
• This DCPMM population guide targets a balanced DCPMM-to-DRAM-cache ratio in MM and MM + AD modes.

Validation Matrix (DDR4 DIMMs Validated w/DCPMM)
DIMM Type	Ranks Per DIMM & Data Width (Stack)	DIMM Capacity (GB)
		DRAM Density
		4Gb	8Gb
RDIMM	1Rx4	8GB	16GB
	2Rx8	8GB	16GB
	2Rx4	16GB	32GB
LRDIMM	4Rx4	N/A	64GB
LRDIMM 3DS	8Rx4 (4H)	N/A	128GB

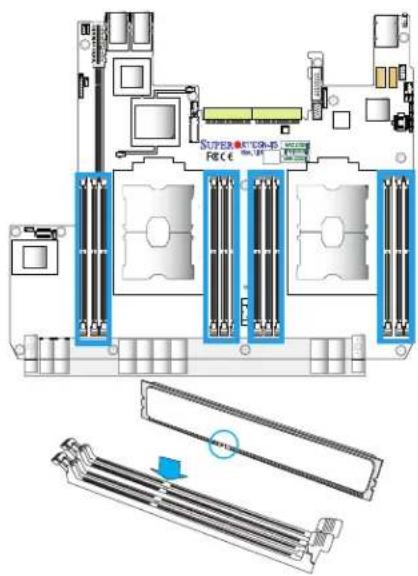

DIMM Installation

1. Please carefully follow the instructions provided in the previous section and properly insert DIMM modules on your motherboard. For the system to work properly, please use memory modules of the same type and speed on the motherboard.
2. Push the release tabs outwards on both ends of the DIMM slot to unlock it.
3. Align the key of the DIMM module with the receptive point on the memory slot.
4. Align the notches on both ends of the module against the receptive points on the ends of the slot.
5. Use two thumbs together to press both ends of the memory module straight down into the slot until the module snaps into place.
6. Press the release tabs to the lock positions to secure the DIMM module into the slot.

SUPERMOTOR-MS RECE

Notches Release Tabs

Press both ends straight down into the memory slot.

DIMM Module Removal

Press the release tabs on both ends of the DIMM socket to release the DIMM module from the socket as shown in the drawing on the right.

Diagram of a mechanical component with blue directional arrows indicating motion or force (no text or symbols)

Warnings: 1. Please do not use excessive force when pressing the release tabs on the ends of the DIMM socket to avoid causing any damage to the DIMM module or the DIMM socket. 2. Please handle DIMM modules with care. Carefully follow all the instructions given on Page 1 of this chapter to prevent ESD-related damages to your memory modules or components.

2.5 Rear I/O Ports

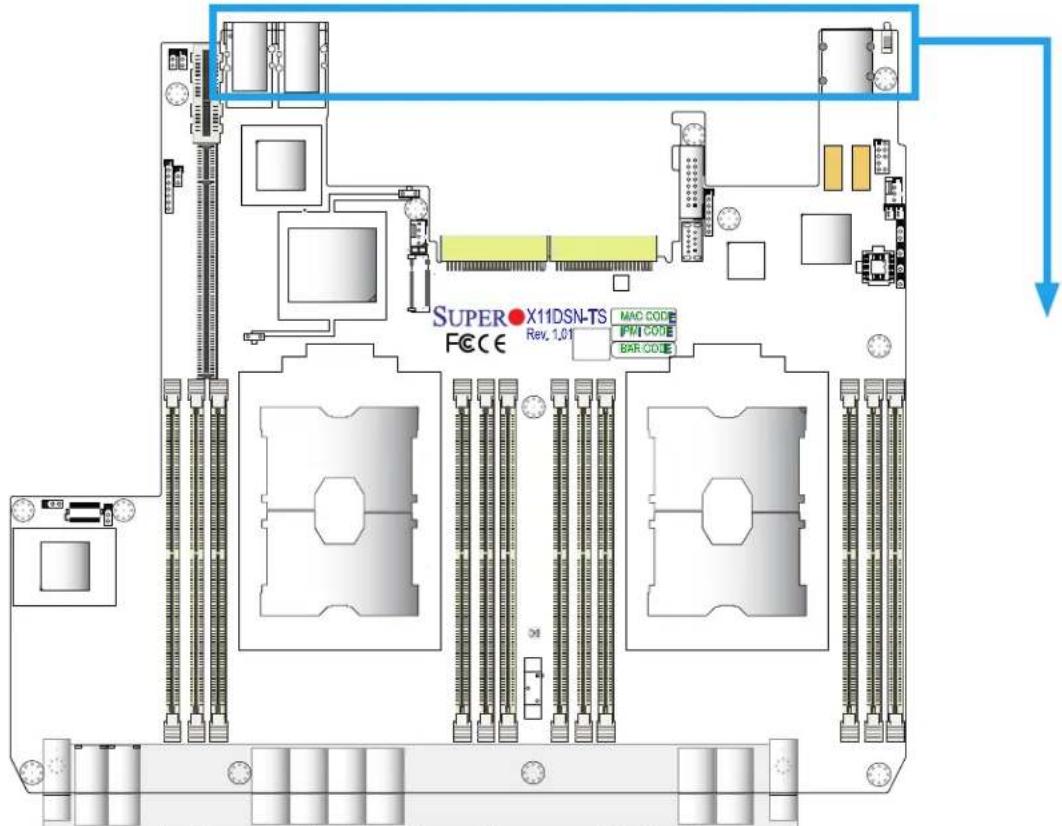

See the layout below for the locations and descriptions of the various I/O ports on the rear of the motherboard.

SUPER X11DSN-TS Rev. 1.01 MAC CODE PW CODE BAR CODE

Back panel I/O Port Locations and Definitions

Diagram of a server rack with numbered components and labeled parts, likely for system or data access.

Back Panel I/O Ports
No.	Description No. Description
1.	LEDL (LED-Bottom: System HeartBeat LED) 5. Dedicated		IPMI_LAN
2.	LEDH (LED-Top: BMC HeartBeat LED) 6. 10GbE LAN2
3.	USB 0 (USB 3.0) 7. 10GbE LAN1
4.	USB 1 (USB 3.0)

Universal Serial Bus (USB) Ports

There are two USB 3.0 port (USB 0/1) on the I/O back panel, and a Type A USB 3.0 header (USB 2) on the motherboard.

Back Panel USB 0/1 (3.0)Pin Definitions
Pin# Definition Pin# Definition
A1 VBUS B1 Power
A2 D-B2 USB_N
A3 D+B3 USB_P
A4 GND B4 GND
A5 Stda_SSRX-B5 USB3_RN
A6 Stda_SSRX+B6 USB3_RP
A7 GND B7 GND
A8 Stda_SSTX-B8 USB3_TN
A9 Stda_SSTX+B9 USB3_TP

Type A USB 2 (3.0)Pin Definitions
Pin# Definition Pin# Definition
1 VBUS 5 SSRX-
2 USB_N	6 SSRX+
3 USB_P	7 GND
4 Ground	8 SSTX-
		9 SSTX+

1. USB 0 (3.0) 2. USB 1 (3.0) 3. Type A USB 2 (3.0) SUPER X1DSN-TS Rev, 1/1 MAC-DCDC FMI-DCDC FMI-DCDC 2 1

Ethernet Ports

Two Ethernet ports (LAN1, LAN2) are located on the I/O backplane. These Ethernet ports support 10GbE LAN connections on the motherboard. In addition, a dedicated IPMI LAN that supports GbE LAN is located above the USB 0/1 ports on the backplane. All Ethernet ports accept RJ45 type cables. Please refer to the LED Indicator Section for LAN LED information.

1. 10GbE LAN1 2. 10GbE LAN2 3. IPMI_LAN SUPER X11DSN-TS FEC E Rev 1,01 MAC OCE POM OCE POM OCE 3 2 1

2.6 Connectors and Headers

Super I/O Module (SIOM)

A Supermicro proprietary Super I/O module is located at JSIOM1. This I/O module supports PCIe 3.0 x 8 add-on card on the X11DSN-TSq and PCIe 3.0x 16 add-on card on the X11DSN-TS. For your system to work properly, please use the PCIe devices that are fully compliant with the PCIe standard only. See the layout below for the location of JSIOM1.

VGA Port

The onboard VGA port is located next to the SIOM slot on the motherboard. Use this connection for VGA display.

Midplane Interface 1 2 SOMCPU PLCE 3.0 X3 (X18) SUPER-X10SN-TS FEC CE CPU MAC CODE PWR CODE BAR CODE PCB PCB PCB PCB PCB PCB PCB PCB PCB PCB PCB PCB PCB PCB PCB PCB PCB PCB PCB PCB PCB PCB PCB PCB PCB PCB PCB PCB PCB PCB PCB PCB PCB PCB

1. JSIOM1
2. VGA

Onboard Fan Header

Two 4-pin fan headers (FAN1/FAN2) are located on the motherboard to provide CPU/system cooling. These fan headers support both 3-pin fans and 4-pin fans; however, onboard fan speed control is available only when all 4-pin fans are used in the motherboard. Onboard fan speeds are controlled by thermal management via the BMC (or by IPMI). See the table below for pin definitions.

Fan HeaderPin Definitions
Pin#	Definition
1	Ground (Black)
2	+12V (Red)
3	Tachometer
4	PWM Control

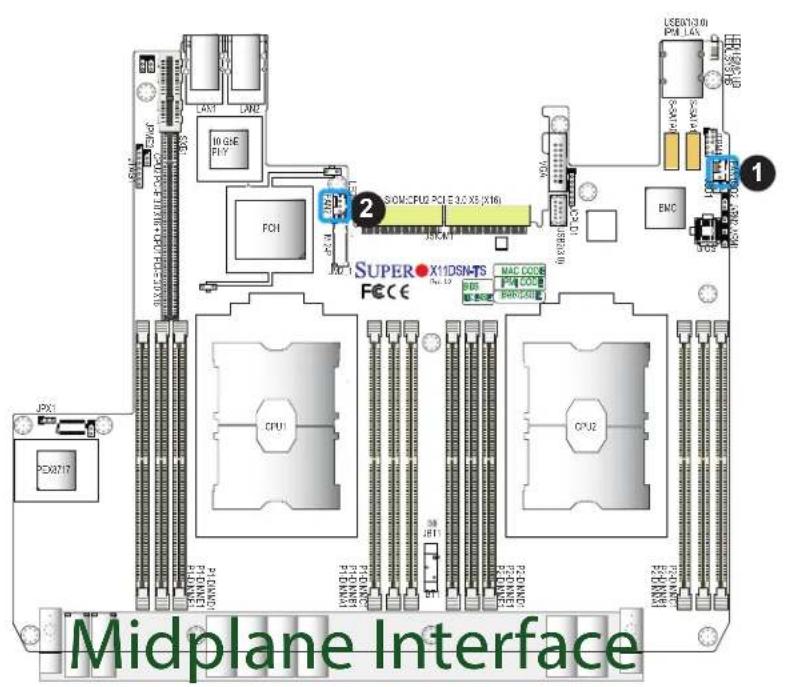

Midplane Interface 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

1. FAN1
2. FAN2

TPM Header

The JTPM1 header is used to connect a Trusted Platform Module (TPM)/Port 80, which is available from Supermicro (optional). A TPM/Port 80 connector is a security device that supports encryption and authentication in hard drives. It allows the motherboard to deny access if the TPM associated with the hard drive is not installed in the system. See the layout below for the location of the TPM header.

Midplane Interface 1 10 GNE PHY PCH JPNX1 PCX2717 CPU1 CPU2 SOMC CPU2 PCI E 3.2 X6 (X16) JNCKM1 SOPR-X11DSN-TS FECE AMC OODI PMI OOC BAR OOC CPU1 CPU2 USB(13.0) PWM IAA INT-SPR MAX-4 MAX-4 MAX-4 ENC PDX2717 PENK27A PENK27A PENK27A PENK27A PENK27A PENK27A

1. TPM/Port 80 Header

SATA Power Connectors

The SATA power connectors at JSD1 and JSD2 provide 5V power to onboard SATA devices. Refer to the table below for pin definitions.

SATA Power Pin Definitions
Pin# Definition
1 5V
2 Ground
3 Ground

Midplane Interface 1 2 SOMCPU2 PCIe 3.0 X5 (X16) JSCM1 MAC CODE PM CODE CPU1 CPU2 PCX717 USBNT340 PM - LCK GPIO GPIO GPIO GPIO GPIO GPIO GPIO GPIO GPIO GPIO GPIO GPIO GPIO GPIO GPIO GPIO GPIO GPIO GPIO GPIO GPIO GPIO GPIO GPIO GPIO GPIO GPIO GPIO GPIO GPIO GPIO GPIO GPIO GPIO GPIO GPIO GPIO GPIO GPIO GPIO GPIO GPIO GPIO GPIO GPIO GPIO GPIO GPIO GPIO

1. JSD1

2. JSD2

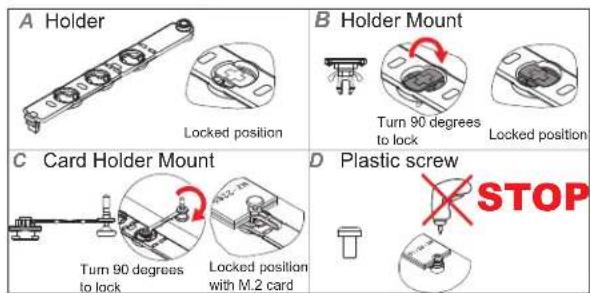

PCIe M.2 Slot

The X11DSN-TS/X11DSN-TSq motherboard has one PCIe M.2 slot. M.2 was formerly Next Generation Form Factor (NGFF) and serves to replace mini PCIe. M.2 allows for a variety of card sizes, increased functionality, and spatial efficiency. The M.2 socket on the motherboard supports PCIe 3.0 x4 (32 Gb/s) SSD cards in the 2280 form factor.

A Holder Locked position B Holder Mount Turn 90 degrees to lock Locked position C Card Holder Mount Turn 90 degrees to lock Locked position D Plastic screw STOP

Press in here Rectangle hole on MB Hole Location on the MB 42 M.2 Card 60 A+B+C M.2 Card 80 A+B+C M.2 Card 110 A+B+D A+B+C A+B+D Copyright © 2017 by Super Micro Computer, Inc. All rights reserved.

Midplane Interface CPU1 CPU2 PCI PCI SINX:CPU2 PCI E 3.0 X6 (X16) BNC CODE UPPRO BNC CODE USB01(5.0) IPAL LAN PDX3717 JPX1 FX1 FX2 FX3 FX4 FX5 FX6 FX7 FX8 FX9 FX10 FX11 FX12 FX13 FX14 FX15 FX16 FX17 FX18 FX19 FX20 FX21 FX22 FX23 FX24 FX25 FX26 FX27 FX28 FX29 FX30 FX31 FX32 FX33 FX34 FX35 FX36 FX37 FX38 FX39 FX40 FX41 FX42 FX43 FX44 FX45 FX46 FX47 FX48 FX49 FX50 FX51 FX52 FX53 FX54 FX55 FX56 FX57 FX58 FX59 FX60 FX61 FX62 FX63 FX64 FX65 FX66 FX67 FX68 FX69 FX70 FX71 FX72 FX73 FX74 FX75 FX76 FX77 FX78 FX79 FX80 FX81 FX82 FX83 FX84 FX85 FX86 FX87 FX88 FX89 FX90 FX91 FX92 FX93 FX94 FX95 FX96 FX97 FX98 FX99 FX100

1. PCIe M.2 Slot

S-SATA 3.0 Ports

Two S-SATA 3.0 ports (S-SATA0/ S-SATA1) that are supported by the Intel C624/C627 PCH are located on the motherboard. These two S-SATA ports have power pins built in and can be used with Supermicro SuperDOMs which do not need external power cable support. Supermicro SuperDOMs are backward-compatible with regular SATA HDDs or SATA DOMs that need external power cables. All these SATA ports provide serial-link signal connections, which are faster than the connections of Parallel ATA.

Midplane Interface 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

1. S-SATA0

2. S-SATA1

2.7 Jumper Settings

How Jumpers Work

To modify the operation of the motherboard, jumpers can be used to choose between optional settings. Jumpers create shorts between two pins to change the function of the connector. Pin 1 is identified with a square solder pad on the printed circuit board. See the diagram at right for an example of jumping pins 1 and 2. Refer to the motherboard layout page for jumper locations.

Connector Pins Jumper Setting 3 2 1 3 2 1

Note: On two-pin jumpers, "Closed" means the jumper is on and "Open" means the jumper is off the pins.

CMOS Clear

JBT1 is used to clear CMOS, which will also clear any passwords. Instead of pins, this jumper consists of contact pads to prevent accidentally clearing the contents of CMOS.

To Clear CMOS

1. First power down the system and unplug the power cord(s).

2. Remove the cover of the chassis to access the motherboard.

3. Remove the onboard battery from the motherboard.

4. Short the CMOS pads with a metal object such as a small screwdriver for at least four seconds.

5. Remove the screwdriver (or shorting device).

6. Replace the cover, reconnect the power cord(s), and power on the system.

Note: Clearing CMOS will also clear all passwords.

Do not use the PW ON connector to clear CMOS.

JBT1 contact pads

Midplane Interface CPU1 CPU2 PCB PCB PCB PCB PCB PCB PCB PCB PCB PCB PCB PCB PCB PCB PCB PCB PCB PCB PCB PCB PCB PCB PCB PCB PCB PCB PCB PCB PCB PCB PCB PCB PCB PCB

1. Clear CMOS

ME Manufacturing Mode

Close JPME2 to bypass SPI flash security and force the system to use the ME Manufacturing Mode, which will allow you to flash the system firmware from a host server to modify system settings. See the table below for jumper settings.

ME Manufacturing ModeJumper Settings

Jumper Setting Definition

Pins 1-2 Normal (Default)

Pins 2-3 Manufacturing Mode

Midplane Interface 1 PC1 PC2 LAN LAN2 PC CNE PIN SICN:CPU2 PCI E 3.0 X6 (X16) BNC BNC CODE FMC CODE BMC CODE PU1 PU2 PU3 PU4 PU5 PU6 PU7 PU8 PU9 PU10 PU11 PU12 PU13 PU14 PU15 PU16 PU17 PU18 PU19 PU20 PU21 PU22 PU23 PU24 PU25 PU26 PU27 PU28 PU29 PU30 PU31 PU32 PU33 PU34 PU35 PU36 PU37 PU38 PU39 PU40 PU41 PU42 PU43 PU44 PU45 PU46 PU47 PU48 PU49 PU50 PU51 PU52 PU53 PU54 PU55 PU56 PU57 PU58 PU59 PU60 PU61 PU62 PU63 PU64 PU65 PU66 PU67 PU68 PU69 PU70 PU71 PU72 PU73 PU74 PU75 PU76 PU77 PU78 PU79 PU80

1. ME Manufacturing Mode

I2C Bus for VRM

Jumpers JVRM1 and JVRM2 allow the VRM SMBus Clock and Data access from the BMC. See the table below for jumper settings.

VRM Jumpers	Jumper Settings
	Jumper Setting Definition
JVRM1	On VRM SMB Clock to BMC (Normal)
JVRM2	On VRM SMB Data to BMC (Normal)

NTB Enable

Use Jumper (JPX1) to enable or disable onboard Non-Transparent Bridge (NTB) support. The default setting is Enabled.

NTB EnableJumper Settings

Jumper Setting Definition

Pins 1-2 Enabled

Pins 2-3 Disabled

Midplane Interface 3 PCB717 FCI LAN1 LAN2 10 CNE FUY FCI SOM:CPU2 PCI 12 XE X161 JSCN1 SUPER X11DSN-TS FECE MAC CODE FM CODE U2454 MAC BNC USBX13.01 PHE LEA 2 1

1. JVRM1
2. JVRM2
3. NTB Enable

2.8 LED Indicators

LAN LEDs

The LAN ports are located on the IO Backplane on the motherboard. Each Ethernet LAN port has two LEDs. The yellow LED indicates activity. Link LED, located on the left side of the LAN port, may be green, amber or off indicating the speed of the connection. See the tables below for more information.

Link LED Activity LED LAN2 LAN1

LAN Link Indicator (Left)LED State
LED Color	Definition
Off No Connection, 10 or 100 Mbps
Green 10 Gbps
Amber 1 Gbps

LAN Activity Indicator (Right)LED State
Color	State	Definition
Yellow	Flashing Active

Dedicated IPMI LAN LEDs

In addition to LAN 1/LAN 2, a dedicated IPMI LAN is located on the I/O Backplane of the motherboard. The amber LED on the right indicates activity, while the green LED on the left indicates the speed of the connection. See the table below for more information.

IPMI LAN Link LED Activity LED IPMI LAN Link LED (Left) & Activity LED (Right) Color State Definition Link (Left) Green: Solid 100 Mbps Activity (Right) Amber: Blinking Active 1. LAN2/LAN1 LEDs 2. IPMI LAN LEDs SUPER X10DSN-TS FECE REV. LIF MAC CODE IPMI CODE BAR CODE

System Heartbeat LED

LEDL (the bottom LED indicator) on the I/O back panel is used as the system heartbeat LED. When the LED is blinking, your system functions normally. See the table below for the LED status.

System Heartbeat LED Indicator
LED LED State Definition
LEDL (the bottom LED)	Blinking System Normal

BMC Heartbeat LED

LEDH (the top LED indicator) on the I/O back panel is used as the BMC heartbeat LED. When the LED is blinking green, BMC is normal. See the table below for the LED status.

BMC Heartbeat LED Indicator
LED LED State Definition
LEDH (the top LED)	Green: Blinking BMC Normal

SUPER X11DSN-TS Rev. 124 MAC 0000 MAC 0000 MAC 0000 1 2 1 2

1. LEDL (Bottom LED): System Heartbeat LED
2. LEDH (Top LED): BMC Heartbeat LED

PCIe M.2 Slot Activity LED (LEDM.2)

The Activity LED indicator for onboard PCIe M.2 slot is located at LEDM.2. When this LED is on, M.2 is active. See the layout below for the location of LEDM.2.

Activity LED Indicator for PCIe M.2 Slot
LED LED State Definition
LEDM.2 On PCIe M.2	Slot: Active

Midplane Interface CPU1 CPU2 CPU3 CPU4 CPU5 CPU6 CPU7 CPU8 CPU9 CPU10 CPU11 CPU12 CPU13 CPU14 CPU15 CPU16 CPU17 CPU18 CPU19 CPU20 CPU21 CPU22 CPU23 CPU24 CPU25 CPU26 CPU27 CPU28 CPU29 CPU30 CPU31 CPU32 CPU33 CPU34 CPU35 CPU36 CPU37 CPU38 CPU39 CPU40 CPU41 CPU42 CPU43 CPU44 CPU45 CPU46 CPU47 CPU48 CPU49 CPU50 CPU51 CPU52 CPU53 CPU54 CPU55 CPU56 CPU57 CPU58 CPU59 CPU60 CPU61 CPU62 CPU63 CPU64 CPU65 CPU66 CPU67 CPU68 CPU69 CPU70 CPU71 CPU72 CPU73 CPU74 CPU75 CPU76 CPU77 CPU78 CPU79 CPU80 CPU81 CPU82 CPU83 CPU84 CPU85 CPU86 CPU87 CPU88 CPU89 CPU90 CPU91 CPU92 CPU93 CPU94 CPU95 CPU96 CPU97 CPU98 CPU99 CPU100

1. M.2 Activity LED (LEDM.2)

Chapter 3

Troubleshooting

3.1 Troubleshooting Procedures

Use the following procedures to troubleshoot your system. If you have followed all of the procedures below and still need assistance, refer to the 'Technical Support Procedures' and/or 'Returning Merchandise for Service' section(s) in this chapter. Always disconnect the AC power cord before adding, changing or installing any non hot-swap hardware components.

Before Power On

1. Make sure that the power connector is connected to your power supply.
2. Make sure that no short circuits exist between the motherboard and chassis.
3. Disconnect all cables from the motherboard, including those for the keyboard and mouse.
4. Remove all add-on cards.
5. Use the correct type of onboard CMOS battery as recommended by the manufacturer. To avoid possible explosion, do not install the CMOS battery upside down.

No Power

1. Make sure that no short circuits exist between the motherboard and the chassis.
2. Verify that all jumpers are set to their default positions.
3. Check that the 115V/230V switch on the power supply is properly set.
4. Turn the power switch on and off to test the system.
5. The battery on your motherboard may be old. Check to verify that it still supplies \~3VDC. If it does not, replace it with a new one.

System Boot Failure

If the system does not display POST (Power-On-Self-Test) or does not respond after the power is turned on, check the following:

1. Check for any error beep from the motherboard speaker if the onboard speaker is available.

2. If there is no error beep, try to turn on the system without DIMM modules installed. If there is still no error beep, replace the motherboard.

3. If there are error beeps, clear the CMOS settings by unplugging the power cord and contacting both pads on the CMOS Clear Jumper (JBT1). Refer to chapter 2.
4. Remove all components from the motherboard, especially the DIMM modules. Make sure that system power is on and that memory error beeps are activated.
5. Turn on the system with only one DIMM module installed. If the system boots, check for bad DIMM modules or slots by following the Memory Errors Troubleshooting procedure in this Chapter.

Memory Errors

1. Make sure that the DIMM modules are properly and fully installed.
2. Confirm that you are using the correct memory. Also, it is recommended that you use the same memory type and speed for all DIMMs in the system. See Section 2.4 for memory details.
3. Check for bad DIMM modules or slots by swapping modules between slots and noting the results.
4. Check the power supply voltage 115V/230V switch.

Losing the System's Setup Configuration

1. Make sure that you are using a high quality power supply. A poor quality power supply may cause the system to lose the CMOS setup information.
2. The battery on your motherboard may be old. Check to verify that it still supplies \~3VDC. If it does not, replace it with a new one.
3. If the above steps do not fix the setup configuration problem, contact your vendor for repairs.

When the System Becomes Unstable

A. If the system becomes unstable during or after OS installation, check the following:

1. CPU/BIOS support: Make sure that your CPU is supported and that you have the latest BIOS installed in your system.

2. Memory support: Make sure that the memory modules are supported by testing the modules using memtest86 or a similar utility.

Note: Refer to the product page on our website at http://www.supermicro.com for memory and CPU support and updates.

1. HDD support: Make sure that all hard disk drives (HDDs) work properly. Replace the bad HDDs with good ones.
2. System cooling: Check the system cooling to make sure that all heatsink fans and CPU/system fans, etc., work properly. Check the hardware monitoring settings in the IPMI to make sure that the CPU and system temperatures are within the normal range. Also check the front panel Overheat LED and make sure that it is not on.
3. Adequate power supply: Make sure that the power supply provides adequate power to the system. Make sure that all power connectors are connected. Please refer to our website for more information on the minimum power requirements.
4. Proper software support: Make sure that the correct drivers are used.

B. If the system becomes unstable before or during OS installation, check the following:

1. Source of installation: Make sure that the devices used for installation are working properly, including boot devices such as CD.
2. Cable connection: Check to make sure that all cables are connected and working properly.
3. Using the minimum configuration for troubleshooting: Remove all unnecessary components (starting with add-on cards first), and use the minimum configuration (but with a CPU and a memory module installed) to identify the trouble areas. Refer to the steps listed in Section A above for proper troubleshooting procedures.
4. Identifying bad components by isolating them: If necessary, remove a component in question from the chassis, and test it in isolation to make sure that it works properly. Replace a bad component with a good one.
5. Check and change one component at a time instead of changing several items at the same time. This will help isolate and identify the problem.
6. To find out if a component is good, swap this component with a new one to see if the system will work properly. If so, then the old component is bad. You can also install the

component in question in another system. If the new system works, the component is good and the old system has problems.

3.2 Technical Support Procedures

Before contacting Technical Support, please take the following steps. Also, note that as a motherboard manufacturer, we do not sell directly to end-users, so it is best to first check with your distributor or reseller for troubleshooting services. They should know of any possible problem(s) with the specific system configuration that was sold to you.

1. Please review the 'Troubleshooting Procedures' and 'Frequently Asked Questions' (FAQs) sections in this chapter or see the FAQs on our website before contacting Technical Support.
2. BIOS upgrades can be downloaded from our website. Note: Not all BIOS can be flashed depending on the modifications to the boot block code.

3. If you still cannot resolve the problem, include the following information when contacting us for technical support:

4. Motherboard model and PCB revision number

5. BIOS release date/version (this can be seen on the initial display when your system first boots up)
6. System configuration

An example of a Technical Support form is posted on our website.

Distributors: For immediate assistance, please have your account number ready when contacting our technical support department by e-mail.

3.3 Frequently Asked Questions

Question: What type of memory does my motherboard support?

Answer: This motherboard supports up to 3TB of 3DS Load Reduced DIMM (3DS LRDIMM), Load Reduced DIMM (LRDIMM), 3DS Registered DIMM (3DS RDIMM), Registered DIMM (RDIMM) DDR4 (288-pin) ECC 2933*/2666/2400/2133 MHz modules in 12 slots (*Note below).

*Note: Support for 2933 MHz memory is dependent on the CPU SKU. See Section 2.4 for details on installing memory.

Question: Why can't I turn off the power using the momentary power on/off switch?

Answer: The instant power off function is controlled in BIOS by the Power Button Mode setting. When the On/Off feature is enabled, the motherboard will have instant off capabilities as long as the BIOS has control of the system. When the Standby or Suspend feature is enabled or when the BIOS is not in control such as during memory count (the first screen that appears when the system is turned on), the momentary on/off switch must be held for more than four seconds to shut down the system. This feature is required to implement the ACPI features on the motherboard.

Question: How do I update my BIOS?

Answer: It is recommended that you do not upgrade your BIOS if you are not experiencing any problems with your system. Updated BIOS files are located on our website at http://www.supermicro.com/ResourceApps/BIOS_IPMI_Intel.html. Please check our BIOS warning message and the information on how to update your BIOS on our website. Select your motherboard model and download the BIOS file to your computer. Also, check the current BIOS revision to make sure that it is newer than your BIOS before downloading. Please refer to the following section for the instructions on how to update your BIOS under UEFI Shell.

Note: The SPI BIOS chip used on this motherboard cannot be removed. Send your motherboard back to our RMA Department at Supermicro for repair. For BIOS Recovery instructions, please refer to the AMI BIOS Recovery Instructions posted at http://www.supermicro.com/support/manuals/.

Question: How do I update my BIOS under UEFI Shell?

Note: We do not recommend that you update your BIOS if you are not experiencing a BIOS-related problem. If you need to update your BIOS, please follow the steps below to properly update your BIOS under UEFI Shell.

1. Download and save the BIOS update package to your computer.

2. Extract the files from the UEFI folder of the BIOS package to a USB stick.

Note: The USB stick doesn't have to be bootable; however, it has to be formatted with the FAT/FAT32 file system.

1. Insert the USB stick into a USB port, boot to the UEFI Built-In Shell, and enter the following commands to start the BIOS update:

Shell> fs0:

fs0:> cd UEFI

1. The FLASH.NSH script will compare the Flash Descriptor Table (FDT) code in the new BIOS with the existing one in the motherboard:

a. If a different FDT is found

• A new file, STARTUP.NSH, will be created, and the system will automatically reboot in 10 seconds without you pressing any key. BIOS will be updated after the system reboots.
• You can also press to force an immediate system reboot to shorten the process. During system reboot, press the key to invoke the boot menu and boot into the build-in UEFI Shell. Your BIOS will be updated automatically.

b. If the FDT is the same

- BIOS update will be immediately performed without a system reboot initiated.

Warning: Do not shut down or reset the system while updating the BIOS to prevent possible system boot failure!)

1. Perform an A/C power cycle after the message indicating the BIOS update has completed.
2. Go to the BIOS setup utility, and restore the BIOS settings.

3.4 Battery Removal and Installation

Battery Removal

To remove the onboard battery, follow the steps below:

1. Power off your system and unplug your power cable.
2. Using a tool such as a pen or a small screwdriver, push the battery lock outwards to unlock it. Once unlocked, the battery will pop out from the holder.
3. Remove the battery.

Proper Battery Disposal

Please handle used batteries carefully. Do not damage the battery in any way; a damaged battery may release hazardous materials into the environment. Do not discard a used battery in the garbage or a public landfill. Please comply with the regulations set up by your local hazardous waste management agency to dispose of your used battery properly.

Battery Installation

To install an onboard battery, follow the steps below:

1. Power off your system and unplug your power cable
2. Locate the onboard battery as shown below
3. Identify the battery's polarity. The positive (+) side should be facing up.
4. Insert the battery into the battery holder and push it down until you hear a click to ensure that the battery is securely locked.

Note: When replacing a battery, be sure to only replace it with the same type.

LITHIUM BATTERY BATTERY HOLDER OR LITHIUM BATTERY BATTERY HOLDER

3.5 Returning Merchandise for Service

A receipt or copy of your invoice marked with the date of purchase is required before any warranty service will be rendered. You can obtain service by calling your vendor for a Returned Merchandise Authorization (RMA) number. When returning to the manufacturer, the RMA number should be prominently displayed on the outside of the shipping carton and mailed prepaid or hand-carried. Shipping and handling charges will be applied for all orders that must be mailed when service is complete.

For faster service, RMA authorizations may be requested online (http://www.supermicro.com/support/rma/).

This warranty only covers normal consumer use and does not cover damages incurred in shipping or from failure due to the alteration, misuse, abuse or improper maintenance of products.

During the warranty period, contact your distributor first for any product problems.

Chapter 4

UEFI BIOS

4.1 Introduction

This chapter describes the AMIBIOS™ setup utility for the X11DSN-TS motherboard. The BIOS is stored on a chip and can be easily upgraded using a flash program.

Note: Due to periodic changes to the BIOS, some settings may have been added or deleted and might not yet be recorded in this manual. Please refer to the Manual Download area of our website for any changes to the BIOS that may not be reflected in this manual.

Starting the Setup Utility

To enter the BIOS setup utility, press the key while the system is booting-up. (In most cases, the key is used to invoke the BIOS setup screen. There are a few cases when other keys are used, such as , , etc.) Each main BIOS menu option is described in this manual.

The Main BIOS screen has two main frames. The left frame displays all the options that can be configured. "Grayed-out" options cannot be configured. The right frame displays the key legend. Above the key legend is an area reserved for a text message. When an option is selected in the left frame, it is highlighted in white. Often a text message will accompany it. (Note that BIOS has default text messages built in. We retain the option to include, omit, or change any of these text messages.) Settings printed in Bold are the default values.

A "▶" indicates a submenu. Highlighting such an item and pressing the key will open the list of settings within that submenu.

The BIOS setup utility uses a key-based navigation system called hot keys. Most of these hot keys (, , , , , , keys, etc.) can be used at any time during the setup navigation process.

4.2 Main Setup

When you first enter the AMI BIOS setup utility, you will see the Main setup screen. You can always return to the Main setup screen by selecting the Main tab on the top of the screen. The Main BIOS setup screen is shown below.

Action Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Main Advanced Event Loss IPMI Security Boot Save & Exit System Date [Thu 07/25/2019] System Time [17:56:46] Supermicro X11DSN-TS BIOS Version 5.1 Build Date 05/02/2019 CPLD Version 02.BA.09 Memory Information Total Memory 376832 KB Set the Date. Use Tab to switch between Date elements. Default Ranges: Year: 1598-5993 Months: 1-12 Days: Dependent on month Range of Years may vary. +: Select Screen T↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.20.1275. Copyright (C) 2019 American Megatrends, Inc.

System Date/System Time

Use this item to change the system date and time. Highlight System Date or System Time using the arrow keys. Enter new values using the keyboard. Press the key or the arrow keys to move between fields. The date must be entered in Day MM/DD/YYYY format. The time is entered in HH:MM:SS format.

Note: The time is in the 24-hour format. For example, 5:30 P.M. appears as 17:30:00. The date's default value is the BIOS build date after the RTC (Real Time Clock) reset.

Supermicro X11DSN-TS

BIOS Version

This feature displays the version of the BIOS ROM used in the system.

Build Date

This feature displays the date when the version of the BIOS ROM used in the system was built.

CPLD Version

This feature displays the version of the CPLD (Complex-Programmable Logical Device) used in the system.

Memory Information

Total Memory

This feature displays the total size of memory available in the system.

4.3 Advanced Setup Configurations

Use the arrow keys to select the Advanced submenu and press to access the submenu items:

Actio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Main Advanced Event Loss JPMI Security Boot Save & Exit Boot Feature CPU Configuration Chipset Configuration Server ME Information PCH sSATA Configuration PCIe/PCI/PnP Configuration Super IO Configuration Serial Port Console Redirection ACPI Settings Trusted Computing HTTP BOOT Configuration TLS Authenticate Configuration JSCSI Configuration HGST NVMe Device Configuration HGST NVMe Device Configuration HGST NVMe Device Configuration HGST NVMe Device Configuration HGST NVMe Device Configuration HGST NVMe Device Configuration HGST NVMe Device Configuration HGST NVMe Device Configuration Boot Feature Configuration Page +: Select Screen T4: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.20.1275. Copyright (C) 2019 American Megatrends, Inc.

Warning: Take Caution when changing the Advanced settings. An incorrect value, an improper DRAM frequency, or a wrong BIOS timing setting may cause the system to malfunction. When this occurs, restore the setting to the manufacturer default setting.

▶Boot Feature

Quiet Boot

Use this feature to select the screen between displaying POST messages or the OEM logo at bootup. Select Disabled to display the POST messages. Select Enabled to display the OEM logo instead of the normal POST messages. The options are Enabled and Disabled.

Note: POST message is always displayed regardless of the item setting.

Option ROM Messages

Use this feature to set the display mode for the Option ROM. Select Keep Current to use the current AddOn ROM display settings. Select Force BIOS to use the Option ROM display mode set by the system BIOS. The options are Force BIOS and Keep Current.

Bootup NumLock State

Use this feature to set the Power-on state for the Num Lock key. The options are Off and On.

Wait For "F1" If Error

Select Enabled to force the system to wait until the key is pressed if an error occurs. The options are Disabled and Enabled.

INT19 (Interrupt 19) Trap Response

Interrupt 19 is the software interrupt that handles the boot disk function. When this feature is set to Immediate, the ROM BIOS of the host adaptors will "capture" Interrupt 19 at bootup immediately and allow the drives that are attached to these host adaptors to function as bootable disks. If this item is set to Postponed, the ROM BIOS of the host adaptors will not capture Interrupt 19 immediately to allow the drives attached to these adaptors to function as bootable devices at bootup. The options are Immediate and Postponed.

Re-try Boot

When EFI (Extensible Firmware Interface) Boot is selected, the system BIOS will automatically reboot the system from an EFI boot device after an initial boot failure. Select Legacy Boot to allow the BIOS to automatically reboot the system from a Legacy boot device after an initial boot failure. The options are Disabled, Legacy Boot, and EFI Boot.

Install Windows 7 USB Support

Select Enabled to install the Windows 7 USB utility to support legacy USB devices for Windows 7 systems. The options are Enabled and Disabled.

Port 61h Bit-4 Emulation

Select Enabled for I/O Port 61h-Bit 4 emulation support to enhance system performance. The options are Enabled and Disabled.

Power Configuration

CPLD Watch Dog

Select Enabled to allow the Watch Dog timer to reboot the system when it is inactive for more than 5 minutes. The options are Power On, POST, OS and Disabled.

Restore on AC Power Loss

Use this feature to set the power state after a power outage. Select Power Off for the system power to remain off after a power loss. Select Power On for the system power to be turned on after a power loss. Select Last State to allow the system to resume its last power state before a power loss. The options are Stay Off, Power On, and Last State.

Power Button Function

This feature controls how the system shuts down when the power button is pressed. Select 4 Seconds Override for the user to power off the system after pressing and holding the power button for 4 seconds or longer. Select Instant Off to instantly power off the system as soon as the user presses the power button. The options are 4 Seconds Override and Instant Off.

PCIe Reset Delay

Select Delay to delay PCIe Reset for NVMe devices. The options are Delay and No Delay.

▶CPU Configuration

Warning: Setting the wrong values in the following sections may cause the system to malfunction.

▶Processor Configuration

The following CPU information will be displayed:

• Processor BSP Revision
• Processor Socket
• Processor ID
• Processor Frequency
• Processor Max Ratio
• Processor Min Ratio
• Microcode Revision
• L1 Cache RAM
• L2 Cache RAM
• L3 Cache RAM
• Processor 0 Version
• Processor 1 Version

Hyper-Threading (ALL)

Select Enable to use Intel Hyper-Threading Technology to enhance CPU performance. The options are Enable and Disable.

Core Enabled

Use this feature to enable or disable CPU cores in the processor specified by the user. Use the <+> key and the <-> key on the keyboard to set the desired number of CPU cores you want to enable in a processor. Please note that the maximum of 24 CPU cores are currently available in each CPU package. The default setting is 0.

Monitor/Mwait

Select Enable to enable the Monitor/Mwait instructions in the processor. The options are Auto, Enable and Disable.

Execute Disable Bit (Available if supported by the OS & the CPU)

Select Enable for Execute Disable Bit support which will allow the processor to designate areas in the system memory where an application code can execute and where it cannot, thus preventing a worm or a virus from flooding illegal codes to overwhelm the processor, damaging the system during a virus attack. The options are Enable and Disable. (Refer to Intel and Microsoft websites for more information.)

Intel Virtualization Technology (Available when two processors are installed on the motherboard)

Select Enable to use Intel Virtualization Technology which will allow multiple workloads to share the same set of common resources. On shared virtualized hardware, various workloads (or tasks) can co-exist, sharing the same resources, while functioning in full independence from each other, and migrating freely across multi-level infrastructures and scale as needed. The settings are Enable and Disable.

PPIN Control

Select Unlock/Enable to use the Protected-Processor Inventory Number (PPIN) in the system. The options are Unlock/Enable and Lock/Disable.

Hardware Prefetcher (Available when supported by the CPU)

If this feature is set to Enable, the hardware prefetcher will prefetch streams of data and instructions from the main memory to the Level 2 (L2) cache to improve CPU performance. The options are Disable and Enable.

Adjacent Cache Prefetch (Available when supported by the CPU)

Select Enable for the CPU to prefetch both cache lines for 128 bytes as comprised. Select Disable for the CPU to prefetch both cache lines for 64 bytes. The options are Disable and Enable.

Note: Please power off and reboot the system for the changes you've made to take effect. Please refer to Intel's website for detailed information.

DCU Streamer Prefetcher (Available when supported by the CPU)

If this feature is set to Enable, the DCU (Data Cache Unit) streamer prefetcher will prefetch data streams from the cache memory to the DCU (Data Cache Unit) to speed up data accessing and processing to enhance CPU performance. The options are Disable and Enable.

DCU IP Prefetcher

This feature allows the system to use the sequential load history, which is based on the instruction pointer of previous loads, to determine whether the system will prefetch additional lines. The options are Enable and Disable.

LLC Prefetch

If this feature is set to Enable, LLC (hardware cache) prefetching on all threads will be supported. The options are Disable and Enable.

Extended APIC (Extended Advanced Programmable Interrupt Controller)

Based on the Intel Hyper-Threading technology, each logical processor (thread) is assigned 256 APIC IDs (APIDs) in 8-bit bandwidth. When this feature is set to Enable, the APIC ID will be expanded from 8 bits to 16 bits to provide 512 APIDs to each thread to enhance CPU performance. The options are Disable and Enable.

AES-NI

Select Enable to use the Intel Advanced Encryption Standard (AES) New Instructions (NI) to ensure data security. The options are Enable and Disable.

▶Advanced Power Management Configuration

Power Technology

Select Energy Efficient to support power-saving mode. Select Custom to customize system power settings. Select Disabled to disable power-saving settings. The options are Disable, Energy Efficient, and Custom.

Power Performance Tuning (Available when "Power Technology" is set to Custom)

Select BIOS to allow the system BIOS to configure the Power-Performance Tuning Bias setting. The options are BIOS Controls EPB and OS Controls EPB.

ENERGY\_PERF\_BIAS\_CFG Mode (ENERGY PERFORMANCE BIAS CONFIGURATION Mode) (Available when "Power Performance Tuning" is set to BIOS Controls EPB)

Use this feature to set the processor power use policy to achieve the desired operation settings for your machine by prioritizing system performance or energy savings. The higher the performance is, the higher the power consumption will be. Select Max Power Efficient to maximize power saving; however, system performance may be substantially impacted because limited power use decreases the processor frequency. The options are Maximum Performance, Performance, Balanced Performance, Balanced Power, and Power.

▶CPU P State Control (Available when "Power Technology" is set to Custom)

SpeedStep (P-States)

EIST (Enhanced Intel SpeedStep Technology) allows the system to automatically adjust processor voltage and core frequency in an effort to reduce power consumption and heat dissipation. Please refer to Intel's website for detailed information. The options are Disable and Enable.

EIST PSD Function (Available when SpeedStep is set to Enable)

Use this item to configure the processor's P-State coordination settings. During a P-State, the voltage and frequency of the processor will be reduced when it is in operation. This makes the processor more energy efficient, resulting in further energy gains. The options are HW_ALL, SW_ALL and SW-ANY.

Turbo Mode (Available when SpeedStep is set to Enable)

Select Enable for processor cores to run faster than the frequency specified by the manufacturer. The options are Disable and Enable.

▶Hardware PM (Power Management) State Control (Available when "Power Technology" is set to Custom)

Hardware P-States

If this feature is set to Disable, hardware will choose a P-state setting for the system based on an OS request. If this feature is set to Native Mode, hardware will choose a P-state setting based on OS guidance. If this feature is set to Native Mode with No Legacy Support, hardware will choose a P-state setting independently without OS guidance. The options are Disable, Native Mode, Out of Band Mode, and Native Mode with No Legacy Support.

▶CPU C State Control

Autonomous Core C-State

Select Enable to support Autonomous Core C-State control which will allow the processor core to control its C-State setting automatically and independently. The options are Disable and Enable.

CPU C6 Report (Available when Autonomous Core C-State is set to Disable)

Select Enable to allow the BIOS to report the CPU C6 state (ACPI C3) to the operating system. During the CPU C6 state, power to all caches is turned off. The options are Auto, Enable, and Disable.

Enhanced Halt State (C1E) (Available when Autonomous Core C-State is set to Disable)

Select Enable to enable "Enhanced Halt State" support, which will significantly reduce the CPU's power consumption by minimizing CPU's clock cycles and reduce voltage during a "Halt State." The options are Disable and Enable.

▶Package C State Control (Available when "Power Technology" is set to Custom)

Package C State

Use this feature to set the limit on the C-State package register. The options are C0/C1 state, C2 state, C6 (non-Retention) state, C6 (Retention) state, No Limit, and Auto.

▶CPU T State Control (Available when "Power Technology" is set to Custom)

Software Controlled T-States

If this feature is set to Enable, CPU throttling settings will be supported by the software of the system. The options are Enable and Disable.

▶Chipset Configuration

Warning: Setting the wrong values in the following items may cause the system to malfunction.

▶North Bridge

This feature allows the user to configure the settings for the Intel North Bridge.

▶UPI (Ultra Path Interconnect) Configuration

This section displays the following UPI General Configuration information:

• Number of CPU
• Number of Active UPI Link
• Current UPI Link Speed
• Current UPI Link Frequency
• UPI Global MMIO Low Base/Limit
• UPI Global MMIO High Base/Limit
• UPI Pci-e Configuration Base/Size

Degrade Precedence

Use this feature to select the degrading precedence option for Ultra Path Interconnect (UPI) connections. Select Topology Precedent to degrade UPI features if system options are in conflict. Select Feature Precedent to degrade UPI topology if system options are in conflict. The options are Topology Precedence and Feature Precedence.

Link L0p Enable

Select Enable to enable Link L0p. The options are Disable, Enable, and Auto.

Link L1 Enable

Select Enable to enable Link L1 (Level 1 link). The options are Disable, Enable, and Auto.

IO Directory Cache (IODC)

Select Enable for the IODC (I/O Directory Cache) to generate snoops instead of generating memory lockups for remote IIO (InvIToM) and/or WCiLF (Cores). Select Auto for the IODC to generate snoops (instead of memory lockups) for WCiLF (Cores). The options are Disable, Auto, Enable for Remote InvItoM Hybrid Push, InvItoM AllocFlow, Enable for Remote InvItoM Hybrid AllocNonAlloc, and Enable for Remote InvItoM and Remote WCiLF.

SNC

Select Enable to use "Sub NUMA Clustering" (SNC), which supports full SNC (2-cluster) interleave and 1-way IMC interleave. Select Auto for 1-cluster or 2-cluster support depending on the status of IMC (Integrated Memory Controller) Interleaving. The options are Disable, Enable, and Auto.

XPT Prefetch

Select Enable to support XPT Prefetching to enhance system performance. The options are Enable, Disable.

KTI Prefetch

Select Enable to support KTI Prefetching to enhance system performance. The options are Enable and Disable.

Local/Remote Threshold

This feature allows the user to set the threshold for the Interrupt Request (IRQ) signal, which handles hardware interruptions. The options are Disable, Auto, Low, Medium, and High.

Stale AtoS (A to S)

The in-memory directory has three states: I, A, and S states. The I (-invalid) state indicates that the data is clean and does not exist in the cache of any other sockets. The A (-snoop All) state indicates that the data may exist in another socket in an exclusive or modified state. The S state (-Shared) indicates that the data is clean and may be shared in the caches across one or more sockets. When the system is performing "read" on the memory and if the directory line is in A state, we must snoop all other sockets because another socket may have the line in a modified state. If this is the case, a "snoop" will return the modified data. However, it may be the case that a line "reads" in an A state, and all the snoops come back with a "miss". This can happen if another socket reads the line earlier and then has silently dropped it from its cache without modifying it. If the "Stale AtoS" feature is enabled, a line will transition to the S state when the line in the A state returns only snoop misses. That way, subsequent reads to the line will encounter it in the S state

and will not have to snoop, saving the latency and snoop bandwidth. Stale "AtoS" may be beneficial in a workload where there are many cross-socket reads. The options are Disable, Enable, and Auto.

LLC Dead Line Alloc

Select Enable to opportunistically fill the deadlines in the LLC. The options are Enable, Disable, and Auto.

Isoc Mode

Select Enable to enable Isochronous support to meet QoS (Quality of Service) requirements. This feature is especially important for Virtualization Technology. The options are Disable, Enable, and Auto.

▶Memory Configuration

Enforce POR (Plan of Record)

Select POR to enforce POR restrictions for DDR4 memory frequency and voltage programming. The options are POR and Disable.

PPR Type

Post Package Repair (PPR) is a new feature available for the DDR4 Technology. PPR provides additional spare capacity within a DDR4 DRAM module that is used to replace faulty cell areas detected during system boot. PPR offers two types of memory repairs. Soft Post Package Repair (Soft PPR) provides a quick, temporary fix on a raw element in a bank group of a DDR4 DRAM device, while Hard Post Package Repair (Hard PPR) will take a longer time to provide a permanent repair on a raw element. The options are Auto, Hard PPR, Soft PPR, and PPR Disabled.

Memory Frequency

Use this feature to set the maximum memory frequency for onboard memory modules. The options are Auto, 1866, 2000, 2133, 2400, 2666, and 2933*. (*Note: Support for 2933 MHz memory is dependent on the CPU SKU.)

Data Scrambling for DDR4

Select Enable to enable data scrambling for DDR4 memory to enhance system performance and security. Select Auto for the default setting of the Memory Reference Code (MRC) to set configure data scrambling for DDR4 setting. The options are Auto, Disable, and Enable.

tCCD\_L Relaxation

If this feature is set to Enable, SPD (Serial Presence Detect) will override tCCD_L ("Column to Column Delay-Long", or "Command to Command Delay-Long" on the column side.) If this feature is set to Disable, tCCD_L will be enforced based on the memory frequency. The options are Auto and Disable.

Enable ADR

Select Enable for ADR (Async DIMM Self-Refresh) support to enhance memory performance. The options are Disable and Enable.

Data Scrambling for NVDIMM

Select Enable to enable data scrambling support for onboard NVDIMM memory to improve system performance and security. The options are Auto, Disable, and Enable.

Erase-Arm NVDIMMs

If this feature is set to Enable, the function that arms the NVDIMMs for safe operations in the event of a power loss will be removed. The options are Enable and Disable.

Restore NVDIMMs

Select Enable to restore the functionality and the features of NVDIMMs. The options are Enable and Disable.

Interleave NVDIMMs

If this item is set to Enable, all onboard NVDIMM modules will be configured together as a group for the interleave mode. If this item is set to Disable, individual NVDIMM modules will be configured separately for the interleave mode. The options are Enable and Disable.

Reset Trigger ADR (Async DIMM Self-Refresh)

Upon system power loss, an ADR sequence will be triggered to allow ADR to flush the write-protected data buffers in the memory controller and place the DRAM memory in self-refresh mode. When this process is complete, the NVDIMM will then take control of the DRAM memory and transfer the contents to the onboard Flash memory. After the transfer is complete, the NVDIMM goes into a zero power state. The data transferred will be retained for the duration specified by the flash memory. The options are Enable and Disable.

S5 Trigger ADR

Select Enabled to support S5-Triggered ADR to enhance system performance and data integrity. The options are Disabled and Enabled.

2X Refresh

Select Enable for memory 2X refresh support to enhance memory performance. The options are Disable, Enable and Auto.

Page Policy

Use this feature to set the page policy for onboard memory support. The options are Closed, Adaptive, and Auto.

IMC Interleaving

Use this feature to configure interleaving settings for the IMC (Integrated Memory Controller), which will improve memory performance. The options are 1-way Interleave, 2-way Interleave, and Auto.

▶Memory Topology

This item displays the information of onboard memory modules as detected by the BIOS.

• P1 DIMMA1/DIMMB1/DIMMC1/DIMMD1/DIMME1/DIMMF1
• P2 DIMMA1/DIMMB1/DIMMC1/DIMMD1/DIMME1/DIMMF1

▶Memory RAS (Reliability\_Availability\_Serviceability) Configuration

Use this submenu to configure the following Memory RAS settings.

Static Virtual Lockstep Mode

Select Enable to support Static Virtual Lockstep mode to enhance memory performance. The options are Enable and Disable.

Mirror Mode

Use this feature to configure the mirror mode settings for all 1LM/2LM memory modules installed in the system which will create a duplicate copy of data stored in the memory to increase memory security, but it will reduce the memory capacity into half. The options are Disable, Mirror Mode 1LM, and Mirror Mode 2LM.

Memory Rank Sparing

Select Enable to support memory-rank sparing to optimize memory performance. The options are Enable and Disable.

Note: This item will not be available when memory mirror mode is set to Mirror Mode 1LM or an AEP device is plugged in.

Correctable Error Threshold

Use this item to enter the threshold value for correctable memory errors. The default setting is 512.

Intel Run Sure

Select Enable to use Intel Run Sure Technology which will enhance critical data protection and increase system uptime and resiliency. The options are Enable and Disable.

SDDC Plus One

Select Enable for SDDC (Single Device Data Correction) Plus One support, which will activate memory ECC mode for memory error checking and correction. It will also protect against memory failures caused by 'single-bit' errors in the same memory rank. The options are Enable and Disable.

ADDDC (Adaptive Double Device Data Correction) Sparing (Available when Intel Run Sure is set to Enable)

Select Enable for Adaptive Double Device Data Correction (ADDDC) support, which will not only provide memory error checking and correction but will also prevent the system from issuing a performance penalty before a device fails. Please note that virtual lockstep mode will only start to work for ADDDC after a faulty DRAM module is spared. The options are Enable and Disable.

Patrol Scrub

Patrol Scrubbing is a process that allows the CPU to correct correctable memory errors detected in a memory module and send the corrections to the requestor (the original source). When this feature is set to Enable, the IO hub will read and write back one cache line every 16K cycles if there is no delay caused by internal processing. By using this method, roughly 64 GB of memory behind the IO hub will be scrubbed every day. The options are Enable and Disable.

Patrol Scrub Interval

Use this item to specify the number of hours (between 0 to 24) required for the system to complete a full patrol scrubbing. Enter 0 for patrol scrubbing to be performed automatically. The default setting is 24.

Note: This item is hidden when Patrol Scrub item is set to Disable.

▶IIO Configuration

EV DFX (Device Function On-Hide) Features

When this feature is set to Enable, the EV_DFX Lock Bits that are located in a processor will always remain clear during electric tuning. The options are Disable and Enable.

▶CPU1 Configuration/CPU2 Configuration

IOU0 (IIO PCIe Br1)

Use this feature to configure the PCIe Bifurcation setting for a PCIe port specified by the user. The options are x4x4x4x4, x4x4x8, x8x4x4, x8x8, x16, and Auto.

IOU1 (IIO PCIe Br2)

Use this feature to configure the PCIe Bifurcation setting for a PCIe port specified by the user. The options are x4x4x4x4, x4x4x8, x8x4x4, x8x8, x16, and Auto.

IOU2 (IIO PCIe Br3)

Use this feature to configure the PCIe Bifurcation setting for a PCIe port specified by the user. The options are x4x4x4x4, x4x4x8, x8x4x4, x8x8, x16, and Auto.

▶CPU1 PcieBr0D00F0 - Port 0/DMI (Available for CPU 1 Configuration only)

Link Speed

Use this feature to configure the link speed of a PCIe port specified by the user. The options are Auto, Gen 1 (Generation 1) (2.5 GT/s), Gen 2 (Generation 2) (5 GT/s), and Gen 3 (Generation 3) (8 GT/s)

The following information will be displayed:

• PCI-E Port Link Status
- PCI-E Port Link Max
• PCI-E Port Link Speed

PCI-E Port Max (Maximum) Payload Size (Available for CPU 1 Configuration only)

Select Auto for the system BIOS to automatically set the maximum payload value for a PCIe device specified by to user for system performance enhancement. The options are Auto, 128B, and 256B.

▶IOAT Configuration

Disable TPH (TLP Processing Hint)

TPH is used for data-tagging with a destination ID and a few important attributes. It can send critical data to a particular cache without writing through to memory. Select No in this item for TLP Processing Hint support, which will allow a "TPL request" to provide "hints" to help optimize the processing of each transaction occurred in the target memory space. The options are Yes and No.

Prioritize TPH (TLP Processing Hint)

Select Yes to prioritize the TPL requests that will allow the "hints" to be sent to help facilitate and optimize the processing of certain transactions in the system memory. The options are Enable and Disable.

Relaxed Ordering

Select Enable to allow certain transactions to be processed and completed before other transactions that have already been enqueued. The options are Disable and Enable.

▶Intel® VT for Directed I/O (VT-d)

Intel® VT for Directed I/O (VT-d)

Select Enable to use Intel Virtualization Technology support for Direct I/O VT-d by reporting the I/O device assignments to the VMM (Virtual Machine Monitor) through the DMAR ACPI tables. This feature offers fully-protected I/O resource sharing across Intel platforms, providing greater reliability, security and availability in networking and data-sharing. The options are Enable and Disable.

ACS (Access Control Services) Control

Select Enable to program Access Control Services to Chipset PCIe Root Port Bridges. Select Disable to program Access Control Services to all PCIe Root Port Bridges. The options are Enable and Disable.

Interrupt Remapping

Select Enable for Interrupt Remapping support to enhance system performance. The options are Enable and Disable.

PassThrough DMA

Select Enable for the Non-Isoch VT-d engine to pass through DMA (Direct Memory Access) to enhance system performance. The options are Enable and Disable.

ATS

Select Enable to enable ATS (Address Translation Services) support for the Non-Isoch VT-d engine to enhance system performance. The options are Enable and Disable.

Posted Interrupt

Select Enable to support VT_D Posted Interrupt which will allow external interrupts to be sent directly from a direct-assigned device to a client machine in non-root mode to improve virtualization efficiency by simplifying interrupt migration and lessening the need of physical interrupts. The options are Enable and Disable.

Coherency Support (Non-Isoch)

Select Enable for the Non-Isoch VT-d engine to pass through DMA (Direct Memory Access) to enhance system performance. The options are Enable and Disable.

Intel® VMD Technology

This section describes the configuration settings for the Intel Volume Management Device (VMD) Technology.

Note: After you've enabled VMD on a PCIe slot of your choice, this PCIe slot will be dedicated for VMD use only, and it will no longer support any PCIe device. To re-activate this slot for PCIe use, please disable VMD.

Intel® VMD for Volume Management Device on CPU1 - Intel® VMD for Volume Management Device on CPU2

VMD Configuration for PStack0 - VMD Configuration for PStack2

Intel®VMD for Volume Management Device for PStack0 - PStack2

Select Enable to enable Intel Volume Management Device Technology support for the for the device specified by the user. The options are Disable and Enable.

▶IIO-PCIE Express Global Options

PCI-E Completion Timeout Disable

Use this feature to select the PCIe Completion Time-out settings. The options are Yes, No, and Per-Port.

▶ South Bridge

The following South Bridge information will display:

• USB Module Version
• USB Devices

Legacy USB Support

Select Enabled to support onboard legacy USB devices. Select Auto to disable legacy support if there are no legacy USB devices present. Select Disable to have all USB devices available for EFI applications only. The options are Enabled, Disabled and Auto.

XHCI Hand-Off

This is a work-around solution for operating systems that do not support XHCI (Extensible Host Controller Interface) hand-off. The XHCI ownership change should be claimed by the XHCI driver. The options are Disabled and Enabled.

Port 60/64 Emulation

Select Enabled for I/O port 60h/64h emulation support, which in turn, will provide complete legacy USB keyboard support for the operating systems that do not support legacy USB devices. The options are Enabled and Disabled.

PCIe PLL SSC

Select Enabled for PCH PCIe Spread Spectrum Clocking support, which will allow the BIOS to monitor and attempt to reduce the level of Electromagnetic Interference caused by the components whenever needed. The options are Enabled and Disabled.

▶Server ME (Management Engine) Information

This feature displays the following system ME configuration settings.

• General ME Configuration Oper. (Operational) Firmware Version
• Backup Firmware Version
  • Recovery Firmware Version
  • ME Firmware Status #1
  • ME Firmware Status #2
• Current State
• Error Code

▶(PCH) sSATA Configuration

When this submenu is selected, the AMI BIOS automatically detects the presence of the SATA devices that are supported by the Intel PCH chip and displays the following items:

sSATA Controller

This item enables or disables the onboard SATA controller supported by the Intel PCH chip. The options are Enable and Disable.

Configure sSATA as (Available when SATA Controller is set to Enable)

Select AHCI to configure a SATA drive specified by the user as an AHCI drive. Select RAID to configure a SATA drive specified by the user as a RAID drive. The options are AHCI and RAID. (Note: This item is hidden when the sSATA Controller item is set to Disabled.)

SATA HDD Unlock (Available when sSATA Controller is set to Enable)

Select Enable to unlock SATA HDD password in the OS. The options are Enable and Disable.

sSATA RSTe Boot info (Available when sSATA Controller is set to Enable)

When this feature is set to Enable, the sSATA Controller provides full int 13h support for SATA controller attached devices. CSM storage OPROM policy should be set to legacy to make this selection effective. The default options are Disable and Enable.

Aggressive Link Power Management

When this feature is set to Enable, the SATA AHCI controller manages the power use of the SATA link. The controller will put the link in a low power mode during an extended period of I/O inactivity, and will return the link to an active state when I/O activity resumes. The options are Enable and Disable.

sSATA RAID Option ROM/UEFI Driver (Available when Configure SATA as is set to RAID)

Select EFI to load the EFI driver for system boot. Select Legacy to load a legacy driver for system boot. The options are Disable, EFI, and Legacy.

SATA Port 0 - SATA Port 5

Hot Plug

Select Enable to support Hot-plugging for the device installed on a selected SATA port which will allow the user to replace the device installed in the slot without shutting down the system. The options are Enable and Disable.

Spin Up Device

When this feature is set to Enable, the SATA device installed on the SATA port specified by the user will start a COMRESET initialization when an edge is detected from 0 to 1. The options are Enable and Disable.

sSATA Device Type

Use this feature to specify if the device installed on the SATA port specified by the user should be connected to a Solid State drive or a Hard Disk Drive. The options are Hard Disk Drive and Solid State Drive.

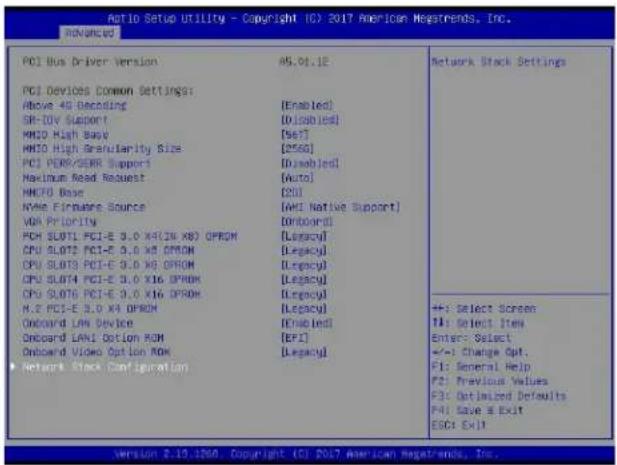

▶PCIe/PCI/PnP Configuration

The following PCI information will be displayed:

• PCI Bus Driver Version
• PCI Devices Common Settings

Above 4G Decoding (Available if the system supports 64-bit PCI decoding)

Select Enabled to decode a PCI device that supports 64-bit in the space above 4G Address. The options are Enabled and Disabled.

SR-IOV Support (Available if the system supports Single-Root Virtualization)

Select Enabled for Single-Root IO Virtualization support. The options are Enabled and Disabled.

MMIO High Base

Use this feature to select the base memory size according to memory-address mapping for the IO hub. The options are 56T, 40T, 24T, 16T, 4T, 2T and 1T.

MMIO High Granularity Size

Use this feature to select the high memory size according to memory-address mapping for the IO hub. The options are 64G, 256G, and 1024G.

Maximum Read Request

Select Auto for the system BIOS to automatically set the maximum size for a read request for a PCIe device to enhance system performance. The options are Auto, 128 Bytes, 256 Bytes, 512 Bytes, 1024 Bytes, 2048 Bytes, and 4096 Bytes.

MMCFG Base

This feature determines how the lowest MMCFG (Memory-Mapped Configuration) base is assigned to onboard PCI devices. The options are 1G, 1.5G, 1.75G, 2G, 2.25G, and 3G.

NVMe Firmware Source

This feature determines which type of the NVMe firmware should be used in your system. The options are Vendor Defined Firmware and AMI Native Support.

VGA Priority

Use this feature to select the graphics device to be used as the primary video display for system boot. The options are Auto, Onboard and Offboard.

PCH M.2 SLOT OPROM

Select EFI to allow the user to boot the computer using an EFI (Extensible Firmware Interface) device installed on the M.2 slot specified by the user. Select Legacy to allow the user to boot the computer using a legacy device installed on the M.2 slot specified by the user. The options are Disabled, Legacy and EFI.

SLOT1 PCI-E X16 OPROM / SLOT2 PCI-E X16 OPROM

Select EFI to allow the user to boot the computer using an EFI (Extensible Firmware Interface) device installed on the PCIe slot specified by the user. Select Legacy to allow the user to boot the computer using a legacy device installed on the PCIe slot specified by the user. The options are Disabled, Legacy and EFI. (Note: Riser card names may differ in each system.)

SIOM: CPU2 PCI-E 3.0 OPROM

Select EFI to allow the user to boot the computer using an EFI (Extensible Firmware Interface) device installed on the PCIe slot specified by the user. Select Legacy to allow the user to boot the computer using a legacy device installed on the PCIe slot specified by the user. The options are Disabled, Legacy and EFI.

Bus Master Enable

Select Enabled to enables the Bus Master Attribute for DMA transactions. The options are Enabled and Disabled.

Onboard LAN Device

Select Enable to use onboard LAN devices. The options are Disabled and Enabled.

Onboard LAN1 Option ROM

Use this feature to select the type of device installed in LAN Port1, which will be used for system boot. The options are Legacy, EFI and Disabled.

Onboard LAN2 Option ROM

Use this feature to select the type of device installed in LAN Port2, which will be used for system boot. The options are Legacy, EFI and Disabled.

Onboard LAN3 Option ROM / Onboard LAN4 Option ROM

Use this feature to select the type of device installed in LAN Port2, which will be used for system boot. The options are PXE and Disabled.

CPU1 BPN NVME Option ROM

Use this feature to select the type of device installed in Backplane NVMe connectors, which will be used for system boot. The options are Legacy, EFI and Disabled.

CPU1 BPN NVME Option ROM

Use this feature to select the type of device installed in Backplane NVMe connectors, which will be used for system boot. The options are Legacy, EFI and Disabled.

Onboard Video Option ROM

Use this feature to select the Onboard Video Option ROM type. The options are Disabled, Legacy and UEFI.

▶ Network Stack Configuration

Network Stack

Select Enabled to enable PXE (Preboot Execution Environment) or UEFI (Unified Extensible Firmware Interface) for network stack support. The options are Enabled and Disabled.

*If "Network Stack" is set to Enabled, the following items will display:

Ipv4 PXE Support

Select Enabled to enable lpv4 PXE boot support. If this feature is disabled, it will not create the lpv4 PXE boot option. The options are Disabled and Enabled.

Ipv4 HTTP Support

Select Enabled to enable lpv4 HTTP boot support. If this feature is disabled, it will not create the lpv4 HTTP boot option. The options are Enabled and Disabled.

Ipv6 PXE Support

Select Enabled to enable lpv6 PXE boot support. If this feature is disabled, it will not create the lpv6 PXE boot option. The options are Enabled and Disabled.

Ipv6 HTTP Support

Select Enabled to enable lpv6 HTTP boot support. If this feature is disabled, it will not create the lpv6 HTTP boot option. The options are Enabled and Disabled.

PXE Boot Wait Time

Use this feature to select the wait time to press the key to abort the PXE boot. The default is 0.

Media Detect Time

Use this feature to select the wait time in seconds for the BIOS ROM to detect the LAN media (Internet connection or LAN port). The default is 1.

▶ Super IO Configuration

Super IO Chip AST2500

▶ Serial Port 1 Configuration

Serial Port 1

Select Enabled to enable Serial Port 1. The options are Enabled and Disabled.

Device Settings (Available when the item above "Serial Port (1)" is set to Enabled)

This item displays the base I/O port address and the Interrupt Request address of a serial port specified by the user.

Change Settings

This feature specifies the base I/O port address and the Interrupt Request address of Serial Port 1. Select Auto for the BIOS to automatically assign the base I/O and IRQ address to a serial port specified.

The options for Serial Port 1 are Auto, (IO=3F8h; IRQ=4), (IO=2F8h; IRQ=4), (IO=3E8h; IRQ=4) and (IO=2E8h; IRQ=4).

▶ Serial Port 2 Configuration

Serial Port 2

Select Enabled to enable Serial Port 2. The options are Enabled and Disabled.

Device Settings (Available when the item above "Serial Port (2)" is set to Enabled)

This feature displays the base I/O port address and the Interrupt Request address of a serial port specified by the user.

Change Settings

This feature specifies the base I/O port address and the Interrupt Request address of Serial Port 2. Select Auto for the BIOS to automatically assign the base I/O and IRQ address to a serial port specified.

The options for Serial Port 2 are Auto, (IO=2F8h; IRQ=3), (IO=3F8h; IRQ=3), (IO=3E8h; IRQ=3) and (IO=2E8h; IRQ=4).

Serial Port 2 Attribute

Select SOL to use COM Port 2 as a Serial_Over_LAN (SOL) port for console redirection. The options are COM and SOL.

▶Serial Port Console Redirection

COM 1

Console Redirection

Select Enabled to enable COM Port 1 for Console Redirection, which will allow a client machine to be connected to a host machine at a remote site for networking. The options are Enabled and Disabled.

*If the item above set to Enabled, the following items will become available for configuration:

▶ Console Redirection Settings (for COM 1)

Terminal Type

Use this feature to select the target terminal emulation type for Console Redirection. Select VT100 to use the ASCII Character set. Select VT100+ to add color and function key support. Select ANSI to use the Extended ASCII Character Set. Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or more bytes. The options are VT100, VT100+, VT-UTF8 and ANSI

Bits Per second

Use this feature to set the transmission speed for a serial port used in Console Redirection. Make sure that the same speed is used in the host computer and the client computer. A lower transmission speed may be required for long and busy lines. The options are 9600, 19200, 38400, 57600 and 115200 (bits per second).

Data Bits

Use this feature to set the data transmission size for Console Redirection. The options are 7 (Bits) and 8 (Bits).

Parity

A parity bit can be sent along with regular data bits to detect data transmission errors. Select Even if the parity bit is set to 0, and the number of 1's in data bits is even. Select Odd if the parity bit is set to 0, and the number of 1's in data bits is odd. Select None if you do not want to send a parity bit with your data bits in transmission. Select Mark to add a mark as a parity bit to be sent along with the data bits. Select Space to add a Space as a parity bit to be sent with your data bits. The options are None, Even, Odd, Mark and Space.

Stop Bits

A stop bit indicates the end of a serial data packet. Select 1 Stop Bit for standard serial data communication. Select 2 Stop Bits if slower devices are used. The options are 1 and 2.

Flow Control

Use this feature to set the flow control for Console Redirection to prevent data loss caused by buffer overflow. Send a "Stop" signal to stop sending data when the receiving buffer is full. Send a "Start" signal to start sending data when the receiving buffer is empty. The options are None and Hardware RTS/CTS.

VT-UTF8 Combo Key Support

Select Enabled to enable VT-UTF8 Combination Key support for ANSI/VT100 terminals. The options are Enabled and Disabled.

Recorder Mode

Select Enabled to capture the data displayed on a terminal and send it as text messages to a remote server. The options are Disabled and Enabled.

Resolution 100x31

Select Enabled for extended-terminal resolution support. The options are Disabled and Enabled.

Legacy OS Redirection Resolution

Use this feature to select the number of rows and columns used in Console Redirection for Legacy OS support. The options are 80x24 and 80x25.

Putty KeyPad

This feature selects Function Keys and KeyPad settings for Putty, which is a terminal emulator designed for the Windows OS. The options are VT100, LINUX, XTERMR6, SCO, ESCN, and VT400.

Redirection After BIOS POST

Use this feature to enable or disable Legacy Console Redirection after BIOS POST. When the option-Bootloader is selected, Legacy Console Redirection is disabled before booting the OS. When the option-Always Enable is selected, Legacy Console Redirection remains enabled upon OS bootup. The options are Always Enable and Bootloader.

SOL (Serial-Over-LAN)

Console Redirection (for SOL)

Select Enabled to use the SOL port for Console Redirection. The options are Enabled and Disabled.

*If the item above set to Enabled, the following items will become available for user's configuration:

▶Console Redirection Settings (for SOL)

Use this feature to specify how the host computer will exchange data with the client computer, which is the remote computer used by the user.

Terminal Type

Use this feature to select the target terminal emulation type for Console Redirection. Select VT100 to use the ASCII Character set. Select VT100+ to add color and function key support. Select ANSI to use the Extended ASCII Character Set. Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or more bytes. The options are VT100, VT100+, VT-UTF8 and ANSI.

Bits Per second

Use this feature to set the transmission speed for a serial port used in Console Redirection. Make sure that the same speed is used in the host computer and the client computer. A lower transmission speed may be required for long and busy lines. The options are 9600, 19200, 38400, 57600 and 115200 (bits per second).

Data Bits

Use this feature to set the data transmission size for Console Redirection. The options are 7 (Bits) and 8 (Bits).

Parity

A parity bit can be sent along with regular data bits to detect data transmission errors. Select Even if the parity bit is set to 0, and the number of 1's in data bits is even. Select Odd if the parity bit is set to 0, and the number of 1's in data bits is odd. Select None if you do not want to send a parity bit with your data bits in transmission. Select Mark to add a mark as a parity bit to be sent along with the data bits. Select Space to add a Space as a parity bit to be sent with your data bits. The options are None, Even, Odd, Mark and Space.

Stop Bits

A stop bit indicates the end of a serial data packet. Select 1 Stop Bit for standard serial data communication. Select 2 Stop Bits if slower devices are used. The options are 1 and 2.

Flow Control

Use this feature to set the flow control for Console Redirection to prevent data loss caused by buffer overflow. Send a "Stop" signal to stop sending data when the receiving buffer is full. Send a "Start" signal to start data-sending when the receiving buffer is empty. The options are None and Hardware RTS/CTS.

VT-UTF8 Combo Key Support

Select Enabled to enable VT-UTF8 Combination Key support for ANSI/VT100 terminals. The options are Enabled and Disabled.

Recorder Mode

Select Enabled to capture the data displayed on a terminal and send it as text messages to a remote server. The options are Disabled and Enabled.

Resolution 100x31

Select Enabled for extended-terminal resolution support. The options are Disabled and Enabled.

Legacy OS Redirection Resolution

Use this feature to select the number of rows and columns used in Console Redirection for Legacy OS support. The options are 80x24 and 80x25.

Putty KeyPad

This feature selects Function Keys and KeyPad settings for Putty, which is a terminal emulator designed for the Windows OS. The options are VT100, LINUX, XTERMR6, SCO, ESCN, and VT400.

Redirection After BIOS POST

Use this feature to enable or disable Legacy Console Redirection after BIOS POST. When the option-Bootloader is selected, Legacy Console Redirection is disabled before booting the OS. When the option-Always Enable is selected, Legacy Console Redirection remains enabled upon OS bootup. The options are Always Enable and BootLoader.

▶ Legacy Console Redirection

Legacy Console Redirection Port

Use this feature to select the COM port to display redirection of Legacy OS and Legacy OPROM messages. The options are COM1 and SOL.

Serial Port for Out-of-Band Management/Windows Emergency Management Services (EMS)

The feature allows the user to configure Console Redirection settings to support Out-of-Band Serial Port management.

Console Redirection (for EMS)

Select Enabled to use a COM port specified by the user for EMS Console Redirection. The options are Enabled and Disabled.

*If the item above set to Enabled, the following items will become available for user's configuration:

▶Console Redirection Settings (for EMS)

Out-of-Band Management Port

This feature selects a serial port in a client server to be used by the Windows Emergency Management Services (EMS) to communicate with a remote host server. The options are COM1 (Console Redirection) and SOL (Console Redirection).

Terminal Type

Use this feature to select the target terminal emulation type for Console Redirection. Select VT100 to use the ASCII character set. Select VT100+ to add color and function key support. Select ANSI to use the extended ASCII character set. Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or more bytes. The options are VT100, VT100+, VT-UTF8 and ANSI.

Bits Per Second

This feature sets the transmission speed for a serial port used in Console Redirection. Make sure that the same speed is used in both host computer and the client computer. A lower transmission speed may be required for long and busy lines. The options are 9600, 19200, 57600, and 115200 (bits per second).

Flow Control

Use this feature to set the flow control for Console Redirection to prevent data loss caused by buffer overflow. Send a "Stop" signal to stop data-sending when the receiving buffer is full. Send a "Start" signal to start data-sending when the receiving buffer is empty. The options are None, Hardware RTS/CTS, and Software Xon/Xoff.

The setting for each these features is displayed:

Data Bits, Parity, Stop Bits

▶ ACPI Settings

Use this feature to configure Advanced Configuration and Power Interface (ACPI) power management settings for your system.

NUMA (Available when the OS supports this feature)

Select Enabled to enable Non-Uniform Memory Access support to enhance system performance. The options are Enabled and Disabled.

WHEA Support

Select Enabled to support the Windows Hardware Error Architecture (WHEA) platform and provide a common infrastructure for the system to handle hardware errors within the Windows OS environment to reduce system crashes and to enhance system recovery and health monitoring. The options are Enabled and Disabled.

High Precision Event Timer

Select Enabled to activate the High Precision Event Timer (HPET) that produces periodic interrupts at a much higher frequency than a Real-time Clock (RTC) does in synchronizing multimedia streams, providing smooth playback and reducing the dependency on other timestamp calculation devices, such as an x86 RDTSC Instruction embedded in the CPU. The High Performance Event Timer is used to replace the 8254 Programmable Interval Timer. The options are Enabled and Disabled.

▶Trusted Computing (Available when a TPM device is installed and detected by the BIOS)

Configuration

Security Device Support

If this feature and the TPM jumper (JPT1) on the motherboard are both enabled, the onboard security (TPM) device will be enabled in the BIOS to enhance data integrity and system security. Please note that the OS will not show the security device. Neither TCG EFI protocol nor INT1A interaction will be made available for use. If you have made changes on the setting on this item, be sure to reboot the system for the change to take effect. The options are Disable and Enable. If this option is set to Enable, the following screen and items will display:

• Active PCR Banks
• Available PCR Banks

SHA-1 PCR Bank

Select Enabled to enable SHA-1 PCR Bank support to enhance system security and data integrity. The options are Enabled and Disabled.

SHA256 PCR Bank

Select Enabled to enable SHA256 PCR Bank support to enhance system security and data integrity. The options are Enabled and Disabled.

Pending Operation

Use this feature to schedule a TPM-related operation to be performed by a security (TPM) device at the next system boot to enhance system data integrity. Your system will reboot to carry out a pending TPM operation. The options are None and TPM Clear.

Note: Your system will reboot to carry out a pending TPM operation.

Platform Hierarchy (for TPM Version 2.0 and above)

Select Enabled for TPM Platform Hierarchy support which will allow the manufacturer to utilize the cryptographic algorithm to define a constant key or a fixed set of keys to be used for initial system boot. These early boot codes are shipped with the platform and are included in the list of "public keys". During system boot, the platform firmware uses the trusted public keys to verify a digital signature in an attempt to manage and control the security of the platform firmware used in a host system via a TPM device. The options are Enabled and Disabled.

Storage Hierarchy

Select Enabled for TPM Storage Hierarchy support that is intended to be used for non-privacy-sensitive operations by the platform owner such as an IT professional or the end user. Storage Hierarchy has an owner policy and an authorization value, both of which can be set and are

held constant (-rarely changed) through reboots. This hierarchy can be cleared or changed independently of the other hierarchies. The options are Enabled and Disabled.

Endorsement Hierarchy

Select Enabled for Endorsement Hierarchy support, which contains separate controls to address the user's privacy concerns because the primary keys in this hierarchy are certified by the TPM or a manufacturer to be constrained to an authentic TPM device that is attached to an authentic platform. A primary key can be an encrypted, and a certificate can be created using TPM2_ActivateCredential. It allows the user to independently enable "flag, policy, and authorization value" without involving other hierarchies. A user with privacy concerns can

Aptio Setup Utility - Copyright (CI) 2019 American Megatrends, Inc. Trusted Computing TPM20 Device Found Firmware Version: 7.63 Vendor: IFX Security Device Support [Enable] Active PCR banks SHA-1,SHA256 Available PCR banks SHA-1,SHA256 SHA-L PCR Bank [Enabled] SHA256 PCR Bank [Enabled] Pending operation [None] Platform Hierarchy [Enabled] Storage Hierarchy [Enabled] Endorsement Hierarchy [Enabled] PH Randomization [Disabled] TXT Support [Disabled] Enables or Disables BIOS support for security device. D.S. will not show Security Device, TCG EFI protocol and INTIA Interface will not be available. +: Select Screen T4: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.20.1274. Copyright (C) 2019 American Megatrends, Inc.

disable the endorsement hierarchy while still using the storage hierarchy for TPM applications and permitting the platform software to use the TPM. The options are Enabled and Disabled.

PH (Platform Hierarchy) Randomization (for TPM Version 2.0 and above)

Select Enabled for Platform Hierarchy Randomization support, which is used only during the platform developmental stage. This feature cannot be enabled in the production platforms. The options are Disabled and Enabled.

TXT Support

Select Enabled to enable Intel Trusted Execution Technology (TXT) support to enhance system security and data integrity. The options are Disabled and Enabled.

Note 1: If the option for this item (TXT Support) is set to Enabled, be sure to disable EV DFX (Device Function On-Hide) support for the system to work properly. (EV DFX is under "IIO Configuration" in the "Chipset/North Bridge" submenu).

Note 2: For more information on TPM, please refer to the TPM manual at http://www.supermicro.com/manuals/other.

▶HTTP BOOT Configuration

When this submenu is selected, the following items will be displayed:

Http Boot One Time

Select Enabled to enable HTTP Boot. The options are Enabled and Disabled. After create Http Boot Option, it will auto boot into HttpBoot for the first time.

Input the description

This feature allows the user to insert description for the HTTP Boot Option.

Boot URI

This feature allows the user to enter a URI to create a new Boot Option.

▶TLS Authenticate Configuration

When this submenu is selected, the following items will be displayed:

▶Server CA Configuration

This feature allows the user to configure the client certificate that is to be used by the server.

▶Enroll Certification

This feature allows the user to enroll the certificate in the system.

▶Enroll Cert (Certification) Using File

This feature allows the user to enroll the security certificate in the system by using a file.

Cert (Certification) GUID (Global Unique Identifier)

This feature displays the GUID for this system.

▶Commit Changes and Exit

Select this feature to keep the changes you have made and exit from the system.

▶Discard Changes and Exit

Select this feature to discard the changes you have made and exit from the system.

▶Delete Certification

If this feature is set to Enable, the certificate enrolled in the system will be deleted. The options are Enable and Disable.

- Discard & Exit: Select this feature when you want to abandon the changes you've made and to exit from the submenu.

Intel® Optane® DC Persistent Memory Configuration

When you select this submenu and press , the following screen will display:

• Version: This feature displays the version of DCPMM used in the system.
• Select an action below
• Detected DIMMs: This feature displays the number of DCPMM memory modules detected by the BOS.
• All DIMMs are healthy (The health status of the DCPMM is displayed.)

DIMMs

This submenu allows the user to view and configure the settings of the DCPMM memory modules installed in the system. Select this submenu and press , the following items will display:

• Select a specific DIMM that you want to view.
  • DIMMs on Socket 0x0000:
  • DIMMs on Socket 0x0001:

Aptio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Intel(R) Optane(TM) DC Persistent Memory Configuration Version: 1.0.0.3595 Select an action below. Detected DIMMs: All DIMMs are healthy. ► DIMMs ► Regions ► Namespaces ► Total capacity ► Diagnostics ► Preferences Detected DIMMs: +: Select Screen T4: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.20.1274. Copyright (C) 2019 American Megatrends, Inc.

▶DIMM ID

This submenu allows the user to view and to perform an action on a DCPMM module specified by the user. When this submenu is selected, the following items will display:

• DIMM UID: This feature displays the unique ID of the DCPMM module.
• DIMM Handle: This feature displays the unique handle that the CPU assigns to the DCPMM module.
• DIMM Physical ID: This feature displays the physical ID of the DCPMM module.
• Manageability State: This feature indicates the manageability state of the DCPMM module.
  • Health State: This feature indicates the health state of the DCPMM module.
• Health State Reason: This feature indicates the reason that effectuates the health state of the DCPMM module.
• Capacity: This feature indicates the capacity of the DCPMM module.
• Firmware Version: This feature indicates the firmware version of the DCPMM module.
• Firmware API Version: This feature indicates the firmware API version of the DCPMM module.
• Lock State: This feature indicates the lock state of the DCPMM module.
• Staged Firmware Version: This feature indicates the staged firmware version of the DCPMM module.
• Firmware Update Status: This feature indicates the firmware update status of the DCPMM module.
• Manufacturer: This feature indicates the manufacturer of the DCPMM module.

Show More Details

Select Enabled to view more detailed information on the DCPMM module. The options are Disabled and Enabled.

*If this option is set to Enabled, the following items will display:

• Serial Number
• Part Number
• Socket
  • Memory Controller ID
• Vendor ID
• Device ID
• System Vendor ID
• Subsystem Vendor ID

• Subsystem Device ID

• Device Locator

• Subsystem Revision ID
  • Interface Format Code
  • Manufacturing Information Valid
  • Manufacturing Date
  • Manufacturing Location
• Memory Type
  • Memory Bank Label
  • Data Width Label [b]
• Total Width [b]
• Speed [MHz]
• Channel ID
• Channel Position
• Revision ID
• Form Factor
• Manufacturer ID
  • Controller Revision ID
• IS New
• Memory Capacity
• APP Direct Capacity
  • Unconfigured Capacity
• Inaccessible Capacity
• Reserved Capacity
  • Peak Power Budget [mW]
  • Avg (Average) Power Budget [mW]

• Max Average Power Budget [mW]
• Package Sparing Capable
• Package Sparing Enabled
• Package Spares Available
- Configuration Status
- SKU Violation
- ARS Status
• Overwrite DIMM Status
- Last Shutdown Time
- First Fast Refresh
- Viral Policy Enable
- Viral State
- Latched Last Shutdown Status
• Unlatched Last Shutdown Status
• Security Capabilities
- Modes Supported
- Boot Status
- AIT DRAM Enabled
- Error Injection Enabled
• Media Temperature Injection Enabled
- Software Triggers Enabled
- Software Triggers Enabled Details
• Poison Error Injections Counter
- Poison Error Clear Counter
• Media Temperature Injections Counter

• Software Triggers Counter
  • Master Passphrase Enabled

▶Monitor Health

Select this submenu to view the health status and thresholds of the DCPMM module specified by the user.

• Sensor Type: This feature displays the type of health items that are being monitored.
• Value: This feature displays the value of the monitor sensor mentioned above.
• Non-critical Thresholds: This feature displays the normal threshold value for the DCPMM module to maintain normal operations.
• Critical Lower Threshold: This feature displays the lowest threshold value for the DCPMM module to maintain normal operations.
• Critical Upper Threshold: This feature displays the higher threshold value for the DCPMM module to maintain normal operations.
• Fatal Threshold: This feature indicates the highest value allowed for the DCPMM module to remain functional. Beyond this value, the DCPMM selected will become non-operational.
  • State: This feature indicates the health state of the DCPMM module.
• Alarm Enabled State: This feature indicates the status of the non-critical threshold alarm for the DCPMM module specified by the user.
• Modify Non-critical Thresholds: Use this feature to modify non-critical thresholds.
• Controller Temperature: This feature displays the controller temperature in Celsius.
  • Media Temperature: This feature displays the media temperature in Celsius.
  • Percentage Remaining

▶Apply Changes

Use this feature to apply changes that you've made on the DCPMM modules to the system.

▶Back to Main Menu

Select this feature and press to go back to the Intel® Optane® DC Persistent Memory Configuration menu.

▶Update Firmware

Use this feature to select the firmware image to be loaded on the DCPMM module. Once it is loaded to the system, please reboot the system and select update for the firmware to take effect. The following items will display:

• Current Firmware Version: This feature displays the current firmware version.
• Selected Firmware Version: This feature allows the user to select a new firmware version to use.
• File: This feature allows the user to specify the file path in the root directory that contains the new firmware for firmware update.

- Staged Firmware Version: This feature indicates the staged firmware version of the DCPMM module specified by the user.

▶Update

Select this feature to update the firmware settings.

▶Back to Main Menu

Select this feature and press to go back to the Intel® Optane® DC Persistent Memory Configuration menu.

▶Configure Security

Use this feature to configure the security settings for all onboard DCPMM modules.

State

Select Enabled to configure the security settings for the DCPMM modules installed in the system. The options are Disabled and Enabled.

• Enable Security: Use this feature to enable security settings for the onboard DCPMM modules.
• Secure Erase: Use this feature to erase all the persistent data saved in the DCPMM modules.
• Freeze Lock: Use this feature to enable the security lock for the onboard DCPMM modules.

▶Back to Main Menu

- Select this feature and press to go back to the Intel® Optane® DC Persistent Memory Configuration menu.

▶Configure Data Policy

Use this feature to configure the data policy settings for all onboard DCPMM modules.

First Fast Fresh State

Select Enabled to display the First Fast Fresh state for onboard DCPMM modules.

▶Enable First Fast Fresh State

Select Enabled to support the first fast fresh state of DCPMM data policy.

▶Disable First Fast Fresh State

Select Disable to disable the first fast fresh state of DCPMM data policy.

▶Back to Main Menu

Select this feature and press to go back to the Intel® Optane® DC Persistent Memory Configuration menu.

▶Regions

Current Configuration

▶Region ID

When this submenu is selected, the following items will display:

• Region ID: This feature displays the Region ID of the DCPMM module.
• DIMM ID: This feature displays the DIMM ID of the DCPMM module.
• ISet ID: This feature displays the ISet ID of the DCPMM module.

- Persistent Memory Type: This feature indicates the persistent memory type of the DCPMM module.

- Capacity: This feature indicates the capacity of the DCPMM module.

- Free Capacity: This feature indicates the capacity of the DCPMM module that is available for use.

• Health: This feature indicates the health state of the DCPMM module.

- Socket ID: This feature displays the Socket ID of the DCPMM module.

Persistent Memory Type

Capacity

Free Capacity

▶Create Goal Configuration

When this submenu is selected, the following items will display:

• Create Goal Configuration for: Use this feature to select the target to create goal configuration for the DCPMM modules. The options are Platform and Socket.
• Reserved [%]: Use this feature to reserve a percentage of the DCPMM capacity for a particular purpose and keep this portion of memory space from being mapped into the physical address of system for system use.
• Memory Mode [%]: Use this feature to reserve a percentage of the DCPMM capacity for special use in a specific Memory Mode. Please note that this value can be automatically set by the system.

Persistent Memory Type

This feature allows the user to specify the type of DCPMM memory capacity to be created. The options are App Direct and App Direct Not Interleave.

Namespace Label Version

Use this feature to view and modify the namespace label version to initialize when creating goals. The options are 1.2 and 1.1.

▶Back to Regions Menu

Select this feature and press to go back to the Regions submenu.

▶Back to Main Menu

Select this feature and press to go back to the Intel® Optane® DC Persistent Memory Configuration menu.

▶Namespaces

This subsection allows the user to select a namespace to view the following information on the selected namespace

Namespace ID/Name/Heath Status

▶0x00000201

Select this feature and press , the following items will display:

• UUID
  • ID
• Name
• Region
• Health
• Mode
• Block Size
• Units: Use this feature to change the namespace capacity (in the unit of B, MB, MiB, GB, GiB, TB, and TiB.)
• Capacity
• Label Version

▶Save: After configuring the settings for the namespace above, click on to save changes.

▶Delete After configuring the settings for the namespace above, click on to delete the changes you've made on the namespace. Please note that all data contained in the namespace will be deleted as well when you press .

▶Back to Namespaces

▶Back to Main Menu

▶Create Namespace

Use this submenu to create a namespace. The following information will display:

Name

Region ID

This feature displays the region ID of the DCPMM module. The options are 0x0001 and 0x0002.

Mode

Use this item to set the Namespace mode. The options are None and Sector.

Capacity Input

Select Remaining to use the maximum memory capacity currently available as system memory capacity. Select Manual to enter the system memory capacity manually. The options are Remaining and Manual.

Units

Use this feature to select the type of unit to use when inputting namespace capacity in the system.

The options are B, MB, MiB, GB, GiB, TB, and TiB.

- Capacity: This feature displays the namespace capacity.

▶Back to Namespace

Select this feature and press to go back to the Namespaces submenu.

▶Back to Main Menu

Select this feature and press to go back to the Intel® Optane® DC Persistent Memory Configuration menu.

▶Total Capacity

This feature allows the user to set the total DCPMM resource capacity allocated across all segments in the host server.

• Raw Capacity: This feature specifies the raw capacity of the DCPMM module.
• App. Direct Capacity: This feature specifies the App. direct capacity of the DCPMM module.
• Memory Capacity: This feature specifies the memory capacity of the DCPMM module.
• Unconfigured Capacity: This feature specifies the capacity of the DCPMM module that has not been configured.
• Inaccessible Capacity: This feature specifies the capacity of the DCPMM memory that is not accessible to the user.
• Reserved Capacity: This feature specifies the capacity of the DCPMM memory that is reserved for a particular use.

▶Back to Main Menu

Select this feature and press to go back to the Intel® Optane® DC Persistent Memory Configuration menu.

▶ Diagnostics

Perform Diagnostic Tests on DIMMs

When you select this submenu and press , the following items will display:

Choose Diagnostics Type:

Quick Diagnostics

Select Enabled for the quick diagnostics test to be performed on the DCPMM module installed in the system when needed. The options are Enabled and Disabled.

DIMM ID

Select Enabled for the quick diagnostics test to be performed on the DCPMM module. The options are Enabled and Disabled. (Note: More DIMM IDs will appear If more DCPMM modules are installed on the motherboard.)

Config (Configure) Diagnostics

Select Enabled for the platform configuration diagnostics test to be performed on the DCPMM module. The options are Enabled and Disabled.

FW (Firmware) Diagnostics

Select Enabled for the firmware diagnostics test to be performed on the DCPMM module. The options are Enabled and Disabled.

Security Diagnostics

Select Enabled for the security diagnostics test to be performed on the DCPMM module. The options are Enabled and Disabled.

▶ Execute Tests

Select this feature and press to execute the selected diagnostic tests.

▶Back to Main Menu

Select this feature and press to go back to the Intel® Optane® DC Persistent Memory Configuration menu.

▶Preferences

View and/or modify user preferences

Default DIMM ID

This feature allows the user to view and to modify the default DIMM ID as displayed on the screen. The options are Handle and UID.

Capacity Units

This feature allows the user to view and to set the default capacity unit of the selected DCPMM to be displayed on the screen. The options are Auto, Auto_10, B, MB, MiB, GB, GiB, TB, and TiB.

App Direct Settings

This feature displays the Application Direct Settings. The default setting is 4KB_4KB (Recommended).

App Direct Granularity

This feature allows the user to view and modify the minimum App Direct Granularity for each DIMM installed on the motherboard. The default setting is Recommended and 1.

▶Back to Main Menu

Use this feature to go back to the Intel® Optane® DC Persistent Memory Configuration menu.

iSCSI Configuration

When this submenu is selected, the following items will be displayed:

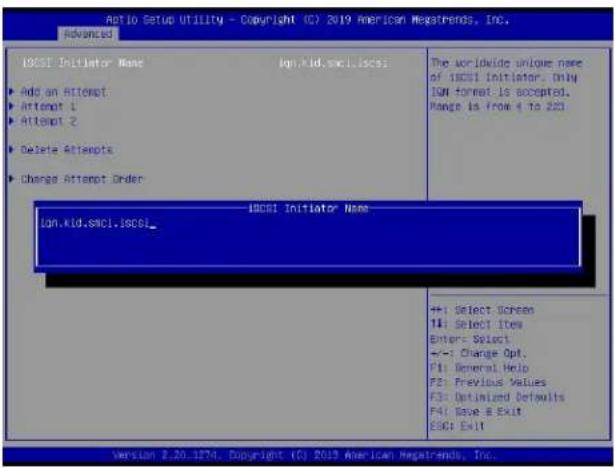

iSCSI Initiator Name

This feature allows the user to create a worldwide unique name of the iSCSI Initiator. Only IQN format is accepted.

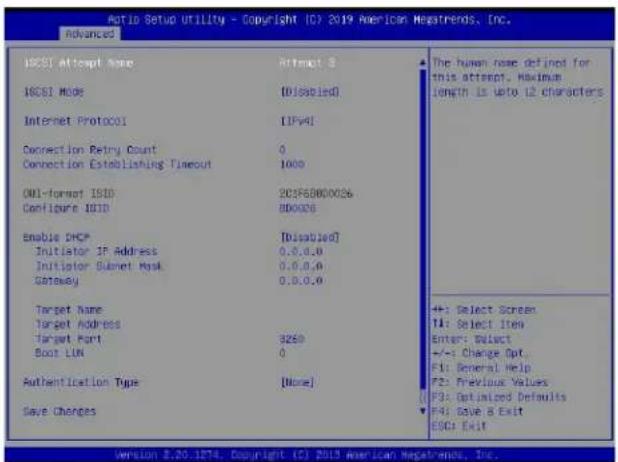

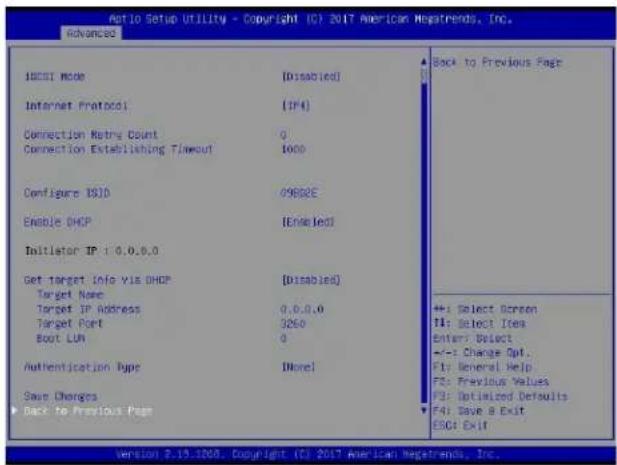

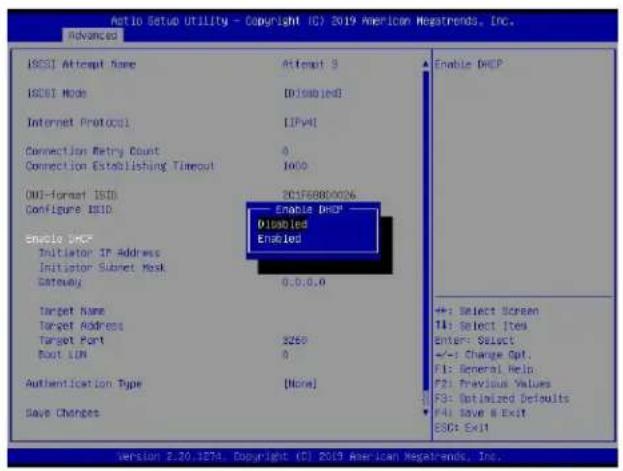

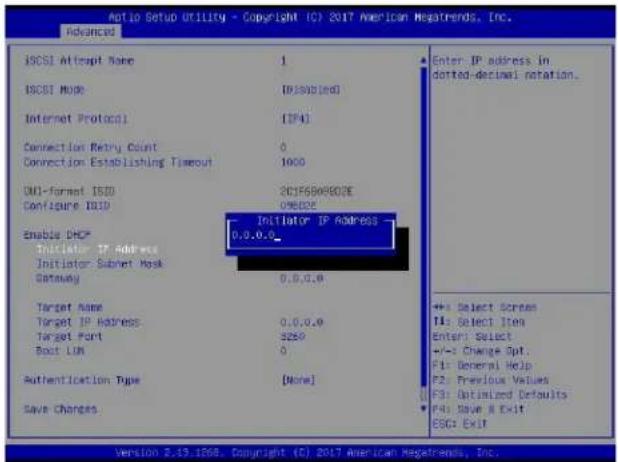

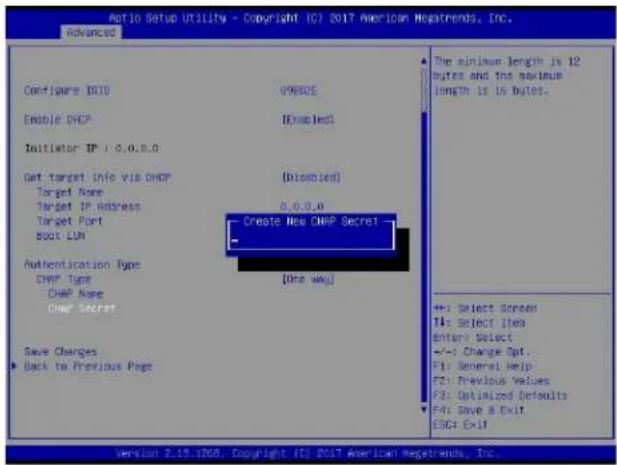

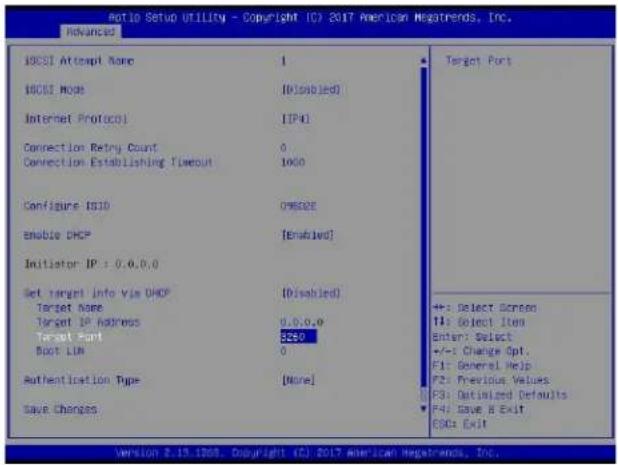

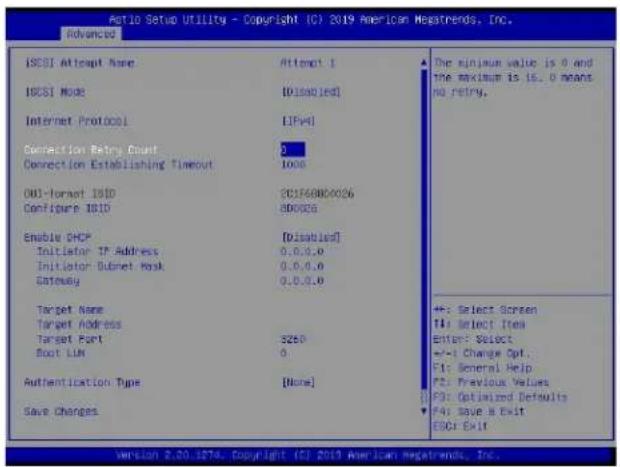

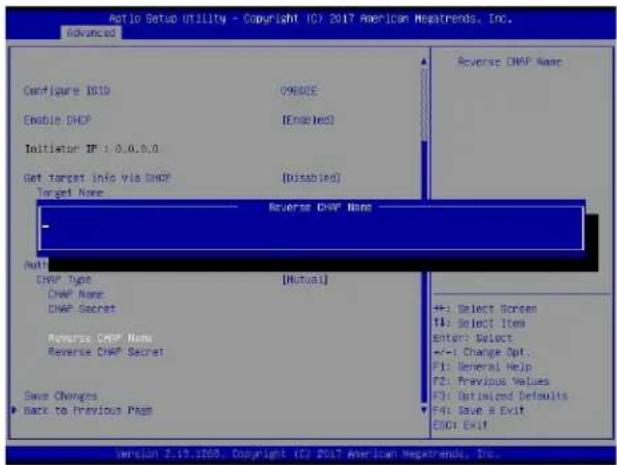

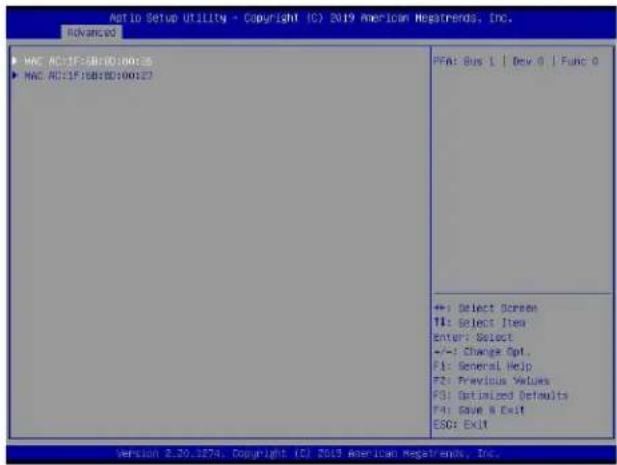

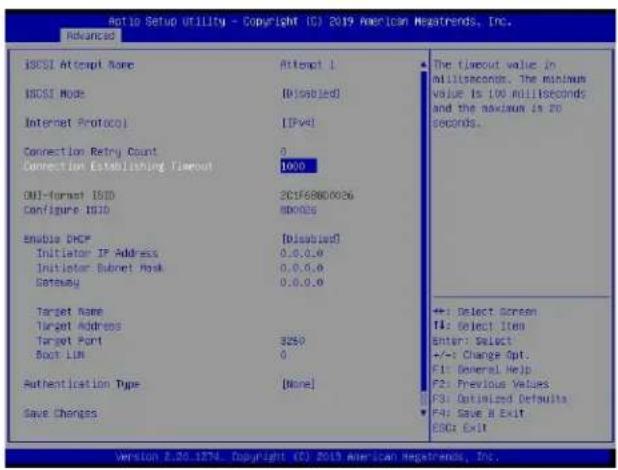

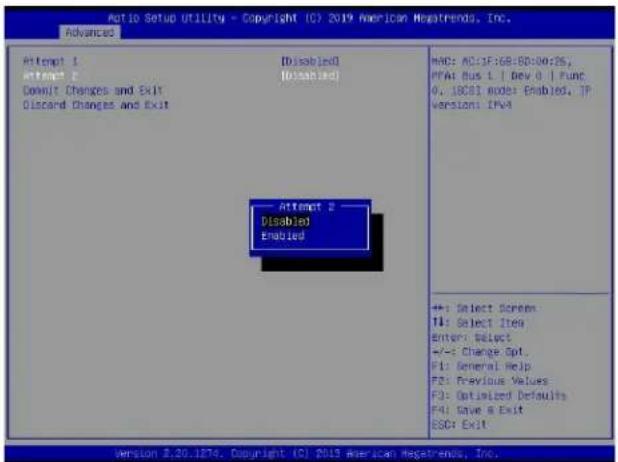

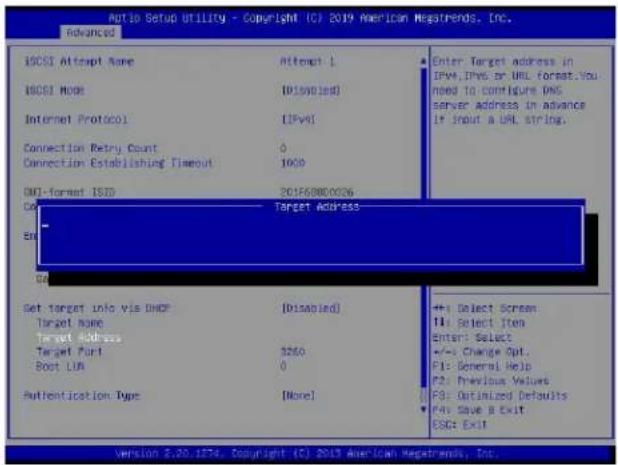

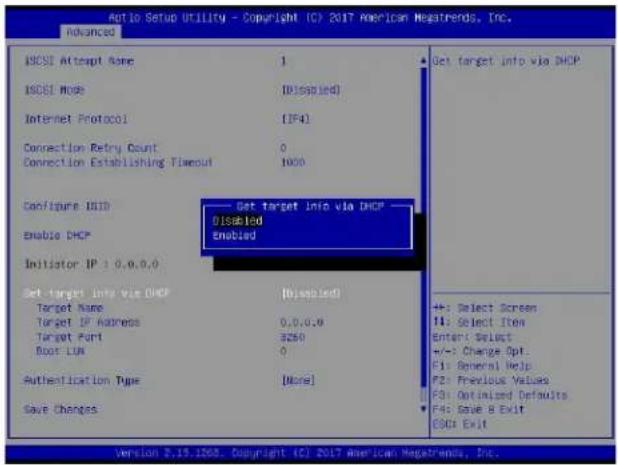

▶ Add an Attempt

▶ Delete Attempts

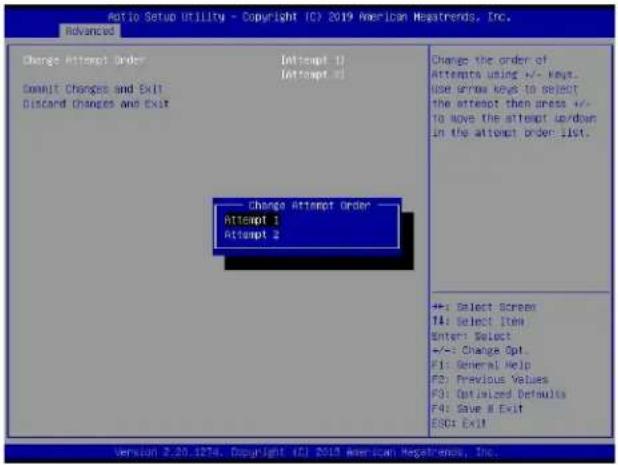

▶Change Attempt Order

HGST NVMe Device Configuration

When this submenu is selected, the following items will be displayed:

• Vendor ID
• Serial Number
• Default Capacity
• Current Capacity
• Firmware Ver.
• UEFI ROM Ver.
• PCI Bus: Device:Func

Firmware Management

▶Firmware Image

This feature allows the user to select a firmware image to download.

Select Slot

This feature allows the user to download firmware image from Solid State Drive based on a user-specified PCIe slot. The options are Firmware-decided slot, Slot 1, Slot 2, Slot 3, Slot 4, and Slot 5.

Activate Action

This feature allows the user to specify an action to perform with the Firmware Activate command. The options are None, Download image, Download and activate image and Activate image.

▶Driver Health

When this submenu is selected, the following items will be displayed:

▶Intel(R) DCPMM 1.0.0.3393 Driver

This feature displays Health Status of the DCPMM Drivers.

▶NVM Express Driver

This feature displays Health Status of the NVMe Controllers.

4.4 Event Logs

Use this feature to configure Event Log settings.

Note: After you've made a change on a setting below, please be sure to reboot the system for the change to take effect.

Action Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Main Advanced Event Logs JPMI Security Boot Save & Exit Change SMBIOS Event Log Settings View SMBIOS Event Log Press to change the SMBIOS Event Log configuration. +: Select Screen T4: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.50.1275. Copyright (C) 2019 American Megatrends, Inc.

▶Change SMBIOS Event Log Settings

Enabling/Disabling Options

SMBIOS Event Log

Select Enabled to enable SMBIOS (System Management BIOS) Event Logging during system boot. The options are Enabled and Disabled.

Erasing Settings

Erase Event Log

Select "No" to keep the event log without erasing it upon next system bootup. Select "Yes, Next Reset" to erase the event log upon next system reboot. The options are "No", "Yes, Next reset", and "Yes, Every reset".

When Log is Full

Select Erase Immediately to immediately erase all errors in the SMBIOS event log when the event log is full. Select Do Nothing for the system to do nothing when the SMBIOS event log is full. The options are Do Nothing and Erase Immediately.

SMBIOS Event Log Standard Settings

Log System Boot Event

Select Enabled to log system boot events. The options are Enabled and Disabled.

MECI (Multiple Event Count Increment)

Enter the increment value for the multiple event counter. Enter a number between 1 to 255. The default setting is 1.

METW (Multiple Event Count Time Window)

This feature is used to determine how long (in minutes) should the multiple event counter wait before generating a new event log. Enter a number between 0 to 99. The default setting is 60.

▶View System Event Log

This feature allows the user to view the event in the system event log. Select this item and press to view the status of an event in the log. The following categories are displayed: Date/Time/Error Code/Severity

4.5 IPMI

Use this feature to configure Intelligent Platform Management Interface (IPMI) settings.

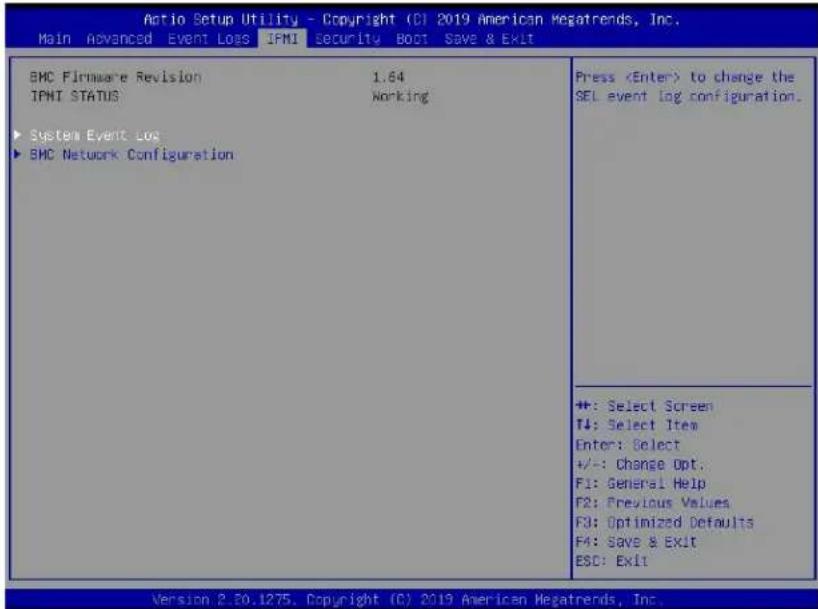

Action Setup Utility - Copyright (CI 2019 American Megatrends, Inc. Main Advanced Event Loss IPMI Security Boot Save & Exit SMC Firmware Revision 1.64 IPMI STATUS Working ► System Event Log ► SHC Network Configuration Press to change the SEL event log configuration. +: Select Screen T4: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.20.1275. Copyright (C) 2019 American Megatrends, Inc.

When you select this submenu and press the key, the following information will display:

• IPMI Firmware Revision: This feature indicates the IPMI firmware revision used in your system.
• IPMI STATUS: This feature indicates the status of the BMC (Baseboard Management Controller) installed in your system.

▶System Event Log

Enabling/Disabling Options

SEL Components

Select Enabled to enable all system event logging upon system boot. The options are Enabled and Disabled.

Erasing Settings

Erase SEL

Select "Yes, On next reset" to erase all system event logs upon next system boot. Select "Yes, On every reset" to erase all system event logs upon each system reboot. Select "No" to keep all system event logs after each system reboot. The options are "No", "Yes, On next reset", and "Yes, On every reset".

When SEL is Full

This feature allows the user to determine what the BIOS should do when the system event log is full. Select Erase Immediately to erase all events in the log when the system event log is full. The options are Do Nothing and Erase Immediately.

▶BMC Network Configuration

The following items will be displayed:

• IPMI LAN Selection: This feature displays the IPMI LAN setting. The default setting is Failover.
• IPMI Network Link Status: This feature displays the IPMI Network Link status. The default setting is Dedicated LAN.
• Configuration Address Source. This feature displays the source of IPv4 addresses. The default setting is DHCP.
• Station IP Address: This feature displays the Station IP address for this computer. This should be in decimal and in dotted quad form (i.e., 192.168.10.253).
• Subnet Mask: This feature displays the sub-network that this computer belongs to. The value of each three-digit number separated by dots should not exceed 255.
• Station MAC Address: This feature displays the Station MAC address for this computer. Mac addresses are 6 two-digit hexadecimal numbers.
• Gateway IP Address: This feature displays the Gateway IP address for this computer. This should be in decimal and in dotted quad form (i.e., 192.168.10.253).
• VLAN: This feature displays the status of VLAN support. The default setting is Disabled.
• IPv6 Address Status: This feature displays the IPv6 address status. The default setting is Disabled.
• IPv6 Support: This feature displays the IPv6 support status. The default setting is Enabled.
• Station IPv6 Address: This feature displays the station IPv6 address.
• Prefix Length: This item displays the prefix length.
• IPv6 Router IP Address: This feature displays the IPv6 router IP address.

Update IPMI LAN Configuration

Select Yes for the BIOS to implement all IP/MAC address changes upon next system boot. The options are No and Yes. If this option is set to Yes, the following items will display:

Configuration Address Source

Use this feature to select the IP address source for this computer. If Static is selected, you will need to know the IP address of this computer and enter it to the system manually in the field. If DHCP is selected, AMI BIOS will search for a DHCP (Dynamic Host Configuration Protocol) server attached to the network and request the next available IP address for this computer. The options are DHCP and Static.

VLAN

Select Enabled to enable IPMI VLAN function support. The default setting is Disabled.

IPv6 Support

Select Enabled for IPv6 support. The options are Enabled, and Disabled. If this option is set to Enabled, the following item will display:

Configuration Address Source

Use this feature to select the IP address source for this computer. If Static is selected, you will need to know the IP address of this computer and enter it to the system manually in the field. If DHCP is selected, AMI BIOS will search for a DHCP (Dynamic Host Configuration Protocol) server attached to the network and request the next available IP address for this computer. The options are DHCP and Static

4.6 Security Settings

This menu allows the user to configure the following security settings for the system.

Action Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Main Advanced Event Logs JPMI Security Boot Save & Exit Administrator Password Not Installed User Password Not Installed Password Description If the Administrator's / User's password is set, then this only limits access to Setup and is asked for when entering Setup. Please set Administrator's password first in order to set User's password, if clear Administrator's password, the User's password will be cleared as well. The password length must be in the following range: Minimum length 3 Maximum length 20 Administrator Password Password Check [Setup] ▶ Secure Boot Set Administrator Password +: Select Screen F4: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.20.1275. Copyright (C) 2019 American Megatrends, Inc.

Administrator Password

Use this feature to set the administrator password which is required to enter the BIOS setup utility. The length of the password should be from 3 characters to 20 characters long.

Password Check

Select Setup for the system to check for a password at Setup. Select Always for the system to check for a password at system boot and upon entering the BIOS Setup utility. The options are Setup and Always.

▶Secure Boot

When you select this submenu and press the key, the following items will display:

• System Mode
• Vendor Keys
• Secure Boot

Secure Boot

Select Enabled to use Secure Boot settings. The options are Enabled and Disabled.

Secure Boot Mode

Use this feature to select the desired secure boot mode for the system. The options are Standard and Custom.

CMS Support

If this feature is set to Enabled, legacy devices will be supported by the system. The options are Enabled and Disabled.

▶Key Management

Vendor Keys

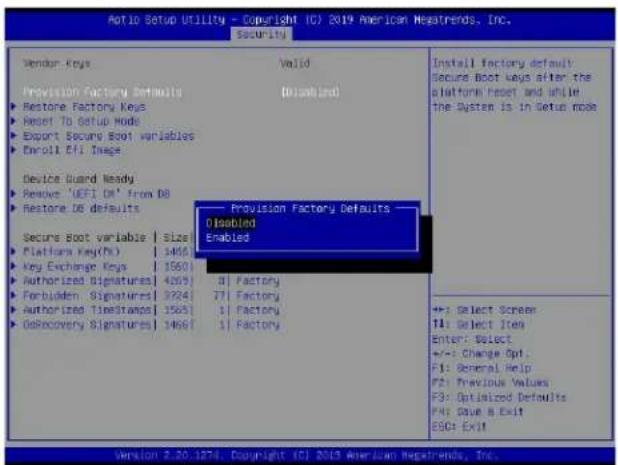

Provision Factory Defaults

Select Yes to install manufacturer default keys for system security use. The options are Enabled and Disabled.

Select Yes to restore all manufacturer default keys for system security use. The options are Yes and No.

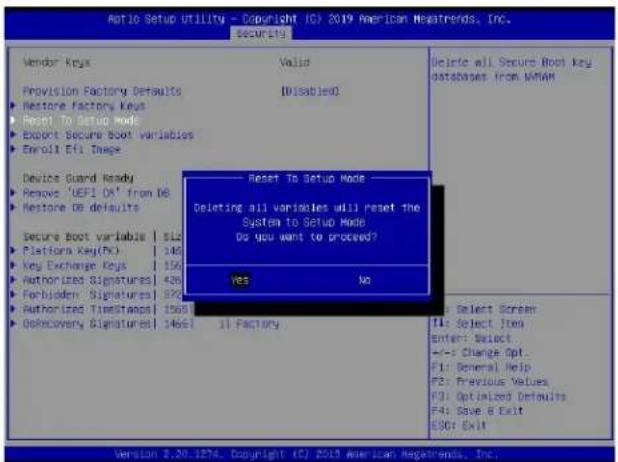

▶Reset to Setup Mode

This feature resets the system to Setup Mode.

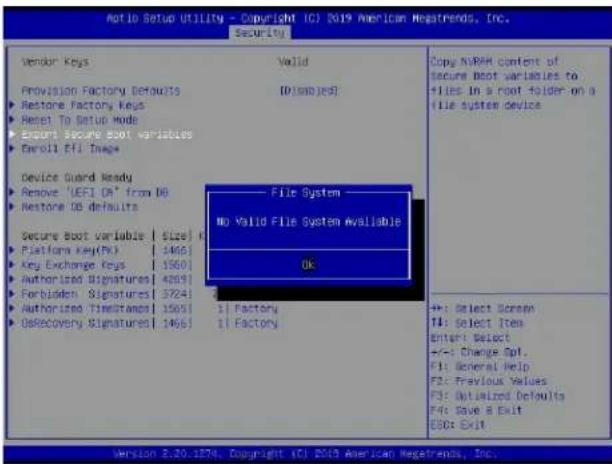

▶Export Secure Boot Variables

This feature is used to copy the NVRAM content of Secure Boot variables to a storage device.

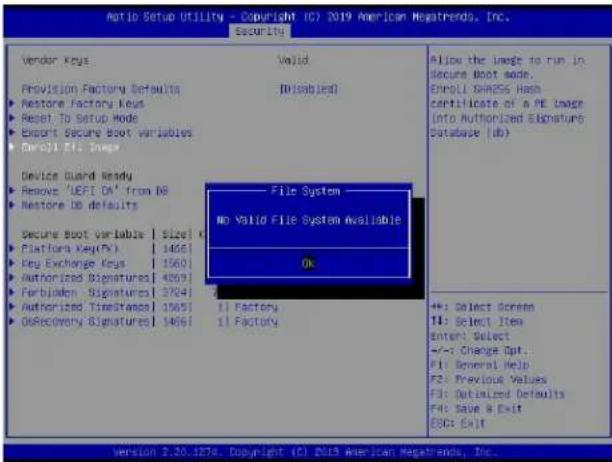

▶Enroll EFI Image

Select this feature and press to specify an EFI (Extensible Firmware Interface) image for the system to use when it operates in the Secure Boot mode.

Device Guard Ready

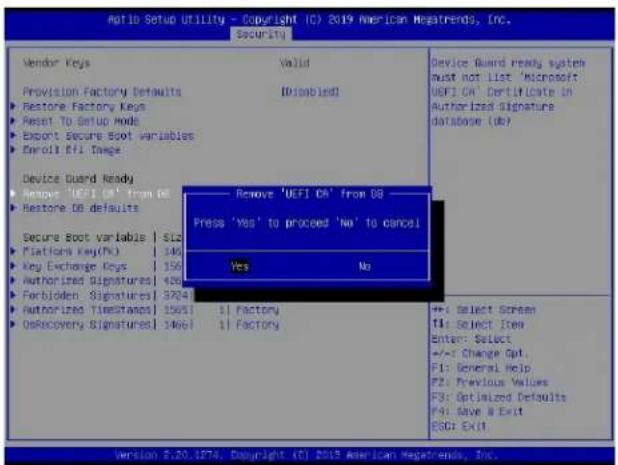

▶Remove 'UEFI CA' from DB

Select Yes to remove UEFI CA from the database. The options are Yes and No.

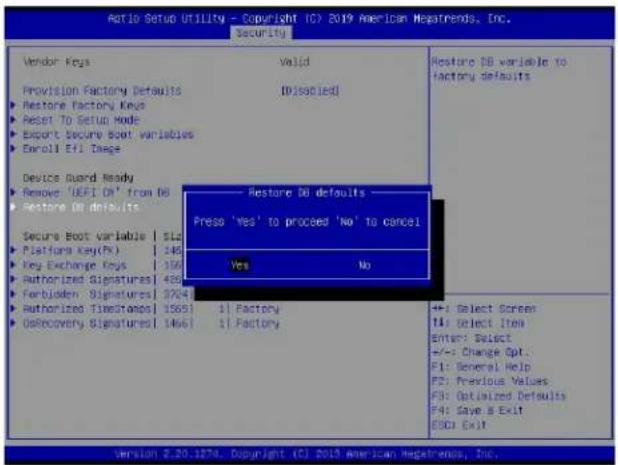

Select Yes to restore database variables to the manufacturer default settings. The options are Yes and No.

Secure Boot Variable/Size/Keys/Key Source

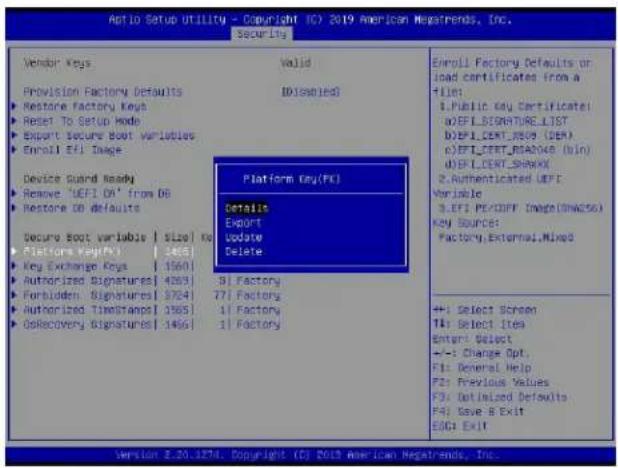

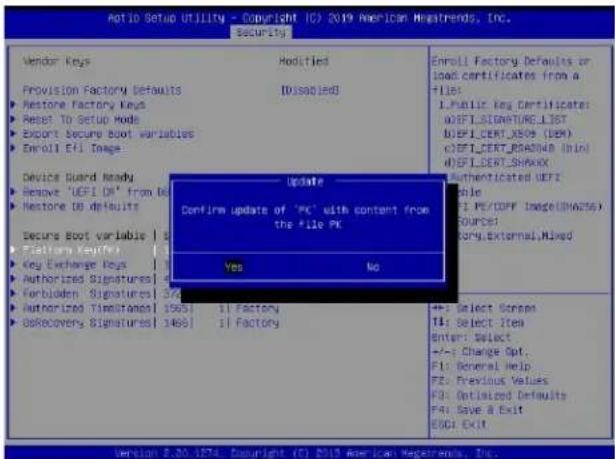

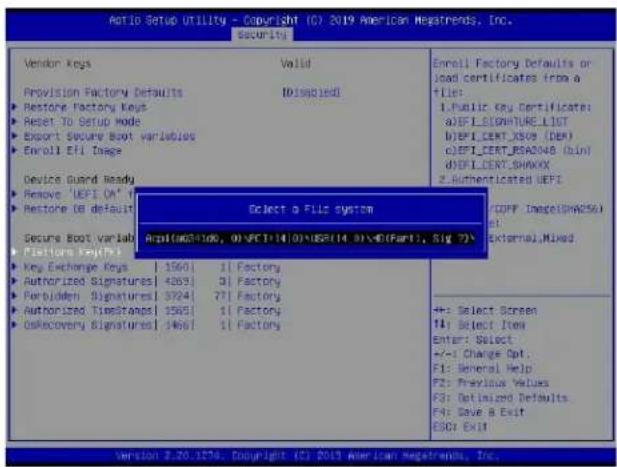

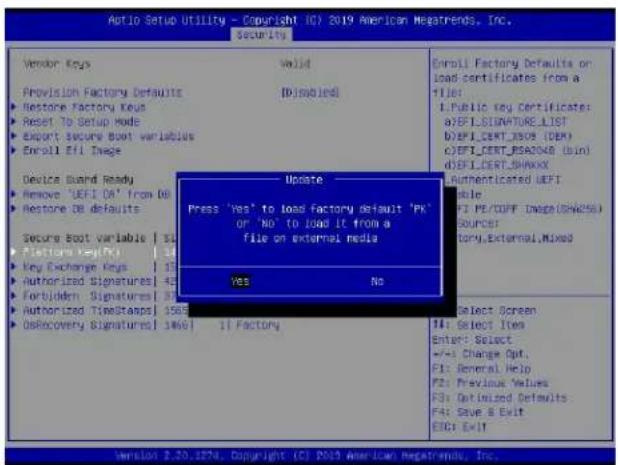

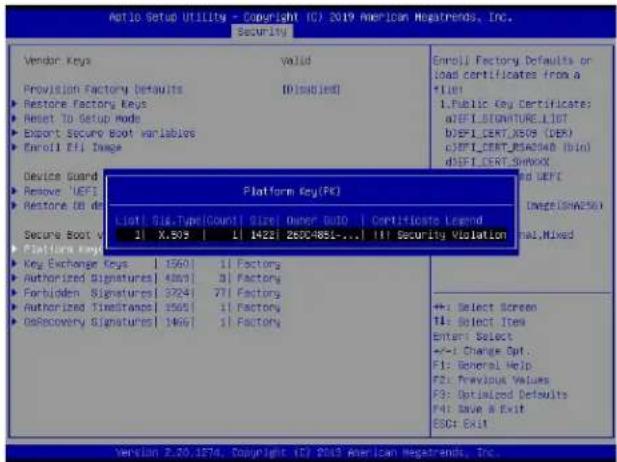

▶Platform Key (PK)

This feature allows the user to enter and configure a set of values to be used as platform firmware keys for the system. The sizes, keys numbers, and key sources of the platform keys will be indicated as well. Select Update to update the platform key.

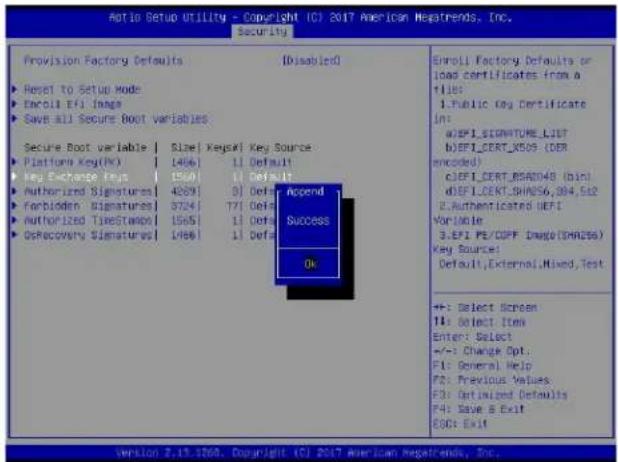

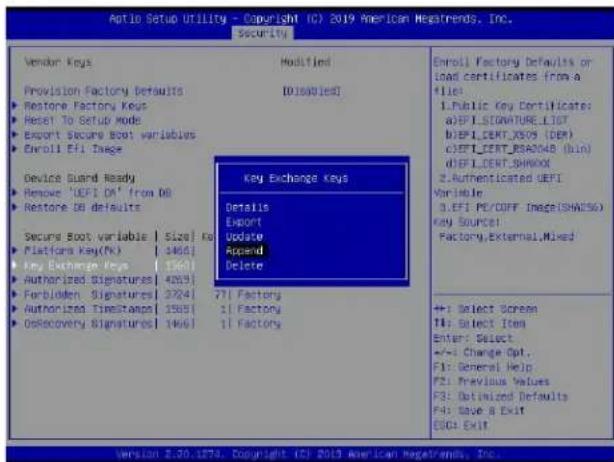

▶Key Exchange Keys

This feature allows the user to enter and configure a set of values to be used as Key-Exchange-Keys for the system. The sizes, keys numbers, and key sources of the Key-Exchange-Keys will be indicated as well. Select Update to update your "Key Exchange Keys". Select Append to append your "Key Exchange Keys".

▶Authorized Signatures

This feature allows the user to enter and configure a set of values to be used as Authorized Signatures for the system. These values also indicate the sizes, keys numbers, and the sources of the authorized signatures. Select Update to update your "Authorized Signatures". Select Append to append your "Authorized Signatures". The settings are Details, Export, Update, Append, and Delete.

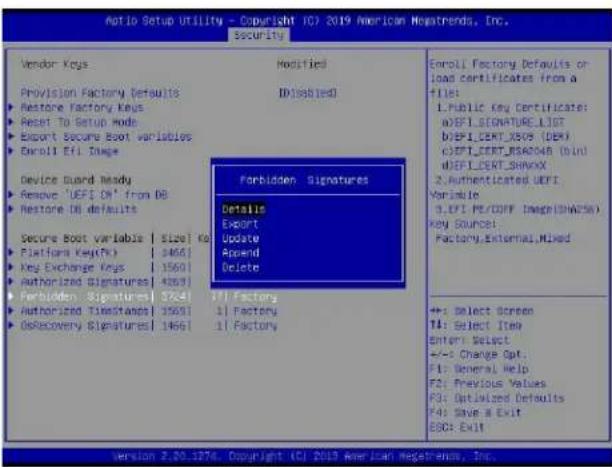

▶Forbidden Signatures

This feature allows the user to enter and configure a set of values to be used as Forbidden Signatures for the system. These values also indicate sizes, keys numbers, and key sources of the forbidden signatures. Select Update to update your "Forbidden Signatures". Select Append to append your "Forbidden Signatures". The settings are Details, Export, Update, Append, and Delete.

▶Authorized TimeStamps

This feature allows the user to set and save the timestamps for the authorized signatures which will indicate the time when these signatures are entered into the system. Select Update to update your "Authorized TimeStamps". Select Append to append your "Authorized TimeStamps". The settings are Update, and Append.

▶OsRecovery Signatures

This feature allows the user to set and save the authorized signatures used for OS recovery. Select Update to update your "OS Recovery Signatures". Select Append to append your "OS Recovery Signatures". The settings are Update, and Append.

4.7 Boot Settings

Use this feature to configure Boot Settings:

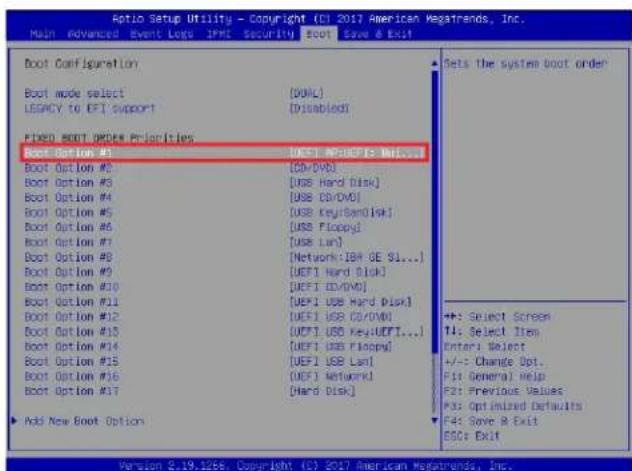

Boot Configuration Boot mode select LEGACY to EFI support FIXED BOOT ORDER Priorities Boot Option #1 Boot Option #2 Boot Option #3 Boot Option #4 Boot Option #5 Boot Option #6 Boot Option #7 Boot Option #8 Boot Option #9 Boot Option #10 Boot Option #11 Boot Option #12 Boot Option #13 Boot Option #14 Boot Option #15 Boot Option #16 Boot Option #17 [DUAL] [Disabled] [Hard Disk] [CD/DVD] [USB Hard Disk] [USB CD/DVD] [USB Key] [USB Floppy] [USB Lan] [Network-ISA 40-10G Slot 4000 v1066] [UEFI Hard Disk] [UEFI CD/DVD] [UEFI USB Hard Disk] [UEFI USB CD/DVD] [UEFI USB Key] [UEFI USB Floppy] [UEFI USB Lan] [UEFI Network] [UEFI AP:UEFI: Built-in EFI Shell] Select boot mode LEGACY/UEFI +: Select Screen T4: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.20.1274. Copyright (C) 2019 American Megatrends, Inc.

Boot Mode Select

Use this feature to select the type of devices from which the system will boot. The options are Legacy, UEFI (Unified Extensible Firmware Interface), and Dual.

Legacy to EFI Support

Select Enabled for the system to boot from an EFI OS when the Legacy OS fails. The options are Enabled and Disabled.

Fixed Boot Order Priorities

This feature prioritizes the order of a bootable device from which the system will boot. Press on each item sequentially to select devices.

When the item above - "Boot Mode Select" is set to Dual (default), the following items will be displayed for user's configuration:

- Boot Option #1 - Boot Option #17

When the item above - "Boot Mode Select" is set to Legacy, the following items will be displayed for configuration:

• Boot Option #1 - Boot Option #8

When the item above - "Boot Mode Select" is set to UEFI, the following items will be displayed for configuration:

• Boot Option #1 - Boot Option #9

▶ Delete Boot Option

Use this feature to select a boot device to delete from the boot priority list.

Delete Boot Option

Use this feature to remove an EFI boot option from the boot priority list.

▶UEFI Application Boot Priorities

Use this feature to specify a boot device priority sequence from available UEFI application.

Boot Option #1

Use this feature to set the system boot order, the options are UEFI: Built-in EFI Shell and Disabled.

▶ NETWORK Drive BBS Priorities

Use this feature to specify a boot device priority sequence from available available NETWORK Drives.

Boot Option #1

Use this feature to set the system boot order, the options are IBA 40-10G Slot 4000 v1066 and Disabled.

▶UEFI USB Key Drive BBS Priorities

Boot Option #1

▶UEFI Hard Disk Drive BBS Priorities

Boot Option #1

▶Hard Disk Drive BBS Priorities

Boot Option #1

▶USB Key Drive BBS Priorities

Boot Option #1

4.8 Save & Exit

Select the Save & Exit menu from the BIOS setup screen to configure the settings below.

Auto Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Main Advanced Event Logs IPMI Security Boot Save & Exit Save Options Discard Changes and Exit Save Changes and Reset Save Changes Discard Changes Default Options Restore Optimized Defaults Save as User Defaults Restore User Defaults Boot Override IBA 40-10G Slot 4000 v1066 UEFI: Built-in EFI Shell Launch EFI Shell from filesystem device Exit system setup without saving any changes. +: Select Screen T4: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.20.1275. Copyright (C) 2019 American Megatrends, Inc.

Save Options

Discard Changes and Exit

Select this option to exit from the BIOS setup utility without making any permanent changes to the system configuration and reboot the computer.

Save Changes and Reset

When you have completed the system configuration changes, select this option to leave the BIOS setup utility and reboot the computer for the new system configuration parameters to become effective.

Save Changes

When you have completed the system configuration changes, select this option to save all changes made. This will not reset (reboot) the system.

Discard Changes

Select this option and press to discard all the changes you've made and return to the AMI BIOS setup utility.

Default Options

Restore Optimized Defaults

To set this feature, select Restore Defaults from the Exit menu and press to load manufacturer default settings which are intended for maximum system performance but not for maximum stability.

Save As User Defaults

To set this feature, select Save as User Defaults from the Exit menu and press . This enables the user to save all changes to the BIOS setup for future use.

To set this feature, select Restore User Defaults from the Exit menu and press . Use this feature to retrieve user-defined default settings that were saved previously.

Boot Override

IBA 40-10G Slot 4000 v1066

This feature allows the user to override the Boot priorities sequence in the Boot menu, and immediately boot the system with a device specified by the user instead of the one specified in the boot list. This is a one-time override.

UEFI: Built-in EFI Shell

This feature allows the user to override the Boot priorities sequence in the Boot menu, and immediately boot the system with a device specified by the user instead of the one specified in the boot list. This is a one-time override.

Launch EFI Shell from filesystem device

This feature allows the user to launch EFI Shell application(Shell.efi) from one of the available filesystem devices.

Appendix A

BIOS Codes

A.1 BIOS Error POST (Beep) Codes (Available when an onboard speaker is available)

During the POST (Power-On Self-Test) routines, which are performed each time the system is powered on, errors may occur.

Non-fatal errors are those which, in most cases, allow the system to continue the boot-up process. The error messages normally appear on the screen.

Fatal errors are those which will not allow the system to continue the boot-up procedure. If a fatal error occurs, you should consult with your system manufacturer for possible repairs.

The fatal errors are usually communicated through repeated patterns of audible beeps. Each pattern of audible beeps listed below corresponds to its respective error.

BIOS Beep (POST) Codes
Beep Code Error	Message Description
1 beep Refresh Circuits have been reset (Ready to power up)
5 short, 1 long Memory error No memory detected in system
5 long, 2 short Display memory read/write error Video adapter missing or with faulty memory
1 long continuous System OH System overheat condition

A.2 Additional BIOS POST Codes

The AMI BIOS supplies additional checkpoint codes, which are documented online at http://www.supermicro.com/support/manuals/ ("AMI BIOS POST Codes User's Guide").

When BIOS performs the Power On Self Test, it writes checkpoint codes to I/O port 0080h. If the computer cannot complete the boot process, a diagnostic card can be attached to the computer to read I/O port 0080h (Supermicro p/n AOC-LPC80-20).

For information on AMI updates, please refer to http://www.ami.com/products/.

Appendix B

Software Installation

After the hardware has been installed, you can install the Operating System (OS), configure RAID settings and install the drivers.

B.1 Microsoft Windows OS Installation

If you will be using RAID, you must configure RAID settings before installing the Windows OS and the RAID driver. Refer to the RAID Configuration User Guides posted on our website at www.supermicro.com/support/manuals.

Installing the OS

1. Create a method to access the MS Windows installation ISO file. That might be a DVD, perhaps using an external USB/SATA DVD drive, or a USB flash drive, or the IPMI KVM console.
2. Retrieve the proper RST/RSTe driver. Go to the Supermicro web page for your motherboard and click on "Download the Latest Drivers and Utilities", select the proper driver, and copy it to a USB flash drive.
3. Boot from a bootable device with Windows OS installation. You can see a bootable device list by pressing F11 during the system startup.

Please select boot device: ATEN Virtual CDROM YSOJ → IPMI virtual drive (Legacy) ASUS SDRW-08D2S-U F601 → USB DVD device (Legacy) USB FLASH DRIVE PMAP → USB flash drive with OS installation (Legacy) IBA 40-10G Slot 1900 v1060 → PXE boot (Legacy) UEFI: ATEN Virtual CDROM YSOJ → IPMI virtual drive (UEFI) UEFI: ASUS SDRW-08D2S-U F601 → USB DVD device (UEFI) UEFI: Built-in EFI Shell Enter Setup ↑ and ↓ to move selection ENTER to select boot device ESC to boot using defaults

B-1. Select Boot Device

1. During Windows Setup, continue to the dialog where you select the drives on which to install Windows. If the disk you want to use is not listed, click on "Load driver" link at the bottom left corner.

Where do you want to install Windows? Name Total size Free space Type Refresh Delete Format New Load driver Extend We couldn't find any drives. To get a storage driver, click Load driver. Next

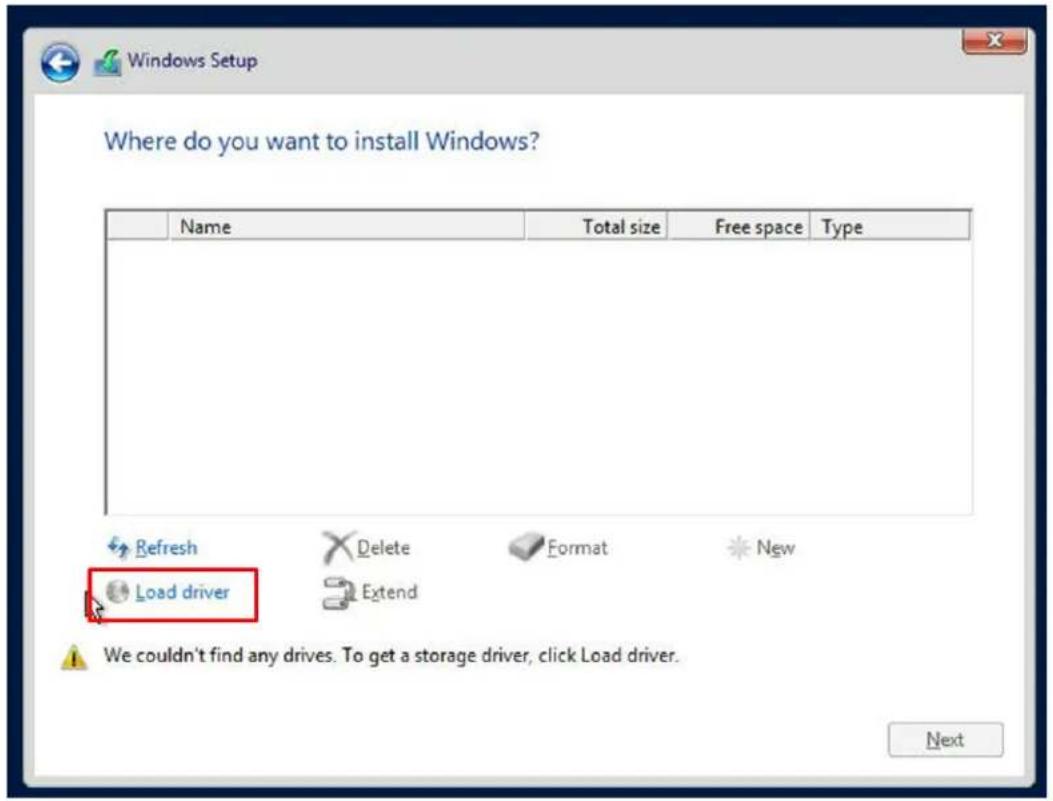

B-2. Load Driver Link

To load the driver, browse the USB flash drive for the proper driver files.

• For RAID, choose the SATA/sSATA RAID driver indicated then choose the storage drive on which you want to install it.

• For non-RAID, choose the SATA/sSATA AHCI driver indicated then choose the storage drive on which you want to install it.

• Once all devices are specified, continue with the installation.

• After the Windows OS installation has completed, the system will automatically reboot multiple times.

B.2 Driver Installation

The Supermicro website contains drivers and utilities for your system at https://www.supermicro.com/wftp/driver. Some of these must be installed, such as the chipset driver.

After accessing the website, go into the CDR_Images (in the parent directory of the above link) and locate the ISO file for your motherboard. Download this file to a USB flash drive or a DVD. (You may also use a utility to extract the ISO file if preferred.)

Another option is to go to the Supermicro website at http://www.supermicro.com/products/. Find the product page for your motherboard, and "Download the Latest Drivers and Utilities".

Insert the flash drive or disk and the screenshot shown below should appear.

SUPERMICRO X11DSN-TS Motherboard Drivers & Tools (Win10) Intel LBG-4/T Chipset X11DSN-TS(q) SUPERMICRO Computer Inc. Intel Chipset INF files Microsoft .Net Framework 4.5.2 (Optional) ASPEED Graphics Driver Intel Rapid Storage Technology Enterprise Intel USB 3.0 Drivers Intel PRO Network Connections Drivers SUPERMICRO SuperDoctor 5 Build driver diskettes and manuals Browse CD Auto Start Up Next Time For more information, please visit SUPERMICRO's web site.

B-3. Driver & Tool Installation Screen

Note: Click the icons showing a hand writing on paper to view the readme files for each item. Click the computer icons to the right of these items to install each item (from top to the bottom) one at a time. After installing each item, you must re-boot the system before moving on to the next item on the list. The bottom icon with a CD on it allows you to view the entire contents.

B.3 SuperDoctor® 5

The Supermicro SuperDoctor 5 is a program that functions in a command-line or web-based interface for Windows and Linux operating systems. The program monitors such system health information as CPU temperature, system voltages, system power consumption, fan speed, and provides alerts via email or Simple Network Management Protocol (SNMP).

SuperDoctor 5 comes in local and remote management versions and can be used with Nagios to maximize your system monitoring needs. With SuperDoctor 5 Management Server (SSM Server), you can remotely control power on/off and reset chassis intrusion for multiple systems with SuperDoctor 5 or IPMI. SuperDoctor 5 Management Server monitors HTTP, FTP, and SMTP services to optimize the efficiency of your operation.

Note: The default User Name and Password for SuperDoctor 5 is ADMIN / ADMIN.

SuperDoctor 5 Home info: www.humanlab.com Certificate error: localhost:1044/superdoctor SuperDoctor 5 Select Language: English (ADMIN) Language Motherboard: C78366-CB-ML Voltage 0.0V 12.0V 14.0V 16.0V 18.0V 20.0V 22.0V 24.0V 26.0V 28.0V 30.0V 32.0V 34.0V 36.0V 38.0V 40.0V 42.0V 44.0V 46.0V 48.0V 50.0V 52.0V 54.0V 56.0V 58.0V 60.0V 62.0V 64.0V 66.0V 68.0V 70.0V 72.0V 74.0V 76.0V 78.0V 80.0V 82.0V 84.0V 86.0V 88.0V 90.0V 92.0V 94.0V 96.0V 98.0V 100.0V 102.0V 104.0V 106.0V 108.0V 110.0V 112.0V 114.0V 116.0V 118.0V 120.0V 122.0V 124.0V 126.0V 128.0V 130.0V 132.0V 134.0V 136.0V 138.0V 140.0V 142.0V 144.0V 146.0V 148.0V 150.0V 152.0V 154.0V 156.0V 158.0V 160.0V 162.0V 164.0V 166.0V 168.0V 170.0V 172.0V 174.0V 176.0V 178.0V 180.0V 182.0V 184.0V 186.0V 188.0V 190.0V 192.0V 194.0V 196.0V 198.0V 200.0V 202.0V 204.0V 206.0V 208.0V 210.0V 212.0V 214.0V 216.0V 218.0V 220.0V 222.0V 224.0V 226.0V 228.0V 230.0V 232.0V 234.0V 236.0V 238.0V 240.0V

B-4. SuperDoctor 5 Interface Display Screen (Health Information)

B.4 IPMI

The X11DSN-TS/X11DSN-TSq supports the Intelligent Platform Management Interface (IPMI). IPMI is used to provide remote access, monitoring and management. There are several BIOS settings that are related to IPMI.

For general documentation and information on IPMI, please visit our website at: http://www.supermicro.com/products/nfo/IPMI.cfm.

B.5 Logging into the BMC (Baseboard Management Controller)

Supermicro ships standard products with a unique password for the BMC user. This password can be found on a label on the motherboard.

When logging in to the BMC for the first time, please use the unique password provided by Supermicro to log in. You can change the unique password to a user name and password of your choice for subsequent logins.

For more information regarding BMC passwords, please visit our website at http://www.supermicro.com/bmcpassword.

Appendix C

Standardized Warning Statements

The following statements are industry standard warnings, provided to warn the user of situations which have the potential for bodily injury. Should you have questions or experience difficulty, contact Supermicro's Technical Support department for assistance. Only certified technicians should attempt to install or configure components.

Read this section in its entirety before installing or configuring components.

These warnings may also be found on our website at http://www.supermicro.com/about/policies/safety_information.cfm.

Battery Handling

Warning! There is the danger of explosion if the battery is replaced incorrectly. Replace the battery only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions

電池の取り扱い

Warning! Ultimate disposal of this product should be handled according to all national laws and regulations.

製品の廃棄

Warning: Do not upgrade the BIOS unless your system has a BIOS-related issue. Flashing the wrong BIOS can cause irreparable damage to the system. In no event shall Supermicro be liable for direct, indirect, special, incidental, or consequential damages arising from a BIOS update. If you need to update the BIOS, do not shut down or reset the system while the BIOS is updating to avoid possible boot failure.

D.1 Overview

The Unified Extensible Firmware Interface (UEFI) provides a software-based interface between the operating system and the platform firmware in the pre-boot environment. The UEFI specification supports an architecture-independent mechanism that will allow the UEFI OS loader stored in an external storage device to boot the system. The UEFI offers clean, hands-off management to a computer during system boot.

D.2 Recovering the UEFI BIOS Image

A UEFI BIOS flash chip consists of a recovery BIOS block and a main BIOS block (a main BIOS image). The recovery block contains critical BIOS codes, including memory detection and recovery codes for the user to flash a healthy BIOS image if the original main BIOS image is corrupted. When the system power is turned on, the recovery block codes execute first. Once this process is complete, the main BIOS code will continue with system initialization and the remaining POST (Power-On Self-Test) routines.

Note 1: Follow the BIOS recovery instructions in Section D.3 for BIOS recovery when the main BIOS block crashes.

Note 2: If the recovery instructions in Section D.3 for BIOS recovery fail, you may use the Supermicro Update Manager (SUM) Out-of-Band (OOB) (https://www.supermicro.com.tw/products/nfo/SMS_SUM.cfm) to reflash the BIOS.

Note 3: If the recovery block processes stated in Note 1 and Note 2 above fail, you will need to follow the procedures to make a Returned Merchandise Authorization (RMA) request. Refer to Section 3.5 for more information about the RMA request.

D.3 Recovering the Main BIOS Block with a USB Device

This feature allows the user to recover the main BIOS image using a USB-attached device without additional utilities used. A USB flash device such as a USB Flash Drive, or a USB CD/DVD ROM/RW device can be used for this purpose. However, a USB hard disk drive cannot be used for BIOS recovery at this time. The file system supported by the recovery block is FAT (including FAT12, FAT16, and FAT32) which is installed on a bootable or non-bootable USB-attached device.

To perform UEFI BIOS recovery using a USB-attached device, follow the instructions below.

1. Please use a different machine to download the BIOS package for your motherboard or your system from the product page available on our website at www.supermicro.com.
2. Extract the BIOS package to a USB device and rename the BIOS ROM file [BIOSname#.###] that is included in the BIOS package to SUPER.ROM for BIOS recovery use.
3. Copy the SUPER.ROM file into the Root "\" directory of the USB device.

Note: Before recovering the main BIOS image, confirm that the SUPER.ROM file you have is the same version or a close version meant for your motherboard.

1. Insert the USB device that contains the SUPER.ROM file into the system before you power on the system or when the following screen appears.

BMC IP:10.132.160.92 PEI--Could Not Find Recovery Image... 87

1. After locating the SUPER.ROM file, the system will enter the BIOS Recovery menu as shown below.

Auto Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Main Advanced Event Loss IPM Recovery Security Back Save & Exit System booted from new image Partial update is not allowed Single preservation ▶ Processed with Flash update Set this option to preserve OMBOS +: Select Screen I: Select Item Enter Select +/-: Change Out. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit G0: Exit Version 2.20.1276. Copyright (C) 2019 American Megatrends, Inc.

Note: At this point, you may decide if you want to start the BIOS recovery. If you decide to proceed with BIOS recovery, follow the procedures below.

1. When the screen as shown above displays, use the arrow keys to select the item "Proceed with flash update" and press the key. You will see the BIOS recovery progress as shown in the screen below.

Note: Do not interrupt the BIOS flashing process until it is complete.

Ratio Setup Utility - Copyright 1C7 2019 American Megatrends, Inc. Recovery HANDINDB1 System firmware is being updated. Keyboard is locked. DO NOT TURN THE POWER OFF 11 Once firmware update is completed press any key to reboot the system Flash Update updating main firmware 173 +: Select Screen 14: Select Item Entani Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Same & Exit ESOG: Exit Version $0.00.1976. Copyright (C) 2019 American Megatrends, Inc.

1. After the BIOS recovery process is complete, press any key to reboot the system.

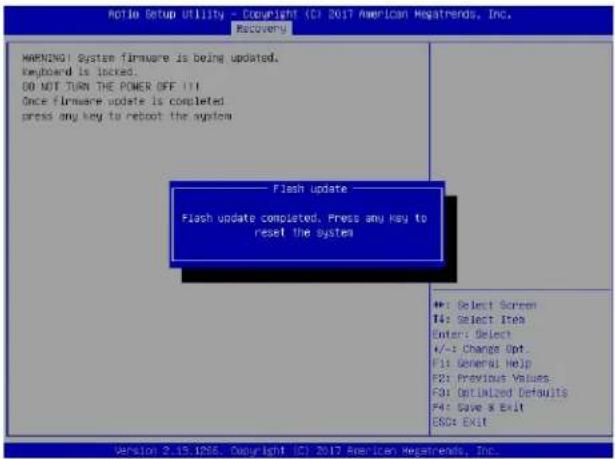

Action Setup Utility - Copyright (CI 2017 American Regatrends, Inc. Recovery WARNING System firmware is being updated. Keyboard is locked. DO NOT TURN THE POWER OFF !!! Once firmware update is completed press any key to reboot the system Flash update Flash update completed. Press any key to reset the system +: Select Screen T4: Select Item Enter: Select +/-: Change Opt. F1: General Help F3: Previous Values- F4: Optimized Defaults F4: Save & Exit ESO: Exit Version 2.15.1956. Copyright (CI) 2017 American Regatrends, Inc.

Note: It is recommended that you update your BIOS after BIOS recovery. Please refer to Chapter 3 for BIOS update instructions.

1. Press during system boot to enter the BIOS Setup utility. From the top of the tool bar, select Boot to enter the submenu. From the submenu list, select Boot Option #1 as shown below. Then, set Boot Option #1 to [UEFI AP:UEFI: Built-in EFI Shell]. Press to save the settings and exit the BIOS Setup utility.

Aptio Setup Utility - Copyright (CI 2017 American Megatrends, Inc. Main Advanced Event Loss IPM Security ESCOT Save & Exit Boot Configuration Boot mode select [00ML] LEGACY to EFI support [Disabled] FIXED BOOT ORDER Priorities Boot Option #1 [UEFI MP/UEFI: No...] Boot Option #2 [USB/DVD] Boot Option #3 [USB Hard Disk] Boot Option #4 [USB CD/DVD] Boot Option #5 [USB Key/SanDisk] Boot Option #6 [USB Floppy] Boot Option #7 [USB Lan] Boot Option #8 [Network: IBM SE SI...] Boot Option #9 [UEFI Hard Disk] Boot Option #10 [UEFI CD/DVD] Boot Option #11 [UEFI USB Hard Disk] Boot Option #12 [UEFI USB CD/DVD] Boot Option #13 [UEFI USB Key/UEFI...] Boot Option #14 [UEFI USB Floppy] Boot Option #15 [UEFI USB Lan] Boot Option #16 [UEFI Network] Boot Option #17 [Hard Disk] Add New Boot Option Sets the system boot order +:- Select Screen T4: Select Item Enteri Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.19.126. Copyright (C) 2017 American Megatrends, Inc.

1. When the UEFI Shell prompt appears, type fs# to change the device directory path. Go to the directory that contains the BIOS package you extracted earlier from Step 1. Enter flash.nsh BIOSname#.### at the prompt to start the BIOS update process.

LEFI Interactive Shell v2.1 ESK 11 LEFI v2.50 (American Regatrends, 0x0089000) Mapping table: F50: K106(5):HD(0x0):BLK1; PcROOT(0x0):PcC(0x14,0x0):US$0(x11,0x0):HD(1,HDR,0x0791D72,0x006,0x1 OR3592) BLK1: K106(5): PcROOT(0x0):PcC(0x14,0x0):US$0(x11,0x0) Press FSK is 1 seconds to skills startup.msh or any other key to continue. Shell: F501 F501: VAPLOOS F501:VAPLOOS> CD SAPMHE2_03162012 F501:VAPLOOS:SAPMHE2_0362017\ flash.msh X13P07.SX4

Note: Do not interrupt this process until the BIOS flashing is complete.

Done. [ Access Oms Port Ex ] @mbcb Index 8x51: 0x18 Done. ********************************************************************** * Program BIOS and ME (including RDT) regions... ********************************************************************** AMI Firmware Update UTILITY v5.69.01.1317 Copyright ©2017 American Newsrends Btc. All Rights Reserved. OPUD = 50692 Reading Flash ....... done - ME Data Size checking . on - FFS checksums ....... ok - Check BookJagout ....... ok, Erasing Boot Block ....... done Updating Boot Block ....... done Verifying Boot Block ....... done Zruling Mesh Block ....... 0x00152000 (OK)

1. The screen above indicates that the BIOS update process has completed. Reboot the system when you see the screen below.

Verifying NCR Book ....... done - Update success for FEM - Update success for EE - - Successful Update Recovery Loader to (PRx!! - Successful Update MFSB((-) - Successful Update RTM((-) - Successful Update NFx, [081 and 19021] - Successful Update FLOD and UTOX((-) - ME entire (new update success((-)) wRIVINC : System must power-sif. to have the changes take effect! Moving F501:WFUD005/SKJPME2_03162037/40x64,efi -> F501:WFUD005/SKJPME2_03162017/f df.sac - (c:) Moving F501:WFUD005/SKJPME2_03162037/aufemfix4,efi -> F501:WFUD005/SKJPME2_0316201 ?afuefu1.sac - (c:) ****************************************************************************************** * * Please ignore this 'shell cannot read from file - device error' * Warning message due to it does not impact flashing process. * ****************************************************************************************** putating ' ', Delete successful. f501-> _

Appendix E

Secure Boot Settings

Secure boot is a feature of UEFI (Unified Extensible Firmware Interface) that ensures boot loaders are digitally signed and validated. The F.1, F.2, and F.3 sections provide instructions on how to enable the secure boot features. The F.4 section states Key Management settings.

E.1 Boot mode select Feature

Press during system boot to enter the BIOS Setup utility. Navigate to the Boot tab. Use the arrow keys to select Boot mode select and press . The options are LEGACY, UEFI, and DUAL. Set Boot mode select to UEFI. For the changes to take effect, press to save the settings and exit the BIOS Setup utility.

Aio Setup Utility - Copyright ICI 2017 American Megatrends, Inc. Main Advanced Event Loss IPM Security Boot Save & Exit Boot Configuration Boot mode select LEGACY to EFI Support [Default] [Disabled] FIXED BOOT ORDER Priorities Boot Option #1 [Hard Disk] Boot Option #2 [CD/DVD] Boot Option #3 [USB Hard Disk] Boot Option #4 [USB Ch/DVI] Boot Option #5 [Multi-Size] Boot Option #6 [Multi-Size] Boot Option #7 [Multi-Size] Boot Option #8 [Multi-Size] Boot Option #9 [Multi-Size] Boot Option #10 [Multi-Size] Boot Option #11 [Multi-Size] Boot Option #12 [Multi-Size] Boot Option #13 [Multi-Size] Boot Option #14 [Multi-Size] Boot Option #15 [Multi-Size] Boot Option #16 [Multi-Size] Boot Option #17 [Multi-Size] Boot mode select LEGACY UEFI DUAL ▶ Delete Boot Option Select boot mode LEGACY/DEFI +/-: Select Screen T1: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save N Exit ESC: Exit Version 2.19.1208. Copyright (C) 2017 American Megatrends, Inc.

E.2 Secure Boot/ Secure Boot Mode/ CSM Support Features

Press during system boot to enter the BIOS Setup utility. Navigate to the Security tab as shown below.

Aptio Setup Utility - Copyright (C) 2017 American Negatrends, Inc. Main Advanced Event logs IPNL Security Boot Save & Exit Administrator Password Not Installed User Password Not Installed Password Description If the Administrator's / User's password is set, then this only limit access to Setup and is asked for when entering Setup. Please set Administrator's password first in order to set user's password, if clear Administrator's password, the User's password will be cleared as well. The password length must be: in the following range: Minimum length 3 Maximum length 20 Administrator Password Password Check [Setup] Secure Boot Customizable Secure Boot settings +; Select Screen F4; Select Item Enter Select +/-; Change Opt. F1; General Help F2; Previous Values F3; Optimized Defaults F4; Save & Exit EIC: Exit Version 2.19.1268 Copyright © 2017 American Negatrends, Inc.

Use the arrow keys to select Secure Boot and press to access the menu items. The following screen will appear.

Auto Setup Utility - Copyright (C) 2017 American Mostrends, Inc. Security System Mode User Secure Boot Not Active Vendor Keys Not Active Secure Boot [Disabled] Secure Boot Mode [Custom] COM Support [Enabled] Key Management Secure Boot activated when Platform Key(FK) is enrolled, System mode is user/Deployed, and CSM function is disabled +F: Select Screen F4: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.19.1208. Copyright (C) 2017 American Mostrends, Inc.

Secure Boot

This feature is available when the platform key (PK) is pre-registered where the platform operates in the User mode and compatibility support module (CSM) support is disabled in the BIOS Setup utility. Select Enabled for secure boot flow control. The options are Disabled and Enabled.

Secure Boot Mode

Use this feature to set the secure boot mode. The options are Standard and Custom. Select Standard to load manufacturer's default secure variables. Select Custom to change the image execution policy and to manage secure boot keys.

CSM Support

Select Enabled to support the legacy CSM, which provides compatibility support for traditional legacy BIOS for system boot. The options are Disabled and Enabled.

E.3 Secure Boot Settings

To have the secure boot support, be sure to follow the steps below (Step 1 \~ Step 4).

Step 1. Set Secure Boot Mode to Standard. Press Yes to install factory default keys as needed.

Auto Setup UTILITY - Copyright ICI 2017 American Megatrends, Inc. Security System Mode User Secure Boot Not Active Vendor Keys Not Active Secure Root Not Disabled Secure Boot Mode Standard COR Support Not Enabled Key Management Secure Boot mode selector: Standard-Duston. In Custom mode Secure Boot Variables can be configured without authentication +/-: Select Screen T#: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Defaulted Defaults F4: Save & Exit ESC: Exit Version 2.19.1866. Copyright ICI 2017 American Megatrends, Inc.

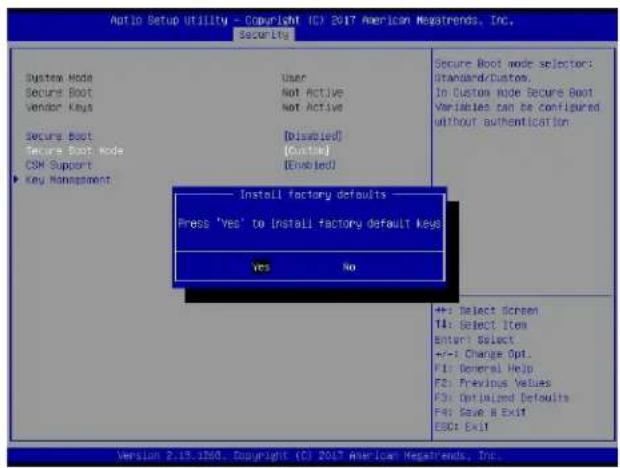

Auto Setup utility - Copyright (C) 2017 American Megatrends, Inc. Security User Not Active Not Active [displaced] [Custom] [Enabled] Secure Boot mode selector: Standard/Custom, In Custom Mode Secure Boot Variables can be configured without authentication Secure Boot Secure Boot Mode CSM Support Key Management Install factory defaults - Press 'Yes' to install factory default keys Yes No +: Select Screen T4: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit EKC: Exit Version 2.15.1208, Copyright (C) 2017 American Megatrends, Inc.

Note: The Key Management menu will become unavailable when Secure Boot Mode is set to Standard.

Step 2. For the changes to take effect, press to save the settings and exit the BIOS Setup utility.

Ato Setup Utility - Copyright IC? 2017 American Megatrends, Inc. Security System Hode User Secure Boot Not Active Vendor Keys Not Active Secure Boot Disabled Secure Boot Mode Standard Di CSM Support Enabled Key Management Save & Exit Setup Save configuration and exit? Yes No Secure Boot mode selector: Standard-Duston, In Custom mode Secure Boot Variables can be configured without authentication ++: Select screen TI: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Defaulted Defaults F4: Save & Exit ESC: Exit Version 2.19.1368. Copyright (C) 2017 American Megatrends, Inc.

Step 3. Press during system boot to enter the BIOS Setup utility. Navigate to the Security tab and enter the Secure Boot menu. Set CSM Support to Disabled.

Automatic Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Security System Mode Vendor Keys Secure Boot Secure Boot Secure Boot Mode CSM Support Key Management User: Active: Not Active [Disabled] [Standard-0] [Enabled] CSM Support Disabled Enabled Enable/Disable CSM Support. +:- Select Screen T1: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 8.20.1274, Copyright (C) 2019 American Megatrends, Inc.

For the changes to take effect, press to save the settings and exit the BIOS Setup utility.

Step 4. Press during system boot to enter the BIOS Setup utility. Navigate to the Security tab and enter the Secure Boot menu. Set Secure Boot to Enabled.

Auto Setup Utility - Copyright TCP 2019 American Netsatrends, Inc. Security System Mode User Vendor Keys Active Secure Boot Not Active Secure Boot Disabled Secure Boot Node [Standard] OSK Support [Disabled] Key Management Secure Boot Disabled Enabled Secure Boot Feature is Active if Secure Boot is Enabled. Platform Key (PK) is enrolled and the System is in User mode. The mode change requires platform reset +: Select Screen TI: Select Item Enter: Select +/-: Change Opt. F1: Several Help F2: Previous Values F3: Optimized Defaults F4: Save A Exit ESC: Exit Version 2.20.1874. Copyright (C) 2019 American Netsatrends, Inc.

For the changes to take effect, press to save the settings and exit the BIOS Setup utility. Press during system boot to enter the BIOS Setup utility. Navigate to the Security tab and enter the Secure Boot menu. The following screen will appear.

Ratio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Security System Mode User Vendor Keys Active Secure Boot Active Secure Boot Enrolled Secure Boot Mode [Standard] OK Support [Unabled] Key Management Secure Boot Feature is Active if Secure Boot is Enabled, Platform Cry(PK) is enrolled and the System is In User mode. The mode change requires platform reset +: Select Screen 14: Select Item Enter: Select +/-: Change Opt. P1: General Help P2: Previous Values P3: Optimized Defaults P4: Save & Exit EOP: Exit

Note: Once Secure Boot is enabled, CSM Support will become disabled and the legacy environment is no longer valid. The authorized UEFI support such as UEFI OS, AOC UEFI FW, and UEFI PXE server are allowed.

E.4 Key Management Settings

The Key Management menu as shown below, which is available when Secure Boot Mode is set to Custom, allows the secure boot keys to be installed via the external device and be involved in the secure boot process.

Atoio Setup Utility - Copyright (C) 2019 American Newsrends, Inc. Security Vendor Keys Valid Provision Factory defaults Disasised ► Restore Factory Keys ► Reset To Setup Mode ► Export Secure Boot variables ► Enroll Efi Image Device Guard Ready ► Remove 'UEFI DR' from DB ► Restore DB defaults Secure Boot variable | Size | Keys | Key Source ► Platform Key(Th) | 1465 | 1 Factory ► Key Exchange Keys | 1560 | 1 Factory ► Authorized Signatures | 4269 | 3 Factory ► Forbidden Signatures | 7324 | 71 Factory ► Authorized TimeStamp | 1563 | 1 Factory ► OsRecovery Signatures | 1466 | 1 Factory Install Factory default Secure Boot keys after the platform reset and while the Dystre is in Setup mode ++: Select Screen 11: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 8.20.1274. Copyright (C) 2019 American Newsrends, Inc.

Provision Factory Defaults

This feature is to provision the default secure boot keys set by the manufacturer when system is in the Setup mode. The options are Disabled and Enabled.

Aotio Setup Utility - Copyright (C) 2019 American Hsgatrends, Inc. Security Vendor Keys Valid Provision Factory Defaults Disabled Restore Factory Keys Reset To Setup Mode Export Secure Boot variables Enroll Efi Image Device Guard Ready Remove 'UEFI OK' from DB Restore DB defaults Secure Boot variable | Size Prevision Factory Defaults Platform Key(Th) | 1468 Enabled Key Exchange Keys | 1560 Authorized Signatures[ 4269] 8 | Factory Forbidden Signatures[ 3224] 7 | Factory Authorized Timestamps[ 1563] 1 | Factory DisRecovery Signatures[ 1469] 1 | Factory Install factory default Secure Boot keys after the platform reset and while the System is in Setup mode +/-: Select Screen T1: Select Item Enter: Select +/-: Change Opt; F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.20.1874. Copyright (C) 2019 American Hsgatrends, Inc.

Select and press Yes to restore factory default secure boot keys and key variables. Also, it will reset the system to the User mode. The options are Yes and No.

Notio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Security Vendor Keys Valid Force System to User Mode. Installation factory default Secure Boot key databases Provision Factory Defaults D:\snj\esJ Restore Factory Keys Reset To Setup Mode Export Secure Boot variables Enroll Eff. Image Device Guard Ready Remove 'LEFI DA' from (A) Restore DB defaults Secure Boot Variable | 612 Platform Key(PK) | 148 Key Exchange Keys | 156 Authorized Signatures | 426 Forbidden Signatures | 3724 Authorized Timetamos | 15051 | 1 Factory DeRecovery Signatures | 14661 | 1 Factory Install factory defaults - Press 'Yes' to proceed 'No' to cancel Yes No +/- Select Screen TI: Select Item Enter: Select +/- Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.20.1874, Copyright (C) 2019 American Megatrends, Inc.

▶Reset To Setup Mode (available when the System Mode is in User mode)

Select and press Yes to clear all secure boot variables and reset the system to the Setup mode. The options are Yes and No.

Ratio Setup Utility - Copyright (C) 2019 American Netatrends, Inc. Security Vendor Keys Valid Provision Factory Defaults [Disabled] Restore factory keys Reset To Setup Mode Export Secure Boot variables Enroll Efi Image Device Guard Ready Remove 'UEFI OK' from OE Restore DO defaults Secure Boot variable | S12 Platform Key(K) 148 Key Exchange Keys | 156 Authorization Signatures | 426 Forbidden Signatures | 372 Authorized TimeStamps | 1561 OsRecovery Signatures | 1465 | 1 Factory Reset To Setup Mode Deleting all variables will reset the System to Setup Mode Do you want to proceed? Yes No Select Screen T1: Select Item Enter: Select --: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save B Exit ESC: Exit Version 2.20.1274. Copyright (C) 2019 American Netatrends, Inc.

▶Export Secure Boot variables

Use this feature to export NVRAM content of secure boot variables to files in a root folder on a file system device.

Natio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Security Vendor Keys Valid Provision Factory Defaults (D:\mbo\es) Restore Factory Keys Reset To Setup Mode Export Secure Boot variables Enroll Ftl Image Device Guard Ready Remove 'UEFI DR' from DQ Restore DB defaults Secure Boot Variable | Size | Platform Key(PV) | 1466 Key Exchange Keys | 15601 Authorized Signatures[ 4269] Forbidden Signatures[ 3724] Authorized Timetants[ 15651] DelRecovery Signatures[ 1466] File System No Valid File System Available OK +: Select Screen T1: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save A Exit ESO: Exit Version 2.20.1874, Copyright (C) 2019 American Megatrends, Inc.

▶Enroll Efi Image

This feature is to enroll SHA256 hash of the binary into the Authorized Signature Database (DB) and to allow the image to run in the secure boot mode.

Ratio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Securities Vendor Keys Valid Provision Factory Defaults [Disabled] Restore factory keys Reset To Setup Mode Export Secure Boot variables Enroll Efi Images Device Guard Ready Remove 'UEFI DA' from DB Restore ID defaults Secure Boot Variable | Size | Platform Key(Ps) 14661 Key Exchange Keys 15601 Authorized Signatures[14661] Forbinden Signatures[3764] Authorized Timestamps[15651] GoRecovery Timestamps[14661] File System No Valid File System Available Ok Allow the Image to run in Secure Boot mode. Enroll SHNCS Hash certificate of a PE Image Into Authorized Signature Database (db) +: Select Screen T4: Select Item Enter: Select +/-: Change Opt... F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit E80: Exit Version 2.20.1874. Copyright (C) 2013 American Megatrends, Inc.

▶Remove 'UEFI CA' from DB (available when the system is not in Device Guard Ready)

Select and press Yes to remove Microsoft UEFI CA certificate from the DB. The options are Yes and No.

Auto Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Security Vendor Keys Valid Device Guard ready system must not list 'Microsoft' UEFI CA' Certificate in Authorized Signature database (db) Provision Factory Defaults ID:disabled Restore Factory Keys Reset To Setup Mode Export Secure Boot variables Enroll Efi Dange Device Guard Ready Remove 'UEFI CA' from DB Restore DB defaults Secure Boot variable | SLS Platform Key(Hx) | 140 Key Exchange Keys | 150 Authorized Signatures | 426 Forbidden Signatures | 3724 Authorized Timestamps | 15651 | 1 Factory OsRecovery Signatures | 14661 | 1 Factory Remove 'UEFI CA' from DB Press 'Yes' to proceed 'No' to cancel Yes No +/- Select Screen T1: Select Item Enter: Select +/- Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.20.1874. Copyright (C) 2019 American Megatrends, Inc.

Select and press Yes to restore the DB variables to factory defaults. The options are Yes and No.

Auto Setup Utility - Copyright TO 2019 American Netsatrends, Inc. Security Vendor Keys Valid Provision Factory Defaults IDissuied Restore Factory Keys Reset To Setup Mode Export Secure Boot variables Enroll Eff These Device Guard Ready Remove 'UEFI On' from DB Restore DB defaults Secure Boot variable | SLa Platform Keys(%) | 145 Key Exchange Keys | 106 Authorized Signatures[ 466] Forbidden Signatures[ 3724] Authorized TimeStampol | 15631 | 1 Factory OsRecovery Signatures[ 1466] | 1 Factory Restore DB defaults Press 'Yes' to proceed 'No' to cancel Yes No ++: Select Screen T4: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.20.1874, Copyright © 2019 American Netsatrends, Inc.

*Refer to the following settings for keys and signatures related to secure boot.

▶ Platform Key (PK)

The Platform Key (PK), which is pre-installed in firmware during manufacturing, provides full control of the secure boot key hierarchy. The options are Details, Export, Update, and Delete. Select Details to display detailed information of PK. Select Export to save the current PKs to a FAT formatted USB flash drive. Select Update to load the factory defaults or load PKs from a file on the external device. Select Delete to clear the current PKs and reset the system to the Setup mode. See the following for more information of each option.

Aptio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Security Vendor Keys Valid Provision Factory Defaults ID:isabled Restore factory keys Reset To Setup Mode Export Secure Boot Variables Enroll EFI Image Device Guard Ready Remove 'UEFI DA' from DB Restore DB defaults Secure Boot variable | Size | No Platform Key(FX) 1465 Key Exchange Keys 15601 Authorized Signatures[ 4263 ] Forbidden Signatures[ 3764 ] Authorized TimeStamp[ 3565 ] DelRecovery Signatures[ 1465 ] Platform Key(FC) Details Export Update Delete Platform Key(FC) EVI EVI.CERT.SHAWX 2. Authenticated EVI Variable 3. EFI PE-OFF Image(SWASSG) KEY SOURCE: Factory External,Mixed ++ Select Screen T4: Select Item Enter: Select +:- Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save B Exit ESC: Exit Version 2.20.1274. Copyright (C) 2019 American Megatrends, Inc.

Details: Use the arrow keys to select Details and press . It displays detailed information of PK as shown below.

Atrio Setup Utility - Copyright (C) 2019 American Hegatrends, Inc. Security Vendor Keys valid Provision Factory Defaults ID(splied) Restore Factory Keys Reset To Setup mode Export Secure Boot variables Enroll Effi Image Device Guard Remove 'UEFI' Restore to do Secure Boot v 11 X.508 | 11 1423 28DC4851... || Security Violation Platform Key Key Exchange Keys | 1560 | 1 Factory Authorized Signatures | 4003 | 3 Factory Forbidden Signatures | 3724 | 71 Factory Authorized Time stamp | 1565 | 1 Factory DeRecovery Signatures | 1467 | 1 Factory Platform Key (FK) List: Sig.TypeCount | Size: Owner Build | Certificates Legend Main.Mixed Enroll Factory Defaults or load certificates from a *List 1.Public key certificate: a)EFLSIGNATURE_LIST b)EF1_CERT_XS09 (DEK) c)EF1_CERT_RSAD040 (bin) d)EF1_CERT_SHAYXX and DEF1 Image(ShN25G) Platform Key (FK) +: Select Screen TI: Select Item Enter: Select +/-1 Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Export: Use the arrow keys to select Export. It is to save the current PKs to a FAT formatted USB flash drive.

Atrio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Security Vendor Keys Valid Provision Factory Defaults ID(sagued) ► Restore Factory Keys ► Reset To Setup Mode ► Export Security Boot variables ► Enroll Eff Damage Device Guard Ready Platform Key(PC) ► Remove 'UEFI OK' from DB Details ► Restore DB defaults Export Secure Boot variable | Size | Ke Update ► Platform Key(KE) [467] Delete ► Key Exchange Keys | 1560 ► Authorized Signatures | 4283 | 3 | Factory ► Forbidden Signatures | 3224 | 7 | Factory ► Authorized Timestamps | 1565 | 1 | Factory ► ORecovery Signatures | 1465 | 1 | Factory Enroll Factory Defaults or load certificates from a file: 1. Public key Certificates: AEFLSTONATURE_LIST b) EFL_CERT_XS09 (DER) c) EFL_CERT_BSS09A (bin) d) EFL_CERT_SHAWX 2. Authenticated UEFI Variable: 3. EFL PE/DOFF Change(SHA25%) Key Source: Factory:External,Mixed +: Select Screen T1: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save R Exit ESC: EXIT Version 3.20.1876, Copyright (C) 2019 American Megatrends, Inc.

Press and the following screen will appear.

Ratio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Security Vendor Keys Valid Provision Factory Defaults Disapplied Restore Factory Keys Reset TO Setup Mode Export Secure Boot variables Enroll Eli Image Device Wizard Ready Remove 'UEFI ON' Restore OE default Secure Boot Variable Platform Key(s) Key Exchange Keys | 1560 | 1 Factory Authorized Signatures | 4263 | 3 Factory Perbidden Signatures | 3724 | 71 Factory Authorized TimeStamps | 1565 | 1 Factory OSRecovery Signatures | 1465 | 1 Factory Select a Fills system Appl(a)24100, 01\FC11410\USE(14.0)\E(Fart1, Sig 7) Enroll Factory Defaults or load certificates from a file: 1.Public key Certificate: a)EFILCEINATURE_LIST d)EFILCEPT_XSUS (DER) c)EFILCEPT_BSAOANS (BIN) d)EFILCEPT_SHAWAY 2-Augmentedated UEFI +: Select Screen T1: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.20.1276. Copyright (C) 2019 American Megatrends, Inc.

Note: Refer to the right panel of the screen for the file formats accepted.

Update: Use the arrow keys to select Update. It is to load the factory defaults or load PKs from a file on the external device.

Ratio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Security Vendor Keys Valid Provision Factory Defaults ID(Enabled) Restore Factory Keys Reset To Setup Mode Export Secure Boot Variables Enroll Efi Image Device Build Moddy Remove 'UEFI OK' from DB Restore DB defaults Secure Boot Variable | Size Ka Platform Key(PCI) 14651 Key Exchange Keys | 15601 Authorized Signatures[1] 43691 Forbidden Signatures[1] 37241 Authorized Timestamps[1] 15651 OSRecovery Signatures[1] 14651 Platform Key(PCI) Details Export Update Delete Platform Key(PCI) Details Export Update Delete Platform Key(PCI) Details Export Update Delete Platform Key(PCI) Details Export Update Delete Platform Key(PCI) Details Export Update Delete Platform Key(PCI) Details Export Update Delete Platform Key(PCI) Details Export Update Delete Platform Key(PCI) Details Export Update Delete Platform Key(PCI) Details Importing Certificates from a file: IPublic Key Certificates: #REFLSIGNATURE_LIST #DEFI_CERT_XS09 (DERA) c)DEFI_CERT_BS4040 (Upin) v)DEFI_CERT_SNWKXK 2.Aumenticated UEFI Variable: 3.EFI PE/COFF Image(SNA256) KEY Source: Factory,External,Mixed +/- Select Screen T1: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESGA: Exit Version 2.20.1274. Copyright (C) 2019 American Megatrends, Inc.

Press and the following screen will appear.

Auto Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Security Vendor Keys Valid Provision Factory Defaults (Disabled) Restore Factory Keys Reset To Setup Mode Export Secure Boot variables Enroll Eff Image Device Guard Ready Remove 'UEFI OE' from DB Restore DB defaults Secure Boot variable | 51 Fistural Key(+) | 37 Key Exchange Keys | 19 Authorized Signatures | 42 Fortidden Signatures | 36 Authorized TimeStamps | 1588 OsRecovery Signatures | 1469 Update Press 'Yes' to load factory default 'PK' OR 'No' to load it from a file on external media Yes No 11 Factory Enerli Factory Defaults or load certificates from a file: I: Public key certificate: a) EFL SIGNATURE_LIST b) EFL_CERT_USER (DEM) c) EFL_CERT_PASSOAB (band) d) EFL_CERT_SHAVXY Authenticated UEFI able: FI PE/COFF (Image(SHALES)) Sourcen tory, External,Mixed Select Screen 14: Select Item Enter: Select +/-s Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults. F4: Save & Exit E00: E=IT

To load the factory defaults, navigate to Yes and press . The following screen will appear.

Antio Setup Utility - Copyright (C) 2019 American Megastrends, Inc. Security Vendor Keys Valid Provision Factory Defaults D:\sob\eds Restore Factory Keys Reset To Setup Mode Export Secure Boot variables Enroll Efi Image Device Guard Ready Remove 'UEFI ON' from DB Restore DB defaults Secure Boot variable | Size | keys | Key Aviation Key(Ex) 1560 | 1 Fact Key Exchange Keys | 1560 | 1 Fact Authorized Signatures1 4263 | 3 Fact Forbidden Signatures1 3724 | 791 Fact Authorized Timestamps1 3505 | 1 Factory GoRecovery Signatures1 4661 | 1 Factory Update Success Ok Enroll Factory Defaults or load certificates from a file: 1. Public Key Certificate: aDFI.SIGNATURE_LIST bDFI.CERT_USO8 (DER) cDFI.CERT_BSAC048 (BIN) dDFI.CERT_SHAWX 2. Authenticated UEPI Variable: 3. EPI HT/CFFF (Image(SHACK)) Key Source: Factory,External,Mixed ++: Select Screen T4: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Move & Exit ESC: Exit Version 2.30.1874. Copyright (C) 2019 American Megastrends, Inc.

To load PKs from a file on the external device, navigate to No and press .

Audio Setup Utility - Copyright (C) 2019 American Newsrends, Inc. Security Vendor Keys Modified Provision Factory Defaults D:\100\167 Restore Factory Keys Reset To Setup Mode Export Secure Boot variables Enroll Efi Dags Device Guard Ready Remove 'UEFI ON' from No Restore OR defaults Secure Boot variable | 51 Fisfora Key(No) Key Exchange Keys Authorized Signatures Forbidden Signatures Authorized TimeStamps | 356 ORecovery Signatures | 3466 | Update Press 'Yes' to load factory default 'PK' or 'No' to load it from a file on external media Yes No Enroll Factory Defaults or load certificates from a file: 1. Public key certificate: a)EFL.SIGNATURE_LIST b)EFL.CERT.VSBY (DBP) c)EFL.CERT.BSAC048 (bin) d)EFL.CERT.SHAVX Authenticated UEFI File: FE PE/COFF Dags(DWCSG) Sourder tary.External.Hlived Select Screen 1: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

When the following screen appears, select the USB flash drive that contains the desired file.

AutoIO Setup Utility - Copyright (C) 2019 American News trends, Inc. security Vendor Keys Provision Factory Defaults Restore Factory Keys Reset To Setup Mode Export Secure Boot variables Devoll Effi Image Device Guard Nendy Remove 'UEFI OK' from DB Restore DB defaults Secure Boot variable | SIZE | KB Platform Key(P) Key Exchange Keys Authorized Signatures[1560] Forbidden Signatures[4063] Authorized Timestamps[5631] DoRecovery Signatures[1466] SELECT File (ChargeSetup) (QED) (RET) (DI mrs) (Sc-lpt) (Hilll) (Issllmox) (LiveDS) (Uptate) (Angipure_lgs) PK KEX db dbr dvt db BDOTEX.LGS NVR/SPG/Sqnlkt.Int AutoIcon.lgs Enroll Factory Defaults or load certificates from a file: Public Key Certificates: ADEFI_SIGNATURE LIST DEFICERT_XSO9 (DER) DEFICERT_BRASNB blind DEFICERT_SHARMX 2. Authenticated UEFI Variable: 0.EFI PE/GFF IMAGE(SHAZS) Key Source: Factory,External,Mixed +: Select Screen T1: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.00.1274, Copyright (C) 2019 American News trends, Inc.

Ratio Setup Utility - Copyright (C) 2019 American Negatrends, Inc. security Vendor Keys Provision Factory Defaults ► Restore Factory Keys ► Reset To Setup Mode ► Export Secure Boot variables ► Earnell Efi Image Device Guard Ready ► Remove 'UFI O' from DB ► Restore DB defaults Secure Boot variable | Size | Keys ► Platform Key(%) | 1468 | 1 ► Key Exchange Keys | 1560 | 1 ► Authorized Signatures[ ] 4203 | 3 | Factory ► Forbidden Signatures[ ] 3724 | 7 | Factory ► Authorized TimeStamp[ ] 1565 | 1 | Factory ► DoRecovery Signatures[ ] 1466 | 1 | Factory Input File Format! Public Key Certificates AUTHORIZED Variation Email Factory Defaults or load certificates from a file: 1.Public Key Certificates: a)FFI_SIGNATURE_LIST b)FFI_CERT_XS09 (DBA) c)FFI_CERT_BSA04B (bind) d)FFI_CERT_SNWWX 2.Authenticated UEFI Variable: 3.EFI PE/COFF Image(SNA256) Key Source: Factory,External,Mixed +: Select Screen T4: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit GDS: Exit version $26.182% Copyright (C) 2019 American Negatrends, Inc.

Motio Setup Utility - Copyright (C) 2019 American Negatrends, Inc. Security Vendor Keys Modified Provision Factory Defaults [Disabled] Restore Factory Keys Reset To Setup Mode Export Secure Boot variables Enroll Efi Image Device Guard Ready Remove 'DEFI OR' from Eti Restore DO defaults Secure Boot variable | 1 Platform Key(s) Key Exchange Keys | 1 Authorized Signatures | 1 Forboden Signatures | 3/4 Authorized Time stamp | 1563 | 1 Factory Get Recovery Signatures | 1463 | 1 Factory Update Confirm update of "PK" with content from the file PK Yes No Enroll Factory Defaults or load certificates from a file: 1.Public Key Certificates: uBFI_SIGNATURE_LIST uBFI_CERT_X809 (DEM) cBFI_CERT_ROA8N4a Inini uBFI_CERT_SHARKX Authenticated UERF able (1) PE/COFF IMAGE(SHA256) SOURCE: Sory,External,Mixed +:- Select Screens T:- Select Item Enter: Select +:- Change Opt. P1: General Help P2: Previous Values P3: Optimized Defaults P4: Save A Exit ESG: Exit

Press and the following screen will appear.

Netto Setup utility - Copyright IC7 2019 American Meastrends, Inc. Security Vendor Keys Provision Factory Defaults ■ Restore Factory Keys ■ Reset To Setup Mode ■ Export Secure Boot variables ■ Enroll Effi Image Device Guard Ready ■ Remove 'UIFI DA' from DB ■ Restore ID defaults Secure Boot variable | Size | Keys | Key Platform Key(K) ■ Key Exchange Keys | 1560 | 1 Fact ■ Authorized Signatures | 4263 | 3 Fact ■ Forbidden Signatures | 8741 | 77 Fact ■ Authorized Timetrapods | 1565 | 1 Fact ■ Osheccovery Signatures | 1465 | 1 Fact Modified ID (selected) Update Success OK Enroll Factory Defaults or load certificates from a file: I.Public key Certificate: a) EFL SIGNATURE_LIST b) EFL CERT_XS09 (DER) c) EFL CERT_BRAC049 (bin) d) EFL CERT_SHAWX 2. Authenticated UFI's Variable: 3. Effi PE/COFF Image(DNA25): Key Source: Factory, External,Mixed +: Select Screen T4: Select Item Enter: Select +/-: Change Opt. F1: Several Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit! ESC: Exit Version 2.20.1876. Copyright (C) 2013 American Megatrends, Inc.

Delete: Use the arrow keys to select Delete and press to clear the current PKs and reset the system to the Setup mode.

Ratio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Security Vendor Keys Modified Provision Factory Defaults [0/10/10/10] Restore Factory Keys Reset To Setup Mode Export Secure Boot variables Enroll Effi Image Device Guard Ready Remove 'UEFI OK' from OD Restore ID defaults Secure Boot variable | Size | No Platform Key(No) Key Exchange Keys | 15601 Authorized Signatures | 42693 Forbidden Signatures | 37241 Authorized Timestamps | 15651 OsRecovery Signatures | 14667 Platform Key(No) Details Export Update Delete Email Factory Defaults or load certificates from a file: 1. Public Key Certificates: a) EFE LECNATURE_LIST b) EFE CERT_XS09 (DER) c) EFE CERT_BEAD040 (BIN) d) EFE CERT_SHAWX 2. Authenticated EFEI Variable: 3. EFE PC/OFF Image(SHAESG) KEY SOURCE: Factory:External,Mixed +: Select Screen TI: Select Item Enter: Select +/-1 Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.20.1274. Copyright (E) 2019 American Megatrends, Inc.

Ratio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Security Vendor Keys Modified Provision Factory Defaults ID=DISABLED Restore Factory Keys Reset To Setup Mode Export Secure Boot variables Enroll Efi Image Device Guard Ready Remove 'EEFI CM' from D Restore OD defaults Secure Boot variable | S Platform KeyPin Key Exchange Keys | 1 Authorized Signatures | 4 Forbloden Signatures | 37 Authorized TimeStamps | 1563 | 1 Factory OsRecovery Signatures | 1465 | 1 Factory Delete Security key/Databasee WARNING: Removing 'FK' will reset the System to Setup/Audit Mode OK Enroll Factory Defaults or load certificates from a file: Public key certificate: a)EFLSIGNATURE_LIST b)EFL CERT_XS0A (DB) c)EFL CERT_BREAD48 (BIN) d)EFL CERT_SHAWX Authenticated UEFI File: F1 PE/DOFF Image(CHWES) Source: Binary.External.HMixed +:- Select Screen T1: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit EICI Exit Version 2.20.1274. Copyright (C) 2019 American Megatrends, Inc.

▶Key Exchange Key

The Key Exchange Key (KEK), which is held by the operating system vendor, can be updated by the holder of the PK and be used by secure boot to protect access to signatures databases. The options are Details, Export, Update, Append, and Delete. Select Details to display detailed information of KEKs. Select Export to save the current KEKs to a FAT formatted USB flash drive. Select Update to load the factory defaults or load KEKs from a file on the external device. Select Append to load the factory defaults or load KEKs from a file on the external device. Select Delete to clear the current KEKs or to delete only one certificate from the key database. (Refer to page 145 for the Export process. Refer to pages 146, 147, 148, and 149 for the Update process.)

ATIO Setup Utility - Copyright (C) 2019 American Hegstrends, Inc. Security Vendor Keys Modified Provision Factory Defaults (Dimabled) Restore Factory Keys Reset To Setup Mode Export Security Boot Variable Enroll Efi Image Device Guard Ready Remove 'EFI DA' from DB Restore DB defaults Secure Boot variable | Size | Pa Platform Key(N) | 1468 Key Exchange Keys | 1560 Authorized Signatures1 4263 Forbidden. Signatures1 3264 Authorized TimeStamps1 1563 OSRecovery Signatures1 1465 Details Export Update Append Delete Key Exchange Keys Details Export Update Append Delete Configuration Details Factory External Mixed +:- Select Screen T1: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save a Exit ESG: Exit

Append: Use the arrow keys to select Append.

Aptio Setup Utility - Copyright (C) 2019 American NewsTrends, Inc. Security Vendor Keys Provision Factory Defaults Restore Factory Keys Reset To Setup Mode Export Secure boot variables Enroll Efi Image Device Guard Ready Remove 'UEFI DR' from DB Restore DB defaults Secure Boot variable | Size | Ka Platform Key(N): 14661 Key Exchange Keys Authorized Signatures: 45391 Forbloden Signatures: 37241 Authorized Timestamp: 15851 OscDiscovery Signatures: 14661 Modified [Disabled] Key Exchange Keys Details Export Update Append Delete Enroll Factory Defaults or load certificates from a file: Public Key Certificate: a)EPILSIGNATURELIST DEPI_CERT_XSOS (DEM) DEPI CERT_XSOS (BIN) DEPI CERT_XSOS (WIN) 2.-Authenticated UEFI Variable: 3.EFI PC/OFF Image(SHA/SG) Key Source: Factory, External,Mixed 71 Factory 1 Factory 1 Factory +1 Select Screen F4 Select Item Enter: Select. +/- Change Opt. F1 General Help F2 Previous Values F3 Optimized Defaults F4 Save A Exit E6CH EXIT

Press and the following screen will appear.

Ratio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Security Vendor Keys Provision Factory Defaults Restore Factory Keys Reset To Setup Mode Export Secure Boot variables Enroll Efi Image Device Guard Ready Remove 'IEFI OR' from O Restore ID defaults Secure Boot variable | 1 Platforms Key(Th) Key Exchange Keys Authorized Signatures Forbidden Signatures Authorized Timestamps 156 OscRecovery Signatures 14661 Modified IDIsabled Append Press 'Yes' to load factory default 'KEK' or 'No' to load IT from a file on external media Yes No Enroll Factory Defaults or load certificates from a file: 1.Public key Certificate: a)IEFLSDVATURE_LIST b)IEFLCERT_X809 (DEM) c)IEFLCERT_BSADN8 (BIN) d)IEFLCERT_SHWXX Authenticated UEFI able F1: PE/COFF Image(SHA25) Source: tary.External,Mixed Select Screen T4: Select Item Enter: Select +/-: Change Opt. F1: General Help F5: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

To load the factory defaults, navigate to Yes and press . The following screen will appear.

Atoio Setup Utility - Copyright (C) 2017 American Negatrends, Inc. Security Provision Factory Defaults [Disabled] Reset to Setup Mode Encoll Efi Image Save all Secure Boot variables Secure Boot variable | Size | Key&I Key Source Platform Key(H) 1466 | 11 Default Key Exchange Keys | 1560 | 11 Default Authorized Signatures | 4289 | 91 Def Forbloden Signatures | 3724 | 771 Def Authorized TimeStamp | 1565 | 11 Def Oshccovery Signatures | 1466 | 11 Def Append Success OK Enroll Factory Defaults or load certificates from a file: 1.Public key Certificate in: a)EPI_SIGNATURE_LIST b)EPI_CERT_XSOS (DER encoded) c)EPI_CERT_BREAD4B (Din) d)EPI_LEKT_SHA256_204_5i2 2.Authenticated HEFI Variable 3.EPI PE/CPPF Image(SHA256) Key Source: Default,External,Mixed,Test +: Select Screen TI: Select Item Enter: Select +/-: Change Opt: P1: General Help P2: Previous Values P3: Optimized Defaults P4: Save & Exit ECC: Exit version 2.19.1208. Copyright (C) 2017 American Negatrends, Inc.

To load KEKs from a file on the external device, navigate to No and press . Refer to pages 148 and 149 on how to load KEKs from a file on the external device.

Auto Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Security Vendor Keys Modified Provision Factory Defaults [0] [0] [0] Restore Factory Keys Result to Setup Mode Export Secure Boot variables Enroll Efi Image Device Guard Ready Remove 'UEFI OR' from O Restore OS defaults Secure Boot variable | S Platforms Key(s) Key Exchange Keys | 1 Authorized Signature(1) Forbidden Signature(1) Authorized Timestamp(1) OsRecovery Signature(1) [0] 11 Factory Append Press 'Yes' to load factory default 'KEK' or 'No' to load IT from a file on external media Yes No Enroll Factory Defaults or load certificates from a file: 1. Public Key Certificate: a)EFLLSIGNATURE_LIST b)EFL_CERT_XSOS (DER) c)EFT_CERT_EBAO40 (bin) d)EFL_CERT_SHAKXX Authenticated UEFI able: FI PE/DOFF Image(SHA55E) Sources: tory.External,Mixed Select Screen T4: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Datalized Defaults F4: Save & Exit ESO: Exit Version 2.30.3874. Copyright (C) 2019 American Megatrends, Inc.

Delete: Use the arrow keys to select Delete and press . Navigate to Yes and press to clear the current KEKs.

Ratio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Security Vendor Keys Provision Factory Defaults Restore factory keys Reset To Setup mode Export Secure Boot variables Enroll Efi Image Device Guard Ready Remove 'UEFI OR' from DB Restore to defaults Secure Boot Variable | SLoe Ka Platform Key(Dy) | 1466 Key Exchange Keys | 3560 Authorized Signatures | 4263 Forbidden Signatures | 3724 Authorized TimeStrans | 1563 OsRecovery Signatures | 1466 Modified ID is possible Key Exchange keys Details Export Update Append Delete 71 Factory 1 Factory 1 Factory Enroll Factory Defaults or load certificates from a file: 1.Public Key Certificate) a)EFL SIGNATURE_LIST b)EFL_CERT_XSOS (DBM) c)EFL_CERT_BREAD048 (bin) d)EFL_CERT_SHAWX 2.Authenticated EEFI Variable 3.EFI PER DIFF IMAGE(SHAES) KEY SOURCE: Factory.External,Mixed +/-: Select Screen TI: Select Item Enter: Select +/-: Change Opt: F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Notio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Security Vendor Keys Modified Provision Factory Defaults [Enabled] Restore Factory Keys Reset To Setup Mode Export Secure Boot variables Enroll Efi Damage Device Guard Ready Remove 'LEFT OR' from DE Restore On defaults Secure Boot Variable | S Platform Key(Dx) Key Exchange Keys Authorized Signatures Forbidden Signatures Authorized Timestamps | 36 OscDiscovery Signatures | 1461 1 Factory Delete Security Key/Database Press 'Yes' to delete the variable, or 'No' to delete only a certificate from the key database Yes No Enroll Factory Defaults or load certificates from a file: 1.Public key Certificate: a)EFLSIGNATURE_LIST b)EFL CERT_XSOS (DER) c)EFL CERT_BREAD08 (BIN) d)EFL CERT_SHAWXY Authenticated UEFI able: FI PE/IOFF Image(###56) Source: tory.External,Mixed Select Screen TI: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values FS: Optimized Defaults F3: Save A Exit ESC: Exit

Navigate to No and press to delete only one certificate from the key database.

Ratio Setup Utility - Copyright (C) 2019 American Hegatrends, Inc. Security Vendor Keys Modified Provision Factory Defaults Disabled Restore Factory Keys Reset To Setup Mode Export Secure Boot variables Enroll Efi Image Device Remove Restore Secure Factor Key Exchange Keys 1567 1 Factory Authorized Signatures 4263 3 Factory Forbidden Signatures 3244 71 Factory Authorized TimeStamps 1565 1 Factory OSRecovery Signatures 1456 1 Factory Select a Signature List to be removed from a key database List: Six, FalseCount Size owner QUID / Certificate Legend 1 X.508 1 1516 T7FRAHD-... Microsoft Corporation KEK CA 2011 +: Select screen 14: Select Item Enter: Select +/- Change Opt. C1: Several Help P2: Previous Values C3: Optimized Defaults P4: Save & Exit CIG: Exit

▶ Authorized Signatures

Authorized Signature Database (DB) contains authorized signing certificates and digital signatures. The options are Details, Export, Update, Append, and Delete. Select Details to display detailed information of Authorized Signatures. Select Export to save the current DB to a FAT formatted USB flash drive. Select Update to load the factory defaults or load DB from a file on the external device. Select Append to add variables to the existing DB. Select Delete to clear the current DB or to delete only one certificate from the key database. (Refer to page 145 for the Export process. Refer to pages 146, 147, 148, and 149 for the Update process. Refer to pages 150 and 151 for the Append process. Refer to page 152 for the Delete process.)

Vendor Keys Provision Factory Defaults Restore Factory Keys Reset To Setup Mode Export Secure Boot variables Enroll Efi Image Device Guard Ready Remove 'EFT OK' from DB Restore DB defaults Secure Boot variable | Size Ka Platform Key(Th) | 1465 Key Exchange Keys | 1560 Authorized Signatures[ 4363] Forbidden Signatures[ 3724] Authorized Timestampos[ 1565] (Discovery Signatures)[ 1466] Modified (Displied) Authorized Signatures Details Export Update Append Delete 771 Factory 1 Factory 1 Factory Enroll Factory Defaults or load certificates from a file: 1.Public Key Certificates: aEFI SIGNATURE_LIST bEFI_CERT_XS(FD) cEFI_CERT_RISROAD (bind dEFI_CERT_SHRACK 2.Authenticates EFTI Variable: 3.EFI PE/DOY (Image(SHACSA)) KEY SOURCE: Factory,External,Mixed +/- Select Screens T1: Select Item Enter: Select +/- Change Opt. F1: General Help F2: Previous Values F3: Datalized Defaults F4: Save B Exit: ESG: Exit Version 2.20.1874, Copyright (C) 2019 American Negatrends, Inc.

▶Forbidden Signatures

Forbidden Signature Database (DBX), which is the inverse of DB, contains forbidden certificates and digital signatures. The options are Details, Export, Update, Append, and Delete. Select Details to display detailed information of Forbidden Signatures. Select Export to save the current DBX to a FAT formatted USB flash drive. Select Update to load the factory defaults or load DBX from a file on the external device. Select Append to add variables to the existing DBX. Select Delete to clear the current DBX or to delete only one certificate from the key database. (Refer to page 145 for the Export process. Refer to pages 146, 147, 148, and 149 for the Update process. Refer to pages 150 and 151 for the Append process. Refer to page 152 for the Delete process.)

Notio Setup Utility - Copyright TO 2019 American Markets, Inc. security Vendor Keys Provision Factory Defaults Restore Factory Keys Reset To Setup Mode Export Secure Boot variables Enroll Eff. Image Device Guard Ready Remove 'UEFI OH' from DB Restore DB defaults Secure Boot variable | Size | to Platform Key(No) | 1465 Key Exchange Keys | 1560 Authorized Signatures | 4263 Forbidden Signatures Details Export Update Append Delete Forbidden Signatures | 3724 | T1 Factory Authorized Timestamps | 1563 | 1 Factory OsRecovery Signatures | 1465 | 1 Factory Forbliden Signatures EQUI Factory Defaults or load certificates from a FILE: LPublic Key Certificate: aDEFI_SIGNATURE_LIST bDEFI_CERT_XS0Y (DEF) cDEFI_CERT_BSAC0AB (Dun) dDEFI_CERT_SHAWX 2 Authenticated UEFI Variable: 3_EFI PE/COFF Image(DNA256) Key Source: Factory.External,Mixed +: Select Screen T1: Select Item Enter Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Defaulted Defaults F4: Save & Exit ESC: Exit Version 2.30.1276. Copyright ©1 2019 American Markets, Inc.

▶ Authorized TimeStamps

Authorized Timestamp Database (DBT) is used to issue and check signed time stamp certificates. The options are Details, Export, Update, Append, and Delete. Select Details to display detailed information of Authorized Timestamps. Select Export to save the current DBT to a FAT formatted USB flash drive. Select Update to load the factory defaults or load DBT from a file on the external device. Select Append to add variables to the existing DBT. Select Delete to clear the current DBT or to delete only one certificate from the key database. (Refer to page 145 for the Export process. Refer to pages 146, 147, 148, and 149 for the Update process. Refer to pages 150 and 151 for the Append process. Refer to page 152 for the Delete process.)

AdT10 Setup Utility - Copyright (C) 2017 American Nagestrends, Inc. Security Provision Factory Defaults [Disabled] Reset to Setup Mode Enroll Eff Image Save all Secure Boot Variables Secure Boot variable | Size | Keyset | Key Source Platform Key(DO) | 1456 Key Exchange Keys | 1550 Authorized Signatures | 4859 Forbioden Signatures | 5724 Authorized Timestamps | 1556 OSRecovery Signatures | 1456 Key Management Save to File Set New Append Erase Enroll Factory Defaults or load certificates from a +1: 1.Public Key Certificate ins a:EPI_SIGNATURE_LIST b:EPI_CERT_XS03 (DDR encoded) c:EPI_CERT_BHA204B (bin) d:EPI_CERT_SHA256,394,512 2.Authenticated UEFI Variable 3.EPI PE/COFF: Dwage(SHA256) Key Source: Default,External,Mixed,Test +: Select Screen T1: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save A Exit ESG: Exit Version 2.19.1268, Copyright (C) 2017 American Nagestrends, Inc.

▶OsRecovery Signatures

OsRecovery Signatures Database (DBR) contains secure boot authorized recovery variables. The options are Details, Export, Update, Append, and Delete. Select Details to display detailed information of OsRecovery Signatures. Select Export to save the current DBR to a FAT formatted USB flash drive. Select Update to load the factory defaults or load DBR from a file on the external device. Select Append to add variables to the existing DBR. Select Delete to clear the current DBR or to delete only one certificate from the key database. (Refer to page 145 for the Export process. Refer to pages 146, 147, 148, and 149 for the Update process. Refer to pages 150 and 151 for the Append process. Refer to page 152 for the Delete process.)

Avio Setup Utility - Copyright (C) 2017 American Negatrends, Inc. Security Provision Factory Defaults [Disabled] ► Reset to Setup Mode ► Encoll Eff Image ► Save all Secure Boot Variables Secure Boot Variable | Size | Key&W | Key Source ► Platform Key(OK) | 1466 ► Key Exchange Keys | 1566 ► Authorized Signatures | 4269 ► Forbidden Signatures | 3724 ► Authorized TimeStands | 1565 ► CopRecovery Signatures | 1466 Key Management Save to File Set New Append Erase Enroll Factory Defaults or Load certificates from a file: 1.Public Key Certificate in: a:EPI_SIGNATURE_LIST b:EPI_CERT_XS09 (DEM encoded) c:EPI_COUNT_BXA048 (bin) d:EPI_COUNT_SHA06_984_512 2.Authenticated EEFI WorldJe 3.EPI PERCOFF Images(SHA256) Key Source: Default,External,Mixed,Test +: Select Screen T1: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Datalized Defaults F4: Save & Exit GOD: Exit version 2.13.1208. Copyright (C) 2017 American Negatrends, Inc.

Appendix F

Configuring iSCSI Settings

Internet small computer system interface (iSCSI) is a protocol that defines how block-level data transports between the iSCSI initiator and iSCSI target over an Internet protocol (IP) network. The iSCSI initiator (client/host) enables a connection to the iSCSI target and initiates I/O requests. The iSCSI target can be a group of storage devices or an intermediate device attached to storage devices. The iSCSI initiator and iSCSI target must connect to an IP network. To have iSCSI settings available, refer to instructions stated in the G.1 section. The G.2 section explains iSCSI settings.

F.1 PCIe/PCI/PnP Features

Press during system boot to enter the BIOS Setup utility. Navigate to the Advanced tab. Use the arrow keys to select PCIe/PCI/PnP Configuration and press to access the menu items.

Ratio Setup UTILITY - Copyright (C) 2017 American Megatrends, Inc. Main Advanced Event Logs PMI Security Boot Save & Exit ▶ Boot Feature ▶ CPU Configuration ▶ Chipset Configuration ▶ Server ME Configuration ▶ PCH SATA Configuration ▶ PCH SATA Configuration ▶ PCIe/PCI/PDF Configuration ▶ Super ID Configuration ▶ Serial Port Console Redirection ▶ ADMI Settings ▶ Trusted Computing ▶ ISCCI Configuration ▶ Intel(R) Virtual RFID on CPU PCI, PCI-X and PCI Express Settings. +/-: Select Screen 1#: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESG: Exit Version 2.13.1208. Copyright (C) 2017 American Megatrends, Inc.

Note: Be sure to have configuration information for the iSCSI initiator and iSCSI target before starting iSCSI settings.

Onboard LAN1 Option ROM

Use the arrow keys to select Onboard LAN1 Option ROM and press . The options are Disabled, Legacy, and EFI. Set this feature to EFI.

PCI Bus Driver Version PCI Devices Common Settings: Above 45 Decoding SR-0DV Support HMO HIGH Base HMO HIGH Angularity Size PCI PDBP/SPAR Support Maximum Read Request HMO F0 Base NWE Firmware Source VIA Priority PCI SLOT1 PCI-E 3.0 X4IN X6I CPU SLOTS PCI-E 3.0 X8 OPRON CPU SLOTS PCI-E 3.0 X8 OPRON CPU SLOTS PCI-E 3.0 X16 OPRON CPU SLOTS PCI-E 3.0 X16 OPRON R.I2 PCI-E 3.0 X4 OPRON Onboard LAN Device Onboard LAN1 Option ROM Onboard LAN2 Option ROM Onboard Video Option ROM Network Stack Configuration [Enabled] [Disabled] [SSF] [2766] [Enabled] [Auto] [PSI] Onboard LAN1 Option ROM Disabled Legacy EPC [Legacy] [Legacy] [Enabled] [Legacy] [Legacy] Select which firmware function to be loaded for onboard LAN1. ++: Select Screen T1: Select Item Enter: Select +/- Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.19.1268, Copyright (C) 2017 American Newsrends, Inc.

Note: If Onboard LAN1 Option ROM is set to EFI, all features for onboard LAN option ROM will be set to EFI by the EFI driver. Additionally, these features will become unavailable except Onboard LAN1 Option ROM.

Network Stack Configuration

Use the arrow keys to select Network Stack Configuration and press to access the menu items.

PCI Bus Driver Version PCI Devices Common Settings: Above 4G Decoding SR-10V Support MMCI High Audio MMCI High Granularity Size PCI PERS/SEER Support Maximum Read Request MMCI0 Base NAME Firmware Source VAR Priority PCI SLOTS PCI-E 3.0 X4(26 X8) OPRDM CPU SLOTS PCI-E 3.0 X5 OPRDM CPU SLOTS PCI-E 3.0 X6 OPRDM CPU SLOTS PCI-E 3.0 X16 OPRDM CPU SLOTS PCI-E 3.0 X16 OPRDM H.2 PCI-E 3.0 X4 OPRDM Onboard LAN Device Onboard LAN1 Option ROM Onboard Video Option ROM Network Stock Configuration AS.01.1E [Enabled] [Disabled] [Set] [2560] [Disabled] [Auto] [20] [AMI Native Support] [Onboard] [Legacy] [Legacy] [Legacy] [Legacy] [Legacy] [Legacy] [Legacy] [Legacy] [Legacy] [Legacy] [Legacy] [Legacy] [Legacy] [Legacy] [Legacy] [Legacy] [Legacy] [Legacy] [Legacy] [Legacy] [Legacy] [Legacy] [Legacy] [Legacy] [Legacy] [Legacy] [Legacy] [Legacy] [Legacy] [Legacy] [Legacy] [Legacy] [Legacy] [Legacy]

Ipv4 PXE Support/Ipv6 PXE Support

To enable lpv4/lpv6 PXE boot support, use the arrow keys to select and set lpv4 PXE Support/Ipv6 PXE Support to Enabled.

Antio Setup Utility - Copyright (C) 2017 American Megatrends, Inc. Advanced Network Stock [Enabled] IPv4 PXE Support [Enabled] IPv4 HTTP Support [Disabled] IPv6 PXE Support [Enabled] IPv6 HTTP Support [Disabled] PXE boot unit time 0 Media detect count 1 Enable IPv4 PXE Boot Support. If disabled IPv4 PXE boot option will not be created ++: Select Screen T4: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Have B Exit ESQ: Exit Version 2.19.1808. Copyright (C) 2017 American Megatrends, Inc.

Note: Enable both lpv4 PXE Support and lpv6 PXE Support to have iSCSI settings available. In some cases, enabling either one feature may also have iSCSI settings available depending on the configuration of iSCSI initiator and iSCSI target.

For the changes to take effect, save settings and restart the system. Press during system boot to enter the BIOS Setup utility. When the BIOS main screen appears, navigate to the Advanced tab. Use the arrow keys to select iSCSI Configuration and press to access the menu items.

Auto Setup Utility - Copyright (C) 2017 American Megatrends, Inc. Main Advanced Event Logs IPMI Security Boot Save a Exit Boot Feature CPU Configuration Chipset Configuration Server NE Configuration PDS SATA Configuration PCH sixthn Configuration FCIE/PCI/PDF Configuration Super IO Configuration Serial Port Console Redirection ADPI Settings Trusted Computing IDCSI Configuration Intel(CK) Virtual RMS on CPU Intel(CK) Ethernet Connection X722 for 108BASE-T - AC:IF:6B1... Intel(CK) Ethernet Connection X722 for 108BASE-T - AC:IF:6B1... Configure the iOSI parameters. +: Select Screen 14: Select Ives Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.15.1298. Copyright (C) 2017 American Megatrends, Inc.

F.2 Configuring iSCSI Settings

iSCSI Initiator Name

Use this feature to enter the unique initiator name in iSCSI qualified name (IQN) format.

Ratio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Advanced ICSI Initiator Name Iqn.kid.sxc1.iscsl_ ► Add an Attempt ► Attempt 1 ► Attempt 2 ► Delete Attempts ► Change Attempt Order ICSI Initiator Name Iqn.kid.sxc1.iscsl_ + +: Select Screen T4: Select Item Enter: Select +:-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC4 Exit Version 2.20.1874. Copyright (C) 2019 American Megatrends, Inc.

Add an Attempt

Use the arrow keys to select Add an Attempt.

Add to Setup Utility - Copyright (C) 2019 American Negatrends, Inc. advanced ICSI Initiator Name ign kid.snc1.icsi Add on Attempt ► Add on Attempt ► Attempt 1 ► Attempt 2 ► Delete Attempts ► Change Attempt Order +: Select Screen #: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit E00: Exit Version 2.20.1874. Copyright (C) 2019 American Negatrends, Inc.

Press and the following screen will appear. Use the arrow keys to select the desired media access control address (MAC address), network interface card (NIC) port.

Add to Setup Utility - Copyright (C) 2019 American Regatrends, Inc. Rovanced MAC AC1F108B00100127 MAC AC1F108B00100127 PFA: Bus 1 | Dev 0 | Func 0 +/-: Select Screen T1: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESG: Exit

Press and the following screen will appear.

Atoio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. advanced ISC51 Attempt Name ISC51 Mode Internet Protocol Connection Retry Count Connection Establishing Timeout ONI-format ISID Configure ISID Enable DHCP Initiator IP Address Initiator Subnet Mask Gateway Target Name Target Address Target Port Boot LIN Authentication Type Save Changes Attempt S [Disabled] [IP4] 0 1000 20150800026 80026 [Disabled] 0.0.0.0 0.0.0.0 0.0.0.0 3250 0 [None] The human name defined for this attempt. Maximum length is up to 12 characters ++: Select Screen TA: Select Item Enter: Default +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save B Exit ESC: Exit

iSCSI Attempt Name

This feature displays the iSCSI attempt name.

Aptio Setup Utility - Copyright (C) 2019 American Hgatirends, Inc. Advanced ISCEI Attempt Name ISCEI Mode Internet Protocol Connection Retry Count Connection Establishing Timeout ODI-format ISID Configure IID Enable DHCP Initiator IP Address Initiator Subnet Mask Gateway Target Name Target Address Target Port Boot LAN Authentication Type Save Changes Attempt 3 [Disabled] [IPv4] 0 1000 20176880026 800026 [Disabled] 0.0.0.0 0.0.0.0 0.0.0.0 S259 0 [None] The human name defined for this attempt. Maximum length is (into 12 characters) +: Select Screen T1: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

iSCSI Mode

Use this feature to set the iSCSI mode. The options are Disabled, Enabled, and Enabled for MPIO. Multipath I/O (MPIO) is a feature that allows the system to route I/O through the available paths if the active path fails (be sure to have more than one physical path connected to the system).

Aio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Advanced iSCSI Attempt Name Attempt 1 iSCSI Mode [Unsplied] Internet Protocol [IPV4] Connection Retry Count 0 Connection Establishing Timeout 1000 OUI-format ISO 201568800026 Configure ISO ISCSI Mode Enable DHCP Initiator IP Address Initiator Subnet Mask Gateway Target Name Target Address Target Port $260 Boot LUN 0 Authentication Type [None] Save Changes Disabled, Enabled, Enabled for HP10 Enabled for HP10 ++: Select Screen T1: Select Item enter: Select --+: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.20.1876, Copyright (C) 2019 American Megatrends, Inc.

Note: Enabling the feature, iSCSI Mode, is required for iSCSI configuration.

Internet Protocol

Use this feature to set the Internet protocol. The options are IPv4, IPv6, and Autoconfigure.

Ratio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Advanced ICSI Attempt Name Attempt 1 ICSI Mode [Disabled] Internet Protocol [IPv4] Connection Retry Count 0 Connection Establishing Timeout 1000 OMI-format ISO DC1F68800026 Configure ISO Internet Protocol IPv4 IPv6 Autoconfigure Enable DHCP Initiator IP Address Initiator Secret Mask Gateway Target Name Target Address Target Port 3269 Boot LUN 0 Authentication Type [None] Save Changes Initiator IP address is system assigned in JNS mode. In Autoconfigure node, ICSI driver will attempt to connect ICSI target via IPv4 stack. If failed then attempt IPv6 stack. +:- Select Screen T1: Select Item Enter: Select -:+:- Change Opt. F1: General Help F2: Previous Values F3: Dutilized Defaults F4: Save & Exit ESC: Exit version 5.20.1874. Copyright (C) 2019 American Megatrends, Inc.

Connection Retry Count

The valid range is 0\~16. Use this feature to enter the number of logon sessions allowed for the iSCSI initiator to restart with the iSCSI target if the first logon connection fails.

Actio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Advanced iSCSI Attempt Name Attempt 1 iSCSI Mode [0.0.0.0]# Internet Protocol [IPv4] Connection Retry Count 2 Connection Establishing Timeout 1000 UID-format UID 3CS760800026 Configure UID 800026 Enable DHCP [Disabled] Initiator IP Address 0.0.0.0 Initiator Subnet Mask 0.0.0.0 Status 0.0.0.0 Target Name Target Address Target Port 5250 Boot LIN 6 Authentication Type [None] Save Changes The minimum value is 0 and the maximum is 15.0 means no retry. +: Select Screen T4: Select Item Enter: Select +/-1 Change Opt.. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save it Exit ESC: Exit version 2.20.1874. Copyright (C) 2019 American Megatrends, Inc.

Connection Establishing Timeout

Use this feature to set the logon connection establishing timeout (in milliseconds). The valid range is from 100 milliseconds to 20 seconds.

Action Setup Utility - Copyright (C) 2019 American Negatrends, Inc. Advanced IBCSI Attempt Name IBCSI Mode Internet Protocol Connection Retry Count Connection Establishing Timeout Oil-format ISID Configure ISID Enable DHCP Initiator IP Address Initiator Subset Mask Gateway Target Name Target Address Target Port Boot LIN Authentication Type Save Changes Attempt 1 (Disabled) [IPv4] 0 1000 20168800036 880026 [Disabled] 0.0.0.0 0.0.0.0 0.0.0.0 3250 0 [None] The timeout value in milliseconds. The minimum value is 100 milliseconds and the maximum is 20 seconds. +: Select Screen F1: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save A Exit EKC: Exit Version 2.20.1274. Copyright (C) 2019 American Negatrends, Inc.

OUI-format ISID

This feature displays the default ISID in OUI format. The value (in six bytes) is derived from the MAC address of the NIC port that you selected earlier.

Ratio Setup Utility - Copyright (C) 2019 American Negatrends, Inc. Advanced ISCST Attempt Name Attempt 1 ISCST Mode [Displaced] Internet Protocol [IPvA] Connection Retry Count 0 Connection Establishment Timeout 1000 OUI-format ISID 201768800026 Connecticut ISID 0.0.0.0 Enable DHCP [Disabled] Initiator IP Address 0.0.0.0 Initiator Subnet Mask 0.0.0.0 Gateway 0.0.0.0 Target Name Target Address Target Port 3250 Boat LAN 0 Authentication Type Done! Save Changes The timeout value in milliseconds, The minimum value is 100 milliseconds and the maximum is 20 seconds. +: Select Screen #: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESCR Exit

Configure ISID

Press to configure the ISID. The default value is derived from the last three bytes of the OUI-format ISID. Also, only the last three bytes of the ISID are configurable.

ATIO Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Advanced ISO-80026 Interrupt 1 ISO-80 Mode [0:ISO1@1] Internet Protocol [IPv4] Connection Retry Count 0 Connection Establishing Timeout 1000 OUT-format ISO DC3F68800026 Configure ISID Enable DHCP Initiator IP Address Initiator Secret Mask Gateway 0.0.0.0 Target Name Target Address Target Port Boot LIM B260 0 Authentication Type [None] Save Changes OUT-format ISO in 6 bytes, default value are derived from MRC address, Only .80T 3 bytes are configurable. Examplet update DBECCODEEFF to ORBECFO7501 by Input F07501. +: Select Screen 14: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ISO: Exit

Enable DHCP

Use this feature to disable/enable dynamic host configuration protocol (DHCP) server service for the iSCSI initiator. The options are Disabled and Enabled.

Antio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Advanced [ESC] Attempt Name Attempt 3 [ESC] Mode [Disabled] Internet Protocol [IPV4] Connection Retry Count 0 Connection Establishing Timeout 1000 OKI-format ISO DCIF688000% Enable DHCP Configure ISO Enabled DHCP Initiator IP Address Initiator Subnet Mask Gateway 0.0.0.0 Target Name Target Address Target Port Bout LM $250 0 Authentication Type [None] Save Changes Enable DHCP +:- Select Screen T4: Select Items Enter: Select +:- Change Opt. F1: General Help. F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.20.1274. Copyright (C) 2019 American Megatrends, Inc.

Note: Set the feature, Enable DHCP, to Disabled if you would like to specify the iSCSI initiator IP address/subnet mask/gateway.

Initiator IP Address (available when Enable DHCP is set to Disabled)

Use this feature to enter the desired iSCSI initiator IP address.

Aio Setup Utility - Copyright (C) 2017 American Megatrends, Inc. Advanced ISCSI Attempt Name 1 ISCSI Mode (Dissubled) Internet Protocol (IPA) Connection Retry Count 0 Connection Establishing Timeout 1000 DUI-format ISID 201F68W9E02E Configure IDU 09E02E Enable DHCP Initiator IP Address Initiator Subnet Mask Gateway 0.0.0.0 Target Name Target IP Address 0.0.0.0 Target Port 3250 Boot LUN 0 Authentication Type [None] Save Changes Enter IP address in dotted-derimai notation. +:- Select Screen T1: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.13.1268. Copyright (C) 2017 American Megatrends, Inc.

Initiator Subnet Mask (available when Enable DHCP is set to Disabled)

Use this feature to enter the desired iSCSI initiator subnet mask.

Initio Setup Utility - Copyright (C) 2017 American Regatrends, Inc. advanced IOSCI Attempt Name 1 IOSCI Mode (Disabled) Internet Protocol (IP4) Connection Retry Count 0 Connection Establishing Timeout 1000 ONI-Format ISID 201F6009802E Configure ISID Unidoc Enable DHCP Initiator IP Address Initiator Secret Mask Gateway 0.0.0.0 Target Name Target IP Address 0.0.0.0 Target Port 3250 Door LUN 0 Authentication Type (None) Save Changes Enter IP address in dotted-decimal notation. +: Select Screen T1: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save A Exit ESC: Exit Version 2.13.1208. Copyright (C) 2017 American Regatrends, Inc.

Gateway (available when Enable DHCP is set to Disabled)

Use this feature to enter the desired iSCSI initiator gateway.

Moto Setup Utility - Copyright (C) 2017 American Negatrends, Inc. Advanced ISCST Attempt Name 1 ISCST Mode (D:) 1998 Internet Protocol (IP) Connection Retry Count 0 Connection Establishing Timeout 1000 DWI-format ISO DCIF60W0R0CE Configure ISO ONTOE Enable DHCP SATWAY Initiator IP Address 0.0.0.0_ Initiator Subset Port Gateway 0.0.0.0 Target Name Target IP Address 0.0.0.0 Target Port 3250 Boot LOM 0 Authentication Type [More] Save Changes Enter IP address in dotted-decimal notation. +: Select Screen T1: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save H Exit ESD: Exit Version 2.15.1998. Copyright (C) 2017 American Negatrends, Inc.

Get target info via DHCP (available when Enable DHCP is set to Enabled)

Use this feature to disable/enable dynamic host configuration protocol (DHCP) server service for the iSCSI target. The options are Disabled and Enabled.

Auto Setup Utility - Copyright (C) 2017 American Megatrends, Inc. advanced IBCSI Attempt Name 1 IBCSI Mode [Disabled] Internet Protocol [IP4] Connection Retry Count 0 Connection Establishing Timeout 1000 Configure DHCP Enable DHCP Initiator IP: 0.0.0.0 Set target info via DHCP Target Name [Disabled] Target IP Address 0.0.0.0 Target Port 3250 Boot LAN 0 Authentication Type [None] Save Changes Get target info via DHCP Disabled Enabled +: Select Screen 11: Select Item Enter: Select +/-: Change Opt: F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit GSD: Exit Version 2.15.1268. Copyright (C) 2017 American Megatrends, Inc.

Note 1: Set the feature, Get target info via DHCP, to Disabled if you would like to specify the iSCSI target name/IP address/boot LUN.

Note 2: LUN stands for logical unit number, which is used to identify a logical/physical disk.

Target Name

Use this feature to enter the desired iSCSI target name in IQN format.

Ratio Setup Utility - Copyright (C) 2017 American Megatrends, Inc. Advanced ISCST Attempt Name 1 ISCST Mode (Disabled) Internet Protocol (IPA) Connection Retry Count 0 Connection Establishing Timeout 1000 Target Name En In Get target info via DHCP (Disabled) Target name Target IP address 0.0.0.0 Target Port 2259 Boot LAM 0 Authentication Type [None] Save Changes The worldwide unique name of the target... Only log, format is accepted. +: Select Screen T: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save B Exit GSD: Exit Version 2.19.1808. Copyright (C) 2017 American Megatrends, Inc.

Target Address

Use this feature to enter the desired iSCSI target IP address.

Ratio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. advanced IOSCI Attempt Name Attempt 1 IOSCI Mode [IPV60139] Internet Protocol [IPV4] Connection Retry Count 0 Connection Establishing Timeout 1000 DNS format ISO 201560800026 Target Address Set target into via DNS Target name [Disabled] Target Address Target Port 3260 Boot LAN 0 Authentication Type [None] Enter Target address in IPV4, IPV6 or URL format. You need to configure DNS server address in advance if input a URL string. +/- Select Screen F1: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save B Exit OSCI Exit Version 2.20.1874. Copyright (C) 2019 American Megatrends, Inc.

Target Port

This feature displays the iSCSI target port.

Ratio Setup Utility - Copyright (C) 2017 American Hegatrends, Inc. Advanced BCCSI Attempt Name 1 BCCSI Mode [Disabled] Internet Protocol [IP4] Connection Retry Count 0 Connection Establishing Timeout 1000 Configure ISID 09628 Enable DHCP [Enabled] Initiator IP: 0.0.0.0 Set target info via DHCP [Disabled] Target Name Target IP address 0.0.0.0 Target Port $250 Boot LIN 0 Authentication Type [None] Save Changes Target Port +: Select Screen F1: Select Item enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit CSC: Exit Version 2.19.1208. Copyright (C) 2017 American Hegatrends, Inc.

Boot LUN

Use this feature to enter the LUN ID of boot LUN.

Ratio Setup Utility - Copyright (C) 2017 American Megatrends, Inc. Advanced ISCSI Attempt Name 1 ISCSI Mode [Disabled] Internet Protocol [IP4] Connection Retry Count 0 Connection Establishing Timeout 1000 Configure ISOI Owner Enable DHCP Boot LIN Initiator IP: 0.0.0.0 Get target Info Via DHCP [Disabled] Target Name Target IP address 0.0.0.0 Target Port 3250 Boot LIN 0 Authentication Type [None] Save Changes Hexadecimal representation of the CU number. Examples pre-4752-394F-8676-3539, 6704-3-1556-127, 4186-3 +: Select Screen F4: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save A Exit ESC: Exit Version 2.19.1208. Copyright (C) 2017 American Megatrends, Inc.

Authentication Type

Use this feature to set the authentication method. The options are CHAP and None.

Atoio Setup Utility - Copyright (C) 2017 American Megatrends, Inc. advanced ISCISI Attempt Name 1 ISCISI Mode (D:\isoblcd) Internet Protocci (IP4) Connection Retry Count 0 Connection Establishing Timeout 1000 Configure ISID Authentication Type Enable DHCP DHP Initiator IP : 0.0.0.0 None Get target info via DHCP (D:\isoblcd) Target Name Target IP Address 0.0.0.0 Target Port 3250 Boot LIN 0 Authentication Type (More) Save Changes Authentication method: CHWP, Kerberos, or None +:-: Select Screen T1: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.19.1268. Copyright (C) 2017 American Megatrends, Inc.

Note: Challenge handshake authentication protocol (CHAP) is a protocol used to verify the identity of the peer of a connection.

CHAP Type (available when Authentication Type is set to CHAP)

Use this feature to set the CHAP type. The options are One way and Mutual.

Ratio Setup Utility - Copyright (C) 2017 American Megatrends, Inc. Advanced Configure ISID Enable DHCP Initiator IP: 0.0.5.0 Set target Info via DHCP Target Name Target IP Address Target Port Boot LUN Authentication Type CHAP Type CHAP Name CHAP Secret Reverse CHAP Name Reverse CHAP Secret Save Changes Back to Previous Page None, One way CHAP or mutual CHAP CHAP Type One way Mutual [Mutual] +: Select Screen T4: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit version 2.13.1908. Copyright (C) 2017 American Megatrends, Inc.

Note 1: If one way (unidirectional) CHAP authentication is performed, the iSCSI target authenticates the iSCSI initiator.

Note 2: If mutual (bidirectional) CHAP authentication is performed, the iSCSI target and iSCSI initiator authenticate each other.

CHAP Name (available when Authentication Type is set to CHAP)

Use this feature to enter the CHAP name authenticated by the iSCSI target.

Auto Setup Utility - Copyright (C) 2017 American Megatrends, Inc. Advanced Configure ISO Enable DHCP Initiator IP: 0.0.0.0 Get target Info Via DHCP Target Name DHAP Name - Auth DHAP Type DHAP Name DHAP Secret Save Changes ► Back to Previous Page DHAP Name [One way] ++: Select Screen 14: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Ex#T Version 2.19.1268. Copyright (C) 2017 American Megatrends, Inc.

CHAP Secret (available when Authentication Type is set to CHAP)

Use this feature to enter the CHAP secret (12\~16 characters) authenticated by the iSCSI target.

Auto Setup Utility - Copyright ISO 2017 American Megatrends, Inc. Advanced Configure ISID Enable DHCP Initiator IP: 0.0.0.0 Get target Info via DHCP Target Name Target IP Address Target Fort Boot LUN Authentication Type DHMP Type DHMP Name DHMP Secret Save Changes Back to Previous Page One way The minimum length is 12 bytes and the maximum length is 15 bytes. +: Select Screen T4: Select Item Enter Select +/- Change Opt.. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.19.1208, Copyright [C] 2017 American Megatrends, Inc.

CHAP Status

This feature displays the CHAP status.

Auto Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Advanced OUI-Format ISO Configure ISO Enable DHCP Initiator IP Address Initiator Subset Mask Gateway Get target Info via DHCP Target Name Target Address Target Port Boot LUN Authentication Type CHMP Type CHMP Name CHMP Status Reverse CHMP Name Reverse CHMP Secret Reverse CHMP Status Save Changes ► Back to Previous Page The minimum length is 12 bytes and the maximum length is 16 bytes. +:- Select screen T4: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save R Exit ESG: Exit Version 2.50.1873, Copyright (C) 2019 American Megatrends, Inc.

Reverse CHAP Name (available when CHAP Type is set to Mutual)

Use this feature to enter the CHAP name authenticated by the iSCSI initiator.

Auto Setup Utility - Copyright IC7 2017 American Megatrends, Inc. Advanced Configure ISID C9800E Enable DHCP [Enabled] Initiator IP: 0.0.0.0 Get target Info via DHCP [Disabled] Target Name Reverse DHCP Name Anti DHAP Type [Mutual] DHAP Name DHAP Secret Reverse DHCP Name Reverse DHCP Secret Save Changes ► Back to Previous Pass Reverse DHCP Name +: Select Screen F4: Select Item Enter: Select +/-: Change Opt... F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit DHCI Exit version 2.19.1203, Copyright IC7 2017 American Megatrends, Inc.

Reverse CHAP Secret (available when CHAP Type is set to Mutual)

Use this feature to enter the CHAP secret (12\~16 characters) authenticated by the iSCSI initiator.

Netto Setup Utility - Copyright IC? 2017 American Megatrends, Inc. Advanced Configure ISIP Enable DHCP Initiator IP: 0.0.0.0 Get target Info Via DHCP Target Name Target IP Address Target Port Boot Lth Authentication Type CHAP Type CHAP Name CHAP Secret Reverse CHAP Name Reverse CHAP Secret Save Changes Back to Previous Page The minimum length is 12 bytes and the maximum length is 15 bytes. [Disabled] 0.0.0.0 Create New Reverse CHAP Secret [Mutual] ++: Select Screen T4: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults For Save R Exit ESC: Exit Version 2.19.1265. Copyright (C) 2017 American Megatrends, Inc.

Reverse CHAP Status (available when CHAP Type is set to Mutual)

This feature displays the reverse CHAP status.

NOI-Format ISID Configure ISID Enable DHCP Initiator IP Address Initiator Subnet Mask Gateway Get Target Info via DHCP Target Name Target Address Target Port Boot-LUN Authentication Type DHIP Type DHIP Name DHIP Secret DHIP Status Reverse DHCP Name Reverse DHCP Status Reverse DHCP Status [Disabled] 3260 0 [CHIP] [Mutual] [Not Installed] [Not Installed] Save Changes Back to Previous Page The minimum length is 12 bytes and the maximum length is 16 bytes. +/-: Select Screen T1: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save B Exit ESQ: Exit

Save Changes

Use the arrow keys to select Save Changes and press to save settings shown on the screen.

Ratio Setup Utility - Copyright (C) 2017 American Negatrends, Inc. Advanced ISCBI Mode [Disabled] Internet Protocol [IP4] Connection Retry Count 0 Connection Establishing Timeout 1000 Configure ISID 09802E Enable DHCP [Disabled] Initiator IP + 0.0.0.0 Get Target Info via DHCP [Disabled] Target Name Target IP Address 0.0.0.0 Target Port 3260 Spot LUN 0 Authentication Type [None] Save Changes ► Back to Previous Page Must reboot system manually for changes to take place. ++: Select Screen TA: Select Item Enter: Select +/-: Change Spt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.19.1958, Copyright (C) 2017 American Negatrends, Inc.

Note: For the changes to take effect, save settings and restart the system.

Back to Previous Page

Use the arrow keys to select Back to Previous Page and press .

Ratio Setup Utility - Copyright IC? 2017 American Negatrends, Inc. Advanced HOSCI Mode [Disabled] Internet Protocol [IP4] Connection Retire Count 0 Connection Establishing Timeout 1000 Configure ISID 09802E Enable DHCP [Enabled] Initiator IP: 0.0.0.0 Get target Info via DHCP [Disabled] Target Name Target IP Address 0.0.0.0 Target Port 3260 Boot LUN 0 Authentication Type [None] Save Changes ▶ Back to Previous Page Back to Previous Page +:- Select Screen F1: Select Items Enter: Select +:- Change Opt. F1: General Help F2: Previous Values F2: Optimized Defaults F4: Save & Exit ESC: Exit Version 7.19.1208. Copyright (C) 2017 American Negatrends, Inc.

The user will be returned to the main screen of iSCSI Configuration as shown below.

Ratio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Advanced IDSL Initiate: New up an ID, inc1.isctl ► Add an ATERT ► Attemt 1 ► Attemt 2 ► Delete Attempts ► Change Attempt Order The worldwide unique name of IDCSI Initiator. Only IQM format is accepted. Range is from 4 to 823 +1: Select Screen T4: Select Item Enter: Select -/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit EXCI Exit version 2.20.1274. Copyright (C) 2019 American Megatrends, Inc.

Delete Attempts

Use the arrow keys to select Delete Attempts.

Initio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. advanced JSCSS Initiator Name Jsp.kid.srci.lscsl ► Add an Attempt ► Attempt 1 ► Attempt 2 ► Delete Attempts ► Change Attempt Order Delete one or more attempts +: Select Screen T1: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC1 Exit version 2.20.1874. Copyright (D) 2019 American Megatrends, Inc.

Press and the following screen will appear.

Moto Setup Utility - Copyright (C) 2019 American Newsrends, Inc. Advanced Attempt 1 Disabled Attempt 2 Disabled Default Changes and Exit Discard Changes and Exit MAC: AC:IF:68:80:00:36, PFA: Bus 1 | Dev 0 | Func 0, ICSI mode: Enabled, IP version: IPv4 +: Select Screen 14: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save 8 Exit ESC: Exit Version 2.30.3274, Copyright (C) 2019 American Newsrends, Inc.

Attempt 1

Use the feature to disable/enable Attempt 1. The options are Disabled and Enabled.

Ratio Setup Utility - Copyright (C) 2019 American Netatrends, Inc. Advanced Attempt 1 Attempt 2 Consult Changes and Exit Discard Changes And Exit Disabled [Disabled] Attempt 1 Disabled Enabled MAC: AC:1F:68:60:00:35, PPA Bus 1 | Dev 0 | Func 0, JOSI mode: Enabled, IP Version: IPv4 +: Select Screen T1: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.20.1874, Copyright (C) 2019 American Netatrends, Inc.

Attempt 2

Use the feature to disable/enable Attempt 2. The options are Disabled and Enabled.

Ratio Setup Utility - Copyright (C) 2019 American Netsrends, Inc. Advanced Attempt 1 Attempt 2 Default Changes and Exit Discard Changes and Exit [Disabled] [Disabled] Attempt 2 Disabled Enabled HA6: AC:IF:68:60:00:26, PTAs bus 1 | Dev 0 | Func 0, ICSB1 mode Enabled, JP Version: IPv4 +: Select Screen TI: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESCY Exit Version 2.20.1876. Copyright (C) 2013 American Netsrends, Inc.

Commit Changes and Exit

Press to save changes and return to the main screen of iSCSI Configuration.

Ratio Setup Utility - Copyright (C) 2019 American Newsrends, Inc. Advanced Attempt 1 Attempt 2 Commit Changes and Exit Discord Changes And Exit [Disabled] [Disabled] Commit Changes and Exit +: Select Screen TI: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.20.1874. Copyright (C) 2019 American Newsrends, Inc.

Discard Changes and Exit

Press to return to the main screen of iSCSI Configuration without any change.

Aroio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Advanced Attempt 1 Attempt 2 Commit Changes and Exit Discard Changes and Exit Discard Changes and Exit +: Select Screen T4: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.20.1274. Copyright (C) 2019 American Megatrends, Inc.

Change Attempt Order

Use the arrow keys to select Change Attempt Order.

Ratio Setup Utility - Copyright (C) 2019 American Newsrends, Inc. advanced ISCBI Initiator Name + Add an Attempt - Attnent 1 - Attnent 2 - Delete Attempts - Change attempt Order Change the order of Attempts using +/- keys. Use drive keys to select the attempt then press +/- to move the attempt down/down in the attempt under list. +: Select Screen TA: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 3.20.1274, Copyright (C) 2019 American Newsrends, Inc.

Press and the following screen will appear.

Ratio Setup Utility - Copyright (C) 2019 American Markets, Inc. advanced Change Attempt Order Attempt 11 Attempt 31 Consult Changes and Exit Discard Changes and Exit Change the order of Attempts using +/- keys. Use arrow keys to select the attempt then press +/- to move the attempt up/down in the attempt order list. +: Select Screen T1: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.20.187a. Copyright (C) 2019 American Markets, Inc.

Change Attempt Order

This feature is to change the Attempt order. Use arrow keys to select the desired Attempt, then <+/-> keys to move up/down the selected Attempt. For instance, move up the selected Attempt by using <+> key. Move down the selected Attempt by using <-> key.

Ratio Setup Utility - Copyright (C) 2019 American Hgatrends, Inc. Advanced Change Attempt Order Attempt 1 Attempt 2 Submit Changes and Exit Discard Changes and Exit Change Attempt Order Attempt 1 Attempt 2 Change the order of Attempts using +/- keys. Use arrow keys to select the attempt then press +/- To move the attempt up/down in the attempt order list. +:- Select Screen T4: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit! Version 2.20.1274. Copyright (C) 2019 American Hgatrends, Inc.

Commit Changes and Exit

Press to save changes and return to the main screen of iSCSI Configuration.

Aptio Setup Utility - Copyright (C) 2019 American Newsrends, Inc. Advanced Change Attempt Order [Attempt 1] [Attempt 2] COMMIT Changes and Exit Discord Changes and Exit Commit Changes and Exit +: Select Screen T4: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit EOC: Exit Version 2.20.1274, Copyright (C) 2019 American Newsrends, Inc.

Discard Changes and Exit

Press to return to the main screen of iSCSI Configuration without any change.

Action Setup Utility - Copyright (C) 2019 American NewsTrends, Inc. Advanced Change Attempt Order Attempt 11 (Attempt 2) Commit Changes and Exit Discount Changes and Exit Distard Changes and Exit +: Select Stream 11: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save it Exit ESC: Exit version 2.20.1274. Copyright (C) 2019 American NewsTrends, Inc.

Appendix G

Configuring Network Interface Card (NIC) Settings

The appendix describes settings of onboard Intel® LAN devices via the BIOS Setup utility supported by the Unified Extensible Firmware Interface (UEFI) driver.

G.1 Network Interface Card (NIC) Settings

Press during system boot to enter the BIOS Setup utility. Navigate to the Advanced tab. Use the arrow keys to select PCIe/PCI/PnP Configuration and press to access the menu items.

Antio Setup Utility - Copyright (C) 2017 American Nepatrends, Inc. Main Advanced Event Loss CPU Security Both Save & Exit Boot Feature CPU Configuration EnAsset Configuration Server ME Configuration PDA SATA Configuration PDM SATA Configuration Control/Control Configuration Super ID Configuration Serial Port Console Redirection ADPI Settings Trusted Computing IACSI Configuration Inteio Virtual MD on CPU PCI, PCI-% and PCI Express Settings. +: Select Screen 1#: Select Item Enter: Select +:-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESG: Exit Version 2.13.1268 Copyright (C) 2017 American Nepatrends, Inc.

Onboard LAN1 Option ROM (available when NIC(s) is(are) detected by the system)

Use the arrow keys to select Onboard LAN1 Option ROM and press . The options are Disabled, Legacy, and EFI. Set this feature to EFI.

PCI Bus Driver Version PCI Devices Common Settings: Above 4G Decoding SR-IOV Support MND High Base MND High Granularity Size PCI PCRR/SEWR Support Maximum Read Request HMEF0 Base NAME Firmware Source VM Priority PCIH SLOTLI PCI-E 3.0 X4(2N X8) CPU SLOTLI PCI-E 3.0 X5 OPROM CPU SLOTLI PCI-E 3.0 X6 OPROM CPU SLOTLI PCI-E 3.0 X16 OPROM PCIH SLOTLI PCI-E 3.0 X16 OPROM PCIH SLOTLI PCI-E 3.0 X4 OPROM Onboard LAN1 Device Onboard LAN1 Option ROM Onboard LAN2 Option ROM Onboard Video Option ROM Network Stack Configuration Onboard LAN1 Option ROM Disabled Legacy EPC [Legacy] [Enabled] [Legacy] [Legacy] [Legacy] Select which firmware function to be loaded for onboard LAN1. +: Select Screen 14: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Note : If Onboard LAN1 Option ROM is set to EFI, all features for onboard LAN option ROM will be set to EFI by the EFI driver. Additionally, these features will become unavailable except Onboard LAN1 Option ROM.

For the changes to take effect, press to save the settings and exit the BIOS Setup utility. Press during system boot to enter the BIOS Setup utility. Navigate to the Advanced tab. The feature(s) for onboard Intel® LAN device(s) will become available for configuration as shown below.

Mio Setup Utility - Copyright ICI 2017 American Regatrends, Inc. Main Advanced Event Logs IPMI Security Boot Save & Exit Boot Feature CPU Configuration Chipset Configuration Server MT Configuration PCH SATA Configuration PCH switch Configuration PCIe/PCI/PNP Configuration Super ID Configuration Serial Fort Console Redirection ACSI Settings Trusted Computing IBCSI Configuration Output Virtual RAM or CPU IntelOIS Ethernet Connection X732 for 108/98E-T - ACIIP/408... IntelOIS Ethernet Connection X732 for 108/98E-T - ACIIP/408... Configure 10 August Ethernet device parameters +/-: Select Screen T1: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit version 2.13.1205. Copyright (C) 2017 American Regatrends, Inc.

Use the arrow keys to select the desired onboard LAN device as shown below.

Notio Setup Utility - Copyright (C) 2017 American Megatrends, Inc. Main Advanced Event Loss PMI Security Boot Save & Exit Boot Feature CPU Configuration Chipset Configuration Server ME Configuration PCI4 SATH Configuration PCI5 sSATA Configuration PCI6/PCI7/PCI8 Configuration Super 10 Configuration Serial Port Console Modirection ACSI Settings Trusted Computing BOSCI Configuration Data/MS-Vertical/MS- on CPU Initial/OS Ethernet Connection x73E for 108948E-T - AC11F1081... NAMION Ethernet Connection x73E for 108948E-T - AC11F1081... Configure 10 Gigabit Ethernet device parameters +: Select Screen 11: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 7.15.1208. Copyright (C) 2017 American Megatrends, Inc.

Press and the following screen will appear. It displays the detailed information for the selected onboard LAN device.

Auto Setup Utility - Copyright (C) 2017 American Megatrends, Inc. Advanced NIO Configuration BLOCK LEDS 0 UEFI Driver Intel(R) 4000E 2.1.14 Adaptor PBA 02000-000 Device Name Intel(R) Ethernet C... Chip Type Intel X702 PCI Device ID 370F PCI Address 19:00:00 LINK STATUS ID(connected) MAC Address AC:17:68:09:00:25 Virtual MAC Address 00:00:00:00:00:00 Click to configure the network device port. +: Select Screen 14: Select Item Enter: Select +/-: Change Opt. P1: General Help P3: Previous Values P3: Optimized Defaults P4: Save a Exit ESC: Exit Version 2.19.1268, Copyright (C) 2017 American Megatrends, Inc.

Blink LEDs

This feature allows the user to set the LED blink duration (in seconds). The valid range is 0\~15 (seconds).

NIO Configuration NIO LEDs UEFI Driver Adaptor PBA Device Name Chip Type PCI Device ID PCI Address Link Status MAC Address Virtual MAC Address 0 Intel(R) 4002E 2.1.15 02000-000 Intel(R) Ethernet C... Intel X782 3762 (9:00:00) [Disconnected] 4C:IF:68:05:80:2E 00:80:00:00:00:00 Identify the physical network port by blinking the associated LED. +: Select Screen TI: Select Item Enter Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Utilized Defaults F4: Save & Exit ESC: Exit Version 2.13.1206 Copyright (C) 2017 American Megatrends, Inc.

NIC Configuration

Use the arrow keys to select NIC Configuration.

Ratio Setup Utility - Copyright (C) 2017 American Megatrends, Inc. RHOVANCED ▶ BIOS Configuration 8LINK LEDs 0 UEFI Driver Intel(R) 400GE 2.1.14 Adaptor PBA 020400-000 Device Name Intel(R) Ethernet C... Chip Type Intel X122 PCI Device ID 3702 PCI Address 19:00:01 Link Status ID(connected) MAC Address AC(17):65:09:00:3F Virtual MAC Address 00:00:00:00:00:00 Click to configure the network device port. +: Select Screen T4: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Obtained Defaults F4: Save & Exit E6G: Exit Version 2.15.1998. Copyright (C) 2017 American Megatrends, Inc.

Press and the following screen will appear.

Auto Setup Utility - Copyright (C) 2017 American Megatrends, Inc. Advanced Link Speed Have On LAN [Auto Negotiated] [Enabled] Enable power on of the system via LAN. Note that Configuring Make on LAN in the operating system does not change the value of this setting, but does override the Behavior of wake on LAN in OS controlled other states. +: Select Screen T4: Select Item Enter: Select +/-: Change Opt, F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save S Exit CDD: Exit.

Wake on LAN

Use the arrow keys to select Wake On LAN and press . The following screen will appear. The options are Disabled and Enabled. Set this feature to support system wake-up via the selected LAN device.

Aio Setup Utility - Copyright (C) 2019 American Negatrends, Inc. Advanced Link Speed Make on Use Auto Negotiated (Dissolved) Enable on Link Disabled Enabled Enables the server to be powered on using an in-band Logic packet. +: Select Screen I1: Select Item enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Dated Defaults F4: Save & Exit ESC: Exit Version 2.20.1874, Copyright (C) 2019 American Negatrends, Inc.
