Overview

The Speco SPIP series are IP based paging speakers designed for indoor and outdoor applications. Our Speco IP speakers are compatible with both the SIP & the ONVIF protocol. This will allow for the use of VoIP in applications. Each IP speaker has up to 10 RTP multicast addresses. Alarm in and HTTP URL can combine with our alarm systems. Pre-recorded messages and scheduled broadcasting are also another way that the Speco IP speakers meet the paging demands.

speco® technologies

SPIPC6A

SPIPC6AM

SPIPHSA

Web Configuration

1) Download Speco Audio Manager from Specotech.com.
2) This can be found under the support tab at Specotech.com.

speco technologies Giving You More Solutions ▼ Products ▼ Use Demos ▼ Support ▼ SecureQuantID ▼ Learning Center ▼ Partners ▼ Project Registration/Special Pricing Form Tech Support Training Dealer Demo Request Form Project Design Assistance Form RMA Request Form Password Reset Request Form FAQ Recorder Software Updates Select Your Mobile App IP Scanner Speco Storage Calculator (Direct Download) Less Calculator Speco Auto Manager Intelligent Solu Today's Comp Speco has reinvented the answer to the most advanced analytics in video surveillance, state-of-the-art access

3) Extract the zip-file and run the exe for Speco Audio Manager on your computer.
4) Put the Speco Audio Manager shortcut on to your desktop/laptop.
5) Lastly run Speco Audio Manager and click on scan device. This will find every Speco IP speaker on the network.

Speco Audio Manager

Logging into the IP Speaker

1) Through the Speco Audio Manager if you double click on one of the speakers IP addresses it will direct you to the web interface of that IP speaker.
2) Every Speco IP speaker will have the same default username & password.
3) Click on "Sign in" to log into the IP speaker.

Username: admin | Password: 1234

speco technologies Username Password Sign in Cancel

Navigating the Web Interface

Once logged into the IP speaker there will be eleven menus to choose from. The following menus are:

On this menu the information consists of the date/time, the devices ID, the firmware version, how much space is free on the device, the SIP account status, and the network information will also be listed at the bottom of the page. It's important to know that you can only view the information here.

speco Status Basic ONVIF SIP Account Audio Media File Alarms Schedules RTP Multicast Firewall System Status Device Time 06-14-2023 23:35:12 Device ID 5034D46826A4791C Firmware Ver SIP-V0.3.15 Free Space 3836KB SIP1 Status NONE SIP2 Status NONE Network MAC Address 5G F2.07.60.20.B1 IP Address 182.168.56.151 Subnet Mask 255.255.255.0 Gateway 102.168.56.1 Primary DNS 8.8.8.0 Secondary DNS 84.72.64.10 Refresh

Basic Menu

The Basic Menu will list the date/time, and the network settings. On this menu you will be able to make any necessary changes to the settings. Every IP speaker will be set to DHCP by default. If you wanted to change the IP speaker to static, you can do this by clicking on the static IP address button and clicking save at the bottom.

*If the IP speaker doesn't have a way to receive DHCP, the default IP address will be 192.168.5.200

speco Status Basic ONVP SIP Account Audio Media File Alas Schedule FTP Multicost Firewall System Data/Time Device Time 06.15-2023 22:53:39 Update Mode NTP ThreeZone GAT+00.00 NTP Server post.nlp.org NTP Interval 10 Minutes Save Network DHCP Static IP Address IP Address 192.168.56.151 Satnet Mask 255.258.255.0 Gateway 192.168.56.1 Primary DNS 8.8.8.3 Secondary DNS 84.72.84.16 Save Network Advanced Http/Https Http&Https Take effect after restart

SPECO IP AUDIO USER MANUAL

ONVIF Menu

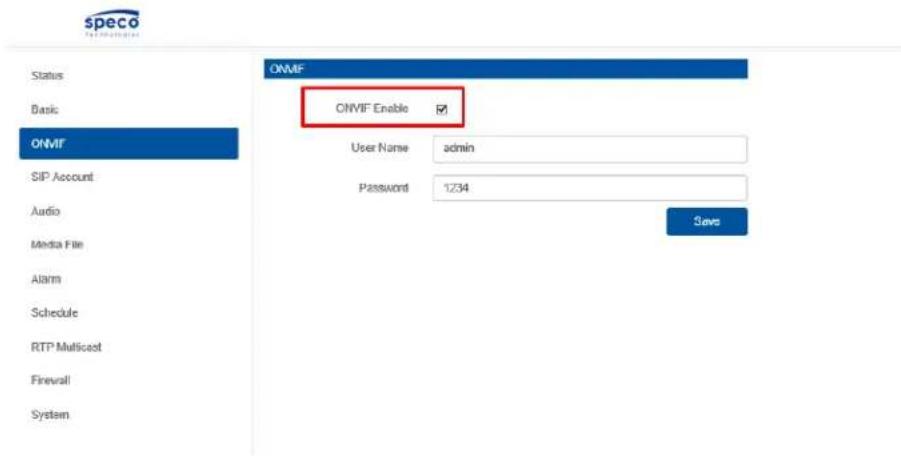

The ONVIF menu consists of an enable/disable option for ONVIF. You can also set the ONVIF username and password.

*ONVIF will be enabled by default.

speco Technology Status Basic ONVIF SIP Account Audio Media File Alarm Schedule RTP Multicest Firewall System ONVIF ONVIF Enable ✓ User Name admin Password 1234 Save

SIP Account Menu

The SIP account menu allows you to create up to two separate SIP accounts. SIP is a protocol that initiates a direct call to that specific VoIP device, and this will include IP speakers. This will give you the option to have two-way audio with IP speakers that have a built-in microphone.

Status Basic ONAVF SIP Account Audio Media File Alarm Schedule RTP Multicost Firewall System SIP Set Account Account 1 NONE User Name Admin Auto ID Admin Password **** Display Name Account 1 Server Host 192 168.56.151 Server Port 1500 Outbound Proxy Double Seconds Expire Time 190 Ringing Time bell Auto Answer Answer Immediately Incoming Notify □ Answer Notify □ Save SIP Advanced SIP Protocol UDP Save Explore Ringing Auto A Income Answer

Expire Time	Set the expire time of registered account information
Ringing Tone	5 system ringtones and 10 users upload media files
Auto Answer	answer immediately and answer delay when a calling incomes
Incoming Notify	Put an input URL, when a incoming call ringing, URL take effect
Answer Notify	Put an input URL, when a incoming call answered, URL take effect

Audio Menu

The Audio menu will have the option to select between four different audio codecs: OPUS, G.722, G.711U, and G.711. In this menu you can also set the volume control of the IP speaker. If the IP speaker has a microphone, you will see the option to enable the microphone and set the volume of the IP speaker.

speco technologies Status Basic ONVIF SIP Account Audio Media File Alarm Schedule RTP Multicast Firewall System Code: Codec Setting ☑ OPUS ☑ G.722 ☑ G.711U ☑ G.711A Speaker Volume (0-100) 37 Amp Auto OFF YES Jitter Buffer (60 - 2000) 360 ms HPF ☐ NR ☐ MIC MIC Enable ✓ Gain None ✓ Volume (0-100) 44 AEG ✓ AEC Time (1-200) 20 ms AGC ✓ ACC Mode Auto ✓ AGC Target (0-31) 3 AGC Gain (0-90) 30 HPF ☐ NR ✓ NR Level 3 ✓ Save

Jitter buffer: Helps make the audio more stable.

Amp Auto OFF: Will be set to "Yes" by default. This will eliminate any noise when not broadcasting.

Media File Menu

The Media File menu consists of 5 preset bell options to choose from. You can also set up to 10 of your own audio files and play the files directly through the IP speaker. The Maximum media file size is listed as a total of 3836 kilobytes. *Through Speco Audio Manager there is no file size limit

Status Basic One/IF SIP Accounts Audio Media File Alarm Schedules HTTP Multisost Formall Systems System File (3036KB free) A Name File 1 userBc1 Browse... 2 userBc2 Browse... 3 userBc3 Browse... 4 userBc4 Browse... 5 userBc5 Browse... 6 userBc6 Browse... 7 userBc7 Browse... 8 userBc8 Browse... 9 userBc9 Browse... 10 userBc10 Browse...

SPECO IP AUDIO USER MANUAL

Alarm Menu

The Alarm menu allows for the user to set up one alarm input/output to the IP speaker. By default, you will have to enable the alarm input. The alarm output will have to be selected through this menu first, then it will play either one of the preexisting media files or it will play a custom audio clip. Once the alarm is enabled, you will also have the option to enable “Play File Enable”, which means you can take the example URL commands, and they will play the audio clip by just sending it through a web address.

speco Status Basic ONVIF SIP Account Audio Media File Alarm Schedule RTP Multicard Firewall System Alarm In Alarm Enable Play File: cell1 Cycle Mode: Once only Save Http URL Play File Enable Example1: http://82.166.56.15/api/play/tacker=mat&After=061 Example2: http://82.166.56.15/api/play/tacker=mat&After=userfile14 mod=monized/volumen=16 Example3: http://82.166.56.15/api/play/tacker=mat&After=userfile14 mod=multi(pct&Appala=10A/volumen=20) Example4: http://82.166.56.15/api/play/tacker=mat&After=userfile14 mod=nonized account=10B/volumen=30 Example5: http://82.166.56.15/api/play/tacker=stop

Schedule Menu

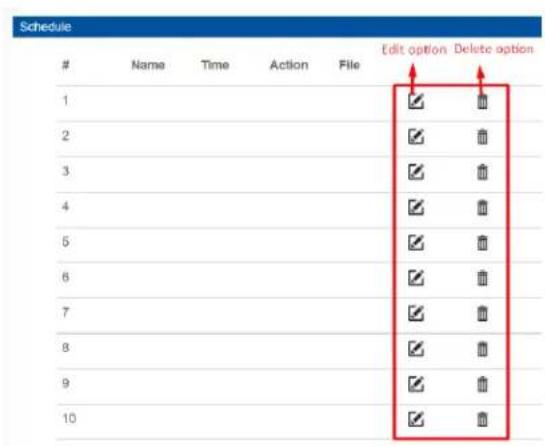

This menu will allow the user to create a custom schedule. The schedule menu is designed to be used for schools, factories, and office projects. The schedule allows for the user to make a regular bell, announcement or alarm happen at a specific time/date. In each IP speaker there are 10 different schedules that can be created. To create a schedule, click on the edit option, and then a new schedule window will come up. Enable the schedule and customize the schedule you wish to create by: giving it a name, start time/end time, allowed days in the schedule, action time, action type, the file it will be playing, and lastly the cycle mode. After creating the schedule click save at the bottom.

Schedule

Name Time Action File

Edit option Delete option 1 ✓ ✓ 2 ✓ ✓ 3 ✓ ✓ 4 ✓ ✓ 5 ✓ ✓ 6 ✓ ✓ 7 ✓ ✓ 8 ✓ ✓ 9 ✓ ✓ 10 ✓ ✓

Schedule Add/Edit Schedule Enable Schedule Name Start Date 01/01/2022 End Date 12/01/2099 Allowed Days Mon Tue Wed Thu Fri Sat Sun Action Time 08:00 AM Action Type Start Play File bell Cycle Mode Once only Save Cancel

RTP Multicast Menu

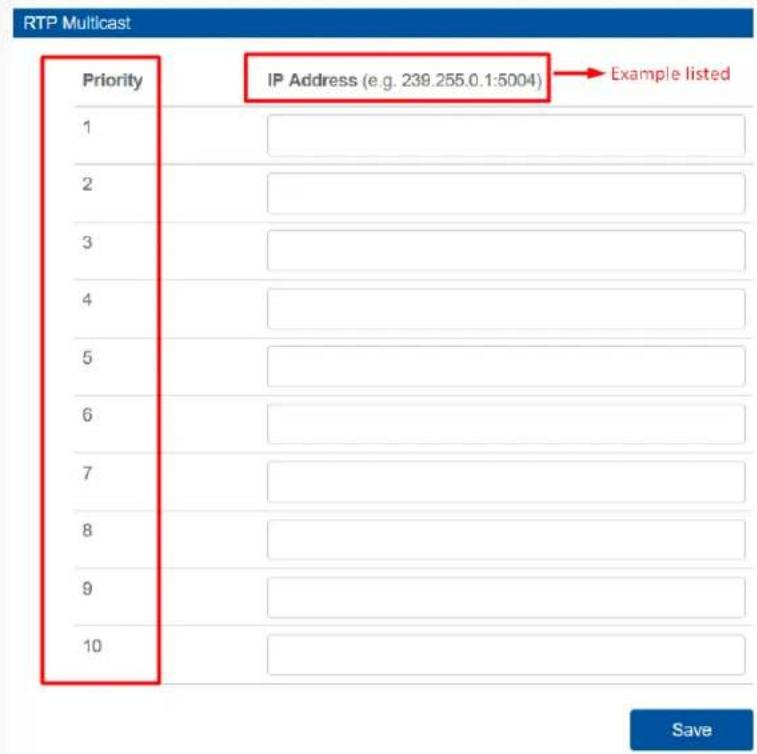

The RTP multicast menu will be used to set up RTP addresses to zone out the IP speakers. RTP stands for Real-Time Transport Protocol. This allows the user to stream audio over the internet, thereby enabling VoIP (Voice over Internet Protocol). On this menu you will see a list from 1 through 10. This means you can create up to 10 RTP addresses, and depending on what slot you put the RTP address in will determine what priority it is set too. Number 1 being the highest priority on the list & number 10 being the lowest priority on the list. This will allow you to do priority paging. After creating an RTP list, click save at the bottom.

*RTP address Range: 224.0.0.0-239.255.255.0

*Port Range: 1500-6300

RTP Multicast Priority IP Address (e.g. 239.255.0.1:5004) → Example listed 1 2 3 4 5 6 7 8 9 10 Save

Firewall Menu

This menu is used primarily to keep your network safe. You can edit the firewall settings by clicking on the edit option. From the edit option, you can add any specific rules that you wish to add to your IP speaker's firewall. To do this you have to first enable the firewall rules to do this. You can also add firewall defensive rules to the IP speaker. Again, this will have to be enabled first to use this feature. You can create up to 5 rules for both categories in your firewall settings.

Firewall Rules
#	Name	Type	IP/MAC	Action
1					✔✔
2					✔✔
3					✔✔
4					✔✔
5					✔✔

Automatic Defense Rules
#	Name	Protocol	Port Range	Rate
1			-
2			-
3			-
4			-
5			-

Firewall Rules

Firewall Add/Edit Enable Name Rule Type IP Protocol ALL IP Address Net Mask Action ACCEPT Save Cancel

Firewall Defensive Rules

Automatic Defense Add/Edit Enable Name Protocol TCP Port Range Rate (1-10000) /s Save Cancel

System Menu

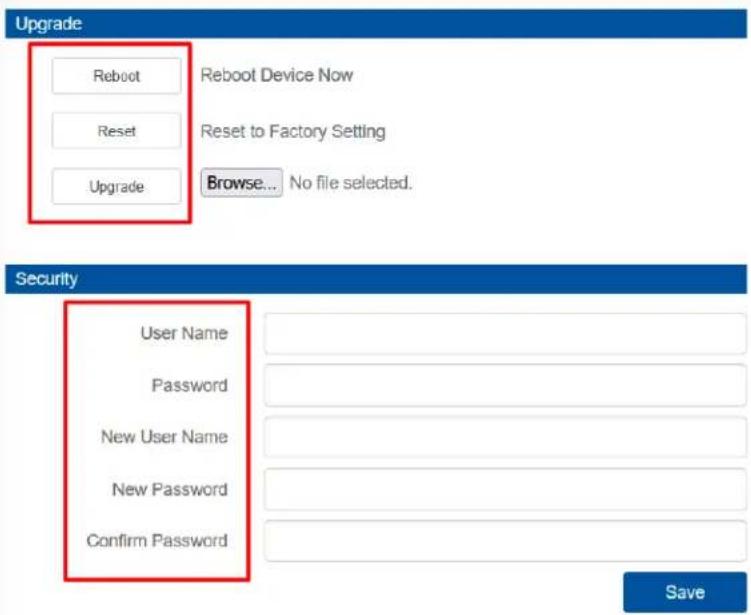

The System menu will allow you to Reboot, Reset, and upgrade the firmware of the IP speaker. On this page you will also be able to change the IP speaker's username and password from the default to a more unique username and password if needed.

Upgrade Reboot Reset Upgrade Reboot Device Now Reset to Factory Setting Browse... No file selected. Security User Name Password New User Name New Password Confirm Password Save

speco® technologies

Speco Technologies is constantly developing and improving products. We reserve the right to modify product design and specifications without notice and without incurring an obligation. Rev. 3/21/2023. We are not responsible for typographical errors. ©2023 Speco Technologies. All rights reserved.
