USER MANUAL O4BM Speco Technologies

User Manual 4MP IP Camera

O4DM/O4BM

Important Safeguards and Warnings

1. Electrical safety

All installation and operation here should conform to local electrical safety codes.

Use a certified/listed 12VDC/24VAC Class2 or adequate PoE switch.

Improper handling and/or installation could run the risk of fire or electrical shock.

2. Environment

Do not expose the unit to heavy stress, violent vibration or long-term exposure to water and humidity during transportation, storage, and/or installation.

Do not install near sources of heat.

Only install the product in environments inside the specification operating temperature and humidity range.

Do not install the camera near power lines, radar equipment or other electromagnetic radiation.

Do not block any ventilation openings if any.

Use all the weatherproofing hardware requirement to minimize weather intrusion.

3. Operation and Daily Maintenance

Please shut down the device and then unplug the power cable before you begin any maintenance work.

Do not touch the CMOS sensor optic component. You can use a blower to clean the dust on the lens surface.

Always use the dry soft cloth to clean the device. If there is too much dust, use a cloth dampened with a small quantity of neutral detergent. Finally use the dry cloth to clean the device.

Please use a professional optical cleaning method to clean the enclosure. Improper enclosure cleaning (such as using cloth) may result in poor IR functionality and/or IR reflection.

The grounding holes of the product are recommended to be grounded to further enhance the reliability of the camera.

Dome cover is an optical device, please do not touch or wipe cover surface directly during installation and use, please refer to the following methods if dirt is found.

Stained with dirt:

Use oil-free soft brush or hair dryer to remove it gently.

Stained with grease or fingerprint.

Use oil-free cotton cloth or paper soaked with alcohol or detergent to wipe from the lens center outward. Change the cloth and wipe several times if it is not clean enough.

Warning

This camera should be installed by qualified personnel only.

All the examination and repair work should be done by qualified personnel.

Any unauthorized changes or modifications could void the warranty.

Statement

This guide is for reference only.

Product, manuals, and specifications may be modified without prior notice. Speco Technologies reserves the right to modify these without notice and without incurring any obligation.

Speco Technologies is not liable for any loss caused by improper operation.

Regulatory Information

FCC conditions:

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

● This device may not cause harmful interference.

● This device must accept any interference received, including interference that may cause undesired operation.

FCC compliance:

This equipment has been tested and found to comply with the limits for a digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

● Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Note:

Before installation, check the package and make sure that all components are included.

Contact your rep or Speco customer service department immediately if something is broken or missing in the package.

Accessory name	Amount
Network Camera Unit	1
Junction box	1
Quick Start Guide	1
Installation Accessories Bag	1
CD	1

Table of Contents

1 Introduction....2
2 Web Access and Login ....3
3 Live View....5
4 Camera Configuration 7

4.1 System Configuration....7

4.1.1 System Information 7
4.1.2 Date and Time....7
4.1.3 Local Recording....8
4.1.4 Storage....8

4.2 Video Configuration....10

4.2.1 Image Configuration....10
4.2.2 Video / Audio Configuration....12
4.2.3 OSD Configuration....13

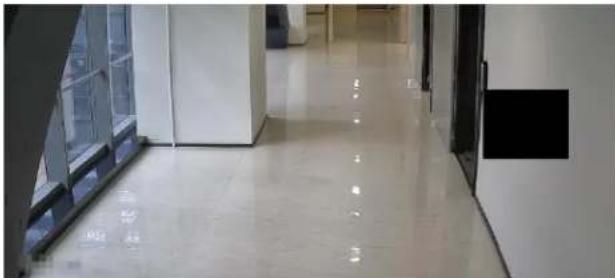

4.2.4 Video Mask....13
4.2.5 ROI Configuration 14
4.2.6 Zoom/Focus 15

4.3 PTZ Configuration 15

6.1 Alarm Setup 16

6.1.1 Motion Detection 16

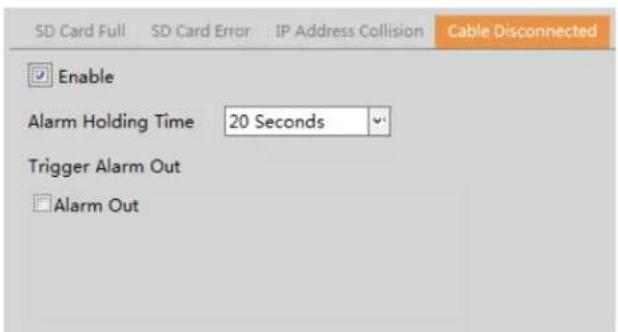

6.1.2 Other Alarms....17
6.1.3 Alarm In (Sensor Input)....19
6.1.4 Alarm Out 19
6.1.5 Alarm Server 20

6.2 Analytics Configuration....20

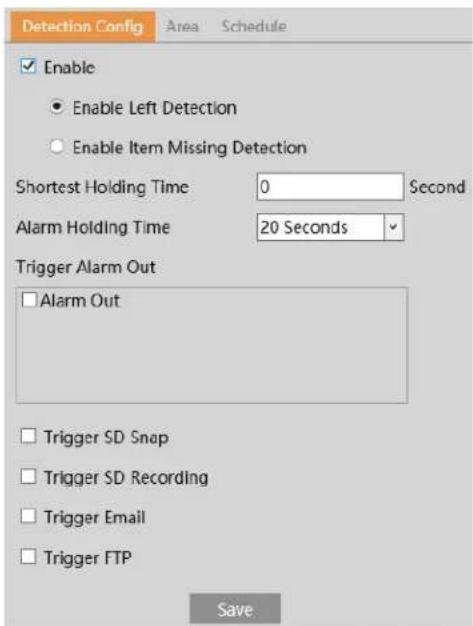

6.2.1 Object Removal....21

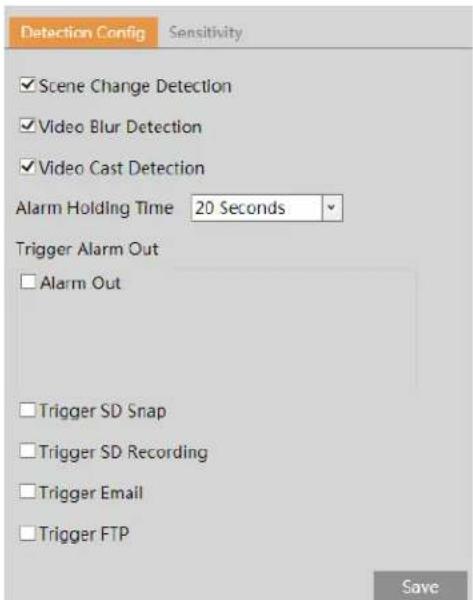

6.2.2 Exception 22

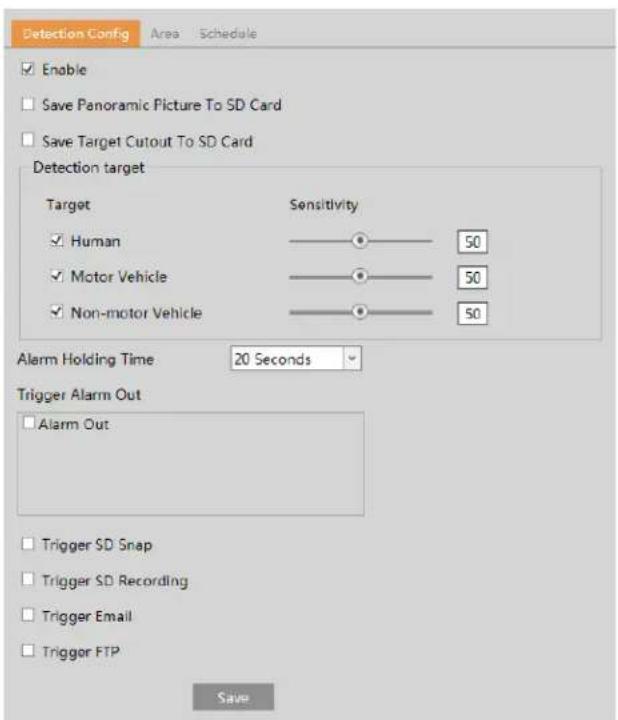

6.2.3 Line Crossing....23
6.2.4 Intrusion....25

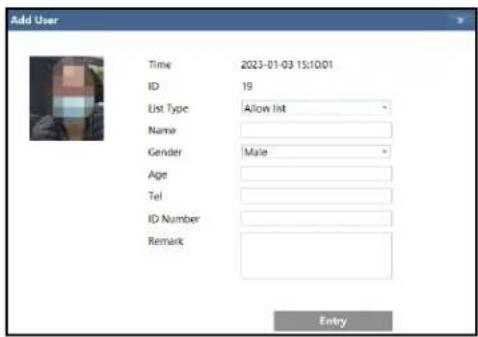

6.2.5 Face Comparison 27
6.2.6 Crowd Density Detection....31
6.2.7 Region Entrance....32
6.2.8 Region Exiting 33

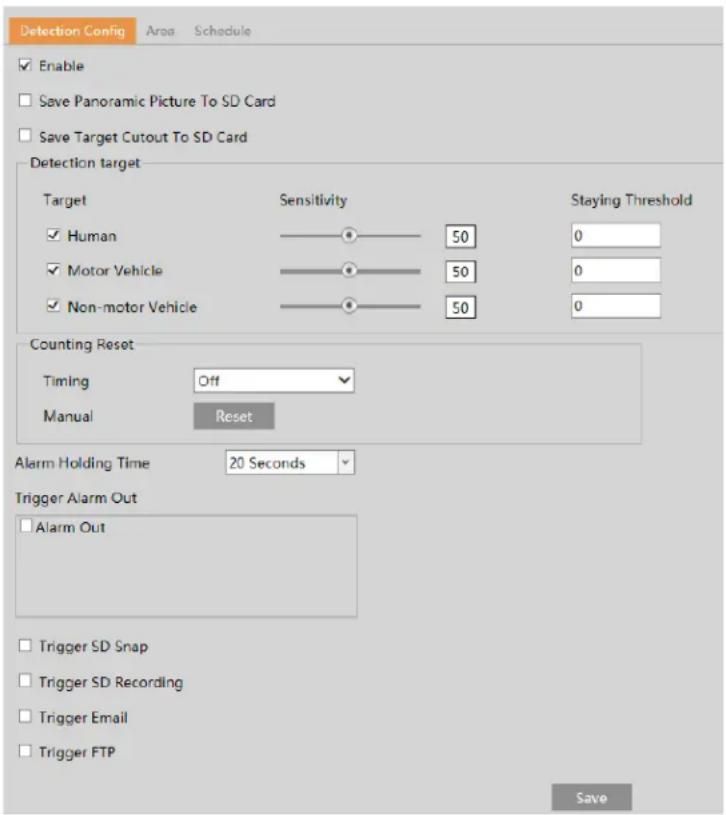

6.2.9 Target Counting....33
6.2.10 Region Statistics 35
6.2.11 Heat Map 37

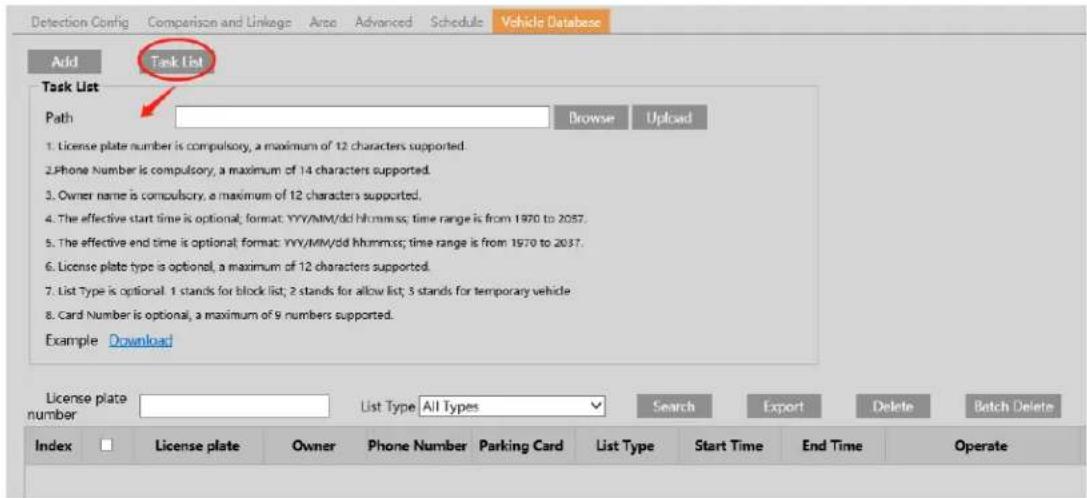

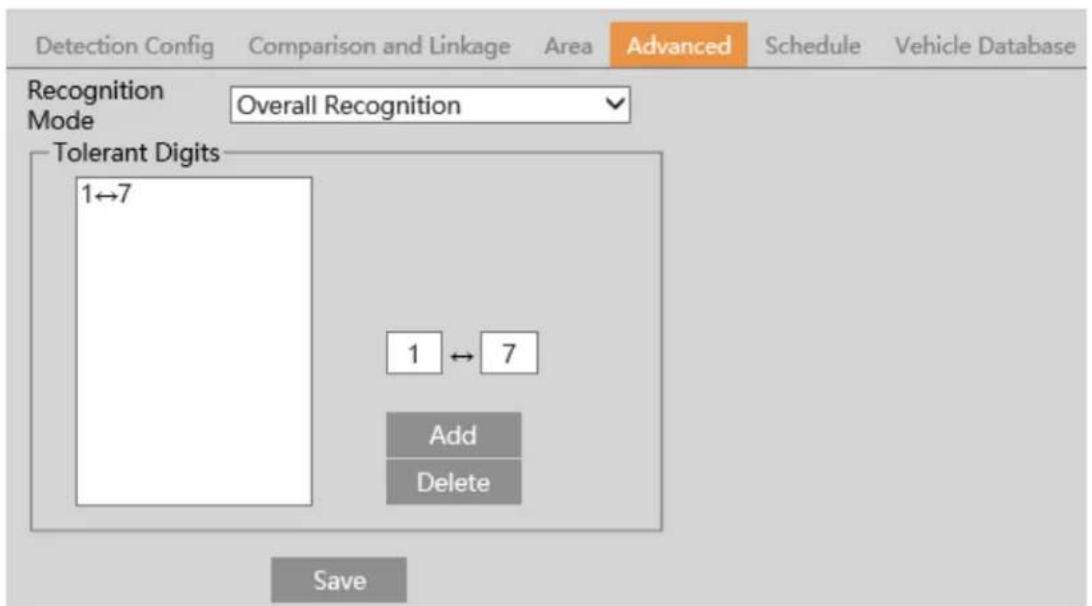

6.2.12 License Plate Detection....38

6.3 Network Configuration 42

6.3.1 TCP/IP 42

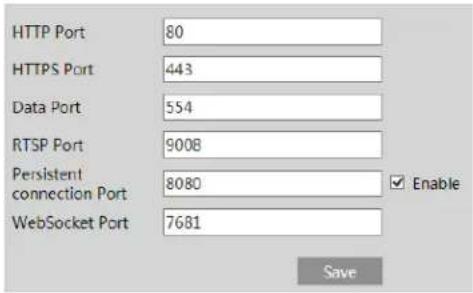

6.3.2 Port 43
6.3.3 Server Configuration....44
6.3.4 Onvif....44
6.3.5 DDNS 45

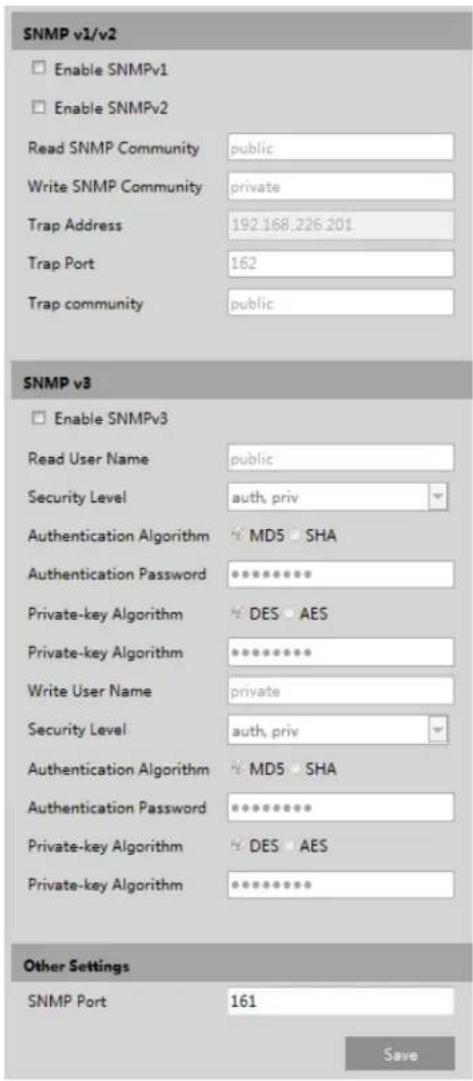

6.3.6 SNMP 45
6.3.7 802.1x....46
6.3.8 RTSP 47

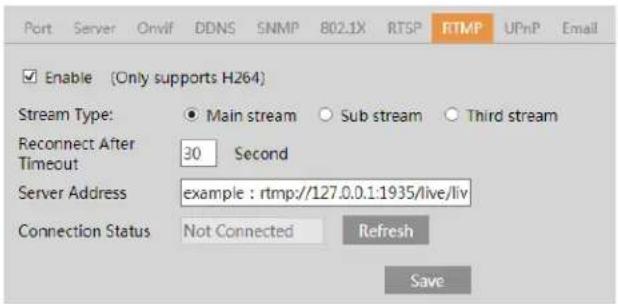

6.3.9 RTMP 47
6.3.10 UPNP 48
6.3.11 Email 48
6.3.12 FTP 48

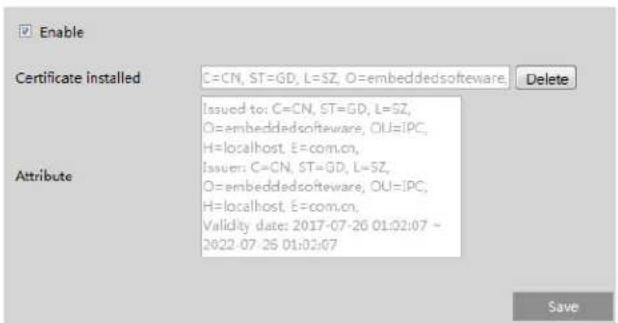

6.3.13 HTTPS....49

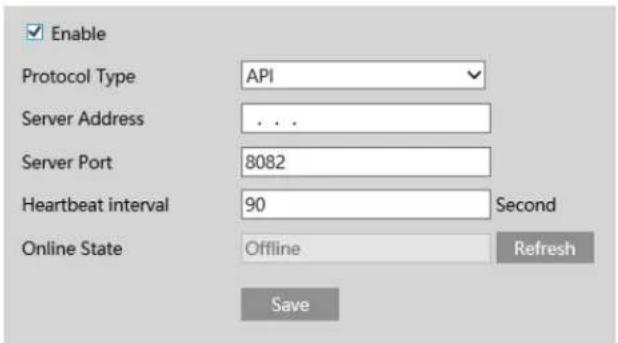

6.3.14 HTTP POST 50
6.3.15 QoS....50

6.4 Security Configuration 51

6.4.1 User Admin....51
6.4.2 Online User 52
6.4.3 Block and Allow Lists....52
6.4.4 Security Management....53

6.5 Maintenance Configuration....54

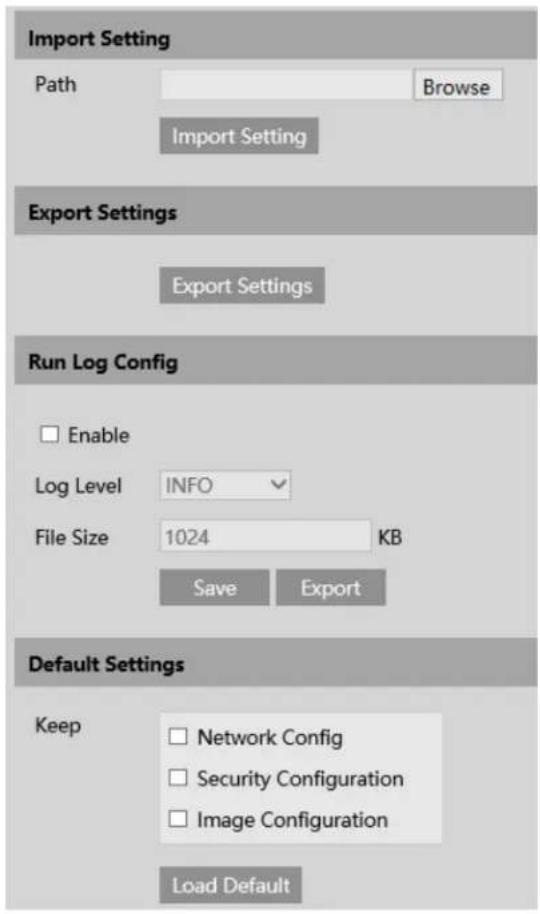

6.5.1 Backup and Restore 54
6.5.2 Reboot 54
6.5.3 Upgrade 55
6.5.4 Operation Log....55

7 Search....56

7.1 Image Search 56
7.2 Video Search....58

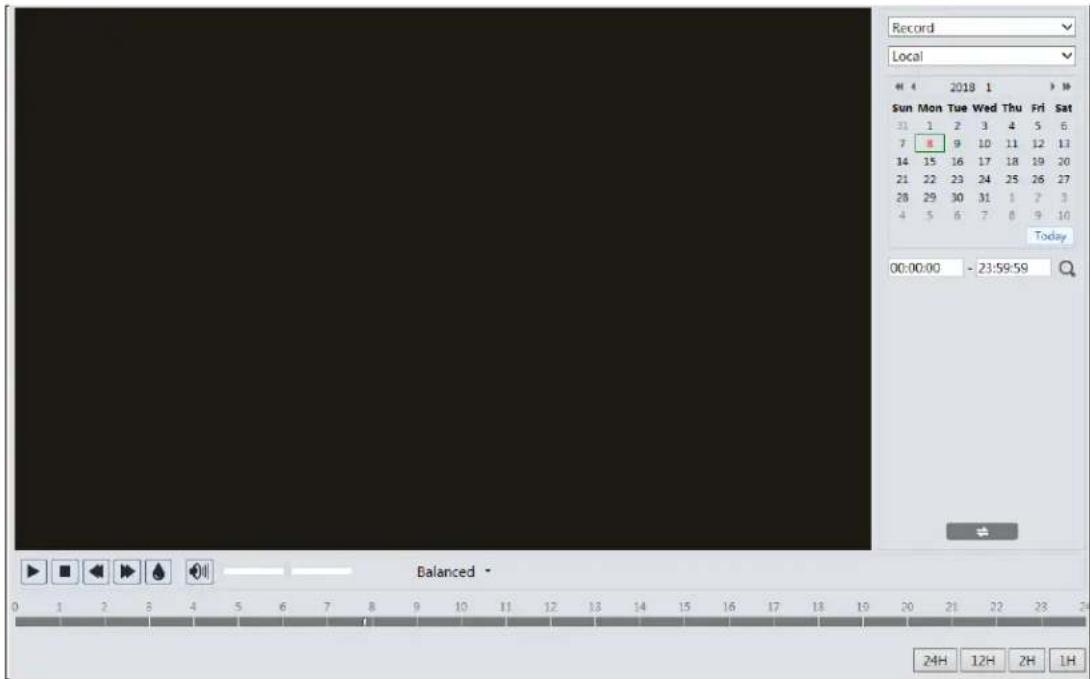

7.2.1 Local Video Search....58

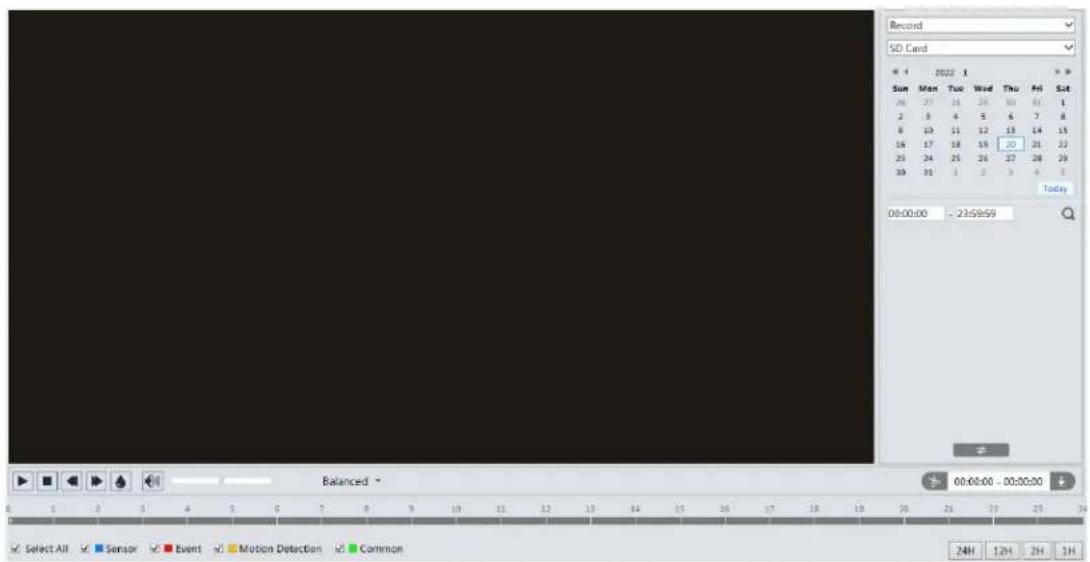

7.2.2 SD Card Video Search....59

8 Face & Plate Recognition Result Search 62

8.1 Face Recognition Result Search....62

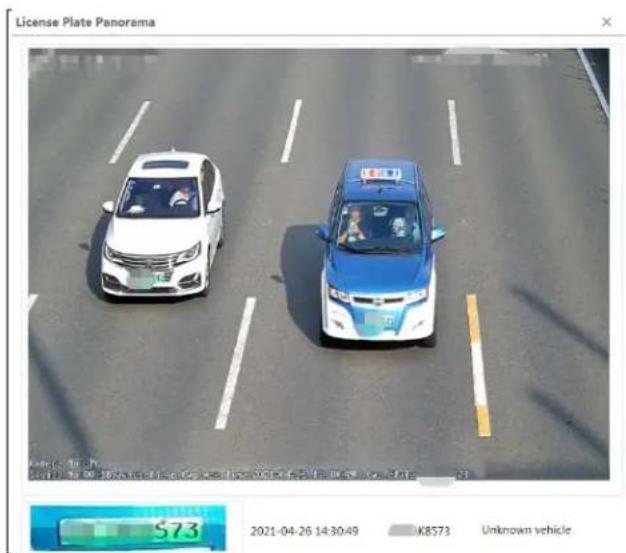

8.2 License Plate Recognition Result Search....62

Appendix 64

Appendix 1 Troubleshooting 64

1 Introduction

Welcome

Thank you for purchasing this network camera!

Please read this manual carefully before operating the unit and retain it for further reference.

Should you require any technical assistance, please contact Speco Technologies Technical Support at 1-800-645-5516.

Main Features

● Built-in PoE (Power over Ethernet)
● Integrated IR LEDs for clear vision in low light
● IP67 rated for outdoor installations
● Remote viewing support via web browser, mobile APP, and CMS/VMS

Applications


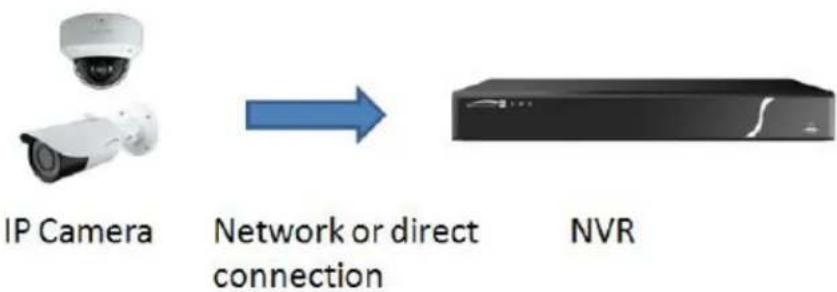

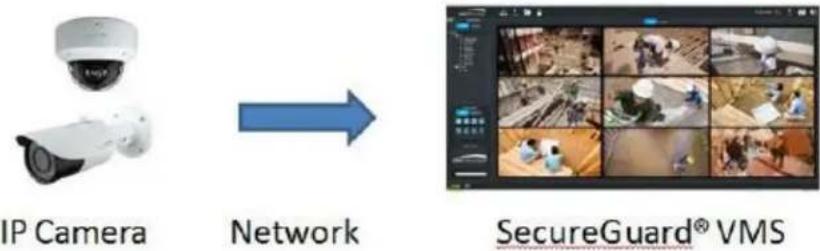


2 Web Access and Login

The IP camera settings can be accessed via a web browser through the LAN.

Available web browser: IE (plug-in required)/ Firefox/Edge/Safari/Google Chrome

It is recommended to use the latest version of these web browsers.

The menu display and operation of the camera may be slightly different by using the browser with plug-in or without plug-in. Installing plug-in will display more functions of the camera.

Connect IP-Cam via LAN or WAN. Here only take IE browser for example. The details are as follows:

● Access through IP Scanner

Network connection:

①Make sure the PC and IP-Cam are connected on the same local network. The camera is set to DHCP by default and will be assigned an IP address by the DHCP server. Make sure that the local network has a DHCP server. Routers typically have a DHCP server built in.

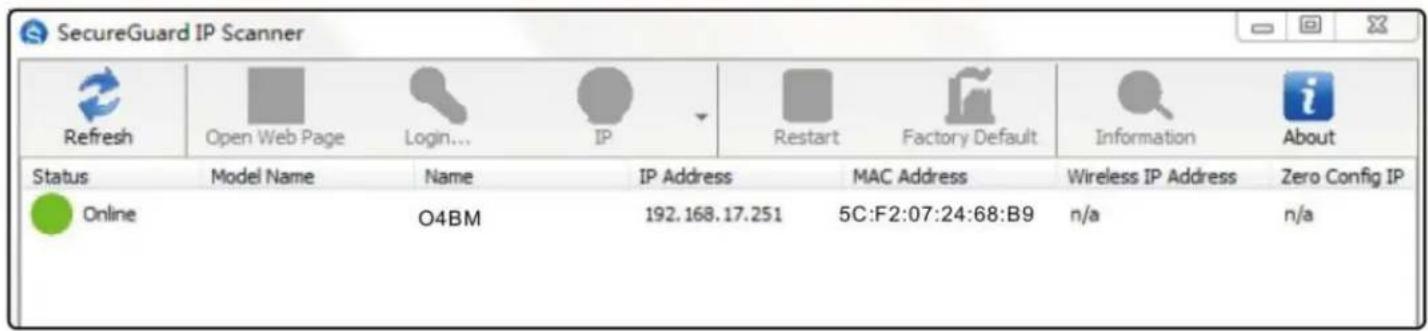

② Install IP Scanner from the CD and run it after installation. IP Scanner is the tool for discovering the IP cameras on the local network.

SecureGuard IP Scanner Refresh Open Web Page Login... IP Restart Factory Default Information About Status Model Name Name IP Address MAC Address Wireless IP Address Zero Config IP Online O4BM 192.168.17.251 5C:F2:07:24:68:B9 n/a n/a

③ In the device list, the IP address, model number, and MAC address of each device will be listed. Select the applicable device and double click to open up the web viewer. You can also manually enter the IP address in the address bar of the web browser. Read the privacy statement and then check and click "Already Read" to enter the login interface.

speco technologies Username: admin Password: ***** Login Cancel

The login interface is shown above. Default username is admin and password is 1234. After logging in, follow directions to install

applicable plug-ins for viewing video if prompted.

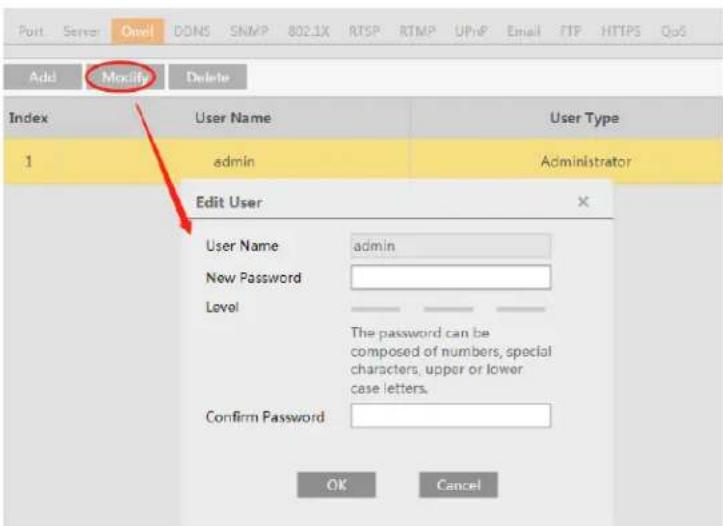

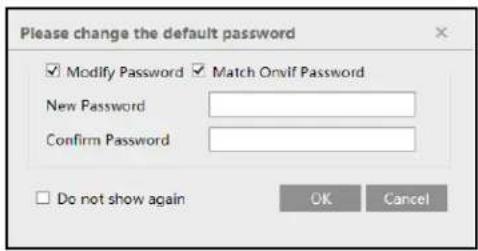

Please change the default password Modify Password Match Onvif Password New Password Confirm Password Do not show again OK Cancel

If this is the first time for you to log in, the password prompt may only change the admin password. To change ONVIF password, you either have to check the "Match Onvif Password" box (if available) or go to the the ONVIF section to change the password. (Config→Network→Ports/Connections→Onvif)

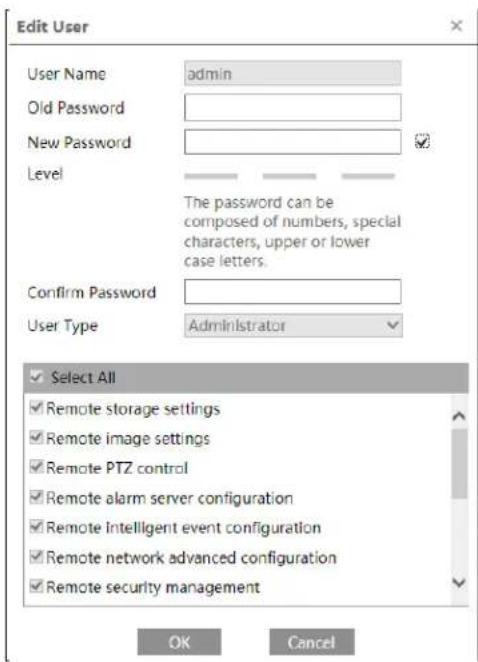

Add Modify Delete Index User Name User Type 1 admin Administrator Edit User User Name admin New Password Level The password can be composed of numbers, special characters, upper or lower case letters. Confirm Password OK Cancel

3 Live View

The window below will be shown after logging in.

Config Main stream Sub stream Third stream speco technologies admin | Logout IPC01 2023/01/03 11:53:37

The following table describes the icons on the live view interface

Icon	Description	Icon	Description
	Original size of resolution		SD card recording indicator
	Fit (correct scale)		Abnormal color indicator
	Auto (fill the window)		Abnormal clarity indicator
	Full screen (show video only)		Scene change indicator
	Start/stop live view		Line crossing indicator
	Start/stop two-way audio		Line crossing target counting indicator
	Enable/disable audio		Region Intrusion target counting indicator
	Snapshot		Intrusion indicator
	Start/stop local recording		Sensor alarm indicator
	Zoom in (for motorized models)		Motion alarm indicator
	Zoom out (for motorized models)		Face detection indicator
	Zoom/Focus control (for motorized models)		Object detection indicator (object abandoned/missing)
	Rule information display		Heat map indicator
	Face detection		Crowd density detection indicator

Icon		Description	Icon		Description
		License plate detection			License plate detection indicator

*Plug-in free live view: Two-way audio and local recording are not supported.

● All indicator icons above will flash in live view interface only when the corresponding events are enabled.
- In full screen mode, to exit, double click on the mouse or press the ESC key on the keyboard.

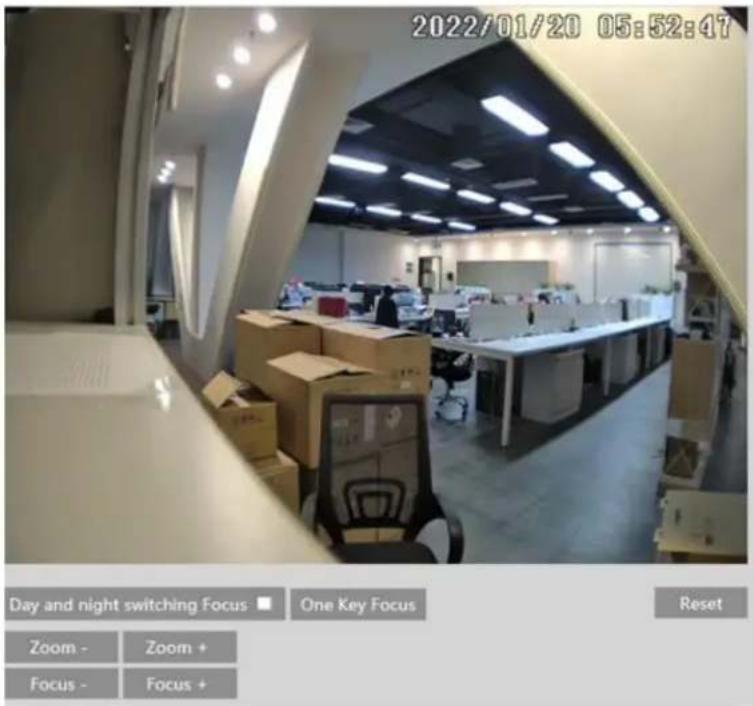

Click the zoom/focus control button to show the control panel. The descriptions of the control panel are as follows:

Icon		Description	Icon		Description
		Zoom -			Zoom +
		Focus -		[BY4Y]	Focus +
		One key focus (used when image is out of focus after manual adjustment)

4 Camera Configuration

Press the "Setup" button to go to the configuration interface.

Note: Wherever applicable, click the "Save" button to save the settings.

4.1 System Configuration

4.1.1 System Information

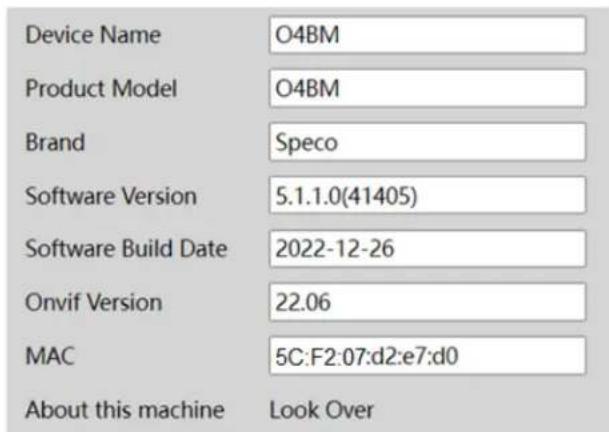

In the "System Information" interface, the system information of the device is listed.

Device Name O4BM Product Model O4BM Brand Speco Software Version 5.1.1.0(41405) Software Build Date 2022-12-26 Onvif Version 22.06 MAC 5C:F2:07:d2:e7:d0 About this machine Look Over

4.1.2 Date and Time

To set the time and date, go to System→Date and Time. Please refer to the following interface.

Zone Date and Time Zone GMT-05 (New York, Toronto, Washington DC) ✓ DST ● Auto DST ○ Manual DST Start Time January First Sunday 00 Hour End Time February First Monday 00 Hour Time Offset 120 Minutes Save

Select the applicable time zone and enable / disable DST as needed.

Click the "Date and Time" tab to set the time and date.

Zone: Date and Time Time Mode: Synchronize with NTP server NTP server: time.windows.com Update period: 1440 Minutes Synchronize with computer time Date: 2013-04-08 Time: 14:35:18 Set manually Date: 2013-04-08 Time: 06:35:18 Save

4.1.3 Local Recording

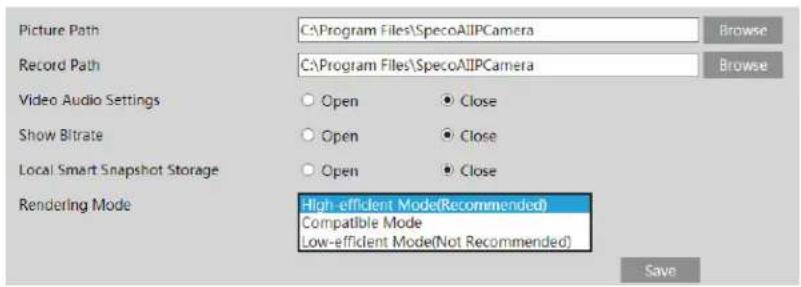

Go to System→Local Recording to set up the storage path of captured pictures and recorded videos on the local PC. There is also an option to enable or disable the bitrate display in the recorded files.

Picture Path C:\Program Files\SpecoAllPCamera Record Path C:\Program Files\SpecoAllPCamera Video Audio Settings Open Close Show Bitrate Open Close Local Smart Snapshot Storage Open Close Rendering Mode High-efficient Mode(Recommended) Compatible Mode Low-efficient Mode(Not Recommended) Save

Additionally, the snapshots triggered by smart events (including face detection, line crossing detection and intrusion detection) can be selected to save to the local PC.

Rendering Mode: High-efficient mode, compatible mode or low-efficient mode can be optional.

If the performance of your computer is not compatible with the web client or your computer has no graphics card, low-efficient mode is suggested.

4.1.4 Storage

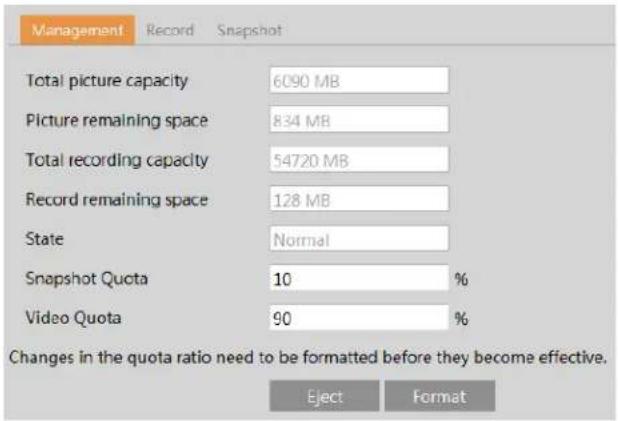

Go to System→Storage to go to the interface as shown below.

Management Record Snapshot Total picture capacity 6090 MB Picture remaining space 834 MB Total recording capacity 54720 MB Record remaining space 128 MB State Normal Snapshot Quota 10 % Video Quota 90 % Changes in the quota ratio need to be formatted before they become effective. Eject Format

- SD Card Management

When the card is used for the first time, click the "Format" button to format the SD card. All data on the card will be cleared by clicking this button.

Click the "Eject" button to stop writing data to the SD card. Then the SD card can be ejected safely.

Snapshot Quota: Set the capacity proportion of captured pictures on the SD card.

Video Quota: Set the capacity proportion of record files on the SD card.

● Schedule Recording Settings

1. Go to Storage→Record to go to the interface as shown below.

Management Record Snapshot Record Parameters Record Stream Main stream Pre Record Time No Pre Record ( H264.H265.MJPEG ) Cycle Write Yes

1. Set record stream, pre-record time and cycle writing.

Pre Record Time: Set the time to record before the actual recording begins.

1. Set schedule recording. Check "Enable Schedule Record" and set the schedule.

Timing Enable Schedule Record Erase Add Week Schedule Sun. 00:00-24:00 Manual Input Mon. 00:00-24:00 Manual Input Tue. 00:00-24:00 Manual Input Wed. 00:00-24:00 Manual Input Thu. 00:00-24:00 Manual Input Fri. 00:00-24:00 Manual Input Sat. 00:00-24:00 Manual Input Holiday Schedule Date 01-20 Save

Weekly schedule

Set the alarm time from Monday to Sunday for a single week. Each day is divided in one-hour increments. Green means scheduled. Blank means unscheduled.

"Add": Add the schedule for a special day. Drag the mouse to set the time on the timeline.

"Erase": Delete the schedule. Drag the mouse to erase the time on the timeline.

Manual Input: Click it for a specific day to enter specific start and end times. This adds more granularities (minutes).

Day schedule

Set the alarm time for alarm a special day, such as a holiday.

Note: Holiday schedule takes priority over weekly schedule.

- Snapshot Settings

Go to System→Storage→Snapshot to go to the interface as shown below.

Management Record Snapshot Snapshot Parameters Image Format JPEG Resolution 704x480 Image Quality Low Event Trigger Snapshot Interval 1 Second Snapshot Quantity 5

Set the format, resolution and quality of the image saved on the SD card and the snapshot interval and quantity and the timing

snapshot here.

Snapshot Quantity: The number you set here is the maximum quantity of snapshots. The actual quantity of snapshots may be less than this number. Supposing the occurrence time of an alarm event is less than the time of capturing pictures, the actual quantity of snapshots is less than the set quantity of snapshots.

Timing Snapshot: Enable timing snapshot first and then set the snapshot interval and schedule. The setup steps of schedule are the same as the schedule recording (See Schedule Recording).

4.2 Video Configuration

Video Configuration includes Image Settings, Video/Audio Setup, OSD, Privacy Mask and Region of Interest.

4.2.1 Image Configuration

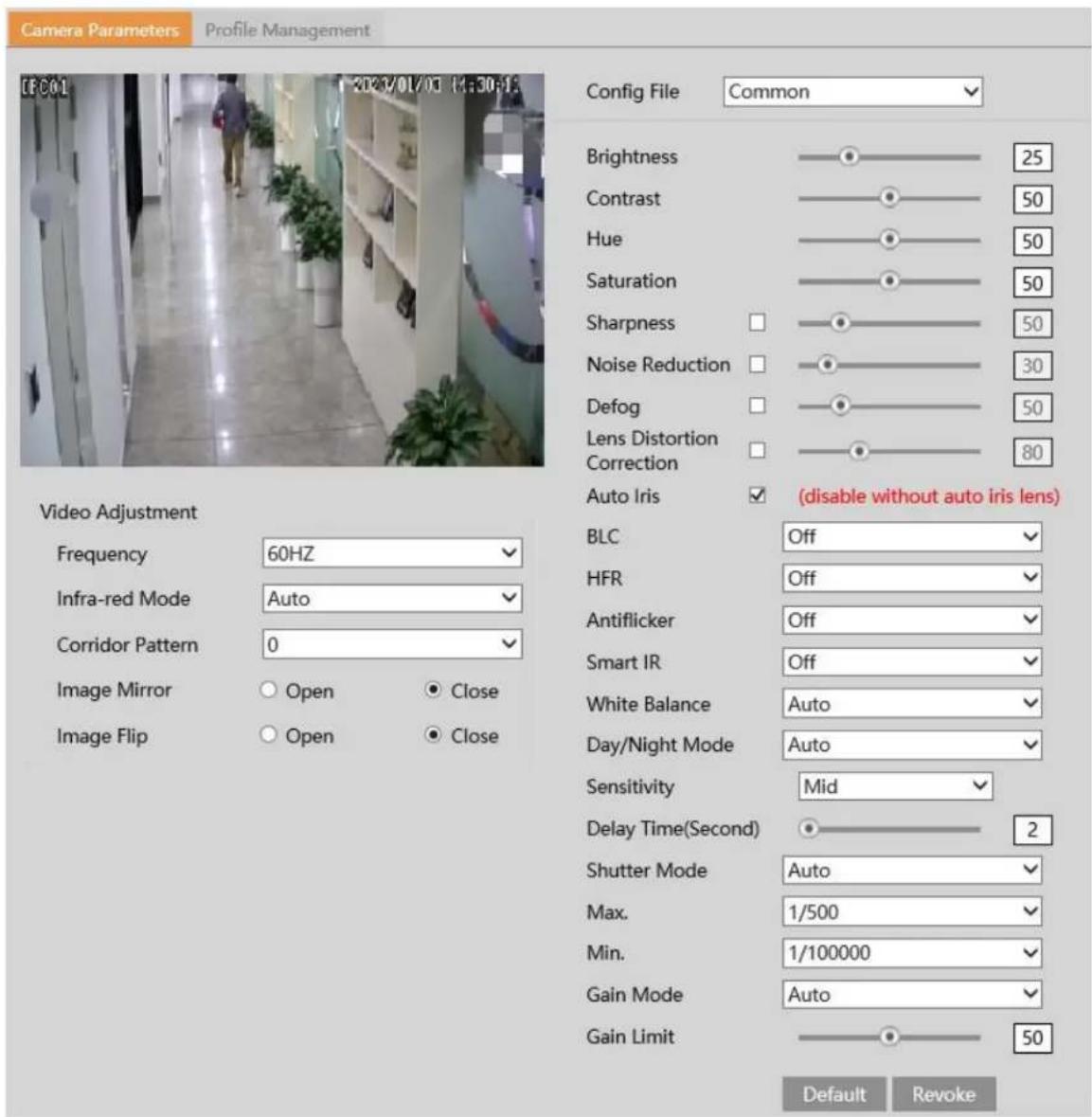

In the Image Settings interface as shown below, various settings can be adjusted, such as brightness, contrast, hue, and saturation and so on. The common mode and day and night mode can be set up separately. The image effect can be quickly viewed by switching the configuration file.

Camera Parameters Profile Management IFC01 2023/01/03 IEC0616 Config File Common Brightness 25 Contrast 50 Hue 50 Saturation 50 Sharpness 50 Noise Reduction 30 Defog 50 Lens Distortion 80 Correction Auto Iris (disable without auto iris lens) Video Adjustment Frequency 60HZ Infra-red Mode Auto Corridor Pattern 0 Image Mirror Open Close Image Flip Open Close BLC Off HFR Off Antiflicker Off Smart IR Off White Balance Auto Day/Night Mode Auto Sensitivity Mid Delay Time(Second) 2 Shutter Mode Auto Max. 1/500 Min. 1/100000 Gain Mode Auto Gain Limit 50 Default Revoke

Brightness: Set the brightness level of the camera's image.

Contrast: Set the color difference between the brightest and darkest parts.

Hue: Set the total color degree of the image.

Saturation: Set the degree of color purity. The purer the color, the brighter the image is.

Sharpness: Set the resolution level of the image plane and the sharpness level of the image edge.

Noise Reduction: Decrease the noise and make the image more thorough. Increasing the value will make the noise reduction effect better but it will reduce the image resolution.

Defog: Activating this function and setting an appropriate value as needed in foggy, dusty, smoggy, or rainy environment to get clear images.

Lens Distortion Correction: When the image appears distortion to some extent, please enable this function and adjust the level according to the actual scene to correct the distortion.

Auto Iris: If your camera is auto Iris, please enable it.

Backlight Compensation (BLC):

- Off: disables the backlight compensation function. It is the default mode.

- WDR: WDR can adjust the camera to provide a better image when there are both very bright and very dark areas simultaneously in the field of the view by lowering the brightness of the bright area and increasing the brightness of the dark area.

Recording will be stopped for a few seconds while the mode is changing from non-WDR to WDR mode.

- HLC: lowers the brightness of the entire image by suppressing the brightness of the image's bright area and reducing the size of the halo area.

- BLC: If enabled, the auto exposure will activate according to the scene so that the object of the image in the darkest area will be seen clearly.

HFR: High Frame Rate. If "ON" is selected, the system will restart and then the maximum value of the frame rate of the main stream can be set to 60 fps /50fps.

Antiflicker:

• Off: disables the anti-flicker function. This is used mostly in outdoor installations.
• 50Hz: reduces flicker in 50Hz lighting conditions.
• 60Hz: reduces flicker in 60Hz lighting conditions.

Smart IR: Choose "ON" or "OFF". This function can effectively avoid image overexposure so as to make the image more realistic. The higher the level is, the more overexposure compensation will be given.

White Balance: Adjust the color temperature according to the environment automatically.

Day/Night Mode: Choose "Auto", "Day", "Night" or "Timing".

Shutter Mode: Choose "Auto" or "Manual". If manual is chosen, the digital shutter speed can be adjusted.

Gain Mode: Choose "Auto" or "Manual". If "Auto" is selected, the gain value will be automatically adjusted according to the actual situation. If "Manual" is selected, the gain value shall be set manually. The higher the value is, the brighter the image is.

Frequency: 50Hz and 60Hz can be optional.

Infra-red Mode: Choose "Auto", "ON" or "OFF".

Corridor Pattern: Corridor viewing modes can be used for situations such as long hallways. 0, 90, 180 and 270 are available. The default value is 0. The video resolution should be 1080P or below if this function is used.

Image Mirror: Turn the current video image horizontally.

Image Flip: Turn the current video image vertically.

Schedule Settings of Image Parameters:

Click the "Profile Management" tab as shown below.

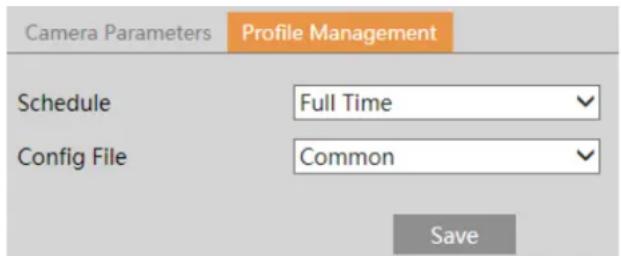

Camera Parameters Profile Management Schedule Full Time Config File Common Save

Set full time schedule for common, day or night mode and specified time schedule for day and night. Choose “Timing” in the drop-down box of schedule as shown below.

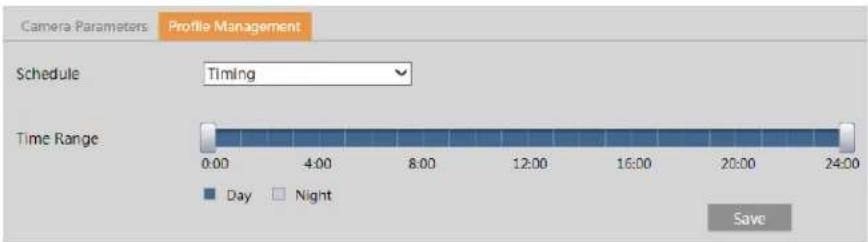

Camera Parameters Profile Management Schedule Timing Time Range Day Night Save

Drag “☐” icons to set the time of day and night. Blue means daytime and blank means night time. If the current mode of camera parameters is set to “Timing”, the image configuration mode will automatically switch between day and night according to the schedule.

4.2.2 Video / Audio Configuration

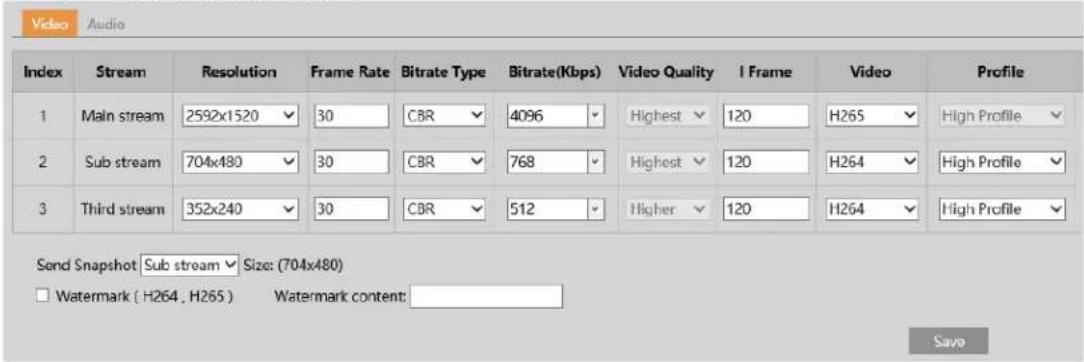

Go to Image→Video / Audio interface as shown below. In this interface, set the resolution, frame rate, bitrate type, video quality and so on subject to the actual network condition.

Video Audio Index Stream Resolution Frame Rate Bitrate Type Bitrate(Kbps) Video Quality I Frame Video Profile 1 Main stream 2592x1520 30 CBR 4096 Highest 120 H265 High Profile 2 Sub stream 704x480 30 CBR 768 Highest 120 H264 High Profile 3 Third stream 352x240 30 CBR 512 Higher 120 H264 High Profile Send Snapshot Sub stream Size: (704x480) Watermark (H264, H265) Watermark content: Save

Three video streams can be adjustable.

Resolution: The size of image.

Frame rate: The higher the frame rate, the video is smoother.

Bitrate type: CBR and VBR are optional. Bitrate is related to image quality. CBR means that no matter how much change is seen in the video scene, the compression bitrate will be kept constant. VBR means that the compression bitrate will be adjusted according to scene changes. For example, for scenes that do not have much movement, the bitrate will be kept at a lower value. This can help optimize the network bandwidth usage.

Bitrate: it can be adjusted when the mode is set to CBR. The higher the bitrate, the better the image quality will be.

Video Quality: It can be adjusted when the mode is set to VBR. The higher the image quality, the more bitrate will be required.

I Frame interval: It determines how many frames are allowed between a "group of pictures". When a new scene begins in a video, until that scene ends, the entire group of frames (or pictures) can be considered as a group of pictures. If there is not much movement in the scene, setting the value higher than the frame rate is fine, potentially resulting in less bandwidth usage. However, if the value is set too high, and there is a high frequency of movement in the video, there is a risk of frame skipping.

Video Compression: MJPEG, H264+, H264, H264S (Smart H.264), H265, H265+ or H265S (Smart H.265) can be optional. MJPEG is not available for main stream. If H.265/H.265+/H.265S is chosen, make sure the client system is able to decode H.265/H.265+/H.265S. Compared to H.265+/H.265, smart H.265 can spontaneously adjust the bitrate distribution according to the requirements of the actual scene. For example, when there is no human or vehicle detected, the bitrate will be automatically reduced with no effect on image quality by using H.265S. Compared to H.265, H.265+ saves more storage space with the same maximum bitrate in most scenes. Compared to H.264, H.265 reduces the transmission bitrate under the same resolution, frame rate and image quality.

Profile: For H.264. Baseline, main and high profiles are selectable.

Send Snapshot: Set the snapshot stream.

Video encode slice split: If this function is enabled, smooth image can be gotten even though using the low-performance PC.

Watermark: When playing back the local recorded video in the search interface, the watermark can be displayed. To enable it, check the watermark box and enter the watermark text.

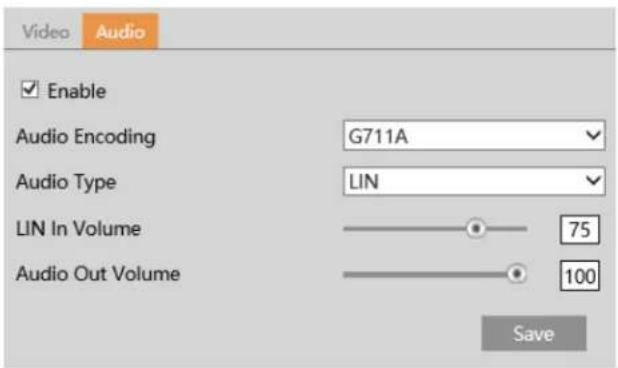

Click the "Audio" tab to go to the interface as shown below.

Video Audio Enable Audio Encoding G711A Audio Type LIN LIN In Volume 75 Audio Out Volume 100 Save

Audio Encoding: G711A and G711U are selectable.

Audio Type: LIN. Some models may support MIC type.

LIN IN/MIC IN Volume: LIN IN Volume can be set here. If MIC is selected, MIC IN volume can be set.

Audio Out Volume: This function is available for the model with audio out interface.

4.2.3 OSD Configuration

Go to Video→OSD interface as shown below.

Setup ▶ Video ▶ OSD Date Format YYYY-MM-DD ✓ Show Timestamp Device Name IPC ✓ Show Device Name □ OSD Content1 Add One Line □ OSD Content2 Add One Line □ OSD Content3 Add One Line □ OSD Content4 Add One Line Save

Set time stamp, device name, OSD content and picture overlap here. After enabling the corresponding display and entering the content, drag them to change their position. Then click the "Save" button to save the settings.

Picture Overlap Settings:

Check "OSD Content1", choose "Picture Overlay" and click "Browse" to select the overlap picture. Then click "Upload" to upload the overlap picture. The pixel of the image shall not exceed 200*200, or it cannot be uploaded.

4.2.4 Video Mask

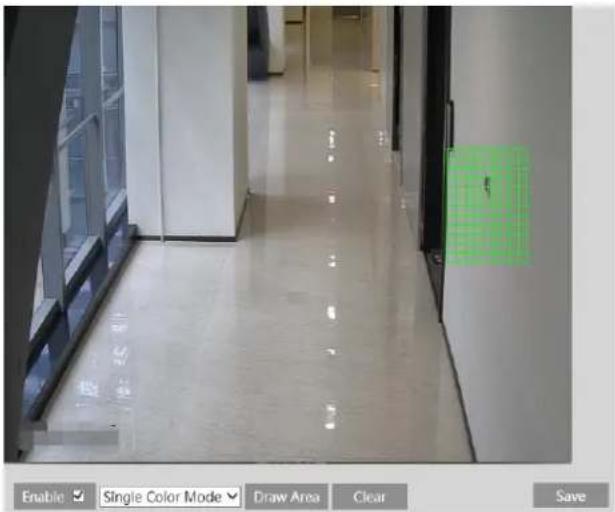

Go to Image→Video Mask interface as shown below. A maximum of 4 zones can be set up.

Interior hallway with glossy white flooring and large windows, no visible text or symbols

To set up video mask:

1. Enable video mask.
2. Click the "Draw Area" button and then drag the mouse to draw the video mask area.
3. Click the "Save" button to save the settings.
4. Return to the live to verify that the area have been drawn as shown as blocked out in the image.

Interior hallway with white marble flooring and large windows on both sides (no visible text or symbols)

To clear the video mask:

Click the "Clear" button to delete the current video mask area.

4.2.5 ROI Configuration

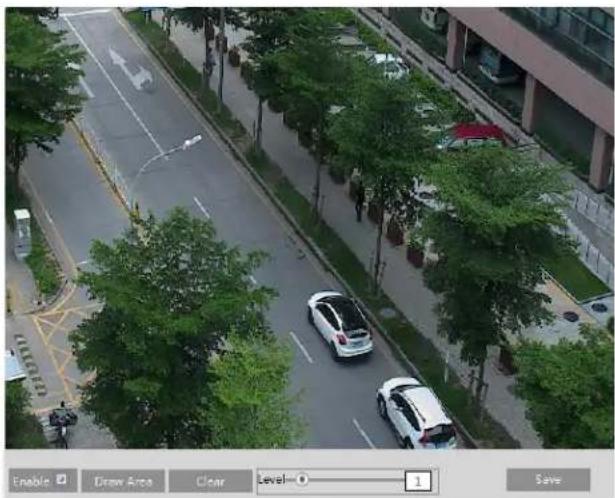

Go to Image→ROI Config interface as shown below. An area in the image can be set as a region of interest. This area will have a higher bitrate than the rest of the image, resulting in better image quality for the identified area.

Aerial view of a multi-lane urban street with parked cars and trees, no visible text or symbols.

1. Check "Enable" and then click the "Draw Area" button.
2. Drag the mouse to set the ROI area.
3. Set the level.
4. Click the "Save" button to save the settings.

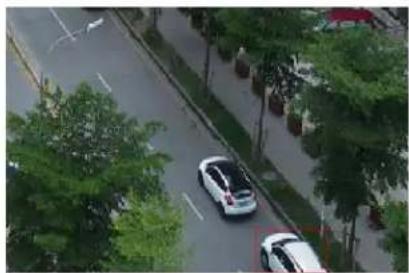

Aerial view of a tree-lined urban road with two cars driving along the roadside (no visible text or signage)

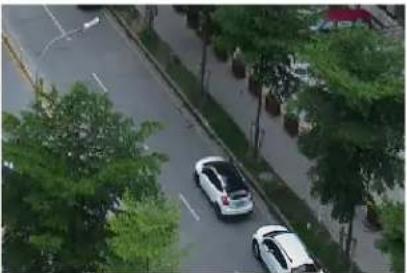

Aerial view of two cars driving on a tree-lined road with greenery (no visible text or symbols)

4.2.6 Zoom/Focus

This function is only available for the model with motorized zoom lens. Within this section, zoom and focus can be controlled. If the image is out of focus after a manual adjustment, one key focus can be used to set the focus automatically.

2022/01/20 05:52:47 Day and night switching Focus ■ One Key Focus Reset Zoom - Zoom + Focus - Focus +

4.3 PTZ Configuration

It can be used with a compatible external PTZ enclosure. Go to PTZ→Protocol interface as shown below.

Config Home ▶ PTZ ▶ Protocol Protocol PELCOD Address 1 Baud-Rate 2400 Save

6.1 Alarm Setup

6.1.1 Motion Detection

Go to Alarm→Motion Detection to set motion detection alarm.

Detection Config Area and Sensitivity Schedule Enable Alarm Holding Time 20 Seconds Trigger Alarm Out Alarm Out Trigger SD Snap Trigger SD Recording Trigger Email Trigger FTP Save

1. Check "Enable" check box to activate motion-based alarms. If unchecked, the camera will not send out any signals to trigger motion-based recording to the NVR or CMS, even if there is motion in the video.

Alarm Holding Time: it refers to the interval time between the adjacent motion detections. For instance, if the alarm holding time is set to 20 seconds, once the camera detects a motion, it will go to alarm and would not detect any other motion in 20 seconds. If there is another motion detected during this period, it will be considered as continuous movement; otherwise it will be considered as a single motion.

Alarm Out: If selected, this would trigger an external relay output that is connected to the camera on detecting a motion-based alarm.

Trigger SD Snap: If selected, the system will capture images on motion detection and save the images on an SD card.

Trigger SD Recording: If selected, video will be recorded on an SD card on motion detection.

Trigger Email: If "Trigger Email" and "Attach Picture" are checked (email address must be set first in the Email configuration interface), the captured pictures and triggered event will be sent into those addresses.

Trigger FTP: If "Trigger FTP" and "Attach Picture" are checked, the captured pictures will be sent into FTP server address. Please refer to FTP configuration chapter for more details.

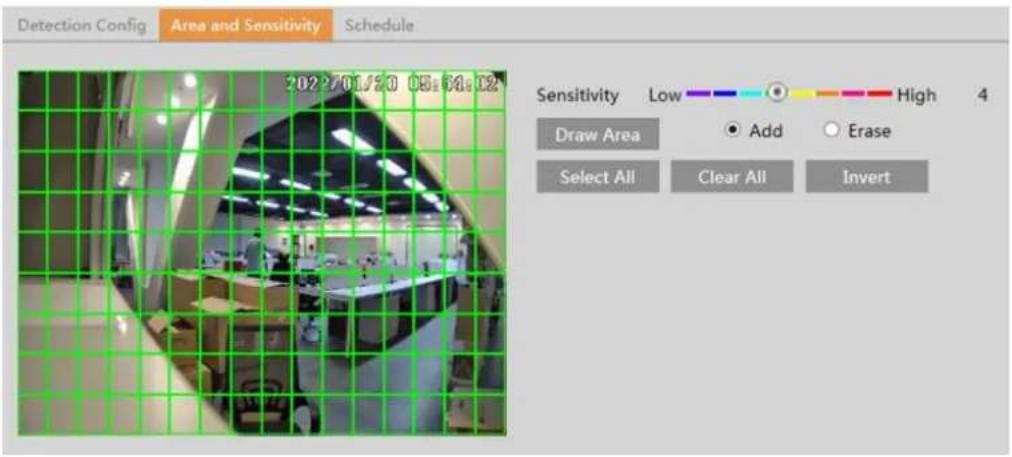

1. Set motion detection area and sensitivity. Click the "Area and Sensitivity" tab to go to the interface as shown below.

Detection Config Area and Sensitivity Schedule 202701/5 05:04:12 Sensitivity Low High 4 Draw Area Add Erase Select All Clear All Invert

Move the "Sensitivity" scroll bar to set the sensitivity. Higher sensitivity value means that motion will be triggered more easily. Select "Add" and click "Draw". Drag the mouse to draw the motion detection area; Select "Erase" and drag the mouse to clear motion detection area.

After that, click the "Save" to save the settings. "Clear All" can be used to clear out the entire motion zone.

1. Set the schedule for motion detection. The schedule setup steps of the motion detection are the same as the schedule recording setup (See Schedule Recording).

6.1.2 Other Alarms

SD Card Full

1. Go to Alarm→Anomaly→SD Card Full.

SD Card Full SD Card Error IP Address Collision Cable Disconnected Enable Alarm Holding Time 20 Seconds Trigger Alarm Out Alarm Out Trigger Email Trigger FTP

1. Click "Enable" and set the alarm holding time.
2. Set alarm trigger options. The setup steps are the same as motion detection. Please refer to motion detection chapter for details.

- SD Card Error

When there are some errors in writing SD card, the corresponding alarms will be triggered.

1. Go to Alarm→Anomaly→SD Card Error as shown below.

SD Card Full SD Card Error IP Address Collision Cable Disconnected Enable Alarm Holding Time 20 Seconds Trigger Alarm Out Alarm Out Trigger Email Trigger FTP

1. Click "Enable" and set the alarm holding time.
2. Set alarm trigger options. Trigger alarm out, Email and FTP. The setup steps are the same as motion detection. Please refer to motion detection chapter for details.

IP Address Conflict

This function is only available for the models with Alarm Out interface.

1. Go to Alarm→Anomaly→IP Address Collision as shown below.

SD Card Full SD Card Error IP Address Collision Cable Disconnected Enable Alarm Holding Time 20 Seconds Trigger Alarm Out Alarm Out

1. Click "Enable" and set the alarm holding time.
2. Trigger alarm out. When the IP address of the camera conflicts with the IP address of other devices, the system will trigger the alarm out.

- Cable Disconnection

This function is only available for the models with Alarm Out interface.

1. Go to Alarm→Anomaly→Cable Disconnected as shown below.

SD Card Full SD Card Error IP Address Collision Cable Disconnected Enable Alarm Holding Time 20 Seconds Trigger Alarm Out Alarm Out

1. Click "Enable" and set the alarm holding time.
2. Trigger alarm out. When the camera is disconnected, the system will trigger the alarm out.

6.1.3 Alarm In (Sensor Input)

This function is only available for some models. To set sensor alarm (alarm in):

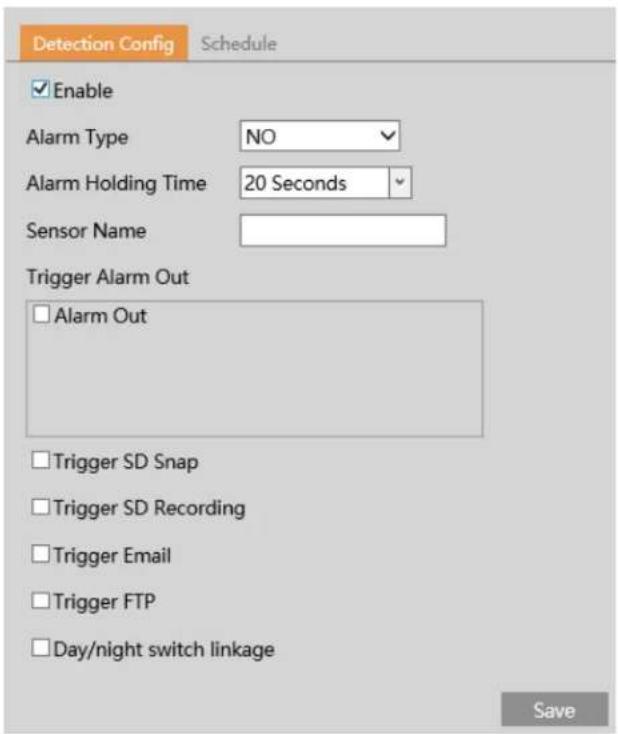

Go to Alarm→Alarm In interface as shown below.

Detection Config Schedule Enable Alarm Type NO Alarm Holding Time 20 Seconds Sensor Name Trigger Alarm Out Alarm Out Trigger SD Snap Trigger SD Recording Trigger Email Trigger FTP Day/night switch linkage Save

1. Click "Enable" and set the alarm type, alarm holding time and sensor name.
2. Set alarm trigger options. The setup steps are the same as motion detection. Please refer to motion detection chapter for details.

Day/Night Switch Linkage: If enabled, choose daytime or night. When the sensor is triggered by the external environment, it will link the camera to switch to daytime mode or night mode.

1. Click "Save" button to save the settings.
2. Set the schedule of the sensor alarm. The setup steps of the schedule are the same as the schedule recording setup. (See Schedule Recording).

6.1.4 Alarm Out

This function is only available for some models. Go to Alarm→Alarm Out.

Alarm Out Mode Alarm Linkage Alarm Out Name alarmOut1 Alarm Holding Time 20 Seconds Alarm Type NC Save

Alarm Out Mode: Alarm linkage, manual operation, day/night switch linkage and schedule are optional.

Alarm Linkage: Having selected this mode, select alarm out name, alarm holding time at the "Alarm Holding Time" pull down list box and alarm type.

Manual Operation: Having selected this mode, select alarm type and click "Open" to trigger the alarm out immediately; click "Close" to stop alarm.

Alarm Out Mode Manual Operation Alarm Type NC Manual Operation Open Close Save

Day/Night Switch Linkage: Having selected this mode, select the alarm type and choose to open or close alarm out when the camera switches to day mode or night mode.

Alarm Out Mode Day/night switch linkage Alarm Type NC Day Close Night Close Save

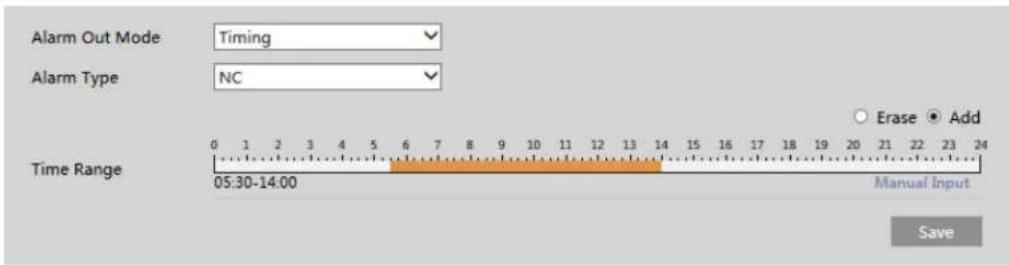

Timing: Select the alarm type. Then click "Add" and drag the mouse on the timeline to set the schedule of alarm out; click "Erase" and drag the mouse on the timeline to erase the set time schedule. After this schedule is saved, the alarm out will be triggered in the specified time.

Alarm Out Mode Timing Alarm Type NC Time Range 05:30-14:00 Erase Add Manual Input Save

6.1.5 Alarm Server

Go to Alarm→Alarm Server interface as shown below.

Set the server address, port, heartbeat, and heartbeat interval. When an alarm occurs, the camera will transfer the alarm event to the alarm server. If an alarm server is not needed, there is no need to configure this section.

Server Address Port 8010 Heartbeat Disable Heartbeat interval 30 Second OK

6.2 Analytics Configuration

This series of IP cameras supports certain smart functions, such as line crossing detection, region intrusion detection, etc. These events can be triggered as alarm events.

For more accuracy, here are some recommendations for installation.

• Cameras should be installed on stable surfaces, as vibrations can affect the accuracy of detection.

• Avoid pointing the camera at the reflective surfaces (like shiny floors, mirrors, glass, lake surfaces and so on).

• Avoid places that are narrow or have too much shadowing.

• Avoid scenario where the object's color is similar to the background color.
• At any time of day or night, please make sure the image of the camera is clear and with adequate and even light, avoiding overexposure or too much darkness on both sides.

6.2.1 Object Removal

Alarms will be triggered when the objects are removed from or left at the pre-defined area.

To set object removal detection:

Go to Config→Event→Object Removal interface as shown below.

Detection Config Area Schedule Enable Enable Left Detection Enable Item Missing Detection Shortest Holding Time 0 Second Alarm Holding Time 20 Seconds Trigger Alarm Out Alarm Out Trigger SD Snap Trigger SD Recording Trigger Email Trigger FTP Save

1. Enable abandoned/missing object detection and then select the detection type.
   Enable Left Detection: Alarms will be triggered if there are items left in the pre-defined area.
   Enable Item Missing Detection: Alarms will be triggered if there are items missing in the pre-defined area.
   Duration of Delay: it is the alarm delay time of the object left in the region or removed from the region (ranges from 0\~3600s). For example, if "Enable Left Detection" is selected and the duration of delay is set as 10, alarms will be triggered after the object is left and stay in the region for 10s, but when someone takes away the object within 10s, alarms will not be triggered.
2. Set the alarm holding time and alarm trigger options. The setup steps are the same as motion detection. Please refer to motion detection section for details.
3. Click "Save" button to save the settings.

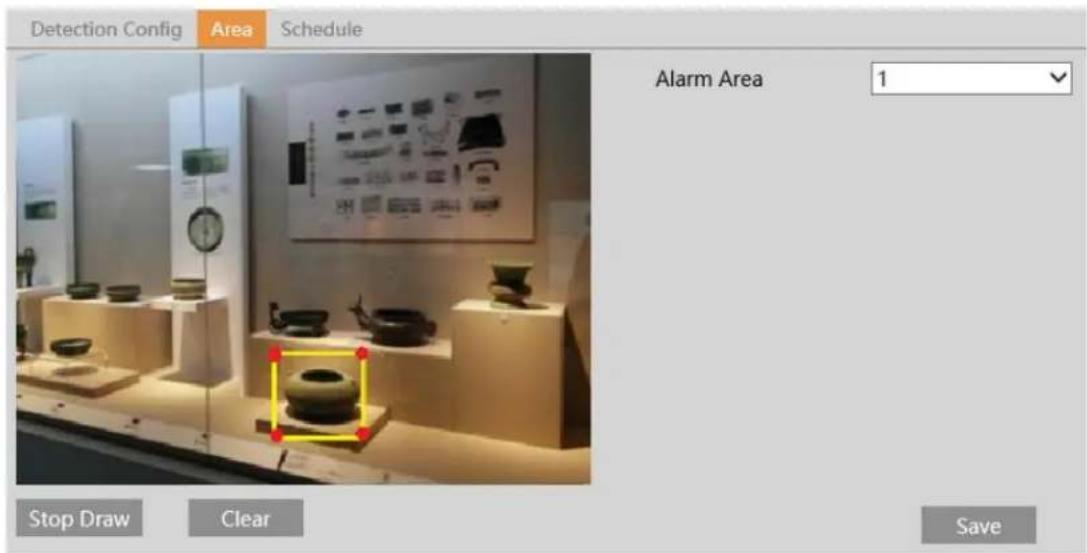

4. Set the alarm area of the abandoned/missing object detection. Click the "Area" tab to go to the interface as shown below.

Detection Config Area Schedule Alarm Area 1 Stop Draw Clear Save

Set the alarm area number and then enter the desired alarm area name. Only one alarm area can be added. Click the "Draw Area" button and then click around the area where you want to set as the alarm area in the image (the alarm area should be a closed area). Click the "Stop Draw" button to stop drawing. Click the "Clear" button to delete the alarm area. Click the "Save" button to save the settings.

1. Set the schedule of the abandoned/missing object detection. The setup steps of schedule are the same as the schedule recording (See Schedule Recording).

※ The configuration requirements of camera and surrounding areas

1. The range of the detection object should occupy from 1/50 to 1/3 of the entire image.
2. The detection time of objects in the camera shall be from 3 to 5 seconds.
3. The defined area cannot be covered frequently and continuously (like people and traffic flow).
4. It is necessary for missing object detection that the drawn frame must be very close to the margin of the object in enhancing the sensitivity and accuracy of the detection.
5. Object removal detection cannot determine the objects' ownership. For instance, there is an unattended package in the station. Object removal detection can detect the package itself but it cannot determine to whom it belongs to.
6. Try not to enable object removal detection when light changes greatly in the scene.
7. Try not to enable object removal detection if there are complex and dynamic environments in the scene.
8. Adequate light and clear scenery are very important to object removal detection.

6.2.2 Exception

This function can detect changes in the surveillance environment affected by the external factors. Go to Event→Exception interface as shown below.

Detection Config Sensitivity ✓ Scene Change Detection ✓ Video Blur Detection ✓ Video Cast Detection Alarm Holding Time 20 Seconds Trigger Alarm Out ✓ Alarm Out ✓ Trigger SD Snap ✓ Trigger SD Recording ✓ Trigger Email ✓ Trigger FTP Save

1. Enable the applicable detection that is desired.

Scene Change Detection: Alarms will be triggered if the scene of the video has changed.

Video Blur Detection: Alarms will be triggered if the video becomes blurry.

Video Cast Detection: Alarms will be triggered if the image is abnormal caused by color deviation.

1. Set the alarm holding time and alarm trigger options. The setup steps are the same as motion detection. Please refer to motion detection chapter for details.

2. Click "Save" button to save the settings.

3. Set the sensitivity of the exception detection. Click "Sensitivity" tab to go to the interface as shown below.

Detection Config Sensitivity Sensitivity 1 Save

Drag the slider to set the sensitivity value or directly enter the sensitivity value in the textbox. Click "Save" button to save the settings.

The sensitivity value of Scene Change Detection: The higher the value is, the more sensitive the system responds to the amplitude of the scene change.

The sensitivity value of Video Blur Detection: The higher the value is, the more sensitive the system responds to the blurriness of the image.

The sensitivity value of Video Cast Detection: The higher the value is, the more sensitive the system responds to the color shift of the image.

※The requirements of camera and surrounding area

1. Auto-focusing function should not be enabled for exception detection.
2. Try not to enable exception detection when light changes greatly in the scene.

6.2.3 Line Crossing

Line Crossing: Alarms will be triggered if the target crosses the defined alarm lines. Go to Event→Line Crossing interface as shown below.

Detection Config Area Schedule Enable Save Panoramic Picture To SD Card Save Target Cutout To SD Card Detection target Target Sensitivity Human 50 Motor Vehicle 50 Non-motor Vehicle 50 Alarm Holding Time 20 Seconds Trigger Alarm Out Alarm Out Trigger SD Snap Trigger SD Recording Trigger Email Trigger FTP Save

1. Enable line crossing alarm and select the snapshot type and the detection target.

Save Panoramic Picture: If it is enabled, the detected panoramic pictures will be captured and saved to the SD card when there are targets detected.

Save Target Cutout: If it is enabled, the detected target cutout pictures will be captured and saved to the SD card when there are targets detected.

Note: To save images to a local PC, please enable the local smart snapshot storage first (System→Local Recording). To save images to an SD card, please install an SD card first.

Detection Target:

Human: Select it and then alarms will be triggered if someone crosses the pre-defined alarm line.

Motor Vehicle: Select it and then alarms will be triggered if a vehicle with four or more wheels (eg. a car, bus or truck) crosses the pre-defined alarm line.

Non-motor Vehicle: Select it and then alarms will be triggered if a vehicle with two wheels (eg. a motorcycle or bicycle) crosses the pre-defined alarm line.

All of the three types of objects can be selected simultaneously. Please select the detection objects as needed. If no object/target is selected, alarms will not be triggered even if line crossing detection is enabled.

1. Set the alarm holding time.
2. Set alarm trigger options. The setup steps are the same as motion detection. Please refer to motion detection chapter for details.
3. Click "Save" button to save the settings.
4. Set area and sensitivity of the line crossing alarm. Click the "Area and Sensitivity" tab to go to the interface as shown below.

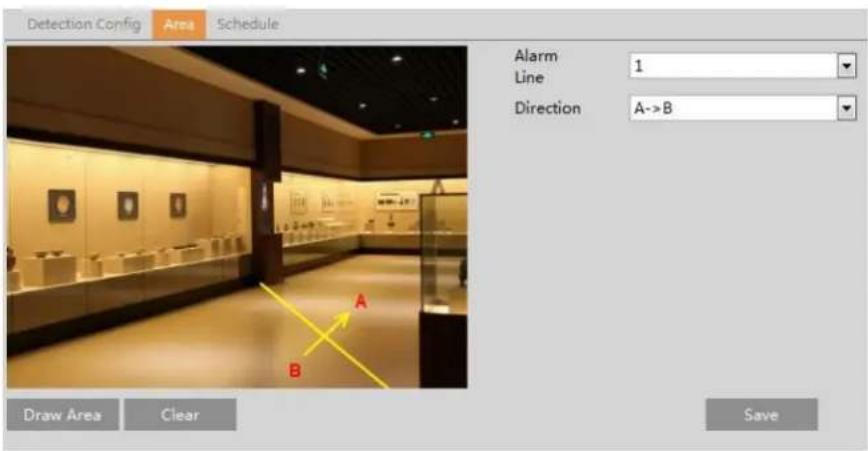

Detection Config Area Schedule Alarm 1 Line Direction A->B Draw Area Clear Save

Set the alarm line number and direction. Up to 4 lines can be added. Multiple lines cannot be added simultaneously.

Direction: A<->B, A->B and A<-B optional. This indicates the direction of the intruder who crosses over the alarm line that would trigger the alarm.

A<->B: The alarm will be triggered when the intruder crosses over the alarm line from B to A or from A to B.

A->B: The alarm will be triggered when the intruder crosses over the alarm line from A to B.

A<-B: The alarm will be triggered when the intruder crosses over the alarm line from B to A.

Click the "Draw Area" button and then drag the mouse to draw a line in the image. Click the "Stop Draw" button to stop drawing. Click the "Clear" button to delete the lines. Click the "Save" button to save the settings.

1. Set the schedule of the line crossing alarm. The setup steps of the schedule are the same as the schedule recording setup (See Schedule Recording).

※Configuration of camera and surrounding area

1. Auto-focusing function should not be enabled for line crossing detection.
2. Avoid the scenes with many trees or the scenes with various light changes (like many flashing headlights). The ambient brightness of the scenes shouldn't be too low.
3. Cameras should be mounted at a height of 10ft or above.
4. Keep the mounting angle of the camera at about 45^ .
5. The detected objects should not be less than 1% of the entire image and the largest sizes of the detected objects should not be more than 1/8 of the entire image.
6. Make sure cameras can view objects for at least 2 seconds in the detected area for accurate detection.
7. Adequate light and clear scenery are crucial for line crossing detection.

6.2.4 Intrusion

Intrusion: Alarms will be triggered if the target intrudes into the defined areas.

Go to Event→Intrusion interface as shown below.

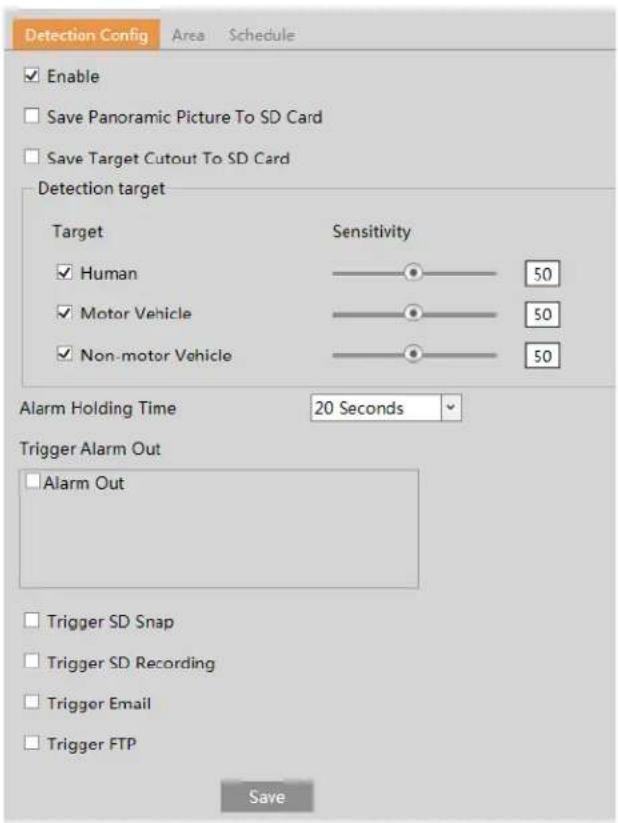

Detection Config Area Schedule Enable Save Panoramic Picture To SD Card Save Target Cutout To SD Card Detection target Target Sensitivity Human 50 Motor Vehicle 50 Non-motor Vehicle 50 Alarm Holding Time 20 Seconds Trigger Alarm Out Alarm Out Trigger SD Snap Trigger SD Recording Trigger Email Trigger FTP Save

1. Enable intrusion alarm and select the snapshot type and the detection target.
2. Set the alarm holding time.
3. Set alarm trigger options. The setup steps are the same as motion detection. Please refer to motion detection chapter for details.
4. Click "Save" button to save the settings.
5. Set the alarm area of the intrusion detection. Click the "Area" tab to go to the interface as shown below.

Detection Config Area Schedule Alarm Area 1 Draw Area Clear Save

Set the alarm area number on the right side. Up to 4 alarm areas can be added.

Click the "Draw Area" button and then click around the area where you want to set as the alarm area in the image on the left side (the alarm area should be a closed area). Click the "Stop Draw" button to stop drawing. Click the "Clear" button to delete the alarm area. Click the "Save" button to save the settings.

1. Set the schedule of the intrusion detection. The setup steps of the schedule are the same as schedule recording setup (See Schedule Recording).

※Configuration requirements of camera and surrounding area

1. Auto-focusing function should not be enabled for intrusion detection.
2. Avoid the scenes with many trees or the scenes with various light changes (like many flashing headlights). The ambient brightness of the scenes shouldn't be too low.
3. Cameras should be mounted at a height of 10ft or above.
4. Keep the mounting angle of the camera at about 45^ .
5. The detected objects should not be less than 1% of the entire image and the largest sizes of the detected objects should not be more than 1/8 of the entire image.
6. Make sure cameras can view objects for at least 2 seconds in the detected area for accurate detection.
7. Adequate light and clear scenery are crucial to line crossing detection.

6.2.5 Face Comparison

1. Go to Config → Event → Face Comparison as shown below.

Detection Config Comparison and Linkage Area Advanced Schedule Face Database Management State Working Enable Open this function, IPC will collect face feature information ! Save Source Information To SD Card Save Face Information To SD Card Trigger alarm condition All Alarm Alarm Holding Time 20 Seconds Trigger SD Snap Trigger SD Recording Trigger Email Trigger FTP Save

1. Enable the face detection function.

Save Source Information to SD Card: if checked, the whole picture will be saved to an SD card when detecting a face.

Save Face Information to SD Card: if checked, the captured face picture will be saved to an SD card when detecting a face.

Note: To save images to a local PC, please enable the local smart snapshot storage first (System→Local Recording). To save images to an SD card, please install an SD card first.

1. Set alarm triggering condition, alarm holding time and alarm trigger options.

Trigger alarm condition: all or mask off can be selectable.

All: Alarms will be triggered when the camera detects a face (with/without a mask).

Mask off: Alarms will be triggered when the detected person is not wearing a mask on the face.

Set alarm holding time and alarm trigger options. The setup steps are the same as motion detection. Please refer to motion detection chapter for details.

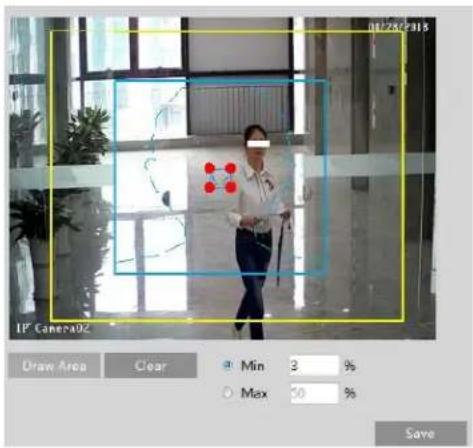

1. Set alarm detection area.

01/28/2018 IP Camera02 Draw Area Clear Min 2 % Max 50 % Save

Use this to draw the approximate size of the face that you want the camera to capture. This is useful when there are multiple faces in the background or foreground that are not needed to be captured. To enable, Click "Draw Area" and drag the border lines of the rectangle to modify its size. Move the rectangle to change its position. Click "Stop Draw" to stop drawing the area. Click "Clear" to clear the area. Then set the detectable face size by defining the maximum value and the minimum value (The default size range of a single face image occupies from 3% to 50% of the entire image).

1. Face database management: click "Face Database Management" tab. This will enter the following interface.

Defense Config Comparison and Linkups Area Advanced Schedule Fact Database Management Black and Allow Us All Types Gender All Types Name ID Number Search Delete Match Details Index Face ID Name Gender Type ID Number Operate Add User List Type Allow list Name Gender * Male Female Age Tel ID Number Remark Entry [Formatting: Size limit: 70KB]

There are four ways to add face pictures.

① Adding face pictures one by one

Click 🔔 to pop up an adding user box. Then click 🔔 to select a face picture saved on the local PC. Please select the picture according to the specified format and size limit. After that, fill out the relevant information of the face picture and click "Entry" to add.

② Adding multiple face pictures at a time

Click and then add multiple face pictures once according to the prompted rules.

③ Add face pictures by using face album management tool

④ Add the captured picture in the live mode (See Add captured face pictures to the face database).

After adding face pictures, you can search them by name, gender, ID number and so on.

Click "Modify" to change people information and click "Delete" to delete this face picture.

Select the face pictures and click "Batch Delete" to delete these face pictures at a time.

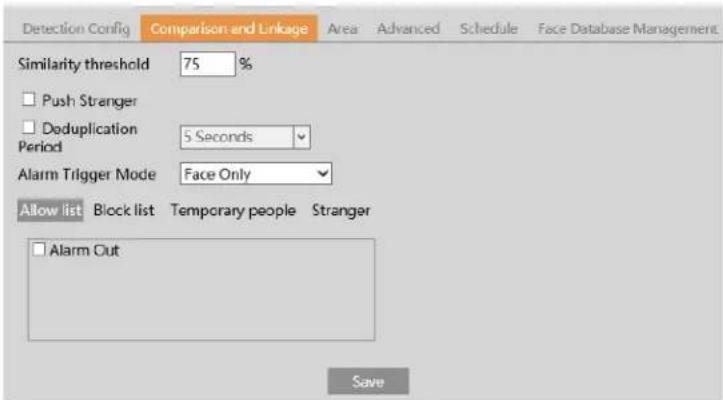

1. Set face comparison trigger options. Click "Comparison and Linkage" to go to the following interface.

Detection Config Comparison and Linkage Area Advanced Schedule Face Database Management Similarity threshold 75 % Push Stranger Doduplication Period 5 Seconds Alarm Trigger Mode Face Only Allow list Block list Temporary people Stranger Alarm Out Save

Similarity threshold: When the similarity of the captured face picture and the face picture added into the face database exceeds the similarity threshold, alarms will be triggered.

Push Stranger: Push the comparison alarm information of the stranger. After it is enabled, the comparison information of the stranger will be shown on the left comparison area of the live interface.

Make stream Sub stream Third stream Balanced IPC01 2023/01/03 15:06:41 ID16 Mask On 2023-01-03 15:06:41 ID16 Mask On 2023-01-03 15:06:41 Stranger

Deduplication Period: In the set period, delete the repeated comparison results.

Alarm Trigger Mode: Face only mode. When the captured face picture is matched successfully, alarms will be triggered.

Alarm List: Select an alarm list. For example, if "Stranger" is selected, the system will automatically search the matched face picture from "Stranger" list/group when detecting a face and both face pictures will appear on the left in the face comparison interface.

Alarm Output: Select the list type and then checkmark alarm out. Then alarm output will be triggered when the captured face is matched successfully with the face image of the selected

1. Set the schedule of the face detection and comparison. The setup steps of the schedule are the same as schedule recording setup (See Schedule Recording).

2. Advanced configuration.

Application Scenes Security Monitoring Snapshot Interval 30 Seconds Snapshot Number 3 Proximity Priority Close Comparison Comparison in free Open time Save

Application Scenes: "Access control", "security monitoring" or "customize" can be selected.

Snapshot Interval: If 5 seconds is selected, the camera will capture the same target once every 5 seconds during its continuous tracking period.

Snapshot Number: If the snapshot number is enabled and set (eg. 3), the camera will capture the same target once every 5 seconds and it will capture this target 3 times at most during its continuous tracking period. If the snapshot number is disabled, the camera will capture the same target once every 5 seconds until the target disappears in the detected area.

Proximity Priority Comparison: When several persons are in the recognition area at the same time, the person closer to the camera is recognized first.

Comparison in free time: When the processor is busy, the comparison of the current detected person will not be performed immediately (for example, there is not enough time for the processor to perform all comparisons, because so many people are detected at the same time). It will continue after the processor load is reduced.

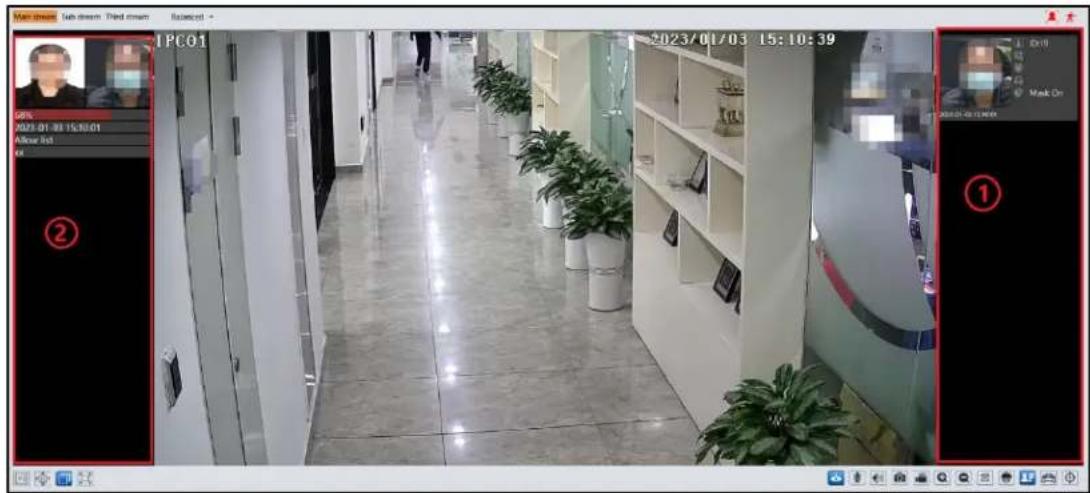

- Face Match View

After all face comparison settings are set successfully, enter the live view interface. Click 📋 to view the captured face pictures and face comparison information.

Main screen Sub screen Third screen Satellite IPC01 2023/01/03 15:10:39 Ex18 Mak On ① ②

Area ①: captured face pictures; area ②: face comparison area

• View the comparison details

In area ②, click the compared face picture to bring up the following window. In this interface, you can view the detailed comparison information.

Detail information Similarity 60% Time 2023-01-03 15:10:01 List Type Allow list Name xx Gender Female Age 0 Tel Remark Snap Picture Picture library

- Add captured face pictures to the face database

Click a captured picture in area ①. This will bring a face picture adding box.

Add User Time 2023-01-03 15:10:01 ID 19 List Type Allow list Name Gender Male Age Tel ID Number Remark Entry

Fill out the relevant information and click "Entry" to add this face picture.

6.2.6 Crowd Density Detection

This function can detect the density of the people in a specified area (like square, supermarket). Go to Config→Event→Crowd Density as shown below.

Detection Config Area Schedule Enable Refresh Frequency 1 Seconds Density Alarm Threshold 50% Alarm Holding Time 20 Seconds Trigger Alarm Out Alarm Out Trigger SD Snap Trigger SD Recording Trigger Email Trigger FTP Save

1. Enable the crowd density detection.

2. Set "Refresh Frequency", "Density Alarm Threshold" and "Alarm Holding Time".

Refresh Frequency: The refresh frequency of the detection result.

Density Alarm Threshold: Alarms will be triggered once the percentage of the crowd density in a specified area exceeds the pre-defined threshold value.

1. Set alarm trigger options. The setup steps are the same as motion detection. Please refer to motion detection section for details.

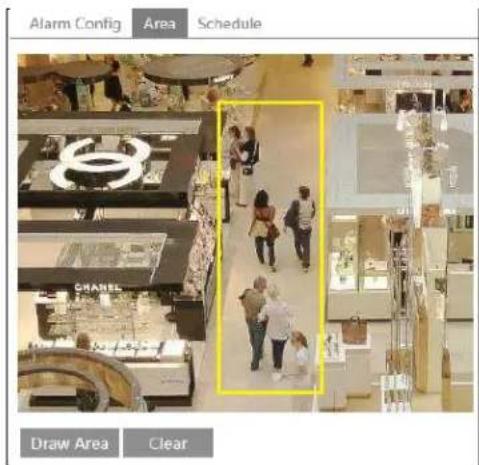

2. Set an alarm area for the crowd density detection. Click the "Area" tab as shown below.

Click "Draw Area" and drag the mouse to draw a rectangle area. Drag the border lines of the rectangle to modify its size and move the rectangle to change its position. Click "Stop Draw" to stop drawing the area. Click "Clear" to clear the area.

Alarm Config Area Schedule Draw Area Clear

1. Set the schedule of the crowd density detection. The setup steps of the schedule are the same as schedule recording setup (See Schedule Recording).

Note: The camera only can roughly calculate the crowd density through detecting the human faces. The head or back of the person detected is not counted.

* Configuration of camera and surrounding area

1. The camera lens should face to the people flow. The direction of the people flow is allowed to deviate slightly from the direction of the camera lens (The angle (a) shall be less than 45^ ). It is recommended that the angle between the lens of the camera and the floor (b) shall range from 30^ to 60^ .

IPC a b Floor Direction of people flow

1. The size range of a single person image should take up from 1% to 5% of the entire image and the height range of a single person image should occupy from 1/5 to 1/2 of the entire image.

2. This function is inapplicable to the scene where there are many moving objects except human shape. (eg. moving cars)

3. A lot of trees and billboards will affect the detection results in the detected area.

6.2.7 Region Entrance

Region Entrance: Alarms will be triggered if the target enters the pre-defined areas.

Go to Config→Event→Region Entrance interface.

1. Enable region entrance detection and select the snapshot type and the detection target.

2. Set the alarm holding time and alarm trigger options.

3. Set the alarm area of the region entrance detection.

4. Set the schedule of the region entrance detection.

The setup steps of the region entrance detection are the same as the region intrusion detection setup (See Intrusion for details).

6.2.8 Region Exiting

Region Exiting: Alarms will be triggered if the target exits from the pre-defined areas.

Go to Config→Event→Region Exiting interface.

1. Enable region exiting detection and select the snapshot type and the detection target.

2. Set the alarm holding time and alarm trigger options.

3. Set the alarm area of the region exiting detection.

4. Set the schedule of the region exiting detection.

The setup steps of the region exiting detection are the same as the region intrusion detection setup (See Intrusion for details).

6.2.9 Target Counting

This function is to calculate the number of the people or vehicles crossing the alarm line through detecting, tracking and counting the shapes of the people or vehicles.

1. Go to Config→Event→Target Counting as shown below.

Detection Config Area Schedule Enable Save Panoramic Picture To SD Card Save Target Cutout To SD Card Detection target Target Sensitivity Staying Threshold Human 50 0 Motor Vehicle 50 0 Non-motor Vehicle 50 0 Counting Reset Timing Off Manual Reset Alarm Holding Time 20 Seconds Trigger Alarm Out Alarm Out Trigger SD Snap Trigger SD Recording Trigger Email Trigger FTP Save

1. Enable target counting and select the snapshot type and the detection target.

Detection Target: Select the target to calculate. Human, motor vehicle and motorcycle/bicycle can be selected.

Staying Threshold: When the targets (human/vehicle) staying in the specified area exceed the threshold, alarms will be triggered.

Counting Reset: The current number of the target counting can be reset. You can choose to reset the counting daily, weekly or monthly. Click "Reset" to manually reset the current number of crossing line people/car/bike counting.

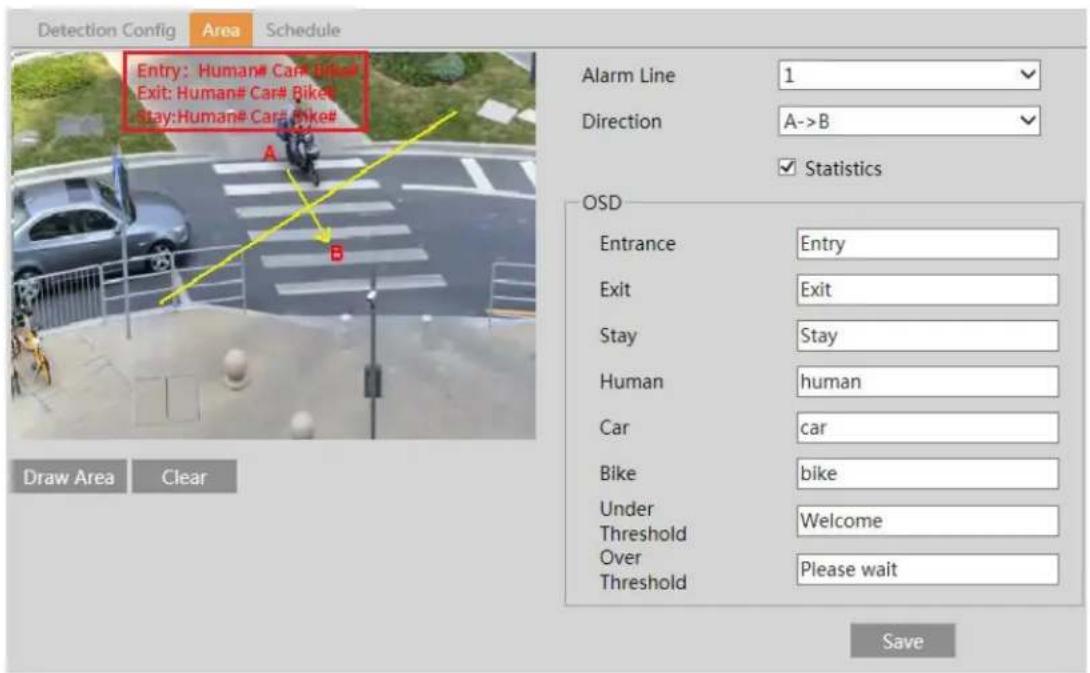

1. Set the area of the target counting. Click the "Area" tab to go to the interface as shown below.

Detection Config Area Schedule Entry: Human# Car# Bike# Exit: Human# Car# Bike# Stay: Human# Car# Bike# A B Draw Area Clear Alarm Line 1 Direction A->B ✓ Statistics OSD Entrance Entry Exit Exit Stay Stay Human human Car car Bike bike Under Welcome Threshold Over Please wait Threshold Save

Set the alarm line number and direction. Only one alarm line can be added.

Direction: A->B and A<-B can be optional. The direction of the arrow is entrance.

Statistics: If enabled, you can see the statistical information in the live view interface. If disabled, the statistical information will not be displayed in the live view interface.

The statistical OSD information can be customized as needed.

Click the "Draw Area" button and then drag the mouse to draw a line in the image. Check "Statistics" and then move the red box to change the position of the statistical information displayed on the screen. Click the "Stop Draw" button to stop drawing. Click the "Clear" button to delete the lines.

1. Set the schedule of the target counting. The setup steps of the schedule are the same as schedule recording setup (See Schedule Recording).
2. View the statistical information in the live view interface.

2021/04/23 14:46:49 Entry: human-2 car-2 bike-0 Exit : human-8 car-2 bike-0 Stay : human-2 car-2 bike-0 Welcome

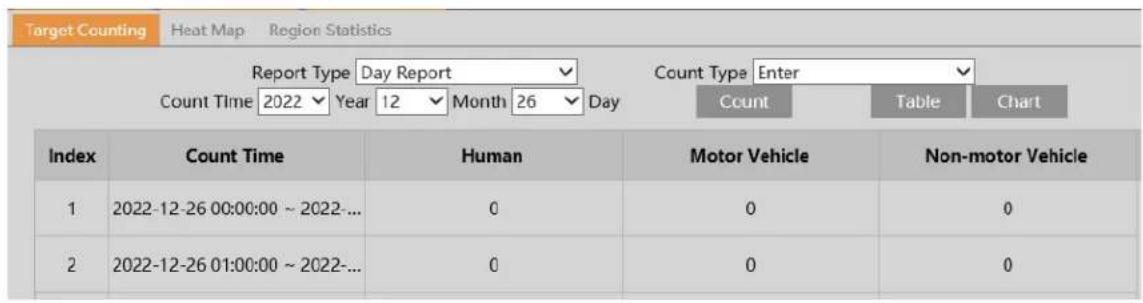

1. View the statistical information of target counting. Click "Chart" to enter the following interface.

Target Counting Heat Map Region Statistics Report Type Day Report Count Type Enter Count Time 2022 Year 12 Month 26 Day Count Table Chart Index Count Time Human Motor Vehicle Non-motor Vehicle 1 2022-12-26 00:00:00 ~ 2022-... 0 0 0 2 2022-12-26 01:00:00 ~ 2022-... 0 0 0

Select the report type. Daily report, weekly report, monthly report and annual report are selectable.

Select the count type. Enter or leave can be optional.

Select the start time and then click "Count". Then the counting result will display in the statistic result area. Click Table or Chart to display the result in different way.

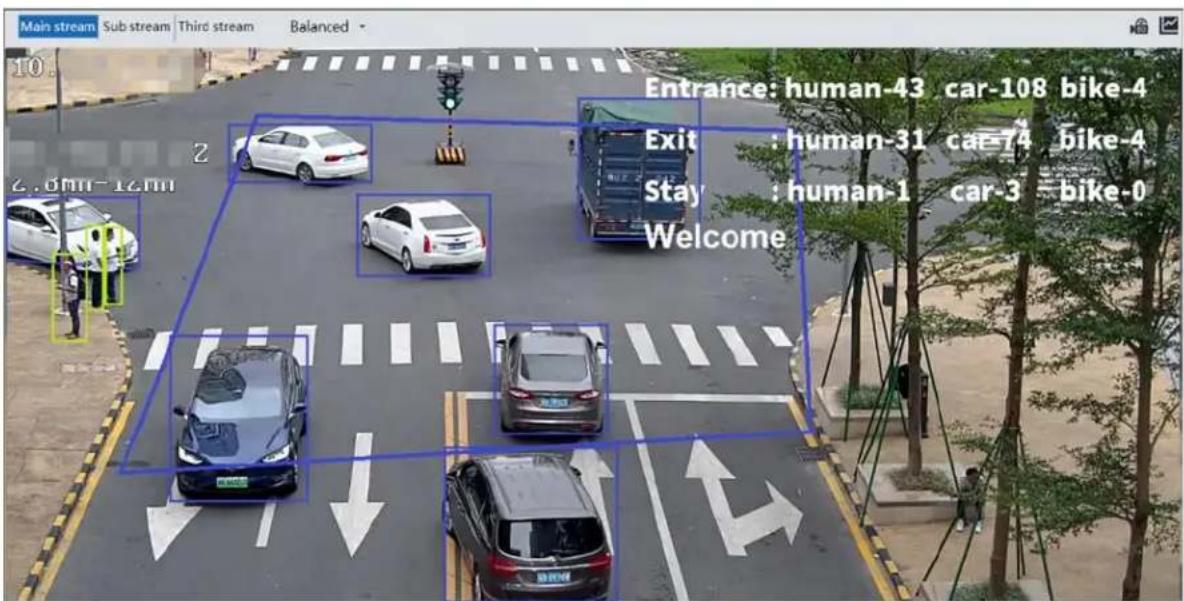

6.2.10 Region Statistics

This function is to calculate the number of the people or vehicles intruding into the pre-defined area through detecting, tracking and counting the shapes of the people or vehicles.

1. Go to Config→Event→Region Statistics as shown below.

Detection Config Area Schedule Enable Save Panoramic Picture To SD Card Save Target Cutout To SD Card Detection target Target Sensitivity Staying Threshold ✓ Human 50 100 ✓ Motor Vehicle 50 100 ✓ Non-motor Vehicle 50 100 Counting Reset Timing Off Manual Reset Alarm Holding Time 20 Seconds Trigger Alarm Out ✓ Alarm Out ✓ Trigger SD Snap ✓ Trigger SD Recording ✓ Trigger Email ✓ Trigger FTP

1. Enable target counting by area, select the snapshot type, the detection target, counting reset and alarm linkages. The setup steps are the same as the target counting by line.

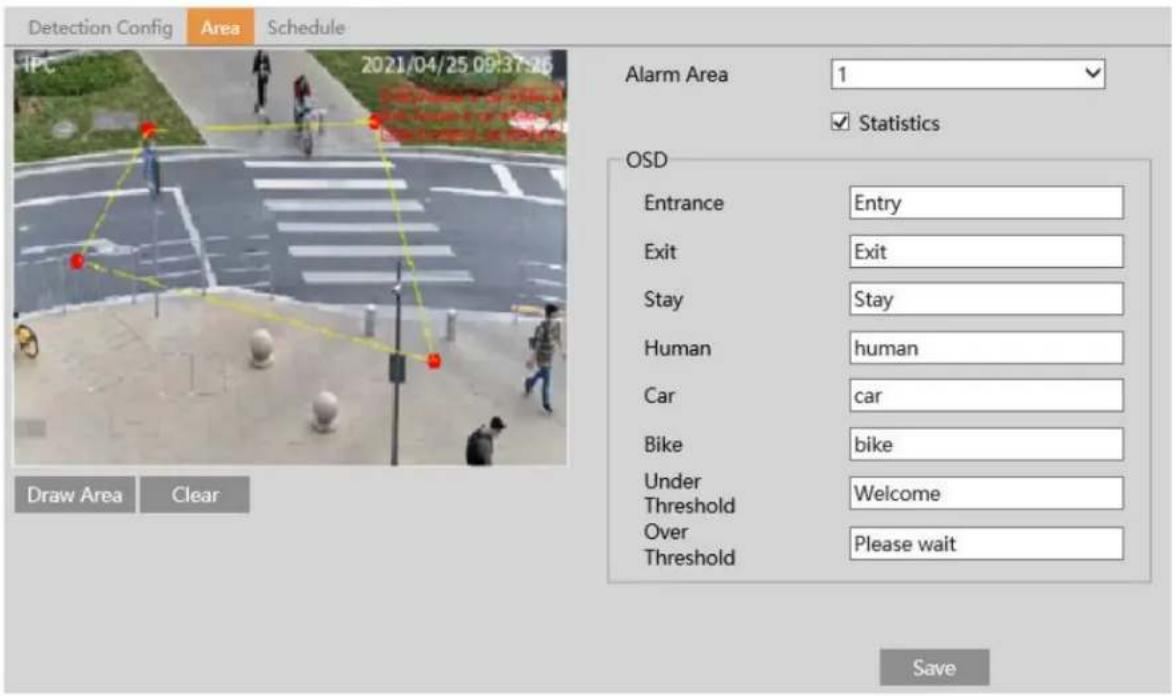

2. Set the statistic area. Click the "Area" tab to go to the interface as shown below.

Detection Config Area Schedule IPC 2021/04/25 09:37:26 Alarm Area 1 Statistics OSD Entrance Entry Exit Exit Stay Stay Human human Car car Bike bike Under Welcome Threshold Over Please wait Threshold

Select the alarm area number on the right side. Only one alarm area can be added.

Click the "Draw Area" button and then click around the area where you want to set as the alarm area in the image on the left side (the alarm area should be a closed area). Click the "Stop Draw" button to stop drawing. Click the "Clear" button to delete the alarm area. Click the "Save" button to save the settings.

1. Set the schedule of the target counting by area. The setup steps of the schedule are the same as schedule recording setup (See Schedule Recording).
2. View the statistical information in the live view interface.

Main stream Sub stream Third stream Balanced Entrance: human-43 car-108 bike-4 Exit : human-31 car-74 bike-4 Stay : human-1 car-3 bike-0 Welcome

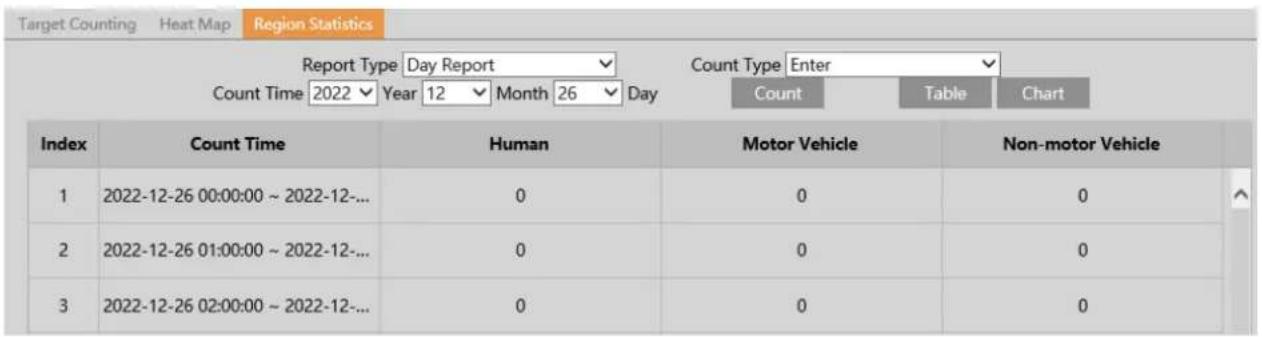

1. View the statistical information of region statistics. Click Chart→Region Statistics to enter the following interface.

Target Counting Heat Map Region Statistics Report Type Day Report Count Time 2022 Year 12 Month 26 Day Count Type Enter Count Table Chart Index Count Time Human Motor Vehicle Non-motor Vehicle 1 2022-12-26 00:00:00 ~ 2022-12-... 0 0 0 2 2022-12-26 01:00:00 ~ 2022-12-... 0 0 0 3 2022-12-26 02:00:00 ~ 2022-12-... 0 0 0

Please select report type, count type and start time as needed. Then click "Count" to search the statistic result. Click "Chart" to view the statistic result intuitively.

6.2.11 Heat Map

Heat Map is to display the flow distribution of people/vehicles in pre-defined areas by different colors.

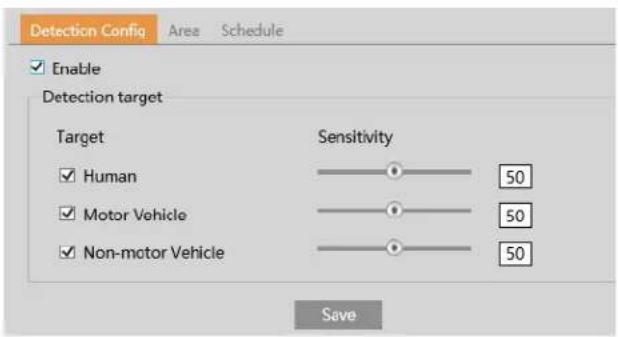

1. Enable Heat Map, set snapshot type and detection target type as needed.

Detection Config Area Schedule Enable Detection target Target Sensitivity ✓ Human 50 ✓ Motor Vehicle 50 ✓ Non-motor Vehicle 50 Save

1. Set heat map display area. Up to 4 areas can be set.

Detection Config Area Schedule IPEntrance: human-234 car-367 bike-15 Exit : human-137 car-297 bike-30 Stay : human-0 car-2 bike-0 Alarm Area 1 Draw Area Clear Save

Click the "Draw Area" button and then click around the area where you want to set as the alarm area in the image on the left side (the alarm area should be a closed area). Click the "Stop Draw" button to stop drawing. Click the "Clear" button to delete the alarm area. Click the "Save" button to save the settings.

1. Set the schedule of heat map. The setup steps of the schedule are the same as schedule recording setup (See Schedule Recording).

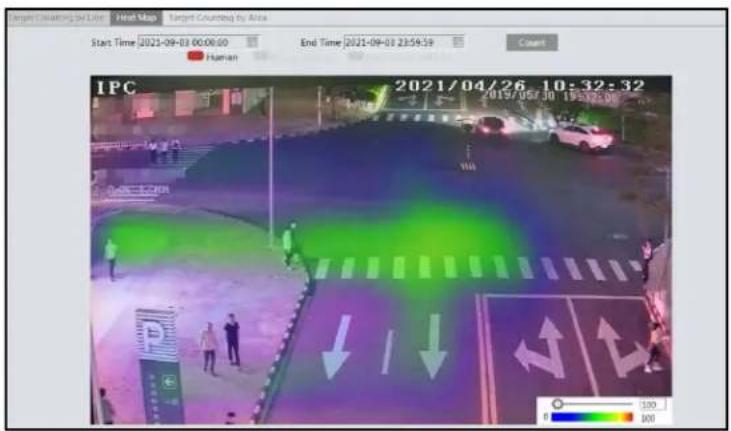

2. View the heat map data (click Chart→Heat Map). Set the start time and the end time. Click "Count" to view the heat map as

shown below. The default heat map is people flow data display. Click "Motor Vehicle" or "Non-motor Vehicle" to view the corresponding data.

Target Clustering Per Litter Host Map Target COUNCING By Area Start Time 2021-09-03 00:00:00 End Time 2021-09-03 23:59:59 Count Huanan IPC 2021/04/26 10:32:32 2019/05/30 19:32:00 P 0 100 0 100

6.2.12 License Plate Detection

License plate detection function is to detect and compare license plate numbers. Alarms will be triggered when a license plate is detected.

Vehicle license plate detection and comparison settings:

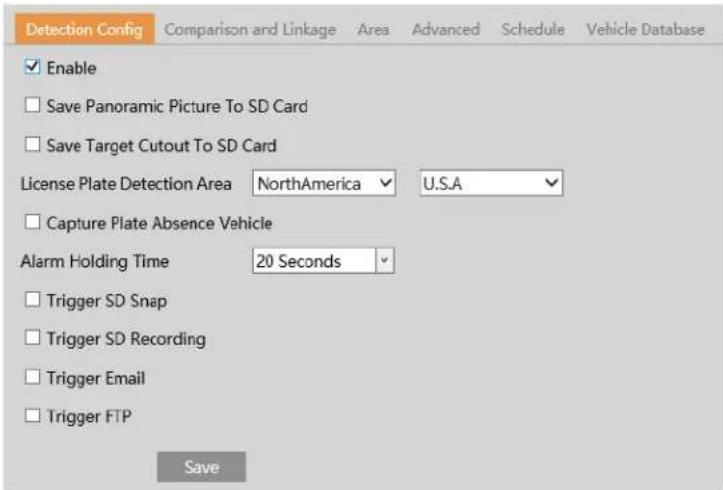

1. Go to Config→Event→ANPR as shown below.

Detection Config Comparison and Linkage Area Advanced Schedule Vehicle Database Enable Save Panoramic Picture To SD Card Save Target Cutout To SD Card License Plate Detection Area NorthAmerica U.S.A Capture Plate Absence Vehicle Alarm Holding Time 20 Seconds Trigger SD Snap Trigger SD Recording Trigger Email Trigger FTP Save

1. Enable ANPR. Select Save Original Picture/Target Picture to SD Card, License Plate Detection Area, and Capture Plate Absence Vehicle as needed.
2. Set alarm holding time and alarm trigger options. The setup steps are the same as motion detection. Please refer to motion detection section for details.
3. Set the alarm detection area and the blocked area.

Detection Config Comparison and Linkage Area Advanced Schedule Vehicle Database IPC 2021/04/30 15-25:51 Detection Area Blocked Area Min 3 % Max 30 % Draw Area Clear License Plate Exposure 1 Save

To set the detection area

Click "Draw Area" and drag the border lines of the rectangle to modify its size. Click "Stop Draw" to stop drawing the area. Click "Clear" to clear the area. Then set the detectable size by defining the maximum value and the minimum value (The default size range of a single number plate image occupies from 5% to 50% of the entire image).

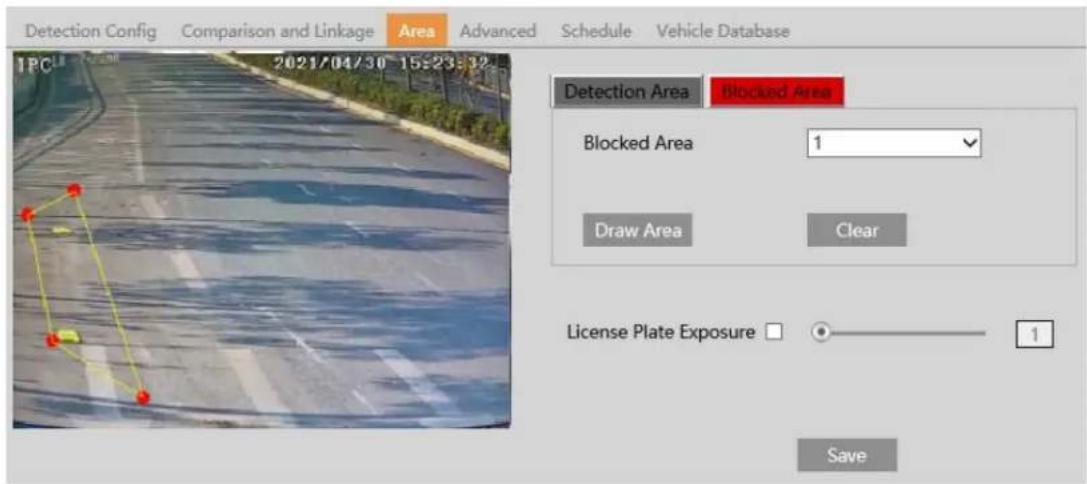

To set the blocked area:

Select the number of the undetected area. Then click "Draw Area" to draw a closed area. Up to 4 areas can be set up. After you set the blocked area, this area will not be detected.

Detection Config Comparison and Linkage Area Advanced Schedule Vehicle Database IPC 2021/04/30 15:23:32 Detection Area Blocked Area Blocked Area 1 Draw Area Clear License Plate Exposure 1 Save

1. Set the schedule of the ANPR. The setup steps of the schedule are the same as schedule recording setup (See Schedule Recording).
2. Add vehicles to the vehicle Database. Click the vehicle database tab to go to the following interface.

Add Task List License plate number List Type Allow list Start Time 2023-01-03 00:00:00 End Time 2023-01-03 23:59:59 Valid Owner Phone Number Paring Card Number License plate type Save License plate number List Type All Types Search Export Delete Batch Delete Index License plate Owner Phone Number Parking Card List Type Start Time End Time Operate

- Add vehicles

Click "Add" to extend a vehicle adding box as shown in the above figure. Enter the license plate number, select list type, start and end time, enter owner, license plate type, phone number and so on. Then click "Save" to save the vehicle information.

List type: temporary vehicle, allow list and block list can be selected.

Click "Task List" to add multiple vehicles at one time as shown below.

Add Task List Task List Path Browse Upload 1. License plate number is compulsory, a maximum of 12 characters supported. 2. Phone Number is compulsory, a maximum of 14 characters supported. 3. Owner name is compulsory, a maximum of 12 characters supported. 4. The effective start time is optional, format: YYY/MM/dd hh:mm:ss; time range is from 1970 to 2057. 5. The effective end time is optional, format: YYY/MM/dd hh:mm:ss; time range is from 1970 to 2057. 6. License plate type is optional, a maximum of 12 characters supported. 7. List Type is optional, 1 stands for block list; 2 stands for allow list; 3 stands for temporary vehicle. 8. Card Number is optional, a maximum of 9 numbers supported. Example Download License plate number List Type All Types Search Export Delete Batch Delete Index License plate Owner Phone Number Parking Card List Type Start Time End Time Operate

Please edit the vehicle information according to the requirements shown on the above interface. If you don't know how to edit the file, please click "Download" to download an example file and then follow the example to edit. After that, click "Browse" to choose the vehicle information file and click "Upload" to import all vehicle information.

- Search vehicles

After the vehicles are added, you can search them in the vehicle list. Enter the license plate number and list type and then click "Search" to search the added vehicle information. Click "Modify" to modify its information. Click "Delete" to delete this vehicle information.

1. Set the license plate comparison and alarm linkage. Click the "Comparison and linkage" tab to go to the following interface.

Detection Config Comparison and Linkage Area Advanced Schedule Vehicle Database Allow fault character(s) of the plate number 0 □ Deduplication Period 5 Seconds Alarm Trigger Mode License Plate Allow list Block list Temporary vehicle Unknown vehicle □ Alarm Out Save

Set the fault tolerance, alarm list and check "alarm out". Finally, click "Save" to save all the settings.

Allow fault character(s) of the plate number: up to 2 characters are allowed. For example, if "2" is selected, the captured license plate will be matched successfully and trigger the corresponding alarm even if there are 2 characters (or less) of the captured license plate not matched with the license plate of the vehicle list.

Deduplication Period: In the set period, delete the repeated comparison results.

Alarm Output: Select the list type and then checkmark alarm out. Then alarm output will be triggered when the captured plate number is matched successfully with the plate number of the selected list. If "Unknown vehicle" and vehicles without plate are captured, alarm out will be triggered immediately.

1. Advanced Settings. Click the "Advanced" tab to go to the following interface.

Detection Config Comparison and Linkage Area Advanced Schedule Vehicle Database Recognition Mode Overall Recognition Tolerant Digits 1↔7 1 ↔ 7 Add Delete Save

Recognition Mode: Overall Recognition, Recognizing when approaching, Recognizing when driving away.

Tolerant Digitals: please set the tolerant character pair as needed. For example: 1 and L, supposing that the plate number "ABCL" has been added to the vehicle database, when the plate number "ABC1" is detected by the camera, then these two plate numbers will be matched successfully, and vice versa.

Multiple tolerant digital pairs can be set as needed.

After all above information are set, go to the live interface and click 📄 to see the captured pictures as shown below.

Main stream Sub stream Third stream Balanced 2019/11/29 08:31 07.3) blue 3X 05 2021-04-23 16:21:01

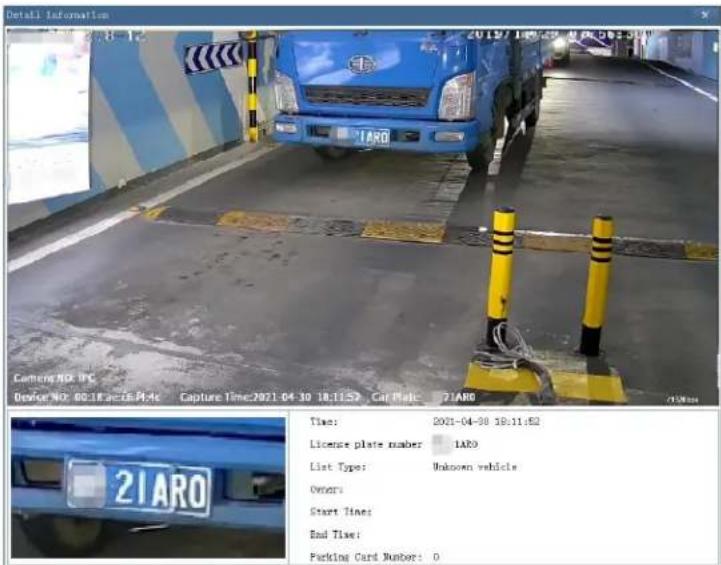

When the captured license plate is matched with the license plate of the vehicle database, the list type will be displayed under the license plate number. Click the matched license plate picture, the matched details will pop up as shown below.

Detail Information 2019/14/30 18:11:52 Cathens NO: IPC Device No: 00.18 ac:26.Pt:4c Capture Time:2021-04-30 18:11:52, Cat Plate: 21ARO Time: 2021-04-30 18:11:52 License plate number: IARO List Type: Unknown vehicles Owner: Start Time: End Time: Packing Card Number: 0

※ Configuration requirements of camera and surrounding area

• The monitoring image shall try to cover the lane, entering/exiting vehicles and these vehicles' plate number shall be always seen in the video.
• Try to avoid the objects that will block the camera, such as pillars, obstacles, doors, etc.
• Avoid the scenes with many trees or other moving objects (like humans, non-motor vehicles).
• The monitoring road shall be straight within 50 meters in front of/behind the location of the camera installation and make sure the camera points at the front or rear of the vehicle.

6.3 Network Configuration

6.3.1 TCP/IP

Go to Network→TCP/IP interface as shown below. There are two ways for network connection.

IPv4 IPv6 PPPoE Config IP Change Notification Obtain an IP address automatically Use the following IP address IP Address 192.168.226.201 Test Subnet Mask 255.255.255.0 Gateway 192.168.226.1 Preferred DNS Server 192.168.226.1 Alternate DNS Server 8.8.8.8 Save

Use IP address (take IPv4 for example)-obtain a local IP address automatically through DHCP. A typical router has a DHCP server built in, and therefore is able to assign an IP address to the camera.

Use PPPoE-Click the "PPPoE Config" tab to go to the interface as shown below. Enable PPPoE and then enter the user name and password from your ISP.

IPv4 IPv6 PPPoE Config IP Change Notification Enable User Name xxxxx Password ••••••• Save

Either method of network connection can be used. If PPPoE is used to connect internet, the camera will get a dynamic WAN IP address. This IP address will change frequently. To be notified, the IP change notification function can be used. Click "IP Change Notification Config" to go to the interface as shown below.

IPv4 IPv6 PPPoE Config IP Change Notification Trigger Email Trigger FTP Save

Trigger Email: when the IP address of the device is changed, the new IP address will be sent to the email address that has been set up.

Trigger FTP: when the IP address of the device is changed, the new IP address will be sent to FTP server that has been set up.

6.3.2 Port

Go to Network→Ports/Connections interface as shown below. HTTP port, Data port and RTSP port can be set.

HTTP Port 80 HTTPS Port 443 Data Port 554 RTSP Port 9008 Persistent connection Port 8080 Enable ✓ WebSocket Port 7681 Save

HTTP Port: The default HTTP port is 80. It can be changed to any port which is not occupied.

HTTPS Port: The default HTTPS port is 443. It can be changed to any port which is not occupied.

Data Port: The default data port is 9008. Please change it as necessary.

RTSP Port: The default port is 554. Please change it as necessary.

Persistent Connection Port: The port is used for a persistent connection of the third-party platform to push smart data, like face pictures.

WebSocket Port: Communication protocol port for plug-in free preview.

6.3.3 Server Configuration

This function is mainly used for connecting network video management system.

Enable Server Port 2009 Server Address Device ID 1 Save

1. Check "Enable".

2. Check the IP address and port of the transfer media server in the VMS. Then enable the auto report in the VMS when adding a new device. Next, enter the remaining information of the device in the VMS. After that, the system will automatically allot a device ID. Please check it in the VMS.

3. Enter the above-mentioned server address, server port and device ID in the corresponding boxes. Click the "Save" button to save the settings.

6.3.4 Onvif

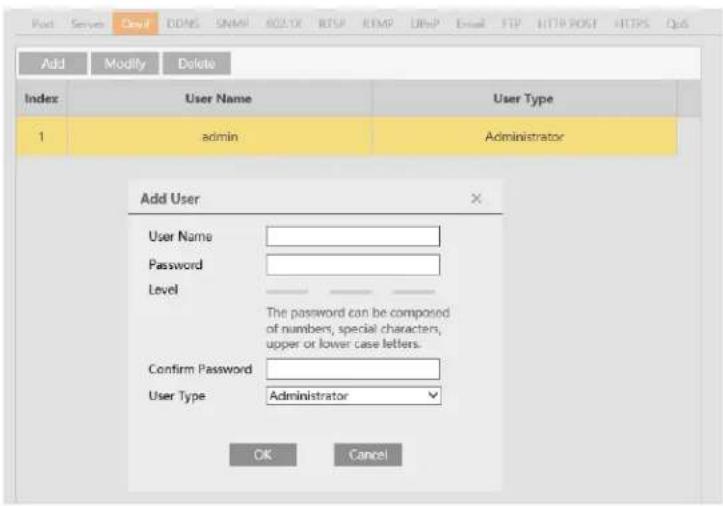

The camera can be searched and connected to the third-party platform via ONVIF/RTSP protocol.

Add Send Send DDNS SNMI R02.TX RTSP RTMP USBP Email FTP HTTP POST HTTPS QoS Add Modify Delete Index User Name User Type 1 admin Administrator Add User User Name Password Level The password can be composed of numbers, special characters, upper or lower case letters. Confirm Password User Type Administrator OK Cancel

Note: when adding the device to the third-party platform with ONVIF/RTSP protocol, please enter the username and password created in the above interface.

6.3.5 DDNS

If the camera is set up with a DHCP connection, DDNS should be set for accessing the camera from the internet.

1. Go to Network→DDNS.

Enable Server Type specoddns.net Domain state disconnect Save

1. Enable, save and use DDNS to log in.

Enable Server Type specoddns.net Domain speco008954.specoddns.net State connect(210.21.229.138) Save

6.3.6 SNMP

To get camera status, parameters and alarm information and remotely manage the camera, the SNMP function can be used. Before using SNMP, please install an SNMP management tool and set the parameters of the SNMP, such as SNMP port, trap address.

1. Go to Network→SNMP.

SNMP v1/v2 Enable SNMPv1 Enable SNMPv2 Read SNMP Community public Write SNMP Community private Trap Address 192.168.226.201 Trap Port 162 Trap community public SNMP v3 Enable SNMPv3 Read User Name public Security Level auth. priv Authentication Algorithm MD5 SHA Authentication Password ********** Private-key Algorithm DES AES Private-key Algorithm ********** Write User Name private Security Level auth. priv Authentication Algorithm MD5 SHA Authentication Password ********** Private-key Algorithm DES AES Private-key Algorithm ********** Other Settings SNMP Port 161 Save

1. Check the corresponding version checkbox (Enable SNMPv1, Enable SNMPv2, Enable SNMPv3) according to the version of the SNMP software that will be used.
2. Set the values for "Read SNMP Community", "Write SNMP Community", "Trap Address", "Trap Port" and so on. Please make sure the settings are the same as that of the SNMP software.

6.3.7 802.1x

If it is enabled, the camera's data can be protected. When the camera is connected to the network protected by the IEE802.1x, user authentication is needed.

Enable Protocol Type EAP_MD5 EAPOL Version 1 User Name Password ••••••• Confirm Password ••••••• Save

To use this function, the camera shall be connected to a switch supporting 802.1x protocol. The switch can be reckoned as an

authentication system to identify the device in a local network. If the camera connected to the network interface of the switch has passed the authentication of the switch, it can be accessed via the local network.

Protocol type and EAPOL version: Please use the default settings.

User name and password: The user name and password must be the same with the user name and password applied for and registered in the authentication server.

6.3.8 RTSP

Go to Network→RTSP.

Enable Port 9008 Address rtsp//IP or domain name:port/profile1 rtsp//IP or domain name:port/profile2 rtsp//IP or domain name:port/profile3 Multicast address Main stream 239.0.0.0 50554 □ Automatic start Sub stream 239.0.0.1 51554 □ Automatic start Sub stream 2 239.0.0.2 52554 □ Automatic start Audio 239.0.0.3 53554 □ Automatic start □ Allow anonymous login (No username or password required)

Select "Enable" to enable the RTSP function.

Port: Access port of the streaming media. The default number is 554.

RTSP Address: The RTSP address (unicast) format that can be used to play the stream in a media player.

Multicast Address

Main stream: The address format is

"rtsp://IP address: rtsp port/profile1?transportmode=mcast".

Sub stream: The address format is

"rtsp://IP address: rtsp port/profile2?transportmode=mcast".

Third stream: The address format is

"rtsp://IP address: rtsp port/profile3?transportmode=mcast".

Audio: Having entered the main/sub stream in a media player(like VLC), the video and audio will play automatically. If "Allow anonymous login..." is checked, there is no need to enter the username and password to view the video.

If "auto start" is enabled, the multicast received data should be added into a VLC player to play the video.

6.3.9 RTMP

You can access the third-party (like YouTube) to realize video live view through RTMP protocol. Go to Config→Network→RTMP.

Port Server Onvif DDNS SNMP 802.1X RTSP RTMP UPnP Email Enable (Only supports H264) Stream Type: Main stream Sub stream Third stream Reconnect After Timeout 30 Second Server Address example : rtmp://127.0.0.1:1935/live/liv Connection Status Not Connected Refresh Save

Check "Enable", select stream type, set the reconnection time after timeout and server address as needed.

Server address: Enter the server address allocated by the third party server.

After that, click "Save" to save the settings. Then click "Refresh" to view the connection status.

6.3.10 UPNP

If this function is enabled, the camera can be quickly accessed through the LAN. Go to Network→UPnP. Enable UPNP and then enter UPnP name.

Enable UPnP Name Save

6.3.11 Email

If you need to trigger Email when an alarm happens or IP address is changed, please set the Email here first. Go to Network→Email.

Sender Sender Address User Name Anonymous Login Password Server Address Secure Connection Unnecessary SMTP Port 25 Default Send Interval(S) 60 (10-3600) Clear Test Recipient Recipient Address Add Delete Save

Sender Address: sender's e-mail address.

User name and password: sender's user name and password (you don't have to enter the username and password if "Anonymous Login" is enabled).

Server Address: The SMTP IP address or host name.

Select the secure connection type at the "Secure Connection" pull-down list according to what's required.

SMTP Port: The SMTP port.

Send Interval(S): The time interval of sending email. For example, if it is set to 60 seconds and multiple motion detection alarms are triggered within 60 seconds, they will be considered as only one alarm event and only one email will be sent. If one motion alarm event is triggered and then another motion detection alarm event is triggered after 60 seconds, two emails will be sent. When different alarms are triggered at the same time, multiple emails will be sent separately.

Click the "Test" button to test the connection of the account.

Recipient Address: receiver's e-mail address.

6.3.12 FTP

After an FTP server is set up, captured pictures from events will be uploaded to the FTP server. Go to Network→FTP.

Server Name Server Address Port User Name Password Add FTP Server Name Server Address Upload Path Example:/Dir/folder Port 21 Anonymous OK Cancel Add Modify Delete Test Save

Server Name: The name of the FTP server.

Server Address: The IP address or domain name of the FTP.

Upload Path: The directory where files will be uploaded to.

Port: The port of the FTP server.

Use Name and Password: The username and password that are used to login to the FTP server.

6.3.13 HTTPS

HTTPS provides authentication of the web site and protects user privacy.

Go to Network→HTTPS as shown below.

Enable Certificate installed C=CN, ST=GD, L=SZ, O=embeddedsoftware. Delete Issued to: C=CN, ST=GD, L=SZ, O=embeddedsoftware, OU=IPC, H=localhost, E=com.cn, Issuer: C=CN, ST=GD, L=SZ, O=embeddedsoftware, OU=IPC, H=localhost, E=com.cn, Validity date: 2017-07-26 01:02:07 - 2022-07-26 01:01:07 Save

There is a certificate installed by default as shown above. Enable this function and save it. Then the camera can be accessed by entering https://IP: https port via the web browser (eg. https://192.168.226.201:443).

A private certificate can be created if users don't want to use the default one. Click "Delete" to cancel the default certificate. Then the following interface will be displayed.

Enable Installation type Have signed certificate, install directly Create a private certificate Create a certificate request Install certificate Browse Install Save

* If there is a signed certificate, click "Browse" to select it and then click "Install" to install it.
* Click "Create a private certificate" to enter the following creation interface.

Enable Installation type Have signed certificate, install directly Create a private certificate Create a certificate request Create a private certificate Create Save

Click the "Create" button to create a private certificate. Enter the country (only two letters available), domain (camera's IP address/domain), validity date, password, province/state, region and so on. Then click "OK" to save the settings.

* Click "Create a certificate request" to enter the following interface.

Enable Installation type Have signed certificate, install directly Create a private certificate Create a certificate request Create a certificate request Create Download Delete Save

Click "Create" to create the certificate request. Then download the certificate request and submit it to the trusted certificate authority for signature. After receiving the signed certificate, import the certificate to the device.

6.3.14 HTTP POST

Go to Config→Network →HTTP POST interface.

Check "Enable", select protocol type and then set the server address (IP address/domain name), server port and heartbeat interval.

Enable Protocol Type API Server Address ... Server Port 8082 Heartbeat interval 90 Second Online State Offline Refresh Save

Server address: the IP address/domain name of the third-party platform.

Server port: the server port of the third-party platform.

After the above parameters are set, click "Save" to save the settings. Then the camera will automatically connect the third-party platform. The online state can be viewed in the above interface. After the camera is successfully connected, it will send the alarm information (HTTP format) to the third-party platform once the smart alarm is triggered. The alarm information includes target tracing coordinates, target features, the captured original/target image (like the captured face picture, motor vehicle picture) and so on.

6.3.15 QoS

QoS (Quality of Service) function is used to provide different quality of services for different network applications. With the deficient bandwidth, the router or switch will sort the data streams and transfer them according to their priority to solve the network delay and network congestion by using this function.

Go to Network→QoS.

Video/Audio DSCP 0 Alarm DSCP 0 Manager DSCP 0 Save

Video/Audio DSCP: The range is from 0 to 63.

Alarm DSCP: The range is from 0 to 63.

Manager DSCP: The range is from 0 to 63.

Generally speaking, the larger the number is, the higher the priority is.

6.4 Security Configuration

6.4.1 User Admin

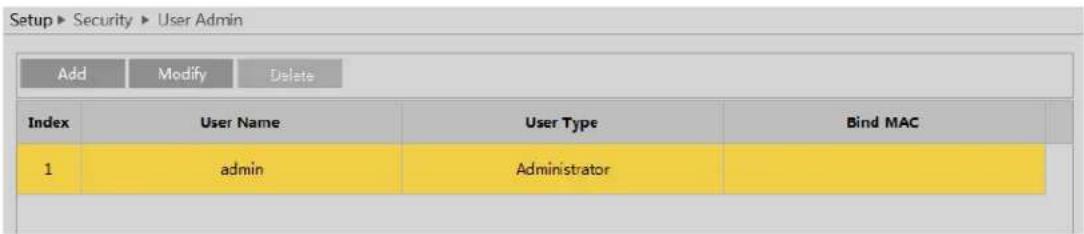

Go to Security→User Admin interface as shown below.

Setup ▶ Security ▶ User Admin Add Modify Delete Index User Name User Type Bind MAC 1 admin Administrator

Add user:

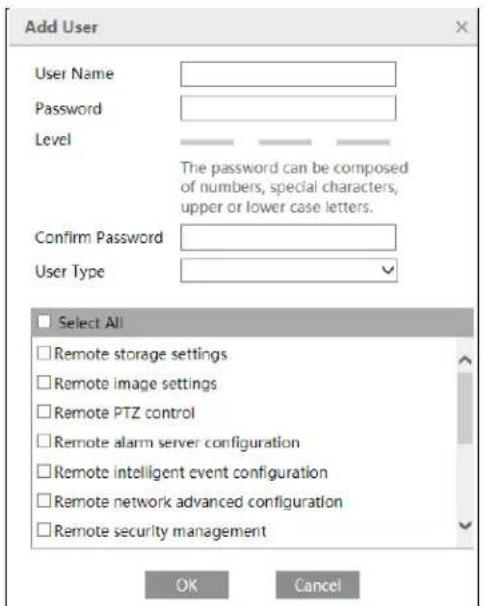

1. Click "Add" to pop up the following textbox.

Add User User Name Password Level The password can be composed of numbers, special characters, upper or lower case letters. Confirm Password User Type Select All Remote storage settings Remote image settings Remote PTZ control Remote alarm server configuration Remote intelligent event configuration Remote network advanced configuration Remote security management OK Cancel

1. Enter user name in "User Name" textbox.
2. Enter letters or numbers in "Password" and "Confirm Password" textbox. Please set the password according to the requirement of the password security level (Go to Setup→Security→Security Management→Password Security interface to set the security level).
3. Choose the user type and select the permission.
4. Click the "OK" button and then the newly added user will be displayed in the user list.

Modify user:

1. Select a user to modify password and MAC address if necessary in the user configuration list box.
2. The "Edit user" dialog box pops up by clicking the "Modify" button.

Edit User User Name admin Old Password New Password Level The password can be composed of numbers, special characters, upper or lower case letters. Confirm Password User Type Administrator ✓ Select All ✓ Remote storage settings ✓ Remote image settings ✓ Remote PTZ control ✓ Remote alarm server configuration ✓ Remote intelligent event configuration ✓ Remote network advanced configuration ✓ Remote security management OK Cancel

1. Enter the old password of the user in the "Old Password" text box.
2. Enter the new password in the "New password" and "Confirm Password" text box.
3. Modify the permission as necessary.
4. Click the "OK" button to save the settings.

Note: To change the access level of a user, the user must be deleted and added again with the new access level.

Delete user:

1. Select the user to be deleted in the user configuration list box.
2. Click the "Delete" button to delete the user.

Note: The default administrator account cannot be deleted.

6.4.2 Online User

Go to Security→Online User to view the user who is viewing the live video.

Index	Client Address	Port	User Name	User Type
1	192.168.17.232	55760	admin	Administrator	Kick Out

An administrator user can kick out all the other users (including other administrators).

6.4.3 Block and Allow Lists

Go to Security→Block and Allow Lists as shown below.

IP Address Filter Settings Enable address filtering Block the following address Allow the following address Add Delete 0.0.0.0 IPv4 IPv6 Save

The setup steps are as follows:

Check the "Enable address filtering" check box.

Select "Block/Allow the following address", IPv4/IPv6 and then enter IP address in the address box and click the "Add" button.

6.4.4 Security Management

Go to Security→Security Management as shown below.

Security Service Password Security Authentication Enable "locking once illegal login" function Trigger Email Logout Time 3600 Second Save

In order to prevent against malicious password unlocking, "locking once illegal login" function can be enabled here. If this function is enabled, login failure after trying five times will make the login interface locked. The camera can be logged in again after a half hour or after the camera reboots.

Trigger Email: if enabled, e-mail will be sent when logging in/out or illegal login lock occurs.

Logout time: Set the logout time as needed. For example: 3600s, you will be automatically logged out after 3600s and then you need to enter the username and password again to log in.

- Password Security

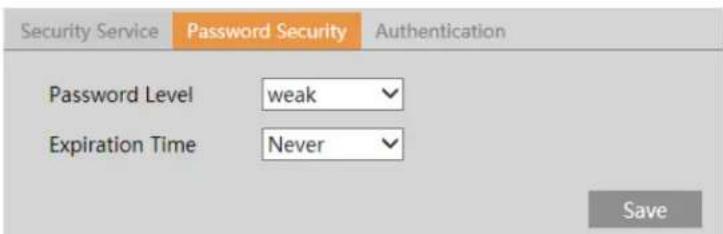

Security Service Password Security Authentication Password Level weak Expiration Time Never Save

Please set the password level and expiration time as needed.

Password Level: Weak, Medium or Strong.

Weak level: Numbers, special characters, upper or lower case letters can be used. You can choose one of them or any combination of them when setting the password.

Medium Level: 8\~16 characters, including at least two of the following categories: numbers, special characters, upper case letters, lower case letters.

Strong Level: 8\~16 characters. Numbers, special characters, upper case letters and lower case letters must be included.

For your account security, it is recommended to set a strong password and change your password regularly.

HTTP Authentication: Basic or Token is selectable.

6.5 Maintenance Configuration

6.5.1 Backup and Restore

Go to Maintenance→Backup & Restore.

Import Setting Path Browse Import Setting Export Settings Export Settings Run Log Config Enable Log Level INFO File Size 1024 KB Save Export Default Settings Keep Network Config Security Configuration Image Configuration Load Default

- Import & Export Settings

Configuration settings of the camera can be exported from a camera into another camera.

1. Click "Browse" to select the save path for import or export information on the PC.

2. Click the "Import Setting" or "Export Setting" button.

- Running Log Settings

After enabling it, select the log level and file size and click "Save". Then the system will collect logs accordingly. When the device error occurs, you can export these logs and send them to the technician to find out the problem.

- Default Settings

Click the "Load Default" button to restore all system settings to the default factory settings except those you want to keep.

6.5.2 Reboot

Go to Maintenance→Reboot.

Click the "Reboot" button to reboot the device.

Timed Reboot Setting:

If necessary, the camera can be set up to reboot on a time interval. Enable "Time Settings", set the date and time and then click the "Save" button to save the settings.

6.5.3 Upgrade

Go to Maintenance→Upgrade. In this interface, the camera firmware can be updated.

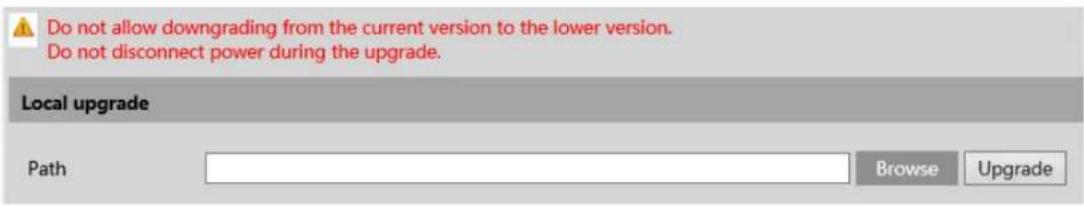

Do not allow downgrading from the current version to the lower version. Do not disconnect power during the upgrade. Local upgrade Path Browse Upgrade

1. Click the "Browse" button to select the save path of the upgrade file
2. Click the "Upgrade" button to start upgrading the firmware.
3. The device will restart automatically

Caution! Do not close the browser or disconnect the camera from the network during the upgrade.

6.5.4 Operation Log

To query and export log:

1. Go to Maintenance→Operation Log.

Setup > Maintenance > Log Main Type All log Sub Type All log Start Time 2019-04-08 00:00:00 End Time 2019-04-08 23:59:59 Search Export Index Time Main Type Sub Type User Name Login IP 1 2019-04-08 08:43:43 Alarm Motion start 2 2019-04-08 08:43:24 Alarm Vfd Alarm 3 2019-04-08 08:43:14 Alarm Motion stop 4 2019-04-08 08:41:20 Alarm Motion start 5 2019-04-08 08:40:26 Alarm Motion stop 6 2019-04-08 08:40:06 Alarm Motion start 7 2019-04-08 08:37:18 Alarm Motion stop 8 2019-04-08 08:34:43 Alarm Motion start

1. Select the main type, sub type, start and end time.
2. Click "Search" to view the operation log.
3. Click "Export" to export the operation log.

7 Search

7.1 Image Search

In the Setup interface, click Search to go to the interface as shown below. Images that are saved on the PC or SD card can be found here.

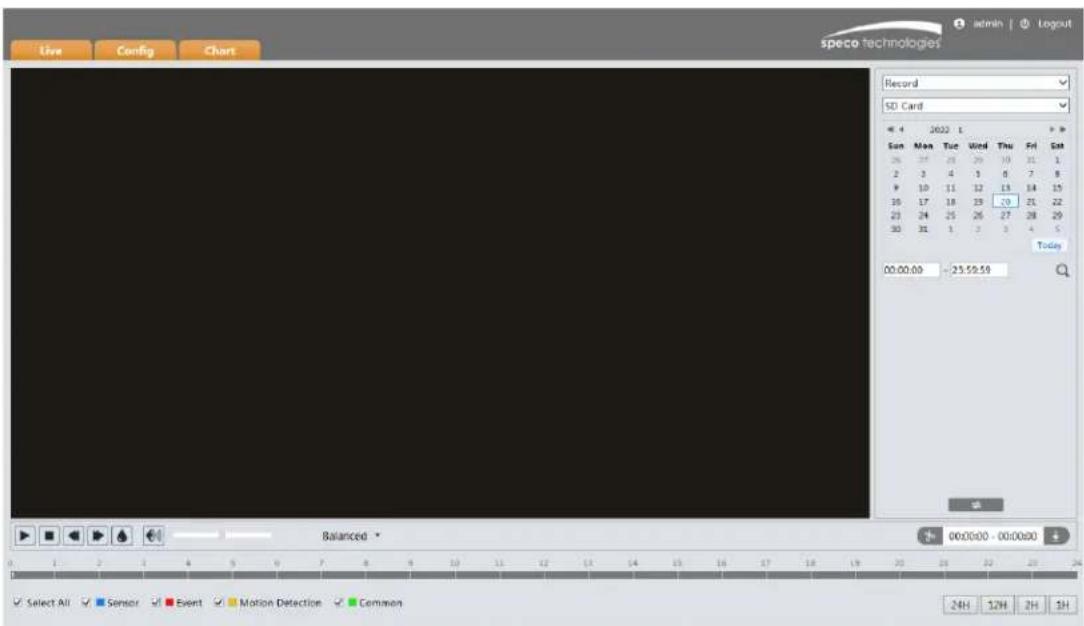

Live Config Chart speco technologies admin Logout Record SD Card Sun Mon Tue Wed Thu Fri Sat 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 Today 00:00:00 -25:59:59 Balanced Select All Sensor Event Motion Detection Common 24H 12H 2H 3H

- Local Image Search

1. Choose "Picture"—"Local".
2. Set time: Select date and choose the start and end time.

3. Click to search the images.

4. Double click a filename in the list to view the captured photos as shown above.

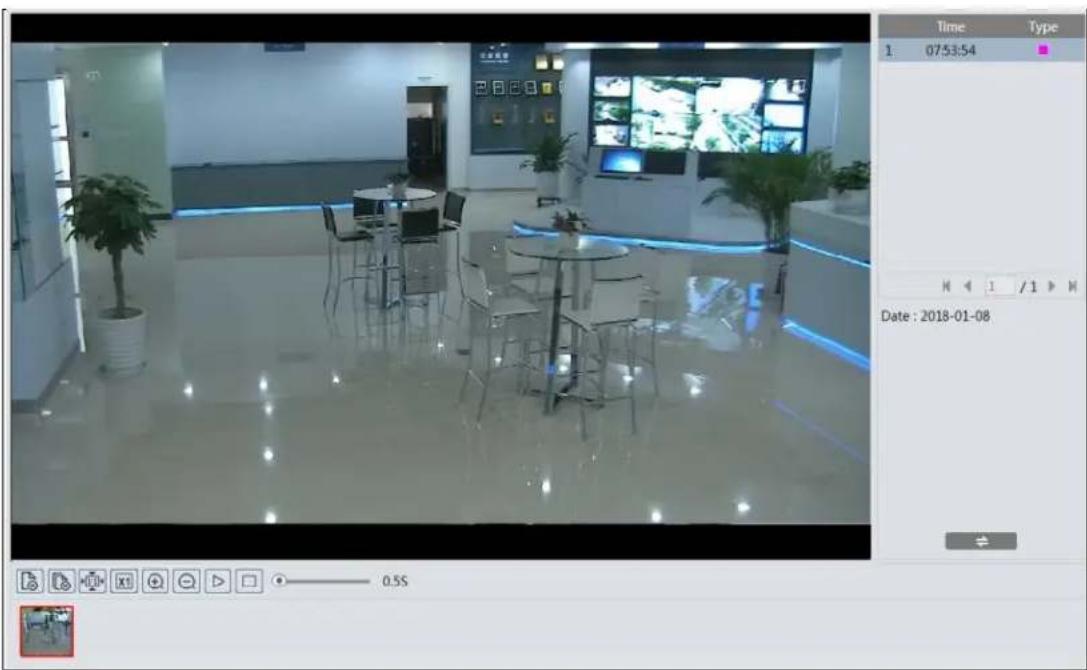

Time Type 1 07:53:54 Date : 2018-01-08 0.5S

Click to return to the previous interface.

- SD Card Image Search

1. Choose "Picture"—"SD Card".

Picture S0 Card Date: 2022 1 Sun Mon Tue Wed Thu Fri Ent 26 27 28 29 30 31 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 26 27 28 29 30 31 32 30 31 32 33 34 35 Today 00:00:00 - 23:58:58 Select All Sensor Event Motion Detection Common

1. Set time: Select date and choose the start and end time.
2. Choose the alarm events at the bottom of the interface.
3. Click to search the images.
4. Double click a file name in the list to view the captured photos.

Click to return to the previous interface.

The descriptions of the buttons are shown as follows.

Icon	Description	Icon	Description
	Close: Select an image and click this button to close the image.	[KDYI]	Close all: Click this button to close all images.
	Save: Click this button to select the path for saving the image on the PC.		Save all: Click this button to select the path for saving all pictures on the PC.
	Fit size: Click to fit the image on the screen.		Actual size: Click this button to display the actual size of the image.
	Zoom in: Click this button to digitally zoom in.		Zoom out: Click this button to digitally zoom out.
	Slide show play: Click this button to start the slide show mode.		Stop: Click this button to stop the slide show.
	Play speed: Play speed of the slide show.

7.2 Video Search

7.2.1 Local Video Search

Click Search to go to the interface as shown below. Videos were recorded locally to the PC can be played in this interface.

Record Local Sun Mon Tue Wed Thu Fri Sat 31 1 2 3 4 5 6 7 ■ 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 1 7 3 4 5 6 7 8 9 10 Today 00:00:00 - 23:59:59 Balanced 24H 12H 2H 1H

1. Choose "Record"—"Local".
2. Set search time: Select the date and choose the start and end time.
3. Click to search the images.
4. Double click on a file name in the list to start playback.

Start Time Duration 1 07:50:40 00:00:05 Date : 2018-01-08 Balanced

Icon	Description	Icon	Description
(DXKY)	Play button. After pausing the video, click this button to continue playing.		Pause button
(Y7Y8)	Stop button		Speed down
(ZYK7)	Speed up		Watermark display
[6302] [8X46]	Enable / disable audio; drag the slider to adjust the volume after enabling audio.

7.2.2 SD Card Video Search

Click Search to go to the interface as shown below. Videos that were recorded on the SD card can be played in this interface.

1. Choose "Record"—"SD Card".
2. Set search time: Select the date and choose the start and end time.
3. Click to search the images.

Record SD Card Sun Mon Tue Wed Thu Fri Sat 26 27 28 29 30 31 1 2 3 4 5 6 7 8 8 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 1 2 3 4 5 Today 00:00:00 - 2h5h59 Balanced Select All Sensor Event Motion Detection Common 24H 12H 2H 1H

1. Select the alarm events at the bottom of the interface.
2. Select mix stream (video and audio stream) or video stream as needed.
3. Double click on a file name in the list to start playback.

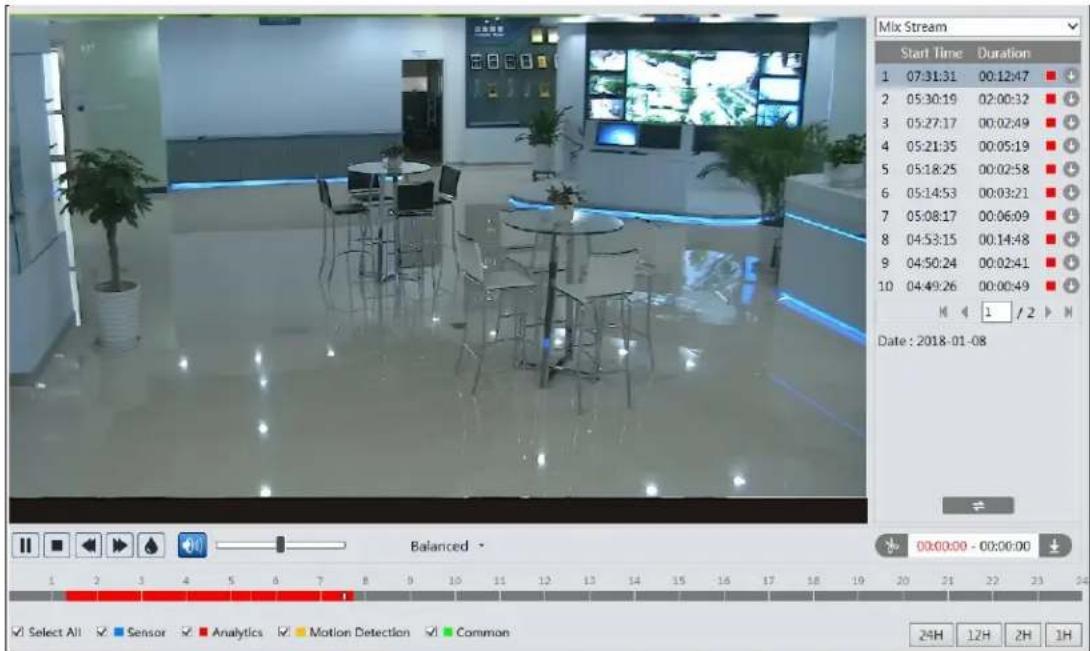

Mix Stream Start Time Duration 1 07:31:31 00:12:47 2 05:30:19 02:00:32 3 05:27:17 00:02:49 4 05:21:35 00:05:19 5 05:18:25 00:02:58 6 05:14:53 00:03:21 7 05:08:17 00:06:09 8 04:53:15 00:14:48 9 04:50:24 00:02:41 10 04:49:26 00:00:49 Date : 2018-01-08 Balanced Select All Sensor Analytics Motion Detection Common 24H 12H 2H 1H

The time table can be shown in 24H/12H/2H/1H format by clicking the corresponding buttons.

Video clip and downloading

1. Search the video files according to the above mentioned steps.
2. Select the start time by clicking on the time table.
3. Click 🧑 to set the start time and then this button turns blue ( ✉ ).
4. Select the end time by clicking on the time table. Then click 📋 to set the end time.
5. Click to download the video file in the PC.

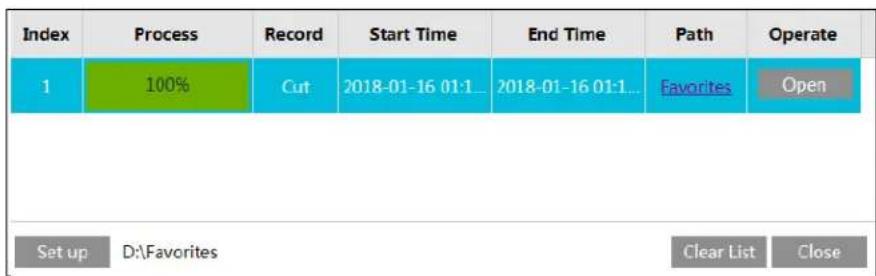

Index Process Record Start Time End Time Path Operate 1 100% Cut 2018-01-16 01:1... 2018-01-16 01:1... Favorites Open Set up D:\Favorites Clear List Close

Click "Set up" to set the storage directory of the video files.

Click "Open" to play the video.

Click "Clear List" to clear the downloading list.

Click "Close" to close the downloading window.

8 Face & Plate Recognition Result Search

8.1 Face Recognition Result Search

Click Data Record→Face Log tab to go to the face recognition result search interface. Set the start time and end time and click "Search" to view the face recognition result.

Face Log Vehicle Log Face recognition result Search Start Time 2021-04-26 08:00:00 End Time 2021-06-00 23:59:59 Search Tips: A maximum of 2000 face pictures can be searched at a time. Export (in) Export Result Number of Queries 23 Start Time 2021-04-30 18:47:38:435 End Time 2021-04-30 11:32:14:688 View 1 - 15 of 23

Red time tag means no comparison result. Green time tag means there is a comparison result. Click the picture with green time tag and then the face comparison information can be viewed as shown below.

Face recognition information Comparison Information Similarity 87 % Snapshot time 2023-01-03 04:10:38 480 Similarity threshold 60 % Face ID 2 Personnel Information Name xx Gender Female Age 0 Type Allow list Tel ID Number Remark

8.2 License Plate Recognition Result Search

Click Data Record→Vehicle Log tab to go to the license plate recognition result search interface.

Set the start time and end time and click "Search" to view the license plate recognition result.

You can also filter the plate number by selecting the list type or entering the desired license plate number.

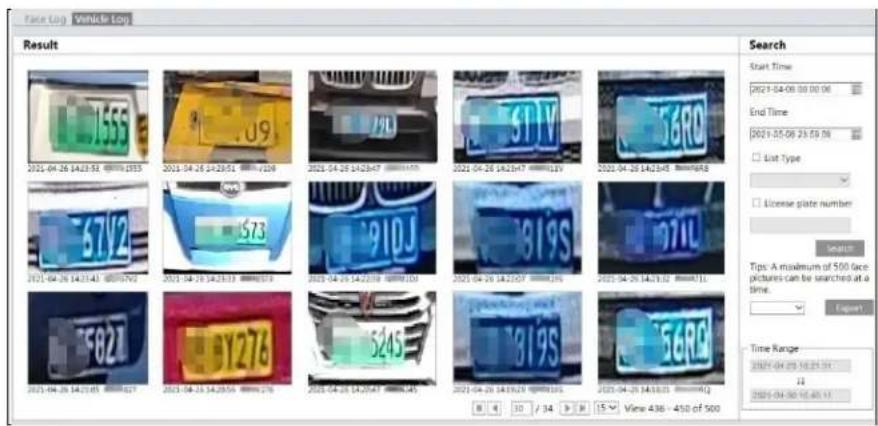

Face Log Vehicle Log Result 2021-04-26 14:23:51 2021-04-26 14:23:51 2021-04-26 14:23:47 2021-04-26 14:23:47 2021-04-26 14:23:47 2021-04-26 14:23:47 2021-04-26 14:23:47 2021-04-26 14:23:45 2021-04-26 14:23:45 2021-04-26 14:23:45 2021-04-26 14:23:45 2021-04-26 14:23:45 2021-04-26 14:23:43 2021-04-26 14:23:43 2021-04-26 14:23:43 2021-04-26 14:23:43 2021-04-26 14:23:43 2021-04-26 14:23:41 2021-04-26 14:23:41 2021-04-26 14:23:41 2021-04-26 14:23:41 2021-04-26 14:23:39 2021-04-26 14:23:39 2021-04-26 14:23:39 2021-04-26 14:23:38 2021-04-26 14:23:38 2021-04-26 14:23:38 2021-04-26 14:23:37 2021-04-26 14:23:37 2021-04-26 14:23:37 2021-04-26 14:23:36 2021-04-26 14:23:36 2021-04-26 14:23:35 2021-04-26 14:23:35 2021-04-26 14:23:35 2021-04-26 14:23:35 Search Start Time Start Time End Time End Time List Type License plate number Selection Tips: A maximum of 500 face pictures can be searched at a time. Export Time Range Start Time Start Time End Time Time Range Start Time End Time

Please export image and file as needed. Click the searched license plate picture to view the original picture.

License Plate Panorama 2021-04-26 14:30:49 K8573 Unknown vehicle 573

Appendix

Appendix 1 Troubleshooting

IP Scanner does not show any device.

Make sure that the PC that's running IP Scanner is on the same local network as the devices.

Internet Explorer cannot download ActiveX control.

IE browser may be set up to block ActiveX. Follow the steps below.

1. Open IE browser and then click Tools→Internet Options.

about:blank - Microsoft Internet Explorer File Edit View Favorites Tools Help Back Address About:blank Mail and News Synchronize... Windows Update Show Related Links Internet Options...

1. Select Security → Custom Level.
2. Enable all the options under "ActiveX controls and plug-ins".
3. Click OK to finish setup.

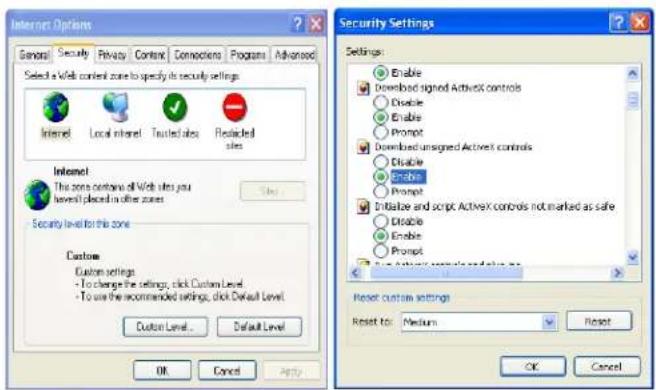

Internet Options General Security Privacy Context Connections Programs Advanced Select a Web content zone to specify its security settings Internet Local Interest Trusted sites Restricted sites Internet The zone contains all Web sites you bevel placed in other zones Security level for this zone Custom Custom settings - To change the settings, click Custom Level - To use the recommended settings, click Default Level. Custom Level... Default Level OK Cancel POSTY Security Settings Settings: Enable Download signed Activex controls Disable Enable Prompt Download unsigned Activex controls Disable Enable Prompt Initiate and script Activex controls not marked as safe Disable Enable Prompt Reset custom settings Reset to: Medium Reset OK Cancel

No sound can be heard.

1. Audio input device is not connected. Please connect and try again.
2. Audio function is not enabled at the corresponding channel. Please enable this function.

Models: O4DM/O4BM

Federal Communications Commission (FCC) Statements

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

FCC Responsible Party:

Speco Technologies

200 New Highway

Amityville, NY11701

www.specotech.com
