USER MANUAL S32AG322NI SAMSUNG

The colour and the appearance may differ depending on the product, and the specifications are subject to change without prior notice to improve the performance.

The contents of this manual are subject to change without notice to improve quality.

© Samsung

Samsung owns the copyright for this manual.

Use or reproduction of this manual in parts or entirety without the authorization of Samsung is prohibited.

Trademarks other than that of Samsung are owned by their respective owners.

An administration fee may be charged in the following situations:

(a) An engineer is called out at your request, but it is found that the product has no defect (i.e., where the user manual has not been read).

(b) You bring the unit to a repair centre, but it is found that the product has no defect (i.e., where the user manual has not been read).

You will be informed of the administration fee amount before a technician visits.

Table of contents

Before Using the Product

Safety Precautions	4
Electricity and Safety	4
Installation	5
Operation	6
Cleaning	8
Correct posture to use the product	8

Preparations

Installation	9
Attaching the Stand	9
Precaution for moving the product	10

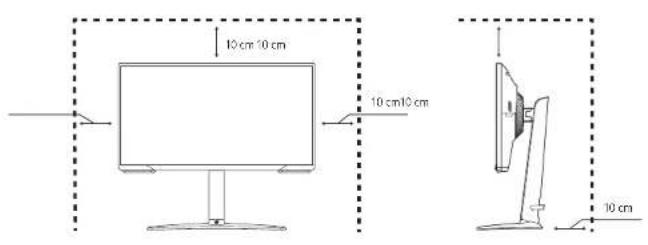

Checking the space around the product	11
Adjusting the Product Tilt and Height	11
Rotating the Product	12
Anti-theft Lock	13
Wall Mount Kit Specifications(VESA)	13
Control Panel	14

Connecting and Using a Source Device

Read below before connecting the product. 15
Ports	15
Connecting and Using a PC	16
Connection Using the HDMI Cable	16
Connection Using an HDMI-DVI Cable	16
Connection Using an DP Cable	16
Connecting to headphones or earphones	16
Connecting the Power	17
Tidying Up the Connected Cables 17

Setting Optimum Resolution 18

Menu

Game 19
Picture 21
OnScreen Display 23
System 23
Information	25

Installing the Software

Easy Setting Box 26

Restrictions and Problems with the Installation 26

System Requirements 26

Driver Installation 26

Table of contents

Troubleshooting Guide

Requirements Before Contacting Samsung Customer Service Center	27
Product diagnosis (Screen issue)	27
Checking the Resolution and Frequency	27
Check the following. 27

Q&A 30

Appendix

Responsibility for the Pay Service
	35(Cost to Customers)
Not a product defect	35
A Product damage caused by customer's fault	35
Others
FreeSync (for AMD graphics card)	36

Specifications

General

31

Standard Signal Mode Table 33

Chapter 01 Before Using the Product

Safety Precautions

Warning

Caution

A serious or fatal injury may result if instructions are not followed.

Personal injury or damage to properties may result if instructions are not followed.

CAUTION

RISK OF ELECTRIC SHOCK. DO NOT OPEN.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO QUALIFIED PERSONNEL.
	This symbol indicates that high voltage is present inside. It is dangerous to make any kind of contact with any internal part of this product.		AC voltage: Rated voltage marked with this symbol is AC voltage.
	This symbol indicates that this product has included important literature concerning operation and maintenance.		DC voltage: Rated voltage marked with this symbol is DC voltage.
	Class II product: This symbol indicates that a safety connection to electrical earth (ground) is not required. If this symbol is not present on a product with a mains lead, the product MUST have a reliable connection to protective earth (ground).		Caution. Consult instructions for use: This symbol instructs the user to consult the user manual for further safety related information.

Electricity and Safety

Warning

• Do not use a damaged power cord or plug, or a loose power socket.
• Do not use multiple products with a single power socket.
• Do not touch the power plug with wet hands.
• Insert the power plug all the way in so it is not loose.
• Connect the power plug to a grounded power socket (type 1 insulated devices only).
• Do not bend or pull the power cord with force. Be careful not to leave the power cord under a heavy object.
• Do not place the power cord or product near heat sources.
• Clean any dust around the pins of the power plug or the power socket with a dry cloth.

Caution

• Do not disconnect the power cord while the product is being used.
• Only use the power cord provided with your product by Samsung. Do not use the power cord with other products.
• Keep the power socket where the power cord is connected unobstructed.

- The power cord must be disconnected to cut off power to the product when an issue occurs.

- Hold the plug when disconnecting the power cord from the power socket.

Installation

Warning

• DO NOT PLACE CANDLES, INSECT REPELLANTS OR CIGARETTES ON TOP OF THE PRODUCT. DO NOT INSTALL THE PRODUCT NEAR HEAT SOURCES.
• Do not install the product in poorly ventilated spaces such as a bookcase or closet.
  • Install the product at least 10cm away from the wall to allow ventilation.
• Keep the plastic packaging out of the reach of children.
  – Children may suffocate.
• Do not install the product on an unstable or vibrating surface (Insecure shelf, sloped surface, etc.)
  – The product may fall and become damaged and/or cause an injury.
• Using the product in an area with excess vibration may damage the product or cause a fire.
• Do not install the product in a vehicle or a place exposed to dust, moisture (water drips, etc.), oil, or smoke.
• Do not expose the product to direct sunlight, heat, or a hot object such as a stove.
• The product lifespan may be reduced or a fire may result.
• Do not install the product within the reach of young children.
  – The product may fall and injure children.
• Edible oil, such as soybean oil, can damage or deform the product. Do not install the product in a kitchen or near a kitchen counter.

Caution

• Do not drop the product while moving.
• Do not set down the product on its front.
• When installing the product on a cabinet or shelf, make sure that the bottom edge of the front of the product is not protruding.
  – The product may fall and become damaged and/or cause an injury.
• Install the product only on cabinets or shelves of the right size.
• Set down the product gently.
  – Product failure or personal injury may result.
• Installing the product in an unusual place (a place exposed to a lot of fine dust, chemical substances, extreme temperatures or a significant presence of moisture, or a place where the product will operate continuously for an extended period of time) may seriously affect its performance.
• Be sure to consult Samsung Customer Service Centre if you want to install the product at such a place.
• Before assembling the product, place the product down on a flat and stable surface so that the screen is facing downwards.
  • In the same series, the colour can vary depending on the size.

Operation

Warning

• There is a high voltage inside the product. Never disassemble, repair or modify the product yourself.
• Contact Samsung Customer Service Centre for repairs.
• To move the product, first disconnect all the cables from it, including the power cable.
• If the product generates abnormal sounds, a burning smell or smoke, disconnect the power cord immediately and contact Samsung Customer Service Centre.
• Do not let children hang from the product or climb on top of it.
• Children may become injured or seriously harmed.
• If the product is dropped or the outer case is damaged, turn off the power and disconnect the power cord. Then contact Samsung Customer Service Centre.
• Continued use can result in a fire or electric shock.
• Do not leave heavy objects or items that children like (toys, sweets, etc.) on top of the product.
• The product or heavy objects may fall as children try to reach for the toys or sweets resulting in a serious injury.
• During a lightning or thunderstorm, power off the product and remove the power cable.
• Do not drop objects on the product or apply impact.
• Do not move the product by pulling the power cord or any cable.
• If a gas leakage is found, do not touch the product or power plug. Also, ventilate the area immediately.
• Do not lift or move the product by pulling the power cord or any cable.
• Do not use or keep combustible spray or an inflammable substance near the product.
• Ensure the vents are not blocked by tablecloths or curtains.
• An increased internal temperature may cause a fire.

- Do not insert metallic objects (chopsticks, coins, hairpins, etc) or objects that burn easily (paper, matches, etc) into the product (via the vent or input/output ports, etc).

- Be sure to power off the product and disconnect the power cord when water or other foreign substances have entered the product. Then contact Samsung Customer Service Centre.

- Do not place objects containing liquid (vases, pots, bottles, etc) or metallic objects on top of the product.

- Be sure to power off the product and disconnect the power cord when water or other foreign substances have entered the product. Then contact Samsung Customer Service Centre.

Caution

- Leaving the screen fixed on a stationary image for an extended period of time may cause afterimage burn-in or defective pixels.

- Set the screen to power-saving mode or moving-picture screen saver when not using the product for an extended period of time.

- Disconnect the power cord from the power socket if you do not plan on using the product for an extended period of time (vacation, etc).

– Dust accumulation combined with heat can cause a fire, electric shock or electric leakage.

- Use the product at the recommended resolution and frequency.

- Your eyesight may deteriorate.

- Do not put AC/DC adapters together.

- Remove the plastic bag from the AC/DC adapter before you use it.

- Do not let water enter the AC/DC adapter device or get the device wet.

- An electric shock or fire may result.

- Avoid using the product outdoors where it can be exposed to rain or snow.

- Be careful not to get the AC/DC adapter wet when you wash the floor.

- Do not put the AC/DC adapter near to any heating apparatus.

- Otherwise, a fire may result.

- Keep the AC/DC adapter in a well-ventilated area.

- If you place the AC/DC power adapter hanging with the cord input facing upwards, water or other foreign substances could enter the Adapter and cause the Adapter to malfunction.

Make sure to rest the AC/DC power adapter flat on a table or the floor.

- Do not hold the product upside-down or move it by holding the stand.

– The product may fall and become damaged or cause an injury.

- Looking at the screen too close for an extended period of time can deteriorate your eyesight.

- Do not use humidifiers or stoves around the product.

- Rest your eyes for more than 5 minutes or look at distance objects for every 1 hour of product use.

- Do not touch the screen when the product has been turned on for an extended period of time as it will become hot.

- Store small accessories out of the reach of children.

• Exercise caution when adjusting the product angle.

- Your hand or finger may get stuck and injured.

- Tilting the product at an excessive angle may cause the product to fall and an injury may result.

- Do not place heavy objects on the product.

– Product failure or personal injury may result.

- When using headphones or earphones, do not turn the volume too high.

- Having the sound too loud may damage your hearing.

Cleaning

High-glossy models can develop white stains on the surface if an ultrasonic wave humidifier is used nearby.

Contact your nearest Samsung Customer Service Centre if you want to clean the inside of the product (Service fee will be charged.)

Do not press the product screen with hands or other objects. There is a risk of damaging the screen.

Exercise care when cleaning as the panel and exterior of advanced LCDs are easily scratched.

Take the following steps when cleaning.

1 Power off the product and PC.

2 Disconnect the power cord from the product.

— Hold the power cable by the plug and do not touch the cable with wet hands. Otherwise, an electric shock may result.

3 Wipe the product with a clean, soft and dry cloth.

Wet a soft cloth in water, wing it out well, and then use the cloth to wipe the exterior of the product clean.

- Do not apply a cleaning agent that contains alcohol, solvent, or surfactant to the product.

- Do not spray water or detergent directly on the product.

4 Connect the power cord to the product when cleaning is finished.

5 Power on the product and PC.

Correct posture to use the product

Line drawing of a person sitting at a desk using a computer (no text or symbols)

Use the product in the correct posture as follows:

- Straighten your back.

- Allow a distance of 45 to 50cm between your eye and the screen, and look slightly downward at the screen.

- Keep your eyes directly in front of the screen.

- Adjust the angle so light does not reflect on the screen.

- Keep your forearms perpendicular to your upper arms and level with the back of your hands.

- Keep your elbows at about a right angle.

- Adjust the height of the product so you can keep your knees bent at 90 degrees or more, your heels attached to the floor, and your arms lower than your heart.

- Do the Eye exercises or blink frequently, then eye fatigue will be relieved.

Chapter 02 Preparations

Installation

Attaching the Stand

— Disassembly is the reverse order of assembly.

Three technical illustrations of mechanical tools or components, including a lever, a bracket, and a curved arrow (no text or symbols present)

Diagram illustrating a mechanical or robotic device with labeled parts and directional arrows indicating motion or force.

Put the stand base onto the stand neck as the direction shown in the figure. Check that the stand neck is firmly connected.

Diagram illustrating a mechanical or electrical component with labeled parts and directional arrows indicating motion or force.

Tightly fasten the connecting screw at the bottom of the stand base.

Technical illustration showing mechanical assembly with a component and a close-up view of a device (no text or symbols visible)

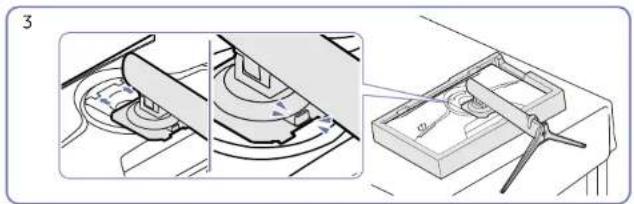

Push the assembled stand into the main body in the direction of the arrow as shown in the figure.

Illustration of a mechanical device with tools and components, no visible text or symbols

Attach the decoration cover in the direction of the arrow and turn it in clockwise according to the mark.

5

Stand up the monitor as shown in the figure.

After installing the stand, place the product upright.

Caution
Do not arbitrarily remove the panel film. If not observed, the warranty service may be restricted.

Precautions for moving the product

Simple line drawing of a balance scale with two hands and a checkmark (no text or symbols)

• Hold the lower corners or edges of the product when moving it.

Diagram showing a computer monitor with two circular elements above it, marked with a red 'X' and a red cross symbol.

• Do not directly apply pressure on the screen.
• Do not hold the screen when moving the product.

Technical diagram showing a mechanical assembly with a circular component and a cross mark indicating failure or inspection.

• Do not hold the product upside down only by the stand.

Simple line drawing of a box with a lid and handle, no text or symbols present

• Do not press down on the product. There is a risk of damaging the product.

Hand holding a circular object with a starburst effect, no text or symbols visible

Technical diagram showing a mechanical component with a red X mark and a magnified inset highlighting a feature.

Checking the space around the product

Make sure to have enough space for ventilation when placing the product. An internal temperature rise may cause fire and damage the product. Maintain enough space around the product as shown in the diagram when installing the product.

The exterior may differ depending on the product.

10 cm 10 cm 10 cm10 cm 10 cm

Adjusting the Product Tilt and Height

The colour and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality.

-5.0° (±2.0°) \~ 20.0° (±2.0°)

0 \~ 120.0 mm (±5.0 mm)

• The product tilt and height can be adjusted.
- Hold the top centre of the product and adjust the height carefully.
- The height adjustment has a certain tolerance. Stay within the tolerances when adjusting the height of the product.

Rotating the Product

The colour and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality.

-15.0° (±2.0°) \~ 15.0°(±2.0°)

-2.0° (±2.0°) \~ 92.0° (±2.0°)

You can rotate your product as shown below.

123

Simple line drawing of a flat-screen monitor on a stand, with a blue arrow indicating the screen’s direction (no text or symbols)

456

Simple line drawing of a rectangular object with a base, resembling a monitor or stand (no text or symbols)

• Be sure to fully extend the stand before rotating the product.
• If you rotate the product without fully extending the stand, the corner of the product may hit the floor and get damaged.
• Do not rotate the product counterclockwise. The product may get damaged.
• When rotating the product, be careful not to damage the product by hitting the object or stand.

Anti-theft Lock

—An anti-theft lock allows you to use the product securely even in public places.
The locking device shape and locking method depend on the manufacturer. Refer to the manuals provided with your anti-theft locking device for details.

To lock an anti-theft locking device:

Line drawing of a computer monitor with a circular head and stand, showing a close-up of its screen (no text or symbols present)

1 Fix the cable of your anti-theft locking device to a heavy object such as a desk.
2 Put one end of the cable through the loop on the other end.
3 Insert the locking device into the anti-theft lock slot at the back of the product.
4 Lock the locking device.

– An anti-theft locking device can be purchased separately.
– Refer to the manuals provided with your anti-theft locking device for details.
– Anti-theft locking devices can be purchased at electronics retailers or online.

Wall Mount Kit Specifications(VESA)

Install your wall mount on a solid wall perpendicular to the floor. Before attaching the wall mount to surfaces other than plaster board, please contact your nearest dealer for additional information. If you install the product on a slanted wall, it may fall and result in severe personal injury. Samsung wall mount kits contain a detailed installation manual and all parts necessary for assembly are provided.

• Using a screw longer than the standard length can damage the internal components of the product.
- The length of screws required for a wall mount that does not comply with the VESA standards may vary depending on the specifications.
- Do not use screws that do not comply with the VESA standards. Do not attach the wall-mount kit or desktop stand using excessive force. The product may get damaged or fall and cause personal injury. Samsung shall not be held liable for any damage or injury caused by using improper screws or attaching the wall-mount kit or desktop stand using excessive force.
- Samsung shall not be held liable for any product damage or personal injury caused by using a wall mount kit other than the one specified or from an attempt to install the wall-mount kit on your own.
- To mount the product on a wall, ensure you purchase a wall-mount kit that can be installed 10 cm or farther away from the wall.
- Be sure to use a wall-mount kit that complies with the standards.
- To install the monitor using a wall mount, disconnect the stand base from the monitor.

Model Name	VESA screw hole spots (A * B) in millimeters	C	Standard Screw	Quantity
S24AG32*	100.0 x 100.0	8.5 - 10 mm	M4	4
S27AG32*
S32AG32*

Do not install your Wall Mount Kit while your product is turned on. It may result in personal injury due to electric shock.

Control Panel

The colour and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality.

Parts Description

JOG Button		Multi directional button that helps navigate.
Power LED		This LED is power status indicator.- You can select the power LED operation to be enabled or disabled on the menu screen. (→ System Power LED On )
Function Key Guide		To use the Function Key Guide, press the JOG button when the screen is turned on.- When the product not displays the OSD menu, the JOG Button could be used as below.- Up or Down Brightness Contrast Sharpness , and- Left or Right : Change the Volume setting.- PRESS(ENTER): The selected item will be applied.
	Source	Changes the input source. A message will appear on the top left corner of the screen if the input source has been changed.
	Menu	Displays the main on-screen menu.
	Eye Saver Mode	Enables the Eye Saver Mode
	Power Off	Turns off the product.
	Return	Exits from the menu page.

Chapter 03

Connecting and Using a Source Device

Read below before connecting the product.

1 Before connecting the product, check the shapes of both ports of the supplied signal cables and the shapes and locations of the ports on the product and external device.
2 Before connecting the product, make sure you remove the power cables from both the product and the external device to prevent damage to the product due to a short circuit or over current.
3 After all signal cables have been properly connected, connect the power cables back to the product and the external device.
4 After connecting is completed, make sure you read the manuals to acquaint yourself with the product functions, precautions and other information required to use the product properly.
5 To use Max specifications of our products, check the support specifications of the cable version you use.

• Connecting parts may differ in different products.
  — Provided ports may vary depending on the product.

Ports

The functions available may vary depending on the product model. The colour and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality. Refer to the actual product.

S24AG32* / S27AG32* DC MV HDMI 附 DP 附 SERVICE S32AG32* DC1PV HDMI 附 DP 附 SERVICE

Port Description

DC14V/DC19V	Connects to the AC/DC adapter.
	Connect to an audio output device such as headphones or earphones.
HDMI ^2	Connects to a source device using an HDMI cable or HDMI-DVI cable.
DP ^2	Connects to a PC using a DP cable.
SERVICE	Use a USB memory stick to perform software upgrade.

Connecting and Using a PC

Select a connection method suitable for your PC.

Connection Using the HDMI Cable

HDMI

It is recommended to use the HDMI cable provided as components. If not provided, be sure to use authorized cable for HDMI cable connections. If you use a unauthorized HDMI cable, the image quality may be degrade.

Connection Using an HDMI-DVI Cable

HDMI®

The audio function is not supported if the source device is connected using the HDMI-DVI cable.
The optimum resolution may not be available with an HDMI-DVI cable.

Connection Using an DP Cable

DP区

It is recommended to use the DP cable provided as an accessory. If not provided, be sure to use a DP cable of 1.5 m or below.
— Use a VESA certified DP 1.2 cable or higher and its gender,

Connecting to headphones or earphones

Illustration of a padlock connected to a USB cable and a pair of headphones (no text or symbols)

Use headphones or earphones when activating sound with an HDMI-HDMI or DP cable.
— The headphones or earphones jack supports only the 3 conductor tip-ring-sleeve (TRS) type.

Connecting the Power

S24AG32* / S27AG32*

Diagram illustrating a device setup with labeled components and a small robot icon, likely for industrial or diagnostic testing.

S32AG32*

Diagram of a medical or laboratory setup with labeled components and zoomed-in views showing device placement and monitoring equipment.

1 Connect the power cable to the AC/DC adapter. Then, connect the AC/DC adapter to the DC14V/DC19V port on the back of the product.
2 Next, connect the power cable to the power outlet.
3 Press the JOG button at the bottom of the product to turn it on.

The input voltage is switched automatically.

Tidying Up the Connected Cables

Simple line drawing of a mechanical device with a wheel and lever (no text or symbols)

Connect the corresponding cables.

2 ✓ ×

Pull the right side of the HOLDER-STAND CABLE to remove from the stand. The left side of the HOLDER-STAND CABLE can be damaged when pulled forcibly.

Diagram showing a mechanical device with a circular component and an inset close-up of a cable or wire (no text or symbols)

Put both cables in the cable holder on the stand (HOLDER-STAND CABLE) to organize the cables, as shown in the figure.

Assembly is complete.

Setting Optimum Resolution

An information message about setting optimum resolution will appear if you power on the product for the first time after purchase.

Select a language on information message and change the resolution on your PC to the optimum setting.

If the optimum resolution is not selected, the message will appear up to three times for a specified time even when the product is turned off and on again.
If you want to set the optimum resolution for your computer, please refer to (Q&A) → "How can I change the resolution?"
You can adjust the refresh rate according to the screen resolution by selecting Game → Refresh Rate in the OSD menu.
To enable the maximum refresh rate, set FreeSync Premium to On or set Refresh Rate to 165 Hz.
This menu is only available when Refresh Rate is set to 165 Hz.(In DisplayPort mode)

Chapter 04

Menu

Function Key Guide →

— The functions available may vary depending on the product model. The colour and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality.

Game

2nd 3rd Description

Refresh Rate Change the screen refresh rate. A higher refresh rate can reduce eye strain.
	• DisplayPort: 60 Hz / 120 Hz / 144 Hz / 165 HzHDMI: 60 Hz / 120 Hz / 144 Hz— This option is not available whenFreeSync Premium— Changing theRefresh Ratemay cause screen flickering, depending on the PC's graphics card.— The function is available in a PC equipped with the graphics card that can change the refresh rate.It is unavailable in the devices (e.g. AV devices) with fixed refresh rates. If the function is applied, the screen may have malfunction.— If theRefresh Ratefunction is in use and the text displayed on the PC screen looks blurry or corrupted, resolve the issue by changing the resolution of the PC screen to the recommended resolution.
Response Time	Accelerate the panel response rate to make video appear more vivid and natural.— It is best to setResponse TimetoStandard orFasterwhen you are not viewing a movie or game.— This option is not available whenFreeSync Premiumis set toOn.— WhenPicture Modeis set toDynamic orEye Saver Modeis set toOn, theFastest (MBR)menu is deactivated.— TheFastest (MBR)menu is only available whenRefresh Ratesis set to 144Hz and 165Hz.
FreeSync Premium	FreeSync technology is solution that eliminates screen tearing without all the usual lag and latency. FreeSync can be operated when you use AMD's graphic card with supporting FreeSync solution.For more information, seeFreeSync (for AMD graphics card)page.

2nd 3rd Description

Screen Size	Select the best screen size and ratio. This menu is not available whenFreeSync Premiumis enabled.In PC modeAuto: Display the picture according to the aspect ratio of the input source.Wide: Display the picture in full screen regardless of the aspect ratio of the input source.In AV mode4:3: Display the picture with an aspect ratio of 4:3. Suitable for videos and standard broadcasts.16:9: Display the picture with an aspect ratio of 16:9.Screen Fit: Display the picture with the original aspect ratio without cutting off.The function may not be supported depending on the ports provided with the product.Changing theScreen Sizeis available when the following conditions are satisfied.The input source is 480p, 576p, 720p or 1080p and product can display normally (Not every model can support all of these signals.).This can only be set when the external input is connected through HDMI/DP andPC/AV Modeis set to AV.This option is available whenFreeSync Premiumis set to Off.
Black Equalizer	Adjust the brightness of the dark areas.As the value gets closer to 1, the darker areas of the screen become brighter, making it easier to find enemies when playing a game. To find enemies more easily during a game, use a lower value.As the value gets closer to 20, the darker areas of the screen become darker and the contrast increases.This menu is not available whenEye Saver Modeis enabled.This menu is not available whenPicture Modeis set toCinemamode.This menu is not available whenPicture Modeis set toDynamic Contrastmode.This menu is not available when the input signal is AV timing and the monitor is inAVmode.
Virtual Aim Point	Off: Virtual Aim Pointis not available whileOffis selected.Shelf/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/SelfSelf/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self/Self / Select the preferred aim point style.Reset Position:Restore the aim point position to the default.


2nd 3rd Description

Picture Mode	This menu provides an optimum picture quality suitable for the environment where the product will be used.
	— This menu is not available when Eye Saver Mode is enabled.
	In PC mode• Custom: Customize the screen settings.• FPS: Increase the brightness of darker areas of the FPS (First-Person Shooter) game screen. This mode increases visibility of your enemies during a FPS (First-Person Shooter) game.• RTS: Increase the colour temperature and contrast ratio to improve visibility of the RTS (Real-Time Strategy) screen and minimap.• RPG: This mode is optimized for 3D graphics and instant messaging on the RPG (Role Playing Game) game screen.• AOS: Increase the contrast ratio to obtain a picture quality optimized for the AOS (Aeon Of Strife) game screen.• Cinema: Obtain the brightness and sharpness of monitors suitable for enjoying video and DVD content.• Dynamic Contrast: Obtain balanced brightness through automatic contrast adjustment.
	In AV modeWhen the external input is connected through HDMI/DP and PC/AV Mode is set to AV, Picture Mode has four picture settings (Dynamic, Standard, Movie and Custom) that are preset at the factory. You can activate either Dynamic, Standard, Movie or Custom. You can select Custom which automatically recalls your personalized picture settings.• Dynamic : Select this mode to view a sharper Image than in Standard mode.• Standard: Select this mode when the surroundings are bright.• Movie: Select this mode when the surroundings are dark. This will save power and reduce eye fatigue.• Custom: Select this mode when you want to adjust the image according to your preferences.—The Picture Mode feature is only activated at a certain AV resolution, such as 720P@ 60 Hz and 1080P @ 60 Hz.

Brightness You can adjust the general brightness of the picture. (Range: 0\~100)
A higher value will make the picture appear brighter.
— This menu is not available when Eye Saver Mode is enabled.
This menu is not available when Response Time is set to Fastest (MBR) mode.

2nd 3rd Description

Contrast Adjust the contrast between the objects and background. (Range: 0~100)A higher value will increase the contrast to make the object appear clearer.This menu is not available when Picture Mode is set to Cinema, Dynamic Contrast mode.
Sharpness	Make the outline of objects more clear or blurry. (Range: 0~100)A higher value will make the outline of objects clearer.This menu is not available when Picture Mode is set to Cinema or Dynamic Contrast mode.
Color Adjust the tint of the screen.	Red: Adjust the red saturation level. Values closer to 100 mean greater intensity for the colour.Green: Adjust the green saturation level. Values closer to 100 mean greater intensity for the colour.Blue: Adjust the blue saturation level. Values closer to 100 mean greater intensity for the colour.Color Tone: Select a colour tone that best suits your viewing needs.When the external Input is connected through HDMI/DP and PC/AV Mode is set to AV (720P @ 60 Hz and 1080P @ 60 Hz), Color Tone has four colour temperature settings (Cool, Normal, Warm and Custom).Gamma: Adjust the middle level of luminance.This menu is not available when Eye Saver Mode is enabled.This menu is not available when Picture Mode is set to Cinema mode.This menu is not available when Dynamic Contrast is enabled.The Color feature is only activated at a certain AV resolution, such as 720P @ 60 Hz and 1080P @ 60 Hz
Black Level	If a DVD player or set-top box is connected to the product via HDMI, image quality degradation (contrast/colour degradation, black level, etc.) may occur, depending on the connected source device.In such case, Black Level can be used to adjust the image quality.Normal: Select this mode when there is no contrast ratio degradation.Low: Select this mode to reduce the black level and increase the white level when there is a contrast ratio degradation.This function is only available in HDMI mode.Black Level may not be compatible with some source devices.The Black Level feature is only activated at a certain AV resolution, such as 720P @ 60 Hz and 1080P @ 60 HzAdjust the Black Level because the image quality may differ depending on the external device.
Eye Saver Mode	Set to an optimum picture quality suitable for eye relaxation.TÜV Rheinland “Low Blue Light Content” is a certification for products which meet requirements for lower blue light levels. When Eye Saver Mode is ‘On’, the blue light that wavelength is around 400nm will decrease, and it will provide an optimum picture quality suitable for eye relaxation. At the same time, the blue light level is lower than in the default settings, and it was tested by TÜV Rheinland and certified as it met the requirements of TÜV Rheinland “Low Blue Light Content” standards.

OnScreen Display

2nd 3rd Description

Language Set the menu language.
	— A change to the language setting will only be applied to the onscreen menu display.— It will not be applied to other functions on your PC.
Display Time	The OSD menu will automatically disappear if the menu is not used for a specified period of time. Display Time is a function to specify the time which you want the OSD menu to disappear.

System

2nd 3rd Description

Volume

Adjust the Volume controlling the JOG button LEFT/RIGHT. — To activate the Mute function, access the Volume control screen, then use the JOG button to move the focus down. To deactivate the Mute function, access the Volume control screen, then increase or decrease the Volume.

Eco Saving Plus

The Eco Saving Plus function reduces power consumption by controlling the electric current used by the monitor panel. — This menu is not available when Eye Saver Mode is enabled. • Off: Deactivate the Eco Saving Plus function. • Auto: The power consumption will automatically be reduced by about 10% over the current setting. (The reduction of power consumption depends on the customer screen brightness condition.) • Low: The power consumption will be reduced by 25% over the default setting. • High: The power consumption will be reduced by 50% over the default setting.

2nd 3rd Description

Off Timer Plus	Off Timer	Off Timer: Turn on Off Timer mode.Turn Off After: The off timer can be set within a range of 1 to 23 hours. The product will automatically power off after the specified number of hours.This option is only available when Off Timer is set to On.For products for the market in some regions, the Off Timer is set to automatically activate 4 hours after the product powers on. This is done in accordance with power supply regulations. If you do not want the timer to activate, go to 📄 → System → Off Timer Plus and set Off Timer to Off.
	Eco Timer	Eco Timer: Turn on Eco Timer mode.Eco Off After: The Eco Off After can be set between 10 and 180 minutes. The product will automatically power off after the specified time has elapsed.This option is only available when Eco Timer is set to On.
PC/AV Mode		Set PC/AV Mode to AV. The picture size will be enlarged.This option is useful when you view a movie.Products with a display area of 16:9 or 16:10 are only supported.If the product is in HDMI, DisplayPort mode and the screen says Check the cable connection and the settings of the source device. press the JOG button to display the Function Key Guide screen and then select 📄 → System → PC/AV Mode → HDMI, DisplayPort → PC or AV.If input source is AV device, the screen may not display properly or there is no sound. Set PC/AV Mode to AV.
Source Detection		Select either Auto or Manual as the method to recognize input signal.
Key Repeat Time Control the response rate of a button when the button is pressed.Acceleration, 1 sec, or 2 sec can be selected. If No Repeat is selected, a command responds only once when a button is pressed.
Power LED On		Configure the settings to enable or disable the power LED located at the lower part of the product.Working: The power LED is on when the product is turned on.Stand-by: The power LED is on when the product is turned off.
Self Diagnosis		Perform this test when you experience a problem with your monitor's picture.Never turn off the power nor change the input source during self diagnosis. If possible, try not to interrupt testing.

2nd 3rd Description

Software Update Update software using an update file on a USB device.

1 Save the update file (in .bin or .img format) that you downloaded from the Samsung website (http://www.samsung.com/sec) to a USB storage device.
2 Connect the USB device to the SERVICE, port on the monitor.
Select System → Software Update.
3 Follow the instructions on the screen to proceed with update.
4 Your product will turn itself off and on again automatically after completing update, and then turn off your product.
5 Remove the power cord from the power outlet and then reconnect the cord after turning off.
To perform software update by using a USB memory, first format the USB memory to FAT32.
— When performing update, make sure that only one BIN file (.bin) is saved in the root directory.
Upon updates, save the .bin or file, downloaded from the Samsung website, to the root directory.
If the No update files found on your USB device. Please check your USB device and try again. message is displayed, this is probably due to the following
reasons.
— A USB memory is not connected to the SERVICE port.
— The files in the connected USB memory are not compatible formats.
There are no valid update files found in the connected USB memory. (There are no update files saved in the memory or the file names are incorrect.)
Do not turn off the product until the update is complete. And prevent the updating from any interruption as far as possible. In general, the product returns to the previous version if an update is interrupted.
It may change the screen colour or blink during USB update, but it is not a monitor problem. Since S/W update is performed normally, please wait until the update is finished.

Reset All Return all the settings for the product to the default factory settings.

Information

View the current software information. Refer to the actual monitor screen.

Chapter 05 Installing the Software

Easy Setting Box

Easy Setting Box

Easy Setting Box enables users to use the product by partitioning multiple sections.

To install the latest version of Easy Setting Box, download it from the Samsung website (http://www.samsung.com).

The software may not work properly if you do not restart the PC after the installation.

The Easy Setting Box icon may not appear depending on the PC system and the product specifications.

If the shortcut icon does not appear, press the F5 key.

Restrictions and Problems with the Installation

The Easy Setting Box installation may be affected by the Graphics Card, Motherboard and the Networking Environment.

System Requirements

OS Hardware

• Windows 7 32Bit/64Bit	• At least 32MB of memory
• Windows 8 32Bit/64Bit	• At least 60MB of free space on the hard disk drive
• Windows 8.1 32Bit/64Bit
• Windows 10 32Bit/64Bit

Driver Installation

To install the latest version of the product driver, download it from the Samsung website (http://www.samsung.com).

You can set the optimum resolution and frequency for this product by installing the corresponding drivers.

Chapter 06 Troubleshooting Guide

Requirements Before Contacting Samsung Customer Service Centre

Before calling Samsung Customer Service Centre, test your product as follows. If the problem persists, contact Samsung Customer Service Centre.

Product diagnosis (Screen issue)

If a problem occurs with the monitor screen, run Self Diagnosis to check that the monitor is working properly.

Checking the Resolution and Frequency

If a resolution that is not supported (see the Standard Signal Mode Table) is selected, the Not Optimum Mode message may appear for a short time or the screen may not be displayed properly.

— The displayed resolution may vary, depending on the PC system settings and cables.

Check the following.

Caution

When the product makes popping (cracking) sound.

The sound may be caused by contraction or expansion from temperature change of external components or internal circuit of the product.

This is NOT a product failure and does not affect the life of the product.

Installation issue (PC mode)

Blank spaces are found on all four sides of the screen when an HDMI or HDMI-DVI cable is connected to the product and PC.

The blank spaces found on the screen have nothing to do with the product.

Blank spaces on the screen are caused by the PC or graphics card. To resolve the problem, adjust the screen size in the HDMI or DVI settings for the graphics card.

If the graphics card settings menu does not have an option to adjust the screen size, update the graphics card driver to the latest version.

(Please contact the graphics card or PC manufacturer for further details about how to adjust the screen settings.)

Screen issue

The power LED is off. The screen will not switch on.

Check that the power cable is connected properly.

If a problem occurs with the monitor screen, run Self Diagnosis to check that the monitor is working properly.

The message Check the cable connection and the settings of the source device. appears.

Check that the cable is properly connected to the product.

If the monitor is in HDMI or DisplayPort mode, press the JOG button to display the Function Key Guide screen and select the ● → System → PC/AV Mode → HDMI, DisplayPort → PC or AV.

Not Optimum Mode is displayed.

This message appears when the signal from the graphics card exceeds the maximum resolution or frequency for the product.

Change the maximum resolution and frequency to suit the product performance, referring to Standard Signal Mode Table (P.33).

The images on the screen look distorted.

Check the cable connection to the product.

The screen is not clear. The screen is blurry.

Remove any accessories (video extension cable, etc.) and try again.

Set the resolution and frequency to the recommended level.

The screen appears unstable and shaky. There are shadows or ghost images left on the screen.

Check that the resolution and frequency for the PC are within the range of resolution and frequency compatible with the product. Next, if required, change the settings, referring to Standard Signal Mode Table (P.33) in this manual and the Information menu on the product.

Change the Response Time in the Display OSD to Faster or Standard depending on your application and usage.

The screen is too bright. The screen is too dark.

Adjust Brightness and Contrast.

Screen colour is inconsistent.

Change the Color settings.

The colours on the screen have a shadow and are

distorted. Change the Color settings.

White does not really look white.

Change the Color settings.

There is no image on the screen and the power LED blinks every 0.5 to 1 second.

Check the cable connection between the product and PC, and ensure the connectors are locked.

Press any key on the keyboard or move the mouse to return to normal operating mode.

The product is operating in power-saving mode.

Text is blurry.

If using a Windows OS (e.g. Windows 7, Windows 8, Windows 8.1 or Windows 10): Go to Control Panel → Fonts → Adjust ClearType text and change Turn on ClearType.

Video playback is choppy.

Playback of high-definition large video files can be choppy. This may be because the video player is not optimized for the PC resource.

Try playing the file on another video player.

Sound issue

There is no sound.

Re-check the condition of the connected headphone or earphone and/or adjust the volume.

Check the volume.

Check whether the volume of the product or the source device is set to mute.

The volume is too low.

Adjust the volume.

If the volume is still low after turning it up to the maximum level, adjust the volume on your PC sound card or software program.

Video is available but there is no sound.

Sound cannot be heard if an HDMI-DVI cable is used to connect the input device.

Connect the device using an HDMI cable or a DP cable.

Source device issue

A beeping sound is heard when my PC is booting.

If a beeping sound is heard when your PC is booting, have your PC serviced.

Q & A

— Refer to the user manual for your PC or graphics card for further instructions on adjustment.
— The path to the settings depends on the installed OS.

How can I change the frequency?

Set the frequency on your graphics card.

• Windows 7: Go to Control Panel → Appearance and Personalization → Display → Screen Resolution → Advanced settings → Monitor, and adjust Screen Refresh Rate under Monitor settings.
• Windows 8(Windows 8.1): Go to Settings → Control Panel → Appearance and Personalization → Display → Screen Resolution → Advanced settings → Monitor, and adjust Refresh rate under Monitor settings.
• Windows 10: Go to Settings → System → Display → Advanced display settings → Display adapter properties → Monitor, and adjust Screen refresh rate under Monitor settings.

How can I change the resolution?

• Windows 7: Go to Control Panel → Appearance and Personalization → Display → Screen Resolution → Adjust Resolution.
• Windows 8(Windows 8.1): Go to Settings → Control Panel → Appearance and Personalization → Display → Adjust Resolution, and adjust the resolution.
• Windows 10: Go to Settings → System → Display → Advanced display settings, and adjust the resolution.

How do I set power-saving mode?

• Windows 7: Go to Control Panel → Appearance and Personalization → Personalization → Screen Saver Settings → Power options or BIOS SETUP on the PC.
• Windows 8(Windows 8.1): Go to Settings → Control Panel → Appearance and Personalization → Personalize → Screen Saver Settings → Power options or BIOS SETUP on the PC.
• Windows 10: Go to Settings → Personalization → Lock screen → Screen timeout settings → Power & sleep or BIOS SETUP on the PC.

Chapter 07 Specifications

General

Model Name S24AG32* S27AG32* S32AG32*

Size	24 Class (23.8 Inches / 60.4 cm)	27 Class (27 Inches / 68.4 cm)	32 Class (31.5 Inches / 80.1 cm)
Display area	525.89 mm (H) x 295.81 mm (V)	596.736 mm (H) x 335.664 mm (V)	698.4 mm (H) x 392.85 mm (V)
Pixel Pitch	0.2739 mm (H) x 0.2739 mm (V)	0.3108 mm (H) x 0.3108 mm (V)	0.36375 mm (H) x 0.36375 mm (V)
Maximum Pixel Clock	384.144 MHz
Power Supply AC100-240V~ 50/60Hz	Based on the AC voltage of the adapter. For the DC voltage of the product, refer to the product label.
Signal connectors HDMI, DisplayPort
Environmental conditions	OperatingTemperature: 10 °C – 40 °C (50 °F – 104 °F)Humidity: 10 % – 80 %, non-condensing
	StorageTemperature: -20 °C – 45 °C (-4 °F – 113 °F)Humidity: 5 % – 95 %, non-condensing

- Plug-and-Play

This product can be installed and used with any Plug-and-Play compatible systems. Two-way data exchange between the product and PC system optimizes the product settings. Product installation takes place automatically. However, you can customize the installation settings if desired.

- Panel Dots (Pixels)

Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1ppm) may be brighter or darker on the LCD panel. This does not affect product performance.

- The above specifications are subject to change without notice to improve quality.

- For detailed device specifications, visit the Samsung website.

- Flicker Free

Flicker Free technology reduces screen flickering for a more comfortable viewing experience.

Standard Signal Mode Table

Model Name S24AG32* / S27AG32* / S32AG32*

Synchronization (PANEL Spec) Vertical Frequency	48 - 165 Hz
Resolution Optimum resolution	1920 x 1080 @ 144 Hz (HDMI)
	1920 x 1080 @ 165 Hz (DP)
Maximum resolution	1920 x 1080 @ 144 Hz (HDMI)
	1920 x 1080 @ 165 Hz (DP)

If a signal that belongs to the following standard signal modes is transmitted from your PC, the screen will automatically be adjusted. If the signal transmitted from the PC does not belong to the standard signal modes, the screen may be blank even though the power LED turns on. In such a case, change the settings according to the following table by referring to the graphics card user manual.

Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Pixel Clock (MHz)	Sync Polarity (H/V)	Port
					HDMI IN DP IN
IBM, 720 x 400	31.469	70.087	28.322	-/+	0	0
MAC, 640 x 480	35.000	66.667	30.240	-/-	0	0
MAC, 832 x 624	49.726	74.551	57.284	-/-	0	0
MAC, 1152 x 870	68.681	75.062	100.000	-/-	0	0
VESA, 640 x 480	31.469	59.940	25.175	-/-	0	0
VESA, 640 x 480	37.861	72.809	31.500	-/-	0	0
VESA, 640 x 480 37	.500	75.000 31.500 -/-	0 0
VESA, 800 x 600	35.156	56.250	36.000	+/+	0	0
VESA, 800 x 600	37.879	60.317	40.000	+/+	0	0
VESA, 800 x 600	48.077	72.188	50.000	+/+	0	0
VESA, 800 x 600	46.875	75.000	49.500	+/+	0	0
VESA, 1024 x 768	48.363	60.004	65.000	-/-	0	0
VESA, 1024 x 768	56.476	70.069	75.000	-/-	0	0
VESA, 1024 x 768	60.023	75.029	78.750	+/+	0	0
VESA, 1152 x 864 67.500 75.000 108.000 +/+ 0 O
VESA, 1280 x 720	45.000	60.000	74.250	+/+	0	0
VESA, 1280 x 800	49.702	59.810	83.500	-/+	0	0
VESA, 1280 x 1024	63.981 60.020 108.000 +/+ 0 O
VESA, 1280 x 1024	79.976	75.025	135.000	+/+	0	0
VESA, 1440 x 900 55	.935	59.887	106.500	-/+	0	0
VESA, 1600 x 900	60.000 60.000 108.000 +/+ 0 O
VESA, 1680 x 1050	65.290	59.954	146.250	-/+	0	0
VESA, 1920 x 1080	67.500 60.000 148.500	+/+			0	0
VESA, 1920 x 1080	135.000	120.000	297.000	+/+	0	0
VESA, 1920 x 1080	158.830	143.998	321.790	+/+	0	0
VESA, 1920 x 1080	166.587	143.981 346.500		+/-	-	0
VESA, 1920 x 1080	185.577	164.957 384.144	+/+		-	0

Horizontal Frequency
The time required to scan a single line from the left to the right side of the screen is called a horizontal cycle. The reciprocal number of a horizontal cycle is called horizontal frequency. Horizontal frequency is measured in kHz.
— Vertical Frequency
Repeating the same picture dozens of times per second allows you to view natural pictures. The repeat frequency is called "vertical frequency" or "refresh rate" and is indicated in Hz.
This product can be set to only one resolution for each screen size to obtain the optimum picture quality due to the nature of the panel. Using a resolution other than the specified resolution may degrade the picture quality. To avoid this, it is recommended that you select the optimum resolution specified for your product.

Chapter 08

Appendix

Responsibility for the Pay Service (Cost to Customers)

— When the service is requested, in spite of in warranty, we may charge you for a visit from a service technician in the following cases.

Not a product defect

Cleaning of the product, Adjustment, Explanation, Re-installation and etc.

• If a service technician is requested to give instructions on how to use product or simply adjusts options without disassembling product.
• If a defect is caused by external environmental factors (Internet, Antenna, Wired Signal, etc.)
• If a product is reinstalled or devices are connected additionally after installing the purchased product for the first time.
• If a product is reinstalled to move to a different spot or to move to a different house.
• If the customer requests instructions on how to use another company's product.
• If customer requests instructions on how to use the network or another company's program.
• If customer requests software installation and setup for the product.
• If a service technician removes/cleans dusts or foreign materials inside of the product.
• If customer requests an installation additionally after purchasing a product through home-shopping or online.

A Product damage caused by customer's fault

Product damage caused by customer's mishandling or wrong repair

If a product damage is caused by;

• External impact or drop.
• Use of supplies or separately sold product unspecified by Samsung.
  • Repair from a person besides an engineer of outsourcing service company or partner of Samsung Electronics Co., Ltd.
• Remodeling or repairing the product by customer.
• Using it with incorrect voltage or non-authorized electrical connections.
• Not following the "cautions" in User Manual.

Others

• If product falls by natural disaster. (lightning, fire, earthquake, flood damage, etc)
• If consumable components are all used up. (Battery, Toner, Fluorescent lights, Head, Vibrator, Lamp, Filter, Ribbon, etc.)

If customer requests a service in case the product has no defect, service fee may be charged. So please read User Manual first.

FreeSync (for AMD graphics card)

FreeSync technology is solution that eliminates screen tearing without all the usual lag and latency. This feature will eliminate screen tearing and lag during game play. Improve your gaming experience. The displayed FreeSync menu items on the monitor may vary, depending on the monitor model and compatibility with the AMD graphics card.

- Off: Disable FreeSync.

- On: Turn on the AMD graphics cards' FreeSync function. You may experience intermittent flickers when playing some games.

Apply the optimum resolution when using FreeSync.

The refresh rate setting method please refer to Q & A → How can I change the frequency?

The FreeSync function is only enabled in HDMI or DisplayPort mode.

Use the HDMI/DP cable provided by the manufacturer when using FreeSync.

If the FreeSync function is in use and the text displayed on the PC screen looks blurry or corrupted, resolve the issue by changing the resolution of the PC screen to the recommended resolution.

If you use the FreeSync function while playing a game, the following symptoms may occur:

• The screen may flicker depending on the type of graphics card, the game option settings, or the video being played. Try the following actions: decrease the game setting values, change the current FreeSync Premium mode to Off, or visit the AMD website to check your graphics driver's version and update it with the latest one.
• While you are using the FreeSync function, the screen may flicker due to variation of the output frequency from the graphics card.
• The response rate during the game may fluctuate depending on the resolution. A higher resolution generally decreases the response rate.
  • The sound quality of the monitor may be degraded.
  — If you encounter any issues when using the function, contact the Samsung Service Centre.
• If you change the screen resolution while the function is On, the screen may intermittently blank out due to the graphic card. Set FreeSync Premium to Off and change the resolution.
  The function is unavailable in the devices (e.g. AV devices) that have no AMD graphic card. If the function is applied, the screen may have malfunction.

The models in the Graphics Cards list supports FreeSync

FreeSync can only be used with specific AMD graphics card models. Refer to the following list for supported graphics cards:

Make sure to install the latest official graphics drivers from AMD that support FreeSync.

For additional AMD graphics card models that support the FreeSync feature, visit the official AMD website. Select FreeSync Premium Off if you are using a graphics card from a different manufacturer.
When applying the FreeSync function via the HDMI cable, it may fail to work due to the bandwidth limitation of certain AMD graphics card.

- Radeon™ RX Vega series

• Radeon™ Pro Duo (2016 edition)

- Radeon™ RX 500 series

- Radeon™ R9 Nano series

- Radeon™ RX 400 series

- Radeon™ R9 Fury series

- Radeon™ R9/R7 300 series (excluding R9 370/X, R7 370/X, R7 265)

- Radeon™ R9/R7 200 series (excluding R9 270/X, R9 280/X)
