USER MANUAL N1SSY Sani-Lav
COLUMBIA PRODUCTS SANI-LAV
Model N1 Nozzle Series


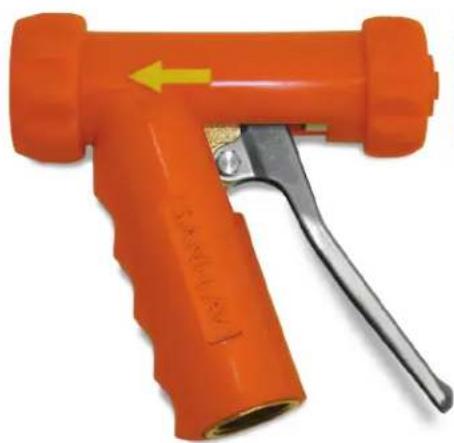

Orange hard-shell tool with a metallic handle and yellow arrow indicating left motion (no text or symbols visible)Models N1, N1T, N1A and N1SS


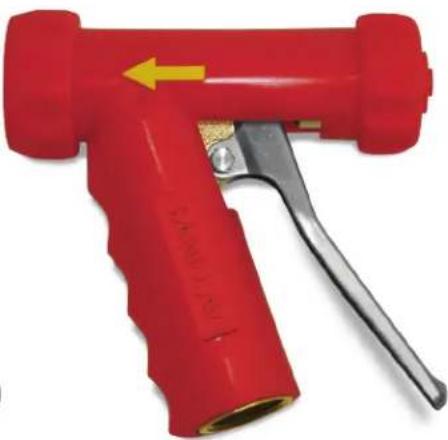

Red and black photo of a red hand tool with a yellow arrow pointing left, no visible text or symbolsModels N1R, N1TR, N1AR and N1SSR


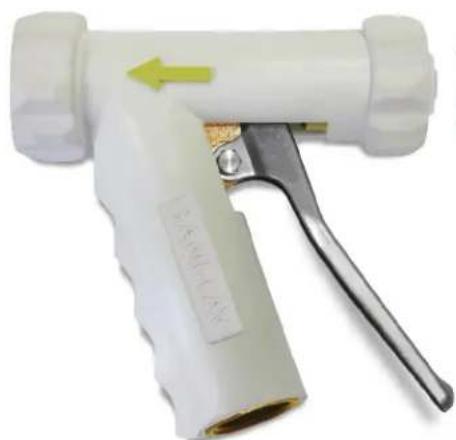

Close-up of a white handheld tool with a metal handle and green arrow indicator (no text or symbols on the tool itself)Models N1W, N1TW, N1AW and N1SSW


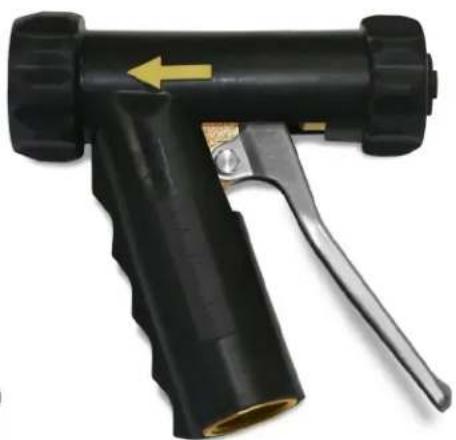

Close-up of a black and silver welding torch with a yellow arrow indicating direction (no text or symbols visible)Models N1B, N1TB, N1AB and N1SSB
COLUMBIA SPECIFICATIONS
NOZZLES
Universal Features Include
- 3/4" GHT inlet allows direct hose connection
• Maximum working pressure 150 psi
• Maximum operating temperature: 200°F/93°C - Weight 1.7 lbs. brass and stainless steel, 1.3 lbs aluminum
• Safety shut off trigger when released - Replaceable insulated safety orange, yellow, red, white or black covers
| Model | Color | Body | Handle Type | Inlet | Tip | Max psi | Max Temp | Weight | GPM @ 100 psi | Swivel Adapter |
| Brass | ||||||||||
| N1 | Safety Orange | Brass | Stainless | 3/4" FGHT | n/a | 150 | 200 | 1.7 | 8.9 | sold separately |
| N1Y | Yellow | Brass | Stainless | 3/4" FGHT | n/a | 150 | 200 | 1.7 | 8.9 | sold separately |
| N1R | Red | Brass | Stainless | 3/4" FGHT | n/a | 150 | 200 | 1.7 | 8.9 | sold separately |
| N1W | White | Brass | Stainless | 3/4" FGHT | n/a | 150 | 200 | 1.7 | 8.9 | sold separately |
| N1B | Black | Brass | Stainless | 3/4" FGHT | n/a | 150 | 200 | 1.7 | 8.9 | sold separately |
| N1T | Safety Orange | Brass | Stainless | 3/4" FGHT | 3/4" GHT threaded | 150 | 200 | 1.7 | 8.9 | sold separately |
| N1YT | Yellow | Brass | Stainless | 3/4" FGHT | 3/4" GHT threaded | 150 | 200 | 1.7 | 8.9 | sold separately |
| N1RT | Red | Brass | Stainless | 3/4" FGHT | 3/4" GHT threaded | 150 | 200 | 1.7 | 8.9 | sold separately |
| N1WT | White | Brass | Stainless | 3/4" FGHT | 3/4" GHT threaded | 150 | 200 | 1.7 | 8.9 | sold separately |
| N1BT | Black | Brass | Stainless | 3/4" FGHT | 3/4" GHT threaded | 150 | 200 | 1.7 | 8.9 | sold separately |
| Aluminum | ||||||||||
| N1A | Safety Orange | Aluminum | Stainless | 3/4" FGHT | n/a | 150 | 200 | 1.3 | 8.9 | sold separately |
| N1AY | Yellow | Aluminum | Stainless | 3/4" FGHT | n/a | 150 | 200 | 1.3 | 8.9 | sold separately |
| N1AR | Red | Aluminum | Stainless | 3/4" FGHT | n/a | 150 | 200 | 1.3 | 8.9 | sold separately |
| N1AW | White | Aluminum | Stainless | 3/4" FGHT | n/a | 150 | 200 | 1.3 | 8.9 | sold separately |
| N1AB | Black | Aluminum | Stainless | 3/4" FGHT | n/a | 150 | 200 | 1.3 | 8.9 | sold separately |
| Stainless Steel | ||||||||||
| N1SS | Safety Orange | Stainless | Stainless | 3/4" FGHT | n/a | 150 | 200 | 1.7 | 8.9 | sold separately |
| N1SSY | Yellow | Stainless | Stainless | 3/4" FGHT | n/a | 150 | 200 | 1.7 | 8.9 | sold separately |
| N1SSR | Red | Stainless | Stainless | 3/4" FGHT | n/a | 150 | 200 | 1.7 | 8.9 | sold separately |
| N1SSW | White | Stainless | Stainless | 3/4" FGHT | n/a | 150 | 200 | 1.7 | 8.9 | sold separately |
| N1SSB | Black | Stainless | Stainless | 3/4" FGHT | n/a | 150 | 200 | 1.7 | 8.9 | sold separately |
Notice for California Consumers
WARNING: This product can expose you to chemicals including Lead, and Phthalates (DEHP) which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
1622 Browning • Irvine, CA • 926064809 • Phone: 949.474.0777 • Toll Free: 800.626.2117 • Fax: 949.474.1191 • www.columbiasinks.com • email: info@columbiasinks.com
COLUMBIA PRODUCTS

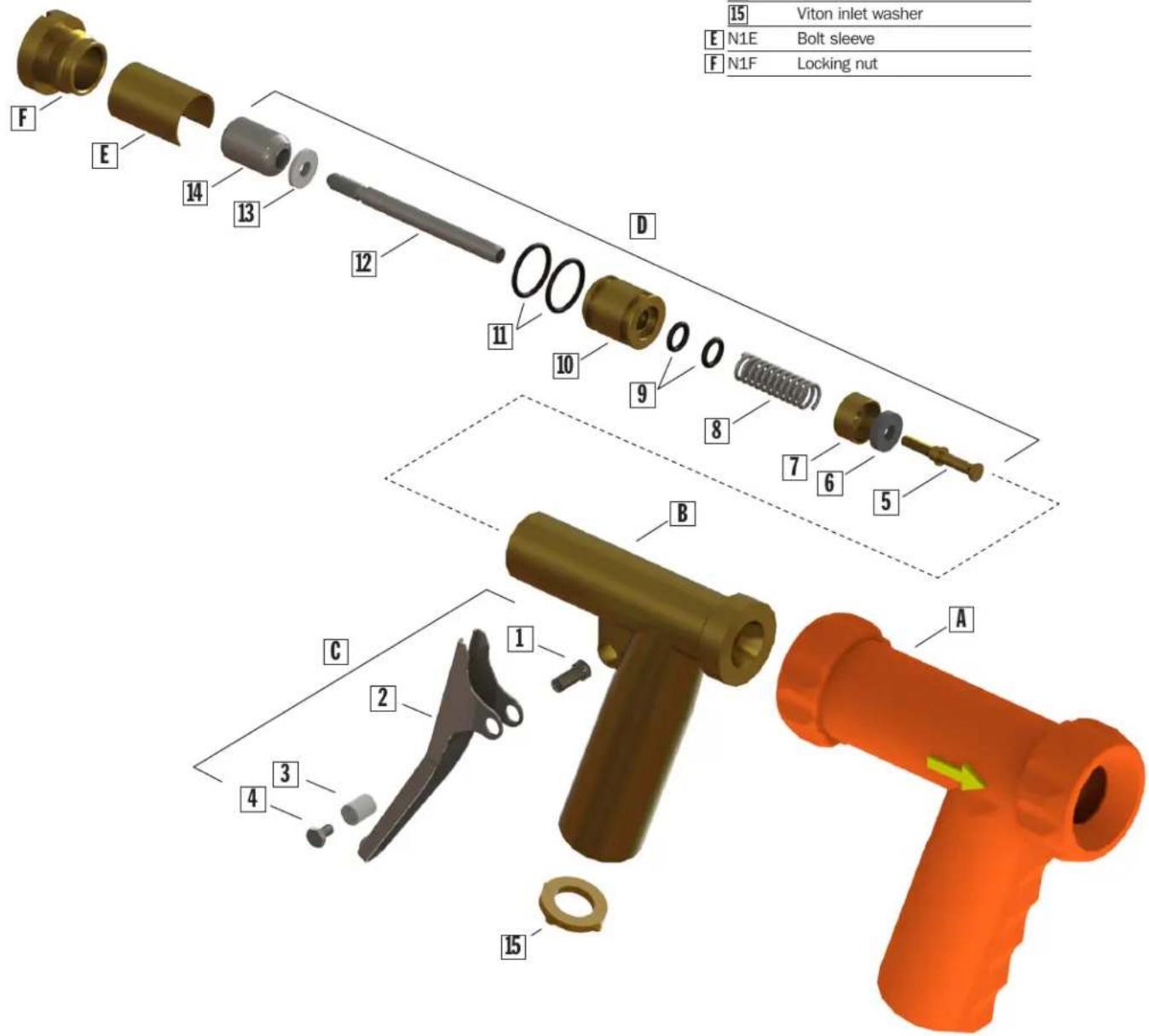

N1 Replacement Parts
Part No. Decription
| A | N1OC Orange insolated cover |
| A | N1YC Yellow insolated cover |
| A | N1RC Red insolated cover |
| A | N1WC White insolated cover |
| A | N1BC Black insolated cover |
| B | N1MB Main body |
| C | N1HR Handle replacement kit |
| 1 Stainless steel nut | |
| 2 Stainless steel handle | |
| 3 Stainless steel handle arm sleeve | |
| 4 Stainless steel handle bolt |
| D | N1BR Barrel cartridge replacement kit |
| 5 Spray tip | |
| 6 Seat | |
| 7 Axle sleeve | |
| 8 Stainless steel spring | |
| 9 O-ring | |
| 10 Axle bolt | |
| 11 O-ring | |
| 12 Axle | |
| 13 Lock washer | |
| 14 Bolt | |
| 15 Viton inlet washer | |
| E | N1E Bolt sleeve |
| F | N1F Locking nut |
Part No. Decription
| A | N1OC Orange insolated cover |
| A | N1YC Yellow insolated cover |
| A | N1RC Red insolated cover |
| A | N1WC White insolated cover |
| A | N1BC Black insolated cover |
| B | N1AMB Main body |
| C | N1HR Handle replacement kit |
| 1 Stainless steel nut | |
| 2 Stainless steel handle | |
| 3 Stainless steel handle arm sleeve | |
| 4 Stainless steel handle bolt |
| D | N1BR Barrel cartridge replacement kit |
| 5 Spray tip | |
| 6 Seat | |
| 7 Axle sleeve | |
| 8 Stainless steel spring | |
| 9 O-ring | |
| 10 Axle bolt | |
| 11 O-ring | |
| 12 Axle | |
| 13 Lock washer | |
| 14 Bolt | |
| 15 Viton inlet washer | |
| E | N1E Bolt sleeve |
| F | N1F Locking nut |
Part No. Decription
| A | N1OC Orange insolated cover |
| A | N1YC Yellow insolated cover |
| A | N1RC Red insolated cover |
| A | N1WC White insolated cover |
| A | N1BC Black insolated cover |
| B | N1SSMB Main body |
| C | N1HR Handle replacement kit |
| 1 Stainless steel nut | |
| 2 Stainless steel handle | |
| 3 Stainless steel handle arm sleeve | |
| 4 Stainless steel handle bolt |
| D | N1BRS Barrel cartridge replacement kit |
| 5 Spray tip | |
| 6 Seat | |
| 7 Axle sleeve | |
| 8 Stainless steel spring | |
| 9 O-ring | |
| 10 Axle bolt | |
| 11 O-ring | |
| 12 Axle | |
| 13 Lock washer | |
| 14 Bolt | |
| 15 Viton inlet washer | |
| E | N1ES Bolt sleeve |
| F | N1FS Locking nut |


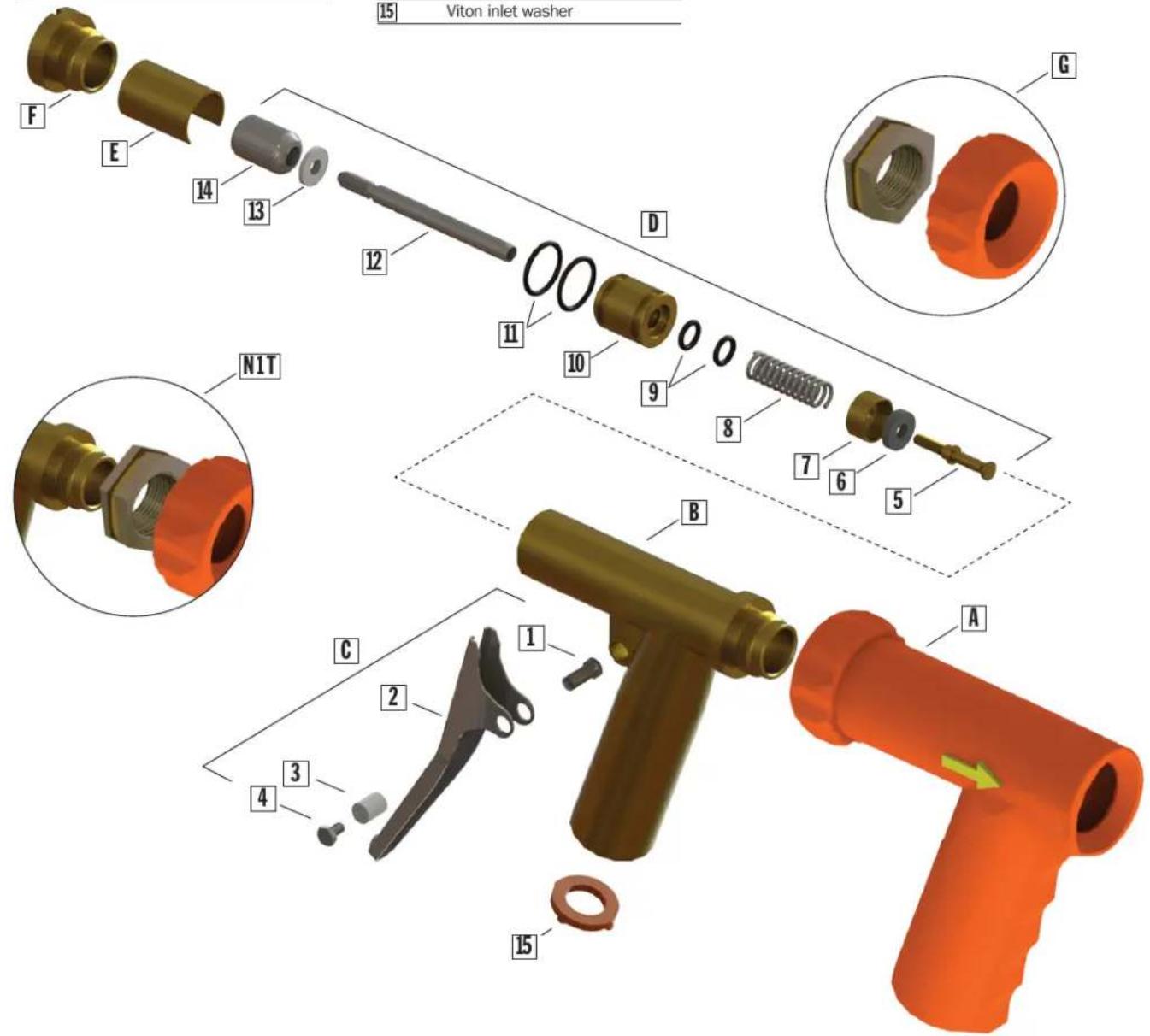

15 Viton inlet washer E N1ES Bolt sleeve F N1FS Locking nut 14 13 12 D 11 10 9 8 7 6 5 B C 1 2 3 4 15N1T Replacement Parts
Part No. Decription
| A | N1TOC Orange insolated cover |
| A | N1TYC Yellow insolated cover |
| A | N1TRC Red insolated cover |
| A | N1TWC White insolated cover |
| A | N1TBC Black insolated cover |
| B | N1TMB Main body |
| C | N1HR Handle replacement kit |
| 1 Stainless steel nut | |
| 2 Stainless steel handle | |
| 3 Stainless steel handle am sleeve | |
| 4 Stainless steel handle bolt |
| D | N1BR Barrel cartridge replacement kit |
| 5 | Spray tip |
| 6 | Seat |
| 7 | Axle sleeve |
| 8 | Stainless steel spring |
| 9 | O-ring |
| 10 | Axle bolt |
| 11 | O-ring |
| 12 | Axle |
| 13 | Lock washer |
| 14 | Bolt |
| 15 | Viton inlet washer |
| E | N1E Bolt sleeve |
| F | N1F Locking nut |
| G | N1TP Threaded tip for model N1T |
| G | N1TPW Threaded tip for model N1TB |
| G | N1TPB Threaded tip for model N1TW |
| G | N1TPY Threaded tip for model N1TY |
