USER MANUAL 5031 Sani-Lav

SANI-LAV® COLUMBIA PRODUCTS

Operating Manual for Hands-Free Floor Mount Stainless Steel Sink

Models 5031 and 5031-0.5

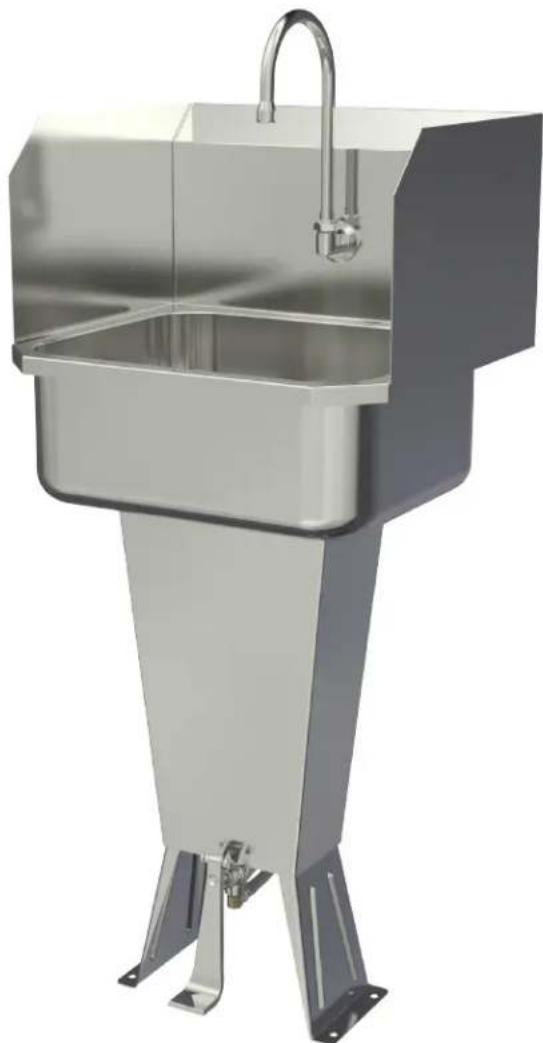

Exterior view of a stainless steel kitchen sink with faucet and metal legs (no text or symbols visible)

LOW-FLOW MODEL AVAILABLE · 0.5 GPM FLOW RATE

Columbia does not recommend use with harsh chemicals.

Product Compliance

NSF/ANSI 2 Food Equipment, NSF/ANSI 372 Low-Lead

COLUMBIA SPECIFICATIONS

HANDS-FREE FLOOR MOUNT SINK

Parts List

□(1) Sink bowl
□(1) Pedestal base
☐ (6) Nuts and washers to attach bowl to pedestal base
☐ (1) Single foot pedal valve
□(2) Valve mounting nuts
□(1) Swivel gooseneck spout with aerator
□(1) Strainer assembly with basket
☐ (1) Connecting tubes for valve to spout connection
☐ (2) Fittings, brass, 0.375" male compression and 0.375" male NPT
□ (1) Mixing check valve

Tools Required

□ Tape measure
□ Adjustable wrench
□ Drill motor and drill bits
□ Pipe wrench
□ Level
□ Safety glasses
□ Screw drivers: phillips and standard
□ Pencil
□ Socket wrench

Installation Instructions

Step 1

1. Install mixing check valve and elbow fitting to valve.
2. Set the pedestal base upside down and mount valve to base using nuts provided as shown in illustration A.
3. Do not over tighten nuts.

Step 2

1. Install strainer assembly.
2. Attach bowl to pedestal base by slipping bolts on bowl through openings on pedestal base as shown in illustration B.
3. Tighten the 6 nuts to the threaded bolts under bowl. Do not over-tighten. There are 6 bolts that will securely hold the bowl in place.

Step 3

1. Place sink at the desired location.

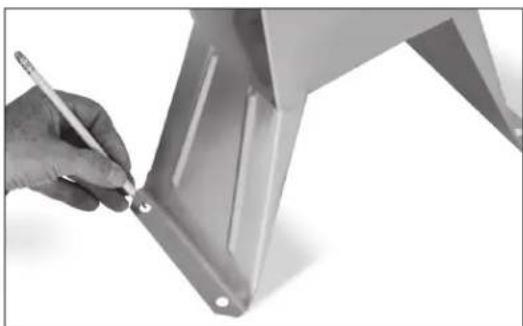

2. Mark the floor where the four holes are at the pedestal base as shown in illustration C.
3. Drill holes as required for mounting hardware (Hardware not included).

Step 4

1. Install spout assembly to the sink.
2. Install elbow fitting (provided) to the spout assembly.
3. Connect one side of the supply line (provided) to the spout assembly.
4. Attach connecting tube from the spout to valve.

Step 5

1. Mount pedestal sink to the floor.
2. Connect waste line to strainer assembly.
3. Connect water supplies (hot and cold) to the mixing check valve.

Step 6

1. Remove aerator from the spout assembly and flush water line by pressing pedal for 30 seconds.
2. Check connections for leaks. Replace aerator onto the spout assembly.

Go to columbiasinks.com for more information on replacement parts and installation videos.

Close-up of a metallic mechanical bracket with mounting holes and a central screw (no text or symbols visible)

Illustration A

Close-up of a wall-mounted electrical socket with four pins, mounted on a metal bracket (no text or symbols visible)

Illustration B

Close-up of a hand holding a pen next to a metal bracket structure (no text or symbols visible)

Illustration C

Notice for California Consumers

WARNING: This product can expose you to chemicals including Chromium (hexavalent compounds), Lead, and Phthalates (DEHP) which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

NOTE: Lead content originates from Brass components in valves and faucets and is certified under NSF/ANSI 372 as containing less than 0.25% lead in wetted surfaces.

COLUMBIA PRODUCTS

800.626.2117 • columbiasinks.com • [e-mail]

Trouble Shooting Guide

Problem Possible Cause	To Diagnose Remedy
Water drips from spout or valve stem assembly.	Flat washer on the stem/plunger is worn.	To determine if the leak source is from the hot or cold side shut cold water source off. See if water still leaks from the spout. If leak continues then repair hot side if not repair cold side.	We recommend installing valve repair kit.
Water leaks from the front of the valve.	O-Rings on the plunger are worn out.	Visually determine whether the cold or hot side is leaking. We recommend replacing threaded insert, plunger assembly & spring. See illustrations below.

Valve Repair Instructions

Note: Valves are designed to be repaired without having to be disconnected from mount or plumbing.

1. Tum off water source. Do not remove valve from sink.

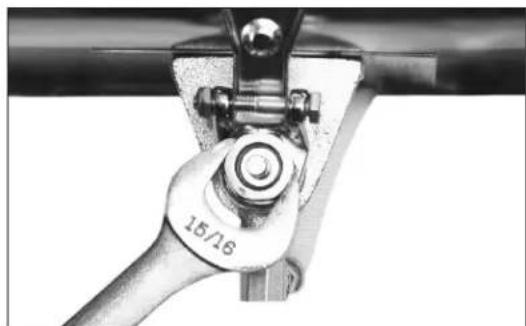

2. Remove pedal assembly using a 15/16" open end wrench or socket wrench. As shown in illustration A.

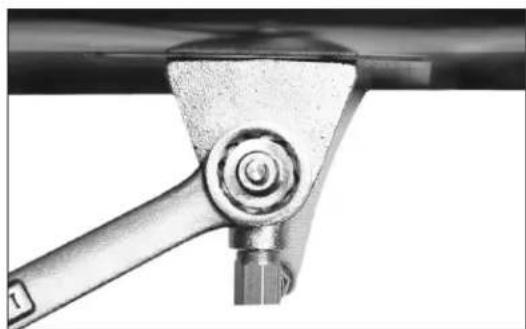

3. Using a 1" deep socket wrench remove insert assembly parts as show in illustration B.
4. Replace with new repair kit as shown on illustration C.
5. Reinstall pedal assembly and turn water source on.

Close-up of a mechanical clamp or wrench assembly with no visible text or symbols

Illustration A

Close-up of a mechanical clamp or lever assembly with no visible text or symbols

Illustration B

Close-up of a hand using a mechanical tool to adjust a metal valve component (no text or symbols visible)

Illustration C

COLUMBIA PRODUCTS

800.626.2117 • columbiasinks.com • [e-mail]

COLUMBIA SPECIFICATIONS

HANDS-FREE FLOOR MOUNT SINK

Top

5.5" (140 mm) 17" (432mm) 19" (483mm) 2" (51mm) 14" (356mm) 18" (457mm) 2" drain hole

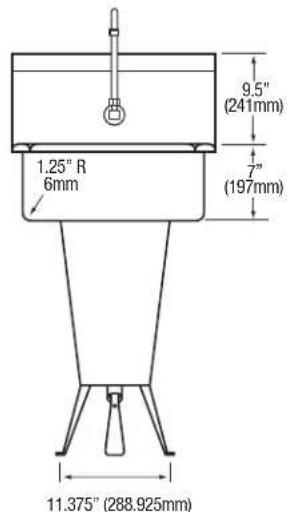

Front

1.25" R 6mm 9.5" (241mm) 7" (197mm) 11.375" (288.925mm)

Side 7.5" (191mm) 45" 16.5" (419mm) 21" (533mm) 25" (635mm) Supply Line to Spout 4.25" (107.95mm) 6" (152.4mm) 0.875" (22.225mm)

■ Hole Configuration

.875" (22mm) dia. key hole 9.5" (241mm) 9.5" (241mm) 6" (152mm) 9.5" (241mm)

■ Floor Mounting Detail

375° dia. Floor Mounting Holes 4.25° on Center

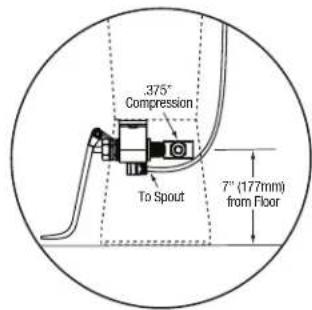

Plumbing Detail

375° Compression To Spout 7" (177mm) from Floor

■ Supply Line Detail

Back Splash 3/8" Male Compression Supply Line from Valve to Spout

Single Knee or Foot Pedal Valve .375° Compression .375° Compression To Spout

COLUMBIA PRODUCTS

800.626.2117 • columbiasinks.com • [e-mail]

Replacement Parts

Part No. Description Application

A	1041 Operated, Long Foot 103/104/105/106 (S) (L)
B	1042 Operated, Short Foot 101/102 (S) (L)
C	1043 Operated, Knee 109/110/111/112 (S) (L)
D	1049 Bolt & Nut Set (Stainless) All Single Valves
E	1050 Jam Nut (Stainless) All Valves
F	1051 Bolt & Nut Set (Stainless) All Double Valves
G	1052 Bracket All Double Valves
H	1053 Threaded Insert (Low Lead) All Valves
I	1053S Threaded Insert (Stainless) All Valves
J	1054 Bracket All Single Valves
K	1055 Plunger Assembly (Low Lead) All Valves
L	1055S Plunger Assembly (Stainless) All Valves
M	1056 Spring (Stainless) All Valves
N	1057 Body only, Double Valve (Low Lead) All Double Valves
O	1058 Body only, Single Valve All Single Valves
P	1061L Replacement Kit (Low Lead) All Valves
Q	1061S Replacement Kit (Stainless) All Valves

Double Knee or Foot Pedal

Lunger Assembly (Low Lead) All Valves Plunger Assembly (Stainless) All Valves Boring (Stainless) All Valves Body only, Double Valve (Low Lead) All Double Valves Body only, Single Valve All Single Valves Replacement Kit (Low Lead) All Valves Replacement Kit (Stainless) All Valves 1/2" NPT Inlets A G H I M N K L P Q 1/2" NPT Inlet A E F C B P 1061L Replacement Kit includes one each: 1053L, 1055L, 1056L Q 1061S Replacement Kit includes one each: 1053S, 1055S, 1056S P Q M O K L J H I A D C Single Knee or Foot Pedal B SPLOMBIA PRODUCTS

COLUMBIA PRODUCTS

800.626.2117 • columbiasinks.com • [e-mail]

Care and Maintenance

Regular cleaning will preserve the appearance and integrity of the surface. Stainless steel can easily be cleaned and kept stain-free using various methods.

Recommendations:

• Clean with an abrasive cleaner like, Bon-Ami or Zud weekly or bi-weekly. Always scrub in the direction of the grain or polish lines. Another option is to use Baking soda. Make sure to rinse well and dry. Illustration A
• Most soaps and detergents contain chlorides, we recommend rinsing the stainless-steel sink with hot water after use, to prevent corrosion. Illustration B
  • Regularly dry your sink to prevent water and surface rust marks. Illustration C
• Do not leave salt in the sink or near a saltwater environment.

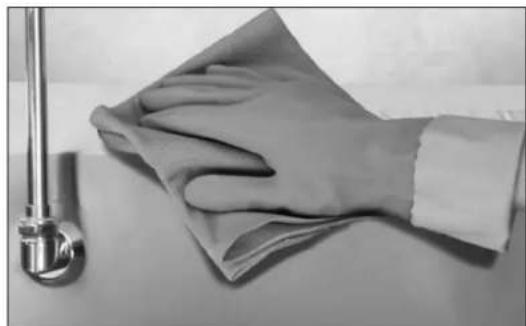

• Use a quality stainless steel cleaner and follow cleaner instructions. Wipe along the grain (NOT against). Illustration D

Things to Avoid:

• Avoid harsh abrasive cleaners and corrosive chemicals.
• Avoid abrasive scouring pads, carbon steel brushes and steel wool for cleaning as iron particles left behind can lead to rust.
• Avoid the use of oily rags or greasy cloths when wiping the surface. To avoid water spots, wipe dry after use.

Additional Tips:

• Regularly drying your sink works wonders to prevent water and surface rust marks.

- Wear rubber gloves when working with cleaners to protect your hands.

- Never mix cleaners. Some products react to create dangerous gases.

- There are thousands of blended or compound cleaners on the market. Users are advised to contact suppliers of solvents for information on their applications on stainless steel.

• DO NOT USE SOLVENTS in closed spaces or while smoking.

• Note: Columbia does not recommend use with harsh chemicals.

Close-up of a circular mechanical component with internal grooves and water droplets (no text or symbols visible)

Illustration A

Close-up of a pipe passing through a container with bubbles rising, showing fluid and bubbles (no text or symbols visible)

Illustration B

Close-up of a hand cleaning a stainless steel faucet with a cloth (no text or symbols visible)

Illustration C

Hand cleaning a surface with a cloth, next to a stainless steel pipe (no text or symbols visible)

Illustration D
