USER MANUAL 7270 Sani-Lav

SANI-LAV® COLUMBIA PRODUCTS

Floor Mount Stainless Steel Sink

Model 7270

3D rendering of a stainless steel kitchen grater with metal frame structure (no text or symbols visible)

Columbia does not recommend use with harsh chemicals.

Product Compliance

NSF/ANSI 2 Food Equipment

COLUMBIA SPECIFICATIONS

FLOOR MOUNT SINK

Parts List

□ (1) Floor mount sink
□(1) Leg assembly set
□ (6) Nuts, bolts and washers for leg assembly
☐ (4) Nuts and washers for connecting sink to leg assembly
□ (1) Strainer assembly with basket

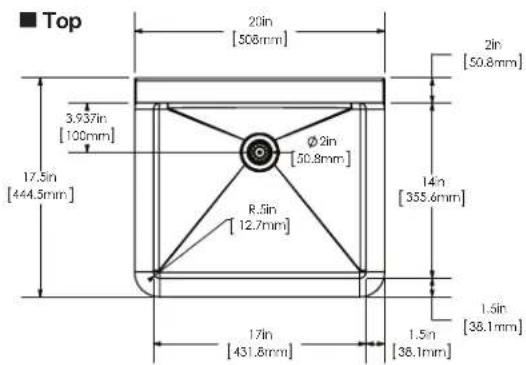

Top 20in [508mm] 3.937in [100mm] φ2in [50.8mm] 17.5in [444.5mm] R.5in [12.7mm] 14in [355.6mm] 1.5in [38.1mm] 17in [431.8mm] 1.5in [38.1mm]

Line drawing of a mechanical device with a central housing and support structure (no text or symbols)

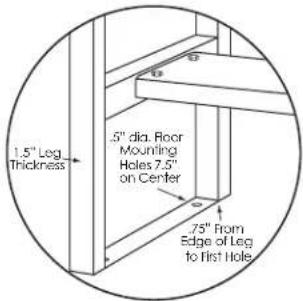

■ Floor Mounting Detail

1.5" Leg Thickness 5" dia. Roof Mounting Holes 7.5" on Center 75" From Edge of Leg to First Hole

Front

10in [254mm] 10in [254mm] 9.5in [241.3mm] Ø .875in [22.2mm] 6.25in [158.8mm] 7in [178.9mm] 27in [685.8mm] 15.25in [387.4mm]

Side

1.5in [365.7mm] 45deg 2.5in [43.5mm] R,75in [19.1mm] .75in [19.1mm] 3in [76.2mm] 7.5in [190.5mm] 2.25in [57.2mm] 12in [304.8mm]

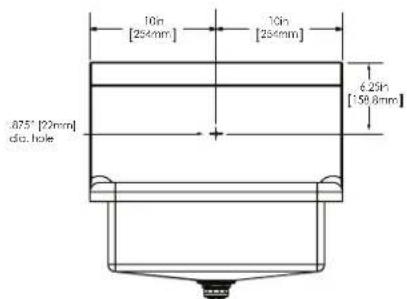

■ Hole Configuration

10in [254mm] 10in [254mm] 6.25in [158.8mm] Ø75° [22mm] dis.hole

WARNING: Equipment that include faucets on this page may contain a chemical known to the State of California to cause cancer, birth defects or other reproductive harm.

COLUMBIA PRODUCTS

800.626.2117 • columbiasinks.com • [e-mail]

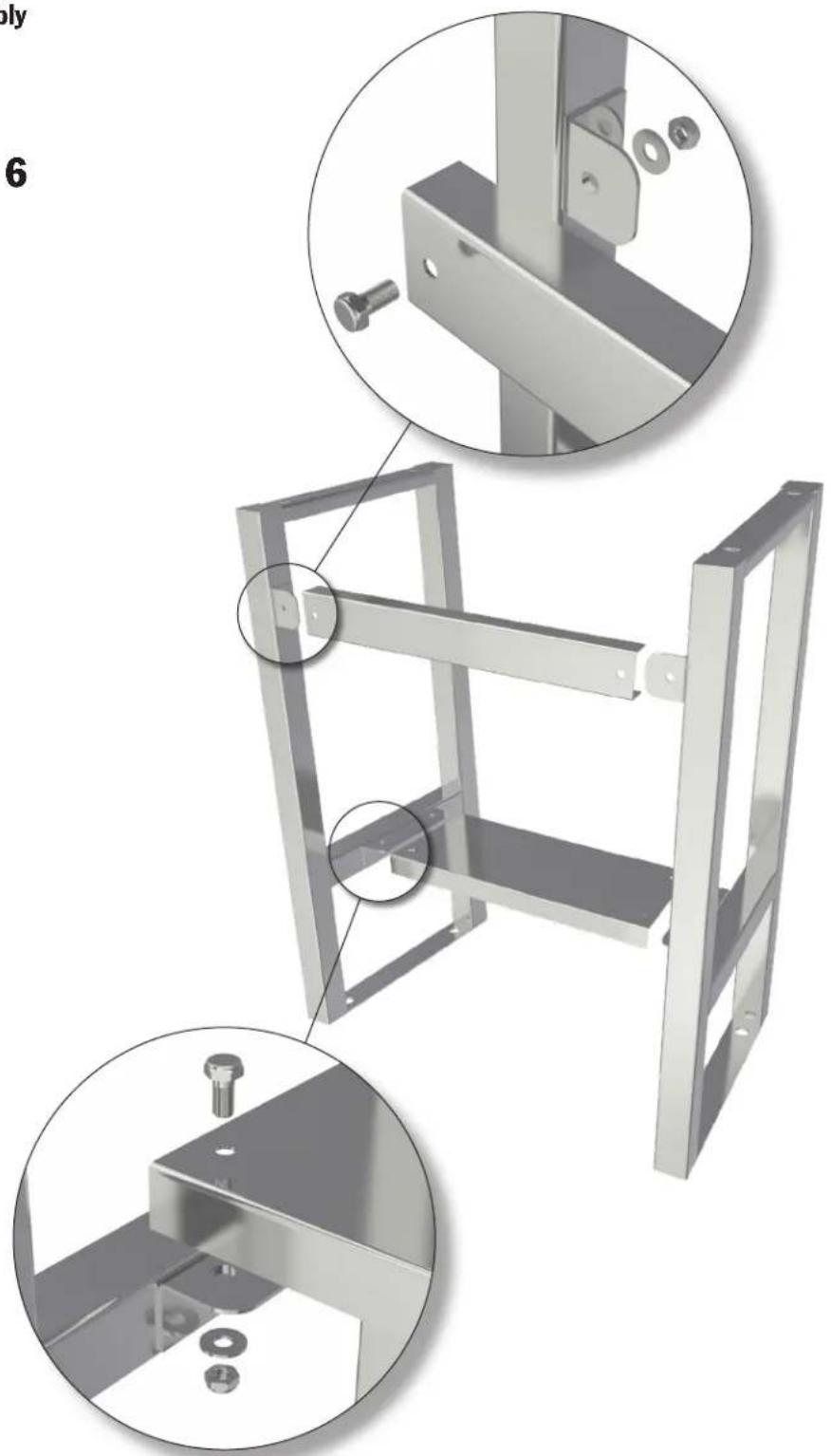

Leg Assembly

x 6

Technical illustration of a metal frame structure with close-up insets showing mounting details (no text or symbols)

Care and Maintenance

Regular cleaning will preserve the appearance and integrity of the surface. Stainless steel can easily be cleaned and kept stain-free using various methods.

Recommendations:

• Clean with an abrasive cleaner like, Bon-Ami or Zud weekly or bi-weekly. Always scrub in the direction of the grain or polish lines. Another option is to use Baking soda. Make sure to rinse well and dry. Illustration A
• Most soaps and detergents contain chlorides, we recommend rinsing the stainless-steel sink with hot water after use, to prevent corrosion. Illustration B
  • Regularly dry your sink to prevent water and surface rust marks. Illustration C
• Do not leave salt in the sink or near a saltwater environment.
• Use a quality stainless steel cleaner and follow cleaner instructions. Wipe along the grain (NOT against). Illustration D

Things to Avoid:

• Avoid harsh abrasive cleaners and corrosive chemicals.
• Avoid abrasive scouring pads, carbon steel brushes and steel wool for cleaning as iron particles left behind can lead to rust.
• Avoid the use of oily rags or greasy cloths when wiping the surface. To avoid water spots, wipe dry after use.

Additional Tips:

• Regularly drying your sink works wonders to prevent water and surface rust marks.
- Wear rubber gloves when working with cleaners to protect your hands.
- Never mix cleaners. Some products react to create dangerous gases.
- There are thousands of blended or compound cleaners on the market. Users are advised to contact suppliers of solvents for information on their applications on stainless steel.
• DO NOT USE SOLVENTS in closed spaces or while smoking.
• Note: Columbia does not recommend use with harsh chemicals.

Close-up of a circular mechanical component with internal grooves and water droplets (no text or symbols visible)

Illustration A

Close-up of a pipe passing through a container with bubbles rising, showing fluid and bubbles (no text or symbols visible)

Illustration B

Close-up of a hand cleaning a stainless steel faucet with a cloth (no text or symbols visible)

Illustration C

Hand cleaning a surface with a cloth, next to a stainless steel pipe (no text or symbols visible)

Illustration D
