USER MANUAL N81B Sani-Lav

COLUMBIA PRODUCTS SANI-LAV

Model N8 Nozzle Series

Two red and orange model clamps with metal handles, shown side by side (no text or symbols on the devices themselves)

Two model of a hammer tool with white and black handles, shown from different angles (no text or symbols on the tools themselves)

Close-up of a metallic mechanical component with a red cap and threaded shaft (no visible text or symbols)

Models
N820, N8R20, N8W20 and N8B20
N8120, N81R20, N81W20 and N81B20
N8S120, N8S1R20, N8S1W20 and N8S1B20

Universal Features Include

• 3/4" GHT inlet allows direct hose connection
  • Maximum working pressure 150 psi
  • Maximum operating temperature: 200°F/93°C
• Weight 2.3 lbs., 2.7 lbs. for models with N20 swivel adapter
  • Safety shut off trigger when released
• Replaceable insulated safety orange, red, white or black covers

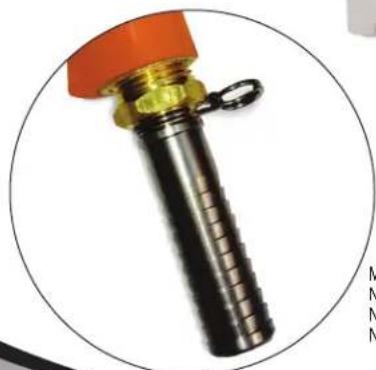

Close-up of a metallic threaded component with attached ring, shown in two views (top and side), labeled 'Model N20' (no text on the component itself)

N20 Swivel 3/4" GHT, 3/4" hose barb included with models: N820, N8R20, N8W20 and N8B20 N8120, N81R20, N81W20 and N81B20 N8S120, N8S1R20, N8S1W20 and N8S1B20 (Sold separately on all other Models)

Model	Color	Body	Handle Type	Inlet	Max psl	Max Temp	Weight	GPM @ 100 psl	Swivel Adapter
Brass
N8	Safety Orange	Brass	Stainless	3/4" FGHT	150	200	2.3	8.9	n/a
N8R	Red	Brass	Stainless	3/4" FGHT	150	200	2.3	8.9	n/a
N8W	White	Brass	Stainless	3/4" FGHT	150	200	2.3	8.9	n/a
N8B	Black	Brass	Stainless	3/4" FGHT	150	200	2.3	8.9	n/a
N820	Safety Orange	Brass	Stainless	3/4" FGHT	150	200	2.7	8.9	N20
N8R20	Red	Brass	Stainless	3/4" FGHT	150	200	2.7	8.9	N20
N8B20	Black	Brass	Stainless	3/4" FGHT	150	200	2.7	8.9	N20
N8W20	White	Brass	Stainless	3/4" FGHT	150	200	2.7	8.9	N20
Stainless Steel
N8S20	Safety Orange	Stainless	Stainless	3/4" FGHT	150	200	2.7	8.9	N20
N8SR20	Red	Stainless	Stainless	3/4" FGHT	150	200	2.7	8.9	N20
N8SB20	Black	Stainless	Stainless	3/4" FGHT	150	200	2.7	8.9	N20
N8SW20	White	Stainless	Stainless	3/4" FGHT	150	200	2.7	8.9	N20
Low Flow
N81	Safety Orange	Brass	Stainless	3/4" FGHT	150	200	2.3	5.3 Low Flow	n/a
N81R	Red	Brass	Stainless	3/4" FGHT	150	200	2.3	5.3 Low Flow	n/a
N81B	Black	Brass	Stainless	3/4" FGHT	150	200	2.3	5.3 Low Flow	n/a
N81W	White	Brass	Stainless	3/4" FGHT	150	200	2.3	5.3 Low Flow	n/a
N8120	Safety Orange	Brass	Stainless	3/4" FGHT	150	200	2.7	5.3 Low Flow	N20
N81R20	Red	Brass	Stainless	3/4" FGHT	150	200	2.7	5.3 Low Flow	N20
N81B20	Black	Brass	Stainless	3/4" FGHT	150	200	2.7	5.3 Low Flow	N20
N81W20	White	Brass	Stainless	3/4" FGHT	150	200	2.7	5.3 Low Flow	N20

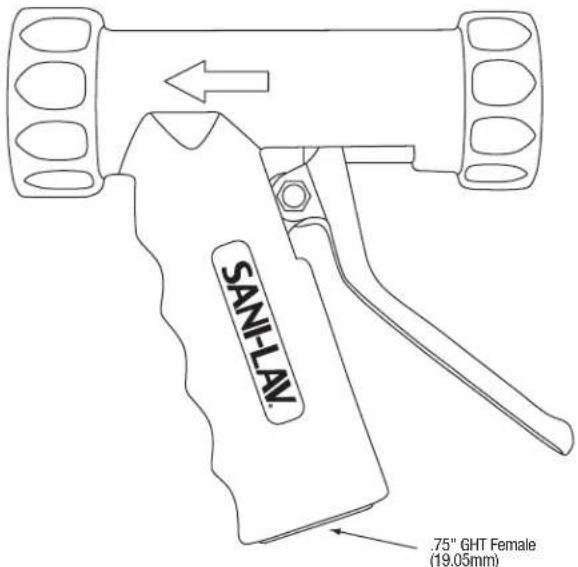

SAN-LAY .75" GHT Female (19.05mm)

Trigger lever controls variable spray patem

N17 Swivel Adapter (sold separately)

N20 Swivel Adapter (sold with models ending in 20)

Notice for California Consumers

WARNING: This product can expose you to chemicals including Lead, and Phthalates (DEHP) which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

1622 Browning • Irvine, CA • 92606 4809 • Phone: [phone] • Toll Free: 800.626.2117 • Fax: [phone] • www.columbiasinks.com • email: [e-mail]

COLUMBIA PRODUCTS

N8 Replacement Parts

Part No. Decription

A	N80C	Orange insolated cover
A	N8RC	Red insolated cover
A	N8WC	White insolated cover
A	N8BC	Black insolated cover

B	N8MB Main body
C	N8HR Handle replacement kit
	1 Stainless steel nut
	2 Stainless steel handle
	3 Stainless steel handle arm sleeve
	4 Stainless steel handle bolt

D	N8BR Barrel cartridge replacement kit
	5	Flow adjustment tip
	6	Washer
	7	Washer sleeve
	8	Axle
	9	Stainless steel spring
	10	O-ring
	11	Axle bolt
	12	O-ring
	13	Nut
	14	Lock washer
	15	Bolt
	16	Viton inlet washer
E	N8E	Bolt sleeve
F	N8F	Locking nut

14 Lock washer 15 Bolt 16 Viton inlet washer E N8E Bolt sleeve F N8F Locking nut 15 16 14 15 13 12 11 10 9 8 7 6 5 B C 2 1 4 3 16 A
