General

This document elaborates on product profile, structure, operation, device upgrade and technical parameters.

Models

UAV-GA-V-2030U

UAV-GA-V-2045U

Safety Instructions

The following categorized signal words with defined meaning might appear in the Manual.

Symbol Note
Danger	It means highly potential danger. It will cause severe injury or casualties if it fails to avoid.
Warning	It means moderate or low potential danger. It may cause slight or moderate injury if it fails to avoid.
Caution	It means potential risk. It may cause device damage, data loss, weaker performance or other unpredictable consequences if it fails to avoid.
Tip	It means that it can help to solve some problems or save time.
Note	It means the additional information, which is the emphasis and supplement of the main body.

Revision History

No.	Version No.	Revision Content	Release Date
1	V1.0.0	First release	2018.4

Privacy Protection Notice

As the device user or data controller, you might collect personal data of others' such as face, fingerprints, car plate number, Email address, phone number, GPS and so on. You need to be in compliance with the local privacy protection laws and regulations to protect the legitimate rights and interests of other people by implementing measures include but not limited to: providing clear and visible identification to inform data subject the existence of surveillance

area and providing related contact.

About the Manual

• The Manual is for reference only. If there is inconsistency between the Manual and the actual product, the actual product shall prevail.
  We are not liable for any loss caused by the operations that do not comply with the Manual.
• The Manual would be updated according to the latest laws and regulations of related regions. For detailed information, see the paper User's Manual, CD-ROM, QR code or our official website. If there is inconsistency between paper User's Manual and the electronic version, the electronic version shall prevail.
• All the designs and software are subject to change without prior written notice. The product updates might cause some differences between the actual product and the Manual. Please contact the customer service for the latest program and supplementary documentation.
• There still might be deviation in technical data, functions and operations description, or errors in print. If there is any doubt or dispute, please refer to our final explanation.
• Upgrade the reader software or try other mainstream reader software if the Guide (in PDF format) cannot be opened.
• All trademarks, registered trademarks and the company names in the Manual are the properties of their respective owners.
• Please visit our website, contact the supplier or customer service if there is any problem occurred when using the device.
• If there is any uncertainty or controversy, please refer to our final explanation.

Important Safeguards and Warnings

The following description is the correct application method of the device. Please read the manual carefully before use, in order to prevent danger and property loss. Strictly conform to the manual during application and keep it properly after reading.

Caution

• Don't touch the lens of PTZ camera directly. Use an air blower to blow away the dust or dirt on the lens surface.
• Don't drip or splash liquids onto the device; don't put around the device anything filled with liquids, in order to prevent liquids from flowing into the device.
• Please transport, use and store the device within allowed humidity and temperature range.
• Don't compress, vibrate violently or immerse the device during transportation, storage and installation.

Warning

• Use the standard components or accessories provided by manufacturer and make sure that the device is installed and fixed by professional engineers.
• Do not provide two or more power supply sources for the device; otherwise it might damage the device.

Table of Contents

Cybersecurity Recommendations....2

Foreword......V

Important Safeguards and Warnings....VII

1 Product Profile....1

1.1 Product Overview.... 1
1.2 Product Function.... 1

2 Device Structure 3

2.1 Product Dimensions .... 3
2.2 Structural Component .... 5

3 Device Operation 7

3.1 Device Installation....7
3.2 Picture Acquisition Mode 8

3.2.1 SD Card....8
3.2.2 Ground Control Station....8

4 Device Upgrade....10
5 Technical Parameters....12
6 FAQ....13

1.1 Product Overview

As the core of unmanned aircraft system, airborne PTZ adopts oriented vector control technology of permanent magnet motor rotor field, high-precision triaxial servo autostability technology and compact portable design.

With pitch, roll and course triaxial autostability function, this product is mounted on the aircraft to shoot videos. Users can read real-time video data via network, and dismantle SD card to read video files.

This product is mainly applied in multi-rotor drone to effectively prevent the effect of drone posture change and jitter on the video image, so PTZ camera provides clear and stable video images in all cases.

1.2 Product Function

Note

Some functions of the product are listed below, just for your reference. Different types of products may have different functions. Please refer to actual functions of the product.

Triaxial Autostability

When pitch, roll and course axes rotate or shake, PTZ base and camera gesture are able to keep stable, so video images are clear, without jittering.

Target Tracking

In a preset single scenario, PTZ camera can track a moving person or vehicle. Manually select a moving person or vehicle in the video, and track the target.

Rotation Mode

• Following mode: when the aircraft moves forward, backward, left and right horizontally, PTZ follows to rotate, so surveillance direction is always consistent with aircraft movement direction.
• Locking mode: PTZ doesn't rotate with the aircraft movement.

3D Positioning

Draw a circle on the remote control or click any zone in the surveillance image, within the allowed rotation angle range, the aircraft will keep this zone at the center of the screen, zoom in or zoom out this zone.

Storage Function

• Embedded multi-media card (eMMC), SD card, extended storage with solid state disk; support to resume transmission after recovering from network outage.
  • Cyclic coverage of storage media.

Alarm Function

Through network, give an alarm about camera abnormality, such as memory damages.

OSD Setting

Set OSD info and position of video channel, image and composite image.

Power Supply

Support DC 24V power supply.

White Balance

• Auto white balance: be able to accurately reflect color condition of the target when ray of light changes.
• Partial white balance: adjust color condition of the target by reference to surroundings.

Auto Exposure

According to lighting and scenario, adjust exposure automatically; prevent overexposure or underexposure.

Auto Gain

In case of very low illumination, increase camera sensitivity automatically, enhance image signal output and thus obtain clear and bright images.

Auto Focus

According to the target distance, the camera adjusts lens focus distance automatically, so as to realize the clearest image of the target.

Optical Zoom

• Model 2030 supports 30x optical zoom and 16x electronic zoom.
● Model 2045 supports 40x optical zoom and 16x electronic zoom.

2.1 Product Dimensions

135 4.1 31.9 62 127

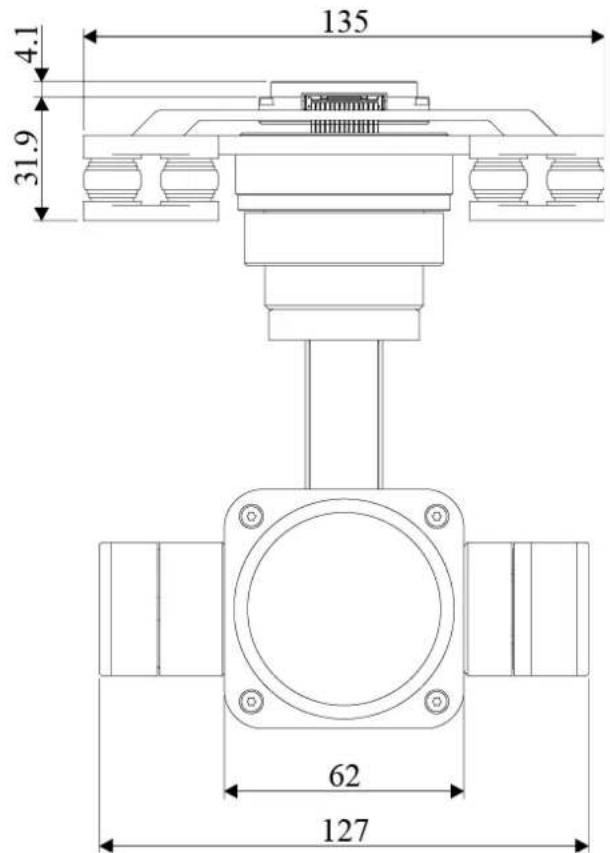

Figure 2-1 UAV-GA-V-2030U Front View (unit: mm)

170 107 62 168

Figure 2-2 UAV-GA-V-2030U Side View (unit: mm)

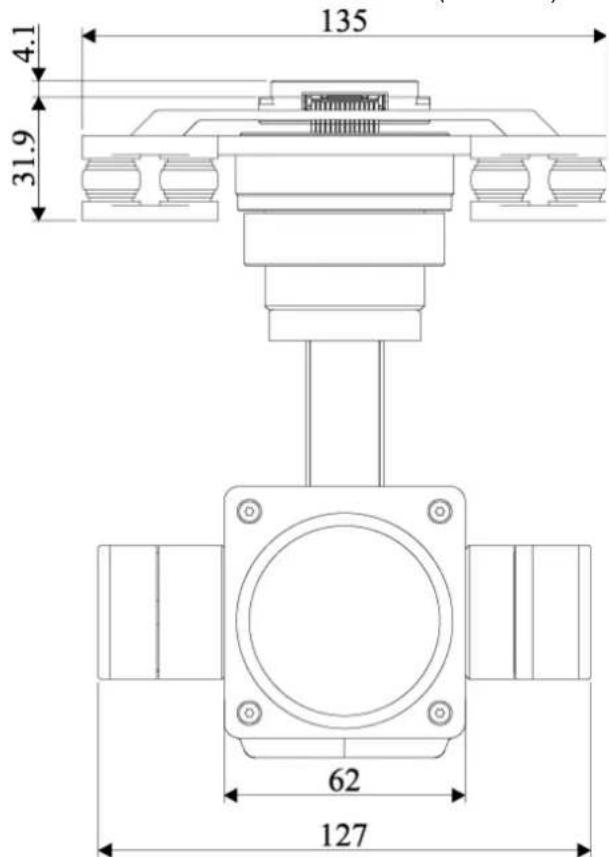

135 4.1 31.9 62 127

Figure 2-3 UAV-GA-V-2045U Front View (unit: mm)

170 107 70 175

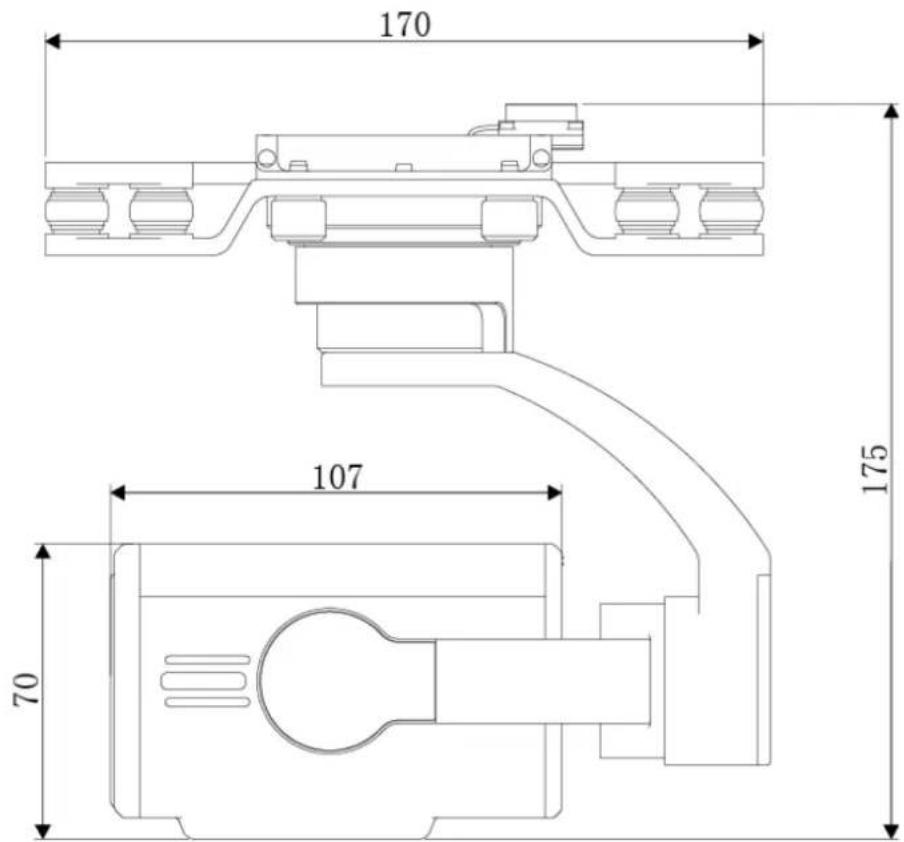

Figure 2-4 UAV-GA-V-2045U Side View (unit: mm)

2.2 Structural Component

Note

• Introduce structural component of the device, taking UAV-GA-V-2030U for example.
• Schematic diagram is just for your reference. Please refer to actual device.

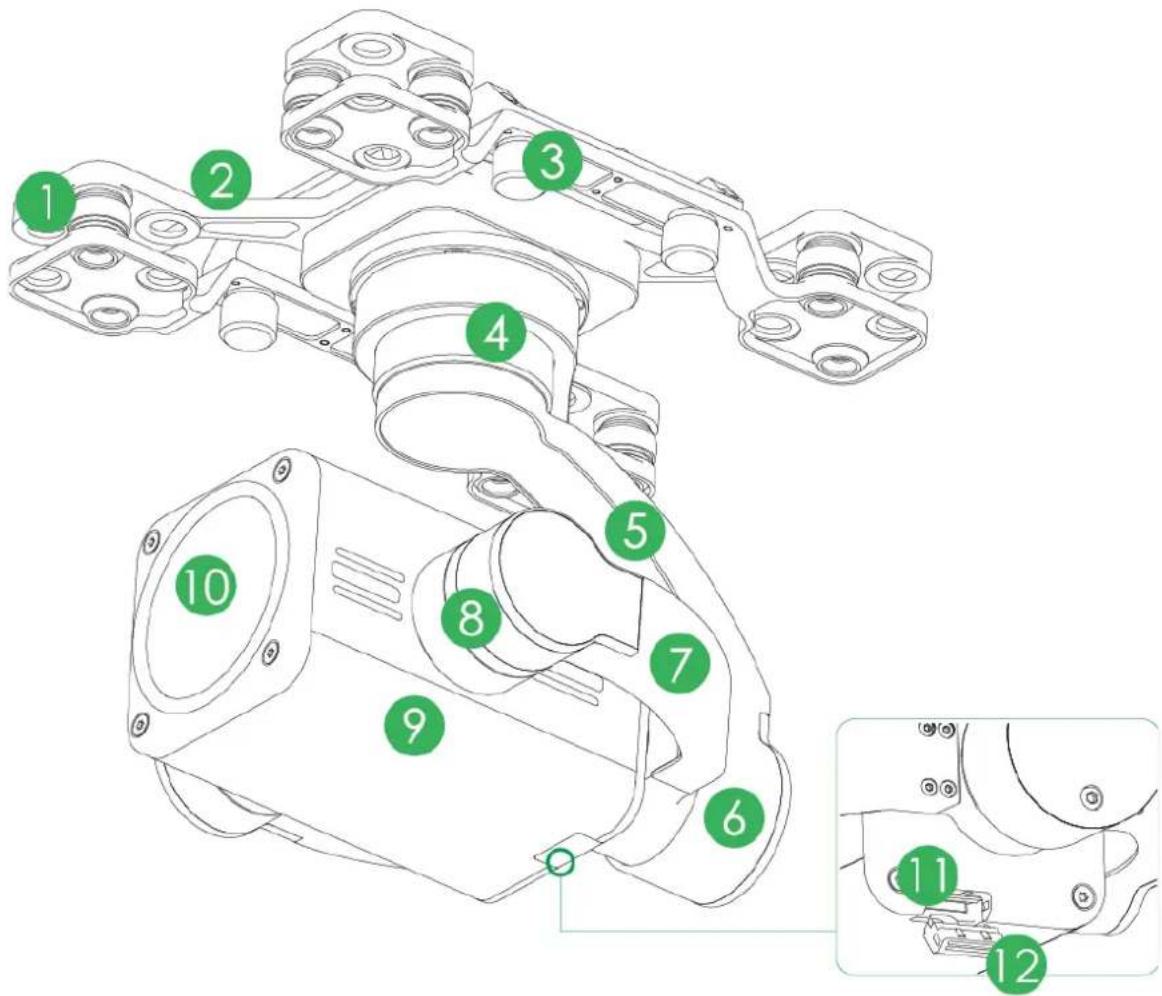

Technical diagram of a mechanical assembly with numbered components, likely for assembly or maintenance reference.

Figure 2-5

No.	Name	Function
1 Shock absorber ball		Reduce jitter of PTZ camera during flight; obtain clearer pictures.
2 Shock absorber board
3	Installation screw	Fix PTZ camera onto the aircraft.
4	Yaw motor	Control horizontal rotation direction of the camera.
5	Yaw rotation arm
6	Roll motor	Control rotation angle of roll axis.
7 Roll	rotation arm
8	Pitch motor	Control rotation angle of pitch axis.
9 Camera		Take pictures.
10 Lens
11 SD card slot		Install SD card.[GWAT] NoteSD card slot of UAV-GA-V-2045U is at the top left corner.Please refer to actual product.
12 SD card plug		Cover outside the SD card slot is used to protect SD card slot.

Table 2-1

3.1 Device Installation

Note

This chapter explains device installation by taking NAVIGATOR X820 for example. Please refer to actual product.

Step 1 Insert data cable interface at the bottom of aircraft into the interface at the top of shock absorber board, as shown in Figure 3-1.

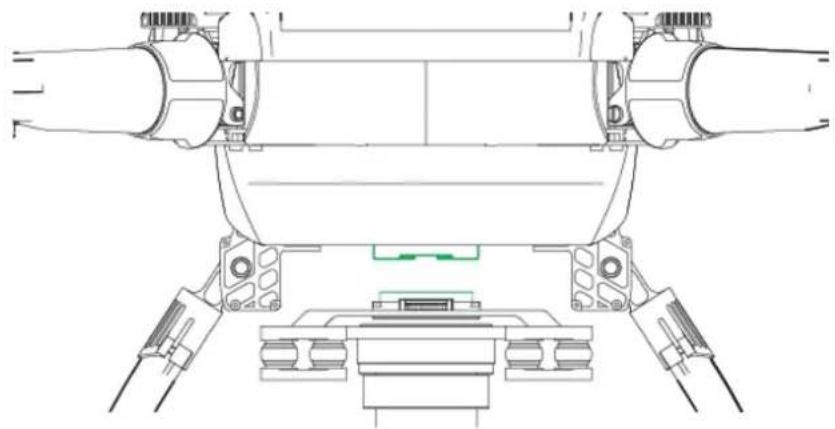

Technical line drawing of a mechanical assembly with no visible text or symbols

Figure 3-1

Step 2 Align 4 installation screws with bottom holes of the aircraft, and tighten them. Fix PTZ camera onto the aircraft, as shown in Figure 3-2.

Line drawing of a hand adjusting a mechanical component with multiple bolts and housing (no text or symbols)

Figure 3-2

Step 3 Turn on power supply of the aircraft, and wait for IMU (Inertial Measurement Unit) calibration. After completing IMU calibration, the motor starts working while PTZ returns to the center automatically.

Thus, PTZ camera has been installed completely.

3.2 Picture Acquisition Mode

This chapter mainly introduces how to acquire pictures from SD card and ground control station.

3.2.1 SD Card

Note

• This chapter explains SD card by taking UAV-GA-V-2030U for example.
- SD card positions of different devices vary. Please refer to actual product.

Step 1 Open SD card plug with a hand, as shown in Figure 3-3.

Line drawing of a hand inserting a small electronic component into a device (no text or symbols)

Figure 3-3

Step 2 Press SD card gently, and SD card will pop up. Pull out SD card.
Step 3 Insert SD card into card reader, and connect the card reader with computer. With the card reader, copy videos in SD card to the computer, and save them.

3.2.2 Ground Control Station

Note

• Ground control station and the device are in the same network segment by default, which need no configuration.
  One set of device has been paired before leaving factory, so the user doesn't need to pair

again. If several devices are mixed and cannot be distinguished, please pair them before operation. For details, please refer to drone user's manual.

Step 1 Turn on power supply of ground control station, remote control and aircraft.

Wireless module of the aircraft connects wireless module of ground control station and remote control automatically.

Step 2 During flight, through wireless module of ground control station, view pictures of PTZ camera in a real-time way.

Caution

• This chapter only applies to camera upgrade.
• Only one device can be upgraded each time.

Note

In case of device disconnection during upgrade, as long as ConfigTool stays at the upgrade interface, the device will continue the last upgrade when it is connected with network again.

Precondition:

• Upgrade package has been obtained.
• PC has wireless network card.

Step 1 In PC, select "Start > Control Panel > Network and Internet > Connections". The system displays "Connections" interface, to search WLAN of ground control station.
Step 2 After finding "Network Name" on the "Pair" interface, enter corresponding "Password". "Pair" interface of ground control station is shown in Figure 4-1.

Vehicle Setup Summary Offline Map Pair Pair Make sure video transfer switch depressed,SSID and Password acquired before pair! SSID: RUFUTRIM Password: 34366859 Start Pair

Figure 4-1

Step 3 Click "Join" to join WLAN of ground control station.
Step 4 In PC, double click "ConfigTool.exe" to open quick configuration tool.

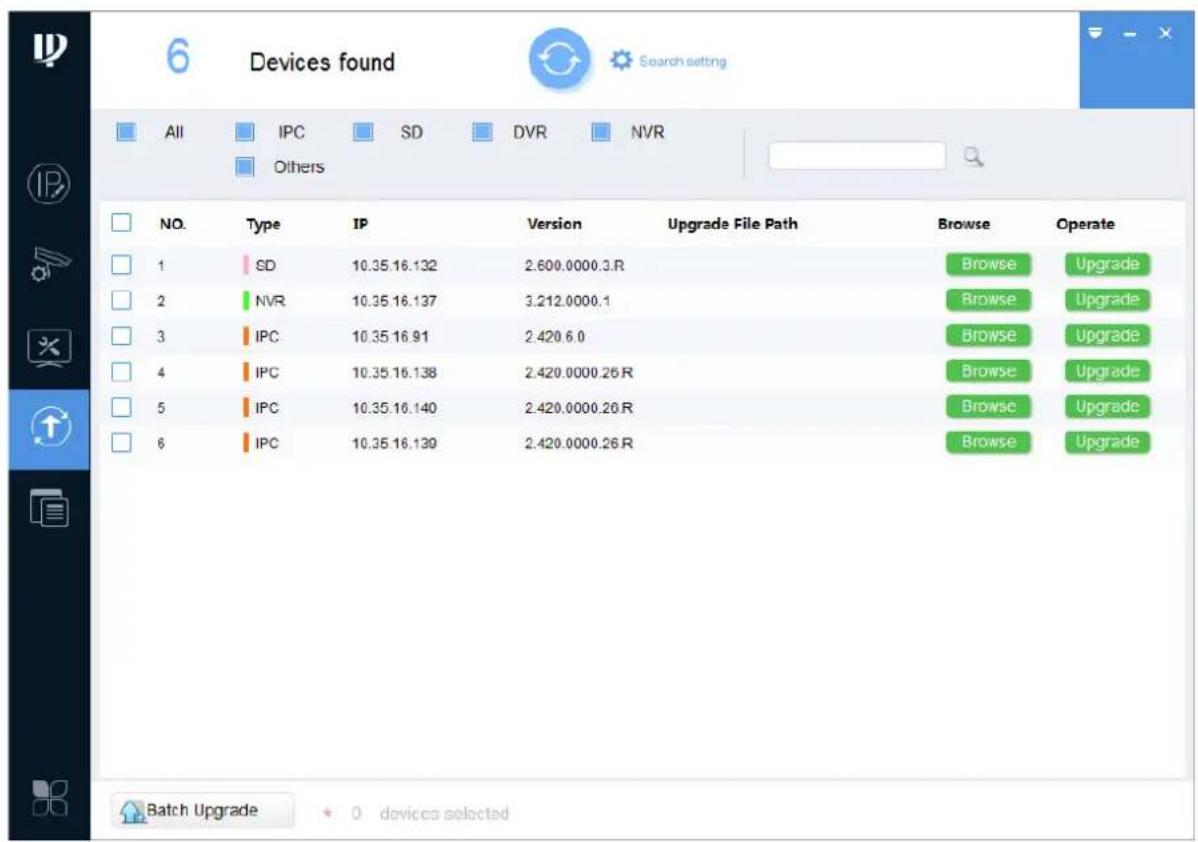

Step 5 Click and the system displays upgrade interface, as shown in Figure 4-2.

Figure 4-2

Step 6 Click "Open" corresponding to the device that shall be upgraded.

Step 7 Select upgrade file, as shown in Figure 4-3.

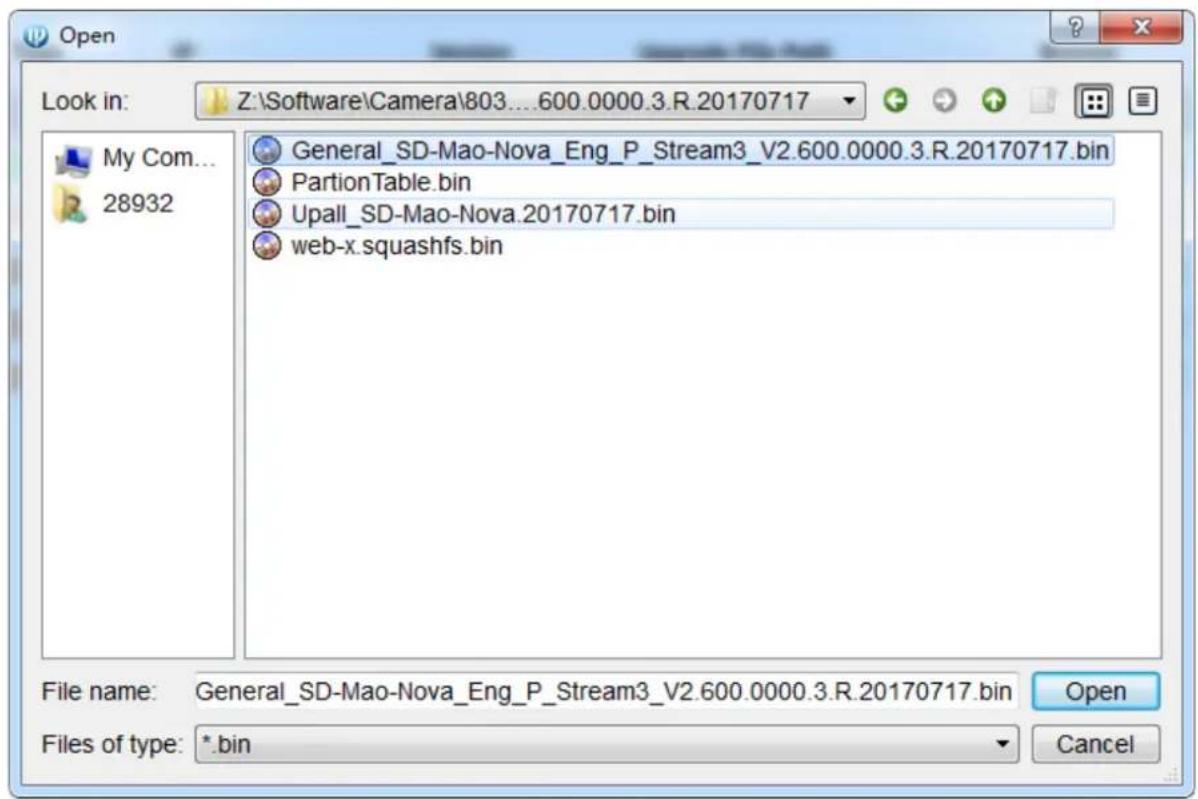

Look in: Z:\Software\Camera\803...600.0000.3.R.20170717 General_SD-Mao-Nova_Eng_P_Stream3_V2.600.0000.3.R.20170717.bin PartionTable.bin Upall_SD-Mao-Nova.20170717.bin web-x.squashfs.bin File name: General_SD-Mao-Nova_Eng_P_Stream3_V2.600.0000.3.R.20170717.bin Files of type: *.bin Open Cancel

Figure 4-3

Step 8 Click "Upgrade". The system starts upgrading and displays the progress.

Parameter	Description
Product Model	UAV-GA-V-2030U	UAV-GA-V-2045U
Max. optical zoom of PTZ camera	30x	40x
Max. electronic zoom of PTZ camera	16x
Pixel of PTZ camera	2MP
Field angle	Horizontal: 67.8°~2.77°	Horizontal: 66.55°~1.95°
Focal length	4.5mm~135mm	4.38mm~177.9mm
Image resolution 1920×1080
Digital noise reduction 3D
Minimum illumination	● Color: 0.005Lux/F1.5● Black and white: 0.0005Lux/F1.5	● Color: 0.016Lux/F1.6● Black and white: 0.000131Lux/F1.6
Operating ambient temperature	-20°C~+60°C
Total weight	880g	946g
Angle stabilization precision	±0.01°
Quantity of anti-jittering axis	3 axes
Pitch rotation range	-90°~+45°
Roll rotation range	±90°
Course rotation range	±173°
Max. controllable angle speed of pitch axis	±130°/s
Max. controllable angle speed of course axis	±130°/s
PTZ dimension	171.8mm×135mm×168mm	171.8mm×135mm×175mm
PTZ function	Yaw following and yaw locking
Smart tracking Available
3D positioning function	Available
Points for Attention	Countermeasures
Hot plugging of SD card	In order to guarantee data integrity, please stop recording and snapshotting; wait for about 15s before pulling out the SD card. Otherwise, all data in SD card may be lost.
Read-write time limitation of SD card	Please don’t set SD card to be storage medium of recording at fixed time. Otherwise, SD card may run out of read-write life and go wrong quickly.
Recommended SD card type	8GB, 16GB, 32GB and 128GB high-speed card.
Fail to pop up installation dialog box of WEB controls webrec.cab	Please set security level of IE browser to be “Low” and “ActiveX Plug-ins and Controls” to “Enable”.

Table 5-1

Table 6-1
